Introduction

The RK-DVS200 is the ideal solution for extending DVI-D signals to remote locations up to 220 feet away. It is the ideal way to extend up to 16 workstation computers from one location to another location or various locations. It is fully compatible with Mac, PC and Linux standards. Up to 16 displays can be extended easily from a rack without the complication or expense of multiple extenders. Rather than buy multiple extenders for rack components, and having to find power strips or numerous power outlets for the adapters, the SmartAVI rack series of extenders allows for up to 16 inputs and 16 outputs from a single rack device. The extender comes in three configurations: four inputs and four outputs, eight inputs and eight outputs, and 16 inputs and 16 outputs. The extender can achieve the full output distance of 220 feet when using a Cat6 23AWG STP cable.

Features

• Supports up to 16 DVI-D single-link sources
• Supports high resolution 1920x1200 60Hz WUXGA
• Supports Mac, PC, and Linux DVI
• Distance: 220 feet using Cat6 23AWG STP cables
• Uses universal DVI Single Link connectors
• Zero pixel loss with TMDS signal correction
• DDC from internal table for Mac/PC
• Compatible with all operating systems
• Compatible with all major KVM switches
- Rack mountable solution
• Data recovery for digital video
• Supports 1.5 and 12Mbps data rates
- Plug-and-play

Applications

• Medical Applications
• Industrial Work Areas
• Home Theater Integration
• Digital Signage Deployment
• Information Kiosks/Displays
• Film/Recording Studios

What's in the Box?

PART NO. DESCRIPTION

RK-DVS-TX4S DVI RACK 4-port Transmitter over STP CAT6

RK-DVS-TX8S DVI RACK 8-port Transmitter over STP CAT6

RK-DVS-TX16S DVI RACK 16-port Transmitter over STP CAT6

RK-DVS-RX4S DVI RACK 4-port Receiver over STP CAT6

RK-DVS-RX8S DVI RACK 8-port Receiver over STP CAT6

RK-DVS-RX16S DVI RACK 16-port Receiver over STP CAT6

Technical Specifications\*

VIDEO
Format DVI-D Single Line	165 MHz
Maximum Pixel Clock 165 MHz
Input Interface (TX) (16)	DVI-D 29-pin female
Output Interface (RX) (16)	DVI-D 29-pin female
Resolution Up to 1920 x	1200 @60Hz
DDC	5 volts p-p(TTL)
Input Equalization	Automatic
Input/Output Cable Length	Up to 20 ft.
Extension over Cat6	Up to 220 ft.

OTHER
Power	Internal 110-240 VAC
Dimensions	17 in W x 3.5 in H x 3.25 in D
Weight	10 lb
Operating Temp.	0-55 °C (32-131°F)
Storage Temp.	-20-85 °C (-4-185 °F)
Humidity	Up to 95%

*specifications shown are for 16-Port option

Installation Diagram One - Rack to Endpoint

COMPUTERS RK-DVS200 TRANSMITTER Up to 220 ft over STP DVS-RX200 RECEIVER 16 DVI-D DISPLAYS

1. Power off all devices.
2. Connect up to 16 DVI-D sources (computers) to each of the 16 DVI-D ports on the rear of the RK-DVS200 transmitter.
3. Connect the RK-DVS200 transmitter to the rear of each of the receivers with one STP (Sheilded Twisted Pair) cable per receiver.
4. Connect up to 16 DVI displays to the DVI-D ports on the front of the receivers.
5. Connect the power to the RK-DVS200 transmitter and receiver.
6. Power on the computers and displays.

Installation Diagram Two - Endpoint to Rack

COMPUTERS DVS-TX200 TRANSMITTER Up to 220 ft over STP RK-DVS200 RECEIVER

1. Power off all devices.
2. Connect up to 16 DVI-D sources (computers) to the DVI-D ports of up to 16 transmitters.
3. Connect each of the transmitters to the RK-DVS200 receiver with one STP (Sheilded Twisted Pair) cable per transmitter.
4. Connect up to 16 DVI displays (or optional DVI-D outputs) to the ports on the rear of the RK-DVS200 receiver.
5. Connect the power to the RK-DVS200 receiver and the transmitters.
6. Power on the computers and displays.

Installation Diagram Three - Rack to Rack

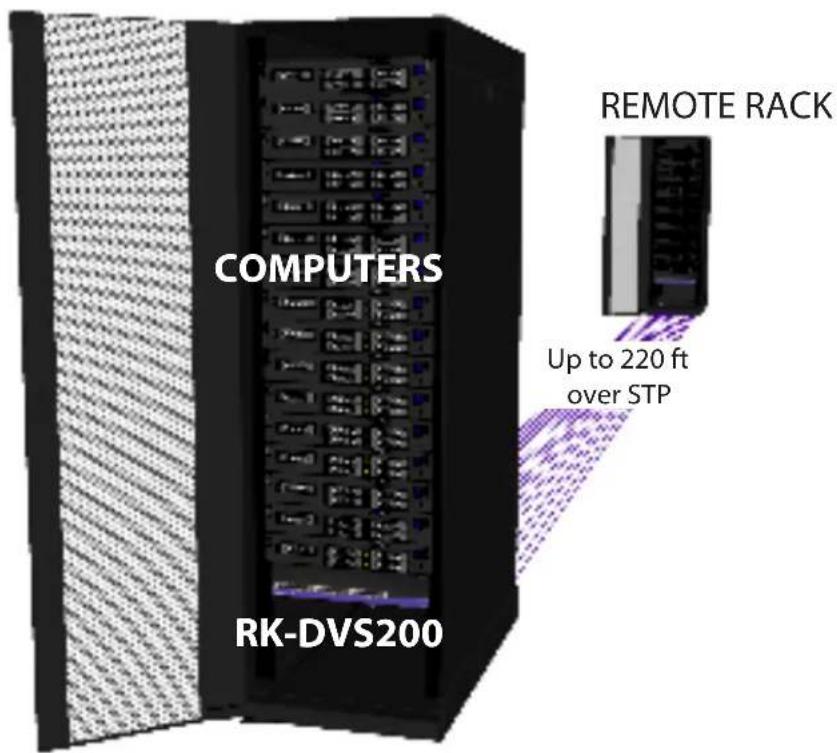

COMPUTERS RK-DVS200 REMOTE RACK Up to 220 ft over STP

1. Power off all devices.
2. Connect DVI-D sources (computers) to the DVI-D ports of the RK-DVS200 transmitter.
3. Connect the RK-DVS200 transmitter to the RK-DVS200 receiver with one STP (Sheilded Twisted Pair) cable per channel (up to 16).
4. Connect up to 16 DVI displays (or optional DVI-D outputs) to the ports on the rear of the RK-DVS200 receiver.
5. Connect the power to the RK-DVS200 transmitter and the RK-DVS200 receiver.
6. Power on the computers and displays.

RK-DVS Smart-AVI Rock DVI Extender

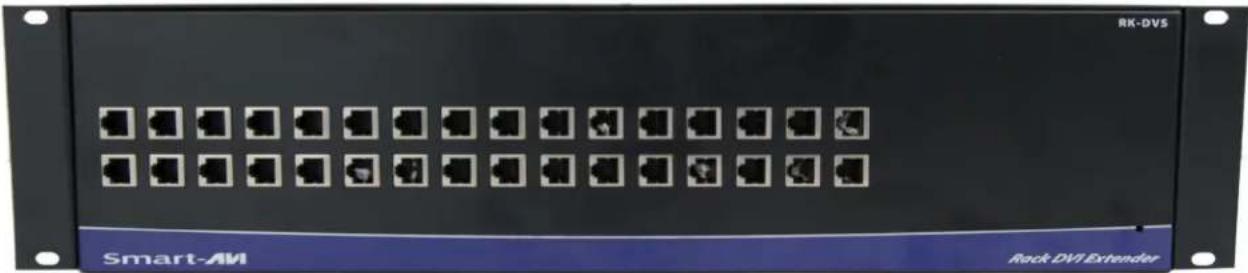

RK-DVS200-TX Front

Front view of a black industrial rack-mounted server unit with multiple 24-pin connectors and a power outlet (no visible text or symbols on the device body)

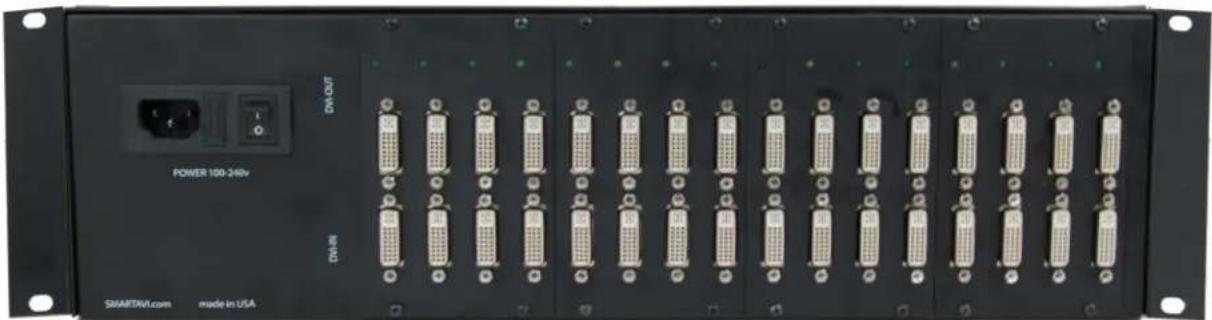

RK-DVS200-TX Rear

Supported Resolutions

Resolution	Refresh Rate
640 x 480	85 Hz
800 x 600	85 Hz
1024 x 768	85 Hz
1152 x 870	75 Hz
1280 x 768	75 Hz
1280 x 960	60 Hz
1280 x 1024	60 Hz
1600 x 1200	60 Hz

STP Cable Configuration

The following is the wiring standard for terminating UTP/STP cable using RJ-45 connector:

Pair 1 Pins 1 & 2

Pair 2 Pins 3 & 6

Pair 3 Pins 4 & 5

Pair 4 Pins 7 & 8

Connectors: RJ-45

Capacitance: 14 pf/ft (46.2 pf/m)

Conductor Gauge: 24 AWG

Impedance: 100 +/- 15 ohms

DVI-D Configuration

PIN 1 PIN 8 C 1 C 2 C 4 C 5 C 3 PIN 17 PIN 24

Pin #	Signal	Pin #	angiS
1	T.-	16	2
2	T.M.D.S Data 2+	17	T.M.D.S Data 0-
3	T.M.D.S Data 2/4 Shield	18	T.M.D.S Data 0+
4	T.M.D.S Data 4-	19	T.M.D.S Data 0/5 Shield
5	T.M.D.S Data 4+	20	T.M.D.S Data 5-
6	DDC Clock	21	T.M.D.S Data 5+
7	DDC Data	22	T.M.D.S Clock Shield
8	Analog Vert. Sync	23	T.M.D.S Clock+
9	T.M.D.S Data 1-	24	T.M.D.S Clock -
10	T.M.D.S Data 1+
11	T.M.D.S Data 1/3 Shield	C1	Analog Red
12	T.M.D.S Data 3-	C2	eer6yn
13	T.M.D.S Data 3+	C3	Analog Blue
14	5□□□□6□	C4	Analog Horz Sync
15	GND	C5	Analog Ground

© Copyright 2016 Smart-AVI, All Rights Reserved

NOTICE

The information contained in this document is subject to change without notice. Smart-AVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for any particular purpose.

Smart-AVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.

No part of this document may be photocopied, reproduced or translated into another language without prior written consent from Smart-AVI.

For more information, visit www.smartavi.com.
