USER MANUAL LCZ982BF JUNG
Mounting recommendation
LS ZERO
0 mm 3 mm
Mounting recommendation
0 mm


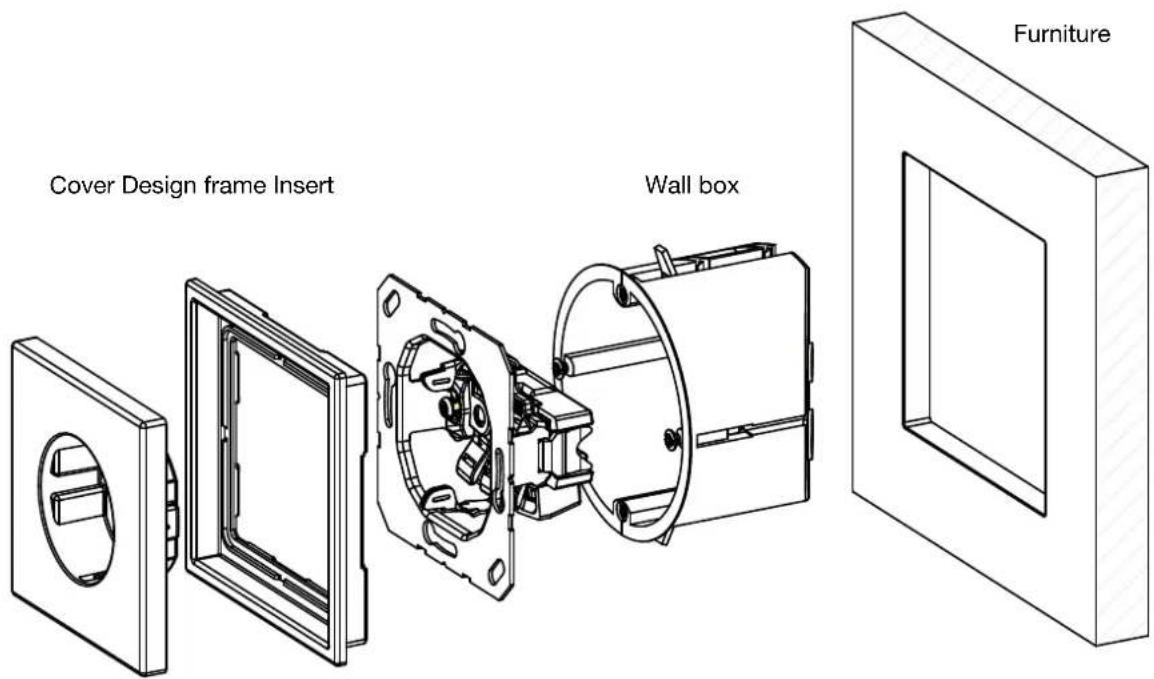

Cover Design frame Insert Wall box FurnitureThe flush mounting installation requires a minimum panel thickness of 13 mm. The supporting frame contact surface must be generated smooth and flat. Subsequently the cut out has to be sealed with a suitable sealing in order to avoid a swelling of the furniture.
Mounting recommendation
0 mm
1-gang frame installation:


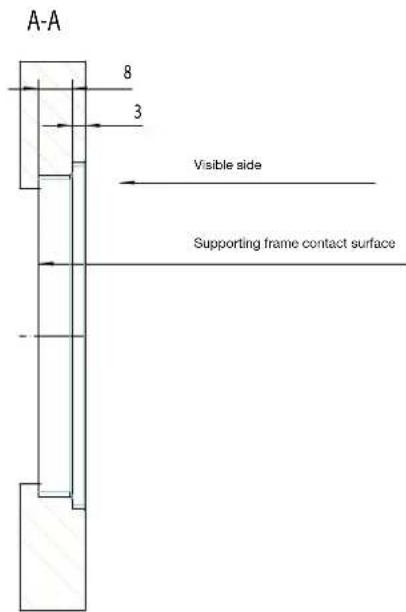

A-A 8 3 Visible side Supporting frame contact surfaceSafety instructions for installation: The insert may only be connected by a qualified electrician to the electrical network.
Mounting recommendation
0 mm
2-gang frame installation:
Mounting recommendation
0 mm
3-gang frame installation:
Mounting recommendation
3 mm
Mounting recommendation
3 mm
1-gang frame installation:


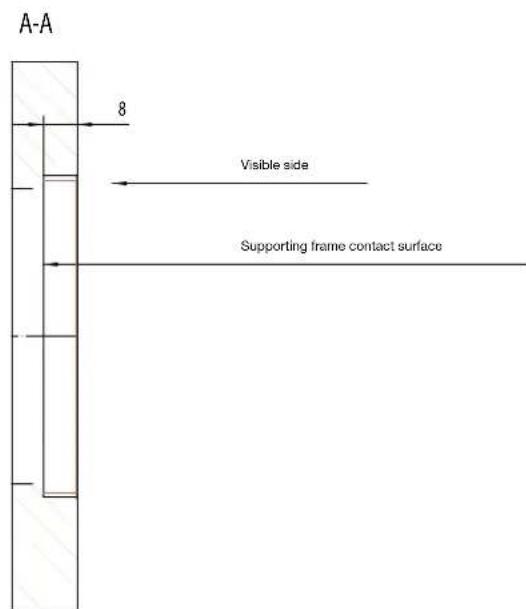

A-A 8 Visible side Supporting frame contact surfaceSafety instructions for installation: The insert may only be connected by a qualified electrician to the electrical network.
Mounting recommendation
3 mm
2-gang frame installation:


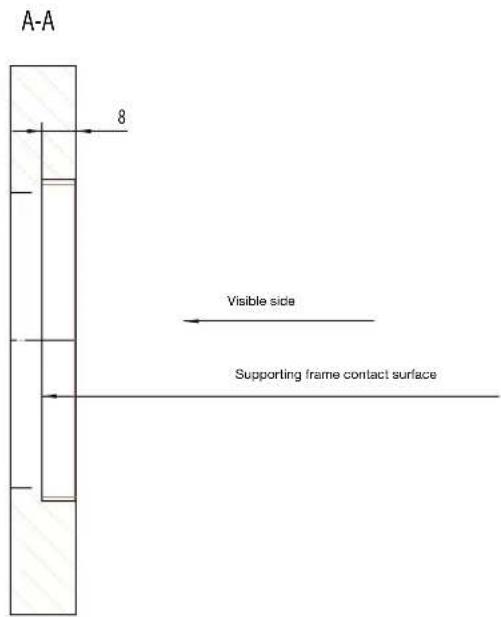

A-A 8 Visible side Supporting frame contact surfaceSafety instructions for installation: The insert may only be connected by a qualified electrician to the electrical network.
Mounting recommendation
3 mm

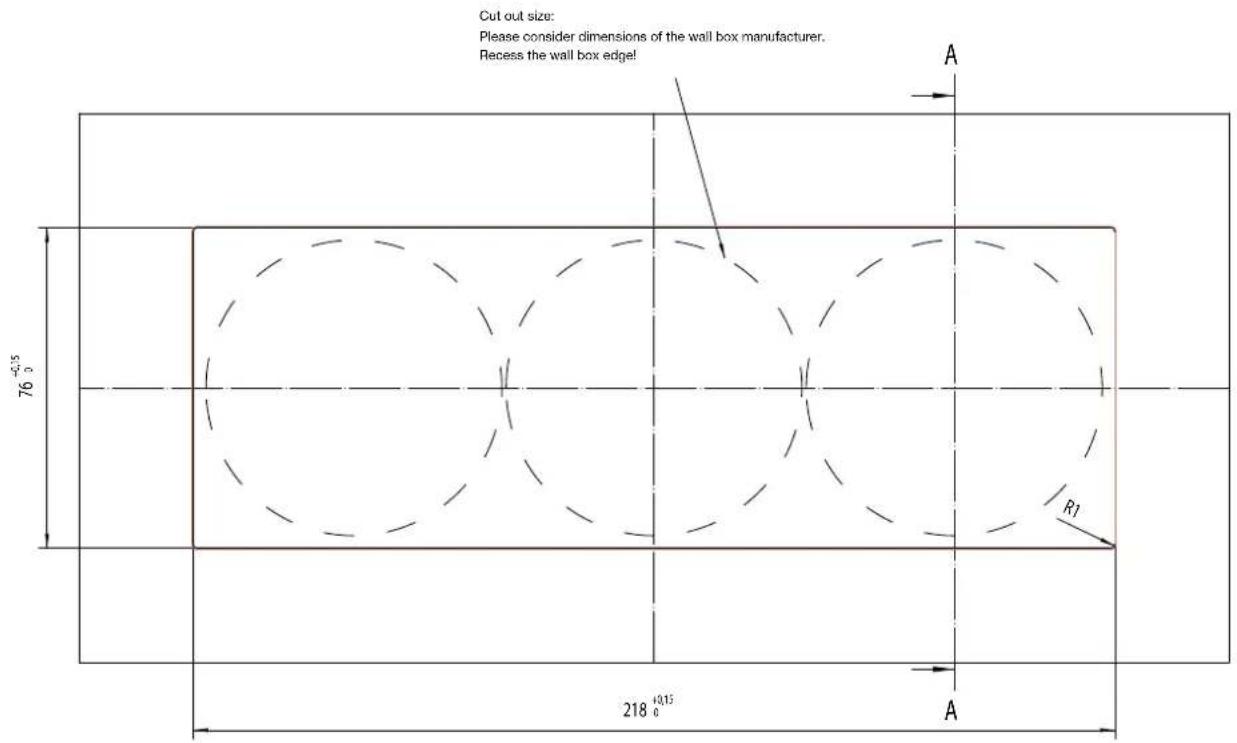

3-gang frame installation:

