USER MANUAL LSZAL983BF JUNG
Mounting recommendation
LS ZERO
0 mm 3 mm
Mounting recommendation
0 mm


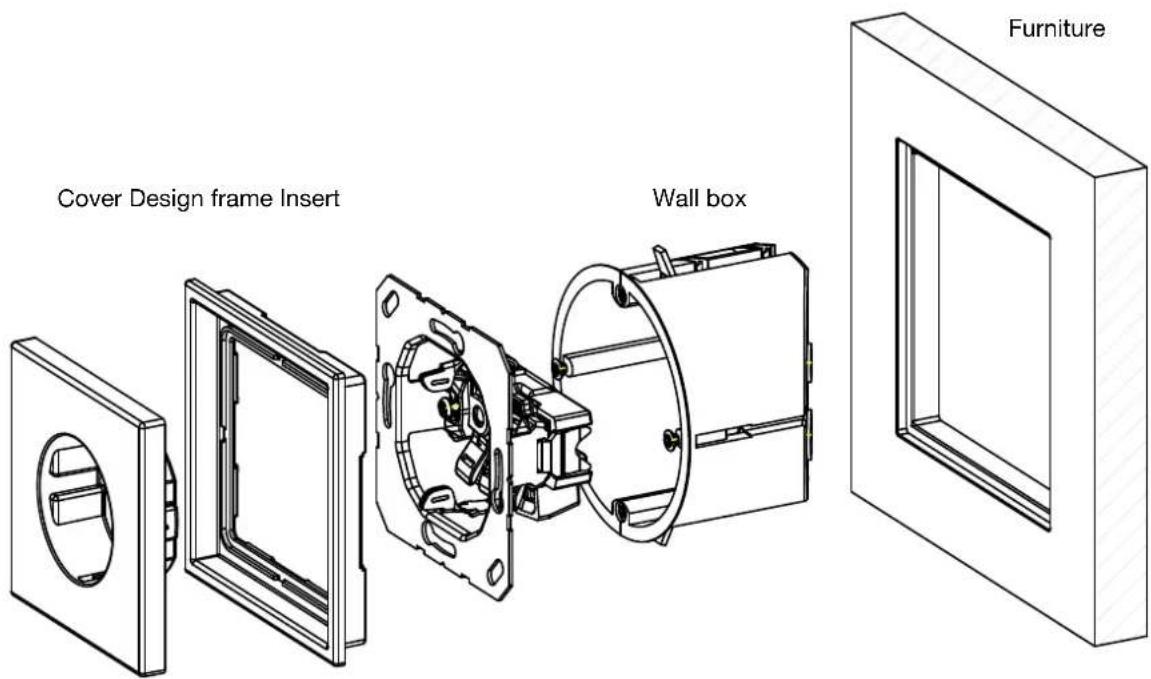

Cover Design frame Insert Wall box FurnitureThe flush mounting installation requires a minimum panel thickness of 13 mm. The supporting frame contact surface must be generated smooth and flat. Subsequently the cut out has to be sealed with a suitable sealing in order to avoid a swelling of the furniture.
Mounting recommendation
0 mm
1-gang frame installation:


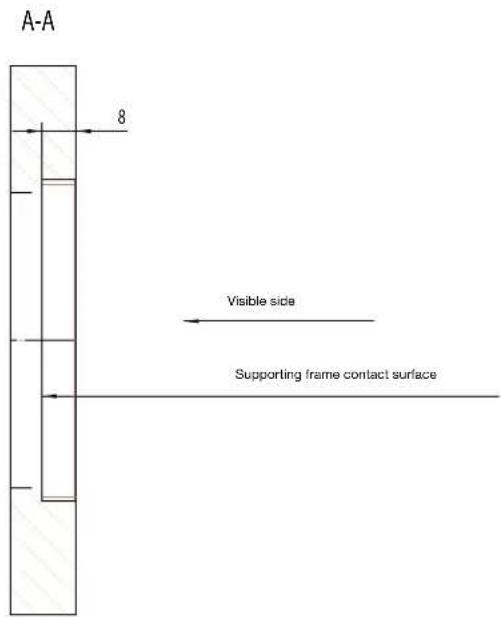

A-A 8 3 Visible side Supporting frame contact surfaceSafety instructions for installation: The insert may only be connected by a qualified electrician to the electrical network.
Mounting recommendation
0 mm

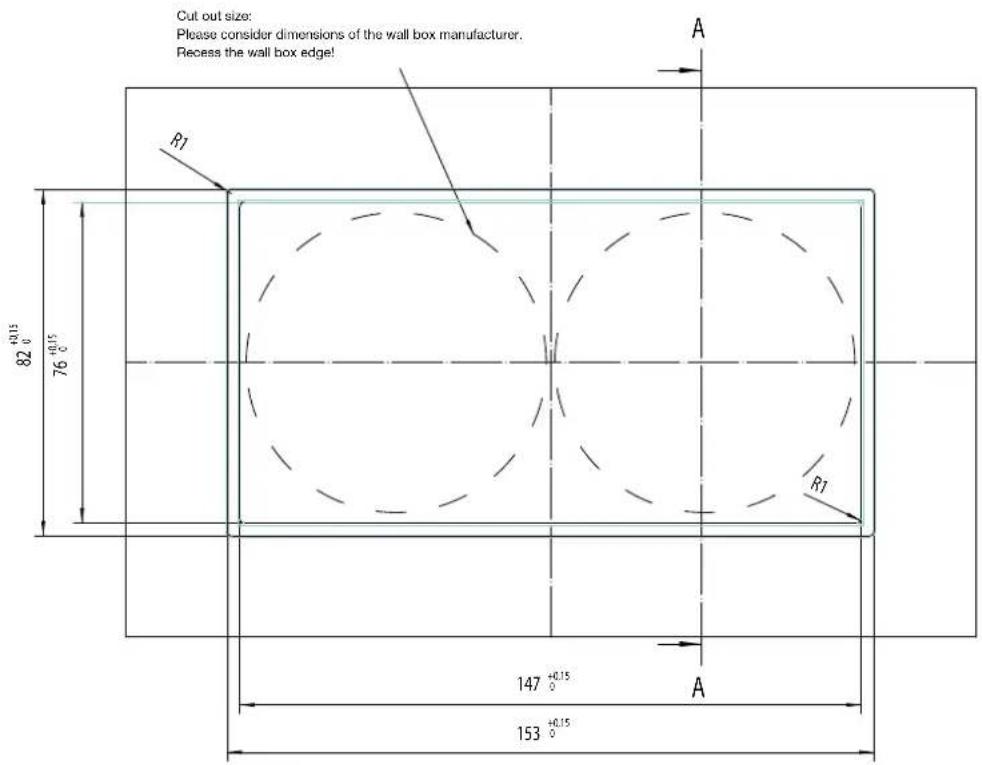

2-gang frame installation:
Mounting recommendation
0 mm
3-gang frame installation:


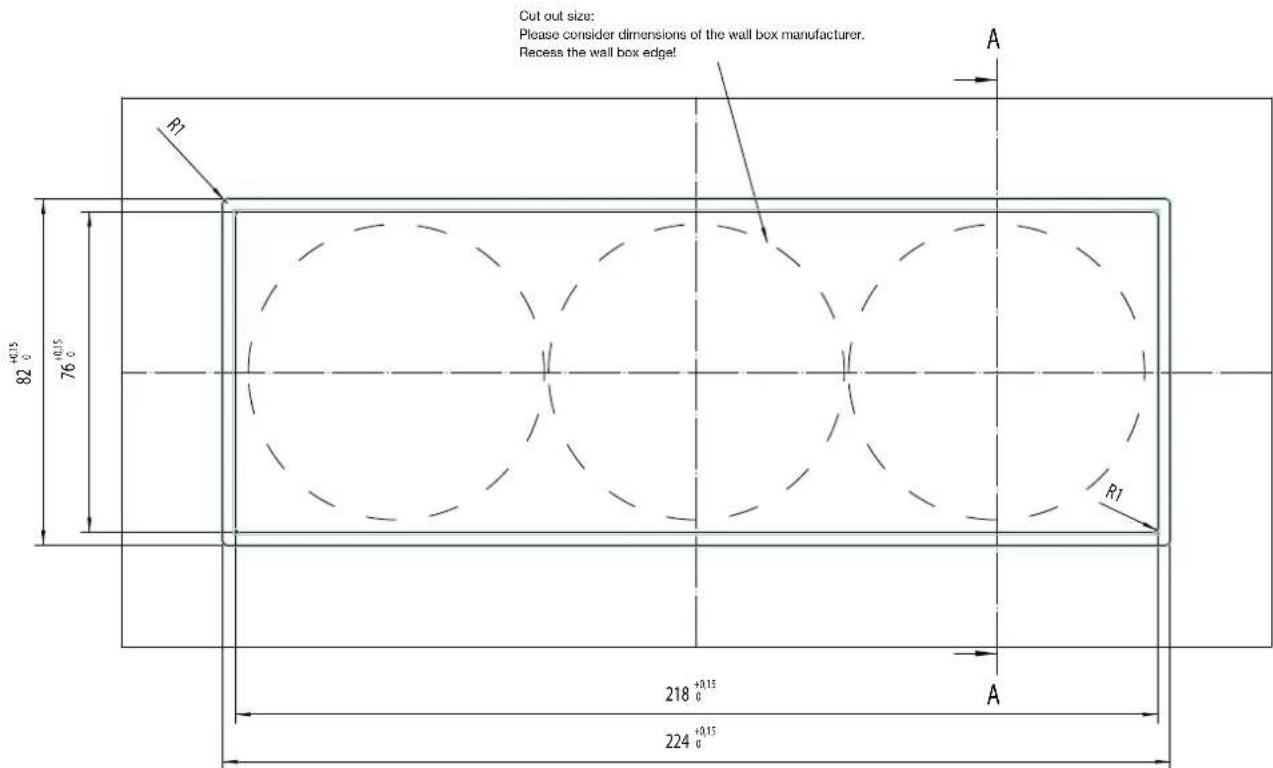

Cut out size: Please consider dimensions of the wall box manufacturer. Recess the wall box edge! R1 82 +0.15 76 +0.15 R1 218 +0.15 224 +0.15 A
Mounting recommendation
3 mm


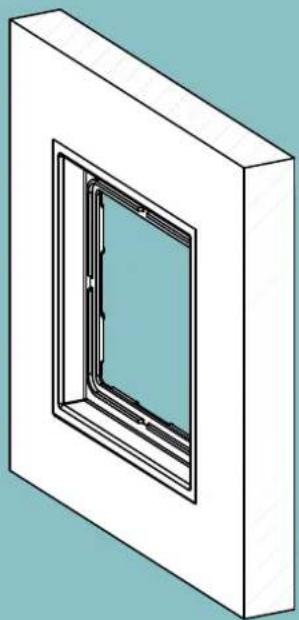

Isometric view of a rectangular frame with internal cutouts, mounted on a white base (no text or symbols)
Mounting recommendation
3 mm
1-gang frame installation:


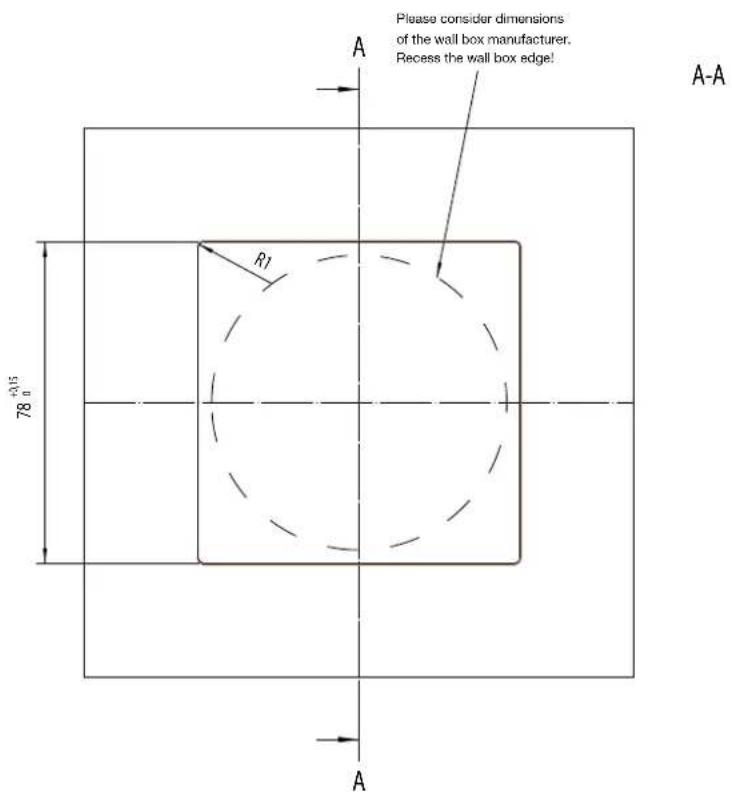

Please consider dimensions of the wall box manufacturer. Recess the wall box edge! A-A 78 +0.15 R1 A


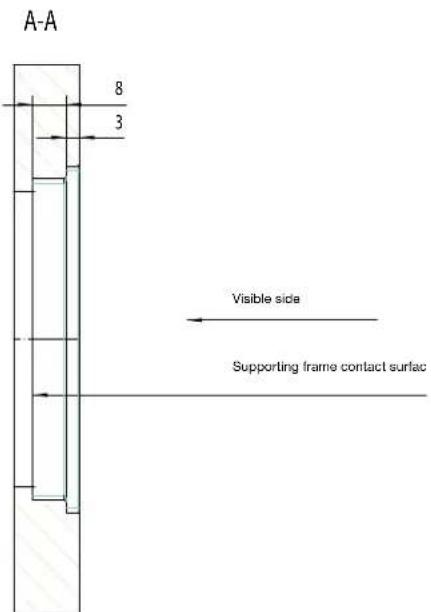

A-A 8 Visible side Supporting frame contact surfaceSafety instructions for installation: The insert may only be connected by a qualified electrician to the electrical network.
Mounting recommendation
3 mm

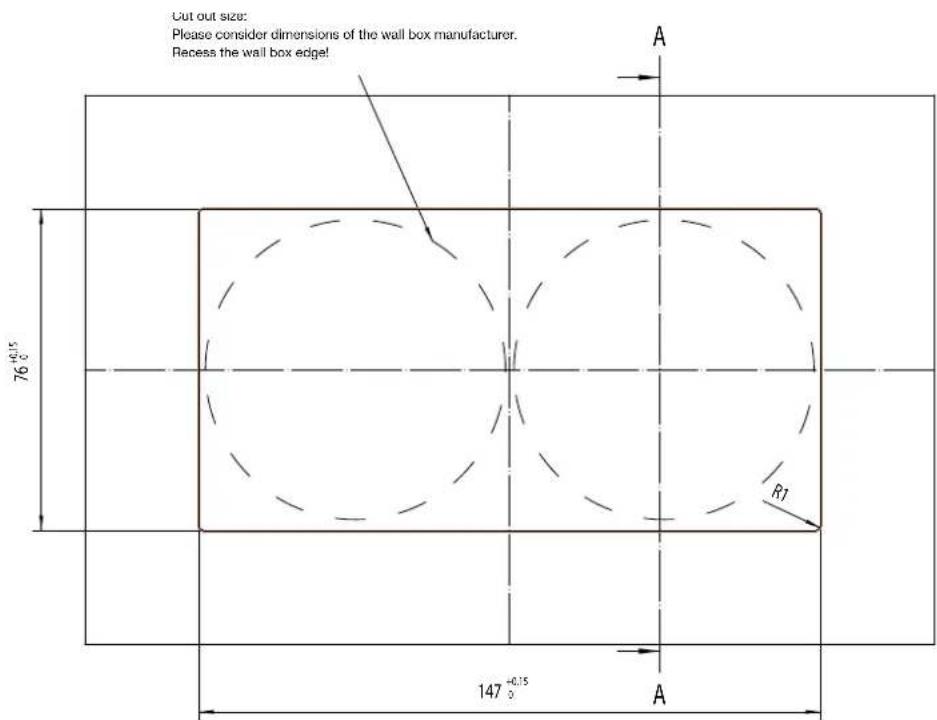

2-gang frame installation:


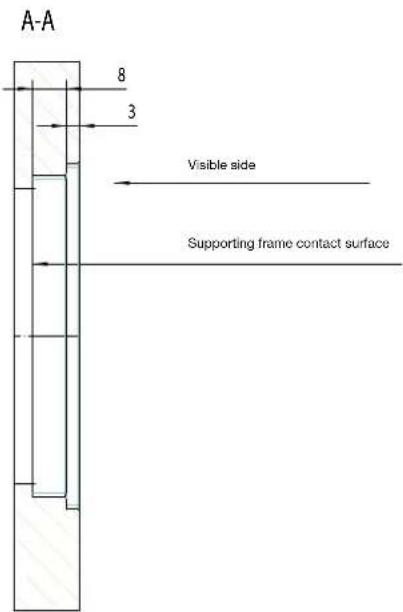

A-A 8 Visible side Supporting frame contact surfaceSafety instructions for installation: The insert may only be connected by a qualified electrician to the electrical network.
Mounting recommendation
3 mm
3-gang frame installation:


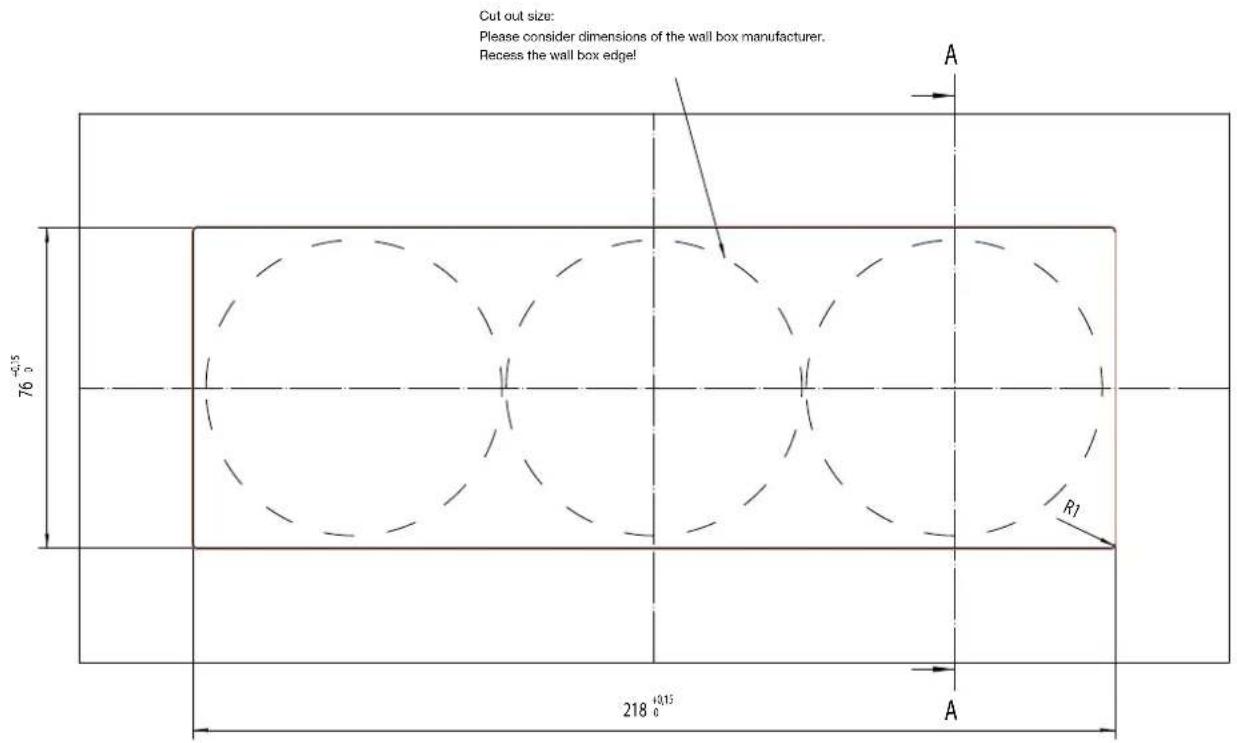

Cut out size: Please consider dimensions of the wall box manufacturer. Recess the wall box edge! 76⁺⁰·¹⁵ 218⁺⁰·¹⁵ A R₁


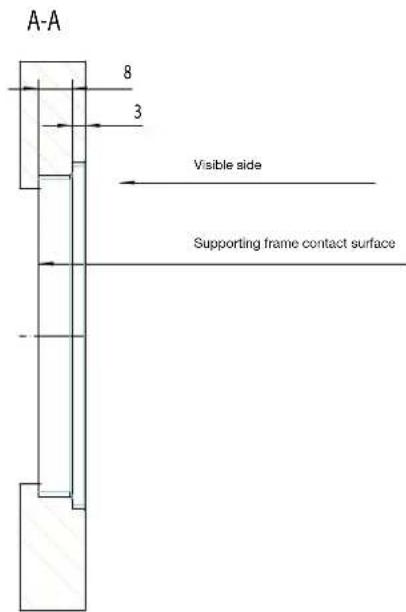

A-A 8 Visible side Supporting frame contact surfaceSafety instructions for installation: The insert may only be connected by a qualified electrician to the electrical network.
