USER MANUAL C29FS31Y0A NEFF

Combi steam oven User manual and installation instructions

Combi steam oven

User manual and installation instructions

C29FS31.0A

Further information and explanations are available online:

Table of contents

INFORMATION FOR USE

1 Safety.... 2
2 Preventing material damage 4
3 Environmental protection and saving energy 5
4 Familiarising yourself with your appliance ..... 7
5 Functions.... 8
6 Accessories.... 11
7 Before using for the first time 12
8 Basic operation 14
9 Steam.... 15
10 Time-setting options.... 19
11 Dishes 20
12 Favourites.... 22
13 Childproof lock.... 22
14 Rapid heating 22
15 Basic settings.... 23
16 Home Connect 24
17 Cleaning and servicing.... 26
18 Easy Clean cleaning aid 28
19 Descaling.... 29
20 Drying 29
21 Rails 30
22 Appliance door.... 30
23 Troubleshooting.... 34
24 Disposal.... 36
25 Customer Service.... 37
26 Information regarding Free and Open Source Software.... 37
27 Declaration of Conformity 37
28 How it works.... 38

29 INSTALLATION INSTRUCTIONS .... 50

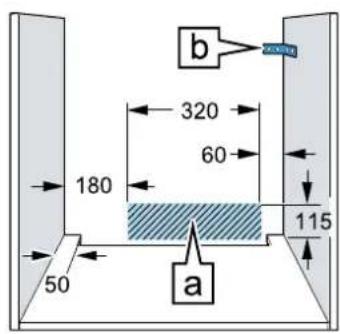

29.2 General installation instructions.... 50

1 Safety

Observe the following safety instructions.

1.1 General information

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
  ■ Do not connect the appliance if it has been damaged in transit.

1.2 Intended use

This appliance is designed only to be built into kitchen units. Read the special installation instructions.

Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under the warranty.

Only use this appliance:

■ To prepare meals and drinks.
■ in private households and in enclosed spaces in a domestic environment.
■ up to an altitude of max. 4000 m above sea level.

1.3 Restriction on user group

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance. Children must not perform cleaning or user maintenance unless they are at least 15 years old and are being supervised.

Keep children under the age of 8 years away from the appliance and power cable.

1.4 Safe use

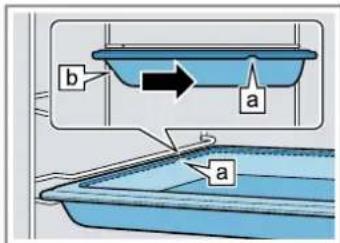

Always place accessories in the cooking compartment the right way round.

→ "Accessories", Page 11

⚠ WARNING – Risk of fire!

Combustible objects that are left in the cooking compartment may catch fire.

▶ Never store combustible objects in the cooking compartment.
▶ If smoke is emitted, the appliance must be switched off or the plug must be pulled out and the door must be held closed in order to stifle any flames.

Loose food remnants, fat and meat juices may catch fire.

▶ Before using the appliance, remove the worst of the food residues and remnants from the cooking compartment, heating elements and accessories.

Opening the appliance door creates a draught. Greaseproof paper may come into contact with the heating element and catch fire.

▶ Never place greaseproof paper loosely over accessories when preheating the appliance and while cooking.
▶ Always cut greaseproof paper to size and use a plate or baking tin to hold it down.

⚠ WARNING – Risk of burns!

The appliance and its parts that can be touched become hot during use.

• Caution should be exercised here in order to avoid touching heating elements.
• Young children under 8 years of age must be kept away from the appliance.

Accessories and cookware get very hot.

▶ Always use oven gloves to remove accessories or cookware from the cooking compartment.

When the cooking compartment is hot, any alcoholic vapours inside may catch fire. The appliance door may spring open. Hot steam and jets of flame may escape.

▶ Only use small quantities of drinks with a high alcohol content in food.
- Do not heat spirits (≥ 15% vol.) when undiluted (e.g. for marinating or pouring over food).
▶ Open the appliance door carefully.

⚠ WARNING – Risk of scalding!

The accessible parts of the appliance become hot during operation.

▶ Never touch these hot parts.
- Keep children at a safe distance.
Hot steam may escape when you open the appliance door. Steam may not be visible, depending on the temperature.

▶ Open the appliance door carefully.
- Keep children at a safe distance.
If there is water in the cooking compartment when it is hot, this may create hot steam.

▶ Never pour water into the cooking compartment when the cooking compartment is hot.

⚠ WARNING – Risk of injury!

Scratched glass in the appliance door may develop into a crack.

- Do not use any harsh or abrasive cleaners or sharp metal scrapers to clean the glass on the oven door, as they may scratch the surface.

The appliance and its parts that can be touched may have sharp edges.

▶ Take care when handling and cleaning them.

▶ If possible, wear protective gloves.

The hinges on the appliance door move when the door is opened and closed, which could trap your fingers.

- Keep your hands away from the hinges. Components inside the appliance door may have sharp edges.

▶ Wear protective gloves.

⚠ WARNING – Risk of electric shock!

Improper repairs are dangerous.

▶ Repairs to the appliance should only be carried out by trained specialist staff.
- Only use genuine spare parts when repairing the appliance.
▶ If the power cord of this appliance is damaged, it must be replaced by trained specialist staff.

If the insulation of the power cord is damaged, this is dangerous.

▶ Never let the power cord come into contact with hot appliance parts or heat sources.
▶ Never let the power cord come into contact with sharp points or edges.
▶ Never kink, crush or modify the power cord.

An ingress of moisture can cause an electric shock.

- Do not use steam- or high-pressure cleaners to clean the appliance.

If the appliance or the power cord is damaged, this is dangerous.

▶ Never operate a damaged appliance.
▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
▶ If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.
▶ Call customer services. → Page 37

WARNING – Risk of suffocation!

Children may put packaging material over their heads or wrap themselves up in it and suffocate.

• Keep packaging material away from children.
• Do not let children play with packaging material.

Children may breathe in or swallow small parts, causing them to suffocate.

• Keep small parts away from children.
• Do not let children play with small parts.

1.5 Steam

Follow these instructions when using a steam function.

WARNING – Risk of scalding!

The water in the water tank may become very hot if you operate the appliance for long periods.

▶ Always empty the water tank after using the steam function.
Hot steam is generated in the cooking compartment.
- Do not reach into the cooking compartment when using steam.

Hot liquid may spill over the sides of the accessory when it is removed from the cooking compartment.

- Remove hot accessories with care and always wear oven gloves.

WARNING – Risk of fire!

Due to the hot surfaces, vapours from flammable liquids may catch fire in the cooking compartment (explosion). The appliance door may spring open. Hot steam and jets of flame may escape.

• Do not pour flammable liquids (e.g. alcoholic drinks) into the water tank.
  ▶ Only fill the water tank with water or with the descaling solution we have recommended.

2 Preventing material damage

2.1 General

ATTENTION!

Alcoholic vapours may catch fire in the hot cooking compartment and cause permanent damage to the appliance. The appliance door may spring open due to an explosion and it may fall off. The door panels may shatter and fragment. Due to the resulting negative pressure, the cooking compartment may become considerably deformed inwards.

- Do not heat spirits (≥ 15% vol.) when undiluted (e.g. for marinating or pouring over food).

If there is water on the cooking compartment floor when operating the appliance at temperatures above 120 °C , this will damage the enamel.

• Do not use the appliance if there is water on the cooking compartment floor.
• Wipe away any water on the cooking compartment floor before operation.

Objects on the cooking compartment floor at over 50 °C will cause heat to build up. The baking and roasting times will no longer be correct and the enamel will be damaged.

• Do not place any accessories, greaseproof paper or foil of any kind on the cooking compartment floor.
• Only place cookware on the cooking compartment floor if a temperature under 50 °C has been set.

When the cooking compartment is hot, any water inside it will create steam. The change in temperature may cause damage.

▶ Never pour water into the cooking compartment when it is still hot.
▶ Never place cookware containing water on the cooking compartment floor.

The prolonged presence of moisture in the cooking compartment leads to corrosion.

• Allow the cooking compartment to dry after use. To do this, open the cooking compartment door completely or use the drying function.
• Do not keep moist food in the cooking compartment for a long time with the door closed.
• Do not store food in the cooking compartment.

▶ Take care not to trap anything in the appliance door.

Fruit juice dripping from the baking tray leaves stains that cannot be removed.

- When baking very juicy fruit flans, do not pack too much on the baking tray.

▶ If possible, use the deeper universal pan.

Using oven cleaner in a hot cooking compartment damages the enamel.

• Never use oven cleaner in the cooking compartment when it is still warm.
• Remove all food remnants from the cooking compartment and the appliance door before you next heat up the appliance.

If the seal is very dirty, the appliance door will no longer close properly during operation. This may damage the front of adjacent kitchen units.

• Keep the seal clean at all times.
• Never operate the appliance if the seal is damaged or missing.

Sitting or placing objects on the appliance door may damage it.

• Do not place, hang or support objects on the appliance door.
• Do not place cookware or accessories on the appliance door.

With certain models, accessories may scratch the door pane when closing the appliance door.

- Always push accessories fully into the cooking compartment.

If aluminium foil comes into contact with the door pane, it could cause permanent discolouration.
- Do not allow aluminium foil in the cooking compartment to come into contact with the door pane.

2.2 Steam

Follow these instructions when using the steam function.

ATTENTION!

Silicone bakeware is not suitable for combined operation with steam.

▶ Cookware must be heat- and steam-resistant.

Using cookware with rust spots may cause corrosion in the cooking compartment. Even the smallest spots of rust can cause corrosion.

- Do not use cookware with rust spots.

Dripping liquids make the cooking compartment floor dirty.

- When steaming with a perforated cooking container, always place the baking tray, the universal pan or the unperforated cooking container underneath. This will catch any liquid that drips down.

Hot water in the water tank may damage the steam system.

▶ Only fill the water tank with cold water.

If there is water on the cooking compartment floor when operating the appliance at temperatures above 120 °C , this will damage the enamel.

• Do not use the appliance if there is water on the cooking compartment floor.
• Wipe away any water on the cooking compartment floor before operation.

A lot of steam is produced during operation with the types of steam heating. Condensate that collects in the drip trough underneath the cooking compartment may overflow and damage adjacent units.

- Do not open the appliance door, or open it as infrequently as possible, while the appliance is in operation.

If descaling solution comes into contact with the control panel or other delicate surfaces, it will damage them.

• Remove descaling solution immediately with water.
  Cleaning the water tank in the dishwasher will damage it.
• Do not clean the water tank in the dishwasher.
• Clean the water tank with a soft cloth and standard washing-up liquid.

If several steam operations are carried out one after the other without wiping out the cooking compartment floor and the condensate tray afterwards in each case, the water collected may overflow and may damage furniture panels or bases.

- Wipe down the cooking compartment floor and the condensate tray after every steam operation.

3 Environmental protection and saving energy

3.1 Disposing of packaging

The packaging materials are environmentally compatible and can be recycled.

- Sort the individual components by type and dispose of them separately.

3.2 Saving energy

If you follow these instructions, your appliance will use less power.

Only preheat the appliance if the recipe or the recommended settings tell you to do so.

→ "How it works", Page 38
■ Not preheating the appliance can reduce the energy used by up to 20%.

Use dark-coloured, black-coated or enamelled baking tins.

■ These types of baking tin absorb the heat particularly well.

Open the appliance door as little as possible during operation.

■ This maintains the temperature in the cooking compartment and eliminates the need for the appliance to reheat.

When baking multiple dishes, do so in succession or in parallel.

■ The cooking compartment is heated after baking the first dish. This reduces the baking time for the second cake.

en Environmental protection and saving energy

If the cooking time is relatively long, you can switch the appliance off 10 minutes before the cooking time ends.

■ There will be enough residual heat to finish cooking the dish.

Remove any accessories that are not being used from the cooking compartment.

■ Accessories that are not being used do not need to be heated.

Allow frozen food to defrost before cooking.

■ This saves the energy that would otherwise be required to defrost it.

Switch off the display in the basic settings.

→ "Basic settings", Page 23

■ Energy is saved when the display is switched off.

Note:

The appliance requires:

■ A maximum of 2 W in networked standby mode

■ A maximum of 0.5 W in non-networked standby mode with the display switched off

4 Familiarising yourself with your appliance

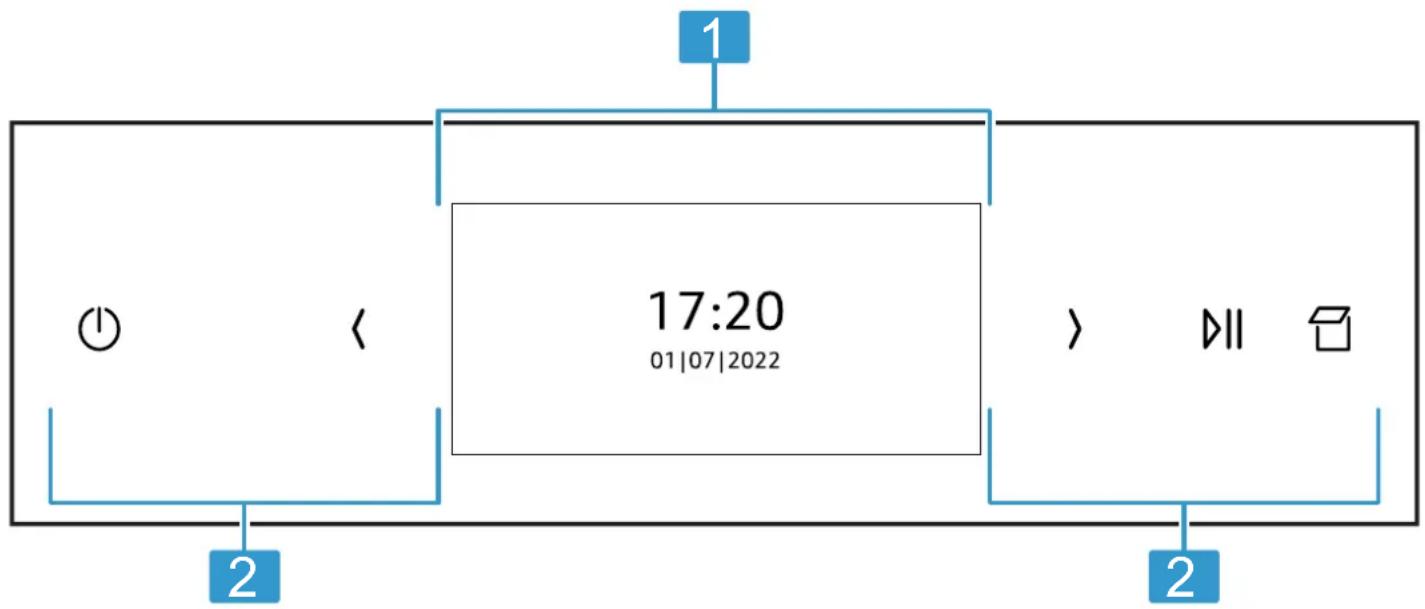

4.1 Control panel

You can use the control panel to configure all functions of your appliance and to obtain information about the operating status.

On certain models, specific details such as colour and shape may differ from those pictured.

1 Display → "Display", Page 7

2 Buttons → "Buttons", Page 7

4.2 Display

You can configure all the functions on your appliance via the display.

The main menu provides an overview of your appliance's functions.

→ "Functions", Page 8

Navigating

Direction Use

Navigate to the left Swipe right on the display with your finger

Navigate to the right Swipe left on the display with your finger

Setting values

To adjust a setting, touch the appropriate place on the display with your finger. The settings area appears on the display. Swipe left or right over this settings area on the display with your finger until the required setting is magnified.

Values Use

Increase Swipe right on the display with your finger

Decrease Swipe left on the display with your finger

4.3 Buttons

The buttons are touch-sensitive areas. To select a function, press the corresponding button.

Symbol Name Use

(1)	On/Off Switch the appliance on or off
〈	Left arrow Decreases the adjustment values
〉	Right arrow Increases the adjustment values

Symbol Name Use

DII	Start/stop Start or pause the appliance
	Open control panel Fill or empty the water tank

4.4 Cooking compartment

Various functions in the cooking compartment provide support when operating your appliance.

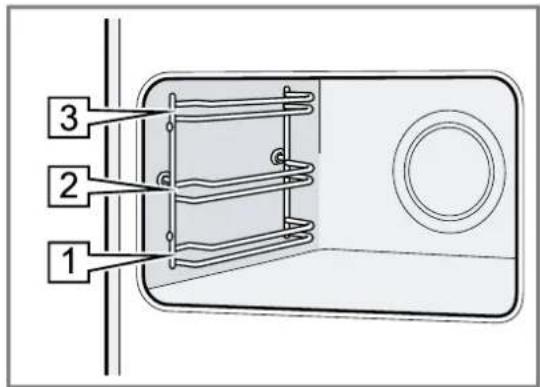

Shelf supports

The shelf supports in the cooking compartment enable you to place accessories at different heights.

→ "Accessories", Page 11

Your appliance has 3 shelf positions. The shelf positions are numbered from bottom to top.

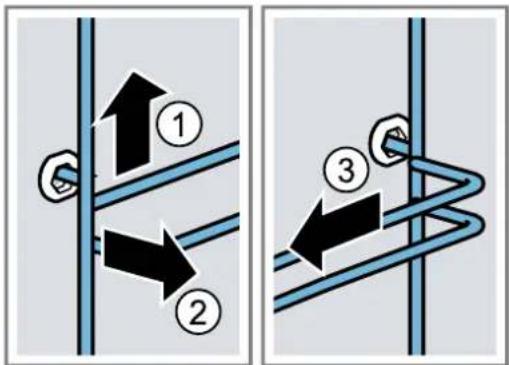

You can remove the shelf supports, e.g. for cleaning.

→ "Rails", Page 30

1 2 3

Self-cleaning surfaces

The back panel in the cooking compartment is self-cleaning. The self-cleaning surfaces are coated with a porous, matt ceramic layer and have a rough surface.

When the appliance is in operation, the self-cleaning surfaces absorb splashes from roasting or grilling and break them down.

If the self-cleaning surfaces no longer clean themselves adequately during operation, heat up the cooking compartment specifically to the right temperature.

→ "Regenerating self-cleaning surfaces in the cooking compartment", Page 27

Lighting

One or more oven lights illuminate the cooking compartment.

When you open the appliance door, the light in the cooking compartment switches on. If the appliance door remains open for longer than 15 minutes, the light switches off again.

For most functions, the lighting is switched on during operation. The lighting switches off again when the operation ends.

Cooling fan

The cooling fan switches on and off depending on the appliance's temperature. The hot air escapes above the door.

ATTENTION!

Covering the ventilation slots will cause the appliance to overheat.

- Do not cover the ventilation slots.

To ensure that the appliance cools down more quickly after operation, the cooling fan continues to run for a certain period afterwards.

Appliance door

If you open the appliance door during operation, the operation stops. If you close the appliance door, operation resumes automatically.

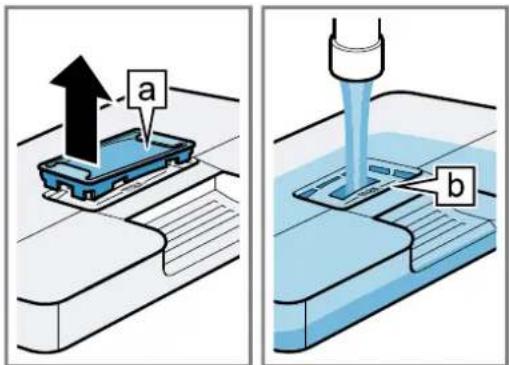

Water tank

You need the water tank for the types of steam heating. The water tank is behind the control panel.

→ "Filling the water tank", Page 15

1 2 3

1 Tank cover

2 Opening for filling and emptying

3 Handle for removing and inserting

5 Functions

The main menu provides an overview of your appliance's functions.

Tip: Depending on the appliance type, additional or more comprehensive functions are available to you with the Home Connect app. You can find more information about this in the app.

Function Name Use

Types of heating Select the required type of heating and temperature for your food

Function Name Use
	Steam Prepare food with types of steam heating→ "Steam", Page 15
	Favourites Select saved favourites→ "Favourites", Page 22
	Dishes Use programmes or recommended settings for various types of food→ "Dishes", Page 20
	Cleaning■ Easy Clean ⚠ removes light dirt from the cooking compartment → "Easy Clean cleaning aid", Page 28■ Drying function 🌿 dries the cooking compartment → "Drying", Page 29■ Descaling ≈ keeps your appliance working properly → "Descaling", Page 29
	Basic settings Individually adjust the appliance settings→ "Basic settings", Page 23

5.1 Heating functions

This is where you will find an overview of the types of heating. You will find recommendations for using the types of heating.

Symbol	Heating function Temperature Use
	Circo Therm hot air 30 - 230 °C Bake or roast on one or more levels.The fan distributes the heat from the ring-shaped heating element in the back wall evenly around the cooking compartment.
	Top/bottom heat 30 - 250 °C Traditionally bake or roast on one level. This type of heating is especially good for cakes with moist toppings.The heat is emitted evenly from above and below.
	Circo Therm gentle 125 - 230 °C For gently cooking selected types of food on one level without preheating.The fan distributes the heat from the ring-shaped heating element in the back wall around the cooking compartment.This type of heating is used to determine the energy consumption in circulating-air mode and the energy efficiency class.
	Top/bottom heat gentle	150 - 250 °C For gently cooking selected types of food without preheating.Heat is emitted from above and below.This type of heating is used to determine the energy consumption in the conventional mode.
	Circo-roasting 30 - 250 °C Roast poultry, whole fish or larger pieces of meat.The grill element and the fan switch on and off alternately. The fan circulates the hot air around the food.
	Pizza setting 30 - 250 °C Cook pizza or food that requires a lot of heat from below.The bottom heating element and the ring-shaped heating element in the back wall heat the cooking compartment.
	Bread baking setting	180 - 250 °C For baking bread, bread rolls and baked goods that require high temperatures.
	Full-surface grill	50 - 275 °C For grilling flat items such as steaks, sausages or bread, and for cooking au gratin.The entire area below the grill element becomes hot.
	Centre-area grill	50 - 275 °C For grilling small amounts of steaks, sausages or bread, and for cooking au gratin.The central area below the grill element becomes hot.
	Bottom heat	30 - 250 °C For cooking in a bain marie and for baking food for extra time.The heat is emitted from below.
	Slow cooking	70 - 120 °C For gentle, slow cooking of seared, tender pieces of meat in cookware without a lid.The heat is emitted evenly from above and below at a low temperature.
	Plate warming	30 - 90 °C For heating cookware.
	Keep warm	50 - 100 °C For keeping cooked food warm.

5.2 Types of steam heating

This is where you can find an overview of the types of steam heating. You will find recommendations for using the types of steam heating.

Symbol Type of heating Temperature Use
	Steam 30 - 120 °C Cook food with steam.In order to reduce the cooking time, more robust food can be steamed at above 100 °C.
	Reheat 80 - 180 °C For gently reheating food or for crisping up baked goods.
	Dough proving 30 - 50 °C For proving dough and culturing yoghurt.Dough will prove more quickly than at room temperature. The surface of the dough does not dry out.
	Defrost 30 - 60 °C For gently defrosting frozen food.
	Sous-vide 50 - 95 °C For cooking meat, fish, vegetables and desserts in a vacuum at low temperatures.Before cooking the food, use a chamber vacuum-packing machine to heat-seal it in special air-tight, heat-resistant cooking bags. The protective envelope retains the nutrients and flavours.

5.3 Additional options

You can find an overview of other options here.

To display the options, press :

Symbol Name Use
	Lighting Switch the lighting in the cooking compartment on or off
	Timer Set the timer
	Childproof lock Activate the childproof lock
	Remote start Activate remote start→ "Home Connect ", Page 24

5.4 Symbols

You can find an overview of other symbols on the display here.

Symbol Name Use
✓	SaveSave Save the setting
←	Back	Navigate back
×	Close	Close the message
▽	Reset	Reset the cooking time
▽	Reset	Reset the values
i	Information	Display information
& ≈	Rapid heating	Activate or deactivate the rapid heating function
	Home Connect	■ Home network and Home Connect server connected■ The number of lines shows the signal strength of the home network→ "Home Connect ", Page 24
	Home network	Home network not connected→ "Home Connect ", Page 24
	Home Connect server	Home Connect server not connected→ "Home Connect ", Page 24
	Remote Diagnostics	Remote diagnostics activated→ "Home Connect ", Page 24
5, 6, 7, 8, 9	Descale reminder	Number of operations with steam until the next descaling phase→ "Descaling", Page 29

6 Accessories

Use original accessories. These have been made especially for your appliance.

Note: Accessories may become deformed if they get hot. Deformation has no effect on function. As the accessory cools down, it will regain its original shape.

The accessories supplied may differ depending on the appliance model.

Accessories Use

Wire rack ▪ Cake tins		■ Ovenproof dishes■ Cookware■ Meat, e.g. roasting joints or steak■ Frozen meals
Universal pan ▪ Moist cakes		■ Baked items■ Bread■ Large roasts■ Frozen meals■ Catch dripping liquids, e.g. fat when grilling food on the wire rack or water when cooking with steam.
Steam container, solid, size M		Cooking:■ Rice■ Pulses■ CerealsDo not place the steam container on the wire rack.
Steam container, perforated, size M		■ Steaming vegetables.■ Juicing berries.■ Defrosting.Do not place the steam container on the wire rack.
Perforated steam container, size XL		Steaming large quantities of food.

6.1 Information on accessories

Some accessories are only suitable for certain functions.

Steam container

The steam containers are suitable for steam-only types of heating up to 120 °C.

The steam containers are not suitable for higher temperatures or other types of heating. The containers become permanently discoloured and deformed.

6.2 Locking function

The locking function prevents the accessories from tilting when they are pulled out.

You can pull out the accessories approximately halfway without them tipping. The accessories must be inserted into the cooking compartment correctly for the tilt protection to work properly.

6.3 Sliding accessories into the cooking compartment

Always slide the accessory into the cooking compartment the right way round. This is the only way to ensure that accessories can be pulled out approximately halfway without tipping.

1. Turn the accessories so that the notch a is at the rear and is facing downwards.
2. Insert the accessory between the two guide rods for a shelf position.

Wire rack Insert the wire rack with the open side facing the appliance door.

Diagram showing a blue mesh structure with labeled components 'a' and an arrow indicating direction, likely illustrating a structural or mechanical assembly.

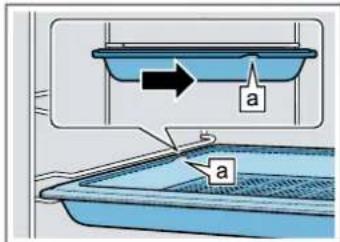

Tray E.g. universal pan or baking tray

Slide the tray in with the sloping edge b towards the appliance door.

b a a

Steam container, perforated, size XL

Diagram showing a container being inserted into a basin, with labeled parts 'a' and an arrow indicating direction.

1. Push the accessory all the way in, making sure that it does not touch the appliance door.

Note: Take any accessories that you will not be using out of the cooking compartment while the appliance is in operation.

Combining accessories

You can combine the wire rack with the universal pan to catch any liquid that drips down.

1. Place the wire rack on the universal pan so that both spacers a are on the rear edge of the universal pan.
2. Insert the universal pan between the two guide rods for a shelf position. In so doing, the wire rack is on top of the upper guide rod.

Wire rack on universal pan

Technical diagram showing a rack with labeled parts 'a' and an inset illustrating fluid flow or material flow.

6.4 Other accessories

You can purchase other accessories from our after-sales service, specialist retailers or online.

You will find a comprehensive range of products for your appliance in our brochures and online: www.neff-international.com

Accessories vary from one appliance to another. When purchasing accessories, always quote the exact product number (E no.) of your appliance.

You can find out which accessories are available for your appliance in our online shop or from our after-sales service.

7 Before using for the first time

Implement the settings for the initial configuration. Calibrate the appliance. Clean the appliance and accessories.

7.1 Determining the water hardness before switching on the appliance for the first time

Before using the appliance for the first time, ask your water supplier about the hardness of your tap water. To ensure that the appliance can reliably remind you to descale it when required, you must set your water hardness range correctly.

ATTENTION!

If the wrong water hardness has been set, the appliance cannot remind you to descale it at the right time.

▶ Set the water hardness correctly.
Using unsuitable liquids may damage the appliance.
- Do not use distilled water, highly chlorinated tap water (>40 mg/l) or other liquids.
- Only use cold, fresh tap water, softened water or non-carbonated mineral water.

Malfunctions may occur when using filtered or demineralised water. The appliance may request that you top up the water tank even though it may be full, or operation with steam is cancelled after approx. two minutes.

▶ If required, mix filtered or demineralised water with the bottled non-carbonated mineral water with a ratio of one to one.

Notes

If you are using mineral water, set the water hardness range to "very hard". If you are using mineral water, you must only use non-carbonated mineral water.

■ If your tap water is very hard, we recommend that you use softened water. If you are using only softened water, set the "softened" water hardness range.

Setting Water hardness in mmol/l		German hardness °dH French hardness °fH
0 (softened) ^1	---
1 (soft) Up to 1.5 Up to 8.4 Up to 15
2 (medium) 1.5-2.5 8.4-14 15-25
3 (hard) 2.5-3.8 14-21.3 25-38
4 (very hard) ^2	Over 3.8 Over 21.3 Over 38
^1 Only set this if you will be using solely softened water. ^2 Also set for mineral water. Only use non-carbonated mineral water.

7.2 Initial use

After connecting the appliance to the power supply, you must configure the settings for its initial start-up. It may take a few minutes for the settings to appear on the display.

Notes

■ You can adjust the settings at any time in the basic settings.
→ "Basic settings", Page 23
- You can also use Home Connect to configure the settings. When your appliance is connected, follow the instructions in the app.
→ "Home Connect ", Page 24

Setting the language

Requirement: The appliance is connected to the power supply.

1. Press ⏻ to switch the appliance on.
2. Use the < or> button to select the language.
3. Press the required language.
4. Press → to confirm the language.

Setting up Home Connect

Note: You can skip Home Connect set-up by pressing "Later". Next, set the clock.

1. Press "Connect" to set up Home Connect. → "Home Connect ", Page 24
2. Make all other settings for initial start-up in the Home Connect app.

Setting the time

1. Use < or > to select the hours.
2. Press the minutes.
3. Use < or> to select the minutes.
4. Press √ to confirm the time.

Setting the date

1. Use or to select the year.
2. Press the month.
3. Use < or> to select the month.
4. Press the day.
5. Use < or> to select the day.
6. Press √ to confirm the date.

Setting the water hardness

1. Use or to select the water hardness range.
   → "Determining the water hardness before switching on the appliance for the first time", Page 12
2. Press √ to confirm the water hardness range.
3. Press "OK" to end the initial start-up.
4. Open and close the appliance door once.
   √ The appliance will perform a self-test, after which it will be ready to use.

√ The initial start-up is now complete.

7.3 Calibrating and cleaning the appliance

You will need to calibrate the appliance and clean the cooking compartment and accessories before using it to cook food for the first time.

Note: The boiling point of water depends on the air pressure. During the calibration process, the appliance makes adjustments to adapt to the pressure conditions in the location where it is installed.

1. Remove the product information, accessories and any leftover packaging (e.g. polystyrene pellets) from the cooking compartment.
2. Wipe the smooth surfaces in the cooking compartment with a soft, damp cloth.
3. Press ⏻ to switch the appliance on.
   → "Switching on the appliance", Page 14
4. Fill the water tank.
   → "Filling the water tank", Page 15
5. Note: Before running the calibration process, allow the cooking compartment to completely cool down. Set the required type of heating, temperature and cooking time for the calibration process and press Dll to start.
   → "Steam", Page 16

Calibration

Type of heating	Steam ≈
Temperature	100 °C
Duration	30 minutes

√ Calibration starts. This creates a lot of steam.

1. Do not open the appliance door while calibration is in progress.

Opening the appliance door during calibration will abort the calibration process. Allow the cooking compartment to cool down and start the calibration process again.

7. ATTENTION!

If there is water on the cooking compartment floor when operating the appliance at temperatures above 120 °C, this will damage the enamel.

• Do not use the appliance if there is water on the cooking compartment floor.
• Wipe away any water on the cooking compartment floor before operation.

Allow the appliance to cool down and then wipe away the water from the cooking compartment floor.

1. Set the required type of heating and temperature for the heat-up process and press to start. → "Setting the type of heating and temperature", Page 14

Heating up

Type of heating Circo Therm hot air
Temperature Maximum
Duration 30 minutes

1. Ventilate the kitchen while the appliance is heating.

2. Press ☐ to switch off the appliance after 30 minutes. → "Switching off the appliance", Page 14

3. Allow the appliance to cool down.

4. Clean the smooth surfaces with soapy water and a dish cloth.

5. Empty the water tank and dry the cooking compartment and condensation tray.
   "After using steam operation", Page 18

6. Thoroughly clean any accessories you used with soapy water and a dish cloth.

Note: The appliance retains the calibration settings, even in the event of a power cut or disconnection from the mains.

Tip: To ensure that the calibration settings are updated to accommodate the conditions at the new location when you move house, restore the appliance's factory settings in the basic settings. Then repeat the calibration procedure.

→ "Basic settings", Page 23

8 Basic operation

8.1 Switching on the appliance

ATTENTION!

If there is water on the cooking compartment floor when operating the appliance at temperatures above 120 ^ , this will damage the enamel.

• Do not use the appliance if there is water on the cooking compartment floor.
• Wipe away any water on the cooking compartment floor before operation.
  ▶ Press ⏻ to switch the appliance on.

Notes

• In the basic settings, you can specify whether the display shows the main menu or another function when the appliance is switched on. → "Basic settings", Page 23
• If you do not perform any actions on the appliance for an extended period, it will automatically switch itself off.

8.2 Switching off the appliance

▶ Press ⏻ to switch the appliance off.

Notes

■ The residual heat indicator will appear on the display while the cooking compartment is still hot. → "Residual heat indicator", Page 14
■ The cooling fan will continue to run until the cooking compartment has cooled down. → "Cooling fan", Page 8

8.3 Residual heat indicator

After you have switched off the appliance, the residual heat indicator will appear on the display.

Display Temperature

Residual heat high Over 120 °C

Residual heat low Between 60 and 120 °C

8.4 Setting the type of heating and temperature

1. Press Ⓗ to switch the appliance on.

2. Press "Types of heating".

3. Scroll through the types of heating using or .
4. Press the type of heating that you want to use.
5. Press "Temperature".
6. Use or to select the temperature.
7. Press √ to confirm the setting. Also available to select:
   – Rapid heating → Page 22
8. Cooking time → Page 19
9. Ready at → Page 20
10. Added steam → Page 18
    Information → Page 15
11. Press ▷II to start the operation.
    Note: When you are preheating the appliance, the optimal time to place your food in the cooking compartment is as soon as the heat-up indicator is filled.
    √ The cooking time appears on the display.
    √ The heat-up indicator bar visualises the rising temperature.
12. When the food is ready, use ⏻ to switch the appliance off.

8.5 Changing the temperature

You can also change the temperature or level once you have started the appliance.

1. Press "Temperature"
2. Use to change the temperature.
3. Press √ to confirm the setting.
   √ The temperature is changed.

8.6 Changing the type of heating

If you switch to a different type of heating, the appliance will reset all the settings.

1. Press ▷ll to pause operation.
2. Press ← to switch to the types of heating.
3. Scroll through the types of heating using < or>.
4. Press the type of heating that you want to use.
5. Adjust the temperature or level, if required.
6. Press ▷ to start the operation.

8.7 Pausing operation

1. Press ▷II.
2. Press ▷ again to resume operation.

8.8 Displaying information

Note: In most cases, you can call up information about the function that you have just started.

1. Press "Information".
   √ The information will be displayed for a few seconds.
2. Press X to close the information.

8.9 Sabbath-compliant use

If you want to operate your appliance so that it is Sabbath-compliant, use the time-setting options and change the basic setting for the lighting.

Note: If you open the appliance door during operation, the appliance stops heating. When you close the appliance door, the appliance continues to heat again.

1. Change the "Lighting" basic setting to "Always off". → "Basic settings", Page 23

This will ensure that the light in the cooking compartment is always off while the appliance is in operation and when you open the appliance door.

1. Set the required type of heating.

→ "Setting the type of heating and temperature", Page 14

1. Set the required cooking time depending on the type of heating.

→ "Cooking time", Page 19

1. Use "Ready at" to set the time at which the operation should end.
   → "Delayed start/"Ready at" time", Page 20
2. Place the food in the cooking compartment before the appliance starts to heat.
3. Press ▷II to start the operation.

√ The display shows the start time. The appliance is in standby mode.
√ Once the start time has been reached, the appliance starts heating and the cooking time starts counting down.
7. When the operation has ended, remove the food from the cooking compartment. The appliance automatically switches off completely after approximately 15 to 20 minutes.

Note: If necessary, change the basic setting for the lighting again.

9 Steam

Food can be cooked particularly gently using steam. You can use the special types of steam heating, or use steam assistance with certain types of heating.

⚠ WARNING – Risk of scalding!

Hot steam may escape when you open the appliance door. Steam may not be visible, depending on the temperature.

▶ Open the appliance door carefully.
- Keep children at a safe distance.

9.1 Before using the steam function

Before using the steam function each time, make sure that your appliance is supplied with sufficient water.

Filling the water tank

⚠ WARNING – Risk of fire!

Due to the hot surfaces, vapours from flammable liquids may catch fire in the cooking compartment (explosion). The appliance door may spring open. Hot steam and jets of flame may escape.

• Do not pour flammable liquids (e.g. alcoholic drinks) into the water tank.
• Only fill the water tank with water or with the descaling solution we have recommended.

⚠ WARNING – Risk of burns!

The water tank may heat up while the appliance is in operation.

• Wait until the water tank has cooled down from the previous operation.
• Remove the water tank from the tank recess.

Requirement: The water hardness is set correctly.

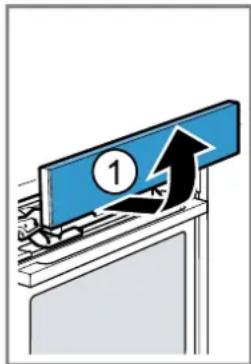

1. Press

√ The control panel pops out automatically.
2. Pull the control panel towards you with both hands and then push it upwards until it clicks into place ①.
3. Remove the water tank from the tank recess ②

Diagram showing a blue panel with an arrow labeled '1' pointing to it, indicating direction or movement.

Diagram showing a blue plastic container being inserted into a machine, with a numbered arrow indicating direction (no text or symbols present)

1. Press down on the water tank lid along the seal to prevent water from leaking out of the water tank.

2. Remove the cover a on the water tank.

3. Fill the water tank with water up to the "max" b mark.

Diagram illustrating a mechanical process with labeled components 'a' and 'b', showing fluid flow or movement in a container.

1. Put the cover back into the opening on the water tank.

2. Insert the full water tank ①When doing so, make sure that the water tank clicks into place behind the retainers [a]

Diagram showing two steps of a mechanical assembly with labeled parts (a) and component 1, likely illustrating a machining or assembly process.

1. Slowly slide the control panel downwards and then push it away from you until it is closed completely.

Refilling the water tank

When "Fill water tank" appears on the display, you must refill the water tank.

Notes

■ Steam, Dough proving, Defrost and Reheat functions: If you do not refill the water tank, the appliance will stop. Refill the water tank.
■ Added steam and steam boost: If you do not refill the water tank, the appliance continues to run without added steam or steam boost.

1. Open the control panel.

2. Remove and refill the water tank.

3. Insert the full water tank and close the control panel.

9.2 Steam heating functions

Your appliance has several types of steam heating. → "Types of steam heating", Page 10

ATTENTION!

A lot of steam is produced during operation with the types of steam heating. Condensate that collects in the drip trough underneath the cooking compartment may overflow and damage adjacent units.

- Do not open the appliance door, or open it as infrequently as possible, while the appliance is in operation.

Steam

During "Steam", the food is enveloped by hot steam, which helps to retain the nutrients. This cooking method also helps to retain the shape, colour and typical flavour of the food.

When temperatures between 105 °C and 120 °C are set, the cooking time is reduced. This means that even more nutrients and vitamins are retained when steaming.

Configuring the Steam heating function

Requirement: The cooking compartment has cooled down sufficiently.

1. Fill the water tank.
   → "Filling the water tank", Page 15
2. Press ☐ to switch the appliance on.
3. Press "Steam".
4. Use < or > to select steaming.
5. Press "Steam".
6. Press "Temperature"
7. Use < or > to select the temperature.
8. Press √ to confirm the setting.

9. Press "Cooking time".

10. Use < or > to select the duration.

11. Press √ to confirm the setting.

12. Press ▷to start the steaming process. → "Pausing operation", Page 15

√ If the water tank runs dry during the steaming process, the operation is paused.
→ "Refilling the water tank", Page 16
√ Once the duration has elapsed, an audible signal sounds and the appliance stops heating. → "Switching off the appliance", Page 14

1. Press any button to end the signal tone.

2. Empty the water tank and dry the cooking compartment. → "After using steam operation", Page 18

Reheat

"Reheat" can be used to warm up food that has already been cooked, or bread and pastries from the day before, without affecting their quality.

Configuring the Reheat heating function

Requirement: The cooking compartment has cooled down sufficiently.

1. Fill the water tank.
   → "Filling the water tank", Page 15
2. Press ⏻ to switch the appliance on.
3. Press "Steam".
4. Use < or > to select reheating.
5. Press "Reheat"
6. Press "Temperature".
7. Use < or > to select the temperature.
8. Press √ to confirm the setting.

9. Press "Cooking time".

10. Use < or > to select the duration.

11. Press √ to confirm the setting.

12. Press ▷to start the reheating process. → "Pausing operation", Page 15

√ If the water tank runs dry during the reheating process, the operation is paused.
→ "Refilling the water tank", Page 16

√ Once the duration has elapsed, an audible signal sounds and the appliance stops heating. → "Switching off the appliance", Page 14

1. Press any button to end the signal tone.

2. Empty the water tank and dry the cooking compartment.

→ "After using steam operation", Page 18

Dough proving

Yeast dough proves considerably more quickly using "Dough proving" than at room temperature, and it will not dry out.

Configuring the Dough proving heating function

Requirement: The cooking compartment must have cooled down completely (to room temperature).

1. Fill the water tank.
   → "Filling the water tank", Page 15

2. Press ⏻ to switch the appliance on.

3. Press "Steam".

4. Use < or > to select dough proving.

5. Press "Dough proving".

6. Press "Temperature".

7. Use or to select the temperature.

8. Press √ to confirm the setting.

9. Press "Cooking time".

10. Use or to select the cooking time.

11. Press √ to confirm the setting.

12. Press Dito start the dough proving process. → "Pausing operation", Page 15

√ If the water tank runs dry during the dough proving process, the operation is paused.
→ "Refilling the water tank", Page 16

√ Once the duration has elapsed, an audible signal sounds and the appliance stops heating. → "Switching off the appliance", Page 14

1. Press any button to end the signal tone.

2. Empty the water tank and dry the cooking compartment.

→ "After using steam operation", Page 18

Defrost

Use "Defrost" to defrost (deep-) frozen products.

Configuring the Defrost heating function

Requirement: The cooking compartment must have cooled down completely (to room temperature).

1. Fill the water tank.
   → "Filling the water tank", Page 15

2. Press ⏻ to switch the appliance on.

3. Press "Steam".

4. Use or to select the defrost setting.

5. Press "Defrost"

6. Press "Temperature".

7. Use or to select the temperature.

8. Press √ to confirm the setting.

9. Press "Cooking time".

10. Use < or > to select the cooking time.

11. Press √ to confirm the setting.

12. Press ▷to start the defrosting process.

→ "Pausing operation", Page 15

√ If the water tank runs dry during the defrosting process, the operation is paused.
→ "Refilling the water tank", Page 16

√ Once the duration has elapsed, an audible signal sounds and the appliance stops heating.

→ "Switching off the appliance", Page 14

1. Press any button to end the signal tone.

2. Empty the water tank and dry the cooking compartment.

→ "After using steam operation", Page 18

Sous-vide

"Sous-vide" is a type of low-temperature cooking during which vacuum-sealed food is cooked at low temperatures between 50 and 95^ with 100% steam. Sous-vide is suitable for meat, fish, vegetables and desserts. A chamber vacuum-packing machine is used to heat-seal the food in special air-tight, heat-resistant vacuum-sealing bags. The protective vacuum-sealing bags retain the nutrients and flavours.

Configuring the Sous-vide heating function

Notes

■ During sous-vide cooking, more condensate forms on the cooking compartment floor than with other types of heating.
■ If the water tank runs dry while sous-vide cooking, the operation is paused.

Requirement: The cooking compartment has cooled down sufficiently.

1. ATTENTION!

Risk of damage to kitchen units

- Do not fill the water tank a second time for the sous-vide cooking.

Fill the water tank.

→ "Filling the water tank", Page 15

1. Press ⏻ to switch the appliance on.

2. Press "Steam".

3. Use < or > to select the sous-vide cooking process.

4. Press "Sous-vide".

5. Press "Temperature".

6. Use or to select the temperature.

7. Press √ to confirm the setting.

8. Press "Cooking time".

9. Use < or > to select the duration.

10. Press √ to confirm the setting.

11. Press ▷to start the sous-vide cooking process.

→ "Pausing operation", Page 15

√ Once the duration has elapsed, an audible signal sounds and the appliance stops heating.
"Switching off the appliance", Page 14

1. Press any button to end the signal tone.

14. ⚠️ WARNING – Risk of scalding!

Hot water collects on the vacuum-sealing bag during cooking.

▶ Use an oven cloth to carefully lift the vacuum-sealing bag so that the hot water runs off into the universal pan or the cooking container.

- Use the oven cloth to carefully remove the vacuum-sealing bag.

Use an oven cloth to carefully remove the vacuuming bag.

1. Empty the water tank and dry the cooking compartment.

→ "After using steam operation", Page 18

9.3 Added steam

When you cook with added steam, the appliance introduces steam into the cooking compartment at various intervals. This gives your food a crispy crust and a glossy surface. Meat stays juicy, tender and only undergoes a minimum reduction in volume.

Types of heating and functions for added steam

You can switch on added steam for the following types of heating and functions:

■ "Circo Therm hot air"

■ "Top/bottom heat"

■ "Circo-roasting"

■ "Bread baking setting"

■ "Keep warm" ≡

■ → "Dishes", Page 20

Switching on added steam

1. Fill the water tank.

→ "Filling the water tank", Page 15

1. Press Ⓤ to switch the appliance on.

2. Set a suitable type of heating.

→ "Types of heating and functions for added steam", Page 18

1. Set the required temperature.

2. Press "Added steam".

3. Press the required steam intensity:

Symbol Added steam

	"Low" (Setting 1)
	"Medium" (Setting 2)
	"High" (Setting 3)

1. Press √ to confirm the setting.
2. Press ▷ to start operation with added steam.

√ If the water tank runs dry during the added steam process, "Fill water tank" appears on the display.

The appliance continues to operate without added steam.

→ "Refilling the water tank", Page 16

1. When the food is ready, use ⏻ to switch the appliance off.

2. Empty the water tank and dry the cooking compartment.

→ "After using steam operation", Page 18

Changing added steam

1. Press ^.
2. Press "Added steam".
3. Press the required steam intensity.
4. Press √ to confirm the setting.

Cancelling added steam

1. Press ^.
2. Press "Added steam".
3. Press ✉Off".
4. Press √ to confirm the setting.

√ The operation continues without adding steam.

9.4 Steam jet

You can use "Steam boost" to specifically add intensive steam at various intervals. This makes bread and bread rolls in particular wonderfully crispy and gives them a golden colour.

The appliance adds clouds of steam to the cooking compartment for approximately 3 to 5 minutes. Depending on the operation, you can activate the steam boost several times.

Types of heating and functions for steam boost

You can switch on steam boost for the following types of heating and functions:

■ "Circo Therm hot air"
■ "Top/bottom heat"
■ "Circo-roasting"
■ "Bread baking setting"

Switching on steam boost

1. Fill the water tank.

→ "Filling the water tank", Page 15

1. Press ⏻ to switch the appliance on.

2. Set a suitable type of heating.

→ "Types of heating and functions for steam boost", Page 18

1. Set a temperature above 120 °C.

2. Press "Steam boost".

3. Press ▷ll to start operation with steam boost.

Once lights up, the water is heated up sufficiently to use the steam boost.

Do not use the steam jet until the appliance has completely heated up.

Note: If rapid heating _3 is activated, the steam jet can only be triggered once rapid heating is complete.

1. Press at the desired time.

√ The steam jet is triggered and the appliance adds clouds of steam to the cooking compartment for approx. 3 to 5 minutes.

√ When the steam boost has finished, the operation continues to run. Depending on the operation, the steam jet can be triggered again if necessary.

√ If the water tank runs dry during steam boost, "Fill water tank" appears on the display. The operation continues without steam boost.

→ "Refilling the water tank", Page 16

1. When the food is ready, use ⏻ to switch the appliance off.

2. Empty the water tank and dry the cooking compartment.

→ "After using steam operation", Page 18

9.5 After using steam operation

Dry the appliance after each steam operation.

Note: Traces of limescale may remain in the cooking compartment after operation with steam. The functionality of the appliance is not affected by this. You can remove traces of limescale using hot water or a cloth soaked in vinegar. Observe the information on cleaning.

→ "Cleaning and servicing", Page 26

Emptying the water tank

WARNING – Risk of burns!

The water tank may heat up while the appliance is in operation.

• Wait until the water tank has cooled down from the previous operation.
• Remove the water tank from the tank recess.

ATTENTION!

Drying the water tank in the hot cooking compartment leads to damage to the water tank.

- Do not dry the water tank in the hot cooking compartment.

Cleaning the water tank in the dishwasher will damage it.

- Do not clean the water tank in the dishwasher.

- Clean the water tank with a soft cloth and standard washing-up liquid.

1. Use ☐ to open the control panel.
2. Remove the water tank.
3. Carefully remove the lid of the water tank.
4. Empty the water tank, clean it with detergent and then rinse it thoroughly with clean water.
5. Dry all parts with a soft cloth.
6. Rub the seal on the lid until dry.
7. Leave the water tank to dry with the lid open.
8. Place the lid on the water tank and push down on it.
9. Insert the water tank and close the control panel.

Drying the condensation tray

WARNING – Risk of burns!

The appliance becomes hot during operation.

- Allow the appliance to cool down before cleaning.

Requirement: The cooking compartment has cooled down.

1. Open the appliance door.

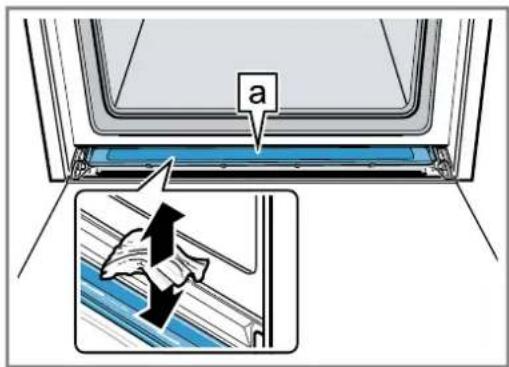

2. Note:

The condensation tray is underneath the cooking compartment.

a

Soak up the water in the condensation tray with a tea towel and wipe it carefully.

Note: You can remove the condensation tray in order to clean it.

→ "Removing the condensate tray", Page 31

Drying the cooking compartment

Dry the cooking compartment after each steam operation.

- Dry the cooking compartment by hand or use the drying function.

→ "Drying", Page 29

10 Time-setting options

Your appliance has different time-setting options, with which you can control its operation.

Time-setting option	Use
Timer ∅You can set the timer to run independently of the appliance during operation. The timer does not affect the appliance.
Cooking time |→|	Once the set duration has elapsed, the appliance stops heating automatically.
Ready at →Along with the duration, you can set the time at which you want the operation to end. The appliance starts up automatically so that the operation finishes at the required time.

10.1 Timer

You can set the timer regardless of whether the appliance is on or off.

Setting the timer

1. Press :.
2. Press
3. Press Hours, Minutes or Seconds.
4. Use < or > to select the timer duration.
5. Press ▷ to confirm the setting.
   √ 🔔appears on the display. The timer counts down.

√ Once the timer duration has elapsed, an audible signal sounds.
6. Press any button to end the audible signal.

Changing the timer

1. Press :
2. Press
3. Press II
4. Press Hours, Minutes or Seconds.
5. Use < or > to change the timer duration.
6. Press ▷ to confirm the setting.

Cancelling the timer

1. Press :
2. Press
3. Press to reset the timer duration.
4. Press to close the timer.

10.2 Cooking time

Once the set duration has elapsed, the appliance stops heating automatically. You can only use the cooking time in conjunction with a type of heating.

Setting the cooking time

1. Set a type of heating and a temperature.
2. Press "Cooking time".
3. Press Hours or Minutes.
4. Use to select the cooking time.
5. Press √ to confirm the setting.
6. Press ▷ to start operation with a cooking time.
   √ The cooking time appears on the display. The cooking time counts down.

√ When the time has elapsed, a signal sounds.
7. Press any button to end the audible signal.

Changing the cooking time

1. Press ^.
2. Press "Cooking time".
3. Use or to change the cooking time.
4. Press √ to confirm the setting.

Cancelling the cooking time

1. Press
2. Press "Cooking time".
3. Reset the cooking time using Ⓙ
4. Press √ to confirm the setting.

10.3 Delayed start/"Ready at" time

With this function, the appliance automatically switches itself on, and then switches itself off at the preselected end time. To enable it to do this, you set the cooking time (duration) and specify when you want your food to be ready. You can only use the delayed start function in conjunction with a heating function.

Setting the "Ready at" time for delayed starts

Notes

■ Do not leave food that spoils easily in the cooking compartment for too long.
- You cannot use the delayed start function with every type of heating.

1. Place the food into the cooking compartment and close the appliance door.

2. Set a type of heating and a temperature.

3. Press "Cooking time".

4. Press Hours or Minutes.
5. Use to select the cooking time.
6. Press √ to confirm the setting.
7. Press "Ready at".

√ The time at which your food will be ready will appear on the display.

1. Use the > button to select the required end time.
2. Press √ to confirm the setting.
3. Press ▷to confirm the delayed start.

√ The appliance will start at the appropriate time.
√ When the time has elapsed, a signal sounds.
11. Press any button to end the audible signal.

Changing the "Ready at" time for delayed starts

1. Press ▷ll
2. Press "Ready at".
3. Use < or > to change the end time.
4. Press √ to confirm the setting.
5. Press ▷ to confirm the delayed start.

Cancelling the "Ready at" time for delayed starts

1. Press ▷ll
2. Press "Ready at".
3. Use To reset the end time.
4. Press √ to confirm the setting.

√ The end time corresponds to the current time plus the set cooking time.
Press || to start operation with a cooking time.

Note: If you want to continue the operation without a cooking time, cancel the cooking time.

→ "Cancelling the cooking time", Page 20

11 Dishes

"Dishes" helps you to use your appliance to prepare different dishes by selecting the optimum settings automatically.

11.1 Cookware for dishes

The cooking result depends on the composition of the meat and the size of cookware.

You should therefore use heat-resistant cookware that is suitable for temperatures up to 300 °C. Glass or glass ceramic cookware is best. The joint should cover approx. 2/3 of the cookware base.

Cookware made from the following material is not suitable:

■ Bright, shiny aluminium
■ Unglazed clay
■ Plastic or plastic handles

11.2 Setting options for the dishes

To cook the dishes perfectly, the appliance uses different settings depending on the dish.

The display shows you the settings that are used. You can adjust certain settings. Follow the instructions on the display.

Note: The cooking result depends on the quality and composition of the food. Use fresh and, ideally, chilled food. Use frozen food straight from the freezer.

Tips and information about the settings

If you set a dish, the display shows relevant information for this dish, e.g.:

■ Suitable shelf position
■ Suitable accessory or cookware
■ Added liquid
■ Time for turning or stirring

When this time is reached, a signal sounds.

To call up the information, press "Information". Some notifications are displayed automatically.

Programmes

The optimum type of heating, temperature and cooking time are preset for programmes.

To achieve an optimal cooking result, you must also set the weight, thickness or the cooking level. You can set the weight only in the intended range.

Unless otherwise indicated, set the total weight for your dish.

Recommended settings

For the recommended settings, the optimum type of heating is preset as a fixed value. You can adjust the set temperature and the cooking time.

Dishes with steam

For some dishes, you can select a cooking method with steam ≈ The food is cooked gently.

Observe the information on operating with steam.

→ "Steam", Page 15

11.3 Overview of the dishes

You can see which individual dishes are available to you on the appliance. The dishes depend on the features of your appliance.

The dishes are sorted by category and food.

Note: In the basic settings, you can regionally specialise the displayed dishes.

→ "Basic settings", Page 23

Category Food
Cakes Cakes in tins
	Cakes on a baking tray
	Small baked items
	Biscuits
Bread, bread rolls	Bread
	Bread rolls
Pizza, savoury cakes, quiche	Pizza
	Savoury cakes, quiche
Bakes, soufflés	Bake, savoury, fresh, cooked ingredients
	Potato gratin, raw ingredients, 4 cm deep
	Lasagne, fresh
	Lasagne, chilled
	Bake, sweet, fresh
	Fruit crumble
	Soufflés in individual moulds
	Yorkshire pudding
Poultry Chicken
	Duck, goose
	Turkey
Meat Pork
	Beef
	Veal
	Lamb
	Game
	Meat dishes
Fish. Fish, whole
	Fish fillets
	Fish steaks
	Fish dishes
	Seafood
Frozen products	Pizza
	Bakes
	Potato products
	Vegetables
	Poultry, fish
	Bread rolls
Side dishes, vegetables	Potatoes
	Rice
	Cereals
	Vegetables
	Pulses
	Pasta, dumplings
	Eggs

Category Food
Desserts, compote	Yeast dumplingsCrème caramelRice puddingFruit compoteYoghurt in glass jars
Sous vide MeatPoultryFish.VegetablesFruit, Dessert
Preserving, extracting juice, sterilising	Preserving foodExtracting juiceBottles, sterilise
Reheating, crisping up	Baked itemsSide dishesVegetablesMenu
Defrosting food	Fruit, vegetables

11.4 Setting a dish

1. Press "Dishes".
2. Press the required category.
3. Press the required food.
4. Press the required dish.

Note: The setting options vary depending on the dish.

→ "Setting options for the dishes", Page 20

√ The settings for the dish appear on the display.

1. Adjust the settings if required.

The setting options vary depending on the dish.

→ "Setting options for the dishes", Page 20

1. For information about the accessory and shelf position, for example, press "Information".
2. Press ▷II to start the operation.

√ The appliance starts to heat and the cooking time counts down.

√ Once the dish is ready, a signal sounds. The appliance stops heating.
8. Decide how you want to continue:

Finish Dish is ready
Add extra cooking time	→ "Extending the cooking time", Page 21
Keep warm	→ "Keeping a dish warm", Page 21
Dry the cooking compartment	→ "Drying", Page 29

11.5 Extending the cooking time

1. To extend the cooking time, press "Add extra cooking time".
2. Use the button to change the settings, if required.
3. Press √ to confirm the settings.

11.6 Keeping a dish warm

1. To keep the dish warm, press "Keep warm".

2. Use the or button to change the settings, if required.

3. Press √ to confirm the settings.

4. Press ▷ to start the keep warm function.

12 Favourites

In the "Favourites", you can save your settings and use these again.

Notes

■ Depending on the appliance type/software status, you must first download this function to your appliance. You can find more information in the Home Connect app.
■ You can only sort and rename favourites in the Home Connect app.

12.1 Saving favourites

You can save up to 30 different functions as your favourites.

▶ If you set a function, press ♥Favourites". To rename a favourite, you must use the Home Connect app. When your appliance is connected, follow the instructions in the app.

12.2 Selecting favourites

If you have saved favourites, you can use these to set the operation.

1. Press "Favourites".

2. Press the required favourites.

3. If required, you can change the settings.

4. Press || to start the operation.

Note:

Observe the instructions for the various functions:

■ → "Steam", Page 15

12.3 Changing favourites

You can change, sort or rename your saved favourites at any time.

1. To sort or rename the favourites, you must use the Home Connect app. When your appliance is connected, follow the instructions in the app.
2. To change the settings on the appliance, press "Favourites".
3. Press the required favourites.
4. Press ∅
5. Change the settings.
6. Press "Apply" to confirm the change.

12.4 Deleting favourites

1. Press "Favourites".
2. Press the required favourites.
3. Press ♥.
4. Press "Delete" to confirm.

13 Childproof lock

You can secure your appliance to prevent children from accidentally switching it on or changing the settings.

13.1 Activating the childproof lock

The childproof lock disables the control panel to prevent children from accidentally switching on the appliance. To switch on the appliance, deactivate the childproof lock.

Note: When you activate the childproof lock, the appliance will immediately disable the control panel. The ⏻ button is the exception and will not be disabled.

1. Press :
2. Press

"Childproof lock activated" appears on the display.

13.2 Deactivating the childproof lock

- Press and hold "Unlock" until "Childproof lock deactivated" appears.

14 Rapid heating

With the rapid heating function, you can shorten the heat-up time.

From 200 °C, the rapid heating function is activated automatically.

Note: You can deactivate automatic rapid heating from 200 °C in the basic settings.

→ "Basic settings", Page 23

Rapid heating is possible for the following types of heating:

■ "Circo Therm hot air"
■ "Top/bottom heat" =
■ "Bread baking setting"

14.1 Activating rapid heat-up

To ensure an even cooking result, do not place the food in the cooking compartment until rapid heating has come to an end.

Note: Do not set a cooking time until rapid heating has come to an end.

1. Set a suitable type of heating and a temperature of at least 100 °C . Rapid heating automatically switches on at temperatures of 200 °C and above.

2. Press

3. Press ▷II to start the operation.

√ Once rapid heating has ended, "Rapid heating" switches off automatically and a signal sounds. 🌐 goes out on the display.
4. Place the food in the cooking compartment.

14.2 Deactivating the "Rapid heat-up" function

1. Press
2. Press

15 Basic settings

You can configure the basic settings for your appliance to meet your needs.

15.1 Overview of the basic settings

Here you can find an overview of the basic settings and factory settings. The basic settings depend on the features of your appliance.

You can find more information about the individual basic settings on the display using "Information".

Basic settings Selection

Language See selection on the appliance

Home Connect Connect the oven to a mobile end device and remotely control it → "Home Connect ", Page 24

Time Time in 24-hour format

Date Date in the format DD.MM.YYYY

Display Selection

Brightness ■ 1
	■ 2
	■ 3
	■ 4
	■ 5^1
Standby screen	■ On for a limited time
	■ On (this setting increases energy consumption)
	■ Off ^1
Clock ■ Digital + date
	■ Digital
	■ Analogue + date
	■ Analogue

Adjustment Align the display horizontally and vertically

1 Factory setting (may vary according to model)

Sound Selection

Button tone ■ On 1■ Off

Signal tone ■ Very short duration■ Short duration■ Medium duration 1■ Long duration

^1 Factory setting (may vary according to model)

Appliance set- tings	Selection
Fan run-on time	MinimumRecommended ^1 LongVery long
Pull-out system	Retrofitted (if 2 or 3 sets of pull-out rails are fitted)Not retrofitted (if shelf supports and a single set of pull-out rails are fitted) ^1
Illumination	On when cooking and opening the door ^1 Only when the door is openedAlways off
Water hard-ness	4 (very hard) ^1 3 (hard)2 (medium)1 (soft)0 (softened)

^1 Factory setting (may vary according to model)

Personalisation	Selection
Brand logo ■ Display1■ Do not display
Operation after switch-on	■ Main menu1■ Types of heating■ Steam■ Dishes■ Favourites
Elapsed cooking time	■ Display1■ Do not display
Regional dishes	■ All1■ European dishes■ British dishes
Dishes ■ All	1■ No pork■ Kosher only
Childproof lock	■ Available1■ Deactivated
Automatic rapid heating	■ On1■ Off

^1 Factory setting (may vary according to model)

Factory settings	Selection
Factory settings	■ Cancel■ Restore
Appliance information	Display
Appliance information	Display technical information about the appliance

15.2 Changing basic settings

1. Press ⏻ to switch the appliance on.

2. Press "Basic settings".

3. Use or to scroll through the basic settings or categories.

4. Press the required basic setting or category.
5. Press the required basic setting in a category.
6. Swipe left or right to select the required setting.
7. Press √ to confirm the change. If √ does not appear, the change is applied immediately.
8. To change other basic settings, use to return to the basic settings.

16 Home Connect

This appliance is network-capable. Connecting your appliance to a mobile device lets you control its functions via the Home Connect app, adjust its basic settings and monitor its operating status.

The Home Connect services are not available in every country. The availability of the Home Connect function depends on the availability of Home Connect services in your country. You can find information about this at: www.home-connect.com.

The Home Connect app guides you through the entire login process. Follow the instructions in the Home Connect app to configure the settings.

Tips

■ Please consult the documents supplied by Home Connect.
- Please also follow the instructions in the Home Connect app.

Notes

• Please note the safety precautions in this instruction manual and make sure that they are also observed when operating the appliance via the Home Connect app.
  → "Safety", Page 2
• Operating the appliance on the appliance itself always takes priority. During this time it is not possible to operate the appliance using the Home Connect app.
• In networked standby mode, the appliance requires a maximum of 2 W.

16.1 Setting up Home Connect

Requirements

■ The appliance is connected to the power supply and is switched on.
- You have a mobile device with a current version of the iOS or Android operating system, e.g. a smartphone.
■ The mobile device and the appliance are within range of your home network's Wi-Fi signal.

1. Download the Home Connect app.

GET IT ON Google Play Download on the App Store

1

^1 Apple App Store und the Apple App Store logo are trademarks of Apple Inc. Google Play and the Google Play logo are trademarks of Google LLC.

1. Open the Home Connect app and scan the following QR code.

QR code image containing encoded data, no visible human-readable text

1. Follow the instructions in the Home Connect app.

16.2 Home Connect settings

You can adjust the Home Connect settings and network settings in your appliance's basic settings. Which settings the display shows will depend on whether Home Connect has been set up and whether the appliance is connected to your home network.

Basic setting Possible settings Explanation

Home Connect as-sistant	Start the assistant Disconnect	You can connect your appliance to the Home Connect app via the Home Connect assistant.Note:If you are using the Home Connect assistant for the first time, only the "Start assistant" setting is available.
Basic setting Possible settings Explanation
Wi-Fi On	Off	You can use the Wi-Fi to switch off the network connection for your appliance. When you have connected successfully once, you can deactivate the Wi-Fi and not lose your detailed data. As soon as you activate Wi-Fi again, the appliance connects automatically.Note: In networked standby mode, the appliance requires a maximum of 2 W.
Remote control status	MonitoringManual remote startPermanent remote start	During monitoring, you can only view the operating status of the appliance in the app.For manual remote start, you must activate the remote start each time before you can start the appliance via the app. You can open the appliance door within 15 minutes of having activated remote start. Remote start will not be deactivated by this.Once 15 minutes have elapsed, opening the appliance door will deactivate manual remote start.For permanent remote start, you can start and operate the appliance remotely at any time. If you often operate the appliance remotely, it is helpful to set the remote start to "Permanent".

16.3 Operating the appliance with the Home Connect app

You can use the Home Connect app to set and start the appliance remotely.

WARNING – Risk of fire!

Combustible objects that are left in the cooking compartment may catch fire.

• Never store combustible objects in the cooking compartment.
  ▶ If smoke is emitted, the appliance must be switched off or the plug must be pulled out and the door must be held closed in order to stifle any flames.

Requirements

■ The appliance is switched on.
■ The appliance is connected to the home network and to the Home Connect app.
- In order to be able to set the appliance via the app, the manual or permanent remote start must be selected in the "Remote control status" basic setting.

1. To activate remote start, press ☐.
2. Configure a setting in the Home Connect app and send it to the appliance.

Notes

• When you start the oven using the controls on the appliance itself, the remote start function is activated automatically. You can use the Home Connect app to adjust the settings or start a new programme.
  ■ You can open the appliance door within 15 minutes of having activated remote start. Remote start will not be deactivated by this. Once 15 minutes have elapsed, opening the appliance door will deactivate manual remote start.

16.4 Software update

Your appliance's software can be updated using the software update function, e.g. for the purposes of optimisation, troubleshooting or security updates. To do this, you must be a registered Home Connect user, have installed the app on your mobile device and be connected to the Home Connect server.

As soon as a software update is available, you will be informed via the Home Connect app and will be able to start the software update via the app. Once the update has been successfully downloaded, you can start installing it via the Home Connect app if you are in your home network (Wi-Fi). The Home Connect app informs you once installation is successful.

Notes

■ The software update consists of two steps.
- The first step is the download.
- The second step is the installation on your appliance.

- You can continue to use your appliance as normal while updates are downloading. Depending on your personal settings in the app, software updates can also be set to download automatically.

■ Installation takes a few minutes. You cannot use your appliance during installation.

■ We recommend that you install security updates as soon as possible.

16.5 Remote diagnostics

Customer Service can use Remote Diagnostics to access your appliance if you contact them, have your appliance connected to the Home Connect server and if Remote Diagnostics is available in the country in which you are using the appliance.

Tip: For further information and details about the availability of Remote Diagnostics in your country, please visit the service/support section of your local website: www.home-connect.com.

16.6 Data protection

Please see the information on data protection. The first time your appliance is registered on a home network connected to the Internet, your appliance will transmit the following types of data to the Home Connect server (initial registration):

■ Unique appliance identification (consisting of appliance codes as well as the MAC address of the Wi-Fi communication module installed).
■ Security certificate of the Wi-Fi communication module (to ensure a secure data connection).

■ The current software and hardware version of your appliance.
■ Status of any previous reset to factory settings.
This initial registration prepares the Home Connect functions for use and is only required when you want to use the Home Connect functions for the first time.

Note: Please note that the Home Connect functions can only be utilised with the Home Connect app. Information on data protection can be retrieved in the Home Connect app.

17 Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

17.1 Cleaning products

In order to avoid damaging the various oven surfaces on the appliance, do not use unsuitable cleaning products.

⚠ WARNING – Risk of electric shock!

An ingress of moisture can cause an electric shock.

- Do not use steam- or high-pressure cleaners to clean the appliance.

ATTENTION!

Unsuitable cleaning agents damage the surfaces of the appliance.

- Do not use harsh or abrasive cleaning products.

- Do not use cleaning products with a high alcohol content.

• Do not use hard scouring pads or cleaning sponges.
• Do not use any special cleaners for cleaning the appliance while it is hot.
  Using oven cleaner in a hot cooking compartment damages the enamel.
  ▶ Never use oven cleaner in the cooking compartment when it is still warm.
• Remove all food remnants from the cooking compartment and the appliance door before you next heat up the appliance.
  If different cleaning agents are mixed together, there may be a chemical reaction between these.
• Do not mix cleaning agents.
• Completely remove any cleaning agent residue.
  Salt contained in new sponge cloths may damage surfaces.
• Wash new sponge cloths thoroughly before use.

Suitable cleaning agents

Only use cleaning agents that are suitable for the different surfaces on your appliance.

Follow the instructions on cleaning the appliance.

→ "Cleaning the appliance", Page 27

Appliance front
Surface Suitable cleaning agents Information

Stainless steel ■ Hot soapy water■ Special stainless steel cleaning products suitable for hot surfaces	To prevent corrosion, remove any patches of limescale, grease, starch or albumin (e.g. egg white) from stainless steel surfaces immediately.Apply a thin layer of the stainless steel cleaning product.
Plastic or painted surfacesE.g. control panel ■ Hot soapy water Do not use glass cleaner or a glass scraper.To avoid permanent stains, immediately remove any descaling agent that gets onto the surface.

Appliance door

Area Suitable cleaning agents Information

Door panels ■ Hot soapy water■ Oven cleaners	Do not use a glass scraper or stainless steel wool.Tip: Remove the door panels in order to clean them thoroughly.→ "Appliance door", Page 30
Door cover ■ Made of stainless steel:Stainless steel cleaner■ Made from plastic:Hot soapy water	Do not use glass cleaner or a glass scraper.Do not use stainless steel care products.Tip: Remove the door cover for thorough cleaning.→ "Appliance door", Page 30
Stainless steel interior door frame ■ Stainless steel cleaner	Discolouration can be removed using stainless steel cleaner.Do not use stainless steel care products.

Area Suitable cleaning agents Information

Door handle ■ Hot soapy water To avoid permanent stains, immediately remove any descaling agent that gets onto the surface.

Door seal ■ Hot soapy water Do not remove or scrub.

Cooking compartment

Area Suitable cleaning agents Information
Enamel surfaces■ Hot soapy water■ Vinegar water■ Oven cleaners	Soak any heavily soiled areas and use a brush or steel wool.Leave the appliance door open to dry the cooking compartment after cleaning it.Notes■ Enamel burns at very high temperatures, causing minor discolouration. The functionality of your appliance is not affected by this.■ The edges of thin trays cannot be completely enamelled and may be rough. This does not impair the corrosion protection.■ Food residues leave a white coating on the enamel surfaces. The coating does not pose a health risk. The functionality of your appliance is not affected by this. You can remove residues with lemon juice.
Self-cleaning surfaces- Follow the instructions for self-cleaning surfaces → "Regenerating self-cleaning surfaces in the cooking compartment", Page 27
Shelf supports■ Hot soapy water Soak any heavily soiled areas and use a brush or steel wool.Note: To clean thoroughly, detach the shelf supports.→ "Rails", Page 30
Accessories■ Hot soapy water■ Oven cleaners	Soak any heavily soiled areas and use a brush or steel wool.Enamelled accessories are dishwasher-safe.Do not use stainless steel wool on steam containers made from stainless steel.Use a vinegar solution to remove any dirt on stainless steel steam containers caused by starchy foods (e.g. rice).
Water tank■ Hot soapy water To remove residual detergent after cleaning, rinse thoroughly with clean water.To dry the water tank after cleaning, leave the water tank to dry with the lid open. Dry the seal on the lid.Do not clean in the dishwasher.

17.2 Cleaning the appliance

In order to avoid damaging the appliance, you must clean your appliance only as specified, and with suitable cleaning products.

WARNING – Risk of burns!

The appliance and its parts that can be touched become hot during use.

• Caution should be exercised here in order to avoid touching heating elements.
• Young children under 8 years of age must be kept away from the appliance.

WARNING – Risk of fire!

Loose food remnants, fat and meat juices may catch fire.

Before using the appliance, remove the worst of the food residues and remnants from the cooking compartment, heating elements and accessories.

Requirement: Read the information on cleaning products.

→ "Cleaning products", Page 26

1. Clean the appliance using hot soapy water and a dish cloth.

- For some surfaces, you can use alternative cleaning agents.

→ "Suitable cleaning agents", Page 26

1. Dry with a soft cloth.

Regenerating self-cleaning surfaces in the cooking compartment

The back panel in the cooking compartment is self-cleaning. The self-cleaning surfaces are coated with a porous, matt ceramic layer and have a rough surface. When the appliance is in operation, the self-cleaning surfaces absorb splashes from baking, roasting or grilling, and break them down. If the self-cleaning surfaces no longer clean themselves adequately during operation, heat up the cooking compartment specifically to the right temperature.

ATTENTION!

If you do not clean the self-cleaning surfaces regularly, they may become damaged.

▶ If dark stains are visible on the self-cleaning surfaces, heat up the cooking compartment.
- Do not use oven cleaner or abrasive cleaning aids. If oven cleaner accidentally comes into contact with the self-cleaning surfaces, dab it off immediately using water and a sponge cloth. Do not rub.

1. Remove accessories and cookware from the cooking compartment.

2. Detach the shelf supports and remove them from the cooking compartment.

→ "Rails", Page 30

1. Remove coarse dirt using soapy water and a soft cloth:

- From the smooth enamel surfaces

- From the inside of the appliance door

• From the glass cover on the oven lamp This prevents stains that cannot be removed.
• Remove any objects from the cooking compartment. The cooking compartment must be empty.
• Set the bread-baking setting.
• Set the maximum temperature.
• Start the operation.
• Switch off the appliance after 1 hour.
• Once the appliance has cooled down, wipe the cooking compartment with a damp cloth.

Note: Marks may appear on the self-cleaning surfaces. Residues of sugar and egg white in the food are not removed and stick to the surfaces. Red stains are residues from salty food – they are not rust. The stains are not hazardous to health. These marks do not impair the cleaning ability of the self-cleaning surfaces.

1. Attach the shelf supports.

→ "Rails", Page 30

18 "Easy Clean" cleaning aid

Use the "Easy Clean" cleaning aid for intermediate cleaning of the cooking compartment. The "Easy Clean" cleaning aid softens dirt by vaporising the soapy water. It is then easier to remove the dirt.

18.1 Setting the "Easy Clean" cleaning aid

⚠ WARNING – Risk of scalding!

If there is water in the cooking compartment when it is hot, this may create hot steam.

▶ Never pour water into the cooking compartment when the cooking compartment is hot.

Notes

■ The oven light does not light up while the cleaning aid is running.
- Do not open the appliance door while the appliance is in operation.

Requirements

- You can only start the cleaning aid once the cooking compartment is cold (room temperature) and the appliance door is closed.

- To remove particularly stubborn dirt, rub washing-up liquid onto dirty areas on the smooth surfaces before starting the cleaning aid.

1. Remove any accessories from the cooking compartment.

2. ATTENTION!

Distilled water in the cooking compartment leads to corrosion.

▶ Do not use distilled water.

Mix 0.4 litres water with a drop of washing-up liquid and pour into the centre of the cooking compartment floor.

1. Press "Cleaning".

2. Press "Easy Clean".

3. Press ▷ to start the cleaning aid.

√ A notification stating that you should carry out the necessary preparatory work for the cleaning aid appears on the display.

1. Press "Cleaning".
2. Press "Easy Clean".

3. Press ▷to start the cleaning aid. √ A notification stating that you should carry out the necessary preparatory work for the cleaning aid appears on the display.

4. Press "OK" to confirm the notification.

√ The cleaning aid starts. The duration counts down on the display.

√ Once the cleaning aid has run through to the end, an audible signal sounds.

1. Press any button to end the audible signal.

2. After using the cleaning aid, finish cleaning the cooking compartment.

√ The cleaning aid starts. The duration counts down on the display. √ Once the cleaning aid has run through to the end, an audible signal sounds. 7. Press any button to end the audible signal. 8. After using the cleaning aid, finish cleaning the cooking compartment.

→ "Wiping down the cooking compartment", Page 28

18.2 Wiping down the cooking compartment

ATTENTION!

The prolonged presence of moisture in the cooking compartment leads to corrosion.

▶ After using the cleaning aid, wipe the cooking compartment clean and allow it to dry fully.

Requirement: The cooking compartment must have cooled down.

1. Open the appliance door and remove the remaining water with an absorbent sponge cloth.

2. Clean the smooth surfaces in the cooking compartment with a dish cloth or a soft brush. Remove stubborn food remnants using a stainless steel scouring pad.

3. Remove limescale with a cloth soaked in vinegar. Then wipe with clean water and rub dry with a soft cloth (including under the door seal).

4. If there is any stubborn dirt that you are unable to remove, run the cleaning aid again once the cooking compartment has cooled down.

5. In order to dry the cooking compartment, leave the appliance door open in the detent position (approx. 30°) for around 1 hour or use the drying function.

→ "Drying", Page 29

19 Descaling

To ensure that your appliance continues to operate correctly, it must be descaled regularly.

How frequently you need to run the descaling programme depends on the water hardness and how many times you have used the steam-assisted operations. The appliance indicates when only another 5 or fewer steam-assisted operations are possible. If you do not carry out descaling, you can no longer set any operation with steam.

Descaling comprises several steps and takes approximately 70 - 95 minutes:

■ Descaling (approx. 55 - 70 minutes)
■ First rinse cycle (approx. 8 - 12 minutes)
■ Second rinse cycle (approx. 8 - 12 minutes)

Carry out descaling in full.

If descaling is interrupted, you can no longer set any operation. To ensure that the appliance is ready for operation again, carry out 2 rinse cycles.

19.1 Preparing descaling

ATTENTION!

The length of time for which the descaler is left to work is based on the recommended, liquid descaler. Other descalers may damage the appliance.

• Only use the liquid descaler recommended by us for the descaling programme.
  If descaling solution comes into contact with the control panel or other delicate surfaces, it will damage them.

• Remove descaling solution immediately with water.

• Mix the descaling solution:

• 200 ml liquid descaler

• 400 ml water

• Open the control panel.

• Remove the water tank and fill it with descaling solution.

• Once the descaling solution has been poured into the water tank, slide the tank back in.

• Close the control panel.

19.2 Setting the descaling process

ATTENTION!

If descaling solution comes into contact with the control panel or other delicate surfaces, it will damage them.

- Remove descaling solution immediately with water.

Requirement: → "Preparing descaling", Page 29

1. Press "Cleaning".
2. Press "Descaling"
   √ The duration appears on the display. You cannot change the duration of the descaling process.
3. Press ▷ to start the descaling process.
   √ A notification stating that you should carry out the necessary preparatory work for descaling appears on the display.
4. Press "OK" to confirm the notification.
   √ The descaling process starts. The duration counts down on the display.
   √ Once the descaling programme has run through to the end, an audible signal sounds.

19.3 Running the first rinse cycle

1. Open the control panel and remove the water tank.
2. Thoroughly rinse the water tank and fill it with fresh water.
3. Slide in the water tank and close the control panel.
   √ The rinse cycle starts. The duration counts down on the display.
   √ Once the rinse cycle has run through to the end, an audible signal sounds.

19.4 Running the second rinse cycle

1. Open the control panel and remove the water tank.
2. Thoroughly rinse the water tank and fill it with fresh water.
3. Slide in the water tank and close the control panel.
   √ The rinse cycle starts. The duration counts down on the display.
   √ Once the rinse cycle has run through to the end, an audible signal sounds.
4. Empty and dry the water tank.
   → "Emptying the water tank", Page 18

20 Drying

To prevent residual moisture, dry the cooking compartment following operation with steam.

20.1 Drying the cooking compartment

WARNING – Risk of burns!

The appliance becomes hot during operation.

- Allow the appliance to cool down before cleaning.

ATTENTION!

If there is water on the cooking compartment floor when operating the appliance at temperatures above 120 °C , this will damage the enamel.

• Do not use the appliance if there is water on the cooking compartment floor.
• Wipe away any water on the cooking compartment floor before operation.

Requirement: The cooking compartment has cooled down.

1. Remove any food remnants from the cooking compartment.

2. Dry the cooking compartment with a sponge.

3. Remove limescale marks with a cloth soaked in vinegar, then wipe with clean water and dry with a soft cloth.

4. Leave the cooking compartment to dry with the appliance door open for 1 hour or use "Drying function".

→ "Setting 'Drying function'", Page 30

20.2 Setting "Drying function"

Requirement: → "Drying the cooking compartment", Page 29

1. Press "Cleaning".

2. Press "Drying function".

√ The duration appears on the display. You cannot change the duration of the drying function.

1. Start the drying function using ▷II

√ A notification stating that you should carry out the necessary preparatory work for the drying function appears on the display.

1. Press "OK" to confirm the notification.

√ The drying function starts. The duration counts down on the display.

√ Once the drying function has run through to the end, an audible signal sounds.

1. Leave the appliance door open for 1-2 minutes so that the cooking compartment dries completely.

21 Rails

To thoroughly clean the rails and the cooking compartment, or to replace the rails, you can remove the rails.

21.1 Detaching the rails

WARNING – Risk of burns!

The shelf supports get very hot

▶ Never touch the shelf supports when hot.

▶ Always allow the appliance to cool down.

- Keep children at a safe distance.

1. Lift the rail forwards slightly ① and detach it ②

2. Pull the whole rail to the front ③ and remove it.

Diagram illustrating three steps of cable installation with numbered arrows indicating direction and connection points.

1. Clean the rail.

→ "Cleaning products", Page 26

21.2 Attaching the rails

Notes

■ The rails only fit on the right or left.

■ For both rails, ensure that the curved rods are at the front.

1. First, push the rail into the middle of the rear socket ① until the rail rests against the cooking compartment wall, and then push this back ②

2. Push the rail into the front socket ③ until the rail also rests against the cooking compartment wall, and then press this downwards ④

Diagram illustrating four steps of cable connection with numbered arrows indicating direction and movement.

22 Appliance door

To clean the appliance door thoroughly, you can disassemble the appliance door.

Note: Wipe the condensate trough without pressure.

22.1 Detaching the appliance door

WARNING – Risk of injury!

Components inside the appliance door may have sharp edges.

▶ Wear protective gloves.

The hinges on the appliance door move when the door is opened and closed, which could trap your fingers.

- Keep your hands away from the hinges.

1. Open the appliance door fully.

2. ⚠️ WARNING – Risk of injury!

When the hinges are not secured, they can snap shut with great force.

▶ Make sure that the locking levers are always either fully closed or (when detaching the oven door) fully open.

Open the locking levers on the left- and right-hand hinges.

Locking levers opened

Mechanical component diagram showing a lever mechanism with a blue handle and directional arrow (no text or symbols)

The hinge is now se- cured and cannot snap shut.

Locking levers closed

Mechanical diagram showing a blue bracket being inserted into a car seat (no text or symbols visible)

The appliance door is secured and cannot be detached.

√ The locking levers are open. The hinges are now secured and cannot snap shut.
3. Close the appliance door fully ①. Grab hold of the appliance door with both hands (on the left and right) and pull it upwards and out ②

Diagram showing a blue plastic component with numbered arrows indicating directional movement or assembly, labeled ① and ②.

1. Carefully place the appliance door on a level surface.

Removing the condensate tray

Notes

■ Wipe down the condensate tray after every steam operation or before removing it.
■ Do not clean the condensate tray in the dishwasher

Requirement: The appliance door must be removed.

1. Press on the left-hand pressure surface a until the hook is released.

2. Press on the right-hand pressure surface b until the hook is released.

a 1

Diagram showing mechanical assembly with labeled parts and directional arrows, including section 2 and component 'b'

1. Tilt the condensate tray forwards slightly until the lower retaining hooks are released.
2. Use both hands to pull the condensate tray upwards and out at an angle ①

a ①

Installing the condensate tray

1. Use both hands to insert the condensate tray a at an angle ①

a ①

1. Snap the hooks ☐ on the left and right of the condensate tray into the gap ①

a

Diagram showing a hand holding a blue object with a numbered arrow pointing to it, likely illustrating a step in a procedure or installation.

1. Push the condensate tray until the hooks on the right, left and bottom click into place.

√ The condensate tray is installed horizontally.

22.2 Attaching the appliance door

WARNING – Risk of injury!

The hinges on the appliance door move when the door is opened and closed, which could trap your fingers.

- Keep your hands away from the hinges.

When the hinges are not secured, they can snap shut with great force.

▶ Make sure that the locking levers are always either fully closed or (when detaching the oven door) fully open.

1. Slide the appliance door straight onto the two hinges ①. Slide the appliance door on as far as it will go.

2. Open the appliance door fully.

3. Close the locking levers on the left- and right-hand hinges ②

Technical diagram showing two mechanical assembly steps with numbered components and directional arrows indicating motion or force.

√ The locking levers are closed. The appliance door is secured and cannot be detached.

1. Close the appliance door.

22.3 Removing the door panes

WARNING – Risk of injury!

The hinges on the appliance door move when the door is opened and closed, which could trap your fingers.

- Keep your hands away from the hinges.

Components inside the appliance door may have sharp edges.

▶ Wear protective gloves.

1. Open the appliance door fully.

2. Open the locking levers on the left- and right-hand hinges ①.

√ The locking levers are open. The hinges are now secured and cannot snap shut.

1. Close the appliance door fully ②

Diagram showing two steps of car seatbelting: step 1 indicates seatbelt attachment, and step 2 indicates seatbelt opening.

1. Push on the left- and right-hand side of the door cover from the outside ① until it is released.

2. Remove the door cover ②

Technical diagram showing two-step assembly steps of a mechanical component, labeled with numbered callouts.

1. Lift out the inner pane ① and set it down carefully on a flat surface.

2. Lift out the intermediate pane ② and set it down carefully on a flat surface.

Diagram showing two steps of installing a blue panel, labeled with number 1 and number 2, indicating installation or assembly.

1. Open the appliance door and remove the door seal.

Diagram showing a mechanical assembly with directional arrows indicating motion, no text or symbols present

1. If necessary, you can remove the condensate trough for cleaning.

- Open the appliance door. - Tilt the condensate trough upwards and remove it.

Diagram showing a blue metal bracket being inserted into a wall, with an inset highlighting the insertion direction (no text or symbols present)

1. ⚠️ WARNING – Risk of injury!

Scratched glass in the appliance door may develop into a crack.

▶ Do not use any harsh or abrasive cleaners or sharp metal scrapers to clean the glass on the oven door, as they may scratch the surface.

Clean the removed door panels on both sides with glass cleaner and a soft cloth.

1. Clean the condensate trough with a cloth and hot soapy water.
2. Clean the appliance door. → "Suitable cleaning agents", Page 26
3. Dry the door panels and refit them. → "Fitting the door panes", Page 33

22.4 Fitting the door panes

WARNING – Risk of injury!

The hinges on the appliance door move when the door is opened and closed, which could trap your fingers.

- Keep your hands away from the hinges. Components inside the appliance door may have sharp edges. - Wear protective gloves.

1. Open the appliance door fully.
2. Place the condensate trough vertically into the retainer a and turn it downwards.

a

1. Slide the intermediate pane into the left- and right-hand retainers a

Diagram illustrating a mechanical assembly with labeled parts and directional arrows, including section 'a'

1. Push the intermediate pane upwards until it is in the left- and right-hand retainers ☐

Technical diagram showing a mechanical assembly with a blue component and an inset view of a bracket detail (no text or symbols)

1. Open the appliance door and attach the door seal.

Technical diagram showing a mechanical assembly with a blue bracket and directional arrows (no text or symbols)

1. Note: When sliding the pane in, ensure that the glossy side of the pane is on the outside and the cut-outs on the left and right are at the top. Slide the inner pane into the left- and right-hand retainers a.

a

1. Push the inner pane upwards until it is in the left-and right-hand retainers a.

Technical diagram showing a mechanical assembly with labeled parts and an inset view of a component labeled 'a'.

1. Put the door cover into position ① and push down on it until you hear it click into place.

2. Open the appliance door fully.

3. Close the locking levers on the left- and right-hand hinges ②.

Technical diagram showing two steps of a mechanical clamp or bracketing process, labeled ① and ②.

√ The locking levers are closed. The appliance door is secured and cannot be detached.

1. Close the appliance door.

Note: Do not use the cooking compartment again until the door panes have been correctly fitted.

23 Troubleshooting

You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs.

WARNING – Risk of injury!

Improper repairs are dangerous.

• Repairs to the appliance should only be carried out by trained specialist staff.
  ▶ If the appliance is defective, call Customer Service.
  → "Customer Service", Page 37

WARNING – Risk of electric shock!

Improper repairs are dangerous.

• Repairs to the appliance should only be carried out by trained specialist staff.
• Only use genuine spare parts when repairing the appliance.
  ▶ If the power cord of this appliance is damaged, it must be replaced by trained specialist staff.

23.1 Malfunctions

Fault Cause and troubleshooting

The appliance is not working.	The circuit breaker in the fuse box has tripped. ▶ Check the circuit breaker in the fuse box.
	There has been a power cut. ▶ Check whether the lighting in your room or other appliances are working.
	Electronics fault1. Disconnect the appliance from the power supply for at least 30 seconds by switching off the fuse.2. Reset the basic settings to the factory settings. → "Basic settings", Page 23
"Sprache Deutsch" appears in the display.	There has been a power cut. ▶ Configure the initial configuration settings. → "Initial use", Page 13
The operation does not start or is interrupted.	Different causes are possible. ▶ Check the notifications that appear on the display. → "Displaying information", Page 15
	Malfunction ▶ Call → "Customer Service", Page 37.
Fault Cause and troubleshooting
Appliance does not heat up.	Demo mode is switched on.1. Disconnect the appliance from the power supply for at least 30 seconds by switching off the fuse.2. Switch off demo mode in the basic settings within approx. 5 minutes.→ "Changing basic settings", Page 24
	There has been a power cut.► Open and close the appliance door once after a power failure.√ The appliance is checked and is ready to use.
The time is not displayed when the appliance is switched off.	Basic setting has been changed.► Change the basic setting for the clock.→ "Basic settings", Page 23
Home Connect is not working properly.	Different causes are possible.► Go to www.home-connect.com.
The control panel cannot be opened.	The circuit breaker in the fuse box has tripped.► Check the circuit breaker in the fuse box.
	There has been a power cut.► Check whether the lighting in your room or other appliances are working.
	Malfunction1. Call the after-sales service.→ "Customer Service", Page 372. If there is water in the water tank, empty the water tank:- Open the appliance door.- Grip on the right and left below the control panel.- Slowly pull out the control panel and push it upwards.
Intense steam generation when steaming.	The appliance is automatically calibrated.No action required.
	If the cooking times are too short, the appliance is not automatically calibrated.If a lot of steam is generated repeatedly, the appliance is recalibrated.1. Reset the appliance to the factory setting.→ "Basic settings", Page 232. Repeat the calibrations.→ "Before using for the first time", Page 12
The appliance requests descaling without the counter appearing in advance.	The set water hardness range is too low.1. Descale the appliance.→ "Descaling", Page 292. Check the water hardness and set this in the basic settings.→ "Basic settings", Page 23
The appliance prompts you to rinse it.	During the descaling, the power supply is interrupted or the appliance is switched off.► Rinse the appliance.→ "Descaling", Page 29
"Fill water tank" appears in the display even though the water tank has been filled.	The water tank has not clicked into place.► Insert the water tank correctly so that it engages in the holder.→ "Filling the water tank", Page 15
	The water tank has fallen out. Shaking has caused parts to come loose in the water tank.The water tank is leaking.► Order a new water tank.→ "Customer Service", Page 37
	Malfunction► Do not use deionised or filtered water.→ "Determining the water hardness before switching on the appliance for the first time", Page 12
	The sensor is defective.► Call→ "Customer Service", Page 37.

Fault Cause and troubleshooting

Buttons are flashing. Condensation has formed behind the control panel.No action required. As soon as the condensation has evaporated, the buttons no longer flash.
"Plopping" sounds can be heard when cooking with steam.	Water vapour requires the cold/heat effect for frozen food.No action required.
The appliance hums during operation and after it is switched off.	Functional test of the pump creates operating noise.No action required.
The interior lighting does not work.	Basic setting has been changed.► Change the basic setting for the lighting.→ "Basic settings", Page 23
	The LED light is defective.► Call→ "Customer Service", Page 37.
A notification appears on the display confirming that the maximum operating time has been reached.	The maximum operating time has been reached. The appliance stops heating.1. Press "OK" to confirm the notification about the maximum operating time.2. Check whether you still need the appliance.► Set a cooking time so that the operation does not stop.→ "Time-setting options", Page 19
The operation stops.	The maximum operating time has been reached. The appliance stops heating.1. Press ⬆to switch off the appliance.2. If necessary, press ⬆to switch the appliance back on and then restart the operation.► Set a cooking time so that the operation does not stop.→ "Time-setting options", Page 19
Error code made up of letters and numbers appears on the display, e.g. E0111.	The electronics have detected a fault.1. Switch the appliance off and on again.✓ If the fault was a one-off, the message disappears.2. If the message appears again, call the after-sales service. Please specify the exact error message when calling.→ "Customer Service", Page 37
The cooking result is not satisfactory.	Settings were unsuitable.Adjustment values, e.g. temperature or cooking time, depend on the recipe, quantity and food.► Next time, set lower or higher values.Tip: A lot of other information about the food preparation and corresponding adjustment values can be found in the Home Connect app or on our website www.neff-international.com.

24 Disposal

24.1 Disposing of old appliance

Valuable raw materials can be reused by recycling.

1. Unplug the appliance from the mains.
2. Cut through the power cord.
3. Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

25 Customer Service

Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.

If you contact Customer Service, you will require the product number (E-Nr.), the production number (FD) and the consecutive numbering (Z-Nr.) of your appliance.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.

This product contains light sources from energy efficiency class G. These light sources are available as a spare part and should only be replaced by trained specialist staff.

25.1 Product number (E-Nr.), production number (FD) and consecutive numbering (Z-Nr.)

You can find the product number (E-Nr.), the production number (FD) and the consecutive numbering (Z-Nr.) on the appliance's rating plate.

You will see the rating plate with these numbers if you open the appliance door. On some appliances with steam-assisted cooking, you will find the rating plate behind the control panel.

Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.

You can also display the appliance information in the basic settings.

→ "Basic settings", Page 23

26 Information regarding Free and Open Source Software

This product includes software components that are licensed by the copyright holders as free or open source software.

The applicable licence information is stored on your home appliance. You can also access the applicable licence information via your Home Connect app: "Profile -> Legal information -> Licence Information".¹ You can download the licence information on the brand product website. (Please search on the product website for your appliance model and additional documents). Alternatively, you can request the relevant information from [e-mail] or BSH Hausgeräte GmbH, Carl-Wery-Str. 34, 81739 Munich, Germany.

The source code will be made available to you on request.

Please send your request to [e-mail] or BSH Hausgeräte GmbH, Carl-Wery-Str.34, 81739 Munich, Germany.

Subject: „OSSREQUEST“

The cost of performing your request will be charged to you. This offer is valid for three years from the date of purchase or at least as long as we offer support and spare parts for the relevant appliance.

27 Declaration of Conformity

BSH Hausgeräte GmbH hereby declares that the appliance with Home Connect functionality conforms to the essential requirements and other relevant provisions of Directive 2014/53/EU.

A detailed RED Declaration of Conformity can be found online at www.neff-international.com among the additional documents on the product page for your appliance.

2.4 GHz band (2400–2483.5 MHz): Max. 100 mW 5 GHz band (5150–5350 MHz + 5470–5725 MHz): max. 200 mW

BE BG CZ DK DE EE IE EL ES

FR HR IT CY LI LV LT LU HU

MT NL AT PL PT RO SI SK FI

SE NO CH TR IS UK (NI)

5 GHz WLAN (Wi-Fi): For indoor use only.

5 GHz WLAN (Wi-Fi): For indoor use only.

28 How it works

Here, you can find the ideal settings for various types of food as well as the best accessories and cookware. We have perfectly tailored these recommendations to your appliance.

Tip: A lot of other information about the food preparation and corresponding adjustment values can be found in the Home Connect app or on our website www.neff-international.com.

28.1 General cooking tips

Take note of the following information when cooking all types of food.

■ The temperature and cooking time depend on the amount of food and the recipe. Settings ranges are specified for this reason. Try using the lower values to start with.
- The setting values apply to food placed in the cooking compartment while the cooking compartment is still cold. If you want to preheat anyway, do not place accessories into the cooking compartment until it has finished preheating.
■ Remove any accessories that are not being used from the cooking compartment.

You can buy suitable accessories from customer service, from specialist retailers or online.

→ "Other accessories", Page 12

28.2 Baking tips

■ Dark-coloured metal baking tins are most suitable for baking cakes, bread and other baked goods.
■ Use wide, shallow cookware for bakes and gratins. Food takes longer to cook in deep, narrow cookware and it browns more on top.
■ If you are cooking bakes directly in the universal pan, place the universal pan into the cooking compartment at level 1.
- The setting values for bread dough apply to both dough placed on a baking tray and dough placed in a loaf tin.

ATTENTION!

When the cooking compartment is hot, any water inside it will create steam. The change in temperature may cause damage.

▶ Never pour water into the cooking compartment when it is still hot.
- Never place cookware containing water on the cooking compartment floor.

Shelf positions

You will obtain the best results if you use the following shelf positions.

If you are baking on one level, use shelf position 1.

Baking on 2 levels	Height
Universal pan	3
Baking tray	1
Baking tins/dishes on two wire racks	3
	1

Use the CircoTherm hot air heating function.

Note: Items that are placed in the appliance on baking trays or in baking tins/dishes at the same time will not necessarily be ready at the same time.

28.3 Roasting, braising and grilling tips

■ The recommended settings are for fridge-temperature food and unstuffed, oven-ready poultry.
- Place the poultry onto the cookware breast-side or skin-side down.
■ Turn roasting joints, grilled items or whole fish after approx. 12 to 23 of the specified time.

Roasting on the wire rack

Food roasted on the wire rack will become very crispy on all sides. You can roast large poultry, for example, or multiple individual pieces at the same time.

■ Roast pieces of a similar weight and thickness. The grilled food will brown evenly and will remain succulent and juicy.
- Place the food to be roasted directly on the wire rack.
■ To catch any liquids that drip down, place the universal pan, with the wire rack inside it, into the cooking compartment at the specified shelf height.
- Add up to 12 litre of water to the universal pan, depending on the size and type of food that you want to roast.
You can make a sauce from the juices that are collected. This also means that less smoke is produced and the cooking compartment does not become as dirty.

Roasting in cookware

If you cover the cookware when you cook your food, this will keep the cooking compartment cleaner.

General information about roasting in cookware

■ Use heat-resistant, ovenproof cookware.
■ Place the cookware on the wire rack.
■ Glass cookware is best.
■ Follow the manufacturer's instructions for your roasting dishes.

Roasting in uncovered cookware

■ Use a deep roasting dish.
■ If you do not have any suitable cookware, you can use the universal pan.

Roasting in covered cookware

■ Use a suitable lid that seals well.
- When roasting meat, there should be at least 3 cm between the food and the lid. The meat may expand.

⚠ WARNING – Risk of scalding!

Very hot steam may escape when the lid is opened after cooking. Steam may not be visible, depending on the temperature.

• Lift the lid in such a way that the hot steam can escape away from you.
• Keep children away from the appliance.

Grilling

Grill food if you want it to be crispy.

The "Grill" type of heating is good for cooking thinner pieces of poultry, meat and fish such as steaks, drumsticks and burgers. It is also excellent for toasting bread.

Circo-roasting is very well suited to cooking whole poultry and fish, as well as meat, e.g. roast pork with crackling.

• When grilling several food items, choose pieces that are of a similar weight and thickness. The grilled food will brown evenly and will remain succulent and juicy.
  ■ Place the food to be grilled directly onto the wire rack.
  ■ To catch any liquids that drip down, place the universal pan into the cooking compartment at least one level below the wire rack.

Notes

■ The grill element switches on and off continuously. This is normal. The temperature that you set determines how frequently this occurs.
■ Smoke may be produced when grilling.

28.4 Cooking tips for steaming

Cook your food gently. The food remains particularly succulent.

In contrast to cooking with added steam, the meat does not become crispy on the outside.

■ Use uncovered, heat-resistant cookware that is suitable for cooking with steam.
- The perforated steaming tray, size XL, is the best option here. To catch any liquid that drips down, slide the universal pan into the cooking compartment one level below. Alternatively, you can place a glass dish onto the wire rack.

■ Cover food that you would normally cook in a bain marie with film, e.g. cling film.

■ You do not need to turn the food.

■ To obtain a slightly different flavour, you can sear the meat, poultry or fish before steaming. Reduce the cooking time.

■ Larger food items require a longer heat-up time and a longer cooking time.

■ If you are using several pieces which are the same weight, the appliance's heat-up time is increased. The cooking time remains the same.

- Open the door as infrequently as possible during steaming. Wipe the condensate drip tray after preparation. If the condensate drip tray overflows, this may cause damage to kitchen units.

■ The main part of the user manual contains information on how to configure the steam settings. → "Steam", Page 15

Vegetables on several levels

You can easily cook more than one type of food or even whole menus, e.g. broccoli and potatoes, on 2 levels. → Page 41

Rice or cereal products

■ Add water or liquid in the specified ratio. For example, 1:1.5 means add 150 ml liquid for every 100 g rice.

28.5 Cooking instructions for ready meals

■ The cooking result greatly depends on the quality of the food. Pre-browning and irregularities may already be present in the food before cooking.
■ Do not use frozen products that are covered with a thick layer of ice. Remove any ice on the food.
■ Take ready meals out of the packaging.
■ If you are warming or cooking the ready meal in cookware, make sure that the cookware is heat-resistant.
■ Distribute foods that are in the form of separate pieces, such as bread rolls and potato products, so that they are spread out flat and evenly on the accessory. Leave a little space between the individual pieces.
■ Follow the manufacturer's instructions on the packaging.

28.6 List of foods

Recommended settings for a variety of foods, sorted into food categories.

Recommended settings for various types of food

Food Accessory/cook-ware		Height Heating function	Temperature in °C	Steam level	Cooking time in mins
Fruit tart or cheesecake with shortcrust pastry base	Springform cake tin, diameter 26 cm	1 170-180 -50-80
Sponge flan, 6 eggs Springform cake tin 28 cm		1 150-160 -50-60
Shortcrust tart with moist topping	Universal pan 1 160-180 - 60-80=
Yeast cake with moist topping	Universal pan 1 180-190 - 30-45=
Muffins Muffin tray 1 170-190 - 15-30		=
Biscuits Baking tray 2 140-160 - 15-30		&
Biscuits, 2 levels Universal pan +Baking tray		3+1 130-150 - 20-35
Bread, 1500 g Universal pan orLoaf tin		1 200-210 -35-45
Pizza, fresh Baking tray 1 200-220 - 20-30		&
Pizza, fresh, 2 levels Universal pan +Baking tray		3+1 180-190 - 35-45
Pizza, fresh, thin-crust, on a pizza tray	Pizza tray 1 210-230 - 20-30	&
Quiche Dark coatedquiche tin		1 190-210 -80-45
Tarte flambée	Universal pan 1 240-250	=	1	- 10-18
Bake, savoury, cooked ingredients	Ovenproof dish	1 200-220 -35-55
Potato gratin, raw ingredients, 4 cm deep	Ovenproof dish	1 170-180 -50-65
Chicken, 1.3 kg, un-stuffed	Wire rack 1 200-220 - 60-70	&
Chicken breast fillet, steaming	Perforated steam-ing tray	2 100	- 15-25
Goose, unstuffed, 3 kg	Wire rack 1 160-180 - 120-150	&
Joint of pork without rind, e.g. neck, 1.5 kg	Wire rack 1 180-200 - 120-130	&
Joint of pork without rind, e.g. neck, 1.5 kg	Uncovered cook-ware	1 180-190 -120-140
Fillet of beef, medium, 1 kg	Wire rack 1 210-220 - 40-50	&
Pot-roasted beef, 1.5 kg	Covered cookware	1 200-220 -30-140
Pot-roasted beef, 1.5 kg	Covered cookware	1 200-220 -140-160
Sirloin, medium, 1.5 kg	Wire rack 1 220-230 - 60-70	&
Burger, 3-4 cm thick	Wire rack 2 275	- 25-35			2
Leg of lamb, boned, me-dium, 1.5 kg	Wire rack 1 170-190 - 50-70	&
^1 Preheat the appliance. ^2 Turn the dish 2/3 of the way through the cooking time.
Fish, grilled, whole, 300 g, e.g. trout	Wire rack 1 170-190 - 20-30
Fish, steamed, whole, 300 g, e.g. trout	Perforated steam-ing tray	2 80-90 - 15-25
Fish fillet, plain, steamed	Perforated steam-ing tray	2 80-100 - 10-16
Cauliflower, whole, steaming	Perforated steam-ing tray	2 120 - 20-30
Sliced carrots, steaming	Perforated steam-ing tray	2 120 - 5-7
Spinach, steaming	Perforated steam-ing tray	2 100 - 2-3
Unpeeled boiled pota-toes, whole	Perforated steam-ing tray	2 120 - 30-35
Long-grain rice, 1:1.5 Shallow cookware 1 110 - 12-17
Eggs, hard-boiled Perforated steam-ing tray		2 100 - 9-12

^1 Preheat the appliance.
^2 Turn the dish 2/3 of the way through the cooking time.

Desserts

1. Use your preferred recipe to make the mixture for the crème.
2. Pour the mixture into moulds until the mixture is 2-3 cm deep.
3. Place the moulds into the perforated steaming tray (size XL).
4. Cover food that you would normally cook in a bain marie with film, e.g. cling film.
5. Use the recommended settings when configuring the appliance settings.
6. If the moulds are made from very thick material, extend the cooking time.

Making yoghurt

1. Remove the accessories and shelves from the cooking compartment.
2. Heat 1 litre of whole milk (3.5% fat) to 90 °C on the hob and then leave it to cool down to 40 °C. It is sufficient to heat UHT milk to 40 °C.
3. Mix 150 g of chilled yoghurt into the milk.
4. Pour the mixture into small containers, e.g. cups or small jars.
5. Cover the containers with film, e.g. cling film.
6. Place the containers on the cooking compartment floor.
7. Use the recommended settings when configuring the appliance settings.
8. After making the yoghurt, leave it to cool in the refrigerator for at least 12 hours.

Recommended settings for desserts and compote

Food Accessory/cook-ware		Height Heating function		Temperature in °C	Steam intensity	Cooking time in mins
Crème brûlée	Individual moulds	1		85	-	20-30
Crème caramel Individual moulds	1 85		- 25-35
Yoghurt	Individual moulds	Cooking compartment floor		35-40 - 300-360

Cooking whole menus with steam

Recommended settings and further information for cooking a whole menu at once.

Tips for cooking whole menus

■ Use suitable accessories and ensure that you place them into the oven the right way round. → Page 11

1 2 3

■ Shelf positions:

• Steaming tray, size M: Shelf position 3
• Steaming tray, size XL: Shelf position 2
• Universal pan: Shelf position 1

■ Place the food with the longest cooking time into the cooking compartment first. Add the rest of the food at the appropriate time. This means that all the food will be ready at the same time.
■ Follow the cooking instructions for each of the different foods.

- The heat-up time varies depending on the size and weight of the food.

- The cooking time is unaffected by the quantity of food.

- Use cookware that is steam-resistant.

- Cover the soufflé with film, e.g. cling film.

- Always insert the universal pan at level 1.

■ The overall cooking time is extended when cooking whole meals with steam, as a little steam escapes each time the appliance door is opened and the cooking compartment has to be reheated.

■ Wipe the cooking compartment and dry the condensate drip tray after using it to cook the meal.

Recommended settings for cooking whole menus

Food Accessory/cook-ware	Height Heating function	Temperature in °C	Steam intensity	Cooking time in mins
Peeled boiled potatoes, quartered	Perforated steam-ing tray, size M	3+3+2 100 ⚠1. 30
Frozen salmon fillets	+			2. 20
Broccoli	Unperforated steaming tray, size M			3. 10
	+
	Steam containers, XL size

28.7 Special cooking methods and other applications

Information and recommended settings for special cooking methods and other applications, e.g. slow cooking.

Slow cooking

Cook prime cuts of meat slowly at a low temperature, e.g. tender cuts of beef, veal, lamb or poultry.

Slow cooking poultry or meat

Note: When using the slow cooking type of heating, you cannot delay the start of the programme by setting an end time.

Requirement: The cooking compartment is cold.

1. Use fresh, clean, hygienic meat without bones.
2. Place the cookware onto the wire rack at level 1 in the cooking compartment.
3. Preheat the cooking compartment and cookware for approx. 15 minutes.

4. Sear the meat on all sides on the hob at a very high heat.

5. Immediately place the meat into the pre-warmed cookware in the cooking compartment. To ensure that the temperature in the cooking compartment remains constant, keep the cooking compartment door closed during slow cooking.

Tips for slow cooking

Here you will find tips for achieving good results when slow cooking food.

Issue Tip

You want to slow cook a duck breast.	■ Place the cold duck breast into a pan.■ Sear the skin side first.■ Slow cook the duck breast.■ After slow cooking, grill the duck breast for 3 to 5 minutes until crispy.
You want to serve your slow-cooked meat as hot as possible.	■ Preheat the serving plate.■ Make sure that the sauces that accompany the duck breast are very hot when you serve them.

Recommended settings for slow cooking

Food Accessory/ cookware		Height Searing time in mins	Heating function	Temperat-ure in °C	Steam level	Cooking time in mins
Duck breast, medium rare, 300 g each	Uncovered cookware	1 6-8 95		1	-45-60
Fillet of pork, whole Uncovered cookware		1 4-6 85		1	-45-70
Fillet of beef, 1 kg Uncovered cookware		1 4-6 85		1	-90-120
Veal medallions, 4 cm thick	Uncovered cookware	1 4 80		1	-40-60
Saddle of lamb, boned, 200 g each	Uncovered cookware	1 4 85		1	-30-45

^1 Preheat the appliance.

Sous-vide

Sous-vide cooking is a method of cooking in a vacuum at low temperatures between 50 and 95 C and in 100% steam.

Sous-vide cooking is a gentle method of cooking meat, fish, vegetables and desserts.

A chamber vacuum-sealing machine is used to heat-seal the food in a special air-tight, heat-resistant vacuum-sealing bag.

The protective envelope of the vacuum-sealing bag retains the nutrients and flavours. The low temperatures and the direct transfer of heat allow precisely controlled cooking in order to achieve the desired cooking results. It is almost impossible to overcook the food.

Sous-vide cooking tips

■ Servings

• Take into consideration the specified quantities and sizes for the food listed in the recommended settings tables. Adjust the cooking time for larger quantities and items.
• The appliance can cook up to 2 kg of food sous-vide.
• For vegetables and desserts, the specified quantity is for 4 people.

- You can cook on up to 2 levels. When you do this, always slide the universal pan in at level 1 to catch any drops of condensate. Insert the wire racks at the levels above accordingly.

■ The quality of the cooking result is 100% influenced by the quality of the ingredients you use. Use only fresh, top-quality food. This is the only way to guarantee a consistent cooking result that delivers impeccable flavour.

Vacuum-sealing food

To ensure an even transfer of heat and an optimised cooking result, use a chamber vacuum-sealing machine that can create a 99% vacuum when vacuum-sealing food.

Tip: To prevent gases escaping from the food, e.g. from vegetables, vacuum-seal the food no more than one day before you cook it. The gases inhibit the transfer of heat or cause the texture of the food to change, thus altering how it cooks, as a result of the vacuum pressure.

Note: Do not use a core temperature probe.

1. Season food with half the usual the amount of spices.

Cooking in a vacuum means that the flavours cannot escape. The usual quantities of flavourings such as spices, herbs and garlic affect the taste much more and intensify it.

Tip: You can intensify the natural flavours of high-quality food simply by adding a small knob of butter and a little salt to the vacuum-sealing bag.

Different ingredients affect how the food cooks:

• Salt and sugar reduce the cooking time.
• Acidic ingredients such as lemon juice or vinegar make food firmer.

• Alcohol and garlic give the food an unpleasant after-taste.

• To fill the vacuum-sealing bag, fold over the edge of the bag 3 - 4 cm from the top and place the bag into a receptacle such as a measuring jug.

When you fill the vacuum-sealing bag, make sure that there are no traces of food left on the seam area of the vacuum-sealing bag.

1. Before cooking the food, check that the vacuum in the bag is intact.

Make sure that:

• There is no air in the vacuum-sealing bag.
• The heat-sealed seam is perfectly sealed.
• There are no holes in the vacuum-sealing bag.

• Pieces of meat or fish that have been vacuum-sealed together are not pressed directly against one another.

• If the vacuum-sealing bag is not filled as it should be, place the food into a new bag and vacuum-seal it again.

Preparing food for sous-vide cooking

There are germs on the surface of virtually all food.

WARNING – Risk of harm to health!

Sous-vide cooking is a method of cooking at low temperatures and, if the instructions for use and hygiene instructions are not adhered to, it may result adverse health effects.

▶ Only use high-quality, perfectly fresh food.
▶ Wash and disinfect your hands.
▶ Use disposable gloves, cooking tongs or grill tongs.
▶ Take extra care when preparing critical food, such as poultry, eggs and fish.

▶ Always thoroughly rinse and peel fruit and vegetables.
▶ Always keep work surfaces and chopping boards clean.
- Use different chopping boards for different types of food.
- Only interrupt the cold chain briefly to prepare the food.
- Store vacuum-sealed food in the refrigerator for a maximum of 24 hours before you start the cooking process.
- Once the food is cooked, consume it immediately. Do not store it after cooking – not even in the refrigerator. It is not suitable for reheating.
To kill the germs, dip the vacuum-sealing bag containing the uncooked food into boiling water for no more than 3 seconds.
√ This minimises the germs on your ingredients and maximises hygiene, so your food is now ready for sous-vide cooking.

Cooking food sous-vide

Requirements

■ The food is vacuum-sealed. → Page 43
■ The food is prepared. → Page 43
1. Place the food onto the wire rack.

To ensure that the heat is distributed evenly around the food, do not place the vacuum-sealed food items on top of one another or close together on the wire rack.

1. To catch any drops of condensate, slide the universal pan in at level 1.

3. ATTENTION!

Risk of damage to kitchen units

- Do not fill the water tank a second time for the sous-vide cooking.

Use the recommended settings when configuring the appliance settings.

The recommended settings are based on how long one tankful of water lasts. As a general rule, depending on the set temperature, the following maximum cooking times apply when the water tank is completely full:

Temperature in °C Max. cooking time in minutes

50 270

60 210

70 150

80 120

90 90

4. ⚠️ WARNING – Risk of scalding!

Hot water collects on the vacuum-sealing bag during cooking.

▶ Use an oven cloth to carefully lift the vacuum-sealing bag so that the hot water runs off into the universal pan or the cooking container.
- Use the oven cloth to carefully remove the vacuum-sealing bag.

Once the food is cooked, allow the cooking compartment to cool and then use a sponge to wipe away the water.

1. Dry the outside of the vacuum-sealing bag and place it in a clean container.
2. Use scissors to open the vacuum-sealing bag. Place all of the food and liquid into the container.

You can use the stock or marinade to make a sauce.

1. Prepare the food for serving.

Food Cooking tips

Meat ■ Dab the meat with a tea towel be-fore placing it into hot oil, in order to avoid fat spitting out of the pan.■ Sear the meat at a very high tem-perature for a few seconds on each side. This gives the meat a nice crust and the flavours you would expect from frying, without overcooking it.

Fish ■ Season the fish and coat with hot butter.■ To give the fish a nice crust and the flavours you would expect from frying, sear it for a few seconds on each side.■ Fry the food for longer if has not been sufficiently well cooked dur-ing the sous-vide cooking stage.■ Serve the fish on preheated plates and with a hot sauce or butter, as sous-vide cooking takes place at low temperatures.

Vegetables ■ Sear the vegetables briefly to give them the flavours you would ex-pect from frying.■ Season the vegetables or mix them with other ingredients.

Recommended settings for sous-vide cooking

Food Accessory/	cookware	Type of heating	Temperat-ure in °C	Steam level Cooking time in mins	Tips for sous-vide cooking
Fillet of beef, piece, rare, 3-4 cm thick	Wire rack+Universal pan		58 - 90 Vacuum-seal along		with some butter and rosemary.
Fillet of beef, piece, medium, 3-4 cm thick	Wire rack+Universal pan		65 - 80 Vacuum-seal along		with some butter and rosemary.
Duck breast, 300 g each	Wire rack+Universal pan		62 - 70 Cut into the layer of		fat, season the meat side with a little salt and pepper, and vacuum-seal it along with a small piece of orange peel.
Fish fillet, 2-3 cm thick, e.g. salmon, cod	Wire rack+Universal pan		58 - 25 Vacuum-seal along		with some butter and a little salt.
Mushrooms, quartered, 500 g	Wire rack+Universal pan		85 - 20-25 Vacuum-seal along		with some butter, rosemary, a little garlic and salt.
Carrots, in 0.5 cm slices, 600 g	Wire rack+Universal pan		90 - 70-80 Recipe tip: Vacuum-		seal along with some orange juice, curry powder/paste and butter.
Potatoes, peeled, quartered, 800 g	Wire rack+Universal pan		95 - 35-45 Recipe tip: Vacuum-		seal along with some butter and salt. Can easily be used for making dishes such as salad.
Pineapple, in 1.5 cm slices, 400 g	Wire rack+Universal pan		85 - 70-80 Recipe tip: Vacuum-		seal along with some butter, honey and vanilla.
Apples, peeled, in 0.5 cm slices, 2-4 pcs	Wire rack+Universal pan		85 - 15-25 Recipe tip: Vacuum-		seal along with some caramel sauce. Firm apple varieties are the most suitable, e.g. Jonagold or Boskop.
Vanilla sauce, 0.5 l Wire rack+Universal pan			82 - 15-25 Recipe tip: Mix 0.5 l		milk, 1 egg, 3 egg yolks, 80 g sugar and the pulp of a vanilla pod, and vacuum-seal.

Sterilisation and hygiene

You can sterilise heat-resistant cookware or baby bottles that are in perfect condition. The process is equivalent to normal sterilisation by boiling.

Sterilising bottles

1. Clean the bottles with a bottle brush immediately after use.
2. Wash the bottles in the dishwasher.
3. Place the bottles into the steaming tray (size XL) in such a way that they do not touch one another.
4. Start the "Sterilise" programme.
5. Dry the bottles with a clean cloth.
6. Wipe down the appliance interior after sterilising.

Useful information on sterilising

Please take note of the following information if you are sterilising cookware.

■ You can use your appliance to prepare jam jars or preserving jars and their lids.
■ You can perform an additional processing step at the end in order to improve the jam's shelf life.
■ Sterilise only heat-resistant cookware that is suitable for cooking with steam.
■ Only use clean jars and lids that are in perfect condition.
■ Ideally, you should wash the cookware in the dishwasher before sterilising it.

Recommended settings for hygiene

Food Accessory/cook-ware	Height Heating function	Temperature in °C	Steam intensity	Cooking time in mins
Sterilise clean cookware Perforated steam-ing tray	1 100 - 15-20

Proving dough

Yeast dough proves more quickly in your appliance than at room temperature and does not dry out.

Requirement: The cooking compartment is cold.

1. Slide the wire rack into the cooking compartment.

2. Place the dough onto the wire rack in a bowl. Do not cover the bowl.

3. Use the recommended settings when configuring the appliance settings.
   The values are guide values only. The temperature and proving time are dependent on the type and quantity of the ingredients.

4. Do not open the appliance door while the dough is proving, otherwise moisture will escape.
5. Wipe the cooking compartment dry before baking in it.

Recommended settings for proving dough

Food Accessory/cook-ware	Height Heating function	Temperature in °C	Steam level	Cooking time in mins
Rich dough, e.g. pan-ettone	Bowl on wire rack 1 40-45 - 40-90
White bread Bowl on wire rack 1 35-40 - 30-40

Reheating

Gently warm up food with added steam. The food tastes and looks as though it has been freshly cooked. You can even warm and crisp up baked goods from the day before.

Tips for reheating food

■ Use uncovered, heat-resistant cookware that is suitable for cooking with steam.
■ Use wide, shallow cookware. Cold cookware extends the reheating time.

■ Place the cookware on the wire rack.
■ Place food that you are not reheating in cookware (e.g. bread rolls) directly onto the wire rack at level 1.
■ Do not cover the food.
- Do not open the cooking compartment door while the food is being reheated, otherwise large amounts of steam will escape.
■ Wipe the cooking compartment and dry the condensate drip tray after using it to reheat food.

Recommended settings for heating and reheating

Food Accessory/cook-ware		Height Heating function	Temperature in °C	Steam level	Cooking time in mins
Plated meal, chilled, 1 portion	Uncovered cook-ware	1 120-1305-25
Pizza, cooked, chilled Wire rack 1 170-180			^1	-5-15
Bread rolls, baguette, baked	Wire rack 1 150-160		^1	-10-20
Pizza, cooked, frozen Wire rack 1 170-180			^1	-5-15
Bread rolls, baguette, baked, frozen	Wire rack 1 160-170		^1	-10-20
^1 Preheat the appliance.

Keeping food warm

Tips for keeping food warm

■ Using the "Keep warm" heating function prevents condensation from forming. You will not have to wipe down the cooking compartment.
■ Do not cover the food.
■ Do not keep food warming for longer than 2 hours.
- Be aware that some types of food will actually continue cooking when you are keeping them warm in the oven.

The different added steam levels are suitable for keeping the following foods warm:

■ Level 1: Joints and briefly roasted food
■ Level 2: Bakes and side dishes
■ Level 3: Stews and soups

28.8 Meals and tips for cooking for Great Britain

Recommended settings for meals with British cooking habits.

Also follow the instructions in the individual sections. This section contains only special additional information relating to British meals and cooking habits.

Baking

Recommended settings for baking on one level

Food Accessory/cook-ware	Height Heating function	Temperature in °C	Steam intensity	Cooking time in mins
Victoria sponge cake x 220 cm diameter cake tin	1 150-160 Low 25-35
Rich fruit cake Deep, 23 cm diameter tin	1 130-150 -450-180
Rich fruit cake Deep, 23 cm diameter tin	1 140-160 -20-180
Fruit pie 20 cm diameterplate orPie tin	1 180-190 -45-50
Fruit pie 20 cm diameterplate orPie tin	1 170-190 -60-75
Bread or white bread Loaf tin, 1 x 900 gor 2 x 450 g	1 1. 210-220	2. 180-190^1	High-	1. 10-152. 25-35
Bread or white bread Loaf tin, 1 x 900 gor 2 x 450 g	1 190-200 -45-55
Scones Baking sheet onwire rack	1 180-190	^1	- 10-14
Biscuits Baking sheet onwire rack	2 140-160	^1	- 10-25
Small cakes 12-cup-tin 1 150-170 - 20-30	=
Pavlova Baking tray 2 90-100	^2	^1	- 120-180
Yorkshire pudding 12-cup-tin 1 200-220	^2	^1	- 15-25
^1 Preheat the appliance.

Recommended settings for baking on several levels

Food Accessory/cook-ware	Height Heating function	Temperature in °C	Steam intensity	Cooking time in mins
Victoria sponge cake, 2 levels x 4	3+1 160-170s	^1	- 20-35
Biscuits, 2 levels x 2	3+1 140-160s	^1	- 15-30
Baking tray
^1 Preheat the appliance.

Grilling

Recommended settings for meat

Food Accessory/cook-ware	Height Heating function	Temperature in °C	Steam intensity	Cooking time in mins
Pork, Bacon rashers Wire rack 2 275		1	- 1. 5-6	2.4-5^2
Pork, Sausages, thickness 2-4 cm Wire rack 2 275		3	- 10-15	2
Pork, Belly Wire rack 1 200-220 - 30+25
Pork, Belly, 1 kg Wire rack 1 1. 170-180			Low	1. 50-60
		2. 190-200	-	2. 25-35
Pork, Gammon joint Wire rack 2 180-200 - 30+25

^1 Preheat the appliance for 5 minutes.

^2 Turn the food occasionally.

^3 Preheat the appliance for 3 minutes.

Recommended settings for poultry

Food Accessory/cook-ware	Height Heating function	Temperature in °C	Steam intensity	Cooking time in mins
Chicken, whole Wire rack 1 200-220 - 25+15
Chicken, whole, 1,5 kg Wire rack 1 180-190 Medium 65-75

Roasting and braising

Cooking tips for roasting and braising

Follow this information when frying or braising poultry or meat.

Calculating the cooking time, e.g. 20+35:

■ To calculate the cooking time, assume 20 minutes per 500 g of meat. Then add an extra 35 minutes to that figure.

■ For 1.5 kg, the cooking time would therefore be 95 minutes.

Cooking time range, e.g. 10-15:

- Your food will be ready within the specified range of time (in minutes).

Recommended settings for meat

Food Accessory/cook-ware	Height Heating function	Temperature in °C	Steam intensity	Cooking time in mins
Beef, Top side, Top rump Wire rack 1 160-170 - 30+25
Beef, Top side, Top rump Wire rack 1 170-180 Low 100-120
Lamb, Leg, bone-in Wire rack 1 160-170 - 25+25
Lamb, Leg, bone-in, 1,5 kg Wire rack 1 180-190 Low 80-90
Pork, Belly Wire rack 1 170-180 - 30+25

Recommended settings for poultry

Food Accessory/cook-ware	Height Heating function	Temperature in °C	Steam intensity	Cooking time in mins
Chicken, whole Wire rack 1 170-180 - 25+15
Chicken, whole, 1,5 kg Wire rack 1 180-190 Medium 65-75
Turkey, crown	Wire rack 1 150-160 - 20+15			1
Turkey, crown, 3 kg	Uncovered cook-ware	1 140-150 Medium 100-140
Turkey, whole, 4-8 kg	Wire rack 1 150-160 - 12+12			2
Turkey, whole, 7 kg	Universal pan	1	1. 140-150	Medium
			2. 170-180	-

^1 Do not turn the food.

^2 Turn the food after approx. one hour.

Recommended settings for complete meals

Food Accessory/cook-ware		Height Heating function	Temperature in °C	Steam intensity	Cooking time in mins
Complete meal with Chicken, 1,5 kg	x 2	3+1 180 Low			65-75
	Wire rack + Universal pan			-

28.9 Test dishes

The information in this section is provided for test institutes to facilitate testing of the appliance in accordance with EN 60350-1.

Baking

■ The setting values apply to food that is placed into a cold cooking compartment.
■ Take note of the information on preheating in the recommended settings tables. These setting values apply without rapid heat-up.
■ For baking, use the lower of the temperatures indicated first.
■ Items that are placed in the appliance on baking trays or in baking tins/dishes at the same time will not necessarily be ready at the same time.

■ Shelf positions when baking on 2 levels:
– Universal pan: Shelf position 3
Baking tray: Shelf position 1
■ Hot water sponge cake
- When baking on 2 levels, place the springform tins at diagonally opposite corners of the wire racks.
- As an alternative to a pan support, you can also use the Air Fry baking tray offered by us.

Recommended settings for baking

Food Accessory/cook-ware	Height Heating function	Temperature in °C	Steam intensity	Cooking time in mins
Shortbread Baking tray 1 150-160		1	-25-40
Shortbread Baking tray 1 140-150		1	-25-40
Shortbread, 2 levels Universal pan + Baking tray	3+1 140-150		1	-30-40
Small cakes Baking tray 1 160		1	-25-35
Small cakes Baking tray 1 150		1	-25-35
Small cakes, 2 levels Universal pan + Baking tray	3+1 150		1	-25-35
Hot water sponge cake Springform cake tin, diameter 26 cm	1 160-170		2	-25-35
Hot water sponge cake Springform cake tin, diameter 26 cm	1 160-170		2	-25-35
Hot water sponge cake Springform cake tin, diameter 26 cm	1 1. 150-160		Low	1. 10
		2. 150-160^2	-	2. 20-30

^1 Preheat the appliance for five minutes. Do not use the rapid heating function.

^2 Preheat the appliance. Do not use the rapid heating function.

Steaming

Slide the universal pan into the cooking compartment below the perforated steaming tray (size XL) if instructed to do so in the recommended settings table.

Shelf positions

Shelf positions when steaming on one level:

■ Use a maximum of 2.5 kg.

■ Perforated steaming tray, size XL: Shelf position 2
Shelf positions when steaming on two levels:
■ Use a maximum of 1.8 kg per level.
■ Perforated steaming tray, size XL: Shelf position 3
■ Perforated steaming tray, size XL: Shelf position 2

Recommended settings for steaming

Food Accessory/cook-ware		Height Heating function	Temperature in °C	Steam intensity	Cooking time in mins
Peas, frozen, two containers	x 2Steam containers,XL size+Universal pan	3+2+1 100 ≈			1
Broccoli, fresh, 300 g Steam containers,XL size		2 100 ≈	^2	-8-9	^3
Broccoli, fresh, one con-tainer	Steam containers,XL size	2 100 ≈	^2	-10-11	^3

^1 The test is over when 85 °C is reached at the coldest spot (see IEC 60350-1).
^2 Preheat the appliance.
^3 A comparable degree of cooking between the reference sample and the main sample is achieved if the reference sample is cooked for 5 minutes (produced as described in IEC 60350-1).

Grilling

Recommended settings for grilling

Food Accessory/cook-ware	Height Heating function	Temperature in °C	Steam intensity	Cooking time in mins
Toasting bread Wire rack 3 275		1	-3-6

^1 Do not preheat the appliance.

29 Installation instructions

29.1 Scope of delivery

After unpacking all parts, check for any damage in transit and completeness of the delivery.

Technical line drawing of a refrigerator with wall-mounted components and a shopping cart (no text or symbols)

Depending on the appliance configuration, different handles and panels can be used. An example is shown in the picture.

29.2 General installation instructions

Follow these instructions before you start installing the appliance.

■ The safe operation of this appliance can only be guaranteed if it has been installed to a professional standard in accordance with these installation instructions. The installer shall be liable for damages incurred as a result of incorrect installation.
- Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transit.
■ Before starting up the appliance, remove any packaging material and adhesive film from the cooking compartment and the door.
■ Proceed in accordance with the installation sheets for installing accessories.
■ Fitted units must be heat-resistant up to 95 °C, and adjacent unit fronts up to 70 °C.
- Do not install the appliance behind a decorative door or the door of a kitchen unit. There is a risk of overheating.

• Cut-out work on the units should be carried out before installing the appliance. Remove any shavings. Otherwise, the correct operation of electrical components may be adversely affected.
  ■ The mains socket for the appliance must either be located in the hatched area ☐ or outside of the area where the appliance is installed.

Any unsecured units must be secured to the wall using a standard bracket b.

b 320 60 180 115 50 a

■ For appliances that have a hinged switch panel, make sure that the switch panel does not hit adjacent kitchen units when you open it.
■ Wear protective gloves so that you do not cut yourself. Parts that are accessible during installation may have sharp edges.
■ Dimensions of the figures in mm.

WARNING – Risk of fire!

It is dangerous to use an extended power cord and non-approved adapters.

▶ Do not use multiple socket strips.
▶ Only use extension cables that are certified, have a minimum cross section of 1.5 mm^2 and comply with the applicable national safety requirements.
▶ If the power cord is too short and a longer one is not available, please contact an electrician to have the domestic installation adapted.

▶ Only use adapters and power cords approved by the manufacturer.

ATTENTION!

Carrying the appliance by the door handle could break it. The door handle cannot support the weight of the appliance.

- Do not carry or hold the appliance by the door handle.

29.3 Appliance dimensions

You will find the dimensions of the appliance here

548 596 455

29.4 Installation below a worktop

Observe the installation dimensions and the installation instructions when installing below a worktop.

min. 550 560+8 460+4 min. 20

■ To ventilate the appliance, the intermediate floor must have a ventilation cut-out.
■ The worktop must be secured to the fitted unit.
- Observe any available installation instructions for the hob
■ Observe different national installation instructions for the hob.

29.5 Installation underneath a hob

If the appliance is installed under a hob, the following minimum dimensions must be adhered to (including substructure, if applicable).

The minimum worktop thickness ba is based on the required minimum clearance a

460⁺⁴ b a

Hob type a raised in mm a flush in mm b in mm

Induction hob 42 43 5
Full-surface induction hob 52 53 5
Gas hob 32 43 5	1
Electric hob 32 35 2

^1 Observe different national installation instructions for the hob.

29.6 Installation in a tall unit

Observe the installation dimensions and the installation instructions when installing in a tall unit.

■ To ventilate the appliance, the intermediate floors must have a ventilation cut-out.
■ If the tall unit has another back panel in addition to the element back panels, this must be removed.
■ Only fit the appliance up to a height which allows accessories to be easily removed.

29.7 Installing two appliances on top of each other

Your appliance can also be installed above or below another appliance. Observe the installation dimensions and the installation instructions when installing appliances on top of each other.

■ To ventilate the appliances, the intermediate floor must have a ventilation cut-out.
- To ensure sufficient ventilation of the two appliances, there must be a ventilation opening of at least 200~cm^2 in the base area. To do this, trim the base panel or fit a ventilation grille.

■ Ensure that air exchange is guaranteed in accordance with the diagram.

Diagram of airflow or fluid flow through a vertical structure with three horizontal panels, showing directional arrows (no text or symbols)

■ Only fit appliances up to a height that allows accessories to be easily removed.

29.8 Corner installation

Observe the installation dimensions and the installation instructions when installing in a corner.

min. 90 a

min. 45

- To ensure that the appliance door can be opened, you must take the minimum dimensions into consideration when installing in a corner. The dimension is dependent on the thickness of the unit front and the handle.

29.9 Electrical connection

In order to safely connect the appliance to the electrical system, follow these instructions.

■ The appliance corresponds to protection class I and must only be operated with a protective earth connection.
■ The fuse protection must correspond to the power rating specified on the appliance's rating plate and to the local regulations.
■ The appliance must be disconnected from the power supply whenever installation work is being carried out.
■ The appliance must only be connected using the power cable provided.
■ The power cable must be plugged in at the rear of the appliance until you hear a clicking sound. A 3 m power cable can be obtained from the after-sales service.
■ The power cable must only be replaced with a cable from the original manufacturer. This is available from after-sales service.

■ Contact protection must be guaranteed by the installation.
■ If the display on the appliance remains dark, it has not been connected correctly. Disconnect the appliance from the mains and check the connection.

Electrically connect the appliance with the protective contact plug

Note: The appliance must only be connected to a protective contact socket that has been correctly installed.

- Insert the plug into the protective contact socket. When the appliance is installed, the mains plug of the power cord must be freely accessible. If free access is not possible, an isolating switch must be integrated into the permanent electrical installation according to the installation regulations.

Electrically connecting an appliance without a protective contact plug

Note: Only licensed specialists may connect the appliance. Damage caused by incorrect connection is not covered under the warranty.

An isolating switch must be integrated into the permanent electrical installation according to the installation regulations.

1. Identify the phase and neutral conductors in the socket. The appliance may be damaged if it is not connected correctly.
2. Connect the hob in accordance with the connection diagram. See the rating plate for the voltage.

3. Connect the wires of the mains power cable according to the colour coding:

4. Green/yellow = Protective conductor

5. Blue = Neutral conductor
6. Brown = Phase (external conductor)

29.10 Installing the appliance

⚠ WARNING – Risk of injury!

Opening the appliance door without installing the door handle and panels may result in injury.

▶ Operate the appliance only with the door handle and the panels fitted.

Note: Do not use a cordless screwdriver to secure the panels and door handle. It may damage them.

1. Remove the two transport locks.

2. Press on the sloped surface on the rear of the transport lock.

3. Push out the transport locks.

Diagram illustrating a door hinge mechanism with labeled steps 1 and 2, showing directional arrows and component placement.

1. Unscrew the screws on the door handle a little ①.

2. Check whether the silicone base is between the panel and the door handle.

3. Attach the door handle ②

Technical diagram showing two mechanical assembly steps with labeled components and directional arrows indicating motion or movement.

1. Tighten the screws until the door handle is secured.

Diagram showing screwdriver installation steps with circular tool paths (no text or symbols)

1. Push the appliance in fully. Do not kink or trap the connection cable, or route it over sharp edges.

2. Centre the appliance.

min. 4

There must be an air gap of at least 4 mm between the appliance and adjacent unit fronts.

1. Attach the four fastening elements. → Page 55 Attach the red fastening elements at the top. Attach the green fastening elements at the bottom.

2. Screw the appliance into place.

Technical diagram showing screw installation with a pencil and cross symbol, including magnified detail and wire connection details.

1. Insert the left- and right-hand panels until a clicking sound is heard.

Diagram illustrating door opening process with labeled components and directional arrows

√ The panels are engaged.

1. Check whether the left- and right-hand panels are vertically aligned.

2. If necessary, align the panels. → Page 55

Note: The gap between the worktop and the appliance must not be sealed by additional strips. Thermal insulation strips must not be fitted to the side panels of the surround unit.

29.11 For handleless kitchens with vertical bar handle strips:

1. Attach a suitable filling piece in order to cover any sharp edges and to guarantee a safe installation.

Diagram showing a blue vertical bar with arrows and a warning sign indicating hazard or caution.

1. Pre-drill aluminium profiles to establish a screw connection.

Diagram showing a door panel with a tool inserted into the wall, and a magnified inset of a drill bit (no text or symbols present)

1. Secure the appliance using a suitable screw.

5mm

29.12 Attaching the fastening elements

In order to attach the panels, the four fastening elements must be fitted beforehand.

1. Fold together the fastening element.

Illustration of two identical hand-painted panels showing a medical device with a plus sign and a checkmark (no text or symbols)

1. Hook in the fastening element at the bottom and press down at the top until it is in place.

Diagram showing a mechanical component with labeled parts and directional arrows indicating motion or assembly.

Attach the red fastening elements at the top. Attach the green fastening elements at the bottom.

Line drawing of a rectangular box with a side panel and mounting bracket (no text or symbols)

29.13 Aligning the panels

ATTENTION!

Unsuitable tools may damage the surface of the appliance.

▶ Only use plastic tools.
▶ Do not use pointed or sharp tools.

1. Loosen ① and remove ② the panels with a plastic tool, e.g. one of the other fastening elements.

Diagram illustrating a door mechanism with labeled parts and directional arrows indicating movement or force.

1. Turn the fastening element to the left or right to adjust the alignment of the panels.

Diagram illustrating door door hinge adjustment with arrows indicating clockwise shift and lock mechanism

1. Refit the panels.

29.14 Removing the door handle and side panels

ATTENTION!

Unsuitable tools may damage the surface of the appliance.

▶ Only use plastic tools.
▶ Do not use pointed or sharp tools.

1. Loosen the screws on the door handle and remove the door handle.

en Installation instructions

1. Remove the left- and right-hand panels using a plastic tool.

29.15 Removing the appliance

1. Disconnect the appliance from the power supply.
2. Remove the left- and right-hand panels.
3. Undo the fastening screws.
4. Lift the appliance slightly and pull it out completely.

Register your product online

neff -home.com

BSH Hausgeräte GmbH

Carl-Wery-Straße 34

81739 München, GERMANY

9001697023

031023

en
