C88FT38N0B - Oven NEFF - Free user manual and instructions

Product Type	Built-in Oven
Brand	NEFF
Model	C88FT38N0B
Dimensions (HxWxD)	595 x 595 x 548 mm
Oven Capacity	71 L
Energy Class	A+
Energy Consumption (Conventional)	0.93 kWh
Energy Consumption (Fan-Forced)	0.69 kWh
Number of Heating Functions	8
Heating Methods	Top heat, bottom heat, fan-assisted, grill, large-area grill, fan grill, intensive heat, defrost
Temperature Range	30 °C – 275 °C
Cleaning System	Pyrolytic self-cleaning
Safety Features	Child lock, automatic shut-off, cool front door
Display Type	TFT with digital clock
Control Type	Touch and rotary knobs
Accessories Included	Baking tray, wire shelf
Net Weight	35 kg
Voltage / Frequency	220-240 V / 50-60 Hz
Power Rating	3.6 kW
Installation Type	Built-in
Oven Light	LED, replaceable
Noise Level	45 dB
Warranty	2 years

Frequently Asked Questions - C88FT38N0B NEFF

How do I set the clock on my NEFF C88FT38N0B?

Press the clock button until the display flashes, then use the rotary dial to set the hours and minutes. Confirm by pressing the clock button again.

How does the pyrolytic cleaning function work?

Remove all accessories and select the Pyrolytic cleaning function. The oven heats to over 400°C to burn off food residues. After the cycle, wipe out ash with a damp cloth. The door locks automatically during cleaning.

What heating functions are available?

The oven offers 8 functions: top heat, bottom heat, fan-assisted, grill, large-area grill, fan grill, intensive heat, and defrost. Use fan-assisted for even baking and grill for browning.

How do I replace the oven light bulb?

Disconnect the oven from power. Remove the glass cover by turning it counterclockwise. Replace with a G9 halogen bulb (max 25W) or an LED equivalent. Reinstall the cover and restore power.

Why is my oven not heating?

Check if the timer or child lock is activated. Ensure the oven is properly connected to power. If still not heating, a heating element or thermostat may be faulty. Contact NEFF service.

How do I activate the child lock?

Press and hold the lock button for 3 seconds until the lock symbol appears on the display. To deactivate, press and hold again. The oven cannot be operated while locked.

Can I use steam in this oven?

This model does not have a steam function. For moist results, place a heat-resistant dish with water on the bottom or use the defrost function.

How do I install the oven correctly?

Ensure the cabinet opening is at least 560x560 mm. Slide the oven in and secure with screws. Connect to a 220-240 V outlet. Do not use an extension cord. Refer to the installation manual.

How do I calibrate the oven temperature?

If the oven temperature is off, you can adjust the offset by pressing and holding the temperature button until the display shows a value. Rotate the dial to add or subtract up to 25°C. Confirm by pressing the button again.

How do I clean the catalytic panels?

Catalytic panels are self-cleaning. They absorb grease and burn it off at high temperatures. To enhance cleaning, run an empty bake at 250°C for 1 hour every few uses. Do not use abrasive cleaners.

USER MANUAL C88FT38N0B NEFF

Overhead view of a busy dining table with patrons sharing dishes and wine, featuring plates, bowls, and food items (no visible text or symbols)

EFF

BUILT-IN OVEN

[en] INSTRUCTION MANUAL

C88FT38.0B

Table of contents

Intended use....4

Important safety information .... 5

General information 5

Steam. 6

Meat thermometer 6

Cleaning function 6

Causes of damage 6

General information 6

Steam....7

Environmental protection 7

Saving energy 7

Environmentally-friendly disposal 8

Getting to know your appliance ..... 9

Control panel 9

Controls 9

Main menu 10

Menu for the types of heating 10

Cooking compartment functions 11

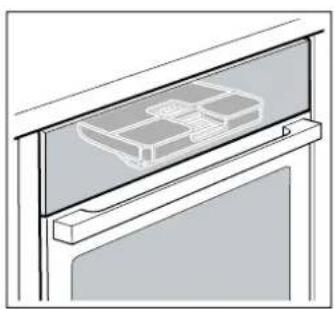

Water tank 11

Accessories 12

Accessories included 12

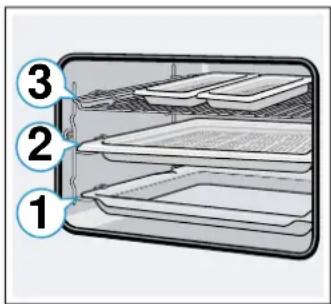

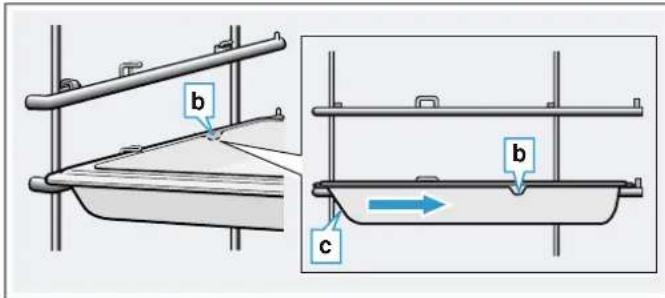

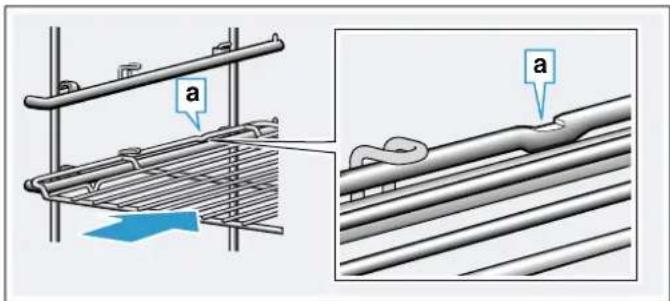

Inserting accessories 12

Combining accessories 13

Optional accessories 13

Before using for the first time....14

Before using for the first time 14

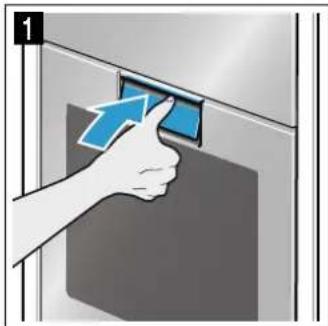

Opening and closing the appliance door ..... 14

Initial use 14

Calibrating the appliance and cleaning the cooking compartment 15

Cleaning the accessories....15

Operating the appliance 16

Switching the appliance on and off 16

Setting and starting the appliance operation ..... 16

Changing or cancelling the appliance operation .... 16

Heating up the appliance quickly 17

Steam 17

Noise 17

FullSteam - Steam cooking .....17

VarioSteam - Steam-assisted cooking .....18

Dough proving setting 18

Sous-vide .....19

Defrost setting 19

Reheating 19

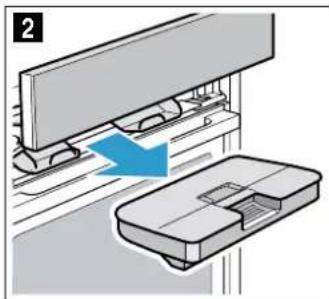

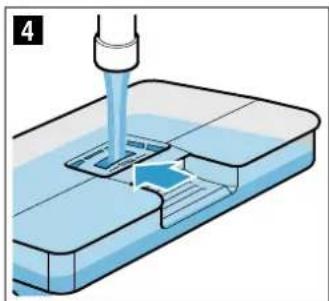

Filling the water tank. 20

After every steam operation .....21

Time-setting options 22

Showing and hiding the time-setting options .....22

Setting the timer .....22

Setting the cooking time. 23

Start delay - "Ready at" .....23

Checking, changing or deleting settings .....23

Childproof lock....23

Automatic childproof lock .....23

One-time childproof lock....24

Basic settings....24

Changing MyProfile 24

List of basic settings....24

Setting favourites .....25

Baking and roasting assistant 25

Information on the settings .....25

Selecting a meal. 25

Selecting and setting food .....26

Programmes....26

Information on the settings 26

Selecting a dish .....27

Setting a programme .....27

Meat thermometer 28

Suitable types of heating 28

Inserting the meat probe into the food .....28

Setting and starting the appliance operation .....28

Changing or cancelling the appliance operation ....29

Core temperatures of different foods .....29

Sabbath mode 29

Starting the Sabbath mode....29

Cancelling Sabbath mode 29

Cleaning agent 30

Suitable cleaning agents 30

Surfaces in the cooking compartment .....31

Keeping the appliance clean 31

Cleaning function....32

EcoClean 32

Floor cleaning aid. 32

Descaling 33

Rails 34

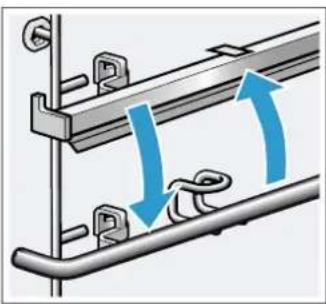

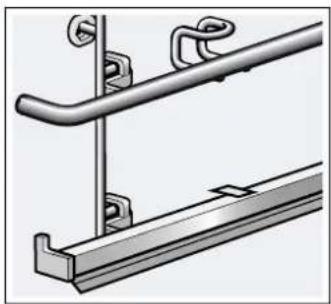

Changing the shelf position for the telescopic rail . . . 34

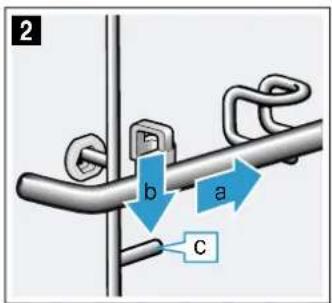

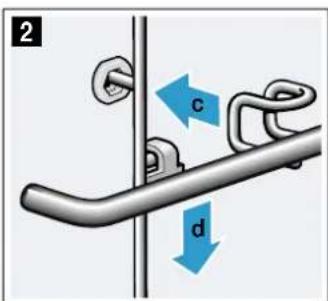

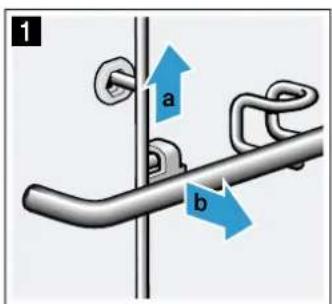

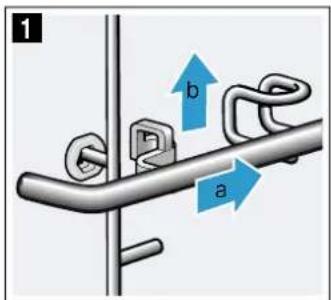

Detaching and refitting the rails .....35

Appliance door....35

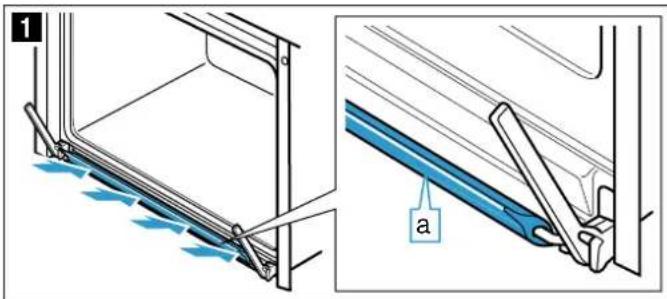

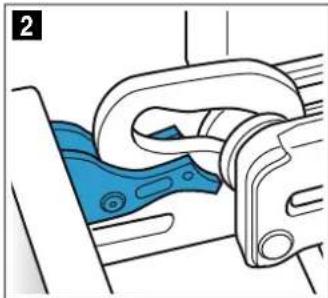

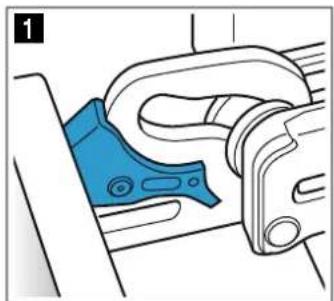

Removing and fitting the appliance door ..... 35

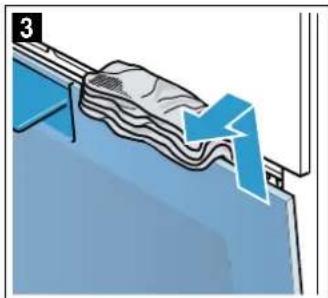

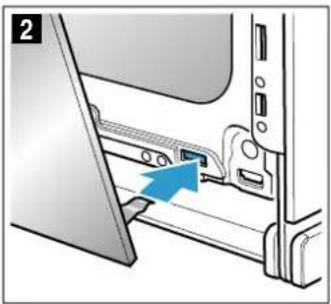

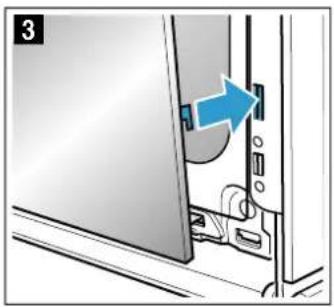

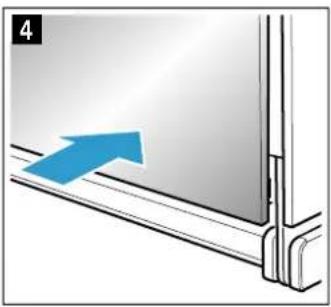

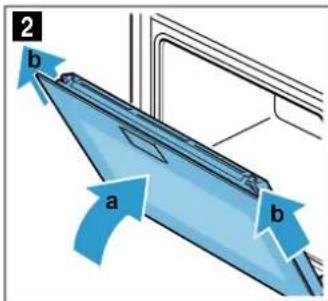

Removing and installing the door panels ..... 36

Trouble shooting 38

Fault table 38

Maximum operating time exceeded . . . . . . . . . . . . . . . . . . . 39

Cooking compartment bulbs 39

Customer service....40

E number and FD number .....40

Tested for you in our cooking studio. . . . . . . 40

Silicone moulds 40

Baking 40

Roasting and braising 43

Grilling 47

Convenience products 50

Steaming 52

Yogurt 54

Eco heating functions. 54

Acrylamide in foodstuffs .....56

Slow cook 56

Drying. 57

Preserving and juicing 58

Sterilising bottles and hygiene 59

Allowing the dough to prove at dough proving setting 59

Sous-vide....60

Defrosting....63

Reheating....64

Keeping warm 65

Test dishes....66

Intended use

Read these instructions carefully. Only then will you be able to operate your appliance safely and correctly. Retain the instruction manual and installation instructions for future use or for subsequent owners.

This appliance is only intended to be fully fitted in a kitchen. Observe the special installation instructions.

Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport.

Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under warranty.

This appliance is intended for domestic use only. The appliance must only be used for the preparation of food and drink. The appliance must be supervised during operation. Only use this appliance indoors.

This appliance is intended for use up to a maximum height of 2000 metres above sea level.

This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards.

Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 15 years old and are being supervised.

Keep children below the age of 8 years old at a safe distance from the appliance and power cable.

Always slide accessories into the cooking compartment the right way round.

→ "Accessories" on page 12

Important safety information

General information

⚠ Warning – Risk of fire!

■ Combustible items stored in the cooking compartment may catch fire. Never store combustible items in the cooking compartment. Never open the appliance door if there is smoke inside. Switch off the appliance and unplug it from the mains or switch off the circuit breaker in the fuse box.
- Loose food remnants, fat and meat juices may catch fire. Before using the appliance, remove the worst of the food remnants from the cooking compartment, heating elements and accessories.
■ A draught is created when the appliance door is opened. Greaseproof paper may come into contact with the heating element and catch fire. Do not place greaseproof paper loosely over accessories during preheating. Always weight down the greaseproof paper with a dish or a baking tin. Only cover the surface required with greaseproof paper. Greaseproof paper must not protrude over the accessories.

⚠ Warning – Risk of burns!

■ The appliance becomes very hot. Never touch the interior surfaces of the cooking compartment or the heating elements. Always allow the appliance to cool down. Keep children at a safe distance.
■ Accessories and ovenware become very hot. Always use oven gloves to remove accessories or ovenware from the cooking compartment.
■ Alcoholic vapours may catch fire in the hot cooking compartment. Never prepare food containing large quantities of drinks with a high alcohol content. Only use small quantities of drinks with a high alcohol content. Open the appliance door with care.

⚠ Warning – Risk of scalding!

■ The accessible parts become hot during operation. Never touch the hot parts. Keep children at a safe distance.
■ When you open the appliance door, hot steam can escape. Steam may not be visible, depending on its temperature. When opening, do not stand too close to the appliance. Open the appliance door carefully. Keep children away.
■ Water in a hot cooking compartment may create hot steam. Never pour water into the hot cooking compartment.

⚠ Warning – Risk of injury!

• Scratched glass in the appliance door may develop into a crack. Do not use a glass scraper, sharp or abrasive cleaning aids or detergents.
  ■ The hinges on the appliance door move when opening and closing the door, and you may be trapped. Keep your hands away from the hinges.

⚠ Warning – Risk of electric shock!

■ Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.
■ The cable insulation on electrical appliances may melt when touching hot parts of the appliance. Never bring electrical appliance cables into contact with hot parts of the appliance.
- Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock.
■ A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.

Warning – Hazard due to magnetism!

■ Permanent magnets are used in the control panel or in the control elements. They may affect electronic implants, e.g. heart pacemakers or insulin pumps. Wearers of electronic implants must stay at least 10 cm away from the control panel.
■ Permanent magnets are used in the appliance's door handle. They may affect electronic implants, e.g. heart pacemakers or insulin pumps. Wearers of electronic implants must stay at least 10 cm away from the door handle.

Steam

⚠ Warning – Risk of scalding!

■ The water in the water tank may become very hot if you continue to operate the appliance. Empty the water tank after every operation with steam.
■ Hot steam is generated in the cooking compartment. Do not reach into the cooking compartment during any operation with steam.
■ Hot liquid may spill over the sides of the accessory when it is removed from the cooking compartment. Remove hot accessories with care and always wear oven gloves.

⚠ Warning – Risk of injury and risk of fire!

Flammable liquids can catch fire in the cooking compartment when it is hot (explosion). Do not fill the water tank with any flammable fluids (e.g. alcoholic drinks). Only fill the water tank with water or with the descaling solution that is recommended by us.

Meat thermometer

⚠ Warning – Risk of electric shock!

The insulation of an incompatible meat thermometer may be damaged. Only use the meat thermometer which is recommended for this appliance.

Cleaning function

⚠ Warning – Risk of burns!

The appliance will become very hot on the outside during the cleaning function. Never touch the appliance door. Allow the appliance to cool down. Keep children away from the appliance.

Causes of damage

General information

Caution!

■ Accessories, foil, greaseproof paper or ovenware on the cooking compartment floor: do not place accessories on the cooking compartment floor. Do not cover the cooking compartment floor with any sort of foil or greaseproof paper. Do not place ovenware on the cooking compartment floor if a temperature of over 50 °C has been set. This will cause heat to accumulate. The baking and roasting times will no longer be correct and the enamel will be damaged.
■ Aluminium foil: Aluminium foil in the cooking compartment must not come into contact with the door glass. This could cause permanent discolouration of the door glass.
■ Water in a hot cooking compartment: do not pour water into the cooking compartment when it is hot. This will cause steam. The temperature change can cause damage to the enamel.
■ Moisture in the cooking compartment: Over an extended period of time, moisture in the cooking compartment may lead to corrosion. Allow the cooking compartment to dry after use. Do not keep moist food in the closed cooking compartment for extended periods of time. Do not store food in the cooking compartment.
■ Cooling with the appliance door open: Following operation at high temperatures, only allow the cooking compartment to cool down with the door closed. Do not trap anything in the appliance door. Even if the door is only left open a crack, the front of nearby furniture may become damaged over time. Only leave the cooking compartment to dry with the door open if a lot of moisture was produced whilst the oven was operating.
■ Fruit juice: when baking particularly juicy fruit pies, do not pack the baking tray too generously. Fruit juice dripping from the baking tray leaves stains that cannot be removed. If possible, use the deeper universal pan.
■ Extremely dirty seal: If the seal is very dirty, the appliance door will no longer close properly during operation. The fronts of adjacent units could be damaged. Always keep the seal clean.
■ Appliance door as a seat, shelf or worktop: Do not sit on the appliance door, or place or hang anything on it. Do not place any cookware or accessories on the appliance door.
- Inserting accessories: depending on the appliance model, accessories can scratch the door panel when closing the appliance door. Always insert the accessories into the cooking compartment as far as they will go.
- Carrying the appliance: do not carry or hold the appliance by the door handle. The door handle cannot support the weight of the appliance and could break.

Steam

Caution!

■ Baking tins: Ovenware must be heat and steam resistant. Silicone baking tins are not suitable for combined operation with steam.
■ Ovenware with areas of rust: Do not use any ovenware which displays areas of rust. Even the smallest spots of rust can lead to corrosion in the cooking compartment.
■ Dripping liquids: When steaming with a perforated cooking container, always insert the baking tray, the universal pan or the solid cooking container underneath. Dripping liquid is caught.
■ Hot water in the water tank: Hot water can damage the pump. Only fill the water tank with cold water.
■ Enamel damage: Do not start any operations when there is water on the cooking compartment floor. Before operation, wipe away the water from the cooking compartment floor.
■ Descaling solution: Do not allow any descaling solution to come into contact with the control panel or other surfaces on the appliance. This damages the surfaces. If this does happen, remove the descaling solution immediately with water.
■ Cleaning the water tank: Do not clean the water tank in the dishwasher. Otherwise, the water tank will be damaged. Clean the water tank with a soft cloth and standard washing-up liquid.

Environmental protection

Your new appliance is particularly energy-efficient. Here you can find tips on how to save even more energy when using the appliance, and how to dispose of your appliance properly.

Saving energy

■ Only preheat the appliance if this is specified in the recipe or in the tables in the operating instructions.

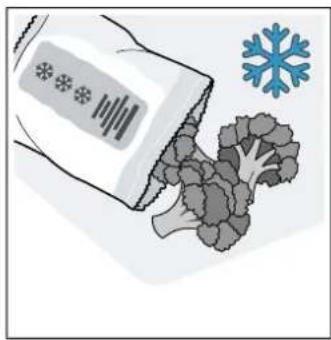

■ Leave frozen food to defrost before placing it in the cooking compartment.

Illustration of broccoli being cut with a thermometer and snowflake symbol (no text or labels)

Illustration of a bowl containing vegetables with three water droplets above and a green checkmark below (no text or symbols)

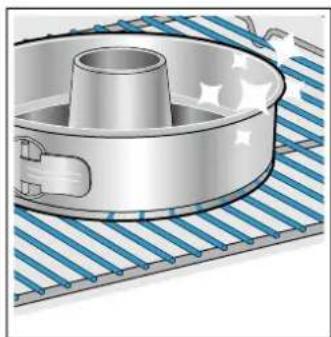

■ Use baking tins that are dark-coloured, painted black or have an enamel coating. These absorb the heat particularly well.

Illustration of a mechanical component with blue striped background (no text or symbols)

3D rendering of a mechanical component with a cylindrical shaft and flange, placed on a blue striped surface (no text or symbols)

■ Remove any unnecessary accessories from the cooking compartment.

Illustration of two empty kitchen trays with food items inside (no text or symbols)

Illustration of a tray with five dumplings and a green checkmark (no text or symbols)

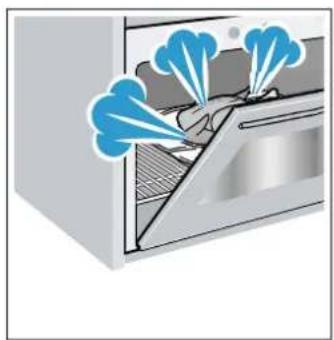

■ Open the appliance door as infrequently as possible when the appliance is in use.

Illustration of a kitchen oven with blue smoke rising from the chimney (no text or symbols)

Illustration of a kitchen oven with a green checkmark below (no text or symbols)

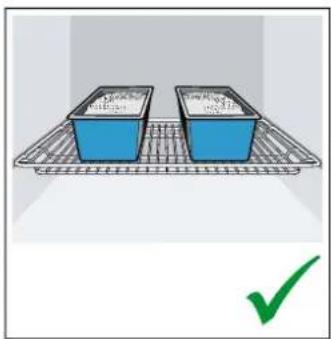

It is best to bake several cakes one after the other. The cooking compartment stays warm. This reduces the baking time for the second cake. You can place two cake tins next to each other in the cooking compartment.

Illustration of a blue container placed on a grid-patterned rack (no text or symbols)

Two blue plastic containers on a metal rack with a green checkmark below (no text or symbols)

■ For longer cooking times, you can switch the appliance off 10 minutes before the end of the cooking time and use the residual heat to finish cooking.

Environmentally-friendly disposal

Dispose of packaging in an environmentally-friendly manner.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Getting to know your appliance

In this chapter, we will explain the indicators and controls. You will also find out about the various functions of your appliance.

Note: Depending on the appliance model, individual details and colours may differ.

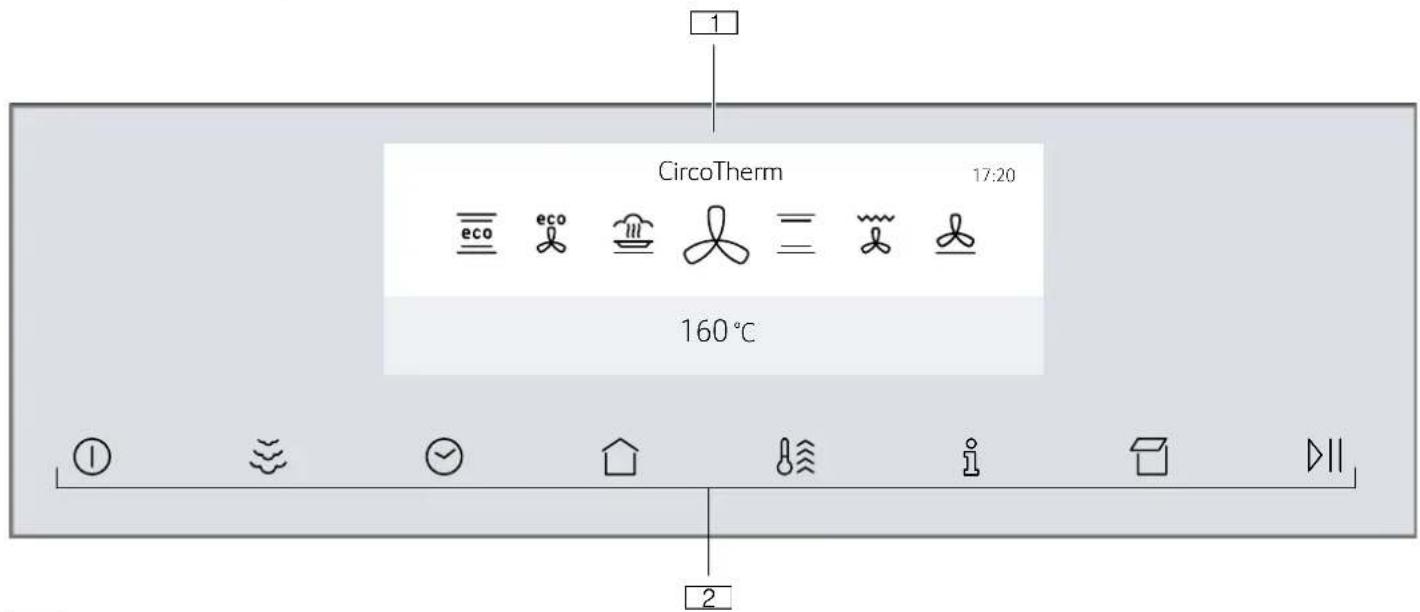

Control panel

In the control panel, set your appliance's different functions using the FullTouch TFT display. The current settings are shown on the FullTouch TFT display.

1 CircoTherm 17:20 160°C 2

1 FullTouch TFT display
2 Touch buttons

Controls

Use the controls to set your appliance simply and directly.

Touch buttons

There are sensors under the touch buttons. Touch on the corresponding touch button to select a function.

Touch button Use
1	on/off Switching the appliance on or off→ "Switching the appliance on and off" on page 16
2	Steam-assisted cooking Switching on steam-assisted cooking → "VarioSteam - Steam-assisted cooking" on page 18
3	Time-setting options Setting the timer, cooking time, or "Ready at" start delay → "Time-setting options" on page 22
	Childproof lock Activating or deactivating the child-proof lock → "Childproof lock" on page 23
4	Main menu Selecting operating modes and settings → "Setting and starting the appliance operation" on page 16

Rapid heating		Activating or deactivating rapid heating → "Heating up the appliance quickly" on page 17
		Activating or deactivating Power-Boost → "Heating up the appliance quickly" on page 17
Information		Displaying further informationDisplaying the current temperature→ "Setting and starting the appliance operation" on page 16
Open cover		Filling or emptying the water tank→ "Filling the water tank" on page 20
Start/Stop		Starting or stopping the operation→ "Setting and starting the appliance operation" on page 16

FullTouch TFT display

With the FullTouch TFT display, you can navigate through the lines and select settings.

To adjust a setting, touch the appropriate point on the display using your finger. The area is displayed more brightly. With your finger touching this area of the display, swipe to the left or right until the required setting is displayed larger.

Direction Use

Navigate to the left On the display, use your finger to swipe to the right

Navigate to the right On the display, use your finger to swipe to the left

Navigate upwards Touch the top line of the display

Navigate downwards Touch the bottom line of the display

Main menu

Touch the 🔒 touch button to access the main menu.

Menu Use

	Types of heatingSelecting the required type of heating and temperature for your dish → "Switching the appliance on and off" on page 16
	Steam cookingCooking with steam → "FullSteam - Steam cooking" on page 17

	Baking and roasting assistantRecommended settings for baking and roasting→ "Baking and roasting assistant" on page 25
	Steam programmesPreparing dishes with steam → "Programmes" on page 26
	MyProfileIndividually adjusting the appliance settings→ "Basic settings" on page 24
	Descale
	DryingDrying the cooking compartment after a steam operation → "After every steam operation" on page 21
	Floor cleaning aidCleaning the cooking compartment floor→ "Cleaning function" on page 32
	EcoCleanCleaning the cooking compartment → "Cleaning function" on page 32

Menu for the types of heating

Your appliance has different types of heating. After switching on the appliance, you are taken directly to the menu for the types of heating.

Type of heating Temperature Use

	CircoTherm * 40 - 200 °C For baking and cooking on one or more levels.
			The fan distributes the heat from the ring heating element in the back panel evenly around the cooking compartment.
	Top/bottom heating *	50 - 250 °C	For traditional baking and roasting on one level. Especially suitable for cakes with moist toppings.Heat is emitted evenly from the top and bottom.
	Circo-roasting *	50 - 250 °C	For roasting poultry, whole fish and larger pieces of meat.The grill element and the fan switch on and off alternately. The fan circulates the hot air around the food.
	Circotherm intensive	50 - 250 °C	For preparing pizza and dishes which require a lot of heat from underneath.The bottom heating element and the ring heating element in the back panel heat up.
	Bread-baking *	180 - 240 °C	For baking bread, bread rolls and baked items that require high temperatures.
	Full-surface grill	50 - 275 °C	For grilling flat items, such as steaks or sausages, for making toast, and for au gra-tin dishes.The whole area below the grill element becomes hot.
	Centre-area grill	50 - 275 °C	For grilling small amounts of steaks or sausages, for making toast, and for au gra-tin dishes.The centre area under the grill heating element becomes hot.
[545Z]	Bottom heat	30 - 250 °C For cooking in a bain marie and for the final baking stage.The heat is emitted from below.
	Low temperature cooking	70 - 120 °C	For gentle and slow cooking of seared, tender pieces of meat in ovenware without a lid.The heat is emitted evenly from the top and bottom at low temperatures.
	Dough proving **Sous-vide **	2 levels50-95 °C	For leaving yeast dough and sourdough to prove and for culturing yogurt.Dough will prove more quickly than at room temperature. The surface of the dough does not dry out.Cooking "under a vacuum" at low temperatures between 50 and 95 °C and 100% steam: Suitable for meat, fish, vegetables and desserts.A chamber vacuum-packing machine is used to heat-seal the food in special air-tight, heat-resistant cooking bags. The protective envelope retains the nutrients and flavours.
	Defrost setting ** 30 - 60 °C For gently defrosting frozen food.
	Plate warming 30-70 °C For preheating ovenware.
	Keep warm * 60 - 100 °C For keeping cooked food warm.
	Top/bottom heating eco 50-250 °C For gently cooking selected types of food.Heat is emitted from above and below.This heating function is most effective between 150 and 250 °C.This heating function is used to measure the energy consumption in the conventional mode.
eco	CircoTherm eco	40-200 °C	For gently cooking selected types of food on one level without preheating.The fan distributes the heat from the ring-shaped heating element in the back panel around the cooking compartment.This heating function is most effective between 125 and 200 °C.This heating function is used to measure both the energy consumption in air recirculation mode and the energy efficiency class.
	Reheat **	80 - 180 °C	For gently reheating food or for crisping up pastries.
* Possible to use steam for this type of heating (operation only possible when the water tank is full)** Type of steam heating (operation only possible when the water tank is full)

Cooking compartment functions

The functions in the cooking compartment make your appliance easier to use. This, for example, enables the cooking compartment to be well lit and a cooling fan to prevent the appliance from overheating.

Opening the appliance door

If you open the appliance door during an operation, the operation is paused. The operation continues to run when you close the door.

Note: For some types of heating, the operation continues to run even when the appliance door is open.

Interior lighting

If you open the appliance door, the interior lighting switches on. If the door remains open for longer than around 15 minutes, the lighting switches off again.

For most operating modes, the interior lighting switches on as soon as the operation is started. When the operation has finished, the lighting switches off.

Note: You can set the interior lighting not to come on during the operation in the basic settings. → "Basic settings" on page 24

Cooling fan

The cooling fan switches on and off as required. The hot air escapes above the door.

Caution!

Do not cover the ventilation slots. Otherwise, the appliance may overheat.

So that the cooking compartment cools down more quickly after the operation, the cooling fan continues to run for a certain period afterwards.

Note: You can change how long the cooling fan continues to run for in the basic settings. → "Basic settings" on page 24

Water tank

The appliance is fitted with a water tank. The water tank is behind the panel. For operations with steam, fill the water tank with water. → "Steam" on page 17

Diagram of a door frame with a plastic enclosure and a tray, no text or symbols present

1 2 3

1 Tank cover
2 Filling opening
3 Handle for removing and inserting the water tank

Accessories

Your appliance is accompanied by a range of accessories. Here, you can find an overview of the accessories included and information on how to use them correctly.

Accessories included

Your appliance is equipped with the following accessories:

	Wire rackFor ovenware, cake tins and ovenproof dishes.For roasts, grilled items and frozen meals.
	Universal panFor moist cakes, other baked items, frozen meals and large roasts.It can be used to catch dripping fat when you are grilling directly on the wire rack. During operation with steam, it can also be used to catch drops of water.
	Steam container, perforated, size SFor steaming vegetables, juicing berries and defrosting.
	Steam container, unperforated, size SFor cooking rice, pulses and cereals.
	Steam container, perforated, size XLFor steaming large quantities.
	Meat thermometerEnables precision roasting to your exact requirements.Its use is described in the relevant section. → "Meat thermometer" on page 28

Only use genuine accessories. They are specially adapted for your appliance.

You can buy accessories from the after-sales service, from specialist retailers or online.

Note: The accessories may become deformed when they become hot. This does not affect their function. Once they cool down again, they regain their original shape.

Note: You can use the steam container with all heating modes involving steam without any restrictions. If you set other heating modes at high temperatures, take the steam container out of the cooking compartment. High temperatures can cause permanent deformations and discolouration of the steam container.

Inserting accessories

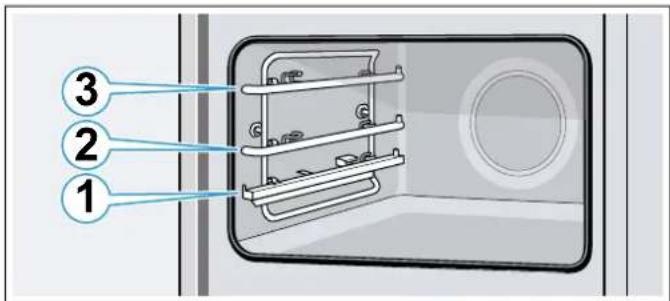

The cooking compartment has three shelf positions. The shelf positions are counted from the bottom up.

Warning – Risk of burns!

The telescopic shelves become hot when the appliance is in use. Take special care not to get burnt when they are pulled out.

1 2 3

The accessories can be pulled out approximately halfway without tipping. You can use the pull-out rails to pull the accessories out further.

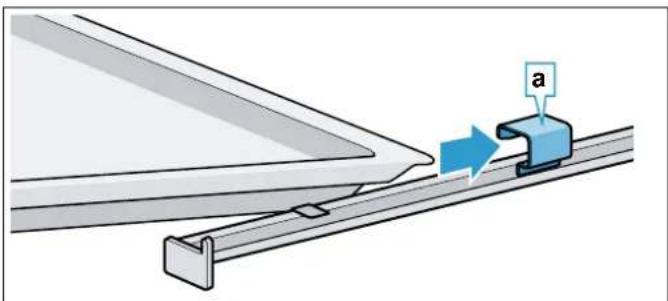

Ensure that the accessory is placed under the lug a on the pull-out rail.

Example in the picture: Universal pan

Diagram of a mechanical assembly with a blue component labeled 'a' and directional arrow indicating motion (no text or symbols beyond label)

Accessories on the telescopic shelf can be pulled out as far as the notch b (fig. 1). Hold the accessory on both sides in the area marked c and remove it (fig. 2).

1 b

2 C C

Notes

■ Ensure that you always insert the accessories into the cooking compartment the right way round.
■ Always insert the accessories fully into the cooking compartment so that they do not touch the appliance door.

Locking function

The accessories can be pulled out approximately halfway until they lock in place. The locking function prevents the accessories from tilting when they are pulled out. The accessories must be inserted into the cooking compartment correctly for the tilt protection to work properly.

When inserting the wire rack, ensure that the lug a is facing downwards.

a a

When inserting baking trays, ensure that the lug b is at the rear and is facing downwards. The sloping edge of the accessory c must be facing towards the appliance door.

b b c

Combining accessories

You can insert the wire rack and the universal pan at the same time to catch drops of liquid.

When inserting the wire rack, ensure that both spacers a are at the rear edge. When the universal pan is inserted, the wire rack is on top of the upper guide rod of the shelf position.

a a a

Small steam containers may only be placed in the cooking compartment with the wire rack.

Optional accessories

You can purchase optional accessories from the after-sales service and specialist retailers, or on the Internet. You will find a comprehensive range of products for your appliance in our brochures and on the Internet. Both availability and whether it is possible to order online differ between countries. Please see your sales documents for more details.

Note: Not all optional accessories are suitable for every appliance. When purchasing, please always quote the exact designation (E no.) of your appliance. → "Customer service" on page 40

Optional accessories

Baking and roasting shelf, suitable for steaming

Baking tray

Universal pan

Baking tray, non-stick

Universal pan, non-stick

Extra-deep pan

Steam container, perforated, size XL

Steam container, perforated, size S

Steam container, unperforated, size S

Porcelain cooking container, unperforated, size S

Porcelain cooking container, unperforated, size L

Profi pan

Lid for the Profi pan

Pizza tray

Grill tray

Ceramic brick

Glass roasting dish, 5.1 litres

Glass pan

Decorative strip

ComfortFlex shelf (1 level) + frame*

ComfortFlex rail (1 level), suitable for steaming*

* Accessory does not fit in every appliance, quote the E no. when ordering

Before using for the first time

Before you can use your new appliance, you must make some settings. You must also clean the cooking compartment and accessories.

Before using for the first time

Before using the appliance for the first time, ask your water supplier about the hardness of your tap water.

To ensure that the appliance can reliably remind you to descale it when required, you must set your water hardness range correctly.

Caution!

■ The appliance may become damaged due to the use of unsuitable liquids.
Do not use distilled water, highly chlorinated tap water (>40 mg/l) or other liquids.
Only use cold, fresh tap water, softened water or non-carbonated mineral water.
■ Malfunctions may occur when using filtered or demineralised water.
The appliance may request that you top up the water tank even though it may be full, or operation with steam is cancelled after approx. two minutes.
If required, mix filtered or demineralised water with the bottled non-carbonated mineral water with a ratio of one to one.

Notes

■ If your water is very hard, we recommend that you use softened water.
■ If you only use softened water, you can set the water hardness range to "softened".
■ If you use mineral water, set the water hardness range to "4 very hard".
■ If you use mineral water, you must only use non-carbonated mineral water.

Water hardness range Setting

0 0 softened

1 (up to 1.3 mmol/l) 1 soft

2 (1.3 - 2.5 mmol/l) 2 medium

3 (2.5 - 3.8 mmol/l) 3 hard

4 (above 3.8 mmol/l) 4 very hard

Opening and closing the appliance door

Opening the appliance door

Note: The door handle will remain open if you do not close it.

1. Press the top of the door handle until it opens (fig. 1).
2. Pull the door handle towards you until the appliance door opens (fig. 2).

Instructional image showing a hand pressing a blue button on a wall, with a blue arrow indicating direction.

Illustration of a hand using a blue tool to press down a screen with a downward arrow (no text or symbols)

Closing the appliance door

1. Pull the door handle up until the appliance door closes.
2. Push the door handle down until it closes.

Initial use

As soon as the appliance is connected to the power supply, the first setting "Language" appears on the display.

Setting the language

1. Touch the bottom line.
2. Swipe to the left or right to select the required language.
3. Touch the top line.

Setting the time

1. Touch "Clock".
2. Touch the bottom line.
3. Swipe to the left or right to select the current hour.
4. Touch "Minutes".
5. Swipe to the left or right to select the current minute.
6. Touch the ☑ symbol to apply the setting.

Setting the date

1. Touch "Date".
2. Touch the bottom line.
3. Swipe to the left or right to select the current day.
4. Touch "Month".
5. Swipe to the left or right to select the current month.
6. Touch "Year".
7. Swipe to the left or right to select the current year.
8. Touch the ☑ symbol to apply the setting.

Setting the water hardness

1. Touch "Water hardness".
2. Touch the bottom line.
3. Swipe to the left or right to select the appropriate water hardness.
4. Touch the ☑ symbol to complete the initial use. The initial use is complete.

Notes

■ You can change these settings at any time in the basic settings. → "Basic settings" on page 24
■ After connecting the appliance to the power or following a power cut, the settings for initial use are shown in the display.

Calibrating the appliance and cleaning the cooking compartment

The boiling point of water depends on the air pressure. During calibration, the appliance self-adjusts to the pressure ratio at the installation location. This will happen automatically the first time steam-assisted cooking is used. This produces a lot of steam.

Preparing the appliance for calibration

1. Remove the accessories from the cooking compartment.
2. Remove any leftover packaging, such as polystyrene pellets, from the cooking compartment.
3. Before calibrating the appliance, wipe the smooth surfaces in the cooking compartment with a soft, damp cloth.

Calibrating the appliance and cleaning the cooking compartment

Notes

■ Calibration cannot be started until the cooking compartment is cold (room temperature).
■ Do not open the appliance door while calibration is in progress, as this will abort the calibration process.

1. Use the ① touch button to switch on the appliance.
2. Fill the water tank. → "Filling the water tank" on page 20
3. Set the specified type of heating, temperature and duration for the calibration, then start the appliance. → "FullSteam – Steam cooking" on page 17

Calibration

Type of heating Steam ≈

Temperature 100 °C

Cooking time 30 minutes

1. Heat up the appliance following calibration.

Caution!

Enamel damage

Do not use the appliance if there is water on the cooking compartment floor. Before using the appliance, wipe away the water from the cooking compartment floor.

1. Dry the cooking compartment floor.

2. Set the specified type of heating and temperature for heating, then start the appliance. → "Setting and starting the appliance operation" on page 16

Heating up

Type of heating CircoTherm ⚙

Temperature Maximum

Cooking time 30 minutes

1. Keep the kitchen ventilated while the appliance is heating.
2. Stop the appliance once the specified time has elapsed. Use the ① touch button to switch off the appliance.
3. Wait for the cooking compartment to cool down.
4. Clean the smooth surfaces with soapy water and a dish cloth.
5. Empty the water tank and dry the cooking compartment. → "After every steam operation" on page 21

Notes

■ When relocating the appliance, restore its factory settings once it is installed so that it can adapt to its new location. Repeat the procedures for initial start-up and calibration.
■ The appliance retains the calibration settings, even in the event of a power cut or disconnection from the mains. Calibration does not need to be repeated.

Cleaning the accessories

Clean the accessories thoroughly using soapy water and a dish cloth or soft brush.

Operating the appliance

You have already learnt about the controls and how they work. Now we will explain how to set your appliance. You will learn about what happens when you switch the appliance on and off, and how to select the operating mode.

Switching the appliance on and off

To switch the appliance on or off, touch the ① touch button.

After the appliance has switched off, the display shows whether the residual heat in the cooking compartment is high or low.

Display Temperature

Residual heat high above 120 °C

Residual heat low between 60 °C und 120 °C

Notes

■ Certain indicators and instructions (e.g. about residual heat in the cooking compartment) remain visible on the display even when the appliance is switched off.
■ After the appliance has completed an operation, you will hear the cooling fan continuing to run until the cooking compartment is cooled as much as possible.
■ Switch off your appliance when you do not need to use it. If no settings are made for a long time, the appliance switches off automatically.

Setting and starting the appliance operation

Example: ♿ CircoTherm hot air at 170 °C

1. Touch the ① touch button to switch on the appliance. You go directly to the □ Types of heating menu.

CircoTherm

17:20

160°C

1. Swipe to the left or right to select the type of heating.
2. Touch the bottom line.
3. Swipe to the left or right to select the temperature.

CircoTherm

17:20

160°C

165°C

170°C

175°C

180°C

1. Touch the || touch button to start the appliance operation. The heat-up indicator bar and the run time appear in the display.

Note: If you want to go directly to the □ main menu when you switch on the appliance, you can find instructions on how to do this in the Basic settings chapter under "Operation after switching on".

Default values

The appliance suggests a temperature or setting for each type of heating. You can accept this value or change it in the appropriate area.

Heating bar

As soon as a type of heating has started, the heating bar appears on the display. The heating bar shows the temperature increase in the cooking compartment.

Run time

When a type of heating has been started, the run time is displayed. The run time counts upwards during the operation. You can therefore check how long the operation has already been running.

Displaying the current temperature

To show the current temperature on the display, press the 🔊 touch button.

The current temperature is shown briefly only when heating up.

Further information

If the 1 touch button lights up, information can be displayed. Touch the 2 touch button to do this. The information is displayed for a few seconds.

Changing or cancelling the appliance operation

Changing the appliance operation

1. Use the ▷|| button to stop the operation.
2. Tap the line for the setting that should be changed.
3. Swipe to the left or right to change the setting.
4. Use the ▷□ touch button to start the changed operation.

Notes

■ The cooling fan may continue to run while an operation is interrupted.
■ After a temperature change, the paused running time continues to count. After a change in the type of heating, the running time starts again from zero.

Cancelling the appliance operation

Press and hold the ▷□ touch button until the appliance operation is cancelled.

Note: Operating modes such as the cleaning function cannot be cancelled.

Heating up the appliance quickly

You can use the "Rapid heat-up" and "PowerBoost" functions to reduce the preheat time. Whether the appliance is preheated with the "Rapid heat-up" function or the "PowerBoost" function depends on the type of heating that has been set. With the "PowerBoost" function, unlike with the "Rapid heat-up" function, you can place your food into the cold cooking compartment even before preheating has begun. Only cook on one level when using the "PowerBoost" function.

Function Type of heating Place the food in
	the cooking compartment
Rapid heat-up Top/bottom heating ≡ after preheating
PowerBoost* CircoTherm hot air 🎥 before preheating
Bread-baking setting 🌈
* Do not use more than one level for cooking

Notes

■ If the ⌘ touch button is lit, the "Rapid heat-up" or "PowerBoost" function can be activated.
■ To deactivate the "Rapid heat-up" or "PowerBoost" function before it has finished, touch the 🔊 touch button.

Activating the "Rapid heat-up" function

1. Set top/bottom heating ≡ and the temperature. Note: Set a temperature above 100 °C to allow the appliance to preheat quickly.
2. Touch the || touch button to start the appliance operation.
3. Touch the touch button to activate the "Rapid heat-up" function. The symbol appears on the display.
4. Once the set temperature has been reached, the "Rapid heat-up" function switches itself off automatically. The ♂ symbol disappears from the display. Place the food in the cooking compartment

Activating the "PowerBoost" function

1. Set CircoTherm hot air 🎨 or the bread baking setting 🌐 and the temperature. Note: Set a temperature above 100 °C to allow the appliance to preheat quickly.
2. Place the food on a single level in the cooking compartment.
3. Touch the || touch button to start the appliance operation.
4. Touch the ⌘ touch button to activate the "PowerBoost" function. The ⌘ symbol appears on the display. Once the set temperature has been reached, the "PowerBoost" function switches itself off automatically. The ⌘ symbol disappears from the display.

Steam

Food can be cooked particularly gently using steam. With some heating modes, you can prepare food with steam assistance. In addition, the Dough proving, Defrost and Reheat heating modes are available.

Warning – Risk of scalding!

When you open the appliance door, hot steam can escape. Steam may not be visible, depending on its temperature. When opening, do not stand too close to the appliance. Open the appliance door carefully. Keep children away.

Noise

Pump

You will hear a humming noise while the pump is in operation and after switching it off. This noise is caused by the pump function test. It is a normal operating noise.

Control panel

You will hear a humming or clicking noise when opening the control panel. These noises are caused by the control panel being pushed out. They are normal operating noises.

FullSteam – Steam cooking

During steaming, hot steam surrounds the food and therefore prevents loss of nutrients from the food. The shape, colour and typical aroma of the dishes are retained as a result of this preparation method.

Note: If the water tank runs dry during steaming, operation is interrupted. Fill the water tank.

Starting

1. Touch the ① touch button.
2. Fill the water tank.

Note: Only switch on steaming once the cooking compartment has cooled down completely (to room temperature).

1. Touch the 🔒 touch button.
2. Swipe to the left or right to select "Steam 🔊".
3. Touch the bottom line.
4. Swipe to the left or the right to select the required temperature.
5. Touch the bottom line.
6. Swipe to the left or the right to select the required duration.
7. Touch the || touch button. The appliance starts the operation.

As soon as the cooking time has elapsed, an audible signal sounds and the appliance ends the operation automatically. Touch the ⏻ touch button to end the audible signal.

Cancelling

Press and hold the || touch button until the appliance operation is cancelled.

Finishing

Touch the ① touch button to switch the appliance off.

Menu cooking

With steam, you can cook a whole menu at once, without the different flavours mixing. → "Tested for you in our cooking studio" on page 40

VarioSteam – Steam-assisted cooking

When you cook with steam assistance, steam is introduced into the cooking compartment at various intervals and with varying degrees of intensity. This gives you a better cooking result.

Your food

■ Becomes crispy on the outside
■ Develops a shiny surface
■ Is succulent and tender on the inside
■ Only undergoes a minimum reduction in volume

You set the combination of heating mode and steam intensity that you want. Use the information in the tables to select a suitable heating mode and steam intensity. Alternatively, select a program from the steam programs. → "Tested for you in our cooking studio" on page 40→ "Programmes" on page 26

Steam intensity

Different intensity levels are available when adding steam:

■ Low
■ Medium
■ High

Suitable heating modes

You can switch on steam assistance for these heating modes:

■ CircoTherm hot air
■ Top/bottom heating ≡
■ Circo-roasting
■ Bread-baking
- Keeping warm ≅

Starting

1. Touch the ① touch button.
2. Fill the water tank.
3. Set the type of heating and temperature.
4. Touch the ✉ touch button to switch on steam assistance.
5. On the display, swipe to the left or right to select the steam intensity.
6. Touch the ☑ symbol to apply the setting.
7. Touch the ▷□ touch button. The appliance starts the operation.

Note: If the water tank runs dry during an operation with steam assistance, a message appears on the display prompting you to fill up the water tank.

Cancelling steam addition

1. Touch the ✕ touch button to cancel the addition of steam early.
2. Touch the set added steam in the bottom line.
3. On the display, swipe to the left or right to select "Off".
4. Touch the ☑ symbol to apply the setting.

Note: The operation continues without adding steam.

Cancelling appliance operation

Press and hold the ▷□ touch button until the appliance operation is cancelled.

Finishing

Touch the ① touch button to switch the appliance off.

Dough proving setting

Dough will prove considerably more quickly using the "Dough proving " heating mode than at room temperature and does not dry out.

There are two levels available for the Dough proving setting. Use the information in the tables to select the appropriate level. "Tested for you in our cooking studio" on page 40

Note: If the water tank runs dry during operation with the Dough proving setting, operation is interrupted. Fill the water tank.

Starting

1. Touch the ① touch button.
2. Fill the water tank.
   Note: Only switch on the Dough proving setting once the cooking compartment has completely cooled down (to room temperature).
3. Swipe to the left or right to select "Dough proving".
4. Touch "1" in the bottom line.
5. Swipe to the left or right to select the required level.
6. Touch the ☑ symbol to apply the setting.
7. Touch "|→|" in the bottom line.
8. Swipe to the left or right to select the required duration.
9. Touch the ☑ symbol to apply the setting.
10. Touch the ▷|| touch button. The appliance starts the operation.

As soon as the cooking time has elapsed, an audible signal sounds and the appliance ends the operation automatically. Touch the ⏻ touch button to end the audible signal.

Cancelling

Press and hold the || touch button until the appliance operation is cancelled.

Finishing

Touch the ① touch button to switch the appliance off.

Sous-vide

Sous-vide is a type of low-temperature cooking during which vacuum-sealed food is cooked at low temperatures between 50-95 °C and 100% steam. Sous-vide is suitable for meat, fish, vegetables and desserts.

A chamber vacuum-packing machine is used to heat-seal the food in special air-tight, heat-resistant cooking bags. The protective envelope retains the nutrients and flavours.

Notes

■ If the water tank runs dry while sous-vide cooking, the operation is interrupted.
■ During sous-vide cooking, more condensate forms on the cooking compartment floor than for other cooking methods.

Starting

Caution!

Risk of damage to kitchen units

Only fill the water tank once for sous-vide cooking. Do not fill the water tank a second time. Otherwise, large volumes of water will accumulate on the cooking compartment floor. The water may leak out of the cooking compartment.

1. Touch the ① touch button.
2. Fill the water tank.

Note: Only activate the sous-vide function once the cooking compartment has cooled down completely (to room temperature).

1. Swipe to the left or right to select "Sous-vide 🔊".
2. Touch the temperature in the bottom line.
3. Swipe to the left or the right to select the required temperature.
4. Touch "|→|" in the bottom line.
5. Swipe to the left or the right to select the required duration.
6. Touch the || touch button.

The appliance will start running in this operating mode.

⚠ Warning – Risk of scalding!

Hot water collects on the vacuum-sealing bag during cooking. Use an oven cloth to carefully lift the vacuum-sealing bag, so that the hot water runs off into the universal pan or the cooking container. Then use the oven cloth to carefully remove the vacuum-sealing bag.

Once the cooking time has elapsed, an audible signal will sound and the appliance will bring the operating mode to an end automatically. Touch the ⏻ touch button to stop the signal tone.

Cancelling

Press and hold the || touch button until the appliance operation is cancelled.

Finishing

Touch the ① touch button to switch the appliance off.

Defrost setting

Us the "Defrost \\&\" heating mode to defrost frozen products.

Note: If the water tank runs dry during operation with the Defrost setting, operation is interrupted. Fill the water tank.

Starting

1. Touch the ① touch button.
2. Fill the water tank.
3. Swipe to the left or right to select "Defrost setting \\&\".

4. Touch the temperature in the bottom line.

5. Swipe to the left or right to select the required temperature.

6. Touch the ☑ symbol to apply the setting.
7. Touch "|→|" in the bottom line.
8. Swipe to the left or right to select the required duration.
9. Touch the ☑ symbol to apply the setting.
10. Touch the ▷|| touch button.

The appliance starts the operation.

As soon as the cooking time has elapsed, an audible signal sounds and the appliance ends the operation automatically. Touch the ⏻ touch button to end the audible signal.

Cancelling

Press and hold the ▷|| touch button until the appliance operation is cancelled.

Finishing

Touch the ① touch button to switch the appliance off.

Reheating

With the "Reheat 🔒" heating mode, you can gently reheat food that has already been cooked or crisp up day-old baked goods. Steam is switched on automatically.

Note: If the water tank runs dry during operation with the Reheat setting, operation is interrupted. Fill the water tank.

Starting

1. Touch the ① touch button.
2. Fill the water tank.
3. Swipe to the left or right to select "Reheat 🔒".
4. Touch the temperature in the bottom line.
5. Swipe to the left or right to select the required temperature.
6. Touch the ☑ symbol to apply the setting.
7. Touch "|→|" in the bottom line.
8. Swipe to the left or right to select the required duration.
9. Touch the ☑ symbol to apply the setting.
10. Touch the ▷|| touch button.
    The appliance starts the operation.

As soon as the cooking time has elapsed, an audible signal sounds and the appliance ends the operation automatically. Touch the ⏻ touch button to end the audible signal.

Cancelling

Press and hold the || touch button until the appliance operation is cancelled.

Finishing

Touch the ① touch button to switch the appliance off.

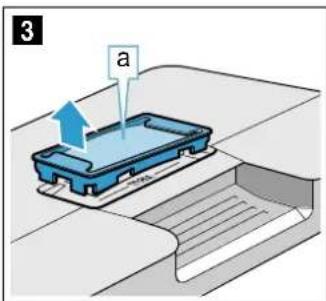

Filling the water tank

The water tank is located behind the control panel.

Before starting an operation with steam, open the control panel and fill the water tank with water.

Make sure that you have set the water hardness range correctly. → "Basic settings" on page 24

Warning – Risk of injury and risk of fire!

Only fill the water tank with water or with the descaling solution that is recommended by us. Do not pour any flammable liquids (e.g. alcoholic drinks) into the water tank. Due to hot surfaces, vapours from flammable liquids may catch fire in the cooking compartment (explosion). The appliance door may spring open. Hot steam and jets of flame may escape.

Warning – Risk of burns!

The water tank may heat up while the appliance is in operation. Wait until the water tank has cooled down after the previous appliance operation. Remove the water tank from the water tank recess.

Caution!

The appliance may become damaged due to the use of unsuitable liquids.

Do not use distilled water, highly chlorinated tap water (> 40 mg/l) or other liquids.

Only use cold, fresh tap water, softened water or uncarbonated mineral water.

Caution!

Malfunctions may occur when using filtered or demineralised water.

The appliance may request that you top up the water tank even though it may be full, or operation with steam is cancelled after approx. two minutes.

If required, mix filtered or demineralised water with the bottled non-carbonated mineral water with a ratio of one to one.

Notes

■ If your water is very hard, we recommend that you use softened water.

■ If you use only softened water, you can set your appliance to the "softened" water hardness range.

■ If you use mineral water, set the water hardness range to "4 very hard".

■ If you use mineral water, you must only use non-carbonated mineral water.

1. Touch the 🔔 touch button.

The control panel is pushed forwards automatically.

1. Pull the control panel forwards with both hands and then push it upwards until it locks into place (Fig. 1).

2. Lift the water tank and remove it from the water tank recess (Fig. 2).

Diagram of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

Diagram showing a device with a blue arrow indicating a process or operation, no text or symbols present.

1. Press down on the cover along the seal to prevent water from leaking out of the water tank.

2. Take out the cover a (Fig. 3). Note: Whether or not there is a cover a depends on the appliance type.

3. Fill the water tank with cold water up to the "max." mark (Fig. 4).

3 a

Illustration of a pipette dispensing liquid into a container with a blue plastic component (no text or symbols)

1. Put the cover a back into the opening on the water tank.

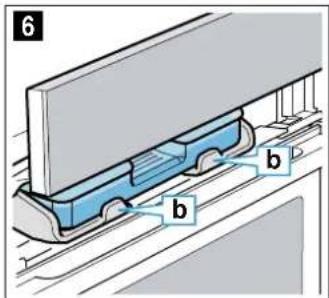

2. Insert the filled water tank (Fig. 5). Ensure that the water tank locks into place behind both holders b (Fig. 6).

Diagram showing a mechanical assembly with a blue arrow pointing to a component, no text or symbols present

6 b b

1. Slowly slide the control panel downwards and then push it towards the rear until it is closed completely. The water tank has been filled. You can start using operating modes with steam.

Refilling the water tank

Notes

■ Steam-assisted operations continue without adding steam.
■ If the water tank runs dry during operation with the Steaming, Dough proving, Defrost or Reheat settings, operation is interrupted. Fill the water tank.

1. Open the control panel.
2. Remove and refill the water tank.
3. Insert the filled water tank and close the control panel.

After every steam operation

Warning – Risk of scalding!

When you open the appliance door, hot steam can escape. Steam may not be visible, depending on its temperature. When opening, do not stand too close to the appliance. Open the appliance door carefully. Keep children away.

Warning – Risk of burns!

The appliance becomes hot during operation. Allow the appliance to cool down before cleaning.

Caution!

Enamel damage: Do not start any operations when there is water on the cooking compartment floor. Before operation, wipe away the water from the cooking compartment floor.

The remaining water is pumped back into the water tank after every operation with steam. Then empty and dry the water tank. Moisture remains in the cooking compartment. To dry the cooking compartment, you can either use the "Drying " operating mode or dry the cooking compartment by hand.

Notes

■ Once the appliance has been switched off, the ☐ touch button remains lit for a little longer to remind you to empty the water tank.
■ Remove limescale marks with a cloth soaked in vinegar, then wipe with clean water and dry with a soft cloth.

Emptying the water tank

Caution!

■ Do not dry the water tank in the hot cooking compartment. This will damage the water tank.
■ Do not clean the water tank in the dishwasher. This will damage the water tank.

1. Open the control panel.
2. Remove water tank.
3. Carefully remove the lid of the water tank.
4. Empty the water tank, clean it with detergent and then rinse it thoroughly with clean water.
5. Dry all parts with a soft cloth.
6. Rub the seal on the lid until dry.
7. Leave to dry with the lid open.
8. Place the lid on the water tank and push it down.
9. Insert the water tank and close the control panel.

Cleaning the drip trough

1. Allow the appliance to cool down.

2. Open the appliance door.

3. Soak up the water in the drip trough a with a sponge cloth and wipe it carefully (figure 1). When you wipe it, be careful not to detach the seal b from the drip trough (figure 2).

1 D

2 E

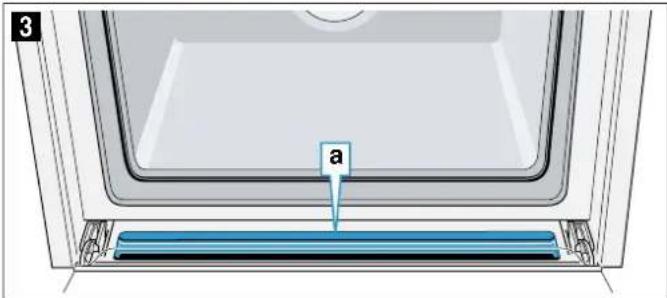

The drip trough a is located below the cooking compartment (figure 3).

3 a

Note: If the seal has become detached, fit the seal back onto the drip trough. → "Appliance door" on page 35

Starting drying

To dry the cooking compartment, it is heated up so that the moisture in the cooking compartment evaporates. You will then need to open the appliance door to allow the steam to escape from the cooking compartment.

Caution!

Enamel damage: Do not start any operations when there is water on the cooking compartment floor. Before operation, wipe away the water from the cooking compartment floor.

1. Allow the appliance to cool down.
2. Remove the worst of the food remnants from the cooking compartment immediately and use a sponge to wipe away moisture from the cooking compartment floor.
3. If necessary, touch the ① touch button to switch the appliance on.
4. Touch the □ field to display the operating modes.
5. On the touch display, swipe to the left or right to select "Dry !!!".
6. Touch the line at the bottom. The duration will be displayed. It cannot be changed.
7. Touch the line at the bottom.
8. Touch the || field. This starts the drying function; it will end automatically after 10 minutes.
9. Open the appliance door and leave it open for 1 to 2 minutes so that the moisture in the cooking compartment can escape.

Drying the cooking compartment by hand

1. Allow the appliance to cool down.
2. Remove any food remnants from the walls of the cooking compartment.
3. Dry the cooking compartment with a sponge.
4. Leave the appliance door open for 1 hour so that the cooking compartment dries completely.

Time-setting options

Your appliance has different time-setting options.

Time-setting option Use
	Timer The timer functions like an egg timer. The appliance does not switch on and off automatically.
|→|	Cooking time Once the set cooking time has elapsed, the appliance switches off automatically.
→|	Ready at The appliance switches on automatically, and once the set cooking time has elapsed and the end time has passed, it switches off automatically.

Note: If you have set a time-setting option, the time interval increases if you set a higher value. Example: You can set a cooking time of up to one hour in one-minute increments; for cooking times over one hour, you can set a cooking time in five-minute increments.

Showing and hiding the time-setting options

To show or hide the time-setting options, touch the ⏻ touch button.

Note: After a particular length of time, the time-setting options that are shown are automatically hidden. If you have already set a cooking time, it will be applied.

Timer --:-- 00:01min/s 00:02min/s

Setting the timer

The timer can be set when the appliance is switched on or off.

1. Touch the Ⓛ touch button.
   The time-setting options are shown on the display.
2. Swipe to the left or right to select the duration.
   Note: With the appliance switched on, first touch "Timer" and then swipe to the left or right to select the duration.
3. Touch the ⏻ touch button.
   The 🔔 symbol appears on the display.

Note: As soon as the set time has elapsed, a signal sounds. Touch the ⏻ touch button to end the audible signal.

Setting the cooking time

Once the set cooking time has elapsed, the appliance switches off automatically. The function can only be used in combination with a type of heating.

1. Touch the ① touch button.
2. Set the type of heating and temperature.
3. Touch the ⏻ touch button.
   The time-setting options are shown on the display.
4. Swipe to the left or right to select the cooking time.
5. Touch the || touch button to start the set cooking time.

As soon as the cooking time has elapsed, an audible signal sounds and the appliance ends the operation automatically. Touch the ⏻ touch button to end the audible signal.

Start delay – "Ready at"

The appliance switches on automatically and switches off at the preset end time. To do this, set the cooking time and determine the end time for the operation.

The start delay can only be used in combination with a type of heating.

Notes

■ Ensure that food is not left in the cooking compartment for too long as it may spoil.
■ The option to delay the start of operation is not available for every type of heating.

1. Place the food onto the appropriate accessory in the cooking compartment and close the appliance door.

2. Touch the ① touch button.

3. Set the type of heating and temperature.

4. Touch the ⏻ touch button.

The time-setting options are shown in the display.

1. Swipe to the left or right to select the cooking time.

2. Touch "→| Ready at".

3. Swipe to the left to select the end time.

4. Touch the || touch button.

The appliance waits until the appropriate time to start the operation.

As soon as the end time has been reached, an audible signal sounds and the appliance ends the operation automatically. Touch the ⏻ touch button to end the audible signal.

Checking, changing or deleting settings

1. Touch the ⏻ field.
   The time-setting options are shown on the display.
2. Touch the time-setting option.
3. If required, swipe to the left or right in the touch display to change the settings. To delete a time-setting option, set "- - : --".
   The setting is applied automatically.

Childproof lock

Your appliance is equipped with a childproof lock so that children cannot switch it on accidentally or change any settings.

Your appliance has two different locks.

Lock Activate/deactivate

Automatic childproof lock Via the MyProfile menu → "Basic settings" on page 24

One-time childproof lock Via the 🔊 touch button

Note: As soon as you activate the childproof lock, the control panel is locked. The ⏻ and Ⓐ touch buttons are not included. You can deactivate the childproof lock at any time.

Automatic childproof lock

The control panel is locked so that the appliance cannot be switched on. To switch it on, the automatic childproof lock must be interrupted. After the appliance operation, the control panel is locked automatically.

Activation

1. Touch the Ⓐ touch button.
2. Touch the 🔊 touch button.
3. Swipe to the left or right to select "MyProfile".
4. Touch the bottom line.
5. Swipe to the left or right to select the "Automatic childproof lock".
6. Touch the bottom line.
7. Swipe to the left or right to select "Activated".
8. Touch the 🔒 touch button.
9. Touch "Save".
   The settings are saved. The automatic childproof lock is active. After the appliance is switched off, the symbol appears in the display.

Cancelling

1. Press and hold the ⏻ touch button until "Childproof lock deactivated" appears on the display.
2. Touch the Ⓐ touch button.
3. Switch on the required appliance operation.

Deactivation

1. Press and hold the ⏻ touch button until "Childproof lock deactivated" appears on the display.
2. Touch the Ⓐ touch button.
3. Touch the 🔒 touch button.
4. Swipe to the left or right to select "MyProfile".
5. Touch the bottom line.
6. Touch the top line.
7. Swipe to the left or right to select the "Automatic childproof lock".
8. Touch the bottom line.
9. Swipe to the left or right to select "Deactivated".
10. Touch the 🔊 touch button.
11. Touch "Save".
    The "Automatic childproof lock" is deactivated.
12. Touch the Ⓐ touch button.

One-time childproof lock

The control panel is locked so that the appliance cannot be switched on. To switch it on, the one-time childproof lock must be deactivated. After the appliance is switched off, the control panel is no longer locked.

Activating and deactivating

1. Press and hold the Ⓑ touch button until "Childproof lock activated" appears on the display. The childproof lock is activated.
2. Press and hold the ⏻ touch button until "Childproof lock deactivated" appears on the display. The childproof lock is deactivated.

Basic settings

There are various settings available to you in order to help use your appliance effectively and simply. If necessary, you can change these settings in MyProfile ☐.

Changing MyProfile

1. Touch the ① touch button.
2. Touch the 🔊 touch button.
3. Swipe to the left or right to select "MyProfile 🔊".
4. Touch the bottom line.
5. Swipe to the left or right to select the required setting.
6. Touch the bottom line.
7. Swipe to the left or right to select the required setting.
8. Touch the 🔒 touch button.
9. Touch "Save".

List of basic settings

Setting Selection
Language Select language
Time of day Sets the current time
Date Sets the current date
Water hardness 0 (softened)
	1 (soft)
	2 (medium)
	3 (hard)
	4 (very hard)
Favourites Set the heating types that should be shown in the heating types menu
Audible signal Short duration
	Medium duration
	Long duration
Volume Can be adjusted to one of five different levels
Button tone Switched off (Exception: The button tone for the ➊ touch button remains switched on)
Display brightness Adjustable across 5 levels
Clock display Off
	Digital
	Analogue
Lighting	On during operation
	Off during operation
Childproof lock*	Only key lock
	Door lock and key lock
Automatic childproof lock	Deactivated
	Activated
Action after switching on Main menu
	Heating types
	Steam
	Baking and roasting assistant
	Steam programmes
Night-time dimming Switched off
	Switched on (display dimmed between 10 p.m. and 5.59 a.m.)
Brand name logo Display
Fan run-on time Recommended
Pull-out system* Not retrofitted (rack)
Factory settings	Restore
*) Depending on the appliance model, this basic setting cannot be selected

Setting favourites

You can set which types of heating are shown in the Types of heating menu.

Note: The "CircoTherm hot air", "Circo-roasting" and "Grill, large area" types of heating are always shown in the Types of heating menu. They cannot be deactivated.

1. Touch the ① touch button.
2. Touch the 🔒 touch button.
3. Swipe to the left or right to select "MyProfile 🔊".
4. Touch the bottom line.
5. Swipe to the left or right to select "Favourites".
6. Touch the bottom line.
7. Swipe to the left or right to select the required type of heating.
8. Touch "Activated" or "Deactivated".
9. Touch the 🔔 touch button.
10. Touch "Save".

A Baking and roasting assistant

The baking and roasting assistant helps you to prepare meals with ease. The appliance applies the most suitable settings.

To achieve good results, the cooking compartment must not be too hot for the type of food you have selected. If it is, a message will appear on the display. Allow the cooking compartment to cool down and start again.

Information on the settings

■ The cooking result depends on the quality of the food and the type of cookware. For an optimal cooking result, use food that is in good condition and chilled meat only.
■ The baking and roasting assistant helps you to prepare classic cakes, bread and roasts. The appliance selects the optimal type of heating for you. It suggests a suitable temperature and cooking time, which you can change if you wish.
■ Information is provided, e.g. on cookware, shelf position or the addition of liquid when cooking meat. Some food requires turning or stirring, etc. during cooking. This is shown in the display shortly after operation starts. An audible signal will remind you at the right time.
■ Information on the right kind of cookware to use and tips and tricks for preparation can be found at the end of the instruction manual.

Selecting a meal

The following table shows the corresponding setting values for the listed meals.

Dishes

Rich fruit cake

Victoria sponge cake

Victoria sponge cake, on two levels

Swiss roll

Jam tarts

Jam tarts, on two levels

Fruit crumble

Pavlova

Vol au vents

Small cakes

Small cakes, on two levels

White bread

Scones

Scones, on two levels

Pizza, frozen

Oven chips

Baked potatoes

Baked potatoes, on two levels

Dishes

Lasagne, chilled

Roast pork

Top rump

Slow roasting joint

Leg of lamb

Whole chicken

Chicken drumsticks

Duck

Selecting and setting food

You will be guided through the entire setting process for your chosen food.

1. Touch the ① touch button to switch on the appliance.
2. Touch the 🔊 touch button.
3. Swipe to the left or right to select "Baking and roasting assistant".
4. Touch the bottom line.
5. Touch the required category.
6. Swipe to the left or right to select the required dish.
7. Touch the required dish.
   The recommended settings appear on the display. Note: For some meals, you can also display notes, e.g. on the shelf height and cookware. To do this, swipe to the left until all of the notes are displayed.
8. If required, you can change the recommended settings. To do this, touch "Adjust" in the bottom line. Touch the appropriate setting and adjust it.
9. Touch the ▷|| touch button to start the appliance operation.

As soon as the cooking time has elapsed, an audible signal sounds and the appliance ends the operation automatically. Touch the ⏻ touch button to end the audible signal.

Some recommended settings offer you the opportunity to continue cooking your dish.

If you are satisfied with the cooking result, touch "End".

If you are not happy with the cooking result, you can continue cooking your dish.

Continue cooking

1. Touch "Continue cooking".
2. If necessary, adjust the recommended setting.
3. Touch the || touch button to start "Continue cooking".

Cancelling

Press and hold the || touch button until the appliance operation is cancelled.

Switching off the appliance

Touch the ① touch button to switch off the appliance.

Programmes

You can prepare food very easily using the various programmes. You select a programme and enter the weight of your food. The program then applies the most suitable settings.

To achieve good results, the cooking compartment must not be too hot for the type of food you have selected. If it is, a message will appear on the display. Allow the cooking compartment to cool down and start again.

Information on the settings

■ The cooking result depends on the quality of the food and the type of cookware used. For best results, only use high-quality food and refrigerated meat. For frozen products, only use food directly from the freezer.
■ For some dishes, you will be required to enter the weight. The appliance will then apply the time and temperature settings for you. It is not possible to set weights outside the intended weight range.
■ For roasting programmes, for which the appliance applies the temperature selection, temperatures can be as high as 300 °C. Therefore ensure that you are using heat-resistant cookware.
■ Information about cookware, shelf position or adding liquid for meat is provided for you. For some dishes, the food needs to be turned or stirred during cooking. This is shown briefly on the display after the start. A signal reminds you to do this at the right time.
■ Information about suitable cookware and preparation tips and tricks can be found at the end of the instruction manual.

Steam

For the steam programme, the appliance provides you with programmes you can use to prepare your meals easily and professionally.

Information about the steam functions can be found in the relevant sections. → "Steam" on page 17

Warning – Risk of scalding!

When you open the appliance door, hot steam can escape. Steam may not be visible, depending on its temperature. When opening, do not stand too close to the appliance. Open the appliance door carefully. Keep children away.

Selecting a dish

The following table shows the corresponding setting values for the listed dishes.

Food

White bread, without a tin

Wheat bread, multi-grain wheat bread in a loaf tin

Flatbread

Plaited loaf, unfilled/savarin

Sponge cake

Pork neck joint, boned

Top side, top rump

Leg of lamb

Chicken, whole, fresh

Chicken portions, fresh

Chicken breast, steam

Goose, duck, unstuffed, fresh

Fish fillet, au gratin

Fish fillet, braise

Fish, whole

Fish, whole, steam

Cauliflower florets, steam

Broccoli florets, steam

Green beans, steam

Sliced carrots, steam

Vegetables, frozen

Basmati rice

Brown rice

Couscous

Cooked side dishes, reheat

Chicken breast

Fish fillet, fresh

Rice pudding

Fruit compote

Eggs, soft-boiled

Eggs, hard-boiled

Bottles, sterilise

Setting a programme

You will be guided through the entire setting process for your chosen food.

1. Touch the ① touch button to switch on the appliance.
2. Touch the □ touch button.
3. Swipe to the left or right to select "Steam programmes".
4. Touch the bottom line.
5. Touch the required category.
6. Swipe to the left or right to select the required steam programme.
7. Touch the required steam programme.
   The settings for this dish appear on the display.
   Note: For some meals, you can also display notes, e.g. on the shelf height and cookware. To do this, swipe to the left until all of the notes are displayed.
8. If required, you adjust can set the weight for some meals. To do this, touch "Adjust" in the bottom line. Touch the appropriate setting and adjust it.
9. Touch the || touch button to start the appliance operation. The estimated cooking time is shown.
   Note: For some programmes, the displayed cooking time may change during the first few minutes, as the heating-up time depends on the temperature of the food and the water, amongst other things.
   As soon as the cooking time has elapsed, an audible signal sounds and the appliance ends the operation automatically. Touch the ⏻ touch button to end the audible signal.
   Some programmes offer you the opportunity to continue cooking your dish.
   If you are satisfied with the cooking result, touch "End".
   If you are not happy with the cooking result, you can continue cooking your dish.
10. Touch "Continue cooking".
11. If necessary, adjust the recommended setting.
12. Touch the D|| touch button to start "Continue cooking".
    Press and hold the ▷|| touch button until the appliance operation is cancelled.
    Touch the ① touch button to switch off the appliance.

Continue cooking

Cancelling

Switching off the appliance

Meat thermometer

The MultiPoint meat thermometer makes precise cooking possible. It measures the temperature inside the food. Once the set temperature has been reached, the appliance automatically switches itself off.

Suitable types of heating

Steaming

CircoTherm hot air

= Top/bottom heating

Circo-roasting

Pizza setting

Bread-baking

Top/bottom heating eco

CircoTherm eco

Reheating

Notes

■ The meat thermometer measures the temperature on the inside of the food between 30 °C and 99 °C.
■ Use only the meat thermometer supplied. You can purchase it as a spare part from the after-sales service.
■ After use, always remove the meat thermometer from the cooking compartment. Never store it inside the cooking compartment.

Inserting the meat probe into the food

Before placing your food into the cooking compartment, insert the meat probe into the food.

The meat probe has three measuring points. Ensure that the middle measuring point is inserted in the food.

Meat: For large pieces of meat, insert the meat probe at an angle from above as far as it will go into the meat. For relatively thin pieces of meat, insert the meat probe from the side at the thickest point.

Illustration of a laboratory setup with two blue test probes applying liquid to a granular substance on a tray (no text or symbols visible)

Poultry: Insert the meat probe as far as it will go into the thickest point in the breast. Insert the meat probe into the poultry crossways or lengthways depending on its structure. Then turn the poultry and place it on the wire rack breast-side down.

Illustration of a mouse being injected with a blue instrument (no text or symbols present)

Illustration of a hand holding a pen, with no visible text or symbols

Turning the food: If you wish to turn the food, do not remove the meat probe. Once you have turned the food, check that the meat probe is correctly positioned in the food.

If you remove the meat probe while the food is cooking, all settings will be reset and you will have to apply them again.

Caution!

Ensure that the meat probe's cable does not become trapped.

To prevent the meat probe from being damaged by excessive heat, there must be a gap of a few centimetres between the grill element and the meat probe. The meat may expand during the cooking process.

Setting and starting the appliance operation

Warning – Risk of burns!

The cooking interior and the core temperature probe become very hot. Use oven mitts to plug and unplug the core temperature probe.

Warning – Risk of electric shock!

The insulation of an incompatible meat probe may be damaged. Only use the meat probe which is recommended for this appliance.

Notes

■ The set cooking compartment temperature must be at least 10 °C higher than the core temperature.
■ To prevent the meat thermometer from being damaged, the cooking compartment temperature must not be set higher than 250 °C.

1. Insert the meat thermometer in the socket on the left-hand side of the cooking compartment.

2. Close the appliance door.

Caution!

When doing so, ensure that the meat thermometer's cable is not trapped in the appliance door. It may be damaged.

1. Touch the ① touch button.

2. Set the type of heating.

Note: When the meat thermometer is plugged into the socket, you can only select a type of heating with which the meat thermometer can be used.

1. Touch the cooking compartment temperature on the left in the bottom line.
2. Swipe to the left or right to select the required cooking compartment temperature.
3. Touch the ☑ symbol to apply the setting.
4. Touch the core temperature on the right in the bottom line.
5. Swipe to the left or right to select the required core temperature.
6. Touch the ▷□ touch button. The appliance starts the operation.

Changing or cancelling the appliance operation

Changing the appliance operation

During appliance operation, you can change the cooking compartment temperature and core temperature.

1. Touch the cooking compartment temperature or core temperature twice.
2. Swipe to the left or right to change the temperature.
3. Touch the ☑ symbol to apply the setting.

Stopping the appliance operation

Once the set core temperature has been reached, a signal sounds and the appliance stops the operation automatically.

1. Touch the ⬤ touch button to end the signal.
2. Use the ① touch button to switch off the appliance.
3. Using an oven glove, unplug the meat thermometer from the socket.

Core temperatures of different foods

Do not use frozen food. The figures in the table are given as a guide. They depend on the quality and composition of the food.

You can find comprehensive information on the heating mode and temperature at the end of the instruction manual. → "Tested for you in our cooking studio" on page 40

Food Core temperature in °C

Poultry 75

Pork 75

Beef, rare 50

Beef, medium 60

Beef, well done 70

Lamb 70

Other: Heating/reheating food 65-75

Sabbath mode

You can set a time of up to 74 hours using Sabbath mode. The food in the cooking compartment remains warm, without you having to switch the appliance on or off.

Starting the Sabbath mode

Before you can use Sabbath mode, you must activate it under "Favourites" in the basic settings.

Once the Sabbath mode has been activated, you can select it under the menu for the types of heating.

The appliance heats up with top/bottom heating. The temperature can be set between 85 °C and 140 °C.

1. Touch the ① touch button.
2. Swipe to the left or right to select the "Sabbath mode".
3. Touch the temperature in the bottom line.
4. Swipe to the left or right to select the required temperature.
5. Touch the ☑ symbol to apply the setting.
6. Touch the duration in the bottom line.
7. Swipe to the left or right to select the required duration.
8. Touch the ☑ symbol to apply the setting.
9. Touch the || touch button. The appliance starts the operation.

Notes

■ Once Sabbath mode has started, you can no longer change any settings or cancel the operation using the ▷□ touch button.
■ The operation is not interrupted if you open the appliance door.

Once the Sabbath mode duration has elapsed, a signal sounds. The appliance stops heating. Use the ① touch button to switch off the appliance.

Cancelling Sabbath mode

Touch the ① touch button to cancel Sabbath mode.

Cleaning agent

With good care and cleaning, your appliance will retain its appearance and remain fully functioning for a long time to come. We will explain here how you should correctly care for and clean your appliance.

Suitable cleaning agents

To ensure that the different surfaces are not damaged by using the wrong cleaning agent, observe the information in the table. Depending on the appliance model, not all of the areas listed may be on/in your appliance.

Caution!

Risk of surface damage

Do not use:

■ Harsh or abrasive cleaning agents,
■ Cleaning agents with a high alcohol content,
■ Hard scouring pads or cleaning sponges,
■ High-pressure cleaners or steam cleaners,
■ Special cleaners for cleaning the appliance while it is hot.

Wash new sponge cloths thoroughly before use.

Tip: Highly recommended cleaning and care products can be purchased through the after-sales service. Observe the respective manufacturer's instructions.

Warning – Risk of burns!

The appliance becomes very hot. Never touch the interior surfaces of the cooking compartment or the heating elements. Always allow the appliance to cool down. Keep children at a safe distance.

Area Cleaning

Appliance exterior
Stainless steel front	Hot soapy water:Clean with a dish cloth and then dry with a soft cloth.Remove flecks of limescale, grease, starch and albumin (e.g. egg white) immediately. Corrosion can form under such flecks.Special stainless steel cleaning products suitable for hot surfaces are available from our after-sales service or from specialist retailers. Apply a very thin layer of the cleaning product with a soft cloth.
Plastic Hot soapy water:Clean with a dish cloth and then dry with a soft cloth.Do not use glass cleaner or a glass scraper.
Painted surfaces Hot soapy water:Clean with a dish cloth and then dry with a soft cloth.
Control panel Hot soapy water:Clean with a dish cloth and dry with a soft cloth.Do not use glass cleaner or a glass scraper.If descaler comes into contact with the control panel, wipe it off immediately. If you leave it, it may stain the control panel.

Door panels Hot soapy water:Clean with a dish cloth and then dry with a soft cloth.Do not use a glass scraper or a stainless steel scouring pad.
Door handle Hot soapy water:Clean with a dish cloth and then dry with a soft cloth.If descaler comes into contact with the door handle, wipe it off immediately. Otherwise, any stains will not be able to be removed.
Appliance interior
Enamel surfaces and self-cleaning surfaces	Observe the instructions for the surfaces of the cooking compartment that follow the table.
Glass cover for the interior lighting	Hot soapy water:Clean with a dish cloth and then dry with a soft cloth.If the cooking compartment is heavily soiled, use oven cleaner.
Door sealDo not remove.	Hot soapy water:Clean with a dish cloth.Do not scour.
Door cover made from stainless steel:Use stainless steel cleaner. Follow the manufacturers' instructions. Do not use stainless steel care products.made from plastic:Clean using hot soapy water and a dish cloth. Dry with a soft cloth. Do not use glass cleaner or a glass scraper.Remove the door cover for cleaning.
Rails Hot soapy water:Soak and clean with a dish cloth or brush.
Pull-out system Hot soapy water:Clean with a dish cloth or a brush.Do not remove the lubricant while the pull-out rails are pulled out – it is best to clean them when they are pushed in. Do not clean in the dishwasher.
Accessories Hot soapy water:Soak and clean with a dish cloth or brush.Clean dirt on stainless steel roasting dishes caused by starchy foods (e.g. rice) using a vinegar solution.
Water tank Hot soapy water:Clean with a dish cloth and rinse thoroughly to remove residual detergent.Then dry with a soft cloth. Leave the water tank to dry with the lid open. Rub the seal on the lid until dry.Do not clean in the dishwasher.
Meat thermometer	Hot soapy water:Clean with a dish cloth or a brush.Do not clean in the dishwasher.

Notes

■ Slight differences in colour on the front of the appliance are caused by the use of different materials, such as glass, plastic and metal.
■ Shadows on the door panels, which look like streaks, are caused by reflections made by the interior lighting.
■ Enamel is baked on at very high temperatures. This can cause some slight colour variation. This is normal and does not affect operation. The edges of thin trays cannot be completely enamelled. As a result, these edges can be rough. This does not impair the anti-corrosion protection.

Surfaces in the cooking compartment

The back wall, ceiling and side parts in the cooking compartment are self-cleaning. You can tell this from the rough surface.

The cooking compartment floor is enamelled and has smooth surfaces.

Cleaning enamel surfaces

Clean the smooth enamel surfaces with a dish cloth and hot soapy water or a vinegar solution. Then dry them with a soft cloth.

Soften baked-on food remnants with a damp cloth and soapy water. Use stainless steel wire wool or oven cleaner to remove stubborn dirt.

Caution!

Never use oven cleaner in the cooking compartment when it is still warm. This may damage the enamel. Remove all food remnants from the cooking compartment and the appliance door before you next heat up the appliance.

Leave the cooking compartment open to dry after cleaning it.

Tip: It is best to use the cleaning aid. → "Cleaning function" on page 32

Note: Food residues can cause white deposits to form. These are harmless and do not affect how the appliance works. You can remove these residues using lemon juice if required.

Cleaning self-cleaning surfaces

The self-cleaning surfaces are coated with a porous, matte ceramic layer. This coating absorbs and dispels splashes from baking and roasting while the appliance is in operation.

If the self-cleaning surfaces no longer clean themselves sufficiently and dark stains appear, they can be cleaned using the cleaning function. To do this, refer to the information in the relevant section. → "Cleaning function" on page 32

Caution!

Do not use oven cleaner on self-cleaning surfaces. This will damage the surfaces. If oven cleaner does get onto these surfaces, dab it off immediately using water and a sponge cloth. Do not rub the surface and do not use abrasive cleaning aids.

Keeping the appliance clean

Always keep the appliance clean and remove dirt immediately so that stubborn deposits of dirt do not build up.

Warning – Risk of fire!

Loose food remnants, fat and meat juices may catch fire. Before using the appliance, remove the worst of the food remnants from the cooking compartment, heating elements and accessories.

Tips

■ Clean the cooking compartment after each use. This will ensure that dirt cannot be baked on.
■ Always remove flecks of limescale, grease, starch and albumin (e.g. egg white) immediately.
■ Use the universal pan for baking very moist cakes.
■ Use suitable ovenware for roasting, e.g. a roasting dish.

Cleaning function

Your appliance is equipped with EcoClean, the floor cleaning aid and a descaling function. The self-cleaning surfaces in the cooking compartment are cleaned with the "EcoClean" cleaning function. Use the floor cleaning aid for intermediate cleaning of the cooking compartment floor. Dirt is softened beforehand using the floor cleaning aid. It can then be removed more easily. You can use the descaling function to remove limescale from the evaporator.

EcoClean

The self-cleaning surfaces in the cooking compartment are cleaned with the "EcoClean" operating mode.

The self-cleaning surfaces (back panel, ceiling panel and side panels) are coated with a porous, matt ceramic material. This coating absorbs and breaks down splashes from baking, roasting and grilling while the oven is in operation. If the surfaces no longer clean themselves adequately and dark patches appear, the surfaces can be cleaned by the cleaning function.

Note: The appliance records the number of times it is used. The appliance indicates when it has reached a point in time after which cleaning is recommended. The recommendation is displayed until the cleaning function has finished.

If you do not act on this recommendation, the self-cleaning surfaces may become damaged. If your appliance is already prematurely very dirty or if you notice dark patches on the back panel, do not wait until your appliance recommends cleaning to do so. This is because the more often the appliance is cleaned, the longer the self-cleaning surfaces will retain their cleaning capability. You can clean your appliance at any time as required using the cleaning function.

Prior to initiating the cleaning function

Remove shelves, rails, accessories and ovenware from the cooking compartment.

Cleaning the cooking compartment floor and the inside of the appliance door

Remove the worst dirt from the cooking compartment floor, the inside of the appliance door and the interior lighting. Otherwise, patches will appear that can no longer be removed.

Caution!

Do not use oven cleaner on the self-cleaning surfaces. This will damage the surfaces. If oven cleaner does come into contact with these surfaces, dab it off immediately with water and a sponge cloth. Please to not rub or use any abrasive cleaning materials.

Warning – Risk of burns!

The appliance will become very hot on the outside during the cleaning function. Never touch the appliance door. Allow the appliance to cool down. Keep children away from the appliance.

Starting

Before setting the cleaning function, ensure that you have followed all instructions for preparation.

Cleaning takes 1 hour and 15 minutes. The duration cannot be changed.

1. Touch the ① touch button.

2. Touch the 🔒 touch button.

3. Swipe to the left or right to select "EcoClean"

4. Touch the bottom line.

The cleaning time with EcoClean is displayed.

1. Touch the bottom line.

2. Touch the ▷|| touch button.

The appliance starts EcoClean. The remaining time appears on the display.

Keep the kitchen ventilated while the cleaning function is running.

As soon as the cleaning aid has run through, a signal sounds and the appliance ends the operation automatically.

Once the cleaning function has ended

Once the cooking compartment has cooled down, wipe down the cooking compartment with a damp cloth if necessary.

Note: During operation and while the cleaning function is active, reddish patches may form on the surfaces. This is not rust, but food residues. These patches are not hazardous to your health and do not limit the cleaning capacity of the self-cleaning surfaces.

Floor cleaning aid

The floor cleaning aid makes it easier to clean the cooking compartment floor. Dirt is softened beforehand by vaporizing soapy water. It can then be removed more easily.

Warning – Risk of scalding!

Water in a hot cooking compartment may create hot steam. Never pour water into the hot cooking compartment.

Starting

Notes

■ The "Floor cleaning aid " cleaning aid can only be started once the cooking compartment is cold (room temperature) and the appliance door is closed.
- Do not open the appliance door during operation. Doing this will interrupt the "Floor cleaning aid " cleaning aid.

1. Remove the accessories from the cooking compartment.
2. Mix a drop of washing-up liquid into 0.4 litres of water (do not use distilled water) and pour it onto the centre of the cooking compartment floor.
3. Touch the ① touch button.
4. Touch the 🔊 touch button.

5. Swipe to the left or right to select "Floor cleaning aid ".

6. Touch the bottom line.

7. Touch the ▷|| touch button.

The appliance starts the floor cleaning aid. The remaining time appears on the display.

Finishing

As soon as the cleaning aid has finished, an audible signal sounds and the appliance ends the operation automatically.

As soon as you open the appliance door, the interior lighting is switched on so that you can finish cleaning the cooking compartment more easily. The remaining water in the cooking compartment must be removed promptly. Do not leave the remaining water in the cooking compartment for a long time (e.g. overnight). The appliance must not be operated when the cooking compartment is still wet or damp.

Final cleaning

1. Open the appliance door and remove the remaining water with an absorbent sponge cloth.
2. Clean the smooth surfaces in the cooking compartment with a dish cloth or a soft brush. Stubborn residues can be removed using a stainless steel scouring pad.
3. Remove limescale with a cloth soaked in vinegar. Then wipe with clean water and rub dry with a soft cloth (including under the door seal).
4. Use the ① touch button to switch off the appliance.
5. Leave the appliance door ajar in the locking position (approx. 30°) for approx. 1 hour to allow the enamel surfaces in the cooking compartment to dry. Alternatively, you can also run the rapid drying function for the cooking compartment.

Running the rapid drying function for the cooking compartment

1. After the cleaning aid process has finished, leave the appliance door ajar in the locking position (approx. 30°).
2. Touch the ① touch button.
3. Start CircoTherm hot air at 50 °C.
4. After 5 minutes, switch off the appliance and close the appliance door.

Removing heavy deposits of dirt

You have several options for removing particularly stubborn deposits of dirt.

■ Leave the soapy water to work for some time before starting the cleaning aid.
■ Rub soapy water onto the dirt on the smooth surfaces before starting the cleaning aid.
■ Repeat the cleaning aid once the cooking compartment has cooled down.

Descaling

The appliance must be descaled regularly in order for it to continue operating correctly.

There are several steps in the descaling programme. For hygiene reasons, the descaling programme must be run through completely so that the appliance can be ready for operation again. In total, the descaling programme runs for approx. 70-95 minutes.

■ Descale (approx. 55-70 minutes), then empty and refill the water tank
■ First rinsing cycle (approx. 9-12 minutes), then empty and refill the water tank
■ Second rinsing cycle (approx. 9-12 minutes), then empty and dry the water tank

If the descaling process is interrupted (for example, due to a power failure or because the appliance has been switched off), you are prompted to rinse the appliance twice after it is switched back on. The appliance cannot be used until the second rinsing cycle has come to an end.

The frequency with which the appliance must be descaled depends on the hardness of the water used. When only five more steam-assisted operations are possible, or fewer, the appliance reminds you to descale it with a message on the display. The number of remaining operations is displayed after the appliance is switched on. You can therefore prepare for the descaling in good time.

Starting

Caution!

■ Risk of damage to the appliance: Only use liquid descalers recommended by us for the descaling programme. The time the product needs to work during descaling depends on the type of descaler used. Other descalers may damage the appliance. Descaler order no. 311 680
■ Descaling solution: Do not allow any descaling solution or descaler to come into contact with the control panel or other surfaces on the appliance. This damages the surfaces. If this does happen, remove the descaling solution immediately with water.

If you have used a steam-assisted operation immediately before descaling, you must first switch the appliance off so that the residual water is pumped out of the evaporator system.

1. Mix 400 ml water with 200 ml liquid descaler to make a descaling solution.
2. Touch the ① touch button.
3. Remove the water tank and fill it with descaling solution.
4. Once the water tank has been filled with descaling solution, push it back in again fully.
5. Close the control panel.
6. Touch the 🔊 touch button.
7. Swipe to the left or right to select "Descale ✕".

8. Touch the bottom line.
   The duration of the descaling programme is displayed. It cannot be changed.

9. Touch the bottom line.

10. Touch the ▷□ touch button. The appliance is now descaled. The remaining time counts down on the display. As soon as the descaling programme has finished, an audible signal sounds.

First wash cycle

1. Open the control panel.
2. Remove the water tank, rinse thoroughly, fill with water and reinsert.
3. Close the control panel.
4. Touch the touch button. The appliance is rinsed. As soon as the wash cycle has finished, an audible signal sounds.

Second wash cycle

1. Open the control panel.
2. Remove the water tank, rinse thoroughly, fill with water and reinsert.
3. Close the control panel.
4. Touch the DII touch button. The appliance is rinsed. As soon as the wash cycle has finished, an audible signal sounds.

Final cleaning

1. Open the control panel.
2. Empty and dry the water tank.
3. Switch off the appliance. Descaling is complete and the appliance is ready for use again.

Rails

With good care and cleaning, your appliance will retain its appearance and remain fully functional for a long time to come. This will tell you how to remove the shelves and clean them.

Changing the shelf position for the telescopic rail

Bars and telescopic rails can be positioned in any order. For example, you can fit the telescopic rail to the shelf position which you use the most frequently.

Technical illustration of a metal rail support structure with no text or symbols

Diagram of a metal pipe connection with two blue arrows indicating rotational motion (no text or symbols)

Removing the bar

Telescopic rails are removed and fitted like bars.
1. Push the bar towards the back a until it can be pulled out upwards b (Fig. 1).
2. Unhook the bar at the back and remove it (Fig. 2).

1 b a

Diagram of a pipe connection with a blue arrow indicating direction (no text or symbols)

Fitting the bar

1. Fit the bar at the back (Fig. 1).

Mechanical diagram showing a pipe connection with a blue arrow indicating direction (no text or symbols)

1. Push the bar towards the back a and down b onto the pin c (Fig. 2).
2. Ensure that the hook is hooked onto the pin C (Fig. 3).

2 b a c

Mechanical assembly diagram showing a pipe fitting with a labeled component 'C' (no text or symbols beyond label)

Detaching and refitting the rails

Warning – Risk of burns!

The rails become very hot. Never touch the hot rails. Always allow the appliance to cool down. Keep children away from the appliance.

Detaching the rails

1. Lift the rail slightly at the front a and detach it b (do not hold by the accessory holders or the telescopic shelf) (figure 1).
2. Then pull the whole rail towards you and take it out (figure 2).

1 a b

Diagram showing a metal pipe connection with a blue arrow indicating left motion (no text or symbols)

Clean the rails with cleaning agent and a sponge. For stubborn deposits of dirt, use a brush.

Attaching the rails

The rails only fit on the right or the left side. The pull-out rails must pull out towards you.

1. First, insert the rail in the middle of the rear socket a, until the rail rests against the cooking compartment wall, and push it back b (figure 1).
2. Then insert the rail into the front socket c, until the rail also rests against the cooking compartment wall here, and press it downwards d (figure 2).

1 a b

2 c d

Appliance door

With good care and cleaning, your appliance will retain its appearance and remain fully functional for a long time to come. This will tell you how to remove the appliance door and clean it.

Warning – Hazard due to magnetism!

Permanent magnets are used in the appliance's door handle. They may affect electronic implants, e.g. heart pacemakers or insulin pumps. Wearers of electronic implants must stay at least 10 cm away from the door handle.

Removing and fitting the appliance door

For cleaning purposes and to remove the door panels, you can detach the appliance door.

The appliance door hinges each have a locking lever. When the locking levers are closed (figure 1), the appliance door is secured in place. It cannot be detached.

When the locking levers are open in order to detach the appliance door (figure 2), the hinges are locked. They cannot snap shut.

Diagram of a mechanical component with blue highlighted parts, no visible text or symbols

Diagram of a car seatbelt mechanism with blue fluid and valve (no text or symbols)

Warning

Risk of injury!

■ If the hinges are not locked, they can snap shut with great force. Ensure that the locking levers are always fully closed or, when detaching the appliance door, fully open.
■ The hinges on the appliance door move when opening and closing the door, and you may be trapped. Keep your hands away from the hinges.

Removing the appliance door

1. Open the appliance door fully and push it towards the appliance.
2. Open the two locking levers on the left and right (fig. 1).

Warning

Risk of injury!

The door handle may break off. Do not carry the appliance door by the door handle. To carry or remove the appliance door, take hold of it with both hands, one on the left and one on the right.

1. Close the appliance door fully a and close the door handle.

Take hold of the appliance door with both hands, one on the left and one on the right b, and pull it up and out (fig. 2).

Mechanical diagram showing a blue component being inserted into a car seatbelt, with an upward arrow indicating motion (no text or symbols present)

2 a b b

1. Set the appliance door down on a flat, soft surface.

Refitting the appliance door

1. Press down on the seal a along the drip trough (fig. 1); otherwise, the seal a may become detached during cleaning.

Technical diagram showing a mechanical assembly with labeled parts and directional arrows indicating flow or movement.

1. Follow the instructions in the reverse order to refit the appliance door. Make sure that the appliance door is refitted straight into the two hinges (fig. 2). Place both hinges at the bottom on the outer panel and use them as a guide. Ensure that the hinges are inserted into the correct opening. You must be able to insert them easily and without resistance. If you can feel any resistance, check that the hinges are inserted into the correct opening.

Technical diagram showing a mechanical assembly with blue arrows indicating force or movement, no text or symbols present.

1. Open the appliance door fully. Close the two locking levers (fig. 3).

Mechanical assembly diagram showing a blue arrow indicating a turning point on a component (no text or symbols present)

1. Close the appliance door.

Removing and installing the door panels

To facilitate cleaning, you can remove the glass panels from the appliance door.

Removing door panels from the appliance

1. Open the door handle (fig. 1).
2. Open the appliance door a little.
3. Undo and remove the screws on the left and right of the appliance door (fig. 2).

Hand giving a thumbs-up gesture to a blue square button on a wall (no text or symbols visible)

Diagram of a device with a blue circular arrow indicating rotation or change, no text or symbols present

1. Fold a tea towel several times and place it between the appliance and the door before shutting the door on the tea towel (fig. 3). Pull the front panel up and out towards you, and then place it on a flat, soft surface.

Diagram of a roof drainage system with blue arrows indicating flow direction (no text or symbols)

Clean the panels with glass cleaner and a soft cloth.

Warning

Risk of injury!

■ Scratched glass in the appliance door may develop into a crack. Do not use a glass scraper, sharp or abrasive cleaning aids or detergents.
■ The hinges on the appliance door move when opening and closing the door, and you may be trapped. Keep your hands away from the hinges.

Refitting door panels on the appliance

1. Open the door handle (fig. 1).
2. Insert the bottom of the front panel into the retainers at the bottom (fig. 2).

Illustration of a hand pressing a blue thumbs-up on a device panel (no text or symbols visible)

Diagram of a computer monitor with an open port and a blue arrow indicating the location (no text or symbols present)

1. Close the front panel until the two upper hooks are opposite the opening (fig. 3).

2. Push the front panel in at the bottom until you hear it click into place (fig. 4).

Diagram of a door panel with a blue arrow indicating direction, showing no text or symbols

Diagram showing a blue arrow pointing to a wall corner, with no text or symbols present.

1. Open the appliance door a little and remove the tea towel.

2. Screw in the two screws on the left and right, screwing them in a little at a time and alternating between the two, until the front panel is centred on the appliance door again.

3. Close the appliance door.

4. Close the door handle.

Caution!

Do not use the cooking compartment again until the panels have been correctly fitted.

Trouble shooting

If a fault occurs, there is often a simple explanation. Before calling the after-sales service, please refer to the fault table and attempt to correct the fault yourself.

Tip: If a meal does not turn out exactly as you wanted, refer to the "Tested for you in our cooking studio" section. Here, you will find plenty of cooking tips and notes.

Warning – Risk of injury!

Incorrect repairs are dangerous. Do not attempt to repair the appliance yourself. Repairs must only be carried out by one of our trained after-sales engineers. If the appliance is defective, call the after-sales service.

⚠ Warning – Risk of electric shock!

Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service.

Fault table

Warning – Risk of electric shock!

■ Work on the appliance electronics may only be performed by a specialist.
■ Always disconnect the appliance from the power supply when work is carried out on the electronics. Switch off the circuit breaker or remove the fuse from your household fuse box.

Fault Possible cause Notes/remedy

The appliance does not work The plug is not plugged into the mains Connect the appliance to the power supply
	Power cut Check whether other kitchen appliances are working
	The circuit breaker is faulty Check in the fuse box to make sure that the fuse for the appliance is OK
Operations with steam or descaling do not start or do not continue	Water tank empty Refill water tank
	The panel is open Close the panel
	Descaling locks operations with steam Carry out descaling
	Faulty sensor Call the after-sales service
After switching on an operating mode, a message is shown on the display which indicates that the temperature is too high	The appliance has not cooled down sufficiently	Allow the appliance to cool down and switch the operating mode on again
The appliance prompts you to rinse The power supply was interrupted or the appliance was switched off during the descaling process		Once the appliance is switched on again, rinse it twice
The appliance prompts you to descale without the counter appearing before-hand	The set water hardness range is too low	Carry out descalingCheck the set water hardness range and adjust it, if necessary
Buttons flash	Normal occurrence caused by condensation behind the control panel	As soon as the condensation has evaporated, the buttons no longer flash
Cooked dishes turn out too moist or too dry when cooking with steam-assisted applications	The wrong steam intensity was selected	Select a higher or lower steam intensity
The "Fill water tank" message appears even though the water tank is full	The panel is open Close the panel
	The water tank is not clicked into place	Click the water tank into place→ "Steam" on page 17
	Faulty sensor Call the after-sales service
	The water tank has fallen off. Due to the impact, components inside the water tank have come loose, and the tank is leaking.	Order a new water tank
The panel for removing the tank does not open	The plug is not plugged into the mains Connect the appliance to the power supply
	Power cut Check whether other kitchen appliances are working
	The circuit breaker is faulty Check in the fuse box to make sure that the fuse for the appliance is OK
	Faulty sensor for the ☐ touch button Call the after-sales service	If required, empty the water tank: Open the appliance door, take hold of the lower part of the panel on the left and right with your fingers and pull out the panel
Steam escapes from the ventilation slots during cooking	Normal procedure Not possible
When you cook with steam, a lot of steam is produced	The appliance is being automatically calibrated Normal procedure
When cooking with steam, a lot of steam is produced repeatedly	The appliance is unable to calibrate itself automatically if cooking times are too short	Reset the appliance to the factory settings and repeat the calibration process
The appliance cannot be switched on; the ⇌ symbol is shown on the display	The automatic childproof lock is activated	Press and hold the ⏻ touch button until the ⇌ symbol goes out
The appliance cannot be operated when it is switched on; the ⇌ symbol is shown on the display	The childproof lock is activated	Press and hold the ⏻ touch button until the ⇌ symbol goes out
The appliance does not heat up; □ is shown on the display	Demo mode is activated in the basic settings Disconnect the appliance from the mains for approx. 10 seconds (switch off the circuit breaker in the fuse box) and then deactivate demo mode in the basic settings within 3 minutes → "Basic settings" on page 24
There is a "pop" noise during cooking	Cold/warm effect with frozen food, caused by the steam	Not possible
"D" or "E" appears on the display, e.g. D0111 or E0111	Technical problem Switch the appliance off and on again	If the message appears again, call the after-sales service. Quote the exact error message

Maximum operating time exceeded

Your appliance ends the operation automatically when no cooking time is set and the setting has not been changed for a long time.

The actual cooking time until the operation is stopped automatically varies according to the selected settings.

The appliance display indicates that the operation will end automatically. Afterwards, the operation is stopped.

To use the appliance again, switch it off beforehand. Then switch the appliance on again and set the required operation.

Cooking compartment bulbs

To light the interior of your cooking compartment, your appliance has one or more long-life LED bulbs.

However, if ever an LED bulb or the bulb's glass cover is defective, call the after-sales service. The lamp cover must not be removed.

Customer service

Our after-sales service is there for you if your appliance needs to be repaired. We will always find an appropriate solution, also in order to avoid after-sales personnel having to make unnecessary visits.

E number and FD number

When calling us, please give the full product number (E no.) and the production number (FD no.) so that we can provide you with the correct advice. The rating plate bearing these numbers can be found on the right-hand side when you open the fascia panel. Touch the ☐ touch button to do this. → "Steam" on page 17

To save time, you can make a note of the number of your appliance and the telephone number of the after-sales service in the space below, should it be required.

E no.

FD no.

After-sales service

Please note that there will be a fee for a visit by a service technician in the event of a malfunction, even during the warranty period.

Please find the contact data of all countries in the enclosed customer service list.

To book an engineer visit and product advice GB 0344 892 8989

Calls charged at local or mobile rate.

IE 01450 2655

0.03 € per minute at peak. Off peak 0.0088 € per minute.

Rely on the professionalism of the manufacturer. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your appliances.

Tested for you in our cooking studio

Here, you can find a selection of dishes and the ideal settings for them. We will show you which type of heating and temperature are best suited to your dish. You will get information on suitable cooking accessories and the height at which they should be placed in the oven. You will also get tips about cookware and preparation methods.

Note: A lot of steam can build up in the cooking compartment when cooking food.

Your appliance is very energy-efficient and radiates very little heat to its surroundings during operation. Due to the high difference in temperature between the appliance interior and the external parts of the appliance, condensation may build up on the door, control panel or adjacent kitchen cabinet panels. This is a normal physical phenomenon. Condensation can be reduced by preheating the oven or opening the door carefully.

When steaming or during operation with steam assistance, it is desirable that there is a significant build-up of steam in the cooking compartment. Wipe the cooking compartment clean after cooking, once it has cooled off.

Silicone moulds

For the best cooking results, we recommend dark-coloured metal baking tins/dishes.

Nevertheless, if you wish to use silicone moulds, follow the manufacturer's instructions and recipes. Silicone moulds are often smaller than normal baking tins. Quantity and recipe specifications may vary.

Silicone moulds are unsuitable for steam-assisted cooking and steaming.

Baking

Here, you can find recommended settings for many dishes.

Also refer to the notes in the section on allowing dough to rise.

Only use original accessories supplied with your appliance. These have been tailored to the cooking compartment and the operating modes of your appliance.

Steam-assisted baking

Certain types of baked item (e.g. yeast-risen pastries) get a more crispy crust and a more glossy surface if baked with the steam assist mode. The baked item does not dry out as much.

Steam-assisted baking is only possible on one level.

Some food turns out better if it is baked in several stages. These dishes are indicated in the table.

Shelf positions

Use the indicated shelf positions.

Baking on one level

When baking on one level, use the following shelf position:

■ Level 1

Baking on two levels

Use CircoTherm. Baked items that are placed into the oven on trays or in baking tins/dishes at the same time will not necessarily be ready at the same time.

■ Universal pan: Level 3 Baking tray: Level 1
■ Baking tins/dishes on the wire rack First wire rack: Level 3 Second wire rack: Level 1

By preparing several dishes at the same time, you can make energy savings of up to 45 per cent. Position baking tins/dishes next to one another or offset and vertically stacked in the cooking compartment.

Accessories

Ensure that you always use suitable accessories and that they are placed in the oven the right way around.

Wire rack

Insert the wire rack with the open side facing the appliance door and the curved lip pointing downwards. Always place ovenware, tins and dishes on the wire rack.

Universal pan or baking tray

Slide the universal pan or the baking tray in carefully as far as the limit stop with the bevelled edge facing the appliance door.

When baking moist cakes or pastries with many toppings, use the universal pan so that any excess liquid does not overflow and make the cooking compartment dirty.

Baking tins

Dark-coloured metal baking tins are most suitable.

Tinplate baking tins, ceramic dishes and glass dishes extend baking time and mean that the baked item will not brown evenly.

The baking tins must be resistant to heat and steam for use in steam-assisted baking.

Greaseproof paper

Only use greaseproof paper that is suitable for the

selected temperature. Always cut greaseproof paper to size.

Recommended setting values

The table lists the optimal heating type for various baked items. The temperature and baking time depend on the amount and consistency of the dough/mixture. For this reason, the table specifies setting ranges. Try using the lower values to start with. A lower temperature will result in more even browning. You can use a higher setting next time if necessary.

Note: Baking times cannot be reduced by using higher temperatures. Cakes or small baked items would only be cooked on the outside, and would not be fully baked in the middle.

The setting values apply to food that is placed into a cold cooking compartment; by doing this, you can make energy savings of up to 20 per cent. If you preheat the oven, you can reduce the indicated baking times by several minutes.

Preheating is necessary for selected food, and this is indicated in the table. Do not place your food or accessories into the cooking compartment until it has finished preheating.

If you wish to follow one of your own recipes when baking, you should use the setting values listed for similar baked items in the table as reference. Additional information can be found in the baking tips listed after the settings table.

Remove unused accessories from the cooking compartment. This will ensure that you achieve the best possible cooking results and energy savings of up to 20 per cent.

Types of heating used:

CircoTherm
■ Top/bottom heating
■ Circotherm intensive
■ Bread baking
■ Steam cooking

The levels of steam intensity are indicated as numbers in the table:

■ 1 = Low
■ 2 = Medium
■ 3 = High

Dish Accessories/cookware Shelf position		Type of heating	Temperature in °C	Steam intensity	Cooking time in mins.
One level baking
Victoria sponge cake 2x ∅20 cm tins 1 ⚙ 160-170* - 20-30
Victoria sponge cake 2x ∅20 cm tins 1 ⚙ 150-160 1 25-35
Light fruit cake high ∅20cm tin 1 ⚙ 140-160 - 70-90
Light fruit cake high ∅20 cm tin 1 ⚙ 140-150 1 90-100
Rich Fruit Cake high ∅23cm tin 1 ⚙ 130-150 - 150-180
Fruit crumble flat glass dish 2 ⚙ 150-170* - 30-45
Sponge Cake (fatless), 3 eggs springform cake tin, ∅26 cm		1 ⚙	160-170*	-	25-35
* Preheat

Dish	Accessories/cookware	Shelf position	Type of heating	Temperature in °C	Steam intensity	Cooking time in mins.
Sponge Cake (fatless), 3 eggs	springform cake tin, ∅26 cm	1		150-160	1	10
					-25-35
Sponge flan, 6 eggs	springform cake tin, ∅28 cm	1		150-170*	-	30-50
Sponge flan, 6 eggs	springform cake tin, ∅28 cm	1		150-160	1	10
					-30-35
Swiss Roll swiss roll tin 2 180-190* - 10-18
Swiss Roll swiss roll tin 2 180-190* 1 10-15
Fruit Pie plate ∅20cm or pie tin 1 180-190 - 45-50
Fruit Pie plate ∅20cm or pie tin 1 170-190 - 55-70
Quiche quiche tin (dark coated) 1 190-210 - 30-45
(White) Bread	loaf tin (1x 900 g or 2x 450 g)	1		190-210*	-	20-30
(White) Bread	loaf tin (1x 900 g or 2x 450 g)	1		210-220	3	10-15
				180-190 - 25-35
Scones	baking tray	1	180-200* - 10-14
Scones	baking tray	1	200-210* - 10-15
Biscuits	baking tray	2		140-160*	-	10-25
Biscuits	baking tray	1	150-170 - 10-25
Small cakes	12-cup-tin	1		140-160*	-	20-35
Small cakes	12-cup-tin	1		150-170	-	20-30
Puff pastry slices	baking tray	2		170-190*	-	20-45
Puff pastry slices	baking tray	1		210-220*	1	15-25
Jam tarts	12-cup-tin	2		160-180*	-	15-30
Jam tarts	12-cup-tin	1	180-200 - 15-25
Meringue	baking tray	2		90-100*	-	100-130
Pavlova	baking tray	2		90-100*	-	120-180
Soufflé	1,2 L-soufflé dish	1		160-170*	-	40-50
Soufflé	1,2 L-soufflé dish	1		170-180	2	35-45
Soufflé	individual moulds	1		100	-	40-45
Choux pastry	baking tray	1		190-210*	-	30-40
Choux pastry	baking tray	1		200-220*	1	25-35
Meat Pie	rectangular pie tin	1		180-190	-	40-50
Meat Pie	rectangular pie tin	1		170-180	2	40-50
Yorkshire Pudding	12-cup-tin	1		200-220*	-	15-25
Jacket potatoes	baking tray	2		150-170	-	75-90
Jacket potatoes	baking tray	2		180-190	1	40-50
Pizza, homemade	baking tray	1		200-220	-	20-30
Pizza, homemade	baking tray	1		220-230	-	25-30
Pizza, homemade, thin base	pizza tray	1		220-240	-	25-35
Pizza, homemade, thin base	pizza tray	1		210-230	-	20-30
Multishelf baking
Victoria sponge cake, 2 levels	4x ∅20 cm tins	3+1		160-170*	-	20-35
Scones, 2 levels	2 baking trays	3+1		180-200*	-	12-16
Biscuits, 2 levels	2 baking trays	3+1		140-160*	-	15-30
Small cakes, 2 levels	2x 12-cup-tins	3+1		140-160*	-	22-32
Puff pastry slices, 2 levels	2 baking trays	3+1		170-190*	-	20-45
Dish Accessories/cookware Shelf po-		sition	Type of heating	Tempera-ture in °C	Steam in-tensity	Cooking time in mins.
Jam tarts, 2 levels	2x 12-cup-tins	3+1		160-180*	-	20-35
Meringues, 2 levels	2 baking trays	3+1		90-100*	-	100-130
Jacket potatoes, 2 levels	universal pan + baking tray	3+1		150-170*	-	75-90
Pizza, homemade, 2 levels	universal pan + baking tray	3+1		180-200	-	35-45
* Preheat

Tips on baking

You want to find out whether the cake is completely cooked in the middle.	Push a cocktail stick into the highest point on the cake. If the cocktail stick comes out clean with no dough residue, the cake is ready.
The cake collapses.	Next time, use less liquid. Alternatively, set the temperature to be 10 °C lower and extend the baking time. Adhere to the specified ingredients and preparation instructions in the recipe.
The cake has risen in the middle but is lower around the edge.	Only grease the base of the springform cake tin. After baking, loosen the cake carefully with a knife.
The fruit juice overflows. Next time, use the universal pan.
Small baked items stick to one another during baking.	There should be a gap of approx. 2 cm around each item. This gives enough space for the baked items to expand well and brown on all sides.
The cake is too dry.	Set the temperature 10 °C higher and shorten the baking time.
The cake is generally too light in colour.	If the shelf position and the cookware are correct, then you should increase the temperature if necessary or extend the baking time.
The cake is too light on top, and too dark underneath.	Bake the cake one level higher in the oven the next time.
The cake is too dark on top, and too light underneath.	Bake the cake one level lower in the oven the next time. Select a lower temperature and extend the baking time.
Cakes baked in a tray or tin are too brown at the back.	Place the baking tray in the middle of the accessories, not directly against the back wall.
The whole cake is too dark. Select a lower temperature next time and extend the baking time if necessary.
The cake is unevenly browned.	Select a slightly lower temperature. Protruding greaseproof paper can affect the air circulation. Always cut greaseproof paper to size. Ensure that the baking tin does not stand directly in front of the openings in the cooking compartment back wall. When baking small items, you should use similar sizes and thicknesses wherever possible.
You were baking on several levels. The items on the top baking tray are darker than those on the lower baking tray.	Always use CircoTherm when baking on several levels. Baked items that are placed into the oven on trays or in baking tins/dishes at the same time will not necessarily be ready at the same time.
The cake looks good, but is not cooked properly in the middle.	Use a lower temperature and bake slightly longer; if necessary, add slightly less liquid. For cakes with a moist topping, bake the base first. Sprinkle it with almonds or breadcrumbs and then place the topping on top.
The cake cannot be turned out of the dish when it is turned upside down.	Allow the cake to cool down for 5 to 10 minutes after baking. If it still sticks, carefully loosen the cake around the edges again using a knife. Turn the cake tin upside down again and cover it several times with a cold, wet cloth. Next time, grease the baking tin/dish and sprinkle with breadcrumbs.

Roasting and braising

Here, you can find information on roasting and braising poultry and meat. You can find the ideal settings for many dishes in the settings tables.

Poultry

For duck or goose, pierce the skin on the underside of the wings. This allows the fat to run out.

If using duck breast, score the skin. Do not turn duck breasts.

When you turn poultry, ensure that the breast side or the skin side is underneath at first.

Poultry will turn out particularly crispy and brown if you baste it towards the end of the roasting time with butter, salted water or orange juice.

Meat

Baste lean meat with fat as required or cover it with strips of bacon.

Score the rind crosswise. If you turn the joint when cooking, ensure that the rind is underneath at first.

When the joint is ready, turn off the oven and allow it to rest for another 10 minutes in the cooking compartment. This allows the meat juices to be better distributed. Wrap the joint in aluminium foil if necessary.

The recommended resting time is not included in the cooking time indicated.

Roasting on the wire rack

On the wire rack, poultry and meat will become very crispy on all sides. Roasting on the wire rack is well suited for larger poultry or for multiple pieces at the same time.

Depending on the size and type of the meat, add up to 12 litres of water to the universal pan. Any dripping fat and meat juices will be caught. You can prepare a sauce using these meat juices. In addition, less smoke is generated, and the cooking compartment stays cleaner.

Slide the universal pan into the oven at the indicated shelf position with the wire rack attached. Ensure that the wire rack is correctly positioned on the universal pan. → "Accessories" on page 12

Roasting and braising in cookware

It is more convenient to roast and braise meat in cookware. You can take the joint out of the cooking compartment more easily in the cookware, and prepare the sauce in the cookware itself.

Only use cookware which is suitable for use in an oven. Check whether the cookware fits in the cooking compartment.

Glass cookware is most suitable. Place hot glass cookware onto a dry mat after cooking. If the surface is damp or cold, the glass may crack.

Add in a little liquid for roasting if the meat is lean. A covering of approx. 12 cm depth should be applied to the base of any glass cookware.

The amount of liquid is dependent on the type of meat, the cookware material and also on whether or not a lid is used. If preparing meat in an enamelled or dark metal roasting dish, it will need a little more liquid than if cooked in glass cookware.

The steam evaporates in the cookware when roasting. Carefully pour in more liquid if required.

Shiny roasting dishes made from stainless steel or aluminium reflect heat like a mirror and are therefore not particularly suitable. The meat cooks more slowly and will not brown so much. Use a higher temperature and/or a longer cooking time.

Observe the manufacturer's instructions for your roasting cookware.

Roasting in uncovered cookware

It is best to use a deep roasting tin/dish for roasting poultry and meat. Place the tin/dish onto the wire rack. If you do not have any suitable cookware, use the universal pan.

Braising in covered cookware

When preparing food with covered cookware, the cooking compartment remains considerably cleaner. Ensure that the lid fits well and closes properly. Place the cookware onto the wire rack.

The distance between the meat and the lid must be at least 3 cm. The meat may rise.

Very hot steam may escape when opening the lid after cooking. Lift the lid at the rear, so that the hot steam can escape away from you.

If necessary, braise the meat first by searing it. Add water, wine, vinegar or a similar liquid to the braising liquid. A covering at least 2 cm deep should be applied to the base of the cookware.

The steam evaporates in the cookware when roasting. Carefully pour in more liquid if required.

Steam-assisted roasting and braising

Certain dishes become crispier if cooked using steam, and do not dry out as much.

Use uncovered cookware. Cookware must be heat- and steam-resistant.

The joints do not have to be turned.

Use steam-assisted cooking if it is indicated in the settings table. Some dishes turn out best if they are cooked in several stages. These are indicated in the table.

Steaming

By contrast to the steam assistance function, the steaming function cooks the meat particularly gently, but it does not become crispy on the outside. It remains very succulent. As an alternative, you can also fry pieces of meat quickly before steaming; the cooking time will be reduced.

Larger pieces require a longer heating-up time and a longer cooking time. If you are using several pieces which are the same weight, the heating-up time is increased, and not the cooking time.

Pieces of meat do not need to be turned.

Use the perforated steam container (size XL) and slide the universal pan in underneath. You can also use a glass tray and place this onto the wire rack.

Meat thermometer

You can cook accurately using a meat thermometer. Read important notes on using the meat thermometer in the corresponding chapter. There, you can find notes on inserting the meat thermometer, the possible heating types and additional information. "Meat thermometer" on page 28

Recommended setting values

In the table, you can find the ideal heating type for poultry and meat. Temperature and cooking time depend on the quantity, composition and temperature of the food. Different settings ranges are indicated for this reason. Try using the lower values at first. You can increase the temperature next time if necessary.

The setting values are based on the assumption that unstuffed, chilled, ready-to-roast poultry and meat are placed into a cold cooking compartment. By doing so, you can make energy savings of up to 20 per cent. If you preheat the oven, the indicated cooking times will be reduced by several minutes.

In the table, you can find specifications for poultry and meat with default values for the weight. If you wish to prepare heavier poultry or meat, use the lower temperature in every case. If roasting several joints, use the weight of the heaviest piece as a basis for determining the cooking time. The individual pieces should be approximately equal in size.

A general rule: the larger the poultry or piece of meat is, the lower the cooking temperature and the longer the cooking time.

Turn the poultry and meat after approx. 12 to 23 of the indicated time.

Remove unused accessories from the cooking compartment. This will achieve the best possible cooking results and energy savings of up to 20 per cent.

Cooking time calculation (e. g. 20+35):

Please calculate the cooking time with 20 minutes per 500 g meat + 35 minutes additional time. For 1,5 kg the calculated cooking time would be 95 minutes.

Cooking time range (e. g. 10-15):

The food is done within the stated minutes.

Type of heating used:

CircoTherm

The levels of steam intensity are indicated as numbers in the table:

■ 1 = Low
■ 2 = Medium
■ 3 = High

Dish Accessories/cookware Shelf position			Type of heating	Temperature in °C	Steam intensity	Time in min.
Beef
Slow roasting joint wire rack 1 ♦ 140-150 - 35+40
Slow roasting joint, 1.5 kg wire rack 1 ♦ 130-140 1 70-80
					-40-50
Top side / Top rump wire rack 1 ♦ 160-170 - 30+25
Top side / Top rump wire rack 1 ♦ 170-180 1 100-120
Lamb
Leg (bone-in) wire rack 1 ♦ 160-170 - 25+25
Leg (bone-in), 1.5 kg wire rack 1 ♦ 180-190 1 80-90
Shoulder (bone-in) wire rack 1 ♦ 160-170 - 25+20
Shoulder (boned and rolled) wire rack 1 ♦ 170-180 - 25+25
Rack of lamb***	wire rack	1	♀	180-190*	-	15+25
Rack of lamb, each 700 g	wire rack	1	♀	200	-	20
				170-180 1 25-30
Pork
Roasting joint wire rack 1 ♦ 180-190 - 30+35
Roasting joint, 1.5 kg	wire rack	1	♀	120	3	30
				190-200 - 30
				160-170 1 80-100
Loin joint	wire rack 1 ♦ 180-190 - 35+35
Loin joint, 1 kg	wire rack	1	♀	180-190	-	25-30
				170-180 1 70-80
Belly	wire rack 1 ♦ 170-180 - 30+25
Gammon joint	wire rack 1 ♦ 160-170 - 30+30
Gammon joint, 1.5 kg	wire rack	1	♀	170-180	2	100-120
Poultry
Chicken, whole	wire rack 1 ♦ 170-180 - 25+15
Chicken, whole, 1.5 kg	wire rack	1	♀	180-190	2	65-75
* Preheat** skin side down*** without fat layer (best and neck), do not turn**** bone side down, do not turn
Dish	Accessories/cookware	Shelf position	Type of heating	Temperature in °C	Steam intensity	Time in min.
Chicken, portion, 200-250 g each** wire rack 1 ♘	190-200 - 35-45
Chicken, portion, 200-250 g each** wire rack 2 Ⓞ	200-210 2 35-45
Duck wire rack 1 ♘	180-190 - 25+20
Duck, 2-3 kg wire rack 1 ♘	160-170 2 70-90
				170-180 - 30-40
Turkey, crown**** wire rack 1 ♘	150-160 - 20+15
Turkey, crown, 3 kg cookware, uncovered 1 ♘	140-150 2 100-140
Turkey, thighs wire rack 1 ♘	170-180 - 25+30
Turkey, whole, 4-8 kg wire rack 1 ♘	150-160 - 12+12
Turkey, whole, 7 kg	universal pan	1	♀	140-150	2	120-150
				170-180 - 30-40
Meat dishes
Meat loaf	cookware, uncovered 1 ♘	170-180 - 20+35
Meat loaf, 1 kg	cookware, uncovered 1 ♘	190-200 1 70-80
Casserole
Diced meat (beef, pork, lamb), 500 g meat	cookware, covered	1 ♘	140* - 100-120
Braising steak	cookware, covered	1	♀	140	-	65+60
Chicken pieces (boned), 500 g meat	cookware, covered	1	♀	140*	-	90-100
Complete meal
With beef	wire rack + wire rack	3+1	♀	160, then 200 (Yorkshire Pudding)	- calculation for meat (see table above) + 15-25 for Yorkshire Pudding
With chicken	wire rack + wire rack	3+1	♀	180	-	calculation for chicken (see table above)
With chicken	wire rack + wire rack	3+1	♀	180	low (steam 0 when Yorkshire Pudding is inserted)	65-75
* Preheat** skin side down*** without fat layer (best and neck), do not turn**** bone side down, do not turn

Tips on roasting and braising

The cooking compartment becomes very dirty.	Prepare your food in an enclosed roasting dish with higher temperature or use the grill tray. You will achieve the best roasting results if you use the grill tray. The grill tray can be bought later as a special accessory.
The roast is too dark and the crack-ling is burned in places, and/or the roast is too dry.	Check the shelf position and temperature. Select a lower temperature the next time and reduce the roasting time if necessary.
The crackling is too thin.	Increase the temperature or switch on the grill briefly at the end of the roasting time.
The roast looks good but the juices are burnt.	Next time, use a smaller roasting dish and add more liquid if necessary.

The roast looks good but the juices are too clear and watery.	Next time, use a larger roasting dish and add less liquid if necessary.
The meat gets burned during braising.	The roasting dish and lid must fit together well and close properly.Reduce the temperature and add more liquid when braising if necessary.

Grilling

Here, you can find information on grilling poultry, meat and fish, as well as toast. You can find the ideal settings for certain dishes in the settings tables.

Grilling with circo-roasting

Circo-roasting is very well suited to the preparation of whole poultry and fish, in addition to meat, e.g. roast pork with crackling.

Poultry

For duck or goose, pierce the skin on the underside of the wings. This allows the fat to run out.

If using duck breast, score the skin. Do not turn duck breasts.

When you turn poultry, ensure that the breast side or the skin side is underneath at first.

Poultry will turn out particularly crispy and brown if you baste it towards the end of the roasting time with butter, salted water or orange juice.

Meat

Baste lean meat with fat as required or cover it with strips of bacon.

Score the rind crosswise. If you turn the joint when cooking, ensure that the rind is underneath at first.

When the joint is ready, turn off the oven and allow it to rest for another 10 minutes in the cooking compartment. This allows the meat juices to be better distributed. Wrap the joint in aluminium foil if necessary. The recommended resting time is not included in the cooking time indicated.

Fish

Fish cooked whole does not have to be turned. Place the whole fish into the cooking compartment in swimming position with the dorsal fin facing upwards. Placing half a potato or a small oven-proof container in the stomach cavity of the fish will provide stability.

You can tell when the fish is cooked because the dorsal fin can be removed easily.

Roasting on the wire rack

On the wire rack, poultry and meat will become very crispy on all sides. Roasting on the wire rack is well suited for larger poultry or for multiple pieces at the same time.

Depending on the size and type of the meat, add up to 12 litres of water to the universal pan. Any dripping fat and meat juices will be caught. You can prepare a sauce using these meat juices. In addition, less smoke is generated, and the cooking compartment stays cleaner.

Slide the universal pan into the oven at the indicated shelf position with the wire rack attached. Ensure that the wire rack is correctly positioned on the universal pan. → "Accessories" on page 12

Roasting in cookware

It is more convenient to roast and braise meat in cookware. You can take the joint out of the cooking compartment more easily in the cookware, and prepare the sauce in the cookware itself.

Only use cookware which is suitable for use in an oven. Check whether the cookware fits in the cooking compartment.

Glass cookware is most suitable. Place hot glass cookware onto a dry mat after cooking. If the surface is damp or cold, the glass may crack.

Add in a little liquid if the meat is lean. A covering of approx. 12 cm depth should be applied to the base of any glass cookware.

The quantity of liquid is dependent on the type of meat, the cookware material and also on whether or not a lid is used. If preparing poultry, meat or fish in an enamelled or dark metal roasting dish, it will need a little more liquid than if cooked in glass cookware.

The steam evaporates in the cookware when roasting. Carefully pour in more liquid if required.

Shiny roasting dishes made from stainless steel or aluminium reflect heat like a mirror and are therefore not particularly suitable. The meat cooks more slowly and will not brown so much. Use a higher temperature and/or a longer cooking time.

Observe the manufacturer's instructions for your roasting cookware.

Uncovered cookware

Use a deep roasting tin/dish for roasting meat. Place the tin/dish onto the wire rack. If you do not have any suitable cookware, use the universal pan.

Covered cookware

When cooking with covered cookware, the cooking compartment remains considerably cleaner. Ensure that the lid fits well and closes properly. Place the cookware onto the wire rack.

The distance between the meat and the lid must be at least 3 cm. The meat may rise.

Very hot steam may escape when opening the lid after cooking. Lift the lid at the rear, so that the hot steam can escape away from you.

If necessary, braise the meat first by searing it. Add water, wine, vinegar or a similar liquid to the braising liquid. A covering approx. 1-2 cm deep should be applied to the base of the cookware.

The steam evaporates in the cookware when roasting. Carefully pour in more liquid if required.

Meat can also become crispy in a covered roasting dish. To do so, use a roasting dish with a glass lid and set a higher temperature.

Steam-assisted roasting

Certain foodstuffs will become crispier during steam-assisted cooking. Their surface becomes glossier and they dry out less.

Use uncovered cookware. Cookware must be heat- and steam-resistant.

Use steam-assisted cooking if it is indicated in the settings table. Some dishes turn out best if they are cooked in several stages. These are indicated in the table.

Grilling flat pieces

Flat pieces of poultry, meat and fish, such as steaks, drumsticks and burgers, can be prepared well using the "Grill" heating type. Excellent results are also achieved when grilling toast.

Grilling

Keep the appliance door closed when using the grill. Never grill with the appliance door open.

Place the food to be grilled on the wire rack. In addition, slide the universal pan in at least one shelf position lower, with the slanted edge facing the appliance door. Any dripping fat will be caught.

When grilling, try wherever possible to use pieces of food which are of a similar thickness and weight. This will allow them to brown evenly and remain succulent and juicy. Place the food to be grilled directly onto the wire rack.

Use tongs to turn the pieces of food you are grilling. If you pierce the meat with a fork, the juices will run out and it will become dry.

Do not add salt until after the meat has been grilled. Salt draws water from the meat.

Notes

■ The grill element switches itself continuously on and off; this is normal. The set temperature determines how frequently this occurs.

■ Smoke may be produced when grilling.

Meat thermometer

You can cook accurately using a meat thermometer. Read important notes on using the meat thermometer in the corresponding chapter. There, you can find notes on inserting the meat thermometer, the possible heating

types and additional information. → "Meat thermometer" on page 28

Recommended setting values

In the table, you can find the ideal heating type for your poultry, meat and fish, in addition to toast. Temperature and cooking time depend on the quantity, composition and temperature of the food. Settings ranges are indicated for this reason. Try using the lower values at first. You can use a higher setting next time if necessary.

The setting values are based on the assumption that unstuffed, chilled, ready-to-roast poultry, meat and fish are placed into a cold cooking compartment.

In the table, you can find specifications for poultry, meat and fish with default values for the weight. If you wish to prepare heavier poultry, meat or fish, use the lower temperature in every case. If roasting several joints, use the weight of the heaviest piece as a basis for determining the cooking time. The individual pieces should be approximately equal in size.

A general rule: the larger the poultry, meat or fish is, the lower the cooking temperature and the longer the cooking time.

Turn the poultry, meat and fish after approx. 12 to 23 of the indicated time.

Remove unused accessories from the cooking compartment. This will achieve the best possible cooking results and energy savings of up to 20 per cent.

Cooking time calculation (e. g. 20+35):

Please calculate the cooking time with 20 minutes per 500 g meat + 35 minutes additional time. For 1,5 kg the calculated cooking time would be 95 minutes.

Cooking time range (e. g. 10-15):

The food is done within the stated minutes.

Types of heating used:

Circo-roasting
■ Full-surface grill

The levels of steam intensity are indicated as numbers in the table:

■ 1 = Low
■ 2 = Medium
■ 3 = High

Dish Accessories Shelf po-		sition	Type of heating	Tempera-ture in °C	Steam in-tensity	Time in min.
Beef
Steaks, height 2-3 cm wire rack 2 ≈ 275 - 1st side 8-10
						2nd side 5-7
Burger, height 1-2 cm wire rack 2 ≈ 275* - 1st side 6-8
						2nd side 4-6
* Preheat** Preheat 3 minutes*** Preheat 5 minutes**** Preheat 3 minutes, turn over several times***** Skin side down
Dish	Accessories	Shelf position	Type of heating	Temperature in °C	Steam intensity	Time in min.
Top side / Top rump wire rack 2	150-160 - 30+30
Lamb
Steaks, height 2-3 cm wire rack 2	275* - 1st side 8-10
						2nd side 4-6
Chops, height 2-3 cm wire rack 2	275 - 1st side 6-8
						2nd side 6-8
Leg (bone-in) wire rack 1	170-180 - 25+30
Leg (bone-in), 1.5 kg wire rack 1	170-180 1 80-90
Shoulder (bone-in) wire rack 1	170-190 - 25+15
Shoulder (boned and rolled) wire rack 1	170-180 - 20+15
Rack of lamb wire rack 1	190-200 - 15+25
Pork
Steaks, height 2 cm wire rack 3	250 - 1st side 12-14
						2nd side 6-8
Chops, height 2-3 cm wire rack 2	275* - 1st side 10-12
						2nd side 9-10
Burger, height 1-2 cm wire rack 2	275* - 1st side 6-8
						2nd side 4-6
Bacon rashers	wire rack	2	***	275***	-	1st side 5-6
						2nd side 4-5
Sausages, thickness 2-4 cm	wire rack	2	***	275****	-	10-15
Roasting joint	wire rack 1	180-200 - 30-40
Loin joint	wire rack 1	170-180 - 35+35
Belly	wire rack 1	200-220 - 30+25
Belly, 1 kg	wire rack 1	170-180 1 50-60
				190-200 - 25-35
Gammon joint	wire rack 2	180-200 - 30+25
Poultry
Chicken drumstick, 150 g each wire rack 2	210-230 - 20-30
Chicken drumstick, 150 g each wire rack 2	210-220 2 30-40
Chicken breast, boned, 150 g each	wire rack	2	***	275**	-	1st side 10-15
						2nd side 10-15
Chicken breast, boned, 150 g each	wire rack	2	***	200-210	2	20-30
Chicken, whole	wire rack 1	200-220 - 25+15
Chicken, whole, 1.5 kg	wire rack	1	***	180-190	2	65-75
Chicken, portion, 200-250 g each****	wire rack 2	200-220 - 30-45
Chicken, portion, 200-250 g each****	wire rack 2	200-210 2 35-45
Duck, 2-3 kg	wire rack 1	190-200 - 20+20
Duck, 2-3 kg	wire rack	1	***	150-160	2	100-120
* Preheat** Preheat 3 minutes*** Preheat 5 minutes**** Preheat 3 minutes, turn over several times**** Skin side down

Dish Accessories Shelf po-	sition	Type of heating	Tempera-ture in °C	Steam in-tensity	Time in min.
Turkey thighs wire rack 1 180-190 - 25+30
Turkey, whole, 4-8 kg wire rack 1 140-160 - 12+12
Fish
Trout, whole, 300 g each wire rack 1 170-190 - 20-30
Fillets, each 150 g wire rack 2 220** - 1st side 5-10
					2nd side 5-10
Toast
Grilling white bread wire rack 3 275 - 2-6
* Preheat
** Preheat 3 minutes
*** Preheat 5 minutes
**** Preheat 3 minutes, turn over several times
***** Skin side down

Convenience products

Here, you can find the ideal settings for preparing chilled and frozen food.

Only use original accessories supplied with your appliance. These have been tailored to the cooking compartment and the operating modes of your appliance.

Tips

■ The cooking result greatly depends on the quality of the food. Pre-browning and unevenness may already be present on the packaged product.
■ Do not use frozen products that are heavily frosted. Remove any ice on the food.
■ Distribute foods which are in pieces, such as bread rolls and potato products, so that they are spread flat and evenly on the accessories. Leave a little space between the individual pieces.
■ Observe the instructions on the packaging.

Steam-assisted baking

Certain types of baked item (e.g. yeast-risen pastries) get a more crispy crust and a more glossy surface if baked with the steam assist mode. The baked item does not dry out as much.

Steam-assisted baking is only possible on one level.

Shelf positions

Use the indicated shelf positions.

Baking on one level

When baking on one level, use the following shelf position:

■ Level 1

Baking on two levels

Use CircoTherm. Baked items that are placed into the oven on trays or in baking tins/dishes at the same time will not necessarily be ready at the same time.

■ Universal pan: Level 3 Baking tray: Level 1

Accessories

Ensure that you always use suitable accessories and that they are placed in the oven the right way around.

Wire rack

Insert the wire rack with the open side facing the appliance door and the curved lip pointing downwards. Always place ovenware, tins and dishes on the wire rack.

Universal pan or baking tray

Slide the universal pan or the baking tray in carefully as far as the limit stop with the bevelled edge facing the appliance door.

Greaseproof paper

Only use greaseproof paper that is suitable for the selected temperature. Always cut greaseproof paper to size.

Recommended setting values

In the table, you can find the ideal heating type for various dishes. Temperature and cooking time depend on the quantity and composition of the product. Setting ranges are indicated for this reason. Try using the lower values at first. A lower temperature results in more even browning. You can use a higher setting next time if necessary.

Note: Cooking times cannot be reduced by using higher temperatures. The dish would only be cooked on the outside, but would not be fully cooked in the middle.

The setting values apply to dishes placed into a cold cooking compartment. By doing so, you can make energy savings of up to 20 per cent. If you preheat the oven, the indicated cooking times will be reduced by several minutes.

Preheating is necessary for selected dishes, and this is indicated in the table.

Remove unused accessories from the cooking compartment. This will achieve the best possible cooking results and energy savings of up to 20 per cent.

Types of heating used:

■	CircoTherm
■	Top/bottom heating
■	Circotherm intensive
■	Bread baking

The levels of steam intensity are indicated as numbers in the table:

■ 1 = Low
■ 2 = Medium
■ 3 = High

Dish Accessories/cookware Shelf po-		sition	Type of heating	Tempera-ture in °C	Steam in-tensity	Cooking time in mins.
Pizza, chilled
Pizza, chilled wire rack 1 ☑ 210-230 - 10-20
Pizza, frozen
Pizza, thin base wire rack 1 ☑ 210-230 - 10-20
Pizza, thin base, 2 levels 2 wire racks 3+1 ☑ 200-220 - 15-25
Pizza, thick base wire rack 1 ☑ 190-210 - 20-30
Pizza, thick base wire rack 1 ☑ 180-200 - 20-30
Pizza, thick base, 2 levels	2 wire racks	3+1	☒	160-180	-	25-35
Pizza baguette	wire rack 1 ☑ 200-220 - 20-30
Potatoe products, frozen
Oven chips*	baking tray	1	☒	190-210	-	20-30
Oven chips, 2 levels*	universal pan + baking tray	3+1	☒	200-220	-	30-40
Croquettes*	baking tray	1	☒	210-230	-	15-25
Hash browns*	universal pan	2	☒	200-220	-	20-30
Potatoe wedges	baking tray	1	☒	200-220	-	20-30
Baked goods, frozen, prebaked
Rolls, baguettes	universal pan	2	☒	200-220	-	15-25
Rolls, baguettes	universal pan	2	☒	180-200	1	15-25
Rolls, baguettes, 2 levels	grid + universal pan	3+1	☒	160-180	-	15-25
Fried food, frozen
Fish fingers*	baking tray	1	☒	220-240	-	10-20
Chicken nuggets	universal pan	2	☒	200-220	-	10-20
Food, chilled
Lasagna, 500 g	ovenproof dish on wire rack	1	☒	180-200	-	30-40
Lasagna, 500 g	ovenproof dish on wire rack	1	☒	180-190	2	30-40
Lasagna, 1,5 kg	ovenproof dish on universal pan	1	☒	180-200	-	35-45
Lasagna, 1,5 kg	ovenproof dish on wire rack	1	☒	160-170	2	35-45
Food, frozen
Lasagna, 500 g	ovenproof dish on universal pan	1	☒	190-210	-	30-40
Lasagna, 500 g	ovenproof dish on wire rack	1	☒	180-190	2	40-50
Lasagna, 1,5 kg	ovenproof dish on universal pan	1	☒	160-180	-	60-80
Lasagna, 1,5 kg	ovenproof dish on wire rack	1	☒	160-170	2	45-55
* Turn during cooking

Steaming

Only use original accessories. When steaming in the perforated steam container (size XL), always slide the universal pan in underneath as well. Dripping liquid is caught.

Steaming on one level

Use the shelf positions indicated in the settings tables.

Steaming on two levels

Steaming on two levels is very well suited to simultaneously cooking broccoli and potatoes, for example. In cases where the cooking times are different, insert the foodstuff with the shorter cooking time later.

■ Wire rack and attached steam container (size S), perforated and/or unperforated: Level 3

■ Perforated steam container (size XL): Level 2

Cookware

If you use cookware, place it onto the wire rack or the perforated steam container, size XL.

Ovenware must be heat and steam resistant. Cooking times are increased when using cookware with thick edges.

Food which would normally be prepared in a water bath should always be covered with foil.

Cooking time and quantity

Cooking times when steaming are dependent on the size of the pieces, but not dependent on the total quantity. If a larger total quantity is used, the heating-up time is increased and not the cooking time.

Larger pieces require a longer heating-up time and a longer cooking time. If you are using several pieces which are the same weight, the heating-up time is increased, and not the cooking time.

Observe the unit sizes indicated in the settings table. The cooking time is reduced for smaller pieces and increased for larger ones. Cooking time is also influenced by the quality and ripeness of the food. This means that the setting values indicated are purely guidelines.

Always distribute the food evenly in the cookware. It will not cook evenly if the layers are of different depths. When layering delicate foods in the cooking container, do not pile them too high. It is better to use two containers.

Rice and cereals

Add water or liquid in the proportion indicated. E.g. "1:1.5" means adding 150 ml liquid per 100 g rice.

Menu cooking

With your appliance you can cook a whole menu at once without the different flavours or aromas mixing with each other.

Place the food with the longest cooking time in the appliance first and add the rest at the appropriate time. This means that all the food will be ready at the same time.

The overall cooking time is extended with menu cooking, as a little steam escapes each time the appliance door is opened and has to be reheated.

Observe the information in the relevant paragraphs of this section:

■ The heating-up time varies depending on the size and weight of the food
■ The cooking time does not depend on the quantity
■ Use cookware that is steam-resistant
■ Cover soufflé with foil
■ Always insert the universal pan at level 1

Shelf positions for accessories

Always insert accessories in the following order:

■ Level 3: Wire rack with steam container, size S
■ Level 2: Steam container, size XL
■ Level 1: Universal pan

Diagram of a refrigerator interior with numbered labels pointing to different compartments

Making rice pudding

1. Weigh the rice and add 2.5 times as much milk.
2. Fill a bowl with the rice and milk so that the mixture is max. 2.5 cm deep.

You can also use the universal pan for large quantities.

1. Use the settings indicated in the table.
2. Stir after cooking.

The remaining milk is quickly absorbed.

Compote

Weigh the fruit and add approx. 13 as much water. Add sugar and spices to taste. Use the settings indicated in the table.

Place the small dishes directly into the perforated steam container (size XL). A water bath is not required. Use the settings indicated in the table.

Food which would normally be prepared in a water bath should always be covered with foil.

Dampfnudeln (steamed bread rolls)

Prepare the yeast dough according to your recipe without cooking. Place the shaped balls into a greased, perforated steam container (size XL), and allow them to prove. Use the settings indicated in the table.

Recommended setting values

Type of heating used:

■ Steam cooking

Dish Accessories/cookware Shelf po-			sition	Type of heating	Tempera-ture in °C	Cooking time in mins.
Poultry
Chicken breast, 150 g each steam container 2 ≈ 100 15-25
Pork
Pork fillet, 400 g steam container 2 ≈ 100 18-20
Fish
Fish, whole 300 g, e.g. trout	steam container, perforated	2	≈	80-90	15-25
Fish, whole 1,5 kg, e.g. cod	steam container, perforated	2	≈	80-90	35-50
Fish fillet, 200 g steam container, perforated 2 ≈ 80-100 10-16
Fish, frozen
Fish, whole 300 g, e.g. trout	steam container, perforated	2	≈	80-100	20-25
Fish dishes
Fish terrine bain marie 2 ≈ 70-80 45-80
Potatoes
Unpeeled boiled potatoes	steam container, perforated 2 ≈ 100 35-45
Boiled potatoes, quartered	steam container, perforated 2 ≈ 100 20-25
Vegetables, fresh
Artichokes, whole	steam container, perforated 2 ≈ 100 30-35
Cauliflower, whole	steam container, perforated 2 ≈ 100 25-35
Broccoli, florets steam container, perforated 2 ≈ 100 6-9
Green beans	steam container, perforated 2 ≈ 100 18-25
Carrots, slices	steam container, perforated 2 ≈ 100 10-20
Cabbage turnip, slices	steam container, perforated 2 ≈ 100 17-20
Leek, slices	steam container, perforated 2 ≈ 100 6-9
Sweetcorn, whole	steam container, perforated 2 ≈ 100 30-40
Beetroot, whole	steam container, perforated 2 ≈ 100 43-50
White asparagus, whole	steam container, perforated 2 ≈ 100 7-15
Spinach	steam container, perforated 2 ≈ 100 2-3
Courgette, slices steam container, perforated 2 ≈ 100 3-4
Vegetables, frozen
Cauliflower	steam container, perforated 2 ≈ 100 15-25
Green beans	steam container, perforated 2 ≈ 100 5-8
Broccoli	steam container, perforated 2 ≈ 100 6-10
Peas	steam container, perforated 2 ≈ 100 6-10
Carrots	steam container, perforated 2 ≈ 100 3-10
Brussel sprouts steam container, perforated 2 ≈ 100 4-6
Mixed vegetables, 1 kg	steam container, perforated 2 ≈ 100 5-10
Rice
Basmati rice, 1:1,5	cookware, flat	1	≈	100	10-15
Long-grain rice, 1:1,5	cookware, flat	1	≈	100	20-30
Brown rice, 1:1,5	cookware, flat	1	≈	100	30-40
Parboiled rice, 1:1,5	cookware, flat	1	≈	100	15-20
Risotto, 1:2	cookware, flat	1	≈	100	25-35

Dish	Accessories/cookware	Shelf position	Type of heating	Temperature in °C	Cooking time in mins.
Cereals
Couscous, 1:1 cookware, flat 1 ≈ 100 6-10
Millet, whole, 1:1,25 cookware, flat 1 ≈ 100 25-35
Polenta, 1:5 cookware, flat 1 ≈ 100 20-45
Egg
Hard-boiled eggs steam container, perforated 2 ≈ 100 9-11
Soft-boiled eggs steam container, perforated 2 ≈ 100 6-8
Dessert
Crème Brulée individual moulds 1 ≈ 85 20-30
Crème caramel	individual moulds 1 ≈ 85 25-35
Soufflé	individual moulds 1 ≈ 100 40-45
Yeast dumplings	universal pan	1	≈	100	25-30
Rice pudding, 1:2,5	universal pan	1	≈	100	25-35
Fruit compote, 1/3 water	universal pan	1	≈	100	10-20
Complete meal
Frozen salmon fillet	steam container, solid, size S	3	≈	100	20
Broccoli, florets	steam container, perforated, size XL	2	≈	100	9
Potatoes boiled	steam container, perforated, size S	3	≈	100	25

Yogurt

You can make your own yogurt using your appliance.

Making yoghurt

Remove accessories and shelf supports from the cooking compartment. The cooking compartment must be empty. Do not open the appliance door while the appliance is in operation.

1. Heat 1 litre of milk (3.5% fat) to 90 °C on the hob and then leave it to cool down to 40 °C. It is sufficient to heat UHT milk to 40 °C.

2. Stir in 150 g (chilled) yoghurt.

3. Pour into cups or small jars and cover with cling film.
4. Place the cups or jars onto the cooking compartment floor and use the settings indicated in the table.
5. After making the yoghurt, leave it to cool in the refrigerator.

Type of heating used:

■ ∩ Dough proving

Dish	Cookware	Shelf position	Type of heating	Dough proving setting	Cooking time in hours
Yoghurt	individual moulds	cooking compartment floor		1	5-6

Eco heating functions

CircoTherm eco and Top/bottom heating eco are intelligent heating functions that allow you to gently cook meat, fish and baked items. The appliance optimally controls the supply of energy to the cooking compartment. The food is cooked in phases using residual heat. This means that it remains more succulent and browns less. Depending on the method of preparation and the type of food, it is possible to save energy. If you open the appliance door before the food has finished cooking or if you preheat the appliance, you may not be able to achieve this result.

Only use genuine accessories for your appliance. These have been tailored to the cooking compartment and the operating modes of your appliance. Remove any accessories that are not being used from the cooking compartment.

Place the food into the empty cooking compartment before the oven is heated up. For CircoTherm eco, select a temperature of between 125 and 200 °C, and for Top/bottom heating eco, select a temperature of between 150 and 250 °C. Always keep the appliance door closed when cooking. Only cook on one level when using this function.

The CircoTherm eco heating function is used to measure both the energy consumption in air recirculation mode and the energy efficiency class. The Top/bottom heating eco heating function is used to measure the energy consumption in the conventional mode.

Accessories

Ensure that you always use suitable accessories and that they are placed in the oven the right way around.

Wire rack

Insert the wire rack with the open side facing the appliance door and the curved lip pointing downwards. Always place ovenware, tins and dishes on the wire rack.

Universal pan or baking tray

Slide the universal pan or the baking tray in carefully as far as the limit stop with the bevelled edge facing the appliance door.

Baking tins and cookware

Dark- coloured metal baking tins are most suitable. These allow you to make energy savings of up to 35 per cent.

Cookware made from stainless steel or aluminium reflects heat like a mirror. Non-reflective cookware

made from enamel, heat-resistant glass or coated, die-cast aluminium is more suitable.

Tinplate baking tins, ceramic dishes or glass dishes prolong baking time, and the cake will not brown so evenly.

Greaseproof paper

Only use greaseproof paper that is suitable for the selected temperature. Always cut greaseproof paper to size.

Recommended setting values

Here, you can find specifications for the various dishes with CircoTherm Eco and Top/bottom heating Eco. The temperature and baking time depend on the consistency and amount of the dough. Settings ranges are indicated for this reason. Try with the lower values first. A lower temperature results in more even browning. You can increase the temperature next time if necessary.

Note: Baking times can not be reduced by using higher temperatures. Cakes or baked items would only be cooked on the outside, but would not be fully cooked in the middle.

Types of heating used:

■ Eco CircoTherm eco
■ Top/bottom heating Eco

Dish Accessories/cookware Shelf po-		sition	Type of heating	Tempera-ture in °C	Cooking time in mins.
Baking
Victoria sponge cake 2x ∅20 cm tins 1 170-180 25-35
Light fruit cake high ∅20 cm tin 1 150-170 70-90
Rich Fruit Cake high ∅23 cm tin 1 140-160 120-180
Fruit crumble flat glass dish 1 160-180 40-60
Sponge cake (fatless), 3 eggs	springform cake tin, ∅26 cm	1		160-170	25-35
Swiss Roll	swiss roll tin	1		180-200	10-20
Fruit Pie	plate ∅20 cm or pie tin	1		170-190	60-75
Quiche	quiche tin (dark coated)	1		190-200	35-45
(White) Bread	loaf tin (1x 900 g or 2x 450 g)	1		190-200	45-55
Scones	baking tray	1 190-210 15-20
Biscuits	baking tray	2 140-160 15-30
Jam tarts	12-cup-tin	1 170-190 15-30
Soufflé	1,2 L-soufflé dish	1		160-170	40-50
Meat Pie	rectangular pie tin	1		190-210	40-55
Jacket potatoes	baking tray	2		150-170	60-90
Meat
Beef, slow roast joint	wire rack	1		140+150	35+40
Casserole
Diced meat (beef, pork, lamb), 500 g meat	cookware, covered	1		140	100-120
Braising steak	cookware, covered	1		140	65+60
Fish
Fish, braised, whole 300 g, e.g. trout	cookware, covered	1		190-210	25-35
Dish Accessories/cookware Shelf po-		sition	Type of heating	Tempera-ture in °C	Cooking time in mins.
Fish, braised, whole 1,5 kg, e.g. salmon	cookware, covered	1	eco	190-210	45-55
Fish fillet, plain, braised, 100 g	cookware, covered	1	eco	190-210	15-35

Acrylamide in foodstuffs

Acrylamide is mainly produced in grain and potato products prepared at high temperatures, such as potato

crisps, chips, sliced bread, bread rolls, bread or fine baked goods (biscuits, gingerbread, spiced biscuit).

Tips for keeping acrylamide to a minimum

General ■ Keep cooking times as short as possible.■ Cook food until it is golden brown, but not too dark.■ Large, thick pieces of food contain less acrylamide.

Baking With top/bottom heating at max. 200 °C.With hot air at max. 180 °C.

Biscuits With top/bottom heating at max. 190 °C.With hot air at max. 170 °CEgg or egg yolk reduces the production of acrylamide.

Oven chips Spread out a single layer evenly on the baking tray. Cook at least 400 g at once on a baking tray so that the chips do not dry out.

Slow cook

Slow cooking is a technique for cooking food over a long period at low temperatures. For this reason, it is also called "low-temperature cooking".

Slow cooking is ideal for all prime cuts (e.g. tender portions of beef, veal, pork, lamb or poultry) which are to be cooked "à point". The meat will remain succulent and tender.

The benefit of this cooking method is that it allows lots of scope for menu planning because slow-cooked meat is easy to keep warm. You do not have to turn the meat when cooking. Keep the appliance door closed in order to maintain an even cooking climate.

Only use fresh, clean and hygienic meat without bones. Carefully remove sinews and fat from around the edge. Fat develops a strong, distinct flavour during slow cooking. You can also use seasoned or marinated meat. Do not use defrosted meat.

Meat can be carved immediately following slow cooking. No standing time is required. Due to the special cooking method, the meat looks pink, but is not raw or undercooked.

Note: Delayed-start operation with an end time is not possible for the slow cooking heating type.

Cookware

Use flat cookware, e.g. a glass/porcelain serving dish. Place the cookware into the cooking compartment to preheat it.

Always place the uncovered cookware onto the wire rack at level 1.

You can find additional information in the tips on slow cooking attached to the settings table.

Your appliance features the heating type "Slow cook". Only start operation when the cooking compartment has fully cooled down. Allow the cooking compartment to warm up for around 10 minutes with the cookware inside.

Sear the meat on the hotplate at a very high heat and for a sufficiently long time on all sides, even on the ends. Place into the preheated cookware right away. Place the cookware containing the meat into the cooking compartment once again and cook slowly.

Recommended setting values

The slow cooking temperature and cooking time are dependent on the size, thickness and quality of the meat. Different settings ranges are indicated for this reason.

Type of heating used:

■ Low temperature cooking

Dish Cookware Shelf posi-			tion	Heating function	Searing time in mins	Tempera-ture in °C	Cooking time in mins
Poultry
Duck breast, medium rare, 300 g each	Cookware, uncovered 1	6-8	95*	45-60
* Preheat

Dish	Cookware	Shelf position	Heating function	Searing time in mins	Temperature in °C	Cooking time in mins
Chicken breast fillet, 200 g each, well done	Cookware, uncovered 1	4 120* 45-60
Turkey breast, boned, 1 kg, well done	Cookware, uncovered 1	6-8 120* 100-130
Pork
Pork tenderloin steak, 5-6 cm thick, 1.5 kg	Cookware, uncovered 1	6-8 85* 130-180
Fillet of pork, whole Cookware, uncovered 1	4-6 85* 45-70
Beef
Joint of beef (rump), 6-7 cm thick, 1.5 kg	Cookware, uncovered 1	6-8 100* 150-190
Fillet of beef, 1 kg Cookware, uncovered 1	4-6 85* 90-120
Sirloin, 5-6 cm thick Cookware, uncovered 1	6-8 85* 120-180
Beef medallions/rump steak, 4 cm thick	Cookware, uncovered 1	4 85* 40-60
Veal
Joint of veal, 4-5 cm thick, 1.5 kg Cookware, uncovered 1	6-8 85* 100-130
Joint of veal, 7-10 cm thick, 1.5 kg Cookware, uncovered 1	6-8 85* 150-210
Fillet of veal, whole, 800 g Cookware, uncovered 1	4-6 85* 70-120
Veal medallions, 4 cm thick Cookware, uncovered 1	4 80* 40-60
Lamb
Saddle of lamb, boneless, 200 g each	Cookware, uncovered	1	4	85*	30-45
Leg of lamb, boned, medium, 1 kg, tied	Cookware, uncovered 1	6-8 95* 120-180
* Preheat

Tips for slow cooking

Slow-cooking duck breast.	Place the cold duck breast into a pan and fry the skin side first. After slow cooking, grill for 3 to 5 minutes until crispy.
The slow-cooked meat is not as hot as conventionally roasted meat.	So that the roasted meat does not cool so quickly, warm the plates and serve the sauces very hot.

Drying

You can achieve outstanding drying results with CircoTherm. With this type of preserving, flavourings are concentrated by the dehydration.

Only use unblemished fruit, vegetables and herbs and wash them thoroughly. Line the wire rack with greaseproof paper or parchment paper. Drain the excess water from the fruit and dry it.

If necessary, cut it into equal chunks or thin slices. Place unpeeled fruit onto the dish with the sliced surfaces facing upwards. Ensure that neither fruit nor mushrooms overlap on the wire rack.

Grate vegetables and then blanch them. Allow the blanched vegetables to drain off and distribute them evenly on the wire rack.

Dry herbs on the stem. Position the herbs evenly and slightly heaped on the wire rack.

Use the following shelf positions when drying:

■ 1 wire rack: Level 2
■ 2 wire racks: Level 3+1

Turn very juicy fruit and vegetables several times. After drying, remove the dried products from the paper immediately.

Recommended setting values

In the table, you can find settings for drying various foodstuffs. The temperature and cooking time are dependent on the type, moisture, ripeness and thickness of the food to be dried. The longer you leave the food to be dried, the better it will be preserved. The thinner the slices are, the quicker the drying process will be and the more aromatic the dried food will remain. Setting ranges are indicated for this reason.

If you wish to dry additional foodstuffs, you should use similar foodstuffs in the table as a reference.

Type of heating used:

■ CircoTherm

Dish Accessories Shelf posi-			tion	Type of heating	Tempera-ture in °C	Cooking time in hours
Pomes (apple rings, 3 mm thick, 200 g per wire rack)	Wire rack 2	80 4-7
Stone fruit (plums) Wire rack 2	80 8-10
Root vegetables (carrots), grated, blanched Wire rack 2	80 4-7
Sliced mushrooms Wire rack 2	60 6-8
Herbs, washed 1-2 wire racks -	60 2-6

Preserving and juicing

Your appliance is also suitable for preserving and juicing.

Preserving

You can preserve fruit and vegetables using your appliance.

⚠ Warning – Risk of injury!

If the food is preserved incorrectly, the preserving jars may burst. Follow the instructions for preserving.

Jars

Use only clean and undamaged preserving jars. Only use heat-resistant, clean and undamaged rubber rings. Check clips and clamps in advance.

Tip: You can use the disinfecting function to clean the jars.

For each preserving process, only use preserving jars that are the same size and contain the same food. In the cooking compartment, you can preserve the contents of a maximum of six 12 , 1 or 112 -litre preserving jars at the same time. Do not use jars that are larger or taller than this. The lids could rupture.

Preserving jars must not touch one another in the cooking compartment during the preserving process.

Preparing fruit and vegetables

Only use fruit and vegetables that are in good condition. Wash them thoroughly.

Peel, core and chop fruit and vegetables appropriate to their type and fill the preserving jars with them up to approx. 2 cm below the rim.

Fruit: Fill the preserving jars with the fruit along with a hot, skimmed sugar solution (approx. 400 ml for a 1-litre jar). For one litre of water:

■ Approx. 250 g sugar for sweet fruit

■ Approx. 500 g sugar for sour fruit

Vegetables: Fill the jars with the vegetables along with hot, boiled water.

Wipe the rims of the jars, as they must be clean. Place a damp rubber ring and a lid on each jar. Seal the jars with clamps. Place the jars into the perforated steam container (size XL) so that they do not touch each other. Pour 500 ml hot water (approx. 80 °C) into the universal pan. Use the settings indicated in the table.

Ending the preserving process

After the specified cooking time, open the appliance door. Do not remove the preserving jars from the cooking compartment until they have completely cooled down.

Wipe the cooking compartment clean afterwards.

Juicing

Before juicing, place the berries in a bowl and sprinkle with sugar. Leave to stand for at least one hour to draw out the juice.

Then fill the perforated steam container (size XL) with the berries and insert into the oven at level 2. Slide the universal pan in underneath to collect any juice. Use the settings indicated in the table.

After cooking, wrap the berries in a cloth and squeeze out the remaining juice.

Wipe the cooking compartment clean afterwards.

Recommended setting values

The times indicated in the settings table are guideline values for preserving fruit and vegetables and for juicing fruit. They may be influenced by room temperature, number of jars, quantity, heat and the quality of the jar contents. The specifications are based on 1-litre round jars.

Type of heating used:

■ Steam cooking

Dish Accessories/cookware Shelf posi-		tion	Type of heating	Tempera-ture in °C	Cooking time in mins.
Preserving
Vegetables, e.g. carrots	1-litre preserving jars + XL steam container	1		100	30-120
Stone fruit, e.g. cherries, damsons	1-litre preserving jars + XL steam container	1		100	25-30

Dish Accessories/cookware Shelf posi- tion	Type of heating	Tempera-ture in °C	Cooking time in mins.
Pomes, e.g. apples, strawberries 1-litre preserving jars + XL steam container 1 ≈ 100 25-30
Juicing
Raspberries Steam container 2 ≈ 100 30-45
Redcurrants Steam container 2 ≈ 100 40-50

Sterilising bottles and hygiene

Using your appliance, you can very easily sterilise cookware and baby feeding bottles. The process corresponds to normal sterilisation by boiling.

Sterilising bottles

Always clean the bottles with a bottle brush immediately after use. Then clean them in the dishwasher.

Place the bottles into the steam container, size XL, so that they do not touch each other. Start the programme "Sterilising". After sterilising, wipe the appliance down inside. Dry the bottles with a clean cloth after sterilising.

Hygiene

Your appliance is also suitable for preparing jam jars or preserving jars and their corresponding lids.

Post-treatment of jam is also possible. This improves the storage life of the jam.

Recommended setting values

Only use clean, intact jars and lids. They should ideally be cleaned in the dishwasher in advance. Cookware must be heat- and steam-resistant.

The recommended times are dependent on the jars used.

Type of heating used:

■ Steam cooking

Dish Accessory Shelf po-		sition	Type of heating	Tempera-ture in °C	Cooking time in mins.
Hygiene
Preparing jam jars or preserving jars	XL steam container	1		100	10-15
Post-treating jam jars	XL steam container	1		100	15-20
Sterilising clean cookware*	XL steam container	1		100	15-20
* This process corresponds to normal sterilisation by boiling.

Allowing the dough to prove at dough proving setting

Yeast dough will prove considerably more quickly using the "Dough proving" heating type than at room temperature and does not dry out. Only start operation when the cooking compartment has fully cooled down.

Always allow yeast dough to prove twice. Observe the specifications in the settings tables for the 1st and 2nd proving processes (dough fermentation and final fermentation).

Dough fermentation

Position the dough bowl on the wire rack for the dough fermentation. Use the settings indicated in the table.

Do not open the appliance door during the proving process, as moisture will escape. Do not cover the dough.

Final fermentation

Place your baked item into the oven at the shelf position indicated in the table.

Wipe moisture from the cooking compartment before baking.

Recommended setting values

The temperature and proving time are dependent on the type and quantity of the ingredients. The values in the table are therefore only meant to be average values.

Type of heating used:

■ Dough proving

Dish	Accessories/cookware	Shelf position	Type of heating	Step	Dough proving setting	Cooking time in mins.
Yeast dough, sweet

Dish Accessories/cookware Shelf posi-			tion	Type of heating	Step	Dough proving setting	Cooking time in mins.
E.g. small baked items Bowl 1 ⇌ Dough fer-					mentation	1 30-45
	Universal pan 1 ⇌ Final ferment-				tation	1 10-20
Rich dough, e.g. panettone Bowl 1 ⇌ Dough fer-					mentation	2 40-90
	Tin on wire rack 1 ⇌ Final ferment-				tation	2 30-60
Yeast dough, savoury
E.g. pizza Bowl 1 ⇌ Dough fer-					mentation	1 20-30
	Universal pan 1 ⇌ Final ferment-				tation	1 10-15
Bread dough
White bread Bowl 1 ⇌ Dough fer-					mentation	1 30-40
	Universal pan 1 ⇌ Final ferment-				tation	1 15-25
Multigrain bread Bowl 1 ⇌ Dough fer-					mentation	1 25-40
	Universal pan 1 ⇌ Final ferment-				tation	1 10-20
Bread rolls Bowl 1 ⇌ Dough fer-					mentation	1 30-40
	Universal pan 1 ⇌ Final ferment-				tation	1 15-25

Sous-vide

Sous-vide cooking is a method of cooking under a vacuum at low temperatures between 50-95 C and in 100% steam.

Sous-vide cooking is a gentle method of preparing meat, fish, vegetables and desserts. A chamber vacuum-packing machine is used to heat-seal the food in a special air-tight, heat-resistant vacuum-sealing bag.

The protective envelope of the vacuum-sealing bag retains the nutrients and flavours. The low temperatures and the direct transfer of heat allow precisely controlled cooking in order to achieve the desired cooking results. It is almost impossible to overcook the food.

Portions

Take into consideration the specified quantities and sizes for the food listed in the settings table. For relatively large quantities and items, the cooking time must be adjusted accordingly. The appliance can cook up to 2 kg of food sous-vide.

The quantities given for fish, meat and poultry correspond to one to two portions. A portion size sufficient for four people has been selected for vegetables and desserts.

Rack levels

You can cook on up to two levels. For this purpose, always slide in the universal pan at level 1 to catch any

drops of condensate. Insert the wire racks at the levels above accordingly.

Hygiene

Warning – Health risk!

Sous-vide cooking is a method of cooking at low temperatures. As a result, it is important that you always follow the application and hygiene instructions below:

■ Only use high-quality, perfectly fresh food.
■ Wash and disinfect your hands. Use disposable gloves or cooking/grill tongs.
■ Take extra care when preparing hygienically critical food, such as poultry, eggs and fish.
■ Always thoroughly rinse and/or peel fruit and vegetables.
■ Always keep work surfaces and chopping boards clean. Use different chopping boards for different types of food.
- Maintain the cold chain. Make sure that you only interrupt it briefly to prepare the food, and then return the food in its vacuum-sealed bag to the refrigerator for storage before you cook it. Store the prepared food for a maximum of 24 hours.
- Food is suitable for immediate consumption only. Once the food is cooked, consume it immediately. Do not store it after cooking – not even in the refrigerator. It is not suitable for reheating.

Tip: Since germs can be found on the surface of almost all food, the best way to kill these germs is to put the vacuum-sealed, uncooked food in boiling water for a maximum of 3 seconds. This is the best way to prepare your ingredients for sous-vide cooking so that they are free from germs and hygienic. Then place the vacuum-sealing bag in the cooking compartment to sous-vide cook the food.

Vacuum-sealing bags

When using the sous-vide cooking method, only use heat-resistant vacuum-pack bags designed for this purpose.

The vacuum-sealing bag must only be used once. Do not use these bags more than once.

Do not cook the food in the bag you bought it in (e.g. portions of fish). These bags are not suitable for sous-vide cooking.

Vacuum-sealing

Use a chamber vacuum-packing machine that can create a 99% vacuum to vacuum-seal the food. This is the only way to achieve even heat transfer and therefore a perfect cooking result.

Note: To fill the vacuum-sealing bag, fold the edge of the bag down by 3-4 cm and place it into a container, e.g. into a measuring jug.

Before cooking the food, check whether the vacuum in the vacuum-sealing bag is intact. Make sure that:

■ There is no/hardly any air in the vacuum-sealing bag.
■ The heat-sealed seam is perfectly sealed.
■ There are no holes in the vacuum-sealing bag. You do not use the core temperature probe.
■ You do not pile pieces of meat or fish on top of one another.
■ As far as possible, you avoid piling up vegetables and desserts when vacuum-sealing them.
■ To ensure that the seam is perfect, it is important that the seam area on the edge of the vacuum-sealing bag does not become wet with food residue.

If in doubt, place the food into a new vacuum-sealing bag and vacuum-seal it again.

Food should be vacuum-sealed at most one day before it is cooked. This is the only way to prevent the escape of gases from the food (e.g. from vegetables) which inhibit the transfer of heat, or to prevent the texture of the food from changing, and thus altering how it cooks, as a result of the vacuum pressure.

Quality of the food

The quality of the cooking result is 100% influenced by the quality of the ingredients you use. Use only fresh, top-quality food. This is the only way to guarantee a consistent cooking result that delivers impeccable flavour.

Preparation

Cooking under a vacuum means that the flavours cannot escape. In using this method, please note that the usual quantities of seasoning and condiments, such as herbs, spices and garlic, can have a much greater effect on the flavour and can intensify the flavour. You should therefore start off by halving the quantities you usually use.

If the ingredients are of high quality, it is often sufficient to enclose them in the vacuum-sealing bag with just a small knob of butter and a little salt. Generally, the fact that the food's natural flavours intensify during cooking is sufficient on its own to produce a flavourful cooking result.

The following ingredients influence how the food is prepared:

■ Salt and sugar reduce the cooking time
■ Acidic food, such as lemon or vinegar, help the food to firm up
■ Alcohol or garlic give the food an unpleasant after-taste

Do not place the vacuum-sealed food items on top of one another or too close together on the wire racks. In order to ensure that the heat is distributed evenly, the food items should not be touching. Always slide in the universal pan at level 1 to catch any drops of condensate.

Caution!

Risk of damage to kitchen units

Only fill the water tank once for sous-vide cooking. Do not fill the water tank a second time. Otherwise, large volumes of water will accumulate on the cooking compartment floor. The water may leak out of the cooking compartment.

The preparation of food that is listed in the settings table is based on how long one tankful lasts.

In general, when the water tank has been completely filled, the following maximum cooking times apply, depending on the temperature:

Temperature in °C Max. cooking time in min

50 270

60 210

70 150

80 120

90 90

⚠ Warning – Risk of scalding!

Hot water collects on the vacuum-sealing bag during cooking. Use an oven cloth to carefully lift the vacuum-sealing bag, so that the hot water runs off into the universal pan or the cooking container. Then use the oven cloth to carefully remove the vacuum-sealing bag.

Once the food is cooked, allow the cooking compartment to cool and then use a sponge to wipe away the water that is on the cooking compartment floor.

Dry the vacuum-sealing bag from the outside, place it in a clean container, and use scissors to open it. Place all of the food, along with its juices, into the container. You can use the stock or marinade to make a sauce.

The food can be finished off as follows once the sous-vide cooking stage is complete:

Meat: Flash fry in a frying pan at a very high temperature for a few seconds only on each side. This gives it a nice crust and the flavours you would expect from frying, without overcooking it.

Important: Dab the meat with a paper towel before placing it into hot oil, in order to avoid fat spitting out of the pan.

Vegetables: Flash fry in a frying pan to give them the flavours you would expect from frying. When frying vegetables like this, it is easy to season them or mix them with other ingredients.

Fish: Season and coat with hot butter.

Fry the food for longer if has not been sufficiently well cooked during the sous-vide cooking stage.

Serve the food on pre-heated plates and, if possible, with a hot sauce or butter as sous-vide cooking takes place at relatively low temperatures.

Food Accessories Heating		function	Tempera-ture in °C	Cooking time in min	Tip/note
Meat
Veal steak, medium, 2 cm thick Wire rack + universal pan		60	80	Vacuum-seal along with some butter and rosemary.
Beef steak (topside, saddle, etc.), rare, 2 - 3 cm thick	Wire rack + universal pan	58	90
Beef steak (topside, saddle, etc.), medium, 2 - 3 cm thick	Wire rack + universal pan	62	80
Fillet steak, whole piece, rare, 3 - 4 cm thick	Wire rack + universal pan	58	100
Fillet steak, whole piece, medium, 3 - 4 cm thick	Wire rack + universal pan	62	90
Pork medallions (80 g each) Wire rack + universal pan		63	75	Vacuum-seal along with some butter and fresh basil.
Saddle of lamb, boned Wire rack + universal pan		58	50	Vacuum-seal along with some salt, but-ter and thyme.
Poultry
Duck breast (350 g each) Wire rack + universal pan		62	70	Cut into the layer of fat, season the meat side with a little salt and pepper, and vacuum-seal it along with a small piece of orange peel.
Chicken breast (250 g each) Wire rack + universal pan		65	60	Vacuum-seal along with some butter, a little salt and some thyme.
Fish
Cod (140 g each) Wire rack + universal pan		58	25	Vacuum-seal along with some butter and a little salt.
Halibut/turbot (150 g each) Wire rack + universal pan		58	30
Pike-perch (140 g each) Wire rack + universal pan		60	20
Vegetables
Cauliflower (500 g) Wire rack + universal pan		85	40 - 50	Vacuum-seal along with a little water, butter, salt and nutmeg.
Mushrooms, quartered (500 g)	Wire rack + universal pan	85	20 - 25	Vacuum-seal along with some butter, rosemary, a little garlic and some salt.
Chicory, halved (x 4 - 6)	Wire rack + universal pan	85	40 - 45	Vacuum-seal along with some orange juice, sugar, salt, butter and thyme.
Green asparagus, whole (600 g)	Wire rack + universal pan	85	20 - 30	Blanch before vacuum-sealing to retain the colour. Vacuum-seal along with some butter, salt, a little sugar and some pepper.
Carrots, in 0.5 cm slices (600 g)	Wire rack + universal pan	90	70 - 80	Vacuum-seal along with some orange juice, curry powder/paste and butter.
Potatoes, peeled and quartered (800 g)	Wire rack + universal pan	95 35 - 45	Vacuum-seal along with some butter and salt.Can easily be used for making dishes such as salad.
Cherry tomatoes, whole or halved (500 g)	Wire rack + universal pan	58 25 - 35	Mix together red and yellow cherry tomatoes.Vacuum-seal along with some olive oil,salt and sugar.
Squash, in 2 x 2 cm cubes (600 g)	Wire rack + universal pan	90 25 - 35	The cooking time may vary depending on the type of squash.
Courgettes, in 1 cm slices (600 g)	Wire rack + universal pan	85 25 - 30	Vacuum-seal along with some olive oil,salt and thyme.
Mangetout, whole (500 g)	Wire rack + universal pan	85 5 - 10	Vacuum-seal along with some butter and salt.
Dessert
Pineapple in 1.5 cm slices (400 g)	Wire rack + universal pan	85 70 - 80	Vacuum-seal along with some butter,honey and vanilla.
Apple, peeled, in 0.5 cm slices (x 2 - 4)	Wire rack + universal pan	85 15 - 25	Vacuum-seal along with some caramel sauce.The cooking time may vary depending on the type of apple.
Bananas, whole (x 2 - 4)	Wire rack + universal pan	65 20 - 25	Vacuum-seal along with some butter,honey and a vanilla pod.
Pear, peeled, sliced (x 2 - 4)	Wire rack + universal pan	85 25 - 35	Add honey or sugar to sweeten.
Kumquats, halved (x 12 - 16)	Wire rack + universal pan	85 75 - 80	Rinse under warm water, cut in half and deseed.Vacuum-seal along with some butter, a vanilla pod, honey and apricot jam.
Vanilla sauce (0.5 l)	Wire rack + universal pan	80 15 - 25	Mix 0.5 l milk, 1 egg, 3 egg yolks, 80 g sugar, pulp of a vanilla pod, and vac-uum-seal.

Defrosting

The defrost setting is suitable for defrosting frozen fruit and vegetables. Use the heating type 4D hot air to defrost baked items. Poultry, meat and fish should ideally be defrosted in the refrigerator.

Remove frozen food from any packaging when defrosting it.

Place frozen fruit and vegetables into the perforated steam container (size XL) and slide the universal pan in underneath. This means that the food does not remain in the meltwater and that any dripping liquid will be caught. Use the universal pan or cookware on the wire rack for frozen food where liquid should remain in the dish, e.g. frozen creamed spinach.

Place the baked item onto the wire rack.

Recommended setting values

The times in the table are average values. They are dependent on the quality, freezing temperature (-18 °C) and composition of the food. Time ranges are indicated. Set the shortest time first and then increase the time if necessary.

Tip: Items which were frozen flat or portioned defrost faster than those frozen in a block.

Types of heating used:

CircoTherm
■ Defrost setting

Dish Accessories Shelf posi-		tion	Type of heating	Tempera-ture in °C	Cooking time in mins.
Bread, bread rolls
General	Baking tray	1		50	40-70

Dish Accessories Shelf posi- tion	Type of heating	Tempera-ture in °C	Cooking time in mins.
Cake
Cake, moist Baking tray 1 ⚙ 50 70-90
Cake, dry Baking tray 1 ⚙ 60 60-75
Fruit, vegetables
Berries Steam container 2 ⚙ 30-40 10-15
Vegetables Steam container 2 ⚙ 40-50 15-50

Reheating

Using heating type "Reheating", food is reheated gently using steam. It tastes and looks as though it has been freshly prepared. Even baked items from the day before can be re-crisped.

Use containers which are as flat, wide and heat-resistant as possible. Cold containers prolong the reheating process.

Where possible, only reheat dishes of the same size and type at the same time. If this is not possible, the time required for the component with the longest reheating time should be used as a basis.

Do not cover food while it is being reheated.

Place the food in the cookware onto the wire rack or place it directly onto the wire rack at level 1.

Do not open the appliance door during operation, as a lot of steam will escape.

Recommended setting values

In the table, you can find the ideal settings for various dishes. The times specified are only average values. They are dependent on the cookware used, the quality, temperature and consistency of the food. Time ranges are indicated. Set the shortest time first and then extend the time if necessary.

The values in the table apply to dishes placed into a cold cooking compartment. Preheating is necessary for selected dishes, and this is indicated in the table.

Remove unused accessories from the cooking compartment. This will allow you to achieve ideal cooking results and save energy.

Type of heating used:

■ Reheat

Dish Accessories/cookware Shelf posi-		tion	Type of heating	Tempera-ture in °C	Cooking time in mins.
Vegetables, chilled
1 kg	Cookware, uncovered	1		120-130	15-25
250 g	Cookware, uncovered	1		120-130	5-15
Dishes, chilled
Plated meal, 1 portion	Cookware, uncovered	1		120-130	15-25
Soup, stew, 400 ml	Cookware, uncovered	1		120-130	10-25
Side dishes, e.g. pasta, dumplings, potatoes, rice	Cookware, uncovered	1		120-130	8-25
Bakes, e.g. lasagne, potato gratin	Cookware, uncovered	1		120-140	10-25
Pizza, cooked	Wire rack	1		170-180*	5-15
Baked goods
Bread rolls, baguette, baked	Wire rack	1		150-160*	10-20
Pastries (vol-au-vents)	Wire rack	1		180*	4-10
Baked goods, frozen
Pizza, cooked	Wire rack	1		170-180*	5-15
Bread rolls, baguette, baked	Wire rack	1		160-170*	10-20
* Preheat

Keeping warm

You can keep cooked dishes warm using the "Keeping warm" heating type. You can use the various moisture levels to prevent the cooked dishes from drying out.

Do not cover the food.

Do not keep cooked dishes warm for longer than two hours. Be aware that some dishes may continue cooking whilst being kept warm. Do not cover the food.

The various steam levels are suitable for keeping the following foods warm:

■ Level 1: Roasted joints and pan-fried foods
■ Level 2: Bakes and side dishes
■ Level 3: Stews and soups

Test dishes

These tables have been produced for test institutes to facilitate appliance testing.

As per EN 60350-1.

Baking

Baked items that are placed into the oven on trays or in baking tins/dishes at the same time will not necessarily be ready at the same time.

Shelf positions for baking on two levels:

■ Universal pan: Level 3
Baking tray: Level 1

Apple pie

Apple pie on one level: place dark-coloured springform cake tins diagonally next to each other.

Cakes in tinplate springform cake tins: bake on one level with top/bottom heating. Place the springform

cake tin onto the universal pan instead of onto the wire rack.

Notes

■ The setting values apply to dishes placed into a cold cooking compartment.
■ Please note the information in the tables about preheating. The setting values are valid without rapid heating-up.
■ For baking, use the lower of the indicated temperatures first.

Types of heating used:

■ CircoTherm
■ Top/bottom heating
■ Circotherm intensive

The levels of steam intensity are indicated as numbers in the table:

■ 1 = Low
■ 2 = Medium
■ 3 = High

Dish Accessories/cookware Shelf posi-		tion	Type of heating	Tempera-ture in °C	Steam inten-sity	Cooking time in mins.
Baking
Shortbread Baking tray 1 ≡	150-160* - 25-40
Shortbread Baking tray 1 ≡	140-150* - 25-35
Shortbread, 2 levels	Universal pan + baking tray	3+1	≈	140-150*	-	30-40
Small cakes Baking tray 1 ≡	160* - 25-35
Small cakes Baking tray 1 ≡	150* - 25-35
Small cakes, 2 levels Universal pan + baking tray 3+1 ≡	150* - 25-35
Fatless sponge cake	Springform cake tin, diameter 26 cm	1	≡	160-170**	-	25-35
Fatless sponge cake	Springform cake tin, diameter 26 cm	1	≈	160-170**	-	25-35
Fatless sponge cake	Springform cake tin, diameter 26 cm	1	≈	150-160	1	10
					-20-30
Apple pie	2 x black plate tins, diameter 20 cm	1	≡	180-200	-	60-70
Apple pie	2 x black plate tins, diameter 20 cm	1	≈	170-180	-	60-80
* Preheat for 5 mins, do not use quick heat function** Preheat, do not use quick heat function

Steam

Slide the universal pan in under the perforated steam container (size XL) if indicated in the table. Any dripping liquid is caught.

Shelf positions for steaming on one level (use a maximum of 2.5 kg):

■ Perforated steam container (size XL): Level 2

Shelf positions for steaming on two levels (use a maximum of 1.8 kg per level):

■ Perforated steam container (size XL): Level 3
■ Perforated steam container (size XL): Level 2

Type of heating used:

■ Steam cooking

Dish Accessories Shelf posi-		tion	Type of heating	Tempera-ture in °C	Cooking time in mins.
Steam
Peas, frozen, two containers, 1.8 kg each	XL steam container x 2 + universal pan	3+2+1		100	3-15**
Broccoli, fresh, 300 g XL steam container 2 ≈ 100* 6-7***
Broccoli, fresh, one container XL steam container 2 ≈ 100* 6-7***
* Preheat
** Test is over when 85°C is reached at the coldest spot (see IEC 60350-1)
*** A comparable degree of cooking between reference sample and main sample is achieved if the reference sample is cooked for 5 minutes (produced as described in IEC 60350-1).

Grilling

Also slide in the universal pan. The liquid will be caught and the cooking compartment stays cleaner.

Type of heating used:

■ Full-surface grill

Dish Accessories Shelf posi-				tion	Type of heating	Tempera-ture in °C	Cooking time in mins.
Grilling
Browning toast Wire rack		3 ≈ 275 2-6
Beefburgers, x 12*	Wire rack			2	≈	275	20-30
* Turn after 2/3 of the total time

NEFF REGISTER YOUR PRODUCT ONLINE NEFF-HOME.COM Constructa NEFF Vertriebs-GmbH | Carl-Wery-Straße 34 | 81739 Munich | Germany 9001186506 980718 en

REGISTER YOUR PRODUCT

ONLINE NEFF-HOME.COM
