USER MANUAL TP-46N Kramer

Component/UXGA/Audio

Receiver

TP-46N Quick Start Guide

This guide helps you install and use your product for the first time. For more detailed information, go to http://www.kramerelectronics.com/support/product_downloads.asp to download the latest manual or scan the QR code on the left.

Step 1: Check what's in the box

TP-46N Component/UXGA

/Audio Receiver

1 Power supply (12V DC)

1 Quick Start sheet

4 Rubber feet per device

Illustration of a cardboard box with an open lid and a small inset image (no text or symbols)

Save the original box and packaging in case your product needs to be returned to the factory for service.

Step 2: Install the TP-46N

Mount the machine in a rack (using the RK-3T rack adapter) or place on a table.

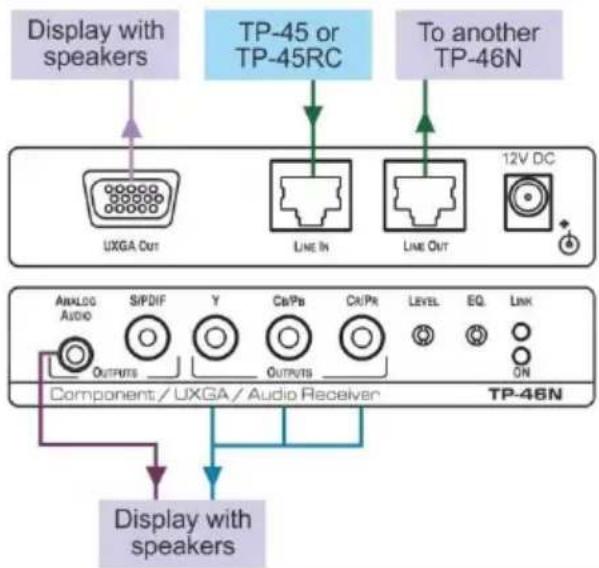

Step 3: Connect the inputs and outputs

Switch off the power on each device before connecting it to your TP-46N.

Use Kramer high-performance cables to connect AV equipment to the TP-46N.

Step 4: Connect the power

Connect a 12V DC power supply to the transmitter or receiver and plug the supply into the mains electricity.

Step 5: Operate the TP-46N

Adjust the LEVEL and EQ as needed.

Contents

1 Introduction 1

2 Getting Started 2

2.1 Achieving the Best Performance 2
2.2 Safety Instructions 2
2.3 Recycling Kramer Products 3

3 Overview 4

3.1 About the Power Connect Feature 5
3.2 Shielded Twisted Pair (STP)/Unshielded Twisted Pair (UTP) 5
3.3 Defining the TP-46N 6

4 Connecting a Component/UXGA/Audio Distribution System 7

4.1 Connecting the System in UXGA Mode 8
4.2 Connecting the System in Component Video Mode 10
4.3 Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors 12

5 Technical Specifications 13

Figures

Figure 1: TP-46N Component/UXGA/Audio Receiver 6
Figure 2: Distribution System, UXGA Mode 9
Figure 3: Distribution System, Component Video Mode 11
Figure 4: CAT 5 PINOUT 12

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Products.

Thank you for purchasing the Kramer TOOLS TP-46N Component/UXGA/Audio Receiver, that uses existing UTP cabling to create an efficient, fast and uncluttered environment for:

• Presentation and multimedia applications
• Long-range graphics distribution for schools, hospitals, security, and stores
  • Security and military applications

2 Getting Started

We recommend that you:

• Unpack the equipment carefully and save the original box and packaging materials for possible future shipment
• Review the contents of this user manual

Go to http://www.kramerelectronics.com/support/product_downloads.asp to check for up-to-date user manuals, application programs, and to check if firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

• Use only good quality connection cables (we recommend Kramer high-performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables)
• Do not secure the cables in tight bundles or roll the slack into tight coils
• Avoid interference from neighboring electrical appliances that may adversely influence signal quality
• Position your Kramer TP-46N away from moisture, excessive sunlight and dust

This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building.

2.2 Safety Instructions

Caution: There are no operator serviceable parts inside the unit

Warning: Use only the Kramer Electronics input power wall adapter that is provided with the unit

Warning: Disconnect the power and unplug the unit from the wall before installing

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected and recycled. To comply with the WEEE Directive, Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer's recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

3 Overview

The TP-46N is a twisted pair receiver for component video (YUV) or computer graphics video and unbalanced stereo or S/PDIF audio signals. The TP-45/TP-45RC transmitters convert audio and video to a twisted pair signal and the TP-46N converts the twisted pair signal back into audio and video signals.

By selecting the required video input signal, the TP-45 or TP-45RC with the TP-46N can constitute either a component video (Y, CB/PB, CR/PR) or a UXGA video–audio transmitter/receiver system:

The term UXGA used throughout this user manual implies VGA resolutions up to and exceeding UXGA.

The TP-46N does not convert the video signal format. Thus computer graphics sources must be routed to computer graphics outputs. Similarly, component video sources must be routed to component video outputs.

• If UXGA is selected, the TP-45 or TP-45RC receives a UXGA (and audio) signal and transmits it over the CAT 5 cable to the UXGA output on the TP-46N receiver
• If component video is selected, the component video signal is transmitted over the CAT 5 cable to the COMP outputs on the TP-46N receiver
• The analog audio or S/PDIF (digital audio)—as selected via the audio SELECT button—is transmitted together with the video signal over the CAT 5 cable to the TP-46N receiver

The audio signal is distributed simultaneously to the analog or digital audio outputs.

Additional TP-46N units can be connected via the TP-46N LINE OUT CAT 5 connector, to extend the range of the output signals.

You can connect up to three additional TP-46N units, adding a total cable length of up to 300 meters. The video quality may be reduced if further units are connected.

The TP-46N Component/UXGA/Audio Receiver features:

• YUV output on 3 RCA connectors and a computer graphics output on a 15-pin HD (F) connector

• Digital audio output (S/PDIF) on an RCA connector and a stereo analog output on a 3.5mm mini jack

• The Power Connect feature where the TP-46N can power the TP-45 or TP-45RC over the same CAT 5 cable (see Section 3.1)
  • EQ. and LEVEL controls
  • A CAT 5 output for transmitting the signal to an additional receiver

• 12V DC power

3.1 About the Power Connect Feature

The Power Connect feature applies as long as the cable can carry power. This feature is available when using STP cable and the distance does not exceed 50m (164ft) on standard CAT 5 cable. For longer distances, heavy gauge cable should be used (CAT 5 cable is still suitable for the video/audio transmission, but not for feeding the power at these distances). For units which are connected via RJ-45 connectors, make sure that the shield of the STP cable is connected to the metal casing of the connectors on both ends of the cable. For units which are connected via terminal block connectors, the shield of the STP cable must be connected to a ground terminal on the units at both ends (use the ground terminal of the power supply connection if necessary).

For a CAT 5 cable exceeding a distance of 50m, separate power supplies should be connected to the transmitter and to the receiver simultaneously.

3.2 Shielded Twisted Pair (STP)/Unshielded Twisted Pair (UTP)

We recommend that you use Shielded Twisted Pair (STP) cable, and stress that the compliance to electromagnetic interference was tested using STP cable. There are different levels of STP cable available, and we advise you to use the best quality STP cable that you can afford. Our non-skew-free cable, Kramer BC-STP is intended for analog signals where skewing is not an issue.

In cases where there is skewing, our Unshielded Twisted Pair (UTP) skew-free cable, Kramer BC-XTP, may be advantageous, and UTP cable might also be preferable for long range applications. In any event when using UTP cable, it is advisable to ensure that the cable is installed far away from electric cables, motors and so on, which are prone to create electrical interference.

3.3 Defining the TP-46N

Figure 1 defines the TP-46N Component/UXGA/Audio Receiver.

1 ANALOG AUDIO OUTPUTS S/PDIF Y CB/PB OUTPUTS CR/PR LEVEL EQ. LINK ON Component / UXGA / Audio Receiver TP-46N 10 UXGA OUT LINE IN LINE OUT 11 12 13 12V DC

Figure 1: TP-46N Component/UXGA/Audio Receiver

#	Feature		Function
1	OUTPUTS	ANALOG AUDIO3.5mm Mini Connector	Connect to the stereo analog audio acceptor
2		S/PDIF RCA Connector	Connect to the digital audio acceptor
3		Y RCA Connector	Connect to the component video acceptor
4		C_B/P_B RCA Connector
5		C_R/P_R RCA Connector
6	LEVEL Trimmer		Adjusts the output signal levelUse a screwdriver to carefully rotate the trimmer,adjusting the appropriate level
7	EQ. Trimmer		Adjusts the cable compensation equalization levelUse a screwdriver to carefully rotate the trimmer,adjusting the appropriate level
8	LINK LED		Lights when receiving the correct input signal
9	ON LED		Lights when receiving power
10	UXGA OUT 15-pin HD (F) Connector		Connect to the UXGA acceptor
11	LINE IN RJ-45 Connector		Connect to the LINE OUT RJ-45 connector on the TP-45 or TP-45RCUsing a UTP cable with CAT 5 connectors at both ends(the PINOUT is defined in Section 4.3
12	LINE OUT RJ-45 Connector		Connect to the LINE IN connector on an additional TP-46NUsing a UTP cable with CAT 5 connectors at both ends(the PINOUT is defined in Section 4.3
13	12V DC		+12V DC connector for powering the unit

4 Connecting a Component/UXGA/Audio Distribution System

The Component/UXGA/Audio Distribution System can be configured to operate in one of two video modes:

• In the UXGA mode, a computer graphics source is connected to the input and transmitted to a display connected to the receiver (see Section 4.1)
• In the component video mode, a component video source is connected to the input and transmitted to a TV set connected to the receiver (see Section 4.2

The Component/UXGA/Audio Distribution System can be configured to operate in one of two audio modes:

• In the analog mode, an analog audio source is connected to the input and transmitted to an acceptor connected to the receiver (see Section 4.1)
• In the digital audio mode, an S/PDIF audio source is connected to the input and transmitted to a digital acceptor connected to the receiver (see Section 4.2

The modes of the system are determined by setting the VIDEO SELECT and AUDIO SELECT switches on the TP-45 or TP-45RC. Whatever modes are set at the transmitter, the video and audio signals are sent to the receiver and to any additional cascaded receivers.

There is no signal conversion; a component input cannot be sent to a computer graphics output, nor can a digital audio input be sent to an analog audio output.

4.1 Connecting the System in UXGA Mode

To configure a TP-46N component/UXGA/audio distribution system in the UXGA mode (using up to 300ft (100m) of UTP cabling), as shown in Figure 2, do the following:

1. On the TP-45 or TP-45RC, connect the following:

2. An UXGA source (for example, the graphics card on a laptop) to the UXGA 15-pin HD (F) connector

3. An analog audio source to the ANALOG AUDIO 3.5mm mini jack (or a digital audio source to the S/PDIF RCA connector), for example, using a Kramer C-GMA/GMA cable (VGA 15-pin HD (M) with audio jack to VGA 15-pin HD (M) with audio jack)

Cables are not supplied. The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com.

1. On the TP-45, use the SELECT buttons as follows:

2. Press the video SELECT button to choose the UXGA input

3. Press the audio SELECT button to choose S/PDIF
   ■ Release the audio SELECT button to choose analog audio

4. On the TP-45RC, use the SELECT buttons as follows:

■ Momentarily press the video SELECT button. The UXGA LED lights when the UXGA input is selected
- Momentarily press the AUDIO SELECT button to toggle between the S/PDIF and analog audio inputs The analog audio LED lights when analog audio is selected.

1. On the TP-46N, connect the following:

2. The UXGA OUT 15-pin HD (F) connector to the UXGA acceptor (for example, a display)
   The ANALOG AUDIO 3.5mm mini jack to the analog audio acceptor (for example, speakers)
   Alternatively, you can connect a digital audio acceptor to the S/PDIF RCA connector, or you can connect both.

3. Connect the LINE OUTPUT RJ-45 connector on the TP-45 to the LINE IN RJ-45 connector on the TP-46N, via CAT 5 cabling, see Section 4.3.

4. Connect the 12V DC power adapter to the power socket and connect the adapter to the mains electricity on both the TP-45 and the TP-46N (not shown in Figure 2).

The signal from the UXGA source is transmitted via CAT 5 cable, decoded and converted at the UXGA OUT 15-pin HD (F) connector to the UXGA acceptor.

If you cannot connect the power to both the TP-45 and TP-46N, you can connect the power to the TP-46N alone (see Section 3.1).

1. If required, connect the LINE OUT RJ-45 connector on the TP-46N to an additional TP-46N.

Figure 2: Distribution System, UXGA Mode

4.2 Connecting the System in Component Video Mode

To configure a TP-46N component/UXGA/audio distribution system in the component video mode (using up to 300ft (100m) of UTP cabling), as shown in Figure 3, do the following:

1. On the TP-45 or TP-45RC, connect the following:

2. A component video source (for example, a DVD player) to the Y, Cb/Pb, Cr/Pr RCA connectors

3. A digital audio source to the S/PDIF RCA connector Alternatively, you can connect an analog audio source.

4. On the TP-45, use the SELECT buttons as follows:

5. Release the video SELECT button to choose the component video input

6. Press the audio SELECT button to choose S/PDIF
   ■ Release the audio SELECT button to choose analog audio

7. On the TP-45RC, use the SELECT buttons as follows:

8. Momentarily press the VIDEO SELECT button. The UXGA LED turns off when the component video input is selected

9. Momentarily press the AUDIO SELECT button to toggle between the S/PDIF and analog audio inputs
   The analog audio LED lights when analog audio is selected.

10. On the TP-46N, connect the following:

The Y, CB/PB, CR/PR RCA connectors to a component video acceptor (for example, a plasma display)
The S/PDIF RCA connector to the digital audio acceptor (for example, the audio input on the plasma display)
Alternatively, you can connect an analog audio acceptor, or you can connect both.

1. Connect the LINE OUTPUT RJ-45 connector on the TP-45/TP-45RC to the LINE IN RJ-45 connector on the TP-46N, via CAT 5 cabling, see Section 4.3.

2. Connect the 12V DC power adapter to the power socket and connect the adapter to the mains electricity on both the TP-45/TP-45RC and the TP-46N (not shown in Figure 3).

The signal from the component video source is transmitted via the CAT 5 cable; decoded and converted to component video and outputted on the Y, CB/PB, CR/PR OUTPUTS RCA connectors to the component video acceptor. If you cannot connect the power to both the TP-45 and TP-46N, connect it to the TP-46N only. If more than one TP-46N is connected, connect the power to each TP-46N unit

1. Connect the LINE OUT RJ-45 connector on the TP-46N to a second TP-46N unit (optional) (connect the required outputs to the second TP-46N).

2. Similarly, you can connect the LINE OUT RJ-45 connector on the TP-46N to additional TP-46N units.

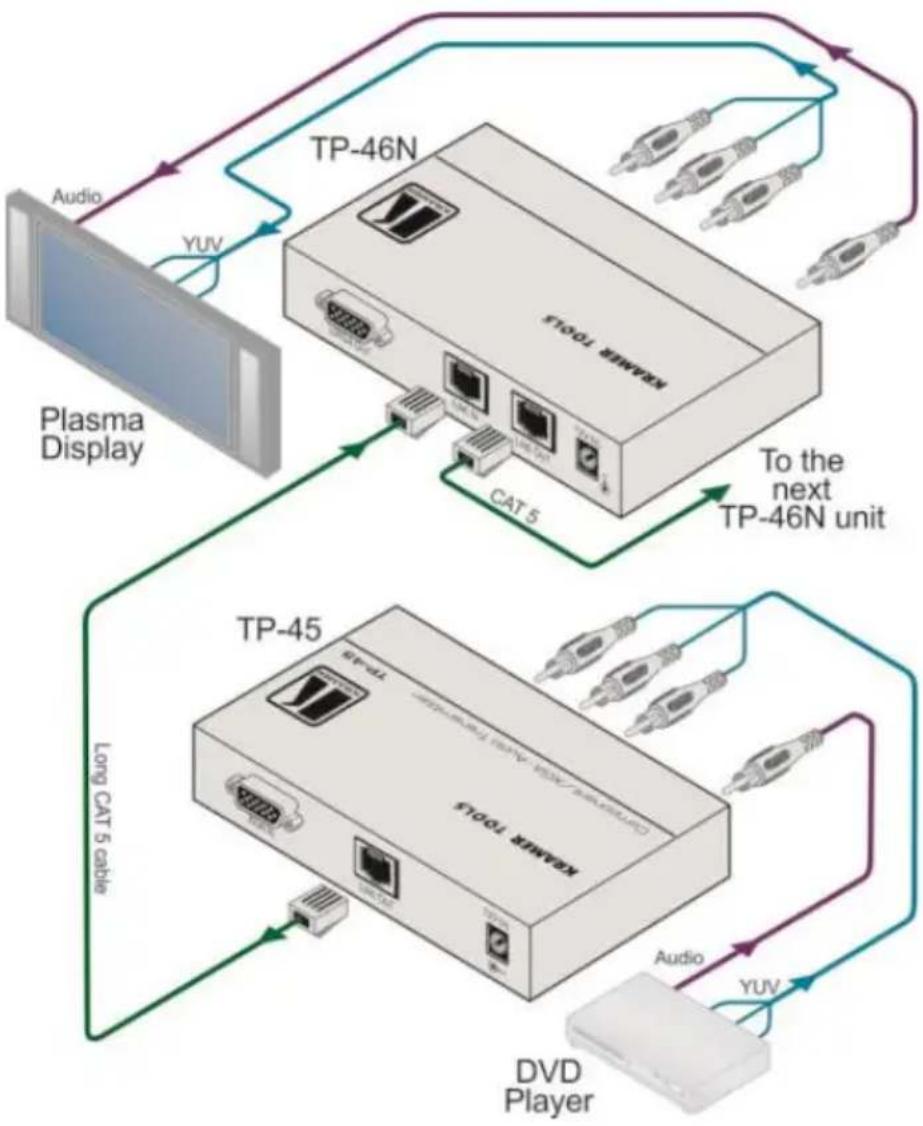


Figure 3: Distribution System, Component Video Mode

4.3 Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors

This section defines the CAT 5 pinout, using a straight pin-to-pin cable with RJ-45 connectors.

Note, that the cable ground shielding must be connected/soldered to the connector shield.

EIA /TIA 568B

PIN	Wire Color
1	Orange / White
2	Orange
3	Green / White
4	Blue
5	Blue / White
6	Green
7	Brown / White
8	Brown
Pair 1	4 and 5
Pair 2	1 and 2
Pair 3	3 and 6
Pair 4	7 and 8

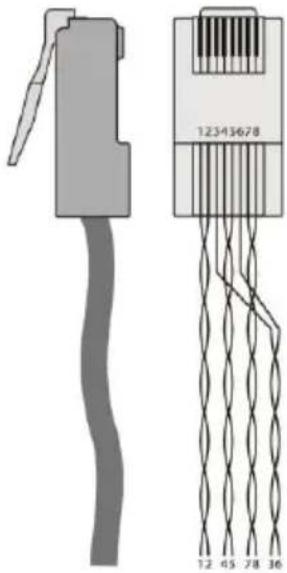

Figure 4: CAT 5 PINOUT

Diagram of a 12343678 connector with cable and pinout details (no text or symbols on the diagram itself)

5 Technical Specifications

Video Specifications
INPUTS:	1 CAT 5 line In on an RJ-45 connector (video/audio)
OUTPUTS:	1 CAT 5 line Extension on an RJ-45 connector (video/audio)1 VGA/UXGA 1Vpp/75Ω on a 15-pin HD connector1 component 1Vpp/75Ω (Y,Pb,Pr) on 3 RCA connectors
MAX. INPUT LEVEL:	VGA: 1.2Vpp on 75Ω, DC couplingY,Pb,Pr: 1.05Vpp on 75Ω, AC coupling
RETURN LOSS:	-18dB
MAX. OUTPUT LEVEL:	VGA: 1.5Vpp on 75Ω, DC couplingY,Pb,Pr: 1.25Vpp on 75Ω, DC coupling
VIDEO RESOLUTION:	Up to UXGA; 1080p
S/N RATIO:	61dB RMS unweighted
K-FACTOR:	0.2%
ISOLATION (CROSSTALK):	-43dB @ 5MHz
AUDIO Specifications
OUTPUTS:	1 stereo analog audio, 0dBu/1kΩ, 0.5V/75Ω, on a 3.5mm jack1 digital S/PDIF audio on an RCA connector
MAX. AUDIO INPUT LEVEL ANALOG:	4dBu on 50kΩ, AC coupling
MAX. AUDIO OUTPUT LEVEL ANALOG:	4dBu on 1kΩ, DC coupling
AUDIO BANDWIDTH:	20Hz to 20kHz, @ 0dBu
TND+NOISE:	0.33% @ 0dBu @ 1kHz
SAMPLE RATE CONVERSION:	48kHz
RESOLUTION CONVERSION:	24 bits
OPERATING TEMPERATURE:	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE:	-40° to +70°C (-40° to 158°F)
HUMIDITY:	10% to 90%, RHL non-condensing
POWER CONSUMPTION:	12V DC; 140mA (TP-45/RC), 830mA (TP-46N)
DIMENSIONS:	12 cm x 7.2 cm x 2.8 cm (4.7" x 2.8" x 1.1") W, D, H
WEIGHT:	0.3kg (0.67lbs) approx
ACCESSORIES:	Power supply
OPTIONS:	RK-3T 19" rack adapter
Specifications are subject to change without notice at http://www.kramerelectronics.comVideo specifications are for 100m of CAT 5 UTP cable, unless otherwise specified

LIMITED WARRANTY

The warranty obligations of Kramer Electronics for this product are limited to the terms set forth below:

What is Covered

This limited warranty covers defects in materials and workmanship in this product.

What is Not Covered

This limited warranty does not cover any damage, deterioration or malfunction resulting from any alteration, modification, improper or unreasonable use or maintenance, misuse, abuse, accident, neglect, exposure to excess moisture, fire, improper packing and shipping (such claims must be presented to the carrier), lightning, power surges, or other acts of nature. This limited warranty does not cover any damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Kramer Electronics to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product. This limited warranty does not cover cartons, equipment enclosures, cables or accessories used in conjunction with this product.

Without limiting any other exclusion herein, Kramer Electronics does not warrant that the product covered hereby, including, without limitation, the technology and/or integrated circuit(s) included in the product, will not become obsolete or that such items are or will remain compatible with any other product or technology with which the product may be used.

How Long Does this Coverage Last

Seven years as of this printing; please check our Web site for the most current and accurate warranty information.

Who is Covered

Only the original purchaser of this product is covered under this limited warranty. This limited warranty is not transferable to subsequent purchasers or owners of this product.

What Kramer Electronics will do

Kramer Electronics will, at its sole option, provide one of the following three remedies to whatever extent it shall deem necessary to satisfy a proper claim under this limited warranty:

1. Elect to repair or facilitate the repair of any defective parts within a reasonable period of time, free of any charge for the necessary parts and labor to complete the repair and restore this product to its proper operating condition. Kramer Electronics will also pay the shipping costs necessary to return this product once the repair is complete.
2. Replace this product with a direct replacement or with a similar product deemed by Kramer Electronics to perform substantially the same function as the original product.
3. Issue a refund of the original purchase price less depreciation to be determined based on the age of the product at the time remedy is sought under this limited warranty.

What Kramer Electronics will not do Under This Limited Warranty

If this product is returned to Kramer Electronics or the authorized dealer from which it was purchased or any other party authorized to repair Kramer Electronics products, this product must be insured during shipment, with the insurance and shipping charges prepaid by you. If this product is returned uninsured, you assume all risks of loss or damage during shipment. Kramer Electronics will not be responsible for any costs related to the removal or re-installation of this product from or into any installation. Kramer Electronics will not be responsible for any costs related to any setting up this product, any adjustment of user controls or any programming required for a specific installation of this product.

How to Obtain a Remedy under this Limited Warranty

To obtain a remedy under this limited warranty, you must contact either the authorized Kramer Electronics reseller from whom you purchased this product or the Kramer Electronics office nearest you. For a list of authorized Kramer Electronics resellers and/or Kramer Electronics authorized service providers, please visit our web site at www.kramerelectronics.com or contact the Kramer Electronics office nearest you.

In order to pursue any remedy under this limited warranty, you must possess an original, dated receipt as proof of purchase from an authorized Kramer Electronics reseller. If this product is returned under this limited warranty, a return authorization number, obtained from Kramer Electronics, will be required. You may also be directed to an authorized reseller or a person authorized by Kramer Electronics to repair the product.

If it is decided that this product should be returned directly to Kramer Electronics, this product should be properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization number will be refused.

Limitation on Liability

THE MAXIMUM LIABILITY OF KRAMER ELECTRONICS UNDER THIS LIMITED WARRANTY SHALL NOT EXCEED THE ACTUAL PURCHASE PRICE PAID FOR THE PRODUCT. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL THEORY. Some countries, districts or states do not allow the exclusion or limitation of relief, special, incidental, consequential or indirect damages, or the limitation of liability to specified amounts, so the above limitations or exclusions may not apply to you.

Exclusive Remedy

TO THE MAXIMUM EXTENT PERMITTED BY LAW, THIS LIMITED WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, EXPRESS OR IMPLIED. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF KRAMER ELECTRONICS CANNOT LAWFULLY DISCLAIM OR EXCLUDE IMPLIED WARRANTIES UNDER APPLICABLE LAW, THEN ALL IMPLIED WARRANTIES COVERING THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY TO THIS PRODUCT AS PROVIDED UNDER APPLICABLE LAW. IF ANY PRODUCT TO WHICH THIS LIMITED WARRANTY APPLIES IS A 'CONSUMER PRODUCT' UNDER THE MAGNUSON-MOSS WARRANTY ACT (15 U.S.C.A. §2301, ET SEQ.) OR OTHER APPLICABLE LAW, THE FOREGOING DISCLAIMER OF IMPLIED WARRANTIES SHALL NOT APPLY TO YOU, AND ALL IMPLIED WARRANTIES ON THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR THE PARTICULAR PURPOSE, SHALL APPLY AS PROVIDED UNDER APPLICABLE LAW.

Other Conditions

This limited warranty gives you specific legal rights, and you may have other rights which vary from country to country or state to state.

This limited warranty is void if (i) the label bearing the serial number of this product has been removed or defaced, (ii) the product is not distributed by Kramer Electronics or (iii) this product is not purchased from an authorized Kramer Electronics reseller. If you are unsure whether a reseller is an authorized Kramer Electronics reseller, please visit our Web site at www.kramerelectronics.com or contact a Kramer Electronics office from the list at the end of this document.

Your rights under this limited warranty are not diminished if you do not complete and return the product registration form or complete and submit the online product registration form. Kramer Electronics thanks you for purchasing a Kramer Electronics product. We hope it will give you years of satisfaction.

For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found.

We welcome your questions, comments, and feedback.

Web site: www.kramerelectronics.com

E-mail: [e-mail]

SAFETY WARNING

Disconnect the unit from the power supply before opening and servicing

P/N:

2900-300027

Rev:

3
