USER MANUAL KIT-8MBF ALPINE
Compatible with these Alpine navigation devices
INE-W928R


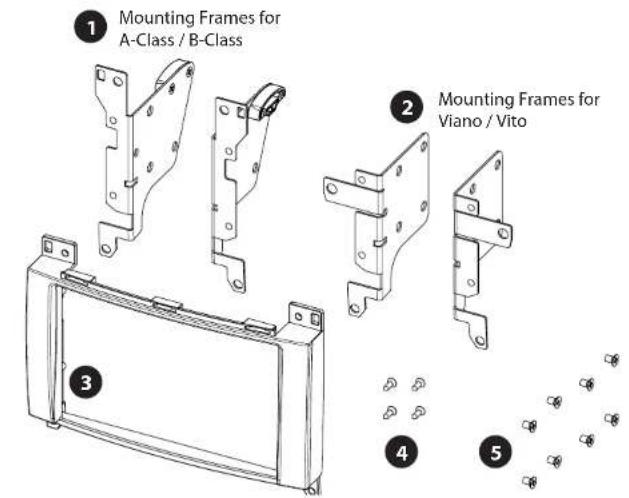

1 Mounting Frames for A-Class / B-Class 2 Mounting Frames for Viano / Vito 3 4 5• (1) Mounting Frames for A-Class / B-Class
• (2) Mounting Frames for Viano / Vito
• (3) Facia plate
• (4) countersunk flat head tapping screw
• (5) recessed countersunk flat head screw
Mercedes A-Class / B-Class


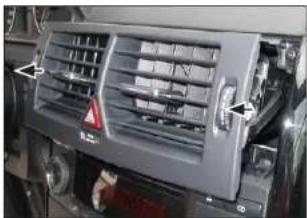

Interior view of a car dashboard with air vent grilles and control panel (no visible text or symbols)- Insert pulling hooks into air vent catches. Pull out air vents
Mercedes Viano / Vito


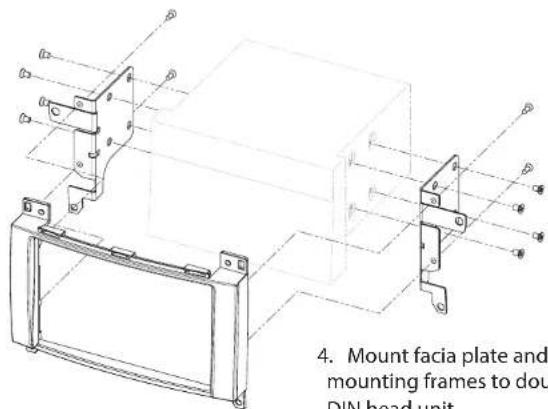

4. Mount facia plate and mounting frames to dou DIN head unit- Mount facia plate and mounting frames to double DIN head unit
Connect all required circuit points and push double DIN head into dash board
Mercedes A-Class / B-Class
Mercedes A-Class / B-Class
Reinstall everything in reverse order to finish installation.
Mercedes Viano / Vito
Remove OEM trim panel surrounding the radio.


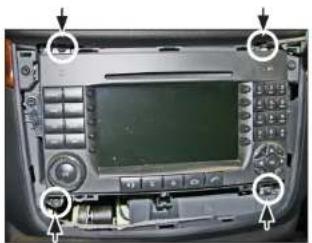

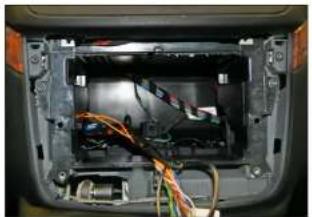

Interior view of a car's internal dashboard and infotainment unit (no visible text or labels)- Remove the four screws at the top and bottom of OEM head unit.
All installation work must be performed by a qualified professional installer only. The manufacturer / dealer is not liable for any kind of incidental or indirect damages.
