USER MANUAL MFAG26VA-W MIDEA

Line drawing of a rectangular air conditioner unit (no text or symbols)

Room Air Conditioner

USER MANUAL

MODEL NUMBER:

MFAG20VA-N MFAG60VA-N

MFAG26VA-N MFAG70VA-N

MFAG36VA-N MFAG80VA-N

MFAG51VA-N

Warning notices: Before using this product, please read this manual and SAFETY MANUAL(if any) carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details. The diagram above is just for reference. Please take the appearance of the actual product as the standard.

THANK YOU LETTER

Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way.

CONTENTS

THANK YOU LETTER 01

SAFETY PRECAUTIONS 02

SPECIFICATIONS 06

PRODUCT OVERVIEW 07

PRODUCT INSTALLATION 08

Install Your Indoor Unit 10

Install Your Outdoor Unit 20

Refrigerant Piping Connection 25

Air Evacuation 29

Electrical And Gas Leak Checks 31

Test Run 32

Packing And Unpacking The Unit 33

OPERATION INSTRUCTIONS 34

Indoor Unit Display 34

Remote Control Operation 39

CARE AND MAINTENANCE 50

TROUBLESHOOTING 52

TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT 55

DISPOSAL AND RECYCLING 55

DATA PROTECTION NOTICE 56

SAFETY PRECAUTIONS

It's really important you read Safety Precautions Before Operation and Installation Incorrect installation due to ignoring instructions can cause serious damage or injury. The seriousness of potential damage or injuries is classified as either a WARNING or CAUTION.

Explanation of Symbols

	Warning of electrical voltageThis symbol indicates that there is a danger to life and health of persons due to voltage.
	WarningThe signal word indicates a hazard with a medium level of risk which, if not avoided, may result in death or serious injury.
	CautionThe signal word indicates a hazard with a low degree of risk which, if not avoided, may result in minor or moderate injury.
	AttentionThe signal word indicates important information (e.g. damage to property), but not danger.
	Observe instructionsThis symbol indicates that a service technician should only operate and maintain this appliance in accordance with the operating instructions.

Read these operating instructions carefully and attentively before using/commissioning the unit and keep them in the immediate vicinity of the installation site or unit for later use!

WARNING

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision (European Union countries).

This appliance is not intended for use by persons(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

WARNING FOR PRODUCT USE

• If an abnormal situation arises (like a burning smell), immediately turn off the unit and disconnect the power. Call your dealer for instructions to avoid electric shock, fire or injury.
• Do not insert fingers, rods or other objects into the air inlet or outlet. This may cause injury, since the fan may be rotating at high speeds.
• Do not use flammable sprays such as hair spray, lacquer or paint near the unit. This may cause fire or combustion.
• Do not operate the air conditioner in places near or around combustible gases. Emitted gas may collect around the unit and cause explosion.
• Do not operate your air conditioner in a wet room such as a bathroom or laundry room. Too much exposure to water can cause electrical components to short circuit.
• Do not expose your body directly to cool air for a prolonged period of time.
• Do not allow children to play with the air conditioner. Children must be supervised around the unit at all times.
• If the air conditioner is used together with burners or other heating devices, thoroughly ventilate the room to avoid oxygen deficiency.
• In certain functional environments, such as kitchens, server rooms, etc., the use of specially designed air-conditioning units is highly recommended.

ELECTRICAL WARNINGS

• Only use the specified power cord. If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The product must be properly grounded at the time of installation, or electrical shock may occur.
• For all electrical work, follow all local and national wiring standards, regulations, and the Installation Manual. Connect cables tightly, and clamp them securely to prevent external forces from damaging the terminal. Improper electrical connections can overheat and cause fire, and may also cause shock. All electrical connections must be made according to the Electrical Connection Diagram located on the panels of the indoor and outdoor units.
• All wiring must be properly arranged to ensure that the control board cover can close properly. If the control board cover is not closed properly, it can lead to corrosion and cause the connection points on the terminal to heat up, catch fire, or cause electrical shock.
• Disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• Do not pull power cord to unplug unit. Hold the plug firmly and pull it from the outlet. Pulling directly on the cord can damage it, which can lead to fire or electric shock.
• Do not modify the length of the power supply cord or use an extension cord to power the unit.
• Do not share the electrical outlet with other appliances. Improper or insufficient power supply can cause fire or electrical shock.
• Keep power plug clean. Remove any dust or grime that accumulates on or around the plug. Dirty plugs can cause fire or electric shock.
• If connecting power to fixed wiring, an all-pole disconnection device which has at least 3mm clearances in all poles, and have a leakage current that may exceed 10mA, the residual current device(RCD) having a rated residual operating current not exceeding 30mA, and disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

TAKE NOTE OF FUSE SPECIFICATIONS

The air conditioner's circuit board (PCB) is designed with a fuse to provide overcurrent protection. The specifications of the fuse are printed on the circuit board, such as: T3.15AL/250VAC, T5AL/250VAC, T3.15A/250VAC, T5A/250VAC, T20A/250VAC, T30A/250VAC, etc.

NOTE: For the units with R32 refrigerant, only the blast-proof ceramic fuse can be used.

UV-C lamp(Applicable to the unit contains an UV-C lamp only)

This appliance contains a UV-C lamp. Read the maintenance instructions before opening the appliance.

• Do not operate UV-C lamps outside of the appliance.
• Appliances that are obviously damaged must not be operated.
• Unintended use of the appliance or damage to the housing may result in the escape of dangerous UV-C radiation. UV-C radiation may, even in small doses, cause harm to the eyes and skin.
• Before opening doors and access panels bearing the ULTRAVIOLET RADIATION hazard symbol for the conducting USER MAINTENANCE, it is recommended to disconnect the power.
  • The UV-C lamp can not be cleaned, repaired and replaced.
• UV-C BARRIERS bearing the ULTRAVIOLET RADIATION hazard symbol should not be removed.

WARNING

This appliance contains an UV emitter. Do not stare at the light source.

WARNINGS FOR PRODUCT INSTALLATION

• Installation must be performed by an authorized dealer or specialist. Defective installation can cause water leakage, electrical shock, or fire.
  • Installation must be performed according to the installation instructions. (In North America, installation must be performed in accordance with the requirement of NEC and CEC by authorized personnel only).

Improper installation can cause water leakage, electrical shock, or fire.

• Contact an authorized service technician for repair or maintenance of this unit. This appliance shall be installed in accordance with national wiring regulations.
• Only use the included accessories, parts, and specified parts for installation. Using non-standard parts can cause water leakage, electrical shock, fire, and can cause the unit to fail.
• Install the unit in a firm location that can support the unit's weight. If the chosen location cannot support the unit's weight, or the installation is not done properly, the unit may drop and cause serious injury and damage.
  • Install drainage piping according to the instructions in this manual. Improper drainage may cause water damage to your home and property.
• For units that have an auxiliary electric heater, do not install the unit within 1 meter (3 feet) of any combustible materials.
• Do not install the unit in a location that may be exposed to combustible gas leaks. If combustible gas accumulates around the unit, it may cause fire.
• Do not turn on the power until all work has been completed.
• When moving or relocating the air conditioner, consult experienced service technicians for disconnection and reinstallation of the unit.
• How to install the appliance to its support, please read the information for details in "indoor unit installation" and "outdoor unit installation" sections.

CAUTION

• Turn off the air conditioner and disconnect the power if you are not going to use it for a long time.
• Turn off and unplug the unit during storms.
• Make sure that water condensation can drain unhindered from the unit.
• Do not operate the air conditioner with wet hands. This may cause electric shock.
• Do not use device for any other purpose than its intended use.
• Do not climb onto or place objects on top of the outdoor unit.
• Do not allow the air conditioner to operate for long periods of time with doors or windows open, or if the humidity is very high.

CLEANING AND MAINTENANCE WARNINGS

• Turn off the device and disconnect the power before cleaning. Failure to do so can cause electrical shock.
• Do not clean the air conditioner with excessive amounts of water.
• Do not clean the air conditioner with combustible cleaning agents. Combustible cleaning agents can cause fire or deformation.

Note about Fluorinated Gasses(Not applicable to the unit using R290 Refrigerant)

• This air-conditioning unit contains fluorinated greenhouse gasses. For specific information on the type of gas and the amount, please refer to the relevant label on the unit itself or the “Owner’s Manual - Product Fiche” in the packaging of the outdoor unit. (European Union products only).
• Installation, service, maintenance and repair of this unit must be performed by a certified technician.
• Product uninstallation and recycling must be performed by a certified technician.
• For equipment that contains fluorinated greenhouse gases in quantities of 5 tonnes of CO2 equivalent or more, but of less than 50 tonnes of CO2 equivalent, If the system has a leak-detection system installed, it must be checked for leaks at least every 24 months.
• When the unit is checked for leaks, proper record-keeping of all checks is strongly recommended.

WARNING FOR USING R32/R290 REFRIGERANT

• When flammable refrigerant are employed, appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation.
• For R32 frigerant models: Appliance shall be installed, operated and stored in a room with a floor area larger than 4m^2 .
• For R290 refrigerant models, appliance shall be installed, operated and stored in a room with a floor area larger than:
• Reusable mechanical connectors and flared joints are not allowed indoors.
• When mechanical connectors are reused indoors, sealing parts shall be renewed. When flared joints are reused indoors, the flare part shall be re-fabricated.
• Mechanical connectors used indoors shall comply with ISO 14903.

$$ \begin{array}{l} < = 2. 6 \mathrm{kW} \text { units: } 1 7. 3 3 \mathrm{m} ^ {2} \ > 2. 6 \mathrm{kW} \text { and } < = 3. 5 \mathrm{kW} \text { units: } 2 5. 4 \mathrm{m} ^ {2} \ > 3. 5 \mathrm{kW} \text { and } < = 5. 2 \mathrm{kW} \text { units: } 3 4. 6 7 \mathrm{m} ^ {2} \ > 5. 3 \mathrm{kW} \text { and } < = 7. 1 \mathrm{kW} \text { units: } 4 7. 3 3 \mathrm{m} ^ {2} \ \end{array} $$

SPECIFICATIONS

Product Model	MFAG20VA-N MFAG20VA-W	MFAG26VA-N MFAG26VA-W	MFAG36VA-N MFAG36VA-W
Power source	220-240V~ 50Hz, 1Ph
Cooling capacity	2.00kW	2.60kW	3.55kW
Heating capacity	2.25kW	2.70kW	3.80kW
Rated current	9.5A	9.5A	10.5A
Rated power input	2100W	2100W	2300W
Outdoor unit resistance class	IP24

Product Model	MFAG51VA-N MFAG51VA-W	MFAG60VA-N MFAG60VA-W	MFAG70VA-N MFAG70VA-W	MFAG80VA-N MFAG80VA-W
Power source	220-240V~ 50Hz, 1Ph
Cooling capacity	5.00kW	6.00kW	7.00kW	8.00kW
Heating capacity	5.52kW	6.20kW	7.50kW	8.50kW
Rated current	15.5A	15.5A	17.5A	17.5A
Rated power input	3600W	3600W	4050W	4050W
Outdoor unit resistance class	IP24

PRODUCT OVERVIEW

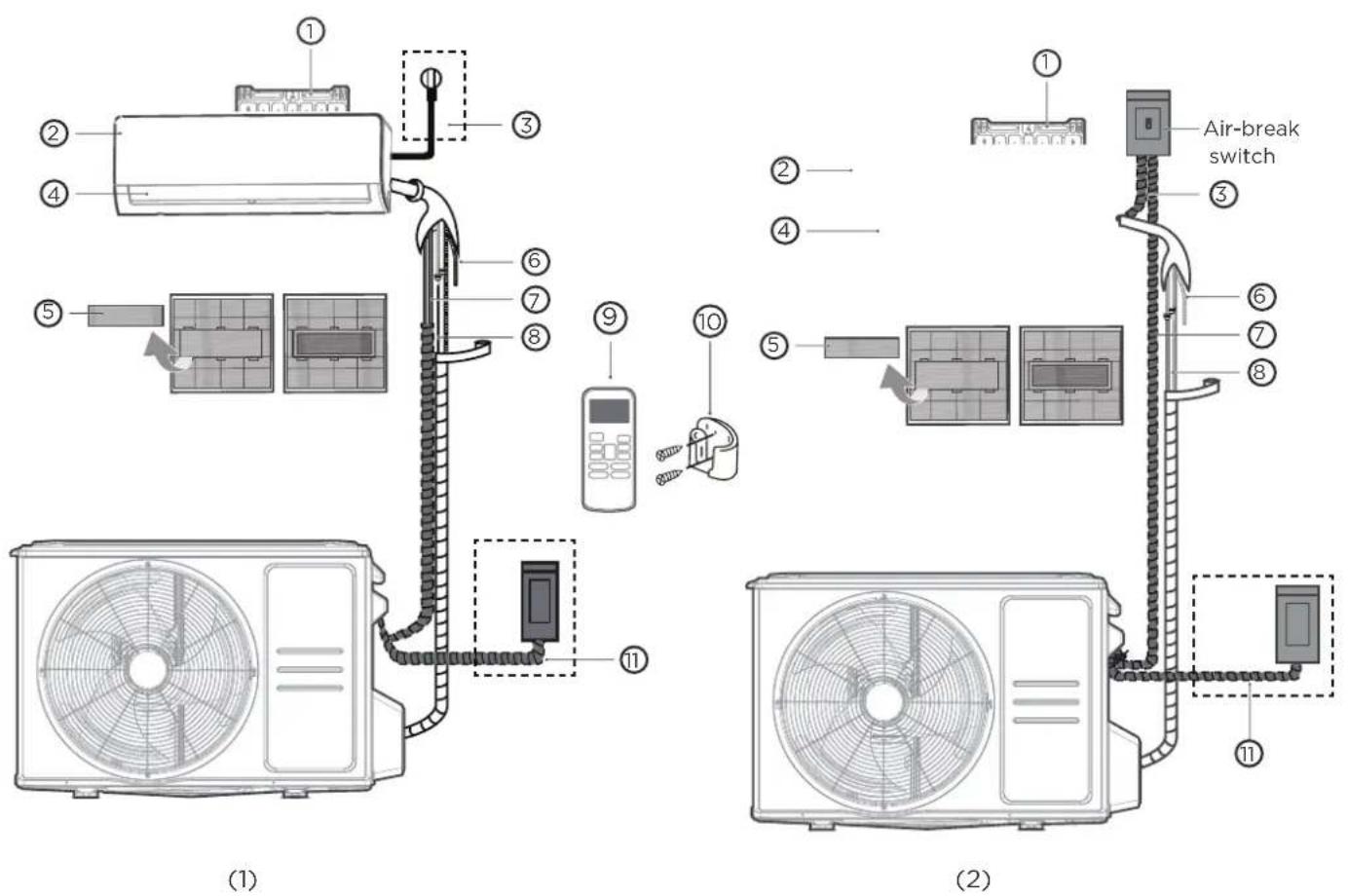

NOTE ON ILLUSTRATIONS:

Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit may be slightly different. The actual shape shall prevail.

① Wall Mounting Plate

⑤ Functional Filter (On Back of Main Filter - Some Units)

⑨ Remote Controller

② Front Panel

⑥ Drainage Pipe

⑩ Remote controller Holder (some units)

③ Power Cable(some units)

⑦ Signal Cable

⑪ Outdoor Unit Power Cable (some units)

④ Louver

⑧ Refrigerant Piping

It would be perfect you had these tools

Gloves Screwdriver &

wrench

Hammer drill

Core drill

Goggles & masks Vinyl tape

PRODUCT INSTALLATION

ACCESSORIES

The air conditioning system comes with the following accessories. Use all of the installation parts and accessories to install the air conditioner. Improper installation may result in water leakage, electrical shock and fire, or cause the equipment to fail. The items are not included with the air conditioner must be purchased separately.

Name of Accessories Name of AccessoriesQ'ty(pc) Shape Q'ty(pc) Shape
Manual	2-3		Remote controller	1	(ATKC)
Drain joint (for cooling & heating models)	1		Battery	2
Seal (for cooling & heating models)	1		Remote controller holder(purchase separately)	1
Mounting plate	1		Fixing screw for remote controller holder(purchase separately)	2
Anchor	5~8 (depending on models)		Small Filter (Need to be installed on the back of main air filter by the authorized technician while installing the machine)	1-2 (depending on models)
Mounting plate fixing screw	5~8 (depending on models)
Transfer connector (Φ19( 3/4in) transfer to Φ16( 5/8in). Packed with the indoor unit, the North America market 33K hyper heat unit only.)	1	NOTE: In North America market, when 33K hyper heat indoor unit matches with multi-zone condensers, you must purchase pipe with liquid side Φ9.52( 3/8in) and gas side Φ16( 5/8in).The transfer connector need to be installed on the indoor unit gas side to meet the pipe size.

Name Shape Quantity(PC)
Connecting pipe assembly	Liquid side	Φ 6.35mm (1/4 in)	Parts you must purc hase separately. Consult the dealer about the proper pipe size of the unit you purchased.
		Φ 9.52mm (3/8in)
	Gas side	Φ 9.52mm (3/8in)
		Φ 12.7mm (1/2in)
		Φ 16mm (5/8in)
		Φ 19mm (3/4in)
Magnetic ring and belt(if supplied,please refer to the wiring diagram to install it on the connective cable.)			Pass the belt through the hole of the Magnetic ring to fix it on the cable

INSTALLATION SUMMARY - INDOOR UNIT

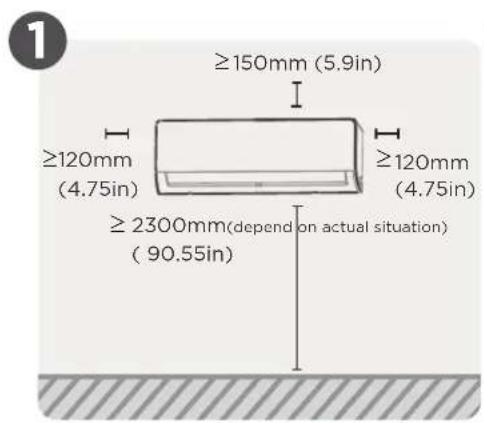

≥150mm (5.9in) ≥120mm (4.75in) ≥120mm (4.75in) ≥2300mm(depend on actual situation) (90.55in)

Select Installation Location

2

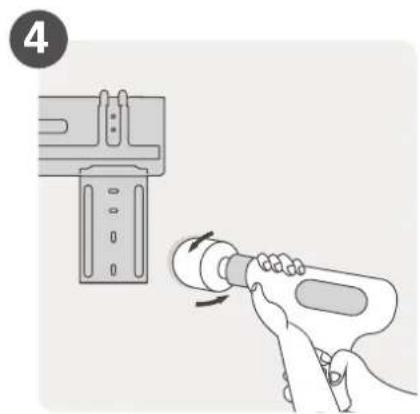

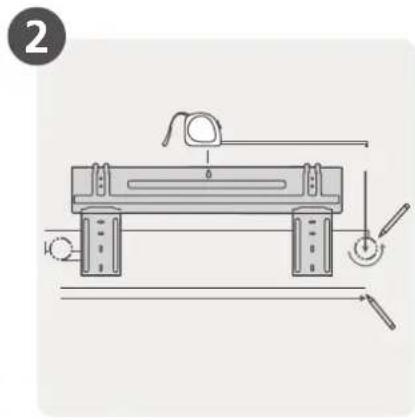

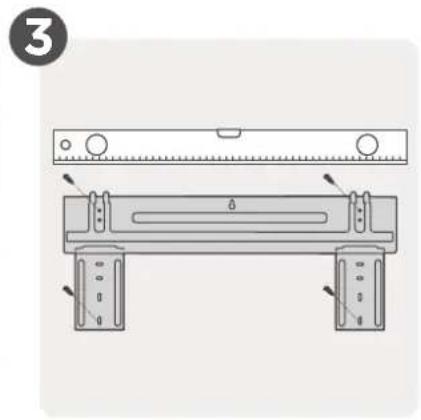

Attach Mounting Plate

Technical diagram of a mechanical device with labeled parts, showing front and side views (no text or symbols present)

Determine Wall Hole Position

Illustration of a hand using a tool to adjust a component, showing motion arrows (no text or symbols)

Drill Wall Hole

Diagram showing a mechanical joint or clamp mechanism with directional arrows indicating rotation (no text or symbols present)

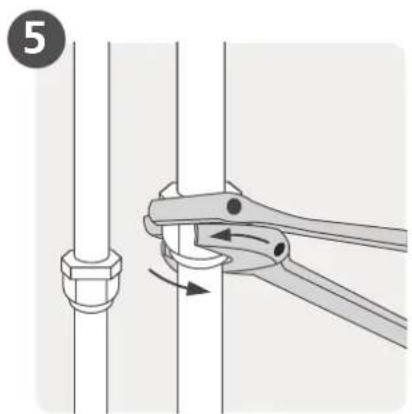

Connect Piping

6

Connect Wiring (Not applicable for some locations in North America)

Illustration of hands holding a small object over a wavy line (no text or symbols)

Prepare Drain Hose

8 locations in North America )

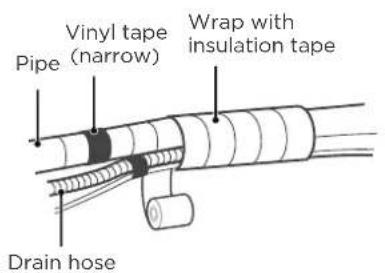

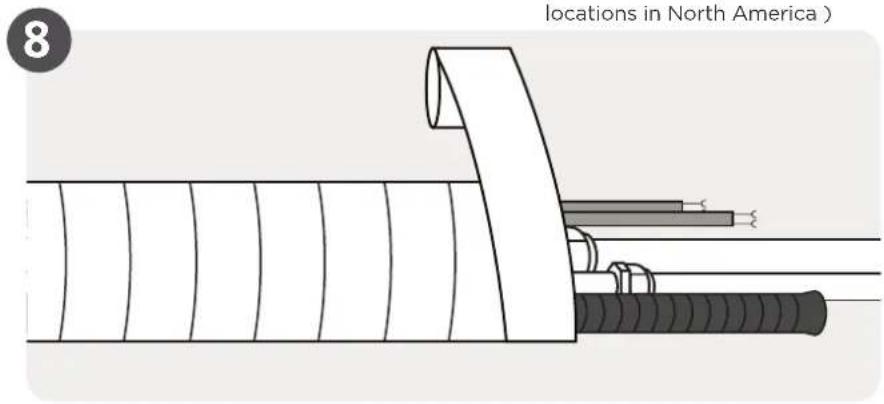

Wrap Piping and Cable (Not applicable for some locations in North America)

Illustration of two hands holding a blank rectangular frame with a downward arrow, no text or symbols present

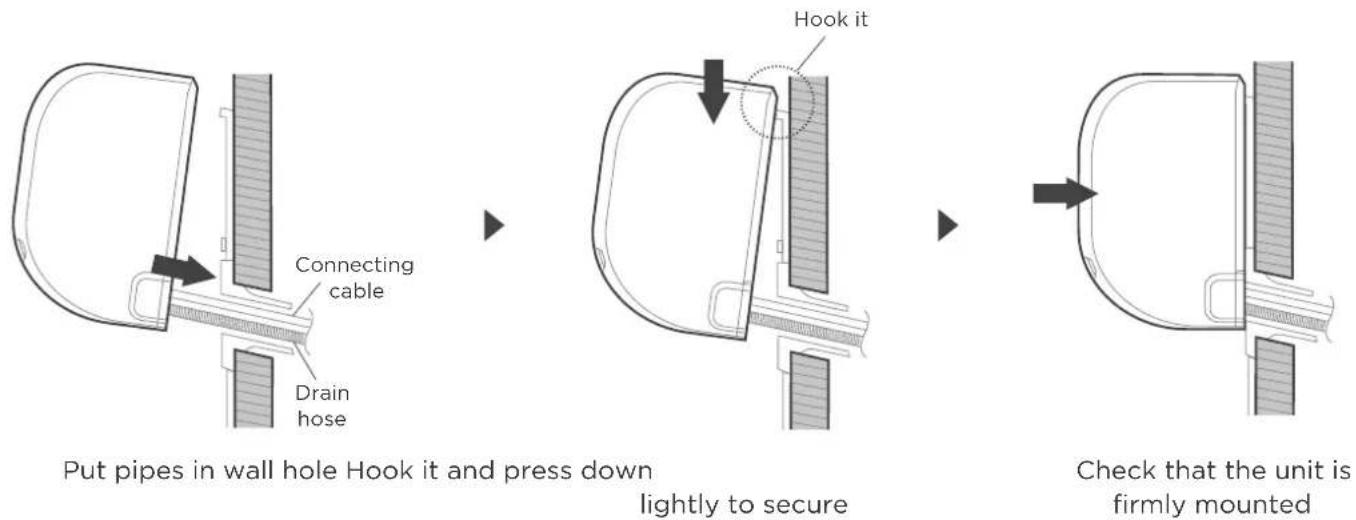

Mount Indoor Unit

Install Your Indoor Unit

Select installation location

NOTE : Prior to installation

Before installing the indoor unit, refer to the label on the product box to make sure that the model number of the indoor unit matches the model number of the outdoor unit.

The following are standards that will help you choose an appropriate location for the unit.

Proper installation locations meet the following standards:

Simple line drawing of a window with horizontal lines inside, no text or symbols present.

√ Good air circulation

Simple line drawing of a faucet releasing water, no text or symbols present

√ Convenient drainage

Gray icon of a person shouting with a megaphone, no text or symbols present

√ Noise from the unit will not disturb other people.

Gray gear icon with interlocking chain link symbol (no text or numbers)

√ Firm and solid—the location will not vibrate
☑ Strong enough to support the weight of the unit

DO NOT install unit in the following locations:

∅ Near any source of heat, steam, or combustible gas
∅ Near flammable items such as curtains or clothing

NOTE: FOR PRODUCT INSTALLATION

If there is no fixed refrigerant piping:

While choosing a location, be aware that you should leave ample room for a wall hole (see Drill wall hole for connective piping step) for the signal cable and refrigerant piping that connect the indoor and outdoor units. The default position for all piping is the right side of the indoor unit (while facing the unit). However, the unit can accommodate piping to both the left and right.

√ A location at least one meter from all other electrical devices (e.g., TV, radio, computer)

∅ Near any obstacle that might block air circulation
∅ Near the doorway
∅ In a location subject to direct sunlight

Drill wall hole for connective piping

Determine wall hole location

Step 1:

Remove the screw that attaches the mounting plate to the back of the indoor unit.

Screw

Step 2:

Different models have different mounting plates. For the different customization requirements, the shape of the mounting plate may be slightly different. But the installation dimensions are the same for the same size of indoor unit. See Type A and Type B for example.

Pure electrical circuit lines without any symbols

Type A Type B

Architectural floor plan showing two symmetrical structural elements with no text or labels

Step 3:

Secure the mounting plate to the wall with the screws provided. Make sure that mounting plate is flat against the wall.

Technical diagram showing assembly steps with labeled states and checkmark indicators

Correct orientation of Mounting Plate

Step 4:

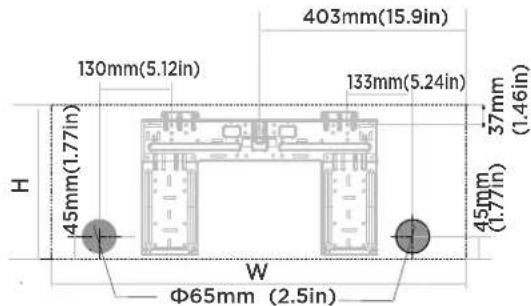

Confirm the mounting plate you own. Determine the location of the wall hole based on the position of the mounting plate. The dotted rectangular box above shows the size of your product.

105mm(4.13in) 400mm(15.75in) 126mm(4.96in) 34mm(1.33in) 45mm(1.77in) H W Φ65mm (2.5in)

Indoor unit dimensions(WxH): 729mm(28.7in)x293mm(11.5in)

403mm(15.9in) 130mm(5.12in) 133mm(5.24in) 37mm (1.46in) 45mm(1.77in) H W Φ65mm (2.5in)

Indoor unit dimensions(WxH): 806mm(31.7in)x296mm(11.6in)

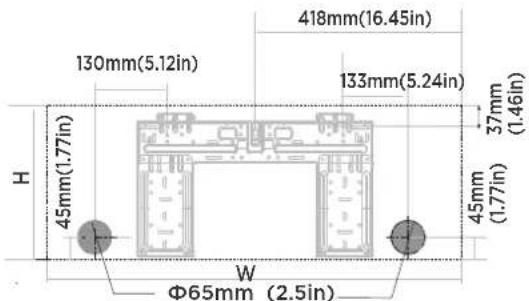

418mm(16.45in) 130mm(5.12in) 133mm(5.24in) 37mm (1.46in) H 45mm(1.77in) 45mm (1.77in) W Φ65mm (2.5in)

Indoor unit dimensions(WxH): 835mm(32.9in)x296mm(11.6in)

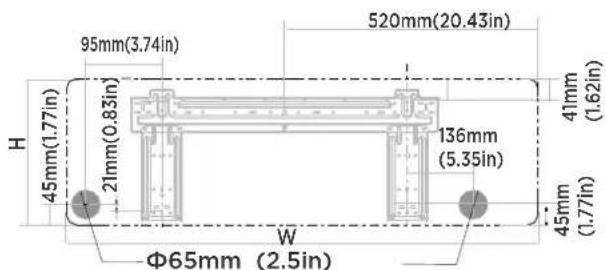

95mm(3.74in) 520mm(20.43in) 41mm(1.62in) 21mm(0.83in) 136mm(5.35in) 45mm(1.77in) 45mm(1.77in) Φ65mm (2.5in)

Indoor unit dimensions(WxH): 971mm(38.2in)x321mm(12.6in)

97mm(3.8in) 579mm(22.8in) 70mm (2.75in) 149mm (5.9in) 53mm (2.1in) H 53mm (2.1in) W Φ90mm (3.54in)

Indoor unit dimensions(WxH):
1082mm(42.6in)x338mm(13.3in)

643.6mm (25.3in) 389mm (15.3in) 257mm (10.1in) 172mm (6.8in) 332mm (13.05in) H 52mm (2.05in) W Φ90mm (3.54in) 52mm (2.05in)

Indoor unit dimensions(WxH):
1259mm(49.55in)x362mm(14.25in)

NOTE : The wall hole size

The size of the wall hole is determined by the connective pipes. When the pipe size of the gas side is 16mm(5/8") or more, the wall hole should be 90mm(3.54in). When the pipe size of gas side is less than 16mm(5/8") , the wall hole should be 65mm(2.5in).

Drill wall hole

CAUTION

When drilling the wall hole, make sure to avoid wires, plumbing, and other sensitive components.

Φ 65mm (2.5in) Φ 90mm (3.54in)

Using a 65mm (2.5in) or 90mm(3.54in) core drill(depending on models)

Wall Indoor Outdoor Drill the wall hole 5-7mm (0.2-0.275in)

the protective wall cuff wall hole.

Place the protective wall cuff in the hole.

Step 1:

Using a 65mm (2.5") or 90mm(3.54") core drill(depending on models), drill a hole in the wall. Make sure that the hole is drilled at a slight downward angle, so that the outdoor end of the hole is lower than the indoor end by about 5mm to 7mm (0.2in to 0.275in). This will ensure proper water drainage.

NOTE:

FOR CONCRETE OR BRICK WALLS

If the wall is made of brick, concrete, or similar material, drill 5mm-diameter (0.2in-diameter) holes in the wall and insert the sleeve anchors provided. Then secure the mounting plate to the wall by tightening the screws directly into the clip anchors.

Step 2:

Place the protective wall cuff in the hole. This protects the edges of the hole and will help seal it when you finish the installation process.

3 Install refrigerant pipe & drain hose

NOTE

The refrigerant piping is inside an insulating sleeve attached to the back of the unit. You must prepare the piping before passing it through the hole in the wall.

Prepare refrigerant piping

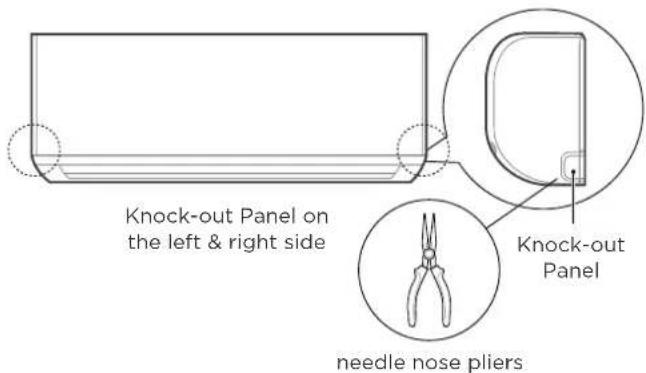

Step 1:

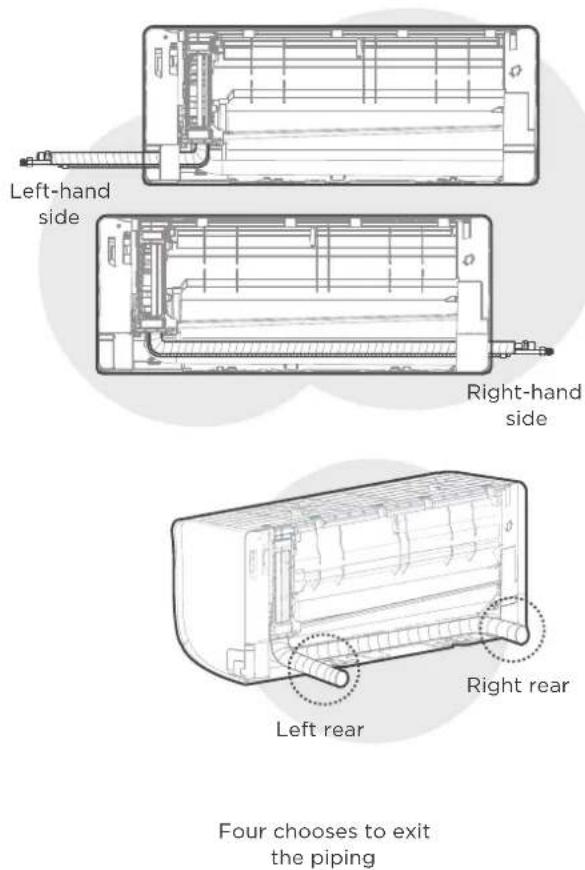

Based on the position of the wall hole relative to the mounting plate, choose the side from which the piping will exit the unit. You have four options for the exit direction of the piping. The description of the piping angle below for details.

Step 2:

If the wall hole is behind the unit, keep the knock-out panel in place. If the wall hole is to the side of the indoor unit, remove the plastic knock-out panel from that side of the unit. Use needle nose pliers if the plastic panel is too difficult to remove by hand.

Step 3:

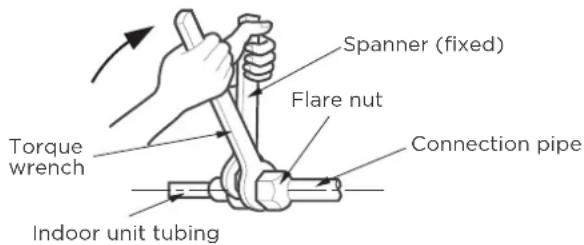

connect the indoor unit's refrigerant piping to the connective piping that will join the indoor and outdoor units. Refer to the Refrigerant Piping Connection section of this manual for detailed instructions.

NOTE: If existing connective piping is already embedded in the wall, proceed directly to the Connect Drain Hose step.

CAUTION

Be extremely careful not to dent or damage the piping while bending them away from the unit. Any dents in the piping will affect the unit's performance.

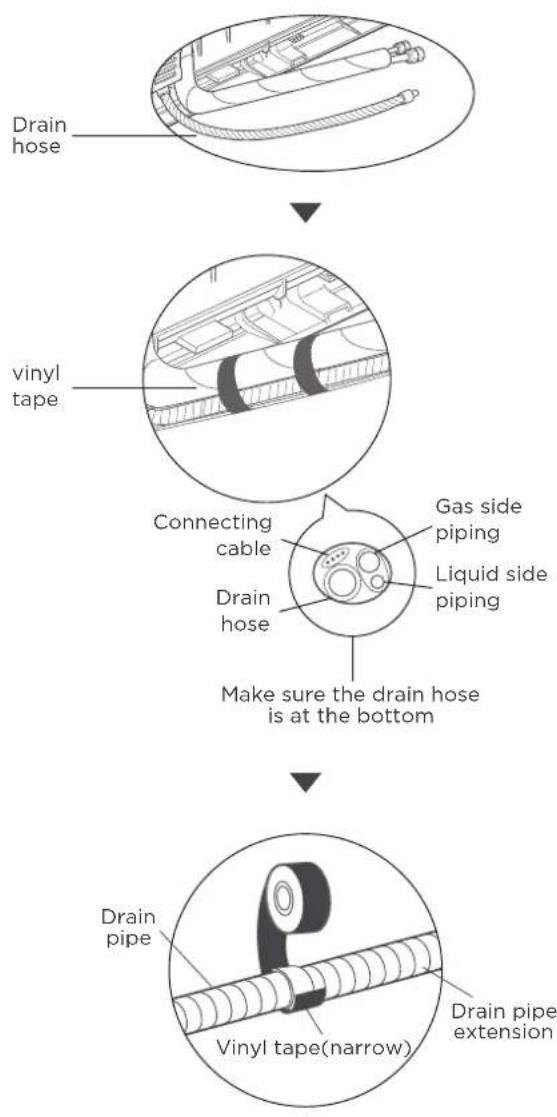

Drain hose vinyl tape Connecting cable Gas side piping Drain hose Liquid side piping Make sure the drain hose is at the bottom Drain pipe Vinyl tape(narrow) Drain pipe extension

Step 1:

The drain hose can be attached to the left or right side. To ensure proper drainage, attach the drain hose on the same side that your refrigerant piping exits the unit. Attach drain hose extension (purchased separately) to the end of drain hose.

- Wrap the connection point firmly with Teflon tape to ensure a good seal and to prevent leaks.

• For the portion of the drain hose that will remain indoors, wrap it with foam pipe insulation to prevent condensation.

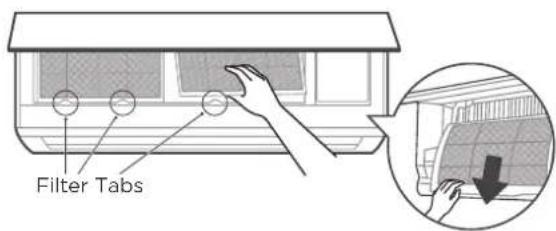

• Remove the air filter and pour a small amount of water into the drain pan to make sure that water flows from the unit smoothly.

NOTE ON DRAIN HOSE PLACEMENT

Make sure to arrange the drain hose according to the following figures.

Pure mechanical part diagram with no text, numbers, or symbols

CORRECT

Make sure there are no kinks or dent in drain hose to ensure proper drainage.

Pure mechanical diagram showing a U-shaped component inserted into a vertical wall, with no text or symbols present.

NOT CORRECT

Kinks in the drain hose will create water traps.

Pure diagram of a pipe or pipe connection with a wavy line and a cross symbol, no text or labels present.

NOT CORRECT

Kinks in the drain hose will create water traps.

Simple line drawing of a U-shaped pipe connected to a bucket, with a vertical dashed line and a 'X' symbol on the right (no text or labels)

NOT CORRECT

Do not place the end of the drain hose in water or in containers that collect water. This will prevent proper drainage.

CAUTION

PLUG THE UNUSED DRAIN HOLE

To prevent unwanted leaks you must plug the unused drain hole with the rubber plug provided.

4

Electrical work preparation

WARNING

• BEFORE PERFORMING ANY ELECTRICAL WORK, READ THESE REGULATIONS

• BEFORE PERFORMING ANY ELECTRLCAL OR WIRING WORK, TURN OFF THE MAIN POWER TO THE SYSTEM.

• All wiring must comply with local and national electrical codes, regulations and must be installed by a licensed electrician.

• All electrical connections must be made according to the Electrical Connection Diagram located on the panels of the indoor and outdoor units.
• If there is a serious safety issue with the power supply, stop work immediately. Explain your reasoning to the client, and refuse to install the unit until the safety issue is properly resolved.
• If connecting power to fixed wiring, a switch or circuit breaker that disconnects all poles and has a contact separation of at least 1/8in (3mm) must be incorporated in the fixed wiring. The qualified technician must use an approved circuit breaker or switch.
• Only connect the unit to an individual branch circuit outlet. Do not connect another appliance to that outlet.
• Make sure to properly ground the air conditioner.
• Every wire must be firmly connected. Loose wiring can cause the terminal to overheat, resulting in product malfunction and possible fire.
• Do not let wires touch or rest against refrigerant tubing, the compressor, or any moving parts within the unit.
• To avoid getting an electric shock, never touch the electrical components soon after the power supply has been turned off. After turning off the power, always wait 10 minutes or more before you touch the electrical components.
• Power voltage should be within 90-110% of rated voltage. Insufficient power supply can cause malfunction, electrical shock, or fire.

WARNING

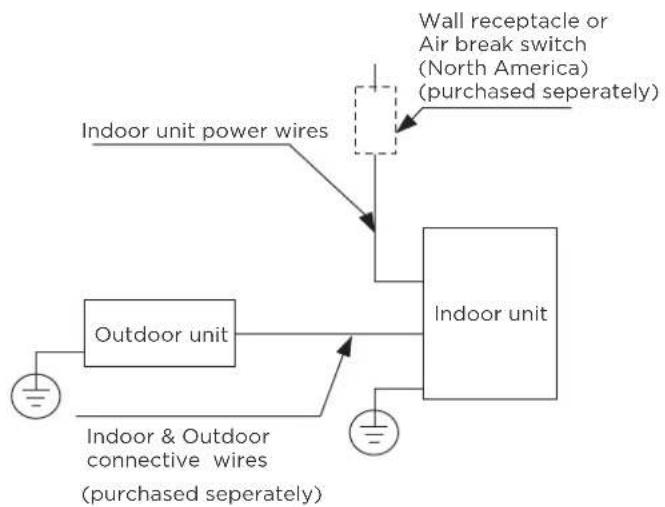

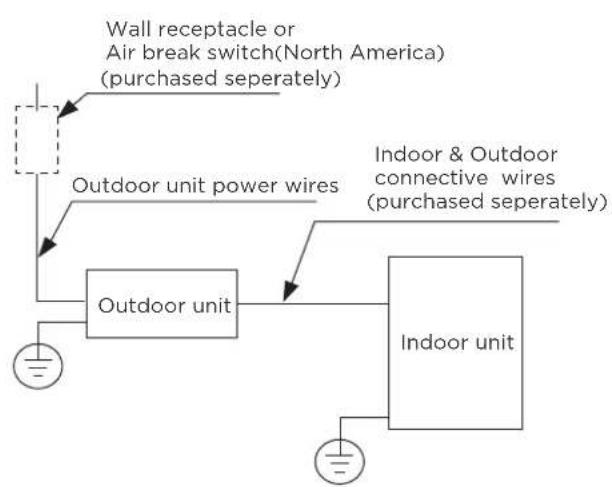

All wiring must be performed strictly in accordance with the wiring diagram located on the back of the Indoor Unit's front panel.

Connect signal and power cables

The signal cable enables communication between the indoor and outdoor units. You must first choose the right cable size before preparing it for connection.

Cable Types(Not applicable for North America)

• Indoor Power Cable (if applicable):
  H05VV-F or H05V2V2-F
  • Outdoor Power Cable: H07RN-F or H05RN-F
  • Signal Cable: H07RN-F

Minimum Cross-Sectional Area of

Power and Signal Cables (For reference)

Rated Current of Appliance (A)	Nominal Cross-Sectional Area ( mm^2 )
>3 and ≤6	0.75
>6 and ≤10	1
>10 and ≤16	1.5
>16 and ≤25	2.5
>25 and ≤32	4
>32 and ≤40	6

CHOOSE THE RIGHT CABLE SIZE

The size of the power supply cable, signal cable, fuse, and switch needed is determined by the maximum current of the unit. The maximum current is indicated on the nameplate located on the side panel of the unit. Refer to this nameplate to choose the right cable, fuse, or switch.

1. Open front panel of the indoor unit.
2. Using a screwdriver, open the wire box cover on the right side of the unit. This will reveal the terminal block.

3. Unscrew the cable clamp below the terminal block and place it to the side.

4. Facing the back of the unit, remove the plastic panel on the bottom left-hand side.

5. Feed the signal wire through this slot, from the back of the unit to the front.

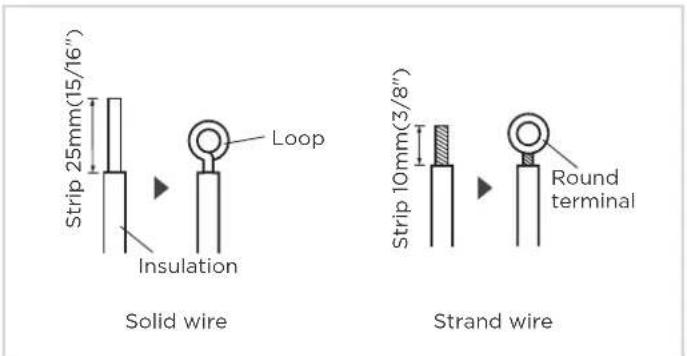

6. Facing the front of the unit, connect the wire according to the indoor unit's wiring diagram, connect the u-lug and firmly screw each wire to its corresponding terminal.
7. After checking to make sure every connection is secure, use the cable clamp to fasten the signal cable to the unit. Screw the cable clamp down tightly.
8. Replace the wire cover on the front of the unit, and the plastic panel on the back.

Terminal block Wire cover Screw Cable clamp

In North America

NOTE: Choose the cable type according to the local electrical codes and regulations. Please choose the right cable size according to the Minimum Circuit Ampacity indicated on the nameplate of the unit.

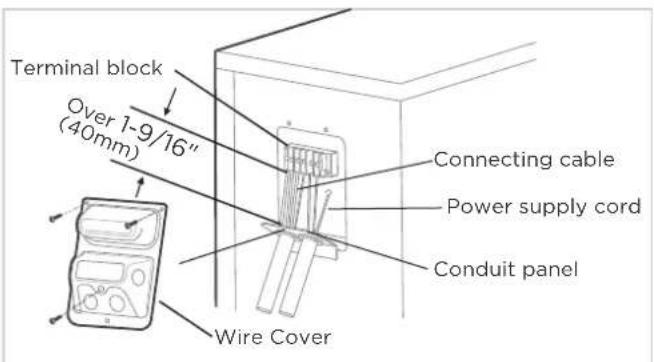

1. Facing the back of the unit, remove the big plastic konck-out panel to create a slot through which the conduit tube can be installed.

NOTE: For the units with five-core cable, remove the middle small plastic knock-out panel to create a slot through which the cable can exit. Use needle nose pliers if the plastic panel is too difficult to remove by hand

1. As shown in the illustration, insert the wires including the ground wire into the conduit and secure them with lock nut onto the conduit mounting plate.
2. Match wire colors with terminal numbers on indoor and outdoor unit's terminal blocks and firmly screw wires to the corresponding terminals.
3. Connect the ground wires to the corresponding terminals.
4. Pull the wires and check that the wires are securely fixed to the terminal block.

Back view

Knock-out panel

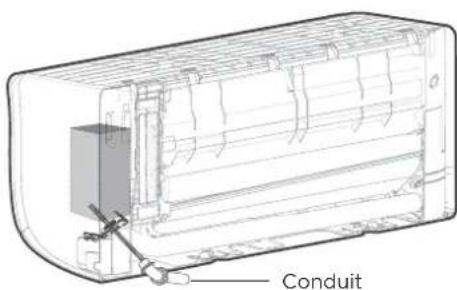

Conduit

DO NOT MIX UP LIVE AND NULL WIRES

This is dangerous, and can cause the air conditioning unit to malfunction.

5

Wrap piping & Cables

NOTE

Before passing the piping, and drain hose and the signal cable through the wall hole, you must bundle them together to save space, protect them, and insulate them.

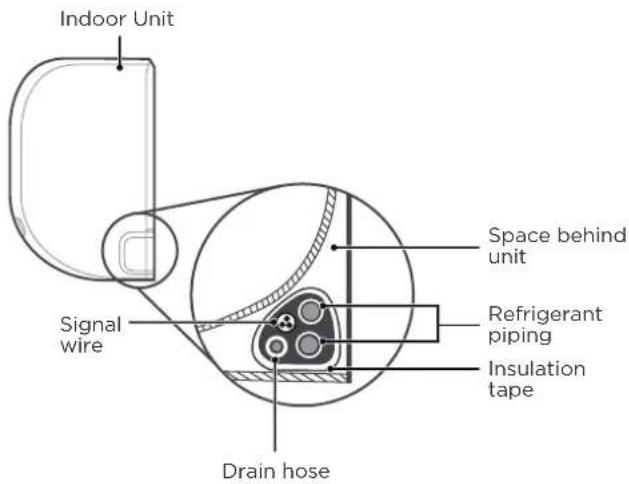

Indoor Unit Signal wire Drain hose Space behind unit Refrigerant piping Insulation tape

Vinyl tape (narrow) Wrap with insulation tape Pipe Drain hose

Step 1:

Bundle the drain hose, refrigerant pipes, and signal cable as shown in the figure(Not applicable for some locations in North America).

Step 2:

Using adhesive vinyl tape, attach the drain hose to the underside of the refrigerant pipes.

Step 3:

Using insulation tape, wrap the refrigerant pipes, signal wire and drain hose tightly together. Double-check that all items are bundled.

Do not intertwine signal calbe with other wires

While bundling these items together, do not intertwine or cross the signal cable with any other wiring.

DRAIN HOSE MUST BE ON BOTTOM

Make sure that the drain hose is at the bottom of the bundle. Putting the drain hose at the top of the bundle can cause the drain pan to overflow, which can lead to fire or water damage.

DO NOT WRAP ENDS OF PIPING

When wrapping the bundle, keep the ends of the piping unwrapped. You need to access them to test for leaks at the end of the installation process (refer to Electrical Checks and Leak Checks section of this manual).

6

Mount indoor unit

If you installed new connective piping to the outdoor unit, do the following:

• If you have already passed the refrigerant piping through the hole in the wall, proceed to Step 4.
- Otherwise, double-check that the ends of the refrigerant pipes are sealed to prevent dirt or foreign materials from entering the pipes.
- Slowly pass the wrapped bundle of refrigerant pipes, drain hose, and signal wire through the hole in the wall.
- Hook the top of the indoor unit on the upper hook of the mounting plate.
- Check that unit is hooked firmly on mounting by applying slight pressure to the left and right-hand sides of the unit. The unit should not jiggle or shift.
- Using even pressure, push down on the bottom half of the unit. Keep pushing down until the unit snaps onto the hooks along the bottom of the mounting plate.
- Again, check that the unit is firmly mounted by applying slight pressure to the left and the right-hand sides of the unit.

30° Wedge

If refrigerant piping is already embedded in the wall, do the following:

• Hook the top of the indoor unit on the upper hook of the mounting plate.
• Use a bracket or wedge to prop up the unit, giving you enough room to connect the refrigerant piping, signal cable, and drain hose.
• Connect drain hose and refrigerant piping (refer to Refrigerant Piping Connection section of this manual for instructions).
• Keep pipe connection point exposed to perform the leak test (refer to Electrical Checks and Leak Checks section of this manual).
  • After the leak test, wrap the connection point with insulation tape.
• Remove the bracket or wedge that is propping up the unit.
• Using even pressure, push down on the bottom half of the unit. Keep pushing down until the unit snaps onto the hooks along the bottom of the mounting plate.

NOTE : UNIT IS ADJUSTABLE

Keep in mind that the hooks on the mounting plate are smaller than the holes on the back of the unit. If you find that you don't have ample room to connect embedded pipes to the indoor unit, the unit can be adjusted left or right by about 30-50mm (1.18-1.96in), depending on the model.

30-50mm (1.18~1.96in) 30-50mm (1.18~1.96in)

Move to left or right

CAUTION

For the units adopt the following pipe connectors, please strictly perform the piping work in accordance with the following instructions.

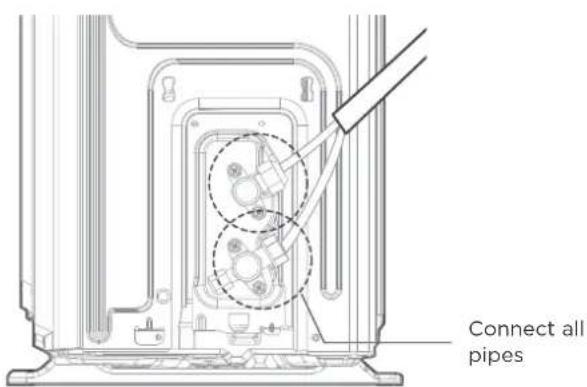

Connector A Red point protruding Connector B Cross-shape part

• Before performing the refrigerant piping connection, always wear work gloves and goggles, and remember that the connectors A and B are not allowed to face people directly.
• Keep pressing the cross-shape part of connector B with a tool for about 5-10 seconds until the red protuding point of connector A retracts completely.
• Remove connectors A and B, then perform the refrigerant piping connection between indoor unit and outdoor unit.

Install Your Outdoor Unit

1 Select installation location

NOTE : PRIOR TO INSTALLATION

Before installing the outdoor unit, you must choose an appropriate location. The following are standards that will help you choose an appropriate location for the unit.

Proper installation locations meet the following standards:

60cm (24") above 30cm (12") on left 65cm (26") in front 10cm (4") from back wall 60cm (24") on right

Abstract gray icon of a chain link with gear (no text or symbols)

√ Good air circulation and ventilation.

Firm and solid—the location can support the unit and will not vibrate.

√ Noise from the unit will not disturb other people.

Simple line icons showing sun and a water drop with a horizontal line, labeled 'Long-term' (no text or symbols beyond the label)

Illustration of a wall-mounted air conditioner unit with a snowflake symbol beside it (no text or labels)

√ Meets all spatial requirements shown in Installation Space Requirements above.

√ Protected from prolonged periods of direct sunlight or rain.

Where snowfall is anticipated, take appropriate measures to prevent ice buildup and coil damage.

NOTE Install the unit by following local codes and regulations, there may be differ slightly between different regions.

CAUTION:

Special considerations for extreme weather If the unit is exposed to heavy wind:

Install unit so that air outlet fan is at a 90° angle to the direction of the wind. If needed, build a barrier in front of the unit to protect it from extremely heavy winds. See Figures below.

If the unit is frequently exposed to heavy rain or snow:

Build a shelter above the unit to protect it from the rain or snow. Be careful not to obstruct air flow around the unit.

If the unit is frequently exposed to salty air(seaside):

Use outdoor unit that is specially designed to resist corrosion.

Strong wind Strong wind

90° angle to the direction of the wind

Wind Baffle Strong wind

Build a wind Baffle to protect the unit

Build a shelter to protect the unit

DO NOT install unit in the following locations:

∅ Near an obstacle that will block air inlets and outlets
Near a public street, crowded areas, or where noise from the unit will disturb others.

∅ Near animals or plants that will be harmed by hot air discharge.
∅ Near any source of combustible gas.

∅ In a location that is exposed to large amounts of dust
∅ In a location exposed to a excessive amounts of salty air.

Install drain joint(Heat pump unit only)

NOTE : PRIOR TO INSTALLATION

Before bolting the outdoor unit in place, you must install the drain joint at the bottom of the unit.

Base pan hole of outdoor unit

Step 1:

Find out the base pan hole of outdoor unit.

Seal

Step 2:

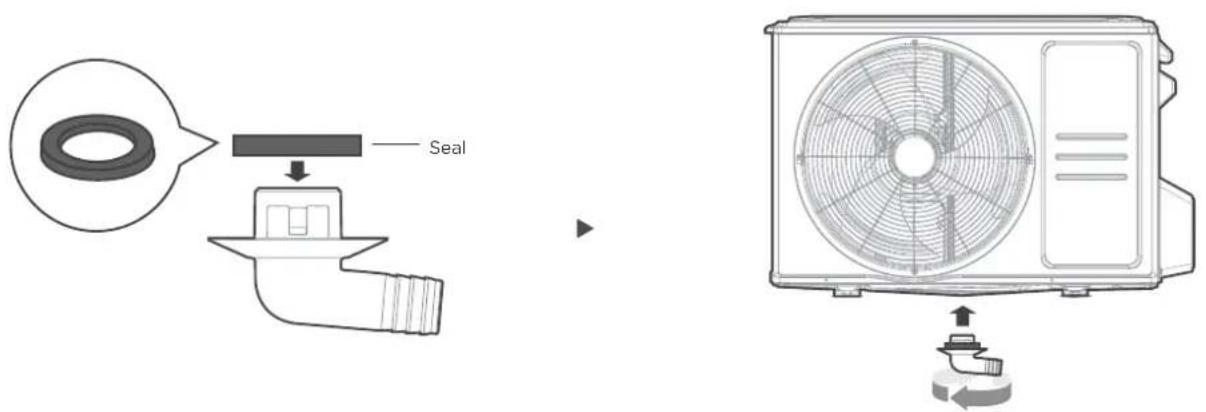

• Fit the rubber seal on the end of the drain joint that will connect to the outdoor unit.
• Insert the drain joint into the hole in the base pan of the unit. The drain joint will click in place.
• Connect a drain hose extension (not included) to the drain joint to redirect water from the unit during heating mode.

NOTE : IN COLD CLIMATES

In cold climates, make sure that the drain hose is as vertical as possible to ensure swift water drainage. If water drains too slowly, it can freeze in the hose and flood the unit.

WARNING

WHEN DRILLING INTO CONCRETE, EYE PROTECTION IS RECOMMENDED AT ALL TIME.

• The outdoor unit can be anchored to the ground or to a wall-mounted bracket with bolt(M10). Prepare the installation base of the unit according to the dimensions below.
• The following is a list of different outdoor unit sizes and the distance between their mounting feet. Prepare the installation base of the unit according to the dimensions below.

Air inlet Air inlet Air outlet

Top view Front view

Technical line drawing of a front-end air conditioner fan with labeled dimensions H and W (no text or symbols on the fan itself)

Outdoor Unit Dimensions (mm)W x H x D	Mounting Dimensions
	Distance A (mm) Distance B (mm)
668x469x252 (26.3"x 18.5"x 9.9")	430 (16.9")	231 (9.1")
680x542x248 (26.8"x 21.3"x 9.8")	452 (17.8") 230 (9.1")
700x550x275 (27.5"x 21.6"x 10.8")	450 (17.7")	260 (10.2")
720x495x270 (28.3"x 19.5"x 10.6") 452 (17.8") 255 (10.0")
765x555x303 (30.1"x 21.8"x 11.9") 452 (17.8") 286(11.3")
770x555x300 (30.3"x21.8"x11.8") 487 (19.2")		298 (11.7")
800x554x333 (31.5"x21.8"x13.1")	514 (20.2")	340 (13.4")
805x554x330 (31.7"x 21.8"x 12.9") 511 (20.1") 317 (12.5")
845x702x363 (33.3"x 27.6"x 14.3")	540 (21.3")	350 (13.8")
890x673x342 (35.0"x 26.5"x 13.5")	663 (26.1")	354 (13.9")
946x810x420 (37.2"x 31.9"x 16.5")	673 (26.5")	403 (15.9")
946x810x410 (37.2"x 31.9"x 16.1") 673 (26.5") 403 (15.9")
980x975x410 (38.58"x 38.39"x 16.14") 616 (24.25") 397 (15.63")
980x975x415 (38.58"x 38.39"x 16.34")	616 (24.25")	397 (15.63")

If you will install the unit on the ground or on a concrete mounting platform, do the following:

• Mark the positions for four expansion bolts based on dimensions chart.
  • Pre-drill holes for expansion bolts.
• Place a nut on the end of each expansion bolt.
• Hammer expansion bolts into the pre-drilled holes.
• Remove the nuts from expansion bolts, and place outdoor unit on bolts.
• Put washer on each expansion bolt, the replace the nuts.
  • Using a wrench, tighten each nut until snug.

If you will install the unit on a wall-mounted bracket, do the following:

• Mark the position of bracket holes based on dimensions chart.
  • Pre-drill the holes for the expansion bolts.
• Place a washer and nut on the end of each expansion bolt.
• Thread expansion bolts through holes in mounting brackets, put mounting brackets in position, and hammer expansion bolts into the wall.
• Check that the mounting brackets are level.
• Carefully lift unit and place its mounting feet on brackets.
• Bolt the unit firmly to the brackets.
• If allowed, install the unit with rubber gaskets to reduce vibrations and noise.

CAUTION

Make sure that the wall is made of solid brick, concrete, or of similarly strong material. The wall must be able to support at least four times the weight of the unit.

4

Connect signal and power cables

Prepare the cable for connection

Please choose the right cable according to the "Cable types" in page 15.

• Using wire strippers, strip the rubber jacket from both ends of cable to reveal about 40mm (1.57in) of the wires inside.
• Strip the insulation from the ends of the wires.
• Using a wire crimper, crimp u-lugs on the ends of the wires.

Choose the right cable size

The size of the power supply cable, signal cable, fuse, and switch needed is determined by the maximum current of the unit. The maximum current is indicated on the nameplate located on the side panel of the unit.

Pay attention to live wire

While crimping wires, make sure you clearly distinguish the Live ("L") Wire from other wires.

The outside unit's terminal block is protected by an electrical wiring cover on the side of the unit. A comprehensive wiring diagram is sticked on the inside of the wiring cover.

• Unscrew the electrical wiring cover and remove it.
• Unscrew the cable clamp below the terminal block and place it to the side.
• Connect the wire according to the wiring diagram, and firmly screw the u-lug of each wire to its corresponding terminal.
  • After checking to make sure every connection is secure, loop the wires around to prevent rain water from flowing into the terminal.
  • Using the cable clamp, fasten the cable to the unit. Screw the cable clamp down tightly.
  • Insulate unused wires with PVC electrical tape. Arrange them so that they do not touch any electrical or metal parts.
• Replace the wire cover on the side of the unit, and screw it in place.

NOTE: The unit you purchased may be slightly different. The illustrations are for explanatory purposes. The actual shape shall prevail.

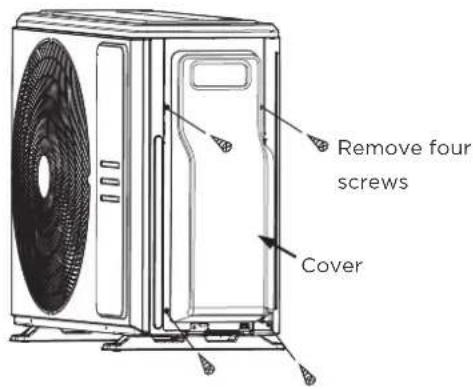

Remove four screws Cover

Cover Screw

NOTE: If the cable clamp looks like the following, please select the appropriate through-hole according to the diameter of the wire.

Mechanical component with labeled Buckle part (no other text or symbols visible)

Three size hole: Small, Large, Medium

3D mechanical component diagram with no visible text or symbols

When the calbe is not fasten enough, use the buckle to prop it up, so it can be clamped tightly.

In North America

The outside unit's terminal block is protected by an electrical wiring cover on the side of the unit. A comprehensive wiring diagram is sticked on the inside of the wiring cover.

• Remove the wire cover from the unit by loosening the 3 screws.
• Dismount caps on the conduit panel.
• Temporarily mount the conduit tubes (not included) on the conduit panel.
  • Properly connect both the power supply and low voltage lines to the corresponding terminals on the terminal block.
  • Ground the unit in accordance with local codes.
• Be sure to size each wire allowing several inches longer than the required length for wiring.
• Use lock nuts to secure the conduit tubes.

NOTE: Please choose the right cable size according to the Minimum Circuit Ampacity indicated on the nameplate of the unit.

Terminal block Over 1-9/16" (40mm) Connecting cable Power supply cord Conduit panel Wire Cover

Please select the appropriate through-hole according to the diameter of the wire.

How to properly connect the wire lines.

Strip 25mm(15/16") Loop Insulation Solid wire Strip 10mm(3/8") Round terminal Strand wire

Screw with special washer Round terminal Terminal plate Wire Screw with special washer Round terminal Wire

Step 2: Step 1:

The treatment about the end of the wire. connecting the line to the corresponding terminals on the terminal block.

(A)

(B)

Refrigerant Piping Connection

1

Piping Connection Precautions

WARNING

WHEN CONNECTING REFRIGERANT PIPING, DO NOT LET SUBSTANCES OR GASES OTHER THAN THE SPECIFIED REFRIGERANT ENTER THE UNIT. THE PRESENCE OF OTHER GASES OR SUBSTANCES WILL LOWER THE UNIT'S CAPACITY, AND CAN CAUSE ABNORMALLY HIGH PRESSURE IN THE REFRIGERATION CYCLE. THIS CAN CAUSE EXPLOSION AND INJURY.

Note on Pipe Length

The length of refrigerant piping will affect the performance and energy efficiency of the unit. Nominal efficiency is tested on units with a pipe length of 5 meters (16.5ft). ( In North America, the standard pipe length is 7.5m (25'). For the R290 refrigerant models, no refrigerant can be added and the maximum length of refrigerant pipe should not exceed 5 meters(16.5ft).A minimum pipe run of 3 metres is required to minimise vibration & excessive noise. Connection Instructions - Refrigerant Piping.

Maximum Length and Drop Height of Refrigerant Piping per Unit Model

Model	Capacity (BTU/h)	Max. Length (m)	Max. Drop Height (m)
R410A,R32 Inverter Split Air Conditioner	< 15,000	25 (82ft) 10 (33ft)
	≥ 15,000 and < 24,000 30 (98.5ft)		20 (66ft)
	≥ 24,000 and < 36,000	50 (164ft) 25 (82ft)
	≥ 36,000 and < 60,000	65 (213ft) 30 (98.5ft)
R22 Fixed-speed Split Air Conditioner	< 18,000	10 (33ft) 5 (16ft)
	≥ 18,000 and < 21,000	15 (49ft)	8(26ft)
	≥ 21,000 and < 35,000	20 (66ft)	10(33ft)
	≥ 35,000 and < 41,000		10 (33ft)25 (82ft)
R410A, R32 Fixed-speed Split Air Conditioner		20 (66ft)	8(26ft)< 18,000
	≥ 18,000 and < 36,000	25 (82ft)	10(33ft)
	≥ 36,000 and < 60,000	30 (98.5ft)	15 (49ft)

Connection Instructions – Refrigerant Piping

Step 1: Cut pipes

When preparing refrigerant pipes, take extra care to cut and flare them properly. This will ensure efficient operation and minimize the need for future maintenance.

• Measure the distance between the indoor and outdoor units.
- Using a pipe cutter, cut the pipe a little longer than the measured distance.
- Make sure that the pipe is cut at a perfect 90° angle.

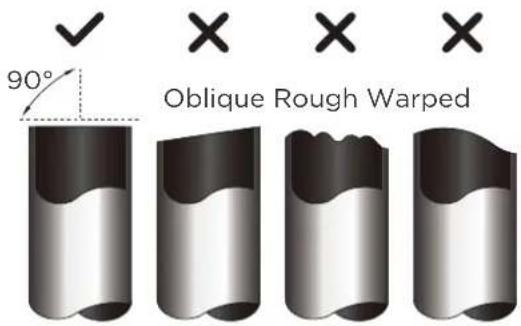

90° Oblique Rough Warped

DO NOT DEFORM PIPE WHILE CUTTING

Be extra careful not to damage, dent, or deform the pipe while cutting. This will drastically reduce the heating efficiency of the unit.

CAUTION

MUST BE CHECK OVER THE END OF THE PIPE FOR CRACKS AND EVEN FLARING. ENSURE THE PIPE IS SEALED.

Step 2: Remove burrs

Burrs can affect the air-tight seal of refrigerant piping connection. They must be completely removed.

• Hold the pipe at a downward angle to prevent burrs from falling into the pipe.
• Using a reamer or deburring tool, remove all burrs from the cut section of the pipe.

Point down Pipe Reamer

Step 3: Flare pipe ends

Proper flaring is essential to achieve an airtight seal.

• After removing burrs from cut pipe, seal the ends with PVC tape to prevent foreign materials from entering the pipe.
• Sheath the pipe with insulating material.
- Place flare nuts on both ends of pipe. Make sure they are facing in the right direction, because you can't put them on or change their direction after flaring.

Flare nut Copper pipe

• Remove PVC tape from ends of pipe when ready to perform flaring work.
• Clamp flare form on the end of the pipe. The end of the pipe must extend beyond the edge of the flare form in accordance with the dimensions shown in the table below.

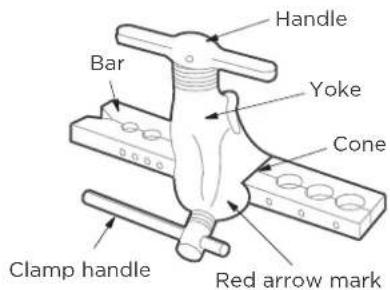

Handle Bar Yoke Cone Clamp handle Red arrow mark

PIPING EXTENSION BEYOND FLARE FORM

Outer Diameter of Pipe (mm)	A (mm)
	Min. Max.
∅ 6.35 (∅ 1/4")	0.7 (0.0275") 1.3	(0.05")
∅ 9.52 (∅ 3/8")	1.0 (0.04")	1.6 (0.063")
∅12.7 (∅ 1/2") 1.0 (0.04")	1.8 (0.07")
∅ 16 (∅ 5/8")	2.0 (0.078") 2.2	(0.086")
∅ 19 (∅ 3/4")	2.0 (0.078") 2.4	(0.094")

Flare form A Pipe

• Place flaring tool onto the form.
• Turn the handle of the flaring tool clockwise until the pipe is fully flared.
• Remove the flaring tool and flare form, then inspect the end of the pipe for cracks and even flaring.

2 Refer to Torque Requirement to connect pipes

CAUTION

WHEN CONNECTING REFRIGERANT PIPES, BE CAREFUL NOT TO USE EXCESSIVE TORQUE OR TO DEFORM THE PIPING IN ANY WAY. YOU SHOULD FIRST CONNECT THE LOW-PRESSURE PIPE, THEN THE HIGH-PRESSURE PIPE.

MINIMUM BEND RADIUS

When bending connective refrigerant piping, the minimum bending radius is 10cm.

Radius ≥10cm (4")

Instructions for Connecting Piping to Indoor Unit

Step 1: Step 2:

- Align the center of the two pipes that you will connect.

Indoor unit tubing Flare nut Pipe

• Tighten the flare nut as tightly as possible by hand.
  • Using a spanner, grip the nut on the unit tubing.
• While firmly gripping the nut on the unit tubing, use a torque wrench to tighten the flare nut according to the torque values in the Torque Requirements table below. Loosen the flaring nut slightly, then tighten again.

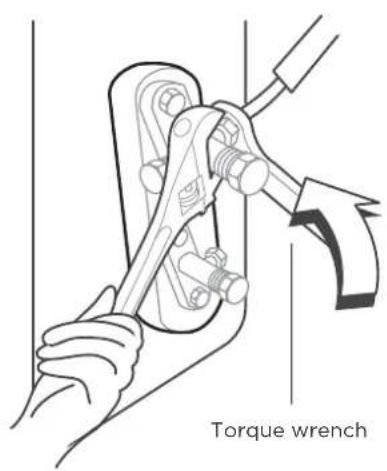

Spanner (fixed) Flare nut Torque wrench Connection pipe Indoor unit tubing

TORQUE REQUIREMENTS

Outer Diameter of Pipe(mm)	Tightening Torque(N•m)	Flare dimension(B)(mm)	Flare shape
∅ 6.35 (∅ 1/4") 8.4-8.7 (0.33-0.34"20(180-200kgf.cm)
∅ 9.52 (∅ 3/8")	32-39(320-390kgf.cm)	13.2-13.5 (0.52-0.53")
∅ 12.7 (∅ 1/2")	49-59(490-590kgf.cm)	16.2-16.5 (0.64-0.65")
∅ 16 (∅ 5/8")	57-71(570-710kgf.cm)	19.2-19.7 (0.76-0.78")
∅ 19 (∅ 3/4")	67-101(670-1010kgf.cm)	23.2-23.7 (0.91-0.93")

DO NOT USE EXCESSIVE TORQUE

Excessive force can break the nut or damage the refrigerant piping. You must not exceed torque requirements shown in the table above.

3

Connecting Piping to Outdoor Unit

NOTE

This section still needs to be operated according to the TORQUE REQUIREMENTS chart on the previous page.

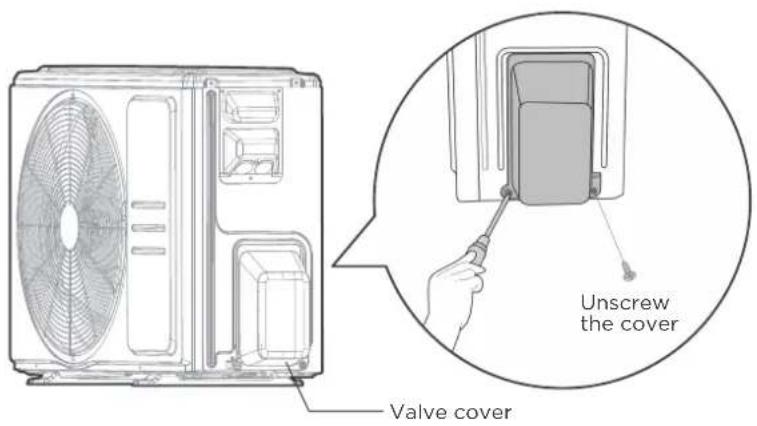

Valve cover Unscrew the cover

Torque wrench

Step 1:

- Unscrew the cover from the packed valve on the side of the outdoor unit.

Step 2:

• Remove protective caps from ends of valves.
• Align flared pipe end with each valve, and tighten the flare nut as tightly as possible by hand.
  • Using a spanner, grip the body of the valve. Do not grip the nut that seals the service valve.

USE SPANNER TO GRIP MAIN BODY OF VALVE

Torque from tightening the flare nut can snap off other parts of valve.

Connect all pipes

Step 3:

• While firmly gripping the body of the valve, use a torque wrench to tighten the flare nut according to the correct torque values.
• Loosen the flaring nut slightly, then tighten again.
• Repeat Steps 1 to 3 for the remaining pipe.

Air Evacuation

NOTE : PREPARATIONS AND PRECAUTIONS

Air and foreign matter in the refrigerant circuit can cause abnormal rises in pressure, which can damage the air conditioner, reduce its efficiency, and cause injury. Use a vacuum pump and manifold gauge to evacuate the refrigerant circuit, removing any non-condensable gas and moisture from the system. Evacuation should be performed upon initial installation and when unit is relocated.

BEFORE PERFORMING EVACUATION

√ Make sure the connective pipes between the indoor and outdoor units are connected properly.
☑ Check to make sure all wiring is connected properly.

Evacuation Instructions

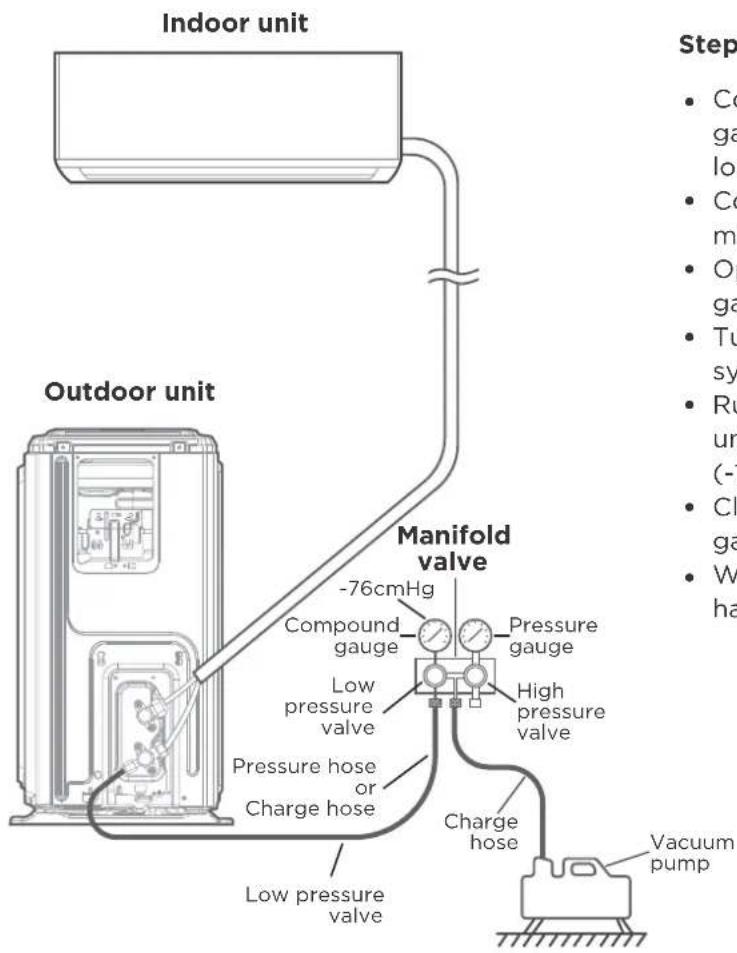

Indoor unit Outdoor unit Manifold valve -76cmHg Compound gauge Pressure gauge Low pressure valve High pressure valve Pressure hose or Charge hose Low pressure valve Charge hose Vacuum pump Step • Co ga lo • Co m • O ga • Tu sy • Ru ur (-) • Cl ga • W ha

Step 1:

• Connect the charge hose of the manifold gauge to service port on the outdoor unit's low pressure valve.
• Connect another charge hose from the manifold gauge to the vacuum pump.
• Open the Low Pressure side of the manifold gauge. Keep the High Pressure side closed.
• Turn on the vacuum pump to evacuate the system.
• Run the vacuum for at least 15 minutes, or until the Compound Meter reads -76cmHG (-10 ^5 Pa).
• Close the Low Pressure side of the manifold gauge, and turn off the vacuum pump.
• Wait for 5 minutes, then check that there has been no change in system pressure.

Flare nut valve body valve stem Cap

Step 2:

• If there is a change in system pressure, refer to Gas Leak Check section for information on how to check for leaks. If there is no change in system pressure, unscrew the cap
• from the packed valve (high pressure valve). Insert hexagonal wrench into the packed valve (high pressure valve) and open the valve by turning the wrench in a 1/4 counterclockwise turn. Listen for gas to exit the system, then close the valve after 5 seconds.
• Watch the Pressure Gauge for one minute to make sure that there is no change in pressure. The Pressure Gauge should read slightly higher than atmospheric pressure.
• Remove the charge hose from the service port.
• Using hexagonal wrench, fully open both the high pressure and low pressure valves.
• Tighten valve caps on all three valves (service port, high pressure, low pressure) by hand. You may tighten it further using a torque wrench if needed.

OPEN VALVE STEMS GENTLY

When opening valve stems, turn the hexagonal wrench until it hits against the stopper. Do not try to force the valve to open further.

NOTE ON ADDING REFRIGERANT

Some systems require additional charging depending on pipe lengths. The standard pipe length varies according to local regulations. For example, in North America, the standard pipe length is 7.5m (25'). In other areas, the standard pipe length is 5m (16'). The refrigerant should be charged from the service port on the outdoor unit's low pressure valve. For the R290 refrigerant models, no refrigerant can be added. The additional refrigerant to be charged can be calculated using the following formula:

ADDITIONAL REFRIGERANT PER PIPE LENGTH

Connective Pipe Length (m)	Air Purging Method	Additional Refrigerant
≤ Standard pipe length	Vacuum Pump N/A
> Standard pipe length	Vacuum Pump	Liquid Side: ∅ 6.35 (1/4")R410A:(Pipe length - standard length) x 15g/m(Pipe length - standard length) x 0.16oZ/ftR32:(Pipe length - standard length) x 12g/m(Pipe length - standard length) x 0.13oZ/ftR22:(Pipe length - standard length) x 20g/m(Pipe length - standard length) x 0.21oZ/ft	Liquid Side: ∅ 9.52 (3/8")R410A:(Pipe length - standard length) x 30g/m(Pipe length - standard length) x 0.32oZ/ftR32:(Pipe length - standard length) x 24g/m(Pipe length - standard length) x 0.26oZ/ftR22:(Pipe length - standard length) x 40g/m(Pipe length - standard length) x 0.42oZ/ft

DO NOT MIX REFRIGERANT TYPES.

Electrical And Gas Leak Checks

WARNING - RISK OF ELECTRIC SHOCK

ALL WIRING MUST COMPLY WITH LOCAL AND NATIONAL ELECTRICAL CODES, AND MUST BE INSTALLED BY A LICENSED ELECTRICIAN.

BEFORE TEST RUN

Only perform test run after you have completed the following steps:

• Electrical Safety Checks - Confirm that the unit's electrical system is safe and operating properly
• Gas Leak Checks – Check all flare nut connections and confirm that the system is not leaking
• Confirm that gas and liquid (high and low pressure) valves are fully open

Electrical Safety Checks

After installation, confirm that all electrical wiring is installed in accordance with local and national regulations, and according to the Installation Manual.

BEFORE TEST RUN

Check Grounding Work

Measure grounding resistance by visual detection and with grounding resistance tester.

DURING TEST RUN

Check for Electrical Leakage

During the Test Run, use an electroprobe and multimeter to perform a comprehensive electrical leakage test.

If electrical leakage is detected, turn off the unit immediately and call a licensed electrician to find and resolve the cause of the leakage.

Note: This may not be required for some locations in North America.

Gas Leak Checks

There are two different methods to check for gas leaks.

Soap and Water Method

Using a soft brush, apply soapy water or liquid detergent to all pipe connection points on the indoor unit and outdoor unit. The presence of bubbles indicates a leak.

Leak Detector Method

If using leak detector, refer to the device's operation manual for proper usage instructions.

Check-point of indoor unit Check-point of outdoor unit A B C D

A: Low pressure stop valve
B: High pressure stop valve
C& D: Indoor unit flare nuts

AFTER PERFORMING GAS LEAK CHECKS

After confirming that the all pipe connection points DO NOT leak, replace the valve cover on the outside unit.

Test Run

Test Run Instructions

You should perform the Test Run for at least 30 minutes.

• Connect power to the unit.
• Press the ON/OFF button on the remote controller to turn it on.
• Press the MODE button to scroll through the following functions, one at a time:
  • COOL-Select lowest possible temperature
  • HEAT-Select highest possible temperature
• Let each function run for 5 minutes, and perform the following checks:

List of Checks to Perform	PASS/FAIL
No electrical leakage
Unit is properly grounded
All electrical terminals properly covered
Indoor and outdoor units are solidly installed
All pipe connection points do not leak	Outdoor (2):	Indoor (2):
Water drains properly from drain hose
All piping is properly insulated
Unit performs COOL function properly
Unit performs HEAT function properly
Indoor unit louvers rotate properly
Indoor unit responds to remote controller

DOUBLE-CHECK PIPE CONNECTIONS

During operation, the pressure of the refrigerant circuit will increase. This may reveal leaks that were not present during your initial leak check. Take time during the Test Run to double-check that all refrigerant pipe connection points do not have leaks. Refer to

Gas Leak Check section for instructions.

• After the Test Run is successfully completed, and you confirm that all checks points in List of Checks to Perform have PASSED, do the following:
a. Using remote control, return unit to normal operating temperature.
b. Using insulation tape, wrap the indoor refrigerant pipe connections that you left uncovered during the indoor unit installation process.

IF AMBIENT TEMPERATURE IS BELOW 17°C(62°F)

You can't use the remote controller to turn on the COOL function when the ambient temperature is below 62°F. In this instance, you can use the MANUAL CONTROL button to test the COOL function.

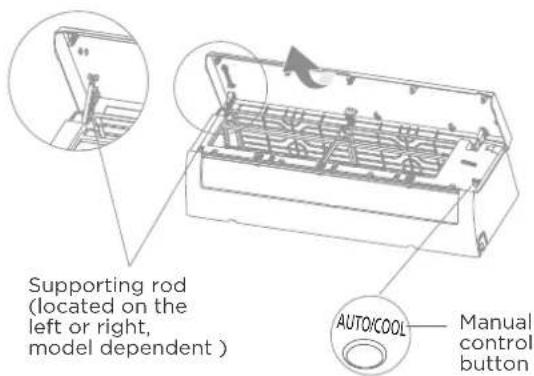

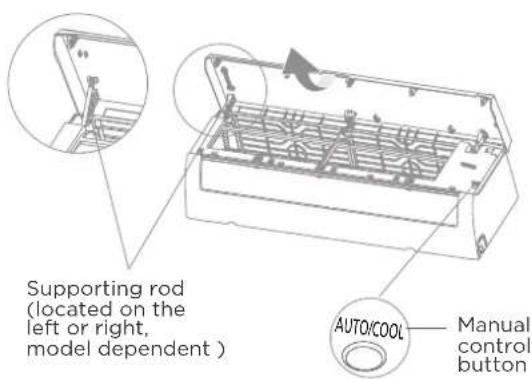

• Lift the front panel of the indoor unit. Note: For some units, there is a supporting rod located on the left or right side. Please use it to prop up the panel.
• The MANUAL CONTROL button is located on the right-hand side of the unit. Press two times to select FORCED COOL mode.
  • Perform Test Run as normal.

Supporting rod (located on the left or right, model dependent ) AUTO/COOL Manual control button

Packing And Unpacking The Unit

Instructions for packing and unpacking the unit:

Unpacking:

Indoor unit:

1. Cut the sealing tape on the carton with a knife, one cut on the left, one cut in the middle and one cut on the right.
2. Use the vice to take out the sealing nails on the top of the carton.
   3.Open the carton.
3. Take out the middle support plate if it is included.
4. Take out the accessory package, and take out the connecting wire if it is included.
5. Lift the machine out of the carton and lay it flat.
6. Remove the left and right package foam or the upper and lower packaging foam, untie the packaging bag.

Outdoor Unit

1. Cut the packing belt.
2. Take the unit out of the carton.
3. Remove the foam from the unit.
4. Remove the packaging bag from the unit.

Packing:

Indoor unit:

1. Put the indoor unit into the packing bag.
2. Attach the left and right package foam or the upper and lower packaging foam to the unit.
3. Put the unit into the carton, then put accessory package in.
4. Close the carton and seal it with the tape.
5. Using the packing belt if necessary.

Outdoor unit:

1. Put the outdoor unit into the packing bag.
2. Put the bottom foam into the box.
3. Put the unit into the carton, then put the upper packaging foam on the unit.
4. Close the carton and seal it with the tape.
5. Using the packing belt if necessary.

NOTE: Please keep all packaging items if you may need in the future.

OPERATION INSTRUCTIONS

NOTE

• Different models have different front panel and display window. Not all the indicators describing below are available for the air conditioner you purchased. Please check the indoor display window of the unit you purchased.
• Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit may be slightly different. The actual shape shall prevail.

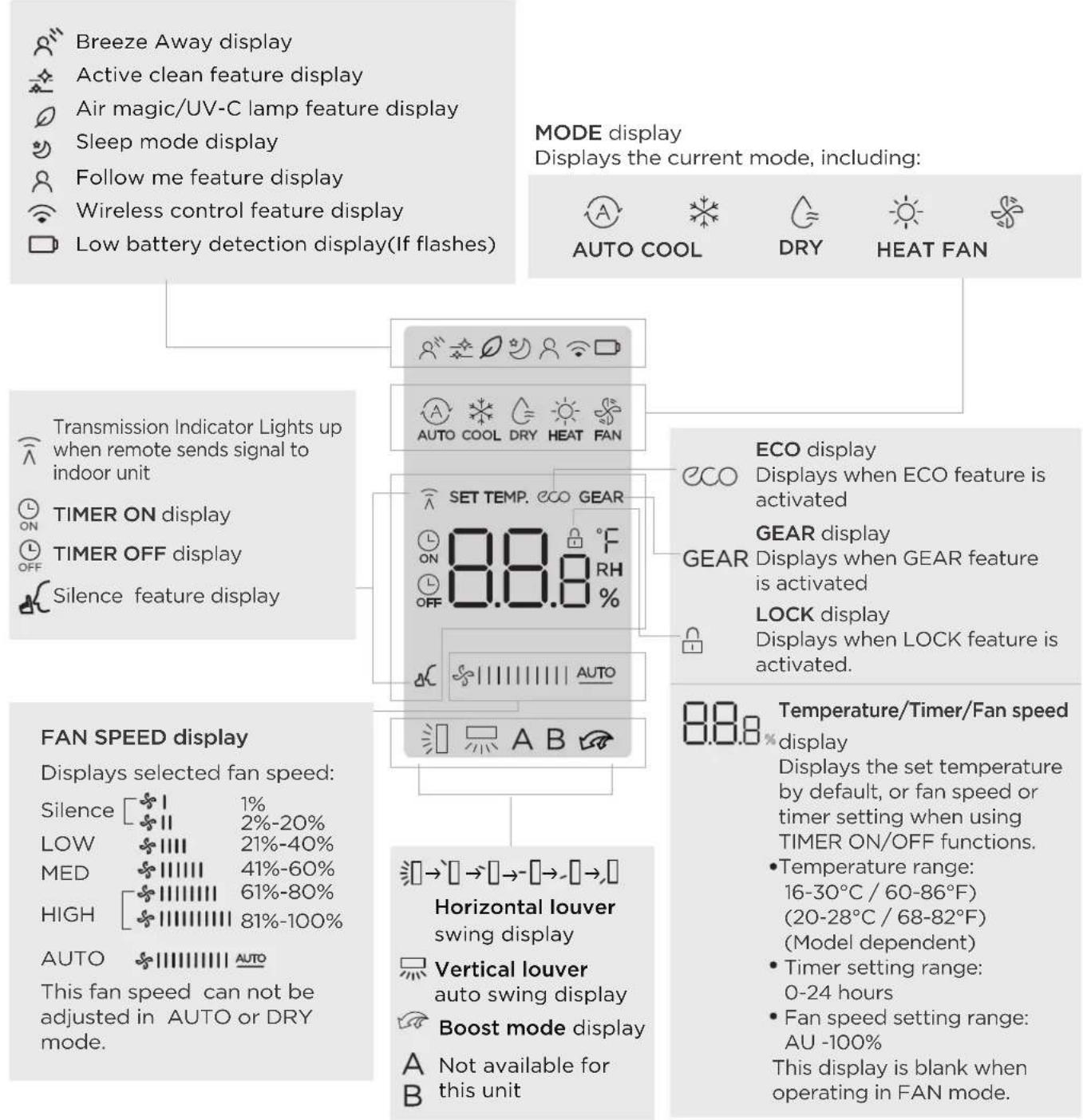

Indoor Unit Display

Front Panel Air Outlet Display window Functional Filter (On Back of Main Filter-Some Units) Remote Control Remote Control Holder (purchase separately) Air Filter

Display Windows	(Model A)	(Model B)
Display Code	Display Code Meanings
fresh	When Fresh and UV-C lamp(if any) feature is activated(some units).
defrost	When defrost feature is activated.
run	When the unit is on.
timer	When TIMER is set.
	When Wireless Control feature is activated(some units).
88	Displays temperature, operation feature and Error codes:
ON(for 3s when)	TIMER ON is set (if the unit is OFF, “ON” remains on when TIMER ON is set).FRESH, UV-C lamp, SWING, TURBO, SILENCE or SOLAR PV ECO feature is turned on.
OF(for 3s when)	TIMER OFF is set.FRESH, UV-C lamp, SWING, TURBO, SILENCE or SOLAR PV ECO feature is turned off.
cF	When anti-cold air feature is turned on.
dF	When defrosting(cooling & heating units).
CL	When Active Clean feature(For Inverter split units)/self-cleaning feature(For Fixed-speed units) is turned on.
FP	When 8°C heating feature is turned on(some units).

Operating Temperature

When your air conditioner is used outside of the following temperature ranges, certain safety protection features may activate and cause the unit to disable.

Inverter Split Type

	COOL Mode	HEAT Mode	DRY Mode
Room Temp.	16°C~32°C(60°F~90°F) 0°C~30°C(32°F~86°F)		10°C~32°C(50°F~90°F)
Outdoor Temp.	0°C~50°C(32°F~122°F)
	-15°C~50°C(5°F~122°F) -15°C~24°C(5°F~75°F) 0°C~50°C(32°F~122°F)For models withlow temp. cooling systems.
	0°C~52°C(32°F~126°F)For special tropical models	-15°C~24°C(5°F~75°F)	0°C~52°C(32°F~126°F)For special tropical models

FOR OUTDOOR UNITS WITH AUXILIARY ELECTRIC HEATER

When outside temperature is below 0^ C ( 32^ F), we strongly recommend keeping the unit plugged in at all time to ensure smooth ongoing performance.

Fixed-speed Type

	COOL Mode HEAT Mode		DRY Mode
Room Temp.	16°C~32°C (60°F~90°F) 0°C~30°C (32°F~86°F)		10°C~32°C(50°F~90°F)
Outdoor Temp.	18°C~43°C (64°F~109°F)	-7°C~24°C(19°F~75°F)	11°C~43°C (52°F~109°F)
	-7°C~43°C (19°F~109°F) For models with low-temp cooling systems		18°C~43°C (64°F~109°F)
	18°C~52°C (64°F~126°F) For special tropical models	-7°C~24°C(19°F~75°F)	18°C~52°C (64°F~126°F) For special tropical models

NOTE: Room relative humidity less than 80%. If the air conditioner operates in excess of this figure, the surface of the air conditioner may attract condensation. Please sets the vertical air flow louver to its maximum angle (vertically to the floor), and set HIGH fan mode.

To further optimize the performance of your unit, do the following:

• Keep doors and windows closed.
• Limit energy usage by using TIMER ON and TIMER OFF functions.
• Do not block air inlets or outlets.
• Regularly inspect and clean air filters.

More features

NOTE

Not all the functions are available for the air conditioner you purchased, please check the indoor display and remote control of your unit.

- Auto-Restart

If the unit loses power, it will automatically restart with the prior settings once power has been restored.

- Anti-mildew

When turning off the unit from COOL, AUTO (COOL), or DRY modes, the air conditioner will continue operate at very low power to dry up condensed water and prevent mildew growth.

• Wireless Control (Model dependent)

Wireless control allows you to control your air conditioner using your mobile phone and a wireless connection.

For the USB device access, replacement, maintenance operations must be carried out by professional staff.

• Active Clean function(some units)

-- The Active Clean Technology washes away dust when it adheres to the heat exchanger by automatically freezing and then rapidly thawing the frost. A “pi-pi” sound will be heard. The Active clean operation is used to produce more condensed water to improve the cleaning effect, and the cold air will blow out. After cleaning, the internal wind wheel then keeps operating with hot air to blow-dry the evaporator, thus keeping the inside clean.

-- When this function is turned on, the indoor unit display window appears "CL", after 20 to 130 minutes, the unit will turn off automatically and cancel Active Clean function.

-- For some units, the system will start high-temperature cleaning process, and the temperature of air outlet is very high. Please keep away from it. And this would lead to the rising of the room temperature.

- Louver Angle Memory

When turning on your unit, the louver will automatically resume its former angle.

• Refrigerant Leakage Detection

The indoor unit will automatically display "EC" or "ELOC" or flash LEDs (model dependent) when it detects refrigerant leakage.

- Breeze Away (some units)

This feature avoids direct air flow blowing on the body and make you feel indulging in silky coolness.

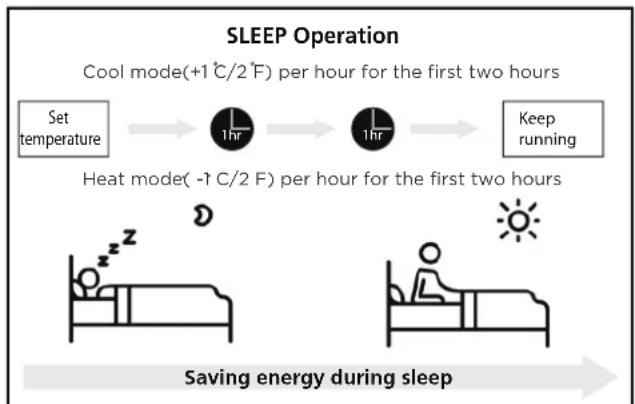

- Sleep Operation

The SLEEP function is used to decrease energy use while you sleep (and don't need the same temperature settings to stay comfortable).

Press the SLEEP button on remote control when in COOL mode, the unit will increase the temperature by 1^ C ( 2^ F) after 1 hour, and will increase an additional 1^ C ( 2^ F) after another hour.

When in HEAT mode, the unit will decrease the temperature by 1^ C ( 2^ F) after 1 hour, and will decrease an additional 1^ C ( 2^ F) after another hour.

The sleep feature will stop after 8 hours and the system will keep running with final situation.

Setting Angle of Air Flow

NOTE : Setting vertical angle of air flow(Remote control)

While the unit is on, use the SWING/DIRECT button on remote control to set the direction (vertical angle) of airflow. Please refer to the Remote Control Manual for details.

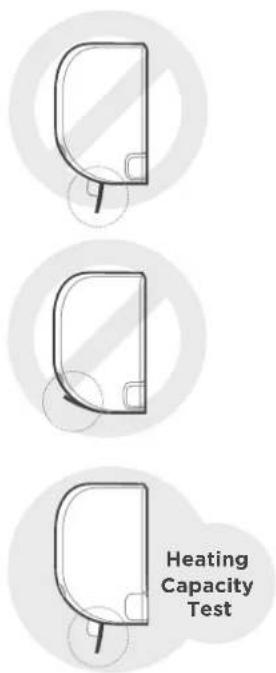

NOTE ON LOUVER ANGLES

• Do not set louver at too vertical an angle for long periods of time. When using COOL or DRY mode. It would be condense the water on the louver blade, which will drop on your floor or furnishings.
• Setting the louver at too small an angle when using COOL or HEAT mode, can reduce the performance of the AC due to restricted air flow.
• According to the relative standards requirement, please sets the vertical air flow louver to its maximum angle under heating capacity test.

Heating Capacity Test

NOTE

Do not move louver by hand. You can turn off the unit and unplug it for a few seconds to restart the unit. It will be reset the louver when you try.

Setting horizontal angle of air flow(Manual operation)

The horizontal angle of the airflow must be set manually. Grip the deflector rod and manually adjust it to your preferred direction.

For some units, the horizontal angle of the airflow can be set by remote control. please refer to the Remote Control Manual.

Deflector rod

CAUTION

Do not put your fingers in or near the blower and suction side of the unit. The high-speed fan inside the unit may cause injury.

Manual Operation(without remote)

CAUTION: FOR PRODUCT USE

The manual button is intended for testing purposes and emergency operation only. Please do not use this function unless the remote control is lost and it is absolutely necessary. To restore regular operation, use the remote control to activate the unit. Unit must be turned off before manual operation.

To operate your unit manually:

• Open the front panel of the indoor unit.
  Note: For some units, there is a supporting rod located on the left or right side. Please use it to prop up the panel.
• Locate the MANUAL CONTROL button on the right-hand side of the unit.
• Press the MANUAL CONTROL button one time to activate FORCED AUTO mode.
• Press the MANUAL CONTROL button again to activate FORCED COOLING mode.
• Press the MANUAL CONTROL button a third time to turn the unit off.
• Release the supporting rod(if any), then close the front panel.

Supporting rod (located on the left or right, model dependent ) AUTO/COOL Manual control button

Remote Control Operation

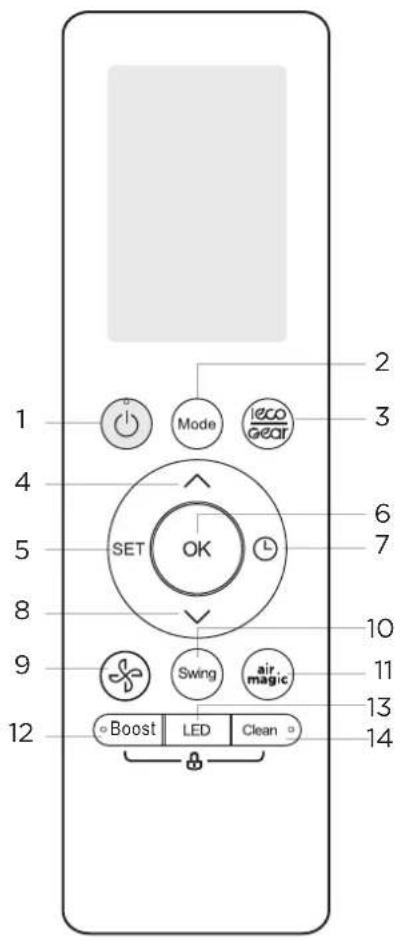

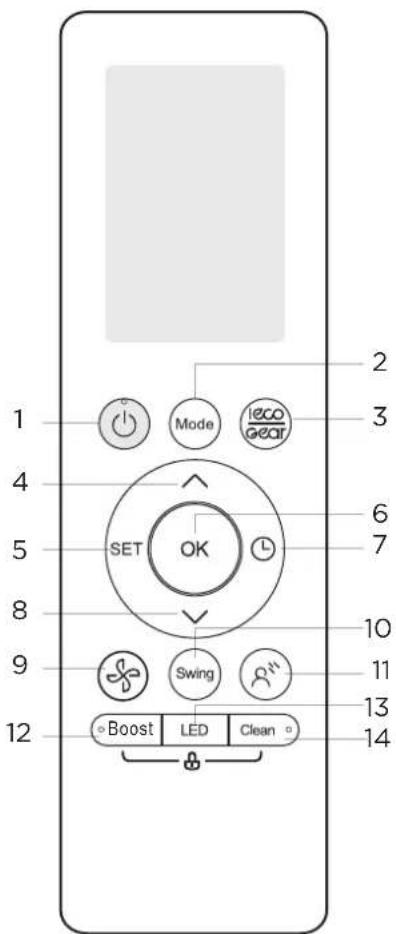

Model	RG10A(B2S)/BGEF, RG10A(B2S)/BGEFU1, RG10A1(B2S)/BGEF, RG10A2(B2S)/BGEFU1, RG10A2(B2S)/BGCEFU1, RG10A2(B2S)/BGCEF, RG10A10(B2S)/BGEF.
Rated Voltage	3.0V( Dry batteries R03/LR03×2)
Signal Receiving Range	8m
Environment	-5°C~60°C(23°F~140°F)

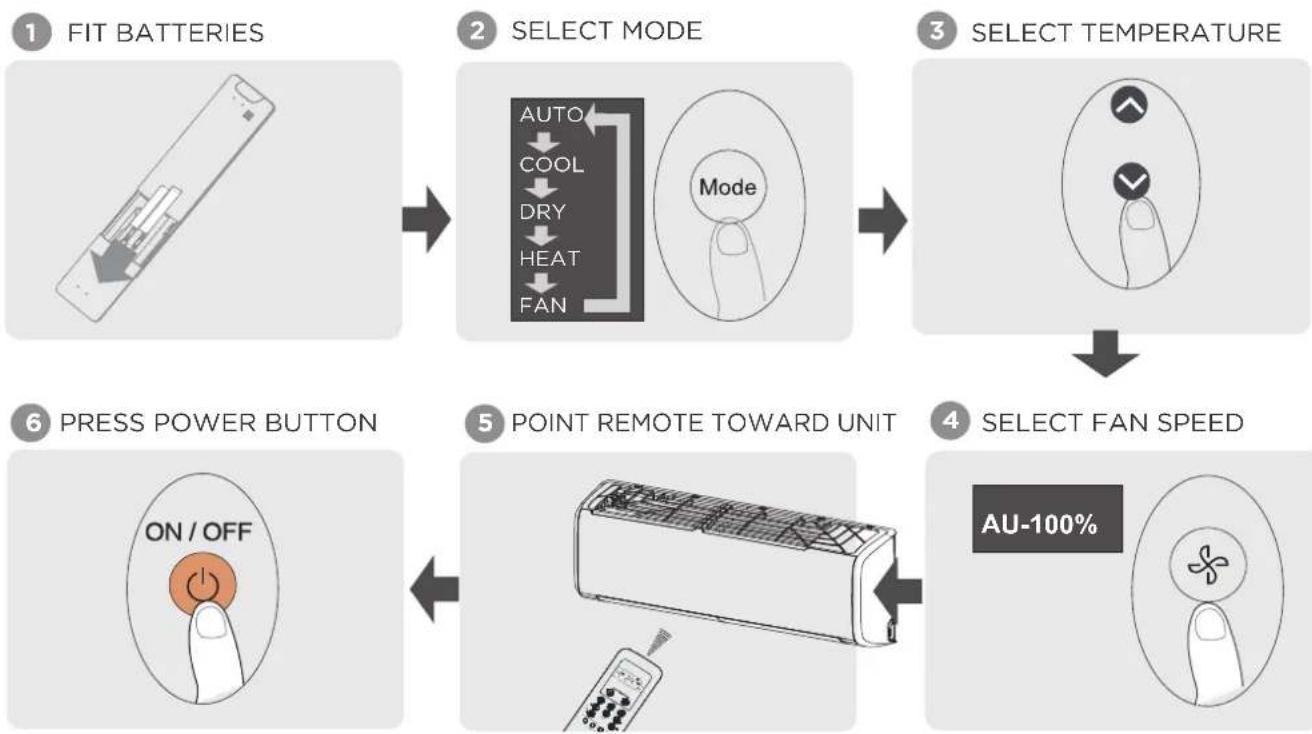

Quick Start Guide

NOT SURE WHAT A FUNCTION DOES?

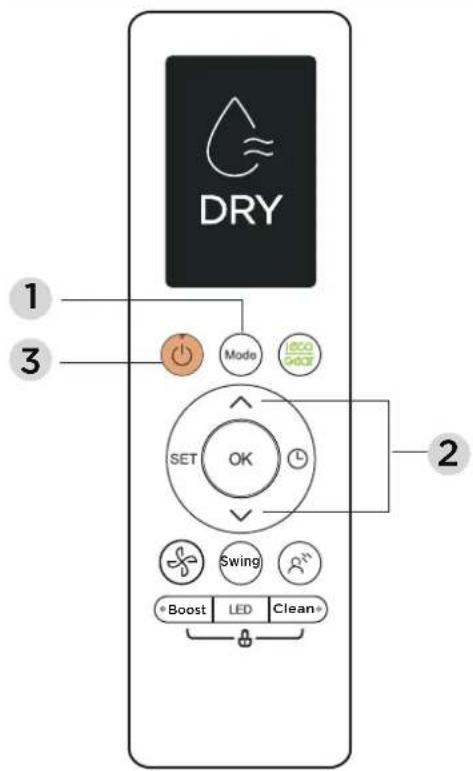

Refer to the How to Use Basic Functions and How to Use Advanced Functions sections of this manual for a detailed description of how to use your air conditioner.

SPECIAL NOTE

• Button designs on your unit may differ slightly from the example shown.
• If the indoor unit does not have a particular function, pressing that function's button on the remote control will have no effect.
• When there are wide differences between "Remote controller Manual" and "USER'S MANUAL" on function description, the description of "USER'S MANUAL" shall prevail.

Handling the Remote Controller

Inserting and Replacing Batteries

Your air conditioning unit may come with two batteries(some units). Put the batteries in the remote control before use.

1. Slide the back cover from the remote control downward, exposing the battery compartment.
2. Insert the batteries, paying attention to match up the (+) and (-) ends of the batteries with
3. the symbols inside the battery compartment. Slide the battery cover back into place.

Illustration of a hand holding a device with arrows indicating movement or change (no text or symbols present)

Remote Control

• Direct sunlight can interfere with the infrared signal receiver.
• There must be a clear line of sight between the remote and the appliance.
• If the signals from the remote control happen to control another appliance, move the appliance to another location or contact customer service.

Battery Disposal

• Do not dispose of batteries as unsorted municipal waste. Refer to local laws for proper disposal of batteries.
• Batteries may have a chemical symbol at the bottom of the disposal icon. This chemical symbol means that the battery contains a heavy metal that exceeds a certain concentration. An example is Pb: Lead (>0.004%).
• Appliances and used batteries must be treated in a specialized facility for reuse, recycling and recovery. By ensuring correct disposal, you will help avoid possible negative consequences for the environment and human health.

Pb

Battery Performance

For optimal product performance:

• Do not mix old and new batteries, or batteries of different brands.
• Do not leave batteries in the remote control if you don't plan on using the device for more than 2 months.

Notes For Using Remote Control

The device could comply with the local national regulations.

• In Canada, it should comply with CAN ICES-3(B)/NMB-3(B).
• In USA, this device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• Changes or modifications not approved by the party responsible for compliance could void user's authority to operate the equipment.

Buttons and Functions

Before you begin using your new air conditioner, make sure to familiarize yourself with its remote control. The following is a brief introduction to the remote control itself. For instructions on how to operate your air conditioner, refer to the How to Use Basic Functions section of this manual.

1 2 3 4 5 6 7 SET OK 8 9 10 11 12 Boost LED Clean 13 14

Model:

RG10A2(B2S)/BGEFU1

RG10A10(B2S)/BGEF(20-28°C/68-82°F)

RG10A(B2S)/BGEF, RG10A(B2S)/BGEFU1

(Fresh feature is not available)

RG10A2(B2S)/BGCEFU1,

RG10A2(B2S)/BGCEF

(Cooling only models, AUTO mode and

HEAT mode are not available)

Description
No.1		ON/OFFTurns the unit on or off.
No.2	[5KSZ]	MODEScrolls through operation modes as follows:Auto→Cool→Dry→Heat→FanNOTE:HEAT mode is not supported by cooling only appliance.
No.3		ECO/GEARPress this button to enter the energy efficient mode in a sequence of following:ECO→GEAR(75%)→GEAR(50%)→Previous setting mode→ECO......
No.4		TEMP.Increases temperature in 1°C (1°F) increments.Max. temperature is 30°C (86°F).NOTE:Press together √& ∧ buttons at the same time for 3 seconds will alternate the temperature display between the °C & °F.
No.5		SETScrolls through operation functions as follows:Fresh/UV-C lamp(∅)→Sleep(∅)→Follow Me(∅)→AP mode(∅)The selected symbol will flash on the display area, press the OK button to confirm.
No.6		OKUsed to confirm the selected functions.
No.7	[IMAGE]	TIMERSet timer to turn unit on or off.
No.8		TEMPDecreases temperature in 1°C (1°F) increments.Min. temperature is 16°C (60°F).
No.9		FAN SPEEDSelects fan speeds in the following order:AU→20%→40%→60%→80%→100%Press the TEMP ∧ or √button to increase/decrease the fan speed in 1% increments.
No.10		SWINGStarts and stops the horizontal louver movement.Hold down for 2 seconds to initiate vertical louver auto swing feature(some units).
No.11	[24XK]	BREEZE AWAYThis feature avoids direct air flow blowing on the body and makes you feel indulging in silky coolness.NTOE:This feature is available under cool, Fan and Dry mode only
No.12	Boost	BOOSTEnables unit to reach preset temperature in shortest possible time.
No.13	LED	LEDTurns indoor unit's LED display and air conditioner buzzer on and off(model dependent), which create a comfortable and quiet environment.
No.14	----	CLEANUsed to start/stop the Self Clean or Active Clean function.(Model dependent, please refer to the USER'S OPERATION & INSTALLATION MANUAL for details)

Buttons and Functions

Before you begin using your new air conditioner, make sure to familiarize yourself with its remote control. The following is a brief introduction to the remote control itself. For instructions on how to operate your air conditioner, refer to the How to Use Basic Functions section of this manual.

1 2 3 4 5 6 7 SET OK 8 9 10 11 12 Boost LED Clean air magic

Model:
RG10A1(B2S)/BGEF

Description
No.1		ON/OFFTurns the unit on or off.
No.2		MODEScrolls through operation modes as follows:Auto→Cool→Dry→Heat→FanNOTE:HEAT mode is not supported by cooling only appliance.
No.3		ECO/GEARPress this button to enter the energy efficient mode in a sequence of following:ECO→GEAR(75%)→GEAR(50%)→Previous setting mode→ECO......
No.4		TEMP.Increases temperature in 1°C (1°F) increments.Max. temperature is 30°C (86°F).NOTE:Press together √& ^buttons at the same time for 3 seconds will alternate the temperature display between the °C & °F.
No.5	[S652]	SETScrolls through operation functions as follows:Breeze Away( R")→Sleep(∅)→Follow Me( ∅ )→→AP mode(∅)→Breeze Away ...The selected symbol will flash on the display area, press OK button to confirm
No.6		OKUsed to confirm the selected functions.
No.7	[IMAGE]	TIMERSet timer to turn unit on or off.
No.8		TEMPDecreases temperature in 1°C (1°F) increments.Min. temperature is 16°C (60°F).
No.9		FAN SPEEDSelects fan speeds in the following order:AU→20%→40%→60%→80%→100%Press the TEMP ∧ or √button to increase/decrease the fan speed in 1% increments.
No.10		SWINGStarts and stops the horizontal louver movement.Hold down for 2 seconds to initiate vertical louver auto swing feature(some units).
No.11		Air magicPress to start/stop the Air magic or UV-C lamp feature (model dependent), or both features(if any) at the same time.
No.12	Boost	BOOSTEnables unit to reach preset temperature in shortest possible time
No.13	LED	LEDTurns indoor unit's LED display and air conditioner buzzer on and off(model dependent), which create a comfortable and quiet environment.
No.14		CLEANUsed to start/stop the Self Clean or Active Clean function.(Model dependent, please refer to the USER'S OPERATION & INSTALLATION MANUAL for details)

Remote Screen Indicators

Information are displayed when the remote controller is power up.

Breeze Away display Active clean feature display Air magic/UV-C lamp feature display Sleep mode display Follow me feature display Wireless control feature display Low battery detection display(If flashes) MODE display Displays the current mode, including: AUTO COOL DRY HEAT FAN Transmission Indicator Lights up when remote sends signal to indoor unit TIMER ON display TIMER OFF display Silence feature display ECO display Displays when ECO feature is activated GEAR display Displays when GEAR feature is activated LOCK display Displays when LOCK feature is activated. FAN SPEED display Displays selected fan speed: Silence 1% LOW 2%-20% MED 21%-40% HIGH 41%-60% AUTO 61%-80% This fan speed can not be adjusted in AUTO or DRY mode. Horizontal louver swing display Vertical louver auto swing display Boost mode display A Not available for this unit 8.8.8 °C REH 8.8.8 A B Temperature/Timer/Fan speed display Displays the set temperature by default, or fan speed or timer setting when using TIMER ON/OFF functions. • Temperature range: 16-30°C / 60-86°F) (20-28°C / 68-82°F) (Model dependent) • Timer setting range: 0-24 hours • Fan speed setting range: AU -100% This display is blank when operating in FAN mode.

NOTE

All indicators shown in the figure are for the purpose of clear presentation. But during the actual operation, only the relative function signs are shown on the display window.

How to Use Basic Functions

Basic operation

TTENTION! Before operation, please ensure the unit is plugged in and power is available.

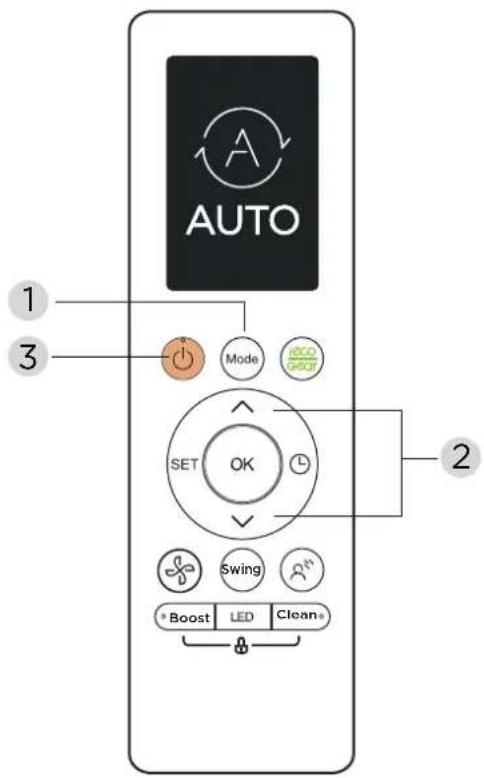

AUTO 1 3 Mode OK SET OK 2 Swing Boost LED Clean

COOL Mode

1. Press the MODE button to select COOL mode.
2. Set your desired temperature using the TEMP ^ or TEMP ∨ butto
3. Press FAN button to select the fan speed in a range of AU-100%.
4. Press the ON/OFF button to start the unit.

SETTING TEMPER

The operating temperature range for units is 16-30°C (60-86°F)/20-28°C(68-82°F). You can increase or decrease the set temperature in 1°C (1°F) increments.

AUTO Mode

In AUTO mode, the unit will automatically select the COOL, FAN, or HEAT operation based on the set temperature.

1. Press the MODE button to select AUTO.
2. Set your desired temperature using the TEMP ∧ or TEMP ∨ button.
3. Press the ON/OFF button to start the unit.

NOTE: FAN SPEED can't be set in AUTO mode.

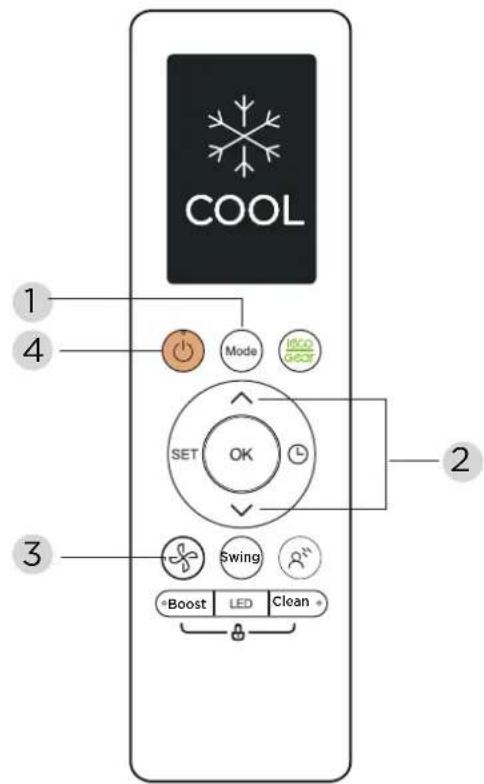

COOL 1 4 Mode Info Gear SET OK 2 3 Swing Boost LED Clean +

How to Use Basic Functions

DRY 1 3 Mode ECO GND SET OK 2 Boost LED Clean

FAN Mode

1. Press the MODE button to select FAN mode.
2. Press button to select the fan speed in a range of AU-100%..
3. Press the ON/OFF button to start the unit.

NOTE: You can't set temperature in FAN mode. As a result, your remote control's LCD screen will not display temperature.

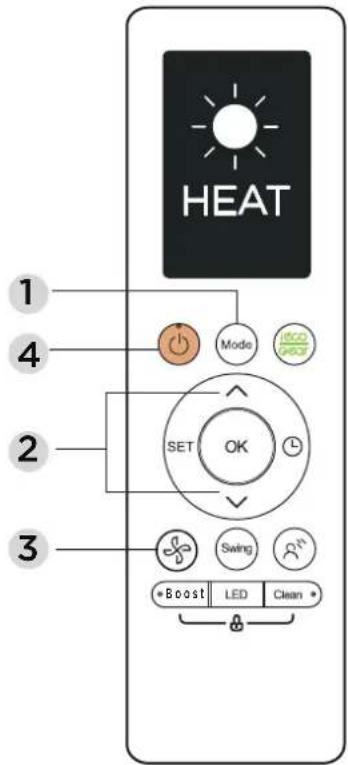

HEAT 1 4 2 3 SET OK Mode Switch Clean *Boost LED Clean *

DRY Mode (dehumidifying)

1. Press the MODE button to select DRY mode.
2. Set your desired temperature using the TEMP ∧ or TEMP ∨ button.
3. Press the ON/OFF button to start the unit.

NOTE: FAN SPEED can't be changed in DRY mode.

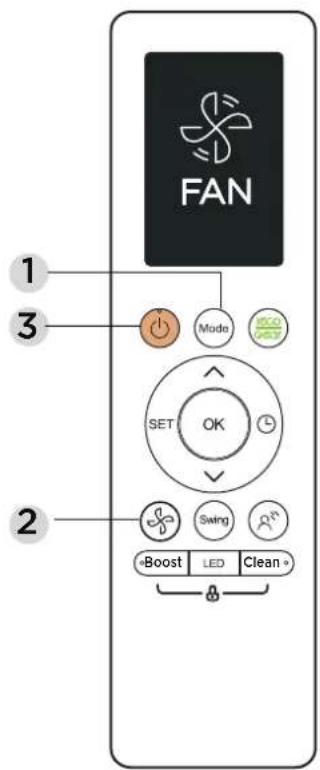

FAN 1 3 Mode SET OK 2 Boost LED Clean

HEAT Mode

1. Press the MODE button to select HEAT mode.
2. Set your desired temperature using the TEMP ∧ or TEMP ∨ button.
3. Press FAN button to select the fan speed in a range of AU-100%.
4. Press the ON/OFF button to start the unit.

NOTE: As outdoor temperature drops, the performance of your unit's HEAT function may be affected. In such instances, we recommend using this air conditioner in conjunction with other heating appliances.

Setting the TIMER

TIMER ON/OFF - Set the amount of time after which the unit will automatically turn on/off.

TIMER ON setting

Press TIMER button to initiate the ON time sequence.

Press Temp. up or down button for for multiple times to set the desired time to turn on the unit.

Point remote to unit and wait 1sec, the TIMER ON will be activated.

x5 ON 2.5 h 1sec

TIMER OFF setting

Press TIMER button to initiate the OFF time sequence.

Press Temp. up or down button for for multiple times to set the desired time to turn off the unit.

Point remote to unit and wait 1sec, the TIMER OFF will be activated.

TIMER →

x10 5.0 h

1sec

NOTE:

1. When setting the TIMER ON or TIMER OFF, the time will increase by 30 minutes increments with each press, up to 10 hours. After 10 hours and up to 24, it will increase in 1 hour increments. (For example, press 5 times to get 2.5h, and press 10 times to get 5h,) The timer will revert to 0.0 after 24.
2. Cancel either function by setting its timer to 0.0h.

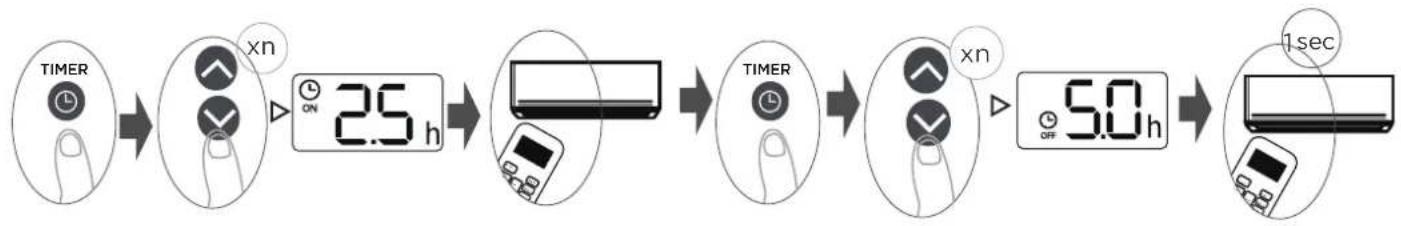

TIMER ON & OFF setting(example)

Keep in mind that the time periods you set for both functions refer to hours after the current time.

Example: If current timer is 1:00PM, to set the timer as above steps, the unit will turn on 2.5h later (3:30PM) and turn off at 6:00PM.

2.5 hours late

5 hours later

How to Use Advanced Functions

Swing function

Press Swing button

Swing

The horizontal louver will swing up and down automatically when pressing Swing button. Press again to make it stop.

2s Swing

Keep pressing this button more than 2 seconds, the vertical louver swing function is activated. (Model dependent)

Airflow direction

Swing

If continue to press the SWING button, five different airflow directions can be set. The louver can be move at a certain range each time you press the button. Press the button until the direction you prefer is reached.

NOTE: When the unit is off, press and hold MODE and SWING buttons together for one second, the louver will open for a certain angle, which makes it very convenient for cleaning. Press and hold MODE and SWING buttons together for one second to reset the louver(Model dependent).

LED DISPLAY

Press LED button LED

Press this button to turn on and turn off the display on the indoor unit.

Press this button more than 5 seconds(some units)

Keep pressing this button more than 5 seconds, the indoor unit will display the actual room temperature. Press more than 5 seconds again will revert back to display the setting temperature.

ECO/GEAR function

Press this button to enter the energy efficient mode in a sequence of following:

ECO → GEAR(75%) → GEAR(50%) → Previous setting mode → ECO.....

Note: This function is only available under COOL mode.

ECO operation:

Under cooling mode, press this button, the remote controller will adjust the temperature automatically to 24^ C /75°F, fan speed of Auto to save energy (only when the set temperature is less than 24^ C /75°F. If the set temperature is above 24^ C /75°F, press the ECO button, the fan speed will change to Auto, the set temperature will remain unchanged.

NOTE: Pressing the ECO button, or modifying the mode or adjusting the set temperature to less than 24^ C /75°F will stop ECO operation. Under ECO operation, the set tmeperature should be 24^ C /75°F or above, it may result in insufficient cooling. If you feel uncomfortable, just press the ECO button again to stop it.

GEAR operation:

Press the ECO/GEAR button to enter the GEAR operation as following: 75%(up to 75% electrical energy consumption) → 50%(up to 50% electrical energy consumption) → Previous setting mode.

How to Use Advanced Functions

BOOST Function

Press Boost button

Boost

When you select Boost feature in COOL mode, the unit will blow cool air with strongest wind setting to jump-start the cooling process.

When you select Boost feature in HEAT mode, the unit will blow heat air with strongest wind setting to jump-start the heating process(some units). For units with Electric heat elements, the Electric HEATER will activate and jump-start the heating process.

LOCK function

5s Clean + 5s Boost

Press together Clean button and Boost button at the same time more than 5 seconds to activate Lock function. All buttons will not response except pressing these two buttons for two seconds again to disable locking.

Silence function

Keep pressing Fan button for more than 2 seconds to activate/disable Silence function(some units).

Due to low frequency operation of compressor, it may result in insufficient cooling and heating capacity. Press ON/OFF, Mode, Sleep, Boost or Clean button while operating will cancel silence function.

FP function

Press this button 2 times during one second under HEAT Mode with setting temperature of 16^ C / 60^ F or 20^ C / 68^ F (for model RG10A10(B2)/BGEF).

The unit will operate at high fan speed (while compressor on) with temperature automatically set to 8^ C /46°F.

Note: This function is for heat pump air conditioner only.

Press this button 2 times under HEAT Mode with setting temperature of 16^ C / 60^ F or 20^ C / 68^ F (for model RG10A10(B2)/BGEF) to activate the FP function. Press On/Off, Sleep, Mode, Fan and Temp. button while operating will cancel this function.

CLEAN function

Press Clean button to active self clean or active clean function(Model dependent)

Active clean function:

Clean

The Active Clean Technology washes away dust, mold, and grease that may cause odors when it adheres to the heat exchanger by automatically freezing and then rapidly thawing the frost. When this function is turned on, the indoor unit display window appears “CL”, after 20 to 45 or 130(model dependent) minutes, the unit will turn off automatically and cancel CLEAN function.

Self clean function:

Airborne bacteria can grow in the moisture that condenses around heat exchanger in the unit. With regular use, most of this moisture is evaporated from the unit. By pressing the CLEAN button, your unit will clean itself automatically. After cleaning, the unit will turn off automatically. Pressing the CLEAN button mid-cycle will cancel the operation and turn off the unit. You can use CLEAN as often as you like.

Note: You can only activate this function in COOL or DRY mode.

How to Use Advanced Functions

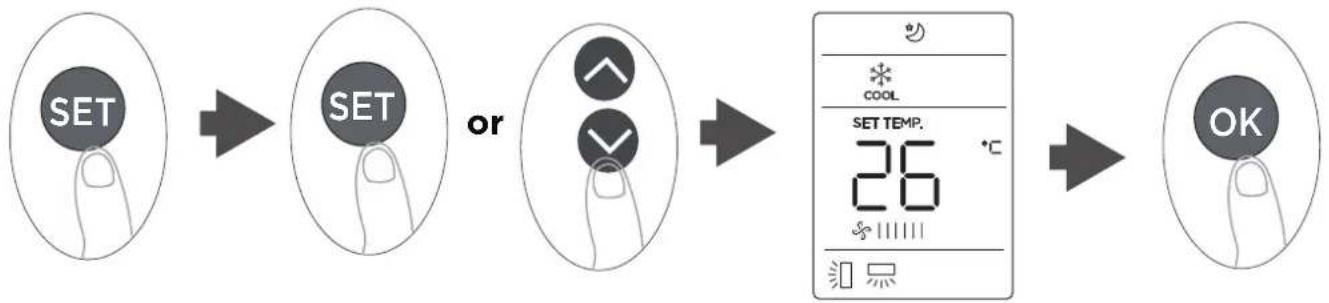

SET function

• Press the SET button to enter the function setting, then press SET button or TEMP √ or TEMP ▲ button to select the desired function. The selected symbol will flash on the display area, press the OK button to confirm.
• To cancel the selected function, just perform the same procedures as above.
• Press the SET button to scroll through operation functions as follows:

Breeze Away ^ (♂) → Fresh/UV-C lamp ^ (♀) → Sleep(♂) → Follow Me(♂) → AP mode ^* (♀)

[*]: If your remote controller has Breeze Away button or air magic button, you can not use the SET button to select the Breeze Away or Fresh/UV-C lamp feature.

Breeze Away function( ⚙ ) (some units) :

This feature avoids direct air flow blowing on the body and makes you feel indulging in silky coolness.

NOTE: This feature is available under cool, Fan and Dry mode only.

FRESH/UV-C lamp function(∅) (some units):

When this function is selected, the Ionizer or UV-C lamp(model dependent) will be activated. If has both features, these two features will be activated at the same time. This function will help to purify the air in the room.

Sleep function(★):

The SLEEP function is used to decrease energy use while you sleep (and don't need the same temperature settings to stay comfortable). This function can only be activated via remote control.

For the detail, see "sleep operation" in "USER S MANUAL"

NOTE: The SLEEP function is not available in FAN or DRY mode.

Follow me function( 👉 ):

The FOLLOW ME function enables the remote control to measure the temperature at its current location and send this signal to the air conditioner every 3 minutes interval. When using AUTO, COOL or HEAT modes, measuring ambient temperature from the remote control (instead of from the indoor unit itself) will enable the air conditioner to optimize the temperature around you and ensure maximum comfort.

NOTE: Press and hold Boost button for seven seconds to start/stop memory feature of Follow Me function.

• If the memory feature is activated, "On" displays for 3 seconds on the screen.
• If the memory feature is stopped, "OF" displays for 3 seconds on the screen.
• While the memory feature is activated, press the ON/OFF button, shift the mode or power failure will not cancel the Follow me function.

AP function( ~ )(some units):

Choose AP mode to do wireless network configuration. For some units, it doesn't work by pressing the SET button. To enter the AP mode, continuously press the LED button seven times in 10 seconds.

CARE AND MAINTENANCE

CAUTION

• The cooling efficiency of your unit and your health would be damaged for the glogged AC, Make sure to clean the filter every two weeks.
  • Always TURN OFF your AC system and disconnect its power supply before cleaning or maintenance.
• Do not touch air freshening (Plasma) filter at least 10 minutes after turning off the unit.
• Only use a soft, dry cloth to wipe the unit clean. You can use a cloth soaked in warm water to wipe it clean if the unit is especially dirty.
• Do not use chemicals or chemically treated cloths to clean the unit
• Do not use benzene, paint thinner, polishing powder or other solvents to clean the unit. They can cause the plastic surface to crack or deform.
• Do not use water hotter than 40^ (104°F) to clean the front panel. This can cause the panel to deform or become discolored.

Cleaning Your Indoor Unit, Air Filter

Grab the clasp and lift

Step 1:

Lift the front panel of the indoor unit. For the unit with supporting rod, please use it to prop up the front panel.

Filter Tabs

Step 2:

Grip the tab on the end of the filter, lift it up, then pull it towards yourself and pull the filter out.

Step 3:

If your filter has a small air freshening filter, unclip it from the larger filter. Clean this air freshening filter with a hand-held vacuum.

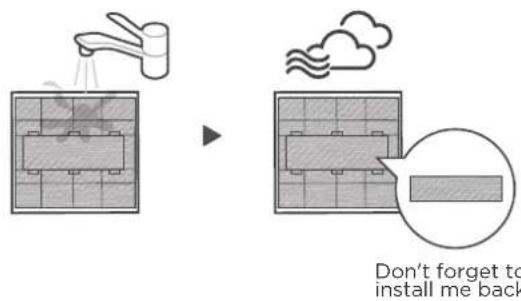

Don't forget to install me back

Step 4:

Clean the large air filter with warm, soapy water. Be sure to use a mild detergent. Rinse the filter with fresh water, then shake off excess water. Dry it in a cool, dry place, and refrain from exposing it to direct sunlight.

Simple line drawing of a rectangular container with sparkles on both sides (no text or symbols)

Step 5:

When dry, re-clip the air freshening filter to the larger filter, then slide it back into the indoor unit. Finally, Close the front panel of the indoor unit.

CAUTION

• Before changing the filter or cleaning, turn off the unit and disconnect its power supply.
• When removing filter, do not touch metal parts in the unit. The sharp metal edges can cut you.
• Do not use water to clean the inside of the indoor unit. This can destroy insulation and cause electrical shock.
• Do not expose filter to direct sunlight when drying. This can shrink the filter.
• Any maintenance and cleaning of outdoor unit should be performed by an authorized dealer or a licensed service provider.
• Any unit repairs should be performed by an authorized dealer or a licensed service provider.

Air Filter Reminders (Optional)

Display window: "CL"

Display window: "nF"

Air Filter Cleaning Reminder

• After 240 hours of use, the display window on the indoor unit will flash "CL." This is a reminder to clean your filter. After 15 seconds, the unit will revert to its previous display.
• To reset the reminder, press the LED button on your remote control 4 times, or press the MANUAL CONTROL button 3 times. If you don't reset the reminder, the "CL" indicator will flash again when you restart the unit.

Air Filter Replacement Reminder

• After 2,880 hours of use, the display window on the indoor unit will flash "nF." This is a reminder to replace your filter. After 15 seconds, the unit will revert to its previous display.
• To reset the reminder, press the LED button on your remote control 4 times, or press the MANUAL CONTROL button 3 times. If you don't reset the reminder, the "nF" indicator will flash again when you restart the unit.

Maintenance your AC.

Maintenance - Long Periods of Non-Use

If you plan not to use your air conditioner for an extended period of time, do the following:

Simple line drawing of a hand cleaning a grid with a star symbol (no text or symbols)

Clean all filters Turn on FAN function until

Simple line icon of a house with wavy lines indicating airflow or water (no text or symbols)

unit dries out completely

Prohibition symbol with a circle and diagonal line crossing through it, no text or numbers present.

Turn off the unit and disconnect the power

Simple line drawing of a mobile phone with a card and scroll (no text or symbols)

Remove batteries
from remote control

Maintenance - Pre-Season Inspection

After long periods of non-use, or before periods of frequent use, do the following:

Prohibition sign with circular and diagonal lines, indicating no hazard or caution

Check for damaged wires

Hand cleaning a grid with a magnifying glass (no text or symbols)

Clean all filters Check for leaks

Prohibition sign with no text, numbers, or symbols (no readable document text)

No smoking symbol (prohibited sign) with no accompanying text or labels

Prohibition sign with a diagonal line and house icon, no text or symbols present

Simple line drawing of a smartphone with a scroll wheel (no text or symbols)

all air inlets and outlets
Replace batteriesMake sure

TROUBLESHOOTING

CAUTION

If any of the following conditions occurs, turn off your unit immediately!

• The power cord is damaged or abnormally warm
• You smell a burning odor
• The unit emits loud or abnormal sounds
• A power fuse blows or the circuit breaker frequently trips
  • Water or other objects fall into or out of the unit

DO NOT ATTEMPT TO FIX THESE YOURSELF! CONTACT AN AUTHORIZED SERVICE PROVIDER IMMEDIATELY.

Common Issues

The following problems are not a malfunction and in most situations will not require repairs.

Issue Possible Causes
Unit does not turn on when pressing ON/OFF button	The Unit has a 3-minute protection feature that prevents the unit from overloading. The unit cannot be restarted within three minutes of being turned off.
The unit changes from COOL/HEAT mode to FAN mode	The unit may change its setting to prevent frost from forming on the unit. Once the temperature increases, the unit will start operating in the previously selected mode again.The set temperature has been reached, at which point the unit turns off the compressor. The unit will continue operating when the temperature fluctuates again.
The indoor unit emits white mist	In humid regions, a large temperature difference between the room's air and the conditioned air can cause white mist.
Both the indoor and outdoor units emit white mist	When the unit restarts in HEAT mode after defrosting, white mist may be emitted due to moisture generated from the defrosting process.
The indoor unit makes noises	A rushing air sound may occur when the louver resets its position.A squeaking sound may occur after running the unit in HEAT mode due to expansion and contraction of the unit's plastic parts.
Both the indoor unit and outdoor unit make noises	Low hissing sound during operation: This is normal and is caused by refrigerant gas flowing through both indoor and outdoor units.
	Low hissing sound when the system starts, has just stopped running, or is defrosting: This noise is normal and is caused by the refrigerant gas stopping or changing direction.
	Squeaking sound: Normal expansion and contraction of plastic and metal parts caused by temperature changes during operation can cause squeaking noises.
The outdoor unit makes noises	The unit will make different sounds based on its current operating mode.
Dust is emitted from either the indoor or outdoor unit	The unit may accumulate dust during extended periods of non-use, which will be emitted when the unit is turned on. This can be mitigated by covering the unit during long periods of inactivity.
The unit emits a bad odor	The unit may absorb odors from the environment (such as furniture, cooking, cigarettes, etc.) which will be emitted during operations.
	The unit's filters have become moldy and should be cleaned.
The fan of the outdoor unit does not operate	During operation, the fan speed is controlled to optimize product operation.
Operation is erratic, unpredictable, or unit is unresponsive	Interference from cell phone towers and remote boosters may cause the unit to malfunction.In this case, try the following:Disconnect the power, then reconnect.Press ON/OFF button on remote control to restart operation.

NOTE: If problem persists, contact a local dealer or your nearest customer service center. Provide them with a detailed description of the unit malfunction as well as your model number.

CAUTION

When troubles occur, please check the following points before contacting a repair company.

Problem Possible	Causes Solution
Poor Cooling Performance	Temperature setting may be higher than ambient room temperature	Lower the temperature setting
	The heat exchanger on the indoor or outdoor unit is dirty	Clean the affected heat exchanger
	The air filter is dirty	Remove the filter and clean it according to instructions
	The air inlet or outlet of either unit is blocked	Turn the unit off, remove the obstruction and turn it back on
	Doors and windows are open	Make sure that all doors and windows are closed while operating the unit
	Excessive heat is generated by sunlight	Close windows and curtains during periods of high heat or bright sunshine
	Too many sources of heat in the room (people, computers, electronics, etc.)	Reduce amount of heat sources
	Low refrigerant due to leak or long-term use	Check for leaks, re-seal if necessary and top off refrigerant
	SILENCE function is activated (optional function)	SILENCE function can lower product performance by reducing operating frequency. Turn off SILENCE function.
Problem Possible Causes	Solution
The unit is not working	Power failure	Wait for the power to be restored
	The power is turned off Turn on the power
	The fuse is burned out	Replace the fuse
	Remote control batteries are dead	Replace batteries
	The Unit's 3-minute protection has been activated	Wait three minutes after restarting the unit
	Timer is activated	Turn timer off
The unit starts and stops frequently	There's too much or too little refrigerant in the system	Check for leaks and recharge the system with refrigerant.
	Incompressible gas or moisture has entered the system.	Evacuate and recharge the system with refrigerant
	The compressor is broken Replace the compressor
	The voltage is too high or too low	Install a manostat to regulate the voltage
Poor heating performance	The outdoor temperature is extremely low	Use auxiliary heating device
	Cold air is entering through doors and windows	Make sure that all doors and windows are closed during use
	Low refrigerant due to leak or long-term use	Check for leaks, re-seal if necessary and top off refrigerant
Indicator lamps continue flashing
Error code appears and begins with the letters as the following in the window display of indoor unit:• E(x), P(x), F(x)• EH(xx), EL(xx), EC(xx)• PH(xx), PL(xx), PC(xx)	The unit may stop operation or continue to run safely. If the indicator lamps continue to flash or error codes appear, wait for about 10 minutes. The problem may resolve itself.If not, disconnect the power, then connect it again. Turn the unit on.If the problem persists, disconnect the power and contact your nearest customer service center.

NOTE: If your problem persists after performing the checks and diagnostics above, turn off your unit immediately and contact an authorized service center.

TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT

Midea logo, word marks, trade name, trade dress and all versions thereof are valuable assets of Midea Group and/or its affiliates (“Midea”), to which Midea owns trademarks, copyrights and other intellectual property rights, and all goodwill derived from using any part of an Midea trademark. Use of Midea trademark for commercial purposes without the prior written consent of Midea may constitute trademark infringement or unfair competition in violation of relevant laws.

This manual is created by Midea and Midea reserves all copyrights thereof. No entity or individual may use, duplicate, modify, distribute in whole or in part this manual, or bundle or sell with other products without the prior written consent of Midea.

All the described functions and instructions were up to date at the time of printing this manual. However, the actual product may vary due to improved functions and designs.

DISPOSAL AND RECYCLING

Important instructions for environment(European Disposal Guidelines)

Compliance with the WEEE Directive and Disposing of the Waster Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waster electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

DATA PROTECTION NOTICE

For the provision of the services agreed with the customer,

we agree to comply without restriction with all stipulations of applicable data protection law, in line with agreed countries within which services to the customer will be delivered, as well as, where applicable, the EU General Data Protection Regulation (GDPR).

Generally, our data processing is to fulfil our obligation under contract with you and for product safety reasons, to safeguard your rights in connection with warranty and product registration questions. In some cases, but only if appropriate data protection is ensured, personal data might be transferred to recipients located outside of the European Economic Area.

Further information are provided on request. You can contact our Data Protection Officer via [e-mail]. To exercise your rights such as right to object your personal date being processed for direct marketing purposes, please contact us via [e-mail]. To find further information, please follow the QR Code.

The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. Any updates to the manual will be uploaded to the service website, please check for the latest version.

Importer: MIDEA APPLIANCE AUSTRALIA

Manufacturer: GD Midea Air-Conditioning Equipment Co., Ltd.

Lingang Road Beijiao Shunde Foshan Guangdong

People's Republic of China 528311

Midea

make yourself at home

www.midea.net.au

© Midea 2022 all rights reserved

AG--OBM

16122000A74311
