USER MANUAL Fireclay WHUF2819 Whitehaus

UNDERMOUNT KITCHEN SINKS

MODELS

WHUF1818

WHUF2418

WHUF2819

WHUF3119

WHUF3419

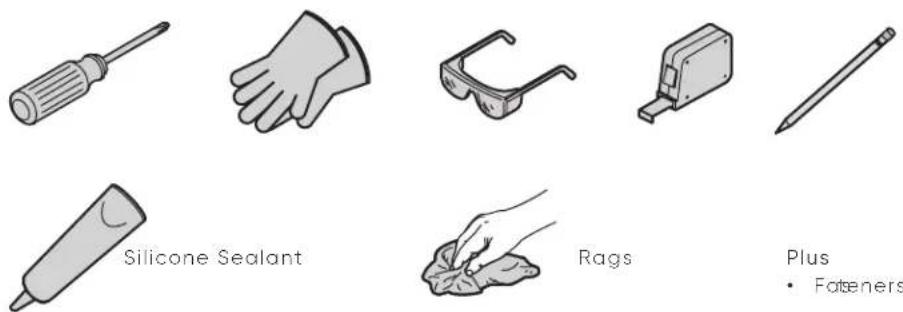

Tools and Materials

Plus

- Fatseners

WARNING: Risk of personal injury.

Edges are sharp. Wear gloves when handling the sink.

CAUTION: Risk of personal injury.

Fireclay sinks are very heavy. Get assistance lifting the sink.

Provide your countertop supplier with your sink and faucet model number when ordering your countertop.

Construct a wooden frame to support the sink. Measure your sink to determine the dimensions.

Isometric line drawing of a rectangular basin with internal channels and a central circular opening (no text or symbols)

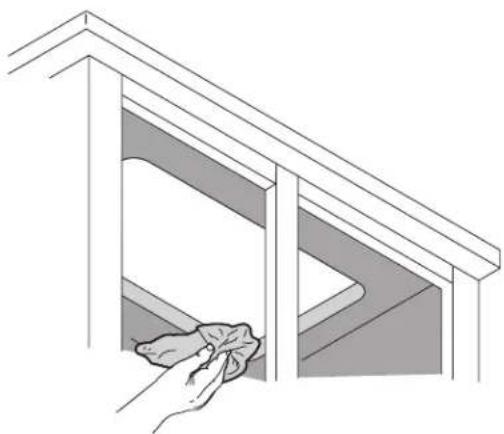

Clean the top and underside of the counter and the rim of the sink.

Line drawing of a hand cleaning a wooden structure with a cloth (no text or symbols)

Apply sealant near the inside edge.

Line drawing of a rectangular container with a slot and a small protrusion (no text or symbols)

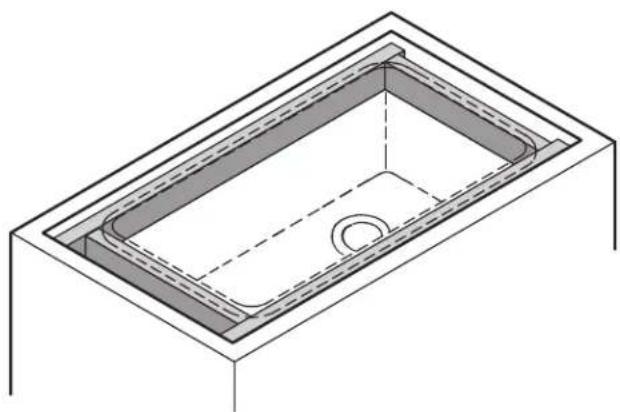

Set the sink into place. Level the sink with the top of the cabinet.

Isometric line drawing of a rectangular basin with a central circular hole and dashed lines indicating depth (no text or symbols)

Apply silicone sealant, wipe away any excess. Fill voids and allow to dry.

Line drawing of a kitchen sink with hand cleaning the surface and a tool applying material (no text or symbols)

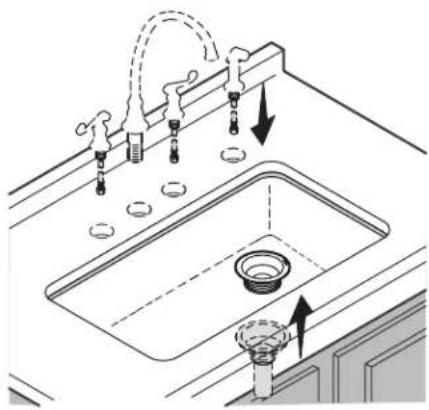

Install the faucet and the strainers.

Diagram of a kitchen sink with faucet and drain, showing water flow direction (no text or labels)

Complete the faucet and drain connections. Run water and check for leaks.

Illustration of hands connecting pipe fittings to a flexible hose, showing mechanical assembly (no text or symbols)
