Fireclay WHUF3419 - Vasque Whitehaus - Free user manual and instructions

Product Type	Kitchen Sink
Brand	Whitehaus
Model	Fireclay WHUF3419
Material	Fireclay
Finish	Glossy White
Installation Type	Undermount
Overall Dimensions	33" L x 22" W x 9" D
Bowl Depth	9 inches
Number of Basins	1
Weight	45 lbs
Drain Size	3.5 inches
Number of Faucet Holes	1
Overflow	Yes
Minimum Cabinet Size	36 inches
Warranty	Limited Lifetime
Cleaning Instructions	Use mild soap and water; avoid abrasive cleaners
Certifications	ANSI/NSF 61
Scratch Resistance	High
Stain Resistance	High
Thermal Resistance	High

Frequently Asked Questions - Fireclay WHUF3419 Whitehaus

Can this sink be installed as a drop-in?

No, it is designed for undermount installation only. A drop-in installation may not provide proper support.

What type of faucet is recommended for this sink?

A single-hole faucet is recommended as the sink comes with one faucet hole. Alternatively, you can use a widespread faucet with a deck plate.

How do I clean the fireclay surface?

Use a mild soap and water solution with a soft cloth. Avoid abrasive cleaners, scouring pads, or harsh chemicals that could damage the finish.

Is the sink resistant to chipping?

Fireclay is durable but can chip if heavy objects are dropped. Use a sink grid or mat to protect the surface.

What is the warranty coverage?

The sink comes with a Limited Lifetime Warranty against manufacturer defects. It does not cover damage from improper installation or abuse.

Does it come with mounting hardware?

Mounting clips may be included for undermount installation. Refer to the manual for specific hardware details.

Can I use a garbage disposal with this sink?

Yes, you can install a garbage disposal using a compatible drain kit. Ensure the disposal weight is supported properly.

What is the weight of the sink?

The sink weighs approximately 45 lbs. Ensure the countertop and cabinet can support this weight.

Is it compatible with a 30-inch cabinet?

No, the sink requires a 36-inch minimum cabinet size due to its 33-inch length and undermount installation.

How do I remove stains from the sink?

For stains, use a paste of baking soda and water. Gently scrub with a soft cloth, then rinse thoroughly.

USER MANUAL Fireclay WHUF3419 Whitehaus

UNDERMOUNT KITCHEN SINKS

MODELS

WHUF1818

WHUF2418

WHUF2819

WHUF3119

WHUF3419

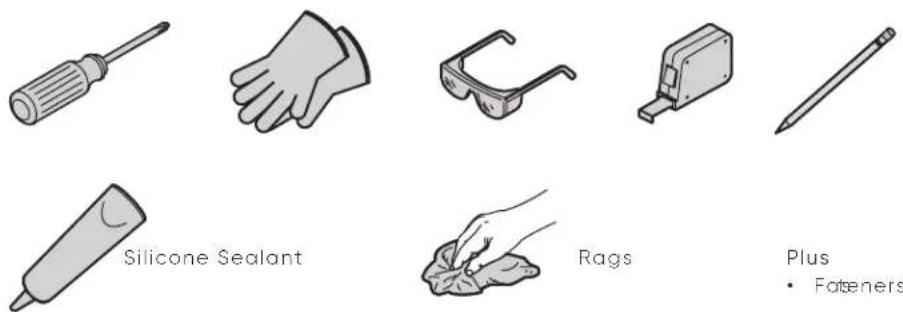

Tools and Materials

Plus

- Fatseners

WARNING: Risk of personal injury.

Edges are sharp. Wear gloves when handling the sink.

CAUTION: Risk of personal injury.

Fireclay sinks are very heavy. Get assistance lifting the sink.

Provide your countertop supplier with your sink and faucet model number when ordering your countertop.

Construct a wooden frame to support the sink. Measure your sink to determine the dimensions.

Isometric line drawing of a rectangular basin with internal channels and a central circular opening (no text or symbols)

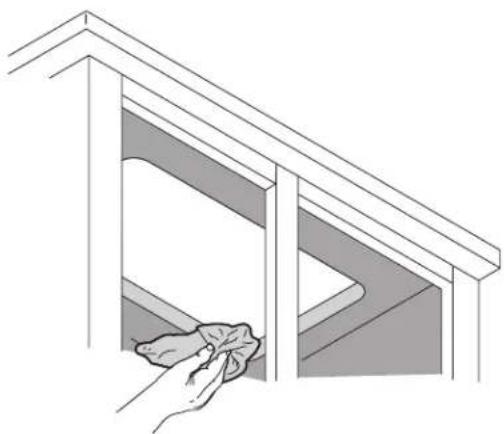

Clean the top and underside of the counter and the rim of the sink.

Line drawing of a hand cleaning a wooden structure with a cloth (no text or symbols)

Apply sealant near the inside edge.

Line drawing of a rectangular container with a slot and a small protrusion (no text or symbols)

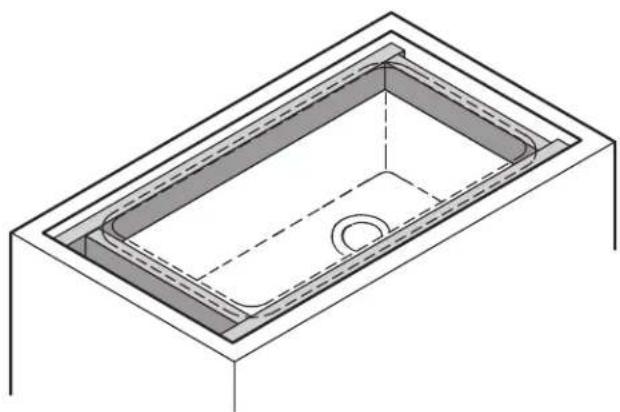

Set the sink into place. Level the sink with the top of the cabinet.

Isometric line drawing of a rectangular basin with a central circular hole and dashed lines indicating depth (no text or symbols)

Apply silicone sealant, wipe away any excess. Fill voids and allow to dry.

Line drawing of a hand washing a sink with a tool, no text or symbols present

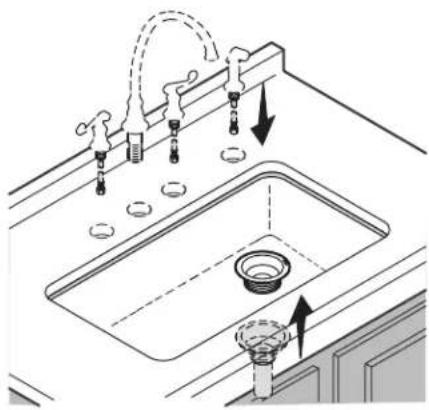

Install the faucet and the strainers.

Diagram of a kitchen sink with faucet and drain, showing water flow direction (no text or labels)

Complete the faucet and drain connections. Run water and check for leaks.

Illustration of hands connecting pipe fittings to a flexible hose, showing mechanical assembly (no text or symbols)
