USER MANUAL A2SAN-H-WOHS Supermicro

The information in this user's manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, and makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note: For the most up-to-date version of this manual, please see our website at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

IN NO EVENT WILL Super Micro Computer, Inc. BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPER MICRO COMPUTER, INC. SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer's instruction manual, may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case you will be required to correct the interference at your own expense.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. "Perchlorate Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate.

WARNING: This product can expose you to chemicals including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage. Accordingly, Supermicro disclaims any and all liability, and should buyer use or sell such products for use in such ultra-hazardous applications, it does so entirely at its own risk. Furthermore, buyer agrees to fully indemnify, defend and hold Supermicro harmless for and against any and all claims, demands, actions, litigation, and proceedings of any kind arising out of or related to such ultra-hazardous use or sale.

Manual Revision 1.0c

Release Date: August 15, 2019

Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy any part of this document. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

Copyright © 2019 by Super Micro Computer, Inc.

All rights reserved.

Printed in the United States of America

Preface

About This Manual

This manual is written for system integrators, IT technicians and knowledgeable end users. It provides information for the installation and use of the A2SAN-H/-E/-L and X11SAN motherboard.

About This Motherboard

The A2SAN-H/-E/-L and X11SAN motherboard provides powerful graphics and increased media processing performance with multi-frame technology. Paired with the Intel® Atom SoC (System-on-a-Chip) processor, the A2SAN-H/-E/-L and X11SAN delivers more computing power for faster memory speeds and bandwidth while maintaining energy efficiency. Utilizing Intel® TCC (Time Coordinated Computing) Technology, the A2SAN-H/-E/-L and X11SAN resolves latency issues in applications and improves determinism across connected devices. The motherboard features advanced technologies such as Intel® Virtualization to improve security and reliability of systems, and Thermal Monitoring to reduce power consumption. It also comes with more I/O ports and high-speed connectivity.

Please note that this motherboard is intended to be installed and serviced by professional technicians only. For processor/memory updates, please refer to our website at http://www.supermicro.com/products/.

Conventions Used in the Manual

Special attention should be given to the following symbols for proper installation and to prevent damage done to the components or injury to yourself:

Warning! Indicates important information given to prevent equipment/property damage or personal injury.

Warning! Indicates high voltage may be encountered when performing a procedure.

Important: Important information given to ensure proper system installation or to relay safety precautions.

Note: Additional Information given to differentiate various models or provides information for correct system setup.

Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

Website: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

's-Hertogenbosch, The Netherlands

Tel: [phone]

Fax: [phone]

Email: [e-mail] (General Information)

[e-mail] (Technical Support)

[e-mail] (Customer Support)

Website: www.supermicro.nl

Asia-Pacific

Address: Super Micro Computer, Inc.

3F, No. 150, Jian 1st Rd.

Zhonghe Dist., New Taipei City 235

Taiwan (R.O.C)

Tel: [phone]

Fax: [phone]

Email: [e-mail]

Website: www.supermicro.com.tw

Table of Contents

Chapter 1 Introduction

1.1 Checklist....7

Quick Reference ....13

Quick Reference Table....14

Motherboard Features....15

1.2 Processor Overview....19

1.3 Special Features ....19

Recovery from AC Power Loss....20

1.4 ACPI Features....20

1.5 Power Supply ....20

1.6 Super I/O....20

1.7 Advanced Power Management....21

Management Engine (ME) 21

Chapter 2 Installation

2.1 Static-Sensitive Devices....22

Precautions 22

Unpacking 22

2.2 Motherboard Installation....23

Tools Needed ....23

Location of Mounting Holes 23

Installing the Motherboard....24

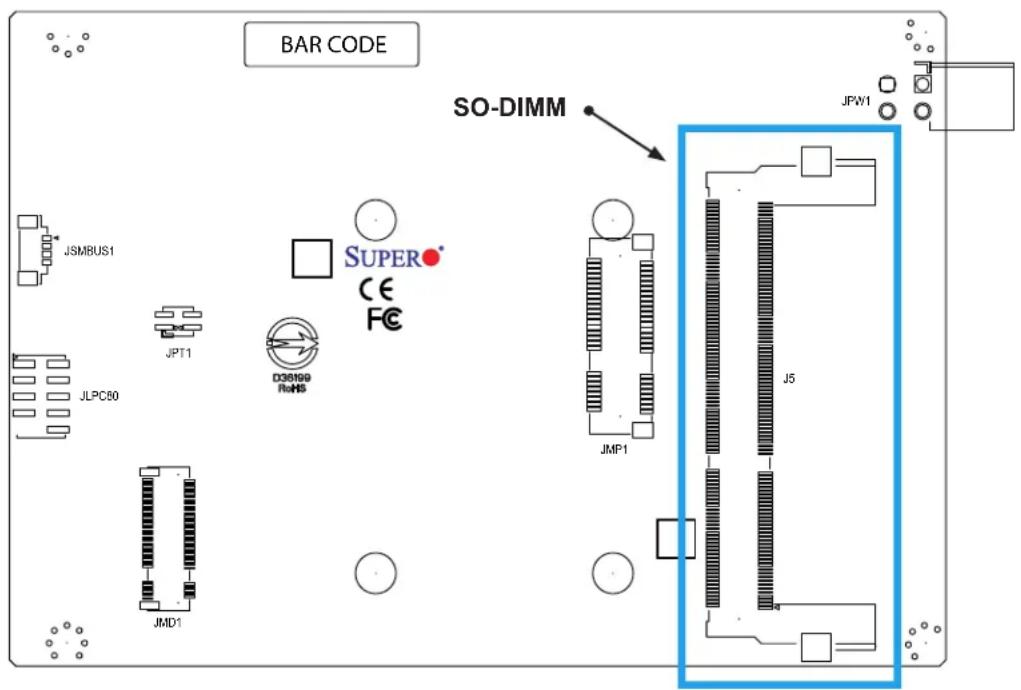

2.3 Memory Support and Installation ....25

Memory Support....25

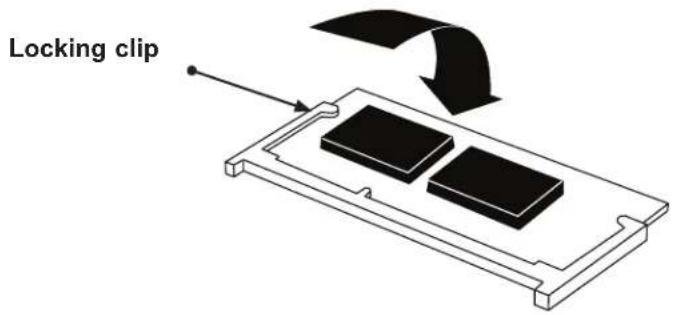

SO-DIMM Installation....26

SO-DIMM Removal....26

2.4 Rear I/O Ports 27

2.5 Front Control Panel 31

2.6 Connectors ....34

Power Connections....34

Headers....36

2.7 Jumper Settings 45

How Jumpers Work....45

2.8 LED Indicators....48

Chapter 3 Troubleshooting

3.1 Troubleshooting Procedures ......49

Before Power On ....49

No Power 49

No Video ....50

System Boot Failure 50

Memory Errors ....50

Losing the System's Setup Configuration....51

When the System Becomes Unstable ....51

3.2 Technical Support Procedures ....53

3.3 Frequently Asked Questions ....54

3.4 Battery Removal and Installation ....55

Battery Removal....55

Proper Battery Disposal....55

Battery Installation....55

3.5 Returning Merchandise for Service....56

Chapter 4 BIOS

4.1 Introduction....57

Starting the Setup Utility ....57

4.2 Main....58

4.3 Advanced....60

4.4 Security....85

4.5 Boot....89

4.6 Save & Exit....91

Appendix A BIOS Codes

Appendix B Software Installation

B.1 Installing Software Programs 95

B.2 SuperDoctor ^® 5....96

Appendix C Standardized Warning Statements

Battery Handling....97

Product Disposal 99

Chapter 1

Introduction

Congratulations on purchasing your computer motherboard from an industry leader. Supermicro boards are designed to provide you with the highest standards in quality and performance. In addition to the motherboard, several important parts that are included with the system are listed below. If anything listed is damaged or missing, please contact your retailer.

1.1 Checklist

Main Parts List (Retail Single Package)
Description Part Number Quantity
Supermicro Motherboard with passive heatsink	A2SAN-H/-E/-L A2SAN-H/-E/-L-WOHS (without heatsink) X11SAN X11SAN-WOHS	1
Audio cable (20cm) CBL-OTHR-0986 1
SATA power cable (25cm) CBL-PWEX-0982 1
USB 2.0 cable (20cm) CBL-CUSB-0983 1
COM cable (20cm) CBL-CUSB-0984 1
SATA data cable (25cm) CBL-SAST-0881 1
Quick Reference Guide MNL-1935-QRG 1

Main Parts List (Bulk Package)
Description Part Number Quantity
Supermicro Motherboard with passive heatsink	A2SAN-H/-E/-L A2SAN-H/-E/-L-WOHS (without heatsink) X11SAN X11SAN-WOHS	1
SATA power cable (25cm) CBL-PWEX-0982 1
SATA data cable (25cm) CBL-SAST-0881 1

Optional Parts List
Description Part Number	Quantity
Mini PCI-E extended bracket	MCP-110-00097-0N	1
M.2 Module Bracket (for 2242/3042 module support)	MCP-290-00161-0N	1

Important Links

For your system to work properly, please follow the links below to download all necessary drivers/utilities and the user's manual for your server.

• Supermicro product manuals: http://www.supermicro.com/support/manuals/
- Product drivers and utilities: https://www.supermicro.com/wftp/driver/
- Product safety info: http://www.supermicro.com/about/policies/safety_information.cfm
- If you have any questions, please contact our support team at: [e-mail]

This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level.

Figure 1-1. A2SAN-H Motherboard Image

Close-up of a green printed circuit board with visible components and connectors (no readable text or symbols)

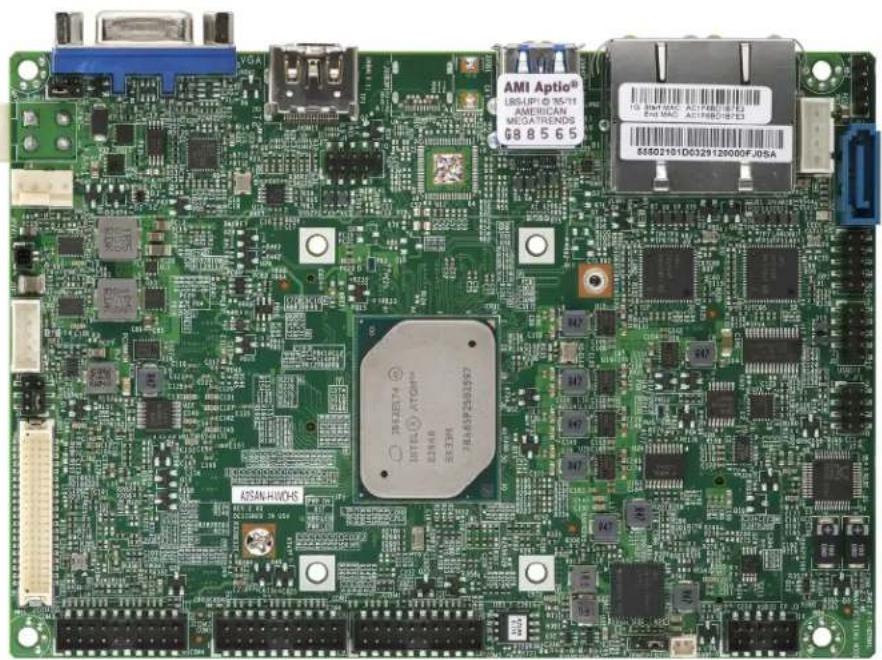

Figure 1-2. A2SAN-H-WOHS Motherboard Image

Green printed circuit board with various electronic components and connectors (no readable text or symbols)

Note: All graphics shown in this manual were based upon the latest PCB revision available at the time of publication of the manual. The motherboard you received may or may not look exactly the same as the graphics shown in this manual.

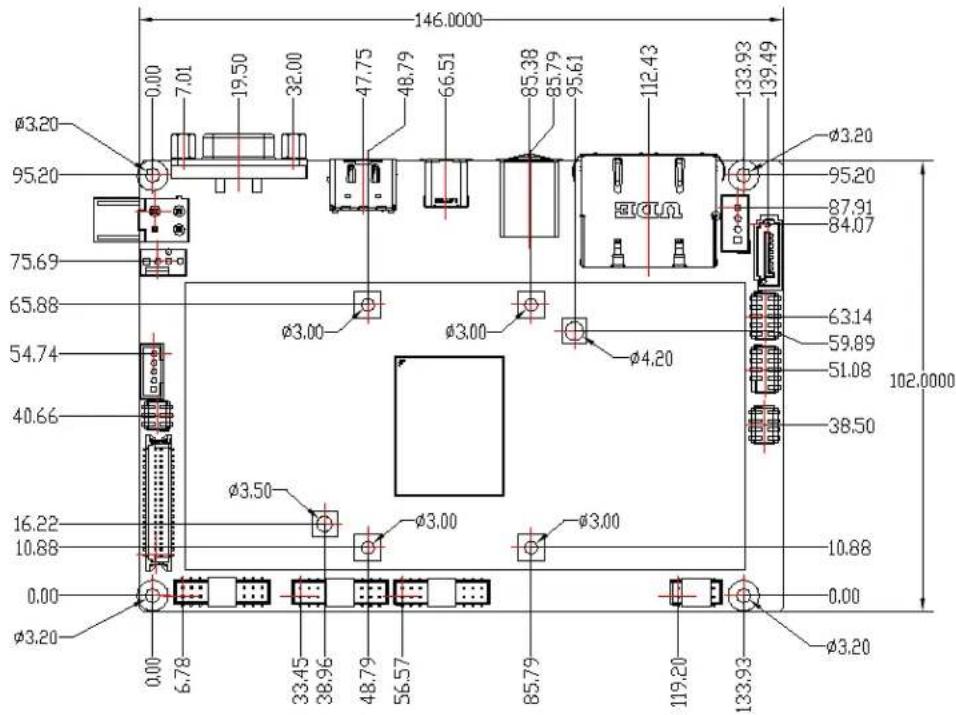

Figure 1-3. A2SAN-H/-E/-L and X11SAN Motherboard Mechanical Drawings
Motherboard Top Side

146.0000 Ø3.20 0.00 7.01 19.50 32.00 47.75 48.79 66.51 85.38 85.79 95.61 112.43 133.93 139.49 Ø3.20 95.20 87.91 84.07 63.14 59.89 51.08 38.50 102.0000 Ø3.00 Ø3.00 Ø4.20 Ø3.50 Ø3.00 Ø3.00 16.22 10.88 10.88 0.00 Ø3.20 0.00 6.78 33.45 38.96 48.79 56.57 85.79 119.20 133.93 Ø3.20

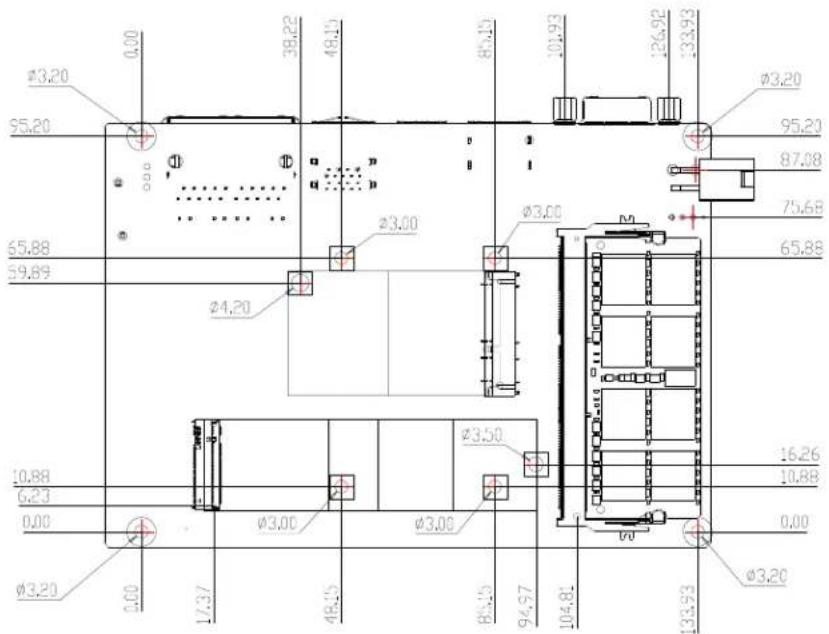

Motherboard Bottom Side

Ø3,20 0,00 95,20 38,22 48,10 Ø3,10 101,93 126,92 133,93 Ø3,20 95,20 87,08 65,88 59,89 Ø3,00 Ø3,00 Ø3,50 16,26 10,88 10,88 Ø3,50 Ø3,20 Ø3,20 17,37 48,15 Ø3,00 94,97 104,81 133,93 Ø3,20 0,00 0,00 0,00 Ø3,20 17,37 48,15 Ø3,20 Ø3,20

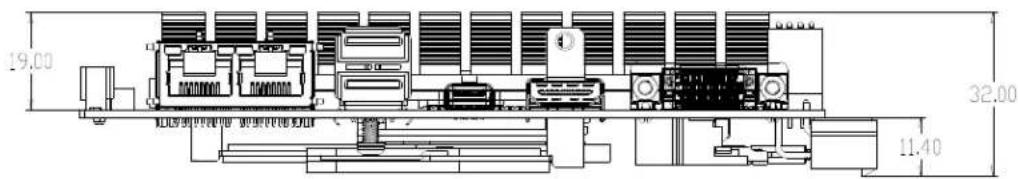

Figure 1-4. A2SAN-H/-E/-L and X11SAN Back Panel I/O Mechanical Drawings
Back Panel I/O With Heatsink (A2SAN-H/-L)

20.00 33.00 11.40

Back Panel I/O With Heatsink (A2SAN-E)

29.00 42.00 11.40

Back Panel I/O With Heatsink (X11SAN)

19.00 32.00 11.40

Back Panel I/O Without Heatsink (X11SAN-WOHS, A2SAN-H/E/L-WOHS)

16.05 29.05 11.40

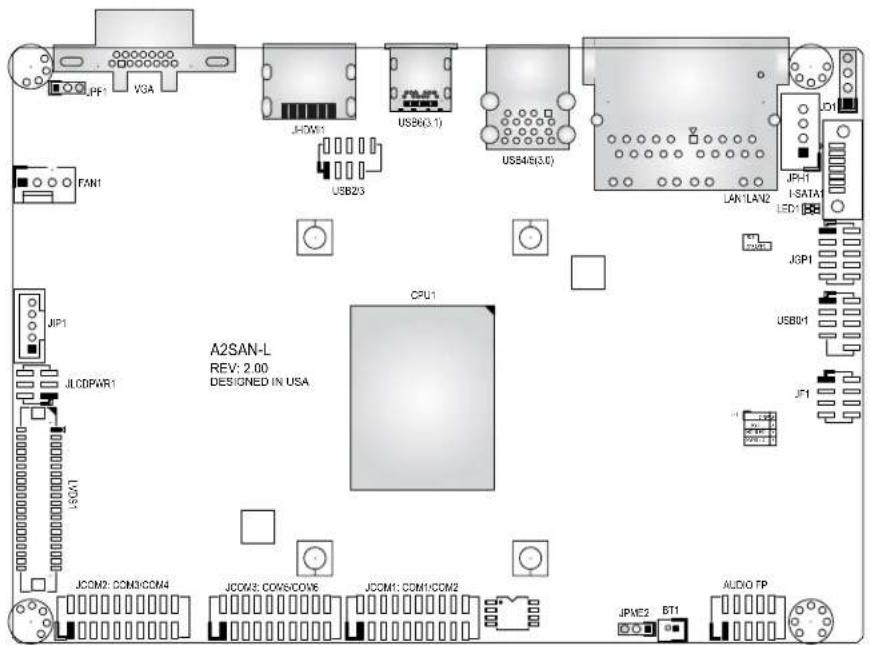

Figure 1-5. Motherboard Layout
(not drawn to scale)
Top Layout

A2SAN-L REV: 2.00 DESIGNED IN USA CPU1 JCP1 JCP1 JCP1 JCP1 JCP1 JCP1 JCP1 JCP1 JCP1 JCP1 JCP1 JCP1 JCP1 JCP1 JCP1 JCP1 JCP1 JCP1 JCP1 JCP1 JCP1 JCP1 JCP1 JCP1 JCP1 JCI71 JCOM2: COM3/COM4 JCOM2: COW5/COW6 JCOM1: COM1/COM2 JPME2 BT1 AUDIO TP

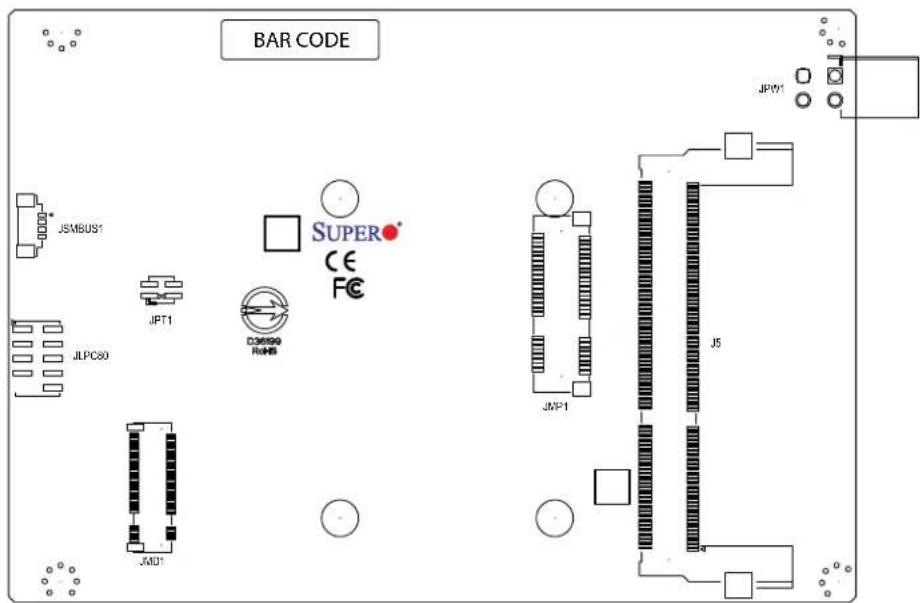

Bottom Layout

BAR CODE JSMBUS1 JPT1 SUPER CE FC D3890 RoHS JPW1 JUPC80 JMD1 JMP1 J5

Note: Components not documented are for internal testing only.

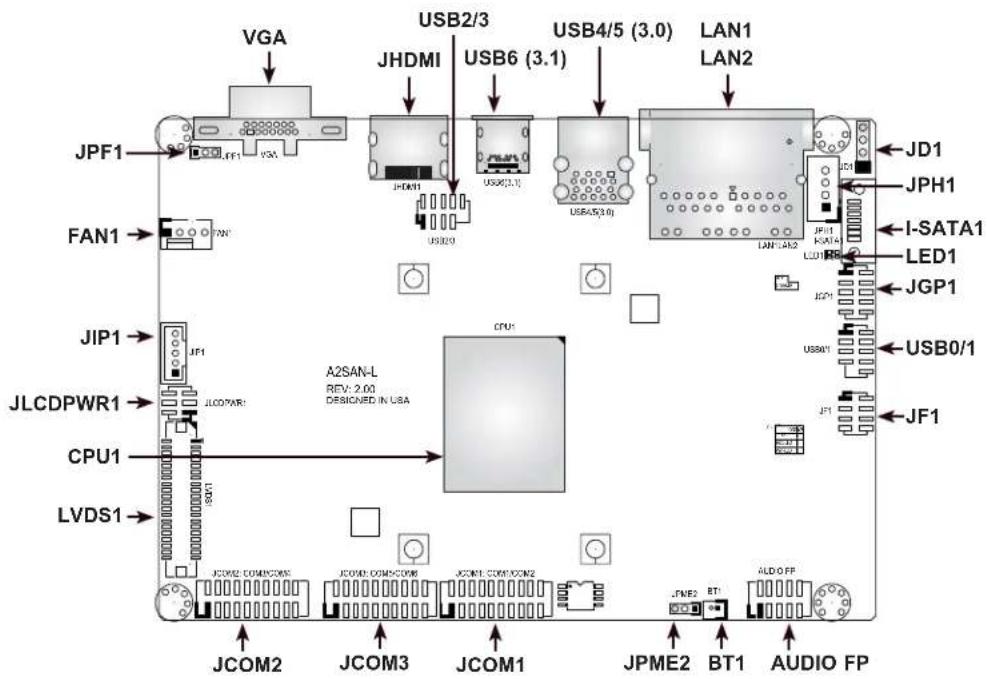

Quick Reference

VGA JHDMI USB2/3 USB6 (3.1) USB4/5 (3.0) LAN1 LAN2 JPF1 JHDMI USB0/1 JHD1 USB(3.1) USB(3.0) LAN1 LAN2 FAN1 JPN JIP1 JLCDPWR1 CPU1 LVDS1 A2SAN-L REV: 2.00 DESIGNED IN USA CPU1 JCOM2 COMIN2008 JCOM3 COMIN5COM8 JCOM1 COMINXOM2 JCOM2 COMINXOM8 JCOM3 COMINXOM8 JCOM1 COMINXOM2 JPM2 BT1 AUDIO FP JD1 JPH1 I-SATA1 LED1 JGP1 USB0/1 JF1 JCOM2 JCOM3 JCOM1 JPME2 BT1 AUDIO FP

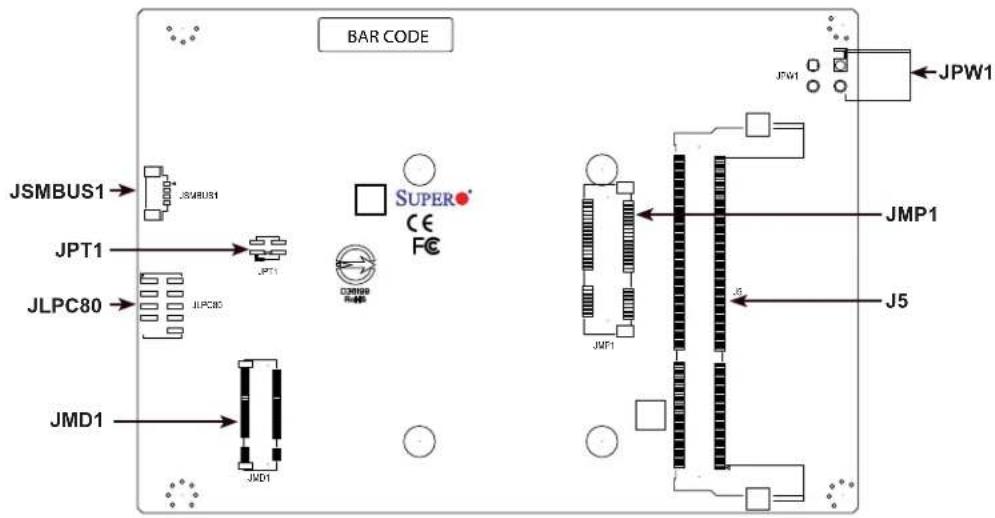

BAR CODE JSMBUS1 → JSMBUS1 JPT1 → JLPC80 → JLPC85 JMD1 → JMD1 SUPER CE FC JMP1 JWP1 ← JPW1 JMP1 ← JMP1 J5 ← J5

Notes:

• See Chapter 2 for detailed information on jumpers, I/O ports, and JF1 front panel connections.
• "indicates the location of Pin 1."
• Jumpers/LED indicators not indicated are used for testing only.
• Use only the correct type of onboard CMOS battery as specified by the manufacturer.

Quick Reference Table
Jumper Description Default Setting (*)

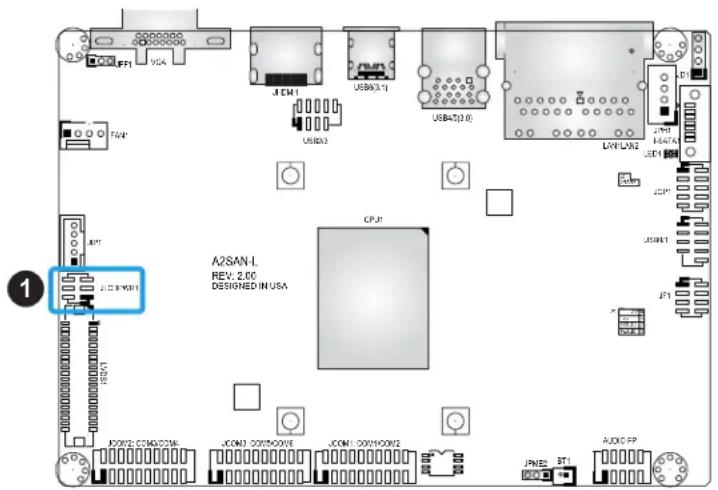

JLCDPWR1 LVDS Panel VCC Power 3.3V / 5V / 12V	Pins 1-3* (3.3V)
	Pins 3-5 (5V)
	Pins 3-4 (12V)

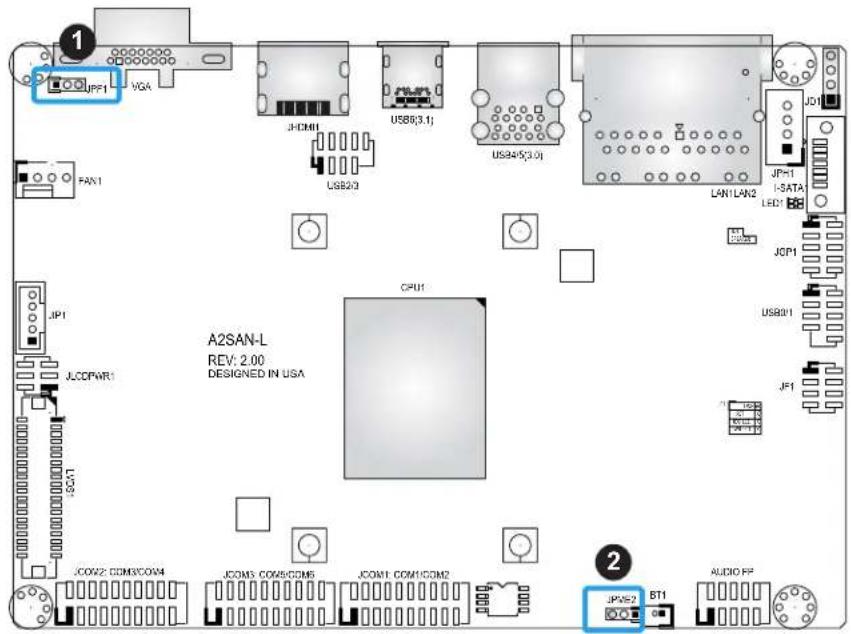

JPF1 Power Force On	Pins 1-2* (Power Force On)
	Pins 2-3 (PWR BTN Power On)
JPME2 Manufacturing Mode	Pins 1-2* (Normal)
	Pins 2-3 (Manufacturing Mode)
JPT1 TPM Enable/Disable Header	JPT1_1N2* (Enable)
	JPT1_3N4 (Disable)
LED Description Status
LED1 Power LED (for debugging only)	Solid Green: S0 mode
	Solid Red: S3/S4/S5 modes

Connector Description

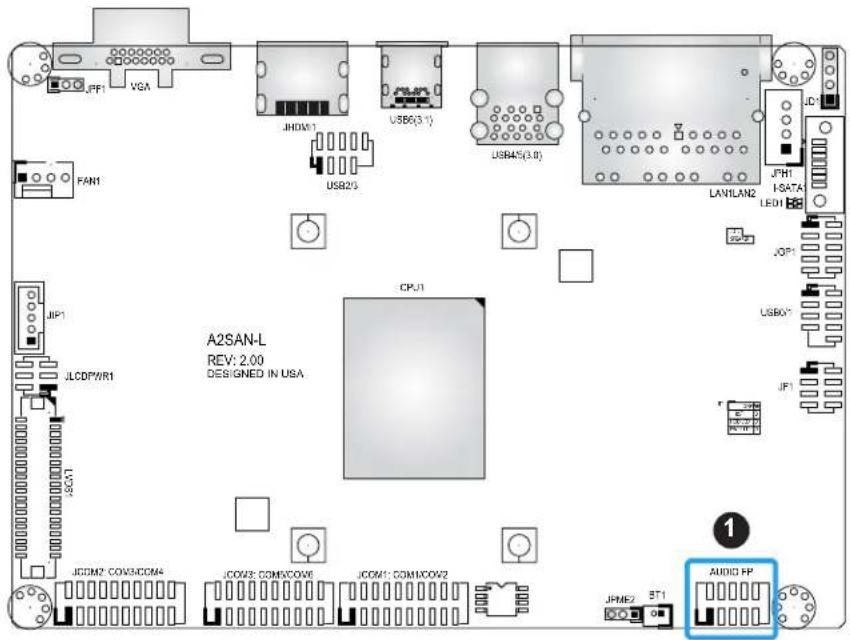

AUDIO FP Front Panel Audio Header (Mic-in/Headphone-out)
BT1	Battery Connector(To Clear CMOS, remove the battery, short pins 1-2 for more than 10 seconds and install the battery.)
FAN1 System Fan Header
I-SATA1 Intel® PCH SATA 3.0 Port

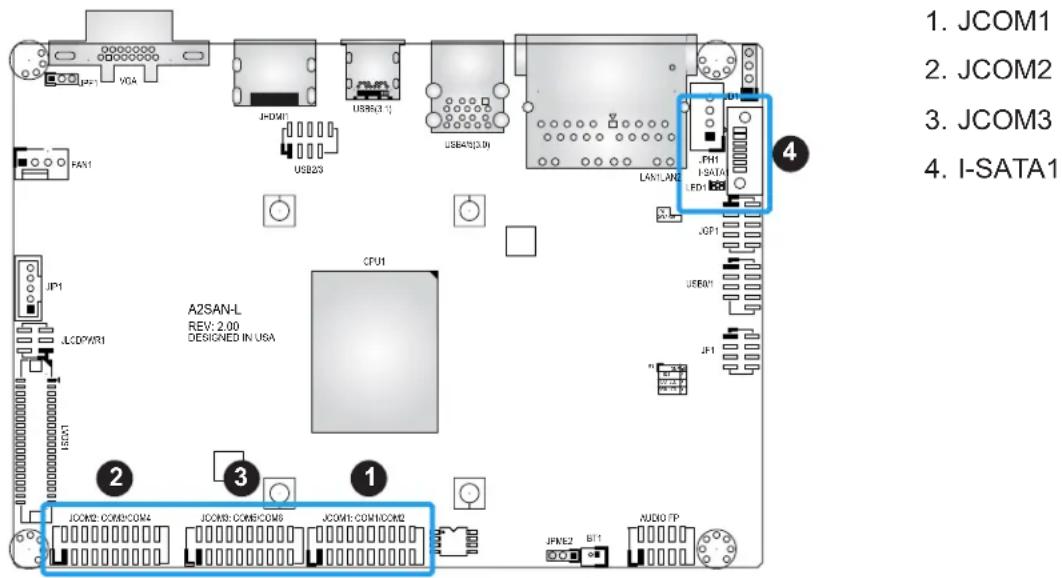

JCOM1: COM1/COM2	Serial COM Ports (JCOM1 supports RS232/RS422/RS485)
JCOM2: COM3/COM4	Serial COM Ports (JCOM2 supports RS232)
JCOM3: COM5/COM6	Serial COM Ports (JCOM3 supports RS232) (Only supported on A2SAN-H-WOHS)

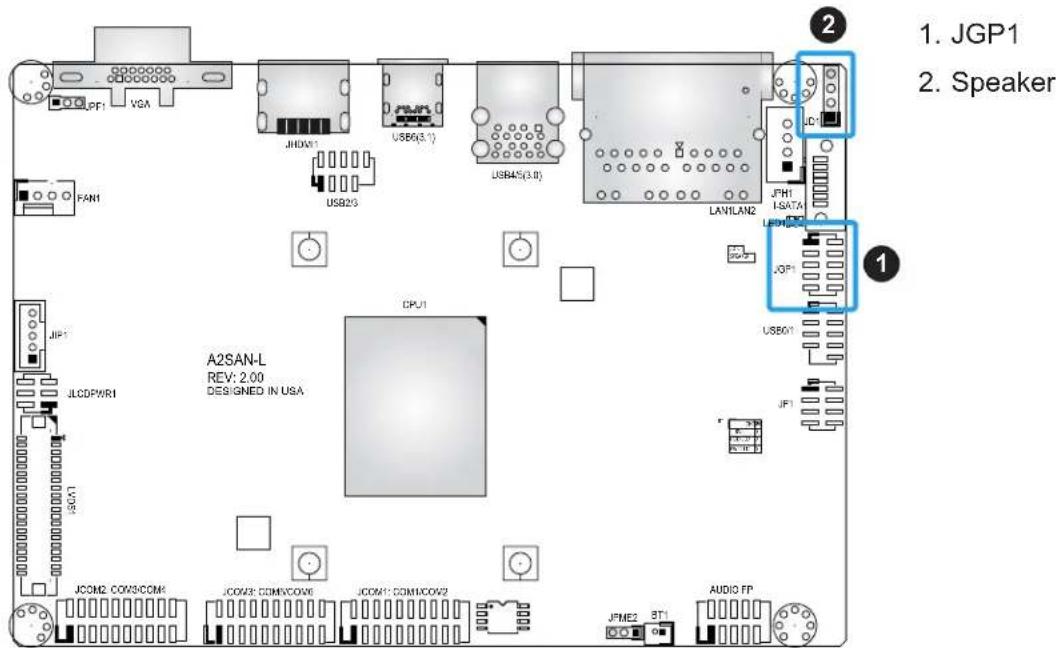

JD1 Speaker Header

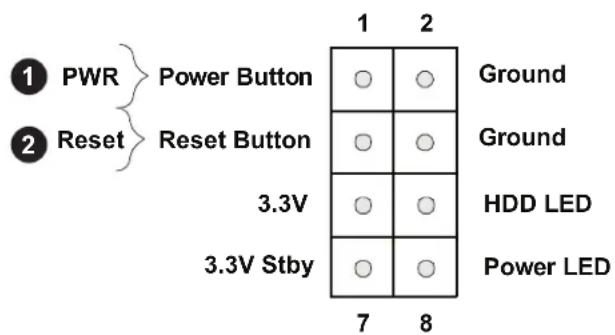

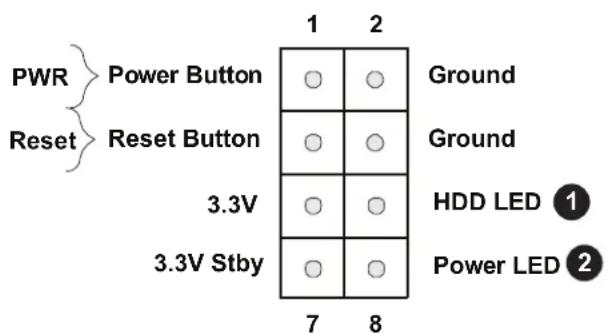

JF1 Front Control Panel Header
JGP1 General Purpose I/O Header
JHDMI	Back Panel HDMI Port

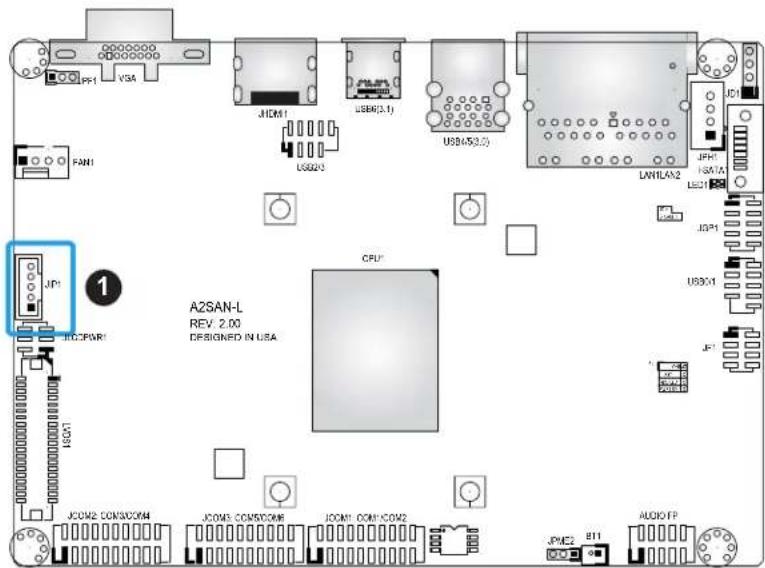

JIP1	LVDS Inverter Power Header
JLPC80	Port 80 Connector (for debugging only)

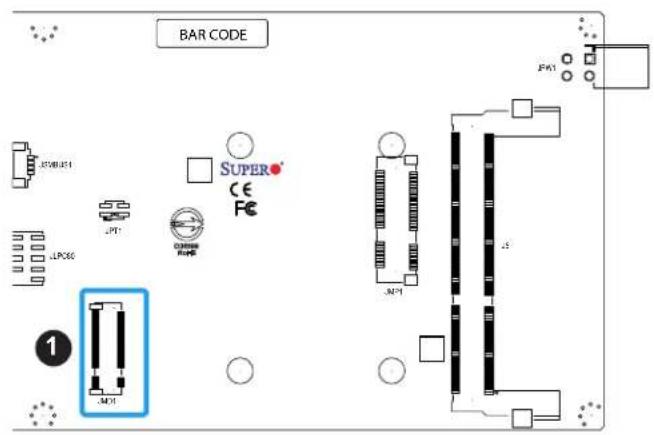

JMD1	M.2 Slot (B-KEY) (supports PCIe Gen2 x 1 / SATA / USB 2.0)
JMP1	Mini PCI-E Slot (supports PCIe Gen2 x 1 / USB 2.0)
JPH1	SATA Power Connector (for one HDD system)

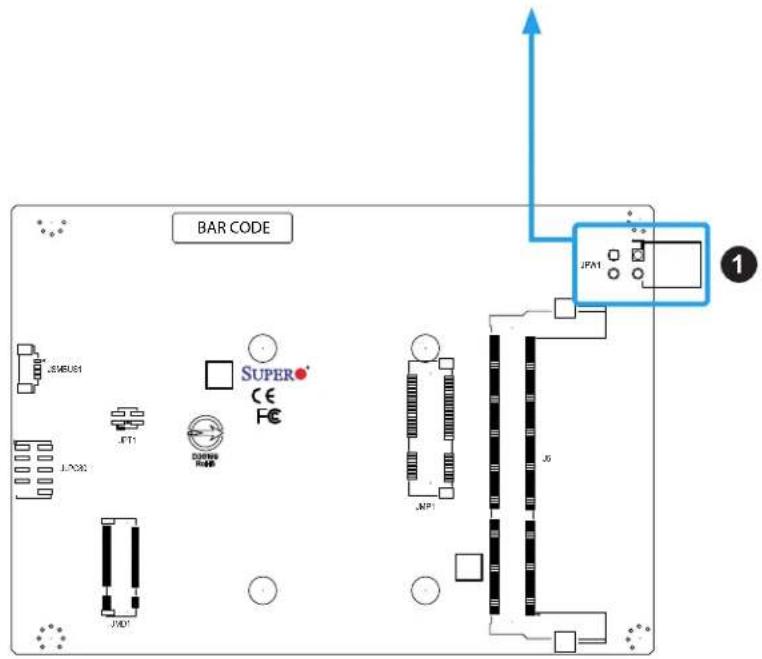

JPW1	4-pin 12V-Standby R/A Type Power Connector
JPW2	12V DC Power

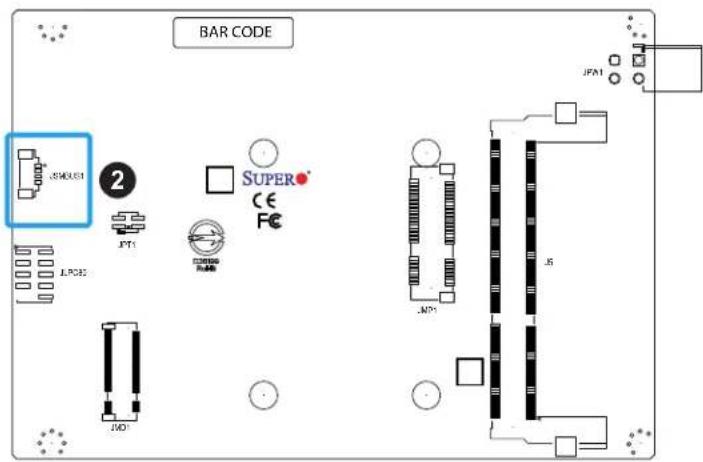

JSMBUS1	System Management Bus Header

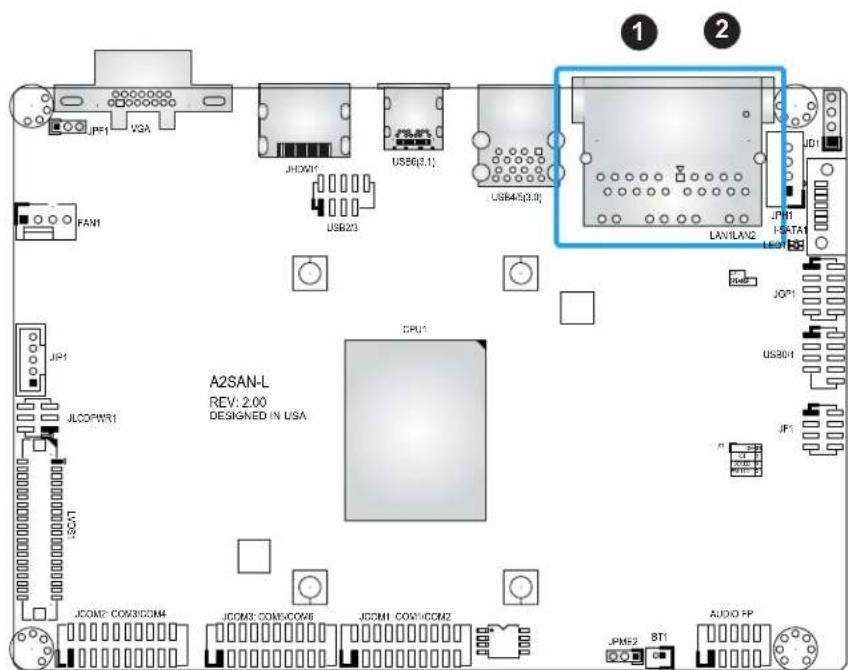

JLAN1: LAN1/LAN2	LAN (RJ45) Ports

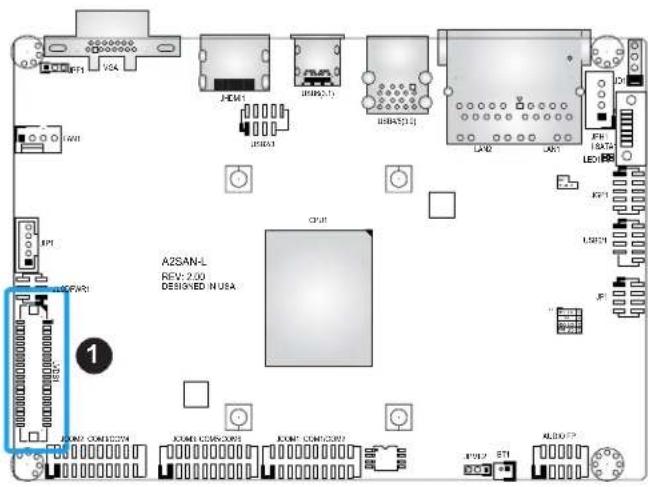

LVDS1	Dual Channel 48-bit LVDS Connector
USB4/5	Back Panel Universal Serial Bus (USB) 3.0 Ports
USB0/1, USB2/3	USB 2.0 Headers
USB6	USB 3.1 Type-C Header
VGA	Back Panel VGA Port

Motherboard Features

Motherboard Features
CPU
A2SAN-H/-E, A2SAN-H/-E-WOHS: Intel® AtomTM x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz-1.8GHz, 9.5W
A2SAN-L, A2SAN-L-WOHS: Intel® AtomTM x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz-1.8GHz, 6.5W
X11SAN, X11SAN-WOHS: Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz-2.5GHz, 6W
Memory
Integrated memory controller supports DDR3L 1333/1600/1866MHz Non-ECC 204-pin SO-DIMM up to 8GB
DIMM Size
Single channel DDR3L 1333/1600/1866MHz Non-ECC 204-pin SO-DIMM up to 8GB
Expansion Slots
One (1) Full Mini-PCI Express slot (USB2.0 x 1, PCIe Gen2 x 1)
One (1) M.2 2280 B-Key for SATA or PCIe SSD (2242/3042 B-key M.2 module is supported by an extender bracket - P/N: MCP-290-00161-0N)
Network
Dual GbE LAN with Intel® Ethernet Controller I210
Graphics
Intel® HD Graphics GT Series	Features: OpenGL 5.0, DirectX 12, OpenCL 2.1Hardware Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVCHardware Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVCDisplay: VGA (resolution up to 2560x1600 at 60Hz), HDMI 1.4 (resolution up to 3840x2160 at 30Hz), LVDS (dual channel 48-bit, resolution up to 1920x1080 at 60Hz)
I/O Devices
COM PortsSATA PortsAudio HeaderSMBus Header One (1) SMBus box headerSpeaker One (1) Speaker header	Four (4) front accessible ports (JCOM1 supports two RS232/RS422/RS485, JCOM2/3 supports two RS232)One (1) SATA 3.0 port (I-SATA1)One (1) HD Audio header with Mic-in/Headphone-out (Realtek ALC888S)
Peripheral Devices
Two (2) USB 3.0 ports on the rear I/O panel (USB4/5, Type A)Four (4) USB 2.0 headers (USB 0/1, USB2/3, Pin Header)One (1) USB 3.1 header on the rear I/O panel (USB6, Type C)

Note: The table above is continued on the next page.

Motherboard Features

BIOS

• 128Mb SPI AMI BIOS
- ACPI 3.0 or later, SMBIOS 2.7 or later, PCI F/W 3.0, BIOS rescue hot-key, RTC (Real Time Clock) wakeup

Power Management

• ACPI power management
S3, S4, S5
• Power button override mechanism
• Power-on mode for AC power recovery
- Wake-On-LAN
• TXE Management Engine
• Force Power On by Jumper
• RTC Battery (typical voltage: 3.0V, normal discharge capacity: 220mAh)

System Health Monitoring

• Onboard voltage monitoring for +1.35V, +12V, +3.3V, +5V, 3.3V standby, System level control, System temperature, VBAT, VCGI
  • CPU switching phase voltage regulator
  • CPU thermal trip support

Fan Control

• 4-pin fan headers

System Management

• Trusted Platform Module (TPM) 2.0 support
• SuperDoctor® 5, Watch Dog, RoHS

LED Indicators

• Power/Suspend-state indicator LED

Mehcanical Specification

• Dimensions: 4" (L) x 5.75" (W) (102mm x 146mm) SBCs
• Height: A2SAN-H/-L 33mm, A2SAN-E 42mm, X11SAN 32mm, A2SAN-H/-E/-L-WOHS 29.05mm

Environment

• Operating Temperature Range: A2SAN-E/-L, A2SAN-E/-L-WOHS, and A2SAN-H-WOHS support -30°C \~ 75°C (-22°F \~ 167°F). X11SAN, X11SAN-WOHS, and A2SAN-H support 0°C \~ 60°C (32°F \~ 140°F)
  • Non-Operating Temperature Range: -40°C - 85°C (-40°F - 185°F)
  • Operating Relative Humidity Range: 8% - 90% (non-condensing)
  • Non-Operating Relative Humidity Range: 10% - 95% (non-condensing)

Note 1: The CPU maximum thermal design power (TDP) is subject to chassis and heatsink cooling restrictions. For proper thermal management, please check the chassis and heatsink specifications for proper CPU TDP sizing.

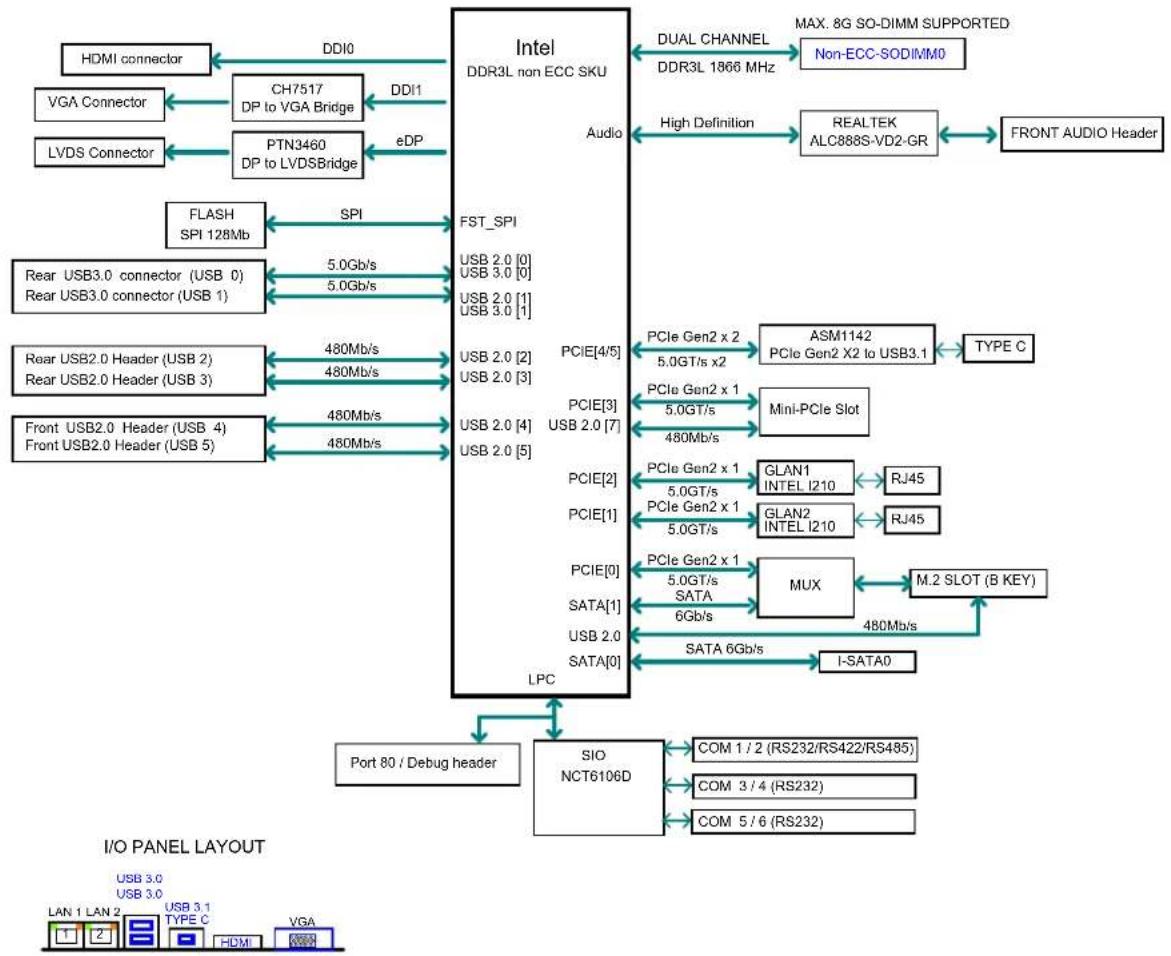

Figure 1-6. System Block Diagram

Intel 8G SO-DIMM architecture diagram showing data flow between HDMI, Audio, and I/O panel layout with key components like USB, PCIe, and MUX.

Note: This is a general block diagram and may not exactly represent the features on your motherboard. See the previous pages for the actual specifications of your motherboard.

Figure 1-7. A2SAN/X11SAN Series Specification Chart

Model CPU

Base Freq

Turbo Freq

CPU TDP

GbE

VGA HD

MI LVDS

RS-232

RS-232/422/485

USB3.0

USB2.0

USB3.1 24V out

GPIO Audio

TPM 2.0

Temp.

Passive Heatsink

A2SAN-H

E3940 (QC)

1.6GHz

1.8GHz

9.5W

2

Yes

Yes

Yes

2

2

2

4

1

N/A

8-bit

Yes

Yes

0-60C

SNK-C0103L 20mm

A2SAN-L

E3930 (DC)

1.3GHz

1.8GHz

6.5W

2

Yes

Yes

Yes

2

2

2

4

N/A

N/A

8-bit

Yes

N/A

-30-75C

SNK-C0103L 20mm

A2SAN-E

E3940 (QC)

1.6GHz

1.8GHz

9.5W

2

Yes

Yes

Yes

2

2

2

4

N/A

N/A

8-bit

Yes

Yes

-30-75C

SNK-C0107L 29mm

X11SAN

N4200 (QC)

1.1GHz

2.5GHz

6W

2

Yes

Yes

Yes

2

2

2

4

1

N/A

8-bit

Yes

Yes

0-60C

SNK-C0103L-1 19mm

A2SAN-H-WOHS

E3940 (QC)

1.6GHz

1.8GHz

9.5W

2

Yes

Yes

Yes

4

2

2

4

N/A

Yes

8-bit

Yes

Yes

-30-75C

N/A

A2SAN-L-WOHS

E3930 (DC)

1.3GHz

1.8GHz 6.5W

2 Yes

Yes

Yes 2

2

2 4

N/A

N/A

8-bit

Yes

N/A

-30-75C

N/A

A2SAN-E-WOHS

E3940 (QC)

1.6GHz

1.8GHz

9.5W

2

Yes

Yes

Yes

2

2

2

4

N/A

N/A

8-bit

Yes

Yes

-30-75C

N/A

X11SAN-WOHS

N4200 (QC)

1.1GHz

2.5GHz

6W

2

Yes

Yes

Yes

2

2

2

4

1

N/A

8-bit

Yes

Yes

0-60C

N/A

Note 1: Audio codec operating temperature 0-60C only. Onboard TPM operating temperature -20\~75C.

Note 2: -WOHS models do not include a heatsink. Purchase a Supermicro standard passive heatsink or provide your own thermal solution.

1.2 Processor Overview

Built upon the functionality and capability of the Intel® Atom SoC series processor, the A2SAN-H/-E/-L and X11SAN motherboard offers maximum I/O expandability, energy efficiency, and data reliability in a 14-nm process architecture, and is optimized for embedded storage solutions, networking applications, or cloud-computing platforms. The A2SAN-H/-E/-L and X11SAN drastically increases system performance for a multitude of server applications.

The A2SAN-H/-E/-L and X11SAN supports the following features:

• Intel Virtualization Technology for Directed I/O (Intel VT-d)
• Enhanced Intel SpeedStep® Technology
• Video Connectors: VGA, HDMI, and LVDS
• USB3.1 Gen 2 Type-C (Only supported on X11SAN and A2SAN-H)
• Adaptive Thermal Management/Monitoring
- Mini-PCI-E slot with PCIe Gen2 x1 with transfer rates of up to 5Gb/s
- Gen3 SATA ports with transfer rates of up to 6Gb/s
• System Management Bus (SMBus) Specification, Version 2.0
• M.2 slot with B-key 2280/2242/3042 module is supported by an extender bracket
• Integrated Sensor Hub (ISH)
- Intel® Identity Protection Technology

- TPM2.0 (Trusted Platform Module) onboard with Disable/Enable jumper (not supported on A2SAN-L)

1.3 Special Features

This section describes the health monitoring features of the A2SAN-H/-E/-L and X11SAN motherboard. The motherboard has an onboard System Hardware Monitor chip that supports system health monitoring.

Recovery from AC Power Loss

The Basic I/O System (BIOS) provides a setting that determines how the system will respond when AC power is lost and then restored to the system. You can choose for the system to remain powered off (in which case you must press the power switch to turn it back on), or for it to automatically return to the power-on state. See the Advanced BIOS Setup section for this setting. The default setting is Last State.

Note: Before setting the Recovery from AC Power Loss function in the BIOS, please adjust force power on jumper JPF1 to pins 2-3 to disable the force power-on function.

1.4 ACPI Features

ACPI stands for Advanced Configuration and Power Interface. The ACPI specification defines a flexible and abstract hardware interface that provides a standard way to integrate power management features throughout a computer system including its hardware, operating system and application software. This enables the system to automatically turn on and off peripherals such as network cards, hard disk drives and printers.

In addition to enabling operating system-directed power management, ACPI also provides a generic system event mechanism for Plug and Play and an operating system-independent interface for configuration control. ACPI leverages the Plug and Play BIOS data structures while providing a processor architecture-independent implementation that is compatible with Windows® 10.

1.5 Power Supply

As with all computer products, a stable power source is necessary for proper and reliable operation. It is even more important for processors that have high CPU clock rates. In areas where noisy power transmission is present, you may choose to install a line filter to shield the computer from noise. It is recommended that you also install a power surge protector to help avoid problems caused by power surges.

1.6 Super I/O

The Super I/O (NCT6106D chip) provides four high-speed, 16550 compatible serial communication ports (UARTs), one of which supports serial infrared communication. Each UART includes a 128 byte send/receive FIFO, a programmable baud rate generator, complete modem control capability and a processor interrupt system. UARTs provide legacy speed with baud rate of up to 115.2 Kbps as well as an advanced speed with baud rates of 250 K, 500 K, or 1 Mb/s, which support higher speed modems.

The Super I/O provides functions that comply with ACPI (Advanced Configuration and Power Interface), which includes support of legacy and ACPI power management through a SMI or SCI function pin. It also features auto power management to reduce power consumption. The IRQs, DMAs and I/O space resources of the Super I/O can be flexibly adjusted to meet ISA PnP requirements, which support ACPI and APM (Advanced Power Management).

1.7 Advanced Power Management

The following new advanced power management features are supported by the motherboard.

Management Engine (ME)

Intel Atom SoC only supports the TXE function, also called CSE (Converged Security Engine), which is the lite ME function.

Chapter 2

Installation

2.1 Static-Sensitive Devices

Electrostatic Discharge (ESD) can damage electronic components. To prevent damage to your motherboard, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD.

Precautions

• Use a grounded wrist strap designed to prevent static discharge.
• Touch a grounded metal object before removing the board from the antistatic bag.
• Handle the board by its edges only; do not touch its components, peripheral chips, memory modules or gold contacts.
• When handling chips or modules, avoid touching their pins.
• Put the motherboard and peripherals back into their antistatic bags when not in use.
• For grounding purposes, make sure that your chassis provides excellent conductivity between the power supply, the case, the mounting fasteners and the motherboard.
• Use only the correct type of CMOS onboard battery as specified by the manufacturer. Do not install the CMOS battery upside down, which may result in a possible explosion.

Unpacking

The motherboard is shipped in antistatic packaging to avoid static damage. When unpacking the motherboard, make sure that the person handling it is static protected.

2.2 Motherboard Installation

All motherboards have standard mounting holes to fit different types of chassis. Make sure that the locations of all the mounting holes for both the motherboard and the chassis match. Although a chassis may have both plastic and metal mounting fasteners, metal ones are highly recommended because they ground the motherboard to the chassis. Make sure that the metal standoffs click in or are screwed in tightly.

Phillips Screwdriver (1)

Phillips Screws (4)

Standoffs (4) Only if Needed

Tools Needed

A2SAN-L REV: 2.00 DESIGNED IN USA CPU1 JCP1 JLCPWR1 JSCV1 JCOM2: COM3/COM4 JCOM3: COM5/COM6 JCOM1: COM1/COM2 JPM2 BT1 AUDIO FP JPH1 ISATA1 LED1 JDP1 USB01 JF1 LAN LAN2 JMDM1 USB2/3 USB6(3.1) USB4/5(3.0)

Location of Mounting Holes

Note: 1) To avoid damaging the motherboard and its components, please do not use a force greater than 8 lb/inch on each mounting screw during motherboard installation. 2) Some components are very close to the mounting holes. Please take precautionary measures to avoid damaging these components when installing the motherboard to the chassis.

Installing the Motherboard

1. Locate the mounting holes on the motherboard. See the previous page for the location.

Chassis Chassis

1. Locate the matching mounting holes on the chassis. Align the mounting holes on the motherboard against the mounting holes on the chassis.

3x6 Motherboard Chassis Motherboard Chassis

1. Install standoffs in the chassis as needed.
2. Install the motherboard into the chassis carefully to avoid damaging other motherboard components.
3. Using the Phillips screwdriver, insert a Phillips head #6 screw into a mounting hole on the motherboard and its matching mounting hole on the chassis.
4. Repeat Step 5 to insert #6 screws into all mounting holes.
5. Make sure that the motherboard is securely placed in the chassis.

Note: Images displayed are for illustration only. Your chassis or components might look different from those shown in this manual.

2.3 Memory Support and Installation

Note: Check the Supermicro website for recommended memory modules.

Important: Exercise extreme care when installing or removing DIMM modules to prevent any possible damage.

Memory Support

The A2SAN-H/-E/-L and X11SAN supports supports DDR3L 1333/1600/1866MHz Non-ECC SO-DIMM up to 8GB in one memory slot on the bottom side of the motherboard.

Bottom Layout

1. Position the SO-DIMM module's bottom key so it aligns with the receptive point on the slot.

Align

1. Insert the SO-DIMM module vertically at about a 45 degree angle. Press down until the module locks into place.

Insert this end first Presedown until the module locks into place.

1. The side clips will automatically secure the SO-DIMM module, locking it into place.

Locking clip

SO-DIMM Removal

1. Push the side clips at the end of the slot to release the SO-DIMM module. Pull the SO-DIMM module up to remove it from the slot.

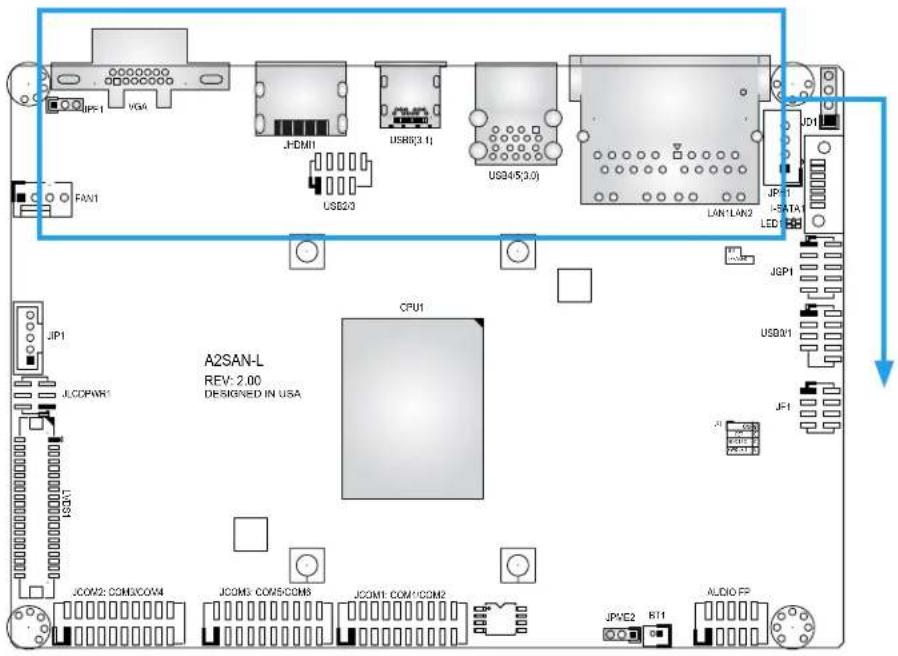

2.4 Rear I/O Ports

See Figure 2-1 below for the locations and descriptions of the various I/O ports on the rear of the motherboard.

A2SAN-L REV: 2.00 DESIGNED IN USA CPU1 JCP1 JCPWR1 JCPX1 JCOM2:COM3:COM4 JCOM5:COM5:COM6 JCOM1:COM1:COM2 JPM2 KTI AUDIO FP JPM1 JSDN3 JSDN2 JSDN1 JSP1 JSP2 JSP3 JSP4 JSP5 JSP6 JSP7 JSP8 JSP9 JSP10 JSP11 JSP12 JSP13 JSP14 JSP15 JSP16 JSP17 JSP18 JSP19 JSP20 JSP21 JSP22 JSP23 JSP24 JSP25 JSP26 JSP27 JSP28 JSP29 JSP30 JSP31 JSP32 JSP33 JSP34 JSP35 JSP36 JSP37 JSP38 JSP39 JSP40 JSP41 JSP42 JSP43 JSP44 JSP45 JSP46 JSP47 JSP48 JSP49 JSP50

Figure 2-1. I/O Port Locations and Definitions

Diagram showing labeled components of a network device with ports and connectors

Rear I/O Ports
# Description # Description
1 LAN 1 5 USB6 (3.1)
2 LAN2 6 HDMI Port
3 USB5 (3.0) 7 VGA Port
4 USB4 (3.0)

VGA Port

A video (VGA) port is located on the I/O back panel. Refer to the board layout below for the location.

HDMI Port

The HDMI (High-Definition Multimedia Interface) port is used to display both high definition video and digital sound through an HDMI-capable display, using the same (HDMI) cable.

1 JPF1 VGA JHDM1 USB6(3.1) USB45(3.0) LAN1LAN2 JFH1 USATA4 LED1 JOP1 USB0Y JF1 A2SAN-L REV: 2.00 DESIGNED IN USA CPU1 JCPWR1 JCDPWR1 JCOM2 COMX/COM4 JCOM2 COMX/COWE JCOM1 COMX/COW2 JFME2 BT1 AUDIO FP

1. VGA Port
2. HDMI Port

LAN Ports

Two LAN ports (LAN1 \~ LAN2) are located on the I/O back panel. These ports accept RJ45 type cables. Please refer to the LED Indicator section for LAN LED information. See the table below for pin definitions.

LAN PortPin Definition
Pin# Definition Pin# Definition
A1 TD1+ A11 YEL-
A2 TD1- A12 YEL+
A3 TD2+ A13 GRN-/ORG+
A4 TD2- A14 GRN+/ORG-
A5 CT_VCC A15
A6 CT_VCC A16
A7 TD3+ A17
A8 TD3- A18
A9 TD4+ A19
A10 TD4- A20

1 2 JPF1 VGA JHDX1 USB(3.1) USB45(3.8) JF1 LAN/LAN2 JF1 I-SATA1 LED JOP1 JCP1 JLP1 JLCOPWR1 USBD1 JF1 A2SAN-L REV: 2.00 DESIGNED IN USA CPU1 JCOM2 COM/ICOM4 JCOM3 COM/ICOM5 JCOM1 COM/ICOM2 JPN52 BT1 AUDIO PP

1. LAN1

2. LAN2

Universal Serial Bus (USB) Ports

There are two USB 3.0 ports (USB4/5) and one USB 3.1 Type C port (USB6) on the I/O back panel. The motherboard also has two front access USB 2.0 headers (USB0/1 and USB2/3) that provide four USB connections. The onboard headers can be used to provide front side USB access with a cable. Two USB 2.0 cables for front panel support are included with the motherboard.

Back Panel USB 3.0Pin Definitions
Pin# Definition		Pin# Definition
A1	VBUS	B1	VBUS
A2	D1-N	B2	D2-N
A3	D1-P	B3	D2-P
A4	GND	B4	GND
A5	Stda_SSRX1-N	B5	Stda_SSRX2-N
A6	Stda_SSRX1-P	B6	Stda_SSRX2-P
A7	GND_DRAIN	B7	GND_DRAIN
A8	Stda_SSTX1-N	B8	Stda_SSTX2-N
A9	Stda_SSTX1-P	B9	Stda_SSTX2-P

Front Panel USB 2.0 Ports 0/1Header Pin Definitions
Pin# Definition Pin# Definition
1 P5V_DUAL_F 2 P5V_DUAL_F
3 USBCON_N2 4 USBCON_N3
5 USBCON_P2 6 USBCON_P3
7 Ground 8 Ground
9 10 NC

Front Panel USB 2.0 Ports 2/3Header Pin Definitions
Pin# Definition Pin# Definition
1 P5V_DUAL_F 2 P5V_DUAL_F
3 USBCON_N4 4 USBCON_N5
5 USBCON_P4 6 USBCON_P5
7 Ground 8 Ground
9 10 NC

1. USB0/1 2. USB2/3 3. USB4/5 4. USB6 JPF1 VGA JHUN1 USB2/3 USB4S(3.0) JFH1 ISATA1 LED1 LAN/LAN2 JOP1 USB01 JIF1 JCPWR1 A2SAN-L REV: 2.00 DESIGNED IN USA CPU1 JCDM2 COM2/COM4 JCOM3 COM5/COW6 JCOM1 COM1/COW2 JPM2 BT1 AUDIO PP JSCM1

2.5 Front Control Panel

JF1 contains header pins for various buttons and indicators that are normally located on a control panel at the front of the chassis. These connectors are designed specifically for use with Supermicro chassis. See the figure below for the descriptions of the front control panel buttons and LED indicators.

A2SAN-L REV: 2.00 DESIGNED IN USA CPU1 JCP1 JCDPWR1 JCOM2.COM5/COM1 JCOM3.COM5/COM6 JCOM4.COM1/COM2 JCPVE2 BT1 AUDIO FP JCP1 JGP1 USBV1 USBV2/3 USB6/3.1 USB4/3.0 LAN1 LAN2 LDA1 LATA1 LED1

Figure 2-2. JF1 Header Pins

PWR Reset Power Button Reset Button 3.3V 3.3V Stby 1 2 Ground Ground HDD LED Power LED 7 8

Power Button

The Power Button connection is located on pins 1 and 2 of JF1. Momentarily contacting both pins will power on/off the system. This button can also be configured to function as a suspend button (with a setting in the BIOS - see Chapter 4). To turn off the power in the suspend mode, press the button for at least 4 seconds. See the table below for pin definitions.

Power ButtonPin Definitions (JF1)
Pin#	Definition
1	Power Button
2	GND

Reset Button

The Reset Button connection is located on pins 3 and 4 of JF1. Attach it to a hardware reset switch on the computer case to reset the system. See the table below for pin definitions.

Reset ButtonPin Definitions (JF1)
Pin#	Definition
3 Reset
4 Ground

① PWR ② Reset Power Button Reset Button 3.3V 3.3V Stby 1 2 Ground Ground HDD LED Power LED 7 8

1. Power Button
2. Reset Button

HDD LED

The HDD LED connection is located on pins 5 and 6 of JF1. Attach a cable here to indicate the status of HDD-related activities, including SATA activities. See the table below for pin definitions.

HDD LEDPin Definitions (JF1)
Pin#	Definition
5 +3	3V
6 HDD	Active LOW

Power LED

The Power LED connection is located on pins 7 and 8 of JF1. See the table below for pin definitions.

Power LEDPin Definitions (JF1)
Pin#	Definition
7 +3.3VSB
8 Power LED LOW

PWR Power Button Reset Reset Button 3.3V 3.3V Stby 1 2 Ground Ground HDD LED ① 7 8 Power LED ②

1. HDD LED
2. Power LED

2.6 Connectors

Power Connections

SATA Power Connector

The 4-pin SATA power connector JPH1 provides power to onboard HDD devices. See the table below for pin definitions.

4-pin HDD Power Pin Definitions
Pin# Definition
1 12V
2-3 Ground
4 5V

1. SATA Power Connector

A2SAN-L REV: 2.00 DESIGNED IN USA

4-pin 12V-Standby R/A Type Power Connector

The R/A type power connector is located at JPW1 on the bottom side of the motherboard. See the table below for pin definitions.

+12V 4-pin Power Pin Definitions

Pin# Definition

1 +12 VSB

2 +12 VSB

3 GND

4 GND

Required Connection

3 4 1 2

Pin Layout (on the bottom side)

BAR CODE JPM1 SUPER CE F€ JMBUS1 JFT1 LOCK JND1 JND1 JND1 JND1 JND1 JND1 JND1 JND1 JND1 JND1 JND1 JND1 JND1 JND1 JND1 JND1 JND1 JND1 JND1 JND1 JND1 JND1 JND1 JND1 JND1 JND2 JND2 JND2 JND2 JND2 JND2 JND2 JND2 JND2 JND2 JND2 JND2 JND2 JND2 JND2 JND2 JND2 JND2 JND2 JND2 JND2 JND2 JND2 JND2 JND2 JND3 JND3 JND3 JND3 JND3 JND3 JND3 JND3 JND3 JND3 JND3 JND3 JND3 JND3 JND3 JND3 JND3 JND3 JND3 JND3 JND3 JND3 JND3 JND3 JND3 JND4 JND4 JND4 JND4 JND4 JND4 JND4 JND4 JND4 JND4 JND4 JND4 JND4 JND4 JND4 JND4 JND4 JND4 JND4 JND4 JND4 JND4 JND4 JND4

1. R/A Power Connector

Headers

Fan Header

There is one fan header with 4-pins on the motherboard. Pins 1-3 are backward compatible with traditional 3-pin fans. The onboard fan speeds are controlled by Thermal Management (via Hardware Monitoring) in the BIOS. When using Thermal Management setting, please use all 3-pin fans or all 4-pin fans.

Fan HeaderPin Definitions
Pin#	Definition
1	Ground (Black)
2	+12V (Red)
3	Tachometer
4	PWM Control

1 JPF1 VGA JHOV1 USB6(3.1) USB45(3.0) LAN/LAN2 JPH1 I-SATA1 LED1 JOP1 USB6/1 JF1 CPU1 A2SAN-L REV: 2.00 DESIGNED IN USA JCPWR1 JCOM2 COM/COM4 JCOM3 COM/COM6 JCOM1 COM/COM2 JPMS2 BT1 AUDIO PP

1. FAN1

Front Accessible Audio Header

A 10-pin audio header located on the motherboard allows you to use the onboard sound for audio playback. Connect an audio cable to the this header to use this feature. See the table below for pin definitions.

Audio HeaderPin Definitions
Pin# Definition Pin# Definition
1 MIC_ Left 2 AUDIO_GND
3 MIC_Right 4 AUDIO_Detect
5 LINE2_Right 6 MIC2_JD
7 Front AUDIO_JD 8 NC
9 LINE2_Left 10 LINE2_JD

JPF1 VGA FAN1 JHDM1 USB6(3.1) USB45(3.0) LAN1LAN2 LED1 JFH1 I-SATA JOP1 USB01 JF1 JCPJ1 A2SAN-L REV: 2.00 DESIGNED IN USA. JCPJ1 JCDM2 COVACOM4 JCOM3 COMXICOV4 JCOM1 COMXICOV2 JPM2 ST1 AUDIO PP 1

1. Audio Header

COM Headers

Two COM headers (JCOM1: COM1/COM2 supports two RS232/RS422/RS485 and JCOM2/3: COM3/COM4/COM5/COM6 supports four RS232) are located on the motherboard. COM 5/6 are only supported on A2SAN-H-WOHS. See the table below for pin definitions.

Serial COM Header (JCOM1)Pin Definitions
Pin# Definition		Pin# Definition
1	DCD1or RS-485/422_COM1_TX-(Full Duplex)or RS-485_COM1_Data-(Half Duplex)	2	DSR1
3	RXD1or RS-485/422_COM1_TX+(Full Duplex)or RS-485_COM1_Data+(Half Duplex)	4	RTS1
5	TXD1 or RS-485/422_COM1_RX+(Full Duplex)	6	CTS1
7	DTR1 or RS-485/422_COM1_RX-(Full Duplex)	8	RI1_N
9 GND	10 N/A
11	DCD2or RS-485/422_COM2_TX-(Full Duplex)or RS-485_COM2_Data-(Half Duplex)	12	DSR2
13	RXD2or RS-485/422_COM2_TX+(Full Duplex)or RS-485_COM2_Data+(Half Duplex)	14	RTS2
15 TXD2 or RS-485/422_COM2_RX+(Full Duplex)	16	CTS2
17 DTR2 or RS-485/422_COM2_RX-(Full Duplex)	18	RI_N2
19 GND	20	N/A

Serial COM Header (JCOM2/3)Pin Definitions
Pin# Definition Pin# Definition
1 DCD3 2 DSR3
3 RXD3 4 RTS3
5 TXD3 6 CTS3
7 DTR3 8 RI3_N
9 GND 10 N/A
11 DCD4 12 DSR4
13 RXD4 14 RTS4
15 TXD4 16 CTS4
17 DTR4 18 RI4_N
19 GND 20 N/A

SATA Ports

The A2SAN-H/-E/-L and X11SAN has one SATA 3.0 port (I-SATA1) that is supported by the Intel® Atom SoC.

JCOM1 JCOM2 JCOM3 I-SATA1 JCOM4 JCOM5 JCOM6 JCOM7 JCOM8 JCOM9 JCOM10 JCOM11 JCOM12 JCOM13 JCOM14 JCOM15 JCOM16 JCOM17 JCOM18 JCOM19 JCOM20 JCOM21 JCOM22 JCOM23 JCOM24 JCOM25 JCOM26 JCOM27 JCOM28 JCOM29 JCOM30 JCOM31 JCOM32 JCOM33 JCOM34 JCOM35 JCOM36 JCOM37 JCOM38 JCOM39 JCOM40 JCOM41 JCOM42 JCOM43 JCOM44 JCOM45 JCOM46 JCOM47 JCOM48 JCOM49 JCOM50 JCOM51 JCOM52 JCOM53 JCOM54 JCOM55 JCOM56 JCOM57 JCOM58 JCOM59 JCOM60 JCOM61 JCOM62 JCOM63 JCOM64 JCOM65 JCOM66 JCOM67 JCOM68 JCOM69 JCOM70 JCOM71 JCOM72 JCOM73 JCOM74 JCOM75 JCOM76 JCOM77 JCOM78 JCOM79 JCOM80 JCOM81 JCOM82 JCOM83 JCOM84 JCOM85 JCOM86 JCOM87 JCOM88 JCOM89 JCOM90 JCOM91 JCOM92 JCOM93 JCOM94 JCOM95 JCOM96 JCOM97 JCOM98 JCOM99 JCOM100

LVDS Connector

LVDS1 is the LVDS connector. LVDS (low-voltage differential signaling) is a high-speed digital interface that operates at low power. It is a type of connection that is used with a LVDS LCD panel. The connector combines LCD VCC Power (pins 9-10), LVDS high speed digital interface, backlight power 3.3V (pin 7) and 12V (pins 1-5), backlight enable (pin 15), and dimming control (pin 13). Select the correct LCD VCC power according to the LCD specification by JLCDPWR1 (3.3V/5V/12V) before enabling the LVDS panel. Refer to the tables below for vendor part number, mating, and crimping contact connector information before making the LVDS/backlight cable.

LVDS Connector
Connector	Vendor	Manufacture P/N	Description
Onboard LVDS Connector	HIROSE	DF13E-40DP-1.25V(51)	BOX HEADER, BOARD TO WIRE, 2X20, PITCH 1.25MM, VERT, 1A/PIN, WHITE, 0.2UM GOLD, PA9T, MATING HEIGHT 5.8MM
Mating Connector	HIROSE	DF13-40DS-1.25C	Headers and Wire Housings 1.25MM RECEPT HSNG 40P DUAL ROW CRIMP
Crimping Contact Connector	HIROSE	DF13G-2630SCFA	Headers and Wire Housings SOCKET CONTACT/ REEL AWG26-30

Note: Enable the LVDS Panel Support feature in the BIOS to use the LVDS panel display. Advanced-> Chipset-> System Agent (SA) Configuration-> Graphics Configuration-> LVDS Panel Support [Enabled]

1. LVDS Connector

A2SAN-L REV: 2.00 DESIGNED NUSA

LVDS Connector Pin Definitions
Pin#	Definition Pin#	Definition
39	GND 40 GND
37	LVDSB D3N 38 LVDSB D3P
35	LVDSB CLKN 36 LVDSB CLKP
33	LVDSB D2N 34 LVDSB D2P
31	LVDSB D1N 32 LVDSB D1P
29	LVDSB D0N 30 LVDSB D0P
27	GND 28 GND
25	LVDSA D3N 26 LVDSA D3P
23	LVDSA CLKN 24 LVDSA CLKP
21	LVDSA D2N 22 LVDSA D2P
19	LVDSA D1N 20 LVDSA D1P
17	LVDSA D0N 18 LVDSA D0P
15	BKLTEN 16 GND
13	BKLTCTL 14 PVCCEN
11	DDC CLK 12 DDC DATA
9	LCDVCC 10 LCDVCC
7	3.3V	8	GND
5	12V	6	GND
3	12V	4	12V
1	12V	2	12V

General Purpose I/O Header

The JGP1 (General Purpose Input/Output) header is a general purpose I/O expander on a pin header via the SMBus. Each pin can be configured to be an input pin or output pin. The GPIO is controlled via the PCA9554APW 8-bit GPIO expansion from PCH SMBus. The base address is 0xF040. The expander slave address is 0x4C for WRITE and READ. See the table below for pin definitions.

GPIO HeaderPin Definitions
Pin# Definition Pin# Definition
1 P3V3SB 2 GND
3 GP_P3V3_GP0 4 GP_P3V3_GP4
5 GP_P3V3_GP1 6 GP_P3V3_GP5
7 GP_P3V3_GP2 8 GP_P3V3_GP6
9 GP_P3V3_GP3 10 GP_P3V3_GP7

Speaker

If you wish to use an external speaker, connect a cable to pins 1-4 on the JD1 header. See the table below for pin definitions.

Speaker Connector Pin Definitions
Pin# Signal
1 P5V
2 NC
3 NC
4 R_SPKPIN

JGP1 Speaker JGP1 JLP1 VGA JHDVA1 USB6(3.1) USB45(3.1) LANILAN2 JFH1 LSATA JOP1 JCP1 USB01 JF1 A2SAN-L REV: 2.00 DESIGNED IN USA CPU1 JLCDFWR1 JG01 JCOM2 COM/COM6 JCOVE COM/COVE JCOM1 COM/COVE2 JFME2 BT1 AUDIO FP

LVDS Inverter Backlight Power

The LVDS Inverter Backlight Power header is located at JIP1 on the motherboard. It supplies 12V and 5V of backlight power to the LCD panel besides LVDS1. See the tables below for pin definitions, vendor connector part numbers, and mating housing connector information.

LVDS Inverter Bicklight Power Pin Definitions

Pin# Signal

1 P12V

2 GND

3 LVDS Backlight Enable

4 PWM_LVDS_P5V

5 P5V

Inverter Backlight Power Connector
Connector Vendor Manufacture P/N Description
Inverter Backlight Power Connector	PONY 231	-05-010012	BOX/HEADER, 1X5 PIN, PITCH 2MM, DIP, VERT, 1A/PIN, WHITE, TIN PLATED, TL3.4MM, PA46, ROHS
Mating Housing Connector	PONY HJ2	20-05 Mating Connector of 231-05-010012

A2SAN-L REV 2.00 DESIGNED IN USA CPU JCP1 JCP2 JCP3 JCP4 JCP5 JCP6 JCP7 JCP8 JCP9 JCP10 JCP11 JCP12 JCP13 JCP14 JCP15 JCP16 JCP17 JCP18 JCP19 JCP20 JCP21 JCP22 JCP23 JCP24 JCP25 JCP26 JCP27 JCP28 JCP29 JCP30 JCP31 JCP32 JCP33 JCP34 JCP35 JCP36 JCP37 JCP38 JCP39 JCP40 JCP41 JCP42 JCP43 JCP44 JCP45 JCP46 JCP47 JCP48 JCP49 JCP50 JCP51 JCP52 JCP53 JCP54 JCP55 JCP56 JCP57 JCP58 JCP59 JCP60 JCP61 JCP62 JCP63 JCP64 JCP65 JCP66 JCP67 JCP68 JCP69 JCP70 JCP71 JCP72 JCP73 JCP74 JCP75 JCP76 JCP77 JCP78 JCP79 JCP80 JCP81 JCP82 JCP83 JCP84 JCP85 JCP86 JCP87 JCP88 JCP89 JCP90 JCP91 JCP92 JCP93 JCP94 JCP95 JCP96 JCP97 JCP98 JCP99 JCI00FP

1. LVDS Inverter Backlight Power

M.2 Slot

M.2 is formerly known as Next Generation Form Factor (NGFF) and is located at JMD1 on the bottom side of the motherboard. The M.2 slot is designed for internal mounting devices. The A2SAN-H/-E/-L and X11SAN motherboard deploys a B-KEY for SATA/PCIe SSD devices or USB/PCIe WWAN or GNSS card. The A2SAN-H/-E/-L and X11SAN deploys a 2280 screw hole location for a 2280 M.2 module. 2242 and 3042 M.2 modules are supported by an extender bracket (P/N: MCP-290-00161-0N) to fit on the 2280 screw hole location.

1. M.2 Slot


BAR CODE JSPB-01 LPT LPC60 MP1 SUPERCE FC NPM1 FW1 .5

M.2 Slot Pin Definitions
Pin#	Definition	Pin# Definition
1 NC 2	P3V3SB
3 GND	4 P3V3SB
5 GND	6 FULL_CARD_POW-		ER_OFF#(PU to P1V8SB only)
7 USB_D+ 8 W_DISABLE1#(PU			to P3V3SB only)
9 USB_D- 10 NC
11 GND 12
13 14
15 16
17 18
19 20 NC
21 NC 22 NC
23 WWAN_WAKE_N(PU to P1V8SB only)		24 NC
25 NC 26 RF_KILL_			GPS_1P8_N(PU to P1V8SB only)
27 GND 28 NC
29 NC 30 NC
31 NC 32 NC
33 GND 34 NC
35 NC 36 NC
37 NC 38 DEVSLP			(reserved)
39 GND 40 SMB_CLK			(reserved)
41 PERn0/SATARX+ 42 SMB_DATA			(reserved)
43 PERp0/SATARX- 44 ALERT(PU to P1V8SB only)
45 GND 46 NC
47 PETn0/SATATX- 48 NC
49 PETn0/SATATX+ 50 PERST (PLTRST)
51 GND 52 CLK_REQ_N
53 REFCLK- 54 PE_WAKE_N
55 REFCLK+ 56 NC
57 GND 58 NC
59 NC 60 NC
61 NC 62 NC
63 NC 64 NC
65 NC 66 NC
67 NC 68 SYSCLK (reserved)
69 PE_DET 70 P3V3SB
71 GND 72 P3V3SB
73 GND 74 P3V3SB
75 NC

System Management Bus Header

A System Management Bus header for additional slave devices or sensors is located at JSMBUS1 on the bottom side of the motherboard. See the table below for pin definitions.

SMBus HeaderPin Definitions
Pin#	Definition
1	SMB_DATA
2	GND
3	SMB_CLK
4	NC

BAR CODE JSPXLS1 2 JPT1 SUPER CE FC JPCB JMD JPA1 J5

1. SMBus Header

Mini PCI-E Slot

The Mini PCI-E slot, located at JMP1 on the bottom side of the motherboard, is used to install a compatible Mini PCI-E device. The Mini PCI-E slot supports modules which are USB or PCI-E x1 devices, such as wireless, GNSS, and bluetooth modules. See the table below for pin definitions.

1. Mini PCI-E


BAR CODE JPM1 SUPER CE FC 1 JPM2 JPM1

Mini PCI-EPin Definitions
Pin#	Definition Pin#	Definition
52 +3	3Vaux 51 NC
50 GND	49 NC
48 +1	5V 47 NC
46 NC	45 NC
44 NC	43 NC
42 NC	41 +3.3Vaux
40 GND	39 NC
38 USB_D+	37 GND
36 USB_D-	35 GND
34 GND	33 PETp0
32 SMB_DATA	31 PETn0
30 SMB_CLK	29 GND
28 +1	5V 27 GND
26 GND	25 PERp0
24 +3	3Vaux 23 PERn0
22 PERST#	21 DET_CARD_		PLUG
20 NC	19 NC
18 GND	17 NC
16 NC	15 GND
14 NC	13 REFCLK+
12 NC	11 REFCLK-
10 NC	9 GND
8	NC 7	CLKREQ#
6	1.5V	5	NC
4	GND 3	NC
2	3.3Vaux	1	WAKE#

2.7 Jumper Settings

How Jumpers Work

To modify the operation of the motherboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board. See the diagram below for an example of jumping pins 1 and 2. Refer to the motherboard layout page for jumper locations.

Note: On two-pin jumpers, "Closed" means the jumper is on and "Open" means the jumper is off the pins.

Connector Pins Jumper Setting 3 2 1 3 2 1

JLCDPWR1

Use this jumper to select the power voltage for the LVDS panel. Make sure that the specifications of the cable is compatible with the panel to prevent damage.

LVDS VCC Power SelectionJumper Settings
Jumper Setting Definition
Pins 1-3 3.3V (Default)
Pins 3-5 5V
Pins 3-4 12V

A2SAN-L REV: 2.00 DESIGNED IN USA CPU1 JCP1 JCP2 JCP3 JCP4 JCP5 JCP6 JCP7 JCP8 JCP9 JCP10 JCP11 JCP12 JCP13 JCP14 JCP15 JCP16 JCP17 JCP18 JCP19 JCP20 JCP21 JCP22 JCP23 JCP24 JCP25 JCP26 JCP27 JCP28 JCP29 JCP30 JCP31 JCP32 JCP33 JCP34 JCP35 JCP36 JCP37 JCP38 JCP39 JCP40 JCP41 JCP42 JCP43 JCP44 JCP45 JCP46 JCP47 JCP48 JCP49 JCP50 JCP51 JCP52 JCP53 JCP54 JCP55 JCP56 JCP57 JCP58 JCP59 JCP60 JCP61 JCP62 JCP63 JCP64 JCP65 JCP66 JCP67 JCP68 JCP69 JCP70 JCP71 JCP72 JCP73 JCP74 JCP75 JCP76 JCP77 JCP78 JCP79 JCP80 JCP81 JCP82 JCP83 JCP84 JCP85 JCP86 JCP87 JCP88 JCP89 JCP90 JCP91 JCP92 JCP93 JCP94 JCP95 JCP96 JCP97 JCP98 JCP99 JCP100

1. JLCDPWR1

Power Force On

Use this jumper to select the "POWER FORCE ON" function when the AC power cord is plugged in. When enabling force power on and AC power recovery, the system will boot up automatically without pressing the power button.

Power Force OnJumper Settings
Jumper Setting Definition
Pins 1-2	Power Force On (Default)(when AC power cord is plugged)
Pins 2-3	PWR BTN Power On(when AC power cord is plugged)

Manufacturing Mode Select

Close JPME2 to bypass SPI flash security and force the system to use the Manufacturing Mode, which will allow you to flash the system firmware from a host server to modify system settings. See the table below for jumper settings.

Manufacturing ModeJumper Settings

Jumper Setting Definition

Pins 1-2 Normal (Default)

Pins 2-3 Manufacturing Mode

1 JPF1 VQA JHDMI USB(3.1) USB20 JOP1 LAN1 LAN2 I-SATA LED JF-1 JCP1 USB01 JF1 JCP1 JCPWR1 CPU1 A2SAN-L REV: 2.00 DESIGNED IN USA JCOM2 COM5COM4 JCOM3 COM5COM5 JCOM1 COM1COM2 JPX2 BT1 AUDIO PP

1. Power Force On
2. Manufacturing Mode

TPM Enable/Disable

Use the JPT1 jumper to enable or disable the TPM feature. See the table below for jumper settings.

TPM Enable/DisableJumper Settings
Jumper Setting Definition
Pins 1-2 Enable	(Default)
Pins 3-4 Disable

1. TPM Enable/Disable Header

BAR CODE JF01 JF02 JF03 JF04 JF05 JF06 JF07 JF08 JF09 JF10 JF11 SUPERCE FC

2.8 LED Indicators

LAN Port LEDs

Two LAN ports (LAN 1 and LAN 2) are located on the I/O back panel of the motherboard. Each Ethernet LAN port has two LEDs. The green LED indicates activity, while the other Link LED may be green, amber, or off to indicate the speed of the connection.

LAN1/2 LED(Connection Speed Indicator)
LED Color Definition
Off 10 Mb/s
Green 100 Mb/s
Amber 1 Gb/s

Power LED

LED1 is the Power LED. In S0 mode, this LED will be solid green. In S3/S4/S5 modes, this LED will be solid red.

Onboard Power LED Indicator
LED Color Definition
Off	System Off(power cable not connected)
Solid Green S0 mode
Solid Red S3/S4/S5 modes

JFF1 VGA FAK1 JHDM1 USBX(3.1) USBX(3.0) JFH1 DATA LAN1LAN2 JGP1 USBX1 JF1 JCPJ1 JCDP7/R1 JSC5/1 A2SAN-L REV: 2.00 DESIGNED IN USA CPU1 JCCM2 COM5COM4 JCOV3 COM5COM6 JCOV1 COM5COM2 JPHE2 BT1 AUDIO PP

1. LAN Port LED
2. Power LED

Chapter 3

Troubleshooting

3.1 Troubleshooting Procedures

Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the 'Technical Support Procedures' and/or 'Returning Merchandise for Service' section(s) in this chapter. Always disconnect the AC power cord before adding, changing or installing any non hot-swap hardware components.

Before Power On

1. Check that the power LED on the motherboard is on.
2. Make sure that the power connector is connected to your power supply.
3. Make sure that no short circuits exist between the motherboard and chassis.
4. Disconnect all cables from the motherboard, including those for the keyboard and mouse.
5. Remove all add-on cards.
6. Install a heatsink and connect the power to the motherboard. Make sure that the heatsink is fully seated. Check all jumper settings as well.
7. Use the correct type of CMOS battery (CR2032) as recommended by the manufacturer.

No Power

1. Make sure that no short circuits exist between the motherboard and the chassis.
2. Verify that all jumpers are set to their default positions.
3. Check that the 115V/230V switch on the power supply is properly set.
4. Turn the power switch on and off to test the system.
5. The battery on your motherboard may be old. Check to verify that it still supplies \~3VDC. If it does not, replace it with a new one.

No Video

1. If the power is on but you have no video, remove all the add-on cards and cables.
2. Use the speaker to determine if any beep codes exist. Refer to Appendix A for details on beep codes.

Note: If you are a system integrator, VAR or OEM, a POST diagnostics card is recommended. For I/O port 80h codes, refer to Appendix B.

System Boot Failure

If the system does not display POST (Power-On-Self-Test) or does not respond after the power is turned on, check the following:

1. Check for any error beep from the motherboard speaker.

2. If there is no error beep, try to turn on the system without DIMM modules installed. If there is still no error beep, replace the motherboard.

3. If there are error beeps, clear the CMOS settings by unplugging the power cord and removing the battery from BT1, then short pins 1 and 2 for more than 10 seconds and install the battery into BT1.

4. Remove all components from the motherboard, especially the DIMM modules. Make sure that system power is on and that memory error beeps are activated.

Memory Errors

1. Make sure that the DIMM modules are properly and fully installed.
2. Confirm that you are using the correct memory. Also, it is recommended that you use the same memory type and speed for all DIMMs in the system. See Section 2.4 for memory details.
3. Check for bad DIMM modules or slots by swapping modules between slots and noting the results.
4. Check the power supply voltage 115V/230V switch.

Losing the System's Setup Configuration

1. Make sure that you are using a high quality power supply. A poor quality power supply may cause the system to lose the CMOS setup information. Refer to Section 1.5 for details on recommended power supplies.
2. The battery on your motherboard may be old. Check to verify that it still supplies \~3VDC. If it does not, replace it with a new one.
3. If the above steps do not fix the setup configuration problem, contact your vendor for repairs.

When the System Becomes Unstable

A. If the system becomes unstable during or after OS installation, check the following:

1. Memory support: Make sure that the memory modules are supported by testing the modules using memtest86 or a similar utility.

Note: Click on the Tested Memory List link on the motherboard product page to see a list of supported memory.

1. HDD support: Make sure that all hard disk drives (HDDs) work properly. Replace the bad HDDs with good ones.
2. Heatsink: Check that the heatsink is installed properly.
3. Adequate power supply: Make sure that the power supply provides adequate power to the system. Make sure that all power connectors are connected. Please refer to our website for more information on the minimum power requirements.
4. Proper software support: Make sure that the correct drivers are used.

B. If the system becomes unstable before or during OS installation, check the following:

1. Source of installation: Make sure that the devices used for installation are working properly, including boot devices such as CD/DVD and CD/DVD-ROM.
2. Cable connection: Check to make sure that all cables are connected and working properly.

3. Using the minimum configuration for troubleshooting: Remove all unnecessary components (starting with add-on cards first), and use the minimum configuration (but with a CPU and a memory module installed) to identify the trouble areas. Refer to the steps listed in Section A above for proper troubleshooting procedures.

4. Identifying bad components by isolating them: If necessary, remove a component in question from the chassis, and test it in isolation to make sure that it works properly. Replace a bad component with a good one.

5. Check and change one component at a time instead of changing several items at the same time. This will help isolate and identify the problem.
6. To find out if a component is good, swap this component with a new one to see if the system will work properly. If so, then the old component is bad. You can also install the component in question in another system. If the new system works, the component is good and the old system has problems.

3.2 Technical Support Procedures

Before contacting Technical Support, please take the following steps. Also, note that as a motherboard manufacturer, we do not sell directly to end-users, so it is best to first check with your distributor or reseller for troubleshooting services. They should know of any possible problem(s) with the specific system configuration that was sold to you.

1. Please review the 'Troubleshooting Procedures' and 'Frequently Asked Questions' (FAQs) sections in this chapter or see the FAQs on our website at http://www.supermicro.com/FAQ/index.php before contacting Technical Support.
2. BIOS upgrades can be downloaded from our website at http://www.supermicro.com/ResourceApps/BIOS_IPMI_Intel.html. Note: Not all BIOS can be flashed depending on the modifications to the boot block code.

3. If you still cannot resolve the problem, include the following information when contacting us for technical support:

4. Motherboard model and PCB revision number

5. BIOS release date/version (this can be seen on the initial display when your system first boots up)
6. System configuration

An example of a Technical Support form is posted on our website.

Distributors: For immediate assistance, please have your account number ready when contacting our technical support department by e-mail.

3.3 Frequently Asked Questions

Question: What type of memory does my motherboard support?

Answer: The A2SAN-H/-E/-L and X11SAN motherboard supports up to 8GB of DDR3L 1333/1600/1866MHz Non-ECC SO-DIMM. See Section 2.3 for details on installing memory.

Question: How do I update my BIOS?

Answer: It is recommended that you do not upgrade your BIOS if you are not experiencing any problems with your system. Updated BIOS files are located on our website at http://www.supermicro.com/ResourceApps/BIOS_IPMI_Intel.html. Please check our BIOS warning message and the information on how to update your BIOS on our website. Select your motherboard model and download the BIOS file to your computer. Also, check the current BIOS revision to make sure that it is newer than your BIOS before downloading.

Follow the steps below to update the BIOS:

1. Save this BIOS update package to your computer.
2. Extract the files to a USB stick. The USB stick doesn't have to be bootable, but it has to be formatted with the FAT/FAT32 file system.

3. Plug the USB stick into a USB port, boot to the Build-In UEFI Shell, and type FLASH. nsh BIOSname#.### to start the BIOS update:

4. Shell> fs0:

5. fs0:> flash.nsh A2SAN#.###

6. Do not interrupt the process until the BIOS update is complete.

7. When a message indicates that the BIOS update is complete, do the A/C power cycle.
8. Go to the BIOS setup screen and press F3 to load the default and then press F4 to save and exit.

Question: Why can't I turn off the power using the momentary power on/off switch?

Answer: The instant power off function is controlled in BIOS by the Power Button Mode setting. When the On/Off feature is enabled, the motherboard will have instant off capabilities as long as the BIOS has control of the system. When the Standby or Suspend feature is enabled or when the BIOS is not in control such as during memory count (the first screen that appears when the system is turned on), the momentary on/off switch must be held for more than four seconds to shut down the system. This feature is required to implement the ACPI features on the motherboard.

3.4 Battery Removal and Installation

Battery Removal

To remove the battery, follow the steps below:

1. Power off your system and unplug your power cable.
2. Remove the battery cable at the BT1 connector on the board.
3. Remove the battery.

Proper Battery Disposal

Please handle used batteries carefully. Do not damage the battery in any way; a damaged battery may release hazardous materials into the environment. Do not discard a used battery in the garbage or a public landfill. Please comply with the regulations set up by your local hazardous waste management agency to dispose of your used battery properly.

Battery Installation

1. Unplug the power cord.
2. Connect the battery cable into the battery connector (BT1) and push it down until you hear a click to ensure that the cable is securely locked.
3. Use the foam tape on the back side of the battery to secure the battery to a flat surface on the bottom of the motherboard or a proper location in the system. DO NOT place the battery on the heatsink.

MMDD:YY

3.5 Returning Merchandise for Service

A receipt or copy of your invoice marked with the date of purchase is required before any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. When returning to the manufacturer, the RMA number should be prominently displayed on the outside of the shipping carton and mailed prepaid or hand-carried. Shipping and handling charges will be applied for all orders that must be mailed when service is complete.

For faster service, RMA authorizations may be requested online (http://www.supermicro.com/support/rma/).

This warranty only covers normal consumer use and does not cover damages incurred in shipping or from failure due to the alteration, misuse, abuse or improper maintenance of products.

During the warranty period, contact your distributor first for any product problems.

Chapter 4

BIOS

4.1 Introduction

This chapter describes the AMIBIOS™ Setup utility for the A2SAN-H motherboard. The BIOS is stored on a chip and can be easily upgraded using a flash program.

Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual. Please refer to the Manual Download area of our website for any changes to BIOS that may not be reflected in this manual.

Starting the Setup Utility

To enter the BIOS Setup Utility, hit the key while the system is booting-up. (In most cases, the key is used to invoke the BIOS setup screen. There are a few cases when other keys are used, such as , , etc.) Each main BIOS menu option is described in this manual.

The Main BIOS screen has two main frames. The left frame displays all the options that can be configured. "Grayed-out" options cannot be configured. The right frame displays the key legend. Above the key legend is an area reserved for a text message. When an option is selected in the left frame, it is highlighted in white. Often a text message will accompany it. (Note that BIOS has default text messages built in. We retain the option to include, omit, or change any of these text messages.) Settings printed in Bold are the default values.

A "▶" indicates a submenu. Highlighting such an item and pressing the key will open the list of settings within that submenu.

The BIOS setup utility uses a key-based navigation system called hot keys. Most of these hot keys (, , , , keys, etc.) can be used at any time during the setup navigation process.

4.2 Main

When you first enter the AMI BIOS setup utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab on the top of the screen. The Main BIOS setup screen is shown below.

Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Main Advanced Security Boot Save & Exit System Date [Med 05/29/2019] System Time [18:13:46] Supermicro A2SAN-H BIOS Version 1.2c Build Date 05/29/2019 Memory Information Total Memory 2048 MB Memory Speed 1333 MHz MRC Version 0.56.89.24 TXE FW 3.1.65.2288 GOP 10.0.1035 Set the Date. Use Tab to switch between Date elements. Default Ranges: Year: 2005-2099 Months: 1-12 Days: dependent on month ++: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.18.1263. Copyright (C) 2019 American Megatrends, Inc.

System Date/System Time

Use this option to change the system date and time. Highlight System Date or System Time using the arrow keys. Enter new values using the keyboard. Press the key or the arrow keys to move between fields. The date must be entered in MM/DD/YYYY format. The time is entered in HH:MM:SS format.

Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00.

Supermicro A2SAN-H

BIOS Version

Build Date

Memory Information

Total Memory: This feature displays the total size of memory available in the system.

Memory Speed: This feature displays the memory speed.

MRC Version

TXE FW

GOP

4.3 Advanced

Use this menu to configure Advanced settings.

Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Main Advanced Security Boot Save & Exit Boot Feature CPU Configuration Chipset Configuration SATA Configuration Trusted Computing ACPI Settings Super IO Configuration NCT6106D HM Monitor Serial Port Console Redirection PCIe/PCI/PnP Configuration iSCSI Configuration Intel(R) I210 Gigabit Network Connection - 00:25:90:5E:90:28 Intel(R) I210 Gigabit Network Connection - 00:25:90:5E:90:29 Boot Feature Configuration Page +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.18.1263. Copyright (C) 2019 American Megatrends, Inc.

Warning: Take caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency, or an incorrect BIOS timing setting may cause the system to malfunction. When this occurs, restore the setting to the manufacture default setting.

▶Boot Feature

Quiet Boot

Use this feature to select the screen to display between POST messages or the OEM logo at bootup. Select Disabled to display the POST messages. Select Enabled to display the OEM logo instead of the normal POST messages. The options are Disabled and Enabled.

AddOn ROM Display Mode

This feature sets the display mode for the Option ROM. Select Keep Current to use the current AddOn ROM display setting. Select Force BIOS to use the Option ROM display mode set by the system BIOS. The options are Force BIOS and Keep Current.

Bootup NumLock State

This feature selects the Power-on state for the Numlock key. The options are Off and On.

Wait For "F1" If Error

This feature forces the system to wait until the F1 key is pressed if an error occurs. The options are Disabled and Enabled.

INT19 Trap Response

Interrupt 19 is the software interrupt that handles the boot disk function. When this feature is set to Immediate, the ROM BIOS of the host adaptors will "capture" Interrupt 19 at bootup immediately and allow the drives that are attached to these host adaptors to function as bootable disks. If this feature is set to Postponed, the ROM BIOS of the host adaptors will not capture Interrupt 19 immediately and allow the drives attached to these adaptors to function as bootable devices at bootup. The options are Immediate and Postponed.

Re-try Boot

If this feature is enabled, the BIOS will automatically reboot the system from a specified boot device after its initial boot failure. The options are Disabled and EFI Boot.

Power Configuration

DeepSx Power Policies

Use this feature to configure the Advanced Configuration and Power Interface (ACPI) settings for the system. Enable S5 to power off the whole system except the power supply unit (PSU) and keep the power button alive so that the user can wake up the system by using a USB keyboard or mouse. The options are Disabled and Enabled.

Watch Dog Function

If this feature is enabled, the Watch Dog timer will allow the system to reboot when it is inactive for more than five minutes. The options are Disabled and Enabled.

Power Button Function

This feature controls how the system shuts down when the power button is pressed. Select 4 Seconds Override for the user to power off the system after pressing and holding the power button for 4 seconds or longer. Select Instant Off to instantly power off the system as soon as the user presses the power button. The options are Instant Off and 4 Seconds Override.

Restore on AC Power Loss

Use this feature to set the power state after a power outage. Select Power Off for the system power to remain off after a power loss. Select Power On for the system power to be turned on after a power loss. Select Last State to allow the system to resume its last power state before a power loss. The options are Stay Off, Power on, and Last State.

*This feature is not available when DeepSX Power Policies is Enabled.

▶CPU Configuration

The following CPU information will display:

• CPU model
• CPU Signature
• Microcode Patch
• Max CPU Speed
• Min CPU Speed
• Processor Cores
  • Intel HT Technology
  • Intel VT-x Technology
• L1 Data Cache
• L1 Code Cache
• L2 Cache
• L3 Cache
• Speed
• 64-bit

▶CPU Power Management

EIST

EIST (Enhanced Intel SpeedStep Technology) allows the system to automatically adjust processor voltage and core frequency to reduce power consumption and heat dissipation. The options are Disabled and Enabled.

Turbo Mode

Select Enabled for processor cores to run faster than the frequency specified by the manufacturer. The options are Disabled and Enabled.

*This feature is available when EIST is Enabled.

Boot performance mode

This feature allows the user to select the performance state that the BIOS will set before the operating system handoff. The options are Max Performance and Max Power Saving.

Power Limit 1 Enable

Use this feature to set the power limit for the CPU. The options are Disabled and Enabled.

*This feature is available when EIST is set to Enabled.

Power Limit 1

Power Limit 1 Clamp Mode

Use this feature to set the PL1 clamp bit. The options are Disabled and Enabled.

Power Limit 1 Power

Use this feature to configure the value for Power Limit 1. The value is in milli watts and the step size is 125mW. Use the number keys on your keyboard to enter the value. The options are Auto, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, and 25.

Power Limit 1 Time Window

Use this feature to indicate the time window over which the TDP value should be maintained. The default value is Auto. The options are Auto, 1, 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 20, 24, 28, 32, 40, 48, 56, 64, 80, 96, 112, and 128.

Active Processor Cores

This feature determines how many CPU cores will be activated for each CPU. When Enabled is selected, all cores in the CPU will be activated. Please refer to Intel's website for more information. The options are Disabled and Enabled.

*If Active Processor Cores is set to Enabled, Core 0 - Core 3 will be available for configuration:

Core 0

This feature is set to Enabled.

Core 1 - Core 3

Use this feature to enable or disable the CPU core. The options are Disabled and Enabled.

Intel® Virtualization Technology

Select Enable to use Intel Virtualization Technology to allow one platform to run multiple operating systems and applications in independent partitions, creating multiple virtual systems in one physical computer. The options are Disabled and Enabled.

VT-d

Select Enabled to enable Intel Virtualization Technology support for Direct I/O (VT-d) by reporting the I/O device assignments to VMM through the DMAR ACPI Tables. This feature offers fully-protected I/O resource-sharing across the Intel platforms, providing the user with greater reliability, security, and availability in networking and data-sharing. The options are Disabled and Enabled.

Monitor Mwait

Select Enabled to enable the Monitor/Mwait instructions. The Monitor instructions monitors a region of memory for writes, and MWait instructions instruct the CPU to stop until the monitored region begins to write. The options are Disabled and Enabled.

P-STATE Coordination

This feature allows the user to change the P-State (Power-Performance State) coordination type. P-State is also known as "SpeedStep" for Intel processors. Select HW_ALL to change the P-State coordination type for hardware components only. Select SW_ALL to change the P-State coordination type for all software installed in the system. Select SW_ANY to change the P-State coordination type for a software program in the system. The options are HW_All, SW_ALL, and SW_ANY.

▶Chipset Configuration

Warning: Setting the wrong values in the following sections may cause the system to malfunction.

▶North Bridge

The following memory information will be displayed:

- Memory Slot 0

▶ Graphics Configuration

GOP Configuration

GOP Driver

The Graphics Output Protocol (GOP) driver is a replacement for legacy video BIOS that accesses UEFI protocols. The options are Enable and Disable.

LVDS Panel Support

Use this feature to select the supported IGFX graphics device output to the LVDS panel. The options are Disabled and Enable.

*If LVDS Panel Support is set to Enable, the next five features will be available for configuration:

Panel select

Use this feature to select the panel resolution. The options are Use EDID in SPI ROM, 800x600, 1024x768, 1280x1024, 1366x768, 1680x1050, 1920x1080, and OEM Define.

Panel Channel Type

Use this feature to select the Panel Channel Type. The options are Disabled, Odd Channel, Even Channel, and Both Channel.

Dual LVDS mode

Use this feature to select a single or dual mode bus for the LVDS display. The options are Disabled, Single LVDS Bus Mode, and Dual LVDS Bus Mode,

Panel Color Depth

Use this feature to select the panel color depth. The options are Disabled, VESA and JEIDA18 bpp, VESA 24 bpp, and JEIDA 24 bpp.

Backlight Brightness

Use this feature to select the backlight brightness for the panel display. Select a range from 1 to 16.

IGD Configuration

Integrated Graphics Device

When enabled, the onboard graphics device will be used as the primary video display. The options are Disable and Enable.

Primary Display

Use this feature to select the primary video display. The options are IGD and PCIe.

RC6 (Render Standby)

Select Enabled to enable render standby support. This is a power saving feature for the onboard display that reduces power consumption. The options are Disable and Enable.

GTT Size

Use this feature to set the memory size to be used by the graphics translation table (GTT). The options are 2MB, 4MB, and 8MB.

Aperture Size

Use this feature to set the Aperture size, which is the size of system memory reserved by the BIOS for graphics device use. The options are 128MB, 256MB, and 512 MB.

DVMT Pre-Allocated

Dynamic Video Memory Technology (DVMT) allows dynamic allocation of system memory to be used for video devices to ensure best use of available system memory based on the DVMT 5.0 platform. The options are 64M, 96M, 128M, 160M, 192M, 224M, 256M, 288M, 320M, 352M, 384M, 416M, 448M, 480M, and 512M.

DVMT Total Gfx Mem

Use this feature to set the total memory size to be used by internal graphics devices based on the DVMT 5.0 platform. The options are 128MB, 256MB, and MAX.

GT PM Support

Use this feature to enable the IGFX Power Management function. The options are Enable and Disable.

PAVP Enable

Protected Audio Video Path (PAVP) decodes Intel integrated graphics encrypted video. The options are Enable and Disable.

Max TOLUD

This feature sets the maximum TOLUD value, which specifies the "Top of Low Usable DRAM" memory space to be used by internal graphics devices, GTT Stolen Memory, and TSEG, respectively, if these devices are enabled. The options are 2 GB, 2.25 GB, 2.5 GB, 2.75 GB, and 3 GB.

▶ South Bridge

▶HD Audio Configuration

HD-Audio Configuration

HD-Audio Support

Use this feature to enable high-definition audio support. The options are Disable and Enable.

▶PCI Express Configuration

Advanced Erorr Reporting

Select Enabled to enable the ACPI OS to manage PCI Advanced Error Reporting. The options are Enabled and Disabled.

▶ASMedia USB Controller

ASPM

Use this feature to set the Active State Power Management (ASPM) level for a PCI-E device. Select Auto for the system BIOS to automatically set the ASPM level based on the system configuration. Select Disabled to disable ASPM support. The options are Disable and L1.

PCIe Speed

Uses this feature to select the PCI speed for the device installed in the slot. The options are Auto, Gen1, and Gen2.

Use this feature to set the Active State Power Management (ASPM) level for a PCI-E device. Select Auto for the system BIOS to automatically set the ASPM level based on the system configuration. Select Disabled to disable ASPM support. The options are Disable, L0s, L1, L0sL1, and Auto.

PCIe Speed

Use this feature to select the PCI speed for the device installed in the M.2 slot. The options are Auto, Gen1, and Gen2.

Intel I210 Gigabit LAN

ASPM

Use this feature to set the Active State Power Management (ASPM) level for a PCI-E device. Select Auto for the system BIOS to automatically set the ASPM level based on the system configuration. Select Disabled to disable ASPM support. The options are Disable, L0s, L1, L0sL1, and Auto.

PCIe Speed

Use this feature to select the PCI speed for the device installed in the slot. The options are Auto, Gen1, and Gen2.

▶Intel I210 Gigabit LAN

ASPM

Use this feature to set the Active State Power Management (ASPM) level for a PCI-E device. Select Auto for the system BIOS to automatically set the ASPM level based on the system configuration. Select Disabled to disable ASPM support. The options are Disable, L0s, L1, L0sL1, and Auto.

PCIe Speed

Use this feature to select the PCI speed for the device installed in the slot. The options are Auto, Gen1, and Gen2.

▶Mini PCIe

ASPM

Use this feature to set the Active State Power Management (ASPM) level for a PCI-E device. Select Auto for the system BIOS to automatically set the ASPM level based on the system configuration. Select Disabled to disable ASPM support. The options are Disable, L0s, L1, L0sL1, and Auto.

PCIe Speed

Use this feature to select the PCI speed for the device installed in the slot. The options are Auto, Gen1, and Gen2.

▶USB Configuration

USB3.0 Support

Select Enable for USB 3.0 support. The options are Enable and Disable.

XHCI Pre-Boot Driver

Select Enabled to enable XHCI (Extensible Host Controller Interface) support on a pre-boot drive specified by the user. The options are Enable and Disable.

XHCI Hand-Off

This is a work-around solution for operating systems that do not support XHCI (Extensible Host Controller Interface) hand-off. The XHCI ownership change should be claimed by the XHCI driver. The settings are Enabled and Disabled.

USB Rear I/O USB3.0

Select Enabled for rear I/O USB 3.0 support. The options are Enabled and Disabled.

USB Mass Storage Driver Support

Select Enabled for USB mass storage device support. The options are Disabled and Enabled.

▶SATA Configuration

Chipset SATA

Use this feature to enable or disable the onboard SATA controller supported by the SoC. The options are Enable and Disable.

SATA Mode Selection

Use this feature to select the mode for the installed SATA drives. The options are AHCI and RAID.

Aggressive LPM (Link Power Management) Support

When this feature is set to Enabled, the SATA AHCI controller manages the power usage of the SATA link. The controller will put the link in a low power mode during extended periods of I/O inactivity, and will return the link to an active state when I/O activity resumes. The options are Enabled and Disabled.

SATA Frozen

Use this feature to enable the HDD Security Frozen Mode. The options are Disabled and Enabled.

SATA Port 0 - SATA Port 1

Port

Use this feature to enable of disable the specified SATA port. The options are Disabled and Enabled.

SATA Port Hot Plug

This feature designates the SATA port specified for hot plugging. Set this feature to Enabled for hot-plugging support, which will allow the user to replace a SATA disk drive without shutting down the system. The options are Enabled and Disabled.

Spin Up Device

When the value of an edge detect or the value of an image binary (pixel) of a device is from 0 to 1, select Enabled to allow the PCH to start a COMRESET initialization sequence on this device. The options are Enabled and Disabled.

SATA Device Type

Use this feature to specify if the SATA port specified by the user should be connected to a Solid State drive or a Hard Disk Drive. The options are Hard Disk Drive and Solid State Drive.

SATA Port DevSlp

DEVSLP is a signal that is sent to a SATA disk drive to tell it to enter a very low power state. The options are Disabled and Enabled.

▶Trusted Computing

Security Device Support

If this feature and the TPM on the motherboard are both set to Enabled, onboard security devices will be enabled for TPM (Trusted Platform Module) support to enhance data integrity and network security. Please reboot the system for a change on this setting to take effect. The options are Disable and Enable.

*If Security Device Support is set to Enable, the following features will be available for configuration:

The following Platform Configuration Register information will display:

Active PCR banks

Available PCR banks

SHA-1 PCR Bank

Use this feature to disable or enable the SHA-1 Platform Configuration Register (PCR) bank for the installed TPM device. The options are Disabled and Enabled.

SHA256 PCR Bank

Use this feature to disable or enable the SHA256 Platform Configuration Register (PCR) bank for the installed TPM device. The options are Disabled and Enabled.

Pending operation

Use this feature to schedule a TPM-related operation to be performed by a security device for system data integrity. The options are None and TPM Clear.

Platform Hierarchy

Use this feature to disable or enable platform hierarchy for platform protection. The options are Disabled and Enabled.

Storage Hierarchy

Use this feature to disable or enable storage hierarchy for cryptographic protection. The options are Disabled and Enabled.

Endorsement Hierarchy

Use this feature to disable or enable endorsement hierarchy for privacy control. The options are Disabled and Enabled.

TPM2.0 UEFI Spec Version

Use this feature to select the Trusted Computing Group (TCG) specification version. Version TCG_1_2 is compatible with Windows 8 and 10. Version TCG_2 is compatible with Windows 10 or later. The options are TCG_1_2 and TCG_2.

Physical Presence Spec Version

Use this feature to select the Physical Presence Interface version. This interface uses the ACPI and allows the operating system and BIOS to work together to provide a platform for users to administer the TPM. The options are 1.2 and 1.3.

PH Randomization

Use this feature to disable or enable Platform Hierarchy (PH) Randomization. The options are Disabled and Enabled.

Device Select

Use this feature to select the TPM version. TPM 1.2 will restrict support to TPM 1.2 devices. TPM 2.0 will restrict support for TPM 2.0 devices. Select Auto to enable support for both versions. The options are TPM 1.2, TPM 2.0, and Auto.

▶ACPI Settings

ACPI Sleep State

Use this feature to select which sleep state mode the system will enter when the Suspend button is pressed. The options are Suspend Disabled and S3 (Suspend to RAM).

High Precision Timer

Select Enabled to activate the High Precision Event Timer (HPET) that produces periodic interrupts at a much higher frequency than a Real-time Clock (RTC) does in synchronizing multimedia streams, providing smooth playback, and reducing the dependency on other timestamp calculation devices, such as an x86 RDTSC Instruction embedded in the CPU. The High Precision Event Timer is used to replace the 8254 Programmable Interval Timer. The options are Disable and Enable.

Headless Support

Enable this feature for the system to function without a keyboard, monitor, or mouse attached. The options are Disabled and Enabled.

▶Super IO Configuration

Super IO Chip NCT6106D

▶ Serial Port 1 Configuration

Serial Port

Select Enabled to enable the onboard serial port specified by the user. The options are Disabled and Enabled.

Device Settings

This feature displays the base I/O port address and the Interrupt Request address of a serial port specified by the user.

Change Settings

This feature specifies the base I/O port address and the Interrupt Request address of Serial Port 1. Select Auto to allow the BIOS to automatically assign the base I/O and IRQ address to a serial port specified. The options are Auto, (IO=3F8h; IRQ=4), (IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), (IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), (IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), and (IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12).

COM Port Mode

Use this feature to select the COM port mode. The options are RS232 Mode, RS422 Mode/RS485 Full Duplex Mode, and RS485 Half Duplex Mode.

Baud Rate from different PRE-DIVIDER

Use this feature to select the Baud rate frequency. The options are PRE-DIV: 13, 1.8461MHz, PRE-DIV: 12, 2MHz, PRE-DIV: 1, 24MHz, and PRE-DIV: 1.625, 14.769MHz.

▶ Serial Port 2 Configuration

Serial Port

Select Enabled to enable the onboard serial port specified by the user. The options are Disabled and Enabled.

Device Settings

This feature displays the base I/O port address and the Interrupt Request address of a serial port specified by the user.

Change Settings

This feature specifies the base I/O port address and the Interrupt Request address of Serial Port 2. Select Auto to allow the BIOS to automatically assign the base I/O and IRQ address to a serial port specified. The options are Auto, (IO=2F8h; IRQ=3), (IO=3F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), (IO=2F8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), (IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), and (IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12).

COM Port Mode

Use this feature to select the COM port mode. The options are RS232 Mode, RS422 Mode/RS485 Full Duplex Mode, and RS485 Half Duplex Mode.

Baud Rate from different PRE-DIVIDER

Use this feature to select the Baud rate frequency. The options are PRE-DIV: 13, 1.8461MHz, PRE-DIV: 12, 2MHz, PRE-DIV: 1, 24MHz, and PRE-DIV: 1.625, 14.769MHz.

▶ Serial Port 3 Configuration

Serial Port

Select Enabled to enable the onboard serial port specified by the user. The options are Disabled and Enabled.

Device Settings

This feature displays the base I/O port address and the Interrupt Request address of a serial port specified by the user.

Change Settings

This feature specifies the base I/O port address and the Interrupt Request address of Serial Port 2. Select Auto to allow the BIOS to automatically assign the base I/O and IRQ address to a serial port specified. The options are Auto, (IO=3E8h; IRQ=7), (IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), (IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), (IO=2F0h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), and (IO=2E0h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12).

Baud Rate from different PRE-DIVIDER

Use this feature to select the Baud rate frequency. The options are PRE-DIV: 13, 1.8461MHz, PRE-DIV: 12, 2MHz, PRE-DIV: 1, 24MHz, and PRE-DIV: 1.625, 14.769MHz.

▶ Serial Port 4 Configuration

Serial Port

Select Enabled to enable the onboard serial port specified by the user. The options are Disabled and Enabled.

Device Settings

This feature displays the base I/O port address and the Interrupt Request address of a serial port specified by the user.

Change Settings

This feature specifies the base I/O port address and the Interrupt Request address of Serial Port 2. Select Auto to allow the BIOS to automatically assign the base I/O and IRQ address to a serial port specified. The options are Auto, (IO=2E8h; IRQ=7), (IO=3E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), (IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), (IO=2F0h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12), and (IO=2E0h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12).

Baud Rate from different PRE-DIVIDER

Use this feature to select the Baud rate frequency. The options are PRE-DIV: 13, 1.8461MHz, PRE-DIV: 12, 2MHz, PRE-DIV: 1, 24MHz, and PRE-DIV: 1.625, 14.769MHz.

▶NCT6106D Hardware Monitor

The following PC Health Status information will be displayed:

• Peripheral temperature
- System temperature

Fan Speed Control Mode

Use this feature to select the fan speed control mode. The options are Standard, Heavy I/O, and Full Speed.

• Fan1 Speed
• VCORE
• VDIMM
  • 12V
• 5V
• AVSB
• 3VSB
• 3VCC
• VBAT

▶Serial Port Console Redirection

COM1 Console Redirection

Select Enabled to enable console redirection support for a serial port specified by the user. The options are Enabled and Disabled.

*If COM1 Console Redirection is set to Enabled, the following features will become available for configuration:

▶COM1 Console Redirection Settings

This feature allows the user to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user.

COM1 Terminal Type

This feature allows the user to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

COM1 Bits per second

Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 38400, 57600, and 115200 (bits per second).

COM1 Data Bits

Use this feature to set the data transmission size for Console Redirection. The options are 7 and 8.

COM1 Parity

A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd. Select None if you do not want to send a parity bit with your data bits in transmission. Select Mark to add a mark as a parity bit to be sent along with the data bits. Select Space to add a Space as a parity bit to be sent with your data bits. The options are None, Even, Odd, Mark, and Space.

COM1 Stop Bits

A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.

COM1 Flow Control

Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS.

COM1 VT-UTF8 Combo Key Support

Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Disabled and Enabled.

COM1 Recorder Mode

Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled.

COM1 Resolution 100x31

Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.

COM1 Legacy OS Redirection Resolution

Use this feature to select the number of rows and columns used in Console Redirection for legacy OS support. The options are 80x24 and 80x25.

COM1 Putty KeyPad

This feature selects the settings for Function Keys and KeyPad used for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SC0, ESCN, and VT400.

COM1 Redirection After BIOS POST

Use this feature to enable legacy console redirection after BIOS POST. When set to Bootloader, legacy console redirection is disabled before booting the OS. When set to Always Enable, legacy console redirection remains enabled when booting the OS. The options are Always Enable and Bootloader.

COM2 Console Redirection

Select Enabled to use the SOL port for Console Redirection. The options are Disabled and Enabled.

*If COM2 Console Redirection is set to Enabled, the following features will become available for configuration:

▶COM2 Console Redirection Settings

Use this feature to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user. The options are Enabled and Disabled.

COM2 Terminal Type

Use this feature to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

COM2 Bits per second

Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 38400, 57600, and 115200 (bits per second).

COM2 Data Bits

Use this feature to set the data transmission size for Console Redirection. The options are 7 and 8.

COM2 Parity

A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd. Select None if you do not want to send a parity bit with your data bits in transmission. Select Mark to add a mark as a parity bit to be sent along with the data bits. Select Space to add a Space as a parity bit to be sent with your data bits. The options are None, Even, Odd, Mark, and Space.

COM2 Stop Bits

A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.

COM2 Flow Control

Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS.

COM2 VT-UTF8 Combo Key Support

Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Disabled and Enabled.

COM2 Recorder Mode

Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled.

COM2 Resolution 100x31

Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.

COM2 Legacy OS Redirection Resolution

Use this feature to select the number of rows and columns used in Console Redirection for legacy OS support. The options are 80x24 and 80x25.

COM2 Putty KeyPad

This feature selects Function Keys and KeyPad settings for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SCO, ESCN, and VT400.

COM2 Redirection After BIOS POST

Use this feature to enable or disable legacy Console Redirection after BIOS POST. When set to Bootloader, legacy Console Redirection is disabled before booting the OS. When set to Always Enable, legacy Console Redirection remains enabled when booting the OS. The options are Always Enable and Bootloader.

▶COM3 Console Redirection Settings

Use this feature to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user. The options are Enabled and Disabled.

COM3 Terminal Type

Use this feature to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

COM3 Bits per second

Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 38400, 57600, and 115200 (bits per second).

COM3 Data Bits

Use this feature to set the data transmission size for Console Redirection. The options are 7 and 8.

COM3 Parity

A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd. Select None if you do not want to send a parity bit with your data bits in transmission. Select Mark to add a mark as a parity bit to be sent along with the data bits. Select Space to add a Space as a parity bit to be sent with your data bits. The options are None, Even, Odd, Mark and Space.

COM3 Stop Bits

A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.

COM3 Flow Control

Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS.

COM3 VT-UTF8 Combo Key Support

Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Disabled and Enabled.

COM3 Recorder Mode

Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled.

COM3 Resolution 100x31

Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.

COM3 Legacy OS Redirection Resolution

Use this feature to select the number of rows and columns used in Console Redirection for legacy OS support. The options are 80x24 and 80x25.

COM3 Putty KeyPad

This feature selects Function Keys and KeyPad settings for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SCO, ESCN, and VT400.

COM3 Redirection After BIOS POST

Use this feature to enable legacy Console Redirection after BIOS POST. When set to Bootloader, legacy Console Redirection is disabled before booting the OS. When set to Always Enable, legacy Console Redirection remains enabled when booting the OS. The options are Always Enable and Bootloader.

▶COM4 Console Redirection Settings

Use this feature to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user. The options are Enabled and Disabled.

COM4 Terminal Type

Use this feature to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Character Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

COM4 Bits per second

Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 38400, 57600, and 115200 (bits per second).

COM4 Data Bits

Use this feature to set the data transmission size for Console Redirection. The options are 7 and 8.

COM4 Parity

A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits is odd. Select None if you do not want to send a parity bit with your data bits in transmission. Select Mark to add a mark as a parity bit to be sent along with the data bits. Select Space to add a Space as a parity bit to be sent with your data bits. The options are None, Even, Odd, Mark, and Space.

COM4 Stop Bits

A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2.

COM4 Flow Control

Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None and Hardware RTS/CTS.

COM4 VT-UTF8 Combo Key Support

Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 terminals. The options are Disabled and Enabled.

COM4 Recorder Mode

Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled.

COM4 Resolution 100x31

Select Enabled for extended-terminal resolution support. The options are Disabled and Enabled.

COM4 Legacy OS Redirection Resolution

Use this feature to select the number of rows and columns used in Console Redirection for legacy OS support. The options are 80x24 and 80x25.

COM4 Putty KeyPad

This feature selects Function Keys and KeyPad settings for Putty, which is a terminal emulator designed for the Windows OS. The options are VT100, LINUX, XTERMR6, SCO, ESCN, and VT400.

COM4 Redirection After BIOS POST

Use this feature to enable legacy Console Redirection after BIOS POST. When set to Bootloader, legacy Console Redirection is disabled before booting the OS. When set to Always Enable, legacy Console Redirection remains enabled when booting the OS. The options are Always Enable and Bootloader.

Serial Port for Out-of-Band Management/Windows Emergency Management Services (EMS)

The submenu allows the user to configure Console Redirection settings to support Out-of-Band Serial Port management.

EMS (Emergency Management Services) Console Redirection

Select Enabled to use a COM port selected by the user for EMS Console Redirection. The options are Enabled and Disabled.

*If EMS is set to Enabled, the following features will become available for configuration:

▶EMS Console Redirection Settings

This feature allows the user to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user.

Out-of-Band Mgmt Port

The feature selects a serial port in a client server to be used by the Microsoft Windows Emergency Management Services (EMS) to communicate with a remote host server. The options are COM1 and COM2.

Terminal Type

Use this feature to select the target terminal emulation type for Console Redirection. Select VT100 to use the ASCII character set. Select VT100+ to add color and function key support. Select ANSI to use the extended ASCII character set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

Bits per second

This feature sets the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 57600, and 115200 (bits per second).

Flow Control

Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start sending data when the receiving buffer is empty. The options are None, Hardware RTS/CTS, and Software Xon/Xoff.

Data Bits

Parity

Stop Bits

▶PCIe/PCI/PnP Configuration

PCI Bus Driver Version A5.01.08

PCI Devices Common Settings:

Above 4G Decoding

Select Enabled for 64-bit devices to be decoded above the 4GB address space, if 64bit PCI decoding is supported by the system. The options are Disabled and Enabled.

NVMe Firmware Source

Use this feature to select the NVMe firmware source. The options are Vendor Defined Firmware and AMI Native Support.

M.2 B KEY PCIE GEN2 X1 OPROM

Use this feature to select which firmware type to be loaded for the add-on card in this slot. The options are Disabled, Legacy, and EFI.

Onboard LAN Option ROM

Use this feature to select which firmware type to be loaded for the add-on card in this slot. The options are Disabled, Legacy, and EFI.

*If Onboard LAN Option ROM Type is set to Lagacy, Onboard LAN1/LAN2 Option ROM will become available for configuration:

Onboard LAN1 Option ROM

Use this feature to select which LAN1 firmware type to be loaded. The options are Disabled, PXE, and iSCSI.

Onboard LAN2 Option ROM

Use this feature to select which LAN2 firmware type to be loaded. The options are Disabled, PXE, and iSCSI.

Onboard Video Option ROM

Use this feature to select which onboard video firmware type to be loaded. The options are Disabled, Legacy, and EFI.

Network Stack

Select Enabled to enable PXE (Preboot Execution Environment) or UEFI (Unified Extensible Firmware Interface) for network stack support. The options are Disabled and Enabled.

*If Network Stack is Enabled, the following four features will become available for configuration:

Ipv4 PXE Support

Select Enabled to enable lpv4 PXE (Preboot Execution Environment) for boot support. If this feature is set to Disabled, lpv4 PXE boot option will not be supported. The options are Disabled and Enabled.

Ipv6 PXE Support

Select Enabled to enable lpv6 PXE (Preboot Execution Environment) for boot support. If this feature is set to Disabled, lpv6 PXE boot option will not be supported. The options are Disabled and Enabled.

PXE boot wait time

Use this option to specify the wait time to press the ESC key to abort the PXE boot. Press "+" or "-" on your keyboard to change the value. The default setting is 0.

Media detect count

Use this option to specify the number of times media will be checked. Press "+" or "-" on your keyboard to change the value. The default setting is 1.

▶iSCSi Configuration

iSCSI Initiator Name

This feature allows the user to enter the unique name of the iSCSI Initiator in IQN format. Once the name of the iSCSI Initiator is entered into the system, configure the proper settings for the following features.

▶ Add an Attempt
▶ Delete Attempts
▶ Change Attempt order

Intel® I210 Gigabit Network Connection - 00:25:90:5E:90:28

Intel® I210 Gigabit Network Connection - 00:25:90:5E:90:29

▶NIC Configuration

Link Speed

This feature allows the user to specify the port speed used for the selected boot protocol. The options are Auto Negotiated, 10 Mbps Half, 10 Mbps Full, 100 Mbps Half, and 100 Mbps Full.

Wake On LAN

Select Enabled for Wake On LAN support, which will allow the system to wake up when an onboard device receives an incoming signal. The options are Disabled and Enabled.

Blink LEDs

Use this feature to identify the physical network port by blinking the associated LED. Use the keyboard to select a value.

UEFI Driver

This feature displays the UEFI driver version.

Adapter PBA

This feature displays the Processor Bus Adapter (PBA) model number. The PBA number is a nine digit number (i.e., 010B00-000) located near the serial number.

Device Name

This feature displays the adapter device name.

Chip Type

This feature displays the network adapter chipset name.

PCI Device ID

This feature displays the device ID number.

PCI Address

This feature displays the PCI address for this computer. PCI addresses are three two-digit hexadecimal numbers.

Link Status

This feature displays the connection status.

MAC Address

This feature displays the MAC address for this computer. Mac addresses are six two-digit hexadecimal numbers.

Virtual MAC Address

This feature displays the Virtual MAC address for this computer. Mac addresses are six two-digit hexadecimal numbers.

4.4 Security

Use this menu to configure Security settings.

Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Main Advanced Security Boot Save & Exit Setup Administrator Password Not Installed User Password Not Installed Password Description If the Administrator's / User's password is set, then this only limits access to Setup and is asked for when entering Setup. Please set Administrator's password first in order to set User's password, if clear Administrator's password, the User's password will be cleared as well. The password length must be in the following range: Minimum length 3 Maximum length 20 Password Check [Setup] Setup Administrator Password Secure Boot Setup: Check password while invoking setup. Always: Check password while invoking setup as well as on each boot. ++: Select Screen T1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.18.1263. Copyright (C) 2019 American Megatrends, Inc.

Password Check

Use this feature to determine when a password entry is required. Select Setup to require the password only when entering setup. Select Always to require the password when entering setup and at each bootup. The options are Setup and Always.

Setup Administrator Password

Use this feature to set the administrator password, which is required to enter the BIOS setup utility. The length of the password should be from 3 characters to 20 characters long.

▶ Secure Boot

Secure Boot Support

Select Enable for secure boot support to ensure system security at bootup. The options are Disabled and Enabled.

Secure Boot Mode

This feature allows the user to select the desired secure boot mode for the system. The options are Standard and Custom.

*If Secure Boot Mode is set to Custom, Key Management features will be available for configuration.

CSM Support

Select Enabled for manufacturing or debugging purposes for the EFI Compatibility Support Module (CSM), which provides compatibility support for traditional legacy BIOS for system boot with limited support. The options are Disabled and Enabled. This feature is for manufacture debugging purposes.

▶Key Management

This submenu allows the user to configure the following Key Management settings.

Provision Factory Default Keys

Select Enabled to install the default Secure Boot keys set by the manufacturer. The options are Disabled and Enabled.

*If the feature above is set to Enabled, the next four features are available for configuration:

▶ Install Factory Default Keys

Select Yes to install all factory keys to the default settings. The options are Yes and No.

▶Enroll Efi Image

Use this feature to allow the image to run in Secure Boot mode. Enroll SHA256 Hash certificate of the Image into Authorized Signature Database.

▶ Save All Secure Boot Variables

This feature allows the user to decide if all secure boot variables should be saved.

▶ Platform Key (PK)

This feature allows the user to configure the settings of the platform keys.

Save to File

Select Yes to save the new platform keys (PK) from the manufacturer's defaults. Select No to save the platform keys from a file. The options are Yes and No.

Set New Var

Select Yes to set the new platform keys (PK) from the manufacturer's defaults. Select No to set the platform keys from a file. The options are Yes and No.

Delete Var

Select Ok to delete platform keys (PK). Removing the keys will reset the system to Setup/Audit Mode.

▶Key Exchange Keys (KEK)

Save to File

Select Yes to save the new key exchange keys (KEK) from the manufacturer's defaults. Select No to save the platform keys from a file. The options are Yes and No.

Set New Var

Select Yes to set the new key exchange keys (KEK) from the manufacturer's defaults. Select No to set the platform keys from a file. The options are Yes and No.

Append Key

Select Yes to add the KEK from the manufacturer's defaults list to the existing KEK database. Select No to load the KEK from a file. The options are Yes and No.

Delete Var

Select Ok to confirm the deletion of KEK from NVRAM.

▶ Authorized Signatures

Save to File

Select Yes to save the db from the manufacturer's defaults. Select No to save the db from a file. The options are Yes and No.

Set New Var

Select Yes to load the db from the manufacturer's defaults. Select No to load the db from a file. The options are Yes and No.

Append Key

Select Yes to add the db from the manufacturer's defaults list to the existing db database. Select No to load the db from a file. The options are Yes and No.

Delete Var

Select Ok to confirm the deletion of the db from NVRAM.

▶Forbidden Signatures

Save to File

Select Yes to save the dbx from the manufacturer's defaults. Select No to save the dbx from a file. The options are Yes and No.

Set New Var

Select Yes to load the dbx from the manufacturer's defaults. Select No to load the dbx from a file. The options are Yes and No.

Append Key

Select Yes to add the dbx from the manufacturer's defaults list to the existing dbx database. Select No to load the dbx from a file. The options are Yes and No.

Delete Var

Select Ok to confirm the deletion of the dbx from NVRAM.

▶ Authorized TimeStamps

Save to File

Select Yes to save the dbt from the manufacturer's defaults. Select No to save the dbx from a file. The options are Yes and No.

Set New Var

Select Yes to load the dbt from the manufacturer's defaults. Select No to load the dbt from a file. The options are Yes and No.

Append Key

Select Yes to add the dbt from the manufacturer's defaults list to the existing dbt database. Select No to load the dbt from a file. The options are Yes and No.

Delete Var

Select Ok to confirm the deletion of the dbt from NVRAM.

▶OsRecovery Signature

Set New Var

Select Yes to load the dbr from the manufacturer's defaults. Select No to load the dbr from a file. The options are Yes and No.

Append Key

Select Yes to add the dbr from the manufacturer's defaults list to the existing dbr database. Select No to load the dbr from a file. The options are Yes and No.

4.5 Boot

Use this menu to configure Boot settings:

Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Main Advanced Security Boot Save & Exit Boot mode select [UEFI] FIXED BOOT ORDER Priorities Boot Option #1 [UEFI Hard Disk] Boot Option #2 [UEFI AP:UEFI: Bul...] Boot Option #3 [UEFI CD/DVD] Boot Option #4 [UEFI USB Hard Disk] Boot Option #5 [UEFI USB CD/DVD] Boot Option #6 [UEFI USB Key] Boot Option #7 [UEFI USB Floppy] Boot Option #8 [UEFI USB Lan] Boot Option #9 [UEFI Network:UEFI...] ▶ UEFI Application Boot Priorities ▶ UEFI NETWORK Drive BOS Priorities ▶ Delete Boot Option Select boot mode LEGACY/UEFI +: Select Screen ↑1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.18.1263, Copyright (C) 2019 American Megatrends, Inc.

Boot mode select

Use this feature to select the boot mode. The options are LEGACY, UEFI, and DUAL.

Fixed Boot Order Priorities

This option prioritizes the order of bootable devices that the system can boot from. Press on each entry from top to bottom to select devices.

• Boot Option #1
• Boot Option #2
• Boot Option #3
• Boot Option #4
• Boot Option #5
• Boot Option #6
• Boot Option #7
• Boot Option #8
• Boot Option #9

▶UEFI Application Boot Priorities

This feature allows the user to specify which UEFI devices are boot devices.

- Boot Option #1

▶UEFI NETWORK Drive BBS Priorities

This feature allows the user to specify which UEFI network drive devices are boot devices.

- Boot Option #1

- Boot Option #2

▶ Delete Boot Option

Use this feature to remove a pre-defined boot device from which the system will boot during startup.

The settings are [any pre-defined boot device].

4.6 Save & Exit

Use this menu to save settings and exit the BIOS.

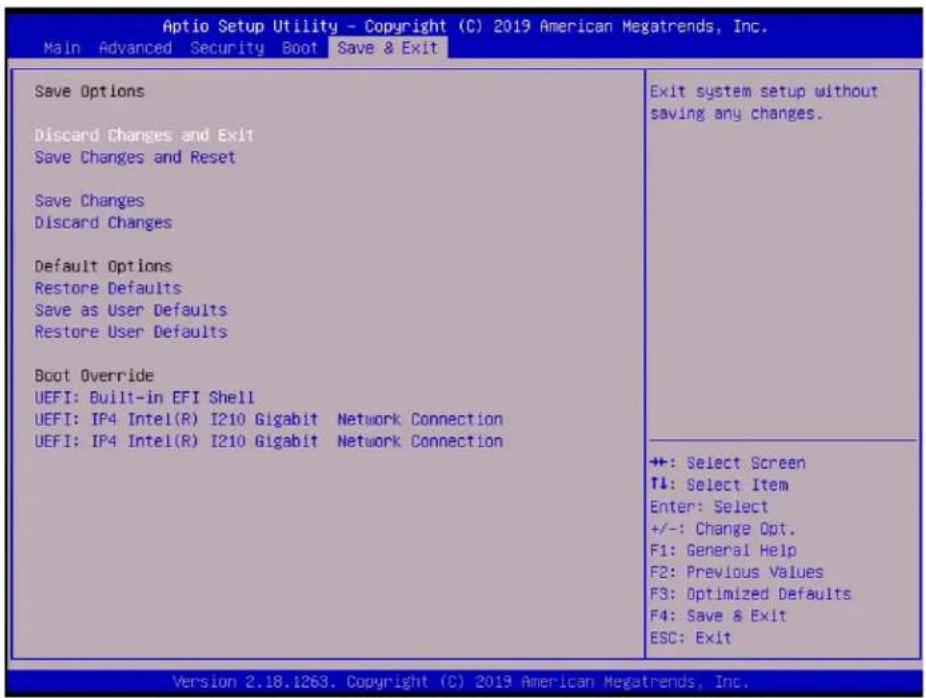

Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Main Advanced Security Boot Save & Exit Save Options Discard Changes and Exit Save Changes and Reset Save Changes Discard Changes Default Options Restore Defaults Save as User Defaults Restore User Defaults Boot Override UEFI: Built-in EFI Shell UEFI: IP4 Intel(R) I210 Gigabit Network Connection UEFI: IP4 Intel(R) I210 Gigabit Network Connection Exit system setup without saving any changes. ++: Select Screen T1: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.18.1263. Copyright (C) 2019 American Megatrends, Inc.

Save Options

Discard Changes and Exit

Select this option to quit the BIOS Setup without making any permanent changes to the system configuration and reboot the computer. Select Discard Changes and Exit from the Exit menu and press .

Save Changes and Reset

When you have completed the system configuration changes, select this option to save all changes made and reset the system.

Save Changes

When you have completed the system configuration changes, select this option to save all changes made. This will not reset (reboot) the system.

Discard Changes

Select this option and press to discard all the changes and return to the AMI BIOS Utility Program.

Default Options

Restore Defaults

To set this feature, select Restore Defaults from the Exit menu and press . These are factory settings designed for maximum system performance but not for maximum stability.

Save as User Defaults

To set this feature, select Save as User Defaults from the Exit menu and press . This enables the user to save any changes to the BIOS setup for future use.

To set this feature, select Restore User Defaults from the Exit menu and press . Use this feature to retrieve user-defined settings that were saved previously.

Boot Override

This feature allows the user to override the Boot Option Priorities sequence in the Boot menu, and immediately boot the system with another device specified by the user. This is a one-time override.

UEFI: Built-in EFI Shell

UEFI: IP4 Intel® I210 Gigabit Network Connection

UEFI: IP4 Intel® I210 Gigabit Network Connection

Appendix A

BIOS Codes

A.1 BIOS Error POST (Beep) Codes

During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur.

Non-fatal errors are those which, in most cases, allow the system to continue the boot-up process. The error messages normally appear on the screen.

Fatal errors are those which will not allow the system to continue the boot-up procedure. If a fatal error occurs, you should consult with your system manufacturer for possible repairs.

These fatal errors are usually communicated through a series of audible beeps. The table below lists some common errors and their corresponding beep codes encountered by users.

BIOS Beep (POST) Codes
Beep Code Error	Message Description
1 beep Refresh Circuits have been reset (Ready to power up)
5 short, 1 long Memory error No memory detected in system
5 long, 2 short Display memory read/write error Video adapter missing or with faulty memory
1 long continuous System OH System overheat condition

A.2 Additional BIOS POST Codes

The AMI BIOS supplies additional checkpoint codes, which are documented online at http://www.supermicro.com/support/manuals/ ("AMI BIOS POST Codes User's Guide").

When BIOS performs the Power On Self Test, it writes checkpoint codes to I/O port 0080h. If the computer cannot complete the boot process, a diagnostic card can be attached to the computer to read I/O port 0080h.

For information on AMI updates, please refer to http://www.ami.com/products/.

Appendix B

Software Installation

B.1 Installing Software Programs

The Supermicro website that contains drivers and utilities for your system is at https://www.supermicro.com/wftp/driver. Some of these must be installed, such as the chipset driver.

After accessing the website, go into the CDR_Images (in the parent directory of the above link) and locate the ISO file for your motherboard. Download this file to create a DVD of the drivers and utilities it contains. (You may also use a utility to extract the ISO file if preferred.)

After creating a CD/DVD with the ISO files, insert the disk into the CD/DVD drive on your system and the display shown in Figure B-1 should appear.

Another option is to go to the Supermicro website at http://www.supermicro.com/products/. Find the product page for your motherboard here, where you may download individual drivers and utilities to your hard drive or a USB flash drive and install from there.

Note: To install the Windows OS, please refer to the instructions posted on our website at http://www.supermicro.com/support/manuals/.

SUPERMICRO A2SAN-H Motherboard Drivers & Tools (Win7) SupersMCRO Drivers & Tools Intel Atom SoC A2SAN-H/L/E SUPERSMCRO Computer Inc. Intel Chipset INF files Microsoft .Net Framework (Optional) Intel Graphics Media Accelerator Driver Realtek High Definition Audio Driver Intel TXE Firmware Intel Serial0 Driver Intel USB 3.0 Drivers Intel PRO Network Connections Drivers Trusted Platform Module Driver (Optional) SUPERMICRO SuperDoctor 5 Build driver diskettes and manuals Browse CD Auto Start Up Next Time For more information, please visit SUPERMICRO's web site.

Figure B-1. Driver/Tool Installation Display Screen

Click the icons showing a hand writing on the paper to view the readme files for each item. Click a computer icon to the right of an item to install an item (from top to bottom) one at a time. After installing each item, you must reboot the system before proceeding with the next item on the list. The bottom icon with a CD on it allows you to view the entire contents of the CD.

When making a storage driver disk by booting into a driver CD, please set the SATA Configuration to "Compatible Mode" and configure SATA as IDE in the BIOS Setup. After making the driver disk, be sure to change the SATA settings back to your original settings.

B.2 SuperDoctor® 5

The Supermicro SuperDoctor 5 is a hardware monitoring program that functions in a command-line or web-based interface in Windows and Linux operating systems. The program monitors system health information such as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

SuperDoctor 5 comes in local and remote management versions and can be used with Nagios to maximize your system monitoring needs. With SuperDoctor 5 Management Server (SSM Server), you can remotely control power on/off and reset chassis intrusion for multiple systems with SuperDoctor 5 or IPMI. SD5 Management Server monitors HTTP, FTP, and SMTP services to optimize the efficiency of your operation.

Note: The default Username and Password for SuperDoctor 5 is admin / admin.

Figure B-2. SuperDoctor 5 Interface Display Screen (Health Information)

SuperDoctor 5 Check Info: Matherboard: XBD TU-LRA* Fan Speed Type 1 Type 2 Voltage CNC Units CNC DMM +1.3 V +1 V +FFR +1.3 V +1.3 V +2.3VCC +0.8VDC Temperature 1.93 1.60 1.40 1.20 1.00 0.80 0.60 0.40 0.20 0.00 -0.8VDC -1.6VDC -2.4VDC -3.2VDC -4.0VDC -4.8VDC -5.6VDC -6.4VDC -7.2VDC -7.8VDC -8.6VDC -9.4VDC -10.2VDC -10.8VDC -11.6VDC -12.4VDC Source Time PI CHAMCA PI WMMA PI WMMA

Note: The SuperDoctor 5 program and user's manual can be downloaded from the Supermicro website at http://www.supermicro.com/products/nfo/sms_sd5.cfm.

Appendix C

Standardized Warning Statements

The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components.

Read this section in its entirety before installing or configuring components.

These warnings may also be found on our website at http://www.supermicro.com/about/policies/safety_information.cfm.

Battery Handling

Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions

電池の取り扱い

Warning! Ultimate disposal of this product should be handled according to all national laws and regulations.

製品の廃棄
