USER MANUAL USB3S2SATA3 StarTech.com

USB 3.0 SATA III (6 Gbps) Adapter Cable for 2.5in or 3.5in Hard Drives

USB3S2SATA3

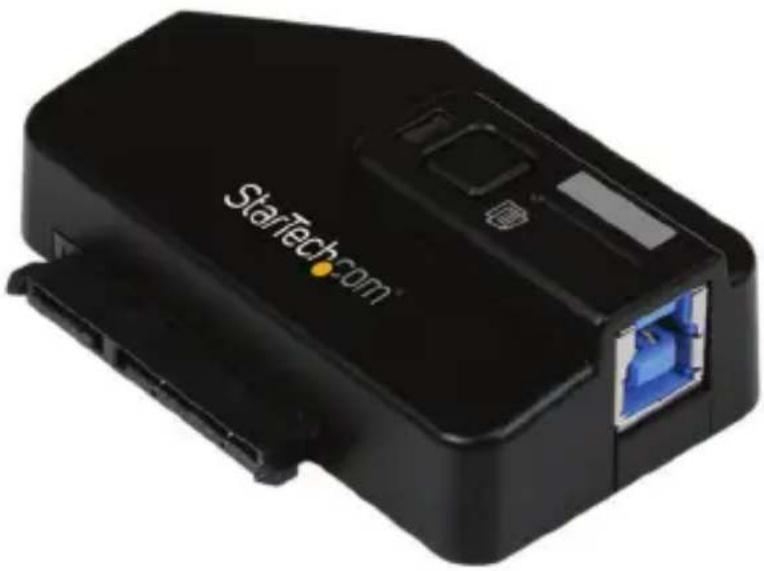

Black StarTech.com USB device with blue port and ports (no readable text or symbols beyond branding)

*actual product may vary from photos

For the most up-to-date information, please visit: www.startech.com

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Table of Contents

Introduction ....1

Packaging Contents ....1

System Requirements....1

Installation ....3

Hardware Installation 3

Driver Installation....3

Verifying Installation ....4

Windows....4

Software Installation 4

How to Use 5

Software 6

Specifications ....7

Technical Support 8

Warranty Information 8

Introduction

The USB3S2SATA3 USB 3.0 to SATA Adapter connects any standard 2.5in or 3.5in SATA (6Gbps) hard drive (HDD), solid state drive (SSD), or optical drive to a computer through SuperSpeed USB 3.0.

The USB 3.0 to SATA III adapter lets you externally connect a bare drive with no drive enclosure or HDD dock required, saving time, hassle and added cost.

The adapter cable works with Windows ^® , Linux, and Mac ^® computers and does not require any software or driver installation - a true plug-and-play solution for adding cost-effective external storage, or overcoming incompatibility between modern hard drives and motherboards that may not be SATA-equipped or have a Serial ATA port available.

For even more versatility, our USB 3.0 to SATA 3 adapter is equipped with a built-in Backup button that, when combined with the easy-to-use included software, will launch the backup utility with the touch of a button.

The USB3S2SATA3 USB 3.0 to SATA Converter is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Packaging Contents

• USB 3.0 to SATA Converter
• 1x USB 3.0 A to B cable
• 1x Universal Power Adapter
• 3x Power Adapter Plug (NA/ UK/ EU)
- 1x Software CD
• 1x Instruction Manual

System Requirements

• Host computer system with an available USB 2.0/3.0 port
• Microsoft® Windows® XP (32/64-bit)/Server 2003 (32/64-bit)/Vista (32/64-bit)/Server 2008 R2/7 (32/64-bit)/8 (32/64-bit), or Mac OS X® 10.x, or Linux

Front View

Power/Activity LED Backup Button StarTech.com 22-Pin SATA DATA/ Power Connector

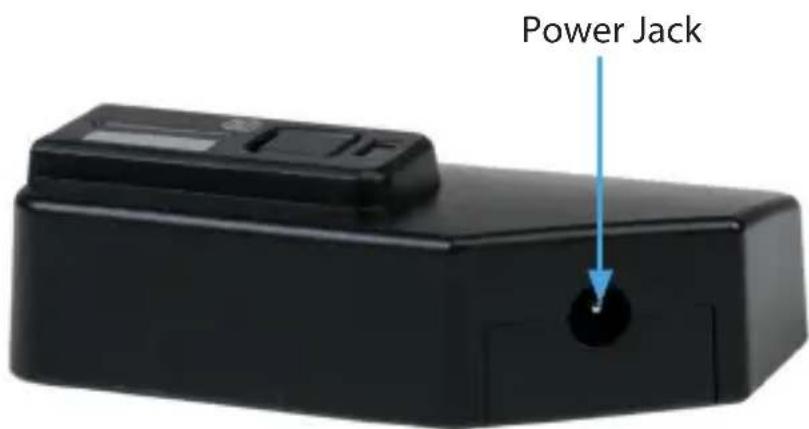

Rear View

Power Jack

Installation

WARNING: Hard drives require careful handling, especially when being transported. If you are not careful with your hard disk, lost data may result. Always handle your hard drive and storage device with caution.

Hardware Installation

1. Connect a 2.5" or 3.5" SATA HDD/SSD or Optical drive to the 22-pin SATA connector on the adapter.
2. Connect the external power adapter to the DC power connector on the adapter. Connect the power adapter to an electrical outlet. The drive will spin up once power is connected.

NOTE: Most 2.5in drives will function without the power adapter as power is provided through USB.

1. Connect the USB 3.0 A-B cable from the adapter to an available USB port on the host computer system. This USB 3.0 adapter is compatible with USB 2.0, so will also connect to a USB 2.0 port, however at the lower speed. The host computer system will detect the adapter and automatically install the driver.

NOTE: While power will be provided to the drive once the power adapter is connected, the power LED will not light up until connected to a host computer system via USB.

Driver Installation

No driver installation is required for the supported operating systems as this adapter is natively supported, so the drivers are already installed.

Verifying Installation

Windows

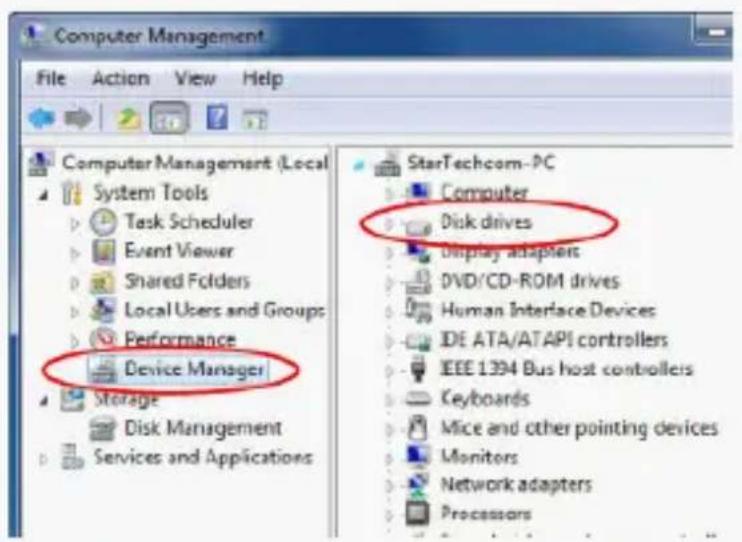

From the main desktop, right-click on "My Computer" ("Computer" in Vista/7/8), then select Manage. In the new Computer Management window, select Device Manager from the left window panel.

Open Explore Search... Manage Map Network Drive... Disconnect Network Drive... Create Shortcut Delete Rename Properties

Computer Management File Action View Help Computer Management (Local System Tools Task Scheduler Event Viewer Shared Folders Local Users and Groups Performance Device Manager Storage Disk Management Services and Applications StarTechcom-PC Computer Disk drives Display adapters DVD/CD-ROM drives Human Interface Devices IDE ATA/ATAPI controllers IEEE 1394 Bus host controllers Keyboards Mice and other pointing devices Monitors Network adapters Processors

Double-click on the "Disk Drives" option. A new disk drive should be listed under this category. It will typically contain the make/model of the hard drive you have connected to the adapter.

Software Installation

1. Insert the included "PC Clone EX Lite" Utility CD into a CD/DVD-ROM.
2. AutoPlay should give you the option to browse the files on the CD or automatically open the CD.
3. If AutoPlay does not start, go into "My Computer" and access the CD/DVD drive that the CD is in and run the installation file.
4. Follow the on-screen installation to complete the installation.
5. A "PC Clone EX" icon will be listed in the system tray and on the desktop.

6:56 PM

1. For more information about how to use the software, right-click on the icon in the system tray and select "Help".

How to Use

Windows

If you are using a brand new hard drive that does not contain any data, then you will first need to prepare the hard drive for use. From the main desktop, right-click on "My Computer" ("Computer" in Vista/7/8), then select Manage. In the new Computer Management window, select Disk Management from the left window panel.

Storage Removable Storage Disk Defragmenter Disk Management Services and Applications Disk 0 Basic 76.69 GB Online N 6.47 GB Healthy Disk 1 Basic 111.79 GB Online 111.79 Unalloc.

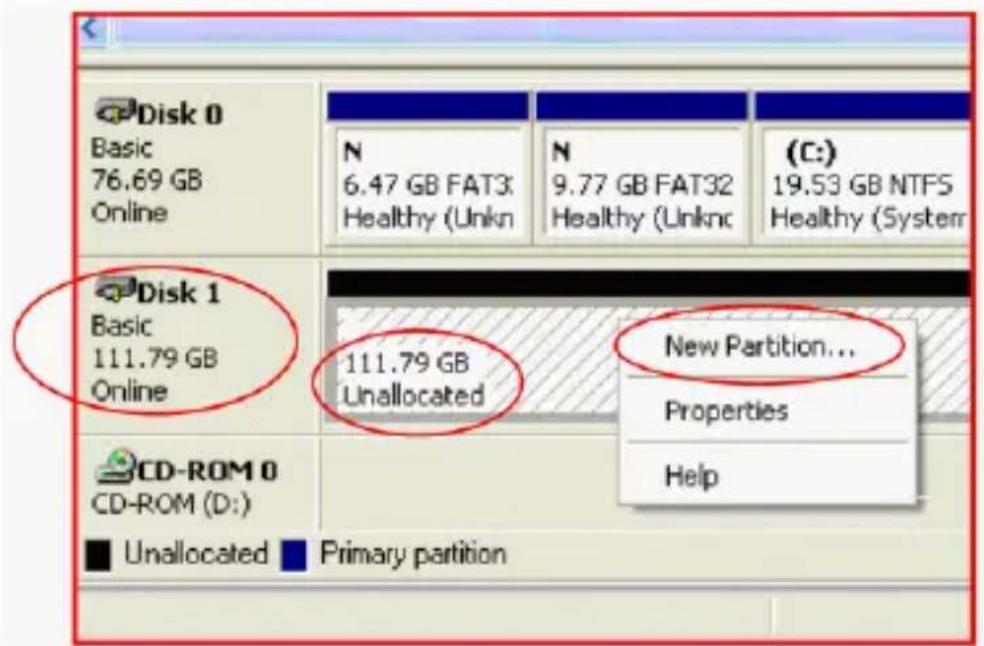

Locate the Disk that says it is "Unallocated" (check hard drive capacity to confirm it's the correct hard drive) and then right-click in the section that says "Unallocated" and select "New Partition".

Disk 0 Basic 76.69 GB Online N 6.47 GB FAT3 Healthy (Unkn) N 9.77 GB FAT32 Healthy (Unknc) (C:) 19.53 GB NTFS Healthy (System) Disk 1 Basic 111.79 GB Online 111.79 GB Unallocated New Partition... Properties CD-ROM 0 CD-ROM (D:) Unallocated Primary partition

The New Partition Wizard will appear. Follow the instructions in the wizard to complete setting up the drive. Once complete, the Disk should show up as "Healthy" with a drive letter assigned (i.e. E:). This drive letter should now appear within My Computer.

Storage Removable Storage Disk Defragmenter Disk Management Services and Applications Disk 0 Basic 76.69 GB Online N 6.47 GB FAT3: Healthy (Unkn) N 9.7: Hea Disk 1 Basic 111.79 GB Online New Volume (E:) 111.79 GB NTFS Healthy CD-ROM 0 CD-ROM (D:) Primary partition

If you are installing a hard drive that already has data on it, then after plugging it in, the drive should automatically show up with a drive letter assigned within "My Computer".

Software

To run the software, press the "Backup" button on the adapter or double-click the PC Clone icon on your desktop.

Specifications

Bus Interface SuperSpeed USB 3.0

Chipset ID ASMedia ASM1051E

Connectors

1x 22-Pin SATA Receptacle

1x USB 3.0 Type B Female

LEDs 1x Amber Power/Activity LED

Maximum Data Transfer Rate USB 3.0: 5Gbps

Compatible Drives 2.5"/3.5" SATA HDD/SSD/Optical

Color Black

Power Adapter 12VDC, 1.5A, center positive, plug type M

Operating Temperature 0°C \~ 50°C (32°F \~ 122°F)

Storage Temperature 20°C \~ 60°C (68°F \~ 140°F)

Humidity 5% \~ 85% RH

Dimensions (LxWxH) 69.4mm x 47.3mm x 21.6mm

Weight 32.7g

Compatible Operating Systems

Windows XP(32/64bit)/ Server

2003(32/64bit)/ Vista(32/64bit)/ Server

2008 R2/7(32/64bit)/8(32-64-bit),

Mac OSX 10.x, Linux

Technical Support

StarTech.com's lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.
