USER MANUAL KAHBCSPLT4A Kogan
KAHBCSPLT4A

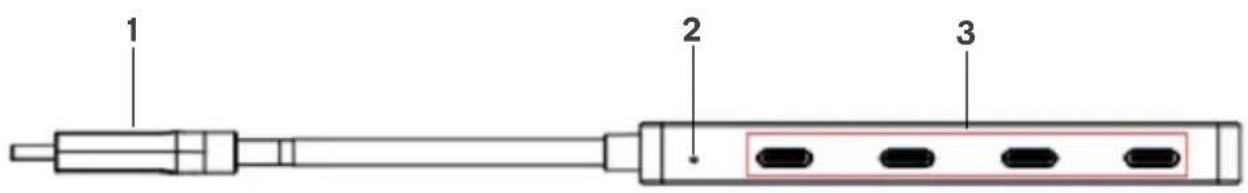

OVERVIEW
2 Power indicator
3 4 x USB-C 3.2 Gen2 ports
OPERATION
- Connect the USB-C 3.0 connector to your computer or laptop.
- Connect devices such as USB flash drives, mobile hard disks and wireless mice to the 4 x USB-C 3.2 Gen2 ports.
Notes:
- When in use, ensure that the PIN needle does not sink or bend, so as not to affect plugging and unplugging.
- Be careful not to splash liquid into the connector as this may affect its performance.
• The product should be placed in a dry place, not in a humid environment. - To ensure optimal performance and avoid potential issues, wait at least 10 seconds between each connection or disconnection action when using the product. This interval allows the product to properly reset and stabilise between uses.
SPECIFICATIONS
Material/Colour ABS plastic/black.
Size
96 x 29.2 x 10.6mm.
- Type: USB-C 3.0 male
- Cable Length: 15cm
• Outer Diameter: 4.5mm - Colour: Black
Cable
Upstream Interface
Extension Interface
Systems
1 x USB-C 3.0 male uplink port
4 x USB-C 3.2 Gen2 downlink ports.
Mac OS 10.2 and future releases, Windows
7/10/11 32 and 64 bit and future releases,
Linux, and Android.
Need more information?
We hope that this user guide has given you the assistance needed for a simple set-up.
For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
