USER MANUAL William OVWILLWBSNA Ovela

natural_image Line drawing of a wooden table frame with slatted sides and support legs (no text or symbols)

WILLIAM WOOD BED

SINGLE

OVWILLWBSNA, OVWILLWBSWA

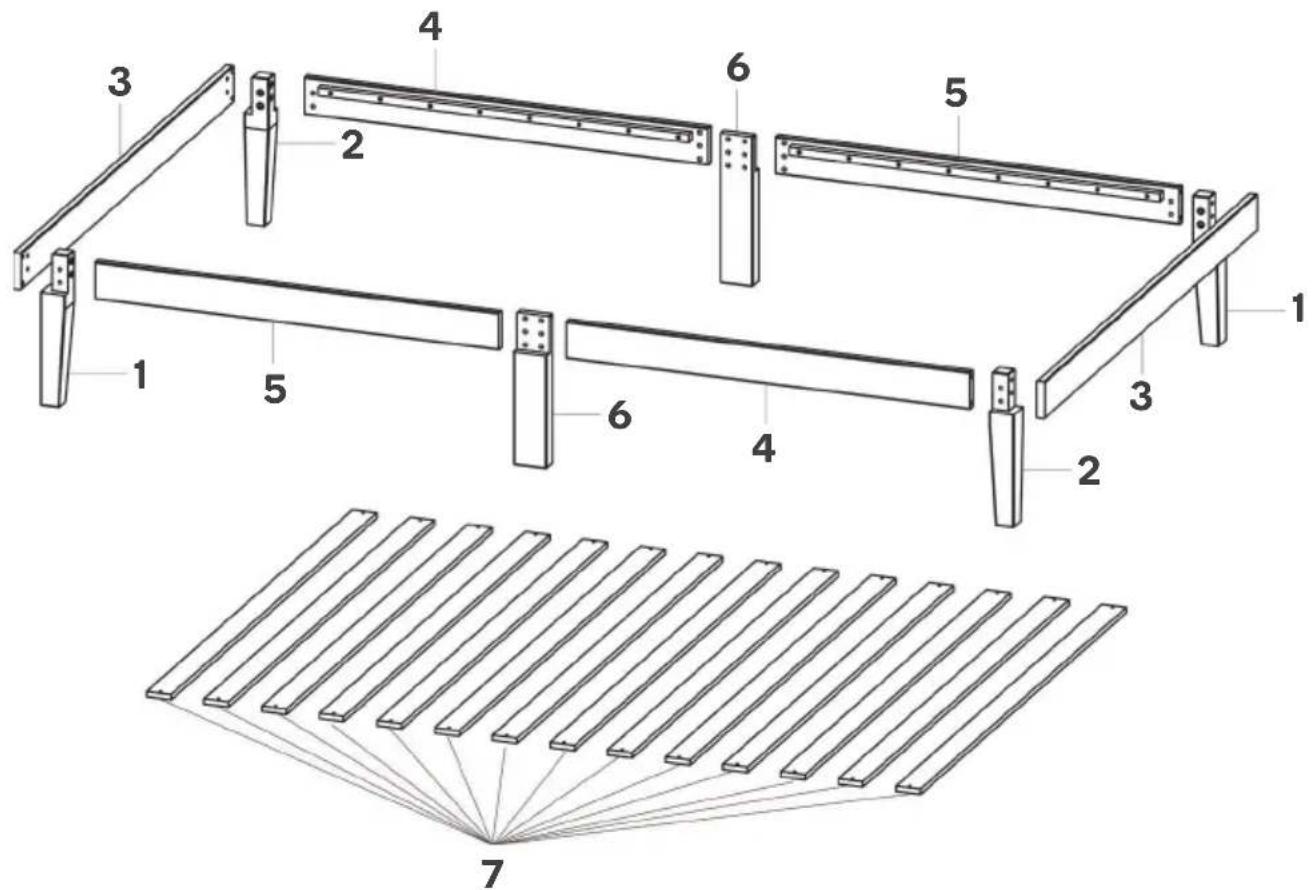

COMPONENTS

Ovela William OVWILLWBSNA - COMPONENTS - 1

text_image Technical diagram of a structural frame assembly with numbered components and a detailed view of panel arrangement.

Hardware

Ovela William OVWILLWBSNA - Hardware - 1
A 50mm M6 screw (x16)

Ovela William OVWILLWBSNA - Hardware - 2
B 35mm M6 screw (x12)

Ovela William OVWILLWBSNA - Hardware - 3
C Dowel (x8)

Ovela William OVWILLWBSNA - Hardware - 4
D 30mm M4 screw (x28)

Ovela William OVWILLWBSNA - Hardware - 5
H Allen key (x1)

ASSEMBLY

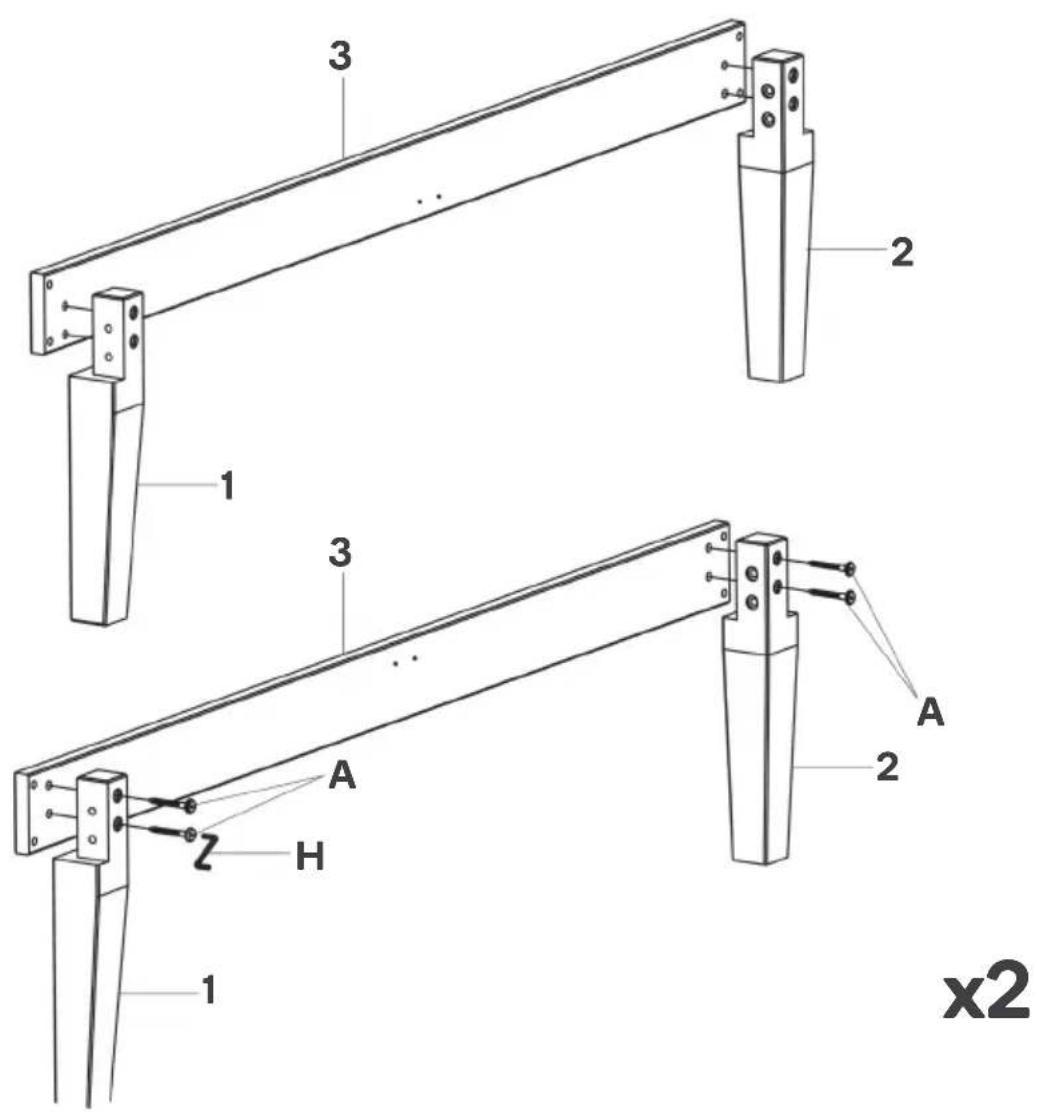

Step 1: Align one part labelled 3 with parts labelled 1 and 2. Using the Allen key (H), secure the part labelled 3 to parts labelled 1 and 2 with 50mm M6 screws (A).

Repeat this process with the remaining parts labelled 1, 2 and 3. This will create two end assemblies.

Note:

Do not use power tools to assemble this bed as it may damage the components.

Ovela William OVWILLWBSNA - Note: - 1

natural_image Two types of screws: one with a threaded screw and the other with a zigzag handle (no text or symbols)

Ovela William OVWILLWBSNA - Note: - 2

text_image 3 1 2 3 A H Z 1 2 A x2

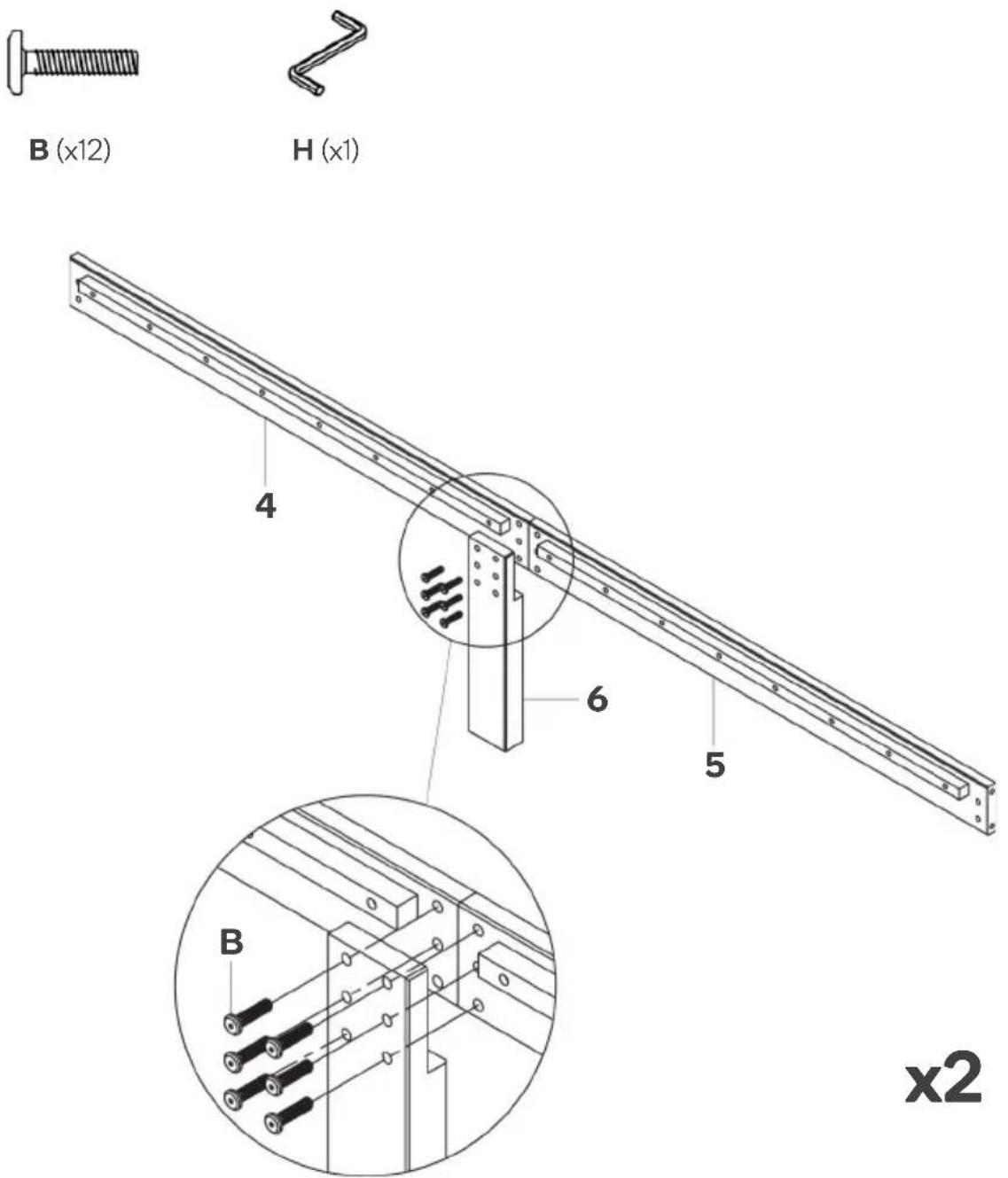

Step 2: Align one each of the parts labelled 4 and 5 with one part labelled 6. Using the Allen key (H), secure the pieces (4, 5, 6) together with 35mm M6 screws (B).

Repeat this process with the remaining parts labelled 4, 5 and 6. This will create two side assemblies.

Ovela William OVWILLWBSNA - Note: - 3

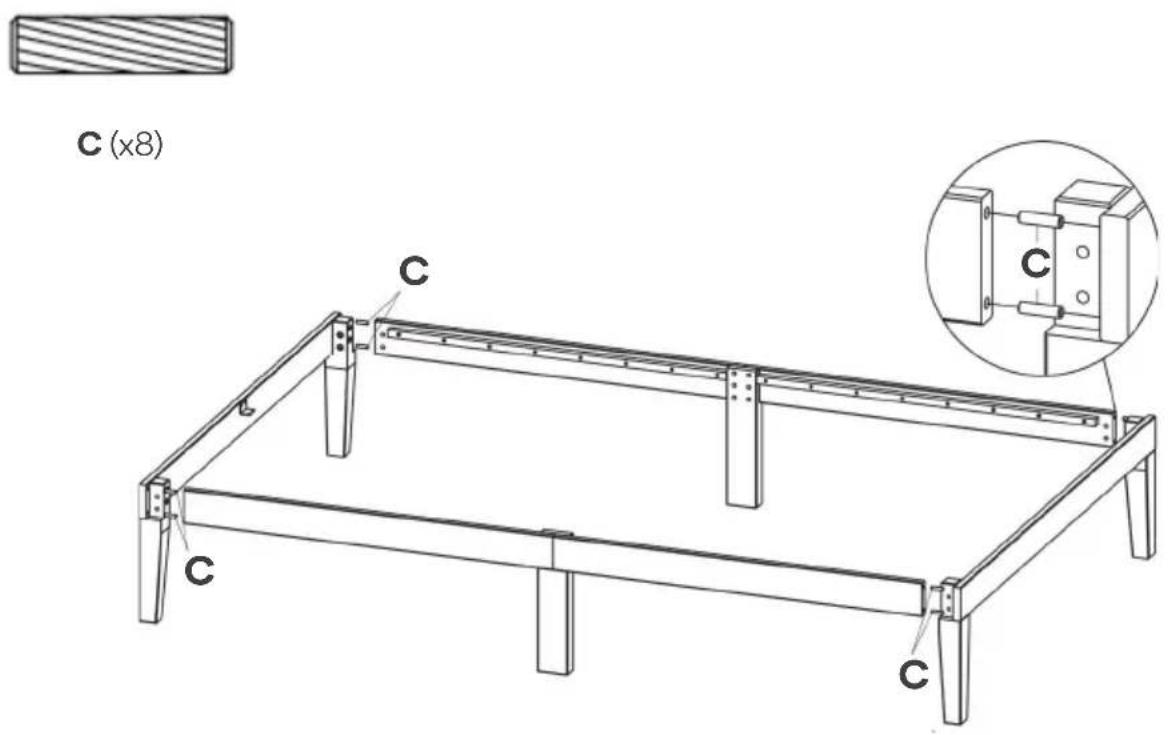

Step 3: Connect the holes on the side assemblies to those on the end assemblies using the dowels (C).

Ovela William OVWILLWBSNA - Note: - 4

text_image C (x8) C C C

Step 4: Using the Allen key (H), secure each corner of the side and end assemblies with 50mm M6 screws (A).

Ovela William OVWILLWBSNA - Note: - 5

text_image A (x8) H (x1) A A A

Step 5: Using a Phillips screwdriver (not supplied), secure parts labelled 7 onto the bed with 30mm M4 screws (D).

Ovela William OVWILLWBSNA - Note: - 6
D (x28)

Ovela William OVWILLWBSNA - Note: - 7

text_image 7 D

Ovela William OVWILLWBSNA - Note: - 8

natural_image Line drawing of a rectangular metal frame structure with supports and slats (no text or symbols)

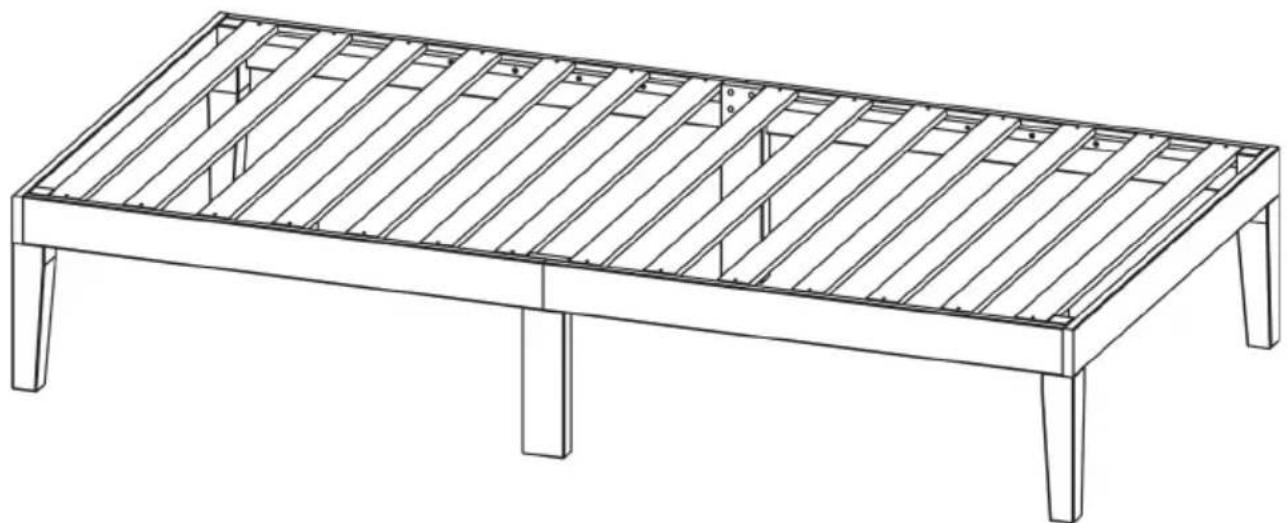

Assembly complete.

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
