WILLIAM WOOD BED

DOUBLE/QUEEN/KING

OVWILLWBDNA, OVVILLWBQNA, OVVILLWBKNA, OVVILLWBDWA, OVVILLWBQWA, OVVILLWBKWA

COMPONENTS

Technical diagram of a structural frame assembly with numbered components and a separate view of a panel array labeled 10.

Hardware

A 50mm M6 screw (x16)

B 35mm M6 screw (x12)

C Dowel (x8)

D 30mm M4 screw (x28)

E 16mm M4 screw (x8)

F 60mm M7 screw (x4)

G Bracket (x2)

H Allen key (x1)

ASSEMBLY

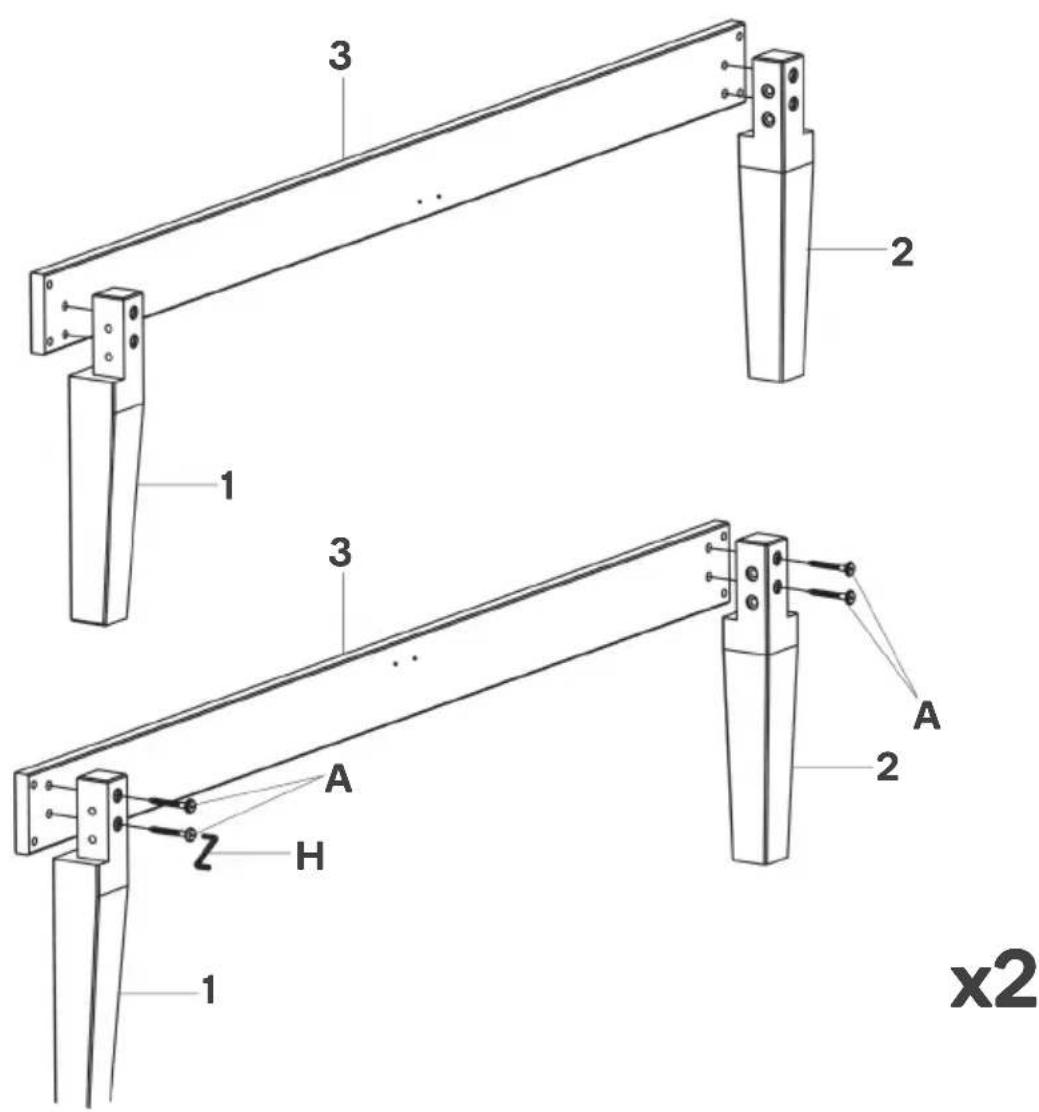

Step 1: Align one part labelled 3 level with parts labelled 1 and 2. Using the Allen key (H), secure the part labelled 3 to parts labelled 1 and 2 with 50mm M6 screws (A).

Repeat this process with the remaining parts labelled 1, 2 and 3. This will create two end assemblies.

Note:

Do not use power tools to assemble this bed as it may damage the components.

Two types of screw-like mechanical parts: a standard screw and a zigzag bracket (no text or symbols)

3 1 2 3 A Z H 1 2 A x2

Step 2: Align the holes on one bracket (G) with those on one end assembly. Using a Phillips screwdriver (not supplied), secure 16mm M4 screws (E) through.

Repeat this process with the remaining end assembly.

Two types of metal screw and bracket diagrams: standard screw (E, x4) and 2D view (G, x2), with no text or symbols present.

3 G E x2

x2

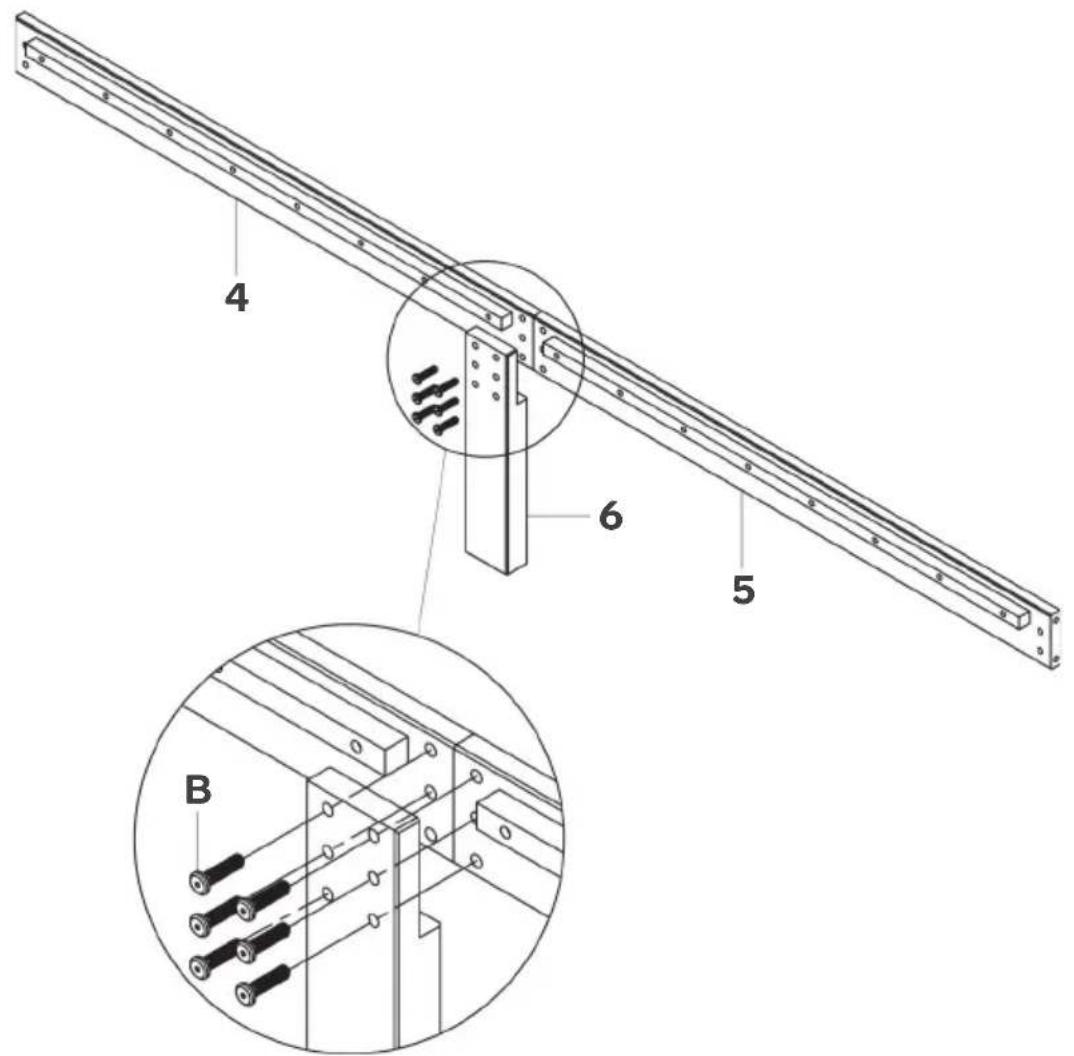

Step 3: Align one each of the parts labelled 4 and 5 with one part labelled 6. Using the Allen key (H), secure the pieces (4, 5, 6) together with 35mm M6 screws (B).

Repeat this process with the remaining parts labelled 4, 5 and 6. This will create two side assemblies.

B (x12) H (x1)

4 6 5 B

x2

Step 4: Connect the holes on the side assemblies to those on the end assemblies using the dowels (C).

C (x8)

Technical diagram of a structural frame with labeled components and an inset showing a mechanical assembly detail.

Step 5: Using the Allen key (H), secure each corner of the side and end assemblies with 50mm M6 screws (A).

A (x8) H (x1)

Technical diagram of a structural frame with labeled components and an inset showing a mechanical assembly detail.

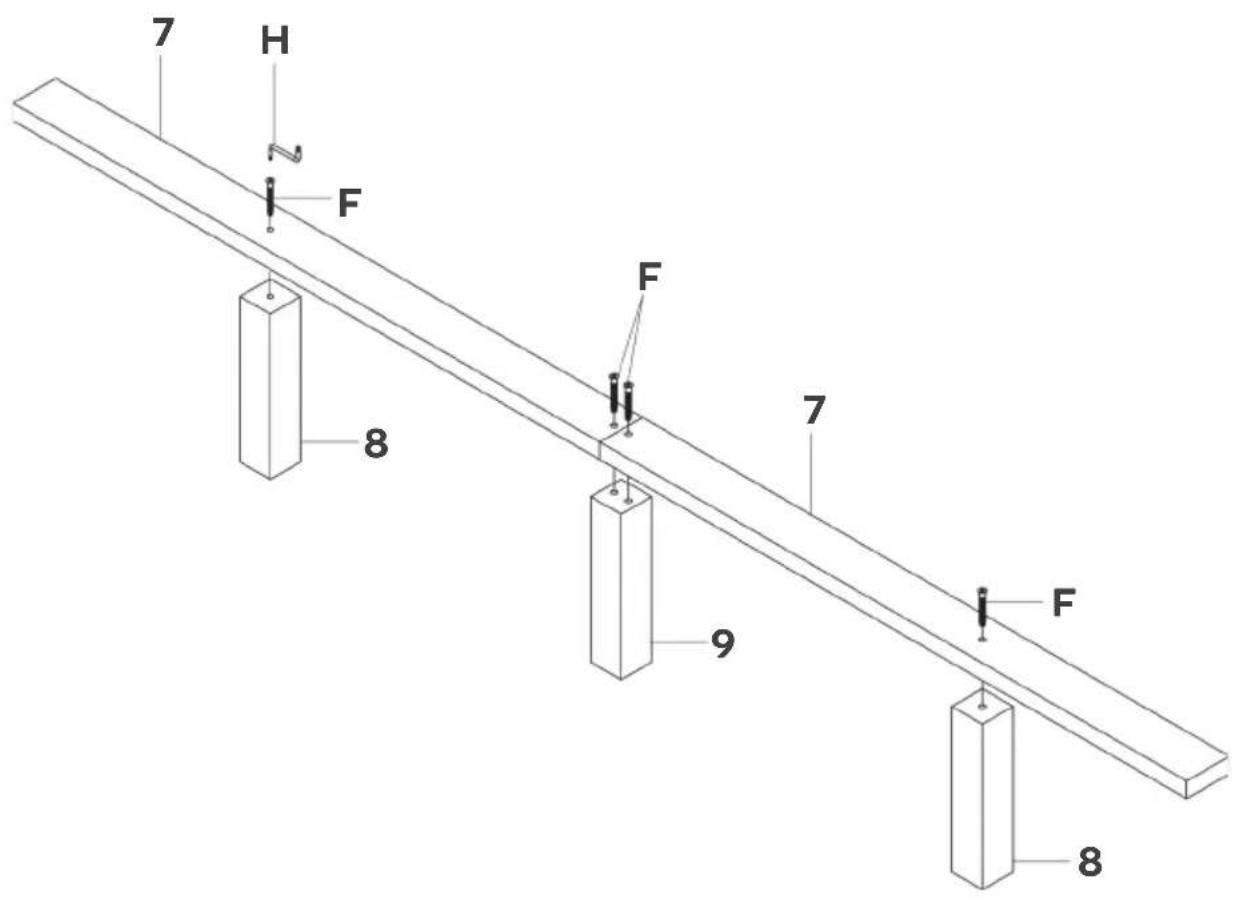

Step 6: Align the holes on parts labelled 7 with parts 8 and 9 as shown below. Using the Allen key (H), secure 60mm M7 screws (F) through. This creates the middle assembly.

F (x4) H (x1)

7 H F F 8 7 9 F 8

Step 7: Using a Phillips screwdriver (not supplied), secure the middle assembly to the end assemblies with 16mm M4 screws (E).

E (x4)

Technical diagram of a structural frame with labeled components E and an inset showing a component with two pins.

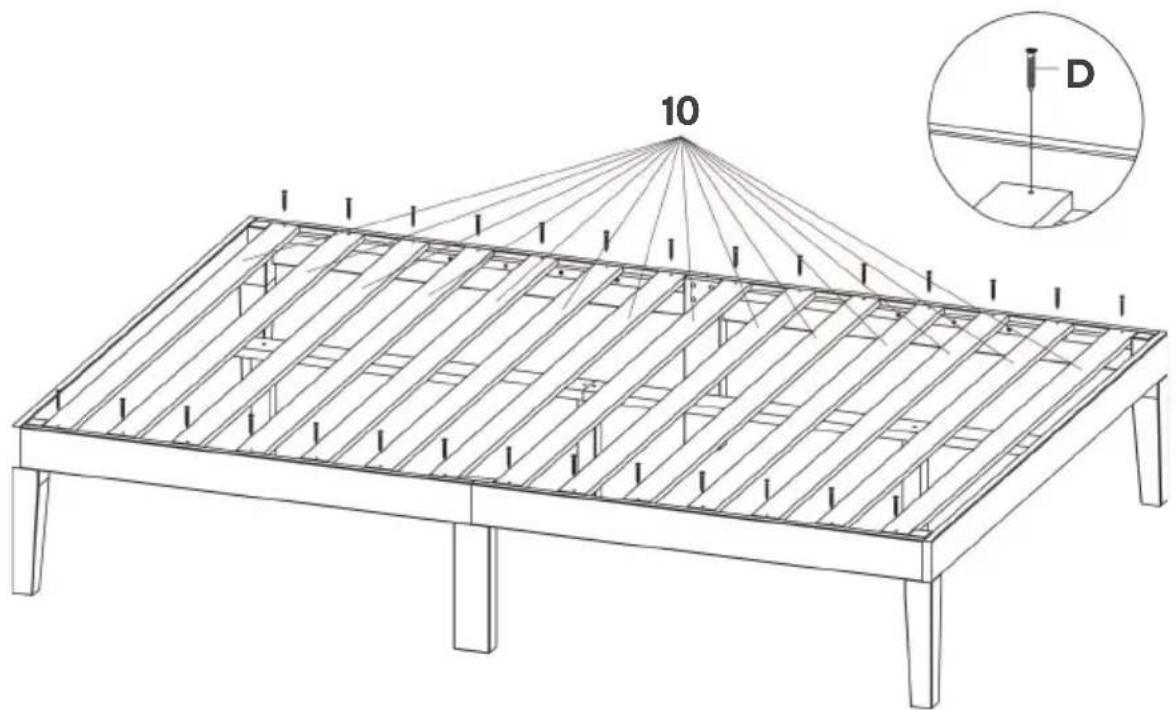

Step 8: Using a Phillips screwdriver (not supplied), secure parts labelled 10 onto the bed with 30mm M4 screws (D).

D (x28)

10 D

Line drawing of a wooden table frame with slatted panels and supports (no text or symbols)

Assembly complete.
