USER MANUAL LM-5116P Posiflex

This system meets industry & government requirements and applicable standards. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions manual, may cause interference to radio communications. It has been tested and found to comply with limits for a Class A digital device pursuant to subpart B of Part 15 of FCC Rules, which are designed to provide reasonable protection against interference when operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference in which case the user at his own expense will be required to take whatever measures to correct the interference.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CE CLASS A WARNING

This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference.

AVERTISSEMENT CE CLASSE A

Warranty will terminate automatically when the machine is opened by any person other than the authorized technicians. The user should consult his/her dealer for the problem happening. Warranty voids if the user does not follow the instructions in application of this merchandise. The manufacturer is by no means responsible for any damage or hazard caused by improper application.

LIMITES DE GARANTIE

This equipment is not suitable for use in locations where children are likely to be present.

CONSIGNES DE SÉCURITÉ

Power cord shall be connected to a socket-outlet with earthing connection.

ATTENTION

Date	Version	Description
2024/01/22	A0	For Preliminary Release
2024/12/27	B0	Add TM/LM-5115C/5116C/5116PC model

Package Contents

√ 15" POS Monitor or 15.6" POS Monitor with Gen 7 base....(x 1)
√ 12V to 12V DC Power Cable....(x 1)
√ Display Cable (Different depends on POS terminal series)....(x 1)
√ USB Cable for Touch....(x 1)

Views of TM/LM-5115/5115C & TM/LM-5116/5116C

Front View

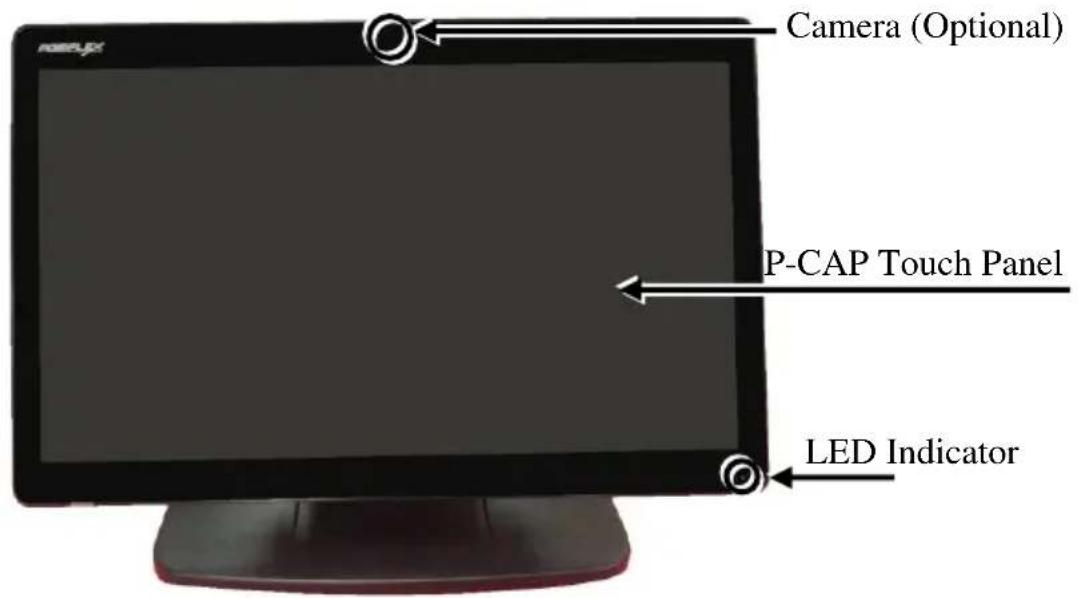

Camera (Optional) P-CAP Touch Panel LED Indicator

Rear View

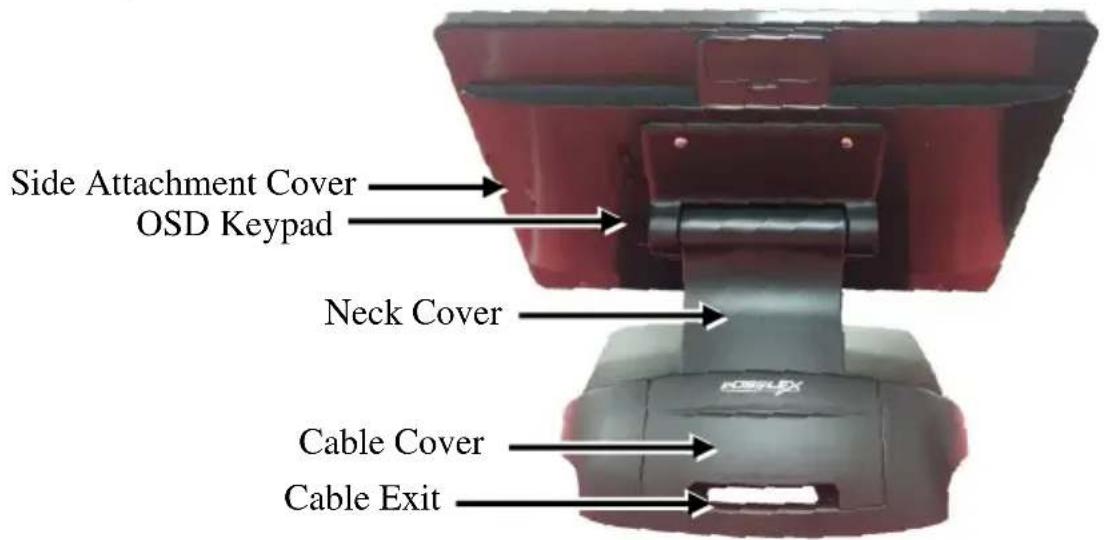

Side Attachment Cover OSD Keypad Neck Cover Cable Cover Cable Exit

Views of TM/LM-5116P/5116PC

Front View

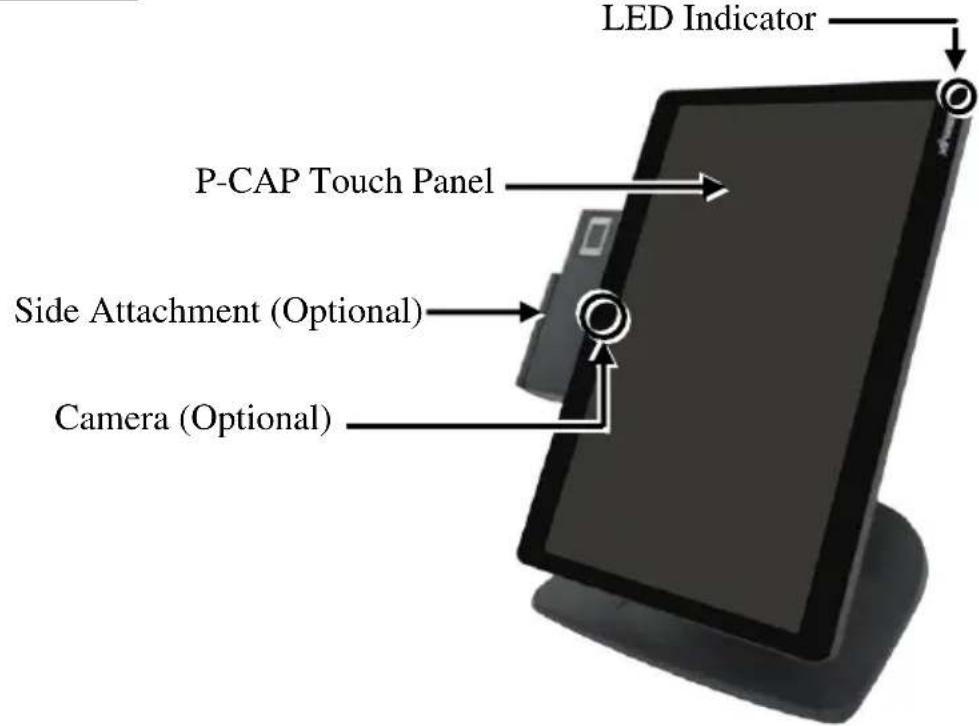

LED Indicator P-CAP Touch Panel Side Attachment (Optional) Camera (Optional)

Rear View

OSD Keypad Neck Cover Cable Cover Cable Exit Side Attachment (Optional)

OSD Keypad

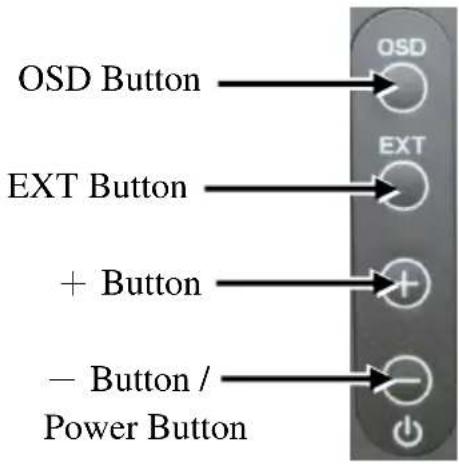

OSD Button EXT Button + Button - Button / Power Button

Introduction to the I/O Ports

DP Port USB (Type B) Port Type-C Port (Only for TM/LM-5115C, TM/LM-5116C, and TM/LM-5116PC Model) HDMI Port VGA Port DC-IN Power Jack

Note: The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks of HDMI Licensing Administrator, Inc. Positioning your screen for a Perfect Viewing Angle

1. Tilt the screen in the direction shown by the arrow in the figure. Please do not press on the LCD panel while setting up the tilt angle.

2. Remove the cable cover from the base.

Three-panel image showing a hand pressing a button on a device, with arrows indicating rotation and change (no text or symbols)

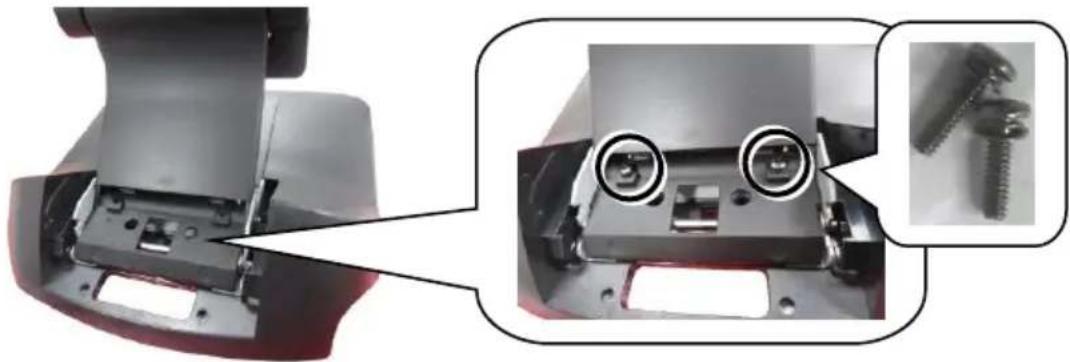

1. Fix the base with two #6/32 screws.

Close-up of a mechanical assembly with two screws inserted, showing internal components and mounting features (no text or symbols visible)

Connecting Power Adapter and I/O Cables

Before connecting power adapter and I/O cables to the I/O ports of the POS monitor, please route and arranging the cables. Refer to the following step-by-step instruction of cable routing and arrangement for the details.

Note:

Please use the type-C cable certified/provided by Posiflex. Please DO NOT use the cables from other unknown sources.

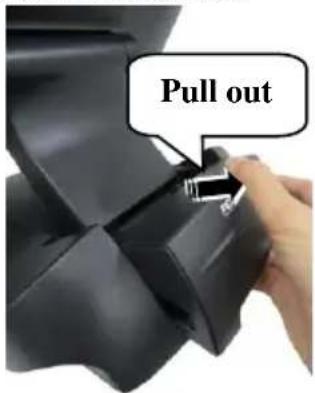

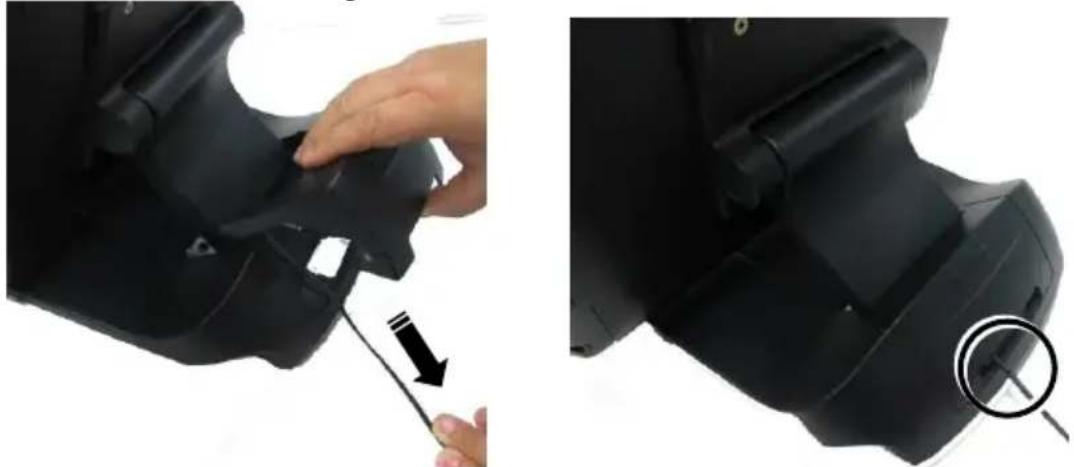

1. Pull out the cable cover.

Pull out

1. Push and tilt the monitor to the end in the direction as shown by the arrow. Then determine that the monitor is tilted to the end, as shown in the below figure.

Two black electronic devices with a curved arm, shown from left and right angles (no text or symbols visible)

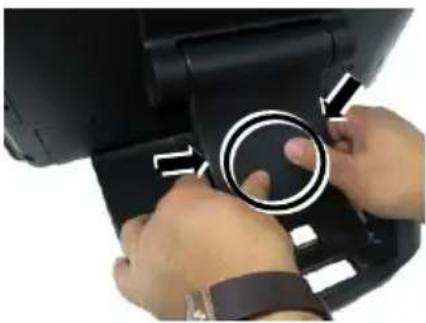

1. Press the circled section with two thumbs and pull by force the two sides of the locking hook with two forefingers as indicated by the arrow.

2. Remove the neck cover from the base stand.

Close-up of hands adjusting a circular mechanical component with directional arrows (no visible text or symbols)

Close-up of hands adjusting a black plastic component with a tool (no visible text or symbols)

1. Tilt the monitor slightly at a little angle in the direction as shown by the arrow, making cables easily pass through the cable passage.

Cable Passage TM/LM-5115 / 5115C TM/LM-5116 / 5116C TM/LM-5116P TM/LM-5116PC

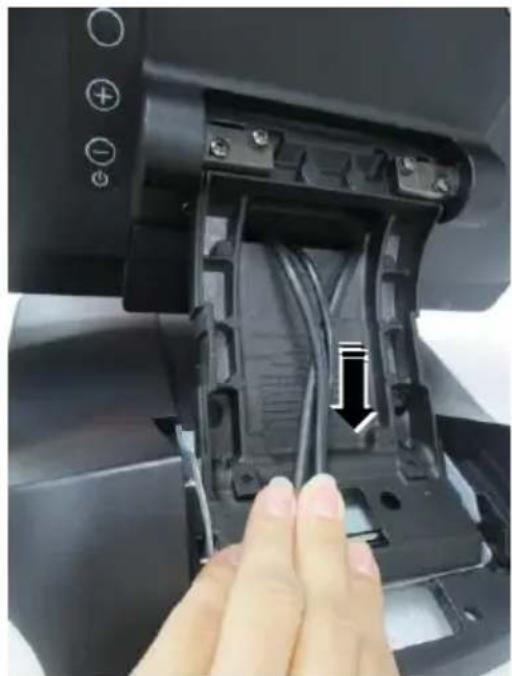

1. Pass the power cable, display cable, and USB cable (for touch) through the cable passage of base stand.

Note: If you use Type-C cable (for TM/LM-5xxxC model) to connect the monitor and the POS terminal, there will be only one Type-C cable. No need power cable or another USB cable.

Close-up of a hand inserting a black plastic component into a device (no visible text or symbols)

1. For TM/LM-5115/5115C & TM/LM-5116/5116C: Push and tilt the monitor to the end in the direction as shown by the arrow. And then place the screen face down on a soft mat or PE foam.

For TM/LM-5116P: There is no need to place the screen face down.

Three-step diagram showing a person holding a flat-screen device, then adjusting the device to form a monitor (no text or symbols visible)

1. Remove the bottom I/O cover.


Diagram showing a hand inserting cable to a computer monitor, with steps and labels indicating the process.

Portrait Model

1. Connect the connector of the power adapter to the 12VDC-IN power jack, and connect the display cable and the USB cable (for TM model) to the relevant port.

1. Put the bottom I/O cover back to the monitor. Please note that it should be put in from the outside, and then press the cover downwards.

Three-step diagram showing hand positioning of a printer's base panel, with arrows indicating the process (no text or symbols present)

Close-up of a computer monitor with visible ports and cable (no readable text or symbols)

Portrait model

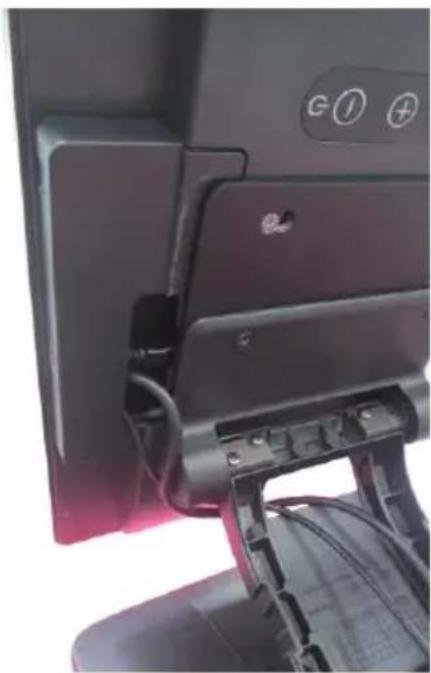

1. Arrange the cables well and then shield the I/O cable arrangement area on the neck of the base stand with the neck cover.

Close-up of a hand inserting cable into a plastic housing component (no text or symbols visible)

Hand inserting a device into a computer monitor, showing left and right rotation arrows (no text or symbols on the device itself)

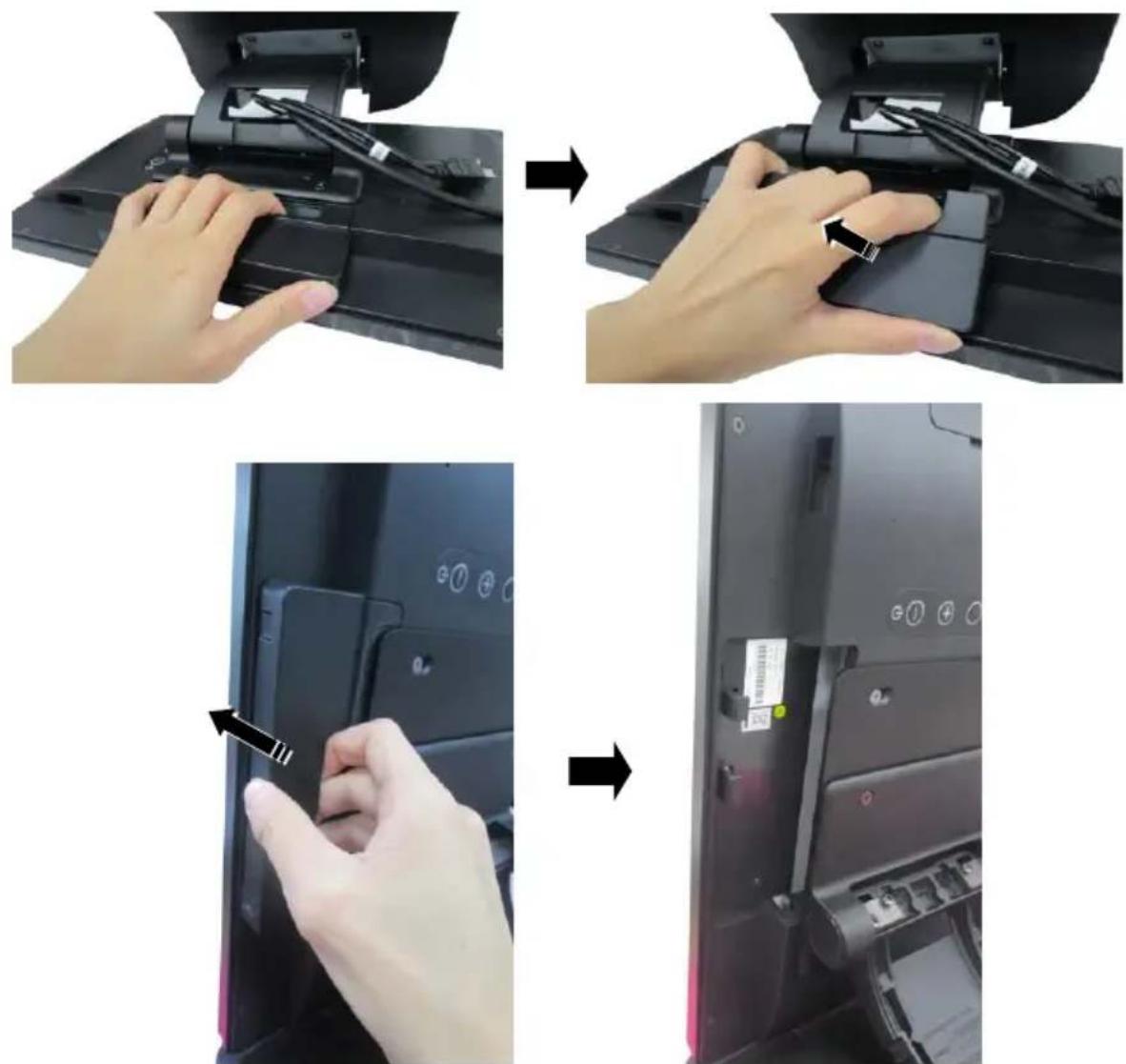

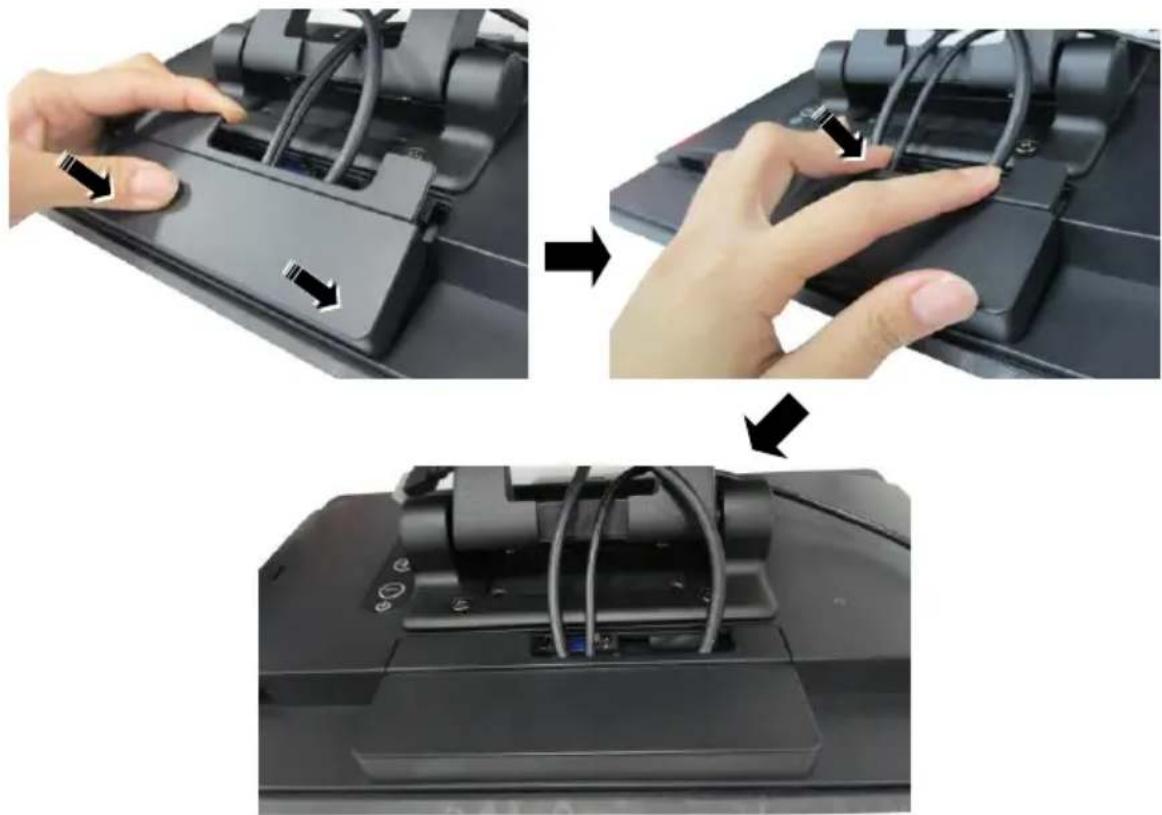

1. Shield the I/O cable exposure area with the cable cover.

Two-step photo showing a hand using a tool to adjust the black mechanical component, with no visible text or symbols.

CAUTION: On doing insertion or extraction of a cable connector, please always hold the connector head itself instead of pulling the cable wire. Doing this could damage the cables and ports, which is considered as an artificial damage and is not covered by the warranty. The means of power cord should be connected to a socket-outlet with earthing connection.

Identifying your Monitor as Secondary Touchscreen Monitor in Extended Mode

In the following section the related descriptions will be offered to help you set up TM series as the extended monitor when you attempt to extend the desktop across multiple monitors

For TM-5115(C)/5116(C)/5116P(C) Models with P-CAP Touchscreen

If your monitors are TM-5115(C)/5116(C)/5116P(C) models, you may configure the display settings from Control Panel in Microsoft Windows to identify the monitor as the secondary touchscreen monitor. Please go through the below steps to complete configuration.

1. Make sure that the monitor is well connected to your POS terminal.

2. Go to Control Panel>Display Settings, change your display settings to extended mode.

3. Go to Control Panel, and then click on Tablet PC Settings item.

RemoteApp and Desktop Storage Spaces Tablet PC Settings User Accounts Windows Update

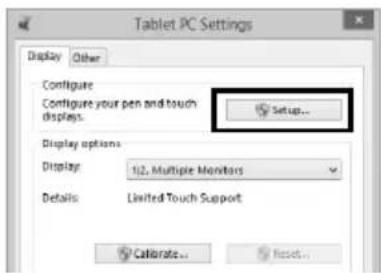

1. In Tablet PC Settings dialogue box, click on Setup button.

Tablet PC Settings Display Other Configure Configure your pen and touch displays. Setup... Display options Display: 1/2, Multiple Monitors Details: Limited Touch Support Calibrate... Reset...

1. Following the instruction shown on the screen, click on the screen that you want to identify as the primary touchscreen display.

Touch this screen to identify it as the touchscreen.

If this is not the Tablet PC screen, press Enter to move to the next screen. To close the tool press Esc

1. Press Enter button to proceed the configuration.

Press Enter to proceed to the next step to complete your configuration

1. Click on the screen you want to use as the secondary touchscreen display.

Touch this screen to identify it as the touchscreen.

If this is not the Tablet PC screen, press Enter to move to the next screen. To close the tool, press Esc

Powering ON/OFF your Monitor

To start up the monitor, please make sure that the monitor is well connected to POS terminals and electricity is supplied to the monitor through POS terminal.

Installing Drivers

Please visit Posiflex official website to download and install the related drivers. (https://download.posiflex.com/en-global/Download/index/driver/POS-Monitor/TM-5115)

Setting up Display Resolution for Your Monitor

The below chart defines the list of recommended display settings for TM/LM monitor. Improper display configuration will prevent the monitor from properly displaying the image and lead to a warning message of “out of range” prompted on the screen.

15" TM/LM-5115(C)

Display Resolution	Horizontal Frequency (KHz)	Refresh Rate (Hz)
640 x 480	31.5	60
800 x 600	37.9	60
1024 x 768	48.4	60

15.6" TM/LM-5116(C) & TM/LM-5116P(C)

Display Resolution	Horizontal Frequency (KHz)	Refresh Rate (Hz)
800 x 600	37.88	60.00
1024 x 768	48.36	60.00
1280 x 720	45.00	60.00
1366 x 768	47.71	60.00
1920 x 1080	67.50	60.00

Specification

	TM/LM-5115TM/LM-5115C	TM/LM-5116TM/LM-5116CTM/LM-5116PTM/LM-5116PC
Display
LCD Panel	15" TFT LCD	15.6” TFT LCD
Resolution	1024 (H) x 768 (V)	1920 (H) x 1080 (V)
Viewing Angle	88/88/88/88 degree(U/D/L/R)	89/89/89/89 degree(U/D/L/R)
Contrast Ratio	2500 : 1	1000: 1
Brightness	350 cd/m2	300 cd/m2
Power Supply	12V from power adapter
Touch
Touch type	TM-5115/5115C:P-CAPLM-5115/5115C: N/A	TM-5116/5116C/5116P/5116PC: P-CAPLM-5116/5116C/5116P/5116PC: N/A
Interface	TM-5115/5115C: USBLM-5115/5115C: N/A	TM-5116/5116C/5116P/5116PC: USBLM-5116/5116C/5116P/5116PC: N/A
Integrated module
Camera	Optional, 1MP wide angle camera module
Mechanical
Mechanical	Standalone display with Gen7 base
Dimension(WxHxD in mm)	TM/LM-5115/5115C: 350 x 251 x 299 ^1 TM/LM-5116/5116C: 373 x 251 x 269 ^1 TM/LM-5116P/5116PC: 260 x 252 x 388 ^1 Note1: with 15° tilted base stand
Net weight	TM/LM-5115/5115C: 4.0 kgTM/LM-5116/5116C: 3.6 kgTM/LM-5116P/5116PC: 4.1 kg

※ The product information and specifications are subject to change without prior notice.

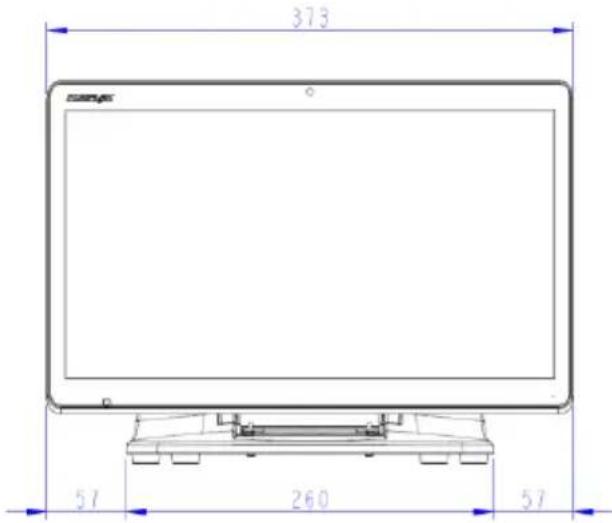

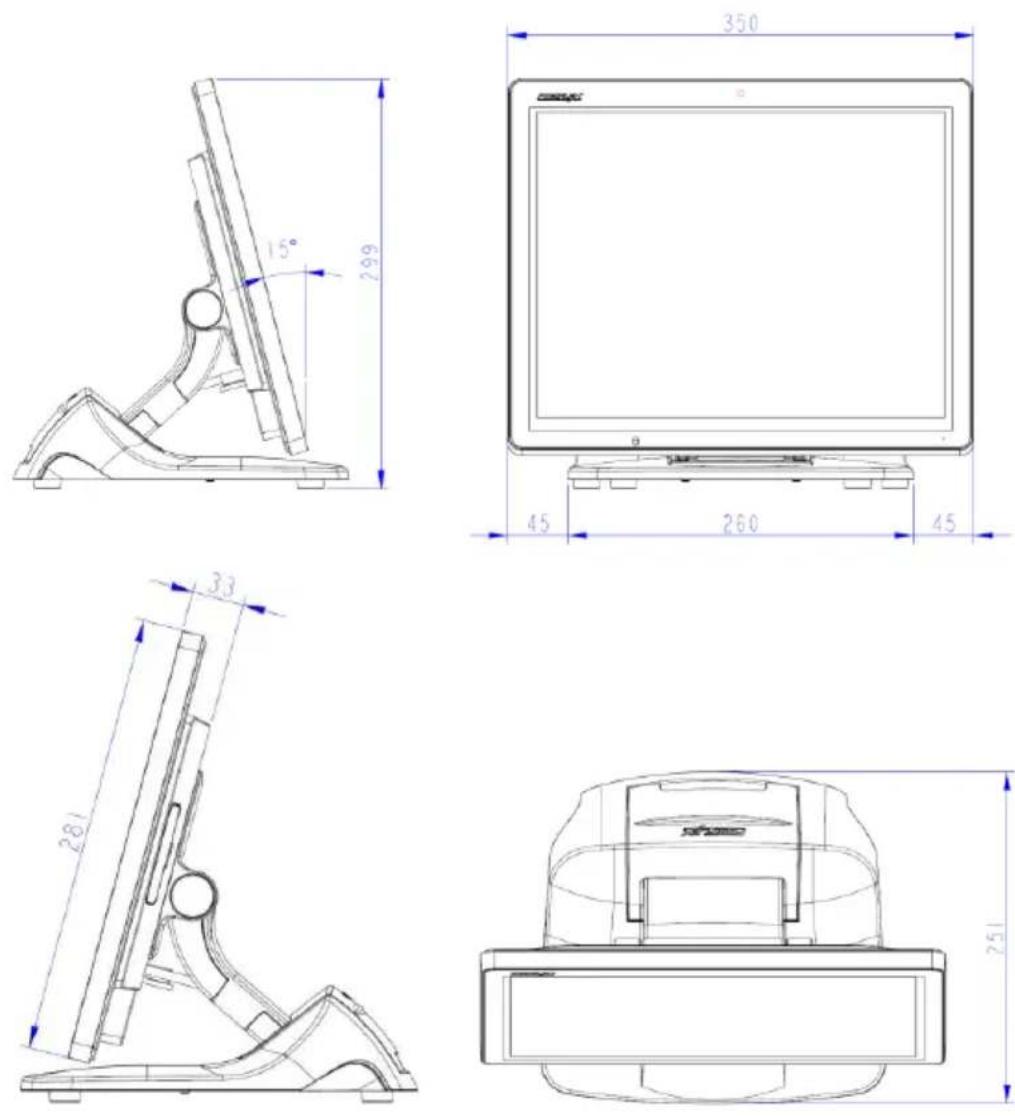

TM/LM-5115/5115C

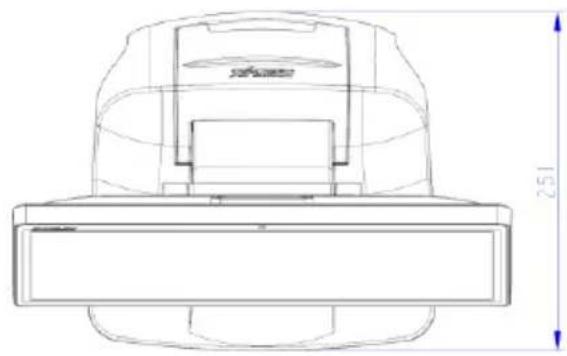

TM/LM-5116/5116C

15° 269

373 57 260 57

23.9 33

Technical line drawing of a mechanical component with dimension annotations (no readable text or symbols)

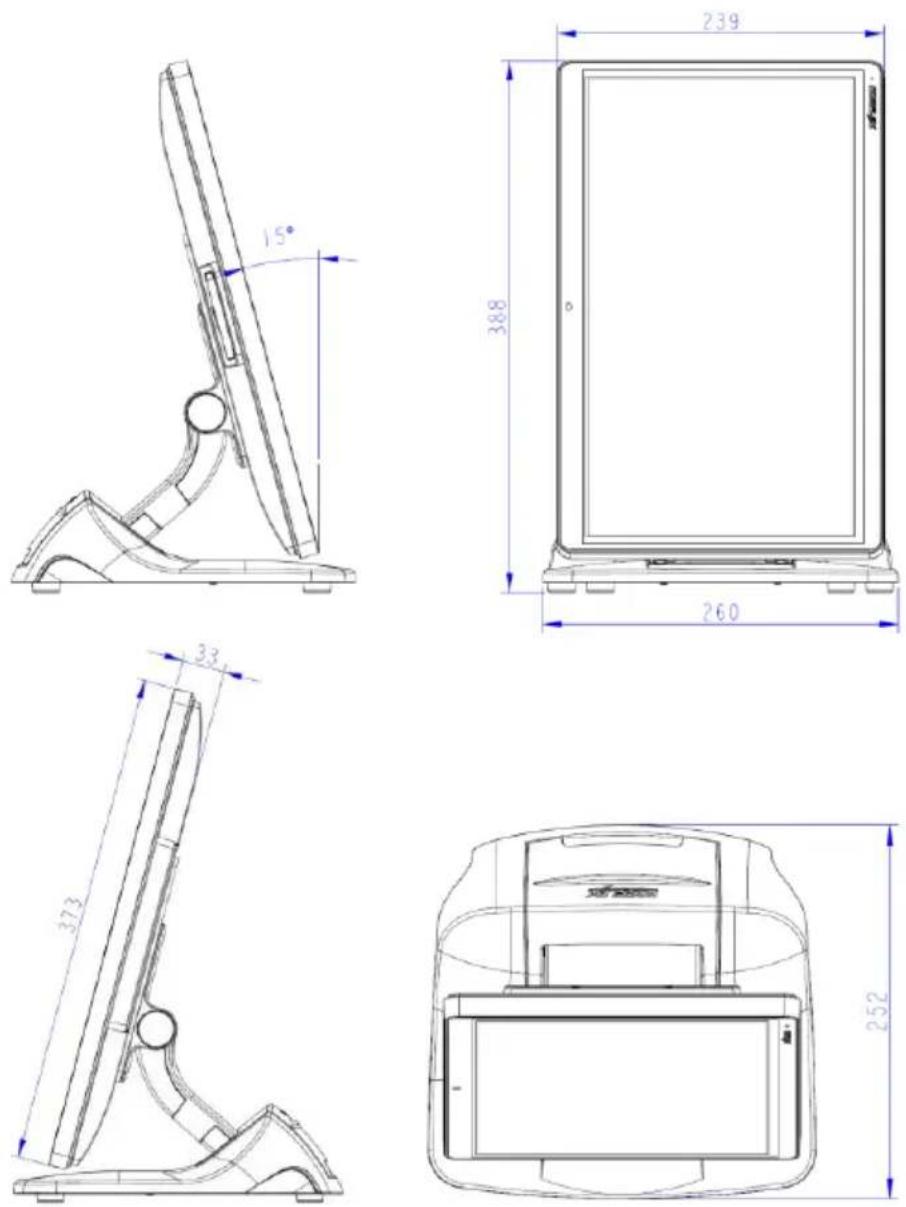

TM/LM-5116P/5116PC
