USER MANUAL VT-8613 V-TAC

Meaningful Innovation.

WEEE Number: 80133970

INSTRUCTION MANUAL

LED BULKHEAD

3 VARIABLE CCT 3000K | 4000K | 6400K VARIABLE WATTS 8W | 16W | 20W 05 YEAR WARRANTY* IP65 RATING SUPER BRIGHT 120+ LM/WATT EFFICIENCY IK O8 RATING PRO SERIES SAMSUNG LED Illuminated

TECHNICAL DATA

MODEL SKU		BEAM ANGLE	CRI DF		LIFE SPAN (HOURS)	INPUT VOLTAGE	MATERIAL DIMENSION WARRANTY
VT-8603	801-24	110^	>80	0.9	30,000	AC:200-240V, 50/60Hz	PC	320x100mm	5 Year
VT-8613	804-24	110^	>80	0.9	30,000	AC:200-240V, 50/60Hz	PC	320x100mm	5 Year
VT-8623	806-24	110^	>80	0.9	30,000	AC:200-240V, 50/60Hz	PC	320x100mm	3 Year
VT-8633	812-24	110^	>80	0.9	30,000	AC:200-240V, 50/60Hz	PC	320x100mm	3 Year

SENSOR SPECIFICATIONS

MODEL	DETECTION ANGLE	DETECTION DISTANCE	DETECTION RANGE MAX.	HOLD TIME	DAYLIGHT SENSOR	DETECTION MOTION SPEED
VT-8613VT-8633	360° If Ceiling Mounting120° If Wall mounting	3-6 M	D6Mx3M	5s, 30s,90s,3min,20min,30min	Day, 2LUX,10LUX-.25LUX Optional	0.5-3m/s

EMERGENCY SPECIFICATIONS

MODEL	EMERGENCY OPERATION TIME	EMERGENCY STANDBY WATTS	BATTERY CHARGING CURRENT	BATTERY DISCHARGING CURRENT	BATTERY TYPE	TEST BUTTON	CHARGING INDICATOR
VT-8623	>3 Hours	>1.2 Watts	250mA	410mA	LiFePO_4 , 3.2V, 2Ah	With	Green LED

INTRODUCTION & WARRANTY

Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installing and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best. The warranty is valid for 5 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product is warranted for manufacturing defects only.

WARNING

• Please make sure to turn off the power before starting the installation.
  • Installation must be performed by a qualified person.
• The light source of this luminaire is not replaceable, when the light source reaches its end of life the whole luminaire should be replaced.
• If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.

QR code image containing encoded data, no visible human-readable text

MULTI-LANGUAGE MANUAL QR CODE

Please scan the QR code to access the manual in multiple languages.

Caution, Risk of electric shock

This marking indicates that this product should not be disposed of with other household wastes.

Switch OFF the power before starting the installation.

2

Technical diagram illustrating a mechanical assembly with labeled components and directional arrows indicating motion or assembly.

Remove the cover by holding the luminaire upside down. Press 3 clips on the sides and pull the base upwards to open and set aside.

3

Diagram of a circular object with dot pattern and two downward arrows indicating direction (no text or symbols)

Carefully press and unlock the screw on the led hinged tray and hold the tray at an upward 90Degree position. Hold the product upside down.

4

Technical line drawing of two mechanical components with circular features and dimension annotations (no text or symbols)

Hold the product in place, mark & drill the holes into the wall and nail the alligator into the hole. Feed the supply cable into the luminaire through the cable entry hole

5

Diagram of a circular mechanical component with internal dotted pattern and two upward arrows indicating direction (no text or symbols)

• Once the base is installed, carefully put back the hinged tray by pushing it forward.
• Hold the tray with the base and twist the screw to lock it back.

6

Diagram illustrating a mechanical or fluidic process with labeled components and directional arrows indicating flow or movement.

• Carefully close the cover by aligning with the marked arrows on the base (Locate the Side conduit) and the cover to avoid breakage while closing.
• Push down from all 3 sides to properly secure the 3 clips on the sides.

7

Pure electrical circuit lines without any symbols

Switch ON the power to test the light.

INSTRUCTIONS FOR CHANGING COLOR & POWER (AVAILABLE ON DRIVER)

4 OFF

	CCT
ON3000K (Y)
ON4000K (WY)
ON6400K (W)

	POWER
ON20W
ON16W
ON8W

ON

PRE-INSTALL EMERGENCY FUNCTION TEST

• Connect the AC cable according to the diagram.
• Press the test button on the driver. The emergency function will be activated, and the charging indication will be off.
• Disconnect the battery pack, the charging indicated LED off.

NOTE: After installation, allow 36 hours to ensure full battery charge and then interrupt the supply.

L N Emergency PL Switch SL N

SENSOR SETTINGS

FIG 1 FIG 2 FIG 3

• Detection Area - It can be adjusted by combining DIP switches for specific application [FIG 1].
• Hold Time - Time period during which the light will be ON after the last detection [FIG 2].
• Daylight Threshold - Daylight sensor priors motion sensor. Set Threshold for Specific needs. If disabled, only motion sensor will work [FIG 3].

APPLICATION

[FUNCTION DEMO - CORRIDOR FUNCTION]

Interior hallway with checkered floor, door, ceiling, and wall-mounted display (no text or symbols)

When motion is detected, but the daylight is sufficient, the light will remain OFF.

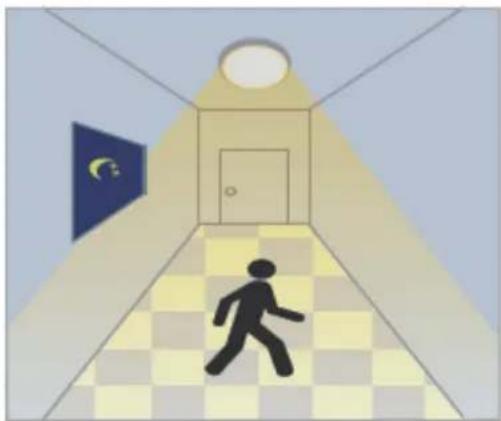

Illustration of a person walking down a checkered corridor with a crescent moon and flag, no text or symbols present.

When motion is detected, and the daylight is insufficient, the light will be ON.

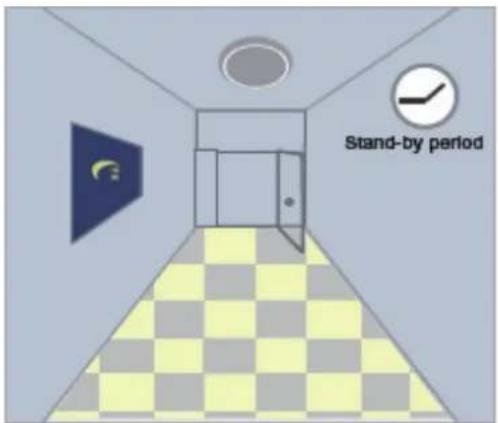

Stand-by period

After a stand-by period, the light will switch OFF.
