IDS-3110 Series

10.4" Industrial Open Frame Monitor

Copyright

The documentation and the software included with this product are copyrighted 2019 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. However, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringements of the rights of third parties, which may result from its use.

Acknowledgements

Intel and Pentium are trademarks of Intel Corporation.

Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp.

All other product names or trademarks are properties of their respective owners.

Product Warranty (2 years)

Advantech warrants to you, the original purchaser, that each of its products will be free from defects in materials and workmanship for two years from the date of purchase.

This warranty does not apply to any products which have been repaired or altered by persons other than repair personnel authorized by Advantech, or which have been subject to misuse, abuse, accident or improper installation. Advantech assumes no liability under the terms of this warranty as a consequence of such events.

Because of Advantech's high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defective, it will be repaired or replaced at no charge during the warranty period. For out-of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight. Please consult your dealer for more details.

If you think you have a defective product, follow these steps:

1. Collect all the information about the problem encountered. (For example, CPU speed, Advantech products used, other hardware and software used, etc.) Note anything abnormal and list any onscreen messages you get when the problem occurs.

2. Call your dealer and describe the problem. Please have your manual, product, and any helpful information readily available.

3. If your product is diagnosed as defective, obtain an RMA (return merchandise authorization) number from your dealer. This allows us to process your return more quickly.

4. Carefully pack the defective product, a fully-completed Repair and Replacement Order Card and a photocopy proof of purchase date (such as your sales receipt) in a shippable container. A product returned without proof of the purchase date is not eligible for warranty service.

5. Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer.

Declaration of Conformity

CE

This product has passed the CE test for environmental specifications. Test conditions for passing included the equipment being operated within an industrial enclosure. In order to protect the product from being damaged by ESD (Electrostatic Discharge) and EMI leakage, we strongly recommend the use of CE-compliant industrial enclosure products.

FCC Class A

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FM

This equipment has passed the FM certification. According to the National Fire Protection Association, work sites are classified into different classes, divisions and groups, based on hazard considerations. This equipment is compliant with the specifications of Class I, Division 2, Groups A, B, C and D indoor hazards.

Technical Support and Assistance

1. Visit the Advantech website at http://support.advantech.com where you can find the latest information about the product.
2. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call:
   – Product name and serial number
   – Description of your peripheral attachments
   – Description of your software (operating system, version, application software, etc.)
   – A complete description of the problem
   – The exact wording of any error messages

Warnings, Cautions and Notes

Warning! Warnings indicate conditions, which if not observed, can cause personal injury!

Caution! Cautions are included to help you avoid damaging hardware or losing data. e.g.

There is a danger of a new battery exploding if it is incorrectly installed. Do not attempt to recharge, force open, or heat the battery. Replace the battery only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer's instructions.

Note! Notes provide optional additional information.

Document Feedback

To assist us in making improvements to this manual, we would welcome comments and constructive criticism. Please send all such, in writing, to: [e-mail]

Safety Instructions

1. Read these safety instructions carefully.
2. Keep this User Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall may cause damage.
7. The openings on the enclosure are for air convection. Protect the equipment from overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before connecting the equipment to the power outlet.
9. Position the power cord so that people cannot step on it. Do not place anything over the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.
12. Never pour any liquid into an opening. This may cause fire or electrical shock.
13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.
14. If one of the following situations arises, get the equipment checked by service personnel:

■ The power cord or plug is damaged.
- Liquid has penetrated into the equipment.
■ The equipment has been exposed to moisture.
The equipment does not work well, or you cannot get it to work according to the user's manual.
■ The equipment has been dropped and damaged.
■ The equipment has obvious signs of breakage.

1. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT WHERE THE STORAGE TEMPERATURE MAY GO BELOW -20°C (-4°F) OR ABOVE 60°C (140°F). THIS COULD DAMAGE THE EQUIPMENT. THE EQUIPMENT SHOULD BE IN A CONTROLLED ENVIRONMENT.

2. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER, DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER'S INSTRUCTIONS.

The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A).

DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.

Caution!

For power adapter selection: the information about the adapter output rating (12 Vdc, 5 A min, or 18 W min) is provided in the user manual for user's selection if the power adapter is not shipped with the unit

Contents

Chapter 1 Overview......1

1.1 Introduction 2
1.2 Features 2
1.3 Applications.... 2
1.4 Product Photos.... 2
1.5 Naming Rule 3

Chapter 2 System Setup....5

2.1 Specifications 6
2.2 Dimensions 8

Figure 2.1 IDS-3110 Series Dimensions .... 8
Figure 2.2 IDS-3110E Series Dimensions 8
Figure 2.3 IDS-3110 (XGA) Series Dimensions .... 8

2.3 Rear Mount Assembly SOP 9
2.4 Cable Clamp 10

Chapter 3 Touchscreen....13

3.1 OSD Functions (IDS-3110 Series) 14

3.1.1 OSD Main Menu: Push the MENU Key 14
3.1.2 Brightness Selection - Submenu.... 15
3.1.3 Contrast Control.... 15
3.1.4 Screen Settings - Submenu 15
3.1.5 Color Temperature - Submenu 16
3.1.6 Language - Submenu 16
3.1.7 OSD Setting - Submenu 17
3.1.8 VGA/DVI Selection.... 17

3.2 OSD Functions for IDS-3110E Series.... 18

3.2.1 OSD Main Menu: Push the MENU Key 18
3.2.2 OSD Lock.... 18
3.2.3 OSD Unlock 18
3.2.4 Color Adjustment - Submenu (Brightness /Contrast/ Color Adjust/ Color Temp/Auto Color) 19
3.2.5 Image Setting Adjustment.... 19
3.2.6 Image Adjustment - Submenu (Clock/Phase/H. Position/V. Position) 20
3.2.7 OSD Menu Adjustment 20
3.2.8 OSD Adjustment - Submenu (OSD H.Pos./OSD V.Pos./OSD Timer).... 21
3.2.9 OSD Adjustment - Language Submenu.... 21
3.2.10 Reset Adjustment.... 22

3.3 OSD Functions for IDS-3110 XGA series 23

3.3.1 OSD Menu Details 23
n Drivers.... 31

Appendix A Troubleshooting 33

A.1 Introduction 34
A.2 Troubleshooting 34

Chapter 1

Overview

Sections Include:

Introduction
Features
Applications
Product Photos
Naming Rule

1.1 Introduction

The Advantech IDS-3110 series is a brand new Industrial Open Frame Monitor, designed to meet the needs of customers who want quick and easy integration with Advantech Embedded Box Computers, such as ARK and DSA lines. Advantech offers two different versions of IDS-3110 to meet different demands: IDS-3110 series (Superior grade version) and IDS-3110E series (Economical version)

1.2 Features

10.4" SVGA LED backlight panel provides 20\~30% power saving
-20°C \~ +60°C wide operating temperature support
■ Specially designed 5-wire resistive and P-cap touchscreen
An all new mechanical design with integrated bracket for easy installation
■ Versatile mounting methods for rear mount and VESA mount (75 x 75 mm, 100 x 100 mm)

1.3 Applications

Application scenarios - self-service applications:

KIOSK / POI machine
■ Transportation machine
- Ticketing machine
Financial ATM
■ Entertainment / Gaming / Slot machine
■ HMI (Human-Machine Interface) equipment controller monitor
■ Public communication machine
■ Public advertisement machine

1.4 Product Photos

Front View

Front view of a rectangular electronic device with a dark screen and metallic frame (no visible text or symbols)

Rear View

Back view of a computer monitor with visible ports, buttons, and ventilation grilles (no text or symbols)

IDS-3110 Bottom View

Back view of a server rack with multiple ports (no visible text or labels)

IDS-3110E Bottom View

Front view of a computer drive chassis showing rear panel with VGA, I/O ports, and drive slots (no visible text or labels)

1.5 Naming Rule

Chapter 2

System Setup

Sections Include:

Specifications
Dimensions
■ Rear Mount Assembly SOP
Cable Clamp
■ Accessory Packing

2.1 Specifications

Note! The IDS-3110 series offers the following features and meets precise specifications.

Unless otherwise noted, all the information listed below is subject to change without prior notification.

Display	Model IDS-3110 IDS-3110E IDS-3110 XGA
	Size 10.4" LED panel 10.4" LED panel 10.4" LED panel
	Resolution	800 x 600(SVGA)	800 x 600(SVGA)	1024 x 768(XGA)
	Viewing Angle	80°/80°(H),60°/80°(V)	80°/80°(H),60°/70°(V)	88°/88°(H),88°/88°(V)
	Brightness	400 (cd/m2)	2 3 2) 500	(cd/m2)
	Color Support	16.2 M / 262 K colors	16.2 M / 262 K colors	16.2 M colors
	Contrast Ratio 700:1 500:1 1000:1
	Response Time	30 [msec]	35 [msec]	25 [msec]
	Backlight Life 50,000 hrs	30,000 hrs	50,000 hrs
Touchscreen	Touchscreen Type	5-Wire Resistive Touchscreen		5-Wire Resistive Touch-screen / Projected Capacitive touch
	Surface Hardness	3H	3H	3H / Mohs 5
	Durability	36 million touches	36 million touches	36 million touches / No limited
	Transparency	81%±3%	81%±3%	81%±3%/90%±3%
Environment	Operating Temperature	-20 ~ 60°C(-4 ~ 140°F)	0~45°C(32 ~ 113°F)	-20 ~ 60°C(-4 ~ 140°F)
	Storage Temperature	-30 ~ 70°C(-22 ~ 158°F)	-20 ~ 60°C(-4 ~ 140°F)	-30 ~ 70°C(-22 ~ 158°F)
	Humidity	95% @ 40°C, non-condensing
	Vibration	5-500Hz, 0.026G2/Hz, 2.16Grms,X, Y, Z 1 hour per axis
System	I/O	VGA x 1; DVI-Dx 1; 12 VDCJack x 1;USB x1; RS-232x 1	VGA x 1; 12VDC Jack x 1;USB x1; RS-232x 1	VGA x 1; DVI-Dx 1; 12 VDCJack x 1;USB x1; RS-232x 1
		(USB & RS-232 are reserved for the connection to enable touch usage only)
	OSD	Keys: Menu, Up,Down, AutoAdjust, MonitorPower on/off.Menu Functions: Brightness, Contrast,Screen Settings,Color Temp,Language OSDSettings, VGA/DVI , Recall ,Auto Adjust.	Keys: Menu, Up, Down, AutoAdjust, Monitor Power on/offMenu Functions: Brightness, Con-trast, Color Adjust, Color Temp,Auto Color, and Language
	Power Consumption 6.68W(R)		5.1W(R)4.6W(N)	11.8W(R)11.47W(P)11.3W(N)
	EMC Certificated 6.18W(N)
	Package Dimension 420 x 333 x 173 mm
	Net Weight 1.6kg 1.6kg 1.2kg
	Gross Weight 2.9kg 2.9kg 2.5kg

2.2 Dimensions

261.4 130.7 202.0 101.0 9.5 21.7 239.7 279.4 211.2(Panel Active Area) 32.3 (35.9) (34.5) 220.0 158.4(Panel Active Area) 27.1 Ø3.5 135.2135.2 79.979.9 135.0 75.0 VESA Center M4 100.0 50.0 130.5 80.5 139.7 32.3(R) 30.0(N)

Figure 2.1 IDS-3110 Series Dimensions

261.4 130.7 21.7 239.7 202.0 101.0 9.5 279.4 35.9 211.2(Panel Active Area)(32.3) 220.0 58.4(Panel Active Area) 32.0 Ø3.5 135.0 75.0 100.0 75.0 100.0 50.0 130.5 80.5 135.2135.2 79.979.9 VESA Center M4 139.7 32.2(ER) 30.0(EN)

Figure 2.2 IDS-3110E Series Dimensions

261.4 130.7 d 202.0 101.0 29.5 21.7 239.7 279.4 36.3 210.4 (Panel Active Area) 32.7 220.0 157.8 (Panel Active Area) 27.4 279.4 135.2135.2 79.979.9 Ø3.5 100.0 50.0 VISA Center 75.0 135.0 97.4 139.7 100.0 50.0 130.5 80.5 M4 (Max. depth=4mm) 33.1(P) 261.4 130.7 d 202.0 101.0 29.5 279.4 36.3 210.4 (Panel Active Area) 32.7 220.0 157.8 (Panel Active Area) 27.4 279.4 135.2135.2 79.9 79.9 Ø3.5 100.0 50.0 VISA Center 75.0 135.0 97.4 139.7 100.0 50.0 130.5 80.5 M4 (Max. depth=4mm) 32.6(R) 30.5(N)

Figure 2.3 IDS-3110 (XGA) Series Dimensions

2.3 Rear Mount Assembly SOP

1. Using the M3 screws to attach and tighten as shown in the below figure.

Technical diagram of a cabinet or enclosure with labeled components and dashed lines indicating alignment or measurement.

2.4 Cable Clamp

1. A cable clamp also comes with Open Frame Monitor to fix the power cable, see picture below.

Cable Clamp with IDS-3110

Close-up of a black plug inserted into a white electronic device panel with numbered components and a circular dial indicator (no readable text or symbols)

Cable Clamp with IDS-3110E

Interior view of a device panel with labeled ports and connectors (no readable text or symbols)

1. A cable tie for the USB cable is included in the accessory box, see below:

Close-up of a white USB plug inserted into a metal enclosure, showing cable routing (no text or symbols visible)

Packing List

■ 1 x VGA cable 15P(M) 1.8 meter
■ 1 x USB-A(M)/USB-A(M) 1.8 meter (only for models with touch screen)
4 x Panel-mount clamps
4 x Panel-mount clamper screws: M4_25L
1 x Cable clamp
■ 1 x Cable clamp screw
1 x Cable tie

Note! Above accessory cables are subject to change in different SKUs.

Chapter 3

Touchscreen

Sections Include:

OSD Functions
■ Touch Drivers

3.1 OSD Functions (IDS-3110 Series)

The OSD of the IDS-3110 display (800 x 600 resolution) was selected to illustrate examples below:

Buttons	Description
Power Turn the monitor power ON or OFF
Menu Activate the OSD menu
	Exit menu
Auto Automatically adjusts the clock, phase
	H-position and V-position
Value Up/Down Move the selector to the previous option
	Decrease the gauge value of the selected option

LED Function

DPMS ON Green

DPMS STANDBY Orange

DPMS OFF Red

3.1.1 OSD Main Menu: Push the MENU Key

Main Menu Auto Adjust Brightness Contrast Screen Settings Color Temp Language OSD Setting VGA / DVI Recall Exit Analog 1024x768 H 48KHz V 60Hz

3.1.2 Brightness Selection - Submenu

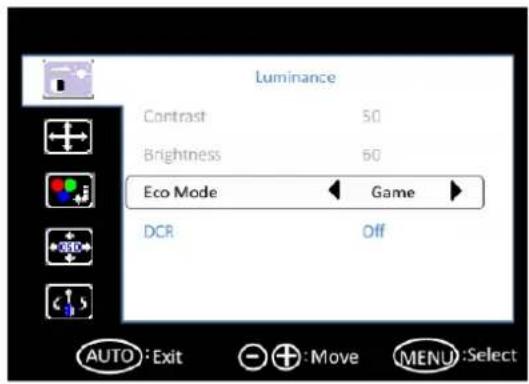

Brightness Brightness Back Light Exit

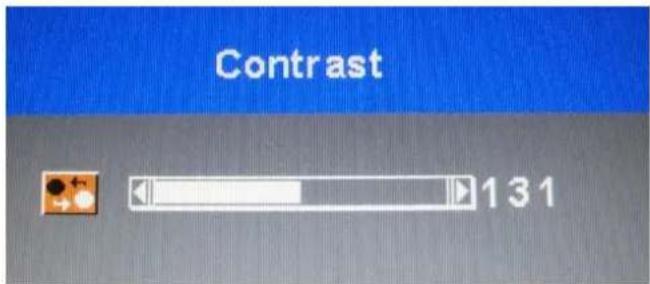

3.1.3 Contrast Control

Contrast 131

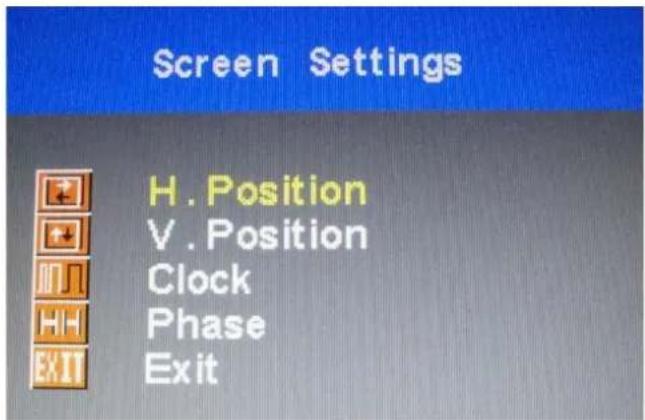

3.1.4 Screen Settings - Submenu

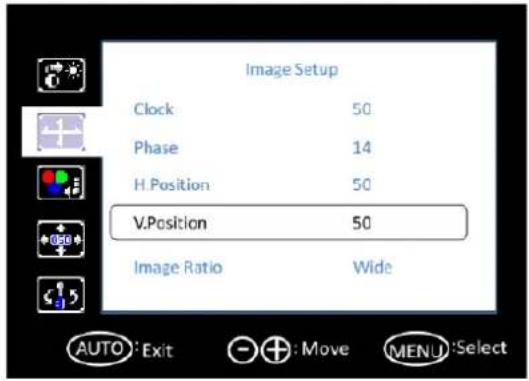

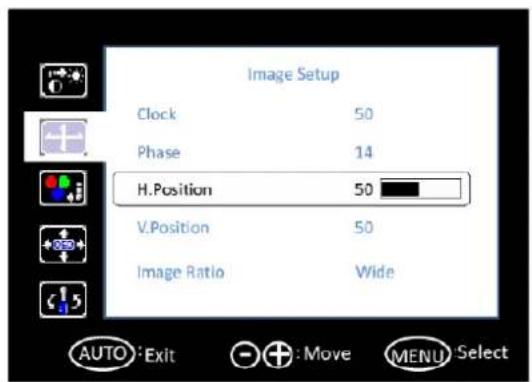

Screen Settings H. Position V. Position Clock Phase Exit

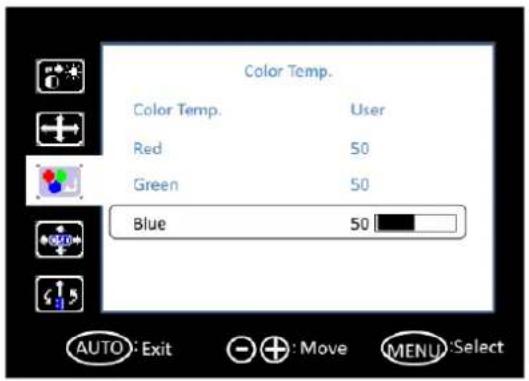

3.1.5 Color Temperature - Submenu

Color Temp 9300K 7500K 6500K User Color Auto Gain sRGB Exit

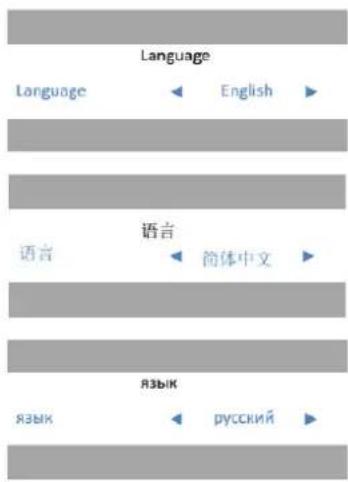

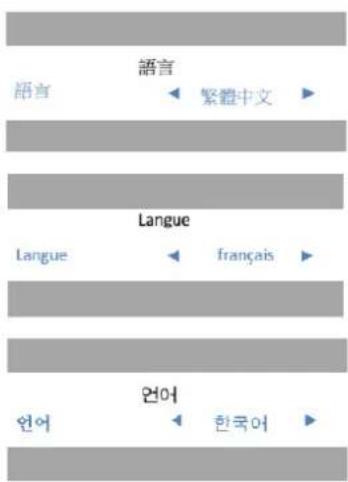

3.1.6 Language - Submenu

Main Menu English Français Deutsch Español 繁體中文 简体中文 日本語 Exit

3.1.7 OSD Setting - Submenu

OSD Setting OSD H. Pos . OSD V. Pos . OSD Timer OSD Transparency Exit

3.1.8 VGA/DVI Selection

VGA / DVI VGA DVI Exit

3.2 OSD Functions for IDS-3110E Series

3.2.1 OSD Main Menu: Push the MENU Key

D-SUB Color Image Setting OSD Menu Audio Reset 1024 x 768 60Hz

3.2.2 OSD Lock

Press the "Right" key and "Menu" key simultaneously to lock the OSD key.

OSD Lock

3.2.3 OSD Unlock

Press the "Right" key and "Menu" key simultaneously again to unlock the OSD key.

OSD Unlock

3.2.4 Color Adjustment - Submenu (Brightness /Contrast/ Color Adjust/Color Temp/Auto Color)

D-SUB → Contrast Brightness Color Adjust Color Temp Auto Color 50 1024 x 768 60Hz

3.2.5 Image Setting Adjustment

D-SUB Color → Image Setting OSD Menu Audio Reset 1024 x 768 60Hz

3.2.6 Image Adjustment - Submenu (Clock/Phase/H. Position/V. Position)

D-SUB Clock Phase H. Position V. Position 50

3.2.7 OSD Menu Adjustment

D-SUB Color Image Setting → OSD Menu Audio Reset 1024 x 768 60Hz

3.2.8 OSD Adjustment - Submenu (OSD H.Pos./ OSD V.Pos./OSD Timer)

D-SUB OSD H. Pos. → OSD V. Pos. OSD Timer Language 50 1024 x 768 60Hz

3.2.9 OSD Adjustment - Language Submenu

D-SUB → English Francais Deutsch Espanol 繁體中文 簡体中文 日本語 1024 x 768 60Hz

3.2.10 Reset Adjustment

D-SUB

Color

Image Setting

OSD Menu

Audio

→ Reset

1024 x 768 60Hz

3.3 OSD Functions for IDS-3110 XGA series

IDS-3110 XGA series are equipped with 1024 x 768 display resolution and the following OSD features:

Buttons	Description
Power Turn the monitor power ON or OFF
Menu	Activate the OSD menu
	Select
Auto/Exit	Automatically adjusts the clock, phase
	H-position and V-position
Value Up/Down	Move the selector to the previous option
	Reduce the value of the selected option
LED Function
DPMS ON Green
DPMS STANDBY Orange
DPMS OFF Red
Hot Key Function
Value Down ECO mode

3.3.1 OSD Menu Details

3.3.1.1 Luminance

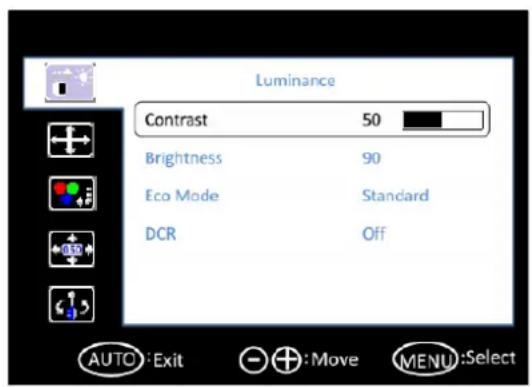

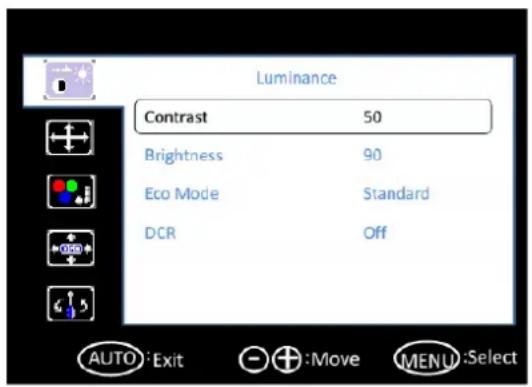

Contrast

Luminance Contrast 50 Brightness 90 Eco Mode Standard DCR Off AUTO:Exit +:Move MENU:Select

Luminance Contrast 50 Brightness 90 Eco Mode Standard DCR Off AUTO:Exit +:Move MENU:Select

Brightness

Luminance Contrast 50 Brightness 90 Eco Mode Standard DCR Off AUTO: Exit +: Move MENU: Select

Luminance Contrast 50 Brightness 90 Eco Mode Standard DCR Off AUTO Exit + :Move MENU :Select

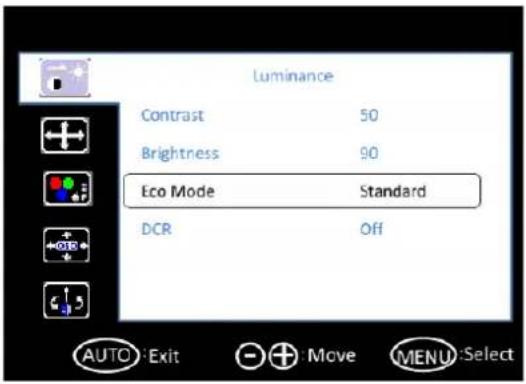

Eco Mode

Luminance Contrast 50 Brightness 90 Eco Mode Standard DCR Off AUTO Exit Move MENU Select

Luminance Contrast 50 Brightness 20 Eco Mode Text DCR Off AUTO:Exit +:Move MENU:Select

Luminance Contrast 50 Brightness 40 Eco Mode Internet DCR Off AUTO Exit + :Move MENU :Select

Luminance Contrast 50 Brightness 50 Eco Mode Game DCR Off AUTO : Exit + : Move MENU : Select

Luminance Contrast 50 Brightness 80 Eco Mode Movie DCR Off AUTO : Exit + : Move MENU : Select

Luminance Contrast 50 Brightness 100 Eco Mode Sports DCR Off AUTO:Exit +:Move MENU:Select

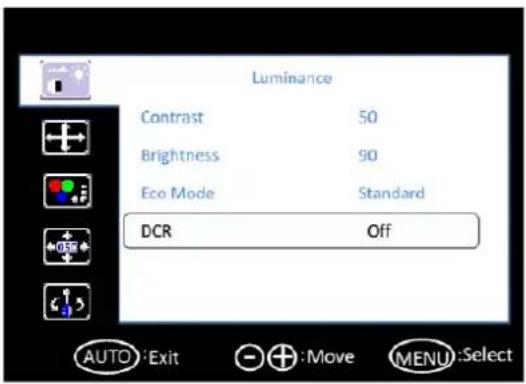

DCR

Luminance Contrast 50 Brightness 90 Eco Mode Standard DCR Off AUTO:Exit +:Move MENU:Select

Luminance Contrast 50 Brightness 90 Eco Mode Standard DCR Off AUTO:Exit +:Move MENU:Select

3.3.1.2 Image Setup

Clock

Image Setup Clock 50 Phase 14 H.Position 50 V.Position 50 Image Ratio Wide AUTO: Exit - +: Move MENU: Select

Image Setup+ Clock 50 Phase 14 H.Position 50 V.Position 50 Image Ratio Wide AUTO Exit Move MENU Select

Phase

Image Setup Clock 50 Phase 14 H. Position 50 V. Position 50 Image Ratio Wide AUTO: Exit + :Move MENU:Select

Image Setup Clock 50 Phase 14 H.Position 50 V.Position 50 Image Ratio Wide AUTO: Exit +: Move MENU: Select

H. Position

Image Setup Clock 50 Phase 14 H.Position 50 V.Position 50 Image Ratio Wide AUTO: Exit - +: Move MENU: Select

Image Setup Clock 50 Phase 14 H.Position 50 V.Position 50 Image Ratio Wide AUTO :Exit + :Move MENU Select

V. Position

Image Setup Clock 50 Phase 14 H. Position 50 V.Position 50 Image Ratio Wide AUTO: Exit - + : Move MENU: Select

Image Setup Clock 50 Phase 14 H.Position 50 V.Position 50 Image Ratio Wide AUTO: Exit + : Move MENU:Select

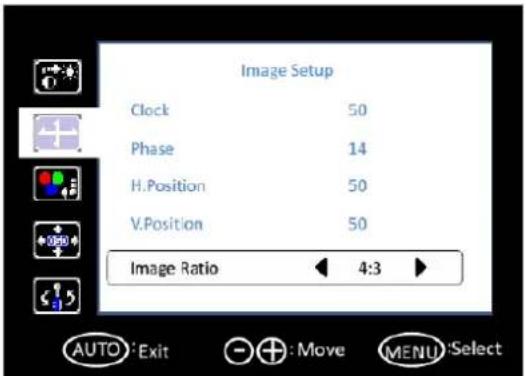

Image Ratio

Image Setup Clock 50 Phase 14 H. Position 50 V. Position 50 Image Ratio Wide AUTO: Exit + : Move MENU:Select

Image Setup Clock 50 Phase 14 H.Position 50 V.Position 50 Image Ratio Wide AUTO: Exit + : Move MENU: Select

Image Setup Clock 50 Phase 14 H.Position 50 V.Position 50 Image Ratio 4:3 AUTO: Exit + : Move MENU: Select

3.3.1.3 Color Temperature

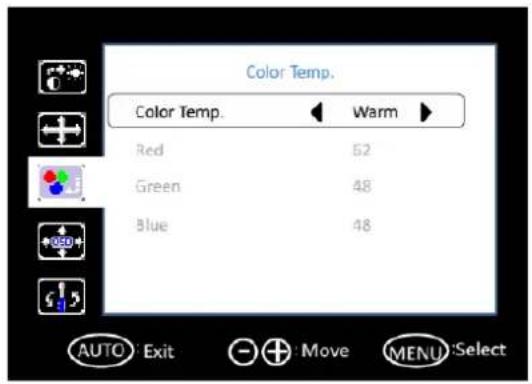

Color Temperature

Color Temp. Color Temp. Cool Red 45 Green 40 Blue 47 AUTO: Exit + : Move MENU Select

Color Temp. Color Temp. ← Normal ► Red 55 Green 43 Blue 47 AUTO: Exit Move MENU:Select

Color Temp. Color Temp. ← Warm ► Red 52 Green 48 Blue 48 AUTO Exit ○+ Move MENU Select

Color Temp. Color Temp. ← User ► Red 50 Green 50 Blue 50 AUTO: Exit - + : Move MENU: Select

Color Temp. Color Temp. User Red 50 Green 50 Blue 50 AUTO: Exit Move MENU: Select

Color Temp. Color Temp. User Red 50 Green 50 Blue 50 AUTO:Exit + :Move MENU:Select

Color Temp. Color Temp. User Red 50 Green 50 Blue 50 AUTO: Exit +: Move MENU: Select

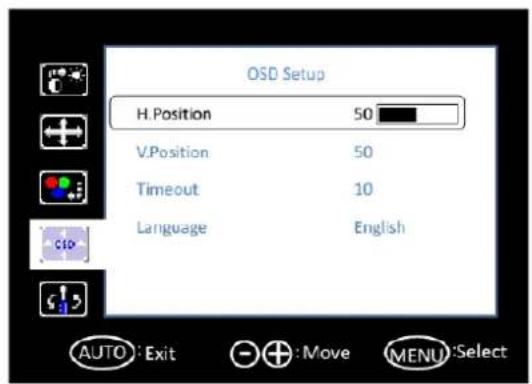

3.3.1.4 OSD Setup

H. Position

OSD Setup H.Position 50 V.Position 50 Timeout 10 Language English AUTO: Exit Move MENU: Select

OSD Setup H. Position 50 V. Position 50 Timeout 10 Language English AUTO: Exit Move MENU: Select

V. Position

OSD Setup H.Position 50 V.Position 50 Timeout 10 Language English AUTO: Exit + : Move MENU: Select

OSD Setup H.Position 50 V.Position 50 Timeout 10 Language English AUTO: Exit + : Move MENU: Select

Timeout

OSD Setup H.Position 50 V.Position 50 Timeout 10 Language English AUTO:Exit +:Move MENU:Select

OSD Setup H.Position 50 V.Position 50 Timeout 10 Language English AUTO: Exit +: Move MENU: Select

Language

Color Temp. Color Temp. User Red 50 Green 50 Blue 50 AUTO: Exit +: Move MENU: Select

Language Language ← English ► 语言 ← 简体中文 ► Язык Язык ← русский ►

語言 語言 繁體中文 Langue Langue Français 언어 한국어

Luminance	Contrast	0/100		Adjusts contrast 50
	Brightness	0/100		Adjusts brightness (backlight) 90
	ECO Mode	Standard			Standard
		Sport
		Movie
		Game
		Internet
		Text
	DCR	On		Sets dynamic contrast ratio Off
		Off
Image setup	Clock	0/100		Adjusts clock latency of output capture window	Depends on the input resolution
	Phase	0/100		Adjusts clock phase of output capture window	Depends on the input resolution
	H. Position	0/100		Adjusts horizontal position of output capture window	50
	V. Position	0/100		Adjusts vertical position of out-put capture window	50
	Image Ratio	Wide		Adjusts aspect ratio to full screen	Wide
		4:3		Adjusts aspect ratio to 4:3 screen
Color Temperature	Color Temp.	Warm	-->	Adjusts color temperature to warm	User
		Normal	-->	Adjusts color temperature to normal
		Cool	-->	Adjusts color temperature to cool
		User	-->	Adjusts color temperature to user defined

OSD Setup	H. Position	0/100	Adjusts OSD horizontal position	50
	V. Position	0/100	Adjusts OSD vertical position	50
	Timeout	5/100	Sets OSD timeout counter	10
	Language	English	Sets OSD display language English
		Spanish
		French
		Portuguese
		Russian
		简体中文
		繁體中文
		Korean
Extra	Input Select	D-Sub	Sets input source	Depends on the input sourceHDMI
		DVI
	DDC/CI	On	Sets DDC/CI function on/off On
		Off
	Reset	Yes	Sets user setting reset On
		No
	Information	Resolution	Display current source information	Depends on the input source
		H. Frequency
		V. Frequency

3.4 Touch Drivers

The touch screen driver is available on line at the Advantech website. Use the following link to access the driver:

http://support.advantech.com/support/default.aspx

Appendix A

Troubleshooting

A.1 Introduction

If experiencing trouble with the monitor, or it fails to operate correctly, please refer to the following instructions before calling the Advantech service center. If unable to correct the faults using the instructions below, then please contact the distributor or the services/repair center.

A.2 Troubleshooting

No Images Appears On Screen

• Check to see that all the I/O and power connectors are installed correctly and connected. (Refer to 1.4, Open Frame Bottom view)
  ■ Make sure that none of the connectors are crooked, broken or loose.
  ■ Make sure that the OSD power on the LED is turned on.
  ■ Make sure that the brightness is not in the minimum.
  ■ Make sure that the screen resolution is set to the correct setting for the type of LCD, and that the setting does not exceed the resolution specified for the particular model of LCD.

The image is incorrectly displayed, or the full screen image does not appear

- Please make sure the screen resolution on the motherboard is correct.

The position of screen is not in the center

- Adjust the H-position and V-position or perform "Auto".

Out of range

When the message "Out of Range" appears onscreen, it indicates that the signal of the computer is not compatible with the LCD display; i.e. the resolution exceeds the specified resolution for the LCD.

■ Adjust the BIOS setting to match the correct resolution.

No signal

The display is powered on, but can neither receive or display any signal from the computer. Check all power switches, power cables and VGA signal cables to ensure that all are connected correctly on both sides.

Going to sleep

If the system goes to sleep, then the display has either been set to power-saving mode, or the display is experiencing a sudden signal disconnection problem. Check the BIOS system settings, and/or Windows configuration. Then check the connection of the power cable to computer on both sides.

ADVANTECH

Enabling an Intelligent Planet

www.advantech.com

Please verify specifications before quoting. This guide is intended for reference purposes only.

All product specifications are subject to change without notice.

No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permission of the publisher.

All brand and product names are trademarks or registered trademarks of their respective companies.

© Advantech Co., Ltd. 2019
