Product Type	Prime Cinema Lens
Brand	DZOFilm
Model	VESPID 90mm T2.8 Lens
Focal Length	90mm (Macro)
Maximum Aperture	T2.8
Minimum Aperture	T22
Lens Mount	PL / EF
Image Circle	φ46.5mm (full frame / VV)
Optical Construction	11 elements in 9 groups
Close Focus (from sensor plane)	0.291m / 1'
Maximum Magnification	1:1.5
Iris Blades	16
Iris Control	Manual, max 84° rotation
Focus Control	Manual, max 270° rotation
Filter Thread	M77
Front Diameter	φ80mm / 3.15"
Weight	800g
Material	Aluminium alloy
Color	Black
Gear Pitch	0.8 Mod
Flange Distance	52mm (PL) / 44mm (EF)

Frequently Asked Questions - VESPID 90mm T2.8 Lens DZOFilm

How should I clean the lens?

Use a blower to remove dust and lint. For smudges, apply a small amount of lens cleaner to a soft, clean cloth or lens-cleaning tissue and clean from the center outward using circular motions. Never use organic solvents like paint thinner or benzene. Do not touch the glass with fingers.

What is flange back adjustment and why is it needed?

Flange back adjustment ensures the lens focuses accurately at infinity. Due to camera tolerances, you may need to adjust the shims. Use a star chart or calibration tool, set focus to 1.6m, and check the deviation. Then add or remove shims according to the adjustment reference table provided in the manual.

What is the warranty period for this lens?

DZOFilm grants a minimum warranty of one year from the date of purchase through authorized dealers. The warranty covers material and workmanship defects under normal use. Keep your proof of purchase for service.

Is the lens compatible with full-frame cameras?

Yes, the VESPID 90mm T2.8 covers an image circle of φ46.5mm, suitable for full-frame and Vista Vision sensors.

What is the minimum focusing distance?

The close focus from the sensor plane is 0.291 meters (approximately 1 foot), allowing macro photography with a maximum magnification ratio of 1:1.5.

How do I adjust the aperture?

Rotate the aperture ring on the lens to stop down (increase T-stop) or open up (decrease T-stop). The ring has a maximum rotation of 84° for smooth manual control.

What filter size does the lens use?

The lens has a 77mm filter thread (M77). You can attach screw-in filters of that size.

Can I use this lens with an EF mount camera?

Yes, the lens is available in PL and EF mounts. The EF mount version has a flange distance of 44mm, compatible with Canon EF-mount cameras.

How should I store the lens when not in use?

Attach the front and rear caps. Store in a cool, dry location away from direct sunlight, naphtha, or camphor moth balls. Avoid extreme heat to prevent damage or warping.

What is the maximum aperture and does it change with focus?

The maximum aperture is T2.8, which remains constant throughout the focus range. The lens features a 16-blade iris for smooth bokeh.

USER MANUAL VESPID 90mm T2.8 Lens DZOFilm

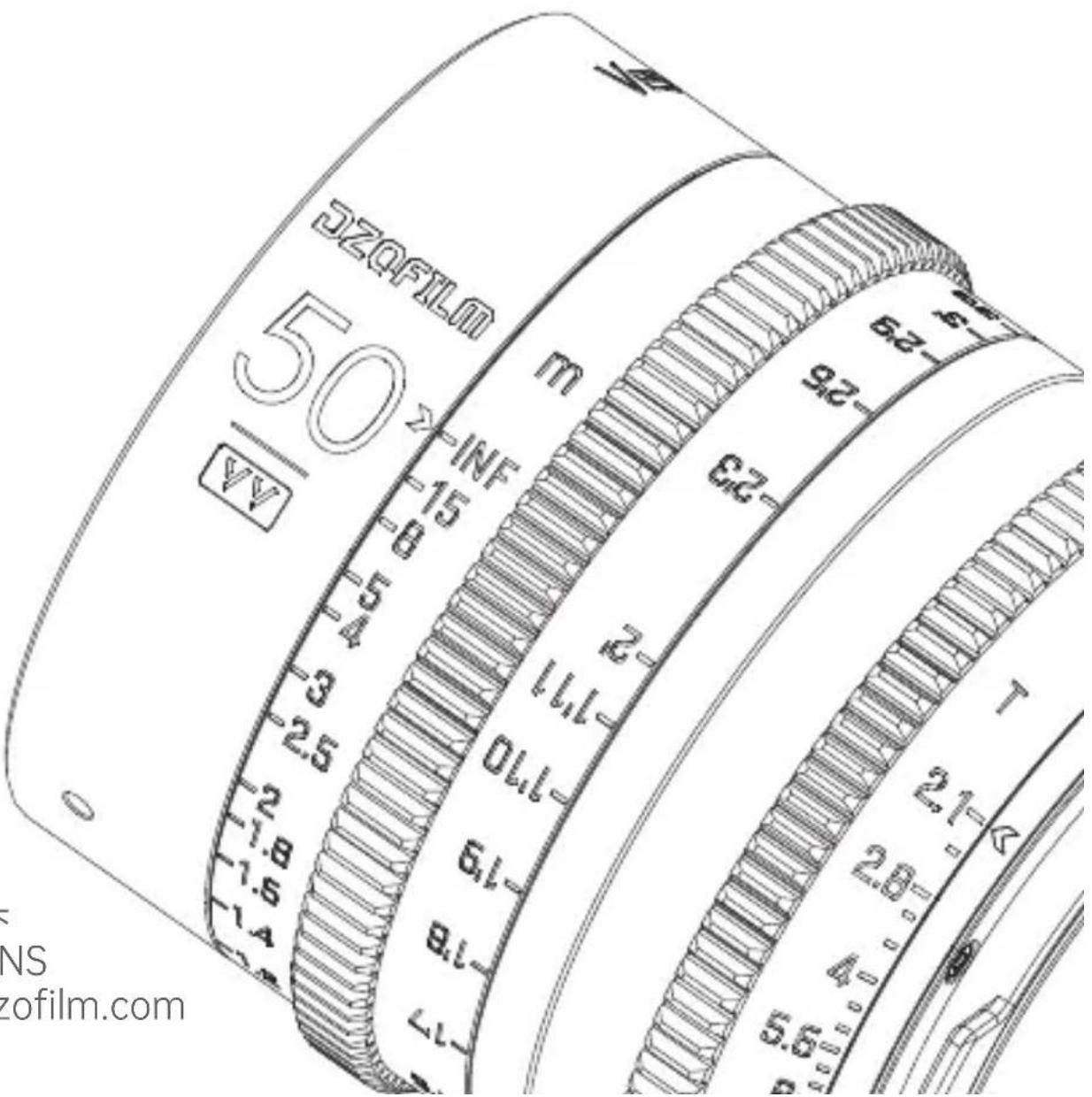

VESPID PRIME CINE LENS USER'S MANUAL

玄蜂定焦电影镜头使用说明书

电影镜头

CINE LENS

www.dzofilm.com

Contents

Introduction....1

Safety Notes....1

Lens Parts 2

Lens Control....3

Flange Back Adjustment.... 4

1. Preparation......4

2. Flange Back Adjustment .... 5

Specification....7

After-sales Service 8

The Name and Content of Hazardous Substances......10

Note

Click to go

Users can read the table of content(TOC) to have an overview of the Vespid Product Manual. Please click on the title or link to jump to the TOC

Search keyword

The Search-keyword Function is available in PDF Document. For example, In WPS Office, Windows users can search keywords with the keyboard shortcut and Mac users can execute the same function with shortcut

Introduction

Thank you for purchasing this product!

Vespid is DZOFILM's high-performance full frame cinema prime lens. It allows you to reproduce the details and color in filming. Clear images, natural transition from in-focus to defocus and minimal breathing in focusing...all these can be found in Vespid. A good companion for your documentary/ TVC/ MV/ commercials/ online movie/ variety show/ Live/ independent films, etc.

Safety Notes

• Please do not watch the sun or bright light source through the lens, otherwise it will cause visually disabled;
  ● Never use organic solvents such as paint thinner or benzene to clean the lens;
• Attach the front and rear caps when the lens is not in use;
• Store the lens and filter in cool, dry locations to prevent mold and rust. Do not store in direct sunlight or with naphtha or camphor moth balls;
• Please keep the lens dry and wipe the water droplets off if there are water droplets on the glass surface;
  ● Leaving the lens near heater or in other extremely hot locations could cause damage or warping;
• Use a blower to remove dust and lint from the glass surfaces of the lens or filter. To remove smudges and fingerprints, apply a small amount of lens cleaner to a soft, clean cotton cloth or lens-cleaning tissue and clean from the center outwards using a circular motion. Do not leave smears or touch the glass with your finger.

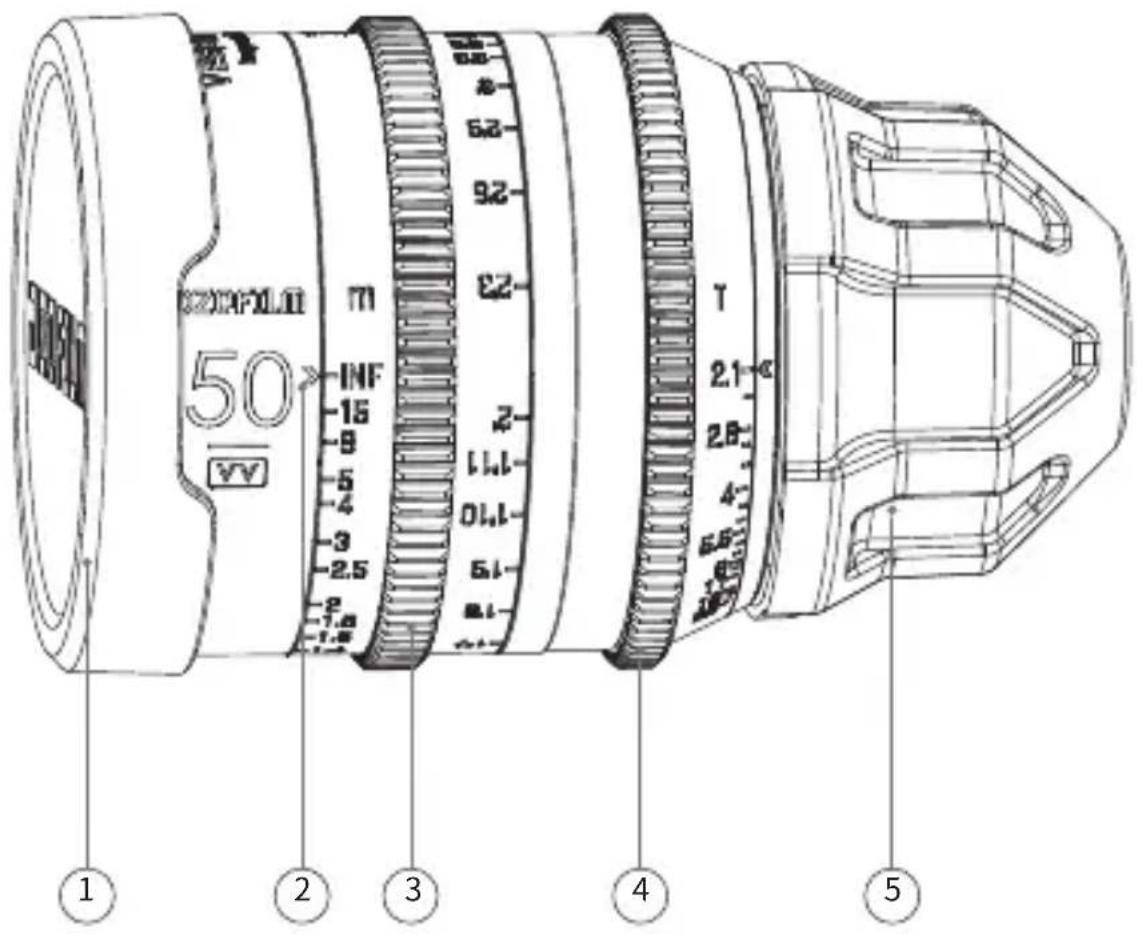

Lens Parts

① Front Cap
② Lens Mark
③ Focusing Ring

④ Aperture Ring
⑤ Rear Cap

Lens Control

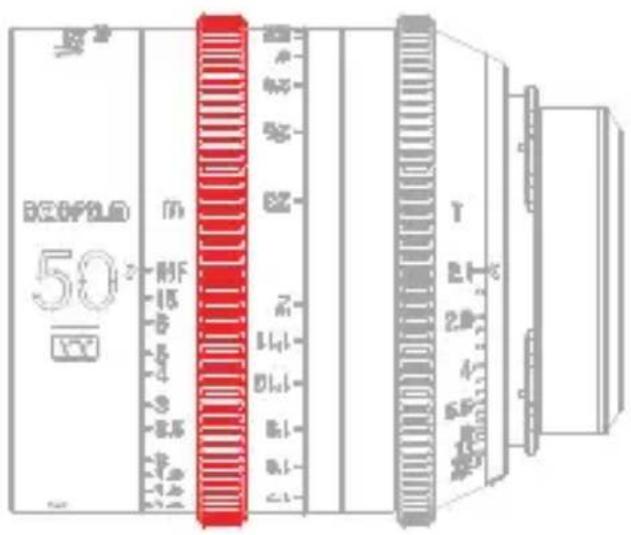

Focus Control

Rotate the focus ring to increase or decrease the focus distance.

Focusing Ring

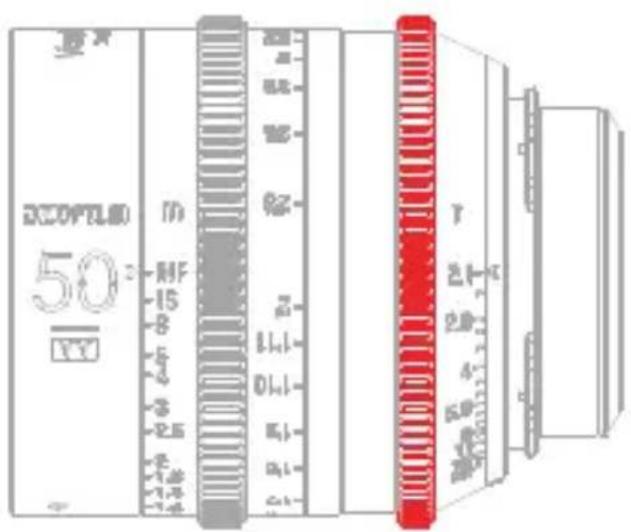

Aperture Control

Rotate the aperture ring to stop aperture down, raising the T-stop and narrowing the aperture, or lower the T-stop to widen the aperture.

Aperture Ring

Every Vespid lens will process flange back adjustment on standard. But due to the tolerance of different cameras, to achieve the best performance of this product and to match the cameras, please adjust flange back of the product.

1.Preparation

Take Vespid 50mm as an example:

Step One: Ready your subject and calibration tool. You can use a "Star Chart", or other high-resolution black-and-white objects; download the "Back focus Calibration Tool for Prime Lens" (short for "Calibration Tool") on the official website.

Note: You can download and print the chart on DZOFILM website-Download-Star Chart for Adjusting Back Flange (Click to jump to the website)

Step Two: Attach the lens to the camera and adjust the aperture to T4;

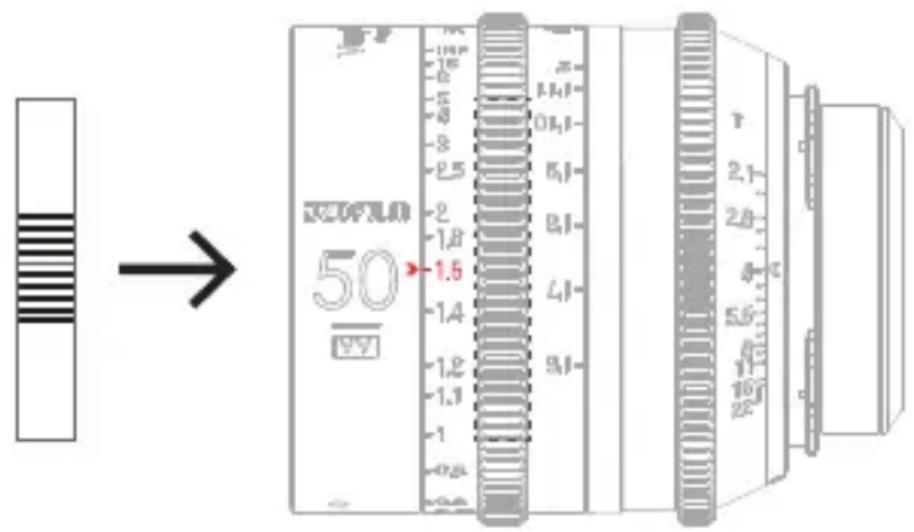

Step Three: Make the pointer align with the 1.6m scale on focusing ring, paste calibration tool on the ring with middle line of the tool aligning the 1.6m scale and the scale pointer (or choose 5' focusing scale).

Step Four: Set the object 1.6m away from the camera sensor plane, and adjust it to the center of the whole image.

Set the object 1.6m away from the camera sensor plane, and adjust it to the center of the whole image.

2.Flange Back Adjustment

Please adjust as the following steps:

Step One: Rotate the focus ring until the image to its clearest. Take the horizontal line in the middle of the calibration tool as the reference and observe the position of the deviating scale pointer to get the number of horizontal lines.

Note: The direction of infinity indicates positive deviation value.

The direction of the closest focusing distance indicates negative deviation value.

If there are more than three horizontal lines, add or subtract the corresponding value.

Example: If the scale pointer points to 3 spaces in the direction of the closest focusing distance, the deviation value is -3.

If the scale pointer points to 4 spaces in the direction of infinity, the deviation value is +4. At this situation, the shim value of "+3" needs to be added to the shim value of "+1".

Step Two: According to the deviation value and the reference below, add or subtract the corresponding shim to complete the flange back adjustment.

Vespid Adjustment Reference
direction			direction of the closest focusing distance				direction of infinity
focal length	mark value	deviation value	-3 -2	-1 +1 +2	+3	0
16mm	0.34m/1'2	shim adjustment reference (mm)	-0.06	-0.04 -0.02	0 +0.02	+0.04 +0.06
21mm	1.5m/5'		-0.09	-0.06 -0.03	0 +0.03	+0.06 +0.08
25mm	1.5m/5'		-0.09	-0.06 -0.03	0 +0.04	+0.07 +0.1
35mm	1.6m/5'		-0.2	-0.14 -0.07	0 +0.07	+0.13 +0.2
40mm	1.5m/5'		-0.22	-0.16 -0.08	0 +0.08	+0.15 +0.23
50mm	1.6m/5'		-0.23	-0.15 -0.07	0 +0.08	+0.16 +0.24
75mm	1.5m/5'		-0.3	-0.2	-0.1	0	+0.1	+0.2	+0.3
macro 90mm	0.291m/1'		-2.14	-1.4 -0.88	0 +0.72	+1.48 +2.32
100mm	1.5m/5'		-0.45	-0.3 -0.15	0 +0.14	+0.28 +0.42
125mm	1.5m/5'		-0.54	-0.36 -0.18	0 +0.18	+0.36 +0.54

Note: Shim adjustment: "+" means adding shims, and "-" decreasing shims. Data in this sheet might have deviation and just for reference. Please adjust based on actual situation.

Specification

Name	Vespid
Colour	Black
Focal Length	16mm	21mm	25mm	35mm	40mm	50mm	75mm	macro 90mm	100mm	125mm
Mount	PL/EF
Aperture	T2.8-22 T2.1-22 T2.8-22 T2.1-22
Image Circle	§ 46.5mm (VV/FF)
Construction of Optics	14Elements in 10Groups	13Elements in 9Groups	12Elements in 11Groups	11Elements in 9Groups	10Elements in 9Groups	9Elements in 7Groups	9Elements in 7Groups	11Elements in 9Groups	9Elements in 7Groups	10Elements in 8Groups
Flange Distance	52mm (PL) /44mm (EF)
Close Focus (from sensor plane) (metric/imperial)	0.25m /10in	0.28m /11in	0.3m /1ft			0.46m /1.6ft6in	0.6m /2ft	0.258m /10.2in	0.7m /2ft4in	0.79m /2ft7in
Max.Mag. Ratio	//1.5 X
Iris Control	Manual (max50°)	Manual (max68°)		Manual (max63°)	Manual (max68°)	Manual (max58°)	Manual (max68°)		Manual (max83°)	Manual (max84°)
Focus Control	Manual (max270°)							Manual (max300°)	Manual (max270°)
Front Dia. (metric/imperial)	§ 80mm/3.15"
Length (metric/imperial)	87mm/3.43" 100mm/3.94" 87mm/3.43" 112mm/4.41" 100mm/3.94"
Iris Blade	16
Filter Size	/M77
Gear Pitch	0.8 Mod
Material	Aluminium alloy
Weight	930g 935g	940g 834g 943g	732g 865g 800g	890g 924g

How to Obtain After-Sales Service

If a product does not function as warranted during the warranty period, you may obtain after-sales service by contacting DZOFILM support team or DZOFILM's authorized dealers. Charges may apply for services not covered by this After-Sales Policy.

The After-Sales Policy varies with the country or region of purchase. Please contact DZOFILM for information specific to your location.

Warranty Service

DZOFILM grants a minimum warranty period of one year from the date of purchase for lenses purchased through DZOFILM's official dealers. DZOFILM warrants that each DZOFILM product that you purchase will be free from material and workmanship defects under normal use in accordance with DZOFILM's user manual and accompanying documentation during the warranty period. You may claim warranty service by returning it to the point of purchase. The owner is responsible for all shipping costs. The warranty period varies with the country or region of purchase. Stored dated receipts or other proof of purchase in a safe place, as you will need to provide a valid proof-of-purchase or receipt for the warranty service. Parts replaced during the warranty service become DZOFILM's property.

Service Outside the Warranty Period

Request for after-sales service will normally be accepted within a period of roughly 5 years following the end of production, during which time spares will be kept on hand, although owners may be offered an equivalent product during this period in the event that spares are not available. The specific cost standard is subject to DZOFILM's quotation. Compatibility with consumables and accessories for the original product is not guaranteed. To prevent waste, DZOFILM may collect returned parts or products.

Service Turn Around Time

After we receive the product, the after-sales service will generally be completed within two weeks. This turn around time does not include the time of return shipping. If there are special circumstances, we will notify you in advance.

What This After-Sales Policy Does NOT Cover

This after-sales policy does not cover the following and charges may apply:

× No valid proof-of-purchase or receipt of the product;
× Damage caused by unauthorized modification, disassembly, or repair not in accordance with official instructions or manuals.
× Damage caused by improper installation and operation not in accordance with official instructions or manuals.
× Damage caused by the storage environment not in accordance with official instructions or manuals.
× Damage caused by operation in bad weather or environment (i.e. rain, sand/dust storms, humid environment, etc.).
× Damage caused by, any third party products, including those that DZOFILM may provide or integrate into the DZOFILM product at your request.
× Damage caused by any third-party product.
× Damage caused by force majeure;
× Consumable accessories and optional parts that come with this product.

Privacy

DZOFILM obeys all applicable laws and regulations concerning the handling of names, addresses, phone numbers, and other personal information provided by users.

The Name and Content of Hazardous Substances

Part Name	Hazardous Substances
	Pb Hg	Cd Cr(VI)	PBB PBDE
Lens Shell	○	○	○	○	○	○
Inner Mechanics	×	○	○	○	○	○
Optics	○	○	○	○	○	○
Other Parts	○	○	○	○	○	○
This table is formulated in accordance of SJ/T11364.○: Indicates that the concentration of the hazardous substance in all homogeneous materials in the parts is below the relevant threshold of the GB/T26572 standard.×: Indicates that the concentration of the hazardous substance of at least one of all homogeneous materials in the parts may be above the relevant threshold of the GB/T26572 standard.The "×" in the above table indicates that there are one or more exemptions are applied in the parts stated in RoHS (2011/65/EU).

目录

简介 …… 1

安全注意事项....1

镜头部件 2

镜头控制 3

后焦调节 5

1.准备工作 5

2.调节后焦 6

技术规格 7

售后服务 8

产品中有害物质的名称及含量 9

阅读小贴士

点击跳转

光圈控制
