USER MANUAL KAIRNGMS16A Kogan

White hair dryer with black handle and white body, no visible text or symbols

STEAM SHOT GS3000 HANDHELD GARMENT STEAMER

KAIRNGMS16A

SAFETY & WARNINGS

Caution

Before using this product, read the user guide carefully and retain it for future reference.

Danger

• Do not immerse this product in water or other liquids and do not rinse under the tap.
• Be careful of the hot steam generated by the garment steamer. The steam may cause burns.

Warning

- Check if the voltage indicated on the product corresponds to the voltage of the electrical outlet before you connect the product to the power.

- If the plug, power cord or product itself has been damaged noticeably or if the product has fallen or leaked, cease use immediately and contact help.Kogan.com for support.

- Do not attempt to repair the product by yourself, contact help.Kogan.com for support.

- Do not leave the product unattended when plugged in.

- This product is not suitable for children who are 8 years or younger, disabled or handicapped people or those who have a cognitive disorder or lack relevant experience and knowledge unless they use this product under guidance or supervision by someone to ensure them to use safety and to make them aware of the relevant hazards.

- Never allow children to play with this product.

- When the products are plugged in or cooling, keep it and its power cord out of reach of children under the age of 8.

- Children who are 8 years or older can clean the product only when they are under supervision.

- When using, do not touch the head of the garment steamer and other hot surfaces. This product will produce high-temperature steam during use.

- Do not aim it at people and animals and do not iron clothes worn on the body to avoid the risk of scalding.

- Be sure to unplug the device from the electrical outlet before cleaning, disassembling the brush accessories or filling the tank with water.

• This product can only be used with grounded electrical outlet.
• If the product is hot/connected to the power supply, do not let the steam nozzle contact any surface when placing the product.
• During the operation of the garment steamer, never let the power cord contact with high temperature steam.
• Do not use this product when the water tank is running out of water.
• After ironing, be sure to turn off the power supply of the product and unplug the power plug and let it cool for 60 minutes before cleaning the product, installing or disassembling accessories, emptying the water tank or storing it.
• This product is designed for indoor use only. Do not use this product in the bathroom or outdoors.
• The steam may damage some walls or doors or cause them to fade.
• If the water quality in the area you live in is very hard, scaling may develop. It is recommended to use distilled water when filling the water tank to extend the service life of the product.
• Never use perfume, vinegar and scale remover, ironing agent or other chemicals in the water tank.
• Do not try to disassemble or modify this electrical appliance in any way.
• Do not expose to heat sources or direct sunlight.

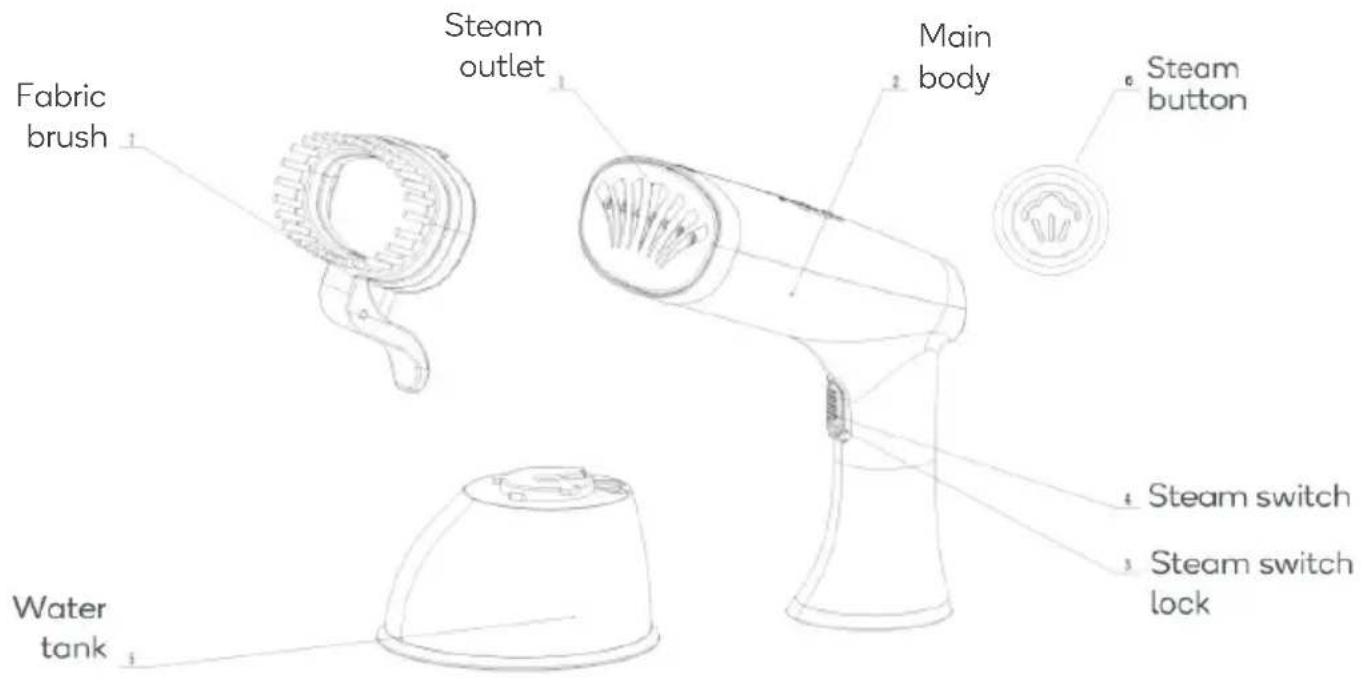

OVERVIEW

Fabric brush Steam outlet Main body Steam button Water tank 4 Steam switch 3 Steam switch lock

BEFORE FIRST USE

• Remove any labels or protective covers on the head of the garment steamer.
• Uncoil the power cord.
• Before using the garment steamer on any clothes, blown some steam for several minutes. This will help remove any impurities and odours that may be left during the manufacturing process.
• To avoid circuit overload, it is recommended to not use the same electrical outlets as other appliances.
• Check the packaging thoroughly for items and accessories before discarding.

OPERATION

Using the Steamer

1. Rotate water tank in so that arrow is aligned with the unlocked symbol and remove the water tank by pulling downwards.
2. Add water to the water tank and install it back into the steamer. Secure the water tank but rotating it so the arrow is aligned with the lock symbol.
3. Connect the power plug to an electrical outlet and switch it on. Press the steam button and the power indicator light will turn on. The steamer will start heating up. Allow the steamer to preheat for 30 seconds before using it.

Note: Do not press the steam switch during the preheating period.

1. Once preheating is completed. Press the steam switch to release the steam and release the steam switch to stop the steam accordingly. To release steam continuously by slide the steam switch downwards.
2. Press the steam button to adjust the steam level: red is the maximum level, blue is the middle level, and green is the minimum level.
3. When finished, press the steam button again to turn the steamer off.

Tips:

1. Before steaming, check the garment label to ensure it is permeable and suitable for steaming.
2. Ensure that the pockets of the clothing are empty.
3. Avoid using the garment steamer around the metal fittings of the clothing. The high-temperature steam will cause the metal accessories to fade.
4. If the sound of the garment steamer becomes louder and there is no steam coming out, the water in the water tank may be running low. Check the water level and refill it.
5. The garment steamer can be used vertically and horizontally.

CLEANING & CARE

• Remove brush on the head of the garment steamer and use a damp cloth to clean.
• Do not use rough or corrosive cleaners or solvents.
• Do not immerse the garment steamer into water or other liquids.
  • Empty the water tank after each use.
• Avoid storing electrical appliances in damp places.
• Always ensure that the steam outlets are clean and free from scaling and are not clogged.
• It is suggested that the garment steamer should be stored vertically in flat places such as cabinet.

SPECIFICATIONS

Rated voltage 220-240V

Rated frequency 50/60Hz

Rated power rating 1640W

Water tank capacity 380ml

TROUBLESHOOTING

Problem Possible Solution
The garment steamer does not heat.	Check whether the plug is inserted correctly.
The garment steamer does not product steam.	Check water level and whether the water tank is properly installed. Press the steam button firmly. Keep the garment steamer upright.
Water leaks from the water tank.	Make sure that water level is not above the highest water level.
	Please ensure that the water inlet of the tank is closed properly. Keep the garment steamer upright in accordance with the operation instructions provided.
There is a loud buzzing or pumping sound during operation.	Check the water level. If there is no water or the water level is low, add water to the water tank.
Water is coming from the steam outlet.	While in a cold state, press the steam button, let the machine preheat for 30 seconds at first and then press the steam switch.
