COWON CK20 ANC Wireless Charging Cradle Quick Guide
XS (2EA) S (2EA) M (2EA) L (2EA)
Ear Tips USB Type-C Cable

* Actual package contents may vary from the above images.
* M-size eartips are pre-installed to the earphones.

+ Before you start \_ Wearing

Simple line drawing of a mechanical component with a circular base and a red arrow pointing to a labeled part (no text or symbols)

Diagram showing a mechanical or electrical component with labeled parts and a red arrow indicating direction.

* For charging, please remove the protective film from the earphone charging terminal.

Simple line drawing of a mechanical component with a circular feature labeled 'L' and a dashed circle, no text or symbols present.

Simple line drawing of a mechanical component with a circular base and a dashed circle labeled 'R' (no text or symbols beyond the label)

* Position them properly on twisting and rotating the them in the correct ears.

* Position them properly by twisting and rotating the eartips to fit in your ears.

+ Before you start \_ Names of Parts and Functions

COWON CK20 ANC Charging Cradle

LED Multi-Function Button(L) Power / Call / Pairing / Play / Volume Down / Previous Track / Turn On · Off the ANC function Multi-Function Button(R) Power / Call / Pairing / Play / Volume Up / Next Track / Turn On · Off the ANC function Charging Port Microphone (L) Microphone (R)

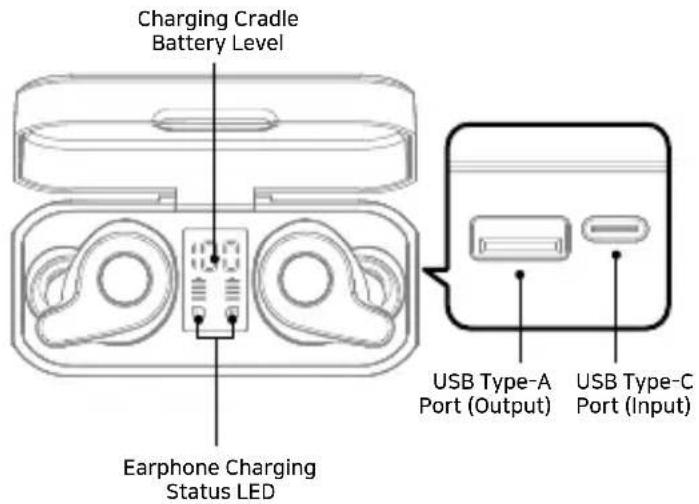

Charging Cradle Battery Level Earphone Charging Status LED USB Type-A Port (Output) USB Type-C Port (Input)

+ Before you start \_ Charging

Charging the Earphones

Diagram of a dual-lens device with blue directional arrows indicating flow or movement (no text or symbols)

Place the earphones in the cradle to start charging them automatically.

Charging (Red)

Charging Completed (Blue)

LEDLED

* Make sure that the earphone is properly positioned in the fixing groove of the charging cradle and check if the earphone LED is on.

COWON CK20 ANC

+ Before you start \_ Charging

Charging the Cradle

Wired Charging

Simple diagram of a vertical pipe with a blue arrow indicating upward motion, no text or symbols present.

Insert the USB cable in the USB-C port and connect it to the power adapter to start charging.

Charging Cradle Battery Level 0% → 100%

Simple line drawing of a digital display with no text or symbols

The level of battery charge in the charging cradle goes from 0 to 100%. Charging : 0\~99% Charging Completed : 100%
* Please charge the cradle periodically.

Wireless Charging

Simple line drawing of a rectangular block on a circular base (no text or symbols)

You can charge CK20 ANC simply by placing the cradle on the wireless charging pad without connecting the cable to the cradle.

* Please place the cradle on the wireless charging pad and check if the earphone LED is on.
* The wireless charging pad is not included.

+ Before you start \_ Charging

Charging the Smartphone (Use the Cradle as a Power Bank)

Diagram showing a USB device connected to a smartphone with battery, indicating data transfer or connection.

Insert the USB cable in the USB-A port and connect it to the smartphone to use the cradle as a power bank.

Charging Cradle Battery Level 100% → 0%

Simple line drawing of a digital thermometer with no text or symbols

While charging the smartphone, the battery level in the cradle goes down from 100 to 0%.

* The cradle limits the output current to 1.5A. When the battery level is too low, it may not be possible to charge a smartphone that supports fast charging.

+ Using the Product \_ Auto Power On · Off

Auto power-on Auto power-off

Line drawing of a wireless earbuds box with a blue arrow indicating rotation (no text or symbols)

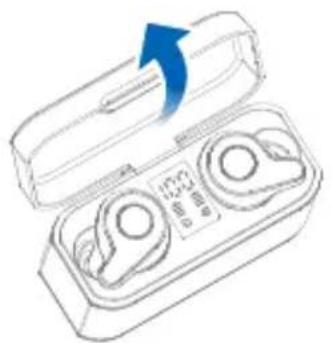

Opening the lid of the cradle turns on the earphones automatically.

Line drawing of an open wireless earbuds with a blue arrow indicating direction (no text or symbols)

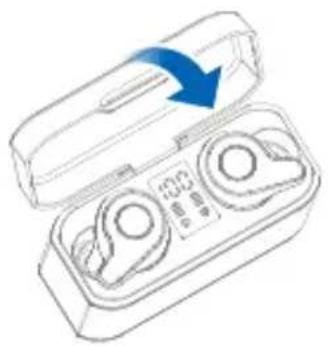

Closing the lid of the cradle turns off the earphones automatically.

Manual Power On / Off

* Press the button on the earphone for 3 seconds to turn it on when the power is off. (The blue LED flashes three times)
* Press the button on the earphone for 3 seconds to turn it off when the power is on. (The red LED flashes three times)

+ Using the Product \_ Pairing & Connection

12

CK20 ANC

	Open the cradle lid Turn on Bluetooth Connect
Description	Opening the cradle lid turns on the earphones automatically, and they are ready to proceed to the pairing step.	Turn on Bluetooth on your smartphone or Bluetooth-capable device.	Select 'CK20 ANC' from the list of detected devices to pair and connect automatically.
Voice Prompts	"Power On"	"Pairing" "Connected"
LED	×3Blue	Blue Red	×1Blue

* The CK20 ANC supports: Dual mode (Stereo) to use the left and right earphones together and Single mode (Mono) to use them separately.
* By using the CK20 ANC in Single Mode, you can alternate between charging the left and right earphones for extended use. (Audio books, Podcasts, etc.)
* Since Single Mode uses only one earphone, you can stay aware of environmental sounds and use the device more safely when walking or riding bicycles.
* Remove both the left and right earphones from the charging cradle for use in Dual Mode, or only remove one earphone for use in Single mode.
* Putting one earphone in the charging cradle while in Dual mode does not disconnect the other earphone in use.
* After the initial pairing, opening the cradle lid automatically connects the earphones to the most recently connected device.
* Keep the product and a mobile phone within 1 meter when pairing.
* If passkey input is required, enter a password or a PIN No.'0000'.

+ Using the Product \_Listening to Music · Making a Call · Volume Control

	Left Right
×1		(KKG3)
×2	)2)
×3	3)3)[BTAX]
×3
[WS3T].sec	[w8xC]
		(Transparency Mode)
3~6sec	Power On 3sec / Power Off 6sec

• Voice Prompts

Status Voice Prompts
Power On "Power On"
Power Off "Power Off"
Pairing "Pairing"
Bluetooth Connection "Connected"
Incoming call "Incoming call" *
Disconnected "Disconnected"
ANC ON "ANC ON"
Transparency Mode
ANC OFF "ANC OFF"
Battery Low "Battery Low"

* For iPhone, user ringtone will be applied.

• Specification

Bluetooth Version V5.0
Bluetooth Profiles HSP / HFP / A2DP / AVRCP
Standby Time Up to 130 hours
Music-Playing Time	Dual Mode : About 7 hours(ANC Mode : About 6 hours)Single Mode : About 6 hours
Charging Time	Earphones : About 1.5 hours *Charging Cradle :About 3 hours (Wired Charging)About 6.5 hours (Wireless Charging)
Earphone Battery	3.7V / 50mAh
Charging CradleBettery	Input : USB-C, 5V ·s 1AOutput : USB-A, 5V ·s 1AWireless Charging : 5V ·s 0.5ACapacity : 2600mAh
Operating Distance	Up to 10m (Free space)
Weight	Earphones : 6.3g x 2Charging Cradle : 95g

* Number of available CK20 ANC charges using cradle (2600mAh)

: About 17 times (with fully charged cradle)

+ Precautions \_ Resetting to Dual Mode (When the L and R units are not connecting to each other)

* Use the following method for troubleshooting purposes only, not during normal operation, when the left and right earphones are not connected.
* Refer to 'Pairing & Connection' page when connecting the product to a smart device for the first time.
* If the L and R units only connect in single mode during normal dual-mode operation, reset to dual mode by following the instructions below.
* If it fails to reset, start again from Step ②.

12

Off

Press twice Press twice

-

-

CK20 ANC

Delete connected device & Turn off Bluetooth	Remove earphones & Press the button twice	Check for purple LED Turn on Bluetooth Connection
Delete the [CK20 ANC] device connected to your smartphone or other Bluetooth device and turn off Bluetooth.	Remove the left and right earphones from the cradle, and immediately press and release the buttons twice simultaneously.	The LEDs on the left and right earphones turn purple, and the earphones switch to the pairing mode.	Turn on Bluetooth on your smartphone or other Bluetooth device.	Select [CK20 ANC] from the detected devices to complete pairing and connect automatically.

COWON CK20 ANC
