USER MANUAL FCASCA Chief

INSTALLATION INSTRUCTIONS

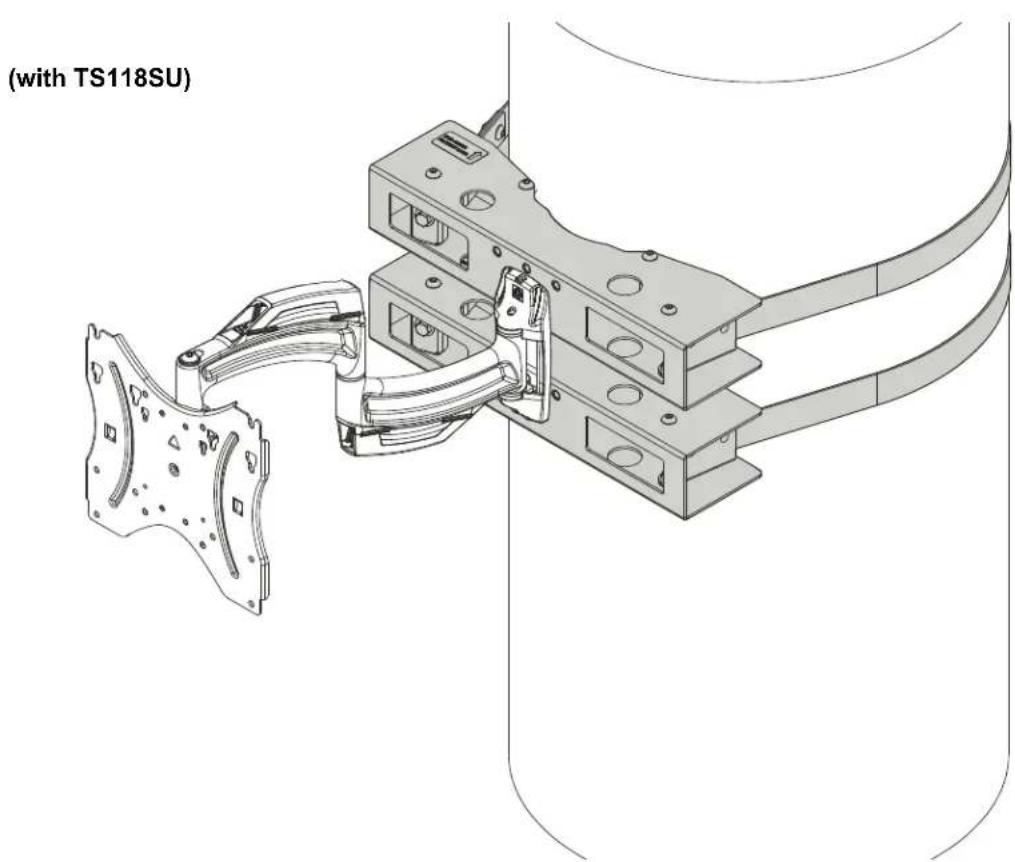

(with TS118SU)

Structural Column Adapter

DISCLAIMER

Legrand | AV and its affiliated corporations and subsidiaries (collectively "Legrand | AV"), intend to make this manual accurate and complete. However, Legrand | AV makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Legrand | AV makes no representation of warranty, expressed or implied, regarding the information contained herein. Legrand | AV assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

DEFINITIONS

MOUNTING SYSTEM: A MOUNTING SYSTEM is the primary Chief product to which an accessory and/or component is attached.

ACCESSORY: AN ACCESSORY is the secondary Chief product which is attached to a primary Chief product, and may have a component attached or setting on it.

COMPONENT: A COMPONENT is an audiovisual item designed to be attached or resting on an accessory or mounting system such as a video camera, CPU, screen, display, projector, etc.

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure al accessories are properly assembled and installed using the instructions provided.

WARNING: Failure to provide adequate structural strength for this accessories can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this accessory is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the accessory.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components attached to accessory does not exceed the weight limit of the mount to which it is attached.

WARNING: Use this accessory only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.

WARNING: Never operate this accessory if it is damaged. Return the accessory to a service center for examination and repair.

WARNING: Do not use this accessory outdoors.

IMPORTANT ! : The FCASCA accessory is designed to be mounted to concrete columns between 12-24" in diameter.

--SAVE THESE INSTRUCTIONS--

DIMENSIONS

MOUNT STYLE LENGTH (X)
ATMSIU 7.92"
MSMU, MSMU, MTAPU	3.17"
IS118SU 1.99
IS218SU 5.17
IS318SU D	9.50"
FNSWM	11.17"

LEGEND

	Tighten Fastener		Pencil Mark
	Apretar elemento de fijación		Marcar con lápiz
	Befestigungsteil festziehen		Stiftmarkierung
	Apertar fixador		Marcar com lápis
	Serrare il fissaggio		Segno a matita
	Bevestiging vastdraaien		Potloodmerkteken
	Serrez les fixations		Marquage au crayon
	Loosen Fastener		Drill Hole
	Aflojar elemento de fijación		Perforar
	Befestigungsteil lösen		Bohrloch
	Desapertar fixador		Fazer furo
	Allentare il fissaggio		Praticare un foro
	Bevestiging losdraaien		Gat boren
	Desserrez les fixations		Percez un trou
	Phillips Screwdriver		Adjust
	Destornillador Phillips		Ajustar
	Kreuzschlitzschraubendreher		Einstellen
	Chave de fendas Phillips		Ajustar
	Cacciavite a stella		Regolare
	Kruiskopschroevendraaier		Afstellen
	Tournevis à pointe cruciforme		Ajuster
	Open-Ended Wrench		Remove
	Llave de boca		Quitar
	Gabelschlüssel		Entfernen
	Chave de bocas		Remover
	Chiave a punte aperte		Rimuovere
	Steeksleutel		Verwijderen
	Clé à fourche		Retirez
	By Hand		Optional
	A mano		Opcional
	Von Hand		Optional
	Com a mão		Opcional
	A mano		Opzionale
	Met de hand		Optie
	À la main		En option
	Hex-Head Wrench		Security Wrench
	Llave de cabeza hexagonal		Llave de seguridad
	Sechskantschlüssel		Sicherheitsschlüssel
	Chave de cabeça sextavada		Chave de segurança
	Chiave esagonale		Chiave di sicurezza
	Zeskantsleutel		Veiligheidssleutel
	Clé à tête hexagonale		Clé de sécurité

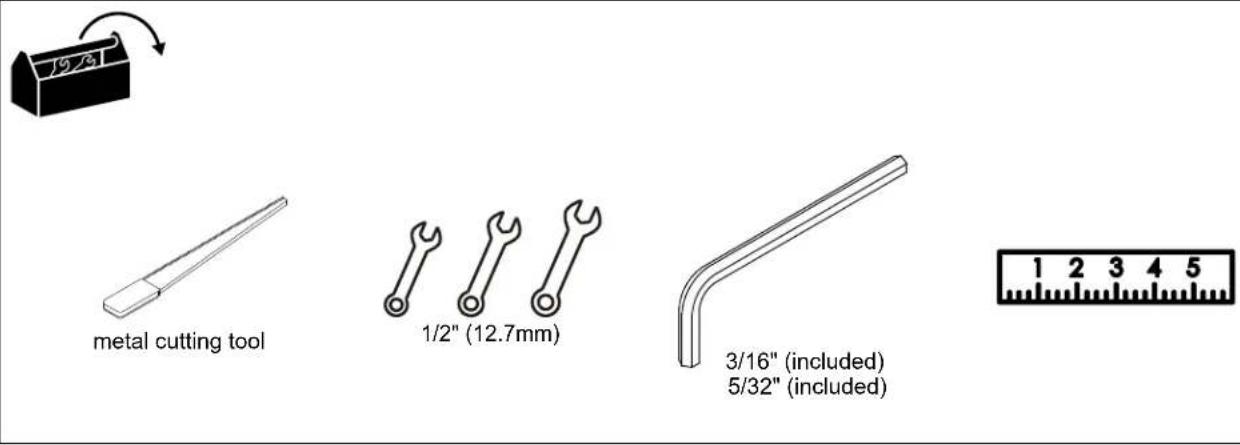

TOOLS REQUIRED FOR INSTALLATION

PARTS

Hardware bag (A section)

AA (4)
5/16-18 × 7/8"

AB (4)
.750x.350x.060

3/16"

Hardware bag (B section)

BA (2)
1/4-20×7/8"

BB (2)
.563x.280x.060

5/32"

Hardware bag (C section)

CA (4)
5/16-18×7/8"

CB (2)
.750x.350x.060

CC (4)
5/16-18

CD (2)
5/16-18×3"

Technical line drawing of a mechanical housing or enclosure with mounting holes and internal compartments (no text or symbols)

[Column clamp]

Pure technical line drawing of a curved mechanical component (no text or symbols)

E (2)
[Column strap]

F(1)
[10' Magnetic Tape]

Assembly And Installation

1. Cut column straps (E) to length based on size of structural column. See table below for details.

Diameter Strap Length
12"	32"
18"	47.5"
24"	65"

NOTE: If structural column is not one of these exact diameters, it will be necessary to temporarily install strap around column to determine where it should be cut.

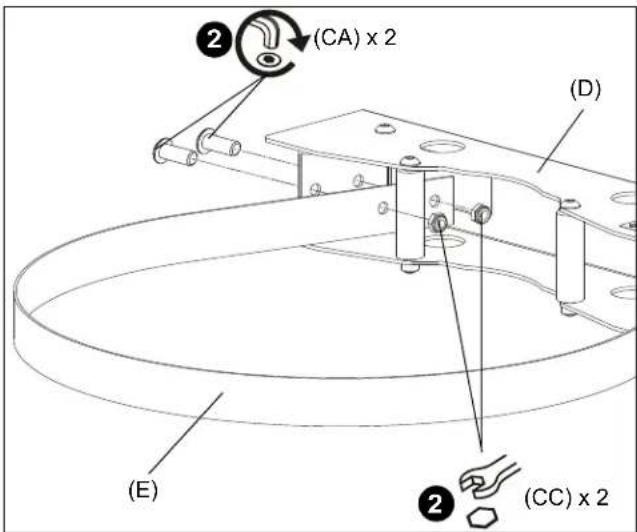

1. Use two 5/16-18 x 7/8" button head cap screws (CA) and two 5/16-18 hex nuts (CC) to attach column strap (E) to column clamp (D). (See Figure 1)

(CA) x 2 (D) (E) (CC) x 2

Figure 1

1. Wrap strap around column at desired mounting height. (See Figure 2)

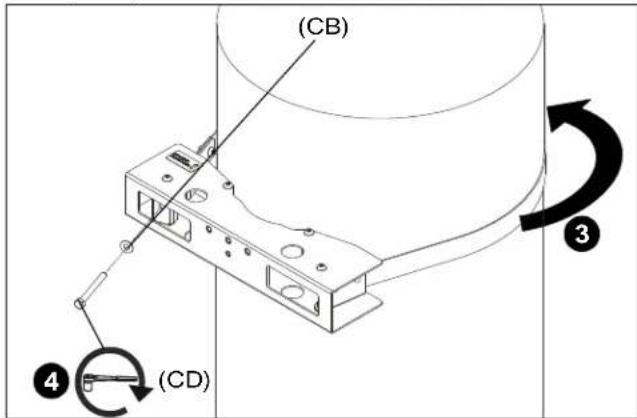

2. Use 5/16-18 x 3" hex head carriage screw (CD) and .750x.350x.060 spacers (CB) to secure strap around column. Tighten to a torque rating of 75 inch pounds. (See Figure 2)

(CB) ③ ④ (CD)

Figure 2

Thinstall Mounts (TS118/218/318) and FMSWM

NOTE: If installing to MTMP1U, MTM1U, MSM1U or MTMS1U proceed to MTMP1U/MTM1U/MSM1U/MTMS1U section.

1. Loosely install appropriate hardware (AA and AB) or (BA and BB) to appropriate mounting hole in top column clamp (D). (See Figure 3) or (See Figure 4)

2. Hang mount onto loosely installed screw and tighten screw.

3. Install lower column clamp (D) following Steps 1-4, aligning it with the lower mounting hole on mount. (See Figure 3) or (See Figure 4)

4. Use appropriate hardware (AA and AB) or (BA and BB) to secure mount to lower column clamp (D). (See Figure 3) or (See Figure 4)

TS118 (BA) (BB) (BB) (BB) (BA) (BA) (BA) (BA) (BA) (BA) (BA) (BA) (BA) (BA) (BA) (BA) (BA) (BA) (BA) (BA) (BA) (BA) (BA) (BA) (BA) (BA) (BA) (BA) (BA) (BA) (BA) (BA) (BA) (BA) (BA) (BA) (BA) (BA)

Figure 3

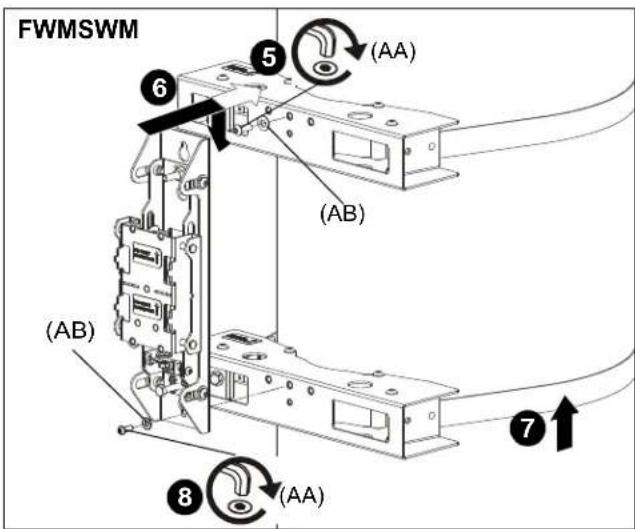

FWMSWM ⑥ ⑤ (AA) (AB) (AB) ⑦ ⑧ (AA)

Figure 4

MTMP1U/MTM1U/MSM1U/MTMS1U

1. Use two 5/16-18 x 7/8" button head cap screws (AA) and two .750x.350x.060 spacers (AB) to secure mount to top column clamp (D). (See Figure 5)

MTMP1U MTM1U MSM1U (MTMP1U SHOWN) (AB) 9 (AA) MTMS1U (AB) 9 (AA)

Figure 5

1. Install lower column clamp (D) following Steps 1-4, aligning it with the lower mounting hole on mount. (See Figure 6)
2. Use two 5/16-18 x 7/8" button head cap screws (AA) and two .750x.350x.060 spacers (AB) to secure mount to lower column clamp (D). (See Figure 6)

MTMS1U (AB) x 2 10 11 (AA) MTMP1U MTM1U MSM1U MTMP1U (SHOWN) (AB) x 2 10 11 (AA)

Figure 6
NOTE: Magnetic tape (F) may be used to cover holes on strap (E) after installation.
