USER MANUAL IGS-656S Imarflex

Stainless Steel Body imarflex.

IGS-656S

imarflex®

In Every Home.

www.imarflex.com

SPECIFICATION:

Model: IGS-630T/IGS-656S

Gas: Liquefied Petroleum Gas (LPG)

Gas Pressure: 2800Pa

Gas Consumption: Left Burner: 3.5kW Right Burner: 4.0kW

1. Read all instructions carefully.
2. Before using the unit, always check the hose to avoid leakage.
3. Put the unit on stable surface keep it away from the edge of counter to avoid accident.
4. Keep curtains, furniture, flammable materials, etc. away from the unit.
5. Children should be supervised to ensure that they do not play with the appliance.
6. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
7. Do not use a gas other than which is specified on the label attached on appliances.
8. This appliance is designed for cooking and not intended for any other purpose.
9. Do not cover burner with plate.
10. If you notice the flame burning abnormally or you smell gas, turn appliances OFF and bring the unit to the Authorized Service Center.
11. Do not use the unit for outdoor use.
12. Do not use this unit other than its intended use.
13. For household use only not intended for any business purposes.
14. Save this instruction manual for future reference.

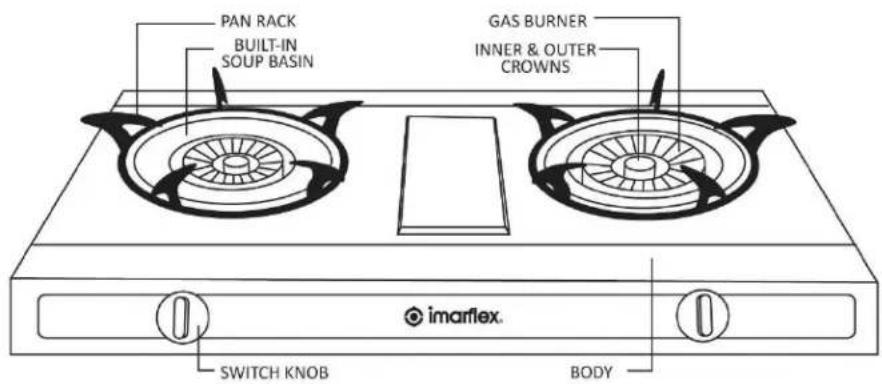

DESCRIPTION OF PARTS

PAN RACK BUILT-IN SOUP BASIN GAS BURNER INNER & OUTER CROWNS SWITCH KNOB BODY imarflex.

SETUP AND INSTALLATION:

1. Check all parts of gas stove, including the ff:

2pcs. Gas burner, 2pcs. Pan rack, 2pcs. Switch knob

1. Connect 3/8-inch rubber tube at the end of the gas tube and tie the belt firmly.

2. For installation, the stove should be far from the wall or ceiling.

1000mm AWAY FROM THE CEILING 200mm AWAY FROM THE WALL

HOW TO USE:

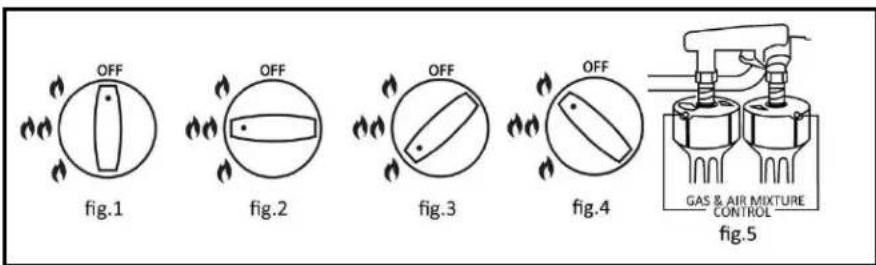

OFF fig.1 OFF fig.2 OFF fig.3 OFF fig.4 OFF GAS & AIR MIXTURE CONTROL fig.5

1. Make sure that the control knob is in OFF position. (See fig. 1.)

2. Open the regulator/valve of the gas tank. (Pull or twist)

3. Push down the control knob and turn it counter clockwise until click sound is heard. The flame ignites automatically with the spark system.

4. If ignition fails due to faulty gas flow, turn the control knob back to OFF position and repeat instruction #3.

5. If you want to use high flame, turn the control knob as shown in fig. 2.

6. If you want to use the low flame of the inside ring, turn the control knob as shown in fig. 3.

7. If you want to use both rings with low flame, turn the control knob as shown in fig. 4.

8. If the flames become yellowish, adjust the gas and air mixture control to produce luminous flames. (See Fig. 5)

9. After use always turn OFF the regulator/valve of the gas tank.

GAS SAFETY TIPS:

1. Install gas tank in an open air (clear air).
2. After every use, wipe the surface of the stove and close the valve of the gas tank in order to minimize the gas pressure remaining in the tube.
3. Always check for any leakage. Rub the tube and all connection point, by using soap and water. If bubble appears, close the valve immediately and call a technician.
4. If leakage occurs, open the window and door to release gas. Do not turn on any electrical appliances as this may cause fire.
5. We recommend changing the hose and the regulator every 1 year.

1. Use a clean flat pot for an even heat distribution, so that the food will be cooked fast and easy.
2. Prepare all ingredients before cooking in order to save gas.

CLEANING AND MAINTENANCE:

1. Allow the unit to cool before cleaning.
2. Wipe the surface of the gas stove with damp cloth after every use. Do not use abrasive materials to avoid scratches.
3. Relight burner for a minute to dry off any moisture that may have left.
