USER MANUAL IG-299 Imarflex

imarflex®

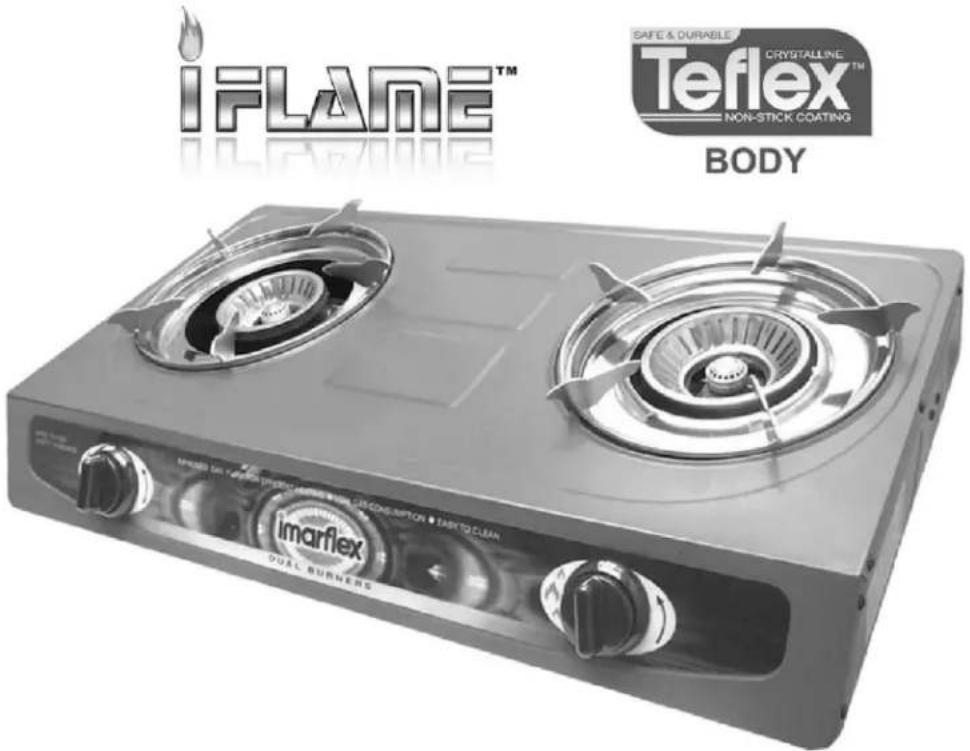

GAS STOVE

Stainless Steel Burner Heads • Automatic Ignition Gas and Air Mixture Control • No Carbon Residue

IFLAMETM SAFE & DURABLE CRYSTALLINE TEFLEX™ NON-STICK COATING BODY imarflex DUAL BURNERS

SPECIFICATION:

Model	IG-299
Gas	Liquefied Petroleum Gas
Gas Pressure	2800Pa
Gas Consumption
Left Burner	3.7kW
Right Burner	4.3kW
Dimension	700(L) x 410(D) x 120(H)mm

IMPORTANT SAFEGUARDS:

1. Read all instruction carefully before use.
2. Before using the unit, always check the hose and regulator to avoid leakage.

3. Put the unit in stable surface and keep it away from the edge of the counter to avoid accident.

4. Keep curtains, furniture, appliances, flammable materials, etc. away from the unit.

5. Children should be supervised to ensure that they do not play with the appliance.

6. This appliance is not intended for use by person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a responsible for their safety.

7. Do not use gas other than LPG.

8. This appliance is designed for cooking and not intended for any other purpose.

9. If you notice that the flame is not normal or you smell gas leakage, turn OFF the unit and bring it to the nearest Authorized Service Center.

10. Do not use this unit for outdoor use.

11. Do not use this unit other than its intended use.

12. For household use only.

13. Save this instruction manual for future reference.

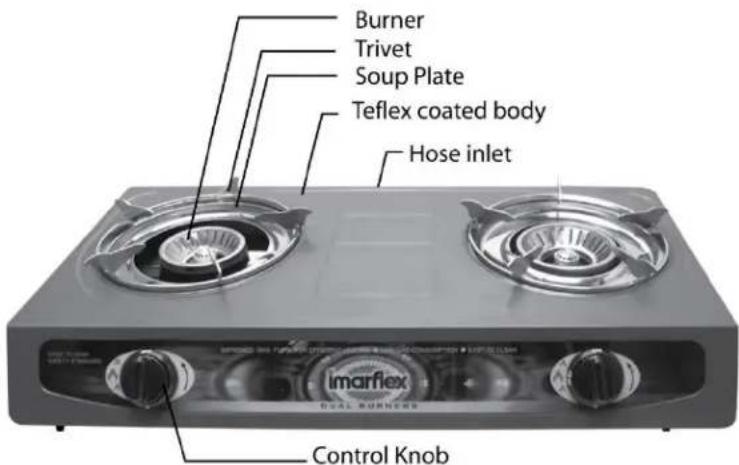

DESCRIPTION OF PARTS:

Burner Trivet Soup Plate Teflex coated body Hose inlet Control Knob

INSTALLATION:

1. Check all parts of the gas stove, including the following:

- Trivet (2pcs)

• Soup Plate (2pcs)
  • Control knob (2pcs)

• 4pcs. footing

• Connect ^3/8 " hose at the gas stove inlet pipe and the other end in the regulator/valve. Fasten the hose in both sides by tightening the hose clamp firmly. (See illustration 1)

• Place the gas stove away from the wall or ceiling.

(See illustration 2)

Inlet pipe Gas hose Hose connection Illustration 1 Hose clamp

200 mm Away from the wall 1000 mm Away from the ceiling Illustration 2

HOW TO USE:

1. Make sure that the control knob is in OFF position. (See fig. 1.)
2. Open the regulator/valve of the gas tank. (Pull or twist)
3. Push down the control knob and turn it counter clockwise until click sound is heard. The flame ignites automatically with the spark system.
4. If ignition fails due to faulty gas flow, turn the control knob back to OFF position and repeat instruction #3.
5. If you want to use high flame, turn the control knob as shown in fig. 2.
6. If you want to use the low flame of the inside ring, turn the control knob as shown in fig. 3.
7. If you want to use both rings with low flame, turn the control knob as shown in fig. 4.
8. If the flames become yellowish, adjust the gas and air mixture control to produce luminous flames. (See Fig. 5)
9. After use always turn OFF the regulator/valve of the gas tank.

OFF fig.1 OFF fig.2 OFF fig.3 OFF fig.4 GAS & AIR MIXTURE CONTROL fig.5

FIRE PREVENTION TIPS IN USING GAS STOVE:

1. Install gas tank in an open air (clear air).
2. After every use, close the regulator/valve of the gas tank in order to minimize the remaining gas pressure in the hose.

3. Always check for any leakage. Rub the hose and all the connection point, by using soap and water. If bubble appears, close the regulator/valve immediately and call an authorized technician.

4. If leakage occurs, open the windows and door to release gas. Do not turn on any electrical appliances as this may cause to start the fire.

5. We recommend changing the hose and the regulator every 1 year.

1. Use a clean flat pot for an even heat distribution, so that the food will be cooked fast and easy.
2. Prepare all ingredients before cooking in order to save gas.

CLEANING AND MAINTENANCE:

1. Always clean the gas stove after every use.
2. Allow the unit to cool before cleaning.
3. Remove the trivet and soup plate, wash it with soap and water.
4. Wipe the surface of the gas stove with damp cloth.
5. Do not use abrasive materials to avoid scratches.

REMINDER: Please do not forget to fill up and send the warranty card with receipt to our email address [e-mail]

Distributed By:

Topgadget Distributions, Inc.

2120 A.linao St., Malate, Manila

Made in China
