Product Type	Wireless RGBW LED Percussion Pad
Brand	ColorKey
Model	AirPad QUAD (CKU-7030)
Dimensions (L x W x H)	5 x 5 x 2.5 inches
Weight	2.7 lbs
Power Supply Input	AC 100-240V, 50/60Hz
Power Consumption	15W
Battery Type	Rechargeable Lithium-Ion
Battery Life	Up to 20 hours (single color), up to 6 hours (full color)
Charging Time	Approximately 5 hours
LED Type	15W RGBW (Red, Green, Blue, White)
Beam Angle	25 degrees
LED Lifespan	>50,000 hours
DMX Channels	3 / 4 / 6 / 9 channels
Control Modes	W-DMX, DMX 512, IR Remote, Master/Slave, Sound Active, Stand Alone
Wireless Connectivity	Built-in W-DMX transceiver (2.4GHz)
IP Rating	IP65 (outdoor use)
Display	Multicolor OLED
Flicker Free	Yes
Package Contents	Fixture, IR Remote, Power Supply, User Manual

Frequently Asked Questions - AirPad QUAD ColorKey

How do I charge the AirPad QUAD battery?

Connect the included power adapter to the fixture and plug it into a power source. The battery charges automatically. The charging status LED on the power supply turns red during charging and green when fully charged. The fixture can be used while charging.

Why is there no DMX control?

Ensure the Wireless Group ID is the same as your transmitter, the fixture is in DMX mode (not Auto, Sound, etc.), and wireless is enabled on the AirPad. Go to the menu and check the Wireless setting.

How do I set the DMX address?

Press the Addr button on the IR remote, then use (+) or (-) to adjust the address (001-512). Alternatively, use the on-board menu: navigate to 'ADD' and set the value using Up/Down and Enter.

Why is the IR remote not responding?

The IR remote will not work if Black Out mode is enabled. Press the 'Black Out' button on the remote to disable it. Also, ensure the IR receiver on the fixture is not blocked and the IR setting in the menu is turned on.

How do I use the fixture in Master/Slave mode?

Set one fixture as Master (via menu: Slave -> Master) and all others as Slave. Enable wireless on all fixtures and assign the same Wireless Group ID. The Master will control the Slaves wirelessly.

What is the battery life and how long does it take to charge?

Single color use: up to 20 hours; full color: up to 6 hours. Charging time is approximately 5 hours from empty.

How do I activate Sound Active mode?

Press the Sound button on the IR remote or navigate to 'Sound' in the menu. Use (+) or (-) to adjust sensitivity (1-10). The fixture will respond to ambient music via its built-in microphone.

Can I use the fixture outdoors?

Yes, the AirPad QUAD is rated IP65, making it suitable for outdoor use. However, avoid direct exposure to water jets and ensure the power connection is protected.

How do I clean and maintain the fixture?

Disconnect power before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use harsh chemicals or water. Check the manual for updates at www.ColorKeyLED.com.

What does the 'Fade' mode do?

Fade mode creates smooth, gradual color transitions. Activate it via the IR remote (Fade button) or on-board menu. Use (+) or (-) to adjust the speed (1-15).

USER MANUAL AirPad QUAD ColorKey

Hexagonal pattern composed of seven colored hexagons (red, blue, black, yellow, green, cyan) within a black border (no text or symbols)

ColorKey

creative lighting

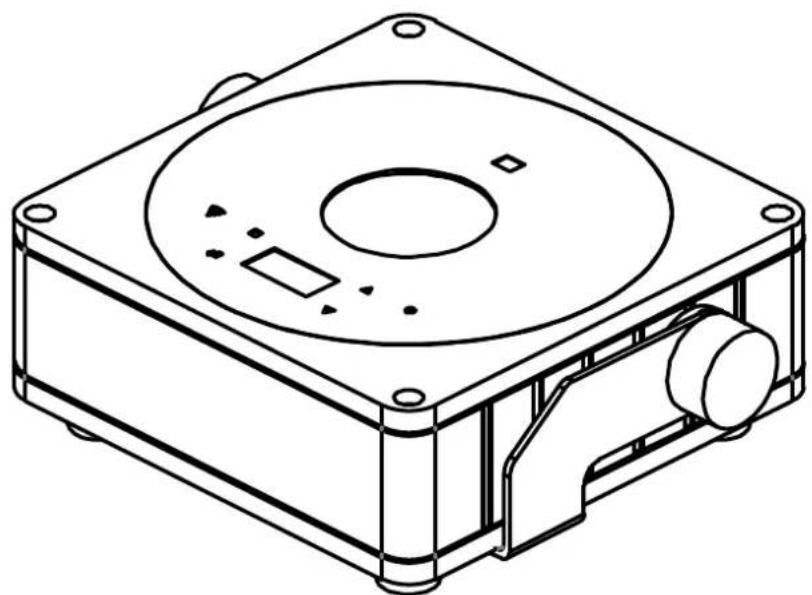

Technical line drawing of a mechanical device housing with mounting flanges and central circular component (no text or symbols)

AIRPAD

Q U A D

SKU: CKU-7030

USER MANUAL

Table of Contents

CONTENTS OF PACKAGE....3

SAFETY 3

SERVICE & SUPPORT 3

INTRODUCTION....4

POWER & CHARGING....5

DISPLAY OPERATION....6

MENU 7

INFRARED (IR) REMOTE CONTROL 8

DMX VALUES....10

SETUP EXAMPLES 11

TROUBLESHOOTING 13

TECHNICAL INFORMATION 14

Please read these instructions carefully before use. Operating this fixture according to these instructions is important to avoid any possible damage or accidents caused by misuse.

Contents of Package

• ColorKey AirPad QUAD fixture
- IR Remote
- Power Supply
- User Manual

Safety

Caution! Opening this unit voids warranty. Contact ColorKey for any service requests.

Warning! To avoid electrical shock, be sure to disconnect power before any service or when moving or setting up the fixture.

Caution! Avoid direct eye exposure with the fixture when on.

• This fixture is rated IP65 for outdoor use.
• This fixture must be installed a minimum distance of 5 meters (16'4") away from any lighted objects.
• Do not install or operate this fixture near flammable materials.
• This device must be installed, operated, and maintained by a qualified professional.
• Please check if the voltage is in accordance with the rated power before installing.
• Do not operate this fixture if the power cord has been damaged. Turn off fixture and replace with a power cord of similar rating.

Service & Support

Your ColorKey product includes a 2-year warranty. For technical support or to register your product, please visit https://www.colorkeyled.com/support/

You can also reach us by phone Monday thru Friday, 8:30am – 5pm PST at [phone].

Introduction

Thank you for purchasing the ColorKey AirPad QUAD!

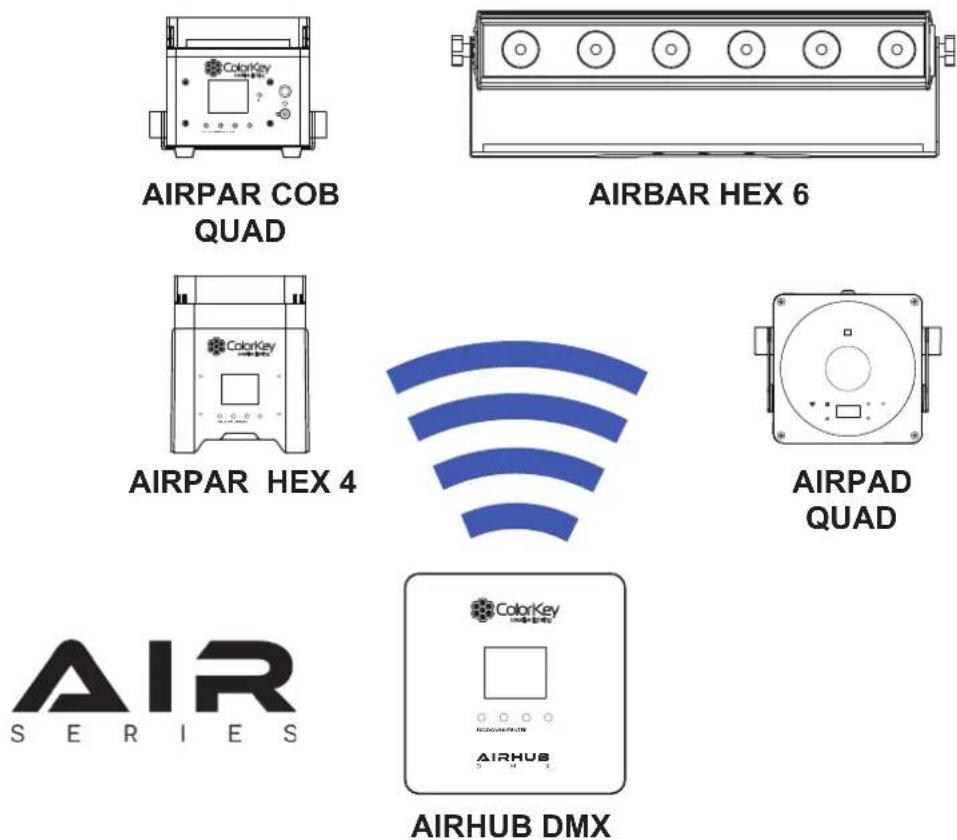

The AirPad is part of the ColorKey Air Series, an ecosystem of battery-powered, wireless DMX lighting fixtures, with a wireless DMX hub for greater control and connectivity options.

All Air Series fixtures also include an integrated W-DMX transceiver for instant wireless connectivity. This enables any Air Series fixture to wirelessly control your entire Air Series rig.

It's now easier than ever to fill a room with color by simply setting all the fixtures to the same wireless group ID and watch them automatically connect and synchronize.

Power & Charging

The AirPad QUAD features a rechargeable lithium-ion battery for wire free use. The battery can power the light for up to 20 hours from a full charge. An adaptive power supply with an input voltage range of 100 to 240 VAC 50/60Hz is also included.

The battery charges whenever the included power adapter is connected and plugged into a power source. The light can be used while charging. If the light is plugged in and not in operation, make sure it is turned off. The indicators on the LED Menu Display show how much battery life remains available.

The included power supply features a charging status LED. Red indicates that the battery is charging and green that charging is complete.

12.6V / 1A Power Supply Input

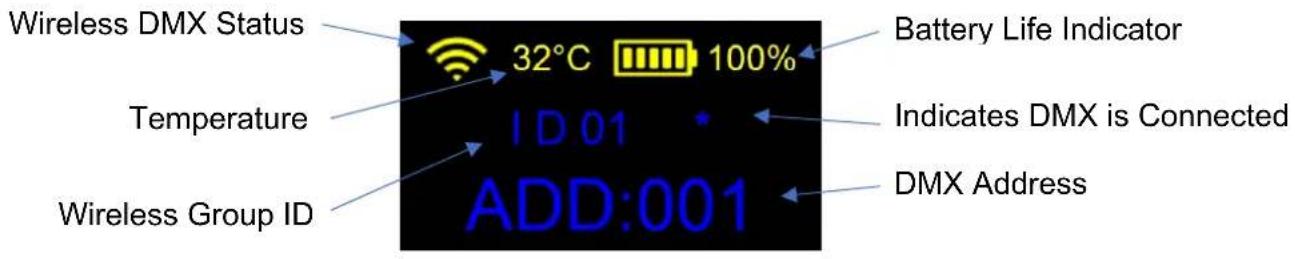

Display Operation

ESC: Navigate to the previous higher-level menu item.

Down: Scrolls through the menu items and numbers in descending order.

Up: Scrolls through the menu items and numbers in ascending order

Enter: Is used to select and confirm/store the current menu selection

Wireless: Is used to turn wireless DMX on or off

Group ID: Is used to select the Wireless Group ID

Menu

Menu Guide

ADD	Set DMX Address (001 to 512)
CH	Set DMX Channel Mode (3, 4, 6, or 9 channels)
Slave	Set light to Slave or Master
Auto	Activate Auto mode and adjust speed (1-15)
Fade	Activate Fade mode and adjust speed (1-15)
Color	Set light to Color mode and scroll through preset colors (1-8)
Sound	Set light to Sound Active mode and adjust sensitivity (1-10)
R	Adjust Red dimmer (000-255)
G	Adjust Green dimmer (000-255)
B	Adjust Blue dimmer (000-255)
W	Adjust White dimmer (000-255)
Flash	Turn on Strobe and adjust speed (1-15)
Dimmer	Adjust Dimmer curve (Linear, Curve, Theatre, Studio)
OLED	Set OLED display to turn off after 30 seconds
IR	Turn Infrared receiver on or off

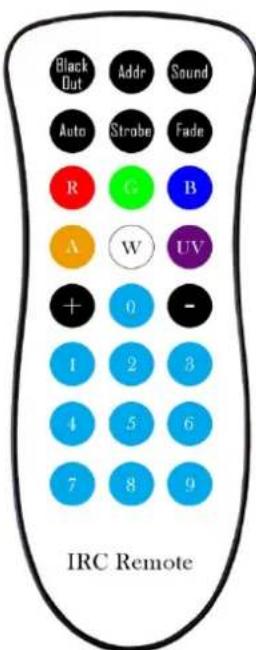

Infrared (IR) Remote Control

To use the IR remote, simply point the remote at the IR receiver on the lighting fixture. The IR receiver on the AirPad QUAD is located just above the LED on the top panel.

Black Out

Black Out mode instantly turns all LED's off.

Press the Black Out button to engage or disengage Black Out mode.

Addr

Address mode enables you to set the DMX Address of the fixture.

To set up a new DMX address, Press the Addr button, then press (+) or (-) to increase or decrease the DMX Address Value.

Sound

Sound-Active mode enables the light to respond to ambient sounds in the room using the fixture's built-in microphone.

Press the Sound button to activate Sound-Active mode. Press (+) or (-) to increase or decrease sound sensitivity based on the playback level of the music.

Auto

In Auto mode, the light loops through various preprogrammed colors.

To turn on Auto mode, press the Auto button, then press (+) or (-) to increase or decrease the speed of the program.

Strobe

In Strobe mode, the light will flash at the desired rate.

To turn on Strobe mode, press the Strobe button, then press (+) or (-) to increase or decrease the strobing rate. You can change the color using manual color mixing (more below).

Fade

In Fade Mode, the light creates smooth, gradual color transitions.

To turn on Fade mode, press the Fade button, then press (+) or (-) to increase or decrease the speed of the program.

Manual Color Mixing

The AirPad is capable of creating an almost unlimited number of colors by mixing the Red, Green, Blue, and White LEDs.

To begin mixing colors, press the Red (R), Green (G), Blue (B), or White (W) button, then press (+) or (-) to increase or decrease the brightness of each color. Continue with the next color until you achieve your desired color.

Color Presets

10 preset colors can be accessed from the IR Remote. Press any number between (0) and (9) to set a color.

0 - Red
1 - Green
2 - Blue
3 - White
4 - Yellow
5 - Magenta
6 - Cyan
7 - Pink
8 - Orange
9 - White

DMX Values

3 channel mode

Channel	Value	Function
1	000-255	Hue
2	000-255	Saturation
3	000-255	Value

4 channel mode

Channel	Value	Function
1	000-255	Red
2	000-255	Green
3	000-255	Blue
4	000-255	White

6 channel mode

Channel	Value	Function
1	000-255	Master Dimmer
2	000-255	Red
3	000-255	Green
4	000-255	Blue
5	000-255	White
6	000-255	Strobe

9 channel mode

Channel	Value	Function
1	000-255	Master Dimmer
2	000-255	Red
3	000-255	Green
4	000-255	Blue
5	000-255	White
6	000-255	Strobe
7	000-015	None
	016-095	Auto Mode
	096-175	Fade Mode
	176-255	Sound Active
8	000-255	Speed
9	000-005	Menu Default
	006-065	Linear Dimmer Mode
	066-125	Curve Dimmer Mode
	126-185	Theatre Dimmer Mode
	186-255	Studio Dimmer Mode

Setup Examples

Master / Slave

AIRPAD QUAD

AIRPAD QUAD

AIRPAD QUAD

The AirPad QUAD include an integrated W-DMX transceiver for instant wireless connectivity. This enables the AirPad to wirelessly control any Air Series fixture in the same wireless group. To achieve this, simply set an AirPad to Master and all other fixtures to Slave. Turn on wireless on all fixtures and set them to the same wireless group ID.

Master/Slave mode allows you to connect multiple units together using one (1) unit to control others in a chain. When a fixture is set to 'Master Mode,' this unit will always act as a controlling unit until it is switched out of 'Master Mode'. The Master unit will send out signal to Slave units which will react in synchronization. When a fixture is set into 'Slave Mode', this fixture will receive the Master signal.

AirHub DMX

AIRHUB DMX

AIRPAD QUAD

AIRPAD QUAD

The AirHub DMX (available separately) is the central hub used to remotely control all Air Series fixtures. It is a battery powered wireless DMX transceiver with 16 wireless groups (00-15) and features built-in presets including static colors, auto, fade, and sound active mode.

To make a connection, simply set the AirHub and AirPad QUAD to the same group ID. Both units are set to ID01 in the example below.

AirHub DMX Menu

AirPad QUAD Menu

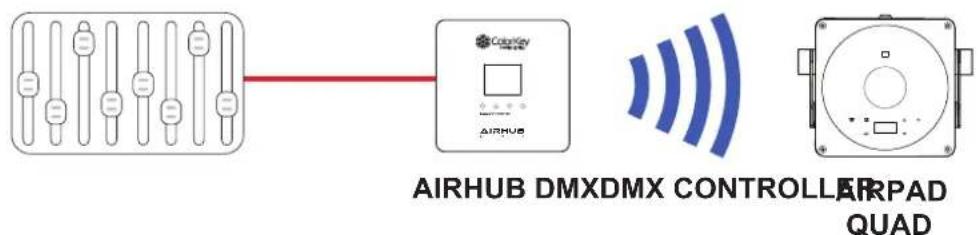

DMX Controller

For greater control of your AirPad, connect to any DMX controller via the AirHub DMX using standard 3-pin DMX cables, or to most DMX controllers with 2.4Ghz transmitters. AirPads connected to a DMX controller via the AirHub can still be addressed independently.

Troubleshooting

Problem	Solutions
No DMX control	Confirm the Wireless Group ID is the same as the transmitterMake sure the fixture is in DMX modeMake sure wireless is enabled on your AirPad
Fixture does not respond to sound	Make sure the fixture is in Sound Active mode.
IR remote will not respond	The IR remote will not respond to any inputs when the Black Out mode is enabled. If the remote is not responding when a button is pressed, try pressing (Black Out). It may already be in Black Out Mode thus rendering the light dark.

Technical Information

• 15W RGBW LED
• 25^irc Beam Angle
  • DMX Channels: 3 / 4 / 6 / 9 channels
  • Built-in W-DMX transceiver for 2.4Ghz wireless connectivity
• Lithium-Ion battery (+/-) 20 hours single color; (+/-) 6 hours full color, (+/-) 5 hours charge time
• Control modes: W-DMX, DMX 512, IR Remote, Master /Slave, Sound Active, Stand Alone
• Multicolor OLED display for easy access to fixture settings
• Dimming: 0 - 100%
  • IP65 rated for outdoor use
• Lamp life: >50000 Hours
• Flicker Free
  • Working temperature: up to 40^irc C
  • Power consumption: 15W
  • Power supply: AC100-240V;50-60Hz
  • Product size: 5 x 5 x 2.5 in
• Net Weight: 2.7lbs

Please note: As we continue to work towards improving our products and your experience as a user, we recommend that you check our website periodically for updates to user manuals and specifications at www.ColorKeyLED.com or you may contact us directly at [e-mail].
