Product Type	Mounting Kit for Astera Helios/Titan LED Tubes
Brand	EXO
Model	Bone Helios
Kit Contents	1x Exo Bone Silver, 2x Exo Slab Silver, 2x Exo Knobs Titanium, 1x Exo Pin Titanium mount, 6x hex screws M4X8, 2x hex screws M5X8, 1x hex key SW3, 1x hex key SW4, Neoprene Kit Pouch with crystal pocket
Material	Aluminium Silver Anodized (Bone, Slabs), Titanium (Knobs, Pin)
Intended Use	Professional film production; transforms Astera LED tubes into authentic fixtures for cinematic lighting
Mounting Compatibility	Exo Pin system allows use with standard grip accessories for film/entertainment industry
Assembly	Mount Exo Slabs on both sides using 3+3 Allen screws (do not tighten), install Exo Pin and Astera tube, adjust size by pressing slabs against tube, tighten 6 hex screws, then fully screw Exo Knobs centering M5 thread
Alternative Mounting	Astera tube can be mounted using Exo Knob or two Allen screws with washer (included) for closer tube spacing
Carrying Case	Neoprene pouch with clear pocket for accessories; bar with Slabs slips in easily
Weight (approx)	Not specified; estimated < 1 kg (typical for aluminum/titanium kit)
Dimensions (approx)	Designed to fit Astera Helios/Titan tubes (~1m length)
Power Supply	No power required; mechanical mounting kit only
Maintenance	Keep clean; check screw tightness periodically; store in pouch when not in use
Repairability	Components replaceable individually; contact EXO for spare parts
Safety	Ensure screws are properly tightened to avoid detachment; use only with compatible Astera tubes

Frequently Asked Questions - Bone Helios EXO

What is the EXO Bone Helios kit used for?

The EXO Bone Helios kit is designed to mount and transform Astera Helios or Titan LED tubes into professional film fixtures, allowing use with standard grip accessories via the Exo Pin system.

What components are included in the kit?

The kit includes 1x Exo Bone Silver, 2x Exo Slab Silver, 2x Exo Knobs Titanium, 1x Exo Pin Titanium mount, 6x M4X8 hex screws, 2x M5X8 hex screws, 1x SW3 hex key, 1x SW4 hex key, and a neoprene pouch with a clear pocket.

How do I mount the EXO Bone Helios on an Astera tube?

First, mount the two Exo Slabs on both sides using the 3+3 Allen screws (do not tighten). Then install the Exo Pin and then the Astera tube. Adjust size by pressing the Slabs against the tube, then tighten all 6 hex screws. Finally, fully screw the two Exo Knobs centering the M5 thread of the tube.

Can I use the kit with tubes other than Astera Helios/Titan?

The kit is specifically designed for Astera Helios and Titan tubes. Compatibility with other tubes is not guaranteed.

What tools are needed for assembly?

The kit includes hex keys SW3 and SW4. You may also need a standard screwdriver for optional mounting with the provided Allen screws.

Is there an alternative mounting method?

Yes, the Astera tube can be mounted either with the Exo Knob or using the two Allen screws with washers supplied, allowing tubes to be placed closer together.

How do I care for the EXO Bone Helios kit?

Keep the components clean and dry. Periodically check that all screws are tight. Store the kit in the provided neoprene pouch when not in use to prevent damage.

Can I buy spare parts for the kit?

Yes, components like the Exo Bone, Slabs, Knobs, or Pin may be available as spare parts. Contact EXO directly for availability.

Is the kit heavy?

The kit is made of lightweight aluminum and titanium, so it is estimated to weigh under 1 kg total, making it portable for on-set use.

What is the purpose of the clear pocket on the pouch?

The clear pocket is designed to store small accessories such as the hex keys or extra screws, keeping them organized and easily accessible.

USER MANUAL Bone Helios EXO

Exo Bone Kit for Astera Helios or Titan with (1x) Exo Bone Silver, (2x) Exo Slab Silver, (2x) Exo Knobs Titanium, (1x) Exo Pin Titanium mount. Aluminium Silver Anodized, (6x) hex screws M4X8, (2x) hex screws M5X8, (1x) hex key SW3, (1x) hex key SW4. Neoprene Kit Pouch with crystal pocket for accessories.

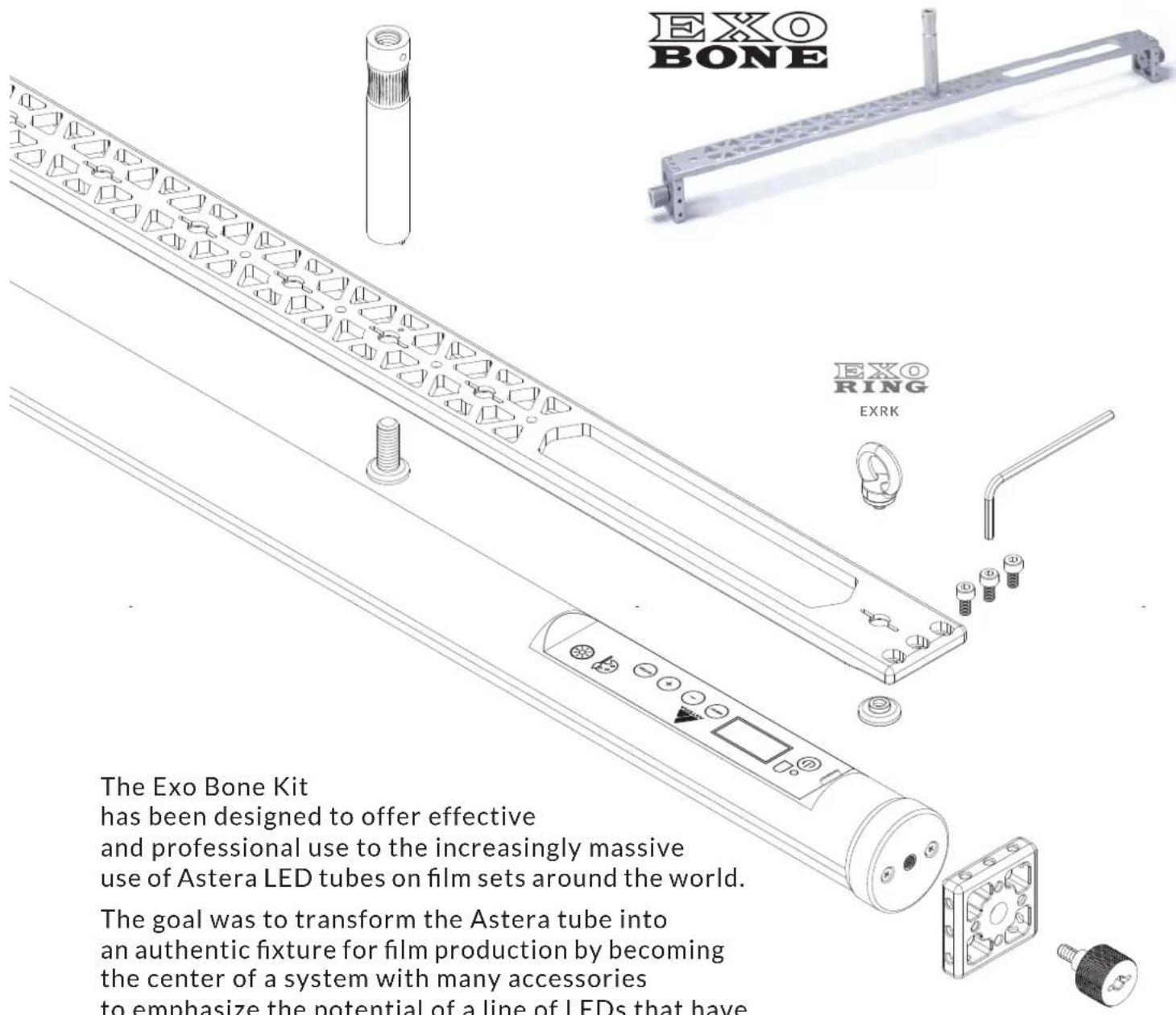

The Exo Bone Kit has been designed to offer effective and professional use to the increasingly massive use of Astera LED tubes on film sets around the world.

The goal was to transform the Astera tube into an authentic fixture for film production by becoming the center of a system with many accessories to emphasize the potential of a line of LEDs that have now become an international production standard.

The particular attachment system of the Exo Pin allows you to use countless accessories for mounting on standard grips of the film and entertainment industry.

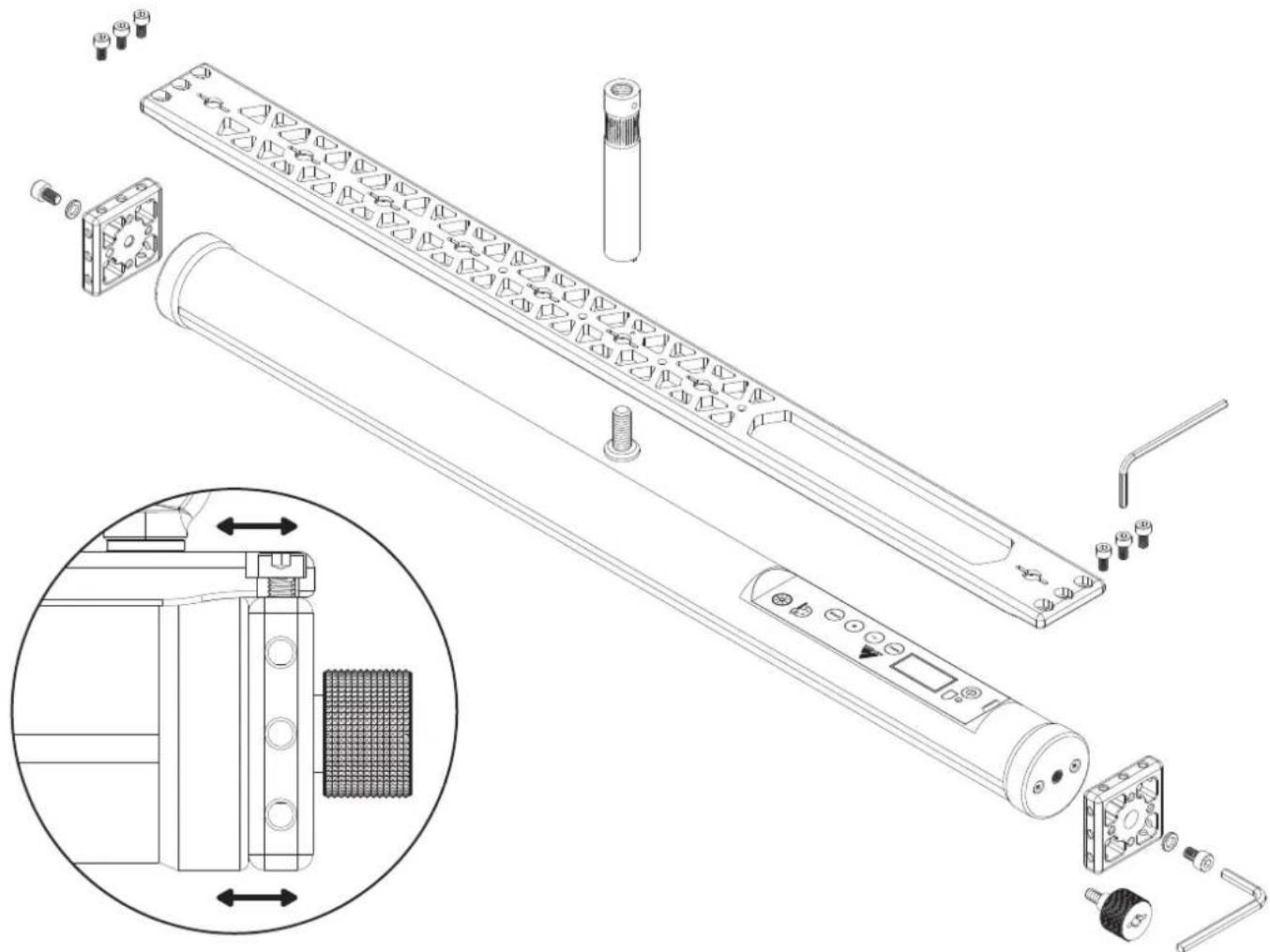

Exploded view diagram of a mechanical assembly with exploded views and component labels (no readable text or symbols)

To mount the Exo Bone Kit on the Astera tube, mount the two Exo Slabs on both sides with the 3 +3 Allen screws (do not tighten the screws), then install the Exo Pin and then the Astera tube.

Adjust the size of the Astera tube (which have manufacturing tolerances) by pressing the two Exo Slabs against the Astera tube, then fix the 6 hex screws.

Mount the Astera tube and finally, fully screw the two Exo Knobs centering the M5 thread of the tube.

The Astera tube can be mounted both with the Exo Knob and with the two Allen screws with washer supplied in the kit if there is a need to mount the Astera tubes closer together.

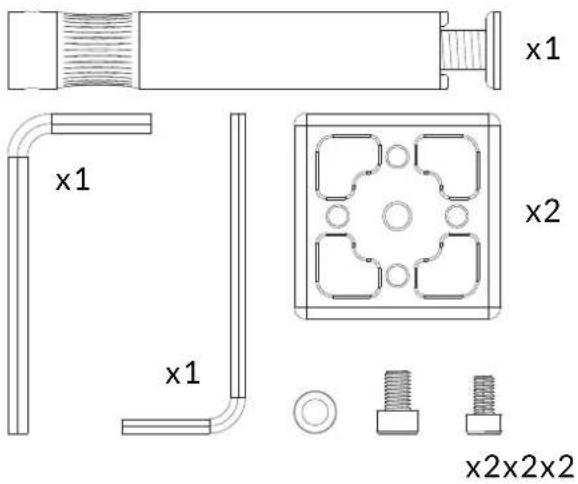

Technical line drawing of a mechanical assembly with no visible text or symbols

The Exo Bone Kit is supplied in a protective neoprene pouch with a clear pocket for stowing accessories.

The bar with Exo Slabs mounted can be easily slipped into the pouch for instant use.

EXOPIN AND ACCESSORY POCKET
