Product Type	Mounting Kit for Astera LED Tubes
Brand	EXO
Model	Bone Titan
Compatibility	Astera Helios and Titan Tubes
Main Material	Aluminum Silver Anodized
Components	1x Exo Bone Silver, 2x Exo Slab Silver, 2x Exo Knobs Titanium, 1x Exo Pin Titanium mount, 6x M4X8 hex screws, 2x M5X8 hex screws, 1x SW3 hex key, 1x SW4 hex key
Mounting System	Exo Pin attachment for standard film industry grips
Accessory Pouch	Neoprene Kit Pouch with crystal pocket for accessories
Primary Function	Transform Astera tube into a professional film fixture with expandable accessory system
Installation Method	Mount slabs on tube, attach pin, adjust and tighten screws; tube can be mounted with knobs or Allen screws
Weight	Approximately 0.8 kg (kit)
Dimensions (Packed)	Approximately 30 x 10 x 5 cm
Intended Use	Film and entertainment production

Frequently Asked Questions - Bone Titan EXO

What is the Exo Bone Kit?

The Exo Bone Kit is an accessory mounting system for Astera Helios and Titan LED tubes, designed to turn them into professional film fixtures with standard grip compatibility.

Which Astera tubes are compatible?

The kit is compatible with Astera Helios and Astera Titan tubes.

What is included in the package?

The package includes: 1x Exo Bone Silver, 2x Exo Slab Silver, 2x Exo Knobs Titanium, 1x Exo Pin Titanium mount, hex screws (6x M4X8, 2x M5X8), hex keys (SW3, SW4), and a neoprene pouch.

How do I mount the Exo Bone Kit?

Mount the two Exo Slabs on each side of the tube using the M4 screws (do not tighten). Install the Exo Pin, then slide the Astera tube. Adjust the slabs to fit tube tolerances, tighten all six M4 screws. Finally, mount the tube and screw the Exo Knobs into the M5 threads.

Can I mount Astera tubes closer together?

Yes: instead of using Exo Knobs, you can mount the tubes using the provided Allen screws with washers for a closer arrangement.

What is the Exo Pin used for?

The Exo Pin is a titanium mount that allows the kit to attach to standard film and entertainment industry grips, expanding accessory options.

Is the pouch included for storage?

Yes, a neoprene pouch with a clear pocket is included for storing the kit and small accessories.

How do I clean the Exo Bone Kit?

Clean with a soft, dry cloth. Avoid using liquids or abrasive cleaners to prevent damage to the anodized aluminum.

What materials are used?

The main components are made from anodized aluminum (silver) and titanium (knobs and pin). The pouch is neoprene.

Are spare parts available?

Spare parts are not listed separately; contact EXO directly or refer to the manual for potential spare part availability.

USER MANUAL Bone Titan EXO

Exo Bone Kit for Astera Helios or Titan with (1x) Exo Bone Silver, (2x) Exo Slab Silver, (2x) Exo Knobs Titanium, (1x) Exo Pin Titanium mount. Aluminium Silver Anodized, (6x) hex screws M4X8, (2x) hex screws M5X8, (1x) hex key SW3, (1x) hex key SW4. Neoprene Kit Pouch with crystal pocket for accessories.

The Exo Bone Kit has been designed to offer effective and professional use to the increasingly massive use of Astera LED tubes on film sets around the world.

The goal was to transform the Astera tube into an authentic fixture for film production by becoming the center of a system with many accessories to emphasize the potential of a line of LEDs that have now become an international production standard.

The particular attachment system of the Exo Pin allows you to use countless accessories for mounting on standard grips of the film and entertainment industry.

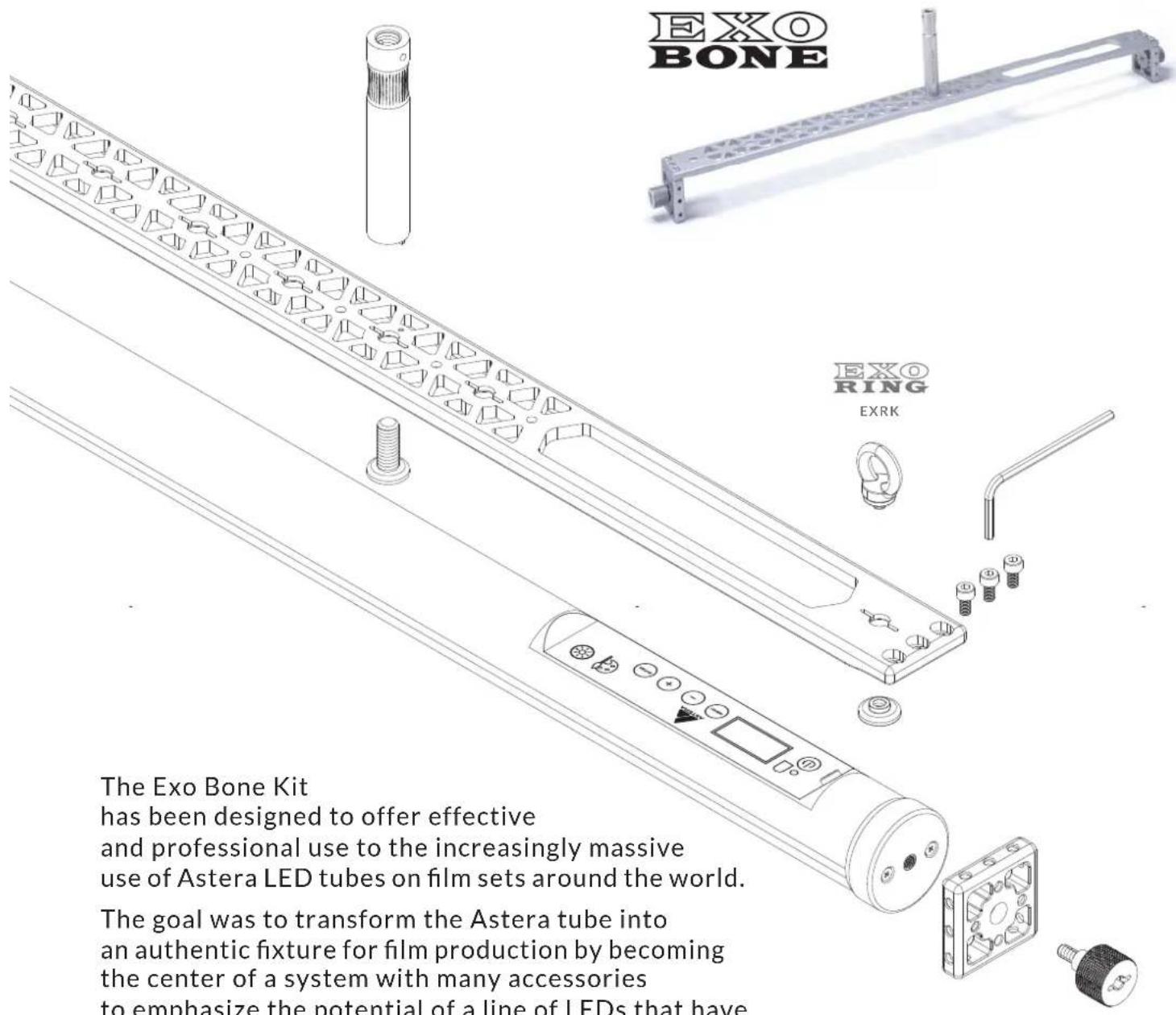

Exploded view diagram of a mechanical assembly with exploded views and component labels (no readable text or symbols)

To mount the Exo Bone Kit on the Astera tube, mount the two Exo Slabs on both sides with the 3 +3 Allen screws (do not tighten the screws), then install the Exo Pin and then the Astera tube.

Adjust the size of the Astera tube (which have manufacturing tolerances) by pressing the two Exo Slabs against the Astera tube, then fix the 6 hex screws.

Mount the Astera tube and finally, fully screw the two Exo Knobs centering the M5 thread of the tube.

The Astera tube can be mounted both with the Exo Knob and with the two Allen screws with washer supplied in the kit if there is a need to mount the Astera tubes closer together.

Technical line drawing of a mechanical assembly with no visible text or symbols

The Exo Bone Kit is supplied in a protective neoprene pouch with a clear pocket for stowing accessories.

The bar with Exo Slabs mounted can be easily slipped into the pouch for instant use.

EXOPIN AND ACCESSORY POCKET
