Trey - Lighting EXO - Free user manual and instructions

Product Type	LED Desk Lamp
Model	Trey by EXO
Dimensions (LxWxH)	45 x 15 x 50 cm
Weight	1.2 kg
Power Source	AC 100-240V, 50/60 Hz
Bulb Type	Integrated LED (non-replaceable)
Luminous Flux	800 lumens
Color Temperature	3000K - 6500K (adjustable)
Brightness Levels	5 levels (10%-100%)
Lighting Modes	Read, Work, Relax
Dimmer	Touch sensor with memory function
Material	Aluminum and ABS plastic
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use liquid cleaners.
Safety Features	Overheat protection, anti-glare diffuser
Energy Efficiency Class	A+
Power Consumption	12W max
Spare Parts Available	Yes (power adapter, stand)
Repairability Index	6.5/10 (user-replaceable parts: stand, adapter)
Warranty	2 years
Compliance	CE, RoHS, FCC

Frequently Asked Questions - Trey EXO

How do I adjust the brightness?

Touch the base sensor to cycle through 5 brightness levels. Hold the sensor for 2 seconds to turn the light on/off. The lamp remembers your last setting.

Can I replace the LED bulb?

No, the LED is integrated and not user-replaceable. If the light fails, contact EXO support for warranty service.

Is the lamp suitable for reading?

Yes, it has a dedicated Read mode with neutral white light (4000K) and high brightness to reduce eye strain.

What is the power consumption?

Maximum 12 watts in full brightness. In lower modes, it consumes as little as 2 watts.

How do I clean the lamp?

Unplug the lamp and wipe it with a soft, dry cloth. Do not use water, alcohol, or abrasive cleaners.

Does it have a warranty?

Yes, the EXO Trey comes with a 2-year limited warranty covering manufacturing defects.

Can I use the lamp outdoors?

No, this lamp is designed for indoor use only. Exposure to moisture or extreme temperatures may damage it.

How do I change the color temperature?

Press the mode button on the base to cycle through Warm (3000K), Neutral (4000K), and Cool (6500K) settings.

What if the lamp flickers?

Check the power adapter connection. If flickering persists, try a different outlet. If it still occurs, contact support for a replacement.

Can I buy spare parts?

Yes, the power adapter and stand can be purchased from the EXO website or authorized dealers. The LED unit is not sold separately.

USER MANUAL Trey EXO

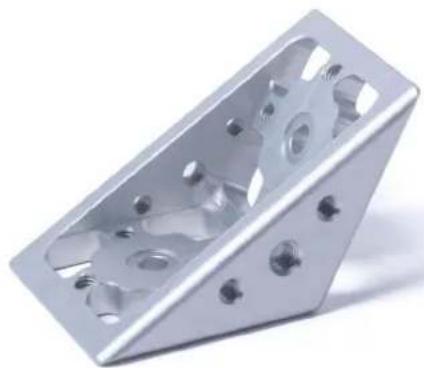

Triangle (120°) building module for Astera Helios, Titan and Hyperion. Aluminium Silver Anodized with (4x) M5 threads and (12x) M4 threads. (2x) M5X10 hex screws with hex key SW4. Wgt: gr. 40, oz. 1,4.

EXO TREY EXTY The Exo Trey has been d bright regular triangles v Allows you to build tria Titan and Hyperion LED them at each co to create layers of lu

Metal bracket with multiple holes and mounting holes, shown in 3D rendering (no text or symbols visible)

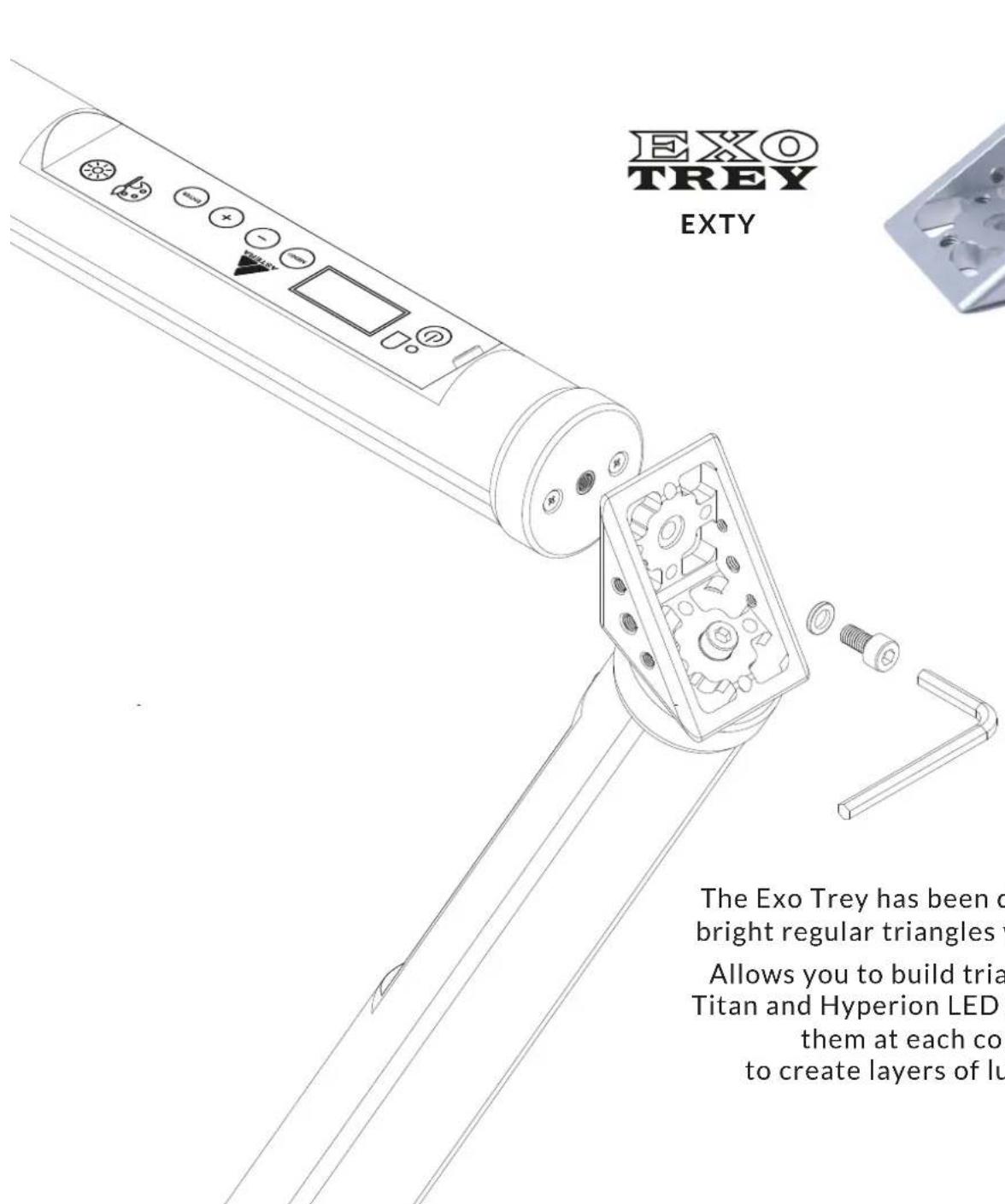

The Exo Trey has been designed to create bright regular triangles with great impact.

Allows you to build triangles with Helios, Titan and Hyperion LED tubes and to hang them at each corner on both sides to create layers of luminous elements.

SAFETY: The Exo Sk Helios, Titan and Hyper and cinematography. A and it is recommended solutions that require

SAFETY: The Exo Skeleton system has been designed to expand the creative potential with Astera Helios, Titan and Hyperion LED tubes for professional users in the world of entertainment, television and cinematography. Astera LEDs were not originally designed for heavy use with complex modularity and it is recommended to carefully evaluate safety in the construction of complex and sophisticated solutions that require professional support and anchoring systems.

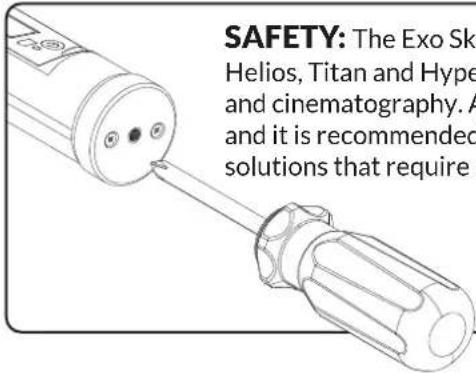

WARNING: Before using the Exo Skeleton system with the Astera LED tubes, make sure that the two screws are well tightened with a Phillips screwdriver. This is important for effective and safe use, avoiding wear of the parts in contact.

EXO RING EXRK

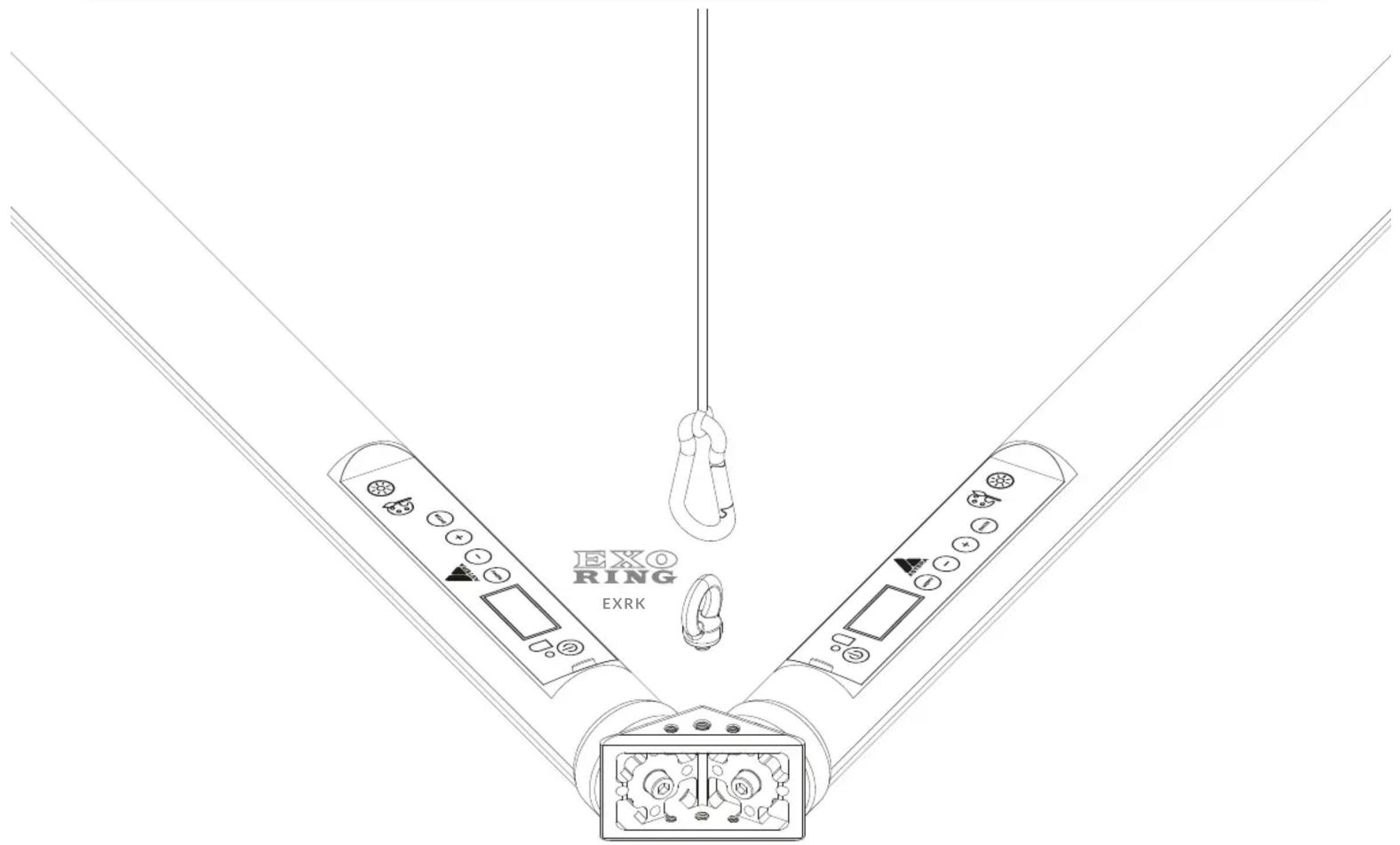

Hanging threads (for the original Astera M5 Eye Ring) at each corner on both sides to create layers of luminous elements in different sizes using the three Astera tube sizes.

Hanging threads (for the original Astera M5 Eye Ring) at each corner on both sides to create layers of luminous elements in different sizes using the three Astera tube sizes.

(2x) Mounting plate to connect two Exo Trey modules for special projects. Aluminium Silver Anodized, (4x) M4X8 hex screws with hex key SW3. Wgt: gr. 25, oz. 0,9.

EXTP

Metal plate with four circular holes, no text or symbols visible

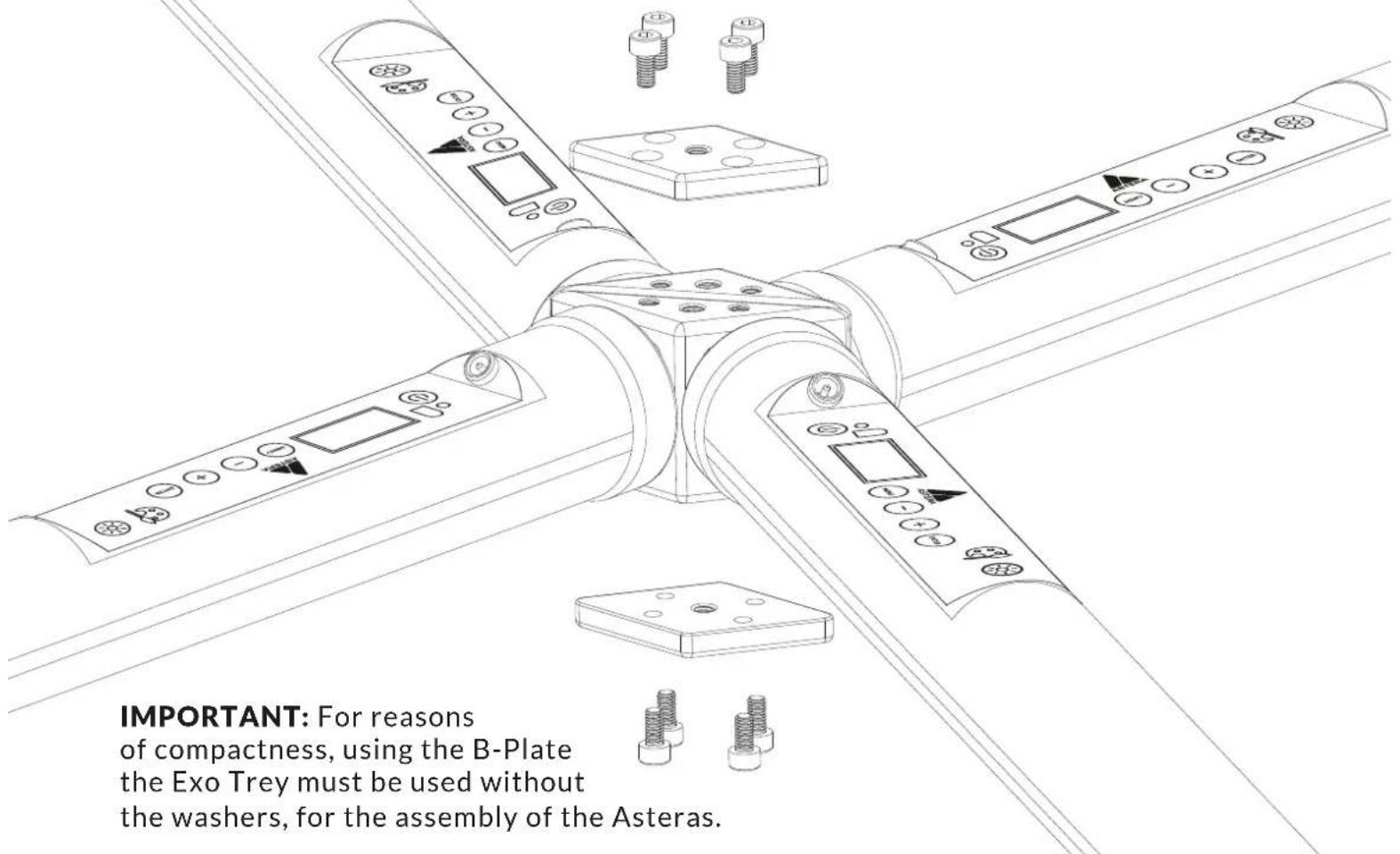

The Exo Trey B-Plate is designed to add two Exo Trey triangular modules to build bright sets of great visual impact.

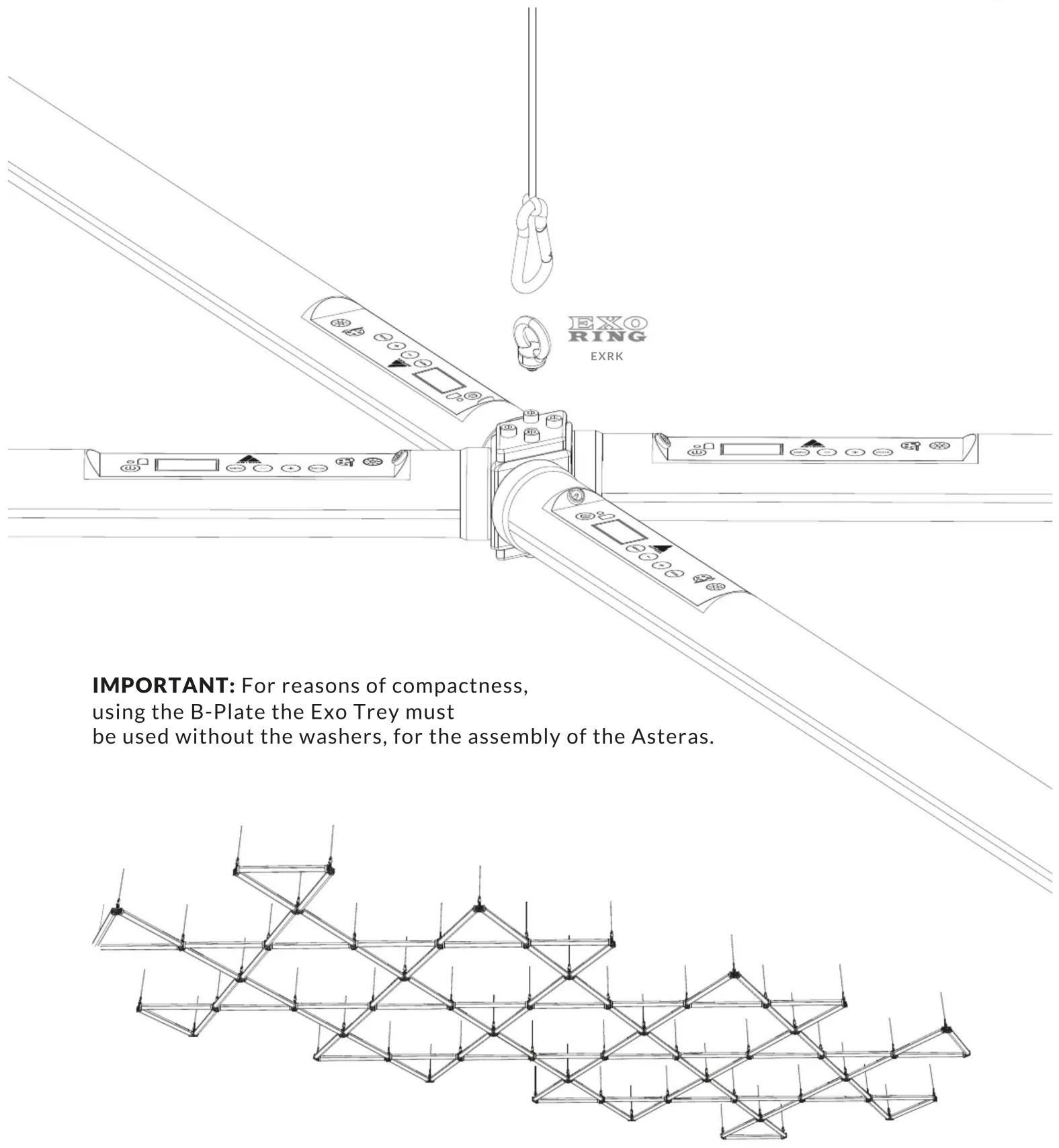

Both B-Plates are threaded to allow you to create multi-layered ceilings.

IMPORTANT: For reasons of compactness, using the B-Plate the Exo Trey must be used without the washers, for the assembly of the Asteras.

IMPORTANT: For reasons of compactness, using the B-Plate the Exo Trey must be used without the washers, for the assembly of the Asteras.

SAFETY: The Exo Sk Helios, Titan and Hyper and cinematography. A and it is recommended solutions that require

SAFETY: The Exo Skeleton system has been designed to expand the creative potential with Astera Helios, Titan and Hyperion LED tubes for professional users in the world of entertainment, television and cinematography. Astera LEDs were not originally designed for heavy use with complex modularity and it is recommended to carefully evaluate safety in the construction of complex and sophisticated solutions that require professional support and anchoring systems.

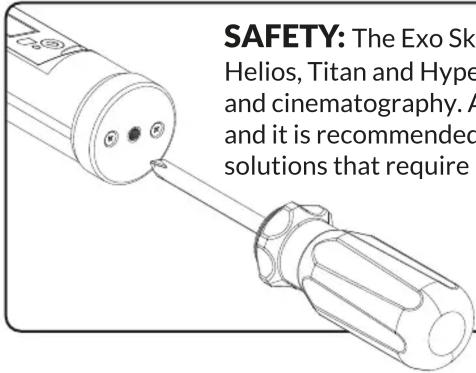

WARNING: Before using the Exo Skeleton system with the Astera LED tubes, make sure that the two screws are well tightened with a Phillips screwdriver. This is important for effective and safe use, avoiding wear of the parts in contact.

EXO RING EXRK IMPORTANT: For reasons of compactness, using the B-Plate the Exo Trey must be used without the washers, for the assembly of the Asteras.

The B-Plate allows you to create scenographies and ceilings of considerable visual impact in dynamic symbiosis with the lighting programming of Astera.
