USER MANUAL BC70CTB BAUMATIC

Pure geometric crosshair design on dark background with no text or symbols

NOTE: This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference for you or any person not familiar with the operation of the appliance.

Contents

1. Foreword 4

1.1 Safety Warnings 3
1.2 Installation 3

1.2.1 Electrical Shock Hazard.... 3
1.2.2 Cut Hazard.... 3
1.2.3 Important safety instructions.... 3

1.3 Operation and maintenance.... 4

1.3.1 Electrical Shock Hazard...... 4
1.3.2 Health Hazard 4
1.3.3 Hot Surface Hazard 4
1.3.4 Cut Hazard 5
1.3.5 Important safety instructions.... 5

2. Product Introduction......7

2.1 Top View 7
2.2 Control Panel 7
2.3 Product Information 8
2.4 Working Principle 8
2.5 Before using your New Ceramic Hob 8
2.6 Technical Specification 8

3. Operation of Product 8

3.1 Touch Controls 8
3.2 Choosing the right Cookware....9
3.3 How to use 9

3.3.1 Start cooking....9
3.3.2 Finish cooking....10
3.3.3 Locking the Controls....10
3.3.4 Using the Dual zone function ..... 11
3.3.5 Timer control....12
3.3.6 Over-Temperature Protection 14
3.3.7 Residual Heat Warning....14
3.3.8 Default working times....14

4. Cooking Guidelines.... 14

4.1 Cooking Tips 14

4.1.1 Simmering, cooking rice....14
4.1.2 Searing steak 15
4.1.3 For stir-frying 15

Contents ... continued

1. Heat Settings 15
2. Care and Cleaning 16
3. Troubleshooting.... 17
4. Installation 17

8.1 Selection of installation equipment....17
8.2 Before locating the fixing brackets....18
8.3 Cautions....19
8.4 Connecting the hob to the mains power supply .....19

1. Disposal 20

2. Warranty Card 21

1. Foreword

Installation and repairs to this appliance should only be carried out by a qualified technician in accordance with current regulations.

1.1 Safety Warnings

Your safety is important to us. Please read this information before using your cooktop.

1.2 Installation

1.2.1 Electrical Shock Hazard

• Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.
• Connection to a good earth wiring system is essential and mandatory.
• Alterations to the domestic wiring system must only be made by a qualified electrician.
• Failure to follow this advice may result in electrical shock or death.

1.2.2 Cut Hazard

• Take care - panel edges are sharp.
- Failure to use caution could result in injury or cuts.

1.2.3 Important Safety Instructions

• Read these instructions carefully before installing or using this appliance.
• No combustible material or products should be placed on this appliance at any time.

• Please make this information available to the person responsible for installing the appliance as it could reduce your installation costs.

• In order to avoid a hazard, this appliance must be installed according to these instructions for installation.

• This appliance is to be properly installed and earthed only by a suitably qualified person.
• This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply.
• Failure to install the appliance correctly could invalidate any warranty or liability claims.

1.3 Operation and Maintenance

1.3.1 Electrical Shock Hazard

• Do not cook on a broken or cracked cooktop. If the cooktop surface should break or crack, switch the appliance off immediately at the mains power supply (wall switch) and contact a qualified technician.
• Switch the cooktop off at the wall before cleaning or maintenance.
• Failure to follow this advice may result in electrical shock or death.

1.3.2 Health Hazard

• This appliance complies with electromagnetic safety standards.
• However, persons with cardiac pacemakers or other electrical implants (such as insulin pumps) must consult with their doctor or implant manufacturer before using this appliance to make sure that their implants will not be affected by the electromagnetic field.
• Failure to follow this advice may result in death.

1.3.3 Hot Surface Hazard

• During use, accessible parts of this appliance will become hot enough to cause burns.
• Do not let your body, clothing or any item other than suitable cookware contact the Ceramic glass until the surface is cool.

• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot

• Keep children away.

• Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on. Keep handles out of reach of children.
• Failure to follow this advice could result in burns and scalds.

1.3.4 Cut Hazard

• The razor-sharp blade of a cooktop scraper is exposed when the safety cover is retracted. Use with extreme care and always store safely and out of reach of children.
• Failure to use caution could result in injury or cuts.

1.3.5 Important Safety Instructions

• Never leave the appliance unattended when in use. Boilover causes smoking and greasy spillovers that may ignite.
• Never use your appliance as a work or storage surface.
• Never leave any objects or utensils on the appliance.
• Do not place or leave any magnetisable objects (e.g. credit cards, memory cards) or electronic devices (e.g. computers, MP3 players) near the appliance, as they may be affected by its electromagnetic field.
• Never use your appliance for warming or heating the room.
• After use, always turn off the cooking zones and the cooktop as described in this manual (i.e. by using the touch controls). Do not rely on the pan detection feature to turn off the cooking zones when you remove the pans.
• Do not allow children to play with the appliance or sit, stand, or climb on it.
• Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured.
• Do not leave children alone or unattended in the area where the appliance is in use.
• Children or persons with a disability which limits their ability to use the appliance should have a responsible and competent person to instruct them in its use. The instructor should be satisfied that they can use the appliance without danger to themselves or their surroundings.
• Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing

should be done by a qualified technician.

- Do not use a steam cleaner to clean your cooktop.

- Do not place or drop heavy objects on your cooktop.

- Do not stand on your cooktop.

- Do not use pans with jagged edges or drag pans across the Ceramic glass surface as this can scratch the glass.

- Do not use scourers or any other harsh abrasive cleaning agents to clean your cooktop, as these can scratch the Ceramic glass.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments.

- WARNING: The appliance and its accessible parts become hot during use.

- Care should be taken to avoid touching heating elements.

- Children less than 8 years of age shall be kept away unless continuously supervised.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

- WARNING: Danger of fire: do not store items on the cooking surfaces.

- Warning: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock, for hob surfaces of glass-ceramic or similar material which protect live parts

• A steam cleaner is not to be used.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Congratulations on the purchase of your new Ceramic Hob.

We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install correctly and operate it. For installation, please read the installation section. Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference.

2. Product Introduction

Packing List

Four white crosshair targets on a black background, no text or symbols present

Ceramic hob(1)

Baumatic LEARN MANUAL FOR YOUR BAUTIC FOR NEW CREAM LANDING ELECTRIC 10% of the brand's products are called by: 250 gm. The brand is designed to be used in the product of the Bauteic brand. The brand is designed to be used in the product of the New CREAM LANDING brand. The brand is designed to be used in the product of the New CREAM LANDING brand.

Instruction Manual(1)

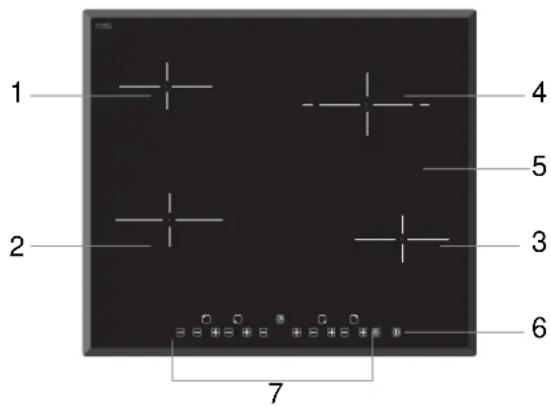

2.1 Top View

1 2 3 4 5 6 7

1. Max. 1200 W zone
2. Max. 1800 W zone
3. Max. 1200 W zone
4. Max. 1000 / 2200 W zone
5. Glass plate
6. ON / OFF
7. Control panel

2.2 Control Panel

4 3 5 1 2

1. ON/OFF control
2. Power regulating controls
3. Keylock control
4. Timer regulating controls
5. Dual zone control

2.3 Product Information

The microcomputer ceramic cooker hob can meet different kinds of cuisine demands because of the resistance wire heating; micro-computerized controls and multi-power selection - really the optimal choice for modern families.

The ceramic cooker hob centers on customers and adopts personalized design. The hob has safe and reliable performance, making your life comfortable; enabling you to fully enjoy the pleasures of life.

2.4 Working Principle

This ceramic cooker hob directly employs resistance wire heating and adjustable output power by the power regulation with touch controls.

2.5 Before using your New Ceramic Hob

• Remove any protective film that may still be on your ceramic hob.
• You should clean the ceramic hob surface (see "Care and cleaning" section).
• You should switch on one cooking zone at a time, for 5 minutes at the maximum setting. This will help to eliminate any new smell that exists and evaporate any humidity that has formed on the heating elements during transit.
• Do not burn off more than one zone at once.
• You must place a saucepan filled half full with cold water on each zone as you burn it off.

2.6 Technical Specification

Cooking Hob	BC70CTB
Cooking Zones	4 Zones
Supply Voltage	220-240V~ 50/60Hz
Installed Electric Power	6 400W
Product Size D× W× H(mm)	700X520X55
Building-in Dimensions A× B (mm)	560X490

Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice.

3. Operation of Product

3.1 Touch Controls

• The controls respond to touch, so you don't need to apply any pressure.
• Use the ball of your finger, not its tip.
• You will hear a beep each time a touch is registered.

- Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a cloth) covering them. Even a thin film of water may make the controls difficult to operate.

Diagram showing two hand positions on a line with checkmark and cross symbols indicating correct and incorrect states.

3.2 Choosing the right Cookware

Do not use cookware with jagged edges or a curved base.

Three identical cooking pots with crossed-out X marks, no text or symbols present

Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Always centre your pan on the cooking zone.

Four identical cooking pots with crossed X marks, shown in different orientations (no text or symbols)

Always lift pans off the ceramic hob - do not slide, or they may scratch the glass.

Diagram showing two cooking pots with crossed arrows indicating opposing pressure or movement, likely illustrating a cooking or heating mechanism.

3.3 How to Use

3.3.1 Start Cooking

After powering on, the buzzer beeps once, all the indicators light up for 1 second then go out, indicating that the ceramic hob has entered the state of standby mode.

Touch the ON/OFF show “-” 1 control. all the indicators
Place a suitable pan on the cooking zone that you wish to use.• Make sure the bottom of the pan and the surface of the cooking zone are clean and dry.
Select a heat setting by touching the “-” or “+” control.• If you don’t choose a heat setting within 1 minute, the ceramic hob will automatically switch off. You will need to start again at step 1.• You can modify the heat setting at any time during cooking.• By holding down either of these buttons, the value will adjust up or down.

3.3.2 Finish Cooking

Turn the cooking zone off by scrolling down to “0” or touching“-” and “+” control together
Turn the whole cooktop off by touching the ON/OFF control.

Beware of hot surfaces

"H" will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot.

3.3.3 Locking the Controls

• You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on).
• When the controls are locked, all the controls except the ON/OFF control are disabled.

To lock the controls
Touch the lock control	The timer indicator will show " Lo "

To unlock the controls

Make sure the ceramic hob is turned onTouch and hold the lock control [IMAGE] for a while.

When the hob is in the lock mode, all the controls are disabled except the ON/OFF ①, you can always turn the ceramic hob off with the ON/OFF ① control in an emergency, but you shall unlock the hob first in the next operation.

3.3.4 Using the Dual Zone Function

- The function only works in cooking zone 4 (page 7) - The dual cooking zone has two cooking areas that you can use a central section and an outer section. You can use the central section (A) independently or both sections (B) at once.

A B

Activate the Dual zone
Select a heat setting by touching the “-” or “+” control.
Adjust the heating setting between power levels 1 and 9 (e.g. 6)
The central section of the dual cooking zone will switch on.
Touching the dual zone control “◎”, you can activate the outer section as well.
A neon above the dual cooking zone control will light up
The cooking zone indicator show “P” and “δ” alternately.

Deactivate the Dual Zone
Touching dual zone control "O" again, the dual zone function is deactivated.The cooking zone indicator shows "6".

Note:

1. The dual zone function only works in cooking zone 4 (page 7).
2. You can select the function from level 1 to level 9.

3.3.5 Timer Control

You can use the timer in two different ways:

a) You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up.
b) You can set it to turn one or more cooking zones off after the set time is up.
• The timer of maximum is 99 minutes

Timer overview

Touching the "-" and "+" together, the timer is cancelled, and the "--" will show in the minute display.
When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator will flash for 5 seconds
Buzzer will beep for 30 seconds and the timer indicator shows "-" when the setting time finished.

Hint:

a) Touch the "-" or "+" control of the timer once to decrease or increase by 1 minute.
b) Touch and hold the "-" or "+" control of the timer to decrease or increase by 10 minutes.
c) If the setting time exceeds 99 minutes, the timer will automatically return to 0 minute.

b) Setting the Timer to Turn One Cooking Zone Off

Set one zone
Touch the⊖or⊕of the corresponding cooking zone you want to set the timer for.
Set the time by touching the or control of the timer
Touching the “-” and “+” together, the timer is cancelled, and the “--” will show in the minute display.
When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator will flash for 5 seconds

Note:

a) The red dot next to power level indicator will illuminate indicating that zone is selected.

b) If you want to change the time after the timer is set, you have to start from step 1.

3.3.6 Over-Temperature Protection

A temperature sensor equipped can monitor the temperature inside the ceramic hob. When an excessive temperature is detected, the ceramic hob will stop operation automatically.

3.3.7 Residual Heat Warning

When the hob has been operating for some time, there will be some residual heat. The letter "H" appears to warn you to keep away from it.

3.3.8 Default Working Times

Another safety feature of the hob is automatic shutdown. This occurs whenever you forget to switch off a cooking zone. The default shutdown times are shown in the table below:

Power level	1	2	3	4	5	6	7	8	9
Default working timer (hour)	8	8	8	4	4	4	2	2	2

4. Cooking Guidelines

Take care when frying as the oil and fat heat up very quickly. At extremely high temperatures oil and fat will ignite spontaneously and this presents a serious fire risk.

4.1 Cooking Tips

• When food comes to the boil, reduce the temperature setting.
  • Using a lid will reduce cooking times and save energy by retaining the heat.
• Minimize the amount of liquid or fat to reduce cooking times.
• Start cooking on a high setting and reduce the setting when the food has heated through.

4.1.1 Simmering, Cooking Rice

• Simmering occurs below boiling point, at around 85^ C, when bubbles are just rising occasionally to the surface of the cooking liquid. It is the key to delicious soups and tender stews because the flavours develop without overcooking the food. You should also cook egg-based and flour thickened sauces below boiling point.
• Some tasks, including cooking rice by the absorption method, may require a setting higher than the lowest setting to ensure the food is cooked properly in the time recommended.

4.1.2 Searing Steak

To cook juicy flavorsome steaks:

1. Stand the meat at room temperature for about 20 minutes before cooking.
2. Heat up a heavy-based frying pan.
3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan and then lower the meat onto the hot pan.
4. Turn the steak only once during cooking. The exact cooking time will depend on the thickness of the steak and how cooked you want it. Times may vary from about 2 – 8 minutes per side. Press the steak to gauge how cooked it is – the firmer it feels the more 'well done' it will be.
5. Leave the steak to rest on a warm plate for a few minutes to allow it to relax and become tender before serving.

4.1.3 For Stir-frying

1. Choose an ceramic compatible flat-based wok or a large frying pan.
2. Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking large quantities, cook the food in several smaller batches.
3. Preheat the pan briefly and add two tablespoons of oil.
4. Cook any meat first, putting it aside to keep warm
5. Stir-fry the vegetables. When they are hot but still crisp, turn the cooking zone to a lower setting, return the meat to the pan and add your sauce.
6. Stir the ingredients gently to make sure they are heated through.
7. Serve immediately.

5. Heat Settings

The settings below are guidelines only. The exact setting will depend on several factors, including your cookware and the amount you are cooking. Experiment with the Ceramic hob to find the settings that best suit you.

Heat setting	Suitability
1 - 2	·delicate warming for small amounts of food·melting chocolate, butter, and foods that burn quickly·gentle simmering·slow warming
3 - 4	·reheating·rapid simmering·cooking rice
5 - 6	·pancakes
7 - 8	·sautéing·cooking pasta
9	·stir-frying·searing·bringing soup to the boil·boiling water

6. Care and Cleaning

What?	How?	Important!
Everyday soiling on glass (fingerprints, marks, stains left by food or non-sugary spillovers on the glass)	1. Switch the power to the cooktop off.2. Apply a cooktop cleaner while the glass is still warm (but not hot!)3. Rinse and wipe dry with a clean cloth or paper towel.4. Switch the power to the cooktop back on.	·When the power to the cooktop is switched off, there will be no 'hot surface' indication but the cooking zone may still be hot! Take extreme care.·The glass should only be cleaned with mild detergent and a soft cloth to prevent any damage to the serigraphy which will not be covered by warranty.·Heavy-duty scourers, some nylon scourers and harsh/abrasive cleaning agents may scratch the glass. Always read the label to check if your cleaner or scourer is suitable.·Never leave cleaning residue on the cooktop: the glass may become stained.
Boilovers, melts, and hot sugary spills on the glass	Remove these immediately with a fish slice, palette knife or razor blade scraper suitable for Ceramic glass cooktops, but beware of hot cooking zone surfaces:1. Switch the power to the cooktop off at the wall.2. Hold the blade or utensil at a 30° angle and scrape the soiling or spill to a cool area of the cooktop.3. Clean the soiling or spill up with a dish cloth or paper towel.4. Follow steps 2 to 4 for 'Everyday soiling on glass' above.	·Remove stains left by melts and sugary food or spillovers as soon as possible. If left to cool on the glass, they may be difficult to remove or even permanently damage the glass surface.·Cut hazard: when the safety cover is retracted, the blade in a scraper is razor-sharp. Use with extreme care and always store safely and out of reach of children.
Spillovers on the touch controls	1. Switch the power to the cooktop off.2. Soak up the spill3. Wipe the touch control area with a clean damp sponge or cloth.4. Wipe the area completely dry with a paper towel.5. Switch the power to the cooktop back on.	·The cooktop may beep and turn itself off, and the touch controls may not function while there is liquid on them. Make sure you wipe the touch control area dry before turning the cooktop back on.

7. Troubleshooting

Problem	Possible causes	What to do
The cooktop cannot Be turned on.	No power.	Make sure the ceramic hob is connected to the power supply and that it is switched on.Check whether there is a power outage in your home or area. If you've checked everything and the problem persists, call a qualified technician.
The touch controls are unresponsive.	The controls are locked.	Unlock the controls. See section 'Using your ceramic cooktop' for instructions.
The touch controls are difficult to operate.	There may be a slight film of water over the controls or you may be using the tip of your finger when touching the controls.	Make sure the touch control area is dry and use the ball of your finger when touching the controls.
The glass is being scratched.	Rough-edged cookware.Unsuitable, abrasive scourer or cleaning products being used.	Use cookware with flat and smooth bases. See 'Choosing the right cookware'.See 'Care and cleaning'.
Some pans make crackling or clicking noises.	This may be caused by the construction of your cookware (layers of different metals vibrating differently).	This is normal for cookware and does not indicate a fault.

8. Installation

8.1 Selection of Installation Equipment

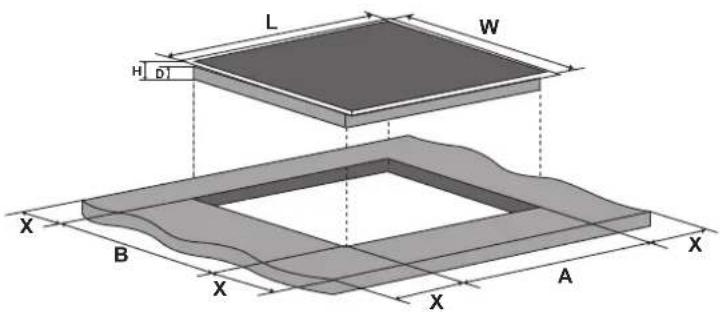

Cut out the work surface according to the sizes shown in the drawing.

For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole.

Be sure the thickness of the work surface is at least 30mm. Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate. As shown below:

L W H D X B X X A X

SEAL

L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
700	520	55	51	560+4+1	490+4+1	50 mini

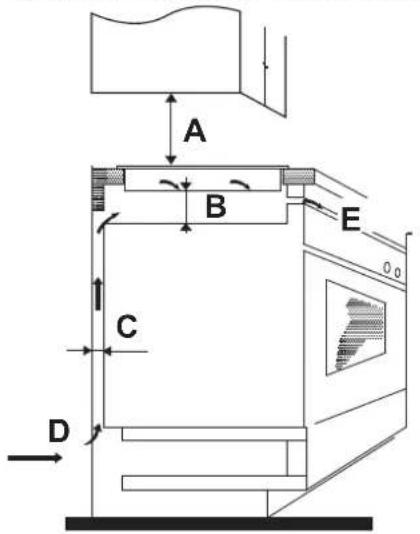

Under any circumstances, make sure the ceramic cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the ceramic cooker hob is in a good working state. As shown below

Note: The safety distance between the hotplate and the cupboard above the hotplate should be at

least 760mm.

A B E C D 0.0

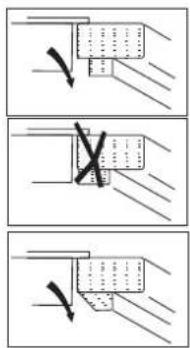

Technical diagram showing three sequential steps of a mechanical or electrical component with checkmark indicators and directional arrows.

8.2 Before locating the fixing brackets

The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob.

Fix the hob on the work surface by screwing the four brackets on the bottom of the hob (see picture) after installation.

Simple line drawing of a rectangular frame with four labeled corner points (A, B, C, D) and no text or symbols on the structure itself.

Simple line drawing of a mechanical bracket with a pin and base plate, enclosed in a circle (no text or symbols)

A	B	C	D
screw	bracket	Screw hole	base

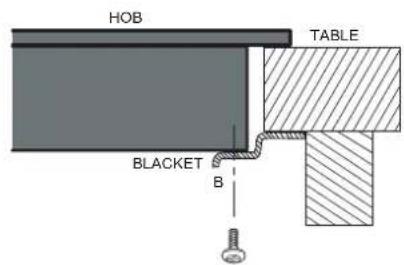

Adjust the bracket position to suit for different work surface's thickness.

HOB TABLE BLACKET A

HOB TABLE BLACKET B

8.3 Cautions

1. The ceramic cooker hob must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself.
2. The ceramic cooker hob shall not be mounted to cooling equipment, dishwashers and rotary dryers.
3. The ceramic cooker hob shall be installed such that better heat radiation can be ensured to enhance its reliability.
4. The wall and induced heating zone above the work surface shall withstand heat.
5. To avoid any damage, the sandwich layer and adhesive must be resistant to heat.
6. A steam cleaner is not to be used.
7. Using a silicon sealant to seal the appliance against the aperture can make removal difficult and may void the warranty.

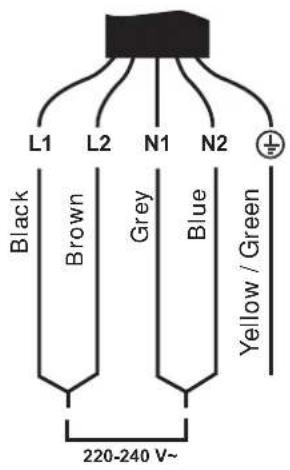

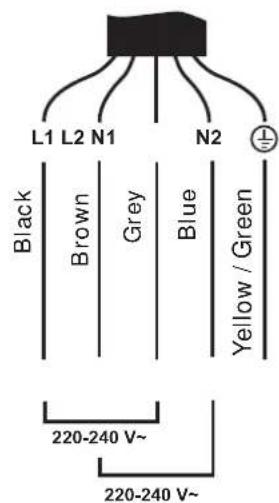

8.4 Connecting the Hob to the Mains Power Supply

The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker. The method of connection is shown below.

L1 L2 N1 N2 Black Brown Grey Blue Yellow / Green 220-240 V~

L1 L2 N1 N2 Black Brown Grey Blue Yellow / Green 400V~ 220-240V~ 220-240 V~

L1 L2 N1 N2 Black Brown Grey Blue Yellow / Green 220-240 V~ 220-240 V~

L1 L2 N1/N2 Black Brown Grey Blue Yellow / Green 400V~ 220-240 V~ 220-240 V~

L1 L2 N1/N2 Black Brown Grey Blue Yellow / Green 220-240 V~

1. If the cable is damaged or needs replacing, this should be done by an after-sales technician using the proper tools, so as to avoid any accidents.
2. If the appliance is being connected directly to the mains supply, an omnipolar circuit breaker must be installed with a minimum gap of 3mm between the contacts.
3. The installer must ensure that the correct electrical connection has been made and that it complies with safety regulations.
4. The cable must not be bent or compressed.
5. The cable must be checked regularly and only replaced by a properly qualified person.

8. Disposal

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

This appliance is labeled in compliance with European directive 2012/19/EU for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.

The symbol on the product indicates that it may not be treated as normal household waste. It should be taken to a collection point for the recycling of electrical and electron goods.

This appliance requires specialist waste disposal. For further information regarding the treatment, recover and recycling of this product please contact your local council, your household waste disposal service, or the shop where you purchased it.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

APPLICOL

WARRANTY REGISTRATION CARD

Congratulations on your new appliance purchase! To help care for your investment, be sure to register your appliance online. Registration will help you if you need to arrange service in the future, and serves as a record of your purchase – including critical information like model number and serial number – that you can refer to at any time. Simply visit the below website, or ask your retailer for help:

www.applico.co.nz/register

WARRANTY:

These products are covered by a warranty for a period of 24 months from the date of purchase, subject to the following conditions*. The Warranty covers rectification free of charge of any fault arising from defective materials or components, or faulty workmanship or assembly.

* The conditions above mentioned are:

1. that the purchaser carefully follows all instructions packed with the product;
2. that the purchaser and/or installer carefully follows the installation instructions provided and complies with electrical wiring regulations, gas and or plumbing codes;
3. that the purchaser carefully follows instructions provided in the owner's handbook relating to the proper use and care of the product and does not use the product for any purpose other than the domestic use for which it has been designed;
4. all appliances being used in a non-residential commercial situation are covered by a 3 month warranty from the original date of purchase;
5. that the product was purchased and installed in New Zealand;
6. that this warranty does not extend to:

a) optional glass lids for hobs apart from claims which relate to mechanical or physical damage thereof at the date of purchase;

b) 'consumable' parts such as light bulbs or filters;

c) damage to ceramic glass caused by liquid or solid spill-overs, lack of maintenance, or impact;

d) damage to surface coatings caused by cleaning or maintenance using products not recommended by the owner's handbook;
e) defects caused by normal wear and tear, accident, negligence, alteration, misuse or incorrect installations;
f) a product dismantled, repaired or serviced by any serviceman other than an authorised service agent;
g) a product not in possession of the original purchaser;
h) damage caused by power outages or surges
i) damage caused by pests (eg. rats, cockroaches etc.)
7. that if the product is a freestanding microwave oven or small appliance it must be returned to the dealer/retailer for servicing. These products, unless stated otherwise have a 12 month warranty from original date of purchase with 24 months on the microwave magnetron; Waste disposers have a 12 month warranty.
8. The provision of service under this Warranty is limited by a 25km boundary from the retailer where the product was purchased. Such travelling outside of these limits will incur commercial cost to be paid by you, regulated by the number of kilometres travelled beyond the 25km limit (50km return trip).

Nothing herein contained shall be construed in any way as excluding or limiting your rights under the Consumer Guarantees Acts 1993.

For service please visit www.applico.co.nz/service or contact the dealer/retailer from whom you purchased the product. If you are unable to establish the date of purchase, or the fault is not covered by this Warranty, or if the product is found to be in working order, you will be required to bear all service call charges.

Registration of this warranty constitutes acceptance of the terms and conditions of this Warranty.

Distributed by Applico Ltd www.applico.co.nz

After registering your appliance online, we recommend you fill out the below information for your reference and keep this warranty card in a safe place.

PRODUCT:

RETAILER:

DATE OF PURCHASE:

INVOICE NO:

MODEL NO:

SERIAL NO ^+ :

WEBSITE USERNAME:

WEBSITE PASSWORD:

REGISTRATION WEBSITE DETAILS FOR

www.applico.co.nz/register

*Please consult your user manual for guidance on finding the serial number.

THIS WARRANTY IS VALID IN NEW ZEALAND ONLY.

Baumatic

Imported by Applico Ltd.

Private Bag 92900

Onehunga, Auckland 1061,

New Zealand

Website

www.baumatic.co.nz
