USER MANUAL 99-3310B Metra

Installation instructions for part 99-33108

U.S. PATENT # D755,779

Chevrolet Traverse 2013-up / GMC Acadia 2013-2016/ Acadia Limited 2017 Buick Enclave 2013-up 99-3310B

KIT FEATURES

• ISO DIN radio provision with pocket
- Painted black

KIT COMPONENTS

- A) Radio trim panel • B) Radio brackets • C) Pocket • D) (4) #8 x 3/8" Phillips screws

Interior view of a car dashboard with a digital display and control panel (no visible text or symbols)

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • See www.metraonline.com for harness information

Antenna Adapter: • 40-CR10

TOOLS REQUIRED

- Panel removal tool • Phillips screwdriver • 9/32" socket wrench

Table of Contents

Dash Disassembly 2

Kit Assembly

- ISO DIN radio provision with pocket......3

CAUTION! All accessories, switches, climate controls panels, and especially air bag indicator lights must be connected before cycling the ignition. Also, do not remove the factory radio with the key in the on position, or while the vehicle is running.

METRA. The World's best kits.®

metraonline.com

© COPYRIGHT 2017 METRA ELECTRONICS CORPORATION

99-3310B

Dash Disassembly

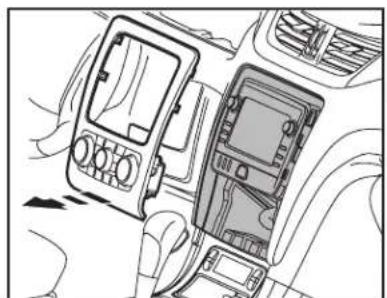

1. Unclip and remove the radio trim panel including the climate controls, then unplug the climate controls and remove the panel. (Figure A)

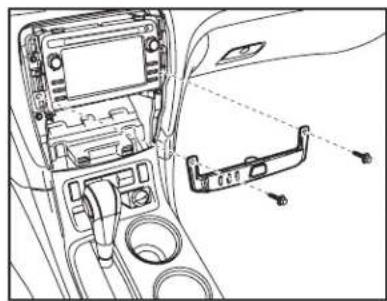

2. Remove (2) 9/32" Screws securing the hazard switch assembly. (Figure B)

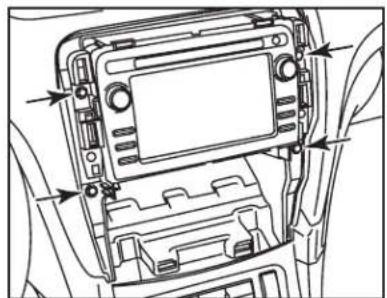

3. Remove (4) 9/32" Screws securing the radio then unplug and remove the radio. (Figure C)

Continue to kit assembly

Top-down line drawing of a car interior showing dashboard and steering wheel (no text or symbols)

(Figure A) (Figure B)

Interior view of a car dashboard with visible controls and a connector (no text or symbols)

Technical line drawing of a car dashboard with no visible text or symbols

(Figure C)

99-3310B

Kit Assembly

ISO DIN radio provision with pocket

1. Slide the radio brackets into the radio trim panel aligning the holes in the trim panel to the clips on the brackets. (Figure A)
2. Mount the pocket to the radio brackets/trim panel assembly with the (4) #8 x 3/8" Phillips screws supplied. (Figure B)

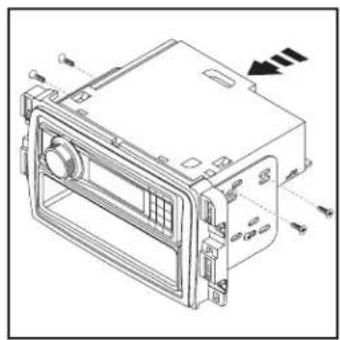

3. Slide the radio into radio brackets/ trim panel assembly and secure with the screws supplied with the aftermarket radio. (Figure C)
4. Locate the factory wiring harness and antenna plug in the dash. Metra recommends using the proper mating adapters from Metra and/or AXXESS.
5. Mount the new radio assembly into the dash and reassemble dash in reverse order of disassembly.

Technical line drawing of a mechanical housing or enclosure component with directional arrows indicating movement (no text or symbols)

(Figure A) (Figure B) (Figure C)

Technical line drawing of a mechanical housing or enclosure component with mounting holes and internal brackets (no text or symbols)

Technical line drawing of a mechanical device housing with no visible text or symbols

IMPORTANT

If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated. Please have the vehicle apart and ready to perform troubleshooting steps before calling.

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by corriling in the most recognized and respected.

mobile electronics school in our industry.

Log onto www.installerinstitute.com or call

600-354-6782 for more information and take steps toward a better tomorrow.

Metra recommends MECP

certified technicians

U.S. PATENT # D755,779

Chevrolet Traverse 2013 y mas / GMC Acadia 2013-2016/ Acadia Limited 2017 Buick Enclave 2013 y mas 99-3310B

CARACTERÍSTICAS DEL KIT

Interior view of a car dashboard with a digital display and control buttons (no visible text or symbols)

COMPONENTES DEL KIT

© COPYRIGHT 2017 METRA ELECTRONICS CORPORATION

99-3310B

Top-down line drawing of a car interior showing dashboard, air intake manifold, and dashboard controls (no text or symbols)

(Figura A) (Figura B)

Interior view of a car dashboard with labeled components (no text or symbols visible)

Technical line drawing of a car dashboard with no visible text or symbols

(Figura C)

99-3310B

Ensamble del kit

Technical line drawing of a mechanical housing or enclosure with directional arrows indicating movement (no text or symbols)

(Figura A) (Figura B) (Figura C)

Technical line drawing of a mechanical housing or enclosure component with mounting holes and internal brackets (no text or symbols)

Technical line drawing of a mechanical device housing with no visible text or symbols
