USER MANUAL PN-L802B SHARP

SHARP PN-L802B LCD MONITOR OPERATION MANUAL HIGH-DEFINITION MULTIMEDIA INTERFACE IMPORTANT: To aid reporting in case of loss or theft, please record the Model No.: product's model and serial numbers in the space provided. The numbers are located in the rear of the product.

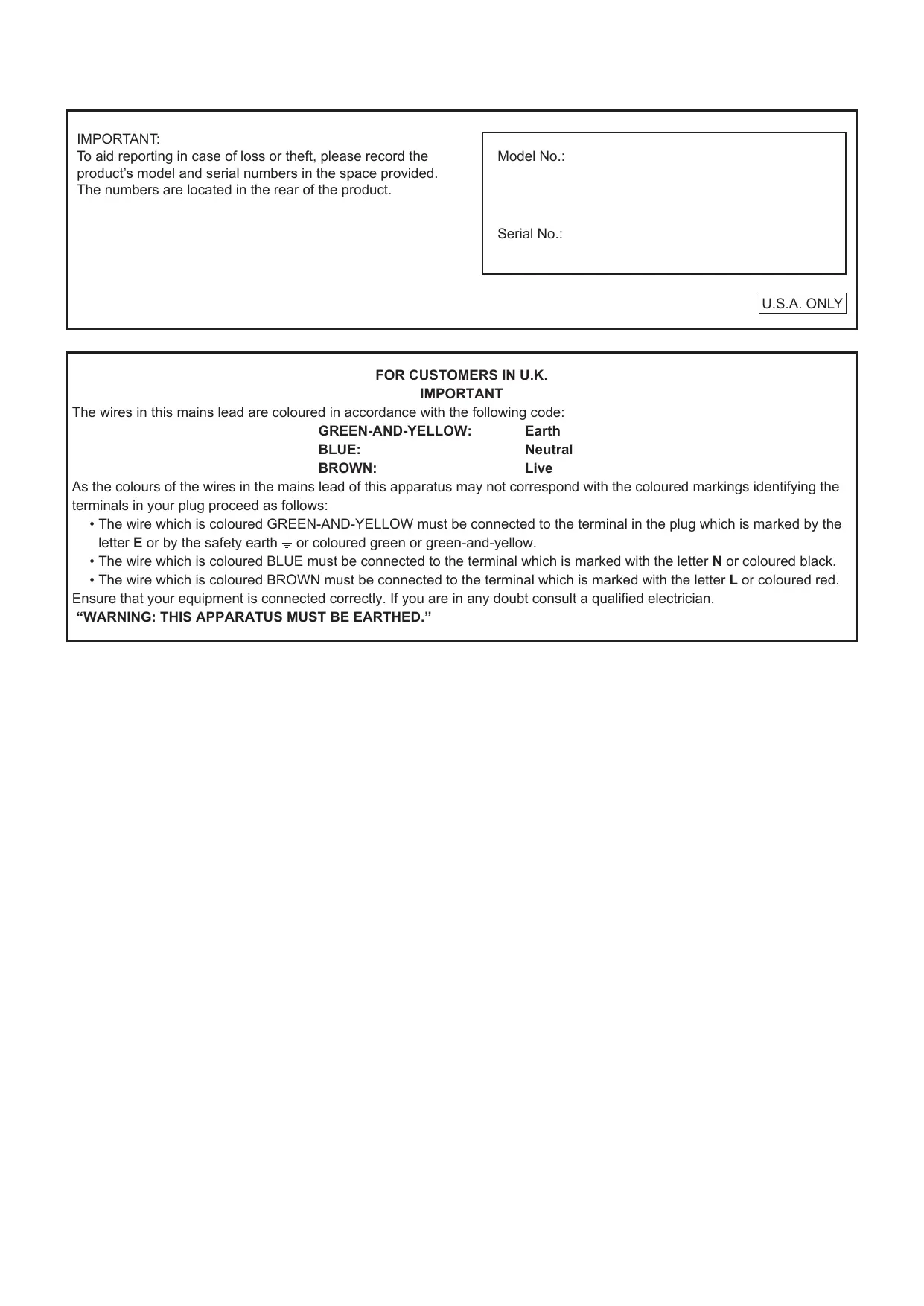

U.S.A. ONLY FOR CUSTOMERS IN U.K.

IMPORTANT The wires in this mains lead are coloured in accordance with the following code: GREEN-AND-YELLOW: Earth BLUE: Neutral BROWN: Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows: + The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety earth L or coloured green or green-and-yellow. - The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. + The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red. Ensure that your equipment is connected correctly. If you are in any doubt consult a qualified electrician. “WARNING: THIS APPARATUS MUST BE EARTHED.”

IMPORTANT INFORMATION WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

The lightning flash with arrowhead symbol, within CAUTION a triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” RISK OF ELECTRIC Within the products enclosure that may be of

SHOCK sufficient magnitude to constitute a risk of electric shock to persons.

DO NOT OPEN The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user's authority to operate this equipment.

This equipment has been tested and found to comply with the limits for Class A digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment

is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

This product utilizes a CR coin Lithium battery which contains a Perchlorate material. Special handling for this material may apply,

California residents, See www.dtsc.ca.gov/hazardouswaste/perchlorate/

Others, consult local environmental officers.

IMPORTANT INFORMATION (Continued)

Attention: Your product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products.

nl A. Information on Disposal for Users (private households)

1. In the European Union Attention: If you want to dispose of this equipment, please do not use the ordinary dustbin!

Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

Following the implementation by member states, private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one.

*) Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements.

By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

B. Information on Disposal for Business Users 1. In the European Union Ifthe product is used for business purposes and you want to discard it:

Please contact your SHARP dealer who will inform you about the take-back of the product. You might be charged for the costs arising from take-back and recycling. Small products (and small amounts) might be taken back by your local collection facilities.

For Spain: Please contact the established collection system or your local authority for take-back of your used products.

2. In other Countries outside the EU If you wish to discard of this product, please contact your local authorities and ask for the correct method of disposal.

The battery supplied with this product contains traces of Lead. For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household waste! There is a separate collection system for used batteries, to allow proper treatment and recycling in Pb accordance with legislation. Please contact your local authority for details on the collection and recycling

For Switzerland: The used battery is to be returned to the selling point. For other non-EU countries: Please contact your local authority for correct method of disposal of the used battery.

THIS PRODUCT CONTAINS A LITHIUM PRIMARY (MANGANESS DIOXIDE) MEMORY BACK-UP BATTERY THAT MUST BE DISPOSED OF PROPERLY. PLEASE CONTACT YOUR LOCAL SHARP DEALER OR AUTHORIZED SERVICE REPRESENTATIVE FOR ASSISTANCE IN DISPOSING OF THIS BATTERY.

DEAR SHARP CUSTOMER Thank you for your purchase of a SHARP LCD product. To ensure safety and many years of trouble-free operation of your product, please read the Safety Precautions carefully before using this product.

SAFETY PRECAUTIONS Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your LCD product, please read the following precautions carefully before using the product.

1. Read instructions — All operating instructions must be read and understood before the product is operated.

2. Keep this manual in a safe place — These safety and operating instructions must be kept in a safe place for future

3. Observe warnings — All warnings on the product and in the instructions must be observed closely.

4. Follow instructions — All operating instructions must be followed.

5. Cleaning — Unplug the power cord from the AC outlet before cleaning the product. Use a dry cloth to clean the product. Do not use liquid cleaners or aerosol cleaners.

6. Attachments — Do not use attachments not recommended by the manufacturer. Use of inadequate attachments can result in accidents.

7. Water and moisture — Do not use the product near water. Do not install the product in a place where water may splash onto it. Be careful of equipment which drains water such as an air-conditioner.

8. Ventilation — The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a sofa, rug or other similar surface, since they can block ventilation openings. Do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer’s instructions are followed.

9. Power cord protection — The power cords must be routed properly to prevent people from stepping on them or objects from resting on them.

10. The screen used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the screen breaks.

11. Overloading — Do not overload AC outlets or extension cords. Overloading can cause fire or electric shock.

12. Entering of objects and liquids — Never insert an object into the product through vents or openings. High voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts.

For the same reason, do not spill water or liquid on the product.

13. Servicing — Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other dangerous conditions. Request a qualified service person to perform servicing.

14. Repair — If any of the following conditions occurs, unplug the power cord from the AC outlet, and request a qualified service person to perform repairs.

a. When the power cord or plug is damaged.

b. When a liquid was spilled on the product or when objects have fallen into the product.

c. When the product has been exposed to rain or water.

d. When the product does not operate properly as described in the operating instructions. Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician.

e. When the product has been dropped or damaged.

f. When the product displays an abnormal condition. Any noticeable abnormality in the product indicates that the product needs servicing.

15. Replacement parts — In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.

16. Safety checks — Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition.

17. Wall mounting — When mounting the product on a wall, be sure to install the product according to the method recommended by the manufacturer.

18. Heat sources — Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating products (including amplifiers).

SAFETY PRECAUTIONS (Continued)

19. Batteries — Incorrect use of batteries may cause the batteries to burst or ignite. A leaky battery may corrode the equipment, dirty your hands or spoil your clothing. In order to avoid these problems, make sure to observe the precautions below:

+ Use the specified batteries only.

- Install the batteries with due attention to the plus (+) and minus (-) sides of the batteries according to the instructions in the compartment.

+ Do not mix old and new batteries.

+ Do not mix batteries of different types. Voltage specifications of batteries of the same shape may vary.

+ Replace an exhausted battery with a new one promptly.

- If you will not use the remote control for a long time, remove the batteries.

+ Ifleaked battery fluid gets on your skin or clothing, rinse immediately and thoroughly. If it gets into your eye, bathe your eye well rather than rubbing and seek medical treatment immediately. Leaked battery fluid that gets into your eye or your clothing may cause a skin irritation or damage your eye.

20. Usage of the monitor must not be accompanied by fatal risks or dangers that, could lead directly to death, personal injury, severe physical damage or other loss, including nuclear reaction control in nuclear facility, medical life support system, and missile launch control in a weapon system.

21. Do not stay in contact with the parts of the product that become hot for long periods of time. Doing so may result in low-temperature burns.

This is a class À product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate counter measures.

To maintain compliance with EMC regulations, use shielded cables to connect to the following terminals: PC/AV DVI-D output terminal, PC/AV DVI-D input terminal, PC/AV HDMI input terminal, PC D-SUB input terminal, PC RGB input terminals, and RS-232C input/output terminals.

If a monitor is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries,

particularly to children, can be avoided by taking simple precautions such as:

+ Using fixing devices like wall mount brackets recommended by the manufacturer.

+ Only using furniture that can safely support the monitor.

+ Ensuring the monitor is not overhanging the edge of the supporting furniture.

+ Not placing the monitor on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the monitor to a suitable support.

+ Not standing the monitors on cloth or other materials placed between the monitor and supporting furniture.

+ Educating children about the dangers of climbing on furniture to reach the monitor or its controls.

Especially for child safety

- Don't allow children to climb on or play with the monitor.

- Don't place the monitor on furniture that can easily be used as steps, such as a chest of drawers.

- Remember that children can become excited while watching a program, especially on a “larger than life” monitor. Care should be taken to place or install the monitor where it cannot be pushed, pulled over, or knocked down.

- Care should be taken to route all cords and cables connected to the monitor so that they cannot be pulled or grabbed by curious children.

TIPS AND SAFETY INSTRUCTIONS

- The TFT color LCD panel used in this monitor is made with the application of high precision technology. However, there may be minute points on the screen where pixels never light or are permanently lit. Also, if the screen is viewed from an acute angle there may be uneven colors or brightness. Please note that these are not malfunctions but common phenomena of LCDs and will not affect the performance of the monitor.

Do not display a still picture for a long period, as this could cause a residual image.

Never rub or tap the monitor with hard objects.

Please understand that SHARP CORPORATION bears no responsibility for errors made during use by the customer or a third party, nor for any other malfunctions or damage to this product arising during use, except where indemnity liability is recognized under law.

This monitor and its accessories may be upgraded without advance notice.

Do not use the monitor where there is a lot of dust, where

humidity is high, or where the monitor may come into contact With oil or steam, as this could lead to fire.

Ensure that the monitor does not come into contact with water or other fluids. Ensure that no objects such as paper clips or pins enter the monitor as this could lead to fire or electric shock.

Do not place the monitor on top of unstable objects or in unsafe places. Do not allow the monitor to receive strong shocks or to strongly vibrate. Causing the monitor to fall or topple over may damage it.

Do not use the monitor near heating equipment or in places where there is likelihood of high temperature, as this may lead to generation of excessive heat and outbreak of fire.

Do not use the monitor in places where it may be exposed to direct sunlight.

The AC outlet shall be installed near the equipment and shall be easily accessible.

Do not touch the screen while the PC is starting up, it will lead to a malfunction. When this occurs, restart the PC.

Do not operate the screen with a hard or pointed object such as a fingernail, pen, or pencil.

Two touch panels cannot be used when two displays are connected to the computer.

Only the touch panel on the display that is set as the primary monitor will be operable.

If another USB device is connected to the computer to which the touch panel is connected, do not operate the USB device during touch panel input. Input may not take place correctly. If two touch panels are used in close proximity to each other, use handwriting mode. The touch pens will interfere with each other and will not operate correctly.

If the reflective surface becomes dirty, malfunctioning may result. Use a soft cloth to gently wipe dirt off the reflective surface.

When wiping the reflective surface, wipe from the sensor downward.

Do not use near devices that use infrared. Malfunctioning may result. Use the monitor away from other devices.

- Use only the power cord supplied with the monitor.

- Do not damage the power cord nor place heavy objects on it, stretch it or over bend it. Also, do not add extension cords. Damage to the cord may result in fire or electric shock.

- Do not use the power cord with a power tap.

Adding an extension cord may lead to fire as a result of overheating.

- Do not remove or insert the power plug with wet hands. Doing so could result in electric shock.

- Unplug the power cord if it is not used for a long time.

- Do not attempt to repair the power cord if it is broken or malfunctioning. Refer the servicing to the service representative.

- Microsoft, Windows, Windows Vista and Internet Explorer are registered trademarks of Microsoft Corporation.

- HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

- Adobe, Acrobat, and Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

- Intel, Celeron, and Intel Core 2 Duo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the U.S.A. and other countries.

- AMD, AMD Sempron, AMD Athlon, and combinations thereof are trademarks of Advanced Micro Devices, Inc.

- This product comes with RICOH Bitmap Fonts produced and sold by RICOH COMPANY, LTD.

- All other brand and product names are trademarks or registered trademarks of their respective holders.

- Language of OSD menu used in this manual is English by way of example.

- Illustrations in this manual may not exactly represent the actual product or display.

+ The LED backlight in this product has a limited lifetime.

* Ifthe screen gets dark or does not turn on, it may be necessary to replace the LED backlight. This LED backlight is exclusive to this product and must be replaced by an authorized SHARP servicing dealer or service center.

* Please contact your local SHARP servicing dealer or service center for assistance.

MOUNTING PRECAUTIONS

+_ This product is for use indoors.

+ A mounting bracket compliant with VESA specifications is required.

+ Since the monitor is heavy, consult your dealer before installing, removing or moving the monitor.

+ Mounting the monitor on the wall requires special expertise and the work must be performed by an authorized SHARP dealer. You should never attempt to perform any of this work yourself. Our company will bear no responsibility for accidents or injuries caused by improper mounting or mishandling.

+ This monitor cannot be used in vertical orientation.

+ Use the monitor with the surface perpendicular to a level surface. If necessary, the monitor may be tilted up to 20 degrees upward.

+ When moving the monitor, be sure to hold it with the handles and the unit bottom. Do not grasp the screen, sensor, corners, tray, or power button. This may cause product damage, failure, or injury.

+_ This monitor should be used at an ambient temperature between 41°F (5°C) and 95°F (35°C). Provide enough space around the monitor to prevent heat from accumulating inside.

Unit inch [em] 7-7/8 (201 1-76 [3.5]

+_Ifitis difficult to provide sufficient space for any reason such as the installation of the monitor inside a housing, or if the ambient temperature may be outside of the range of 41°F (5°C) to 95°F (35°C), install a fan or take other measures to keep the ambient temperature within the required range.

+ Temperature condition may change when using the monitor together with the optional equipments recommended by SHARP. In such cases, please check the temperature condition specified by the optional equipments.

+ Do not block any ventilation openings. If the temperature inside the monitor rises, this could lead to a malfunction.

+. Do not place the monitor on a device which generates heat.

+. Do not use the product in locations where the unit is exposed to direct sunlight or other strong light. Since this product operates with infrared rays, such light may cause a malfunction.

Fix the USB cable with the cable clamp (supplied).

(1) Coil the cable into two loops approx. 1-9/16 inches (4 cm) in diameter at approx. 5-7/8 inches (15 cm) from the mini USB connector.

(2) Attach the cable clamp to the cable clamp attachment next to the USB port.

(3) Clamp the loops of the USB cable with the cable clamp.

This monitor is fi xed to the temporary stand when shipped from the factory. Please note that this stand is for temporary use only until the monitor is properly mounted.

IMPORTANT INFORMATION 3 DEAR SHARP CUSTOMER. 5 SAFETY PRECAUTIONS. 5 TIPS AND SAFETY INSTRUCTIONS 7 MOUNTING PRECAUTIONS .… 8 Supplied Components. 9 System Requirements . 9 Part Names … .10 Connecting Peripheral Equipment .12 Connection with a PC or AV equipment .12 Connection when the PN-ZB01 (optional) is attached… 13 Connecting the Power Cord . .14 Binding Cables. .14 Removing the Handles .14 Preparing the Remote Control Uni! .15 Installing the batteries . .15 Remote control operation range .15 Turning Power On/Off. .16 Turning on the main power. .16 Turning power on/off .16 Disabling power on/off operations .17 Touch Pen Preparations/Touch Action .18 Inserting the battery . .18 Touch action and touch mode .18

Controlling the Monitor with a PC (RS-232C) PC connection. Communication conditions Communication procedure Setting of the GAMMA user data. RS-232C command table

Controlling the Monitor with a PC (LAN) Settings to connect to a LAN.

Controlling with a PC Troubleshooting.

Mounting Precautions

(For SHARP dealers and service engineers).

For information on the touch panel driver, see the Touch Panel Driver Operation Manual. For information on the Pen Software,

see the Pen Software Operation Manual.

If any component should be missing, please contact your dealer.

O Liquid Crystal Display Monitor: 1 O Remote control unit: 1

[ Cable clamp: 3 D USB cable: 1 D Power cord 1 D Eraser: 1 D R:6 battery (‘AA' size): 2 D Tray: 1

[ CD-ROM (Utility Disk for Windows): 1 D Setup Manual: 1 [ Touch pen: 1

[ Pen tip (for touch pen): 2 [ Cover: 2

(LR-03 (‘AAA' size)): 1

D Tray mounting bracket: 2 D Tray mounting screws: M5 long x 4 / M5 short x 2 / M4 x 2

[ Cover screws (M4 with washers): 4 [ Cover seal: 2 D Terminal label: 1 Used when installing the expansion board PN-ZB01 (optional). [ Cover Sharp logo: 1 Place this sticker onto the SHARP logo to cover the logo.

*_ Sharp Corporation holds authorship rights to the Utility Disk program. Do not reproduce it without permission.

* For environmental protection!

Do not dispose of batteries in household waste. Follow the disposal instructions for your area.

To use the touch panel, the touch panel must be connected to a computer, and the touch panel driver and Pen Software must be installed on the computer from the supplied CD-ROM. System requirements for each software program are as follows.

Computer PC/AT compatible computer with a USB 1.1 port (must be able to supply a 500 mA (5.0 V) current) P and able to output a resolution of 1920 x 1080. (CD-ROM drive required for software installation.) os Windows XP (32-bit or 64-bit version), Windows Vista (32-bit or 64-bit version), Windows 7 (32-bit or 64-bit version) CPU Intel Celeron or AMD Sempron 1.6 GHz or faster Intel Core 2 Duo or AMD Athlon II X2 2.8 GHz or faster recommended Memory At least 2 GB (at least 1 GB for Windows XP) Free space on hard drive |At least 100 MB (free space separately required for data storage)

To connect the touch panel and install the touch panel driver, see the Touch Panel Driver Operation Manual.

To install the Pen Software, see the Pen Software Operation Manual.

When the PN-ZB01 (optional) is attached

1. Optional attachment section

This section is used to connect optional hardware for function expansion. Offering this attachment location is not a guarantee that future compatible hardware attachments will be released.

5. Expansion terminal cover Additional input/output terminals are available by attaching the PN-ZB01

+ Consult your SHARP dealer for attachment/detachment of

+ Do not open the expansion terminal cover by yourself.

There are high voltage parts inside the cover which may

cause an electric shock.

10. RS-232C output terminal (See page 12.)

12. Optional terminal This terminal is provided for possible future (optional) function expansion. Offering of this terminal is not a guarantee that future expanded functionality will be provided.

14. AC input terminal (See page 14.)

When the PN-ZB01 (optional) is attached

16. PC/AV DVI-D input terminal (See page 13.)

. PC/AV DVI-D output terminal (See page 13.) . LAN terminal (See page 13.)

. External speaker terminals (See page 13.)

Connecting Peripheral Equipment

When the PN-ZB01 (optional) is attached

+ Be sure to turn off the main power switch and disconnect the plug from the power outlet before connecting/ disconnecting cables. Also, read the manual of the equipment to be connected.

+ _Be careful not to confuse the input terminal with the output terminal when connecting cables. Accidentally reversing cables connected to the input and output terminals may cause malfunctions and the other problems.

When using the touch panel, connect the USB cable to the computer. For details, see the Touch Panel Driver Operation Manual.

Images may not be displayed properly depending on the computer (video card) to be connected.

A screen with 1920 x 1080 resolution may not be displayed correctly on PC RGB. In this case, check the settings of your computer (video card) to verify that input signals conform to specifications of this monitor. (See page 55.)

If there is a check box to disable EDID in display control panel, check it when using PC RGB.

Use the automatic screen adjustment when a PC screen is displayed for the first time using PC D-SUB or PC RGB, or when the setting of the PC is changed. The screen is adjusted automatically when SELF ADJUST in the OPTION menu is set to ON.

If the audio output from the playback device is connected directly to speakers or other devices, the video on the monitor may appear delayed from the audio portion.

Audio should be played through this monitor by connecting the playback device to the monitor's audio input, and connecting the monitor's audio output to the speakers or other devices.

+ _ The audio input terminals used in each input mode are factory-set as follows.

Audio input terminal (Factory setting)

Connection with a PC or AV equipment

1. PC/AV HDMI input terminal

+ Use a commercially available HDMI cable (conforming to the HDMI standard).

+ Set HDMI of INPUT SELECT on the OPTION menu according to the device to be connected.

+ Select the audio input terminal to be used in PC HDMI or AV HDMI of AUDIO SELECT on the OPTION menu. When HDMI is selected, connection to the audio input terminal is unnecessary.

2. PC D-sub input terminal Set D-SUB of INPUT SELECT on the OPTION menu according to the device to be connected.

+ Common terminal for AV COMPONENT and AV VIDEO.

+ When the PN-ZB01 (optional) is attached, select the audio input terminal to be used in PC D-SUB of AUDIO SELECT on the OPTION menu.

+ To use with AV VIDEO (D-SUB), connect the green terminal to the device's video output.

+ The output sound varies depending on the input mode.

+ The volume of the output sound can be fixed by setting AUDIO OUTPUT (RCA) on the OPTION menu.

+_Itis not possible to control the sound output from the audio output terminals with the AUDIO menu.

5. RS-232C input terminal RS-232C output terminal

+ You can control the monitor from a PC by connecting a commercially available RS-232 straight cable between these terminals and the PC.

6. USB port + _ To use the touch panel, connect the touch panel to your

computer with the provided USB cable. (Touch Panel Driver Operation Manual.)

Connection when the PN-ZB01 (optional) is attached

The PN-ZB01 expansion board (optional) allows the use of additional connection terminals.

7. PC/AV DVI-D input terminal

+ Set DVI of INPUT SELECT on the OPTION menu according to the device to be connected.

12. Audio input terminals / Audio? input terminals + Setthe audio input terminal to be used in each input mode in AUDIO SELECT on the OPTION menu. 13. LAN terminal

+ You can control the monitor from a PC on a network by connecting a commercially available LAN cable between this terminal and a network.

Connecting Peripheral Equipment

14. External speaker terminals To use external speakers, set SPEAKER SELECT on the SETUP menu to EXTERNAL. + _Be sure to use external speakers with an impedance of 6 Q or greater and a rated input of at least 7 W.

1 LA Approx 3-15/16 inch

1. Attach a speaker cable core (included with the PN-ZB01) to the end of the speaker cable connected to the monitor.

2. While pushing the tab, insert the tip of the cable.

+ _Be sure to connect the + and - terminals and the left and right speakers properly.

+ _Avoid short circuiting the + and - terminals.

+ When SPEAKER SELECT is set to EXTERNAL, the internal speakers are disabled.

15. PC/AV DVI-D output terminal + _ The video of the PC/AV DVI-D input can be output to an external device. + Outputting HDCP-encrypted video requires an external device which supports HDCP. +_ This terminal allows the daisy chain connection of up to 5 monitors.

+ _ The length of the signal cables or surrounding environment may affect the image quality.

+ _ The screen may not display properly when using terminals other than PC DVI-D/AV DVI-D for the input mode. In this case, turn off the power to all the monitors connected in a daisy chain and then turn the power on again.

+ When connecting monitors in a daisy chain set AUTO INPUT CHANGE to OFF.

+_ Video output is disabled in the following cases:

When the power is turned off When the monitor is in input signal waiting mode

Connecting the Power Cord

+ Use only the power cord supplied with the monitor.

1. Turn off the main power switch. 2. Plug the power cord (supplied) into the AC input terminal. 3. Plug the power cord (supplied) into the AC power outlet.

The cables connected to the terminals on the rear of the monitor can be fastened with the cable clamp.

Attach the cable clamp into the cable clamp attachment on the rear of the monitor and fasten the cables.

lee IQ y Cable clamp Cable clamp attachment

+ _ The removable handles and handle screws are for use with this monitor. Do not use them for any other devices. + To attach handies, be sure to use the handles and handle screws which were removed from the monitor. + Be sure the handles are attached securely.

Preparing the Remote Control Unit

Installing the batteries

Press the cover gently and slide it in the direction of the arrow.

. See the instructions in the compartment and put in the

supplied batteries (R-6 (‘AA" size) x 2) with their plus (+) and minus (-) sides oriented correctly.

TIPS When the batteries become exhausted, replace them with new (commercially available) batteries.

The supplied batteries (R-6 (“AA size) x 2) may become exhausted quickly depending on how they are stored.

If you will not be using the remote control for a long time, remove the batteries.

Use manganese or alkaline batteries only.

Remote control operation range

The operation range of the remote control unit is approx. 16.4 feet (5 m) at an angle of approx 10° from the center to the top/ bottom/right/left of the remote control sensor.

I I Remote control sensor

+ Do not expose the remote control unit to shock by dropping or stepping on it. This could lead to a malfunction.

+ _ Do not expose the remote control unit to liquids, and do not place it in an area with high humidity.

+ _ The remote control unit may not work properly if the remote control sensor is under direct sunlight or strong lighting.

+ Objects between the remote control unit and the remote control sensor may prevent proper operation.

+ Replace the batteries when they run low as this may shorten the remote control's operation range.

+ _lfa fluorescent light is illuminated near the remote control unit, it may interfere with proper operation.

+ Do not use it with the remote control of other equipment such as air conditioner, stereo components, etc.

Turning Power On/Off

+ Turn on the monitor first before turning on the PC or playback device.

Turning on the main power

+ The main power must be turned on/off with the main power switch. Do not connect/disconnect the power cord or turn the breaker on/off while the main power switch is on.

+ When switching the main power switch or the POWER button off and back on, always wait for at least 5 seconds.

+ For a complete electrical disconnection, pull out the main plug.

Turning power on/off Press the POWER button to turn the power ON/OFF.

Power LED Status Status of the monitor Green lit Power on Orange lit Power off (Standby mode)

Green flashing Input signal waiting mode

+ _ When switching the main power switch or the POWER button off and back on, always wait for at least 5 seconds. A short interval may result in a malfunction.

+ _ When the main power switch is off, the monitor cannot be turned on.

+ _Ifthe monitor is in the input signal standby mode and you

press the POWER button on the remote control unit, the

monitor enters standby mode.

Setting the SCHEDULE flashes the power LED alternately

in red and orange in standby mode.

To disable the logo screen from displaying when turning

the power ON, set LOGO SCREEN to OFF on the SETUP

menu. (See page 26.)

+_lfthe time has yet to be set when the monitor is first turned on, the date/time setting screen appears. Set the date and time.

DATEITIME SETTING QG E:0 EI OK--IMENU]

. Press À), C5, Cor to select the date and time, and press (À or C7 to change the numerical values.

2. Press (or to select SET and then press es. Be sure to set the date and time.

The date/time setting screen will close automatically if no operation is performed for about 15 seconds. The date and time can be set using DATE/TIME SETTING from the OPTION menu when the date/time setting screen disappears.

+ Set the date in “Month/Day/Year” order.

+ Set the time on a 12-hour basis.

The clock is maintained by the internal battery.

If you already set the time but the date/time setting screen appears when the power is turned on, the internal battery may be exhausted. Please contact your local SHARP servicing dealer or service center for assistance with battery replacement.

Estimated service life of the internal battery: About 5 years (depending on monitor operation)

The initial battery was inserted at the factory when the monitor was shipped, so it may run out of power before its expected operation life.

Turning Power On/Off

Disabling power on/off operations

Power on/power off operations can be disabled in order to protect the monitor from an accidental power off. Set the ADJUSTMENT LOCK in FUNCTION menu to “ON 2”. (See page 31.)

Touch Pen Preparations/Touch Action

Inserting the battery

1. Rotate the battery cap and remove it, and then pull out the cover.

2. Insert the supplied battery (LR-03 (*‘AAA" size)) in the orientation shown, and attach the cover and battery cap.

+ The supplied battery (LR-03 (*AAA' size)) may be exhausted in a short time, depending on how it was stored. If the touch pen will not be used for an extended time, remove the battery from the touch pen.

+ For the battery, use an alkaline battery.

Touch action and touch mode

Touch panel actions that can be used vary depending on the touch mode setting in the touch panel driver.

In Windows XP/Windows Vista, dual touch mode cannot be used.

Touch mode HER Single touch mode | Dual touch mode Single-tap Yes Yes Double-tap Yes Yes Drag-and-drop Yes Yes Flicks No Yes Press-and-hold No Yes Pan No Yes Zoom No Yes Press-and-tap No Yes Rotation No Yes Les

+ _ Settings for touch panel operation such as the touch mode and actions of the function buttons can be changed in the touch panel driver. For details, see the manual for the touch panel driver.

+_In Windows 7, if the checkmark has been removed from “Enable multi-touch gestures and inking” in “Pen and touch” in Control Panel, select the checkbox.

When the touch panel is touched with the pen, the input mode changes to pen mode. When touched with your finger, the input mode changes to handwriting mode. The input mode is set by default to change automatically (Standard mode).

+ For the procedures for using the touch pen in the Pen Software, see the Pen Software Operation Manual.

Common finger and pen actions

Single-tap Same action as left-clicking a mouse. Touch with your finger/pen.

Same action as double-clicking a mouse. Quickly touch twice with your finger/pen.

When double-tapping with your finger, be sure to lift your finger sufficiently off the screen after the first tap. If there is insufficient distance between the screen and your finger, double-tap will not take place.

Drag-and-drop Same action as drag-and-drop with a mouse.

Touch the screen with your finger/pen and move without lifting.

When you have finished the movement, lift your finger/pen.

Flicks*? Flick your finger/pen in the direction of the function you want

to use. Flick your finger ST

Press-and-hold*? Same action as right-clicking a mouse.

Press briefly with your finger/pen, and then lift your finger/pen

Touch Pen Preparations/Touch Action

Use in a screen with a scrollbar.

With your finger/pen touching the screen, move in the direction you want to scroll. The screen scrolls in the direction of the movement.

#1 In Windows XP/Windows Vista, the settings can be changed in the touch panel driver.

*2_ The settings can be changed in "Pen and touch" of Control Panel in Windows 7. For details, see Windows Help.

Use in a screen that is capable of enlargement/reduction. Touch the screen with two fingers and move your fingers closer together to reduce the view, or apart to enlarge the view.

Touch Pen Preparations/Touch Action

Same action as right-clicking a mouse. With one finger touching the screen, tap once (single tap) with another finger.

Tap once (single tap) with another finger

With one finger touching

Use this action in a screen that is capable of image rotation. Touch the center point of the rotation with one finger. While holding that finger still, move another finger in the desired direction of rotation.

Move another finger in the desired direction of rotation With one finger L

[res + The screen may not respond correctly in the following cases: Touching is too quick The distance between the two points is too short The two points intersect + Operation with the touch pen is not possible.

Pressing Function Button 1 has the same action as right- clicking a mouse.

The battery indicator illuminates.

In the Pen Software, pressing Function Button 2 has the action that is set in the Pen Software. The battery indicator illuminates.

Les + Use Function Button 1 and Function Button 2 near the front of the screen. |f too far away, operation will not be possible.

+ Press Function Button 1 and Function Button 2 slowly and firmly. If pressed too quickly, the action will not be recognized.

+_lfthe pen tip becomes worn or damaged, replace it. Pull out the old pen tip and insert a new pen tip.

In Windows 7, touch pointer and input panel functions can be used. For information on these functions, see Windows Help. Touch pointer : Atranslucent image of a mouse appears near the point touched. The left/right buttons of the image can be clicked to perform the same actions as left/right clicking a mouse. Input panel : A software keyboard and an input panel with handwriting recognition appear on the screen.

In Windows 7 (excluding Starter), the ink function of Microsoft Office can be used.

Handwritten comments can be written, and handwriting can be recognized.

For details, see Microsoft Office Help.

Do not use the touch pen for any purpose other than touch panel operation.

Do not press hard on the pen tip.

Do not cover the ultrasonic transmitter of the touch pen with your hand or finger.

Operation will not take place correctly if there is an obstacle between the sensor and the touch pen or your finger. Operation will not take place correctly if your fingers or your sleeve is near the screen.

If the touch pen is held too flat against the screen, the touch position may not be correctly detected.

Do not store with the pen tip of the touch pen or function button pressed. The battery will be exhausted.

Do not use near a device that emits ultrasonic waves. The touch pen uses ultrasonic waves and may not operate correctly. If two touch panels are used in close proximity to each other, use handwriting mode. The touch pens will interfere with each other and will not operate correctly.

If there is dirt or foreign matter on the tip of the touch pen, remove it. Foreign matter may damage the screen. Applications such as a screensaver or media player may cause the resolution to automatically change. If "Resolution Change Notice" is enabled in the touch panel driver, a resolution change message will appear. In this case, disable "Resolution Change Notice", or change the setting in the application so that it does not change the resolution. If there is lighting nearby, and especially if light shines on the sensor or reflective surface, operation may not take place correctly. In that case, move the display or lighting further away, or adjust the angle.

The eraser is used with the Pen Software. For the procedure for using the eraser, refer to the Pen Software Operation Manual.

+ _ When using the eraser, gently bring the cloth side into contact with the screen. Touching the screen with one of the non-cloth sides will damage the screen.

+ _lfthere is any dirt or foreign matter on the surface that contacts the screen, remove it. Foreign matter may damage the screen.

The menu is displayed. Press d or es] to select the input

mode, and press ee) to enter.

*_ You can select the input terminal by pressing the input switch of the monitor.

AV COMPONENT | PC D-sub input terminal"!

When the PN-ZB01 (optional) is attached

AV VIDEO . PC D-sub input terminal

Select the terminal to be used in D-SUB of INPUT SELECT. (See page 26.)

*2 Select the terminal to be used in HDMI of INPUT SELECT. (See page 26.)

Select the terminal for AUDIO SELECT which is used for audio input. (See page 26.)

*4 Select the terminal to be used in DVI of INPUT SELECT. (See page 26.)

Select the terminal to be used in BNC of INPUT SELECT. (See page 26.)

2. MUTE Turns off the volume temporarily.

Press the MUTE button again to turn the sound back to the previous level.

3. MENU Displays and turns off the menu screen. (see page 23.)

4. VOL +/- (Volume adjustment)

Pressing ==) or es) displays the VOLUME menu when the menu screen is not displayed.

Press (À) or (7 to adjust the volume of the sound. *_ If you do not press any buttons for about 4 seconds, the VOLUME menu automatically disappears.

5. BRIGHT #/- (Backlight adjustment) Pressing © or (_2 displays the BRIGHT menu when the

menu screen is not displayed.

Press =) or ee to adjust the brightness. *_If you do not press any buttons for about 4 seconds, the BRIGHT menu automatically disappears.

6. SIZE (Screen size selection) The menu is displayed. Press (2 or C_ to select the screen size. (See page 22.)

7. DISPLAY Displays monitor information. When you press this button

again, the display disappears.

When the PN-ZB01 (optional) is attached, the display changes

from INFORMATION — INFORMATION? > clear display,

and so on every time you press this button.

+ _ The display disappears automatically after about 15 seconds.

is displayed during LAN communication.

is displayed in red, there is a duplicate IP address.

8. MODE (Color mode selection) Each time you press this button, the color mode changes in the following order:

STD (Standard) — VIVID — sRGB — STD...

+ _SRGB applies to PC input only. SRGB is international standard of color representation specified by IEC (International Electrotechnical Commission). Color conversion is made in taking account of liquid crystal's characteristics and represents color tone close to its original image.

aSwitching the screen size Even when the screen size is changed, the display may remain the same depending on the input signal.

WIDE © © PC input Displays image so it fills the entire screen. CO AV input An image with a 4:3 aspect ratio is stretched to fill the entire (e] (e] screen. ZOOM 1 PC input An image with a 4:3 aspect ratio is enlarged to fill the entire screen without changing the aspect ratio. The edges of the image may be - cut off. AV input ZOOM 2 PC input Use this size if ZOOM 1 cuts off the subtitles. O AV input Q O NORMAL Oo o PC input Displays image so it fills the screen without changing the aspect ratio of the input signals. O AV input Displays the entire image of the aspect ratio of 4:3 without O O changing the aspect ratio. Dot by Dot PC input Displays the dots of the signals input from the connected PC as © © the corresponding dots on the screen. o O o AV input Displays the dots of the input signals as the corresponding dots on the screen. [res

+ Using this monitor's screen-size switching or dual-screen display functions to compress or expand the screen for commercial or public viewing in establishments like cafes or hotels may infringe on the rights of the creators, as protected by Copyright Law, so please be careful.

+ _ When dual-screen display is selected, the screen size cannot be changed.

+ The appearance of the original video may change if you select a screen size with a different aspect ratio than the original image (e.g. TV broadcast or video input from external equipment).

+ _ When an ordinary non-wide image (4:3) is viewed with the whole screen using the screen-size switching function of this monitor, the edge of the image may be lost or appear distorted. lf you wish to respect the creator's intentions, set the screen size to “NORMAL”.

+ _ When playing commercial software, parts of the image (like subtitles) may be cropped. In this case select the optimal screen size using the screen-size switching function of this monitor. With some software, there may be noise or distortion at the edges of the screen. This is due to the characteristics of the software, and is not a malfunction.

+ Depending on the original image size, black bands may remain at the edges of the screen.

Displaying the menu screen

Video and audio adjustment and settings of various functions are enabled. This section describes how to use the menu items. See pages 24 to 27 for details of each menu items.

+ Do not turn the main power switch off while the menu items are being displayed. Doing so may initialize the settings.

mExample of operation (Adjusting CONTRAST in the PICTURE menu) 1. Press es to display the menu screen.

BLACK LEVEL TINT COLoRs

For items that have D , press e, make settings and then press (5.

+ _ The menu screen will close automatically if no operation is performed for about 15 seconds. (DATE/TIME SETTING, SCHEDULE and LAN SETUP screens will close in about 4 minutes.)

3 An item being selected (highlighted)

4 Screen resolution of input signal, and other data.

+ _ Items that cannot be selected appear in gray. (e.g. Function not supported by the current input signal)

The displayed menu items vary depending on whether or not the PN-ZB01 (optional) is attached.

The following menus will be displayed only when the PN-ZB01 (optional) is attached.

Menu Item SETUP |HOT PLUG CONTROL [pui RS-232C/LAN SELECT LAN SETUP AUTO ASSIGN FIXED IP ADDR.

SPEAKER SELECT OPTION |INPUT SELECT DVI BNC AUDIO SELECT PC DVI-D PC D-SUB PC RGB AV DVI-D AV COMPONENT (BNC)

AV COMPONENT (D-SUB)

AV S-VIDEO AV VIDEO (BNC)

PIP/PbyP | PIP SOURCE

AUTO (PC D-SUB/PC RGB)

The CLOCK, PHASE, H-POS, and V-POS are automatically adjusted.

Pressing C_ performs adjustment.

Use this automatic adjustment when you use the PC D-sub input terminal or PC RGB input terminals to display a PC screen for the first time or when you change the setting of the PC. (See page 30.)

CLOCK (PC D-SUB/PC RGB) Adjusts frequency for sampling clock for applicable video. Adjust when there is flickering in the form of vertical stripes.

When using the adjustment pattern (see page 30), make adjustments so that no vertical stripe noise appears in it.

PHASE (PC D-SUB/PC RGB)

Adjusts sampling clock phase for applicable video.

Useful when small characters appear with low contrast and/

or there are flickers at corners.

When using the adjustment pattern (see page 30), make

adjustments so that no horizontal stripe noise appears in it.

*_Adjustments to PHASE should be made only after CLOCK has been correctly set.

H-POS Adjust the horizontal position of the image.

BPICTURE You can move the menu screen display position each time DISPLAY CS is pressed.

AUTO (PC D-SUB/PC RGB)

The ANALOG GAIN and ANALOG OFFSET are automatically adjusted.

Pressing (_ performs adjustment.

ANALOG GAIN (PC D-SUB/PC RGB) Adjusts the bright portions of the video input signal.

ANALOG OFFSET (PC D-SUB/PC RGB) Adjusts the dark portions of the video input signal.

BRIGHT Adjusts the backlight brightness. (In PIP mode, the main side setting is reflected in the image.)

CONTRAST Adjusts the difference between the bright and dark portions of the image.

BLACK LEVEL Adjusts the entire brightness of the video signals.

TINT Adjusts the hue. Selecting + changes the color towards green, and selecting - changes it towards magenta.

COLORS Adjusts the color intensity.

SHARPNESS Adjusts the sharpness of the image.

V-POS Adjust the vertical position of the image.

H-SIZE Adjust the horizontal size of the image.

V-SIZE Adjust the vertical size of the image.

H-RESOLUTION (PC D-SUB/PC RGB)

Sets proper horizontal resolution when the resolution of input signals is not recognized properly. (Adjustment may be impossible with some signals.)

RGB INPUT RANGE (PC DVI-D/PC HDMI/PC D-SUB/PC RGB/AV DVI-D/AV HDMI)

Sets the RGB input signal range. When using HDMI set to AUTO, the RGB input signal is detected automatically. Use AUTO normally.

If the RGB input signal range cannot be set appropriately even when using AUTO, set according to the image. When the setting is different, images will be displayed with washed out blacks and compressed gradients.

ADVANCED (AV input) You can adjust more specifically. (See page 30.)

V-RESOLUTION (PC D-SUB/PC RGB)

Sets proper vertical resolution when the resolution of input signals is not recognized properly. (Adjustment may be impossible with some signals.)

RESET Resets the values of the SCREEN menu items to the factory

preset values. MENU Select “ON” and then press (=).

COLOR MODE Changes the color mode on the screen. The color mode on the screen can also be changed using a remote control unit. (See page 21.)

*_sRGBis PC input only. See page 21 for details.

(In PIP mode, the main side setting is reflected in the image.)

WHITE BALANCE THRU.... .… Displays the input signal level as is. (for PC DVI-D/PC HDMI only)

PRESET Selects the color temperature using PRESET.

USER... Used for adjusting R-/G-/B-CONTRAST and

R-/G-/B-OFFSET respectively. (In PIP mode, the main side setting is reflected in the image.)

PRESET Selects the color temperature when the WHITE BALANCE is set to PRESET.

The setting values are shown for reference. The color temperature of the screen varies over time.

This function is not intended to keep the color temperature constant.

USER Adjusts each item when the WHITE BALANCE is set to USER.

R-CONTRAST ….Adjusts bright-toned red component. G-CONTRAST...Adjusts bright-toned green component. B-CONTRAST ….Adjusts bright-toned blue component. R-OFFSET. .Adjusts dark-toned red component.

.Adjusts dark-toned green component. .Adjusts dark-toned blue component.

HSETUP OSD H-POSITION Adjusts the horizontal display position of menu screen.

OSD V-POSITION Adjusts the vertical display position of menu screen.

COPY TO USER Copies the value of white set for PRESET to the USER setting.

Select “ON and then press (=.

(In the case other than white, color tone may differ from the PRESET.)

GAMMA Selects the gamma. USER sets the gamma to the sent value (see page 35). (In PIP mode, the main side setting is reflected in the image.)

DISPLAY COLOR PATTERN Displays a color pattern. Can be displayed while the menu screen is displayed, so you can refer to the pattern while adjusting the image.

.No pattern display.

-White single color pattern display.

.Red single color pattern display.

.Green single color pattern display.

.Blue single color pattern display. .Red/green/blue mixed color pattern display. When USER is selected, set each color's

SCREEN MOTION Residual images are reduced by moving the screen.

PATTERN1 .The whole screen moves vertically and horizontally. PATTERN? A black screen spreads from the bottom of

the screen and then shrinks to the bottom of the screen.

PATTERNS A black bar moves from the left end to the right end of the screen. PATTERNA Black screens appear from both the

top and bottom of the screen, and the displayed image is compressed into the

central field. PATTERN1 PATTERN2 1 l <e PATTERN3 PATTERN4 mp

HAUDIO MOTION TIME 2

Specify a time period during which SCREEN MOTION operates (time period during which the screen will move).

TREBLE Adjusts the volume of treble-level sound.

MONAURAL AUDIO Outputs audio signals as monaural.

BASS Adjusts the volume of bass-level sound.

LANGUAGE Sets the display language for the menu screen.

BALANCE Adjusts the balance of the audio sound between right and left.

RESET Resets the values of the AUDIO menu items to the factory preset values. Select “ON” and then press (**.

POWER ON DELAY You can delay the screen display after the monitor is turned on. The period can be set up to 60 seconds in units of one second. When this function is activated, the power LED flashes (at approx. 1 second interval) in orange. This function is disabled when 0 is specified.

STANDBY MODE When STANDARD is selected, startup time from standby mode is reduced. Note, however that, more power will be consumed in standby mode.

When LOW POWER is selected, current consumption

is reduced while the monitor is in standby mode. Note, however, that the startup time from standby mode becomes longer.

If set to LOW POWER, certain RS-232C commands cannot be used in standby mode, and control via LAN will be disabled.

OFF IF NO OPERATION Determines whether or not to set the monitor to go into standby mode when there is no operation from the remote control unit, RS-232C commands, or LAN for over 4 hours.

HOT PLUG CONTROL Sets whether to use hot plug control for the PC/AV HDMI and PC/AV DVI-D input terminals.

ROPTION RS-232C/LAN SELECT Selects the method with which to control the monitor from the computer.

ID No. SET Assigns ID numbers to monitors connected in a daisy chain (see page 33), using the RS-232 cables.

The numbers 1 to 255 are available for ID numbers.

If “0” is set, the system regards this as the state where no ID number is set.

DATE/TIME SETTING Set the date and time. Press =) or | to select the date and time, and press =) or to change the numerical values.

Set the date in “Month/Day/Year” order.

Set the time on a 12-hour basis. (Factory default)

ID No. to be used will be automatically assigned when multiple monitors are connected with RS-232C.

Select ON, then press (=.

Perform operations using the first monitor in the daisy chain.

BAUD RATE Selects the communication speed used for RS-232C communication.

LAN SETUP Configures the settings to control the monitor from the computer via LAN. (See page 43.)

AUTO ASSIGN FIXED IP ADDR.

Can be enabled when RS-232C/LAN SELECT is LAN and the DHCP CLIENT is OFF.

Set DHCP CLIENT to OFF for the monitor connected to the RS-232C output terminal and the daisy chain of connected monitors that follows. Fixed IP addresses are automatically allocated.

If the IP address is a duplicate with a network device other than a monitor, individually change the IP address.

SPEAKER SELECT Selects the speaker to be used.

HDMI AUTO VIEW When ON is selected, the screen size is adjusted automatically according to the screen size control signal included in the video signal input from the AV HDMI input terminal.

COPY SETTING VALUE When the monitor has been connected to multiple monitors

by RS-232C, the settings in the monitor can be copied to the

monitor connected to the RS-232C output terminal and to

the daisy chain of connected monitors that follows.

Selects the settings to copy with COPY SETTING VALUE TARGET.

“PICTURE" ONLY... Copies the PICTURE menu settings.*

ALL... Copies all the settings.*

Select the ID No. of the monitor that you would like copy to

with COPY TO ID No. then select COPY and press (5.

If you select ALL, settings will be copied to all monitors.

When you would like to confirm the ID No. that is set to the

monitor, select ID No. DISPLAY and press o. The ID No.

Will be displayed on the screen.

* Certain setting details such as ANALOG GAIN, ANALOG OFFSET, and DISPLAY COLOR PATTERN cannot be copied.

(YYYY: Year, MM: Month, DD: Day) Select 12- or 24-hour time.

SCHEDULE (See page 29.)

You can turn the power on/off and change the screen brightness at a specified time.

INPUT SELECT Select the input mode to be used in PC D-Sub input terminal, PC/AV DVI-D input terminal, PC/AV HDMI input terminal and PC RGB/AV component input terminals.

For D-SUB, select SET after selecting the input mode, and then press -

D-SUB and BNC cannot be set to AV COMPONENT at the same time.

If D-SUB is set to AV VIDEO, the AV VIDEO input terminal cannot be used for BNC.

AUDIO SELECT Selects the terminal used to input audio signals in each input mode.

INPUT SIGNAL (PC D-SUB/PC RGB)

If a computer connected to the PC D-sub/PC RGB input terminal outputs any of the following resolutions, make a selection from the following options.

is 1080i/p. Otherwise, over-scan display * Even when MODE is selected, under-scan display is used when the input signal is 1080i/p and the screen size is Dot by Dot.

POWER MANAGEMENT POWER MANAGEMENT determines whether or not to switch modes from no signal to the input signal standby mode.

COLOR SYSTEM (AV S-VIDEO/AV VIDEO)

Select the color system of the AV equipment which is connected to AV S-video and AV video input terminal. (AUTO 1 PAL / PAL-60 / SECAM / NTSC3.58 / NTSC4.43)

When AUTO is selected, the color system is automatically set according to the input signal.

Sets the volume of sound output from the audio output terminals.

When set to VARIABLE 2, sound will not be output from the built-in speaker or the external speaker terminal. VARIABLE . VARIABLE2. FIXED -Fixes the sounds.

. You can adjust the volume using VOLUME. . You can adjust the volume using VOLUME.

mPIP/PbyP PIP MODES Sets the display method.

Displays one screen.

Displays a sub screen inside a main screen. Displays a main screen and a sub screen in a line. Displays a main screen which measures 1280 pixels in the longest direction and a sub screen in a line.

Selects the maximum audio input level of the audio input PIP SIZE terminal. Sets the size of the sub screen in PIP mode.

SELF ADJUST PIP H-POS On a PC D-SUB/PC RGB screen, specify whether to perform screen adjustment automatically or not. When ON is selected, the screen is automatically adjusted when its resolution is 800 x 600 or higher and the timing of input signals changes. “ADJUSTING" appears on the screen during the adjustment. For images with black edges, etc., depending on the signal, adjustment may not be possible. In this case select OFF. (Perform manual adjustment of the screen.)

AUTO INPUT CHANGE Specify whether to change inputs automatically. When ON is selected and no signal is present in the selected input mode, AUTO INPUT CHANGE automatically changes the selected mode to another mode where a video signal is present. When video signals exist in multiple input modes, the switching priority is as follows:

PC D-SUB, PC HDMI, AV HDMI, AV COMPONENT and AV VIDEO When the PN-ZB01 (optional) is attached:

PC DVI-D, PC HDMI, PC D-SUB, PC RGB, AV DVI-D, AV HDMI, AV COMPONENT, AV S-VIDEO and AV VIDEO (Input mode switching may take 15 seconds or more, depending on the connected equipment. Input signals may not be detected properly and a priority may change, depending on the connected equipment or video signals.)

TOUCH PANEL MODE (PC input)

When the resolution is 1920 x 1080, setting this to ON improves touch panel tracking.

When two screens are displayed, or when V-POS or V-SIZE is adjusted on the SCREEN menu, the screen may become distorted. In this event, set to OFF.

Adjusts the horizontal position of the sub screen in PIP mode. PIP V-POS Adjusts the vertical position of the sub screen in PIP mode.

PIP BLEND In PIP mode, use this menu item to display the sub screen transparently.

PIP SOURCE Selects the input signal of the sub screen in PIP, PbyP, or PbyP2 mode.

SOUND CHANGE Sets the sound which is output in PIP, PbyP, or PbyP2 mode. If the main screen is displayed as a full screen by the AUTO OFF function, the sound for the main screen is output even when the sound for the sub screen is specified.

MAIN POS Sets the position of the main screen in PbyP or PbyP2 mode.

PbyP2 POS Sets the position of the sub screen in PbyP2 mode.

AUTO OFF Sets the display method when no signals for the sub screen are input in PIP, PbyP, or PbyP2 mode.

Displays a main screen and a black sub screen. Displays the main screen as a full screen.

+ When WHITE BALANCE is set to THRU, BLACK LEVEL, CONTRAST, TINT, COLORS, RGB INPUT RANGE, GAMMA and COPY TO USER cannot be set.

If COLOR MODE is set to SRGB, the following items cannot be set.

WHITE BALANCE, PRESET, USER, COPY TO USER, and

GAMMA When the COLOR MODE is set to VIVID, GAMMA can not be adjusted.

STANDBY MODE cannot be set to LOW POWER when SCHEDULE is effective or when OFF is selected for LED in FUNCTION.

When displaying the color pattern, it is possible to adjust certain items of the PICTURE menu.

Non-adjustable items cannot be selected.

Audio input from the HDMI input terminal is also not output.

&Dual screen display

You can display the screens of the PC input signal and AV input signal simultaneously. Set this function with “PIP MODES" in the PIP/PbyP menu.

PIP A sub screen is displayed Main screen inside a main screen.

#ZOOM2 SPECIAL SETTING If you connect a laptop computer with any of the following screen resolutions and black bands appear around the screen, set ZOOM2 SPECIAL SETTING of INPUT SIGNAL on the OPTION menu to ON and then select ZOOM2 in the SIZE setting.

This displays the area inside the black band.

which measures 1280 pixels in the longest direction and a sub screen in a line.

The currently selected input signal is displayed on the main screen.

You cannot simultaneously display the screens of signals of the same type, such as two types of PC input signals or two types of AV input signals.

The dual screen display cannot be used with the combination of PC DVI-D and AV HDMI or of AV DVI-D and PC HDMI.

TIPS You might infringe on a copyright of the author which is protected by copyright law when you display the images of the computer screen and television/VCR simultaneously for profit-making or to show the image to the public.

The screen size for dual-screen display is the same as

the screen size for single-screen display. The Dot by Dot screen is displayed in NORMAL size except when it is set as the PIP main screen.

When dual-screen display is selected, the SCREEN MOTION function is disabled.

When dual-screen display is selected, the AUTO INPUT CHANGE function is disabled.

When dual-screen display is selected, the INPUT SELECT options cannot be set.

When an interlaced signal (1080i, 480i, video, S-Video) is input to the sub screen, horizontal lines may flicker. If this happens, display the image on the main screen.

Den Laptop computer | Corresponding signal“! resolution PbyP A main screen and a sub 1280x800 1280x1024, 1280x960, 1400x1050*2 screen are displayed in a 1280x600 1280x720 1024x600 1024x768 PbyP2 Displays a main screen “1: This setting is effective only when the screen resolution,

including the black band, is one of the resolutions listed above. “2: Use the automatic screen adjustment.

HSCHEDULE You can set the time to switch the monitor on and off. Set this function with “SCHEDULE” in the OPTION menu. (See page 26.)

2. Set the SCHEDULE. (See the description below.) Press =) or ee) to select items, and press dS or es) to

change the setting. MENU

3. Press (7). SCHEDULE becomes effective.

(1) e: SCHEDULE effective —: SCHEDULE not effective (2) POWER ON : Switches the monitor on at the specified time. OFF : Switches the monitor off at the specified time and puts the monitor in standby mode.

(3) DAY OF THE WEEK Specifies the day of the week to execute the SCHEDULE. O:ONLY ONCE Executes the SCHEDULE once on the specified day. Specify the day of the week to execute the SCHEDULE. ‘EVERY WEEK Executes the SCHEDULE on the specified day of the week every week. Specify the day of the week to execute the SCHEDULE. Periodic setting such as “Monday through Friday” is also possible.

2:EVERY DAY Executes the SCHEDULE every day regardiess of the day

of the week. @) TIME Specifies the time to execute the SCHEDULE. Set the time on a 12-hour basis. (Factory default) Can be entered as 24-hour time using the TIME setting in DATE/TIME FORMAT. (5) INPUT Specifies the input mode at power-on. |f you don't specify this the input active at the last power-off will appear. Input modes displayed on DVI, HDMI, BNC and D-SUB will depend upon the INPUT SELECT settings.

(6) BRIGHT Sets the brightness when changing the screen brightness at a specified time.

+ Do not switch off the main power after setting the SCHEDULE.

+ Specify the correct date and time. (See page 26.) SCHEDULE does not function unless the date and time are specified.

+ _ Check regularly that the set date and time are correct.

+ When STANDBY MODE is LOW POWER, SCHEDULE cannot be set.

+ When a temperature abnormality occurs and the backlight brightness is reduced, the brightness is not changed even if a schedule set to BRIGHT is executed.

+ Up to 8 SCHEDULE items can be registered.

Setting the SCHEDULE flashes the power LED alternately

in red and orange in standby mode.

+ A SCHEDULE that has a large number has precedence over that of a small number when schedules overlap.

+ If D-SUB of INPUT SELECT on the OPTION menu is set to AV VIDEO, the input mode will switch to AV VIDEO (D-SUB) regardiess if set to D-SUB or VIDEO.

BADVANCED items (AV input) (See page 24 for additional Menu item details.)

FLESH TONE Adjust the hue control.

3D-NR Reduce the noise of playback images on video.

Setting a higher level reduces more noise. However, it may cause blurring on an image.

MPEG-NR Reduce block noise caused by digital compression.

Specify whether to perform 3-dimension Y/C separation.

If dot interference or cross-color is occurring in fast-motion scenes, selecting “OFF” may improve the image quality.

C.M.S.-HHUE Adjusts color tone with 6 colors of R (red), Y (yellow), G (green), C (cyan), B (blue), and M (magenta).

C.M.S.-SATURATION Adjusts color vividness with 6 colors of R (red), Y (yellow), G (green), C (cyan), B (blue), and M (magenta).

C.M.S.-VALUE Adjusts color brightness with 6 colors ofR (red), Y (yellow), G (green), C (cyan), B (blue), and M (magenta).

+ When FLESH TONE is set to LOW or HIGH, C.M.S.-HUE/ -SATURATION/-VALUE cannot be set.

Adjustments for PC screen display

mAutomatic adjustment

When you use the PC D-sub input terminal or PC RGB input

terminals to display a PC screen for the first time, or when

you change the setting of the PC, use the automatic screen

1. Switch the input to PC D-SUB or to PC RGB and display the adjustment pattern. (See the description below.)

2. Press (#4 and use (À or ("to display the SCREEN menu.

3. Press (= and select “AUTO”. 4. Press (=.

The automatic adjustment is complete in several seconds.

5. Press {“ twice to close the menu screen.

+ _lfthe screen cannot be adjusted properly with one automatic adjustment, repeat the automatic adjustment two or three times. Try manual adjustment if necessary.

&Screen display for adjustment

Before making adjustments in the SCREEN menu or PICTURE menu, display an image to brighten the entire screen. [f you are using a Windows PC, use the adjustment pattern on the supplied CD-ROM.

Opening the adjustment pattern

The following example is performed in Windows 7.

1. Load the supplied CD-ROM into the computer’s CD- ROM drive.

2. Open [CD Drive] in [Computer]. In Windows XP, open [CD Drive] in [My Computer].

3. Double-click [Adj_uty.exe] in the [Monitor] folder. The adjustment pattern will appear. Adjust the screen automatically or manually.

4. When adjustment is finished, press the [Esc] on the computer’s keyboard to quit the adjustment program. 5. Eject the CD-ROM from the CD-ROM drive.

+ _lfthe display mode on the computer you are using is 65,000 colors, the color levels in the color pattern may appear differently or grayscale may appear to be colored. (This is due to the specifications of the input signal and is not a malfunction.)

Initialization (Reset)/Functional Restriction Setting (FUNCTION)

You can return the settings to their factory-preset values and

restrict operations.

1. Hold Ê5 down until “F” appears in the upper left corner of the screen.

2. While “F” appears, press (À), , C2, Coin that order.

FUNCTION CA ALLRESET ADJUSTMENT LOCK RS-232C OSD DISPLAY LED TEMPERATUREALERT STATUSALERT POWER BUTTON UNLOCKED

MONITOR END...[MENU]

3. Select and set the items.

ALL RESET Resets the settings to the factory default settings.

Press =) , select ALL RESET, and then press es.

After initialization, turn the main power switch off and

When the PN-ZB01 (optional) is attached, press a.

select the resetting method, and then press es.

ALL RESET1 ….Resets all the settings to the factory default settings.

ALL RESET2 Returns all settings to the factory default settings except for the following items: LAN SETUP, RS-232C/LAN SELECT, ID No. SET, BAUD RATE, NETWORK, MAIL, SERVICE & SUPPORT, and SNMP (See page 26, and pages 47 to 50.)

ADJUSTMENT LOCK You can disable operations on the monitor and the

remote control unit that use buttons.

OFF .….Enables operation.

ON 1 ..Disables all operations other than turning power onoff and FUNCTION.

ON 2... Only the FUNCTION operation is enabled. Disables all operations other than FUNCTION (not even power on/off).

ADJUSTMENT LOCK TARGET Sets the target to prohibit operation of with

REMOTE CONTROL... Prohibits remote control operation

MONITOR BUTTONS … Prohibits monitor button operation

BOTH... .… Prohibits remote control and

monitor button operation

(RS-232C/LAN when the PN-ZB01 (optional) is attached)

Specifies whether to allow control via RS-232C or LAN (see pages 32 and 43).

OSD DISPLAY Shows/hides the menu, modes, and messages.

The FUNCTION screen cannot be hidden.

ON 1... Shows all menus, modes and messages. .. Hides messages automatically displayed by the display. Shows messages during operation.

.… Hides all menus, modes and messages.

Specifies whether to light the power LED.

OFF cannot be selected when STANDBY MODE is LOW POWER.

TEMPERATURE ALERT Selects the notification method for an abnormal

OFF .… Do not notify about an abnormal temperature.

OSD & LED .. When an abnormal temperature is

detected, the power LED flashes in red

and green alternately and the screen

displays a message: TEMPÉRATURE.

When an abnormal temperature is

detected, the power LED flashes in red

and green alternately.

STATUS ALERT Selects the notification method for a hardware error. Do not notify about the error.

OSD & LED .. When a hardware error is detected, the power LED flashes in red and the screen displays a message: STATUS xxx]. When a hardware error is detected, the power LED flashes in red.

POWER BUTTON Normally, leave this setting as MONITOR.

When using an optional part, if instruction appears, change the setting accordingly.

CONTROLLER INPUT Normally, you do not need to change this setting. When using an optional part, if instruction appears, change the setting accordingly.

+ When both abnormal temperature and hardware error are detected, the hardware error notification overrides.

+ _IfTEMPERATURE ALERT or STATUS ALERT is set to OSD&LED, alert messages will appear even if the OSD DISPLAY is set to ON 2 or OFF.

+ _IfTEMPERATURE ALERT or STATUS ALERT is set to LED or OSD & LED, the LED lights even if the LED function is set to OFF.

Controlling the Monitor with a PC (RS-232C)

You can control this monitor from a PC via RS-232C (COM port) on the PC.

You can also connect multiple monitors via a daisy chain by using a PC. By assigning ID numbers to each monitor (see page 33), you can make input mode selection/adjustment or can check the status of a specific monitor.

Precautions when the PN-ZB01 (optional) is attached

+ To control the monitor via RS-232C, set RS-232C/LAN SELECT to RS-232C.

+ You cannot use RS-232C and LAN control simultaneously.

HOne-to-one connection with a PC Connect with RS-232 straight cable between the PC's COM port (RS-232C connector) and the RS-232C input terminal on the monitor.

2 — RS-232C input terminal

Communication conditions

Set the RS-232C communication settings on the PC to match the monitor's communication settings as follows:

Baud rate * Stop bit 1 bit Data length | 8 bits Flow control | None Parity bit None

* Set to the same baud rate as the BAUD RATE setting of SETUP menu. (Initial setting: 38400 bps)

* When connecting multiple monitors in a daisy chain, set all monitors to the same BAUD RATE.

Communication procedure

HCommand format When a command is sent from the PC to the monitor, the monitor operates according to the received command and sends a response message to the PC.

[er [cz [cs Jca]Pp1]P2]P3/[P4/l ji]

Parameter field {4 character string comprised of: 0-9, +, -, space, ?)

Command field {4 prescribed alphanumerical characters)

Example: VOLMO030 VOLM,,,,30

PC To COM port C] {| (|| eme ; RS-232 straïght cable ns)

(commercially available)

HDaisy chain connection.…..[Advanced operation

Connect with RS-232 straight cable between the PC's COM port (RS-232C connector) and the RS-232C input terminal on the first monitor.

Next, connect RS-232 straight cable to the first monitor's RS-232C output terminal and to the second monitor's RS-232C input terminal. Connect in the same way to the third and subsequent monitors.

Up to 25 monitors can be connected. (Depending on the length of the cable used and the surrounding environment.)

First monitor Second monitor

* Be sure to input 4 characters for the parameter. Pad with spaces (“_,”) if necessary. (‘His a return code (0DH, OAH or ODH)) Wrong : VOLM30[1 Right :VOLM,,,, 30[]

DS JD If a command has “R" listed for DIRECTION" in the “RS-232C command table” on page 36, the current value can be returned by using “?” as the parameter.

RS-232C output terminal

5 (1 Ô 2) RS-232C # input terminal B) el)

DR == RS-232 straight cables (commercially available)

Example: From PC to monitor (How much 222? VOLM, 222,7 is current volume setting?). 30 From monitor to PC (Current

volume setting: 30).

*_Ifan ID number (see page 33) has been assigned (For example, ID number = 1).

VOLM 7? 30, ,001 «From monitor to PC.

+ From PC to monitor.

BResponse code format When a command has been executed correctly Lo TK T1 EE etum code (ODH, OAH) A response is returned after a command is executed.

*_Ifan ID number has been assigned

Space (20H) (ODH, OAH)

C[olkHfsrclolol1]A1 — — ID number of responding monitor

When a command has not been executed

CE TR TR T3 5 Retum code

If an ID number has been assigned

+_“ERR'is returned when there is no relevant command or when the command cannot be used in the current state of the monitor.

If communication has not been established for reasons such as a bad connection between the PC and monitor, nothing is returned (not even ERR).

“ERR" may be returned when a command cannot be received correctly due to interference from the surrounding environment.

Please ensure that the system or software retries the command if this occurs.

If no monitor has been assigned the designated ID number (e.g. if the command IDSLO002 [I is used, but no monitor With ID number: 2 is found), no response is returned.

If execution of the command is taking some time

Return code (ODH, OAH)

When the following commands are used, “WAIT” is returned. In this case, a value will be returned if you wait a while. Do not send any command during this period. No ID number is attached to WAIT response. + Commands which return WAIT: 1... When repeater control is used 2. When an IDSL or IDLK command is used 3. When one of the following commandés is used: RSET, INPS, ASNC, WIDE, PXSL, POWR, AGIN, MWIN,

MWIP, MWPP When control via RS-232C is locked (to prevent use) using the operation lock function (see page 31)

] 1 Return code (ODH, OAH)

When RS-232CILAN SELECT is set to LAN [QuINISTETLTETC[T [El DT]

Return code (ODH, OAH)

Controlling the Monitor with a PC (RS-232C)

HCommunication interval + After OK or ERRis returned, you must send the following commands. To set a timeout for the command response, specify 10 seconds or longer. When connecting multiple monitors in a daisy chain, set the timeout to at least the product of the monitor's position from the computer multiplied by 10 seconds. Example) 3rd monitor from computer: 30 seconds or longer. *_Provide an interval of 100 ms or more between the command response and the transmission of the next command. VOLM0020 Ok

| Interval of 100 ms or more

+ _ When executing ALL RESET, set the timeout period to 30 seconds or longer.

When turning the power on while the POWER ON DELAY function is in use, set the timeout period to the POWER ON DELAY period + 10 seconds or longer.

This section explains commandés for daisy chain connection. The basic communication procedure is the same as in the “One-to-one connection with a PC” section.

You can assign a unique ID number to each monitor (see page 26). This allows you to control a particular monitor in a daisy chain of monitors. You can assign ID numbers either from the menu screen or from the PC using RS-232 cable. [Example] ID number: 1 ID number: 2

ID number: 3 ID number: 4

If monitors are connected as shown above, you can execute commands like “Set the volume of the monitor with ID 4 to 20”.

When designating ID numbers for a set of monitors linked in a daisy chain, you should basically avoid any duplication of ID numbers. ID numbers do not have to be assigned in ascending order starting from the PC. They can also be connected as shown below.

ID number: 3 ID number 2 ID number 4 ID number: 1

Controlling the Monitor with a PC (RS-232C)

ECommands for ID control IDLK The parameter of this command sets the ID

: number of the monitor. The monitor is subject to all The command examples shown on this page assume the b. t di following connection and ID number set up. supsequent commands.

ID number: 1 ID number: 2 ID number: 3 ID number: 4 Example:

CT 4 1 = IDLKO002 + Following commandé are for the monitor

ne Searching for monitor with ID number: | . | | WAIT + IDST .…..…..A monitor receiving this command sets its own ID number in the parameter field. OK,_,002 + Found monitor with ID number: 2 . Sets volume of monitor with ID Example: VOLMO030 + nber: 2 to 30.* IDSTO001 WAIT + Processing OK, ,001 + The ID number of this monitor is set to 1. OK, 002 Sets volume of monitor with ID VOLMO020 —" Sumber: 2 to 20." Les WAIT You can automatically assign ID numbers by using the IDST OK, 002 command with the Repeater control (see “Repeater control” — on page 35). IDLKO000 « Canceling fixed ID number setting For example, using the command “IDST001+” automatically WAIT <— Canceling IDLK sets the ID numbers, as shown below. [Exampie] OK, ,002 + Cancelation complete

ID number: 1 ID number: 2 ID number: 3 ID number: 4 VOLMO0010

The volume of the monitor with ID number: 3 001 + 1 (the one directly connected to the PC) is set to 10. (IDLK is canceled.)

*_ The IDLK command remains effective until it is

IDSTO01 + <— ID setting command with repeater control canceled, or power is shut off. WAIT h ;

IDCK Provides screen display of the ID number currently OK,,001 + “OK” response from ID number: 1 assigned to a monitor, and the ID number currently OK,_,002 + “OK" response from ID number: 2 set for IDLK (if any). OK,,003 < “OK” response from ID number: 3 Example: OK,,004 < “OK” response from ID number: 4 (End) (After executing IDLKOO02)

IDSL …….The parameter of this command sets the ID number IDCKD000 <—_ (Parameter has no meaning.) of the monitor. The monitor is subject to the next Returned response. The ID command. ID:001 IDLK:002 + number is also displayed on the

monitor screen. Example: IDCKOO0 + + Repeater control. (If a command The next command is for the monitor is used with repeater control, ID IDSLO002 + Li ID number 2. WAIT designation using IDSL or IDLK is canceled.) WAIT Searching for monitor with ID number: ID:001 IDLK : 000 2 ID :002 IDLK : 000 OK.,002 < Found monitor with ID number: 2 ID : 003 _IDLK : 000 Sets volume of monitor with ID : : VOLMO030 — Fe te 20! ID :004 IDLK : 000 WAIT + Processing OK response from monitor with ID OK, 002 umber: 2 VOLMO020 + Sets volume to 20. The volume of the monitor with ID OK._,001 + number: 1 (the one directly connected to the PC) is set to 20.* * The IDSL command is effective only once, for the immediately succeeding command.

BRepeater control This system has a function to allow setting of multiple monitors connected in a daisy chain using a single command. This function is called repeater control. You can use Repeater control function without assigning ID numbers.

Set 1 Set 2 Set 3 Set4

CT M OM Controlling the Monitor with a PC (RS-232C)

Setting of the GAMMA user data

#To transfer the GAMMA user data

Use the user data transfer commands (UGRW, UGGW and UGBW). For each of the R, G and B colors, divide the total 512 pieces of user data into 16 blocks, and transfer 32 pieces of data with each command.

*_ If monitors are connected as shown above, you can execute a command like “Set all monitors’ input settings to PC D-SUB”.

HRepeater control command

Repeater control is achieved by setting the FOURTH CHARACTER of the parameter to “+”.

VOLMO30 + «Sets volume of all monitors to 30.

In repeater control, responses are returned by all the connected monitors.

If you want to determine that a value has been returned by a specific set, assign ID numbers to each monitor in advance. When some monitors do not return their responses, the probable cause is that the monitors could not receive the command or command processing is not complete. Do not send a new command.

Example: (When 4 monitors are connected, and assigned ID numbers: 1 through 4)

VOLMO30 + WAIT OK, 001 OK._, 002 OK._, 003

OK._, 004 < _If4 monitors are connected in

a chain, reliable operation can be ensured by sending a new command only after a reply has been returned by 4th (last) monitor.

Repeater control can also be used for reading settings.

Example: VOLM??7?+ WAIT 10,,001

20. , 002 Volume settings for all 30, ,003 monitors are returned.

+_Ifrepeater control is used during ID designation (IDSL, IDLK), the ID designation is canceled.

[ci]c2]cs[c4]P1[P2[P3[P4] [s1]s2] —— ——

Command field Block number (01 to 16) Data field Checksum field

Example: To transfer the data of block 1 (0 to 31 levels) of red (R) data

UGRWO01000000010002 … 0031C0 LS | | One piece of data consists |

Command Block number 32 pieces of data Checksum

If data is less than 4 digits, add a “0” (zero) to make it 4 digits.

The checksum field is the character string (ASCII) data of lower-order one byte which indicates the sum of the block number and 32 pieces of data in hexadecimal (0 to F).

#Saving the GAMMA user data

Use the user data save command (UGSV) to save the

transferred user data in the monitor.

Ifthe data is not saved, it will be cleared when:

+ The main power switch is off

+ STANDBY MODE is LOW POWER and the monitor enters standby mode

mActivating the GAMMA user data To activate the transferred user data, select USER for GAMMA

of the PICTURE menu, or send the corresponding RS-232C command.

ÆChecking the GAMMA user data

Use the user data read commands (UGRR, UGGR and UGBR) to return 512 pieces of user data for each oftheR, G and B colors. Divide the data into 16 blocks and return 32 pieces of data with each command. The value to be returned is not the value stored in the monitor, but the value in the temporary memory for display. (These values are the same when the user data save command (UGSV) above has been sent.)

+ The user data is not initialized by RESET of the PICTURE menu. To initialize the user data, use ALL RESET of the FUNCTION menu. The GAMMA user data initialize command (UGRS) allows the initialization of the user data only.

Controlling the Monitor with a PC (RS-232C)

RS-232C command table

How to read the command table Command: Command field (See page 32.) Direction: W When the “Parameter” is set in the parameter field (see page 32), the command functions as described under “Control/Response Contents”. R The returned value indicated under “Reply” can be obtained by setting “????", “0, (repeater control) in the parameter field (see page 32).

Parameter: Parameter field (See page 32.) Reply: Response (Returned value) “1: “e” indicates a command which can be used in power standby mode regardless of the STANDBY MODE setting.

“o” indicates a command which cannot be used in power standby mode when STANDBY MODE is set to LOW POWER.

“—" indicates a command which cannot be used in power standby mode regardless of the STANDBY MODE setting. *2 PN-ZB01 (optional) limitations

(A) When PN-ZB01 (optional) is not attached, (B) When PN-ZB01 (optional) is attached.

9: The command can be used.

Power control/Input mode selection

Function Command | Direction | Parameter Reply Control/Response contents El

POWER CONTROL. FOR |[W ü Switches lo standby mode.

1 Relums from standby mode.

Input signal waiting mode

INPUT MODE SELECTION IPS [W ü Toggle change for input mode, Terminals not selected in INPUT SELECT ‘cannot be selected.

“ERR" when AV DVI-D is selected for DVI of INPUT SELECT.

“ERR° when other than PC D-SUB is selected for D-SUB of INPUT SELECT.

3 AV COMPONENT (ENC) / AV COMPONENT (D-SUB)

“ERR" when other than PC RGB is selected for BNC of INPUT SELECT, and | | o | o

when other than AV COMPONENT is selected for D-SUB of INPUT SELECT.

a AV VIDEO (BNC) /AV VIDEO (D-SUB) OOE

5 PCRGE 5 “ERR" when AV COMPONENT is selected for BNC of INPUT SELECT.

7 AV DVD “ERR" when PC DVI-D is selected for DVI of INPUT SELECT.

Q AV HDMI “ERR" when PC HDMI is selected for HDMI of INPUT SELECT.

10 PC HDMI nu “ERR" when AV HDMI is selected for HDMI of INPUT SELECT.

PC DVD PC D-SUB AV COMPONENT AV VIDEO PCRGE elolo

Controlling the Monitor with a PC (RS-232C)

Function Command | Direction | Parameter Reply Control/Response contents Te AUTO ASNC__|[w 1 When he input mode is PC D-SUB, PC RGB. CLOCK CLK [WA 0-1200 0-1200 | When the input mode is PC D-SUE, PC RGB. Varies depending on the signal. PHASE PHSE__["R 63 0:63 [When the input modes PC D-SUE, PC RGB. POSITIONING [POSITION OF |HPOS | WR 0-100 0-100 | 0-800 on PC D-SUE, PC RCE. THE LONGEST Varies depending on the signal. DIRECTION POSITION OF _ | VPOS [WA 0-100 0-100 | 0-200 on PC D-SUE, PC RCE. THE SHORTEST Varies depending on the signal. DIRECTION SE SIZE OF THE HSZ [WR 0-100 0-100 LONGEST -lo DIRECTION SIZE OF THE VSZ [WR 0-100 0-100 SHORTEST. DIRECTION RESOLUTION | LONGEST HRES [WR 300-1920 200-1920 | When the input mode is PC D-SUE, PC RGB. DIRECTION Only even numbers are valid for parameters. RESOLUTION Varies depending on the signal. SHORTEST. VRES [WR 200-1200 200-1200 DIRECTION RESOLUTION RESET ARST__[w 1

Controlling the Monitor with a PC (RS-232C)

Function Command | Direction | Parameter Reply ControlResponse contents “ ne AUTO FON_[# È When Ie put mode 1 PC D-SUB, PC RGB, = ANALOS GAIN ANGA _ [WR Gi27 0:127 | Wnen ne input mode is PC D-SUB, PC RGB, ANALOS OFFSET. ANOF [AR Gr 0:127 | When he input mode is PC D-SUB, PC RGB, CONTRAST CONT_ [WR T6 Ge BLACK LEVEL BL [mr 060 060 TNT NT jUR D60 G60 TOLORS CUS D60 G60 SHARPNESS SHRP _[WR 024 024 ° RGB INPUT RANGE (A HDWI) AHDR_[WR 02 022 | OAUTO, f: FULL, 2 LIMITED RGB INPUT RANGE (PC HDMI) PHDR _[WR 02 02 [0 AUTO, 1: FULL, 2 LINITED RGB INPUT RANGE (AV DVI) ADVR _[WR 12 2 [FULL 2 UNITED RGB INPUT RANGE (PC DVI) POVR _ [WR F2 12 | 5 FULL, 2 UNITED RGB INPUT RANGE (D-SUE) POSR _ [WR F2 F2 [HULL 2 UNITED RGB INPUT RANGE (PC ENC) PERR _[WR 12 12 [FULL 2 UNITED ADVANCED FLESHTONE [FES [WR 02 022 |0:OFF, 1: LOW, 2:HIGH QWnen te input [ED-NR TDNR__[WR 02 02 [0 OFF 1 LOW, Z-HIH mode is AV) MPEG-NR MPNR WR 0-1 0-1 | 0: OFF, 1: ON sD-vIC vesP _ [wR 01 0-1 |0:OFF, 1: ON (Wen ie input mode is AV VIDEO) CMS-HUE CHAR ["R 71010 16-10 [8 Cv Y CMHG GO CRC C CHE 8 CMHM M CRST _|W È Reseis eue CMS- CMUX 71010 20:10 [8 SATURATION | cusv Y o CSS, & cusc © CT 8 CSM Ù cRsT_|[w 2 ReSeIS he sauraion. CMS-VALUE [CUVR [wR 71010 20:10 [8 CH Y cuve GO ° cuve © CNVE D CV Ù cRST_|[w 3 ReSeIS ne righines. COLOR MODE EMOD [WA 5 vis z 2 [vo ° 3 3 [SRG (Wen he put mode 5 PC) o WANT BALANCE | THRU GP [WR ü [When ie input mode is PC DUI-DIPC HDWT PRESET TE T8 |From 1: approximalely 31000K to 15: approumately 10,000K (500k steps) 16: approkmately 5,600K, 17: approkimately 9,300K, 18: approkimately 3,200K USER 5 æ R-CONTRAST CRTR WR 0-256 0-256 | "ERR" when CTMP is not set to 99. o GOONTRAST [CRIS | "R 0256 525 BCONTRAST [CRIE [WR 0256 0256 R-OFFSET. OFSR_[WR 27427 2727 GOFFSET OFSS _Î["R A2 AL B-OFFSET. oFSE [nr 27427 2727 COPY TO USER cPru_|w o Copies à preset value o Ine user seling, = GANNA GANT [WR TZ 02 [0: 12, 1:22, 2:24 (during PC Inpul) 0: LIGHT 2, 2: DARK (during AV input) 75 4 [4 USER, 5: 2.0, 6: STD (during PC pu) 4: USER, 5: LIGHT 1, 6: STD (Auring AV input) DISPLAV COLOR PATTERN PDF [MR ü D [No pattern display ï F [Wie single coior patern dispiay. 2 7 [Red single coor pate display. 3 3 | Green single color patlern display. ° 4 4 [Blue single color patemn dispiay. 3 99 | Redigreenibiue mixed color pattern display Set each colors level with RED, GREEN, BLUE RED PTER _["R vis 0:15 J'ERR" uen PTDF is not set to 99 GREEN PDG _["R CE GS BLUE PTDE _["R CE vs RESET ARST_[w 2 =

Controlling the Monitor with a PC (RS-232C)

AUDIO menu 2 Function Command | Direction | Parameter Reply ControlResponse contents Dm TREBLE AUTR _[WR 55 55 BASS AUBS [R 55 55 o BALANCE AUBL WR 10-10 10-10 919 RESET ARST [w 3 - SETUP menu Function Command | Direction | Parameter Reply ControlResponse contents “ Pt 5 OSD POSITION COUR 100 TH00 OSD V-POSITION OSDV MR 0-100 0-100 ° SCREEN MOTION ss | WR 04 0-4 |01OFF. 14: PATTERNT A © MOTON TIME 1 MT [WR 52 52 o MOTION TIME 2 [PATIERNI MINT [wR 10-000 10-990 | Per 10 seconds PATTERN2-4 MINT MR 5-20 5-20 | Per second 9 MONAURAL AUDIO MONO [WR CI 0-1 | 0: OFF. TON © LANGUAGE DANS | "R D HE [ENGLISH ï [oeurscn z Z[FRANGAS ° 5 3 [TAUANO o 4 4 [ESPANOL 5 5 [Pycoxun 5 5 |A#E POWER ON DELAT PACS [nr D D JOFF 1-60 1-60 | ON ° STANDEY MODE STEN [WA 5 0-1 |0: STANDARD, 1 LOW POWER 5 CERR' when SCHEDULE is effectve or OFF is selected for LED.) DFFIF NO OPERATION AOF [WR œ 01 |0:OFF 1.ON © HOT PLUS CONTROL (DVD HPCT__[WR 01 01 |01OFF TON of-[e HOT PLUS CONTROL (HDMI) HPCH [ur oi O1 [O: OF. 1LON sofe RS-232CLAN SELECT CHS _|"R œ 01 |0:RS-2320 1 LAN of-fo IDAUMSER [IDNO.SEMTNG |IDST | W 025 Sais he moniors ID number CO" means no ID number) R 0255 [Retums the moniors ID number IDNO.SETTING [DSL | W T255 Sets a monitor D number. (ONCE) This D numbers only effective for the command immediately after his command ü Ciears the ID number one has been designaled IDNO.SETTING [IDR | W T255 Sets a monitor ID number. (SUBSEQUENT) This ID number is elfective for ne next and all subsequent commands | © | 0 | © atter is command ü Ciears the ID number one has been designaled ID CHECK DK |[w D 2x |Dispiays moniors oun ID number andihe selected ID numberonthe IDLK :yyy [screen ID DISPLAY Do |[w v2 D: OFF. 1: ON, 2: ON (Iums OFF aer à 880.) {When ine PN-ZB01 is attached, he IP address and MAC address are both displayed ) BAUD RATE BAUD _["R 52 02 |0:9600bps, 1: 19200bps, 2: 38400bps cote SPEARER SELECT SPSL [mr CI 0-1 |0:intemal speaker, 1: Exiemal speaker of-[o HDMIAUTO VIEW HDAW JR oi O1 [O: OFF. 1.ON sofe SETTING COPY MODE. CPUD [WR ù D | Conyto al monter T2 225 | Cony io ie monor wi he set1D Number SETTINS COPY TARGET cPTS |WR ù D | Copies he PICTURE menu setings ololo 1 T [Copies aline setings LOS SCREEN EC [We 51 O1 | 0 OFF TON

Controlling the Monitor with a PC (RS-232C)

Controlling the Monitor with a PC (RS-232C)

Function Command | Direction | Parameter Reply ControlResponse contents “ ne PIPMODES FN ["R 03 03 OL OFF 1: PI, 2: PbyP 2: PbyP2 o PIPSZE MPSZ [WR F6 Tr o PIPPOS THELONGEST [MAPS [W D-100 o DIRECTION R 5100 o THESHORTEST [MS [W D-100 o DIRECTION R vo ololo PIPPOS LD+S0 BATCH NFOS _|[W D1000-100 Speciihe posiion in MPOSC0yy format 5 {tx Longer side, yyy: Shorer side position) R 0-100,0-100 | Returns à response in (out yyy) format, (xx: Longer side, yyy: Shorter side position) 9 PIPELEND MNEL [MR 515 55 o PIP SOURCE MTS [WR T TIFCOVS ts z Z[FCDSUE sjo 5 3 [AV COMPONENT ENG) AV CONPONENT (D-SUE) ofo 3 4 JAVVIDEO ENG) 7 AV VIDEO (D-SUE) ofo 5 SIPCRCE of-fe 7 TTAVOVIS fe D SAV SVIDEO “fo 5 5 A HDNT sjo 10 10 [PC HDNT ojo SOUND CHANGE MAD _[WR F2 F2 LE MAIN ZSUE o MAIN POS (Main screen) MAP _[WR 51 D [o:POS1, 1: POSZ ol PbyP2 POS (Sub screen) MW2P _[WR 02 02 |0: POST, 1: POS2, 2: POS o AUTO OFF MOFF_[WR 51 01 0: MANUAL, AUTO o Initialization/Functional Restriction Setting (FUNCTION) menu Function Command | Direction | Parameter Reply ControlResponse contents “ PT) FLLRESET RSET_|W ü DALLRESET DCE vi GALL RESET 1, HALL RESET 2 Le ADJUSTMENT LOCK AK [WR 02 02 [0: OFF. TON. ZON2 © ADJUSTMENT LOCK TARGET ATS _[WR 02 02 [0: REMOTE CONTROL, 1 MONITOR EUTTONS, 2: BOTH o OSD DISPLAY LOSD [WA 02 02 [0:ONT. 1: OFF 2 ON2 o LED FLD |WR 51 61 [0:ON. OFF “ERR" when LOW POWER is selected for STANDBY MODE. 9 ° TEMPERATURE ALERT TA JW 52 02 [0 OFF 1: OSD & LED, 2:LED o STATUS ALERT SAT | WR 02 02 [0 OFF 1: O8D & LED, 2: LED o POWER BUTTON PEN _[WR 51 G:1 [O:MONITOR, 1 CONTROLLER © CONTROLLER INPUT POP ["R 0z 02 |0:D-SUE, 1: HDMI CERR when MONITOR is selected for POWER

2: DVD ('ERR when MONITOR is selected for POWER BUTTON}

Controlling the Monitor with a PC (RS-232C)

Others 2 Function Command | Direction | Parameter Reply ControlResponse contents TS SOREEN SE PO) WIDE _[WR F5 F5 [TH WIDE, 2: NORMAL, 3: Dot by Doi 4: ZOOMT, 5 ZOOMZ © SCREEN SIZE (AV) WIDE |[WR 15 15 | 1: WIDE, 2: ZOOM1, 3: ZOOM2, 4: NORMAL, 5: Dot by Dot o VOLUNE VOLN _ [WR var I o NUTE MUTE _[WR 51 GA [0 OFF TON = INFORMATION [MODEL NF _ÎR Vas SERIAL NO SRNO R Value ° ERIGRT VLNP_[WR var EI o TEMPERATURE SENSOR DTA |R D [intemal temperaure normal T [intermal temperature abnommal has occurred andihe monter sin standby mode ZItermal temperature abnommal occured (To delete ie nfomaton ot |, temperature abnormal,tum of the main power.) 3 |interal temperaure abnormal has occurred and backight brghiness is dimmed olo 4 Temporaire sensor abnormal TEMPERATURE ACQUISTION ERRTÎR Value | Temperaiure at temperalure sensors 1 Inrough 3 are relumedin he following forms 5 {Sensor 1], [Sensor 2], [Sensor 3] indicales a temperature sensor abnormaity when 126" is returned CAUSE OFLASTSTANDEY MODE |STCA [W o inilization R [No detectabie error hes occurred T[Standby mode by POWER buion Z Main power ofby ihe main pourer swich 3 | Standby mode by RS-232C or LAN . 4 |inpui signal waiing mode by No Signal 5 [Standby mode by abnomal temperature & | Standby mode by SCHEDULE setting 20 | Standby mode by OFF IF NO OPERATION seing Commandés for setting of the GAMMA user data 2 Function Command | Direction | Parameter Reply ControllResponse contents TS RED GANMA DATA TRANSFER VER | ao HoDCE aa: Block number GREEN GAMMA DATA TRANSFER UGGW [w oo: 32 pieces) 200: 32 pieces of user data ATUE AURA TRRRSTER deu a8:01-16 ce: Checksum (ASCII data) ofthe block number and user data 2000: 0000-1023 cc: O0FF RED GANMR DATA RERD UERR | DOIETDETT oo User das of 32 pieces ololo GREEN GAMMA DATA READ UGGR |w 1-16 | (oooc 32 pieces) BLUE GAMMA DATA READ UGBR wW 1-16 | °% ‘9000-1023 USER DATA INTIALIZE ucrs _|[w D Inifale 1he user als USER DATA SAVE us _[Ww 5 Save ie user dal in Me mono

Controlling the Monitor with a PC (LAN)

When the PN-ZB01 (optional) is attached, your monitor can be connected to a LAN allowing you to control it from a PC on the LAN.

You can also configure the monitor to send e-mail notification when it has a problem.

The connection requires a commercially available LAN cable (UTP cable, Category 5, straight through).

Settings to connect to a LAN Set the monitor’s IP address and subnet mask to match the settings of your LAN.

These settings can be made on either the monitor or a PC connected to the monitor.

The settings depend on the configuration of your LAN. Ask your LAN administrator for details.

= To set on the monitor

Set RS-232C/LAN SELECT on the SETUP menu to LAN, and then set the LAN SETUP options. (See page 26.)

After setting each item, select SET and press {**.

LAN cable (commercially available, straight)

You must assign an IP address to the monitor by following the procedures in “Settings to connect to a LAN”. (See the description on the right.)

Your PC must be installed with Internet Explorer (version 7.0 or later).

To control the monitor via LAN, set RS-232C/LAN SELECT to LAN. (See page 26.)

You cannot use RS-232C and LAN control simultaneously.

Initializing personal information

+ When the PN-ZB01 (optional) is attached, personal information such as e-mail addresses can be registered in the monitor. Before transferring or disposing of the monitor, initialize all settings by selecting ALL RESET 1. (See page 31.) Note that ALL RESET 2 will not initialize e-mail addresses and other settings.

DHCP CLIENT If your LAN has a DHCP server and you wish to obtain an address automatically, change this setting to ON.

To set the address manually, set this to OFF.

IP ADDRESS Ifthe DHCP CLIENT is set to OFF, specify an IP address.

CS ; A + Press (_ )orç to select items, and press Cort jto change the values.

SUBNET MASK Ifthe DHCP CLIENT is set to OFF, specify the subnet mask.

DEFAULT GATEWAY Ifthe DHCP CLIENT is set to OFF, specify the default gateway.

+ When the IP address is set manually, the IP addresses of the monitor connected to the RS-232C output terminal and the daisy chain of connected monitors that follows can be assigned automatically. (See page 26.)

Controlling the Monitor with a PC (LAN)

= To set from a PC When the monitor is connected to a PC, LAN settings can be configured via PC.

(1) Connect your monitor to a PC

(2) Specify the PC's IP address

(3) Configure the monitor's LAN settings

(1) Connecting your monitor to a PC Connect a commercially available crossover LAN cable (UPT cable, Category 5) to the LAN port on the PC and this monitor.

(commercially available, crossover)

PC To LAN terminal UE] E+

(2) Specifying the PC's IP address

To configure the monitor's LAN settings, you must temporarily

change the settings on the PC.

This explanation is based on Windows 7.

1. Log on to the PC with an administrator account.

2. Click [Start], and then click “Control Panel”.

3. Click “View network status and tasks” in “Network and Internet”. In “Classic View”, click “Network and Sharing Center”.

4. Click “Local Area Connection” and then “Properties”.

5. Click “Internet Protocol Version 4 (TCP/IPv4)" and then “Properties”.

6. Make a note of the current IP address, subnet mask, and default gateway settings. Make sure you write this information now as you will be changing the IP address, subnet mask, and default gateway settings back to these settings afterwards.

7. Temporarily change the IP address and subnet mask. To access the monitor as it is shipped from the factory, set as follows. +_IP Address: 192.168.150.1 + Subnet Mask: 255.255.255.0 + Default Gateway: (leave blank)

Internet Protacal Versian 4 (TCP/IPv4) Properties

ou can get1P setings assigned automaticalh F your netork supports this capabity. Others, you need ta ask yeur netork acmiistrator for the appropriate IP settings.

Obtain an IP address automatically

© Use the foleuing IP address! IP adress: 192.168 150. 1 Subnet mask 255.255 .255, 0

8. Click [OK] and then reboot the PC.

+ This monitor is factory preset as shown below. (When DHCP CLIENT is set to OFF) IP Address : 192.168.150.2 Subnet Mask : 255.255.255.0 Default Gateway: 0.0.0.0

(3) Configuring the monitor’s LAN settings Access the monitor using Internet Explorer.

Controlling the monitor

1. Turn the power ON to the monitor.

2. Set RS-232C/LAN SELECT on the SETUP menu to LAN.

3. Set DHCP CLIENT to OFF in LAN SETUP on the SETUP menu.

4. Launch Internet Explorer, in the “Address” box type “http://192.168.150.2/" and press the Enter key.

You will be prompted to enter a user name and password. 5. Leave the user name and password boxes blank and click [OK].

6. Click on “LAN SETUP” under NETWORK.

7. Specify the “DHCP CLIENT”, “IP ADDRESS",etc.

DHCP CLIENT If your LAN has a DHCP server and you wish to obtain an address automatically, change this setting to “ON”. To set the address manually, set this to “OFF”.

IP ADDRESS Ifthe DHCP CLIENT is set to “OFF”, specify an IP address.

SUBNET MASK If the DHCP CLIENT is set to “OFF”, specify the subnet mask.

DEFAULT GATEWAY Ifthe DHCP CLIENT is set to “OFF”, specify the default gateway. If you are not using a default gateway, specify “0.0.0.0".

11. Restore the PC's IP address jotted in Step 6, “(2) Specifying the PC's IP address”. 12. Connect the monitor and the PC to the LAN.

+ Wait 10 seconds after clicking [OK] before proceeding. + When operating using the remote control unit or similar, click [Refresh].

When the IP address is set manually, the IP addresses of

the monitor connected to the RS-232C output terminal and

the daisy chain of connected monitors that follows can be assigned automatically. (See page 26.)

Controlling the Monitor with a PC (LAN)

Controlling with a PC

You use Internet Explorer on a PC on the LAN to control the monitor.

Launch Internet Explorer on the PC.

2. In the “Address” box, type “http://” followed by your monitor's

IP address followed by “/”, then press the Enter key. You can confirm the IP address with the DISPLAY function.

When prompted to enter a user name and password, type the user name and password that you specified in the security settings (see page 47), and click [OK].

If you did not make any security settings, leave the spaces blank and click on [OK].

. You can check, control, and change the monitor's status

and settings by clicking the menu items on the left side of the screen.

If you see an [Apply] button next to a setting, click it after you change that setting.

See pages 46 to 50 for details on each setting.

If you click [Refresh] before the screen finishes updating the current display, the “Server Busy Error” will appear. Wait for a moment before operating your monitor again. You cannot operate the monitor while it is warming up.

If “DHCP CLIENT" is set to “ON”, press 2" on the remote control unit two times and then check the monitor's IP address.

Controlling the Monitor with a PC (LAN)

= INFORMATION = ADJUSTMENT Information about this monitor appears. You can adjust these settings which are also available on the monitor's menu.

SCREEN (See page 24.)

= CONTROL You can control the operations corresponding to the buttons POWER INPUT S2E : (C)C)DC }) on the remote control unit. (See page 21.)

+ After changing DISPLAY COLOR PATTERN to OFF, click [Refresh] to correctly retrieve the status of the monitor.

[res +_In standby mode, Power ON is the operation available.

= NETWORK (LAN SETUP)

This screen allows you to set the settings necessary when the

monitor is connected to a LAN.

DHCP CLIENT If your LAN has a DHCP server and you wish to obtain an address automatically, change this setting to “ON”.

To set the address manually, set this to “OFF”.

IP ADDRESS Ifthe DHCP CLIENT is set to “OFF”, specify an IP address.

SUBNET MASK If the DHCP CLIENT is set to “OFF”, specify the subnet mask.

DEFAULT GATEWAY If the DHCP CLIENT is set to “OFF”, specify the default gateway. If you are not using a default gateway, specify “0.0.0.0”.

RESET Clicking [Execute] returns all of the LAN SETUP settings to the factory-preset values except for the DNS SERVER setting.

+ When the IP address is set manually, the IP addresses of the monitor connected to the RS-232C output terminal and the daisy chain of connected monitors that follows can be assigned automatically. (See page 26.)

Controlling the Monitor with a PC (LAN)

= NETWORK (SECURITY) This screen allows you to specify the security-related settings.

USER NAME / PASSWORD Sets up a user name and password to restrict access to this monitor.

After entering a user name and password, click [Apply].

ACCEPT IP ADDRESS You can limit access to this monitor by registering IP addresses of PCs that should have access.

To limit access, specify the option “From only specific IP addresses”. Otherwise, to allow access from any PC, specify “AIl IP Addresses”.

If“ACCEPT IP ADDRESS" is set to “From only specific IP addresses”, enter the IP addresses that you want to allow.

+ The USER NAME and PASSWORD can be up to 8 alphanumeric characters or symbols.

To cancel the user name and/or password after it has been set, make the box empty and click [Apply].

Controlling the Monitor with a PC (LAN)

= NETWORK (GENERAL) This screen allows you to specify the general LAN settings.

MONITOR NAME Specify a name for this monitor as it should appear on the Internet Explorer screen.

AUTO LOGOUT TIME Specify the time (in minutes) to elapse before automatically disconnecting this monitor from the network.

Specify in minutes from 1 to 65535. A value of ‘0’ will disable this function.

DATA PORT Specify the TCP port number to use for exchanging data with the monitor.

Specify a value from 1025 to 65535.

+ The MONITOR NAME can be up to 16 alphanumeric characters or symbols.

+ _ Enter up to 50 characters in the NAME field in the INSTALLATION INFORMATION.

+ _ Enter up to 100 characters in the LOCATION field in the INSTALLATION INFORMATION.

This screen allows you to configure the e-mail sent periodically or when the monitor has an error.

The settings depend on the configuration of your LAN. Ask your LAN administrator for details.

SMTP SERVER Specify the SMTP server address for sending e-mail.

*_ When using a domain name, make sure to specify the DNS SERVER as well. (See page 47.)

This address becomes the e-mail address of the originator.

ORIGINATOR NAME Specify the name for the originator.

This name appears in the “Originator Name” field of the

AUTHENTICATION Specify the authentication method to use when sending

POP SERVER If the “AUTHENTICATION” method is “POP before SMTP”,

specify the POP server address.

ACCOUNT NAME / PASSWORD If the “AUTHENTICATION” method is “POP before SMTP”,

specify the account name and password to connect to the POP server.

+ You can enter up to 64 alphanumeric characters or symbols for the ORIGINATOR E-MAIL ADDRESS, ORIGINATOR NAME, ACCOUNT NAME, and PASSWORD.

+ _ The SMTP SERVER and POP SERVER can be up to 64 characters.

The following characters can be used: a-z, A-Z, 0-9, -,.

This screen allows you to specify the recipients of the e-mail sent periodically or when the monitor has an error.

Controlling the Monitor with a PC (LAN)

When PERIODICAL for CONDITION of MAIL (RECIPIENT) is checked, set the date and time to send the mail.

This allows you to confirm that the e-mail settings are configured properly.

Attach the log file to a TEMPERATURE/HARDWARE error e-mail.

When this option is checked, a log is added to the mail which notifies a temperature or status error.

+ The RECIPIENT E-MAIL ADDRESSES can be up to 64 alphanumeric characters or symbols.

DAY OF THE WEEK Specify the day of the week to send the periodical mails.

TIME Specify the time of the day to send the periodical mails.

+_ Do not turn off the main power when you set to send the periodical mails.

+ Specify the correct date and time. (See page 26.) If the date and time settings are incorrect, the periodical mail is not sent properly.

+ _Regularly confirm that the specified date and time is correct.

+ When LOW POWER is selected for STANDBY MODE, periodical mails will not be sent in standby mode.

Controlling the Monitor with a PC (LAN)

= SNMP You can configure settings related to SNMP.

SNMP SETTING Set whether to enable or disable SNMP.

VERSION Set the version of the SNMP to be supported.

COMMUNITY NAME 1 to 3 Set the name of the community required for the access.

Set the user name, password, authentication method and other options required for access.

TRAP SETTING Set whether to enable or disable the trap function. When this function is enabled, a trap will be sent when the monitor is turned on.

TRAP SETTING OF AUTHENTICATION ERROR Set whether the trap function sends a notification when authentication fails.

TRAP ADDRESS & PORT Set the destination address and port number of the notification sent by the trap function.

After you set SNMP, click [Switch the main power of monitor off and on now.] or turn off the monitor and then turn it on again with the main power switch. When the monitor restarts, wait about 30 seconds and then start the next operation.

If the IP address is changed while the SNMP function is operational, turn off the monitor and then turn it on again With the main power switch.

+ Depending on the SNMP settings, a short delay may occur before the SNMP is usable. (About 2 minutes)

+ Up to 16 alphanumeric letters and symbols can be used for the community name, user name and password.

CONFIRMATION The home page of the specified URL is displayed. You can check whether the URL you entered is correct.

+ _Itis also possible to specify the message text, such as the name of a contact or a telephone number, to be displayed instead of the linked URL.

If you are experiencing any problem with your display, before calling for service, please review the following troubleshooting tips.

There is no picture or sound.

+_Is the power cord disconnected? (See page 14.)

+ _Is the main power switch off? (See page 16.)

+_Is the monitor in standby mode (the power LED illuminating in orange)? (See page 16.)

+ Make sure correct input mode is selected. (See page 21.)

+_If any external equipment is connected, make sure the equipment is operating (playing back).

Remote control does not work.

+ Are the batteries inserted with polarity (+.-) aligned? (See page 15.)

+ Are the batteries exhausted?

+_ Point the remote control unit toward the monitor's remote control sensor. (See page 15.)

+ _Is the menu display hidden or is operation disabled? (See page 31.)

Sound from left and right speakers is reversed.

Sound is heard from only one side.

+ Are audio cables connected properly? (See pages 12 to 13.)

+ Make sure audio cables for external speakers are connected properly: left and right cables may be reversed or one of the two cables may not be connected. (See page 13.)

+ Check the setting of BALANCE for AUDIO menu. (See page 25.)

There is a picture but no sound.

+ _Is the sound muted?

+ Make sure the volume is not set to minimum.

+ Are audio cables connected properly?

+ Is the setting of AUDIO SELECT on the OPTION menu correct? (See page 26.)

Is the setting of SPEAKER SELECT on the SETUP menu correct? (See page 26.)

+ _ The signal may be incompatible.

+ _ Try the automatic screen adjustment when the PC D-sub input terminal or PC RGB input terminals are used.

+_Ifthe top and bottom of the image are not horizontally aligned, set TOUCH PANEL MODE on the OPTION menu to OFF.

The video from the PC/AV HDMI input terminal does not

+_Is the setting for HDMI of INPUT SELECT on the OPTION menu correct? (See page 26.)

+_1s the HDMI cable HDMI standard compliant? The monitor Will not work with cables that are not standard compliant.

+_ Is the input signal compatible with this monitor? (See page 55.)

The video from the PC/AV DVI-D input terminal does not

+_Is the setting for DVI of INPUT SELECT on the OPTION menu correct? (See page 26.)

+_Is the input signal compatible with this monitor? (See page 55.)

+ Turn off the power to the connected equipment and then turn the power on again.

+_Ifthe monitors are connected in a daisy chain, turn off the power to all the monitors connected in a daisy chain and then turn the power on again.

The video from PC D-SUB, PC RGB, AV COMPONENT, or

AV VIDEO does not appear correctly.

+ _Is the setting for BNC or D-SUB of INPUT SELECT on the OPTION menu correct? (See page 26.)

*+_ Is the input signal compatible with this monitor? (See page 55.)

Control buttons do not work.

There is no picture.

+_ Load noises from outside may be interfering with normal operation. Turn off the power and turn it on after waiting at least 5 seconds, and then check the operation.

The input mode changes automatically.

+ _ When the AUTO INPUT CHANGE is ON and no signal is present in a selected input mode, the AUTO INPUT CHANGE automatically changes the selected mode to a mode where a video signal is present.

The input mode may change in the following cases: - When a computer is in standby mode. - When video play is stopped with a playback device.

The touch panel does not respond.

+ Is the USB cable connected properly? (Touch Panel Driver Operation Manual)

+ Has the touch panel driver been installed? (Touch Panel Driver Operation Manual)

+ Has the pen tip of the touch pen become worn? Replace

the pen tip. (See page 20.)

Is the battery inserted in the wrong orientation (+, -) in the

touch pen? (See page 18.)

+ Is the touch pen battery exhausted?

The response of the touch screen is slow.

Some parts of the screen do not respond.

+ Is the screen exposed to direct sunlight or other strong light? Is a device that uses infrared being used nearby? The touch panel uses infrared rays and thus may not operate correctly.

+ Is there an obstacle between the sensor and the touch pen or your finger? An obstacle will prevent correct operation. If your fingers or a sleeve are too close to the screen, correct operation will not be possible.

+ Is the reflective surface dirty? Gently wipe off any dirt with a

If the touch panel is touched with a small tip less than about

3/8 inch (10 mm) x 3/8 inch (10 mm), the touch may not

be detected by infrared and correct operation will not take

+ _ When starting your computer or connecting the USB cable, do not touch the touch panel.

Power LED flashes red.

“STATUS [xxxx]” appears in the corner of the screen.

+ Hardware has a problem. Turn off the monitor and request repair from your SHARP dealer. (When STATUS ALERT is set to OSD & LED. This varies depending on the setting.)

When “AUTO DIMMING” is displayed.

+ _ When the internal temperature of the monitor rises excessively, the brightness of the backlight automatically decreases in order to prevent a further temperature rise. If you attempt to use = to adjust the brightness while the monitor is in this state, “AUTO DIMMING” is displayed and you cannot change the brightness.

+ Remove the cause of the excessive temperature rise.

The monitor makes a cracking sound.

+ You may occasionally hear a cracking sound from the monitor. This happens when the cabinet slightly expands and contracts according to change in temperature. This does not affect the monitor's performance.

The Power LED is flashing in red and green alternately. When “TEMPERATURE” is displayed in the corner of the screen.

+ When the internal temperature of the monitor rises excessively, the brightness of the backlight decreases automatically in order to prevent high-temperature- related problems. When this occurs, “TEMPERATURE" is displayed on the screen and the Power LED flashes red and green alternately. (When TEMPERATURE ALERT is set to OSD & LED. This varies depending on the setting.)

+_Ifthe internal temperature rises further, the monitor automatically enters standby mode. (The Power LED continues flashing red and green alternately.)

+ Remove the cause of the excessive temperature rise.

- Ifthe monitor enters standby mode due to a rise in temperature, to return to normal display, turn the power switch off and then back on again. The monitor, however, will enter standby mode again if the cause of the temperature rise is not eliminated. (See page 8.)

- Check whether the monitor is placed at a location where a quick rise in temperature is likely. Internal temperature rises quickly if the vents on the monitor are blocked.

- Internal temperature rises quickly if dust accumulates inside the monitor or around the vents. Remove dust if possible. Ask SHARP dealer about removing internal dust.

&Product Specifications

Model PN-L802B LCD component 80" Class [80 inch (203.2cm) diagonal] TFT LCD Max. resolution (pixels) | 1920 x 1080

Max. colors Approx. 1.06 billion colors

Pixel pitch 0.923 mm (H) x 0.923 mm (V)

NTSC (3.58MHZ)/NTSC (4.43MHz)/PAL/PAL-60/SECAM Plug and play

VESA DDC2B Power management

[When PN-ZB01 (optional) is attached]

LAN terminal 10 BASE-T/100 BASE-TX Speaker output

Infrared camera method

Supplied from USB Touch pen

Ultrasonic communication method

AC 100 V - 240 V, 2.9 À, 50/60 Hz

Operating temperature ***

41°F to 95°F (5°C to 35°C)

Operating humidity**

20% to 80% (no condensation)

Power consumption (Maximum / input signal waiting mode * / standby mode *5)

255 W/1.0W7/1.0W Power consumption [When PN-ZB01 (optional) is attached]

260 W Dimensions (excluding protrusions) inch (mm

Approx. 74 (W) x 5-5/16 (D) x 45-9/16 (H) (1880 x 135 x 1157)

Approx. 224.9 (102) (excluding the temporary stand)

Weight [PN-ZB01 (optional)] lbs. (kg

Temperature condition may change when using the monitor together with the optional equipments recommended by SHARP.

In such cases, please check the temperature condition specified by the optional equipments.

“1 Cannot be used simultaneously. *2 Does not support plug and play.

*5 When AUTO INPUT CHANGE is set to OFF. *6

In addition, check the requirements of the computer and other devices to be connected, and make sure that all requirements are satisfied.

When STANDBY MODE is set to STANDARD. When STANDBY MODE is set to LOW POWER: 0.5 W As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

When mounting the monitor, be sure to use a wall-mount bracket that complies with the VESA-compatible mounting method.

SHARP recommends using M6 screws and tighten the screws.

Note that screw hole depth of the monitor is 3/8 inch (10 mm). Loose mounting may cause the product to fall, resulting in serious personal injuries as well as damage to the product. The screw and hole should come together with over 5/16 inch

(8 mm) length of thread. Use a bracket which has been approved for UL1678 standard, and which can endure at least 4 times

or more the weight of the monitor.

æPower management This monitor conforms to VESA DPMS and DVI DMPM. Both your video card and computer must support the same standard in order for the monitor's power management function to work.

DPMS: Display Power Management Signaling DMPM: Digital Monitor Power Management Power Power DPMS Screen | consumption] HSYne | Vsync DMPM Screen | consumption ON STATE | Display 255 W*° Yes Yes Monitor ON Display 255 W*' STANDBY No Yes Active OFF | No display 1.0 W** SUSPEND No 1.0 W** Yes No display OFF STATE No No

*1 When PN-ZB01 (optional) is not connected. *2 When AUTO INPUT CHANGE is set to OFF.

#DDC (plug and play)

The monitor supports the VESA DDC (Display Data Channel) standard.

DDC is a signal standard for plug and play between monitors and computers. Information about resolution and other parameters is exchanged between the two. This function can be used if the computer supports DDC and it has been configured to detect plug-and-play monitors.

There are several types of DDC, depending on the communication method used. This monitor supports DDC2B.

ECompatible signal timing (PC)

Screen resolution Hsync Vsyne [Dot frequency Digital En nes VESA 640 x 480 3T-KEz. GOHz | 25.175MHz | Yes Yes Yes 37-KHz T2Rz 3T.5MHz Ves Yes Yes 37.5kHz T5Rz 31.5MHz Ves Yes Yes 800 x 600 35.1kHz 56Hz 36.0MHz - - Yes 37.kHz 60Hz 40.0MHz Yes Yes Yes 48.1kHz T2Rz 50.0MHz Yes Yes Yes 46.kHz T5Hz 49.5MHz Yes Yes Yes 848 x 480 31.0kHz 60Hz 33.75MHz Yes - Yes 1024x768 | 484kHz 60Hz 65.0MHz Yes Yes Yes 56.5kHz TOHz 75.0MHz Yes Yes Yes 60.0kHz T5Hz 78.75MHz Yes Yes Yes M52x864 | 67.5kHz T5Hz 108.0MHz Yes Yes Yes 1280x768 | 47.8kHz 60Hz 79.5MHz Yes - Yes 60.3kHz 75Hz 102.25MHz | Yes s Yes 1280x800 | 497kHz 60Hz 83.5MHz Yes Yes Yes 1280x 960 | 60.0kHz 60Hz 108.0MHz Yes Yes Yes 1280x1024 | 64.0kHz 60Hz 108.0MHz Yes Yes Yes 80.0kHz T5Rz 135.0MRz Ves Yes Yes 1360% 768 | 477kHz 60Hz 85.5MHz Ves Yes Yes 1400 x 1050 | 65.3kHz 60Hz T2175MHz |_ves Yes Yes 1440 x 900 | _55.9%kHz 60Hz 106.5MHz Ves - Yes 1600 x 12007 | 75.0kHz 60Hz 162.0MRz Ves Yes Yes 1680 x 1050 | 65.3kHz 60Hz 146.25MHz | ves Yes Yes 1920 x 12007 | 74.0kHz 60Hz 154.0MHz Yes Yes Yes Wide 1280x720 | 44.7kHz 60Hz 74.AMHz Yes Yes Yes 1920 x 1080 | 66.3kHz 60Hz 148.5MHz Yes Yes Yes 67.5kHz 60Hz 148.5MHz Yes Yes Yes US TEXT | 720 x 400 31.5kHz TOHz 28.3MHz Yes Yes Yes Sun 1024x768 | 48.3kHz 60Hz 64.13MHz - - Yes 53.6kHz 66Hz 70.4MHz = - Yes 56.6kHz TOHz 74.25MHz = - Yes M52%900 | 61.8kHz 66Hz 94.88MHz = = Yes T18kHz | 762Hz | 108.23MHz - E Yes 1280%1024 | 7174kHz | 672Hz | 117.01MHz = E Yes 81.1kHz T6Hz 134.99MHz = = Yes 1600 1000 | 68.6kHz 66Hz 135.76MHz - - Yes

“1 Displays a reduced image, except in Dot by Dot. In Dot by Dot, the image will be cut down to panel size then displayed *2 Available when the PN-ZB01 (optional) is attached

* All are compliant only with non-interlaced.

*_ Depending on the connected PC, images may not be displayed properly even if the compatible signal described above is input. *_ The frequency values for the Sun are reference values

&Compatible signal timing (AV)

Screen resolution Frequency DVI-D* HDMI Component 1920 x 1080p 24Hz - Yes - 50Hz Yes Yes Yes 59.94Hz Yes Yes Yes 60Hz Yes Yes Yes 1920 x 1080i 50Hz Yes Yes Yes 59.94Hz Yes Yes Yes 60Hz Yes Yes Yes 1280 x 720p 50Hz Yes Yes Yes 59.94Hz Yes Yes Yes 60Hz Yes Yes Yes 720 x 576p 50Hz Yes Yes Yes 720 x 480p 59.94Hz Yes Yes Yes 60Hz Yes Yes Yes 640 x 480p(VGA) 59.94Hz Yes Yes - 60Hz Yes Yes - 720(1440) x 576i 50Hz - Yes Yes 720(1440) x 480i 59.94Hz - Yes Yes 60Hz - Yes Yes

* Available when the PN-ZB01 (optional) is attached.

Mounting Precautions

(For SHARP dealers and service engineers)

+ _Wheninstalling, removing or moving the monitor, ensure that this is carried out by at least 6 people.

+ Be sure to use a wall-mount bracket designed or designated for mounting the monitor.

+_ This monitor is designed to be installed on a concrete wall or pillar. Reinforced work might be necessary for some materials such as plaster / thin plastic board / wood before starting installation. This monitor and bracket must be installed on a wall which can endure at least 4 times or more the weight of the monitor. Install by the most suitable method for the material and the structure.

+ _ To attach a VESA-compliant mounting bracket, use M6 screws that are 5/16 inch (8 mm) to 3/8 inch (10 mm) longer than the thickness of the mounting bracket.

+ After mounting, please carefully ensure the monitor is secure, and not able to come loose from the wall or mount.

+ Do not use any screw holes other than VESA holes for installation.

HRemoving the temporary stand mAttaching the Tray

1. Remove the cover from the back of the monitor.

+ The temporary stand is only for use with this monitor. Do not use it for any other devices.

1. Spread a soft thick cloth (such as a blanket) on a stable level surface on which the entire monitor can be placed, and place the monitor on it with the screen facing down.

2. Remove the stand fixing screws and then remove the stand.

2. Secure the tray mounting bracket.

Secure using 2 tray mounting screws (M5 long) (supplied) and 1 tray mounting screw (M5 short) (supplied).

3. Attach the cover (supplied) onto the back of the monitor. ID n

Secure using 2 cover screws (M4 with washers) (supplied).

Es LE 7 N Tray mounting screws Cover screws Cover screws (MS long) (supplied) (M4 with washers) (M4 with washers) Tray moGnting Tray mounting screw SEE lied lied (supplied) (supplied) bracket (supplied) {M5 short) (supplied)

If a tray will not be attached, affix the cover seal (supplied) 3. Attach the cover onto the back of the monitor and to the cover. secure the tray.

Insert the tray into the tray mounting bracket and secure with 2 M4 tray mounting screws (supplied).

(supplied) M4 tray mounting screws
