Stealthbox®

INSTALLATION GUIDE for the

SB-J-WRUD/10TW1

SKU# 94606 & 94608

2007-2017 Jeep Wrangler Unlimited

Enclosure Type: Sealed

Driver Type: 10TW1

Nominal Impedance: 4 ohms

Continuous Power Handling: 300 watts (RMS method)

SB-J-WRUD/10TW1 INSTR_SKU# 011387

! IMPORTANT

If you choose to perform the installation yourself, it is absolutely vital that the Stealthbox ^® be properly mounted to the vehicle according to these instructions. Failure to mount the enclosure properly presents two problems:

1) The sub-bass performance will suffer due to the movement of the enclosure caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision or sudden deceleration.

INSTALLATION DIFFICULTY:

ESTIMATED TIME: 1 HOUR

JL AUDIO ~ Quality & Design ~ SBX STEALTHBOX®

Thank you for choosing a JL Audio Stealthbox* for your automotive sound system. With proper installation, your new vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.

We strongly recommend that you have your new Stealthbox® installed by your authorized JL Audio dealer. The installation professionals employed by your dealer have the necessary tools and experience to disassemble and reassemble your vehicle properly. If you prefer to perform your own installation, please read this installation guide completely before beginning the process.

Continued on Next Page

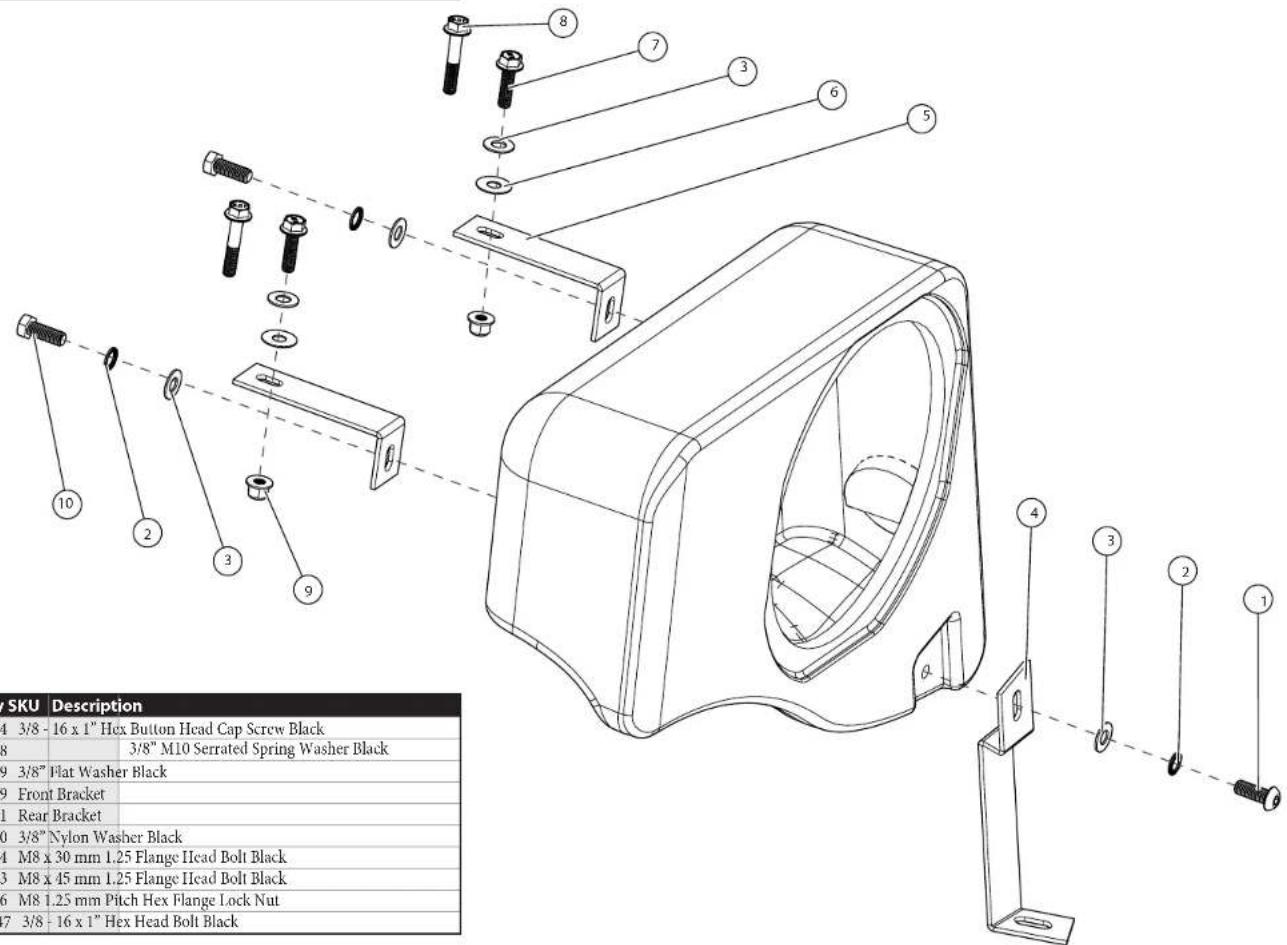

INCLUDED HARDWARE

SKU Description 1 3/8 - 16 x 1" Hex Button Head Cap Screw Black 2 3/8" M10 Serrated Spring Washer Black 3 3/8" Flat Washer Black 4 Front Bracket 5 Rear Bracket 6 3/8" Nylon Washer Black 7 M8 x 30 mm 1.25 Flange Head Bolt Black 8 M8 x 45 mm 1.25 Flange Head Bolt Black 9 M8 1.25 mm Pitch Hex Flange Lock Nut 10 3/8 - 16 x 1" Hex Head Bolt Black

BOM ID Qty SKU Description

1 1 153544	3/8 -	16 x 1" Hex Button Head Cap Screw Black
2 3 153548			3/8" M10 Serrated Spring Washer Black
3 5 153549	3/8"	Flat Washer Black
4 1 150729	Front Bracket
5 2 150731	Rear Bracket
6 2 153550	3/8"	Nylon Washer Black
7 2 153634	M8 x 30 mm	1.25 Flange Head Bolt Black
8 2 153633	M8 x 45 mm	1.25 Flange Head Bolt Black
9 2 153546	M8 1.25 mm	Pitch Hex Flange Lock Nut
10 2 153547	3/8 -	16 x 1" Hex Head Bolt Black

POWER RECOMMENDATION

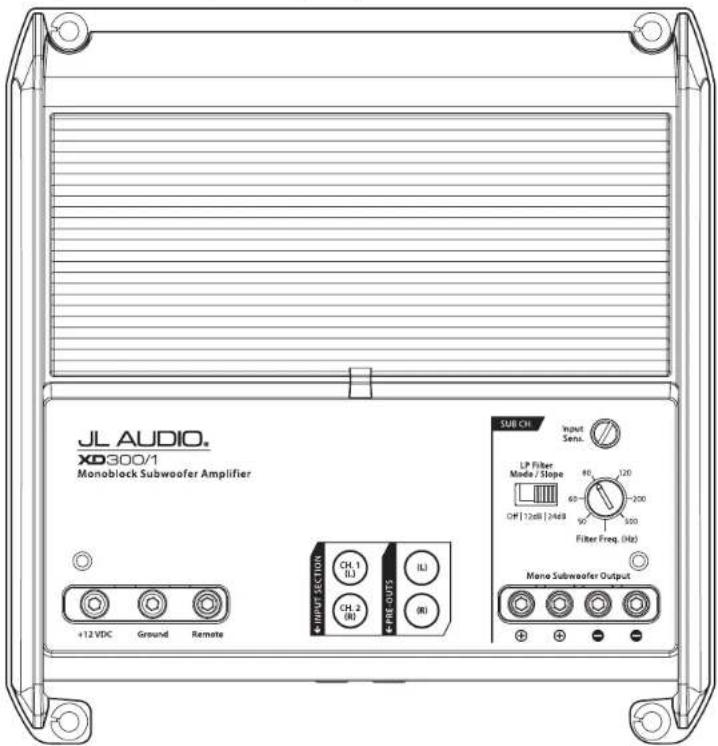

JL Audio recommends high quality amplifiers such as the JL Audio XD300/1v2. The diagram below shows the recommended crossover settings for the XD300/1v2. For a detailed description of the amplifier settings, consult the owner's manual for the amplifier. If another amplifier is being used, please reference this illustration and use similar settings on that amplifier.

JL AUDIO. XD300/1 Monoblock Subwoofer Amplifier +12 VDC Ground Remote +INPUT SECTION CH. 1(LI) CH. 2(R) +PIE-OUTS +PIE-OUTS SUB CH Input Sens. LP Filter Mode / Slope 80 120 60 200 90 500 Filter Freq. (Hz) Mano Subwoofer Output

CONNECTIONS

Using quality power, signal, and speaker wire is essential in ensuring the performance of your Stealthbox ^® . JL Audio recommends using a 4 AWG power kit such as the XD-PCS4-1B for your Stealthbox ^® amplifier. Other kits are available should you be using more than one amplifier. Signal wire such as the JL Audio Premium Audio Interconnect Cables should be used to provide signal for both channels of the amplifier. JL Audio recommends using 12AWG speaker wire for subwoofers such as our XC-BCS12-25.

Close-up of a car's rear seat and dashboard area showing textured black components (no visible text or symbols)

STEP 1
Empty the cargo area of the vehicle.

Close-up of a hand using a tool to adjust a black mechanical component (no visible text or symbols)

STEP 2

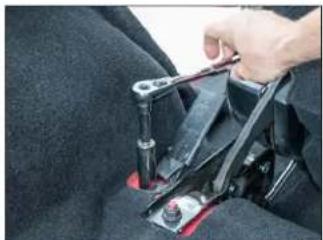

Fold the rear seat down, remove the nut at the base of the seat belt bracket, and slide the bracket off of the stud.

Close-up of a car seatbelt with a metallic clip and red screw on the wheel (no text or symbols visible)

STEP 3

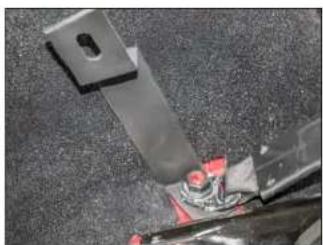

Slide the Front Bracket over the factory stud, followed by the seat belt bracket and nut, as shown. Hand tighten.

Close-up of a red vehicle wheel with two white arrows pointing upward, placed on asphalt (no text or symbols visible)

STEP 4
Locate the two indicated holes at the top of the side rail.

Page 4 • JL Audio, Inc., 2019 Continued on Next Page

SB-J-WRUD/10TW1 INSTR_SKU# 011387

Close-up of a red mechanical component mounted on a dark textured surface, with a black plastic component attached (no visible text or symbols)

STEP 5
Slide a 3/8 " Flat Washer and a 3/8" Nylon Washer over an M8 x 30 mm 1.25 Flange Head Bolt (substitute an M8 x 45 mm 1.25 Flange Head Bolt for vehicles with hard top), and thread the assembly through one of the holes indicated in the previous step. Repeat for the second hole.

Close-up of a red car hood being adjusted by hand, no visible text or symbols

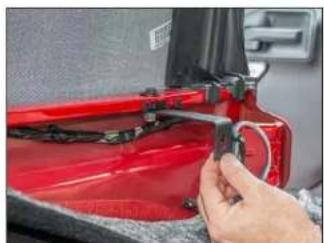

STEP 6
Pull the carpet down from the side of the vehicle. Slide a Rear Bracket over the Flange Head Bolt, under the rail, as shown. Secure with an M8 1.25 Hex Flange Lock Nut, and hand tighten. Repeat for the second hole.

Interior view of a vehicle showing a red vehicle trunk with black textured areas and a small white vehicle on the side (no visible text or symbols)

STEP 7

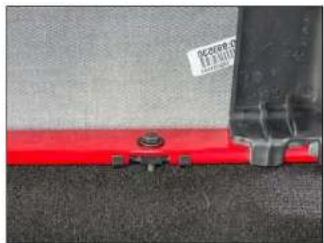

Align both Rear Brackets perpendicular to the rail, as shown.

Close-up of a car's seat with a small electrical socket and wiring, no visible text or symbols

STEP 8
Connect speaker cable to the terminal cup on the Stealthbox ^® , and place the enclosure into position between the Front and Rear Brackets. Route the speaker cable as necessary.

Close-up of a car seatbelt component with a metallic bracket and red accent (no visible text or symbols)

STEP 9

Align the threaded insert on the front of the enclosure with the hole in the Front Bracket. Slide a 3/8" Serrated Spring Washer and a 3/8" Flat Washer over a 3/8 - 16 x 1" Button Head Bolt, thread the assembly through the Front Bracket and into the threaded insert, and hand tighten.

Close-up of a red car seatbelt joint with visible bolts and blue cables (no text or symbols)

STEP 10

Align the threaded inserts on the back of the enclosure with the holes in the Rear Brackets. Slide a 3/8" Serrated Spring Washer and a 3/8 Flat Washer over a 3/8 - 16 x 1" Hex Head Bolt, thread the assembly through the Rear Bracket and into the threaded insert, and hand tighten. Repeat for the second bracket.

Close-up of a hand using a power tool to adjust or install a car component (no visible text or symbols)

ST EP 11

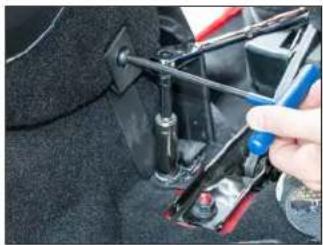

With the enclosure aligned, fully tighten the 3/8 - 16 x 1" Button Head Bolt and the factory seat belt nut. Then fully tighten both of the 3/8 - 16 x 1" Hex Head Bolts and M8 1.25 Hex Flange Lock Nuts.

Close-up of a car's front panel with a circular vent and attached seat (no visible text or symbols)

STEP 12

Fold the rear seat back up.

Page 5 • J. Audio, Inc., 2019

SB-J-WRUD/10TW1 INSTR_SKU# 011387

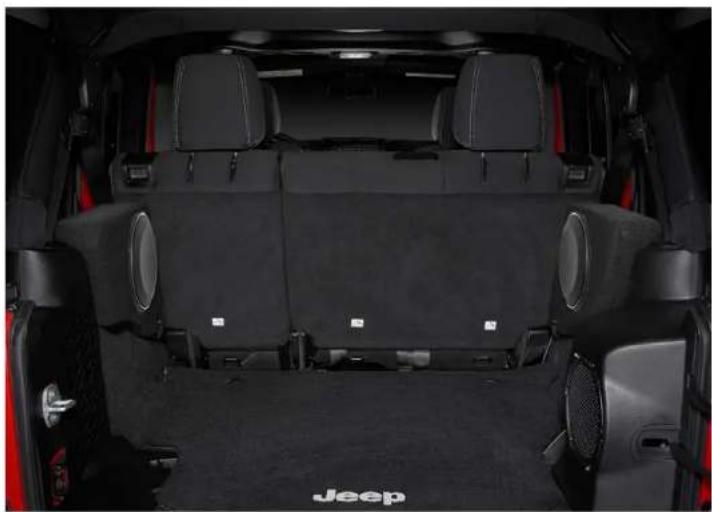

CONGRATULATIONS!

You have completed the installation for this model! Enjoy your new Stealthbox ^® !

Interior view of a Jeep SUV backseat showing rear seats and side seating (no text or symbols visible)

MID/HIGH FREQUENCY DRIVER FITMENT

A variety of JL Audio coaxial and component systems will fit in the factory speaker locations of you vehicle.

Front Speaker Size / Location: 6-1/2"- Front Doors Fits JL Audio Models: C1-650, C1-650x, C2-650, C2-650x, C3-650, C5-650, & C5-650x

Rear Speaker Size / Location: 6-1/2"- Roll Bar Fits JL Audio Models: TC1-650, C1-650x, C2-650, C2-650x, C3-650, C5-650, & C5-650x
