USER MANUAL Ultimate IGS12T-PRIMED-EACH Crestron

Ultimate 12 in. In-Ground Subwoofer, Primed Paintable, Single

The Crestron® ULTIMATE IGS12T-PRIMED-EACH in-ground subwoofer made by Origin Acoustics provides the full impact of your music outdoors with rich and deep bass. Its compact, watertight enclosure installs beneath the ground's surface, affording a virtually hidden appearance with just the port tube and dome visible. The port tube is topped with a primed, paintable dome-shaped cap, providing a subdued appearance.

In the Box

1 ULTIMATE IGS12T-PRIMED-EACH

Additional Items

1 Dome

2 Wire Nuts

Installation

Prepare the Site

1. Choose a location that will not flood and where the port tube and dome will not be affected by an in-ground sprinkler system. The installation must comply with all national and local codes.

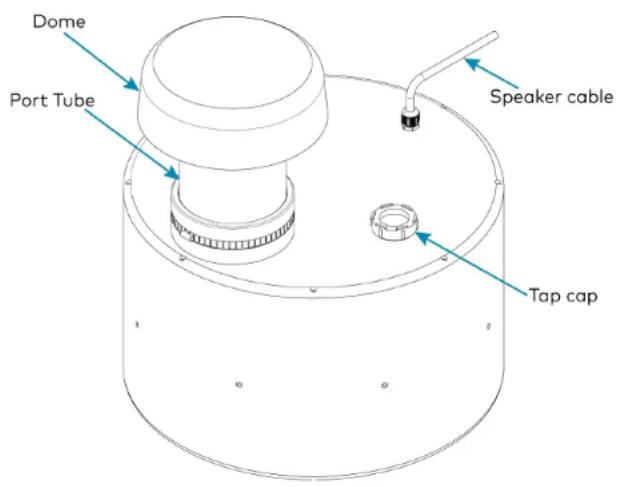

Figure A

Dome Port Tube Speaker cable Tap cap

ULTIMATE IGS12T-PRIMED-EACH

Quick Start

Ultimate 12 in. In-Ground Subwoofer, Primed Paintable, Single

1. Dig a hole with minimum dimensions to bury the speaker:

. Height: 15-17 in. (381-432 mm)

. Diameter: 22 in. (559 mm)

1. Prepare a flat bed for the subwoofer that is free of voids and large rocks (see Figure B).

NOTE: The hole must be deep enough to allow a 2 to 4 in. (51 to 102 mm) layer of material (sand and gravel, mix or other material approved by local codes) and position the base of the speaker 15 to 17 in. (381 to 432 mm) below ground level.

Figure B 4 in. (102 mm) 15-17 in. (381-432 mm) 2-4 in. (51-102 mm) 2 to 4 in. (51 to 102 mm) Sand and Gravel Mix per Local Code for Drainage

ULTIMATE IGS12T-PRIMED-EACH

Quick Start

Ultimate 12 in. In-Ground Subwoofer, Primed Paintable, Single Mount the Subwoofer Figure C

1. Remove the tap cap and rotate the dial to the 70V/100V or 8 Ohm tap selection and then firmly reinstall the tap cap (see Figure A).
   NOTE: Make sure the desired tap selection is done on the subwoofer before lowering it into the ground.
2. Place the subwoofer into the ground.
   NOTE: Ensure that the bottom of the dome is about 4 in. (102 mm) above ground level – it should not be buried or set at ground level.
3. Dig a 5 in. (127 mm) deep trench to run the speaker cable in. Make sure trenching is done as per local codes.

Connect the Speaker Cable

1. Run the speaker cable (not included) from the audio source to the wire nut, observing all appropriate local codes.
2. Run the speaker cable from the speaker location to the wire nut, observing all appropriate local codes.

NOTES:

• The speaker includes a hardwired direct-burial speaker cable.

• Make sure that the positive cable is attached to the red connection, and the negative cable is attached to the black connection.

• Combine and twist the positive (+) cables together in a clockwise motion. Repeat this step for the negative (-) cables.

• Secure the two cables together using the wire nuts ensuring that NO COPPER is exposed.

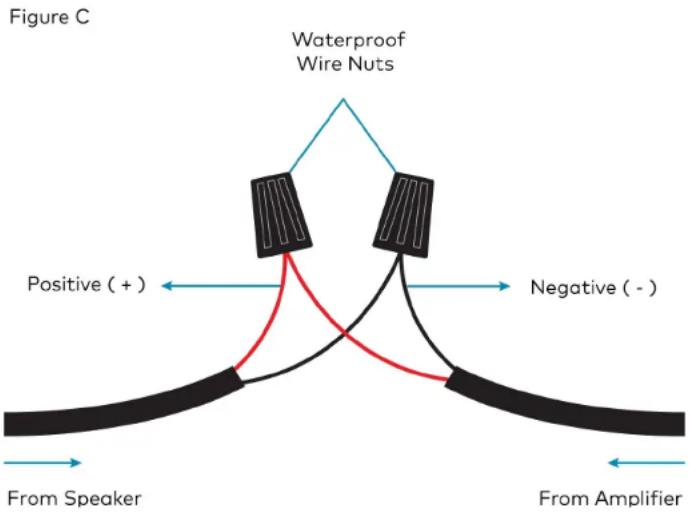

Figure C Waterproof Wire Nuts Positive (+) Negative (-) From Speaker From Amplifier

ULTIMATE IGS12T-PRIMED-EACH

Ultimate 12 in. In-Ground Subwoofer, Primed Paintable, Single

Quick Start

Visit the Product Page

Scan the QR code to visit the product page. ULTIMATE IGS12T-PRIMED-EACH

https://www.crestron.com/model/6511871

Additional Information

Original Instructions

The U.S. English version of this document is the original instructions. All other languages are a translation of the original instructions.

Regulatory Model: M202046012
