USER MANUAL ACG700X Artusi

APPLIANCES FOR LIVING

APPLIANCES

FOR LIVING

ARTUSI

THE ART OF LIVING

ACG600X, ACG700X, ACG900X

OPERATION MANUAL

Congratulations, you are now the proud owner of an ARTUSI cooking appliance. Thank you for purchasing ARTUSI and welcome to the ARTUSI Family.

This instruction manual has been specially created to inform you of the full range of features your ARTUSI appliance has to offer and serves as an introduction to getting the very best out of your ARTUSI appliance.

We present detailed information on each of the features your ARTUSI appliance consists of. Once you have read this section you will be able to choose the most appropriate settings for your appliance when cooking different types of food.

We ask you to read the instructions in this booklet very carefully as this will allow you to get the best results from using your appliance. KEEP THE DOCUMENTATION OF THIS PRODUCT FOR FUTURE REFERENCE.

Dear Artusi Customer, please read this user manual carefully before using the product and, keep it permanently at your disposal.

Note: This user manual is prepared for more than one model. Some of the features specified in this Manual may not be available on your appliance. All our appliances are only for domestic use, not for commercial use. Products marked with (*) are optional.

"THIS APPLIANCE SHALL BE INSTALLED IN ACCORDANCE WITH THE REGULA TIONS FORCE AND ONLY USED IN A WELL VENTILATED SPACE. READ THE INSTRUCTIONS BEFORE INSTALLING OR USING THIS APPLIANCE"

"Conforms with the WEEE Regulations."

TO REGISTER YOUR PRODUCT WITH ARTUSI, PLEASE FILL OUT THE WARRANTY CARD AT THE END OF THIS BOOKLET AND POST IT TO: REPLY PAID 83617

LEICHHARDT NSW 2040

ARTUSI

THE ART OF LIVING

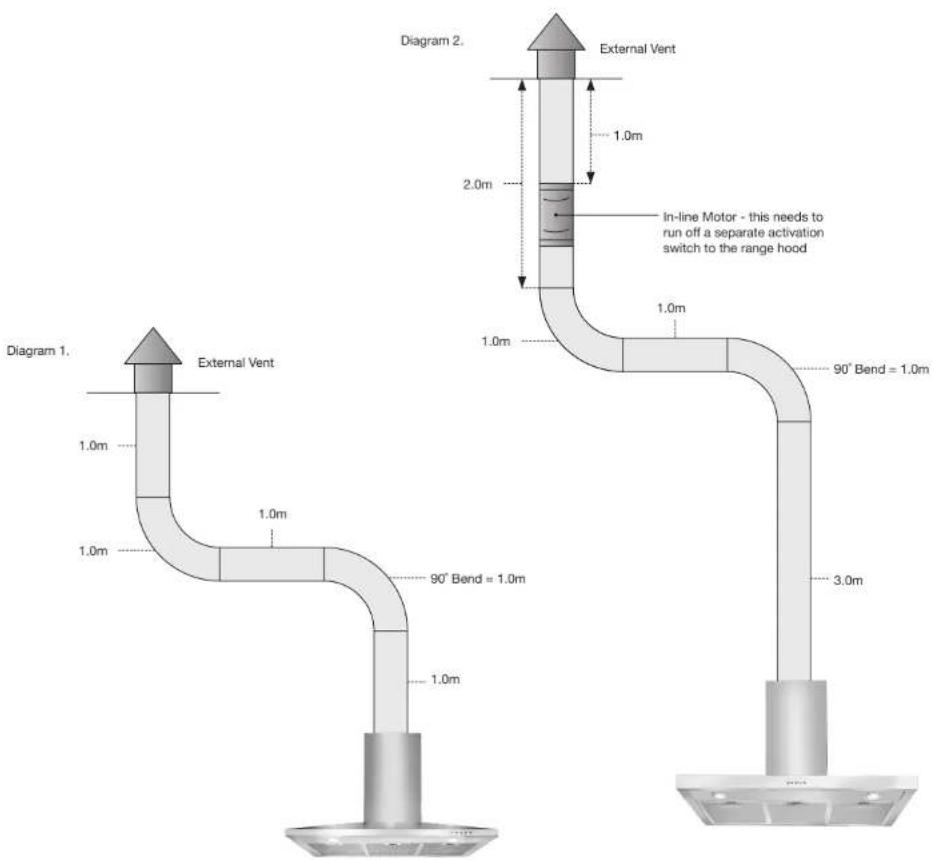

HOOD DUCTING GUIDE

Here are some important points to consider when choosing and/or installing a range hood:

• An externally ducted range hood will generally outperform a recirculating range hood.
• We discourage the use of flexible ducting as this has a significant negative impact on airflow and noise due to turbulence
- caused by the ribs. Instead consider using semi-rigid or rigid duct.
- Avoid using a narrower duct than specified as this will reduce airflow; the best performance is obtained when the range hood is installed with a short duct with minimal bends.
- To determine the required clearance between the cooktop and the range hood always consult the installation manual for both the range hood and cooktop. The required clearance is the greater of the distance specified in either manual (and a minimum of 600mm between the highest point of the highest burner for gas cooktops).
- Five metres is the recommended maximum length for ducting (see diagram 1.). When the ducting exceeds five metres in length the installation of a TD500 or TD350 in-line motor is required, which must be placed one metre from the external vent (see diagram 2.).

Diagram 1. External Vent 1.0m 1.0m 1.0m 90° Bend = 1.0m 1.0m 2.0m 1.0m 3.0m 90° Bend = 1.0m In-line Motor - this needs to run off a separate activation switch to the range hood External Vent Diagram 2. 1.0m 1.0m 1.0m 90° Bend = 1.0m

Information and advice

CAUTION: Accessible parts may become hot when used with cooking appliances.

In certain circumstances electrical appliances may be a hazard.

Please pay attention to the following points:

A. Always have air circulating through the room when the hood is in use especially if other appliances burning gas or other fuels are in use.
B. Never open the filters to check their state while the hood is in use.
C. Do not touch the lightbulb within 30 minutes of using the hood.
D. Never flambé under the hood. The flames may cause the hood to catch on fire.
E. Do not light gas burners on a gas hob without putting a pan or pot over the flame as the flames may damage the filters and are a fire hazard.
F. Never leave frying food unattended as the oil may catch on fire.
G. Disconnect the hood from the power supply before any maintenance.
H. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
I. Children should be supervised to ensure that they do not play with the appliance.
J. Only install this hood over a hob with a maximum of 4 burners/ hot plates.
K. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
L. There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
M. The details concerning the method and frequency of cleaning.
N. There is a fire risk if cleaning is not carried out in accordance with the instructions.
O. The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
P. Regulations concerning the discharge of air have to be fulfilled

Know your cooker hood

Please read these instructions before using your cooker hood.

Diagram of a mechanical or optical system with layered components and directional arrows, no readable text or symbols present.

1. Top inner chimney flue

2. Bottom outer chimney flue

3. Glass

4. Cooker body

5. Air duct assembly

6. Filters

Also included

* Damper flap

*Chimney fixed bolster

* Drill hole stencil

*User instruction manual

Information

Congratulations on the purchase of our cooker hood which is designed to include many superior features. Before installing and using the hood carefully read all the instructions.

Installation

Ensure the power is turned off before beginning the installation

Check the voltage and frequency on the rating plate located inside the hood.

600-750mm

Ensure the hood is installed so that the bottom of the hood is no less than 600mm and no more than 750mm above the cooking elements or burners.

i

Information

The hood must not be installed and connected to flues where other appliances are installed.

Installation

Technical illustration showing a hand using a pipette to press a mechanical component into a tray, next to a 3D model with a cube and sphere (no text or symbols)

3
Fig. 3 Attach the damper flap on the air outlet as shown.

i

Information

Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable laws, regulations and safety standards.

Installation

You will need two people to install this hood

Diagram showing two circular insets with mechanical components, no text or symbols present

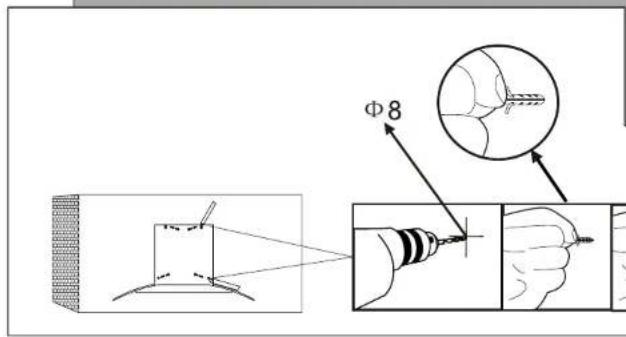

Using the drill hole stencil mark the screw positions on the wall. Drill four 8mm holes into the wall. Put one expansion plug and one 10mm screw into each of the holes. Screw the screws into place but not all the way into the plugs until after you hang and adjust the hood.

i

Information

When cutting or drilling into wall or ceiling, do not damage electrical wiring or other hidden utilities.

Φ8

until after you hang and adjust the hood. 5

5

Installation

Technical diagram showing a mechanical assembly with a component, dimensioning, and detail view labeled 6

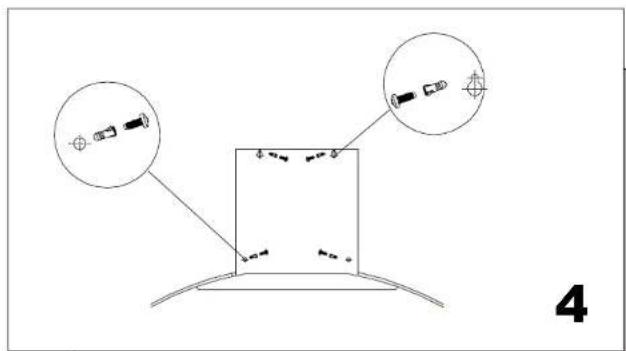

Hang the hood body onto the screws. First screw in the top 2 screws then the bottom 2 screws. Adjust the level of the hood on the wall to be straight horizontally.

Diagram illustrating a mechanical setup with a tool and a magnified view showing a circular component with cross symbol.

Installation

Ensure the power is turned off before beginning the installation

Simple line drawing of a mechanical component with a curved arrow indicating motion (no text or symbols)

89

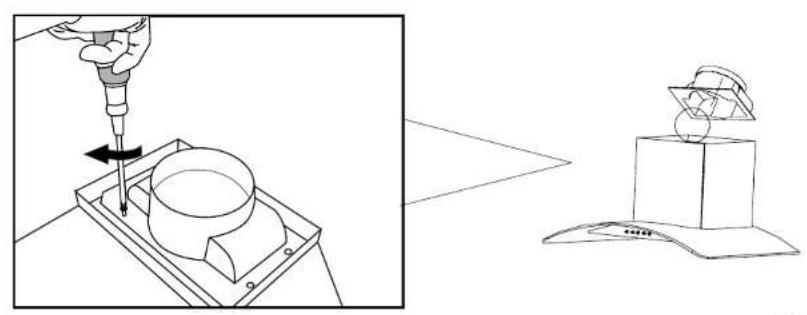

The cooker hood is fully convertible for different venting direction.

10

Diagram of a brick wall structure with a circular inset showing a rack system (no text or symbols)

Attach the ducting hose to the air duct.

Vertical discharge of air. Run the ducting through a cupboard and/or into a space in the ceiling cavity to a roof cap.

Horizontal discharge of air. Run the ducting through the eaves (soffit) and the outside wall to a wall cap.

i

Information

The air must not be discharged into a fuel that is used for exhausting fumes from appliances burning gas or other fuels.

Installation

Attaching the chimney flues

11

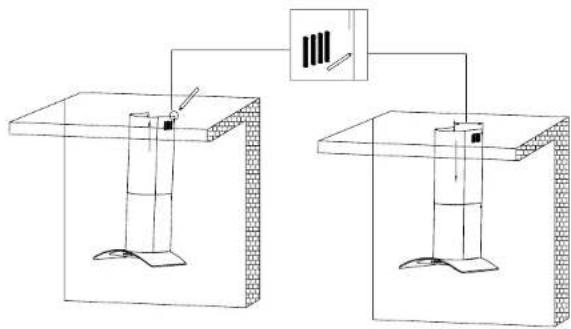

Assemble the 2 flues, inner top to outer bottom. Place them onto the hood body covering the air duct assembly and screw into place.

Diagram of two identical mechanical or electrical setups with vertical supports and a control panel (no text or symbols)

12

Measure the height for the chimney flue bracket. Pull the inner chimney to the desired height.

Installation

Attaching the chimney flues

Technical diagram illustrating a mechanical assembly with labeled components and a magnified inset showing a screw head detail.

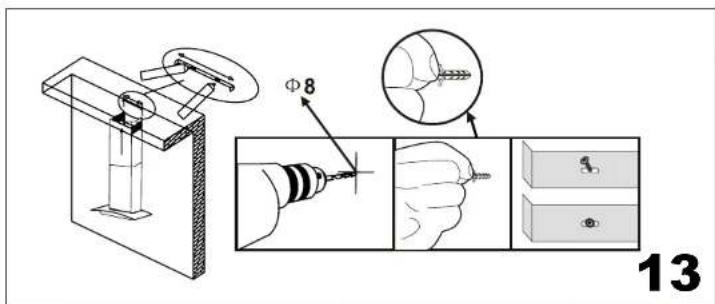

2 x wood screws the chimney flue bracket into place as measured.

Diagram showing light path through a vertical structure and magnified view of a screen with bar chart (no text or symbols)

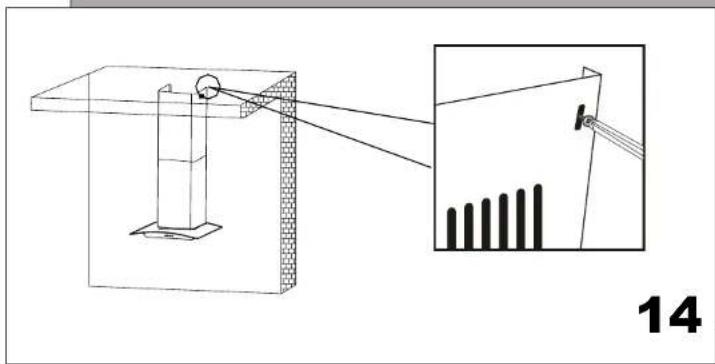

Connect the chimney flues to the bracket using four 10mm 2 ST4x10 screws.

Hood Operation

Controls

15

Ensure the hood is OFF when first installed.

Insert the power plug when all previous installation steps are completed.

Press the Light button for the lights to turn ON.

Press again to turn OFF

Push button 1 for low speed

Push button 2 for medium speed

Push button 3 for high speed

Push button 0 to turn off the motor

i

Caution Never cover the lamp with thermal insulation or any other material.

Warning The lamp is hot for 30 minutes after using the hood.

Replacement & maintenance

Diagram showing three steps of a device installation or assembly process, labeled ①, ②, and ③.

Diagram illustrating a kitchen cleaning process with labeled steps and material changes

Recirculation mode filter instructions

Install a charcoal filter as shown.

Note: The charcoal filter cannot be washed or cleaned and must be replaced as necessary.

i

Information Clean the filters and ventilating fan at least once every 3 months or earlier as required.

Cleaning instructions

Turn off the hood before cleaning.

1. Clean the surface of the hood frequently using mild soap or detergent at least once every 3 months.
2. Avoid the use of harsh cleaning agents as it may spoil the hood's appearance.
3. Wash the filters using mild soap or detergent. Note that heavy grease build up may not be able to be cleaned and the filters should be replaced.
4. Never clean the charcoal filters. They must be replaced as necessary.

i

Information

Never let water enter the motor or electrical parts as this may cause an electric shock hazard.

The manufacturer shall decline all responsibility when the recommendations and instructions regarding installation, maintenance and use are not observed.
