USER MANUAL VC-FH30FPM SHARP

Important notes on your VCR 2

Unpacking the accessories 3

INSTALLING YOUR VCR

Connecting the cables 4

Auto installation 5

BASIC OPERATION

Important notes on your VCR and video tapes 8

How to playback a video tape 8

Pausing and slow motion 9

Fast forwarding/rewinding a video tape 10

Immediate recording 11

Direct TV recording 12

How to use SHOWVIEW to make a recording 13

How to set a delayed recording 15

Checking, changing and cancelling a recording 17

ADVANCED OPERATION

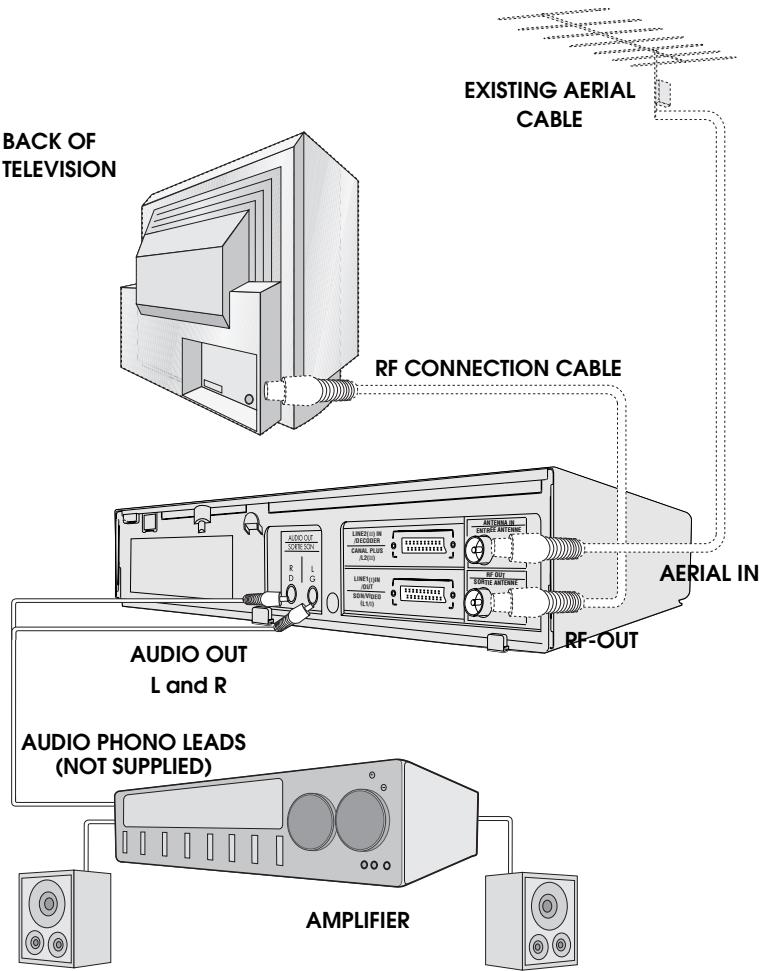

Audio and your VCR 18

Playback of a video tape 20

Checking the amount of tape remaining 20

Playing back a video tape repeatedly 20

Playing back an S-VHS tape 21

Playing back an NTSC tape 21

Remote control operation of TV 22

Digital Display 23

Blue mute 24

Colour 24

SECAM 24

16:9 playback and recording 24

Searching the video tape 26

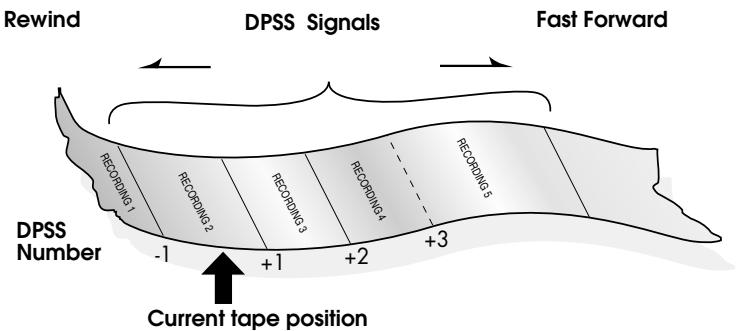

Digital programme search system (DPSS) 26

Skip searching the video tape 26

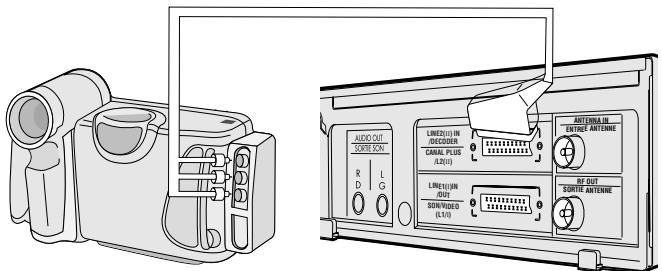

Recording from other equipment 27

SPECIAL FEATURES ON YOUR VCR

Child lock. 28

CUSTOMISED INSTALLATION

Manually tuning a channel 29

Decoder switching operation 30

Manually sorting channels 31

Sorting the channels into your preferred order 31

32

Re-naming channels 33

Changing the on-screen display language 34

Manually setting the clock 34

MORE INFORMATION ABOUT YOUR VCR

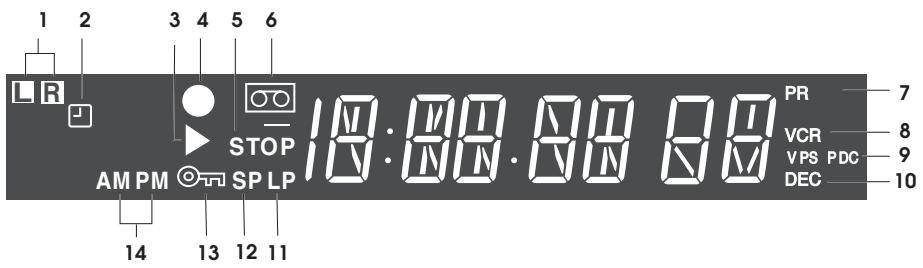

VCR digital display 35

Selecting the output from the VCR 35

Manufacturers codes for satellite receivers 36

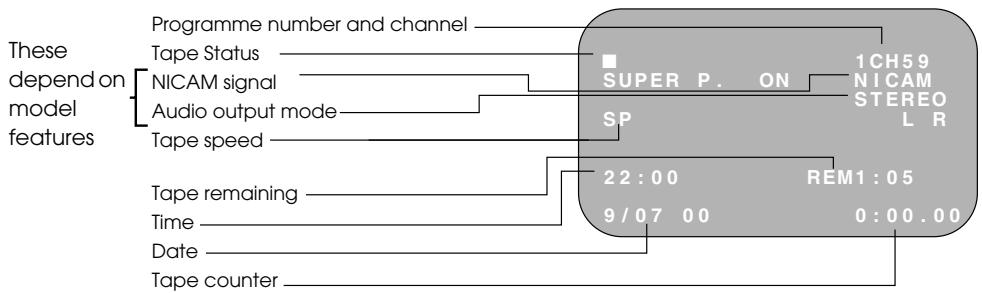

On-screen display 37

Specifications 38

Troubleshooting 39

IMPORTANT NOTES ON YOUR VCR

IDEAL VCR LOCATION

PLACE THE VCR...

... on a flat level surface away from radiators or other heat sources and out of direct sunlight.
... and video tapes away from magnetic sources such as speakers or microwave ovens.
... at least 8'' (20cm) away from the TV.
- ... away from curtains, carpets or other materials and allow ventilation space around the VCR.

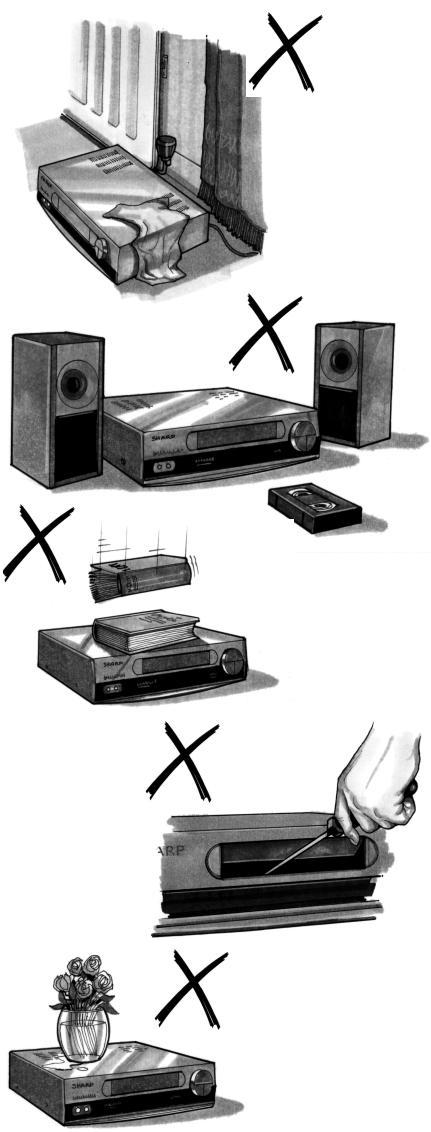

DO NOT...

... block the air-vent openings.
... expose the VCR to excessive dust, mechanical vibration or shock.
... place any heavy object or liquid on top of the VCR. If liquid drops inside the VCR unplug immediately and contact your SHARP dealer. Do not use the VCR.
... insert or drop anything into the tape compartment or through the air-vents, as this could result in serious damage, fire or an electric shock.

POWER SOCKET

• To avoid overheating or even fire, insert the plug correctly into the socket.

DO NOT...

... overload power sockets, this may cause a fire or electric shock.
... pull the power cord to disconnect the plug from the mains.
... bind the power cords together.
- This VCR is not equipped with a mains power switch. Accordingly, nominal current to drive the clock is drawn at all times when the AC power cord is plugged into a wall socket. If the VCR is not to be used for an extended period be sure to unplug the cord.

UNPACKING THE ACCESSORIES

CHECK ALL THESE ACCESSORIES ARE SUPPLIED WITH YOUR VCR. CONTACT YOUR DEALER IF ANY ARE MISSING.

(TYPE AA/R6/UM3) BATTERIES (X2)

for the remote control unit.

COAXIAL CABLE

connects the VCR to the TV.

SCART CABLE

connects the VCR to the TV.

Battery cover

To fit the batteries into the remote control

Remove the battery cover on the back of the remote control.

Fit the batteries: to and + to + . terminals. Place the battery cover back into position.

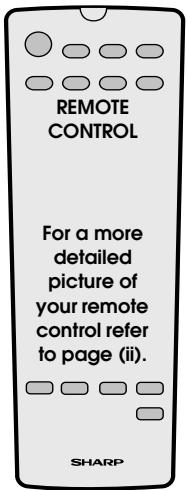

Remote Control

Remote Control must be pointed towards the VCR to operate.
- Do not expose to liquid or shock.
- May not function if the VCR is in direct sunlight or any other strong light.
- Replace both alkaline batteries (type AA/R6/UM3) if the remote control fails.
- Remove the batteries and keep in a safe place if you do not plan to use the VCR for several months.
- Remove and dispose of flat batteries safely and promptly.
Incorrect use of batteries may cause them to leak or burst.

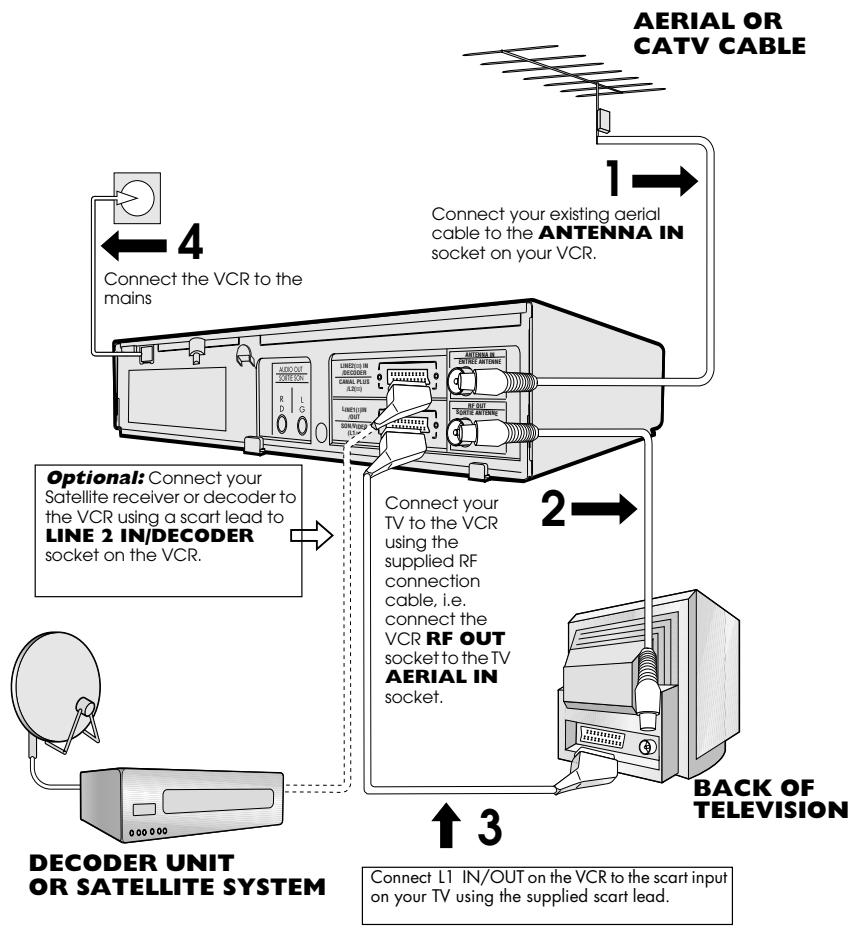

CONNECTING THE CABLES

The VCR is correctly connected.

AUTO INSTALLATION

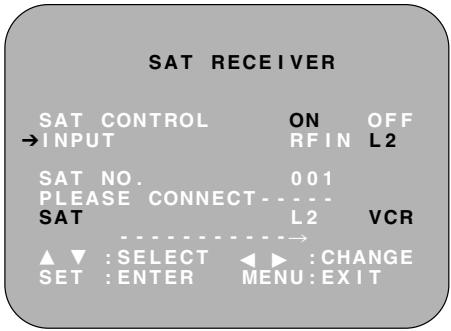

SATELLITE RECEIVER / CABLE BOX CONTROL

If you have a satellite receiver or cable box connected to your VCR you can automatically install the satellite channels using this feature. The installation procedure for cable boxes is the same as for satellite receivers (for cable box connections refer to your cable box manual).

Follow steps 1-4 below before INSTALLATION PROCEDURE:

1. Connect your satellite receiver to the VCR as previously shown.
2. Place the satellite receiver near the VCR (ideally on the top). This ensures that the reflected infrared signals from the VCR which control the satellite receiver can reach it unimpeded.
3. Ensure all the channels you wish to be tuned are within channel positions 1-199 on your satellite receiver as the VCR will only tune the first 199 channels - refer to your satellite receiver operation manual for instructions on moving channels.

4. Ensure the receiver is not in any special mode.

5. The satellite channels can now be tuned in as part of the auto-installation procedure. You will be prompted for further information from the on-screen displays.

6. SHARP cannot guarantee this feature will work with all satellite receivers and cable boxes.
7. See the list of satellite receiver manufacturers codes at the end of this manual.

All information relevant to satellite receiver control will display this symbol.

INSTALLATION PROCEDURE

These models automatically tune the TV channels for your area, then using Teletext information sort the TV channels into a standard order and set the clock.

• Ensure the VCR is connected as previously shown.
• Turn the TV on and select the video channel.
• Press STOP to switch on your VCR.

If the VCR has not previously been tuned-in, instructions will be given on screen to guide you through this procedure.

If the screen opposite appears when the video is first switched on, press SET to confirm and start from point 4 on the next page.

If the screen opposite does not appear when the video is first switched on, start from point 1 on the next page.

AUTO INSTALLATION

VCR RESET

1. Press STOP to switch on the VCR.
2. Press and hold MENU and CHANNEL buttons together on the front of the VCR for 10 seconds.
3. The AUTO INSTALLATION screen should now be showing on your TV. Press SET to confirm.
4. Ensure your AERIAL/SCART cable is connected to your VCR and then press SET to confirm.
5. SAT CONTROL WILL BE HIGHLIGHTED.

If you do have a satellite receiver connected to the VCR continue from point 6.
If you do not have a satellite receiver connected to the VCR leave SAT CONTROL set to OFF and press SET.

5.

The VCR will attempt to copy the TV preset list (NexTView compatible TV's only). During the copying process the display will show the TV presets that are being copied. If the VCR is unable to copy the TV preset list the terrestrial channels will be automatically installed. (Auto install may take a few minutes.) On completion the MOVE menu will appear showing the preset channel order. Press MENU to exit. If the clock is not automatically set, the clock screen will appear, refer to MANUALLY SETTING THE CLOCK. To check the clock has been set correctly, press DISPLAY until the time appears on the display. If you wish to customise the channel order refer to MANUALLY SORTING CHANNELS.

Points 6-11. (Satellite/Cable Box Control only)

1. Select Channel 1 on your satellite receiver.
2. Press ( / ) , to set SAT CONTROL to ON.
3. Press ( / ) , to select INPUT. L2 will be highlighted. If the VCR is not connected to the satellite receiver as shown previously.
   i. Your satellite receiver should be connected to the Antenna (RF in on the back of the VCR) select RF IN using ( / ) You will need to tune the VCR into the Satellite receiver.
   ii. Press ( / ) to select CHANNEL.
   iii. Press () . The current channel will be displayed as a background to the on-screen display. If this is not a satellite channel press () again. Continue until you see a satellite channel.

AUTO INSTALLATION

1. Press ( / ) to select SAT NO. Turn to the table at the end of this manual. Look for the make of your satellite receiver and use the NUMBER BUTTONS to enter the first code number listed. For example number 8 should be entered 0 0 8. Your satellite should now change to preset channel 12.
2. If your satellite receiver has changed to preset channel 12, press SET to confirm the VCR will automatically install both satellite and terrestrial channels. (This may take a few minutes).
3. The VCR will attempt to copy the TV preset list (NexTView compatible TV's only). During the copying process the display will show the TV presets that are being copied. If the VCR is unable to copy the TV preset list the terrestrial and satellite channels will be automatically installed. (Auto install may take a few minutes.) On completion the MOVE menu will appear showing the preset channel order. Press MENU to exit. If the clock is not automatically set, the clock screen will appear, refer to MANUALLY SETTING THE CLOCK. To check the clock has been set correctly, press DISPLAY until the time appears on the display. If you wish to customise the channel order refer to MANUALLY SORTING CHANNELS.

NOTES:

• If your satellite receiver has not changed to preset channel 12 enter the next code number on the list. Continue until the receiver shows preset channel 12, then continue from point 10.
• If your satellite receiver is not listed at the end of this manual or after entering all the numbers listed for your receiver, the satellite receiver preset channel has still not changed to 12, enter 0 0 1, and look to see if the satellite receiver has changed to preset channel 12. If it has, continue from point 10. If not, press to select 0 0 2 and re-check. Continue until your receiver changes to preset 12, then continue from point 10.
• If there is still no response from your satellite receiver, try adjusting its position to improve the Infra Red VCR to satellite receiver reception.
• Auto-installation will stop when the satellite receiver reaches preset channel 199, or when all the 84 VCR preset channels have been used.
• The VCR will place all found terrestrial channels starting at preset 1, then all satellite channels from the first available preset channel after the terrestrial channels.

All the programmes should now be correctly tuned in and the clock set.

If you replace your satellite receiver, you will need to follow the complete auto-installation procedure to tune your VCR to the satellite receiver. This is because your new satellite receiver will not over-write the previous satellite channels in your VCR.

If you connect a satellite receiver to the VCR for the first time, after auto-installation, see SATELLITE RECEIVER / CABLE BOX INSTALLATION.

IMPORTANT NOTES ON YOUR VCR AND VIDEO TAPES

VIDEO TAPES

• If you use only good quality video tapes, generally it will not be necessary to clean the video heads.
• If poor quality tapes are used, or if a tape is loaded after changing VCR location, oxide from the tape may "clog" the video heads. This will cause the playback picture to be "snowy", or even disappear.
• To remove minor contamination run a video tape in visual search mode. If this fails, you will need to have the heads cleaned by a SHARP Service Facility. Please note, if cleaning is necessary it is not covered by the guarantee.
  Use video tapes which carry the V1C mark.
  mark.

PAL SECAM

Condensation forms in the VCR when it is moved out of or into a warm place. If you try to playback or record, the video tape and VCR may be damaged. Turn the VCR on and wait for about two hours until the VCR reaches room temperature before operating.

PLAYBACK

1. Switch on your TV and select the video channel.

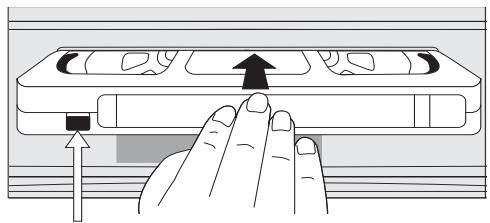

2. Carefully push a pre-recorded video tape into the tape compartment. This will switch the VCR on.
3. If the record-protection tab has been removed, the VCR will start playback as soon as the video tape has been loaded.
4. To start playback, press PLAY/ X2 (▶).

Record protection tab

SHARP SUPER PICTURE should enhance the picture quality during playback. It is normally set to ON. To turn SHARP SUPER PICTURE on or off press SUPER P. on the VCR front panel.

For double speed playback (without sound), press PLAY/X2 () again.
To revert to normal playback, press PLAY/X2 (▶) again.
- To stop the video tape, press STOP (■).
To eject the tape press EJECT on the VCR.

PICTURE DISTURBANCE DURING PLAYBACK

This VCR has an automatic tracking system which reduces picture disturbance when you start to playback a video tape. When auto-tracking is in operation flashes on the on-screen display. If the picture still has disturbance you may need to manually track the video tape:

During PLAYBACK of a video tape.

• Press CHANNEL ▲ or ▼ to position picture interference off the TV screen. (Manual Tracking)
• Press CHANNEL and buttons together to start Auto Tracking.

PAUSING AND SLOW MOTION

1. Press PLAY/X2 (▶) to start the video tape playing.
2. To pause the video tape, press PAUSE/STILL (II).

To minimise jitter whilst in pause mode press CHANNEL ▲ or ▼.
- Press PLAY/X2 (▶) to resume playback.
3. To playback in slow motion (without sound) press SLOW on the remote control. Slow motion speed can be adjusted using the or buttons next to the slow button.

Picture disturbance can be improved by using the CHANNEL ▲ or ▼ during slow motion playback.

• Press PLAY/X2 (▶) to resume playback.

NOTES:

• When using SLOW MOTION function some mechanical noise may be heard.
• There will be picture interference and possibly a change to black and white picture using Pause and Slow functions.
• PAUSE mode will disengage after about 5 minutes.

1. Press STOP (■) to stop the video tape.
2. Press FAST FORWARD (▶▶)/REWIND (▲) on the remote control or rotate the shuttle dial clockwise for Fast Forward and counter clockwise for Rewind then release.
3. To stop fast forward/rewind, press STOP().

FORWARD/REVERSE VISUAL SEARCH

Visual Search can be operated during playback by either the Fast Forward/Rewind buttons on the remote control or by using the shuttle dial on the VCR front panel.

Remote Control Operation

1. Press FAST FORWARD (▶▶) /REWIND (▲▲) during playback.
2. To decrease the speed, press FAST FORWARD (▶▶) / REWIND (▲▲) again.
3. Press PLAY/X2 (▶) to resume playback.

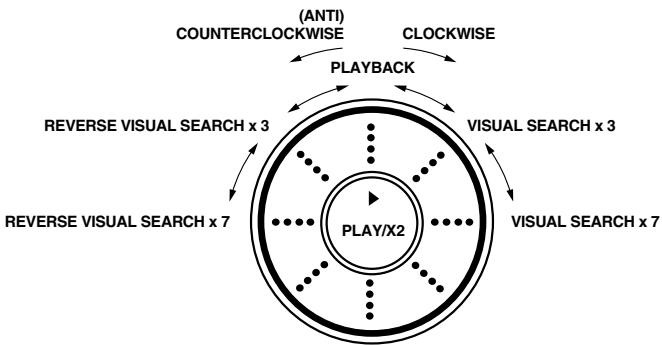

OR: Shuttle Dial Operation

As the Shuttle dial is rotated a soft click can be felt. During playback, rotating the dial one click clockwise will make the VCR enter Visual search x 3 mode. An additional click clockwise or counter clockwise will change the operation as illustrated above.

The start position shown above is only an example. The Shuttle dial can be operated from any position.

Press PLAY/X2 (▶) to resume playback at any time, or rotate the shuttle dial clockwise/ counter clockwise until the playback function is selected.

NOTE:

• There will be picture interference and possibly a change to black and white picture using Visual Fast Forward/Rewind functions.

IMMEDIATE RECORDING

SELECTION OF A CHANNEL

Select the channel by using the number buttons on the remote control, or select the next/previous channel by pressing CHANNEL (▲ or ▼).

To change between single digit and 2-digit channel numbers, press AM/PM 山 For example, for channel 24, press AM/PM 山 then press 2 4.

You can record the channel you are watching or a different channel.

1. Insert a video tape into your VCR.
2. Select the channel you wish to record on the VCR.
3. To start recording, press REC (●).
4. To pause during recording, press PAUSE/STILL (I).
5. To continue recording, press REC (●).
6. To stop recording, press STOP (■) once.

SIMPLE TIMED RECORDING:

1. To specify a stop time, press REC (●).
2. Each additional press of REc () will delay the stop time by 10 minutes.
3. To stop recording at any time, press STOP (■) once.

STOP 15:30

NOTES:

• If the tape ends before the recording is complete the VCR will stop recording and rewind, or eject if the VCR is in timer record mode.
• If the VCR ejects the video tape when you press REC (●) the tape is record protected, i.e. record protection tab has been removed.

DIRECT TV RECORDING

This feature can only be used with nexTView, Smart Link, Easy Link and Megalogic compatible tv's.

By pressing the DIRECT TV REC button on the remote control, the VCR will record the signal currently being displayed on the TV regardless of the signal source.

This feature can be started when the VCR is in STANDBY or OPERATE mode.

If l appears on the VCR display, press TIMER ON/OFF before starting.
Ensure a video tape is inserted in the VCR.

1. To start the recording, press DIRECT TV REC.
2. To pause during recording, press PAUSE (II).
3. To continue recording, press REC (●).
4. To stop recording, press STOP().

NOTES:

• A fully wired scart must be used for DIRECT TV RECORD operation.
• If DIRECT TV RECORD could not start, the TV should indicate the reason why. (Refer to the TV operation manual).

TIMER RECORDING

It is possible to program the VCR using three different methods : -

1. NextView
2. Showview
3. Manually (DELAYED RECORDING)

If appears on the VCR display, press TIMER ON/OFF before starting.
- Check that the clock is displaying the correct time.

Some broadcasts transmit an Electronic Program Guide (EPG) in which case, using the TV controls, the program you wish to record can be selected and used to program the VCR automatically. This feature is compatible with NexView TV's. Refer to your TV operation manual for further information. After transfer of the timer information to the VCR, the timer menu will be displayed for approximately 5 seconds, after which press TIMER ON/OFF once to place the VCR in STANDBY mode. l will be shown on the display.

NOTES:

• The timer menu will not be displayed if this procedure is carried out while the VCR is in STANDBY mode.
  If flashes a video tape has not been inserted into the VCR.
  During recording, press STOP (■) to cancel the recording. If there are further recordings to be made, the VCR will return to TIMER STANDBY.

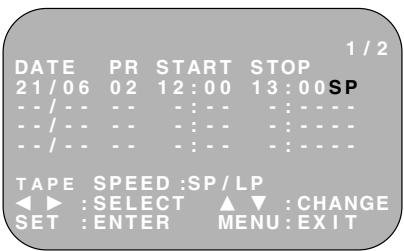

HOW TO USE SHOWVIEW TO MAKE A RECORDING

• If appears on the VCR display, press TIMER ON/OFF before starting.
• Check that the clock is displaying the correct time.

SHOWVIEW allows you to program the VCR to record up to eight programmes using the SHOWVIEW numbers published in TV listings...

1. Press SHOWVIEW on the remote control
2. Enter the SHOWVIEW number from the TV listing using the NUMBER BUTTONS.

NOTE:

• An ERROR message will appear if you have entered a number that is not a current SHOWVIEW number. If this happens press CLEAR to delete the numbers as required and enter the correct SHOWVIEW number

• Press (▲ /▼) to select ONCE, WEEKLY, DAILY

• If you want to make additional recordings at the same time each day or week, then use ( / ) to select the WEEKLY, or DAILY option as appropriate.
• Press SET to confirm..

NOTE:

• Check that the menu list agrees with the times shown in the TV listing. If it does not press CLEAR to return to the SHOWVIEW menu, and re-enter the correct SHOWVIEW number

The first time that you use SHOWVIEW to make a recording on each channel Preset, (PR) may be highlighted on the menu.

1. Enter the channel you wish to record using the NUMBER BUTTONS, for example if you wish to record channel 2 press 0 2. The VCR will remember this for the future.

NOTES:

You may also access the SHOWVIEW menu by the following procedure:

i. Press MENU.
ii. The SHOWVIEW option will be highlighted. Press SET to confirm.

Continue from step 2 above.

HOW TO USE SHOWVIEW TO MAKE A RECORDING

1. If your VCR has long play facility and you wish to change the RECORDING SPEED, use the ( / ) to highlight SP. Press ( / ) to select standard play (SP) or long play (LP) as required.
2. Press SET to confirm the programme. the SHOWVIEW menu will reappear. If you wish to enter further SHOWVIEW recordings repeat this procedure.
3. When you have completed entering timer settings, press MENU to remove the menu from the TV screen.
4. Press TIMER ON/OFF once to place the VCR in TIMER STANDBY mode. l will be shown on the display.

NOTES:

If flashes a video tape has not been inserted into the VCR.
- If the video tape is ejected when the VCR tries to record the record protection tab has been removed.
- During recording, press STOP (■) to cancel the recording. If there are further recordings to be made, the VCR will return to TIMER STANDBY.

HOW TO SET A DELAYED RECORDING

You can make a maximum of eight delayed recordings up to a year in advance.

The example shown is for 24-hour clock operation. 12-hour clock operation can be selected from the manual clock setting menu.

12-hour clock am/pm can be selected using the AM/PM button on the remote control.

If appears on the VCR display, press TIMER ON/OFF before starting.
- Check that the clock is displaying the correct time.

SETTING A RECORDING

For example: Recording a programme on channel 3 from 21:05 to 22:30 on July 9th.

1. Press STOP (■) to switch on the VCR.
2. Press MENU.
3. Press ( / ) to select TIMER. Press SET to confirm.
4. The position which is initially highlighted is the next available timer record entry. Press SET to confirm this.
5. The display will automatically show today's date. Either: If this is the date you wish to make the recording on, press SET to confirm this.

Or: enter the recording date using the (▲ /▼) or the NUMBER BUTTONS. Enter two digits for the day, then two for the month. For example for July 9th, press 0 9 (9th), then 0 7 (July).

1. Then press SET to confirm.
2. If you want to make additional recordings at the same time each day or week, use (▲ / ▼) or select D (daily) or W (weekly). Then press SET to confirm.
3. Enter the channel using the ( / ) or the NUMBER BUTTONS. For example to record a programme on channel 3, press 0 3. Then press SET to confirm.

HOW TO SET A DELAYED RECORDING

1. Enter the start time using the ( / ) or the NUMBER BUTTONS hours first then minutes (when entering less than 10 minutes add a '0' before the number), for example for 21:05 start, press 2 1 0 5. Then press SET to confirm.
2. Enter the stop time, for example for 22:30 stop, press 2 2 3 0.
3. If your VCR has long play facility and you wish to change the RECORDING SPEED, use the ( / ) to highlight SP. Press ( / ) to select standard play (SP) or long play (LP) as required.

4. Press SET to confirm.

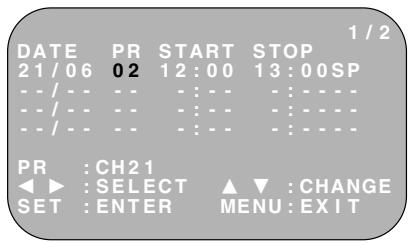

5. The MENU now shows all the timer settings you have entered. If you wish to make additional timer recordings, repeat this procedure.

6. When you have completed entering timer settings, press MENU to remove the menu from the TV screen.
7. Press TIMER ON/OFF once to place the VCR in TIMER STAND-BY mode. will be shown on the display.

NOTES:

If flashes a video tape has not been inserted into the VCR.
If the video tape is ejected when the VCR tries to record the record protection tab has been removed.
- During recording, press STOP (■) to cancel the recording. If there are further recordings to be made, the VCR will return to TIMER STANDBY.

HOW TO SET A DELAYED RECORDING

CHECKING, CHANGING AND CANCELLING A RECORDING

CHECKING A RECORDING

1. If in TIMER STANDBY mode, press TIMER ON/OFF to exit.
2. Press STOP to switch on the VCR.
3. Press MENU.

4. Press ( / ) to select TIMER. Press SET to confirm

5. All the delayed recordings in the VCR's memory will be shown.

6. You can check the settings and change or cancel them.

CHANGING A RECORDING

1. Follow steps 1 to 4 of CHECKING A RECORDING.
2. If you wish to change a delayed recording, press ( / ) to highlight the recording, then press SET.
3. Press ( / ) to highlight the setting to be changed and correct it by using the ( / ) or the NUMBER BUTTONS.
4. When all corrections are complete press SET, then press MENU.

1. Follow steps 1 to 4 of CHECKING A RECORDING.
2. If you wish to cancel a delayed recording, press (▲/▼) to highlight the recording to be cancelled, then press CLEAR.
3. Press MENU.

NOTE:

• If there are some programmes to be recorded, do not forget to press TIMER ON/OFF button to return the VCR to TIMER STAND-BY mode.

AUDIO AND YOUR VCR

HI-FI STEREO SOUND

Stereo sound is possible from this VCR if you have a stereo TV connected to the VCR with a scart lead, or audio equipment connected with audio phono leads. The VCR is normally set so that stereo sound is possible. The sound output from the VCR is controlled by the

AUDIO OUT button on the remote control. If you wish to change the sound output you can use the AUDIO OUT button as follows:

• Press AUDIO OUT once. The LEFT audio channel will be sent to BOTH speakers. L will appear on the VCR display.
• Press AUDIO OUT twice. The RIGHT audio channel will be sent to BOTH speakers. R will appear on the VCR display.
• Press AUDIO OUT three times. The MONO track will be sent to BOTH speakers. L and R will disappear from the VCR display.
• Pressing AUDIO OUT a fourth time, normal Hi-Fi stereo sound will be heard. L and R will appear on the VCR display.

NICAM/IGR Hi-Fi STEREO SOUND

Your VCR can receive and record programmes broadcast in NICAM or IGR sound (the factory pre-set condition for NICAM is AUTO). NICAM or IGR sound may not be stereo, this depends on the programme being received.

Audio is automatically recorded in two different ways:

(i) Hi-Fi: Using specialised rotary heads, two audio signals are recorded on to the tape. These will be stereo, mono or bilingual depending on the sound being received.
(ii) Normal: A mono recording is also made on the conventional analogue audio track.

1. Press MENU to display the main menu on the screen.
2. Press ( / ) to select MODE.
3. Press SET. NICAM will be selected.
4. Press ( / ) to select OFF.
5. Press SET, to return to the menu screen.
6. Press MENU, to exit to normal screen.

NOTES:

If the tape being played back does not carry sound recorded on Hi-Fi tracks, L and R will not appear on the display.
- If the sound contains 'crackling' or 'popping' noises the sound quality may be improved by adjusting the tracking using CHANNEL / .
- If the poor quality is for a long period the VCR will automatically select the mono track and the sound will be in mono.
- Not all TV transmitters provide NICAM or IGR sound. In this case the VCR automatically switches to receive the mono signal.
- NICAM sound may not be stereo.

AUDIO AND YOUR VCR

CONNECTING TO AUDIO EQUIPMENT

The diagram below shows how to connect your VCR to audio equipment. When connected in this way stereo sound is possible from the speakers.

CHECKING THE AMOUNT OF TAPE REMAINING

When you load a video tape into the VCR it can calculate approximately the amount of video tape remaining in hours and minutes. This is useful in determining whether or not there is sufficient tape left to make a recording.

When a video tape is playing, the amount of tape remaining is calculated for you automatically.

To display the amount of video tape remaining:

1. Load the video tape into the VCR
2. Press DISPLAY on the remote control as many times as necessary until "R" appears on the VCR display. The tape will wind forward and then return to its original position. The tape remaining will be shown on the VCR display in hours and minutes.

For example, if 1 hour 23 minutes is left on the tape:

R 1:23 1

NOTES:

• Do not interrupt the tape remaining calculation.
  If less than 5 minutes of tape remains the display will flash.

You can set your VCR to automatically rewind at the end of playing a video tape and replay the entire tape again. REPEAT will appear on the on-screen display when selected.

To use this feature:

1. Press MENU to display the main menu on the screen.
2. Press ( / ) to select MODE.
3. Press SET.
4. Press ( / ) to select REPEAT.
5. Press ( / ) to select ON.
6. Press SET.
7. Press MENU to return to normal screen.

MODE MENU SCREEN

S-VHS (super -VHS) pre-recorded tapes give you a better quality playback picture with increased detail and depth.

Your VCR will automatically recognise which type of tape is being used, VHS or S-VHS and playback the appropriate standard accordingly.

NOTE:

• All of the VCR's playback functions can be used during S-VHS playback, SLOW, PLAY/X2, VISUAL SEARCH, etc.
• Your VCR is S-VHS playback only, it will not record S-VHS.
  Some picture noise may be observed on the screen in Long Play (LP) mode.

PLAYING BACK AN NTSC TAPE

NTSC (National Television Standards Committee) is a different TV standard to PAL and is used in some Non-European Countries. Your VCR can playback pre-recorded NTSC tapes onto a PAL system TV, but cannot record an NTSC signal onto a video tape.

Note that..

You cannot record NTSC signals or dub NTSC tapes onto other VCR's from this VCR.
- You cannot use Slow speed, Still frame, Double Speed, Frame Advance or Tape Remaining with a pre-recorded NTSC tape.
- On some televisions, the picture may appear in black and white or there may be no picture. This does not indicate a fault with your VCR.
- On some televisions, the picture may shrink vertically causing black bands to appear at the top and bottom of your screen.
- On some televisions, the played-back picture may roll vertically, this does not indicate a fault with your VCR.

In addition to operating the VCR the remote control will also operate basic functions on TV's, including brands other than SHARP.

SETTING UP THE VCR REMOTE CONTROL TO OPERATE THE TV

1. Switch on the TV, and point the VCR remote control towards it.
2. Press the TV button on the remote control to engage TV mode.
3. Hold down STANDBY on the VCR remote control then the appropriate button for the TV from the list shown for 2 seconds. For example for a SHARP TV, press STANDBY and I.
4. The TV will enter standby mode to confirm the correct code has been entered.
5. To turn the TV on from standby mode. Press STANDBY or refer to your TV operation manual for the correct function button.

TV BRAND	BUTTON	TV BRAND	BUTTON
SHARP	1	TOSHIBA	9
PHILIPS	2	PANASONIC	0 et 1
THOMSON	3 et 4	HITACHI	ENTREE
GRUNDIG	5	SANYO	VOL ∘
FERGUSON	6	JVC	CANAL ▲
ITT NOKIA	7	MITSUBISHI	CANAL ▼
SONY	8

CONTROLLING THE TV WITH THE VCR REMOTE CONTROL

TV OPERATE

Switches the TV to and from Standby Mode depending on your TV operation.

• TV INPUT SELECT

Determines which input to the TV is to be displayed on the screen.

TV CH / OR NUMBER BUTTONS

Changes the TV channels.

TVVOL /

Increases or decreases the volume.

• Certain models of TV do not use standard codes for their brand. In this case hold down STANDBY, then press each of the buttons in the list until the TV enters stand-by mode (You will need to reset when remote control batteries are replaced).
• SHARP cannot guarantee the VCR remote control will operate your TV.

DIGITAL DISPLAY

TIME OF DAY

Shows current time of day, if the clock is set. Press DISPLAY until the time of day appears. For example, 21:20 appears:

OPERATION MODE

Shows status of tape. Press DISPLAY until the display appears, for example:

TAPE COUNTER AND ZERO BACK

Tape counter measures the current position of the video tape in real time. ZERO BACK uses the tape counter to determine a specific point on a tape you may wish to return to.

1. Press DISPLAY until tape counter appears, for example:
2. To identify the current position on a video tape press CLEAR and the tape counter will appear:

When you wish to return to this position on the video tape, press ZERO BACK. The tape will rewind/advance to this point.

NOTE:

The tape counter will only operate on recorded sections of tape.

BLUE MUTE

The TV screen will be blue if a TV channel with no signal is selected, an unrecorded section of tape is played or the quality of the recording on the tape is poor. Select OFF to disable this feature.

1. Press MENU to display the main menu on the screen.
2. Press ( / ) to select MODE.
3. Press SET.
4. Press ( / ) to select BLUE MUTE.
5. Press ( / ) to select OFF.
6. Press SET and then MENU to return to the normal screen.

MODE MENU SCREEN

COLOUR

If the VCR is playing poor quality recording, the picture may turn black and white. Selecting PAL/SECAM may improve this (depending on the recording), although coloured speckles may appear on black and white recordings.

1. Follow steps 1 to 3 from BLUE MUTE.
2. Press ( / ) to select COLOUR.
3. Press ( / ) to select AUTO/PAL or SECAM
4. Press SET and then MENU to return to the normal screen.

SECAM

This function selects either SECAM or MESECAM. Please refer to the TV system map to determine which system to use.

I6:9 PLAYBACK AND RECORDING

This feature allows the PLAYBACK and RECORDING of wide screen format signals (16.9) which should automatically change the picture size setting on a wide screen TV. To allow the operation of this feature, ensure 16:9 mode is set to AUTO in the MODE menu.

A scart connection must be used between the VCR ( SOCKET L1) and the TV.

During PLAYBACK of a 16:9 encoded tape the TV should switch to (Widescreen) 16:9 mode.

1. Follow steps 1 to 3 from BLUE MUTE.
2. Press ( / ) to select 16:9.
3. Press ( / ) to select AUTO/PAL or SECAM
4. Press SET and then MENU to return to the normal screen.

Your VCR records a marker signal on the tape at the start of each recording. These signals can be used later to locate the starting point of a recording.

Press DPSS / to locate a previous programme or the next programme.

For example,

1. Load the video tape into the VCR.
2. Press DPSS three times. A 3 will appear on the on-screen display, and the VCR will fast forward to locate the third recording after the current one.
3. Press DPSS once. A -1 will appear on the on-screen display and the VCR will rewind to locate the beginning of the current recording.

1. To cancel the search before it has finished, press STOP(■) or PLAY/X2 (▶).

NOTES:

Recordings must be longer than 3 minutes..
The starting point of playback may vary.
This feature will only work with video tapes recorded on a VCR with the DPSS feature.

SKIP SEARCHING THE VIDEO TAPE

You can search the tape in 30 second time intervals. To do this follow the procedure below:

1. Press PLAY/X2 (▶) to start the video tape playing.
2. Press SKIP SEARCH on the remote control. The number of times you press SKIP SEARCH determines the forward search time.
   After searching, normal playback will resume automatically

1 press = 30 seconds.
2 presses = 1 minute.
3 presses = 1 minute 30 seconds.
4 presses = 2 minutes.

RECORDING FROM OTHER EQUIPMENT

You can record video and audio signals from various sources, for example a camcorder, onto a video tape using your VCR.

For example, recording from a camcorder connected to LINE 2 IN/DECODER on your VCR:

Optional Scart connection (not supplied)
Mono/Stereo Camcorder

1. LOAD TAPE INTO THE VCR.
2. Press INPUT SELECT on the remote control until the VCR display shows L2.
3. If you wish to record from a source connected to LINE 1 IN/OUT, select LI.
4. If you wish to record from a source connected with audio phono leads to the sockets on the front of the VCR (if fitted), select L3.

INPUT SELECT

1. Press REc to start the recording.

NOTE:

• There are many different ways of connecting external equipment to your VCR. Please refer to your equipment operation manuals for further information.

CHILD LOCK

You can lock your VCR with this feature. It will work even when the VCR is in standby, preventing children from operating the VCR.

TO ENGAGE CHILD LOCK

Press and hold on the remote control for about 2 seconds.

flashes and then remains lit on the VCR display confirming that CHILD LOCK has been activated.

Regardless of what other operating buttons are touched, the VCR will continue to operate in its present mode. If CHILD LOCK is activated during playback, once the tape reaches its end, the VCR will automatically rewind the tape, eject it, and turn the power off.

TO DISENGAGE CHILD LOCK

Press and hold for about 2 seconds.

Starts flashing and then disappears. CHILD LOCK is disengaged.

NOTES:

• If you attempt to change modes by pressing another button while CHILD LOCK is on, the indicator will flash on the VCR display.
• If power is interrupted for more than 1 hour (due to power failure etc), CHILD LOCK may disengage.

MANUALLY TUNING A CHANNEL

It should not be necessary to tune in a broadcast channel manually except in unusual circumstances such as poor signal.

To manually tune in a channel follow the procedure below.

1. Press MENU.
2. Press ( / ) to select SET UP. Press SET to confirm.
3. CHANNEL PRESET will be highlighted. Press SET.
4. Press ( / ) to select CHANNEL.
5. Press ( / ) to start tuning in either direction. Tuning will stop when a channel is received. If it is not the desired channel, press ( / ) to continue tuning.
6. Press ( / ) to select FINE TUNING. Press and hold ( / ) until the sharpest colour picture is obtained.

IMPORTANT NOTE:

1. If you connect an independent decoder, you must press ( / ) to select DECODER, then select ( / ) to turn the decoder function ON.

2. Press ( / ) to select SKIP. The SKIP function determines whether the channel can be selected when using the CHANNEL / instead of the NUMBER BUTTONS.

3. Press ( / ) to select ON or OFF for this option.
4. Press SET to confirm.
5. Press MENU to leave this function.

CHANNEL PRESET CHANNEL SORT CLOCK LANGUAGE

PRESET 1 SYSTEM L B/G D/K CHANNEL CH21 FINE TUNING DECODER ON OFF SKIP ON OFF

BROADCAST AND CATV CHANNELS

	Numéro réel Signals	Nom de la Station SECAM-L PAL B/G
VHF	CH:02	2	2
	CH:03	3	3
	CH:04	4	4
	CH:05	5	5
	CH:06	6	6
	CH:07	7	7
	CH:08	8	8
	CH:09	9	9
	CH:10	10	10
	CH:11	●	11
	CH:12	●	12
UHF	CH:21	21	21
	CH:22	22	22
	CH:68	68	68
	CH:69	69	69

	Numéro réel Signals	Nom de la Station SECAM-L PAL B/G
CATV	CC:01	B	S1
	CC:02	C	S2
	CC:03	D	S3
	CC:04	E	S4
	CC:05	F	S5
	CC:06	G	S6
	CC:07	H	S7
	CC:08	I	S8
	CC:09	J	S9
	CC:10	K	S10
	CC:11	L	S11
	CC:12	M	S12
	CC:13	N	S13
	CC:14	O	S14
	CC:15	P	S15
	CC:16	Q	S16
	CC:17	●	S17
	CC:18	●	S18
	CC:19	●	S19
	CC:20	●	S20

DECODER SWITCHING OPERATION

If you connect a separate decoder to the VCR connected to L2 as previously shown, you will need to set the decoder function to ON in order to record the scrambled signal and/or watch it on your TV. Now, when the VCR receives a scrambled signal it is output via LINE 2 terminal to the decoder. The decoder then outputs the scrambled signal back to LINE 2 terminal and the signal can be recorded. The VCR outputs the scrambled signal to your TV through the LINE1 terminal and you can watch the scrambled picture.

When making recordings using a separate decoder connected as shown remember to leave the decoder function ON.

If you connect a decoder unit to the VCR, the decoder unit provides a switching signal which will automatically allow your TV to display the scrambled signal routed through the VCR. To use this feature make sure that the VCR is connected to both TV and decoder unit by SCART leads. Then:

• Press STANDBY to place the VCR in Stand-by mode, OR
• Press [TV/VCR] on the remote control to place the VCR in 'VCR mode'. 'VCR' will appear on the display.

If you switch the decoder function ON when connected to a decoder unit as shown you will NOT be able to watch the scrambled picture in TV mode or in VCR mode.

MANUALLY SORTING CHANNELS

SORTING THE CHANNELS INTO YOUR PREFERRED ORDER

When your VCR tunes in broadcast channels automatically it sorts them into a standard order using teletext information. You can change the order of the channels with the following procedure.

1. Press MENU.
2. Press ( / ) to select SET UP. Press SET to confirm.
3. Press ( / ) to select CHANNEL SORT. Press SET to confirm.
4. The MOVE position will be highlighted. Press SET to confirm.
5. Press ( / / ) to highlight the channel to be moved. Press SET to confirm.
6. Press ( / / ) to highlight the new position for the channel. Press SET to confirm.
7. If any more channels are to be moved, repeat procedure from step 5.
8. When all the channels are in your preferred order, press MENU to leave the MENU function.

2. MENU SCREEN

	MOVE	1 / 5
1CH21	7	13
2CH32	8	14
3CH43	9	15
4CH54	10	16
5CH65	11	17
6	12	18

	MOVE	1 / 5
1CH65	7	13
2CH21	8	14
3CH32	9	15
4CH43	10	16
5CH54	11	17
6	12	18

MANUALLY SORTING CHANNELS

DELETING CHANNELS

If there is a channel you wish to delete from the VCR memory you can follow the procedure below.

1. Press MENU.
2. Press ( / ) to select SET UP. Press SET to confirm.
3. Press ( / ) to select CHANNEL SORT. Press SET to confirm.
4. Press ( / ) to select CANCEL. Press SET to confirm.
5. Press ( / / / ) to highlight the channel to be cancelled.
6. Press SET twice to cancel the channel.
7. When all the channels you wish have been cancelled, press MENU.

MANUALLY SORTING CHANNELS

RE-NAMING CHANNELS

When your VCR tunes in broadcast channels automatically, it names them using teletext information. You can change the name of a channel with the following procedure.

1. Press MENU.
2. Press ( / ) to select SET UP. Press SET to confirm.
3. Press ( / ) to select CHANNEL SORT. Press SET to confirm.
4. Press ( / ) to highlight NAME. Press SETto confirm.
5. Press ( / / / ) to highlight the channel to be named. Press SET to confirm.
6. Press ( / / / ) to rename the channel. Press SET to confirm.
7. If any more channels are to be renamed, repeat procedure from step 5.
8. When all the channels are named correctly, press MENU to leave the MENU function.

CHANGING THE ON-SCREEN DISPLAY LANGUAGE

Changing the language used by the on-screen display will not change the operation of the VCR or make it suitable for any other broadcast standard.

1. Press MENU.
2. Press ( / ) to select SET UP. If the display is not in a language you can understand, this is the fourth option from the top. Press SET to confirm..
3. Press ( / ) to select LANGUAGE (the last option).
4. Then press SET.
5. Press ( / / / ) to select your language. Then press SET to confirm.

MANUALLY SETTING THE CLOCK

The clock will normally be set using teletext information when your VCR automatically tunes in the broadcast channels. If for any reason teletext signals are not present your VCR will not be able to set the clock. This procedure will allow you to set the clock manually.

1. Press MENU. Press (▲/▼) to select SET UP. Press SET to confirm.
2. Press ( / ) to select CLOCK. Press SET to confirm.
3. Press ( / ) to select either 12 or 24 hour clock.
4. Press ( / ) to select TIME. Enter the time using the NUMBER BUTTONS or ( / ) . If the minutes are less than 10, enter the leading 0. If using the 12 hour clock enter AM or PM by pressing on the remote control.
5. Press ( / ) to select DATE. Enter the date using the NUMBER BUTTONS or ( / ) . For example, for 1st April enter 01 04.
6. Press ( / ) to select YEAR. Enter the last two digits of the year using the NUMBER BUTTONS or ( / ) . For example, for 2000 enter 00. For the year 2001 enter 01.
7. Select for AUTO CLOCK on/off ( is ON, - is OFF). Then press SET to confirm.

NOTE:

• If AUTO CLOCK is set to OFF (- is OFF) then you will need to update the clock for daylight saving.

VCR DIGITAL DISPLAY

1. AUDIO OUTPUT indicators.
2. TIMER indicator.
3. PLAYindicator.
4. RECORDING indicator.
5. STOPindicator.
6. VCR TAPE indicator.
7. PRESET indicator.

8. VCR mode indicator.

9. VIDEO PROGRAMMING SYSTEM/PROGRAMME DELIVERY CONTROL indicator.

10. DECODER indicator.

11. LONG PLAY indicator.
12. STANDARD PLAY indicator.
13. CHILD LOCK indicator.
14. AM/PM indicators.

NOTE:

Some models do not have all the features shown, therefore, they will not appear on the display.

SELECTING THE OUTPUT FROM THE VCR

If your VCR is connected to your TV with a scart lead, when you start to play a video tape the VCR will automatically switch its output so that playback picture is shown on the TV.

In this case 'VCR' will appear on the VCR display.

You can manually override this by pressing [TV/VCR] on the remote control. Now the TV broadcast channel will be seen on the TV screen and 'VCR' will disappear from the VCR display.

• Pressing [TV/VCR] again will return the TV picture to the playback picture.

MANUFACTURERS CODES FOR SATELLITE RECEIVERS

The following table is a list of satellite manufacturers' code numbers. Your VCR will use one of these in order to recognise your satellite receiver. The code number must be entered at point 9. during installation with a satellite receiver.

Look up your make of satellite receiver.

Use the NUMBER BUTTONS to enter the first code number listed. For example number 8 should be entered 0 0 8. Continue from point 10. (AUTO INSTALLATION).

MANUFACTURER	CODES
AB SAT	123
ALBA	6,9,12,14,16,32,39,45,57,72,79,85
ALLSAT	9,14,85
AMSTRAD/FIDELITY ANKARO HANSEATIC	35,38,41,47,48,49,51,52,55,63,65,76,80,90,109,110
ARMSTRONG	2,9,12,20,22,36,41,59,73,74,82
BEST/DISKEXPRESS	75
BUSH	9,12,14,72,79
CAMBRIDGE	53
CHANNEL MASTER	12,41
DNT	2,29,31,54,58,64,87,102,118
ECHOSTAR/TECHNISAT/DNT/POLYTRON/RADEX	2,29,31,54,58,64,87,102,118
FERGUSON	9,14,16,45,85
FUBA/TRIASAT/TRIAX/FREECOM	19,37,69,71,94,104,117
G.I.JERROLD	106
GALAXIS/ALDES/PROSAT/SKYMASTER/ANARKO	86,99,78
GRUNDIG	2,16,23,44,70,91,114,119
HIRSCHMANN	2,11,24,25,30,97
HUTH	56,61,73,89
JOHANSSON/WINNERSAT	40
KATHREIN	2,9,10,16,17,18,20,22,25,26,27,36,40,59,67,68,74,82,84,88,92,100,105,108,112
LENKO	117
MASPRO	10,26,68,84,116
MATSUI	115
MORGAN	73
NETWORK	9,14
NIKKO	21,28,93,96
NOKIA	2,3,5,7,8,15,16,29,31,42,46,54,58,64,66,75,87,102,103,111,129(dBox)
PACE/MANHATTAN/SABA	6,9,14,16,32,45,57,85,120,122,124
PALSAT/NAGAI/PALCOM	27,94
PHILLIPS/VSIOPASS/SONOLOR	2,9,20,22,36,59,74,82,114,123
SALORA/LUXOR	3,5,7,8,15,16,42,46,66,75,103
SATSIE/ STANON	9,12,14,39,72,79
SCHWAIGER/SIEMENS/TELEDIREKT	85,121
SCIENTIFIC ATALANTA	13
SEG	9,12,14,19,37,39,69,71,72,79,94,104,117
STRONG/TRISTAR	18
TATUNG/NIKKO/QUADREL	21,28,93,96
TELEVES	9,14,16,35,38,41,45,47,48,49,51,52,63,65,76,80,85,90,109,11
TPS	125,126
UNIDEN	84
VORTEC/SAMSUNG	11
WISI/TECH	1,2,4,31,33,34,43,50,60,77,81,95,98,101,107,113
ZHENDER	1,2,4,17,18,25,27,31,33,34,40,43,50,60,67,77,81,88,92,94,95,98,100,101,105,107,108
Sky Digi Box	128
On Digital	122

ON-SCREEN DISPLAY

All the information you need on the VCR status will be summarised on the on-screen display. If you are recording, playing back a tape or watching a broadcast on the video channel you can call up three standard on-screen displays. The display can be selected by pressing the MODE OSD button on the remote control, 1,2,3 or 4 times.

1. AUTO, the current mode and channel number will be displayed for 3 seconds when an operation or number button is pressed.
2. FULL., all the active features will also be shown on screen.

1.

2.

1. COUNTER, this display will show the tape counter and amount of tape remaining.
2. DISPLAY OFF, this will remove the display from the screen.

3.

NOTES:

The default time and date will not be displayed if the clock has not been set.
The VCR will return to display 1. each time it is switched on.
- If you are recording from this VCR to another, make sure you remove the display from the screen otherwise it will be recorded.

SPECIFICATIONS

Format:

Number of heads:

Video signal system::

Hi-Fi audio recording

system:

Maximum playing time:

Tape width:

Tape speed:

Antenna:

Reception channels:

RF output signal:

Power requirement:

Power consumption:

Operating temperature:

Storage temperature:

Video input:

Video output:

Audio input:

Audio output:

Hi-Fi audio:

Dimensions:

Weight:

Supplied accessories:

VHS PAL standard/VHS SECAM-L

6

PAL/MESECAM colour or monochrome signal: 625 lines

Deep layer recording system conforming to stereo Hi-Fi VHS standard.

480 min. with E-240 video cassette in Long Play (LP) mode

12.7 mm

23.39 mm/s Standard Play (SP): 11.70 mm/s Long Play (LP)

75Ωunbalanced

B/G: Channel VHF 2-12 + S1-S41
Channel UHF 21-69

L: Channel VHF 2-12 + B-Q

Channel UHF 21-69

UHF channel 21-69

AC 230V, 50 Hz

19 W approx (STANDBY ≤ 4 W)

5^ C to 40^ C

-20°C to 55°C

1.0 Vp-p, 75 Ω

1.0 Vp-p, 75 Ω

Line1&2: -3.8 dBs, 10 kΩ, Line 3: -3,8 dBs, 47 kΩ

Line1&2: -3.8 dBs, 1 kΩ Audio Out: -3,8 dBs, 1 kΩ

Dynamic range: 90 dBs typ. (SP); Frequency response: 20Hz - 20kHz ; Wow and

flutter: < 0.005% Wrm (JIS A)

430(W) x 300(D) x 91.5(H) mm

4.3 kg (approx)

75 Ω RF Connection cable, operation manual, remote control, AA/R6/UM3 battery (x2)

• Specifications are subject to change without notice as part of our policy of continuous improvement.
• No liability is accepted for any inaccuracies or omissions in this publication, although every possible care has been taken to make it complete and as accurate as possible.

TROUBLESHOOTING

AREA	PROBLEM	POSSIBLE CAUSE/CURE
INSTALLATION	TV will not tune in to the VCR.	·Check all the cables are correctly connected. ·Check your TV manual for correct tuning of your TV.
	Auto Installation screen does not appear when the VCR is switched on OR Auto Installation is not complete.	·Reset the VCR and complete AUTO INSTALLATION again. (Refer to VCR Reset at the back of the book.)
POWER	Display is not working.	·Make sure the power cord is plugged in. ·Make sure the wall socket has power (plug another appliance in).
	VCR will not operate - ☐ appears in VCR display.	·Press the TIMER ON/OFF button to disengage timer.
	VCR will not respond to any commands.	·Check CHILD LOCK is not engaged. ·Safety device operating: unplug VCR for 2 hours.
PLAYBACK	No picture appears.	·Make sure the TV is set to the video channel. ·Check all connecting cables.
	Playback picture is snowy.	·Adjust the tracking using CHANNEL▼ / ▲ buttons. ·Try another tape. ·The video heads may have been contaminated - refer to a SHARP Service Facility.
	Playback recording does not playback in stereo.	·Ensure the VCR is connected to a stereo TV and SCART lead. ·Programme may not carry stereo.
RECORDING	Tape is automatically ejected when pressing REC (●) or TIMER ON/OFF buttons.	·The record-protection tab has been removed.
	SHOWVIEW does not record desired programme.	·Ensure date and time are correctly set on the VCR.
TAPE TRANSPORT/MECHANISM	Tape can not be loaded.	·Make sure there is no other tape in the VCR. ·Make sure you are loading the tape correctly.
	Rewind is not possible.	·Make sure the tape is not at the start.

TROUBLESHOOTING

AREA	PROBLEM	POSSIBLE CAUSE/CURE
REMOTE CONTROL	The VCR can not be operated by remote control	• Remote control is too far away from the main unit. • Point the remote control at the VCR. • Batteries are flat - replace both. • Batteries have not been inserted correctly. • VCR is positioned in strong light.
SATellite	Satellite receiver does not respond to VCR commands.	• Adjust the position or angle of the satellite receiver.
	Desired satellite channel can not be selected by the VCR.	• Re-install all channels ensuring that the satellite receiver is not in any special channel setting mode and that the desired channel is below channel 199 on your satellite receiver.
OTHER PROBLEMS	Picture does not change even though CHANNEL▼ /▲ buttons are pressed.	• Make sure the VCR is not in Timer or Menu mode.
	Desired channel position can not be selected.	• The channel position has been set to be skipped. Cancel the SKIP mode for that channel.
	No colour or poor TV picture on normal viewing.	• Make sure all the cables are connected properly. • Make sure the VCR power cord is properly plugged in.
	Not possible to view picture or playback through RF OUT.	• Make sure the RF OUTPUT has not been switched off. (Refer to note on RF THROUGH ON/OFF in the TUNING THE TV TO THE VCR section of the manual.)
	Desired channel has interference.	• Possible weak signal strength, the same channel with a better signal strength may have been tuned in on another VCR preset channel. Example; VCR preset 1 = CH21 and VCR preset 14 = CH21 (Refer to Manually Sorting Channels section to move the channel to your desired position.) • TV aerial may need adjusting.
	No picture appears.	• Make sure the TV is on the video channel. • Check all connecting cables.
