USER MANUAL FP4000 Luxor

Flat Panel Series Mobile Stand Instructions

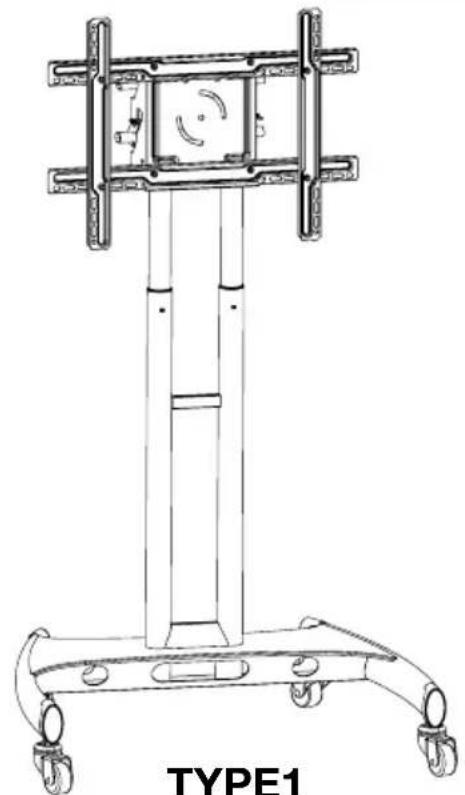

Technical line drawing of a mechanical device labeled TYPE1, showing a vertical frame structure with wheels and a central component (no text or symbols on the diagram itself)

TYPE1 Stationary Mount Base Model

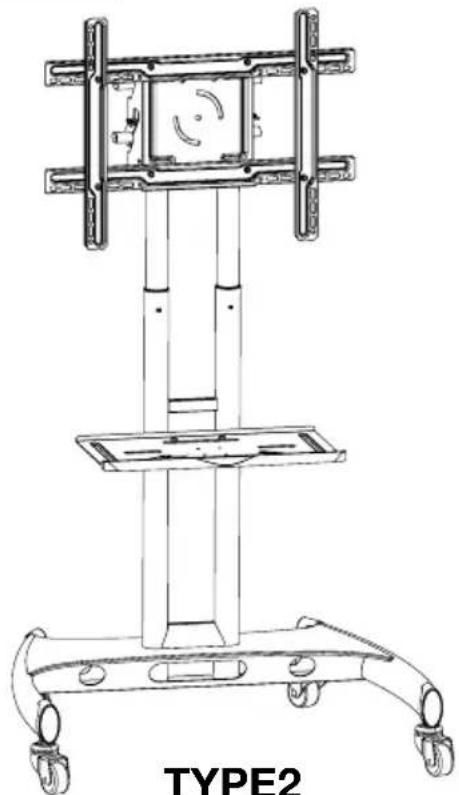

Technical line drawing of a mechanical device labeled TYPE2, showing a vertical frame structure with wheels and a horizontal base (no text or symbols on the diagram itself)

TYPE2 Stationary Mount + Shelf

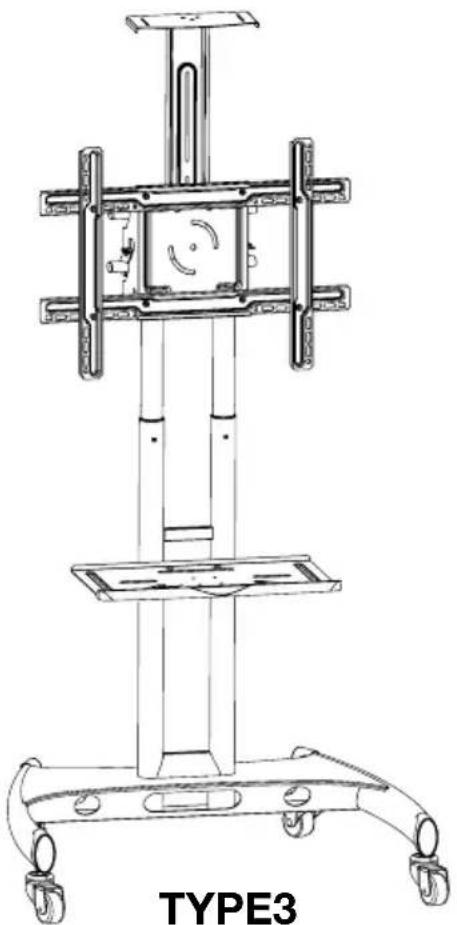

Technical line drawing of a mechanical device labeled TYPE3, showing structural components and wheels (no readable text or symbols beyond label)

Stationary Mount + Shelf + Camera Mount

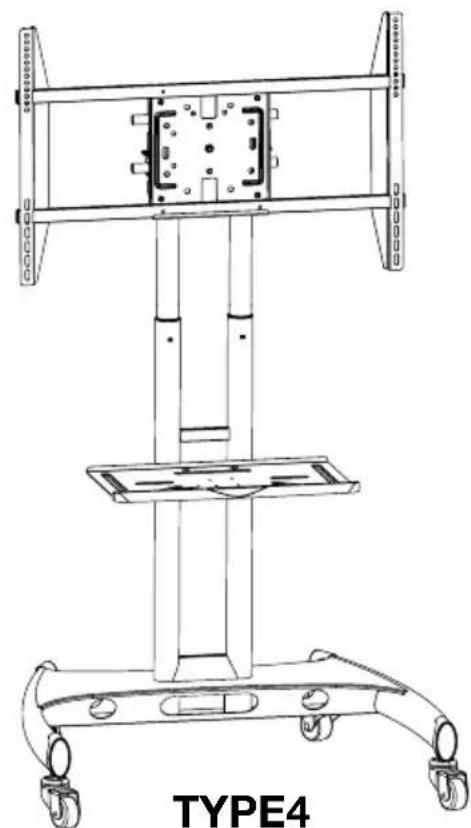

Technical line drawing of a mechanical device labeled TYPE4, showing structural components and wheels (no text or symbols on the diagram itself)

Rotating Mount + Shelf

Table of Contents

Table of Contents and Warnings.... 2

Part List.... 3

Assembly and Installation

Adjust upper and lower poles 4

Attaching to the base assembly 5

Install steel cross rods....6

Height adjustment....6

Media shelf assembly 7

Assemble flat panel mount 8-9

Install mount to the frame 10

Install camera mount.... 11

Cable and wire installation 11

VESA mounting patterns....12

Tools Required

-Phillips Screwdriver

-Wrench

WARNING!

Severe personal injury and property damage can result from improper installation. Read instructions carefully before beginning.

• If you do not understand the instructions or have any concerns please contact a qualified local installer.
• Do not install or assemble if the product or hardware is damaged or missing, if you require replacement parts contact your local dealer.
• This product fits most 40"-60" flat panel displays; maximum weight for the display is 100 lbs. / 45.5kg.
• Do not use this product for anything other than what it was originally designed.
• This product contains moving parts, please use caution.
• The manufacturer disclaims any liability for the modifications, improper installation and installation exceeding maximum weight capacity. The manufacturer will not be liable for any damages arising out of the use of, or inability to use the product.

Part List

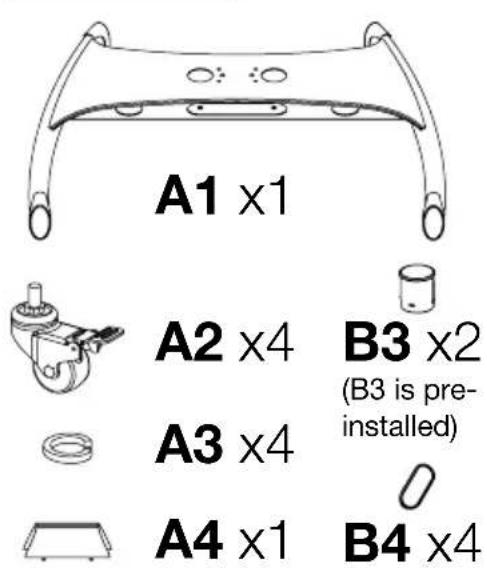

A2 x4

A3 x4

A4 x1

B3 x2

(B3 is pre-installed)

B4 x4

TYPE1, TYPE2, TYPE3

Simple line drawing of a vertical cylindrical structure with two upright posts and a central horizontal bar (no text or symbols)

B2 x2

B1 x1

B5 x2*

TYPE4

Simple line drawing of two vertical cylindrical objects with a horizontal bar inside, no text or symbols present.

B2 x2

B1 x1

B5 x2

TYPE1, TYPE2, TYPE3

C1 x1

C2 x2

TYPE4

C4 x4053x44

C2 x2

D ×2

R2 x1

only: TYPE2, TYPE3, TYPE4

R3 x1

R1 x1

S1 x1

only: TYPE3

M8x25mm

M6x25mm

M5x25mm

H ×4J ×4

E ×4F ×4G ×4

M8x20mm

K×4

N x2

only: TYPE3

M6x10mmM5x10mm

T×8

only: TYPE1, TYPE2, TYPE3

P×2

only: TYPE3

L×1

only: TYPE2, TYPE3, TYPE4

M ×1

Adjust upper and lower poles

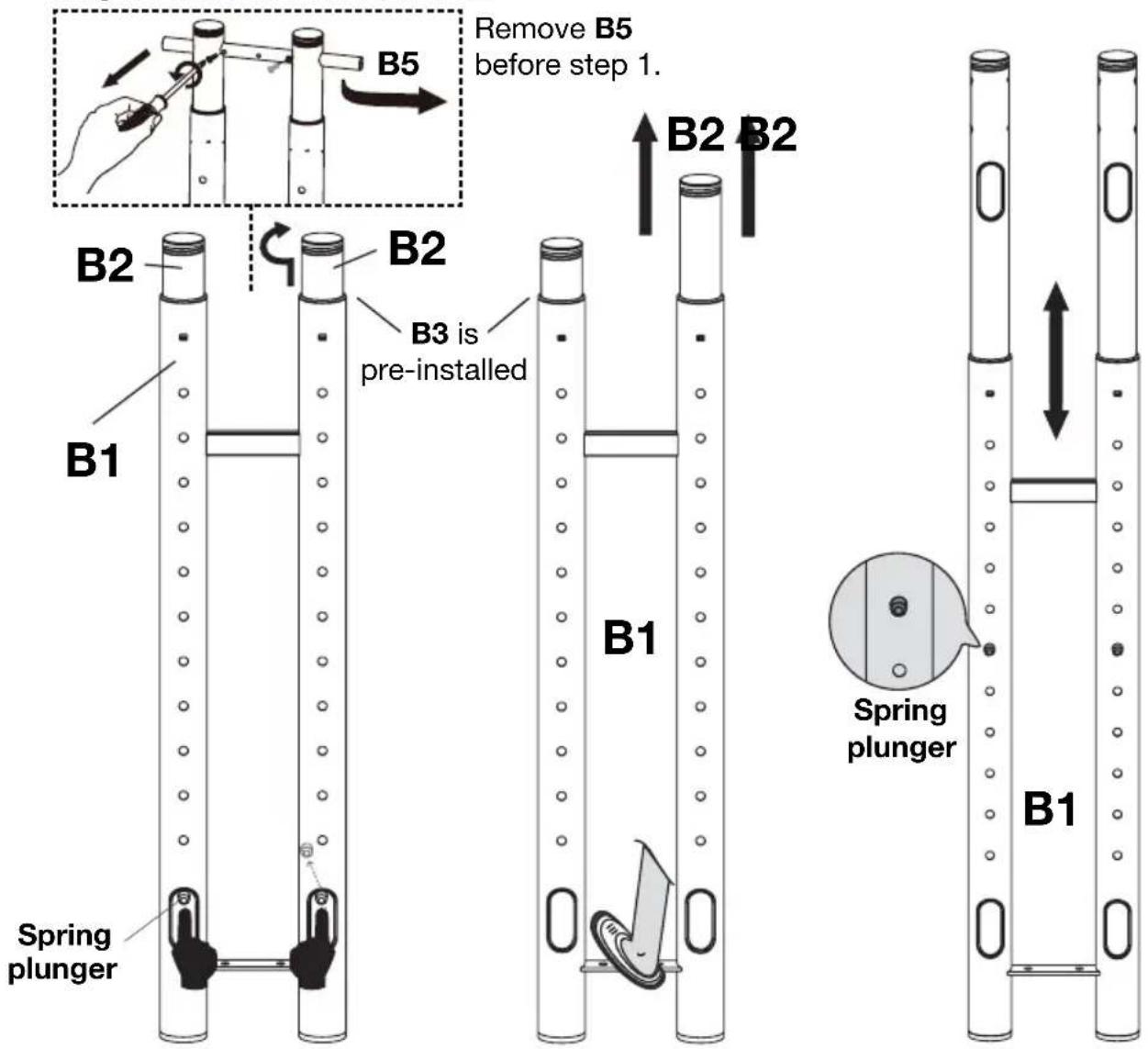

Locate the spring plungers inside the bottom grommet hole of pole B1 (If your unit has B5 cross bar pre-installed remove prior). Starting with the right side pole B2, push the spring plunger down and pull B2 up slightly and twist it slightly so that the spring plunger remains offset. This will make adjusting the pole easier. (figure 1)

Hold the poles B1 & B2 with your hands and use your left foot on the cross bridge of B1 for stability. Pull B2 upward until you reach your desired height. Twist B2 so that the spring plunger locks into the nearest spring plunger hole. (figure 2)

Repeat the same steps for the left side pole B2 but use your right foot for stability instead. Align poles B2 and lock the spring plunger into place. (figure 3)

Only for TYPE1, TYPE2, TYPE3

figure 1 figure 2 figure 3

Lift pole assembly so that the part remains upright and the cable management holes are facing toward you.

Attaching to the base assembly

1 Thread casters A2 and washer A3 into the bottom of base A1. Make sure all casters are locked to prevent movement during installation.
2 With allen wrench M attach lower poles B1 to base A1 with screw K. First through the bottom of base A1, then through the top of base A.
3 After screws K are firmly fastened, push down the screw cover A4 until it locks into place.

Install steel cross rods

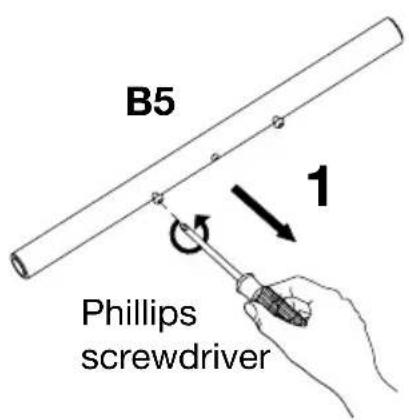

Remove the pre-installed screws on rod B5. Making sure the upper poles B2 are aligned, slide rods B5 into the top openings.

Height adjustment

Media shelf assembly (TYPE2, TYPE3, TYPE4)

Before assembly make sure there is enough clearance for the flat panel display

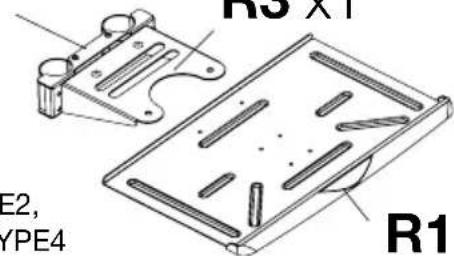

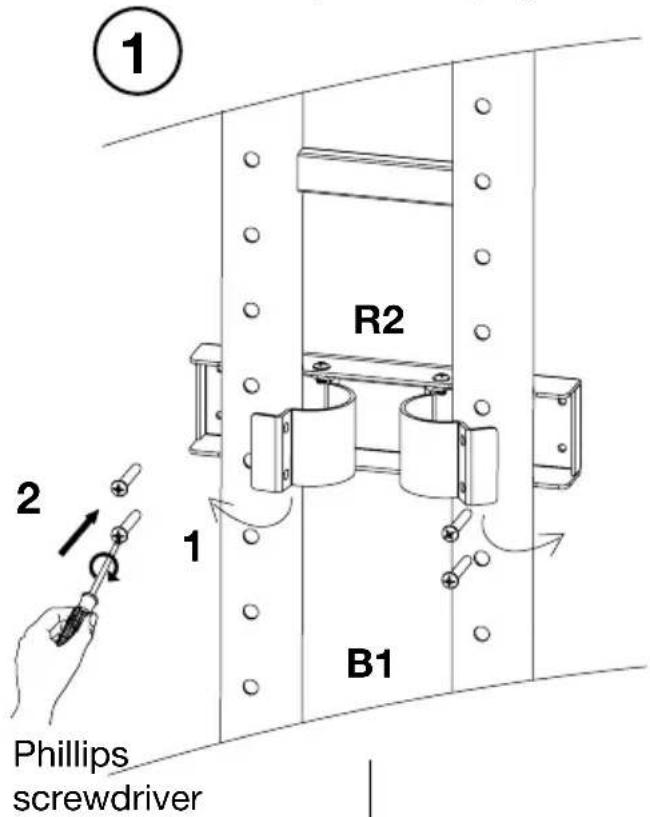

Remove the pre-installed screws on bracket R2. Align bracket R2 to desired position and clamp R2 then retighten the long screws.

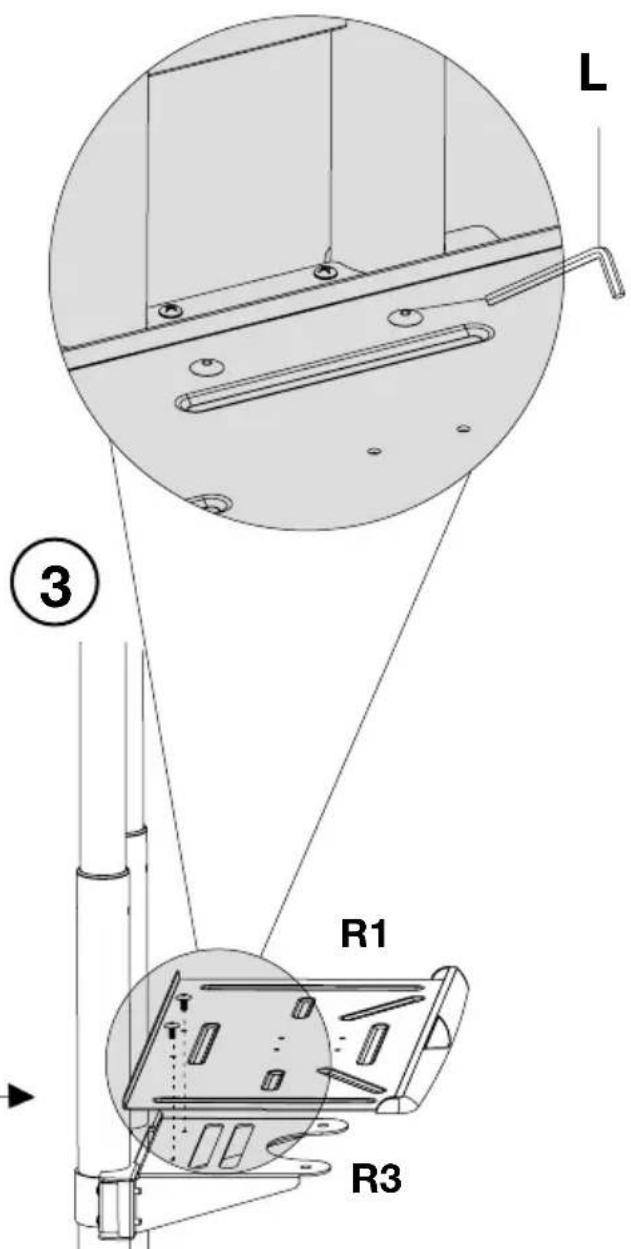

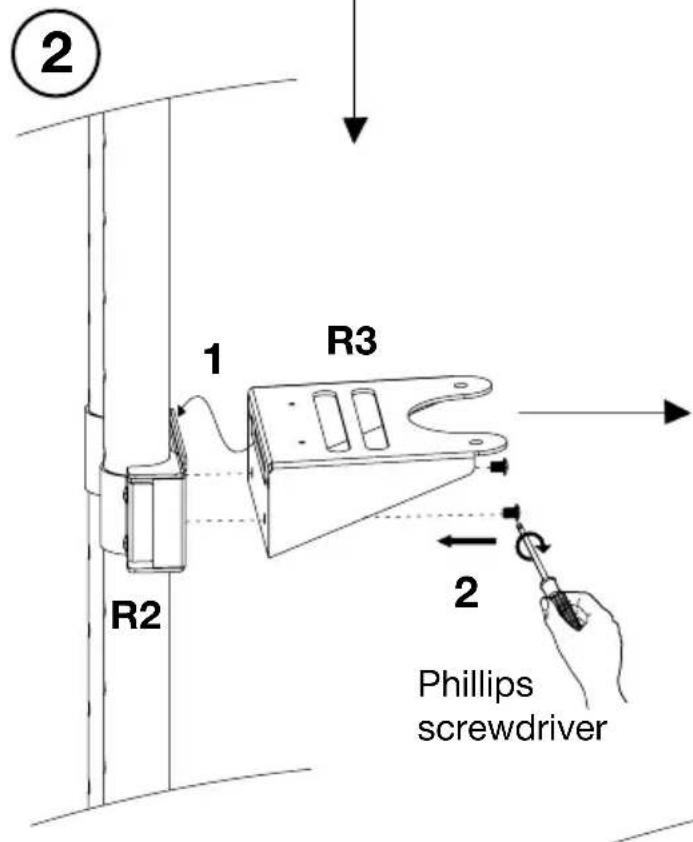

With allen wrench L and the short allen screws fasten shelf R1 to support R3.

Using the short screws fasten bracket R2 to support R3.

Assemble flat panel mount (TYPE4)

VESA: 200x400 - 400x400mm

For a selection of mounting positions refer to page 12

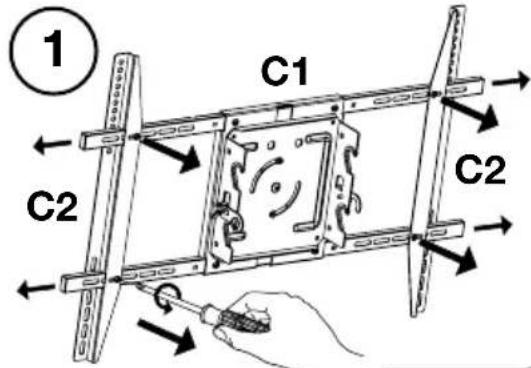

First unscrew and remove the vertical supports C2 from mount C1.

Display not included

Align the screw threads C3 to the desired vertical support position of C2. Screw support C2 into C1 and C3. Insert support stoppers C4 followed by caps C5.

Carefully attach mount to display using screws G,H or J. Through washer E, support C2 and spacer F.

Phillips screwdriver
VESA: 400x600 - 500x800mm
M8x25mm (G)

M5x25mm (H) M6x25mm (J)

Safety Precautions

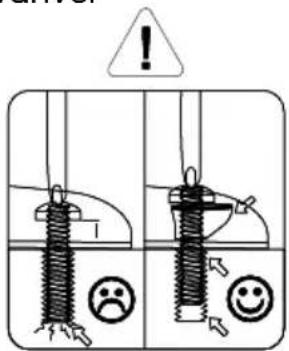

Plastic spacers must be used to avoid any damage from screws

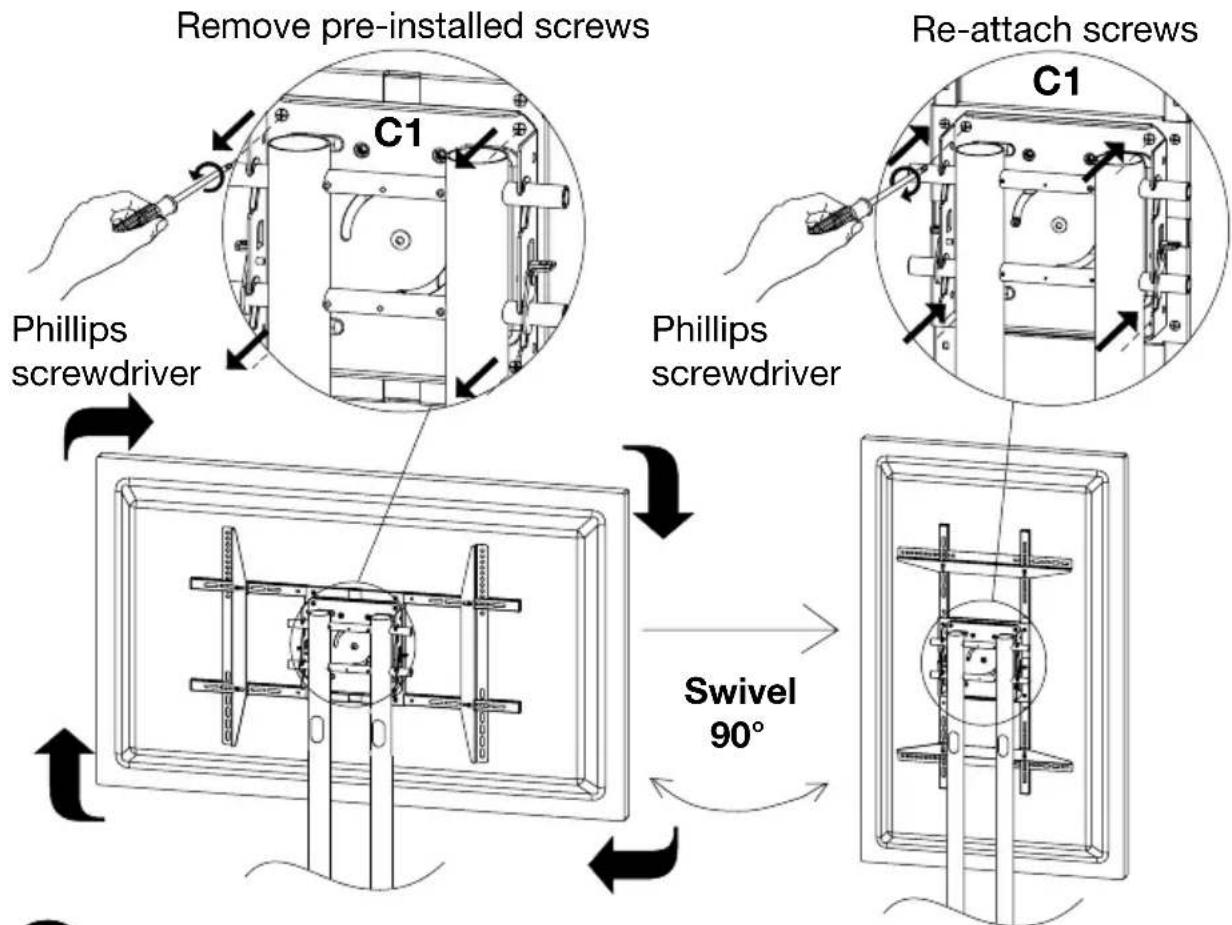

Adjusting the mount (TYPE4) - After Step 7

Assemble flat panel mount (TYPE1, TYPE2, TYPE3)

VESA: 200x200mm VESA: 200x200 - 600x400mm

7

Install mount to frame

Heavy Lifting: Assistance Required

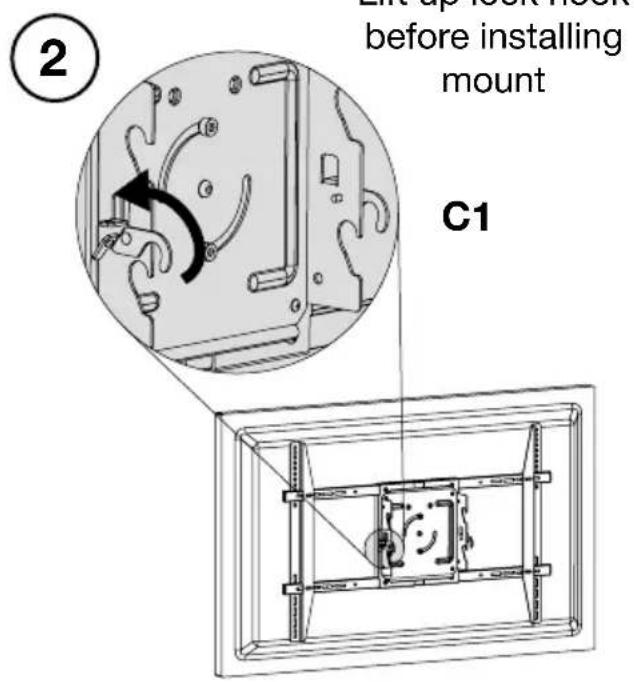

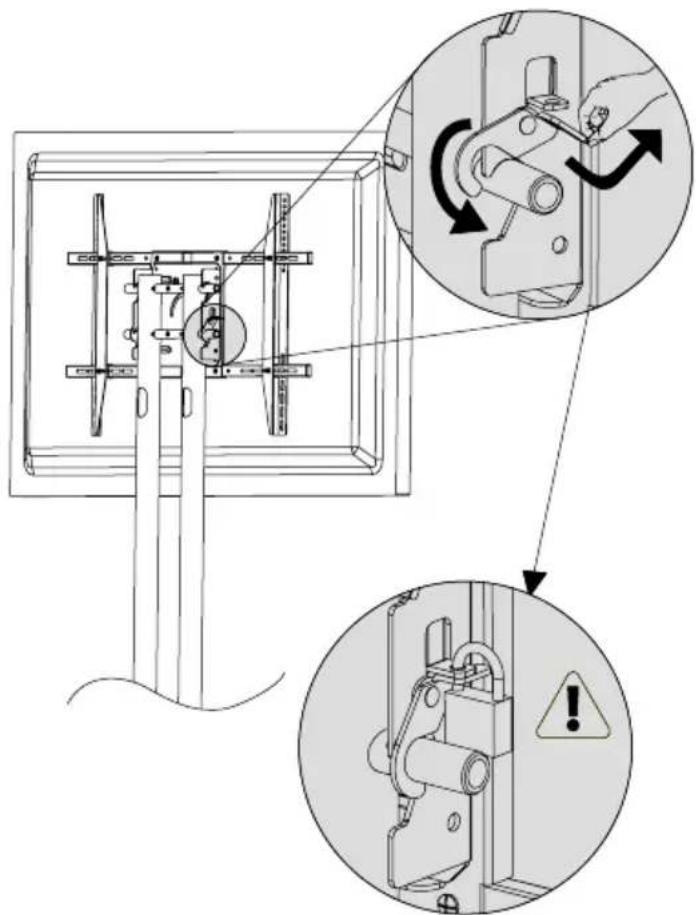

Attach hooks on C1 onto cross rods B5

④ Secure lock hook fully

Lock not included

Cable and wire Installation

VESA mounting patterns

Slide vertical support rails to find the best assembly position for your display.

For 200x200mm VESA mounting position use brackets D.
