USER MANUAL PIC32MM0016GPL028 Microchip

32-Bit Flash Microcontroller with MIPS32 ^® microAptiv ^TM UC Core with Low Power and Low Pin Count

Operating Conditions

• 2.0V to 3.6V, -40°C to +125°C, DC to 25 MHz
• 2.0V to 3.6V, -40°C to +85°C, DC to 25 MHz

Low-Power Modes

- Low-Power modes:

• Idle: CPU off, peripherals run from system clock
• Sleep: CPU and peripherals off:
• Fast wake-up Sleep with retention

• Low-power Sleep with retention

• 0.5 A Sleep Current for Regulator Retention mode and 5 A for Regulator Standby mode

• On-Chip 1.8V Voltage Regulator (VREG)
• On-Chip Ultra Low-Power Retention Regulator

High-Performance 32-Bit RISC CPU

• microAptiv™ UC 32-Bit Core with 5-Stage Pipeline
• microMIPS™ Instruction Set for 35% Smaller Code and 98% Performance compared to MIPS32 Instructions
  • DC-25 MHz Operating Frequency
  • 3.17 CoreMark ^ /MHz (79 CoreMark) Performance
  • 1.53 DMIPS/MHz (37 DMIPS) (Dhrystone 2.1) Performance
  • 16-Bit/32-Bit Wide Instructions with 32-Bit Wide Data Path
• Two Sets of 32 Core Register Files (32-bit) to Reduce Interrupt Latency
• Single-Cycle 32x16 Multiply and Two-Cycle 32x32 Multiply
• Hardware Divide Unit
• 64-Bit, Zero Wait State Flash with ECC to Maximize Endurance/Retention

Microcontroller Features

• Low Pin Count Packages, Ranging from 20 to 36 Pins, including UQFN as Small as 4x4 mm

• Up to 64K Flash Memory:

• 20,000 erase/write cycle endurance

• 20 years minimum data retention
• Self-programmable under software control

- Up to 8K Data Memory

• Pin-Compatible with Most PIC24 MCU/dsPIC ^ DSC Devices
• Multiple Interrupt Vectors with Individually Programmable Priority
• Fail-Safe Clock Monitor mode
• Configurable Watchdog Timer with On-Chip, Low-Power RC Oscillator
  • Programmable Code Protection

• Selectable Oscillator Options including:

• High-precision, 8 MHz internal Fast RC (FRC) oscillator

• High-speed crystal/resonator oscillator or external clock
• 2x/3x/4x/6x/12x/24x PLL, which can be clocked from the FRC or primary oscillator

Peripheral Features

• Atomic Set, Clear and Invert Operation on Select Peripheral Registers
  • High-Current Sink/Source 11 mA/16 mA on All Ports
• Independent, Low-Power 32 kHz Timer Oscillator
• Two 4-Wire SPI modules (up to 25 MHz non-PPS, 20 MHz PPS):

- 16-byte FIFO

- I^2S mode

- Two UARTs:

• RS-232, RS-485 and LIN/J2602 support
• I r ^16 Dwin on-chip hardware encoder and decoder

- External Edge and Level Change Interrupt on All Ports

• CRC module
  • Hardware Real-Time Clock and Calendar (RTCC)
• Up to 20 Peripheral Pin Select (PPS) Remappable Pins

• Seven Total 16-Bit Timers:

• Timer1: Dedicated 16-bit timer/counter

• Two additional 16-bit timers in each MCCP and SCCP module

- Capture/Compare/PWM/Timer modules:

• Two 16-bit timers or one 32-bit timer in each module
• PWM resolution down to 21 ns
• One Multiple Output (MCCP) module:

- Flexible configuration as PWM, input capture, output compare or timers

• Six PWM outputs
• Programmable dead time
• Auto-shutdown

- Two Single Output (SCCP) modules:

• Flexible configuration as PWM, input capture, output compare or timers
• Single PWM output

• Reference Clock Output (REFO)
- Two Configurable Logic Cells (CLC) with Internal Connections to Select Peripherals and PPS

Debug Features

- Two Programming and Debugging Interfaces:

• 2-wire ICSP™ interface with non-intrusive access and real-time data exchange with application
• 4 - w i r® standard Enhanced JTAG interface

- IEEE Standard 1149.2 Compatible (JTAG) Boundary Scan

Analog Features

• Two Analog Comparators with Input Multiplexing
  • Programmable High/Low-Voltage Detect (HLVD)

• 5-Bit DAC with Output Pin

• Up to 14-Channel, Software-Selectable 10/12-Bit SAR
  Analog-to-Digital Converter (ADC):

• 12-bit, up to 222k samples/second conversion rate
• 10-bit, up to 250k samples/second conversion rate
• Sleep mode operation
• Band gap reference input feature
• Windowed threshold compare feature
• Auto-scan feature
  • Brown-out Reset (BOR)

TABLE 1: PIC32MM0064GPL036 FAMILY DEVICES

Device	Pins	Program Memory (Kbytes)	Data Memory (Kbytes)	General Purpose I/O/PPS	16-Bit Timers Maximum	PWM Outputs Maximum	Remappable Peripherals						10/12-Bit ADC (Channels)	Comparators	CRC	RTCC	JTAG	Packages
							UART ^(1) /LIN/J2602	16-Bit Timers	MCCP ^(3)	SCCP ^(4)	CLC	SPI ^(2) / ^2 S
PIC32MM0016GPL020	20	16	4	16/16	7	8	2	1	1	2	2	2	11	2	Yes	Yes	Yes	SSOP/QFN
PIC32MM0032GPL020	20	32	8	16/16	7	8	2	1	1	2	2	2	11	2	Yes	Yes	Yes	SSOP/QFN
PIC32MM0064GPL020	20	64	8	16/16	7	8	2	1	1	2	2	2	11	2	Yes	Yes	Yes	SSOP/QFN
PIC32MM0016GPL028	28	16	4	22/19	7	8	2	1	1	2	2	2	12	2	Yes	Yes	Yes	SSOP/SOIC/QFN/UQFN
PIC32MM0032GPL028	28	32	8	22/19	7	8	2	1	1	2	2	2	12	2	Yes	Yes	Yes	SSOP/ SOIC/QFN/UQFN
PIC32MM0064GPL028	28	64	8	22/19	7	8	2	1	1	2	2	2	12	2	Yes	Yes	Yes	SPDIP/SSOP/SOIC/QFN/UQFN
PIC32MM0016GPL036	36/40	16	4	29/20	7	8	2	1	1	2	2	2	14	2	Yes	Yes	Yes	VQFN/UQFN
PIC32MM0032GPL036	36/40	32	8	29/20	7	8	2	1	1	2	2	2	14	2	Yes	Yes	Yes	VQFN/UQFN
PIC32MM0064GPL036	36/40	64	8	29/20	7	8	2	1	1	2	2	2	14	2	Yes	Yes	Yes	VQFN/UQFN

Note 1: UART1 has assigned pins. UART2 is remappable.
2: SPI1 has assigned pins. SPI2 is remappable.
3: MCCP can be configured as a PWM with up to 6 outputs, input capture, output compare, 2 x 16-bit timers or 1 x 32-bit timer.
4: SCCP can be configured as a PWM with 1 output, input capture, output compare, 2 x 16-bit timers or 1 x 32-bit timer.

Pin Diagrams

20-Pin SSOP

MCLR 1 20 AVDD/VDD PGEC2/RP1/RA0 2 19 AVss/Vss PGED2/RP2/RA1 3 18 RP10/RB15(1) PGED1/RP14/RB0 4 17 RP9/RB14 PGEC1/RP15/RB1 5 16 RP13/RB13 RP16/RB2 6 15 RP12/RB12 CLKI/RP3/RA2 7 14 VCAP CLKO/RP4/RA3(1) 8 13 RP8/RB9(1) PGED3/SOSCI/RP5/RB4 9 12 RP7/RB8(1) PGEC3/SOSCO/RP6/RA4 10 11 RP11/RB7 PIC32MMXXXXGPL020

Legend: Shaded pins are up to 5V tolerant.
Note 1: Pin has an increased current drive strength. Refer to Section 26.0 "Electrical Characteristics" for details.

TABLE 2: COMPLETE PIN FUNCTION DESCRIPTIONS FOR 20-PIN SSOP DEVICES

Pin	Function Pin Function
1		11	RP11/RB7
2	PGEC2/VREF+/AN0/RP1/OCM1E/INT3/RA0	12	TCK/RP7/ 1CTS /SCK1/OCM1A/RB8(1)
3	PGED2/VREF-/AN1/RP2/OCM1F/RA1	13	TMS/REFCLKI/RP8/T1CK/T1G/ 1RTS /U1BCLK/SDO1/C2OUT/OCM1B/INT2/RB9(1)
4	PGED1/AN2/C1IND/C2INB/RP14/RB0	14	VCAP
5	PGEC1/AN3/C1INC/C2INA/RP15/RB1	15	TDO/AN7/LVDIN/RP12/RB12
6	AN4/RP16/RB2	16	TDI/AN8/RP13/RB13
7	OSC1/CLKI/AN5/C1INB/RP3/OCM1C/RA2	17	CDAC1/AN9/RP9/RTCC/U1TX/SDI1/C1OUT/INT1/RB14
8	OSC2/CLKO/AN6/C1INA/RP4/OCM1D/RA3 (1)	18	AN10/REFCLKO/RP10/U1RX/ 1 /FSYNC1/INT0/RB15(1)
9	PGED3/SOSCI/RP5/RB4	19	AVss/Vss
10	PGEC3/SOSCO/SCLKI/RP6/PWRLCLK/RA4	20	AVDD/VDD

Note 1: Pin has an increased current drive strength.

Pin Diagrams (Continued)

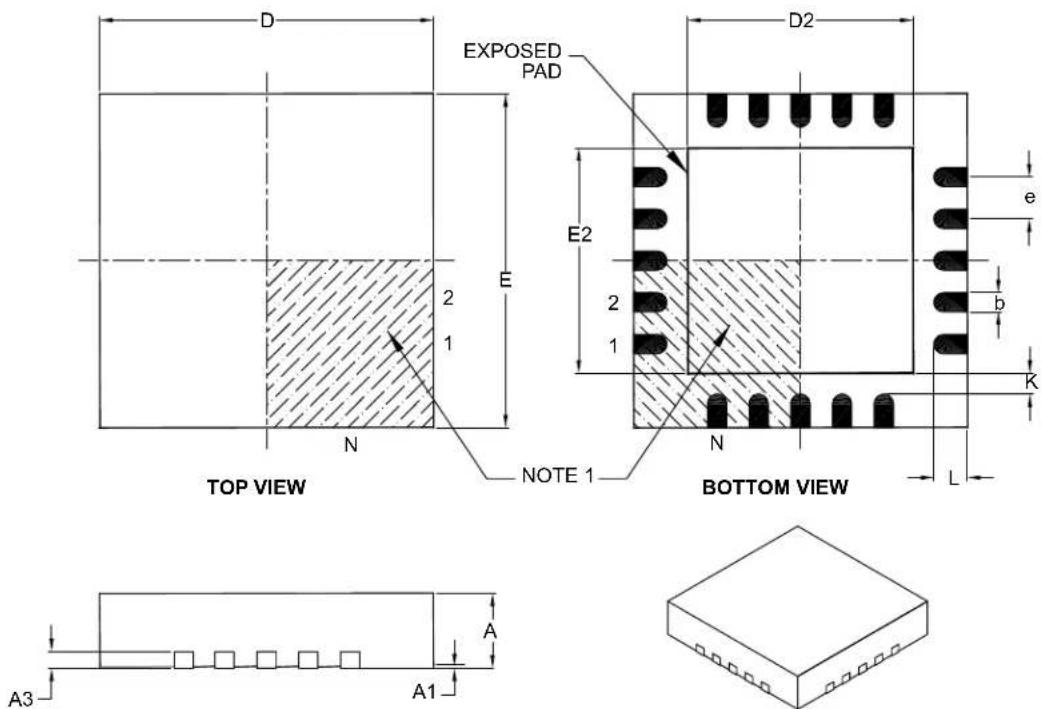

20-Pin QFN ^(2)

PGED1/RP14/RB0 1 PGEC1/RP15/RB1 2 RP16/RB2 3 CLKI/RP3/RA2 4 CLKO/RP4/RA3(1) 5 PIC32MMXXXGPL020 PGED2/RP2/RA1 PGEC2/RP1/RA0 MCLR AVDD/VDD AVss/Vss 18 17 1620 19 15 RP10/RB15(1) 14 RP9/RB14 13 RP13/RB13 12 RP12/RB12 11 VCAP 8 9 1 0 6 7 PGED3/SOSC1/RP5/RB4 PGEC3/SOSCO/RP6/RA4 RP11/RB7 RP7/RB8(1) RP8/RB9(1)

Legend: Shaded pins are up to 5V tolerant.
Note 1: Pin has an increased current drive strength. Refer to Section 26.0 "Electrical Characteristics" for details.
2: The back side thermal pad is not electrically connected.

TABLE 3: COMPLETE PIN FUNCTION DESCRIPTIONS FOR 20-PIN QFN DEVICES

Pin	Function	Pin	Function
1	PGED1/AN2/C1IND/C2INB/RP14/RB0	11	VCAP
2	PGEC1/AN3/C1INC/C2INA/RP15/RB1	12	TDO/AN7/LVDIN/RP12/RB12
3	AN4/RP16/RB2	13	TDI/AN8/RP13/RB13
4	OSC1/CLKI/AN5/C1INB/RP3/OCM1C/RA2	14	CDAC1/AN9/RP9/RTCC/U1TX/SDI1/C1OUT/INT1/RB14
5	OSC2/CLKO/AN6/C1INA/RP4/OCM1D/RA3(1)	15	AN10/REFCLKO/RP10/U1RX/SS1/FSYNC1/INT0/RB15(1)
6	PGED3/SOSCI/RP5/RB4	16	AVss/Vss
7	PGEC3/SOSCO/SCLKI/RP6/PWRLCLK/RA4	17	AVDD/VDD
8	RP11/RB7	18	MCLR
9	TCK/RP7/ 1CTS /SCK1/OCM1A/RB8(1)	19	PGEC2/VREF+/AN0/RP1/OCM1E/INT3/RA0
10	TMS/REFCLKI/RP8/T1CK/T1G/ 1RTS /U1BCLK/SDO1/C2OUT/OCM1B/INT2/RB9(1)	20	PGED2/VREF-/AN1/RP2/OCM1F/RA1

Note 1: Pin has an increased current drive strength.

Pin Diagrams (Continued)

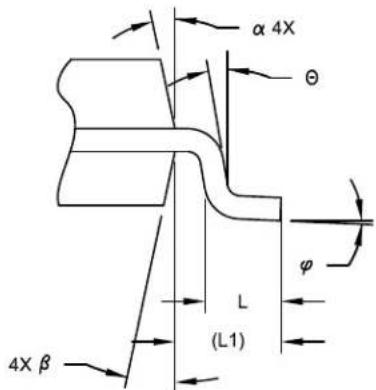

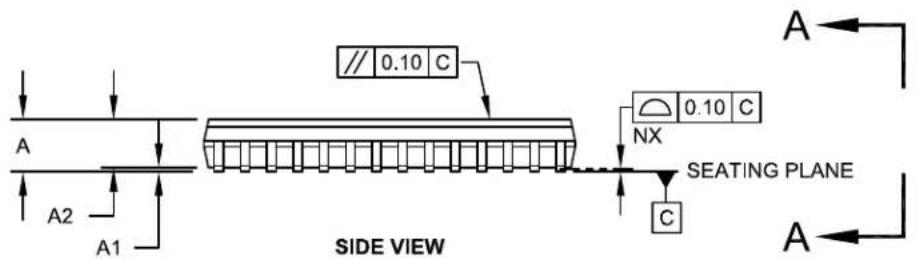

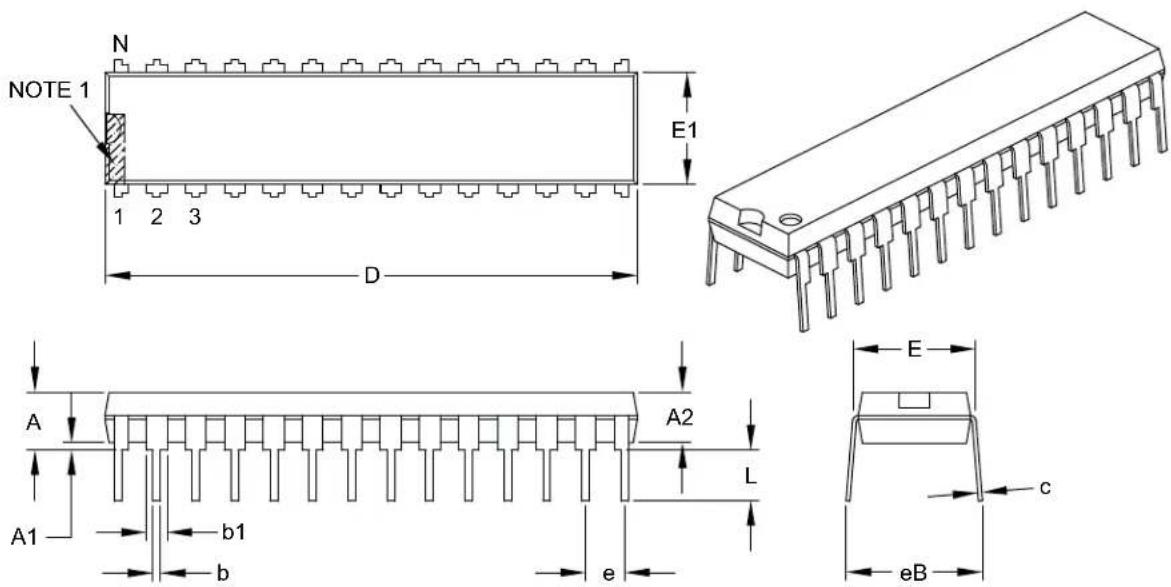

28-Pin SPDIP ^(2) /SSOP/SOIC

Legend: Shaded pins are up to 5V tolerant.
Note 1: Pin has an increased current drive strength. Refer to Section 26.0 "Electrical Characteristics" for details. 2: Only PIC32MM0064GPL028 comes in a 28-pin SPDIP package.

TABLE 4: COMPLETE PIN FUNCTION DESCRIPTIONS FOR 28-PIN SPDIP/SSOP/SOIC DEVICES

Pin	Function Pin Function
1 M	CLR 15 PGEC3/RB6
2	VREF+/AN0/RP1/OCM1E/INT3/RA0	16	RP11/RB7
3	VREF-/AN1/RP2/OCM1F/RA1	17	TCK/RP7/U1CTS/SCK1/OCM1A/RB8(1)
4	PGED1/AN2/C1IND/C2INB/RP14/RB0	18	TMS/REFCLKI/RP8/T1CK/T1G/U1RTS/U1BCLK/SDO1/C2OUT/OCM1B/INT2/RB9(1)
5	PGEC1/AN3/C1INC/C2INA/RP15/RB1	19	RP19/RC9
6	AN4/C1INB/RP16/RB2	20	VCAP
7	AN11/C1INA/RB3	21	PGED2/TDO/RP17/RB10
8	Vss	22	PGEC2/TDI/RP18/RB11
9	OSC1/CLKI/AN5/RP3/OCM1C/RA2	23	AN7/LVDIN/RP12/RB12
10	OSC2/CLKO/AN6/RP4/OCM1D/RA3(1)	24	AN8/RP13/RB13
11	SOSCI/RP5/RB4	25	CDAC1/AN9/RP9/RTCC/U1TX/SDI1/C1OUT/INT1/RB14
12	SOSCO/SCLKI/RP6/PWRLCLK/RA4	26	AN10/REFCLKO/RP10/U1RX/SS1/FSYNC1/INT0/RB15(1)
13	VDD	27	Vss/AVss
14	PGED3/RB5	28	VDD/AVDD

Note 1: Pin has an increased current drive strength.

Pin Diagrams (Continued)

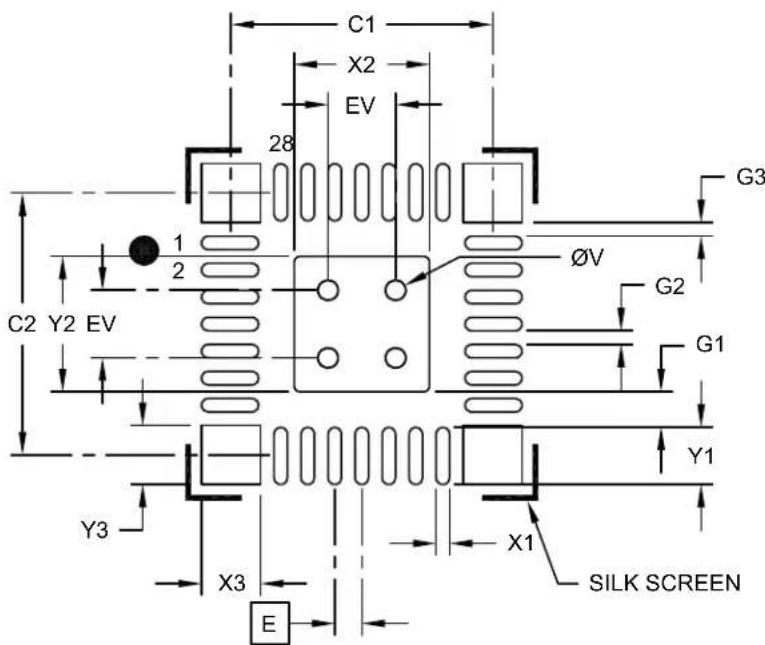

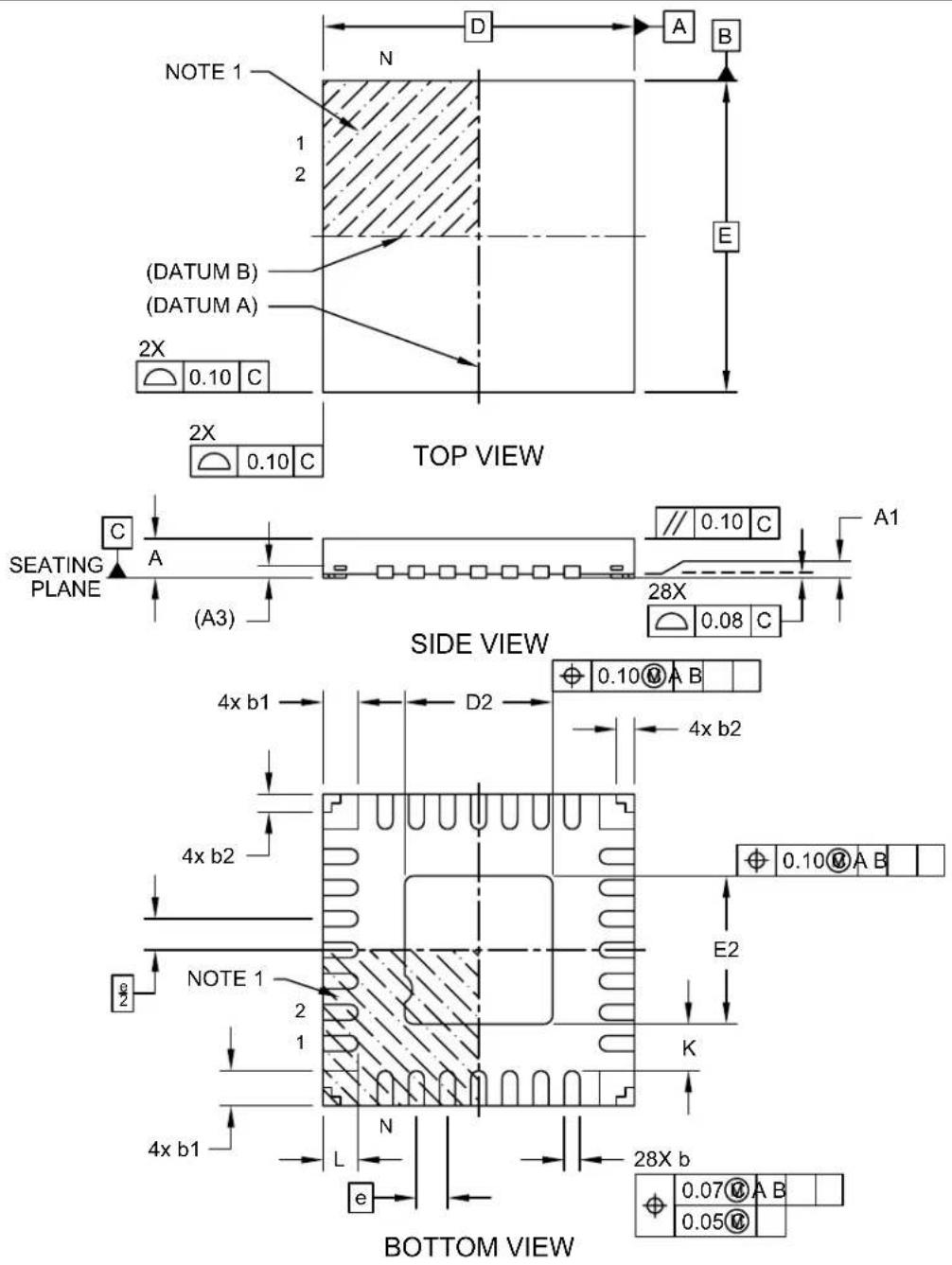

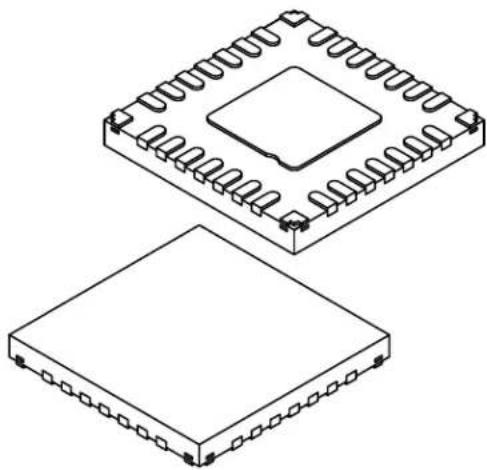

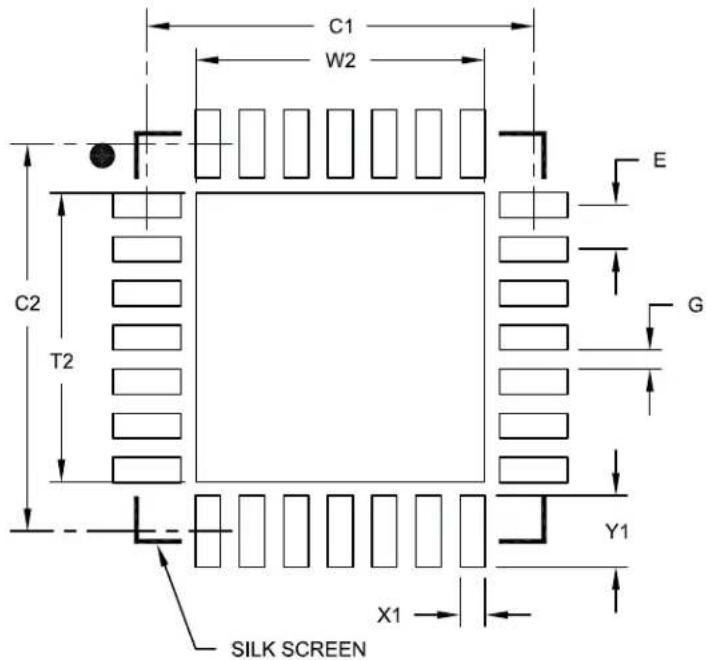

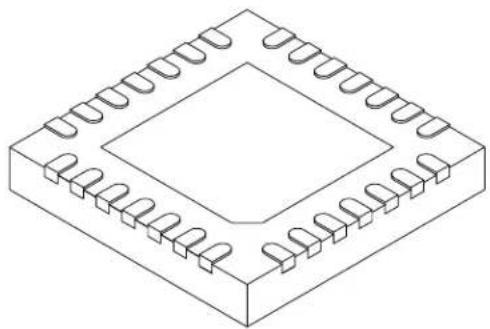

28-Pin QFN/UQFN ^(2)

PIC32MMXXXXGPL028 PGED1/RP14/RB0 1 PGEC1/RP15/RB1 2 RP16/RB2 3 RB3 4 Vss 5 CLKI/RP3/RA2 6 CLKO/RP4/RA3(1) 7 SOSCI/RP5/RB4 8 9 10 11 12 13 14 SOSCO/RP6/RA4 VDD PGED3/RB5 PGEC3/RB6 RP11/RB7 RP7/RB8(1) RP2/RA1 RP1/RA0 MCLR VDD/AV/DD VSS/AV/ss RP10/RB15(1) RP9/RB14 232425262728 21 RP13/RB13 20 RP12/RB12 19 PGEC2/RP18/RB11 18 PGED2/RP17/RB10 17 VCAP 16 RP19/RC9 15 RP8/RB9(1)

Legend: Shaded pins are up to 5V tolerant.
Note 1: Pin has an increased current drive strength. Refer to Section 26.0 "Electrical Characteristics" for details.
2: The back side thermal pad is not electrically connected.

TABLE 5: COMPLETE PIN FUNCTION DESCRIPTIONS FOR 28-PIN QFN/UQFN DEVICES

Pin	Function Pin Function
1	PGED1/AN2/C1IND/C2INB/RP14/RB0	15	TMS/REFCLKI/RP8/T1CK/T1G/U1RTS/U1BCLK/SDO1/C2OUT/OCM1B/INT2/RB9 ^(1)
2	PGEC1/AN3/C1INC/C2INA/RP15/RB1	16	RP19/RC9
3	AN4/C1INB/RP16/RB2	17	VCAP
4	AN11/C1INA/RB3	18	PGED2/TDO/RP17/RB10
5	Vss	19	PGEC2/TDI/RP18/RB11
6	OSC1/CLKI/AN5/RP3/OCM1C/RA2	20	AN7/LVDIN/RP12/RB12
7	OSC2/CLKO/AN6/RP4/OCM1D/RA3^(1)	21	AN8/RP13/RB13
8	SOSCI/RP5/RB4	22	CDAC1/AN9/RP9/RTCC/U1TX/SDI1/C1OUT/INT1/RB14
9	SOSCO/SCLKI/RP6/PWRLCLK/RA4	23	AN10/REFCLKO/RP10/U1RX/ 1 /FSYNC1/INT0/RB15 ^(1)
10	VDD	24	Vss/AVss
11	PGED3/RB5	25	VDD/AVDD
12	PGEC3/RB6	26
13	RP11/RB7	27	VREF+/AN0/RP1/OCM1E/INT3/RA0
14	TCK/RP7/ 1CTS /SCK1/OCM1A/RB8 ^(1)	28	VREF-/AN1/RP2/OCM1F/RA1

Note 1: Pin has an increased current drive strength.

Pin Diagrams (Continued)

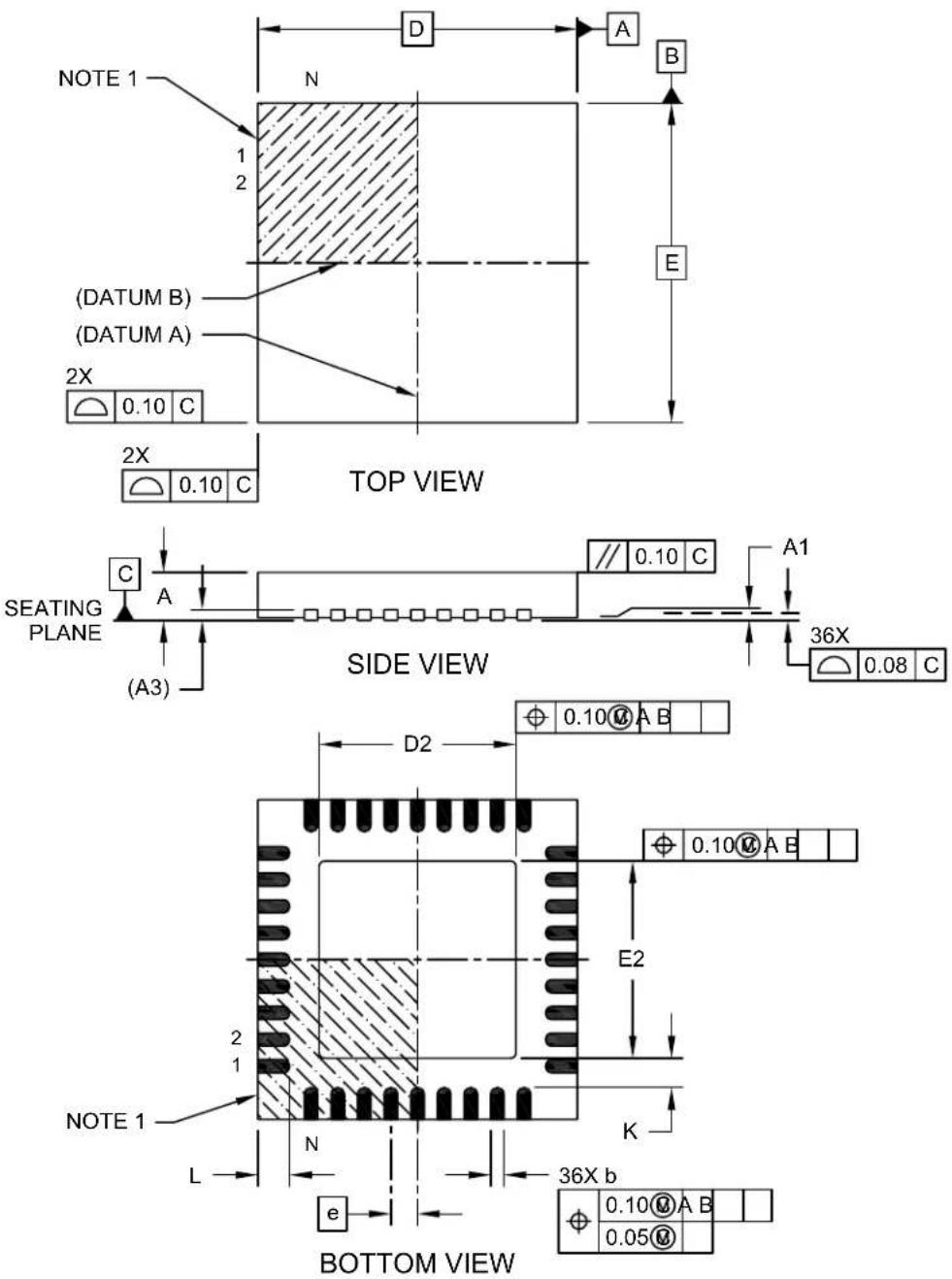

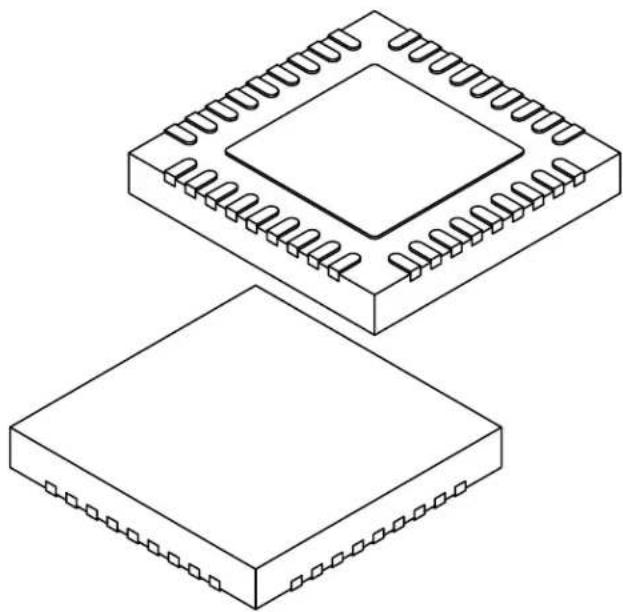

TABLE 6: COMPLETE PIN FUNCTION DESCRIPTIONS FOR 36-PIN VQFN DEVICES

Pin	Function Pin Function
1	AN4/C1INB/RP16/RB2	19	TMS/REFCLKI/RP8/T1CK/T1G/U1RTS/U1BCLK/SDO1/C2OUT/OCM1B/INT2/RB9(1)
2	AN11/C1INA/RB3 20 RC8
3	AN12/RC0	21	RP19/RC9
4	AN13/RC1	22	VCAP
5	RC2	23	VDD
6	Vss	24	PGED2/TDO/RP17/RB10
7	OSC1/CLKI/AN5/RP3/OCM1C/RA2	25	PGEC2/TDI/RP18/RB11
8	OSC2/CLKO/AN6/RP4/OCM1D/RA3 (1)	26	AN7/LVDIN/RP12/RB12
9	SOSCI/RP5/RB4	27	AN8/RP13/RB13
10	SOSCO/SCLKI/RP6/PWRLCLK/RA4	28	CDAC1/AN9/RP9/RTCC/U1TX/SDI1/C1OUT/INT1/RB14
11	RP20/RA9	29	AN10/REFCLKO/RP10/U1RX/SS1/FSYNC1/INT0/RB15(1)
12	Vss	30	Vss/AVss
13	VDD	31	VDD/AVDD
14	RC3	32	MCLR
15	PGED3/RB5	33	VREF+/AN0/RP1/OCM1E/INT3/RA0
16	PGEC3/RB6	34	VREF-/AN1/RP2/OCM1F/RA1
17	RP11/RB7	35	PGED1/AN2/C1IND/C2INB/RP14/RB0
18	TCK/RP7/U1CTS/SCK1/OCM1A/RB8(1)	36	PGEC1/AN3/C1INC/C2INA/RP15/RB1

Note 1: Pin has an increased current drive strength.

Pin Diagrams (Continued)

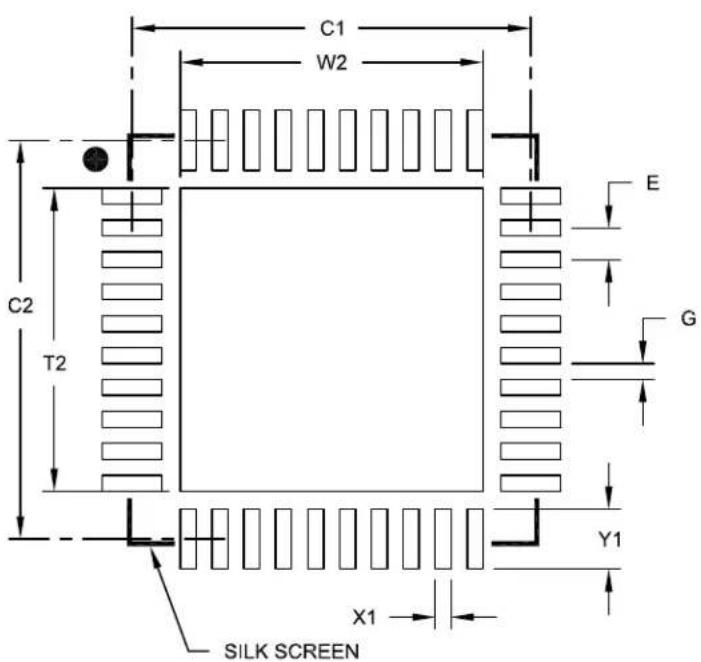

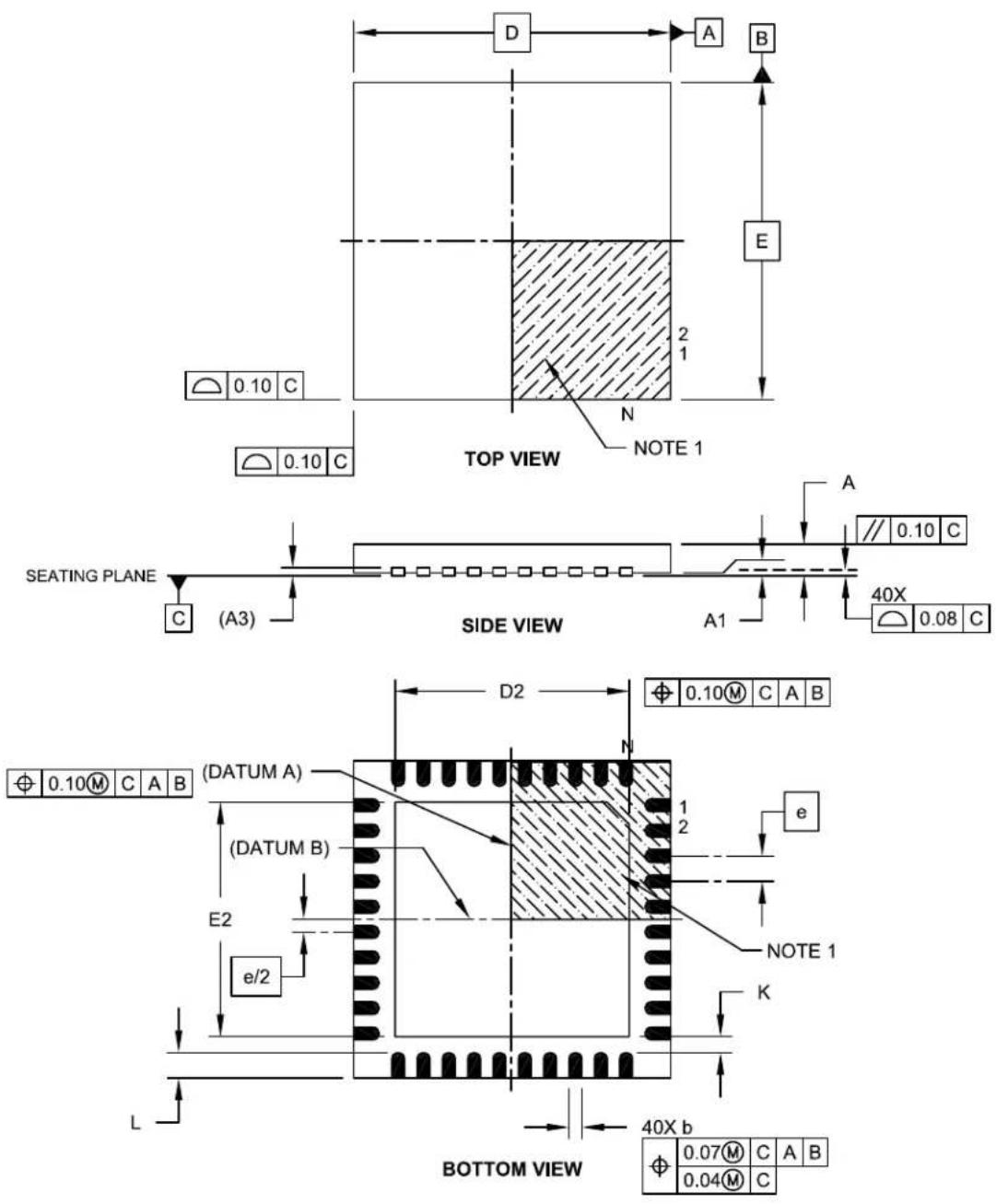

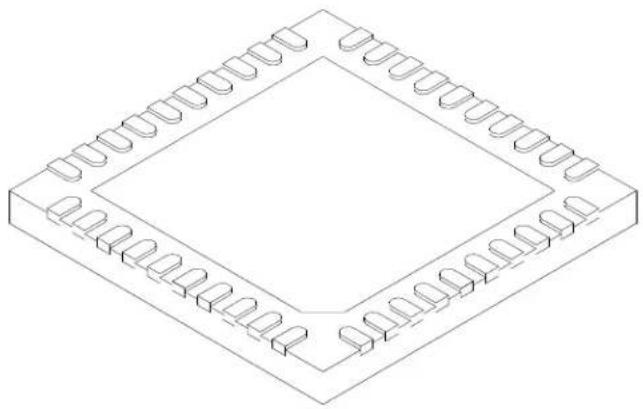

TABLE 7: COMPLETE PIN FUNCTION DESCRIPTIONS FOR 40-PIN UQFN DEVICES

Pin	Function Pin Function
1	AN4/C1INB/RP16/RB2	21	RC8
2	AN11/C1INA/RB3	22	RP19/RC9
3	AN12/RC0	23	N/C
4	AN13/RC1	24	VCAP
5	RC2	25 N/C
6	Vss	26	VDD
7	OSC1/CLKI/AN5/RP3/OCM1C/RA2	27	PGED2/TDO/RP17/RB10
8	SC2/CLKO/AN6/RP4/OCM1D/RA3^(1)	28	PGEC2/TDI/RP18/RB11
9	SOSCI/RP5/RB4	29	AN7/LVDIN/RP12/RB12
10	SOSCO/SCLKI/RP6/PWRLCLK/RA4	30	AN8/RP13/RB13
11	RP20/RA9	31	CDAC1/AN9/RP9/RTCC/U1TX/SDI1/C1OUT/INT1/RB14
12	Vss	32	AN10/REFCLKO/RP10/U1RX/ 1 /FSYNC1/INT0/RB15 ^(1)
13	VDD	33	Vss/AVss
14	RC3	34	VDD/AVDD
15	PGED3/RB5	35	MCLR
16	PGEC3/RB6	36	VREF+/AN0/RP1/OCM1E/INT3/RA0
17	RP11/RB7	37	VREF-/AN1/RP2/OCM1F/RA1
18	TCK/RP7/ 1CTS /SCK1/OCM1A/RB8 ^(1)	38	PGED1/AN2/C1IND/C2INB/RP14/RB0
19	N/C	39	PGEC1/AN3/C1INC/C2INA/RP15/RB1
20	TMS/REFCLKI/RP8/T1CK/T1G/ 1RTS /U1BCLK/SDO1/C2OUT/OCM1B/INT2/RB9 ^(1)	40	N/C

Note 1: Pin has an increased current drive strength.

Table of Contents

1.0 Device Overview 13

2.0 Guidelines for Getting Started with 32-Bit Microcontrollers....19

3.0 CPU 23

4.0 Memory Organization....33

5.0 Flash Program Memory 37

6.0 Resets 45

7.0 CPU Exceptions and Interrupt Controller 51

8.0 Oscillator Configuration 65

9.0 I/O Ports 79

10.0 Timer1 89

11.0 Watchdog Timer (WDT) 93

12.0 Capture/Compare/PWM/Timer Modules (MCCP and SCCP) 97

13.0 Serial Peripheral Interface (SPI) and Inter-IC Sound (I ^2 S) 111

14.0 Universal Asynchronous Receiver Transmitter (UART) 119

15.0 Real-Time Clock and Calendar (RTCC) 125

16.0 12-Bit Analog-to-Digital Converter with Threshold Detect.... 135

17.0 32-Bit Programmable Cyclic Redundancy Check (CRC) Generator 149

18.0 Configurable Logic Cell (CLC).... 153

19.0 Comparator 165

20.0 Control Digital-to-Analog Converter (CDAC)....171

21.0 High/Low-Voltage Detect (HLVD).... 175

22.0 Power-Saving Features 179

23.0 Special Features 183

24.0 Development Support.... 201

25.0 Instruction Set 205

26.0 Electrical Characteristics....207

27.0 Packaging Information 235

Appendix A: Revision History 259

Index 261

The Microchip Web Site 265

Customer Change Notification Service 265

Customer Support 265

Product Identification System 267

TO OUR VALUED CUSTOMERS

It is our intention to provide our valued customers with the best documentation possible to ensure successful use of your Microchip products. To this end, we will continue to improve our publications to better suit your needs. Our publications will be refined and enhanced as new volumes and updates are introduced.

If you have any questions or comments regarding this publication, please contact the Marketing Communications Department via E-mail at [e-mail]. We welcome your feedback.

Most Current Data Sheet

To obtain the most up-to-date version of this data sheet, please register at our Worldwide Web site at:

http://www.microchip.com

You can determine the version of a data sheet by examining its literature number found on the bottom outside corner of any page. The last character of the literature number is the version number, (e.g., DS30000000A is version A of document DS30000000).

Errata

An errata sheet, describing minor operational differences from the data sheet and recommended workarounds, may exist for current devices. As device/documentation issues become known to us, we will publish an errata sheet. The errata will specify the revision of silicon and revision of document to which it applies.

To determine if an errata sheet exists for a particular device, please check with one of the following:

- Microchip's Worldwide Web site; http://www.microchip.com

- Your local Microchip sales office (see last page)

When contacting a sales office, please specify which device, revision of silicon and data sheet (include literature number) you are using.

Customer Notification System

Register on our web site at www.microchip.com to receive the most current information on all of our products.

Referenced Sources

This device data sheet is based on the following individual sections of the "PIC32 Family Reference Manual". These documents should be considered as the general reference for the operation of a particular module or device feature.

Note: To access the documents listed below, browse the documentation section of the Microchip web site (www.microchip.com).

• Section 1. "Introduction" (DS60001127)
• Section 5. "Flash Programming" (DS60001121)
• Section 7. "Resets" (DS60001118)
• Section 8. "Interrupts" (DS60001108)
• Section 10. "Power-Saving Modes" (DS60001130)
• Section 14. "Timers" (DS60001105)
• Section 19. "Comparator" (DS60001110)
• Section 21. "UART" (DS60001107)
• Section 23. "Serial Peripheral Interface (SPI)" (DS61106)
• Section 25. "12-Bit Analog-to-Digital Converter (ADC) with Threshold Detect" (DS60001359)
• Section 28. "RTCC with Timestamp" (DS60001362)
- Section 30. "Capture/Compare/PWM/Timer (MCCP and SCCP)" (DS60001381)
• Section 33. "Programming and Diagnostics" (DS61129)
• Section 36. "Configurable Logic Cell" (DS60001363)
• Section 45. "Control Digital-to-Analog Converter (CDAC)" (DS60001327)
- Section 50. "CPU for Devices with MIPS32 ^ microAptiv ^TM and M-Class Cores" (DS60001192)
• Section 59. "Oscillators with DCO" (DS60001329)
• Section 60. "32-Bit Programmable Cyclic Redundancy Check (CRC)" (DS60001336)
• Section 62. "Dual Watchdog Timer" (DS60001365)

NOTES:

1.0 DEVICE OVERVIEW

Note: This data sheet summarizes the features of the PIC32MM0064GPL036 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32). The information in this data sheet supersedes the information in the FRM.

This data sheet contains device-specific information for the PIC32MM0064GPL036 family devices.

Figure 1-1 illustrates a general block diagram of the core and peripheral modules in the PIC32MM0064GPL036 family of devices.

Table 1-1 lists the pinout I/O descriptions for the pins shown in the device pin tables.

FIGURE 1-1: PIC32MM0064GPL036 FAMILY BLOCK DIAGRAM
    subgraph_Peripheral_Bus_ClockedBy_PBCLK["Peripheral Bus Clocked by PBCLK"]
        direction TB
        A["Primary Oscillator"] --> B["FRC/LPRC Oscillators"]
        B --> C["Oscillator"]
        C --> D["Dividers"]
        D --> E["PLL"]
        E --> F["Timing Generation"]
        F --> G["SYSCLK"]
        F --> H["PBCLK (1:1 with SYSCLK)"]
        I["Power-up Timer"] --> J["Oscillator Start-up Timer"]
        J --> K["Power-on Reset"]
        K --> L["Watchdog Timer"]
        L --> M["Brown-out Reset"]
        M --> N["Voltage Regulator"]
        N --> O["Precision Band Gap Reference"]
        P["AVDD, AVss"] --> Q["Power-up Timer"]
        R["VDD, Vss"] --> S["Power-on Reset"]
        T["MCLR"] --> U["Power-on Reset"]
    end

    subgraph_Peripheral_Bus_ClockedBy_PBCLK["Peripheral Bus Clocked by PBCLK"]
        direction TB
        V["PORTA"] <--> W["JTAG Priority Boundary Scan"]
        W --> X["EJTAG INT MIPS32® microAptiv™ UC CPU Core"]
        X --> Y["IS DS"]
        Y --> Z["32 32"]
        AA["ICD"] <--> AB["32 32"]
        AC["PORTB"] <--> AD["32 32"]
        AE["PORTC"] <--> AF["32 32"]
        AG["Line Buffer Module"] <--> AH["64-Bit Wide Program Flash Memory"]
        AI["RAM"] <--> AJ["64-Bit Wide Program Flash Memory"]
        AK["Peripheral Bridge"] <--> AL["32 32"]
        AM["64-Bit Wide Program Flash Memory"] <--> AN["Flash Controller"]
        AO["Peripheral Bridge"] <--> AP["Peripheral Bus Clocked by PBCLK"]
        AQ["I/O Change Notification"] <--> AR["Timer1"]
        AS["MCCP1"] <--> AT["SCCP2,3"]
        AU["SPI1,2"] <--> AV["5-Bit DAC"]
        AW["CRC"] <--> AX["12-Bit ADC"]
        AY["UART1,2"] <--> AZ["RTCC"]
        BA["Comparators"] <--> BB["HLVD"]
    end

TABLE 1-1: PIC32MM0064GPL036 FAMILY PINOUT DESCRIPTION

Pin Name	Pin Number						Pin Type	Buffer Type	Description
	20-Pin QFN	20-Pin SSOP	28-Pin QFN/UQFN	28-Pin SPDIP/SSOP/SOIC	36-Pin VQFN	40-Pin UQFN
AN0 19 2 27	2 33 36	I ANA A	Analog-to-Digital Converter input channels
AN1	20 3	28 3 34	37 I	ANA
AN2	1	4	1	4	35	38	I	ANA
AN3	2	5	2	5	36	39	I	ANA
AN4	3	6	3	6	1	1	I	ANA
AN5	4	7	6	9	7	7	I	ANA
AN6	5	8	7	10	8	8	I	ANA
AN7	12	15	20	23	26	29	I	ANA
AN8	13	16	21	24	27	30	I	ANA
AN9	14	17	22	25	28	31	I	ANA
AN10	15	18	23	26	29	32	I	ANA
AN11	—	—	4	7	2	2	I	ANA
AN12	—	—	—	—	3	3	I	ANA
AN13	—	—	—	—	4	4	I	ANA
AVDD	17	20	25	28	31	34	P	—	Analog modules power supply(1)
AVss	16	19	24	27	30	33	P	—	Analog modules ground(2)
C1INA	5	8	4	7	2	2	I	ANA	Comparator 1 Input A
C1INB	4	7	3	6	1	1	I	ANA	Comparator 1 Input B
C1INC	2	5	2	5	36	39	I	ANA	Comparator 1 Input C
C1IND	1	4	1	4	35	38	I	ANA	Comparator 1 Input D
C1OUT	14	17	22	25	28	31	O	DIG	Comparator 1 output
C2INA	2	5	2	5	36	39	I	ANA	Comparator 2 Input A
C2INB	1	4	1	4	35	38	I	ANA	Comparator 2 Input B
C2OUT	10	13	15	18	19	20	O	DIG	Comparator 2 output
CLKI	4	7	6	9	7	7	I	ST	External Clock input (EC mode)
CLKO	5	8	7	10	8	8	O	DIG	System clock output
CDAC1	14	17	22	25	28	31	O	ANA	Digital-to-Analog Converter output
FSYNC1	15	18	23	26	29	32	I/O	ST/DIG	SPI1 frame signal input or output
INT0	15	18	23	26	29	32	I	ST	External Interrupt 0
INT1	14	17	22	25	28	31	I	ST	External Interrupt 1
INT2	10	13	15	18	19	20	I	ST	External Interrupt 2
INT3	19 2 27	2 33 36 I ST		External Interrupt 3
LVDIN	12	15	20	23	26	29	I	ANA	High/Low-Voltage Detect input
MCLR	18 1 26	1 32 35 I ST		Master Clear (device Reset)
OCM1A	9	12	14	17	18	18	O	DIG	MCCP1 Output A
OCM1B	10	13	15	18	19	20	O	DIG	MCCP1 Output B
OCM1C	4	7	6	9	7	7	O	DIG	MCCP1 Output C
OCM1D	5	8	7	10	8	8	O	DIG	MCCP1 Output D
OCM1E	19	2	27	2	33	36	O	DIG	MCCP1 Output E
OCM1F	20	3	28	3	34	37	O	DIG	MCCP1 Output F
OSC1	4	7	6	9	7	7	—	—	Primary Oscillator crystal
OSC2	5	8	7	10	8	8	—	—	Primary Oscillator crystal

Legend: ST = Schmitt Trigger input buffer
DIG = Digital input/output
ANA = Analog level input/output
Note 1: V_DD and AV_DD are internally connected.
2: Vss and AVssare internally connected.

TABLE 1-1: PIC32MM0064GPL036 FAMILY PINOUT DESCRIPTION (CONTINUED)

Pin Name	Pin Number						Pin Type	Buffer Type	Description
	20-Pin QFN	20-Pin SSOP	28-Pin QFN/UQFN	28-Pin SPDIP/SSOP/SOIC	36-Pin VQFN	40-Pin UQFN
PGEC1 2 5	2 5 36 39	I ST ICSPTM Port	1 programming clock input
PGEC2 19 2	19 22 25	28 I ST ICSP Port	2 programming clock input
PGEC3 7 10	12 15 16	16 I ST ICSP Port	3 programming clock input
PGED1	1	4	1	4	35	38	I/O	ST/DIG	ICSP Port 1 programming data
PGED2	20	3	18	21	24	27	I/O	ST/DIG	ICSP Port 2 programming data
PGED3	6	9	11	14	15	15	I/O	ST/DIG	ICSP Port 3 programming data
PWRLCLK	7 10 9		12 10 10 I ST Real-Time Clock			50/60 Hz clock	input
RA0	19	2	27	2	33	36	I/O	ST/DIG	PORTA digital I/O
RA1	20	3	28	3	34	37	I/O	ST/DIG	PORTA digital I/O
RA2	4	7	6	9	7	7	I/O	ST/DIG	PORTA digital I/O
RA3	5	8	7	10	8	8	I/O	ST/DIG	PORTA digital I/O
RA4	7	10	9	12	10	10	I/O	ST/DIG	PORTA digital I/O
RA9	—	—	—	—	11	11	I/O	ST/DIG	PORTA digital I/O
RB0	1	4	1	4	35	38	I/O	ST/DIG	PORTB digital I/O
RB1	2	5	2	5	36	39	I/O	ST/DIG	PORTB digital I/O
RB2	3	6	3	6	1	1	I/O	ST/DIG	PORTB digital I/O
RB3	—	—	4	7	2	2	I/O	ST/DIG	PORTB digital I/O
RB4	6	9	8	11	9	9	I/O	ST/DIG	PORTB digital I/O
RB5	—	—	11	14	15	15	I/O	ST/DIG	PORTB digital I/O
RB6	—	—	12	15	16	16	I/O	ST/DIG	PORTB digital I/O
RB7	8	11	13	16	17	17	I/O	ST/DIG	PORTB digital I/O
RB8	9	12	14	17	18	18	I/O	ST/DIG	PORTB digital I/O
RB9	10	13	15	18	19	20	I/O	ST/DIG	PORTB digital I/O
RB10	—	—	18	21	24	27	I/O	ST/DIG	PORTB digital I/O
RB11	—	—	19	22	25	28	I/O	ST/DIG	PORTB digital I/O
RB12	12	15	20	23	26	29	I/O	ST/DIG	PORTB digital I/O
RB13	13	16	21	24	27	30	I/O	ST/DIG	PORTB digital I/O
RB14	14	17	22	25	28	31	I/O	ST/DIG	PORTB digital I/O
RB15	15	18	23	26	29	32	I/O	ST/DIG	PORTB digital I/O
RC0	—	—	—	—	3	3	I/O	ST/DIG	PORTC digital I/O
RC1	—	—	—	—	4	4	I/O	ST/DIG	PORTC digital I/O
RC2	—	—	—	—	5	5	I/O	ST/DIG	PORTC digital I/O
RC3	—	—	—	—	14	14	I/O	ST/DIG	PORTC digital I/O
RC8	—	—	—	—	20	21	I/O	ST/DIG	PORTC digital I/O
RC9	—	—	16	19	21	22	I/O	ST/DIG	PORTC digital I/O
REFCLKI	10	13 15	18 19 20 I ST Reference clock input
REFCLKO	15	18	23	26	29	32	O	DIG	Reference clock output

Legend: ST = Schmitt Trigger input buffer
DIG = Digital input/output
ANA = Analog level input/output
Note 1: VDD and AVDD are internally connected.
2: Vss and AVssare internally connected.

TABLE 1-1: PIC32MM0064GPL036 FAMILY PINOUT DESCRIPTION (CONTINUED)

Pin Name	Pin Number						Pin Type	Buffer Type	Description
	20-Pin QFN	20-Pin SSOP	28-Pin QFN/UQFN	28-Pin SPDIP/SSOP/SOIC	36-Pin VQFN	40-Pin UQFN
RP1 19 2 27	2 33 36	I/O ST/DIG Rema	ppable perip	erals (input or output)
RP2 20 3 28	3 34 37	I/O ST/DIG
RP3	4	7	6	9	7	7	I/O	ST/DIG
RP4	5	8	7	10	8	8	I/O	ST/DIG
RP5	6	9	8	11	9	9	I/O	ST/DIG
RP6 7 10 9	12	10 10	I/O ST/DIG
RP7	9	12	14	17	18	18	I/O	ST/DIG
RP8	10	13	15	18	19	20	I/O	ST/DIG
RP9	14	17	22	25	28	31	I/O	ST/DIG
RP10	15	18	23	26	29	32	I/O	ST/DIG
RP11	8	11	13	16	17	17	I/O	ST/DIG
RP12	12	15	20	23	26	29	I/O	ST/DIG
RP13	13	16	21	24	27	30	I/O	ST/DIG
RP14	1 4	1	4 35 38 I/O ST/DIG
RP15	2 5	2	5 36 39 I/O ST/DIG
RP16	3	6	3	6	1	1	I/O	ST/DIG
RP17	—	—	18	21	24	27	I/O	ST/DIG
RP18	—	—	19	22	25	28	I/O	ST/DIG
RP19	—	—	16	19	21	22	I/O	ST/DIG
RP20	—	—	—	—	11	11	I/O	ST/DIG
RTCC	14	17	22	25	28	31	O	DIG	Real-Time Clock alarm/seconds output
SCK1	9	12	14	17	18	18	I/O	ST/DIG	SPI1 clock (input or output)
SCLKI	7	10	9	12	10	10	I	ST	Secondary Oscillator external clock input
SDI1	14	17	22	25	28	31	I	ST	SPI1 data input
SDO1	10	13	15	18	19	20	O	DIG	SPI1 data output
SOSCI	6	9	8	11	9	9	—	—	Secondary Oscillator crystal
SOSCO	7	10	9	12	10	10	—	—	Secondary Oscillator crystal
1	15	18	23	26	29	32	I	ST	SPI1 slave select input
T1CK	10	13	15	18	19	20	I	ST	Timer1 external clock input
T1G	10	13	15	18	19	20	I	ST	Timer1 clock gate input
TCK	9	12	14	17	18	18	I	ST	JTAG clock input
TDI	13	16	19	22	25	28	I	ST	JTAG data input
TDO	12	15	18	21	24	27	O	DIG	JTAG data output
TMS	10	13	15	18	19	20	I	ST	JTAG mode select input
U1BCLK	10	13	15	18	19	20	O	DIG	UART1 IrDA® 16x baud clock output
U1CTS	9	12	14	17	18	18	I	ST	UART1 transmission control input
U1RTS	10	13	15	18	19	20	O	DIG	UART1 reception control output
U1RX	15	18	23	26	29	32	I	ST	UART1 receive data input
U1TX	14	17	22	25	28	31	O	DIG	UART1 transmit data output

Legend: ST = Schmitt Trigger input buffer
DIG = Digital input/output
ANA = Analog level input/output
Note 1: V_DD and AV_DD are internally connected.
2: Vss and AVssare internally connected.

TABLE 1-1: PIC32MM0064GPL036 FAMILY PINOUT DESCRIPTION (CONTINUED)

Pin Name	Pin Number						Pin Type	Buffer Type	Description
	20-Pin QFN	20-Pin SSOP	28-Pin QFN/UQFN	28-Pin SPDIP/SSOP/SOIC	36-Pin VQFN	40-Pin UQFN
V_CAP	11 14	17 20 22	24 P —	Core voltage	regulator filter capacitor				connection
V_DD	17 20	10,25 13	28 13,23	31 13,26,		34	P —	Digital modules power supply (1)
V_REF-	20	3	28	3	34	37	I	ANA	ADC negative reference
V_REF+	19	2	27	2	33	36	I	ANA	ADC and DAC positive reference
V_SS	16 19	5,24		8,27 6,12,30	6,12,	33	P —	Digital modules ground (2)

Legend: ST = Schmitt Trigger input buffer
DIG = Digital input/output
ANA = Analog level input/output
Note 1: V_DD and AV_DD are internally connected.
2: Vss and AVss are internally connected.

NOTES:

2.0 GUIDELINES FOR GETTING STARTED WITH 32-BIT MICROCONTROLLERS

Note: This data sheet summarizes the features of the PIC32MM0064GPL036 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32). The information in this data sheet supersedes the information in the FRM.

2.1 Basic Connection Requirements

Getting started with the PIC32MM0064GPL036 family of 32-bit Microcontrollers (MCUs) requires attention to a minimal set of device pin connections before proceeding with development. The following is a list of pin names, which must always be connected:

• A I and Vss pins (see Section 2.2 "Decoupling Capacitors")
• A I I D A and AVss pins, even if the ADC module is not used (see Section 2.2 "Decoupling Capacitors")
• MCLR pin (see Section 2.3 "Master Clear (MCLR) Pin")
• VCAP pin (see Section 2.4 "Capacitor on Internal Voltage Regulator (VCAP)")
• PGECx/PGEDx pins, used for In-Circuit Serial Programming™ (ICSP™) and debugging purposes (see Section 2.6 "ICSP Pins")
• OSC1 and OSC2 pins, when external oscillator source is used (see Section 2.8 "External Oscillator Pins")

The following pin(s) may be required as well:

V_REF+/V_REF- pins, used when external voltage reference for the ADC module is implemented.

Note: The AV DD and AVss pins must be connected, regardless of ADC use and the ADC voltage reference source. The back side thermal pad, if present, is not electrically connected.

2.2 Decoupling Capacitors

The use of decoupling capacitors on power supply pins, such as VDD, Vss, AVDD and AVss, is required. See Figure 2-1.

Consider the following criteria when using decoupling capacitors:

- Value and type of capacitor: A value of 0.1 F (100 nF), 10-20V is recommended. The capacitor should be a low Equivalent Series Resistance (low-ESR) capacitor and have resonance frequency in the range of 20 MHz and higher. It is further recommended that ceramic capacitors be used.

- Placement on the printed circuit board: The decoupling capacitors should be placed as close to the pins as possible. It is recommended that the capacitors be placed on the same side of the board as the device. If space is constricted, the capacitor can be placed on another layer on the PCB using a via; however, ensure that the trace length from the pin to the capacitor is within one-quarter inch (6 mm) in length.

- Handling high-frequency noise: If the board is experiencing high-frequency noise, upward of tens of MHz, add a second ceramic-type capacitor in parallel to the above described decoupling capacitor. The value of the second capacitor can be in the range of 0.01 F to 0.001 F . Place this second capacitor next to the primary decoupling capacitor. In high-speed circuit designs, consider implementing a decade pair of capacitances, as close to the power and ground pins as possible. For example, 0.1 F in parallel with 0.001 F .

- Maximizing performance: On the board layout from the power supply circuit, run the power and return traces to the decoupling capacitors first, and then to the device pins. This ensures that the decoupling capacitors are first in the power chain. Equally important is to keep the trace length between the capacitor and the power pins to a minimum, thereby reducing PCB track inductance.

FIGURE 2-1: RECOMMENDED MINIMUM CONNECTION

VDD R R1 C MCLR VCCAP 10 µF CEFC 0.1 µF Ceramic VDD VSS PIC32 Vss/AVss VDD/AVDD 0.1 µF Ceramic VDD VSS 0.1 µF Ceramic 0.1 µF Ceramic

2.2.1 BULK CAPACITORS

The use of a bulk capacitor is recommended to improve power supply stability. Typical values range from 4.7 F to 47 F. This capacitor should be located as close to the device as possible.

2.3 Master Clear (MCLR) Pin

The MCLR pin provides for two specific device functions:

• Device Reset
  • Device Programming and Debugging

Pulling The MCLR pin low generates a device Reset. Figure 2-2 illustrates a typical MCLR circuit. During device programming and debugging, the resistance and capacitance that can be added to the pin must be considered. Device programmers and debuggers drive the MCLR pin. Consequently, specific voltage levels (VIH and VIL) and fast signal transitions must not be adversely affected. Therefore, specific values of R and C will need to be adjusted based on the application and PCB requirements.

For example, as illustrated in Figure 2-2, it is recommended that the capacitor, C, be isolated from the MCLR pin during programming and debugging operations.

Place the components illustrated in Figure 2-2 within one-quarter inch (6 mm) from the MCLR pin.

FIGURE 2-2: EXAMPLE OF MCLR PIN CONNECTIONS ^(1,2,3)

VDD R 10k R1(1) 1 kΩ MCLR PIC32 0.1 μF(2) ICSP™ 1 5 4 2 VDD 3 Vss 6 NC PGECx(3) PGEDx(3) Note 1: 470Ω ≤ R1 ≤ 1 kΩ will limit any current flowing into MCLR from the external capacitor, C, in the event of MCLR pin breakdown, due to Electrostatic Discharge (ESD) or Electrical Overstress (EOS). Ensure that the MCLR pin VIH and VIL specifications are met without interfering with the debug/programmer tools. 2: The capacitor can be sized to prevent unintentional Resets from brief glitches or to extend the device Reset period during POR. 3: No pull-ups or bypass capacitors are allowed on active debug/program PGECx/PGEDx pins.

2.4 Capacitor on Internal Voltage Regulator (VCAP)

A low-ESR (<1 Ohm) capacitor is required on the VCAP pin, which is used to stabilize the internal voltage regulator output. The VCAP pin must not be connected to VDD and must have a CEFC capacitor, with at least a 6V rating, connected to ground. The type can be ceramic or tantalum. The recommended value of the CEFC capacitor is 10 μF. On the printed circuit board, it should be placed as close to the VCAP pin as possible. If the board is experiencing high-frequency noise, upward of tens of MHz, add a second ceramic-type capacitor in parallel to this capacitor. The value of the second capacitor can be in the range of 0.01 μF to 0.001 μF.

2.5 Voltage Regulator Pin (VCAP)

A low-ESR (< 5Ω) capacitor is required on the VCAP pin to stabilize the output voltage of the on-chip voltage regulator. The VCAP pin must not be connected to VDD and must use a capacitor of 10 μF connected to ground. The type can be ceramic or tantalum. Suitable examples of capacitors are shown in Table 2-1. Capacitors with equivalent specifications can be used.

The placement of this capacitor should be close to V CAP. It is recommended that the trace length not exceed 0.25 inch (6 mm). Refer to Section 26.0 "Electrical Characteristics" for additional information.

Designers may use Figure 2-3 to evaluate ESR equivalence of candidate devices.

FIGURE 2-3: FREQUENCY vs. ESR PERFORMANCE FOR SUGGESTED VCAP

TABLE 2-1: SUITABLE CAPACITOR EQUIVALENTS

Make Part #		Nominal Capacitance	Base Tolerance	Rated Voltage	Temp. Range
TDK	C3216X7R1C106K	10 μF	±10%	16V	-55 to +125°C
TDK	C3216X5R1C106K	10 μF	±10%	16V	-55 to +85°C
Panasonic	ECJ-3YX1C106K	10 μF	±10%	16V	-55 to +125°C
Panasonic	ECJ-4YB1C106K	10 μF	±10%	16V	-55 to +85°C
Murata	GRM319R61C106KE15D	10 μF	±10%	16V	-55 to +85°C

2.6 ICSP Pins

The PGECx and PGEDx pins are used for In-Circuit Serial Programming™ (ICSP™) and debugging purposes. It is recommended to keep the trace length between the ICSP connector and the ICSP pins on the device as short as possible. If the ICSP connector is expected to experience an ESD event, a series resistor is recommended, with the value in the range of a few tens of Ohms, not to exceed 100 Ohms.

Pull-up resistors, series diodes and capacitors on the PGECx and PGEDx pins are not recommended as they will interfere with the programmer/debugger communications to the device. If such discrete components are an application requirement, they should be removed from the circuit during programming and debugging. Alternatively, refer to the AC/DC characteristics and timing requirements information in the respective device Flash programming specification for information on capacitive loading limits and pin Input Voltage High (VIH) and Input Voltage Low (VL) requirements.

Ensure that the "Communication Channel Select" (i.e., PGECx/PGEDx pins) programmed into the device matches the physical connections for the ICSP to MPLAB® ICD 3 or MPLAB REAL ICE™ In-Circuit Emulator.

For more information on MPLAB ICD 3 and REAL ICE connection requirements, refer to the following documents that are available from the Microchip web site.

• "Using MPLAB ^ ICD 3 In-Circuit Debugger" (poster) (DS51765)
• "Development Tools Design Advisory" (DS51764)
• "MPLAB® REAL ICE™ In-Circuit Emulator User's Guide" (DS51616)
• "Using MPLAB ^ REAL ICE ^TM In-Circuit Emulator" (poster) (DS51749)

2.7 JTAG

The TMS, TDO, TDI and TCK pins are used for testing and debugging according to the Joint Test Action Group (JTAG) standard. It is recommended to keep the trace length between the JTAG connector, and the JTAG pins on the device, as short as possible. If the JTAG connector is expected to experience an ESD event, a series resistor is recommended, with the value in the range of a few tens of Ohms, not to exceed 100 Ohms.

Pull-up resistors, series diodes and capacitors on the TMS, TDO, TDI and TCK pins are not recommended as they will interfere with the programmer/debugger communications to the device. If such discrete components are an application requirement, they should be removed from the circuit during programming and debugging. Alternatively, refer to the AC/DC characteristics and timing requirements information in the respective device Flash programming specification for information on capacitive loading limits, and pin Input Voltage High (VH) and Input Voltage Low (VIL) requirements.

2.8 External Oscillator Pins

The PIC32MM0064GPL036 family has options for two external oscillators: a high-frequency primary oscillator and a low-frequency secondary oscillator (refer to Section 8.0 "Oscillator Configuration" for details).

The oscillator circuit should be placed on the same side of the board as the device. Also, place the oscillator circuit close to the respective oscillator pins, not exceeding one-half inch (12 mm) distance between them. The load capacitors should be placed next to the oscillator itself, on the same side of the board. Use a grounded copper pour around the oscillator circuit to isolate them from surrounding circuits. The grounded copper pour should be routed directly to the MCU ground. Do not run any signal traces or power traces inside the ground pour. Also, if using a two-sided board, avoid any traces on the other side of the board where the crystal is placed. A suggested layout is illustrated in Figure 2-4.

FIGURE 2-4: SUGGESTED OSCILLATOR CIRCUIT PLACEMENT

Oscillator Secondary Guard Trace Guard Ring Main Oscillator

2.9 Unused I/Os

To minimize power consumption, unused I/O pins should not be allowed to float as inputs. They can be configured as outputs and driven to a logic low or logic high state.

Alternatively, inputs can be reserved by ensuring the pin is always configured as an input and externally connecting the pin to Vss or VDD. A current-limiting resistor may be used to create this connection if there is any risk of inadvertently configuring the pin as an output with the logic output state opposite of the chosen power rail.

3.0 CPU

Note: This data sheet summarizes the features of the PIC32MM0064GPL036 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 50. "CPU for Devices with MIPS32® microAptiv™ and M-Class Cores" (DS60001192) in the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32). MIPS32® microAptiv™ UC microprocessor core resources are available at: www.imgtec.com. The information in this data sheet supersedes the information in the FRM.

The MIPS32 ^® microAptiv ^™ UC microprocessor core is the heart of the PIC32MM0064GPL036 family devices. The CPU fetches instructions, decodes each instruction, fetches source operands, executes each instruction and writes the results of the instruction execution to the proper destinations.

3.1 Features

The PIC32MM0064GPL036 family processor core key features include:

• 5-Stage Pipeline
  • 32-Bit Address and Data Paths
  • MIPS32 Enhanced Architecture:

• Multiply-add and multiply-subtract instructions

• Targeted multiply instruction
• Zero and one detect instructions
• WAIT instruction
• Conditional move instructions
• Vectored interrupts
• Atomic interrupt enable/disable
• One GPR shadow set to minimize latency of interrupts
• Bit field manipulation instructions

- microMIPS™ Instruction Set:

• microMIPS allows improving the code size density over MIPS32, while maintaining MIPS32 performance.
• microMIPS supports all MIPS32 instructions (except for branch-likely instructions) with new optimized 32-bit encoding. Frequent MIPS32 instructions are available as 16-bit instructions.
• Added seventeen new and thirty-five MIPS32 ^® corresponding commonly used instructions in 16-bit opcode format.
• Stack Pointer implicit in instruction.
• MIPS32 assembly and ABI compatible.

• Memory Management Unit with Simple Fixed Mapping Translation (FMT) Mechanism
- Multiply/Divide Unit (MDU):

• Configurable using high-performance multiplier array.
• Maximum issue rate of one 32x16 multiply per clock.
• Maximum issue rate of one 32x32 multiply every other clock.
• Early-in iterative divide. Minimum 11 and maximum 33 clock latency (dividend (rs) sign extension dependent).

- Power Control:

• No minimum frequency: 0 MHz.
• Power-Down mode (triggered by WAIT instruction).

- EJTAG Debug/Profiling:

• CPU control with start, stop and single stepping.
• Software breakpoints via the SDBBP instruction.
• Optional simple hardware breakpoints on virtual addresses, 4 instruction and 2 data breakpoints.
• PC and/or load/store address sampling for profiling.
• Performance counters.
• Supports Fast Debug Channel (FDC).

A block diagram of the PIC32MM0064GPL036 family processor core is shown in Figure 3-1.

FIGURE 3-1: PIC32MM0064GPL036 FAMILY MICROPROCESSOR CORE
BLOCK DIAGRAM

3.2 Architecture Overview

The MIPS32 ^® microAptiv ^™ UC microprocessor core in the PIC32MM0064GPL036 family devices contains several logic blocks, working together in parallel, providing an efficient high-performance computing engine. The following blocks are included with the core:

• Execution Unit
• General Purpose Register (GPR)
• Multiply/Divide Unit (MDU)
  • System Control Coprocessor (CP0)
  • Memory Management Unit (MMU)
  • Power Management
• microMIPS Instructions Decoder
  • Enhanced JTAG (EJTAG) Controller

3.2.1 EXECUTION UNIT

The processor core execution unit implements a load/store architecture with single-cycle ALU operations (logical, shift, add, subtract) and an autonomous Multiply/Divide Unit (MDU). The core contains thirty-two 32-bit General Purpose Registers (GPRs) used for integer operations and address calculation. One additional register file shadow set (containing thirty-two registers) is added to minimize context switching overhead during interrupt/exception processing. The register file consists of two read ports and one write port, and is fully bypassed to minimize operation latency in the pipeline.

The execution unit includes:

• 32-bit adder used for calculating the data address
- Address unit for calculating the next instruction address
- Logic for branch determination and branch target address calculation
- Load aligner
- Bypass multiplexers used to avoid Stalls when executing instruction streams where data producing instructions are followed closely by consumers for their results

- Leading zero/one detect unit for implementing the CLZ and CLO instructions

- Arithmetic Logic Unit (ALU) for performing arithmetic and bitwise logical operations

- Shifter and store aligner

3.2.2 MULTIPLY/DIVIDE UNIT (MDU)

The microAptiv UC core includes a Multiply/Divide Unit (MDU) that contains a separate pipeline for multiply and divide operations. This pipeline operates in parallel with the Integer Unit (IU) pipeline and does not stall when the IU pipeline stalls. This allows the long-running MDU operations to be partially masked by system Stalls and/or other Integer Unit instructions.

The high-performance MDU consists of a 32x16 booth recoded multiplier, Result/Accumulation registers (HI and LO), a divide state machine, and the necessary multiplexers and control logic. The first number shown ('32' of 32x16) represents the rs operand. The second number ('16' of 32x16) represents the rt operand. The microAptiv UC core only checks the value of the rt operand to determine how many times the operation must pass through the multiplier. The 16x16 and 32x16 operations pass through the multiplier once. A 32x32 operation passes through the multiplier twice.

The MDU supports execution of one 16x16 or 32x16 multiply operation every clock cycle; 32x32 multiply operations can be issued every other clock cycle. Appropriate interlocks are implemented to stall the issuance of back-to-back, 32x32 multiply operations. The multiply operand size is automatically determined by logic built into the MDU. Divide operations are implemented with a simple 1-bit-per-clock iterative algorithm. An early-in detection checks the sign extension of the dividend (rs) operand. If rs is 8 bits wide, 23 iterations are skipped. For a 16-bit wide rs, 15 iterations are skipped, and for a 24-bit wide rs, 7 iterations are skipped. Any attempt to issue a subsequent MDU instruction while a divide is still active causes an IU pipeline Stall until the divide operation has completed.

Table 3-1 lists the repeat rate (peak issue rate of cycles until the operation can be re-issued), and latency (number of cycles until a result is available) for the microAptiv UC core multiply and divide instructions. The approximate latency and repeat rates are listed in terms of pipeline clocks.

TABLE 3-1: MULTIPLY/DIVIDE UNIT LATENCIES AND REPEAT RATES

Opcode	Operand Size (mul rt) (div rs)	Latency	Repeat Rate
MULT/MULTU, MADD/MADDU,MSUB/MSUBU	16 bits 1 1
	32 bits 2 2
MUL (GPR destination)	16 bits	2	1
	32 bits 3 2
DIV/DIVU	8 bits	12	11
	16 bits	19	18
	24 bits	26	25
	32 bits	33	32

The MIPS ^® architecture defines that the result of a multiply or divide operation be placed in the HI and LO registers. Using the Move-From-HI (MFHI) and Move-From-LO (MFLO) instructions, these values can be transferred to the General Purpose Register file.

In addition to the HI/LO targeted operations, the MIPS architecture also defines a Multiply instruction, MUL, which places the least significant results in the primary register file instead of the HI/LO register pair. By avoiding the explicit MFLO instruction, required when using the LO register, and by supporting multiple destination registers, the throughput of multiply-intensive operations is increased.

Two other instructions, Multiply-Add (MADD) and Multiply-Subtract (MSUB), are used to perform the multiply-accumulate and multiply-subtract operations. The MADD instruction multiplies two numbers and then adds the product to the current contents of the HI and LO registers. Similarly, the MSUB instruction multiplies two operands and then subtracts the product from the HI and LO registers. The MADD and MSUB operations are commonly used in DSP algorithms.

3.2.3 SYSTEM CONTROL COPROCESSOR (CP0)

In the MIPS architecture, CP0 is responsible for the virtual-to-physical address translation, the exception control system, the processor's diagnostics capability, the operating modes (Kernel, User and Debug) and whether interrupts are enabled or disabled. These configuration options and other system information is available by accessing the CP0 registers listed in Table 3-2.

TABLE 3-2: COPROCESSOR 0 REGISTERS

Register Number	Register Name	Function
0-3	Reserved Reserved in the microAptivTM UC.
4 User	Local User information that can be written by privileged software and read via RDHWR, Register 29.
5-6	Reserved Reserved in the microAptiv UC.
7	HWREna	Enables access via the RDHWR instruction to selected hardware registers in Non-Privileged mode.
8	B a (1) d	Reports the address for the most recent address related exception.
9 Count (1)		Processor cycle count.
10 Reserved Reserved in the microAptiv UC.
11 Compare (1)		Timer interrupt control.
12 Status/IntCtl/SRSCtl/SRSMap1/View_IPL/SRSMAP2		Processor status and control; interrupt control and shadow set control.
13 Cause (1)/View_RIPL		Cause of last exception.
14 EPC (1)		Program Counter at last exception.
15 PR/d/ EBase/CDMMBase		Processor identification and revision; exception base address; Common Device Memory Map Base register.
16 CONFIG/CONFIG1/CONFIG2/CONFIG3/CONFIG7		Configuration registers.
7-22	Reserved Reserved in the microAptiv UC.
23	Debug/Debug2/TraceControl/TraceControl2/UserTraceData1/TraceBPC(2)	EJTAG Debug register.EJTAG Debug Register 2.EJTAG Trace Control register.EJTAG Trace Control Register 2.EJTAG User Trace Data 1 register.EJTAG Trace Breakpoint register.
24 DEPC (2)/UserTraceData2		Program Counter at last debug exception.EJTAG User Trace Data 2 register.
25 PerfCtl0/PerfCnt0/PerfCtl1/PerfCnt1		Performance Counter 0 control.Performance Counter 0.Performance Counter 1 control.Performance Counter 1.
26 ErrCtl Software parity check enable.
27 CacheErr Records information about SRAM parity errors.
28-29	Reserved Reserved in the PIC32 core.
30 ErrorEPC (1)		Program Counter at last error.
31 DeSAVE (2)		Debug Handler Scratchpad register.

Note 1: Registers used in exception processing.
2: Registers used in debug.

3.3 Power Management

The processor core offers a number of power management features, including low-power design, active power management and Power-Down modes of operation. The core is a static design that supports slowing or halting the clocks, which reduces system power consumption during Idle periods.

The mechanism for invoking Power-Down mode is implemented through execution of the WAIT instruction. The majority of the power consumed by the processor core is in the clock tree and clocking registers. The PIC32MM family makes extensive use of local gated clocks to reduce this dynamic power consumption.

3.4 EJTAG Debug Support

The microAptiv UC core has an Enhanced JTAG (EJTAG) interface for use in the software debug. In addition to the standard mode of operation, the microAptiv UC core provides a Debug mode that is entered after a debug exception (derived from a hardware breakpoint, single-step exception, etc.) is taken and continues until a Debug Exception Return (DERET) instruction is executed. During this time, the processor executes the debug exception handler routine.

The EJTAG interface operates through the Test Access Port (TAP), a serial communication port used for transferring test data in and out of the microAptiv UC core. In addition to the standard JTAG instructions, special instructions defined in the EJTAG specification specify which registers are selected and how they are used.

3.5 MIPS32 ^® microAptiv ^TM UC Core Configuration

Register 3-1 through Register 3-4 show the default configuration of the microAptiv UC core, which is included on PIC32MM0064GPL036 family devices.

REGISTER 3-1: CONFIG: CONFIGURATION REGISTER; CP0 REGISTER 16, SELECT 0

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	r-1 R/W-0	R/W-1 R/W-0 R/W-0	R/W-1 R/W-0	r-0
	— K23<2:0> KU<2:0> —
23:16	r-0	R-0	R-1	R-0	r-0	r-0	r-0	R-1
	—	UDI	SB	MDU	—	—	—	DS
15:8	R-0	R-0	R-0	R-0	R-0	R-1	R-0	R-1
	BE	AT<1:0>		AR<2:0>			MT<2:1>
7:0	R-1	r-0	r-0	r-0	r-0	R/W-0	R/W-1	R/W-0
	MT<0>	—	—	—	—	K0<2:0>

Legend:	r = Reserved bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 31 Reserved: This bit is hardwired to '1' to indicate the presence of the CONFIG1 register

bit 30-28 K23<2:0>: Cacheability of the kseg2 and kseg3 Segments bits 010 = Cache is not implemented

bit 27-25 KU<2:0>: Cacheability of the kuseg and useg Segments bits 010 = Cache is not implemented

bit 24-23 Reserved: Must be written as zeros; returns zeros on reads

bit 22 UDI: User-Defined bit 0 = CorExtend user-defined instructions are not implemented

bit 21 SB: SimpleBE bit 1 = Only simple byte enables are allowed on the internal bus interface

bit 20 MDU: Multiply/Divide Unit bit 0 = Fast, high-performance MDU

bit 19-17 Reserved: Must be written as zeros; returns zeros on reads

bit 16 DS: Dual SRAM Interface bit 1 = Dual instruction/data SRAM interface

bit 15 BE: Endian Mode bit 0 = Little-endian

bit 14-13 AT<1:0>: Architecture Type bits 00 = MIPS32®

bit 12-10 AR<2:0>: Architecture Revision Level bits 001 = MIPS32 Release 2

bit 9-7 MT<2:0>: MMU Type bits 011 = Fixed mapping

bit 6-3 Reserved: Must be written as zeros; returns zeros on reads

bit 2-0 K0<2:0>: kseg0 Coherency Algorithm bits 010 = Cache is not implemented

REGISTER 3-2: CONFIG1: CONFIGURATION REGISTER 1; CP0 REGISTER 16, SELECT 1

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	r-1 U-0 U-0	U-0 U-0 U-0 U-0	U-0
	— — —	— — — — —
23:16	U-0 U-0 U-0	U-0 U-0 U-0 U-0	U-0
	— — —	— — — — —
15:8	U-0 U-0 U-0	U-0 U-0 U-0 U-0	U-0
	— — —	— — — — —
7:0	U-0 U-0 U-0	R-1 R-0 R-0 R-1	R-0
	—	—	—	PC	WR	CA	EP	FP

Legend:	r = Reserved bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 31 Reserved: This bit is hardwired to a '1' to indicate the presence of the CONFIG2 register

bit 30-5 Unimplemented: Read as '0'

bit 4 PC: Performance Counter bit

1 = The processor core contains performance counters

bit 3 WR: Watch Register Presence bit

0 = No Watch registers are present

bit 2 CA: Code Compression Implemented bit

0 = No MIPS16e® are present

bit 1 EP: EJTAG Present bit

1 = Core implements EJTAG

bit 0 FP: Floating-Point Unit bit

0 = Floating-Point Unit is not implemented

REGISTER 3-3: CONFIG3: CONFIGURATION REGISTER 3; CP0 REGISTER 16, SELECT 3

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	r-0 U-0 U-0	U-0 U-0 U-0	U-0
	— — —	— — — —	—
23:16	U-0 R-0 R-1	R-0 R-0 R-0	R-1 R-1
	—	IPLW<1:0>		MMAR<2:0>			MCU	ISAONEXC
15:8	R-0 R-1 R-1	R-1 U-0 U-0	R-0
	ISA<1:0>		ULRI	RXI	—	—	—	ITL
7:0	U-0 R-1 R-1	R-0 R-1	U-0 R-0
	—	VEIC	VINT	SP	CDMM	—	—	TL

Legend:	r = Reserved bit
R = Readable bit	W = Writable bit U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 31 Reserved: This bit is hardwired as '0'

bit 30-23 Unimplemented: Read as '0'

bit 22-21 IPLW<1:0>: Width of the Status IPL and Cause RIPL bits 01 = IPL and RIPL bits are 8 bits in width

bit 20-18 MMAR<2:0>: microMIPS™ Architecture Revision Level bits 000 = Release 1

bit 17 MCU: MIPS ^® MCU ASE Implemented bit 1 = MCU ASE is implemented

bit 16 ISAONEXC: ISA on Exception bit 1 = microMIPS is used on entrance to an exception vector

bit 15-14 ISA<1:0>: Instruction Set Availability bits 01 = Only microMIPS is implemented

bit 13 ULRI: UserLocal Register Implemented bit 1 = UserLocal Coprocessor 0 register is implemented

bit 12 RXI: RIE and XIE Implemented in PageGrain bit 1 = RIE and XIE bits are implemented

bit 11-9 Unimplemented: Read as '0'

bit 8 ITL: Indicates that iFlowtrace™ Hardware is Present bit 0 = The iFlowtrace hardware is not implemented in the core

bit 7 Unimplemented: Read as '0'

bit 6 VEIC: External Vector Interrupt Controller bit 1 = Support for an external interrupt controller is implemented.

bit 5 VINT: Vector Interrupt bit 1 = Vector interrupts are implemented

bit 4 SP: Small Page bit 0 = 4-Kbyte page size

bit 3 CDMM: Common Device Memory Map bit 1 = CDMM is implemented

bit 2-1 Unimplemented: Read as '0'

bit 0 TL: Trace Logic bit 0 = Trace logic is not implemented

REGISTER 3-4: CONFIG5: CONFIGURATION REGISTER 5; CP0 REGISTER 16, SELECT 5

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	U-0 U-0 U-0	U-0 U-0 U-0 U-0	U-0
	— — —	— — — — —
23:16	U-0 U-0 U-0	U-0 U-0 U-0 U-0	U-0
	— — —	— — — — —
15:8	U-0 U-0 U-0	U-0 U-0 U-0 U-0	U-0
	— — —	— — — — —
7:0	U-0 U-0 U-0	U-0 U-0 U-0 U-0	R-1
	— — —	— — — — —	N	F

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 31-1 Unimplemented: Read as '0'

bit 0 NF: Nested Fault bit

1 = Nested Fault feature is implemented

4.0 MEMORY ORGANIZATION

PIC32MM microcontrollers provide 4 Gbytes of unified virtual memory address space. All memory regions, including program, data memory, SFRs and Configuration registers, reside in this address space at their respective unique addresses. The data memory can be made executable, allowing the CPU to execute code from data memory.

Key features include:

• 32-Bit Native Data Width
- Separate Boot Flash Memory (BFM) for Protected Code
- Robust Bus Exception Handling to Intercept Runaway Code
- Simple Memory Mapping with Fixed Mapping Translation (FMT) Unit

The PIC32MM0064GPL036 family devices implement two address spaces: virtual and physical. All hardware resources, such as program memory, data memory and peripherals, are located at their respective physical addresses. Virtual addresses are exclusively used by the CPU to fetch and execute instructions. Physical addresses are used by peripherals, such as Flash controllers, that access memory independently of the CPU.

The virtual address space is divided into two segments of 512 Mbytes each, labeled kseg0 and kseg1. The Program Flash Memory (PFM) and Data RAM Memory (DRM) are accessible from either kseg0 or kseg1, while the Boot Flash Memory (BFM) and peripheral SFRs are accessible only from kseg1.

The Fixed Mapping Translation (FMT) unit translates the memory segments into corresponding physical address regions. Figure 4-1 through Figure 4-3 illustrate the fixed mapping scheme, implemented by the PIC32MM0064GPL036 family core, between the virtual and physical address space.

The mapping of the memory segments depends on the CPU error level, set by the ERL bit in the CPU STATUS Register (SR). Error level is set (ERL = 1) by the CPU on a Reset, Soft Reset or NMI. In this mode, the CPU can access memory by the physical address. This mode is provided for compatibility with other MIPS® processor cores that use a TLB-based MMU. The C start-up code clears the ERL bit to zero, so that when application software starts up, it sees the proper virtual to physical memory mapping.

4.1 Alternate Configuration Bits Space

Every Configuration Word has an associated Alternate Word (designated by the letter A as the first letter in the name of the word). During device start-up, Primary Words are read, and if uncorrectable ECC errors are found, the BCFGERR (RCON<27>) flag is set and Alternate Words are used. If uncorrectable ECC errors are found in Primary and Alternate Words, the BCFGFAIL (RCON<26>) flag is set, and the default configuration is used. The Primary Configuration bits area is located at the address range, from 0x1FC01780 to 0x1FC017E8. The Alternate Configuration bits area is located at the address range, from 0x1FC01700 to 0x1FC01768.

FIGURE 4-1: MEMORY MAP FOR DEVICES WITH 16 Kbytes OF PROGRAM MEMORY
(1)
Note 1: Memory areas are not shown to scale.
2: This region should be accessed from kseg1 space only.
3: Primary Configuration bits area is located at the address range, from 0x1FC01780 to 0x1FC017E8. Alternate Configuration bits area is located at the address range, from 0x1FC01700 to 0x1FC01768. Refer to Section 4.1 "Alternate Configuration Bits Space" for more information.

FIGURE 4-2: MEMORY MAP FOR DEVICES WITH 32 Kbytes OF PROGRAM MEMORY (1)

Note 1: Memory areas are not shown to scale.
2: This region should be accessed from kseg1 space only.
3: Primary Configuration bits area is located at the address range, from 0x1FC01780 to 0x1FC017E8. Alternate Configuration bits area is located at the address range, from 0x1FC01700 to 0x1FC01768. Refer to Section 4.1 "Alternate Configuration Bits Space" for more information.

FIGURE 4-3: MEMORY MAP FOR DEVICES WITH 64 Kbytes OF PROGRAM MEMORY

(1)
Note 1: Memory areas are not shown to scale.
2: This region should be accessed from kseg1 space only.
3: Primary Configuration bits area is located at the address range, from 0x1FC01780 to 0x1FC017E8. Alternate Configuration bits area is located at the address range, from 0x1FC01700 to 0x1FC01768. Refer to Section 4.1 "Alternate Configuration Bits Space" for more information.

5.0 FLASH PROGRAM MEMORY

Note: This data sheet summarizes the features of the PIC32MM0064GPL036 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 5. "Flash Programming" (DS60001121) in the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32). The information in this data sheet supersedes the information in the FRM.

PIC32MM0064GPL036 family devices contain an internal Flash program memory for executing user code. The Program and Boot Flash Memory can be write-protected. The erase page size is 512 32-bit words. The program row size is 64 32-bit words. The memory can be programmed by rows or by two 32-bit words.

The devices implement an Error Correcting Code (ECC). The memory control block contains a logic to write and read ECC bits to and from the Flash memory. The Flash is programmed at the same time as the corresponding ECC bits. The ECC provides improved resistance to Flash errors. The ECC single-bit error will be transparently corrected. The ECC double-bit error results in a bus error exception.

There are three methods by which the user can program this memory:

• Run-Time Self-Programming (RTSP)
- EJTAG Programming
• In-Circuit Serial Programming™ (ICSP™)

RTSP is performed by software executing from either Flash or RAM memory. Information about RTSP techniques is described in Section 5. "Flash Programming" in the "PIC32 Family Reference Manual". EJTAG programming is performed using the JTAG port of the device. ICSP programming requires fewer connections than for EJTAG programming. The EJTAG and ICSP methods are described in the "PIC32 Flash Programming Specification" (DS60001145), which is available for download from the Microchip web site.

5.1 Flash Controller Registers Write Protection

The NVMPWP and NVMBWP registers, and the WR bit in the NVMCON register are protected (locked) from an accidental write. A special unlock sequence is required to modify the content of these registers or bits.

To unlock, the following steps should be done:

1. Disable interrupts prior to the unlock sequence.

2. Execute the system unlock sequence by writing the key values of 0xAA996655 and 0x556699AA to the NVMKEY register in two back-to-back Assembly or 'C' instructions.

3. Write the new value to the required bits.

4. Re-enable interrupts.

5.2 Flash Control Registers

TABLE 5-1: FLASH CONTROLLER REGISTER MAP

Virtual Address (BF90 #)	Register Name	Bit Range	Bits																All Resets
			31/15	30/14	29/13	28/12	27/11	26/10	25/9	24/8	23/7	22/6	21/5	20/4	19/3	18/2	17/1	16/0
2380	NVMCON (1)	31:16	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	0000
		15:0	WR	WREN	WRERR	LVDERR	—	—	—	—	—	—	—	—	NVMOP<3:0>				0000
2390	NVMKEY	31:16	NVMKEY<31:0>																0000
		15:0																	0000
23A0	NVMADDR(1)	31:16	NVMADDR<31:0>																0000
		15:0																	0000
23B0	NVMDATA0	31:16	NVMDATA0<31:0>																0000
		15:0																	0000
23C0	NVMDATA1	31:16	NVMDATA1<31:0>																0000
		15:0																	0000
23D0	NVMSRCADDR	31:16	NVMSRCADDR<31:0>																0000
		15:0																	0000
23E0	NVMPWF(1)	31:16	PWPULOCK	—	—	—	—	—	—	—	—	PWP<23:16>							8000
		15:0	PWP<15:0>																0000
23F0	NVMBWF(1)	31:16	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	0000
		15:0	BWPULOCK	—	—	—	—	—	BWP<2:0>		—	—	—	—	—	—	—	—	8700

Legend: — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: These registers have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively.

REGISTER 5-1: NVMCON: NVM PROGRAMMING CONTROL REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	U-0 U-0 U-0 U-0 U-0 U-0		U-0 U-0
	— — — —		—	— — —
23:16	U-0 U-0 U-0 U-0 U-0 U-0		U-0 U-0
	— — — —		—	— — —
15:8	R/W-0, HC	R/W-0	R-0, HS, HC	R-0, HS, HC	r-0	U-0	U-0	U-0
	WR(1,4)	WREN(1)	WRERR(1,2)	LVDERR(1,2)	—	— — —
7:0	U-0	U-0	U-0	U-0	R/W-0	R/W-0	R/W-0	R/W-0
	—	—	—	—	NVMOP<3:0>(3)

Legend:	HS = Hardware Settable bit	HC = Hardware Clearable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared r = Reserved bit

bit 31-16 Unimplemented: Read as '0'

bit 15 WR: Write Control bit ^(1,4)

This bit cannot be cleared and can be set only when WREN = 1, and the unlock sequence has been performed.

1 = Initiates a Flash operation

0 = Flash operation is complete or inactive

bit 14 WREN: Write Enable bit ^(1)

1 = Enables writes to the WR bit and disables writes to the NVMOP<3:0> bits

0 = Disables writes to the WR bit and enables writes to the NVMOP<3:0> bits

bit 13 WRERR: Write Error bit ^(1,2)

This bit can be cleared only by setting the NVMOP<3:0> bits = 0000 and initiating a Flash operation.

1 = Program or erase sequence did not complete successfully

0 = Program or erase sequence completed normally

bit 12 LVDERR: Low-Voltage Detect Error bit ^(1,2)

This bit can be cleared only by setting the NVMOP<3:0> bits = 0000 and initiating a Flash operation.

1 = Low voltage is detected (possible data corruption if WRERR is set)

0 = Voltage level is acceptable for programming

bit 11 Reserved: Maintain as '0'

bit 10-4 Unimplemented: Read as '0'

Note 1: These bits are only reset by a Power-on Reset (POR) and are not affected by other Reset sources.

2: These bits are cleared by setting NVMOP<3:0> = 0000 and initiating a Flash operation (i.e., WR).

3: NVMOP<3:0> bits are write-protected if the WREN bit is set.

4: Writes to the WR bit require an unlock sequence. Refer to Section 5.1 "Flash Controller Registers Write Protection" for details.

REGISTER 5-1: NVMCON: NVM PROGRAMMING CONTROL REGISTER (CONTINUED)
bit 3-0 NVMOP<3:0>: NVM Operation bits (3) These bits are only writable when WREN = 0. 1111 = Reserved . . . 1000 = Reserved 0111 = Program Erase Operation: Erases all of Program Flash Memory (all pages must be unprotected in the NVMPWP register, Boot Flash Memory is not erased) 0110 = Reserved 0101 = Reserved 0100 = Page Erase Operation: Erases page selected by NVMADDR (erases Boot or Program Flash Memory, page must be unprotected in the NVMBWP or NVMPWP register) 0011 = Row Program Operation: Programs row selected by NVMADDR (programs Boot or Program Flash Memory, page must be unprotected in the NVMBWP or NVMPWP register) 0010 = Double-Word Program Operation: Programs two words to the address selected by NVMADDR (programs Boot or Program Flash Memory, page must be unprotected in the NVMBWP or NVMPWP register) 0001 = Reserved 0000 = No operation, clears WRERR and LVDERR bits

Note 1: These bits are only reset by a Power-on Reset (POR) and are not affected by other Reset sources.

2: These bits are cleared by setting NVMOP<3:0> = 0000 and initiating a Flash operation (i.e., WR).

3: NVMOP<3:0> bits are write-protected if the WREN bit is set.

4: Writes to the WR bit require an unlock sequence. Refer to Section 5.1 "Flash Controller Registers Write Protection" for details.

REGISTER 5-2: NVMKEY: NVM PROGRAMMING UNLOCK REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	W-0 W-0	W-0 W-0 W-0 W-0	W-0 W-0
	NVMKEY<31:24>
23:16	W-0 W-0	W-0 W-0 W-0 W-0	W-0 W-0
	NVMKEY<23:16>
15:8	W-0 W-0	W-0 W-0 W-0 W-0	W-0 W-0
	NVMKEY<15:8>
7:0	W-0 W-0	W-0 W-0 W-0 W-0	W-0 W-0
	NVMKEY<7:0>

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 31-0 NVMKEY<31:0>: NVM Unlock Register bits

These bits are write-only and read as '0' on any read.

REGISTER 5-3: NVMADDR: NVM FLASH ADDRESS REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
	NVMADDR<31:24>
23:16	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
	NVMADDR<23:16>
15:8	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
	NVMADDR<15:8>
7:0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
	NVMADDR<7:0>

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 31-0 NVMADDR<31:0>: NVM Flash Address bits

NVMOP<3:0>Selection	Flash Address Bits (NVMADDR<31:0>)
Page Erase Address identifies the page to erase (NVMADDR<10:0> are ignored).
Row Program	Address identifies the row to program (NVMADDR<7:0> are ignored).
Double-Word Program	Address identifies the double-word (64-bit) to program (NVMADDR<1:0> bits are ignored).

REGISTER 5-4: NVMDATAx: NVM FLASH DATA x REGISTER (x = 0-1)

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	R/W-0 R/W	0 R/W-0 R/W-0	R/W-0 R/W-0 R/W	-0 R/W-0
	NVMDATAx<31:24>
23:16	R/W-0 R/W	0 R/W-0 R/W-0	R/W-0 R/W-0 R/W	-0 R/W-0
	NVMDATAx<23:16>
15:8	R/W-0 R/W	0 R/W-0 R/W-0	R/W-0 R/W-0 R/W	-0 R/W-0
	NVMDATAx<15:8>
7:0	R/W-0 R/W	0 R/W-0 R/W-0	R/W-0 R/W-0 R/W	-0 R/W-0
	NVMDATAx<7:0>

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 31-0 NVMDATAx<31:0>: NVM Flash Data x bits

Double-Word Program: Writes NVMDATA1:NVMDATA0 to the target Flash address defined in NVMADDR.

NVMDATA0 contains the least significant instruction word.

REGISTER 5-5: NVMSRCADDR: NVM SOURCE DATA ADDRESS REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	R/W-0 R/W-0	R/W-0 R/W-0	R/W-0 R/W-0	R/W-0 R/W-0
	NVMSRCADDR<31:24>
23:16	R/W-0 R/W-0	R/W-0 R/W-0	R/W-0 R/W-0	R/W-0 R/W-0
	NVMSRCADDR<23:16>
15:8	R/W-0 R/W-0	R/W-0 R/W-0	R/W-0 R/W-0	R/W-0 R/W-0
	NVMSRCADDR<15:8>
7:0	R/W-0 R/W-0	R/W-0 R/W-0	R/W-0 R/W-0	R/W-0 R/W-0
	NVMSRCADDR<7:0>

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 31-0 NVMSRCADDR<31:0>: NVM Source Data Address bits

The system physical address of the data to be programmed into the Flash when the NVMOP<3:0> bits (NVMCON<3:0>) are set to perform row programming.

REGISTER 5-6: NVMPWP: NVM PROGRAM FLASH WRITE-PROTECT REGISTER (1)

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	R/W-1 U-0 U-0	U-0 U-0 U-0	U-0 U-0
	PWPULOCK — — — — — —
23:16	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
	PWP<23:16>(^2)
15:8	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
	PWP<15:8>(^2)
7:0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
	PWP<7:0>(^2)

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 31 PWPULOCK: Program Flash Memory Page Write-Protect Unlock bit

1 = Register is not locked and can be modified

0 = Register is locked and cannot be modified

This bit is only clearable and cannot be set except by any Reset.

bit 30-24 Unimplemented: Read as '0'

bit 23-0 PWP<23:0>: Flash Program Write-Protect (Page) Address bits ^(2)

Physical memory below address, 0x1DXXXXXX, is write-protected, where 'XXXXXX' is specified by PWP<23:0>. When the PWP<23:0> bits have a value of '0', write protection is disabled for the entire Program Flash Memory. If the specified address falls within the page, the entire page and all pages below the current page will be protected.

Note 1: Writes to this register require an NVMKEY unlock sequence. Refer to Section 5.1 "Flash Controller Registers Write Protection" for details.

2: These bits can be modified only when the unlock bit (PWPULOCK) is set.

REGISTER 5-7: NVMBWP: NVM BOOT FLASH (PAGE) WRITE-PROTECT REGISTER (1)

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	U-0 U-0 U-0	U-0 U-0 U-0	U-0 U-0
	— — —	— — — —	—
23:16	U-0 U-0 U-0	U-0 U-0 U-0	U-0 U-0
	— — —	— — — —	—
15:8	R/W-1	U-0	U-0	U-0	U-0	R/W-1	R/W-1	R/W-1
	BWPULOCK	—	—	—	—	BWP2^(2)	BWP1^(2)	BWP0^(2)
7:0	U-0 U-0 U-0	U-0 U-0 U-0	U-0 U-0
	— — —	— — — —	—

Legend:

R = Readable bit	W = Writable bit U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 31-16 Unimplemented: Read as '0'

bit 15 BWPULOCK: Boot Alias Write-Protect Unlock bit

1 = BWPx bits are not locked and can be modified

0 = BWPx bits are locked and cannot be modified

This bit is only clearable and cannot be set except by any Reset.

bit 14-11 Unimplemented: Read as '0'

bit 10 BWP2: Boot Alias Page 2 Write-Protect bit ^(2)

1 = Write protection for physical address, 0x1FC01000 through 0x1FC017FF, is enabled

0 = Write protection for physical address, 0x1FC01000 through 0x1FC017FF, is disabled

bit 9 BWP1: Boot Alias Page 1 Write-Protect bit ^(2)

1 = Write protection for physical address, 0x1FC00800 through 0x1FC00FFF, is enabled

0 = Write protection for physical address, 0x1FC00800 through 0x1FC00FFF, is disabled

bit 8 BWP0: Boot Alias Page 0 Write-Protect bit ^(2)

1 = Write protection for physical address, 0x1FC00000 through 0x1FC007FF, is enabled

0 = Write protection for physical address, 0x1FC00000 through 0x1FC007FF, is disabled

bit 7-0 Unimplemented: Read as '0'

Note 1: Writes to this register require an NVMKEY unlock sequence. Refer to Section 5.1 "Flash Controller Registers Write Protection" for details.

2: These bits can be modified only when the associated unlock bit (BWPULOCK) is set.

6.0 RESETS

Note: This data sheet summarizes the features of the PIC32MM0064GPL036 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 7. "Resets" (DS60001118) in the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32). The information in this data sheet supersedes the information in the FRM.

The Reset module combines all Reset sources and controls the device Master Reset Signal, SYSRST. The device Reset sources are as follows:

• Power-on Reset (POR)
• Master Clear Reset Pin (MCLR)
- Software Reset (SWR)
- Watchdog Timer Reset (WDTR)
• Brown-out Reset (BOR)
- Configuration Mismatch Reset (CMR)

A simplified block diagram of the Reset module is illustrated in Figure 6-1.

FIGURE 6-1: SYSTEM RESET BLOCK DIAGRAM

6.1 Reset Control Registers

TABLE 6-1: RESETS REGISTER MAP

Legend: — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: All registers in this table have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively.

REGISTER 6-1: RCON: RESET CONTROL REGISTER (1)

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	R/W-1, HS R	W-1, HS U-0 U-0	R/W-0, HS R/W-0, HS U-0 U-0
	PORIO	PORCORE	—	—	BCFGERR	BCFGFAIL	—	—
23:16	U-0	U-0	U-0	U-0	U-0	U-0	U-0	U-0
	—	—	—	—	—	—	—	—
15:8	U-0	U-0	U-0	U-0	U-0	U-0	R/W-0, HS	U-0
	—	—	—	—	—	—	CMR	—
7:0	R/W-0, HS	R/W-0, HS	U-0	R/W-0, HS	R/W-0, HS	R/W-0, HS	R/W-1, HS	R/W-1, HS
	EXTR	SWR	—	WDTO	SLEEP	IDLE^(2)	BOR	POR

Legend:	HS = Hardware Settable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 31 PORIO: VDD POR Flag bit

Set by hardware at detection of a VDD POR event.

1 = A Power-on Reset has occurred due to VDD voltage

0 = A Power-on Reset has not occurred due to VDD voltage

bit 30 PORCORE: Core Voltage POR Flag bit

Set by hardware at detection of a core POR event.

1 = A Power-on Reset has occurred due to core voltage

0 = A Power-on Reset has not occurred due to core voltage

bit 29-28 Unimplemented: Read as '0'

bit 27 BCFGERR: Primary Configuration Registers Error Flag bit

1 = An error occurred during a read of the Primary Configuration registers

0 = No error occurred during a read of the Primary Configuration registers

bit 26 BCFGFAIL: Primary/Secondary Configuration Registers Error Flag bit

1 = An error occurred during a read of the Primary and Alternate Configuration registers

0 = No error occurred during a read of the Primary and Alternate Configuration registers

bit 25-10 Unimplemented: Read as '0'

bit 9 CMR: Configuration Mismatch Reset Flag bit

1 = A Configuration Mismatch Reset has occurred

0 = A Configuration Mismatch Reset has not occurred

bit 8 Unimplemented: Read as '0'

bit 7 EXTR: External Reset (MCLR) Pin Flag bit

1 = Master Clear (pin) Reset has occurred

0 = Master Clear (pin) Reset has not occurred

bit 6 SWR: Software Reset Flag bit

1 = Software Reset was executed

0 = Software Reset was not executed

bit 5 Unimplemented: Read as '0'

bit 4 WDTO: Watchdog Timer Time-out Flag bit

1 = WDT time-out has occurred

0 = WDT time-out has not occurred

Note 1: User software must clear bits in this register to view the next detection.

2: The IDLE bit will also be set when the device wakes from Sleep mode.

REGISTER 6-1: RCON: RESET CONTROL REGISTER (1) (CONTINUED)

bit 3 SLEEP: Wake from Sleep Flag bit

1 = Device was in Sleep mode
0 = Device was not in Sleep mode

bit 2 IDLE: Wake from Idle Flag bit (2)

1 = Device was in Idle mode
0 = Device was not in Idle mode

bit 1 BOR: Brown-out Reset Flag bit

1 = Brown-out Reset has occurred
0 = Brown-out Reset has not occurred

bit 0 POR: Power-on Reset Flag bit

1 = Power-on Reset has occurred
0 = Power-on Reset has not occurred

Note 1: User software must clear bits in this register to view the next detection.

2: The IDLE bit will also be set when the device wakes from Sleep mode.

REGISTER 6-2: RSWRST: SOFTWARE RESET REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	U-0 U-0 U-0 U-0 U-0 U-0 U-0
	—	—	—	—	—	—	—	—
23:16	U-0 U-0 U-0 U-0 U-0 U-0 U-0
	—	—	—	—	—	—	—	—
15:8	U-0 U-0 U-0 U-0 U-0 U-0 U-0
	—	—	—	—	—	—	—	—
7:0	U-0 U-0 U-0 U-0 U-0 U-0 W-0, HC
	—	—	—	—	—	—	—	SWRST ^(1,2)

Legend:	HC = Hardware Clearable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 31-1 Unimplemented: Read as '0'

bit 0 SWRST: Software Reset Trigger bit ^(1,2)

1 = Enables Software Reset event
0 = No effect

Note 1: The system unlock sequence must be performed before the SWRST bit can be written. Refer to Section 23.4 "System Registers Write Protection" for details.

2: Once this bit is set, any read of the RSWRST register will cause a Reset to occur.

REGISTER 6-3: RNMICON: NON-MASKABLE INTERRUPT (NMI) CONTROL REGISTER (1)

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	U-0 U-0 U-0 U-0 U-0 U-0 R/W-0/HS
	—— —	—— — —	W	D	T	R
23:16	R/W-0/HS	U-0	U-0	U-0	R/W-0/HS	U-0	R/W-0/HS	R/W-0/HS
	SWNMI	—	—	—	GNMI	—	CF	WDTS
15:8	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
	NMICNT<15:8>
7:0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
	NMICNT<7:0>

Legend:	HS = Hardware Settable bits
R = Readable bit	W = Writable bit U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 31-25 Unimplemented: Read as '0'

bit 24 WDTR: Watchdog Timer Time-out in Run Mode Flag bit

1 = A Run mode WDT time-out has occurred and caused an NMI

0 = WDT time-out has not occurred

Setting this bit will cause a WDT NMI event and NMICNT<15:0> will begin counting.

bit 23 SWNMI: Software NMI Trigger bit

1 = An NMI has been generated

0 = An NMI was not generated

bit 22-20 Unimplemented: Read as '0'

bit 19 GNMI: Software General NMI Trigger bit

1 = A general NMI has been generated

0 = A general NMI was not generated

bit 18 Unimplemented: Read as '0'

bit 17 CF: Clock Fail Detect bit

1 = FSCM has detected clock failure and caused an NMI

0 = FSCM has not detected clock failure

Setting this bit will cause a CF NMI event, but will not cause a clock switch to the FRC.

bit 16 WDTS: Watchdog Timer Time-out in Sleep Mode Flag bit

1 = WDT time-out has occurred during Sleep mode and caused a wake-up from Sleep

0 = WDT time-out has not occurred during Sleep mode

Setting this bit will cause a WDT NMI.

bit 15-0 NMICNT<15:0>: NMI Reset Counter Value bits

These bits specify the reload value used by the NMI Reset counter.

FFFFh-0001h = Number of SYSCLK cycles before a device Reset occurs ^(2)

0000h = No delay between NMI assertion and device Reset event

Note 1: Writes to this register require an unlock sequence. Refer to Section 23.4 “System Registers Write Protection” for details.

2: If a Watchdog Timer NMI event (when not in Sleep mode) is cleared before this counter reaches '0', no device Reset is asserted. This NMI Reset counter is only applicable to the Watchdog Timer NMI event.

REGISTER 6-4: PWRCON: POWER CONTROL REGISTER (1)

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	U-0 U-0 U-0	U-0 U-0 U-0	U-0 U-0
	— — —	— — — —	—
23:16	U-0 U-0 U-0	U-0 U-0 U-0	U-0 U-0
	— — —	— — — —	—
15:8	U-0 U-0 U-0	U-0 U-0 U-0	U-0 U-0
	— — —	— — — —	—
7:0	U-0 U-0 U-0	U-0 U-0 R/W-0	R/W-0	R/W-0
	— — —	— —	SBOREN			(3)	RETEN(2)	VREGS(2)

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 31-3 Unimplemented: Read as '0'

bit 2 SBOREN: BOR During Sleep Control bit ^(3)

1 = BOR is turned on

0 = BOR is turned off

bit 1 RETEN: Output Level of the Regulator During Sleep Selection bit ^(2)

1 = Writing a '1' to this bit will cause the main regulator to be put in a low-power state during Sleep mode

0 = Writing a '0' to this bit will have no effect

bit 0 VREGS: Voltage Regulator Standby Enable bit ^(2)

1 = Voltage regulator will remain active during Sleep mode

0 = Voltage regulator will go to Standby mode during Sleep mode

Note 1: Writes to this register require an unlock sequence. Refer to Section 23.4 “System Registers Write Protection” for details.

2: Refer to Section 22.4 "On-Chip Voltage Regulator Low-Power Modes" for details.

3: This bit is enabled only when the BOREN<1:0> Configuration bits (FPOR<1:0>) are set to '01'.

7.0 CPU EXCEPTIONS AND INTERRUPT CONTROLLER

Note: This data sheet summarizes the features of the PIC32MM0064GPL036 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 8. “Interrupts” (DS60001108) and Section 50. “CPU for Devices with MIPS32® microAptiv™ and M-Class Cores” (DS60001192) in the “PIC32 Family Reference Manual”, which is available from the Microchip web site (www.microchip.com/PIC32). The information in this data sheet supersedes the information in the FRM

PIC32MM0064GPL036 family devices generate interrupt requests in response to interrupt events from peripheral modules. The interrupt control module exists externally to the CPU logic and prioritizes the interrupt events before presenting them to the CPU.

The CPU handles interrupt events as part of the exception handling mechanism, which is described in Section 7.1 "CPU Exceptions".

The PIC32MM0064GPL036 family device interrupt module includes the following features:

• Single Vector or Multivector mode Operation
• Five External Interrupts with Edge Polarity Control
• Interrupt Proximity Timer
• Module Freeze in Debug mode

- Seven User-Selectable Priority Levels for each Vector

- Four User-Selectable Subpriority Levels within each Priority

- One Shadow Register Set that can be used for any Priority Level, Eliminating Software Context Switching and Reducing Interrupt Latency

- Software can Generate any Interrupt

- User-Configurable Interrupt Vectors' Offset and Vector Table Location

Figure 7-1 shows the block diagram for the interrupt controller and CPU exceptions.
FIGURE 7-1: CPU EXCEPTIONS AND INTERRUPT CONTROLLER MODULE BLOCK DIAGRAM

7.1 CPU Exceptions

CPU Coprocessor 0 contains the logic for identifying and managing exceptions. Exceptions can be caused by a variety of sources, including boundary cases in data, external events or program errors. Table 7-1 lists the exception types in order of priority.

TABLE 7-1: MIPS32 ^ microAptiv™ UC MICROPROCESSOR CORE EXCEPTION TYPES

Exception Type(In Order of Priority)	Description Branches to		StatusBits Set	Debug BitsSet	EXCCODE	XC32 Function Name
Highest Priority
Reset	Assertion of MCLR.	0xBFC0_0000	BEV, ERL	—	—	_on_reset
Soft Reset	Execution of a RESET instruction.	0xBFC0_0000	BEV, SR, ERL	— — _on_reset
DSS	EJTAG debug single step.	0xBFC0_0480(ProbEn = 0 in ECR)0xBFC0_0200(ProbEn = 1 in ECR)	—	DSS	—	—
DINT	EJTAG debug interrupt. Caused by setting the EjtagBrk bit in the ECR register.	0xBFC0_0480(ProbEn = 0 in ECR)0xBFC0_0200(ProbEn = 1 in ECR)	—	DINT	—	—
NMI	Non-maskable interrupt.	0xBFC0_0000	BEV, NMI, ERL	— —	_nmi_handler
Interrupt	Assertion of unmasked hardware or software interrupt signal.	See Table 7-2	IPL<2:0>	—	Int (0x00)	See Table 7-2
DIB	EJTAG debug hardware instruction break matched.	0xBFC0_0480(ProbEn = 0 in ECR)0xBFC0_0200(ProbEn = 1 in ECR)	—	DIB	—	—
AdEL	Load address alignment error.	EBASE + 0x180	EXL	—	ADEL (0x04)	_general_exception_handler
IBE	Instruction fetch bus error.	EBASE + 0x180	EXL	—	IBE (0x06)	_general_exception_handler
DBp	EJTAG breakpoint (execution of SDBBP instruction).	0xBFC0_0480(ProbEn = 0 in ECR)0xBFC0_0200(ProbEn = 1 in ECR)	DBp	— —		—
Sys	Execution of SYSCALL instruction.	EBASE + 0x180	EXL	—	Sys (0x08)	_general_exception_handler
Bp	Execution of BREAK instruction.	EBASE + 0x180	EXL	—	Bp (0x09)	_general_exception_handler
Exception Type(In Order of Priority)	Description	Branches to	Status Bits Set	Debug Bits Set	EXCCODE	XC32 Function Name
CpU Execution of	a coprocessor instruction for a coprocessor that is not enabled.	EBASE + 0x180	CU, EXL	—	CpU (0x0B)	_general_exception_handler
RI	Execution of a reserved instruction.	EBASE + 0x180	EXL	—	RI (0x0A)	_general_exception_handler
Ov Execution of an arithmetic instruction that overflowed.		EBASE + 0x180	EXL	—	Ov (0x0C)	_general_exception_handler
Tr	Execution of a trap (when trap condition is true).	EBASE + 0x180	EXL	—	Tr (0x0D)	_general_exception_handler
DDBL	EJTAG data address break (address only) or EJTAG data value break on load (address and value).	0xBFC0_0480(ProbEn = 0 in ECR)0xBFC0_0200(ProbEn = 1 in ECR)	—	DDBL for a load instruction or DDBS for a store instruction	—	—
DDBS	EJTAG data address break (address only) or EJTAG data value break on store (address and value).	0xBFC0_0480(ProbEn = 0 in ECR)0xBFC0_0200(ProbEn = 1 in ECR)	—	DDBL for a load instruction or DDBS for a store instruction	—	—
AdES	Store address alignment error.	EBASE + 0x180	EXL	—	ADES (0x05)	_general_exception_handler
DBE	Load or store bus error.	EBASE + 0x180	EXL	—	DBE (0x07)	_general_exception_handler
CBrk	EJTAG complex breakpoint.	0xBFC0_0480(ProbEn = 0 in ECR)0xBFC0_0200(ProbEn = 1 in ECR)	— DIBImpr, DDBLImpr and/or DDBSImpr		—	—
Lowest Priority

7.2 Interrupts

The PIC32MM0064GPL036 family uses fixed offset for vector spacing. For details, refer to Section 8. "Interrupts" (DS60001108) in the "PIC32 Family Reference Manual". Table 7-2 provides the interrupt related vectors and bits information.

TABLE 7-2: INTERRUPTS

Interrupt Source MPLAB	^ XC32 Vector Name	Vector Number	Interrupt Related Bits Location				Persistent Interrupt
			Flag Enable	Priority Subpriority
Core Timer	_CORE_TIMER_VECTOR	0	IFS0<0>	IEC0<0>	IPC0<4:2>	IPC0<1:0>	No
Core Software 0	_CORE_SOFTWARE_0_VECTOR	1	IFS0<1>	IEC0<1>	IPC0<12:10>	IPC0<9:8>	No
Core Software 1	_CORE_SOFTWARE_1_VECTOR	2	IFS0<2>	IEC0<2>	IPC0<20:18>	IPC0<17:16>	No
External 0	_EXTERNAL_0_VECTOR	3	IFS0<3>	IEC0<3>	IPC0<28:26>	IPC0<25:24>	No
External 1	_EXTERNAL_1_VECTOR	4	IFS0<4>	IEC0<4>	IPC1<4:2>	IPC1<1:0>	No
External 2	_EXTERNAL_2_VECTOR	5	IFS0<5>	IEC0<5>	IPC1<12:10>	IPC1<9:8>	No
External 3	_EXTERNAL_3_VECTOR	6	IFS0<6>	IEC0<6>	IPC1<20:18>	IPC1<17:16>	No
External 4	_EXTERNAL_4_VECTOR	7	IFS0<7>	IEC0<7>	IPC1<28:26>	IPC1<25:24>	No
PORTA Change Notification	_CHANGE_NOTICE_A_VECTOR	8	IFS0<8>	IEC0<8>	IPC2<4:2>	IPC2<1:0>	No
PORTB Change Notification	CHANGE_NOTICE_B_VECTOR	9	IFS0<9>	IEC0<9>	IPC2<12:10>	IPC2<9:8>	No
PORTC Change Notification	CHANGE_NOTICE_C_VECTOR	10	IFS0<10>	IEC0<10>	IPC2<20:18>	IPC2<17:16>	No
Timer1	_TIMER_1_VECTOR	11	IFS0<11>	IEC0<11>	IPC2<28:26>	IPC2<25:24>	No
Comparator 1	Comparator_1_VECTOR	12	IFS0<12>	IEC0<12>	IPC3<4:2>	IPC3<1:0>	No
Comparator 2	Comparator_2_VECTOR	13	IFS0<13>	IEC0<13>	IPC3<12:10>	IPC3<9:8>	No
Real-Time Clock Alarm	_RTCC_VECTOR	14	IFS0<14>	IEC0<14>	IPC3<20:18>	IPC3<17:16>	No
ADC Conversion	_ADC_VECTOR	15	IFS0<15>	IEC0<15>	IPC3<28:26>	IPC3<25:24>	No
CRC	_CRC_VECTOR	16	IFS0<16>	IEC0<16>	IPC4<4:2>	IPC4<1:0>	Yes
High/Low-Voltage Detect	_HLVD_VECTOR	17	IFS0<17>	IEC0<17>	IPC4<12:10>	IPC4<9:8>	Yes
Logic Cell 1	_CLC1_VECTOR	18	IFS0<18>	IEC0<18>	IPC4<20:18>	IPC4<17:16>	No
Logic Cell 2	_CLC2_VECTOR	19	IFS0<19>	IEC0<19>	IPC4<28:26>	IPC4<25:24>	No
SPI1 Error	_SPI1_ERR_VECTOR	20	IFS0<20>	IEC0<20>	IPC5<4:2>	IPC5<1:0>	Yes
SPI1 Transmission	_SPI1_TX_VECTOR	21	IFS0<21>	IEC0<21>	IPC5<12:10>	IPC5<9:8>	Yes
SPI1 Reception	_SPI1_RX_VECTOR	22	IFS0<22>	IEC0<22>	IPC5<20:18>	IPC5<17:16>	Yes
Interrupt Source	MPLAB® XC32 Vector Name	Vector Number	Interrupt Related Bits Location				Persistent Interrupt
			Flag	Enable	Priority	Subpriority
UART1 Reception	_UART1_RX_VECTOR	23	IFS0<23>	IEC0<23>	IPC5<28:26>	IPC5<25:24>	Yes
UART1 Transmission	_UART1_TX_VECTOR	24	IFS0<24>	IEC0<24>	IPC6<4:2>	IPC6<1:0>	Yes
UART1 Error	_UART1_ERR_VECTOR	25	IFS0<25>	IEC0<25>	IPC6<12:10>	IPC6<9:8>	Yes
CCP1 Input Capture or Output Compare	_CCP1_VECTOR	29	IFS0<29>	IEC0<29>	IPC7<12:10>	IPC7<9:8>	No
CCP1 Timer	_CCT1_VECTOR	30	IFS0<30>	IEC0<30>	IPC7<20:18>	IPC7<17:16>	No
CCP2 Input Capture or Output Compare	_CCP2_VECTOR	31	IFS0<31>	IEC0<31>	IPC7<28:26>	IPC7<25:24>	No
CCP2 Timer	_CCT2_VECTOR	32	IFS1<0>	IEC1<0>	IPC8<4:2>	IPC8<1:0>	No
CCP3 Input Capture or Output Compare	_CCP3_VECTOR	33	IFS1<1>	IEC1<1>	IPC8<12:10>	IPC8<9:8>	No
CCP3 Timer	_CCT3_VECTOR	34	IFS1<2>	IEC1<2>	IPC8<20:18>	IPC8<17:16>	No
RESERVED	—	35	—	—	—	—	—
RESERVED	—	36	—	—	—	—	—
SPI2 Error	_SPI2_ERR_VECTOR	37	IFS1<5>	IEC1<5>	IPC9<12:10>	IPC9<9:8>	Yes
SPI2 Transmission	_SPI2_TX_VECTOR	38	IFS1<6>	IEC1<6>	IPC9<20:18>	IPC9<17:16>	Yes
SPI2 Reception	_SPI2_RX_VECTOR	39	IFS1<7>	IEC1<7>	IPC9<28:26>	IPC9<25:24>	Yes
UART2 Reception	_UART2_RX_VECTOR	40	IFS1<8>	IEC1<8>	IPC10<4:2>	IPC10<1:0>	Yes
UART2 Transmission	_UART2_TX_VECTOR	41	IFS1<9>	IEC1<9>	IPC10<12:10>	IPC10<9:8>	Yes
UART2 Error	_UART2_ERR_VECTOR	42	IFS1<10>	IEC1<10>	IPC10<20:18>	IPC10<17:16>	Yes
NVM Program or Erase Complete	_NVM_VECTOR	46	IFS1<14>	IEC1<14>	IPC11<20:18>	IPC11<17:16>	Yes
Core Performance Counter	_PERFORMANCE_COUNTER_VECTOR	47	IFS1<15>	IEC1<15>	IPC11<28:26>	IPC11<25:24>	No

TABLE 7-3: INTERRUPT REGISTER MAP

Legend: — = unimplemented, read as b'. Reset values are shown in hexadecimal.
Note 1: All registers in this table have corresponding CLR, SET and INV registers at their virtual address, plus an offset of 0x4, 0x8 and 0xC, respectively.
2: These bits are not available on 20-pin devices.

TABLE 7-3: INTERRUPT REGISTER MAP (CONTINUED)

Legend: — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: All registers in this table have corresponding CLR, SET and INV registers at their virtual address, plus an offset of 0x4, 0x8 and 0xC, respectively.
2: These bits are not available on 20-pin devices.

REGISTER 7-1: INTCON: INTERRUPT CONTROL REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	U-0 U-0 U-0	U-0 U-0 U-0	U-0 U-0
	— — —	— — — —	—
23:16	U-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
	—	VS<6:0>
15:8	U-0	U-0	U-0	R/W-0	U-0	R/W-0	R/W-0	R/W-0
	—	—	—	MVEC	—	TPC<2:0>
7:0	U-0	U-0	U-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
	—	—	—	INT4EP	INT3EP	INT2EP	INT1EP	INT0EP

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 31-23 Unimplemented: Read as '0'

bit 22-16 VS<6:0>: Vector Spacing bits

Spacing Between Vectors:

0000000 = 0 Bytes

0000001 = 8 Bytes

0000010 = 16 Bytes

0000100 = 32 Bytes

0001000 = 64 Bytes

0010000 = 128 Bytes

0100000 = 256 Bytes

1000000 = 512 Bytes

All other values are reserved. The operation of this device is undefined if a reserved value is written to this field. If MVEC = 0, this field is ignored.

bit 15-13 Unimplemented: Read as '0'

bit 12 MVEC: Multivector Configuration bit

1 = Interrupt controller configured for Multivectored mode

0 = Interrupt controller configured for Single Vectored mode

bit 11 Unimplemented: Read as '0'

bit 10-8 TPC<2:0>: Interrupt Proximity Timer Control bits

111 = Interrupts of Group Priority 7 or lower start the interrupt proximity timer

110 = Interrupts of Group Priority 6 or lower start the interrupt proximity timer

101 = Interrupts of Group Priority 5 or lower start the interrupt proximity timer

100 = Interrupts of Group Priority 4 or lower start the interrupt proximity timer

011 = Interrupts of Group Priority 3 or lower start the interrupt proximity timer

010 = Interrupts of Group Priority 2 or lower start the interrupt proximity timer

001 = Interrupts of Group Priority 1 start the interrupt proximity timer

000 = Disables interrupt proximity timer

bit 7-5 Unimplemented: Read as '0'

bit 4 INT4EP: External Interrupt 4 Edge Polarity Control bit

1 = Rising edge

0 = Falling edge

bit 3 INT3EP: External Interrupt 3 Edge Polarity Control bit

1 = Rising edge

0 = Falling edge

REGISTER 7-1: INTCON: INTERRUPT CONTROL REGISTER (CONTINUED)

bit 2	INT2EP: External Interrupt 2 Edge Polarity Control bit
	1 = Rising edge
	0 = Falling edge

bit 1	INT1EP: External Interrupt 1 Edge Polarity Control bit
	1 = Rising edge
	0 = Falling edge

bit 0	INTOEP: External Interrupt 0 Edge Polarity Control bit
	1 = Rising edge
	0 = Falling edge

REGISTER 7-2: PRISS: PRIORITY SHADOW SELECT REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	R/W-0 R/W-0	R/W-0 R/W-0	R/W-0 R/W-0 R/W-0	R/W-0
	PRI7SS<3:0>(1)				PRI6SS<3:0>(1)
23:16	R/W-0 R/W-0	R/W-0 R/W-0	R/W-0 R/W-0 R/W-0	R/W-0
	PRI5SS<3:0>(1)				PRI4SS<3:0>(1)
15:8	R/W-0 R/W-0	R/W-0 R/W-0	R/W-0 R/W-0 R/W-0	R/W-0
	PRI3SS<3:0>(1)				PRI2SS<3:0>(1)
7:0	R/W-0	R/W-0	R/W-0	R/W-0	U-0	U-0	U-0	R/W-0
	PRI1SS<3:0>(1)				— —	—	SS0

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 31-28 PRI7SS<3:0>: Interrupt with Priority Level 7 Shadow Set bits ^(1)

11111 = Reserved

•

•

.

0010 = Reserved

0001 = Interrupt with a priority level of 7 uses Shadow Set 1

0000 = Interrupt with a priority level of 7 uses Shadow Set 0

bit 27-24 PRI6SS<3:0>: Interrupt with Priority Level 6 Shadow Set bits ^(1)

1111 = Reserved

•

•

•

0010 = Reserved

0001 = Interrupt with a priority level of 6 uses Shadow Set 1

0000 = Interrupt with a priority level of 6 uses Shadow Set 0

Note 1: These bits are ignored if the MVEC bit (INTCON<12>) = 0.

REGISTER 7-2: PRISS: PRIORITY SHADOW SELECT REGISTER (CONTINUED)
bit 23-20 PRI5SS<3:0>: Interrupt with Priority Level 5 Shadow Set bits ^(1) 1111 = Reserved . . . 0010 = Reserved 0001 = Interrupt with a priority level of 5 uses Shadow Set 1 0000 = Interrupt with a priority level of 5 uses Shadow Set 0

bit 19-16 PRI4SS<3:0>: Interrupt with Priority Level 4 Shadow Set bits ^(1) 1111 = Reserved . . . 0010 = Reserved 0001 = Interrupt with a priority level of 4 uses Shadow Set 1 0000 = Interrupt with a priority level of 4 uses Shadow Set 0

bit 15-12 PRI3SS<3:0>: Interrupt with Priority Level 3 Shadow Set bits ^(1) 1111 = Reserved . . . 0010 = Reserved 0001 = Interrupt with a priority level of 3 uses Shadow Set 1 0000 = Interrupt with a priority level of 3 uses Shadow Set 0

bit 11-8 PRI2SS<3:0>: Interrupt with Priority Level 2 Shadow Set bits ^(1) 1111 = Reserved . . . 0010 = Reserved 0001 = Interrupt with a priority level of 2 uses Shadow Set 1 0000 = Interrupt with a priority level of 2 uses Shadow Set 0

bit 7-4 PRI1SS<3:0>: Interrupt with Priority Level 1 Shadow Set bits ^(1) 1111 = Reserved . . . 0010 = Reserved 0001 = Interrupt with a priority level of 1 uses Shadow Set 1 0000 = Interrupt with a priority level of 1 uses Shadow Set 0

bit 3-1 Unimplemented: Read as '0'

bit 0 SS0: Single Vector Shadow Register Set bit 1 = Single vector is presented with a shadow set 0 = Single vector is not presented with a shadow set

Note 1: These bits are ignored if the MVEC bit (INTCON<12>) = 0.

REGISTER 7-3: INTSTAT: INTERRUPT STATUS REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	U-0 U-0 U-0 U-0 U-0 U-0		U-0 U-0
	— — — —		— —	—	—
23:16	U-0 U-0 U-0 U-0 U-0 U-0 U-0		U-0 U-0
	— — — —		— —	—	—
15:8	U-0	U-0	U-0	U-0	U-0	R-0, HS, HC	R-0, HS, HC	R-0, HS, HC
	— — — —		—	SRIPL<2:0>		(1)
7:0	R-0, HS, HC	R-0, HS, HC	R-0, HS, HC	R-0, HS, HC	R-0, HS, HC	R-0, HS, HC	R-0, HS, HC	R-0, HS, HC
	SIRQ<7:0>

Legend:	HS = Hardware Settable bit	HC = Hardware Clearable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 31-11 Unimplemented: Read as '0'

bit 10-8 SRIPL<2:0>: Requested Priority Level for Single Vector Mode bits ^(1)

111-000 = The priority level of the latest interrupt presented to the CPU

bit 7-0 SIRQ<7:0>: Last Interrupt Request Serviced Status bits

1111111-00000000 = The last interrupt request number serviced by the CPU

Note 1: This value should only be used when the interrupt controller is configured for Single Vector mode.

REGISTER 7-4: IPTMR: INTERRUPT PROXIMITY TIMER REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
	IPTMR<31:24>
23:16	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
	IPTMR<23:16>
15:8	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
	IPTMR<15:8>
7:0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
	IPTMR<7:0>

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 31-0 IPTMR<31:0>: Interrupt Proximity Timer Reload bits

Used by the interrupt proximity timer as a reload value when the interrupt proximity timer is triggered by an interrupt event.

REGISTER 7-5: IFSx: INTERRUPT FLAG STATUS REGISTER x (1)

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	R/W-0 R/W	0 R/W-0 R/W-0	R/W-0 R/W-0 R/W	-0 R/W-0
	IFS<31:24>
23:16	R/W-0 R/W	0 R/W-0 R/W-0	R/W-0 R/W-0 R/W	-0 R/W-0
	IFS<23:16>
15:8	R/W-0 R/W	0 R/W-0 R/W-0	R/W-0 R/W-0 R/W	-0 R/W-0
	IFS<15:8>
7:0	R/W-0 R/W	0 R/W-0 R/W-0	R/W-0 R/W-0 R/W	-0 R/W-0
	IFS<7:0>

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 31-0 IFS<31:0>: Interrupt Flag Status bits

1 = Interrupt request has occurred
0 = No interrupt request has occurred

Note 1: This register represents a generic definition of the IFSx register. Refer to Table 7-3 for the exact bit definitions.

REGISTER 7-6: IECx: INTERRUPT ENABLE CONTROL REGISTER x (1)

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	R/W-0 R/W	0 R/W-0 R/W-0	R/W-0 R/W-0 R/W	0 R/W-0
	IEC<31:24>
23:16	R/W-0 R/W	0 R/W-0 R/W-0	R/W-0 R/W-0 R/W	0 R/W-0
	IEC<23:16>
15:8	R/W-0 R/W	0 R/W-0 R/W-0	R/W-0 R/W-0 R/W	0 R/W-0
	IEC<15:8>
7:0	R/W-0 R/W	0 R/W-0 R/W-0	R/W-0 R/W-0 R/W	0 R/W-0
	IEC<7:0>

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 31-0 IEC<31-0>: Interrupt Enable bits

1 = Interrupt is enabled
0 = Interrupt is disabled

Note 1: This register represents a generic definition of the IECx register. Refer to Table 7-3 for the exact bit definitions.

REGISTER 7-7: IPCx: INTERRUPT PRIORITY CONTROL REGISTER x (1)

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	U-0 U-0 U	R/W-0 R/W-0	R/W-0 R/W-0 R/W-0
	— — —	IP3<2:0>	IS3<1:0>
23:16	U-0 U-0 U	R/W-0 R/W-0	R/W-0 R/W-0 R/W-0
	— — —	IP2<2:0>	IS2<1:0>
15:8	U-0 U-0 U	R/W-0 R/W-0	R/W-0 R/W-0 R/W-0
	— — —	IP1<2:0>	IS1<1:0>
7:0	U-0 U-0 U	R/W-0 R/W-0	R/W-0 R/W-0 R/W-0
	— — —	IP0<2:0>	IS0<1:0>

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 31-29 Unimplemented: Read as '0'

bit 28-26 IP3<2:0>: Interrupt Priority bits

111 = Interrupt priority is 7

•

•

.

010 = Interrupt priority is 2

001 = Interrupt priority is 1

000 = Interrupt is disabled

bit 25-24 IS3<1:0>: Interrupt Subpriority bits

11 = Interrupt subpriority is 3

10 = Interrupt subpriority is 2

01 = Interrupt subpriority is 1

00 = Interrupt subpriority is 0

bit 23-21 Unimplemented: Read as '0'

bit 20-18 IP2<2:0>: Interrupt Priority bits

111 = Interrupt priority is 7

•

•

.

010 = Interrupt priority is 2

001 = Interrupt priority is 1

000 = Interrupt is disabled

bit 17-16 IS2<1:0>: Interrupt Subpriority bits

11 = Interrupt subpriority is 3

10 = Interrupt subpriority is 2

01 = Interrupt subpriority is 1

00 = Interrupt subpriority is 0

bit 15-13 Unimplemented: Read as '0'

Note 1: This register represents a generic definition of the IPCx register. Refer to Table 7-3 for the exact bit definitions.

REGISTER 7-7: IPCx: INTERRUPT PRIORITY CONTROL REGISTER x (1) (CONTINUED)
bit 12-10 IP1<2:0>: Interrupt Priority bits

111 = Interrupt priority is 7
.
.
.
010 = Interrupt priority is 2
001 = Interrupt priority is 1
000 = Interrupt is disabled

bit 9-8 IS1<1:0>: Interrupt Subpriority bits

11 = Interrupt subpriority is 3
10 = Interrupt subpriority is 2
01 = Interrupt subpriority is 1
00 = Interrupt subpriority is 0

bit 7-5 Unimplemented: Read as '0'

bit 4-2 IP0<2:0>: Interrupt Priority bits

111 = Interrupt priority is 7
.
.
.
010 = Interrupt priority is 2
001 = Interrupt priority is 1
000 = Interrupt is disabled

bit 1-0 ISO<1:0>: Interrupt Subpriority bits

11 = Interrupt subpriority is 3
10 = Interrupt subpriority is 2
01 = Interrupt subpriority is 1
00 = Interrupt subpriority is 0

Note 1: This register represents a generic definition of the IPCx register. Refer to Table 7-3 for the exact bit definitions.

8.0 OSCILLATOR CONFIGURATION

Note: This data sheet summarizes the features of the PIC32MM0064GPL036 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 59. "Oscillators with DCO" (DS60001329) in the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32). The information in this data sheet supersedes the information in the FRM.

The PIC32MM0064GPL036 family oscillator system has the following modules and features:

• On-Chip PLL with User-Selectable Multiplier and Output Divider to Boost Operating Frequency on Select Internal and External Oscillator Sources
  • Primary High-Frequency Crystal Oscillator
  • Secondary Low-Frequency and Low-Power Crystal Oscillator
• On-Chip Fast RC (FRC) Oscillator with User-Selectable Output Divider
• Software-Controllable Switching between Various Clock Sources
• Fail-Safe Clock Monitor (FSCM) that Detects Clock Failure and Permits Safe Application Recovery or Shutdown
  • Flexible Reference Clock Output (REFO)

A block diagram of the oscillator system is provided in Figure 8-1. A block diagram of the REFO clock is provided in Figure 8-2.

8.1 Fail-Safe Clock Monitor (FSCM)

The PIC32MM0064GPL036 family oscillator system includes a Fail-Safe Clock Monitor (FSCM). The FSCM monitors the SYSCLK for continuous operation. If it detects that the SYSCLK has failed, it switches the SYSCLK over to the FRC oscillator and triggers a Non-Maskable Interrupt (NMI). When the NMI is executed, software can attempt to restart the main oscillator or shut down the system.

In Sleep mode, both the SYSCLK and the FSCM halt, which prevents FSCM detection.

8.2 Clock Switching Operation

With few limitations, applications are free to switch between any of the four clock sources (POSC, SOSC, FRC and LPRC) under software control and at any time. To limit the possible side effects that could result from this flexibility, PIC32 devices have a safeguard lock built into the switching process.

Note: The Primary Oscillator mode has three different submodes (XT, HS and EC), which are determined by the POSCMOD<1:0>Configuration bits. While an application can switch to and from Primary Oscillator mode in software, it cannot switch between the different primary submodes without reprogramming the device.

8.2.1 ENABLING CLOCK SWITCHING

To enable clock switching, the FCKSM1 Configuration bit in FOSC must be programmed to '0'. (Refer to Section 23.1 "Configuration Bits" for further details.) If the FCKSM1 Configuration bit is unprogrammed ('1'), the clock switching function and Fail-Safe Clock Monitor function are disabled; this is the default setting.

The NOSC<2:0> control bits (OSCCON<10:8>) do not control the clock selection when clock switching is disabled. However, the COSC<2:0> bits (OSCCON<14:12>) will reflect the clock source selected by the FNOSC<2:0> Configuration bits.

The OSWEN control bit (OSCCON<0>) has no effect when clock switching is disabled; it is held at '0' at all times.

8.2.2 OSCILLATOR SWITCHING SEQUENCE

At a minimum, performing a clock switch requires this basic sequence:

1. If desired, read the COSC<2:0> bits (OSCCON<14:12>) to determine the current oscillator source.
2. Perform the unlock sequence to allow a write to the OSCCON register.
3. Write the appropriate value to the NOSC<2:0> bits (OSCCON<10:8>) for the new oscillator source.
4. Set the OSWEN bit to initiate the oscillator switch.

Once the basic sequence is completed, the system clock hardware responds automatically as follows:

1. The clock switching hardware compares the COSCx bits with the new value of the NOSCx bits. If they are the same, then the clock switch is a redundant operation. In this case, the OSWEN bit is cleared automatically and the clock switch is aborted.
2. If a valid clock switch has been initiated, the SPLL RDY (CLKSTAT<7>) and CF (OSCCON<3>) bits are cleared.
3. The new oscillator is turned on by the hardware if it is not currently running. If a crystal oscillator must be turned on, the hardware will wait until the OST expires. If the new source is using the PLL, then the hardware waits until a PLL lock is detected (SPLLRDY = 1).
4. The hardware waits for 10 clock cycles from the new clock source and then performs the clock switch.
5. The hardware clears the OSWEN bit to indicate a successful clock transition. In addition, the NOSC<2:0> bits values are transferred to the COSC<2:0> bits.
6. The old clock source is turned off if it is not being used by a peripheral, or enabled by device configuration or a control register.

Note 1: The processor will continue to execute code throughout the clock switching sequence. Timing-sensitive code should not be executed during this time.

2: Direct clock switches between any Primary Oscillator mode with PLL and FRCPLL mode are not permitted. This applies to clock switches in either direction. In these instances, the application must switch to FRC mode as a transitional clock source between the two PLL modes.

A recommended code sequence for a clock switch includes the following:

1. Disable interrupts during the OSCCON register unlock and write sequence.
2. Execute the unlock sequence for OSCCON by writing 0xAA996655 and 0x556699AA to the SYSKEY register.
3. Write the new oscillator source to the NOSC<2:0> bits.
4. Set the OSWEN bit.
5. Relock the OSCCON register.
6. Continue to execute code that is not clock-sensitive (optional).

The core sequence for unlocking the OSCCON register and initiating a clock switch is shown in Example 8-1.

EXAMPLE 8-1: BASIC CODE SEQUENCE FOR CLOCK SWITCHING

SYSKEY = 0x00000000; // force lock
SYSKEY = 0xAA996655; // unlock
SYSKEY = 0x556699AA;

OSCCONbits.NOSC = 3; // select the new clock source

OSCCONSET = 1; // set the OSWEN bit

SYSKEY = 0x00000000; // force lock

while (OSCCONbits.OSWEN); // optional wait for switch operation

FIGURE 8-1: PIC32MM0064GPL036 FAMILY OSCILLATOR DIAGRAM
    subgraph_System_PLL["System PLL"]
        A["PLLCLK"] --> B["FIN(1)"]
        B --> C["PLL x M"]
        C --> D["Fvco(1)"]
        D --> E["÷ N"]
        E --> F["FPLL(1)"]
        F --> G["SPLL"]
    end

    subgraph_Primary_Oscillator["(POSC)"]
        H["OSC1/CLKI"] --> I["POSCMOD<1:0>"]
        J["OSC2"] --> I
        I --> K["8 MHz"]
        L["FRC Oscillator"] --> K
        K --> M["TUN<5:0>"]
        N["LPRC Oscillator"] --> O["32 kHz"]
        P["SOSCO/SCLKI"] --> Q["SOSCSEL"]
        R["SOSCI"] --> Q
    end

    subgraph_Secondary_Oscillator["(SOSC)"]
        S["SOSCEN"] --> T["32.768 kHz"]
        U["SOSCSEL"] --> V["SOSCE"]
    end

    subgraph_Reference_Clock["Reference Clock"]
        W["REFCLK1"] --> X["POSC"]
        X --> Y["FRC"]
        Y --> Z["LPRC"]
        Z --> AA["SOSCK"]
        AB["SPLLVCO"] --> AC["FPLL(1)"]
        AD["SYSCLK"] --> AE["FPLL(1)"]
        AF["ROSEL<3:0>"] --> AG["÷ 2 × (N M 512)"]
        AH["TO MCCP, SCCP and SPIx"] --> AI["REFCLKO"]
        AJ["REF01CON REFO1TRIM"] --> AK["ROTRIM<8:0> (M)"]
        AL["OE"] --> AM["RODIV<14:0> (N)"]
    end

    subgraph_Clock_Control_Logic["Clock Control Logic"]
        AN["Fail-Safe Clock Monitor"] --> AO["FNOSC<2:0>"]
        AP["FACKSM<1:0>"] --> AQ["NOSC<2:0>"]
        AR["OSWEN"] --> AS["COSC<2:0>"]
        AT["To Timer1, WDT, RTCC"] --> AU["To Timer1, RTCC, MCCP/SCCP and CLC"]
    end

    B --> C
    C --> D
    D --> E
    E --> F
    F --> G
    G --> H
    H --> I
    I --> J
    J --> K
    K --> L
    L --> M
    M --> N
    N --> O
    O --> P
    P --> Q
    Q --> R
    R --> S
    S --> T
    T --> U
    U --> V
    V --> W
    W --> X
    X --> Y
    Y --> Z
    Z --> AA
    AA --> AB
    AB --> AC
    AC --> AD
    AD --> AE
    AE --> AF
    AF --> AG
    AG --> AH
    AH --> AI
    AI --> AJ
    AJ --> AK
    AK --> AL
    AL --> AM
    AM --> AM

Note 1: Refer to Table 26-18 in Section 26.0 "Electrical Characteristics" for frequency limitations.

FIGURE 8-2: REFERENCE OSCILLATOR CLOCK DIAGRAM

Note 1: Support circuitry for crystal is not shown.

8.3 Oscillator Control Registers

TABLE 8-1: OSCILLATOR CONFIGURATION REGISTER MAP

Legend: x = unknown value on Reset; — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: Reset values are dependent on the FOSCSEL Configuration bits and the type of Reset.
2: All registers in this table have corresponding CLR, SET and INV registers at their virtual address, plus an offset of 0x4, 0x8 and 0xC, respectively.

REGISTER 8-1: OSCCON: OSCILLATOR CONTROL REGISTER (1)

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	U-0 U-0 U-0 U-0 U-0 R/W-0 R/W-0 R/W-0
	—— — — — FRCDIV<2:0>
23:16	U-0 U-0 U-0 U-0 U-0 U-0		U-0	U-0
	—— — — — —		——
15:8	U-0	R-y, HS, HC	R-y, HS, HC	R-y, HS, HC	U-0	R/W-y	R/W-y	R/W-y
	—	COSC<2:0>(3)			—	NOSC<2:0>(3)
7:0	R/W-0	U-0	U-0	R/W-0	R/W-0, HS	U-0	R/W-y	R/W-y, HC
	CLKLOCK	—	—	SLPEN	CF	—	SOSCEN(4)	OSWEN(2)

Legend:

HC = Hardware Clearable bit	HS = Hardware Settable bit	y = Value set from Configuration bits on Reset
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 31-27 Unimplemented: Read as '0'

bit 26-24 FRCDIV<2:0>: Internal Fast RC (FRC) Oscillator Clock Divider bits

111 = FRC divided by 256
110 = FRC divided by 64
101 = FRC divided by 32
100 = FRC divided by 16
011 = FRC divided by 8
010 = FRC divided by 4
001 = FRC divided by 2

000 = FRC divided by 1 (default setting)

bit 23-15 Unimplemented: Read as '0'

bit 14-12 COSC<2:0>: Current Oscillator Selection bits ^(3)

111 and 110 = Reserved (selects internal Fast RC (FRC) Oscillator divided by the FRCDIV<2:0> bits (FRCDIV))
101 = Internal Low-Power RC (LPRC) Oscillator
100 = Secondary Oscillator (SOSC)
011 = Reserved
010 = Primary Oscillator (POSC) (XT, HS or EC)
001 = System PLL (SPLL)
000 = Internal Fast RC (FRC) Oscillator divided by FRCDIV<2:0> bits (FRCDIV)

bit 11 Unimplemented: Read as '0'

Note 1: Writes to this register require an unlock sequence. Refer to Section 23.4 “System Registers Write Protection” for details.

2: The Reset value for this bit depends on the setting of the IESO (FOSCSEL<7>) Configuration bit. When IESO = 1, the Reset value is '1'. When IESO = 0, the Reset value is '0'.

3: The Reset value for these bits matches the setting of the FNOSC<2:0> (FOSCSEL<2:0>) Configuration bits.

4: The Reset value for this bit matches the setting of the SOSCEN (FOSCSEL<6>) Configuration bit.

REGISTER 8-1: OSCCON: OSCILLATOR CONTROL REGISTER (1) (CONTINUED)

bit 10-8 NOSC<2:0>: New Oscillator Selection bits ^(3)

111 and 110 = Reserved (selects internal Fast RC (FRC) Oscillator divided by FRCDIV<2:0> bits (FRCDIV))

101 = Internal Low-Power RC (LPRC) Oscillator

100 = Secondary Oscillator (SOSC)

011 = Reserved

010 = Primary Oscillator (POSC) (XT, HS or EC)

001 = System PLL (SPLL)

000 = Internal Fast RC (FRC) Oscillator divided by FRCDIV<2:0> bits (FRCDIV)

On Reset, these bits are set to the value of the FNOSC<2:0> Configuration bits (FOSCSEL<2:0>).

bit 7 CLKLOCK: Clock Selection Lock Enable bit

1 = Clock and PLL selections are locked

0 = Clock and PLL selections are not locked and may be modified

bit 6-5 Unimplemented: Read as '0'

bit 4 SLPEN: Sleep Mode Enable bit

1 = Device will enter Sleep mode when a WAIT instruction is executed

0 = Device will enter Idle mode when a WAIT instruction is executed

bit 3 CF: Clock Fail Detect bit

1 = FSCM has detected a clock failure

0 = No clock failure has been detected

bit 2 Unimplemented: Read as '0'

bit 1 SOSCEN: Secondary Oscillator (SOSC) Enable bit (4)

1 = Enables Secondary Oscillator

0 = Disables Secondary Oscillator

bit 0 OSWEN: Oscillator Switch Enable bit (2)

1 = Initiates an oscillator switch to a selection specified by the NOSC<2:0> bits

0 = Oscillator switch is complete

Note 1: Writes to this register require an unlock sequence. Refer to Section 23.4 “System Registers Write Protection” for details.

2: The Reset value for this bit depends on the setting of the IESO (FOSCSEL<7>) Configuration bit. When IESO = 1, the Reset value is '1'. When IESO = 0, the Reset value is '0'.

3: The Reset value for these bits matches the setting of the FNOSC<2:0> (FOSCSEL<2:0>) Configuration bits.

4: The Reset value for this bit matches the setting of the SOSCEN (FOSCSEL<6>) Configuration bit.

REGISTER 8-2: SPLLCON: SYSTEM PLL CONTROL REGISTER (1)

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	U-0 U-0 U-0	U-0 U-0 R/W-0	R/W-0 R/W-0
	— — —	— — PLLO	DIV<2:0>
23:16	U-0 R/W-0	R/W-0 R/W-0 R	W-0 R/W-0 R/W-0	R/W-1
	—	PLLMULT<6:0>
15:8	U-0 U-0 U-0	U-0 U-0 U-0	U-0 U-0
	— — —	— — — —	—
7:0	R/W-y U-0	U-0 U-0 U-0 U-0	U-0	U-0
	PLLICLK	— — —	— — —	—

Legend:	y = Values set from Configuration bits on Reset
R = Readable bit	W = Writable bit U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set ‘0’ = Bit is cleared x = Bit is unknown

bit 31-27 Unimplemented: Read as '0'

bit 26-24 PLLODIV<2:0>: System PLL Output Clock Divider bits

111 = PLL divide-by-256
110 = PLL divide-by-64
101 = PLL divide-by-32
100 = PLL divide-by-16
011 = PLL divide-by-8
010 = PLL divide-by-4
001 = PLL divide-by-2
000 = PLL divide-by-1 (default setting)

bit 23 Unimplemented: Read as '0'

bit 22-16 PLLMULT<6:0>: System PLL Multiplier bits

111111-0000111 = Reserved
0000110 = 24x
0000101 = 12x
0000100 = 8x
0000011 = 6x
0000010 = 4x
0000001 = 3x (default setting)
0000000 = 2x

bit 15-8 Unimplemented: Read as '0'

bit 7 PLLICLK: System PLL Input Clock Source bit

1 = FRC is selected as the input to the system PLL (not divided)
0 = POSC is selected as the input to the system PLL
The POR default value is specified by the PLLSRC Configuration bit in the FOSCSEL register. Refer to Register 23-9 in Section 23.0 "Special Features" for more information.

bit 6-0 Unimplemented: Read as '0'

Note 1: Writes to this register require an unlock sequence. Refer to Section 23.4 "System Registers Write Protection" for details. All bits in this register must be modified only if the PLL is not used.

REGISTER 8-3: REFO1CON: REFERENCE OSCILLATOR CONTROL REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	U-0 R/W-0	R/W-0 R/W-0	R/W-0 R/W-0 R/W-0	R/W-0
	—	R						O
23:16	R/W-0 R/W-0	R/W-0 R/W-0	R/W-0 R/W-0 R/W-0	R/W-0
	RODIV<7:0>
15:8	R/W-0	U-0	R/W-0	R/W-0	R/W-0	U-0	R/W-0, HC	R-0, HS, HC
	ON(1)	—	SIDL	OE(4)	RSLP^(2,4)	—	DIVSWEN	ACTIVE(1)
7:0	U-0	U-0	U-0	U-0	R/W-0	R/W-0	R/W-0	R/W-0
	—	—	—	—	ROSEL<3:0>(3)

Legend:	HC = Hardware Clearable bit	HS = Hardware Settable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 31 Unimplemented: Read as '0'

bit 30-16 RODIV<14:0> Reference Clock Divider bits The value selects the reference clock divider bits (see Figure 8-1 for details). A value of '0' selects no divider.

bit 15 ON: Reference Oscillator Output Enable bit ^(1)

1 = Reference oscillator module is enabled

0 = Reference oscillator module is disabled

bit 14 Unimplemented: Read as '0'

bit 13 SIDL: Peripheral Stop in Idle Mode bit

1 = Discontinues module operation when device enters Idle mode

0 = Continues module operation in Idle mode

bit 12 OE: Reference Clock Output Enable bit ^(4)

1 = Reference clock is driven out on the REFCLKO pin

0 = Reference clock is not driven out on the REFCLKO pin

bit 11 RSLP: Reference Oscillator Module Run in Sleep bit ^(2,4)

1 = Reference oscillator module output continues to run in Sleep

0 = Reference oscillator module output is disabled in Sleep

bit 10 Unimplemented: Read as '0'

bit 9 DIVSWEN: Divider Switch Enable bit

1 = Divider switch is in progress

0 = Divider switch is complete

bit 8 ACTIVE: Reference Clock Request Status bit ^(1)

1 = Reference clock request is active

0 = Reference clock request is not active

bit 7-4 Unimplemented: Read as '0'

Note 1: Do not write to this register when the ON bit is not equal to the ACTIVE bit.

2: This bit is ignored when the ROSEL<3:0> bits = 0000.

3: The ROSEL<3:0> bits should not be written while the ACTIVE bit is '1', as undefined behavior may result.

4: Operation with output enabled in Retention Sleep mode is not recommended.

REGISTER 8-3: REFO1CON: REFERENCE OSCILLATOR CONTROL REGISTER (CONTINUED)
bit 3-0 ROSEL<3:0>: Reference Clock Source Select bits ^(3)

1111 = Reserved
•
•
•
1010 = Reserved
1001 = REFCLKI pin
1000 = Reserved
0111 = System PLL output (not divided)
0110 = Reserved
0101 = Secondary Oscillator (SOSC)
0100 = Low-Power RC Oscillator (LPRC)
0011 = Fast RC Oscillator (FRC)
0010 = Primary Oscillator (POSC)
0001 = Instruction/System Clock (SYSCLK)
0000 = Instruction/System Clock (SYSCLK)

Note 1: Do not write to this register when the ON bit is not equal to the ACTIVE bit.

2: This bit is ignored when the ROSEL<3:0> bits = 0000.
3: The ROSEL<3:0> bits should not be written while the ACTIVE bit is '1', as undefined behavior may result.
4: Operation with output enabled in Retention Sleep mode is not recommended.

REGISTER 8-4: REFO1TRIM: REFERENCE OSCILLATOR TRIM REGISTER (1,2,3)

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	R/W-0 R/W-0	R/W-0 R/W-0 R/W-0	R/W-0 R/W-0 R/W-0	R/W-0
	ROTRIM<8:1>
23:16	R/W-0 U-0 U	U-0 U-0 U-0 U-0	U-0 U-0
	ROTRIM<0>	— — — — —	— —
15:8	U-0 U-0 U-0	U-0 U-0 U-0	U-0 U-0
	— — — — —	— — — — —
7:0	U-0 U-0 U-0	U-0 U-0 U-0	U-0 U-0
	— — — — —	— — — — —

Legend:
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 31-23 ROTRIM<8:0>: Reference Oscillator Trim bits

111111111 = 511/512 divisor added to the RODIVx value 111111110 = 510/512 divisor added to the RODIVx value

•

•

•

100000000 = 256/512 divisor added to the RODIVx value

•

.

•

000000010 = 2/512 divisor added to the RODIVx value

000000001 = 1/512 divisor added to the RODIVx value

000000000 = 0 divisor added to the RODIVx value

bit 22-0 Unimplemented: Read as '0'

Note 1: While the ON bit (REFO1CON<15>) is '1', writes to this register do not take effect until the DIVSWEN bit is also set to '1'.

2: Do not write to this register when the ON bit (REFO1CON<15>) is not equal to the ACTIVE bit (REFO1CON<8>).

3: Specified values in this register do not take effect if RODIV<14:0> (REFO1CON<30:16>) = 0.

REGISTER 8-5: CLKSTAT: CLOCK STATUS REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	U-0 U-0 U-0	U-0 U-0 U-0	U-0 U-0
	— — —	— — —	—	—
23:16	U-0 U-0 U-0	U-0 U-0 U-0	U-0 U-0
	— — —	— — —	—	—
15:8	U-0 U-0 U-0	U-0 U-0 U-0	U-0 U-0
	— — —	— — —	—	—
7:0	R-0, HS, HC	U-0	R-0, HS, HC	R-0, HS, HC	U-0	R-0, HS, HC	R-0, HS, HC	R-0, HS, HC
	SPLL RDY	—	LPRCRDY	SOSCRDY	—	POSCRDY	SPDIVRDY	FRCRDY

Legend:	HS = Hardware Settable bit	HC = Hardware Clearable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 31-8 Unimplemented: Read as '0'

bit 7 SPLLRDY: PLL Lock bit

1 = PLL is locked and ready

0 = PLL is not locked

bit 6 Unimplemented: Read as '0'

bit 5 LPRCRDY: LPRC Oscillator Ready bit

1 = LPRC oscillator is stable and ready

0 = LPRC oscillator is not stable

bit 4 SOSCRDY: Secondary Oscillator (SOSC) Ready bit

1 = SOSC is stable and ready

0 = SOSC is not stable

bit 3 Unimplemented: Read as '0'

bit 2 POSCRDY: Primary Oscillator (POSC) Ready bit

1 = POSC is stable and ready

0 = POSC is not stable

bit 1 SPDIVRDY: System PLL (with postscaler, SPLLDIV) Clock Ready Status bit

1 = SPLLDIV is stable and ready

0 = SPLLDIV is not stable

bit 0 FRCRDY: Fast RC (FRC) Oscillator Ready bit

1 = FRC oscillator is stable and ready

0 = FRC oscillator is not stable

REGISTER 8-6: OSCTUN: FRC TUNING REGISTER (1)

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	U-0 U-0 U-0	U-0 U-0 U-0	U-0	U-0
	— — —	— — — — —
23:16	U-0 U-0 U-0	U-0 U-0	U-0 U-0	U-0
	— — —	— — — — —
15:8	U-0 U-0 U-0	U-0 U-0	U-0 U-0	U-0
	— — —	— — — — —
7:0	U-0 U-0 R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
	— — TUN<5:0>		(2)

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'
-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 31-6 Unimplemented: Read as '0'

bit 5-0 TUN<5:0>: FRC Oscillator Tuning bits ^(2)

100000 = Center frequency - 1.5%
100001
•
•
•
111111
000000 = Center frequency; oscillator runs at 8 MHz
000001
•
•
•
011110
011111 = Center frequency + 1.5%

Note 1: Writes to this register require an unlock sequence. Refer to Section 23.4 “System Registers Write Protection” for details.

2: OSCTUN functionality has been provided to help customers compensate for temperature effects on the FRC frequency over a wide range of temperatures. The tuning step-size is an approximation and is neither characterized nor tested.

NOTES:

9.0 I/O PORTS

Note: This data sheet summarizes the features of the PIC32MM0064GPL036 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 12. "I/O Ports" (DS60001120) in the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32). The information in this data sheet supersedes the information in the FRM.

Many of the device pins are shared among the peripherals and the Parallel I/O (PIO) ports. All I/O input ports feature Schmitt Trigger inputs for improved noise immunity. Some pins in the devices are 5V tolerant pins. Some of the key features of the I/O ports are:

• Individual Output Pin Open-Drain Enable/Disable
• Individual Input Pin Weak Pull-up and Pull-Down
  • Monitor Selective Inputs and Generate Interrupt when Change-in-Pin State is Detected
  • Operation during Sleep and Idle modes
• Fast Bit Manipulation using the CLR, SET and INV registers

Figure 9-1 illustrates a block diagram of a typical multiplexed I/O port.
FIGURE 9-1: BLOCK DIAGRAM OF A TYPICAL SHARED PORT STRUCTURE

9.1 CLR, SET and INV Registers

Every I/O module register has a corresponding CLR (Clear), SET (Set) and INV (Invert) register designed to provide fast atomic bit manipulations. As the name of the register implies, a value written to a SET, CLR or INV register effectively performs the implied operation, but only on the corresponding base register and only bits specified as '1' are modified. Bits specified as '0' are not modified.

Reading SET, CLR and INV registers returns undefined values. To see the affects of a write operation to a SET, CLR or INV register, the base register must be read.

9.2 Parallel I/O (PIO) Ports

All port pins have 14 registers directly associated with their operation as digital I/Os. The Data Direction register (TRISx) determines whether the pin is an input or an output. If the data direction bit is a '1', then the pin is an input. All port pins are defined as inputs after a Reset. The LATx register controls the pin level when it is configured as an output. Reads from the PORTx register read the port pins, while writes to the port pins write the latch, LATx. The I/O state reflected in the PORTx register is synchronized with the system clock and delayed by 3 system clock cycles.

9.3 Open-Drain Configuration

In addition to the PORTx, LATx and TRISx registers for data control, the port pins can also be individually configured for either digital or open-drain outputs. This is controlled by the Open-Drain Control register, ODCx, associated with each port. Setting any of the bits configures the corresponding pin to act as an open-drain output.

The open-drain feature allows the generation of outputs higher than VDD (e.g., 5V), on any desired 5V tolerant pins, by using external pull-up resistors. The maximum open-drain voltage allowed is the same as the maximum VIH specification.

9.4 Configuring Analog and Digital Port Pins

When the PORTx register is read, all pins configured as analog input channels are read as cleared (a low level).

Pins configured as digital inputs do not convert an analog input. Analog levels on any pin defined as a digital input (including the ANx pins) can cause the input buffer to consume current that exceeds the device specifications. The ANSELx register controls the operation of the analog port pins. The port pins that are to function as analog inputs must have their corresponding ANSELx and TRISx bits set. In order to use port pins for I/O functionality with digital modules, such as timers, UARTs, etc., the corresponding ANSELx bit must be cleared. The ANSELx register has a default value of 0xFFFF. Therefore, all pins that share analog functions are analog (not digital) by default. If the TRISx bit is cleared (output) while the ANSELx bit is set, the digital output level (VOH or VOL) is used by an analog peripheral, such as the ADC or comparator module.

9.5 I/O Port Write/Read Timing

Three instructions cycles are required between a port direction change or port write operation and a read operation of the same port. Typically, this instruction would be a NOP.

9.6 Input Change Notification (ICN)

The Input Change Notification function of the I/O ports allows the PIC32MM devices to generate interrupt requests to the processor in response to a Change-of-State (COS) on selected input pins. This feature can detect input Change-of-States even in Sleep mode, when the clocks are disabled. Every I/O port pin can be selected (enabled) for generating an interrupt request on a Change-of-State. Five control registers are associated with the Change Notification (CN) functionality of each I/O port. To enable the Change Notification feature for the port, the ON bit (CNCONx<15>) must be set.

The CNEN0x and CNEN1x registers contain the CN interrupt enable control bits for each of the input pins. The setting of these bits enables a CN interrupt for the corresponding pins. Also, these bits, in combination with the CNSTYLE bit (CNCONx<11>), define a type of transition when the interrupt is generated. Possible CN event options are listed in Table 9-1.

TABLE 9-1: CHANGE NOTIFICATION EVENT OPTIONS

CNSTYLE Bit (CNCONx<11>)	CNEN1x Bit	CNEN0x Bit	Change Notification Event Description
0	Does not matter	0	Disabled
0	Does not matter	1	Detects a mismatch between the last read state and the current state of the pin
1 0 0			Disabled
1 0 1			Detects a positive transition only (from '0' to '1')
1 1 0			Detects a negative transition only (from '1' to '0')
1 1 1			Detects both positive and negative transitions

The CNSTATx register indicates whether a change occurred on the corresponding pin since the last read of the PORTx bit. In addition to the CNSTATx register, the CNFx register is implemented for each port. This register contains flags for Change Notification events. These flags are set if the valid transition edge, selected in the CNEN0x and CNEN1x registers, is detected. CNFx stores the occurrence of the event. CNFx bits must be cleared in software to get the next Change Notification interrupt. The CN interrupt is generated only for the I/Os configured as inputs (corresponding TRISx bits must be set).

9.7 Pin Pull-up and Pull-Down

Each I/O pin also has a weak pull-up and a weak pull-down connected to it. The pull-ups act as a current source, or sink source, connected to the pin and eliminate the need for external resistors when push button or keypad devices are connected. The pull-ups and pull-downs are enabled separately using the CNPUx and the CNPDx registers, which contain the control bits for each of the pins. Setting any of the control bits enables the weak pull-ups and/or pull-downs for the corresponding pins.

9.8 Peripheral Pin Select (PPS)

A major challenge in general purpose devices is providing the largest possible set of peripheral features, while minimizing the conflict of features on I/O pins. The challenge is even greater on low pin count devices. In an application where more than one peripheral needs to be assigned to a single pin, inconvenient work arounds in application code, or a complete redesign, may be the only option.

PPS configuration provides an alternative to these choices by enabling peripheral set selection and their placement on a wide range of I/O pins. By increasing the pinout options available on a particular device, users can better tailor the device to their entire application, rather than trimming the application to fit the device.

The PPS configuration feature operates over a fixed subset of digital I/O pins. Users may independently map the input and/or output of most digital peripherals to these I/O pins. PPS is performed in software and generally does not require the device to be reprogrammed. Hardware safeguards are included that prevent accidental or spurious changes to the peripheral mapping once it has been established.

9.8.1 AVAILABLE PINS

The number of available pins is dependent on the particular device and its pin count. Pins that support the PPS feature include the designation, "RPn", in their full pin designation, where "RP" designates a Remappable Peripheral and "n" is the remappable port number.

9.8.2 AVAILABLE PERIPHERALS

The peripherals managed by the PPS are all digital only peripherals. These include general serial communications (UART and SPI), general purpose timer clock inputs, timer related peripherals (MCCP, SCCP) and others.

In comparison, some digital only peripheral modules are never included in the PPS feature. This is because the peripheral's function requires special I/O circuitry on a specific port and cannot be easily connected to multiple pins. A similar requirement excludes all modules with analog inputs, such as the Analog-to-Digital Converter (ADC).

A key difference between remappable and non-remappable peripherals is that remappable peripherals are not associated with a default I/O pin. The peripheral must always be assigned to a specific I/O pin before it can be used. In contrast, non-remappable peripherals are always available on a default pin, assuming that the peripheral is active and not conflicting with another peripheral.

When a remappable peripheral is active on a given I/O pin, it takes priority over all other digital I/Os and digital communication peripherals associated with the pin. Priority is given regardless of the type of peripheral that is mapped. Remappable peripherals never take priority over any analog functions associated with the pin.

9.8.3 CONTROLLING PPS

PPS features are controlled through two sets of SFRs: one to map peripheral inputs and one to map outputs. Because they are separately controlled, a particular peripheral's input and output (if the peripheral has both) can be placed on any selectable function pin without constraint.

The association of a peripheral to a peripheral-selectable pin is handled in two different ways, depending on whether an input or output is being mapped.

9.8.4 INPUT MAPPING

The RPINRx registers are used to assign the peripheral input to the required remappable pin, RPn (refer to the peripheral inputs and the corresponding RPINRx registers listed in Table 9-2). Each RPINRx register contains sets of 5-bit fields. Programming these bits with the remappable pin number will connect the peripheral to this RPn pin. Example 9-1 and Figure 9-2 illustrate the remappable pin selection for the U2RX input.

EXAMPLE 9-1: UART2 RX INPUT

ASSIGNMENT TO

RP9/RB14 PIN

RPINR9bits.U2RXR = 9; // connect UART2 RX
// input to RP9 pin

FIGURE 9-2: REMAPPABLE INPUT EXAMPLE FOR U2RX

Note: For input only, PPS functionality does not have priority over TRISx settings. Therefore, when configuring an RPn pin for input, the corresponding bit in the TRISx register must also be configured for input (set to '1').

TABLE 9-2: INPUT PIN SELECTION

Input Name	Function Name	Register	Function Bits
External Interrupt 4	INT4	RPINR1	INT4R<4:0>
MCCP1 Input Capture	ICM1	RPINR2	ICM1R<4:0>
SCCP2 Input Capture	ICM2	RPINR2	ICM2R<4:0>
SCCP3 Input Capture	ICM3	RPINR3	ICM3R<4:0>
Output Compare Fault A	OCFA	RPINR5	OCFAR<4:0>
Output Compare Fault B	OCFB	RPINR5	OCFBR<4:0>
CCP Clock Input A	TCKIA	RPINR6	TCKIAR<4:0>
CCP Clock Input B	TCKIB	RPINR6	TCKIBR<4:0>
UART2 Receive	U2RX	RPINR9	U2RXR<4:0>
UART2 Clear-to-Send	2CTS	RPINR9	U2CTSR<4:0>
SPI2 Data Input	SDI2	RPINR11	SDI2R<4:0>
SPI2 Clock Input	SCK2IN	RPINR11	SCK2INR<4:0>
SPI2 Slave Select Input	SS2IN	RPINR11	SS2INR<4:0>
CLC Input A	CLCINA	RPINR12	CLCINAR<4:0>
CLC Input B	CLCINB	RPINR12	CLCINBR<4:0>

9.8.5 OUTPUT MAPPING

The RPORx registers are used to assign the peripheral output to the required remappable pin, RPn. Each RPORx register contains 4-bit fields corresponding to the remappable pins. A special value is defined for each peripheral output. This value should be written to the remappable pin bit field in the RPORx register to connect the peripheral output to the RPn pin. All possible (implemented) values for the peripheral's outputs are listed in Table 9-3.

Example 9-2 and Figure 9-3 illustrate the peripheral's output selection for the remappable pin.

EXAMPLE 9-2: UART2 TX OUTPUT

ASSIGNMENT TO

RP13/RB13 PIN

RPOR4bits.RP13R = 1; // connect UART2 TX (= 1)
    // to RP13 pin

FIGURE 9-3: EXAMPLE OF

MULTIPLEXING OF REMAPPABLE OUTPUT FOR RP1

9.8.6 CONTROLLING CONFIGURATION CHANGES

Because peripheral remapping can be changed during run time, some restrictions on peripheral remapping are needed to prevent accidental configuration changes. PIC32MM0064GPL036 family devices include two features to prevent alterations to the peripheral map:

• Control register lock sequence
- Configuration bit select lock

9.8.6.1 Control Register Lock

Under normal operation, the RPORx and RPINRx registers can be written, but they can also be locked to prevent accidental writes. This feature is controlled by the IOLOCK bit in the RPCON register. If the IOLOCK bit is set, then the contents of the RPORx and RPINRx registers cannot be changed.

To modify the IOLOCK bit, an unlock sequence must be executed. Refer to Section 23.4 "System Registers Write Protection" for details.

TABLE 9-3: OUTPUT PIN SELECTION

Output Function Number Function Output Name
0 None (not connected) —
1	U2TX	UART2 Transmit
2	2RTS	UART2 Request-to-Send
3	SDO2 SPI2 Data Output
4	SCK2OUT	SPI2 Clock Output
5	SS2OUT	SPI2 Slave Select Output
6	OCM2	SCCP2 Output Compare
7	OCM3	SCCP3 Output Compare
8	CLC1OUT	CLC1 Output
9	CLC2OUT	CLC2 Output

9.9 I/O Ports Control Registers

TABLE 9-4: PORTA REGISTER MAP

Legend: x = unknown value on Reset; — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: These bits are not implemented in 20-pin devices.
2: These bits are not implemented in 28-pin devices.
3: All registers in this table have corresponding CLR, SET and INV registers at their virtual address, plus an offset of 0x4, 0x8 and 0xC, respectively.

TABLE 9-5: PORTB REGISTER MAP

Legend: — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: Bits<11:10,6:5,3> are not implemented in 20-pin devices.
2: All registers in this table have corresponding CLR, SET and INV registers at their virtual address, plus an offset of 0x4, 0x8 and 0xC, respectively.

TABLE 9-6: PORTC REGISTER MAP

Legend: — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: Bits<15.11.9:8.3:0> are not implemented in 20-pin devices.
2: Bits<8.3:0> are not implemented in 28-pin devices.
3: All registers in this table have corresponding CLR, SET and INV registers at their virtual address, plus an offset of 0x4, 0x8 and 0xC, respectively.

TABLE 9-7: PERIPHERAL PIN SELECT REGISTER MAP

Legend: — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: All registers in this table have corresponding CLR, SET and INV registers at their virtual address, plus an offset of 0x4, 0x8 and 0xC, respectively.

REGISTER 9-1: CNCONx: CHANGE NOTIFICATION CONTROL FOR PORTx REGISTER (x = A-C)

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	U-0 U-0 U-0	U-0 U-0 U-0	U-0 U-0
	— — —	— — — —	—
23:16	U-0 U-0 U-0	U-0 U-0 U-0	U-0 U-0
	— — —	— — — —	—
15:8	R/W-0 U-0	U-0 U-0	R/W-0	U-0 U-0 U-0
	ON	—	—	—	CNSTYLE	—	—	—
7:0	U-0 U-0 U-0	U-0 U-0 U-0	U-0 U-0
	— — —	— — — —	—

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 31-16 Unimplemented: Read as '0'

bit 15 ON: Change Notification (CN) Control On bit

1 = CN is enabled

0 = CN is disabled

bit 14-12 Unimplemented: Read as '0'

bit 11 CNSTYLE: Change Notification Style Selection bit

1 = Edge style (detects edge transitions, CNFx bits are used for a Change Notice event)

0 = Mismatch style (detects change from last PORTx read, CNSTATx bits are used for a Change Notification event)

bit 10-0 Unimplemented: Read as '0'

10.0 TIMER1

Note: This data sheet summarizes the features of the PIC32MM0064GPL036 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 14. "Timers" (DS60001105) in the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32). The information in this data sheet supersedes the information in the FRM.

PIC32MM0064GPL036 family devices feature one synchronous/asynchronous 16-bit timer that can operate as a free-running interval timer for various timing applications and counting external events. This timer can be clocked from different sources, such as the Peripheral Bus Clock (PBCLK, 1:1 with SYSCLK), Secondary Oscillator (SOSC), T1CK pin or LPRC oscillator.

The following modes are supported by Timer1:

• Synchronous Internal Timer
- Synchronous Internal Gated Timer
• Synchronous External Timer
- Asynchronous External Timer

The timer has a selectable clock prescaler and can operate in Sleep and Idle modes.

FIGURE 10-1: TIMER1 BLOCK DIAGRAM

10.1 Timer1 Control Register

TABLE 10-1: TIMER1 REGISTER MAP

Legend: — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: All registers in this table have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively.

REGISTER 10-1: T1CON: TIMER1 CONTROL REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	U-0 U-0 U-0	U-0 U-0 U-0 U-0	U-0
	— — —	— — — — —
23:16	U-0 U-0 U-0	U-0 U-0 U-0 U-0	U-0
	— — —	— — — — —
15:8	R/W-0	U-0	R/W-0	R/W-0	R-0	U-0	R/W-0	R/W-0
	ON	—	SIDL	TWDIS	TWIP	—	TECS<1:0>
7:0	R/W-0	U-0	R/W-0	R/W-0	U-0	R/W-0	R/W-0	U-0
	TGATE	—	TCKPS<1:0>		—	TSYNC	TCS	—

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 31-16 Unimplemented: Read as '0'

bit 15 ON: Timer1 On bit

1 = Timer1 is enabled

0 = Timer1 is disabled

bit 14 Unimplemented: Read as '0'

bit 13 SIDL: Timer1 Stop in Idle Mode bit

1 = Discontinues operation when device enters Idle mode

0 = Continues operation even in Idle mode

bit 12 TWDIS: Asynchronous Timer1 Write Disable bit

1 = Writes to TMR1 are ignored until pending write operation completes

0 = Back-to-back writes are enabled (Legacy Asynchronous Timer mode functionality)

bit 11 TWIP: Asynchronous Timer1 Write in Progress bit

In Asynchronous Timer1 mode:

1 = Asynchronous write to TMR1 register is in progress

0 = Asynchronous write to TMR1 register is complete

In Synchronous Timer1 mode:

This bit is read as '0'.

bit 10 Unimplemented: Read as '0'

bit 9-8 TECS<1:0>: Timer1 External Clock Selection bits

11 = Reserved

10 = External clock comes from the LPRC

01 = External clock comes from the T1CK Pin

00 = External clock comes from the Secondary Oscillator (SOSC)

bit 7 TGATE: Timer1 Gated Time Accumulation Enable bit

When TCS = 1:

This bit is ignored.

When TCS = 0:

1 = Gated time accumulation is enabled

0 = Gated time accumulation is disabled

bit 6 Unimplemented: Read as '0'

bit 5-4 TCKPS<1:0>: Timer1 Input Clock Prescale Select bits

11 = 1:256 prescale value

10 = 1:64 prescale value

01 = 1:8 prescale value

00 = 1:1 prescale value

REGISTER 10-1: T1CON: TIMER1 CONTROL REGISTER (CONTINUED)

bit 3 Unimplemented: Read as '0'

bit 2 TSYNC: Timer1 External Clock Input Synchronization Selection bit

When TCS = 1:

1 = External clock input is synchronized

0 = External clock input is not synchronized

When TCS = 0:

This bit is ignored.

bit 1 TCS: Timer1 Clock Source Select bit

1 = External clock is defined by the TECS<1:0> bits

0 = Internal peripheral clock

bit 0 Unimplemented: Read as '0'

11.0 WATCHDOG TIMER (WDT)

Note: This data sheet summarizes the features of the PIC32MM0064GPL036 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 62. "Dual Watchdog Timer" (DS60001365) in the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32). The information in this data sheet supersedes the information in the FRM.

When enabled, the Watchdog Timer (WDT) can be used to detect system software malfunctions by resetting the device if the WDT is not cleared periodically in software. Various WDT time-out periods can be selected using the WDT postscaler. The WDT can also be used to wake the device from Sleep or Idle mode.

Some of the key features of the WDT module are:

• Configuration or Software Controlled
• User-Configurable Time-out Period
• Different Time-out Periods for Run and Sleep/Idle modes
• Operates from LPRC Oscillator in Sleep/Idle modes
  • Different Clock Sources for Run mode
• Can Wake the Device from Sleep or Idle

The Watchdog Timer can be cleared by writing the 16-bit value, 0x5743, to the upper half of the WDTCON register.

EXAMPLE 11-1: CODE SEQUENCE TO CLEAR THE WDT

unsigned short *pWdtClr; // 16-bit variable
// create a pointer to the upper half of WDTCON
pWdtClr = (unsigned short*)&WDTCON + 1;

main()
{
...user code
*pWdtClr = 0x5743; // clear the WDT
}

FIGURE 11-1: WATCHDOG TIMER BLOCK DIAGRAM

11.1 Watchdog Timer Control Registers

TABLE 11-1: WATCHDOG TIMER REGISTER MAP

Virtual Address (BF80_#)

Register Name

Bit Range

Bits

All Resets

31/15

30/14

29/13

28/12

27/11

26/10

25/9

24/8

23/7

22/6

21/5

20/4

19/3

18/2

17/1

16/0

3E80

WDTCON (1)

31:16

WDTCLRKEY<15:0>

0000

15:0

ON

—

—

RUNDIV<4:0>

CLKSEL<1:0>

SLPDIV<4:0>

WDTWINEN

xxxxx

Legend: x = unknown value on Reset; — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: This register has corresponding CLR, SET and INV registers at its virtual address, plus an offset of 0x4, 0x8 and 0xC, respectively.

REGISTER 11-1: WDTCON: WATCHDOG TIMER CONTROL REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	W-0 W-0	W-0 W-0 W-0 W-0	W-0 W-0
	WDTCLRKEY<15:8>
23:16	W-0 W-0	W-0 W-0 W-0 W-0	W-0 W-0
	WDTCLRKEY<7:0>
15:8	R/W-0 U-0	U-0 R-y R-y R-y	R-y R-y
	ON(1)	— — R	UNDIV<4:0>
7:0	R-y R-y R-y R-y R-y		R-y	R-y	R/W-y
	CLKSEL<1:0>		SLPDIV<4:0>					WDTWINEN

Legend:	y = Values set from Configuration bits on Reset
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 31-16 WDTCLRKEY<15:0>: Watchdog Timer Clear Key bits

To clear the Watchdog Timer to prevent a time-out, software must write the value, 0x5743, to this location using a single 16-bit write.

bit 15 ON: Watchdog Timer Enable bit ^(1)

1 = The WDT is enabled

0 = The WDT is disabled

bit 14-13 Unimplemented: Read as '0'

bit 12-8 RUNDIV<4:0>: Shadow Copy of Watchdog Timer Postscaler Value for Run Mode from Configuration bits On Reset, these bits are set to the values of the RWDTPS<4:0> Configuration bits in FWDT.

bit 7-6 CLKSEL<1:0>: Shadow Copy of Watchdog Timer Clock Selection Value for Run Mode from Configuration bits On Reset, these bits are set to the values of the RCLKSEL<1:0> Configuration bits in FWDT.

bit 5-1 SLPDIV<4:0>: Shadow Copy of Watchdog Timer Postscaler Value for Sleep/Idle Mode from Configuration bits On Reset, these bits are set to the values of the SWDTPS<4:0> Configuration bits in FWDT.

bit 0 WDTWINEN: Watchdog Timer Window Enable bit

On Reset, this bit is set to the inverse of the value of the inverse of the WINDIS Configuration bit in FWDT.

1 = Windowed mode is enabled

0 = Windowed mode is disabled

Note 1: This bit only has control when FWDTEN (FWDT<15>) = 0.

NOTES:

12.0 CAPTURE/COMPARE/PWM/ TIMER MODULES (MCCP AND SCCP)

Note: This data sheet summarizes the features of the PIC32MM0064GPL036 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 30. "Capture/Compare/PWM/Timer (MCCP and SCCP)" (DS60001381) in the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32). The information in this data sheet supersedes the information in the FRM.

12.1 Introduction

PIC32MM0064GPL036 family devices include three Capture/Compare/PWM/Timer (CCP) modules. These modules are similar to the multipurpose timer modules found on many other 32-bit microcontrollers. They also provide the functionality of the comparable input capture, output compare and general purpose timer peripherals found in all earlier PIC32 devices.

CCP modules can operate in one of three major modes:

• General Purpose Timer
• Input Capture
  • Output Compare/PWM

There are two different forms of the module, distinguished by the number of PWM outputs that the module can generate. Single Capture/Compare/PWM/Timer (SCCPs) output modules provide only one PWM output. Multiple Capture/Compare/PWM/Timer (MCCPs) output modules can provide up to six outputs and an extended range of output control features, depending on the pin count of the particular device.

All modules (SCCP and MCCP) include these features:

• User-Selectable Clock Inputs, including System Clock and External Clock Input Pins
• Input Clock Prescaler for Time Base
• Output Postscaler for module Interrupt Events or Triggers

• Synchronization Output Signal for Coordinating other MCCP/SCCP modules with User-Configurable Alternate and Auxiliary Source Options

• Fully Asynchronous Operation in All Modes and in Low-Power Operation

• Special Output Trigger for ADC Conversions
• 16-Bit and 32-Bit General Purpose Timer modes with Optional Gated Operation for Simple Time Measurements
• Capture modes:
• Backward compatible with previous input capture peripherals of the PIC32 family
• 16-bit or 32-bit capture of time base on external event
• Up to four-level deep FIFO capture buffer
• Capture source input multiplexer
• Gated capture operation to reduce noise-induced false captures

- Output Compare/PWM modes:

• Backward compatible with previous output compare peripherals of the PIC32 family
• Single Edge and Dual Edge Compare modes
• External Input mode

MCCP modules also include these extended PWM features:

• Single Output Steerable mode
• Brush DC Motor (Forward and Reverse) modes
  • Half-Bridge with Dead-Time Delay mode
• Push-Pull PWM mode
• Output Scan mode
• Auto-Shutdown with Programmable Source and Shutdown State
  • Programmable Output Polarity
  • Center-Aligned Compare mode
  • Variable Frequency Pulse mode

The SCCP and MCCP modules can be operated in only one of the three major modes (Capture, Compare or Timer) at any time. The other modes are not available unless the module is reconfigured.

A conceptual block diagram for the module is shown in Figure 12-1. All three modes use the time base generator and the common Timer register pair (CCPxTMR). Other shared hardware components, such as comparators and buffer registers, are activated and used as a particular mode requires.

FIGURE 12-1: MCCP/SCCP CONCEPTUAL BLOCK DIAGRAM

Note 1: Refer to Figure 8-2 for REFO connection.

12.2 Registers

Each MCCP/SCCP module has up to seven control and status registers:

• CCPxCON1 (Register 12-1) controls many of the features common to all modes, including input clock selection, time base prescaling, timer synchronization, Trigger mode operations and postscaler selection for all modes. The module is also enabled and the operational mode is selected from this register.
• CCPxCON2 (Register 12-2) controls auto-shutdown and restart operation, primarily for PWM operations, and also configures other input capture and output compare features, and configures auxiliary output operation.
• CCPxCON3 (Register 12-3) controls multiple output PWM dead time, controls the output of the output compare and PWM modes, and configures the PWM Output mode for the MCCP modules.
• CCPxSTAT (Register 12-4) contains read-only status bits showing the state of module operations.

Each module also includes eight buffer/counter registers that serve as Timer Value registers or data holding buffers:

• CCPxTMR is the 32-Bit Timer/Counter register
• CCPxPR is the 32-Bit Timer Period register
• CCPxR is the 32-bit primary data buffer for output compare operations
• CCPxBUF(H/L) registers are the 32-bit buffer register pair, which are used in input capture FIFO operations

TABLE 12-1: MCCP/SCCP REGISTER MAP

Virtual Address(BF80_#)	RegisterName1	Bit Range	Bits																	All Resets
			31/15 30	14 29/13 28	12 27/11	26/10 25/9	24/8 23/7 22	6 21/5 20/4	19/3 18/2 17/1			16/0
0100	CCP1CON1	31:16	OPSSRC	RTRGEN	—	—	OPS<3:0>					TRIGEN	ONESHOT	ALTSYNC	SYNC<4:0>					0000
		15:0	ON	—	SIDL	CCPSLP	TMRSYNC	CLKSEL<2:0>				TMRPS<1:0>		T32	CCSEL	MOD<3:0>				0000
0110	CCP1CON2	31:16	OENSYNC	—	OCFEN	OCEEN	OCDEN	OCCEN	OCBEN	OCAEN		ICGSM<1:0>		—	AUXOUT<1:0>		ICS<2:0>			0100
		15:0	PWMRSEN	ASDGM	—	SSDG	—	—	—	—		ASDG<7:0>								0000
0120	CCP1CON3	31:16	OETRIG	OSCNT<2:0>			—	OUTM<2:0>				—	—	POLACE	POLBDF	PSSACE<1:0>		PSSBDF<1:0>		0000
		15:0	—	—	—	—	—	—	—	—		—	—	DT<5:0>						0000
0130	CCP1STAT	31:16	—	—	—	—	—	—	—	—		—	—	—	PRLWIP	TMRHWIP	TMRLWIP	RBWIP	RAWIP	0000
		15:0	—	—	—	—	—	ICCARM	—	—		CCPTRIG	TRSET	TRCLR	ASEVT	SCEVT	ICDIS	ICOV	ICBNE	0000
0140	CCP1TMR	31:16	CCP1 TMRH<15:0>																	0000
		15:0	CCP1 TMRL<15:0>																	0000
0150	CCP1PR	31:16	CCP1 PRH<15:0>																	0000
		15:0	CCP1 PRL<15:0>																	0000
0160	CCP1RA	31:16	—	—	—	—	—	—	—	—		—	—	—	—	—	—	—	—	0000
		15:0	CMPA<15:0>																	0000
0170	CCP1RB	31:16	—	—	—	—	—	—	—	—		—	—	—	—	—	—	—	—	0000
		15:0	CMPB<15:0>																	0000
0180	CCP1BUF	31:16	CCP1 BUFH<15:0>																	0000
		15:0	CCP1 BUFL<15:0>																	0000
0200	CCP2CON1	31:16	OPSSRC	RTRGEN	—	—	OPS<3:0>					TRIGEN	ONESHOT	ALTSYNC	SYNC<4:0>					0000
		15:0	ON	—	SIDL	CCPSLP	TMRSYNC	CLKSEL<2:0>				TMRPS< 1:0>		T32	CCSEL	MOD<3:0>				0000
0210	CCP2CON2	31:16	OENSYNC	—	—	—	—	—	—	OCAEN		ICGSM<1:0>		—	AUXOUT<1:0>		ICS<2:0>			0100
		15:0	PWMRSEN	ASDGM	—	SSDG	—	—	—	—		ASDG<7:0>								0000
0220	CCP2CON3	31:16	OETRIG	—	—	—	—	—	—	—		—	—	POLACE	—	PSSACE<1:0>		—	—	0000
		15:0	—	—	—	—	—	—	—	—		—	—	—	—	—	—	—	—	0000
0230	CCP2STAT	31:16	—	—	—	—	—	—	—	—		—	—	—	PRLWIP	TMRHWIP	TMRLWIP	RBWIP	RAWIP	0000
		15:0	—	—	—	—	—	ICGARM	—	—		CCPTRIG	TRSET	TRCLR	ASEVT	SCEVT	ICDIS	ICOV	ICBNE	0000
0240	CCP2TMR	31:16	CCP2 TMRH<15:0>																	0000
		15:0	CCP2 TMRL<15:0>																	0000
0250	CCP2PR	31:16	CCP2 PRH<15:0>																	0000
		15:0	CCP2 PRL<15:0>																	0000

Legend: — = unimplemented, read as '0'. Reset values are shown in hexadecimal
Note 1: All registers in this table have corresponding CLR, SET and INV registers at their virtual address, plus an offset of 0x4, 0x8 and 0xC, respectively.

TABLE 12-1: MCCP/SCCP REGISTER MAP (CONTINUED)

Virtual Address(BF60 #)	Register Name(1)	Bit Range	Bits																	All Resets
			31/15	30/14	29/13	28/12	27/11	26/10	25/9	24/8	23/7	22/6	21/5	20/4	19/3	18/2	17/1	16/0
0260	CCP2RA	31:16	——	——	——	——	——													0000
		15:0	CMPA<15:0>																	0000
0270	CCP2RB	31:16	——	——	——	——	——													0000
		15:0	CMPB<15:0>																	0000
0280	CCP2BUF	31:16	CCP2 BUFH<15:0>																	0000
		15:0	CCP2 BUFL<15:0>																	0000
0300	CCP3CON1	31:16	OPSSRC	RTRGEN	—	—	OPS<3:0>				TRIGEN	ONESHOT	ALTSYNC	SYNC<4:0>						0000
		15:0	ON	—	SIDL	CCPSLP	TMRSYNC	CLKSEL<2:0>			TMRPS<1:0>		T32	CCSEL	MOD<3:0>					0000
0310	CCP3CON2	31:16	OENSYNC	—	—	—	—	—	—	OCAEN	ICGSM<1:0>		—	AUXOUT<1:0>		ICS<2:0>				0100
		15:0	PWMRSEN	ASDGM	—	SSDG	—	—	—	—	ASDG<7:0>									0000
0320	CCP3CON3	31:16	OETRIG	OSCNT<2:0>			—	—	—	—	—	—	POLACE	—	PSSACE<1:0>		—	—	0000
		15:0	——	——	——	——	——													0000
0330	CCP3STAT	31:16	—	—	—	—	—	—	—	—	—	—	—	PRLWIP	TMRHWIP	TMRLWIP	RBWIP	RAWIP	0000
		15:0	—	—	—	—	—	ICGARM	—	—	CCPTRIG	TRSET	TRCLR	ASEVT	SCEVT	ICDIS	ICOV	ICBNE	0000
0340	CCP3TMR	31:16	CCP3 TMRH<15:0>																	0000
		15:0	CCP3 TMRL<15:0>																	0000
0350	CCP3PR	31:16	CCP3 PRI<15:0>																	0000
		15:0	CCP3 PRL<15:0>																	0000
0360	CCP3RA	31:16	——	——	——	——	——													0000
		15:0	CMPA<15:0>																	0000
0370	CCP3RB	31:16	——	——	——	——	——													0000
		15:0	CMPB<15:0>																	0000
0380	CCP3BUF	31:16	CCP3 BUFH<15:0>																	0000
		15:0	CCP3 BUFL<15:0>																	0000

Legend: — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: All registers in this table have corresponding CLR, SET and INV registers at their virtual address, plus an offset of 0x4, 0x8 and 0xC, respectively.

REGISTER 12-1: CCPxCON1: CAPTURE/COMPARE/PWMx CONTROL 1 REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	R/W-0 R/W-0	U-0 U-0 R/W-0	R/W-0 R/W-0 R/W-0
	OPSSRC ^(1)	RTRGEN ^(2)	— — OPS<3:0>		(3)
23:16	R/W-0 R/W-0	R/W-0 R/W-0 R/W-0	R/W-0 R/W-0 R/W-0	R/W-0
	TRIGEN ONESHOT ALTSYNC			SYNC<4:0>
15:8	R/W-0	U-0 R/W-0	R/W-0 R/W-0 R/W-0	R/W-0 R/W-0 R/W-0
	ON ^(1)	—	SIDL	CCPSLP	TMRSYNC	CLKSEL<2:0>
7:0	R/W-0 R/W-0	R/W-0 R/W-0 R/W-0	R/W-0 R/W-0 R/W-0	R/W-0
	TMRPS<1:0>		T32	CCSEL	MOD<3:0>

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 31 OPSSRC: Output Postscaler Source Select bit ^(1)

1 = Output postscaler scales the Special Event Trigger output events

0 = Output postscaler scales the timer interrupt events

bit 30 RTRGEN: Retrigger Enable bit ^(2)

1 = Time base can be retriggered when CCPTRIG = 1

0 = Time base may not be retriggered when CCPTRIG = 1

bit 29-28 Unimplemented: Read as '0'

bit 27-24 OPS<3:0>: CCPx Interrupt Output Postscale Select bits ^(3)

1111 = Interrupt every 16th time base period match

1110 = Interrupt every 15th time base period match

...

0100 = Interrupt every 5th time base period match

0011 = Interrupt every 4th time base period match or 4th input capture event

0010 = Interrupt every 3rd time base period match or 3rd input capture event

0001 = Interrupt every 2nd time base period match or 2nd input capture event

0000 = Interrupt after each time base period match or input capture event

bit 23 TRIGEN: CCPx Triggered Enable bit

1 = Triggered operation of the timer is enabled

0 = Triggered operation of the timer is disabled

bit 22 ONESHOT: One-Shot Mode Enable bit

1 = One-Shot Triggered mode is enabled; trigger duration is set by OSCNT<2:0>

0 = One-Shot Triggered mode is disabled

bit 21 ALTSYNC: CCPx Clock Select bit

1 = An alternate signal is used as the module synchronization output signal

0 = The module synchronization output signal is the Time Base Reset/rollover event

Note 1: This control bit has no function in Input Capture modes.

2: This control bit has no function when TRIGEN = 0.

3: Values greater than '0011' will cause a FIFO buffer overflow in Input Capture mode.

4: Refer to Figure 8-2 for REFO connection.

5: Not available on SCCP modules.

REGISTER 12-1: CCPxCON1: CAPTURE/COMPARE/PWMx CONTROL 1 REGISTER (CONTINUED)
bit 20-16 SYNC<4:0>: CCPx Synchronization Source Select bits 11111 = Timer is in the Free-Running mode and rolls over at FFFFh (Timer Period register is ignored) 11110 = Reserved

...
11100 = Reserved
11011 = Time base is synchronized to the start of ADC conversion
11010 = Reserved
11001 = Time base is synchronized to Comparator 2
11000 = Time base is synchronized to Comparator 1
10111 = Reserved

...
10010 = Reserved
10001 = Time base is synchronized to CLC2
10001 = Time base is synchronized to CLC1
01111 = Reserved
01110 = Reserved
01101 = Time base is synchronized to the INT4 pin (remappable)
01100 = Time base is synchronized to the INT3 pin
01011 = Time base is synchronized to the INT2 pin
01010 = Time base is synchronized to the INT1 pin
01001 = Time base is synchronized to the INT0 pin
01000 = Reserved

...
00101 = Reserved
00100 = Time base is synchronized to SCCP3
00011 = Time base is synchronized to SCCP2
00010 = Time base is synchronized to MCCP1
00001 = Time base is synchronized to this MCCP/SCCP
00000 = No external synchronization; timer rolls over at FFFFh or matches with the Timer Period register

bit 15 ON: CCPx Module Enable bit (1)
1 = Module is enabled with the operating mode specified by the MOD<3:0> bits 0 = Module is disabled
bit 14 Unimplemented: Read as '0'

bit 13 SIDL: CCPx Stop in Idle Mode bit
1 = Discontinues module operation when device enters Idle mode 0 = Continues module operation in Idle mode

bit 12 CCPSLP: CCPx Sleep Mode Enable bit
1 = Module continues to operate in Sleep modes 0 = Module does not operate in Sleep modes
bit 11 TMRSYNC: Time Base Clock Synchronization bit

1 = Module time base clock is synchronized to internal system clocks; timing restrictions apply 0 = Module time base clock is not synchronized to internal system clocks

Note 1: This control bit has no function in Input Capture modes.
2: This control bit has no function when TRIGEN = 0. 3: Values greater than '0011' will cause a FIFO buffer overflow in Input Capture mode. 4: Refer to Figure 8-2 for REFO connection. 5: Not available on SCCP modules.

REGISTER 12-1: CCPxCON1: CAPTURE/COMPARE/PWMx CONTROL 1 REGISTER (CONTINUED)

bit 10-8 CLKSEL<2:0>: CCPx Time Base Clock Select bits

111 = TCKIA pin (remappable)

110 = TCKIB pin (remappable)

101 = Reserved

100 = Reserved

011 = CLC1 output for MCCP1 and SCCP2/CLC2 output for SCCP3

010 = Secondary Oscillator (SOSC) clock

001 = REFCLKO output clock ^(4)

000 = System clock (Fsys)

bit 7-6 TMRPS<1:0>: CCPx Time Base Prescale Select bits

11 = 1:64 prescaler

10 = 1:16 prescaler

01 = 1:4 prescaler

00 = 1:1 prescaler

bit 5 T32: 32-Bit Time Base Select bit

1 = 32-bit time base for timer, single edge output compare or input capture function

0 = 16-bit time base for timer, single edge output compare or input capture function

bit 4 CCSEL: Capture/Compare Mode Select bit

1 = Input Capture mode

0 = Output Compare/PWM or Timer mode (exact function is selected by the MOD<3:0> bits)

bit 3-0 MOD<3:0>: CCPx Mode Select bits

CCSEL = 1 (Input Capture modes):

1xxx = Reserved

011x = Reserved

0101 = Capture every 16th rising edge

0100 = Capture every 4th rising edge

0011 = Capture every rising and falling edge

0010 = Capture every falling edge

0001 = Capture every rising edge

0000 = Capture every rising and falling edge (Edge Detect mode)

CCSEL = 0 (Output Compare modes):

1111 = External Input mode: Pulse generator is disabled, source is selected by ICS<2:0>

1110 = Reserved

110x = Reserved

10xx = Reserved

0111 = Variable Frequency Pulse mode ^5

0110 = Center-Aligned PWM mode, buffered ^(5)

0101 = Dual Edge PWM mode, buffered

0001 = 16-Bit/32-Bit Single Edge mode: Drives output high on compare match

0000 = 16-Bit/32-Bit Timer mode: Output functions are disabled

Note 1: This control bit has no function in Input Capture modes.

2: This control bit has no function when TRIGEN = 0.

3: Values greater than '0011' will cause a FIFO buffer overflow in Input Capture mode.

4: Refer to Figure 8-2 for REFO connection.

5: Not available on SCCP modules.

REGISTER 12-2: CCPxCON2: CAPTURE/COMPARE/PWMx CONTROL 2 REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	R/W-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-1
	OENSYNC — O		C (1)	FOCEENE(1)	OCINEN(1)	OCCEN(1)	OCBEN(1)	OCAEN
23:16	R/W-0 R/W-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
	ICGSM<1:0> — AUXOUT<1:0>			ICS<2:0>
15:8	R/W-0 R/W-0 U-0 R/W-0		U-0	U-0	U-0 U-0
	PWMRSEN	ASDGM	—	SSDG	—	—	—	—
7:0	R/W-0 R/W-0	R/W-0 R/W-0 R/W-0 R/W-0 R/W-0		W-0 R/W-0 R/W-0
	ASDG<7:0>

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 31 OENSYNC: Output Enable Synchronization bit

1 = Update by output enable bits occurs on the next Time Base Reset or rollover
0 = Update by output enable bits occurs immediately

bit 30 Unimplemented: Read as '0'

bit 29-24 OCEN: Output Enable/Steering Control bits ^(1)

1 = OCx pin is controlled by the CCPx module and produces an output compare or PWM signal
0 = OCx pin is not controlled by the CCPx module; the pin is available to the port logic or another peripheral multiplexed on the pin

bit 23-22 ICGSM<1:0>: Input Capture Gating Source Mode Control bits

11 = Reserved
10 = One-Shot mode: Falling edge from gating source disables future capture events (ICDIS = 1)
01 = One-Shot mode: Rising edge from gating source enables future capture events (ICDIS = 0)
00 = Level-Sensitive mode: A high level from gating source will enable future capture events; a low level will disable future capture events

bit 21 Unimplemented: Read as '0'

bit 20-19 AUXOUT<1:0>: Auxiliary Output Signal on Event Selection bits

11 = Input capture or output compare event; no signal in Timer mode
10 = Signal output depends on module operating mode
01 = Time base rollover event (all modes)
00 = Disabled

bit 18-16 ICS<2:0>: Input Capture Source Select bits

111 = Reserved
110 = Reserved
101 = CLC2 output
100 = CLC1 output
011 = Reserved
010 = Comparator 2 output
001 = Comparator 1 output
000 = ICMx pin (remappable)

bit 15 PWMRSEN: CCPx PWM Restart Enable bit

1 = ASEVT bit clears automatically at the beginning of the next PWM period, after the shutdown input has ended
0 = ASEVT must be cleared in software to resume PWM activity on output pins

Note 1: OCFEN through OCBEN (bits<29:25>) are implemented in MCCP modules only.

REGISTER 12-2: CCPxCON2: CAPTURE/COMPARE/PWMx CONTROL 2 REGISTER (CONTINUED)

bit 14 ASDGM: CCPx Auto-Shutdown Gate Mode Enable bit

1 = Waits until the next Time Base Reset or rollover for shutdown to occur
0 = Shutdown event occurs immediately

bit 13 Unimplemented: Read as '0'

bit 12 SSDG: CCPx Software Shutdown/Gate Control bit

1 = Manually forces auto-shutdown, timer clock gate or input capture signal gate event (setting the ASDGM bit still applies)
0 = Normal module operation

bit 11-8 Unimplemented: Read as '0'

bit 7-0 ASDG<7:0>: CCPx Auto-Shutdown/Gating Source Enable bits

1xxx xxxx = Auto-shutdown is controlled by the OCFB pin (remappable)
x1xx xxxx = Auto-shutdown is controlled by the OCFA pin (remappable)
xx1x xxxx = Auto-shutdown is controlled by CLC1 for MCCP1/SCCP2 and by CLC2 for SCCP3
xxxx1 xxxx = Auto-shutdown is controlled by the SCCP2 output for MCCP1 and by MCCP1 for SCCP2/SCCP3
xxxx 1xxx = Auto-shutdown is controlled by the SCCP3 output for MCCP1/SCCP2 and by SCCP2 for SCCP3
xxxx x1xx = Reserved
xxxx xx1x = Auto-shutdown is controlled by Comparator 2
xxxx xxx1 = Auto-shutdown is controlled by Comparator 1

Note 1: OCFEN through OCBEN (bits<29:25>) are implemented in MCCP modules only.

REGISTER 12-3: CCPxCON3: CAPTURE/COMPARE/PWMx CONTROL 3 REGISTER

Bit Range	Bit31/23/15/7	Bit30/22/14/6	Bit29/21/13/5	Bit28/20/12/4	Bit27/19/11/3	Bit26/18/10/2	Bit25/17/9/1	Bit24/16/8/0
31:24	R/W-0 R/W-0 R/W-0 R/W-0 U-0 R/W-0 R/W-0 R/W-0
	OETRIG O SCNT<2:0> — O				U T (1)
23:16	U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
	— — POLACE POLBDF			(1)	PSSACE<1:0> PSSBDF<1:0>			(1)
15:8	U-0 U-0 U-0 U-0 U-0 U-0 U-0
	— — — — — — — —		— —
7:0	U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
	—	—	DT<5:0>(1)

Legend:

R = Readable bit	W = Writable bit U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 31 OETRIG: PWM Dead-Time Select bit

1 = For Triggered mode (TRIGEN = 1), the module does not drive enabled output pins until triggered 0 = Normal output pin operation

bit 30-28 OSCNT<2:0>: One-Shot Event Count bits

Extends the duration of a one-shot trigger event by an additional n clock cycles (n+1 total cycles).

111 = 7 timer count periods (8 cycles total)

110 = 6 timer count periods (7 cycles total)

101 = 5 timer count periods (6 cycles total)

100 = 4 timer count periods (5 cycles total)

011 = 3 timer count periods (4 cycles total)

010 = 2 timer count periods (3 cycles total)

001 = 1 timer count period (2 cycles total)

000 = Does not extend the one-shot trigger event (the event takes 1 timer count period)

bit 27 Unimplemented: Read as '0'

bit 26-24 OUTM<2:0>: PWMx Output Mode Control bits ^(1)

111 = Reserved

110 = Output Scan mode

101 = Brush DC Output mode, forward

100 = Brush DC Output mode, reverse

011 = Reserved

010 = Half-Bridge Output mode

001 = Push-Pull Output mode

000 = Steerable Single Output mode

bit 23-22 Unimplemented: Read as '0'

bit 21 POLACE: CCPx Output Pins, OCxA, OCxC and OCxE, Polarity Control bit

1 = Output pin polarity is active-low

0 = Output pin polarity is active-high

bit 20 POLBDF: CCPx Output Pins, OCxB, OCxD and OCxF, Polarity Control bit ^(1)

1 = Output pin polarity is active-low

0 = Output pin polarity is active-high

bit 19-18 PSSACE<1:0>: PWMx Output Pins, OCxA, OCxC and OCxE, Shutdown State Control bits

11 = Pins are driven active when a shutdown event occurs

10 = Pins are driven inactive when a shutdown event occurs

0x = Pins are in a high-impedance state when a shutdown event occurs

Note 1: These bits are implemented in MCCP modules only.

REGISTER 12-3: CCPxCON3: CAPTURE/COMPARE/PWMx CONTROL 3 REGISTER (CONTINUED)

bit 17-16 PSSBDF<1:0>: PWMx Output Pins, OCxB, OCxD and OCxF, Shutdown State Control bits ^(1)

11 = Pins are driven active when a shutdown event occurs

10 = Pins are driven inactive when a shutdown event occurs

0x = Pins are in a high-impedance state when a shutdown event occurs

bit 15-6 Unimplemented: Read as '0'

bit 5-0 DT<5:0>: PWM Dead-Time Select bits (1)

111111 = Inserts 63 dead-time delay periods between complementary output signals

111110 = Inserts 62 dead-time delay periods between complementary output signals

...

000010 = Inserts 2 dead-time delay periods between complementary output signals

000001 = Inserts 1 dead-time delay period between complementary output signals

000000 = Dead-time logic is disabled

Note 1: These bits are implemented in MCCP modules only.

REGISTER 12-4: CCPxSTAT: CAPTURE/COMPARE/PWMx STATUS REGISTER

Bit Range	Bit31/23/15/7	Bit30/22/14/6	Bit29/21/13/5	Bit28/20/12/4	Bit27/19/11/3	Bit26/18/10/2	Bit25/17/9/1	Bit24/16/8/0
31:24	U-0 U-0 U-0 U-0 U-0 U-0
	— — —	— — — —	—
23:16	U-0 U-0 U-0 R-0 R-0 R-0 R-0
	—	—	—	PRLWIP	TMRHWIP	TMRLWIP	RBWIP	RAWIP
15:8	U-0 U-0 U-0 U-0 U-0		R/C-0	U-0 U-0
	—	—	—	—	—	ICGARM(1)	—	—
7:0	R-0	W1-0	W1-0	R/C-0	R/C-0	R/C-0	R/C-0	R/C-0
	CCPTRIG	TRSET	TRCLR	ASEVT	SCEVT	ICDIS	ICOV	ICBNE

Legend:	C = Clearable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 31-21 Unimplemented: Read as '0'

bit 20 PRLWIP: CCPxPRL Write in Progress Status bit

1 = An update to the CCPxPRL register with the buffered contents is in progress
0 = An update to the CCPxPRL register is not in progress

bit 19 TMRHWIP: CCPxTMRH Write in Progress Status bit

1 = An update to the CCPxTMRH register with the buffered contents is in progress
0 = An update to the CCPxTMRH register is not in progress

bit 18 TMRLWIP: CCPxTMRL Write in Progress Status bit

1 = An update to the CCPxTMRL register with the buffered contents is in progress
0 = An update to the CCPxTMRL register is not in progress

bit 17 RBWIP: CCPxRB Write in Progress Status bit

1 = An update to the CCPxRB register with the buffered contents is in progress
0 = An update to the CCPxRB register is not in progress

bit 16 RAWIP: CCPxRA Write in Progress Status bit

1 = An update to the CCPxRA register with the buffered contents is in progress
0 = An update to the CCPxRA register is not in progress

bit 15-11 Unimplemented: Read as '0'

bit 10 ICGARM: Input Capture Gate Arm bit ^(1)

A write of '1' to this location will arm the input capture gating logic for a one-shot gate event when ICGSM<1:0> = 01 or 10. The bit location reads as '0'.

bit 9-8 Unimplemented: Read as '0'

bit 7 CCPTRIG: CCPx Trigger Status bit

1 = Timer has been triggered and is running (set by hardware or writing to TRSET)
0 = Timer has not been triggered and is held in Reset (cleared by writing to TRCLR)

bit 6 TRSET: CCPx Trigger Set Request bit

Write '1' to this location to trigger the timer when TRIGEN = 1 (location always reads '0').

bit 5 TRCLR: CCPx Trigger Clear Request bit

Write '1' to this location to cancel the timer trigger when TRIGEN = 1 (location always reads '0').

bit 4 ASEVT: CCPx Auto-Shutdown Event Status/Control bit

1 = A shutdown event is in progress; CCPx outputs are in the shutdown state
0 = CCPx outputs operate normally

Note 1: This is not a physical bit location and will always read as '0'. A write of '1' will initiate the hardware event.

REGISTER 12-4: CCPxSTAT: CAPTURE/COMPARE/PWMx STATUS REGISTER (CONTINUED)

bit 3 SCEVT: Single Edge Compare Event Status bit

1 = A single edge compare event has occurred
0 = A single edge compare event has not occurred

bit 2 ICDIS: Input Capture Disable bit

1 = Event on input capture pin does not generate a capture event
0 = Event on input capture pin will generate a capture event

bit 1 ICOV: Input Capture Buffer Overflow Status bit

1 = The input capture FIFO buffer has overflowed
0 = The input capture FIFO buffer has not overflowed

bit 0 ICBNE: Input Capture Buffer Status bit

1 = The input capture buffer has data available
0 = The input capture buffer is empty

Note 1: This is not a physical bit location and will always read as '0'. A write of '1' will initiate the hardware event.

NOTES:

13.0 SERIAL PERIPHERAL INTERFACE (SPI) AND INTER-IC SOUND (I²S)

Note: This data sheet summarizes the features of the PIC32MM0064GPL036 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 23. "Serial Peripheral Interface (SPI)" (DS61106) in the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32). The information in this data sheet supersedes the information in the FRM.

The SPI/I²S module is a synchronous serial interface that is useful for communicating with external peripherals and other microcontroller devices, as well

as digital audio devices. These peripheral devices may be serial EEPROMs, shift registers, display drivers, Analog-to-Digital Converters (ADC), etc.

The SPI/I²S module is compatible with Motorola® SPI and SIOP interfaces.

Some of the key features of the SPI module are:

• Master and Slave modes Support
• Four Different Clock Formats
• Enhanced Framed SPI Protocol Support
- User-Configurable 8-Bit, 16-Bit and 32-Bit Data Width
- Separate SPI FIFO Buffers for Receive and Transmit:

- FIFO buffers act as 4/8/16-level deep FIFOs based on 32/16/8-bit data width

• Programmable Interrupt Event on Every 8-Bit, 16-Bit and 32-Bit Data Transfer
  • Operation during Sleep and Idle modes
  • Audio Codec Support: - I²S protocol

FIGURE 13-1: SPI/I ^2 S MODULE BLOCK DIAGRAM
    U["Note 1: Access the SPIxTXB and SPIxRXB FIFOs via the SPIxBUF register."]
    V["2: Refer to Figure 8-2 for REFO connection."]

13.1 SPI Control Registers

TABLE 13-1: SPI1 AND SPI2 REGISTER MAP

Virtual Address(BF80 #)	Register Name(1)	Bit Range	Bits																All Resets
			31/15	30/14	29/13	28/12	27/11	26/10	25/9	24/8	23/7	22/6	21/5	20/4	19/3	18/2	17/1	16/0
8080	SPI1CON	31:16	FRMEN	FRMSYNC	FRMPOL	MSSEN	FRMSYPW	FRMCNT<2:0>			MCLKSEL	—	—	—	—	—	SPIFE	ENHBUF	0000
		15:0	ON	—	SIDL	DISSDO	MODE32	MODE16	SMP	CKE	SSEN	CKP	MSTEN	DISSDI	STXISEL<1:0>		SRXISEL<1:0>		0000
8090	SPI1STAT	31:16	—	—	—	RXBUFELM<4:0>					—	—	—	TXBUFELM<4:0>					0000
		15:0	—	—	—	FRMERR	SPIBUSY	—	—	SPITUR	SRMT	SPIROV	SPIRBE	—	SPITBE	—	SPITBF	SPIRBF	0008
80A0	SPI1BUF	31:16	DATA<31:0>																0000
		15:0																	0000
80B0	SPI1BRG	31:16	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	0000
		15:0	—	—	—	BRG<12:0>													0000
80C0	SPI1CON2	31:16	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	0000
		15:0	SPISGNEXT	—	—	FRMERREN	SPIROVEN	SPITUREN	IGNROV	IGNTUR	AUDEN	—	—	—	AUDMONO	—	AUDMOD<1:0>		0000
8100	SPI2CON	31:16	FRMEN	FRMSYNC	FRMPOL	MSSEN	FRMSYPW	FRMCNT<2:0>			MCLKSEL	—	—	—	—	—	SPIFE	ENHBUF	0000
		15:0	ON	—	SIDL	DISSDO	MODE32	MODE16	SMP	CKE	SEN	CKP	MSTEN	DISSDI	STXISEL<1:0>		SRXISEL<1:0>		0000
8110	SPI2STAT	31:16	—	—	—	RXBUFELM<4:0>					—	—	—	TXBUFELM<4:0>					0000
		15:0	—	—	—	FRMERR	SPIBUSY	—	—	SPITUR	SRMT	SPIROV	SPIRBE	—	SPITBEE	—	SPITBF	SPIRBF	0008
8120	SPI2BUF	31:16	DATA<31:0>																0000
		15:0																	0000
8130	SPI2BRG	31:16	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	0000
		15:0	—	—	—	BRG<12:0>													0000
8140	SPI2CON2	31:16	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	0000
		15:0	SPISCNEXT	—	—	FRMERREN	SPIROVEN	SPITUREN	IGNROV	IGNTUR	AUDEN	—	—	—	AUDMONO	—	AUDMOD<1:0>		0000

Legend: — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: All registers in this table, except SPIxBUF, have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively.

REGISTER 13-1: SPIxCON: SPIx CONTROL REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	R/W-0 R/W-0	R/W-0 R/W-0	R/W-0 R/W-0 R/W-0	R/W-0
	FRMEN FRMSYNC FRMPOL MSSEN			FRMSYPW	FRMCNT<2:0>
23:16	R/W-0	U-0	U-0	U-0	U-0	U-0	R/W-0	R/W-0
	MCLKSEL^(1)	—	—	—	—	—	SPIFE	ENHBUF^(1)
15:8	R/W-0	U-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
	ON	—	SIDL	DISSDO^(4)	MODE32	MODE16	SMP	CKE^(2)
7:0	R/W-0 R/W-0	R/W-0 R/W-0	R/W-0 R/W-0 R/W-0	R/W-0
	SSEN	CKP^(3)	MSTEN	DISSDI^(4)	STXISEL<1:0>		SRXISEL<1:0>

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 31 FRMEN: Framed SPI Support bit

1 = Framed SPI support is enabled (SSx pin is used as the FSYNC1 input/output)
0 = Framed SPI support is disabled

bit 30 FRMSYNC: Frame Sync Pulse Direction Control on SSx Pin bit (Framed SPI mode only)

1 = Frame sync pulse input (Slave mode)
0 = Frame sync pulse output (Master mode)

bit 29 FRMPOL: Frame Sync Polarity bit (Framed SPI mode only)

1 = Frame pulse is active-high
0 = Frame pulse is active-low

bit 28 MSSEN: Master Mode Slave Select Enable bit

1 = Slave select SPI support is enabled; the SSxpin is automatically driven during transmission in Master mode, polarity is determined by the FRMPOL bit
0 = Slave select SPI support is disabled

bit 27 FRMSYPW: Frame Sync Pulse-Width bit

1 = Frame sync pulse is one character wide
0 = Frame sync pulse is one clock wide

bit 26-24 FRMCNT<2:0>: Frame Sync Pulse Counter bits

Controls the number of data characters transmitted per pulse. This bit is only valid in Framed mode.

111 = Reserved
110 = Reserved
101 = Generates a frame sync pulse on every 32 data characters
100 = Generates a frame sync pulse on every 16 data characters
011 = Generates a frame sync pulse on every 8 data characters
010 = Generates a frame sync pulse on every 4 data characters
001 = Generates a frame sync pulse on every 2 data characters
000 = Generates a frame sync pulse on every data character

Note 1: These bits can only be written when the ON bit = 0. Refer to Section 26.0 “Electrical Characteristics” for maximum clock frequency requirements.

2: This bit is not used in the Framed SPI mode. The user should program this bit to '0' for the Framed SPI mode (FRMEN = 1).
3: When AUDEN = 1, the SPI/I²S module functions as if the CKP bit is equal to '1', regardless of the actual value of the CKP bit.
4: These bits are present for legacy compatibility and are superseded by PPS functionality on these devices (see Section 9.8 "Peripheral Pin Select (PPS)" for more information).

REGISTER 13-1: SPIxCON: SPIx CONTROL REGISTER (CONTINUED)

bit 23 MCLKSEL: Master Clock Enable bit (1)

1 = REFCLKO is used by the Baud Rate Generator
0 = PBCLK is used by the Baud Rate Generator (1:1 with SYSCLK)

bit 22-18 Unimplemented: Read as '0'

bit 17 SPIFE: SPIx Frame Sync Pulse Edge Select bit (Framed SPI mode only)

1 = Frame synchronization pulse coincides with the first bit clock
0 = Frame synchronization pulse precedes the first bit clock

bit 16 ENHBUF: Enhanced Buffer Enable bit (1)

1 = Enhanced Buffer mode is enabled
0 = Enhanced Buffer mode is disabled

bit 15 ON: SPIx Module On bit

1 = SPIx module is enabled
0 = SPIx module is disabled

bit 14 Unimplemented: Read as '0'

bit 13 SIDL: SPIx Stop in Idle Mode bit

1 = Discontinues operation when CPU enters Idle mode
0 = Continues operation in Idle mode

bit 12 DISSDO: Disable SDOx Pin bit (4)

1 = SDOx pin is not used by the module; the pin is controlled by the associated PORTx register
0 = SDOx pin is controlled by the module

bit 11-10 MODE<32,16>: 32/16/8-Bit Communication Select bits

When AUDEN = 1: MODE32 MODE16 Communication

1 1 24-bit data, 32-bit FIFO, 32-bit channel/64-bit frame
1 0 32-bit data, 32-bit FIFO, 32-bit channel/64-bit frame
0 1 16-bit data, 16-bit FIFO, 32-bit channel/64-bit frame
0 0 16-bit data, 16-bit FIFO, 16-bit channel/32-bit frame

When AUDEN = 0: MODE32 MODE16 Communication

1 x 32-bit
0 1 16-bit
0 0 8-bit

bit 9 SMP: SPIx Data Input Sample Phase bit

Master mode (MSTEN = 1):
1 = Input data is sampled at the end of data output time
0 = Input data is sampled at the middle of data output time
Slave mode (MSTEN = 0):
SMP value is ignored when SPIx is used in Slave mode. The module always uses SMP = 0.

bit 8 CKE: SPIx Clock Edge Select bit (2)

1 = Serial output data changes on transition from active clock state to Idle clock state (see the CKP bit)
0 = Serial output data changes on transition from Idle clock state to active clock state (see the CKP bit)

Note 1: These bits can only be written when the ON bit = 0. Refer to Section 26.0 “Electrical Characteristics” for maximum clock frequency requirements.

2: This bit is not used in the Framed SPI mode. The user should program this bit to '0' for the Framed SPI mode (FRMEN = 1).

3: When AUDEN = 1, the SPI/I ^2 S module functions as if the CKP bit is equal to '1', regardless of the actual value of the CKP bit.

4: These bits are present for legacy compatibility and are superseded by PPS functionality on these devices (see Section 9.8 "Peripheral Pin Select (PPS)" for more information).

REGISTER 13-1: SPIxCON: SPIx CONTROL REGISTER (CONTINUED)

bit 7 SSEN: Slave Select Enable (Slave mode) bit

1 = SSx pin is used for Slave mode

0 = pin is not used for Slave mode, pin is controlled by port function

bit 6 CKP: Clock Polarity Select bit (3)

1 = Idle state for clock is a high level; active state is a low level

0 = Idle state for clock is a low level; active state is a high level

bit 5 MSTEN: Master Mode Enable bit

1 = Master mode

0 = Slave mode

bit 4 DISSDI: Disable SDIx bit (4)

1 = SDIx pin is not used by the SPIx module (pin is controlled by port function)

0 = SDIx pin is controlled by the SPIx module

bit 3-2 STXISEL<1:0>: SPIx Transmit Buffer Empty Interrupt Mode bits

11 = Interrupt is generated when the buffer is not full (has one or more empty elements)

10 = Interrupt is generated when the buffer is empty by one-half or more

01 = Interrupt is generated when the buffer is completely empty

00 = Interrupt is generated when the last transfer is shifted out of SPIxSR and transmit operations are complete

bit 1-0 SRXISEL<1:0>: SPIx Receive Buffer Full Interrupt Mode bits

11 = Interrupt is generated when the buffer is full

10 = Interrupt is generated when the buffer is full by one-half or more

01 = Interrupt is generated when the buffer is not empty

00 = Interrupt is generated when the last word in the receive buffer is read (i.e., buffer is empty)

Note 1: These bits can only be written when the ON bit = 0. Refer to Section 26.0 “Electrical Characteristics” for maximum clock frequency requirements.

2: This bit is not used in the Framed SPI mode. The user should program this bit to '0' for the Framed SPI mode (FRMEN = 1).

3: When AUDEN = 1, the SPI/I²S module functions as if the CKP bit is equal to '1', regardless of the actual value of the CKP bit.

4: These bits are present for legacy compatibility and are superseded by PPS functionality on these devices (see Section 9.8 "Peripheral Pin Select (PPS)" for more information).

REGISTER 13-2: SPIxCON2: SPIx CONTROL REGISTER 2

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	U-0 U-0 U-0	U-0 U-0 U-0 U-0	U-0
	— — —	— — —	— —
23:16	U-0 U-0 U-0	U-0 U-0 U-0 U-0	U-0
	— — —	— — —	— —
15:8	R/W-0	U-0	U-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
	SPISGNEXT	—	—	FRMERREN	SPIROVEN	SPITUREN	IGNROV	IGNTUR
7:0	R/W-0 U-0 U-0	U-0	R/W-0 U-0	R/W-0	R/W-0
	AUDEN^(1)	— — —	AUDMONO		(1,2)	—	AUDMOD<1:0>(1,2)

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 31-16 Unimplemented: Read as '0'

bit 15 SPISGNEXT: SPIx Sign-Extend Read Data from the RX FIFO bit

1 = Data from RX FIFO is sign-extended
0 = Data from RX FIFO is not sign-extended

bit 14-13 Unimplemented: Read as '0'

bit 12 FRMERREN: Enable Interrupt Events via FRMERR bit

1 = Frame error overflow generates error events
0 = Frame error does not generate error events

bit 11 SPIROVEN: Enable Interrupt Events via SPIROV bit

1 = Receive Overflow (ROV) generates error events
0 = Receive Overflow does not generate error events

bit 10 SPITUREN: Enable Interrupt Events via SPITUR bit

1 = Transmit Underrun (TUR) generates error events
0 = Transmit Underrun does not generate error events

bit 9 IGNROV: Ignore Receive Overflow (ROV) bit (for audio data transmissions)

1 = A ROV is not a critical error; during ROV, data in the FIFO is not overwritten by receive data
0 = A ROV is a critical error which stops SPIx operation

bit 8 IGNTUR: Ignore Transmit Underrun (TUR) bit (for audio data transmissions)

1 = A TUR is not a critical error and zeros are transmitted until the SPIxTXB is not empty
0 = A TUR is a critical error which stops SPIx operation

bit 7 AUDEN: Enable Audio Codec Support bit ^(1)

1 = Audio protocol is enabled
0 = Audio protocol is disabled

bit 6-4 Unimplemented: Read as '0'

bit 3 AUDMONO: Transmit Audio Data Format bit ^(1,2)

1 = Audio data is mono (each data word is transmitted on both left and right channels)
0 = Audio data is stereo

bit 2 Unimplemented: Read as '0'

bit 1-0 AUDMOD<1:0>: Audio Protocol Mode bits ^(1,2)

11 = PCM/DSP mode
10 = Right Justified mode
01 = Left Justified mode
00 = I²S mode

Note 1: These bits can only be written when the ON bit = 0.

2: These bits are only valid for AUDEN = 1.

Legend:	C = Clearable bit	HS = Hardware Settable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 31-29 Unimplemented: Read as '0'

bit 28-24 RXBUFELM<4:0>: Receive Buffer Element Count bits (valid only when ENHBUF = 1)

bit 23-21 Unimplemented: Read as '0'

bit 20-16 TXBUFELM<4:0>: Transmit Buffer Element Count bits (valid only when ENHBUF = 1)

bit 15-13 Unimplemented: Read as '0'

bit 12 FRMERR: SPIx Frame Error status bit 1 = Frame error is detected 0 = No frame error is detected This bit is only valid when FRMEN = 1.

bit 11 SPIBUSY: SPIx Activity Status bit

1 = SPIx peripheral is currently busy with some transactions

0 = SPIx peripheral is currently Idle

bit 10-9 Unimplemented: Read as '0'

bit 8 SPITUR: SPIx Transmit Underrun (TUR) bit

1 = Transmit buffer has encountered an underrun condition

0 = Transmit buffer has no underrun condition

This bit is only valid in Framed Sync mode; the underrun condition must be cleared by disabling/re-enabling the module.

bit 7 SRMT: Shift Register Empty bit (valid only when ENHBUF = 1)

1 = When the SPIx Shift register is empty

0 = When the SPIx Shift register is not empty

bit 6 SPIROV: SPIx Receive Overflow (ROV) Flag bit

1 = New data is completely received and discarded; the user software has not read the previous data in the SPIxBUF register

0 = No overflow has occurred

This bit is set in hardware; it can only be cleared (= 0) in software.

bit 5 SPIRBE: SPIx RX FIFO Empty bit (valid only when ENHBUF = 1)

1 = RX FIFO is empty (CPU Read Pointer (CRPTR) = SPI Write Pointer (SWPTR))

0 = RX FIFO is not empty (CRPTR ≠ SWPTR)

bit 4 Unimplemented: Read as '0'

REGISTER 13-3: SPIxSTAT: SPIx STATUS REGISTER (CONTINUED)

bit 3 SPITBE: SPIx Transmit Buffer Empty Status bit

1 = Transmit buffer, SPIxTXB, is empty

0 = Transmit buffer, SPIxTXB, is not empty

Automatically set in hardware when SPIx transfers data from SPIxTXB to SPIxSR. Automatically cleared in hardware when SPIxBUF is written to, loading SPIxTXB.

bit 2 Unimplemented: Read as '0'

bit 1 SPITBF: SPIx Transmit Buffer Full Status bit

1 = Transmit has not yet started, SPIxTXB is full

0 = Transmit buffer is not full

Standard Buffer mode:

Automatically set in hardware when the core writes to the SPIxBUF location, loading SPIxTXB. Automatically cleared in hardware when the SPIx module transfers data from SPIxTXB to SPIxSR.

Enhanced Buffer mode:

Set when the CPU Write Pointer (CWPTR) + 1 = SPI Read Pointer (SRPTR); cleared otherwise.

bit 0 SPIRBF: SPIx Receive Buffer Full Status bit

1 = Receive buffer, SPIxRXB, is full

0 = Receive buffer, SPIxRXB, is not full

Standard Buffer mode:

Automatically set in hardware when the SPIx module transfers data from SPIxSR to SPIxRXB. Automatically cleared in hardware when SPIxBUF is read from, reading SPIxRXB.

Enhanced Buffer mode:

Set when SWPTR + 1 = CRPTR; cleared otherwise.

14.0 UNIVERSAL ASYNCHRONOUS RECEIVER TRANSMITTER (UART)

Note: This data sheet summarizes the features of the PIC32MM0064GPL036 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 21. "UART" (DS60001107) in the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32). The information in this data sheet supersedes the information in the FRM.

The UART module is one of the serial I/O modules available in the PIC32MM0064GPL036 family devices. The UART is a full-duplex, asynchronous communication channel that communicates with peripheral devices and personal computers through protocols, such as RS-232, RS-485, LIN/J2602 and IrDA ^® . The module also supports the hardware flow control option with the UxCTS and UxRTS pins, and also includes an IrDA encoder and decoder.

The primary features of the UART module are:

• Full-Duplex, 8-Bit or 9-Bit Data Transmission
• Even, Odd or No Parity Options (for 8-bit data)
• One or Two Stop Bits

• Hardware Auto-Baud Feature

• Hardware Flow Control Option

- Fully Integrated Baud Rate Generator (BRG) with 16-Bit Prescaler

- Baud Rates Ranging from 47.7 bps to 6.26 Mbps at 25 MHz

- 8-Level Deep First-In-First-Out (FIFO) Transmit Data Buffer

• 8-Level Deep FIFO Receive Data Buffer

- Parity, Framing and Buffer Overrun Error Detection

- Support for Interrupt Only on Address Detect (9th bit = 1)

- Separate Transmit and Receive Interrupts

- Loopback mode for Diagnostic Support

• LIN/J2602 Protocol Support

- IrDA Encoder and Decoder with 16x Baud Clock Output for External IrDA Encoder/Decoder Support

• Supports Separate UART Baud Clock Input

- Ability to Continue to Run when a Receive Overflow (ROV) Condition Exists

- Ability to Run and Receive Data during Sleep mode

Figure 14-1 illustrates a simplified block diagram of the UART module.
FIGURE 14-1: UARTx SIMPLIFIED BLOCK DIAGRAM

14.1 UART Control Registers

TABLE 14-1: UART1 AND UART2 REGISTER MAP

Legend: — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: These registers have corresponding CLR, SET and INV registers at their virtual address, plus an offset of 0x4, 0x8 and 0xC, respectively.

REGISTER 14-1: UxMODE: UARTx MODE REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	U-0 U-0 U-0	U-0 U-0 U-0 U-0	U-0
	— — —	— — — — —
23:16	R/W-0	R/W-0	U-0	U-0	U-0	R/W-0	R/W-0	R/W-0
	SLPEN	ACTIVE	—	—	—	CLKSEL<1:0>		OVFDIS
15:8	R/W-0	U-0	R/W-0	R/W-0	R/W-0	U-0	R/W-0	R/W-0
	ON	—	SIDL	IREN	RTSMD	—	UEN<1:0>(2)
7:0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
	WAKE	LPBACK	ABAUD	RXINV	BRGH	PDSEL<1:0>		STSEL

Legend:

R = Readable bit	W = Writable bit U = Unimplemented bit, read as '0'
-n = Value at POR	‘1’ = Bit is set ‘0’ = Bit is cleared x = Bit is unknown

bit 31-24 Unimplemented: Read as '0'

bit 23 SLPEN: Run During Sleep Enable bit

1 = UARTx clock runs during Sleep

0 = UARTx clock is turned off during Sleep

bit 22 ACTIVE: UARTx Running Status bit

1 = UARTx is active (UxMODE register shouldn't be updated)

0 = UARTx is not active (UxMODE register can be updated)

bit 21-19 Unimplemented: Read as '0'

bit 18-17 CLKSEL<1:0>: UARTx Clock Selection bits ^(1)

11 = The UARTx clock is the Reference Clock Output (REFCLKO)

10 = The UARTx clock is the FRC oscillator clock

01 = The UARTx clock is the SYSCLK

00 = The UARTx clock is the PBCLK (1:1 with SYSCLK)

bit 16 OVFDIS: Run During Overflow Condition Mode bit

1 = When an Overflow Error (OERR) condition is detected, the Shift register continues to run to remain synchronized

0 = When an Overflow Error (OERR) condition is detected, the Shift register stops accepting new data (Legacy mode)

bit 15 ON: UARTx Enable bit

1 = UARTx is enabled; UARTx pins are controlled by UARTx, as defined by the UEN<1:0> and UTXEN control bits

0 = UARTx is disabled; all UARTx pins are controlled by the corresponding bits in the PORTx, TRISx and LATx registers; UARTx power consumption is minimal

bit 14 Unimplemented: Read as '0'

bit 13 SIDL: UARTx Stop in Idle Mode bit

1 = Discontinues operation when device enters Idle mode

0 = Continues operation in Idle mode

bit 12 IREN: IrDA ^® Encoder and Decoder Enable bit

1 = IrDA is enabled

0 = IrDA is disabled

Note 1: Refer to Figure 8-2 for REFO connection.

2: These bits are present for legacy compatibility and are superseded by PPS functionality on these devices (see Section 9.8 "Peripheral Pin Select (PPS)" for more information).

REGISTER 14-1: UxMODE: UARTx MODE REGISTER (CONTINUED)

bit 11 RTSMD: Mode Selection for UxRTS Pin bit

1 = pin is in Simplex mode
0 = UxRTS pin is in Flow Control mode

bit 10 Unimplemented: Read as '0'

bit 9-8 UEN<1:0>: UARTx Enable bits (2)

11 = UxTX, UxRX and UxBCLK pins are enabled and used; pin is controlled by corresponding bits in the PORTx register 10 = UxTX, UxRX, and pins are enabled and used 01 = UxTX, UxRX and pins are enabled and used; pin is controlled by corresponding bits in the PORTx register 00 = UxTX and UxRX pins are enabled and used; and /UxBCLK pins are controlled by corresponding bits in the PORTx register

bit 7 WAKE: Enable Wake-up on Start Bit Detect During Sleep Mode bit

1 = Wake-up is enabled
0 = Wake-up is disabled

bit 6 LPBACK: UARTx Loopback Mode Select bit

1 = Loopback mode is enabled
0 = Loopback mode is disabled

bit 5 ABAUD: Auto-Baud Enable bit

1 = Enables baud rate measurement on the next character – requires reception of a Sync character (0x55); cleared by hardware upon completion
0 = Baud rate measurement is disabled or has completed

bit 4 RXINV: Receive Polarity Inversion bit

1 = UxRX Idle state is '0'
0 = UxRX Idle state is '1'

bit 3 BRGH: High Baud Rate Enable bit

1 = High-Speed mode - 4x baud clock is enabled
0 = Standard Speed mode - 16x baud clock is enabled

bit 2-1 PDSEL<1:0>: Parity and Data Selection bits

11 = 9-bit data, no parity
10 = 8-bit data, odd parity
01 = 8-bit data, even parity
00 = 8-bit data, no parity

bit 0 STSEL: Stop Selection bit

1 = 2 Stop bits
0 = 1 Stop bit

Note 1: Refer to Figure 8-2 for REFO connection.

2: These bits are present for legacy compatibility and are superseded by PPS functionality on these devices (see Section 9.8 "Peripheral Pin Select (PPS)" for more information).

REGISTER 14-2: UxSTA: UARTx STATUS AND CONTROL REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	R/W-0 R/W-0	R/W-0 R/W-0 R	W-0 R/W-0 R/W-0	R/W-0
	MASK<7:0>
23:16	R/W-0 R/W-0	R/W-0 R/W-0 R	W-0 R/W-0 R/W-0	R/W-0
	ADDR<7:0>
15:8	R/W-0 R/W-0	R/W-0 R/W-0 R	W-0 R/W-0 R-0	R-1
	UTXISEL<1:0> UTXIN		NV URXEN U	TXBRK UTXEN	UTXBF	TRMT
7:0	R/W-0 R/W-0	R/W-0	R-1	R-0	R-0 R/W-0 R-0
	URXISEL<1:0>		ADDEN	RIDLE	PERR	FERR	OERR	URXDA

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 31-24 MASK<7:0>: UARTx Address Match Mask bits

Used to mask the ADDR<7:0> bits.

For MASK:

1 = ADDR is used to detect the address match
0 = ADDR is not used to detect the address match

bit 23-16 ADDR<7:0>: UARTx Automatic Address Mask bits

When the ADDEN bit is '1', this value defines the address character to use for automatic address detection.

bit 15-14 UTXISEL<1:0>: UARTx TX Interrupt Mode Selection bits

11 = Reserved, do not use
10 = Interrupt is generated and asserted while the transmit buffer is empty
01 = Interrupt is generated and asserted when all characters have been transmitted
00 = Interrupt is generated and asserted while the transmit buffer contains at least one empty space

bit 13 UTXINV: UARTx Transmit Polarity Inversion bit

If IrDA mode is Disabled (i.e., IREN (UxMODE<12>) is '0'):

1 = UxTX Idle state is '0'

0 = UxTX Idle state is '1'

If IrDA mode is enabled (i.e., IREN (UxMODE<12>) is '1'):

1 = IrDA ^ encoded UxTX Idle state is '1'

0 = IrDA encoded UxTX Idle state is '0'

bit 12 URXEN: UARTx Receiver Enable bit

1 = UARTx receiver is enabled, UxRX pin is controlled by UARTx (if ON = 1)

0 = UARTx receiver is disabled, UxRX pin is ignored by the UARTx module

bit 11 UTXBRK: UARTx Transmit Break bit

1 = Sends Break on next transmission; Start bit, followed by twelve '0' bits, followed by Stop bit, cleared by hardware upon completion
0 = Break transmission is disabled or has completed

bit 10 UTXEN: UARTx Transmit Enable bit

1 = UARTx transmitter is enabled, UxTX pin is controlled by UARTx (if ON = 1)
0 = UARTx transmitter is disabled, any pending transmission is aborted and the buffer is reset

bit 9 UTXBF: UARTx Transmit Buffer Full Status bit (read-only)

1 = Transmit buffer is full
0 = Transmit buffer is not full, at least one more character can be written

bit 8 TRMT: Transmit Shift Register (TSR) is Empty bit (read-only)

1 = Transmit Shift Register is empty and transmit buffer is empty (the last transmission has completed)
0 = Transmit Shift Register is not empty, a transmission is in progress or queued in the transmit buffer

REGISTER 14-2: UxSTA: UARTx STATUS AND CONTROL REGISTER (CONTINUED)

bit 7-6 URXISEL<1:0>: UARTx Receive Interrupt Mode Selection bits

11 = Reserved
10 = Interrupt flag bit is asserted while receive buffer is 3/4 or more full
01 = Interrupt flag bit is asserted while receive buffer is 1/2 or more full
00 = Interrupt flag bit is asserted while receive buffer is not empty (i.e., has at least 1 data character)

bit 5 ADDEN: Address Character Detect bit (bit 8 of received data = 1)

1 = Address Detect mode is enabled; if 9-bit mode is not selected, this control bit has no effect
0 = Address Detect mode is disabled

bit 4 RIDLE: Receiver Idle bit (read-only)

1 = Receiver is Idle
0 = Data is being received

bit 3 PERR: Parity Error Status bit (read-only)

1 = Parity error has been detected for the current character
0 = Parity error has not been detected

bit 2 FERR: Framing Error Status bit (read-only)

1 = Framing error has been detected for the current character
0 = Framing error has not been detected

bit 1 OERR: Receive Buffer Overrun Error Status bit

This bit is set in hardware and can only be cleared (= 0) in software. Clearing a previously set OERR bit resets the receiver buffer and RSR to the empty state.

1 = Receive buffer has overflowed
0 = Receive buffer has not overflowed

bit 0 URXDA: UARTx Receive Buffer Data Available bit (read-only)

1 = Receive buffer has data, at least one more character can be read
0 = Receive buffer is empty

15.0 REAL-TIME CLOCK AND CALENDAR (RTCC)

Note: This data sheet summarizes the features of the PIC32MM0064GPL036 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 28. "RTCC with Timestamp" (DS60001362) in the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32). The information in this data sheet supersedes the information in the FRM.

The RTCC module is intended for applications in which accurate time must be maintained for extended periods of time with minimal or no CPU intervention. Low-power optimization provides extended battery lifetime while keeping track of time.

Key features of the RTCC module are:

• Time: Hours, Minutes and Seconds
• 24-Hour Format (military time)
- Visibility of One-Half Second Period
- Provides Calendar: Weekday, Date, Month and Year
- Alarm Intervals are Configurable for Half of a second, One Second, 10 Seconds, One Minute, 10 Minutes, One Hour, One Day, One Week, One Month and One Year

• Alarm Repeat with Decrementing Counter

- Alarm with Indefinite Repeat: Chime

• Year Range: 2000 to 2099

- Leap Year Correction

• BCD Format for Smaller Firmware Overhead

- Optimized for Long-Term Battery Operation

• Fractional Second Synchronization

- User Calibration of the Clock Crystal Frequency with Auto-Adjust

- Uses External 32.768 kHz Crystal, 32 kHz Internal Oscillator, PWRLCLK Input Pin or Peripheral Clock

- Alarm Pulse, Seconds Clock or Internal Clock Output on RTCC Pin

FIGURE 15-1: RTCC BLOCK DIAGRAM

15.1 RTCC Control Registers

TABLE 15-1: RTCC REGISTER MAP

Legend: x = unknown value on Reset; — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: All registers in this table have corresponding CLR, SET and INV registers at their virtual address, plus an offset of 0x4, 0x8 and 0xC, respectively.

REGISTER 15-1: RTCCON1: RTCC CONTROL 1 REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	R/W-0 R/W-0 U-0 U-0 R/W-0 R/W-0 R/W-0 R/W-0
	ALRMEN CHIME — — AMASK<3:0>
23:16	R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0 R/W-0
	ALMRPT<7:0>(1)
15:8	R/W-0	U-0	U-0	U-0	R/W-0	U-0	U-0	U-0
	ON	—	—	—	WRLOCK(2)	—	—	—
7:0	R/W-0	R/W-0	R/W-0	R/W-0	U-0	U-0	U-0	U-0
	RTCOE	OUTSEL<2:0>			—	—	—	—

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 31 ALRMEN: Alarm Enable bit

1 = Alarm is enabled

0 = Alarm is disabled

bit 30 CHIME: Chime Enable bit

1 = Chime is enabled; ALMRPT<7:0> bits are allowed to underflow from '00' to 'FF'

0 = Chime is disabled; ALMRPT<7:0> bits stop once they reach '00'

bit 29-28 Unimplemented: Read as '0'

bit 27-24 AMASK<3:0>: Alarm Mask Configuration bits

11xx = Reserved, do not use

101x = Reserved, do not use

1001 = Once a year (or once every 4 years when configured for February 29th)

1000 = Once a month

0111 = Once a week

0110 = Once a day

0101 = Every hour

0100 = Every 10 minutes

0011 = Every minute

0010 = Every 10 seconds

0001 = Every second

0000 = Every half second

bit 23-16 ALMRPT<7:0>: Alarm Repeat Counter Value bits ^(1)

11111111 = Alarm will repeat 255 more times

11111110 = Alarm will repeat 254 more times

...

00000010 = Alarm will repeat 2 more times

00000001 = Alarm will repeat 1 more time

00000000 = Alarm will not repeat

bit 15 ON: RTCC Enable bit

1 = RTCC is enabled and counts from selected clock source

0 = RTCC is disabled

bit 14-12 Unimplemented: Read as '0'

Note 1: The counter decrements on any alarm event. The counter is prevented from rolling over from '00' to 'FF' unless CHIME = 1.

2: To clear this bit, an unlock sequence is required. Refer to Section 23.4 "System Registers Write Protection" for details.

REGISTER 15-1: RTCCON1: RTCC CONTROL 1 REGISTER (CONTINUED)

bit 11 WRLOCK: RTCC Registers Write Lock bit (2)

1 = Registers associated with accurate timekeeping are locked
0 = Registers associated with accurate timekeeping may be written to by user

bit 10-8 Unimplemented: Read as '0'

bit 7 RTCOE: RTCC Output Enable bit

1 = RTCC clock output is enabled; signal selected by OUTSEL<2:0> is presented on the RTCC pin
0 = RTCC clock output is disabled

bit 6-4 OUTSEL<2:0>: RTCC Signal Output Selection bits

111 = Reserved
...
011 = Reserved
010 = RTCC input bits, DIV<
001 = Seconds of
000 = Alarm eve

bit 3-0 Unimplemented: Read as '0'

Note 1: The counter decrements on any alarm event. The counter is prevented from rolling over from '00' to 'FF' unless CHIME = 1.
2: To clear this bit, an unlock sequence is required. Refer to Section 23.4 "System Registers Write Protection" for details.

REGISTER 15-2: RTCCON2: RTCC CONTROL 2 REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	R/W-0 R/W-0	R/W-0 R/W-0	R/W-0 R/W-0	R/W-0 R/W-0
	DIV<15:8>
23:16	R/W-0 R/W-0	R/W-0 R/W-0	R/W-0 R/W-0	R/W-0 R/W-0
	DIV<7:0>
15:8	R/W-0 R/W-0	R/W-0 R/W-0	R/W-0 U-0	U-0
	FDIV<4:0> — — —
7:0	U-0 U-0	U-0	U-0 U-0		U-0 R/W-0 R/W-0
	—	—	—	—	—	—	CLKSEL<1:0>

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 31-16 DIV<15:0>: Clock Divide bits

Sets the period of the clock divider counter; value should cause a nominal 1/2 second underflow.

bit 15-11 FDIV<4:0>: Fractional Clock Divide bits

11111 = Clock period increases by 31 RTCC input clock cycles every 16 seconds 11101 = Clock period increases by 30 RTCC input clock cycles every 16 seconds ... 00010 = Clock period increases by 2 RTCC input clock cycles every 16 seconds 00001 = Clock period increases by 1 RTCC input clock cycle every 16 seconds 00000 = No fractional clock division

bit 10-2 Unimplemented: Read as '0'

bit 1-0 CLKSEL<1:0>: Clock Select bits

11 = Peripheral clock (FCY) 10 = PWRLCLK input pin 01 = LPRC 00 = SOSC

REGISTER 15-3: RTCSTAT: RTCC STATUS REGISTER

Legend:	HC = Hardware Clearable bit	HS = Hardware Settable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 31-6 Unimplemented: Read as '0'

bit 5 ALMEVT: Alarm Event bit

1 = An alarm event has occurred
0 = An alarm event has not occurred

bit 4-3 Unimplemented: Read as '0'

bit 2 SYNC: Synchronization Status bit

1 = Time registers may change during software read
0 = Time registers may be read safely

bit 1 ALMSYNC: Alarm Synchronization status bit

1 = Alarm registers (ALMTIME and ALMDATE) and RTCCON1 should not be modified; the ALRMEN and ALMRPT<7:0> bits may change during software read
0 = Alarm registers and Alarm Control registers may be modified safely

bit 0 HALFSEC: Half Second Status bit

1 = Second half of 1-second period
0 = First half of 1-second period

REGISTER 15-4: RTCTIME/ALMTIME: RTCC/ALARM TIME REGISTERS

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	U-0 R/W-0	R/W-0 R/W-0 R/W-0	R/W-0 R/W-0 R/W-0	R/W-0
	— HRTEN<2:0> HRONE<3:0>
23:16	U-0 R/W-0	R/W-0 R/W-0 R/W-0	R/W-0 R/W-0 R/W-0	R/W-0
	— MINTEN<2:0>				MINONE<3:0>
15:8	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
	SECTEN<3:0>				SECONE<3:0>
7:0	U-0	U-0	U-0	U-0	U-0	U-0	U-0	U-0
	—	—	—	—	—	—	—	—

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 31 Unimplemented: Read as '0'

bit 30-28 HRTEN<2:0>: Binary Coded Decimal Value of Hours 10-Digit bits Contains a value from 0 to 2.

bit 27-24 HRONE<3:0>: Binary Coded Decimal Value of Hours 1-Digit bits Contains a value from 0 to 9.

bit 23 Unimplemented: Read as '0'

bit 22-20 MINTEN<2:0>: Binary Coded Decimal Value of Minutes 10-Digit bits Contains a value from 0 to 5.

bit 19-16 MINONE<3:0>: Binary Coded Decimal Value of Minutes 1-Digit bits Contains a value from 0 to 9.

bit 15-12 SECTEN<3:0>: Binary Coded Decimal Value of Seconds 10-Digit bits Contains a value from 0 to 5.

bit 11-8 SECONE<3:0>: Binary Coded Decimal Value of Seconds 1-Digit bits Contains a value from 0 to 9.

bit 7-0 Unimplemented: Read as '0'

REGISTER 15-5: RTCDATE: RTCC DATE REGISTERS

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	R/W-0 R/W-0	R/W-0 R/W-0 R/W-0	R/W-0 R/W-0 R/W-0	R/W-0
	YRTEN<3:0> YRONE<3:0>
23:16	U-0 U-0 U-0	R/W-0 R/W-0	R/W-0 R/W-0	R/W-0
	—	—	—	MTHTEN	MTHONE<3:0>
15:8	U-0 U-0 R/W-0	R/W-0 R/W-0	R/W-0 R/W-0	R/W-0
	—	—	DAYTEN<1:0>		DAYONE<3:0>
7:0	U-0	U-0	U-0	U-0	U-0	R/W-0	R/W-0	R/W-0
	—	—	—	—	—	WDAY<2:0>

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 31-28 YRTEN<3:0>: Binary Coded Decimal Value of Years 10-Digit bits

bit 27-24 YRONE<3:0>: Binary Coded Decimal Value of Years 1-Digit bits

bit 23-21 Unimplemented: Read as '0'

bit 20 MTHTEN: Binary Coded Decimal Value of Months 10-Digit bit Contains a value from 0 to 1.

bit 19-16 MTHONE<3:0>: Binary Coded Decimal Value of Months 1-Digit bits Contains a value from 0 to 9.

bit 15-14 Unimplemented: Read as '0'

bit 13-12 DAYTEN<1:0>: Binary Coded Decimal Value of Days 10-Digit bits Contains a value from 0 to 3.

bit 11-8 DAYONE<3:0>: Binary Coded Decimal Value of Days 1-Digit bits Contains a value from 0 to 9.

bit 7-3 Unimplemented: Read as '0'

bit 2-0 WDAY<2:0>: Binary Coded Decimal Value of Weekdays Digit bits Contains a value from 0 to 6.

REGISTER 15-6: ALMDATE: ALARM DATE REGISTERS

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	U-0 U-0 U-0	U-0 U-0 U-0 U-0	U-0
	— — —	— — — —
23:16	U-0	U-0	U-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
	— — —	MTHTEN		MTHONE<3:0>
15:8	U-0	U-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
	— —	DAYTEN<1:0>			DAYONE<3:0>
7:0	U-0 U-0 U-0	U-0 U-0	R/W-0	R/W-0	R/W-0
	— — —	— —	WDAY<2:0>

Legend:

R = Readable bit	W = Writable bit U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 31-21 Unimplemented: Read as '0'

bit 20 MTHTEN: Binary Coded Decimal Value of Months 10-Digit bit Contains a value from 0 to 1.

bit 19-16 MTHONE<3:0>: Binary Coded Decimal Value of Months 1-Digit bits Contains a value from 0 to 9.

bit 15-14 Unimplemented: Read as '0'

bit 13-12 DAYTEN<1:0>: Binary Coded Decimal Value of Days 10-Digit bits Contains a value from 0 to 3.

bit 11-8 DAYONE<3:0>: Binary Coded Decimal Value of Days 1-Digit bits Contains a value from 0 to 9.

bit 7-3 Unimplemented: Read as '0'

bit 2-0 WDAY<2:0>: Binary Coded Decimal Value of Weekdays Digit bits Contains a value from 0 to 6.

NOTES:

16.0 12-BIT ANALOG-TO-DIGITAL CONVERTER WITH THRESHOLD DETECT

Note: This data sheet summarizes the features of the PIC32MM0064GPL036 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 25. “12-Bit Analog-to-Digital Converter (ADC) with Threshold Detect” (DS60001359) in the “PIC32 Family Reference Manual”, which is available from the Microchip web site (www.microchip.com/PIC32). The information in this data sheet supersedes the information in the FRM.

16.1 Introduction

The 12-bit ADC Converter with Threshold Detect includes the following features:

• Successive Approximation Register (SAR) Conversion
• User-Selectable Resolution of 10 or 12 Bits
• Conversion Speeds of up to 222 ksps for 12-bit mode and 250 ksps for 10-bit mode
• Up to 17 Analog Inputs (internal and external)

• External Voltage Reference Input Pins
- Unipolar Differential Sample-and-Hold Amplifier (SHA)
- Automated Threshold Scan and Compare Operation to Pre-Evaluate Conversion Results
- Selectable Conversion Trigger Source
- Fixed-Length Configurable Conversion Result Buffer
• Eight Options for Result Alignment and Encoding
- Configurable Interrupt Generation
• Operation during CPU Sleep and Idle modes

Figure 16-1 illustrates a block diagram of the 12-bit ADC. The 12-bit ADC has 14 external analog inputs, AN0 through AN13, and 3 internal analog inputs connected to VDD, VSS and band gap. In addition, there are two analog input pins for external voltage reference connections.

The analog inputs are connected through a multiplexer to the SHA. Unipolar differential conversions are possible on all inputs (see Figure 16-1).

The Automatic Input Scan mode sequentially converts multiple analog inputs. A special control register specifies which inputs will be included in the scanning sequence. The 12-bit ADC is connected to a 16-word result buffer. The 12-bit result is converted to one of eight output formats in either 32-bit or 16-bit word widths.

FIGURE 16-1: ADC BLOCK DIAGRAM

16.2 Control Registers

The ADC module has the following Special Function Registers (SFRs):

• AD1CON1: ADC Control Register 1
• AD1CON2: ADC Control Register 2
• AD1CON3: ADC Control Register 3
• AD1CON5: ADC Control Register 5

The AD1CON1, AD1CON2, AD1CON3 and AD1CON5 registers control the operation of the ADC module.

• AD1CHS: ADC Input Select Register

The AD1CHS register selects the input pins to be connected to the SHA.

• AD1CSS: ADC Input Scan Select Register

The AD1CSS register selects inputs to be sequentially scanned.

• AD1CHIT: ADC Compare Hit Register

The AD1CHIT register indicates the channels meeting specified comparison requirements.

Table 16-1 provides a summary of all ADC module related registers, including their addresses and formats. Corresponding registers appear after the summary, followed by a detailed description of each register. All unimplemented registers and/or bits within a register read as zero.

TABLE 16-1: ADC REGISTER MAP

Virtual Address (BF80_#)

Register Name(3)

Bit Range

Bits

All Resets

31/15

30/14

29/13

28/12

27/11

26/10

25/9

24/8

23/7

22/6

21/5

20/4

19/3

18/2

17/1

16/0

0700

ADC1BUF0

31:16

ADC1BUF0<31:0>

0000

15:0

0000

0710

ADC1BUF1

31:16

ADC1BUF1<31:0>

0000

15:0

0000

0720

ADC1BUF2

31:16

ADC1BUF2<31:0>

0000

15:0

0000

0730

ADC1BUF3

31:16

ADC1BUF3<31:0>

0000

15:0

0000

0740

ADC1BUF4

31:16

ADC1BUF4<31:0>

0000

15:0

0000

0750

ADC1BUF5

31:16

ADC1BUF5<31:0>

0000

15:0

0000

0760

ADC1BUF6

31:16

ADC1BUF6<31:0>

0000

15:0

0000

0770

ADC1BUF7

31:16

ADC1BUF7<31:0>

0000

15:0

0000

0780

ADC1BUF8

31:16

ADC1BUF8<31:0>

0000

15:0

0000

0790

ADC1BUF9

31:16

ADC1BUF9<31:0>

0000

15:0

0000

07A0

ADC1BUF10

31:16

ADC1BUF10<31:0>

0000

15:0

0000

07B0

ADC1BUF11

31:16

ADC1BUF11<31:0>

0000

15:0

0000

07C0

ADC1BUF12

31:16

ADC1BUF12<31:0>

0000

15:0

0000

07D0

ADC1BUF13

31:16

ADC1BUF13<31:0>

0000

15:0

0000

Legend: — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: The CSS<13:11> and CHH<13:11> bits are not implemented in 20-pin devices.
2: The CSS<13:12> and CHH<13:12> bits are not implemented in 28-pin devices.
3: All registers in this table have corresponding CLR, SET and INV registers at their virtual address, plus an offset of 0x4, 0x8 and 0xC, respectively.

TABLE 16-1: ADC REGISTER MAP (CONTINUED)

Legend: — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: The CSS<13:11> and CHH<13:11> bits are not implemented in 20-pin devices.
2: The CSS<13:12> and CHH<13:12> bits are not implemented in 28-pin devices.
3: All registers in this table have corresponding CLR, SET and INV registers at their virtual address, plus an offset of 0x4, 0x8 and 0xC, respectively.

REGISTER 16-1: AD1CON1: ADC CONTROL REGISTER 1

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	U-0 U-0 U-0	U-0 U-0 U-0 U-0	U-0 U-0
	— — —	— — —	—	—
23:16	U-0 U-0 U-0	U-0 U-0 U-0	U-0 U-0
	— — —	— — —	—	—
15:8	R/W-0	U-0	R/W-0	U-0	U-0	R/W-0	R/W-0	R/W-0
	ON	—	SIDL	—	—	FORM<2:0>
7:0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0, HSC	R/W-0, HSC
	SSRC<3:0>				MODE12	ASAM	SAMP^(1,3)	DONE^(2)

Legend:	HSC = Hardware Settable/Clearable bit
R = Readable bit	W = Writable bit U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 31-16 Unimplemented: Read as '0'

bit 15 ON: ADC Operating Mode bit

1 = ADC module is operating

0 = ADC is off

bit 14 Unimplemented: Read as '0'

bit 13 SIDL: ADC Stop in Idle Mode bit

1 = Discontinues module operation when device enters Idle mode

0 = Continues module operation in Idle mode

bit 12-11 Unimplemented: Read as '0'

bit 10-8 FORM<2:0>: Data Output Format bits

For 12-Bit Operation (MODE12 bit = 1):

111 = Signed Fractional 32-bit (DOUT = sddd dddd dddd 0000 0000 0000 0000)

110 = Fractional 32-bit (DOUT = dddd dddd dddd 0000 0000 0000 0000 0000)

101 = Signed Integer 32-bit (DOUT = ssss ssss ssss ssss ssss sddd dddd dddd)

100 = Integer 32-bit (DOUT = 0000 0000 0000 0000 0000 dddd dddd dddd)

011 = Signed Fractional 16-bit (DOUT = 0000 0000 0000 0000 sddd dddd dddd 0000)

010 = Fractional 16-bit (DOUT = 0000 0000 0000 0000 dddd dddd dddd 0000)

001 = Signed Integer 16-bit (DOUT = 0000 0000 0000 0000 ssss sddd dddd dddd)

000 = Integer 16-bit (DOUT = 0000 0000 0000 0000 0000 dddd dddd dddd)

For 10-Bit Operation (MODE12 bit = 0):

111 = Signed Fractional 32-bit (DOUT = sddd dddd dd00 0000 0000 0000 0000)

110 = Fractional 32-bit (DOUT = dddd dddd dd00 0000 0000 0000 0000 0000)

101 = Signed Integer 32-bit (DOUT = ssss ssss ssss ssss ssss dddd dddd)

100 = Integer 32-bit (DOUT = 0000 0000 0000 0000 0000 00dd dddd dddd)

011 = Signed Fractional 16-bit (DOUT = 0000 0000 0000 0000 sddd dddd dd00 0000)

010 = Fractional 16-bit (DOUT = 0000 0000 0000 0000 dddd dddd dd00 0000)

001 = Signed Integer 16-bit (DOUT = 0000 0000 0000 0000 ssss sssd dddd dddd)

000 = Integer 16-bit (DOUT = 0000 0000 0000 0000 0000 00dd dddd dddd)

Note 1: The SAMP bit is cleared and cannot be written if the ADC is disabled (ON bit = 0).

2: The DONE bit is not persistent in Automatic modes; it is cleared by hardware at the beginning of the next sample.

3: In Manual Sample/Manual Convert mode, the sample time must be greater than 3 TAD.

4: This mode is not available as a trigger when in Threshold Detect mode (ASEN = 1).

REGISTER 16-1: AD1CON1: ADC CONTROL REGISTER 1 (CONTINUED)
bit 7-4 SSRC<3:0>: Conversion Trigger Source Select bits 1111-1101 = Reserved 1100 = CLC2 module event ends sampling and starts conversion 1011 = CLC1 module event ends sampling and starts conversion 1010 = SCCP3 module event ends sampling and starts conversion 1001 = SCCP2 module event ends sampling and starts conversion 1000 = MCCP1 module event ends sampling and starts conversion 0111 = Internal counter ends sampling and starts conversion (auto-convert) 0110 = Timer1 period match ends sampling and starts conversion (can trigger during Sleep mode) 0101 = Timer1 period match ends sampling and starts conversion (will not trigger during Sleep mode) 0100-0010 = Reserved 0001 = Active transition on INT0 pin ends sampling and starts conversion 0000 = Clearing the SAMP bit ends sampling and starts conversion ^4

bit 3 MODE12: 12-Bit Operation Mode bit
1 = 12-bit ADC operation 0 = 10-bit ADC operation
bit 2 ASAM: ADC Sample Auto-Start bit

1 = Sampling begins immediately after last conversion completes; SAMP bit is automatically set 0 = Sampling begins when SAMP bit is set

bit 1 SAMP: ADC Sample Enable bit (1,3)
1 = The ADC Sample-and-Hold Amplifier (SHA) is sampling 0 = The ADC Sample-and-Hold Amplifier is holding
bit 0 DONE: ADC Conversion Status bit (2)

1 = Analog-to-Digital conversion is done 0 = Analog-to-Digital conversion is not done or has not started Clearing this bit will not affect any operation in progress.

Note 1: The SAMP bit is cleared and cannot be written if the ADC is disabled (ON bit = 0).
2: The DONE bit is not persistent in Automatic modes; it is cleared by hardware at the beginning of the next sample. 3: In Manual Sample/Manual Convert mode, the sample time must be greater than 3 T AD. 4: This mode is not available as a trigger when in Threshold Detect mode (ASEN = 1).

REGISTER 16-2: AD1CON2: ADC CONTROL REGISTER 2

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	U-0 U-0 U-0 U-0 U-0 U-0
	— — —	— —	—	—	—
23:16	U-0 U-0 U-0 U-0 U-0 U-0
	— — —	— —	—	—	—
15:8	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	U-0	U-0
	VCFG<2:0>			OFFCAL	BUFREGEN ^(1)	CSCNA	—	—
7:0	R/W-0	U-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	U-0
	BUFS	—	SMPI<3:0>				BUFM	—

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 31-16 Unimplemented: Read as '0'

bit 15-13 VCFG<2:0>: Voltage Reference Configuration bits

	ADC V_R+	ADC V_R-
000	AVDD	AVSS
001	AVDD	External V_REF- Pin
010 External V	REF+ Pin	AVSS
011 External V	REF+ Pin External V	REF- Pin
1xx	Unimplemented; do not use

bit 12 OFFCAL: Input Offset Calibration Mode Select bit

1 = Enables Offset Calibration mode: The inputs of the SHA are connected to the negative reference
0 = Disables Offset Calibration mode: The inputs to the SHA are controlled by AD1CHS or AD1CSS

bit 11 BUFREGEN: ADC Buffer Register Enable bit ^(1)

1 = Conversion result is loaded into the buffer location determined by the converted channel
0 = ADC result buffer is treated as a FIFO

bit 10 CSCNA: Scan Mode bit

1 = Scans inputs
0 = Does not scan inputs

bit 9-8 Unimplemented: Read as '0'

bit 7 BUFS: Buffer Fill Status bit

Only valid when BUFM = 1 (ADC buffers split into 2 x 8-word buffers).

1 = ADC is currently filling Buffers 8-15, user should access data in 0-7
0 = ADC is currently filling Buffers 0-7, user should access data in 8-15

bit 6 Unimplemented: Read as '0'

bit 5-2 SMPI<3:0>: Sample/Convert Sequences per Interrupt Selection bits

1111 = Interrupts at the completion of conversion for each 16^th sample/convert sequence
1110 = Interrupts at the completion of conversion for each 15^th sample/convert sequence

•
•
•
0001 = Interrupts at the completion of conversion for each 2^nd sample/convert sequence
0000 = Interrupts at the completion of conversion for each sample/convert sequence

bit 1 BUFM: ADC Result Buffer Mode Select bit

1 = Buffer configured as two 8-word buffers, ADC1BUF(0...7), ADC1BUF(8...15)
0 = Buffer configured as one 16-word buffer, ADC1BUF(0...15)

bit 0 Unimplemented: Read as '0'

Note 1: This bit only takes effect when the auto-scan feature is enabled (ASEN (AD1CON5<15>) = 1).

REGISTER 16-3: AD1CON3: ADC CONTROL REGISTER 3

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	U-0 U-0 U-0	U-0 U-0 U-0 U-0	U-0 U-0
	— — —	— — — —	—
23:16	U-0 U-0 U-0	U-0 U-0 U-0 U-0	U-0 U-0
	— — —	— — — —	—
15:8	R/W-0	R/W-0	U-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
	ADRC	EXTSAM	—	SAMC<4:0>
7:0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
	ADCS<7:0>

Legend:

R = Readable bit	W = Writable bit U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 31-16 Unimplemented: Read as '0'

bit 15 ADRC: ADC Conversion Clock Source (TSRC) bit

1 = Clock derived from Fast RC (FRC) oscillator
0 = Clock derived from Peripheral Bus Clock (PBCLK, 1:1 with SYSCLK)

bit 14 EXTSAM: Extended Sampling Time bit

1 = ADC is still sampling after SAMP bit = 0
0 = ADC stops sampling when SAMP bit = 0

bit 13 Unimplemented: Read as '0'

bit 12-8 SAMC<4:0>: Auto-Sample Time bits

11111 = 31 TAD
.
.
.
00001 = 1 TAD
00000 = 0 TAD (not allowed)

bit 7-0 ADCS<7:0>: ADC Conversion Clock Select bits

11111111 = 2 · TSRC · ADCS < 7:0 > = 510 · TSRC = TAD

•

.

.

00000001 = 2 · TSRC · ADCS < 7:0 > = 2 · TSRC = TAD

00000000 = 1 · TSRC = TAD

Where TSRC is a period of clock selected by the ADRC bit (AD1CON3<15>).

REGISTER 16-4: AD1CON5: ADC CONTROL REGISTER 5

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	U-0 U-0 U-0	U-0 U-0 U-0	U-0 U-0
	— — —	— — — — —
23:16	U-0 U-0 U-0	U-0 U-0	U-0 U-0
	— — —	— — — — —
15:8	R/W-0	R/W-0	U-0	R/W-0	U-0	U-0	R/W-0	R/W-0
	ASEN(1)	LPEN	—	BGREQ	—	—	ASINT<1:0>(2)
7:0	U-0	U-0	U-0	U-0	R/W-0	R/W-0	R/W-0	R/W-0
	— — —	—	WM<1:0>		CM<1:0>

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 31-16 Unimplemented: Read as '0'

bit 15 ASEN: Auto-Scan Enable bit ^(1)

1 = Auto-scan is enabled

0 = Auto-scan is disabled

bit 14 LPEN: Low-Power Enable bit

1 = Low power is enabled after scan

0 = Full power is enabled after scan

bit 13 Unimplemented: Read as '0'

bit 12 BGREQ: Band Gap Request bit

1 = Band gap is enabled when the ADC is enabled and active

0 = Band gap is not enabled by the ADC

bit 11-10 Unimplemented: Read as '0'

bit 9-8 ASINT<1:0>: Auto-Scan (Threshold Detect) Interrupt Mode bits ^(2)

11 = Interrupt after Threshold Detect sequence has completed and a valid compare has occurred

10 = Interrupt after valid compare has occurred

01 = Interrupt after Threshold Detect sequence has completed

00 = No interrupt

bit 7-4 Unimplemented: Read as '0'

bit 3-2 WM<1:0>: Write Mode bits

11 = Reserved

10 = Auto-compare only (conversion results are not saved, but interrupts are generated when a valid match occurs, as defined by the CM<1:0> and ASINT<1:0> bits)

01 = Convert and save (conversion results saved to ADC1BUFx registers when a match occurs, as defined by the CM<1:0> bits)

00 = Threshold (Comparison) mode is disabled, legacy operation (conversion data saved to ADC1BUFx registers)

Note 1: When auto-scan is enabled (ASEN (AD1CON5<15>) = 1), the CSCNA (AD1CON2<10>) and SMPI<3:0>(AD1CON2<5:2>) bits are ignored.

2: The ASINT<1:0> bits setting only takes effect when ASEN (AD1CON5<15>) = 1. Interrupt generation is governed by the SMPI<3:0> bits field.

REGISTER 16-4: AD1CON5: ADC CONTROL REGISTER 5 (CONTINUED)

bit 1-0 CM<1:0>: Compare Mode bits

11 = Outside Window mode (valid match occurs if the conversion result is outside of the window defined by the corresponding buffer pair)
10 = Inside Window mode (valid match occurs if the conversion result is inside the window defined by the corresponding buffer pair)
01 = Greater Than mode (valid match occurs if the result is greater than the value in the corresponding buffer register)
00 = Less Than mode (valid match occurs if the result is less than the value in the corresponding buffer register)

Note 1: When auto-scan is enabled (ASEN (AD1CON5<15>) = 1), the CSCNA (AD1CON2<10>) and SMPI<3:0>(AD1CON2<5:2>) bits are ignored.

2: The ASINT<1:0> bits setting only takes effect when ASEN (AD1CON5<15>) = 1. Interrupt generation is governed by the SMPI<3:0> bits field.

REGISTER 16-5: AD1CHS: ADC INPUT SELECT REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	U-0 U-0 U-0	U-0 U-0 U-0	U-0
	———	———	———
23:16	U-0 U-0 U-0	U-0 U-0 U-0	U-0
	———	———	———
15:8	U-0 U-0 U-0	U-0 U-0 U-0	U-0
	———	———	———
7:0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
	CHONA<2:0>			CHOSA<4:0>(^1)

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 31-8 Unimplemented: Read as '0'

bit 7-5 CHONA<2:0>: Negative Input Select bits

111-001 = Reserved

000 = Negative input is AVss

bit 4-0 CH0SA<4:0>: Positive Input Select bits ^(1)

11111 = Reserved

11110 = Positive input is AVDD

11101 = Positive input is AVss

11100 = Positive input is Band Gap Reference (VBG)

11011-01110 = Reserved

01101 = Positive input is AN13(2,3)

01100 = Positive input is AN12(2,3)

01011 = Positive input is AN11 ^(2)

01010 = Positive input is AN10

01001 = Positive input is AN9

01000 = Positive input is AN8

00111 = Positive input is AN7

00110 = Positive input is AN6

00101 = Positive input is AN5

00100 = Positive input is AN4

00011 = Positive input is AN3

00010 = Positive input is AN2

00001 = Positive input is AN1

00000 = Positive input is AN0

Note 1: The CH0SA<4:0> positive input selection is only used when CSCNA (AD1CON2<10>) = 0 and ASEN (AD1CON5<15>) = 0. The AD1CSS bits specify the positive inputs when CSCNA = 1 or ASEN = 1.

2: This option is not implemented in the 20-pin devices.

3: This option is not implemented in the 28-pin devices.

REGISTER 16-6: AD1CSS: ADC INPUT SCAN SELECT REGISTER

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 31 Unimplemented: Read as '0'

bit 30-28 CSS<30:28>: ADC Input Pin Scan Selection bits

1 = Selects ANx for the input scan
0 = Skips ANx for the input scan

bit 27-14 Unimplemented: Read as '0'

bit 13-0 CSS<13:0>: ADC Input Pin Scan Selection bits ^(1,2)

1 = Selects ANx for the input scan
0 = Skips ANx for the input scan

Note 1: The CSS<13:11> bits are not implemented in 20-pin devices.

2: The CSS<13:12> bits are not implemented in 28-pin devices.

REGISTER 16-7: AD1CHIT: ADC COMPARE HIT REGISTER

Bit Range	Bit31/23/15/7	Bit30/22/14/6	Bit29/21/13/5	Bit28/20/12/4	Bit27/19/11/3	Bit26/18/10/2	Bit25/17/9/1	Bit24/16/8/0
31:24	U-0 U-0 U-0	U-0 U-0 U-0 U-0	U-0
	— — —	— — — — —
23:16	U-0 U-0 U-0	U-0 U-0 U-0 U-0	U-0
	— — —	— — — — —
15:8	U-0	U-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
	— —		CHH<13:8> (1,2)
7:0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
	CHH<7:0>

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 31-14 Unimplemented: Read as '0'

bit 13-0 CHH<13:0>: ADC Compare Hit bits ^(1,2)

If CM<1:0>=11:

1 = ADC Result Buffer x has been written with data or a match has occurred

0 = ADC Result Buffer x has not been written with data

For All Other Values of CM<1:0>:

1 = A match has occurred on ADC Result Channel n

0 = No match has occurred on ADC Result Channel n

Note 1: The CHH<13:11> bits are not implemented in 20-pin devices.

2: The CHH<13:12> bits are not implemented in 28-pin devices.

NOTES:

17.0 32-BIT PROGRAMMABLE CYCLIC REDUNDANCY CHECK (CRC) GENERATOR

Note: This data sheet summarizes the features of the PIC32MM0064GPL036 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 60. "32-Bit Programmable Cyclic Redundancy Check" (DS60001336) in the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32). The information in this data sheet supersedes the information in the FRM.

The 32-bit programmable CRC generator provides a hardware implemented method of quickly generating checksums for various networking and security applications. It offers the following features:

• User-Programmable CRC Polynomial Equation, up to 32 Bits
• Programmable Shift Direction (little or big-endian)
  • Independent Data and Polynomial Lengths
• Configurable Interrupt Output
• Data FIFO

Figure 17-1 displays a simplified block diagram of the CRC generator.
FIGURE 17-1: CRC BLOCK DIAGRAM

TABLE 17-1: CRC REGISTER MAP

Virtual Address(BF80_#)

Register Name(1)

Bit Range

Bits

All Resets

31/15 30

14 29/13

28/12 27/11

26/10 25/9

24/8 23/7

22/6 21/5

20/4 19/3

18/2 17/1

16/0

0A00

CRCCON

31:16

—

—

—

DWIDTH<4:0>

—

—

—

PLEN<4:0>

C000

15:0

ON

—

SIDL

VWORD<4:0>

CRCFUL

CRCMPT

CRCISEL

CRCGO

LENDIAN

MOD

—

—

0000

0A10

CRCXOR

31:16

X<31:16>

C000

15:0

X<15:1>

— 0000

0A20

CRCDAT

31:16

CRCDAT<31:0>

C000

15:0

0000

0A30

CRCWDAT

31:16

CRCWDAT<31:0>

C000

15:0

0000

Legend: — = unimplemented, read as "0". Reset values are shown in hexadecimal.
Note 1: All registers in this table have corresponding CLR, SET and INV registers at their virtual address, plus an offset of 0x4, 0x8 and 0xC, respectively.

REGISTER 17-1: CRCCON: CRC CONTROL REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	U-0 U-0 U-0 R/W-0 R/W-0		R/W-0 R/W-0 R/W-0
	— — — DWIDTH<4:0>
23:16	U-0 U-0 U-0 R/W-0 R/W-0		R/W-0 R/W-0 R/W-0
	— — — PLEN<4:0>
15:8	R/W-0	U-0	R/W-0	R-0, HS, HC	R-0, HS, HC	R-0, HS, HC	R-0, HS, HC	R-0, HS, HC
	ON	—	SIDL	VWORD<4:0>
7:0	R-0, HS, HC	R-1, HS, HC	R/W-0	R/W-0	R/W-0	R/W-0	U-0	U-0
	CRCFUL	CRCMPT	CRCISEL	CRCGO	LENDIAN	MOD	—	—

Legend:	HC = Hardware Clearable bit	HS = Hardware Settable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 31-29 Unimplemented: Read as '0'

bit 28-24 DWIDTH<4:0>: Data Word Width Configuration bits

Configures the width of the data word (Data Word Width - 1).

bit 23-21 Unimplemented: Read as '0'

bit 20-16 PLEN<4:0>: Polynomial Length Configuration bits

Configures the length of the polynomial (Polynomial Length - 1).

bit 15 ON: CRC Enable bit

1 = Enables module

0 = Disables module

bit 14 Unimplemented: Read as '0'

bit 13 SIDL: CRC Stop in Idle Mode bit

1 = Discontinues module operation when device enters Idle mode

0 = Continues module operation in Idle mode

bit 12-8 VWORD<4:0>: Counter Value bits

Indicates the number of valid words in the FIFO. Has a maximum value of 16 when DWIDTH<4:0> ≤ (data words, 8-bit wide or less). Has a maximum value of 8 when DWIDTH<4:0> ≤ 15 (data words from 9 to 16-bit wide). Has a maximum value of 4 when DWIDTH<4:0> ≤ 31 (data words from 17 to 32-bit wide).

bit 7 CRCFUL: CRC FIFO Full bit

1 = FIFO is full

0 = FIFO is not full

bit 6 CRCMPT: CRC FIFO Empty bit

1 = FIFO is empty

0 = FIFO is not empty

bit 5 CRCISEL: CRC Interrupt Selection bit

1 = Interrupt on FIFO is empty; final word of data is still shifted through CRC

0 = Interrupt on shift is complete (FIFO is empty and no data is shifted from the shift buffer)

bit 4 CRCGO: Start CRC bit

1 = Starts CRC serial shifter; clearing the bit aborts shifting

0 = CRC serial shifter is turned off

bit 3 LENDIAN: Data Word Little-Endian Configuration bit

1 = Data word is shifted into the CRC, starting with the LSb (little-endian); reflected input data

0 = Data word is shifted into the CRC, starting with the MSb (big-endian); non-reflected input data

REGISTER 17-1: CRCCON: CRC CONTROL REGISTER (CONTINUED)

bit 2 MOD: CRC Calculation Mode bit

1 = Alternate mode
0 = Legacy mode

bit 1-0 Unimplemented: Read as '0'

REGISTER 17-2: CRCXOR:CRC XOR REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
	X<31:24>
23:16	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
	X<23:16>
15:8	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
	X<15:8>
7:0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0	U-0
	X<7:1> —

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 31-1 X<31:1>: XOR of Polynomial Term X^n Enable bits

bit 0 Unimplemented: Read as '0'

18.0 CONFIGURABLE LOGIC CELL (CLC)

Note: This data sheet summarizes the features of the PIC32MM0064GPL036 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 36. "Configurable Logic Cell" (DS60001363) in the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32). The information in this data sheet supersedes the information in the FRM.

The Configurable Logic Cell (CLC) module allows the user to specify combinations of signals as inputs to a logic function and to use the logic output to control other peripherals or I/O pins. This provides greater flexibility and potential in embedded designs since the CLC module can operate outside the limitations of software execution, and supports a vast amount of output designs.

There are four input gates to the selected logic function. These four input gates select from a pool of up to 32 signals that are selected using four data source selection multiplexers. Figure 18-1 shows an overview of the module. Figure 18-3 shows the details of the data source multiplexers and logic input gate connections.

FIGURE 18-1: CLCx MODULE

FIGURE 18-2: CLCx LOGIC FUNCTION COMBINATORIAL OPTIONS

AND - ORMODE<2:0> = 000	OR - XORMODE<2:0> = 001
4-Input ANDMODE<2:0> = 010	S-R LatchMODE<2:0> = 011
1-Input D Flip-Flop with S and RMODE<2:0> = 100	2-Input D Flip-Flop with RMODE<2:0> = 101
J-K Flip-Flop with RMODE<2:0> = 110	1-Input Transparent Latch with S and RMODE<2:0> = 111

FIGURE 18-3: CLCx INPUT SOURCE SELECTION DIAGRAM

    Middle_Layer --> Gate2["G1POL (CLCxCON<16>)"]
    Gate2 --> Gate2a["-Gate 2"]
    Gate2a --> Gate2b["-Gate 2"]
    Gate2b --> Gate2c["-Gate 2"]
    Gate2c --> Gate2d["-Gate 2"]
    Gate2d --> Gate2e["-Gate 2"]
    Gate2e --> Gate2f["-Gate 2"]
    Gate2f --> Gate2g["-Gate 2"]
    Gate2g --> Gate2h["-Gate 2"]
    Gate2h --> Gate2i["-Gate 2"]
    Gate2i --> Gate2j["-Gate 2"]
    Gate2j --> Gate2k["-Gate 2"]
    Gate2k --> Gate2l["-Gate 2"]
    Gate2l --> Gate2m["-Gate 2"]
    Gate2m --> Gate2n["-Gate 2"]
    Gate2n --> Gate2o["-Gate 2"]
    Gate2o --> Gate2p["-Gate 2"]
    Gate2p --> Gate2q["-Gate 2"]
    Gate2q --> Gate2r["-Gate 2"]
    Gate2r --> Gate2w["-Gate 2"]
    Gate2w --> Gate2w1["-Gate 2"]
    Gate2w1 --> Gate2w2["-Gate 2"]
    Gate2w2 --> Gate2w3["-Gate 2"]
    Gate2w3 --> Gate2w4["-Gate 2"]
    Gate2w4 --> Gate2w5["-Gate 2"]
    Gate2w5 --> Gate2w6["-Gate 2"]
    Gate2w6 --> Gate2w7["-Gate 2"]
    Gate2w7 --> Gate2w8["-Gate 2"]
    Gate2w8 --> Gate2w9["-Gate 2"]
    Gate2w9 --> Gate2w10["-Gate 2"]
    Gate2w10 --> Gate2w10a["-Gate 3"]
    Gate2w10a --> Gate2w10b["-Gate 3"]
    Gate2w10b --> Gate2w10c["-Gate 3"]
    Gate2w10c --> Gate2w10d["-Gate 3"]
    Gate2w10d --> Gate2w10e["-Gate 3"]
    Gate2w10e --> Gate2w10f["-Gate 3"]
    Gate2w10f --> Gate2w10g["-Gate 3"]
    Gate2w10g --> Gate2w10h["-Gate 3"]
    Gate2w10h --> Gate2w10i["-Gate 3"]
    Gate2w10i --> Gate2w10j["-Gate 3"]
    Gate2w10j --> Gate2w10k["-Gate 3"]
    Gate2w10k --> Gate2w10l["-Gate 3"]
    Gate2w10l --> Gate2w10m["-Gate 3"]
    Gate2w10m --> Gate2w10n["-Gate 3"]
    Gate2w10n --> Gate2w10o["-Gate 3"]
    Gate2w10o --> Gate2w10p["-Gate 3"]
    Gate2w10p --> Gate2w10q["-Gate 3"]
    Gate2w10q --> Gate2w10p
    Gate2w10p --> Gate2w10q
    Gate2w10q --> Gate2w10p
    Gate2w10p --> Gate2w10q
    Gate2w10q --> Gate2w10p
    Gate2w10p --> Gate2w10q
    Gate2w10q --> Gate2w10p
    Gate2w10p --> Gate4G4["-Gate 4"]
    Gate4G4 --> Gate4G4a["-Gate 4"]
    Gate4G4a --> Gate4G4b["-Gate 4"]

18.1 Control Registers

The CLCx module is controlled by the following registers:

• C L C x C O N
- CLCxSEL
• C L C x G L S

The CLCx Control register (CLCxCON) is used to enable the module and interrupts, control the output enable bit, select output polarity and select the logic function. The CLCx Control registers also allow the user to control the logic polarity of not only the cell output, but also some intermediate variables.

The CLCx Input MUX Select register (CLCxSEL) allows the user to select up to 4 data input sources using the 4 data input selection multiplexers. Each multiplexer has a list of 8 data sources available.

The CLCx Gate Logic Input Select register (CLCxGLS) allows the user to select which outputs from each of the selection MUXes are used as inputs to the input gates of the logic cell. Each data source MUX outputs both a true and a negated version of its output. All of these 8 signals are enabled, ORed together by the logic cell input gates.

TABLE 18-1: CLC1 AND CLC2 REGISTER MAP

Virtual Address (BF00.#)

Register Name(1)

Bit Range

Bits

All Resets

31/15

30/14

29/13

28/12

27/11

26/10

25/9

24/8

23/7

22/6

21/5

20/4

19/3

18/2

17/1

16/0

0A80

CLC1CON

32:16

—

—

—

—

—

—

—

—

—

—

—

—

G4POL

G3POL

G2POL

G1POL

0000

15:0

ON

—

—

—

INTP

INTN

—

—

LCOE

LCOUT

LCPOL

—

—

MODE<2:0>

0000

0A90

CLC1SEL

32:16

—

—

—

—

—

—

—

—

—

—

—

—

—

—

—

—

0000

15:0

—

DS4<2:0>

—

DS3<2:0>

—

DS2<2:0>

—

DS1<2:0>

0000

0AA0

CLC1GLS

32:16

G4D4T

G4D4N

G4D3T

G4D3N

G4D2T

G4D2N

G4D1T

G4D1N

G3D4T

G3D4N

G3D3T

G3D3N

G3D2T

G3D2N

G3D1T

G3D1N

0000

15:0

G2D4T

G2D4N

G2D3T

G2D3N

G2D2T

G2D2N

G2D1T

G2D1N

G1D4T

G1D4N

G1D3T

G1D3N

G1D2T

G1D2N

G1D1T

G1D1N

0000

0B00

CLC2CON

32:16

—

—

—

—

—

—

—

—

—

—

—

—

G4POL

G3POL

G2POL

G1POL

0000

15:0

ON

—

—

—

INTP

INTN

—

—

LCOE

LCOUT

LCPOL

—

—

MODE<2: 0>

0000

0B10

CLC2SEL

32:16

—

—

—

—

—

—

—

—

—

—

—

—

—

—

—

—

0000

15:0

—

DS4<2:0>

—

DS3<2:0>

—

DS2<2:0>

—

DS1<2:0>

0000

0B20

CLC2GLS

32:16

G4D4T

G4D4N

G4D3T

G4D3N

G4D2T

G4D2N

G4D1T

G4D1N

G3D4T

G3D4N

G3D3T

G3D3N

G3D2T

G3D2N

G3D1T

G3D1 N

0000

15:0

G2D4T

G2D4N

G2D3T

G2D3N

G2D2T

G2D2N

G2D1T

G2D1N

G1D4T

G1D4N

G1D3T

G1D3N

G1D2T

G1D2N

G1D1T

G1D1N

0000

Legend: — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: All registers in this table have corresponding CLR, SET and INV registers at their virtual address, plus an offset of 0x4, 0x8 and 0xC, respectively.

REGISTER 18-1: CLCxCON: CLCx CONTROL REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	U-0 U-0 U-0 U-0 U-0 U-0
	— — —	— — — —	—
23:16	U-0	U-0	U-0	U-0	R/W-0	R/W-0	R/W-0	R/W-0
	—	—	—	—	G4POL	G3POL	G2POL	G1POL
15:8	R/W-0	U-0	U-0	U-0	R/W-0	R/W-0	U-0	U-0
	ON	—	—	—	INTP^(1)	INTN^(1)	—	—
7:0	R/W-0	R-0, HS, HC	R/W-0	U-0	U-0	R/W-0	R/W-0	R/W-0
	LCOE	LCOUT	LCPOL	—	—	MODE<2:0>

Legend:	HC = Hardware Clearable bit	HS = Hardware Settable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 31-20 Unimplemented: Read as '0'

bit 19 G4POL: Gate 4 Polarity Control bit

1 = The output of Channel 4 logic is inverted when applied to the logic cell 0 = The output of Channel 4 logic is not inverted

bit 18 G3POL: Gate 3 Polarity Control bit

1 = The output of Channel 3 logic is inverted when applied to the logic cell 0 = The output of Channel 3 logic is not inverted

bit 17 G2POL: Gate 2 Polarity Control bit

1 = The output of Channel 2 logic is inverted when applied to the logic cell 0 = The output of Channel 2 logic is not inverted

bit 16 G1POL: Gate 1 Polarity Control bit

1 = The output of Channel 1 logic is inverted when applied to the logic cell 0 = The output of Channel 1 logic is not inverted

bit 15 ON: CLCx Enable bit

1 = CLCx is enabled and mixing input signals 0 = CLCx is disabled and has logic zero outputs

bit 14-12 Unimplemented: Read as '0'

bit 11 INTP: CLCx Positive Edge Interrupt Enable bit ^(1)

1 = Interrupt will be generated when a rising edge occurs on LCOUT 0 = Interrupt will not be generated

bit 10 INTN: CLCx Negative Edge Interrupt Enable bit ^(1)

1 = Interrupt will be generated when a falling edge occurs on LCOUT 0 = Interrupt will not be generated

bit 9-8 Unimplemented: Read as '0'

bit 7 LCOE: CLCx Port Enable bit

1 = CLCx port pin output is enabled 0 = CLCx port pin output is disabled

bit 6 LCOUT: CLCx Data Output Status bit

1 = CLCx output high 0 = CLCx output low

Note 1: The INTP and INTN bits should not be set at the same time for proper interrupt functionality.

REGISTER 18-1: CLCxCON: CLCx CONTROL REGISTER (CONTINUED)

bit 5 LCPOL: CLCx Output Polarity Control bit

1 = The output of the module is inverted

0 = The output of the module is not inverted

bit 4-3 Unimplemented: Read as '0'

bit 2-0 MODE<2:0>: CLCx Mode bits

111 = Cell is a 1-input transparent latch with S and R
110 = Cell is a JK flip-flop with R
101 = Cell is a 2-input D flip-flop with R
100 = Cell is a 1-input D flip-flop with S and R
011 = Cell is an SR latch
010 = Cell is a 4-input AND
001 = Cell is an OR-XOR
000 = Cell is a AND-OR

Note 1: The INTP and INTN bits should not be set at the same time for proper interrupt functionality.

REGISTER 18-2: CLCxSEL: CLCx INPUT MUX SELECT REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	U-0 U-0 U-0	U-0 U-0 U-0 U-0	U-0
	— — —	— — — — —
23:16	U-0 U-0 U-0	U-0 U-0 U-0	U-0
	— — —	— — — — —
15:8	U-0	R/W-0	R/W-0	R/W-0	U-0	R/W-0	R/W-0	R/W-0
	—	DS4<2:0>			—	DS3<2:0>
7:0	U-0	R/W-0	R/W-0	R/W-0	U-0	R/W-0	R/W-0	R/W-0
	—	DS2<2:0>			—	DS1<2:0>

Legend:

R = Readable bit	W = Writable bit U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared	x = Bit is unknown

bit 31-15 Unimplemented: Read as '0'

bit 14-12 DS4<2:0>: Data Selection MUX 4 Signal Selection bits

For CLC1:

111 = SCCP3 compare match event

110 = MCCP1 compare match event

101 = RTCC event

100 = Reserved

011 = SPI1 SDI input

010 = SCCP3 OCM3 output

001 = CLC2 output

000 = CLCINB I/O pin

For CLC2:

111 = SCCP3 compare match event

110 = MCCP1 compare match event

101 = RTCC event

100 = Reserved

011 = SPI2 SDI input

010 = SCCP3 OCM3 output

001 = CLC1 output

000 = CLCINB I/O pin

bit 11 Unimplemented: Read as '0'

REGISTER 18-2: CLCxSEL: CLCx INPUT MUX SELECT REGISTER (CONTINUED)

bit 10-8 DS3<2:0>: Data Selection MUX 3 Signal Selection bits

For CLC1:

111 = SCCP3 compare match event

110 = SCCP2 compare match event

101 = SCCP2 OCM2 output

100 = UART1 RX input

011 = SPI1 SDO output

010 = Comparator 2 output

001 = CLC1 output

000 = CLCINA I/O pin

For CLC2:

111 = SCCP3 compare match event

110 = SCCP2 compare match event

101 = SCCP2 OCM2 output

100 = UART2 RX input

011 = SPI2 SDO output

010 = Comparator 2 output

001 = CLC2 output

000 = CLCINA I/O pin

bit 7 Unimplemented: Read as '0'

bit 6-4 DS2<2:0>: Data Selection MUX 2 Signal Selection bits

For CLC1:

111 = Reserved

110 = MCCP1 compare match event

101 = Reserved

100 = ADC End-of-Conversion (EOC) event

011 = UART1 TX output

010 = Comparator 1 output

001 = CLC2 output

000 = CLCINB I/O pin

For CLC2:

111 = Reserved

110 = MCCP1 compare match event

101 = Reserved

100 = ADC End-of-Conversion event

011 = UART2 TX output

010 = Comparator 1 output

001 = CLC1 output

000 = CLCINB I/O pin

bit 3 Unimplemented: Read as '0'

111 = MCCP1 OCM1C output

110 = MCCP1 OCM1B output

101 = MCCP1 OCM1A output

100 = REFCLKO output

011 = LPRC clock source

010 = SOSC clock source

001 = System clock (Fsys)

000 = CLCINA I/O pin

REGISTER 18-3: CLCxGLS: CLCx GATE LOGIC INPUT SELECT REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	R/W-0 R/W	-0 R/W-0 R/W-0	R/W-0 R/W-0 R/W	-0 R/W-0
	G4D4T G	4D4N G4D3T	G4D3N G4D	2T G4D2N	G4D1T	G4D1N
23:16	R/W-0 R/W	-0 R/W-0 R/W-0	R/W-0 R/W-0 R/W	-0 R/W-0
	G3D4T G	3D4N G3D3T	G3D3N G3D	2T G3D2N	G3D1T	G3D1N
15:8	R/W-0 R/W	-0 R/W-0 R/W-0	R/W-0 R/W-0 R/W	-0 R/W-0
	G2D4T G	2D4N G2D3T	G2D3N G2D	2T G2D2N	G2D1T	G2D1N
7:0	R/W-0 R/W	-0 R/W-0 R/W-0	R/W-0 R/W-0 R/W	-0 R/W-0
	G1D4T G	1D4N G1D3T	G1D3N G1D	2T G1D2N	G1D1T	G1D1N

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 31 G4D4T: Gate 4 Data Source 4 True Enable bit

1 = The Data Source 4 signal is enabled for Gate 4
0 = The Data Source 4 signal is disabled for Gate 4

bit 30 G4D4N: Gate 4 Data Source 4 Negated Enable bit

1 = The Data Source 4 inverted signal is enabled for Gate 4
0 = The Data Source 4 inverted signal is disabled for Gate 4

bit 29 G4D3T: Gate 4 Data Source 3 True Enable bit

1 = The Data Source 3 signal is enabled for Gate 4
0 = The Data Source 3 signal is disabled for Gate 4

bit 28 G4D3N: Gate 4 Data Source 3 Negated Enable bit

1 = The Data Source 3 inverted signal is enabled for Gate 4
0 = The Data Source 3 inverted signal is disabled for Gate 4

bit 27 G4D2T: Gate 4 Data Source 2 True Enable bit

1 = The Data Source 2 signal is enabled for Gate 4
0 = The Data Source 2 signal is disabled for Gate 4

bit 26 G4D2N: Gate 4 Data Source 2 Negated Enable bit

1 = The Data Source 2 inverted signal is enabled for Gate 4
0 = The Data Source 2 inverted signal is disabled for Gate 4

bit 25 G4D1T: Gate 4 Data Source 1 True Enable bit

1 = The Data Source 1 signal is enabled for Gate 4
0 = The Data Source 1 signal is disabled for Gate 4

bit 24 G4D1N: Gate 4 Data Source 1 Negated Enable bit

1 = The Data Source 1 inverted signal is enabled for Gate 4
0 = The Data Source 1 inverted signal is disabled for Gate 4

bit 23 G3D4T: Gate 3 Data Source 4 True Enable bit

1 = The Data Source 4 signal is enabled for Gate 3
0 = The Data Source 4 signal is disabled for Gate 3

bit 22 G3D4N: Gate 3 Data Source 4 Negated Enable bit

1 = The Data Source 4 inverted signal is enabled for Gate 3
0 = The Data Source 4 inverted signal is disabled for Gate 3

bit 21 G3D3T: Gate 3 Data Source 3 True Enable bit

1 = The Data Source 3 signal is enabled for Gate 3
0 = The Data Source 3 signal is disabled for Gate 3

REGISTER 18-3: CLCxGLS: CLCx GATE LOGIC INPUT SELECT REGISTER (CONTINUED)

bit 20 G3D3N: Gate 3 Data Source 3 Negated Enable bit

1 = The Data Source 3 inverted signal is enabled for Gate 3
0 = The Data Source 3 inverted signal is disabled for Gate 3

bit 19 G3D2T: Gate 3 Data Source 2 True Enable bit

1 = The Data Source 2 signal is enabled for Gate 3
0 = The Data Source 2 signal is disabled for Gate 3

bit 18 G3D2N: Gate 3 Data Source 2 Negated Enable bit

1 = The Data Source 2 inverted signal is enabled for Gate 3
0 = The Data Source 2 inverted signal is disabled for Gate 3

bit 17 G3D1T: Gate 3 Data Source 1 True Enable bit

1 = The Data Source 1 signal is enabled for Gate 3
0 = The Data Source 1 signal is disabled for Gate 3

bit 16 G3D1N: Gate 3 Data Source 1 Negated Enable bit

1 = The Data Source 1 inverted signal is enabled for Gate 3
0 = The Data Source 1 inverted signal is disabled for Gate 3

bit 15 G2D4T: Gate 2 Data Source 4 True Enable bit

1 = The Data Source 4 signal is enabled for Gate 2
0 = The Data Source 4 signal is disabled for Gate 2

bit 14 G2D4N: Gate 2 Data Source 4 Negated Enable bit

1 = The Data Source 4 inverted signal is enabled for Gate 2
0 = The Data Source 4 inverted signal is disabled for Gate 2

bit 13 G2D3T: Gate 2 Data Source 3 True Enable bit

1 = The Data Source 3 signal is enabled for Gate 2
0 = The Data Source 3 signal is disabled for Gate 2

bit 12 G2D3N: Gate 2 Data Source 3 Negated Enable bit

1 = The Data Source 3 inverted signal is enabled for Gate 2
0 = The Data Source 3 inverted signal is disabled for Gate 2

bit 11 G2D2T: Gate 2 Data Source 2 True Enable bit

1 = The Data Source 2 signal is enabled for Gate 2
0 = The Data Source 2 signal is disabled for Gate 2

bit 10 G2D2N: Gate 2 Data Source 2 Negated Enable bit

1 = The Data Source 2 inverted signal is enabled for Gate 2
0 = The Data Source 2 inverted signal is disabled for Gate 2

bit 9 G2D1T: Gate 2 Data Source 1 True Enable bit

1 = The Data Source 1 signal is enabled for Gate 2
0 = The Data Source 1 signal is disabled for Gate 2

bit 8 G2D1N: Gate 2 Data Source 1 Negated Enable bit

1 = The Data Source 1 inverted signal is enabled for Gate 2
0 = The Data Source 1 inverted signal is disabled for Gate 2

bit 7 G1D4T: Gate 1 Data Source 4 True Enable bit

1 = The Data Source 4 signal is enabled for Gate 1
0 = The Data Source 4 signal is disabled for Gate 1

bit 6 G1D4N: Gate 1 Data Source 4 Negated Enable bit

1 = The Data Source 4 inverted signal is enabled for Gate 1
0 = The Data Source 4 inverted signal is disabled for Gate 1

bit 5 G1D3T: Gate 1 Data Source 3 True Enable bit

1 = The Data Source 3 signal is enabled for Gate 1
0 = The Data Source 3 signal is disabled for Gate 1

REGISTER 18-3: CLCxGLS: CLCx GATE LOGIC INPUT SELECT REGISTER (CONTINUED)

bit 4 G1D3N: Gate 1 Data Source 3 Negated Enable bit

1 = The Data Source 3 inverted signal is enabled for Gate 1
0 = The Data Source 3 inverted signal is disabled for Gate 1

bit 3 G1D2T: Gate 1 Data Source 2 True Enable bit

1 = The Data Source 2 signal is enabled for Gate 1
0 = The Data Source 2 signal is disabled for Gate 1

bit 2 G1D2N: Gate 1 Data Source 2 Negated Enable bit

1 = The Data Source 2 inverted signal is enabled for Gate 1
0 = The Data Source 2 inverted signal is disabled for Gate 1

bit 1 G1D1T: Gate 1 Data Source 1 True Enable bit

1 = The Data Source 1 signal is enabled for Gate 1
0 = The Data Source 1 signal is disabled for Gate 1

bit 0 G1D1N: Gate 1 Data Source 1 Negated Enable bit

1 = The Data Source 1 inverted signal is enabled for Gate 1
0 = The Data Source 1 inverted signal is disabled for Gate 1

19.0 COMPARATOR

Note: This data sheet summarizes the features of the PIC32MM0064GPL036 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 19. "Comparator" (DS60001110) in the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32). The information in this data sheet supersedes the information in the FRM.

The comparator module provides two dual input comparators. The inputs to the comparator can be configured to use any one of five external analog inputs (CxINA, CxINB, CxINC, CxIND and VREF+). The comparator outputs may be directly connected to the CxOUT pins. When the respective COE bit equals '1', the I/O pad logic makes the unsynchronized output of the comparator available on the pin.

A simplified block diagram of the module is shown in Figure 19-1. Each comparator has its own control register, CMxCON (Register 19-2), for enabling and configuring its operation. The output and event status of two comparators is provided in the CMSTAT register (Register 19-1).

FIGURE 19-1: DUAL COMPARATOR MODULE BLOCK DIAGRAM

Note 1: This input is not available for Comparator 2.

19.1 Comparator Control Registers

TABLE 19-1: COMPARATOR 1 AND 2 REGISTER MAP

Legend: — = unimplemented, read as '0'. Reset values are shown in hexadecimal
Note 1: All registers in this table have corresponding CLR, SET and INV registers at their virtual address, plus an offset of 0x4, 0x8 and 0xC, respectively.

REGISTER 19-1: CMSTAT: COMPARATOR MODULE STATUS REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	U-0 U-0 U-0 U-0 U-0 U-0
	— — —	— —	—	—	—
23:16	U-0 U-0 U-0 U-0 U-0		R-0, HS, HC	R-0, HS, HC
	—	—	—	—	—	—	C2EVT	C1EVT
15:8	U-0 U-0	R/W-0	U-0	U-0 U-0 U-0	R/W-0
	—	—	SIDL	—	—	—	—	CVREFSEL
7:0	U-0 U-0 U-0 U-0 U-0		R-0, HS, HC	R-0, HS, HC
	—	—	—	—	—	—	C2OUT	C1OUT

Legend:	HC = Hardware Clearable bit	HS = Hardware Settable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 31-18 Unimplemented: Read as '0'

bit 17 C2EVT: Comparator 2 Event Status bit (read-only)

Shows the current event status of Comparator 2 (CM2CON<9>).

bit 16 C1EVT: Comparator 1 Event Status bit (read-only)

Shows the current event status of Comparator 1 (CM1CON<9>).

bit 15-14 Unimplemented: Read as '0'

bit 13 SIDL: Comparator Stop in Idle Mode bit

1 = Discontinues operation of all comparators when device enters Idle mode

0 = Continues operation of all enabled comparators in Idle mode

bit 12-9 Unimplemented: Read as '0'

bit 8 CVREFSEL: Comparator Reference Voltage Select Enable bit

1 = External voltage reference from the VREF+ pin is selected

0 = Voltage from CDAC1 is selected

bit 7-2 Unimplemented: Read as '0'

bit 1 C2OUT: Comparator 2 Output Status bit (read-only)

Shows the current output of Comparator 2 (CM2CON<8>).

bit 0 C1OUT: Comparator 1 Output Status bit (read-only)

Shows the current output of Comparator 1 (CM1CON<8>).

REGISTER 19-2: CMxCON: COMPARATOR x CONTROL REGISTERS (COMPARATORS 1 AND 2)

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	U-0 U-0 U-0	U-0 U-0 U-0	U-0 U-0
	— — —	— — — —	—
23:16	U-0 U-0 U-0	U-0 U-0 U-0	U-0 U-0
	— — —	— — — —	—
15:8	R/W-0	R/W-0	R/W-0	U-0	U-0	U-0	R-0, HS, HC	R-0, HS, HC
	ON	COE	CPOL	—	—	—	CEVT	COUT
7:0	R/W-0	R/W-0	U-0	R/W-0	U-0	U-0	R/W-0	R/W-0
	EVPOL<1:0>		—	CREF	—	—	CCH<1:0>

Legend:	HC = Hardware Clearable bit	HS = Hardware Settable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 31-16 Unimplemented: Read as '0'

bit 15 ON: Comparator Enable bit

1 = Comparator is enabled
0 = Comparator is disabled

bit 14 COE: Comparator Output Enable bit

1 = Comparator output is present on the CxOUT pin
0 = Comparator output is internal only

bit 13 CPOL: Comparator Output Polarity Select bit

1 = Comparator output is inverted
0 = Comparator output is not inverted

bit 12-10 Unimplemented: Read as '0'

bit 9 CEVT: Comparator Event bit

1 = Comparator event that is defined by EVPOL<1:0> has occurred; subsequent triggers and interrupts are disabled until the bit is cleared 0 = Comparator event has not occurred

bit 8 COUT: Comparator Output bit

When CPOL = 0:

1 = VIN+ > VIN-
0 = VIN+ < VIN-

When CPOL = 1:

1 = V_IN + < V_IN-
0 = V_IN + > V_IN-

REGISTER 19-2: CMxCON: COMPARATOR x CONTROL REGISTERS (COMPARATORS 1 AND 2) (CONTINUED)

bit 7-6 EVPOL<1:0>: Trigger/Event/Interrupt Polarity Select bits
    11 = Trigger/event/interrupt is generated on any change of the comparator output (while CEVT = 0)
    10 = Trigger/event/interrupt is generated on transition of the comparator output:
    If CPOL = 0 (non-inverted polarity):
    High-to-low transition only.
    If CPOL = 1 (inverted polarity):
    Low-to-high transition only.
    01 = Trigger/event/interrupt is generated on transition of the comparator output:
    If CPOL = 0 (non-inverted polarity):
    Low-to-high transition only.
    If CPOL = 1 (inverted polarity):
    High-to-low transition only.
    00 = Trigger/event/interrupt generation is disabled

bit 5 Unimplemented: Read as '0'

bit 4 CREF: Comparator Reference Select bit (non-inverting input)
    1 = Non-inverting input connects to the internal reference defined by the CVREFSEL bit in the CMSTAT register
    0 = Non-inverting input connects to the CxINA pin

bit 3-2 Unimplemented: Read as '0'

bit 1-0 CCH<1:0>: Comparator Channel Select bits
    11 = Inverting input of the comparator connects to the band gap reference voltage
    10 = Inverting input of the comparator connects to the CxIND pin
    01 = Inverting input of the comparator connects to the CxINC pin
    00 = Inverting input of the comparator connects to the CxINB pin

NOTES:

20.0 CONTROL

DIGITAL-TO-ANALOG

CONVERTER (CDAC)

Note: This data sheet summarizes the features of the PIC32MM0064GPL036 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 45. "Control Digital-to-Analog Converter (CDAC)" (DS60001327) in the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32). The information in this data sheet supersedes the information in the FRM.

The Control Digital-to-Analog Converter (CDAC) generates analog voltage corresponding to the digital input.

The CDAC has the following features:

• 32 Output Levels are Available
- Internally Connected to Comparators to Conserve Device Pins
• Output can be Connected to a Pin

A block diagram of the CDAC module is illustrated in Figure 20-1.

FIGURE 20-1: CDAC BLOCK DIAGRAM

20.1 CDAC Control Registers

TABLE 20-1: CDAC REGISTER MAP

Virtual Address (BF80_#)	Register Name(1)	Bit Range	Bits																All Resets
			31/15	30/14	29/13	28/12	27/11	26/10	25/9	24/8	23/7	22/6	21/5	20/4	19/3	18/2	17/1	16/0
0980	DAC1CON	31:16	—	—	—	—	—	—	—	—	—	—	—	DACDAT<4:0>					0000
		15:0	ON	—	—	—	—	—	—	DACOE	—	—	—	—	—	—	REFSEL<1:0>		0000

Legend: — = unimplemented, read as '0'. Reset values are shown in hexadecimal
Note 1: The register in this table has corresponding CLR, SET and INV registers at its virtual address, plus offsets of 0x4, 0x8 and 0xC, respectively.

REGISTER 20-1: DAC1CON: CDAC CONTROL REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	U-0 U-0 U-0	U-0 U-0 U-0	U-0 U-0
	— — —	— — — —	—
23:16	U-0	U-0	U-0	R/W-0	R/W-0	R/W-0	R/W-0	R/W-0
	—	—	—	DACDAT<4:0>
15:8	R/W-0	U-0 U-0 U-0	U-0 U-0 U-0	R/W-0
	ON	—	—	—	—	—	—	DACOE
7:0	U-0 U-0 U-0	U-0 U-0 U-0	R/W-0	R/W-0
	— — —	— — —	REFSEL<1:0>

Legend:

R = Readable bit	W = Writable bit	U = Unimplemented bit, read as '0'
-n = Value at POR	'1' = Bit is set	'0' = Bit is cleared x = Bit is unknown

bit 31-21 Unimplemented: Read as '0'

bit 20-16 DACDAT<4:0>: CDAC Voltage Reference Selection bits

11111 = (DACDAT<4:0> * VREF+/32) or (DACDAT<4:0> * AV_DD/32) volts depending on the REFSEL<1:0> bits

•

•

。

00000 = 0.0 volts

bit 15 ON: Voltage Reference Enable bit

1 = Voltage reference is enabled

0 = Voltage reference is disabled

bit 14-9 Unimplemented: Read as '0'

bit 8 DACOE: CDAC Voltage Reference Output Enable bit

1 = Voltage level is output on the CDAC1 pin

0 = Voltage level is disconnected from the CDAC1 pin

bit 7-2 Unimplemented: Read as '0'

bit 1-0 REFSEL<1:0>: CDAC Voltage Reference Source Select bits

11 = Reference voltage is AV_DD

10 = No reference is selected - output is AVss

01 = Reference voltage is the VREF+ input pin voltage

00 = No reference is selected - output is AVss

NOTES:

21.0 HIGH/LOW-VOLTAGE DETECT (HLVD)

The High/Low-Voltage Detect (HLVD) module is a programmable circuit that allows the user to specify both the device voltage trip point and the direction of change.

An interrupt flag is set if the device experiences an excursion past the trip point in the direction of change. If the interrupt is enabled, the program execution will branch to the interrupt vector address and the software can then respond to the interrupt.

The HLVD Control register (see Register 21-1) completely controls the operation of the HLVD module. This allows the circuitry to be "turned off" by the user under software control, which minimizes the current consumption for the device.

FIGURE 21-1: HIGH/LOW-VOLTAGE DETECT (HLVD) MODULE BLOCK DIAGRAM

21.1 High/Low-Voltage Detect Registers

TABLE 21-1: HIGH/LOW-VOLTAGE DETECT REGISTER MAP

Virtual Address (BF80_#)	Register Name(1)	Bit Range	Bits																All Resets
			31/15	30/14	29/13	28/12	27/11	26/10	25/9	24/8	23/7	22/6	21/5	20/4	19/3	18/2	17/1	16/0
2310	HLVDCON	31:16	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	—	0000
		15:0	ON	—	SIDL	—	VDIR	BGVST	IRVST	HLEVVT	—	—	—	—	HLVDL<3:0>				0000

Legend: — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: The register in this table has corresponding CLR, SET and INV registers at its virtual address, plus offsets of 0x4, 0x8 and 0xC, respectively.

REGISTER 21-1: HLVDCON: HIGH/LOW-VOLTAGE DETECT CONTROL REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	U-0 U-0 U-0 U-0 U-0 U-0
	— — —	— — —	— —
23:16	U-0 U-0 U-0 U-0 U-0 U-0
	— — —	— — —	—
15:8	R/W-0	U-0	R/W-0	U-0	R/W-0	R-0, HS, HC	R-0, HS, HC	R-0, HS, HC
	ON	—	SIDL	—	VDIR	BGVST	IRVST	HLEVT
7:0	U-0 U-0 U-0 U-0 R/W-0		R/W-0	R/W-0	R/W-0
	— — —	—		HLVDL<3:0>

Legend:	HC = Hardware Clearable bit	HS = Hardware Settable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 31-16 Unimplemented: Read as '0'

bit 15 ON: HLVD Power Enable bit

1 = HLVD is enabled

0 = HLVD is disabled

bit 14 Unimplemented: Read as '0'

bit 13 SIDL: HLVD Stop in Idle Mode bit

1 = Discontinues module operation when device enters Idle mode

0 = Continues module operation in Idle mode

bit 12 Unimplemented: Read as '0'

bit 11 VDIR: Voltage Change Direction Select bit

1 = Event occurs when voltage equals or exceeds the trip point (HLVDL<3:0>)

0 = Event occurs when voltage equals or falls below the trip point (HLVDL<3:0>)

bit 10 BGVST: Band Gap Voltage Stable Flag bit

1 = Indicates that the band gap voltage is stable

0 = Indicates that the band gap voltage is unstable

bit 9 IRVST: Internal Reference Voltage Stable Flag bit

1 = Internal reference voltage is stable; the High-Voltage Detect logic generates the interrupt flag at the specified voltage range

0 = Internal reference voltage is unstable; the High-Voltage Detect logic will not generate the interrupt flag at the specified voltage range and the HLVD interrupt should not be enabled

bit 8 HLEVT: High/Low-Voltage Detection Event Status bit

1 = Indicates HLVD event is active

0 = Indicates HLVD event is not active

bit 7-4 Unimplemented: Read as '0'

Note 1: The voltage is typical. It is for design guidance only and not tested. Refer to Table 26-13 in Section 26.0 "Electrical Characteristics" for minimum and maximum values.

REGISTER 21-1: HLVDCON: HIGH/LOW-VOLTAGE DETECT CONTROL REGISTER (CONTINUED)

bit 3-0 HLVDL<3:0>: High/Low-Voltage Detection Limit bits

1111 = External analog input is used (input comes from the LVDIN pin and is compared with 1.2V band gap) 1110 = VDD trip point is 2.11 ^1 1101 = VDD trip point is 2.21 ^1 1100 = VDD trip point is 2.30 ^1 1011 = VDD trip point is 2.40 ^1 1010 = VDD trip point is 2.52 ^1 1001 = VDD trip point is 2.63 ^1 1000 = VDD trip point is 2.82 ^1 0111 = VDD trip point is 2.92 ^1 0110 = VDD trip point is 3.13 ^1 0101 = VDD trip point is 3.44 ^1 0100-0000 = Reserved; do not use

Note 1: The voltage is typical. It is for design guidance only and not tested. Refer to Table 26-13 in Section 26.0 "Electrical Characteristics" for minimum and maximum values.

22.0 POWER-SAVING FEATURES

Note: This data sheet summarizes the features of the PIC32MM0064GPL036 family of devices. It is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 10. "Power-Saving Modes" (DS60001130) in the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32). The information in this data sheet supersedes the information in the FRM.

This section describes power-saving features for the PIC32MM0064GPL036 family devices. These devices offer various methods and modes that allow the application to balance power consumption with device performance. In all of the methods and modes described in this section, power saving is controlled by software. The peripherals and CPU can be halted or disabled to reduce power consumption.

22.1 Sleep Mode

In Sleep mode, the CPU and most peripherals are halted, and the associated clocks are disabled. Some peripherals can continue to operate in Sleep mode and can be used to wake the device from Sleep. See the individual peripheral module sections for descriptions of behavior in Sleep. The device enters Sleep mode when the SLPEN bit (OSCCON<4>) is set and a WAIT instruction is executed.

Sleep mode includes the following characteristics:

• There can be a wake-up delay based on the oscillator selection.
• The Fail-Safe Clock Monitor (FSCM) does not operate during Sleep mode.
• The BOR circuit remains operative during Sleep mode.
• If WDT is enabled, the Run mode counter is not cleared upon entry to Sleep and the Sleep mode counter is reset upon entering Sleep.
• Some peripherals can continue to operate at limited functionality in Sleep mode. These peripherals include I/O pins that detect a change in the input signal, WDT, ADC, UART and peripherals that use an external clock input or the internal LPRC oscillator (e.g., RTCC and Timer1).
• I/O pins continue to sink or source current in the same manner as they do when the device is not in Sleep.
• The on-chip regulator enters Standby mode if the VREGS bit (PWRCON<0>) is set.
• A separate special low-power, low-voltage/retention regulator is activated if the RETVR Configuration bit (FPOR<2>) is programmed to zero and the RETEN bit (PWRCON<1>) is set.

The processor will exit, or "wake-up", from Sleep on one of the following events:

• On any interrupt from an enabled source that is operating in Sleep. The interrupt priority must be greater than the current CPU priority.
• On any form of device Reset.
• On a WDT time-out.

If the interrupt priority is lower than, or equal to, the current priority, the CPU will remain halted, but the Peripheral Bus Clock (PBCLK) will start running and the device will enter into Idle mode. To set or clear the SLPEN bit, an unlock sequence must be executed. Refer to Section 23.4 "System Registers Write Protection" for details.

22.2 Idle Mode

In Idle mode, the CPU is halted; however, all clocks are still enabled. This allows peripherals to continue to operate. Peripherals can be individually configured to halt when entering Idle by setting their respective SIDL bit. Latency, when exiting Idle mode, is very low due to the CPU oscillator source remaining active.

The device enters Idle mode when the SLPEN bit (OSCCON<4>) is clear and a WAIT instruction is executed.

The processor will wake or exit from Idle mode on the following events:

• On any interrupt event for which the interrupt source is enabled. The priority of the interrupt event must be greater than the current priority of the CPU. If the priority of the interrupt event is lower than, or equal to, the current priority of the CPU, the CPU will remain halted and the device will remain in Idle mode.
• On any form of device Reset.
• On a WDT time-out interrupt.

To set or clear the SLPEN bit, an unlock sequence must be executed. Refer to Section 23.4 "System Registers Write Protection" for details.

22.3 Peripheral Module Disable

The Peripheral Module Disable (PMD) registers provide a method to disable a peripheral module by stopping all clock sources supplied to that module. When a peripheral is disabled using the appropriate PMD control bit, the peripheral is in a minimum power consumption state. The control and status registers associated with the peripheral are also disabled, so writes to those registers do not take effect and read values are invalid.

To disable a peripheral, the associated PMDx bit must be set to '1'. To enable a peripheral, the associated PMDx bit must be cleared (default).

To prevent accidental configuration changes under normal operation, writes to the PMDx registers are not allowed. Attempted writes appear to execute normally, but the contents of the registers remain unchanged. To change these registers, they must be unlocked in hardware. The register lock is controlled by the PMDLOCK bit in PMDCON register (PMDCON<11>). Setting PMDLOCK prevents writes to the control registers; clearing PMDLOCK allows writes. To set or clear PMDLOCK, an unlock sequence must be executed. Refer to Section 23.4 "System Registers Write Protection" for details.

Table 22-1 lists the module disable bits and locations for all modules.

TABLE 22-1: PERIPHERAL MODULE DISABLE BITS AND LOCATIONS

Peripheral PMDx Bit Name	Register Name and Bit Location
Analog-to-Digital Converter (ADC) ADCMD PMD1<0>
Voltage Reference (VR) VREFMD PMD1<12>
High/Low-Voltage Detect (HLVD) HLVDMD PMD1<20>
Comparator 1 (CMP1)	CMP1MD	PMD2<0>
Comparator 2 (CMP2)	CMP2MD	PMD2<1>
Configurable Logic Cell 1 (CLC1)	CLC1MD	PMD2<24>
Configurable Logic Cell 2 (CLC2)	CLC2MD	PMD2<25>
Multiple Outputs Capture/Compare/PWM/Timer1 (MCCP1)	CCP1MD	PMD3<8>
Single Output Capture/Compare/PWM/Timer2 (SCCP2)	CCP2MD	PMD3<9>
Single Output Capture/Compare/PWM/Timer3 (SCCP3)	CCP3MD PMD3<10>
Timer1 (TMR1)	T1MD	PMD4<0>
Universal Asynchronous Receiver Transmitter 1 (UART1)	U1MD	PMD5<0>
Universal Asynchronous Receiver Transmitter 2 (UART2)	U2MD	PMD5<1>
Serial Peripheral Interface 1 (SPI1)	SPI1MD	PMD5<8>
Serial Peripheral Interface 2 (SPI2)	SPI2MD	PMD5<9>
Real-Time Clock and Calendar (RTCC)	RTCCMD	PMD6<0>
Reference Clock Output (REFCLKO)	REFOMD	PMD6<8>
Programmable Cyclic Redundancy Check (CRC)	CRCMD	PMD7<3>

22.4 On-Chip Voltage Regulator Low-Power Modes

The main on-chip regulator always consumes an incremental amount of current over I_DD/IPD, including when the device is in Sleep mode, even though the core digital logic does not require power. To provide additional savings in applications where power resources are critical, the regulator can be made to enter Standby mode

and/or Retention mode. Standby mode is controlled by the VREGS bit (PWRCON<0>), and Retention mode is controlled by the RETEN (PWRCON<1>) and RETVR (FPOR<2>) bits. The available Regulator Low-Power modes are listed in Table 22-2. For more information about the wake-up time and the current consumption for different modes, refer to the electrical specifications listed in Table 26-6 and Table 26-22.

TABLE 22-2: VOLTAGE REGULATOR LOW-POWER MODES

Mode	VREGS Bit (PWRCON<0>)	RETEN Bit (PWRCON<1>)	RETVR Bit (FPOR<2>)	Wake-up Time (Table 26-22)	Current (Table 26-6)
Normal 1 0 1 Fastest Highest
Standby Only	0	0	1	Medium	Medium
Retention Only	1	1	0	Medium	Medium
Standby and Retention	0 1 0	Slowest Lowest

22.4.1 REGULATOR STANDBY MODE

Whenever the device goes into Sleep mode, the regulator can be made to enter Standby mode. This feature is controlled by the VREGS bit (PWRCON<0>). Clearing the VREGS bit enables Standby mode. If Standby mode is used, the voltage regulator needs some time to switch to normal operation mode and generate output. During this time, the code execution is disabled. The delay is applied every time the device resumes operation after Standby mode.

22.4.2 REGULATOR RETENTION MODE

When in Sleep mode, the device can use a separate low-power, low-voltage/retention regulator to power critical circuits. This regulator, which operates at 1V nominal, maintains power to data RAM, WDT, Timer1

and the RTCC, while all other core digital logic is powered down. The low-voltage/retention regulator is available only when Sleep mode is invoked. It is controlled by the RETVR Configuration bit (FPOR<2>) and in firmware by the RETEN bit (PWRCON<1>). RETVR must be programmed to zero (= 0) and the RETEN bit must be set (= 1) for the retention regulator to be enabled.

22.5 Low-Power Brown-out Reset

The PIC32MM0064GPL036 family devices have a second low-power Brown-out Reset circuit with a reduced precision of the trip point. This low-power BOR circuit can be activated when the main BOR is disabled. The circuit is enabled by programming the LPBOREN Configuration bit (FPOR<3>) to '1'.

TABLE 22-3: PERIPHERAL MODULE DISABLE REGISTER MAP

Legend: — = unimplemented, read as '1'; r = reserved bit, maintain as '1'. Reset values are shown in hexadecimal.
Note 1: All registers in this table have corresponding CLR, SET and INV registers at their virtual addresses, plus offsets of 0x4, 0x8 and 0xC, respectively.

23.0 SPECIAL FEATURES

Note: This data sheet summarizes the features of the PIC32MM0064GPL036 family of devices. However, it is not intended to be a comprehensive reference source. To complement the information in this data sheet, refer to Section 33. "Programming and Diagnostics" (DS61129) in the "PIC32 Family Reference Manual", which is available from the Microchip web site (www.microchip.com/PIC32). The information in this data sheet supersedes the information in the FRM.

23.1 Configuration Bits

PIC32MM0064GPL036 family devices contain a Boot Flash Memory (BFM) with an associated configuration space. All Configuration Words are listed in Table 23-3 and Table 23-4; Register 23-1 through Register 23-6 describe the configuration options.

23.2 Code Execution from RAM

PIC32MM0064GPL036 family devices allow executing the code from RAM. The starting boundary of this special RAM space can be adjusted using the EXECADDR<7:0> bits in the CFGCON register with a 1-Kbyte step. Writing a non-zero value to these bits will move the boundary, effectively reducing the total amount of program memory space in RAM. Refer to Table 23-5 and Register 23-7 for more information.

23.3 Device ID

The Device ID identifies the device used. The ID can be read from the DEVID register. The Device IDs for PIC32MM0064GPL036 family devices are listed in Table 23-1. Also refer to Table 23-5 and Register 23-8 for more information.

TABLE 23-1: DEVICE IDs FOR PIC32MM0064GPL036 FAMILY DEVICES

Device DEVID
PIC32MM0016GPL020	0x06B04053
PIC32MM0032GPL020	0x06B0C053
PIC32MM0064GPL020	0x06B14053
PIC32MM0016GPL028	0x06B02053
PIC32MM0032GPL028	0x06B0A053
PIC32MM0064GPL028	0x06B12053
PIC32MM0016GPL036	0x06B06053
PIC32MM0032GPL036	0x06B0E053
PIC32MM0064GPL036	0x06B16053

23.4 System Registers Write Protection

The critical registers in the PIC32MM0064GPL036 family devices are protected (locked) from an accidental write. If the registers are locked, a special unlock sequence is required to modify the content of these registers.

To unlock the registers, the following steps should be done:

1. Disable interrupts prior to the system unlock sequence.

2. Execute the system unlock sequence by writing the key values of 0xAA996655 and 0x556699AA to the SYSKEY register, in two back-to-back assembly or 'C' instructions.

3. Write the new value to the required register.

4. Write a non-key value (such as 0x00000000) to the SYSKEY register to perform a lock.

5. Re-enable interrupts.

The registers that require this unlocking sequence are listed in Table 23-2.

TABLE 23-2: SYSTEM LOCKED REGISTERS

Register Name	Register Description	Peripheral
OSCCON	Oscillator Control	Oscillator
SPLLCON	System PLL Control	Oscillator
OSCTUN	FRC Tuning	Oscillator
PMDCON	Peripheral Module Disable Control	PMD
RSWRST	Software Reset	Reset
RPCON	Peripheral Pin Select Configuration	I/O Ports
RNMICON	Non-Maskable Interrupt Control	Reset
PWRCON	Power Control	Reset
RTCCON1	RTCC Control 1 RTCC

The SYSKEY register read value indicates the status. A value of '0' indicates the system registers are locked. A value of '1' indicates the system registers are unlocked. For more information about the SYSKEY register, refer to Table 23-5 and Register 23-9.

23.5 Band Gap Voltage Reference

PIC32MM0064GPL036 family devices have a precision voltage reference band gap circuit used by many modules. The analog buffers are implemented between the band gap circuit and these modules. The buffers are automatically enabled by the hardware if some part of the device needs the band gap reference. The stabilization time is required when the buffer is switched on. The software can enable these buffers in advance to allow the band gap voltage to stabilize before the module uses it. The ANCFG register contains bits to enable the band gap buffers for the comparators (VBGCMP bit) and ADC (VBGADC bit). Refer to Table 23-6 and Register 23-10 for more information.

23.6 Programming and Diagnostics

PIC32MM0064GPL036 family devices provide a complete range of programming and diagnostic features:

• Simplified Field Programmability using Two-Wire In-Circuit Serial Programming™ (ICSP™) Interfaces
• Debugging using ICSP
• Programming and Debugging Capabilities using the EJTAG Extension of JTAG
• JTAG Boundary Scan Testing for Device and Board Diagnostics

23.7 Unique Device Identifier (UDID)

PIC32MM0064GPL036 family devices are individually encoded during final manufacturing with a Unique Device Identifier or UDID. The UDID cannot be erased by a bulk erase command or any other user accessible means. This feature allows for manufacturing traceability of Microchip Technology devices in applications where this is a requirement. It may also be used by the application manufacturer for any number of things that may require unique identification, such as:

• Tracking the device
• Unique serial number
• Unique security key

The UDID comprises five 32-bit program words. When taken together, these fields form a unique 160-bit identifier.

The UDID is stored in five read-only locations, located from 0xBFC41840 to 0xBFC41854 in the device configuration space. Table 23-7 lists the addresses of the Identifier Words.

23.8 Reserved Registers

PIC32MM0064GPL036 family devices have 3 reserved registers, located at 0xBF800400, 0xBF800480 and 0xBF802280. The application code must not modify these reserved locations. Table 23-8 lists the addresses of these reserved registers.

23.9 Configuration Words and System Registers

TABLE 23-3: CONFIGURATION WORDS SUMMARY

Virtual Address (BFCO #)

Register Name

Bit Range

Bits

31:15

30/14

29/13

28/12

27/11

26/10

25/9

24/8

23/7

22/6

21/5

20/4

19/3

18/2

17/1

16/0

17C0

RESERVED

31:16

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

15:0

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

17C4

FDEVOPT

31:16

USERID<15:0>

15:0

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

SOSCHP

r-1

r-1

r-1

17C8

FICD

31:16

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

15:0

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

ICS<1:0>

JTAGEN

r-1

r-1

17CC

FPOR

31:16

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

15:0

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

LPBOREN

RETVR

BOREN<1:0>

17D0 FWD

WDT

31:16

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

15:0

FWDTEN

RCLKSEL<1:0>

RWDTPS<4:0>

WINDIS

FWDTWINSZ<1:0>

SWDTPS<4:0>

17D4

FOSCSEL

31:16

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

15:0

FCKSM<1:0>

r-1

SOSCSEL

r-1

OSCIOFNC

POSCMOD<1:0>

IESO

SOSCEN

r-1

PLL SRC

r-1

FNOSC<2:0>

17D8

FSEC

31:16

CP

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

15:0

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r 1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

17DC

RESERVED

31:16

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

15:0

r-1

r-1

r-1

r-1

l-r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

17E0

RESERVED

31:16

r-0

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

15:0

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r -1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

17E4

RESERVED

31:16

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

15:0

r-1

r-1

r-1

r-1

i-r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

Legend: r-0 = Reserved bit, must be programmed as '0'; r-1 = Reserved bit, must be programmed as '1'.

TABLE 23-4: ALTERNATE CONFIGURATION WORDS SUMMARY

Virtual Address (BFC0_f)

Register Name

Bit Range

Bits

31/15

30/14

29/13

28/12

27/11

26/10

25/9

24/8

23/7

22/6

21/5

20/4

19/3

18/2

17/1

16/0

1740

RESERVED

31:16

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

15:0

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

1744

AFDEVOPT

31:16

USERID<15:0>

15:0

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

SOSCHP

r-1

r-1

r-1

1748

AFICD

31:16

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

15:0

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

ICS<1:0>

JTAGEN

r-1

r-1

174C

AFPOR

31:16

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

15:0

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

LPBOREN

RETVR

BOREN<1:0>

1750

AFWDT

31:16

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

15:0

FWDTEN

RCLKSEL<1:0>

RWDTPS<4:0>

WINDIS

FWDTWINSZ<1:0>

SWDTPS<4:0>

1754

AFOSCSEL

31:16

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

15:0

FCKSM<1:0>

r-1

SOSCSEL

r-1

OSCIOFNC

POSCMOD<1:0>

IESO

SOSCEN

r-1

PLL SRC

r-1

FNOSC<2:0>

1758 AFSEC

31:16

CP

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

15:0

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

175C

RESERVED

31:16

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

15:0

r-1

r-1

r-1

r-1

l-r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

1760

RESERVED

31:16

r-0

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

15:0

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

1764

RESERVED

31:16

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

15:0

r-1

r-1

r-1

r-1

i-r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

r-1

Legend: r-0 = Reserved bit, must be programmed as '0'; r-1 = Reserved bit, must be programmed as '1'.

REGISTER 23-1: FDEVOPT/AFDEVOPT: DEVICE OPTIONS CONFIGURATION REGISTER

Legend:	r = Reserved bit P = Programmable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared	x = Bit is unknown

bit 31-16 USERID<15:0>: User ID bits (2 bytes which can be programmed to any value)

bit 15-4 Reserved: Program as '1'

bit 3 SOSCHP: Secondary Oscillator (SOSC) High-Power Enable bit

1 = SOSC operates in Normal Power mode

0 = SOSC operates in High-Power mode

bit 2-0 Reserved: Program as '1'

REGISTER 23-2: FICD/AFICD: ICD/DEBUG CONFIGURATION REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	r-1 r-1 r-1	r-1 r-1 r-1 r-1 r-1
	— — —	— — — — —	—
23:16	r-1 r-1 r-1	r-1 r-1 r-1 r-1 r-1
	— — —	— — — — —	—
15:8	r-1 r-1 r-1	r-1 r-1 r-1 r-1 r-1
	— — —	— — — — —	—
7:0	r-1 r-1 r-1	R/P R/P R/P r-1 r-1
	— — —	ICS<1:0> JTAGEN — —

Legend: r = Reserved bit P = Programmable bit

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0'

-n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 31-5 Reserved: Program as '1'

bit 4-3 ICS<1:0>: ICE/ICD Communication Channel Selection bits

11 = Communicates on PGEC1/PGED1

10 = Communicates on PGEC2/PGED2

01 = Communicates on PGEC3/PGED3

00 = Not connected

bit 2 JTAGEN: JTAG Enable bit

1 = JTAG is enabled

0 = JTAG is disabled

bit 1-0 Reserved: Program as '1'

REGISTER 23-3: FPOR/AFPOR: POWER-UP SETTINGS CONFIGURATION REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	r-1 r-1 r-1	r-1 r-1 r-1 r-1 r-1
	— — —	— —	— — —
23:16	r-1 r-1 r-1	r-1 r-1 r-1 r-1 r-1
	— — —	— —	— — —
15:8	r-1 r-1 r-1	r-1 r-1 r-1 r-1 r-1
	— — —	— —	— — —
7:0	r-1 r-1 r-1	r-1 R/P	R/P	R/P R/P
	—	—	—	—	LPBOREN	RETVR	BOREN<1:0>

Legend:	r = Reserved bit	P = Programmable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 31-4 Reserved: Program as '1'

bit 3 LPBOREN: Low-Power BOR Enable bit

1 = Low-Power BOR is enabled when the main BOR is disabled

0 = Low-Power BOR is disabled

bit 2 RETVR: Retention Voltage Regulator Enable bit

1 = Retention regulator is disabled

0 = Retention regulator is enabled and controlled by the RETEN bit during Sleep

bit 1-0 BOREN<1:0>: Brown-out Reset Enable bits

11 = Brown-out Reset is enabled in hardware; SBOREN bit is disabled

10 = Brown-out Reset is enabled only while device is active and is disabled in Sleep; SBOREN bit is disabled

01 = Brown-out Reset is controlled with the SBOREN bit setting

00 = Brown-out Reset is disabled in hardware; SBOREN bit is disabled

REGISTER 23-4: FWDT/AFWDT: WATCHDOG TIMER CONFIGURATION REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	r-1 r-1 r-1	r-1 r-1 r-1 r-1 r-1
	— — —	— — — — —	—
23:16	r-1 r-1 r-1	r-1 r-1 r-1 r-1 r-1
	— — —	— — — — —	—
15:8	R/P R/P R/P R/P R/P R/P R/P
	FWDTEN RCLKSEL<1:0> RWDTPS<4:0>
7:0	R/P R/P R/P R/P R/P R/P R/P
	WINDIS	FWDTWINSZ<1:0>		SWDTPS<4:0>

Legend:	r = Reserved bit	P = Programmable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 31-16 Reserved: Program as '1'

bit 15 FWDTEN: Watchdog Timer Enable bit

1 = WDT is enabled
0 = WDT is disabled

bit 14-13 RCLKSEL<1:0>: Run Mode Watchdog Timer Clock Source Selection bits

11 = Clock source is the LPRC oscillator (same as for Sleep mode)
10 = Clock source is the FRC oscillator
01 = Reserved
00 = Clock source is the system clock

bit 12-8 RWDTPS<4:0>: Run Mode Watchdog Timer Postscale Select bits

From 10100 to 11111 = 1:1048576.

10011 = 1:524288
10010 = 1:262144
10001 = 1:131072
10000 = 1:65536
01111 = 1:32768
01110 = 1:16384
01101 = 1:8192
01100 = 1:4096
01011 = 1:2048
01010 = 1:1024
01001 = 1:512
01000 = 1:256
00111 = 1:128
00110 = 1:64
00101 = 1:32
00100 = 1:16
00011 = 1:8
00010 = 1:4
00001 = 1:2
00000 = 1:1

bit 7 WINDIS: Windowed Watchdog Timer Disable bit

1 = Windowed mode is disabled
0 = Windowed mode is enabled

REGISTER 23-4: FWDT/AFWDT: WATCHDOG TIMER CONFIGURATION REGISTER (CONTINUED)

bit 6-5 FWDTWINSZ<1:0>: Watchdog Timer Window Size bits

11 = Watchdog Timer window size is 25%

10 = Watchdog Timer window size is 37.5%

01 = Watchdog Timer window size is 50%

00 = Watchdog Timer window size is 75%

bit 4-0 SWDTPS<4:0>: Sleep Mode Watchdog Timer Postscale Select bits

From 10100 to 11111 = 1:1048576.

10011 = 1:524288

10010 = 1:262144

10001 = 1:131072

10000 = 1:65536

01111 = 1:32768

01110 = 1:16384

01101 = 1:8192

01100 = 1:4096

01011 = 1:2048

01010 = 1:1024

01001 = 1:512

01000 = 1:256

00111 = 1:128

00110 = 1:64

00101 = 1:32

00100 = 1:16

00011 = 1:8

00010 = 1:4

00001 = 1:2

00000 = 1:1

REGISTER 23-5: FOSCSEL/AFOSCSEL: OSCILLATOR SELECTION CONFIGURATION REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	r-1 r-1 r-1	r-1 r-1 r-1 r-1 r-1
	— — —	— — — — —
23:16	r-1 r-1 r-1	r-1 r-1 r-1 r-1 r-1
	— — —	— — — — —
15:8	R/P R/P r-1	R/P r-1 R/P R/P R/P
	FCKSM<1:0>		—	SOSCSEL	—	OSCIOFNC	POSCMOD<1:0>
7:0	R/P R/P r-1	R/P r-1 R/P R/P R/P
	IESO	SOSCEN	—	PLLSRC	—	FNOSC<2:0>

Legend:	r = Reserved bit P = Programmable bit
R = Readable bit	W = Writable bit U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set ‘0’ = Bit is cleared x = Bit is unknown

bit 31-16 Reserved: Program as '1'

bit 15-14 FCKSM<1:0>: Clock Switching and Fail-Safe Clock Monitor Enable bits

11 = Clock switching is enabled; Fail-Safe Clock Monitor is enabled
10 = Clock switching is disabled; Fail-Safe Clock Monitor is enabled
01 = Clock switching is enabled; Fail-Safe Clock Monitor is disabled
00 = Clock switching is disabled; Fail-Safe Clock Monitor is disabled

bit 13 Reserved: Program as '1'

bit 12 SOSCSEL: Secondary Oscillator (SOSC) External Clock Enable bit

1 = Crystal is used (RA4 and RB4 pins are controlled by SOSC)
0 = External clock is connected to the SOSCO pin (RA4 and RB4 pins are controlled by I/O PORTx registers)

bit 11 Reserved: Program as '1'

bit 10 OSCIOFNC: System Clock on CLKO Pin Enable bit

1 = OSC2/CLKO pin operates as normal I/O
0 = System clock is connected to the OSC2/CLKO pin

bit 9-8 POSCMOD<1:0>: Primary Oscillator (POSC) Mode Selection bits

11 = Primary Oscillator is disabled
10 = HS Oscillator mode is selected
01 = XT Oscillator mode is selected
00 = External Clock (EC) mode is selected

bit 7 IESO: Two-Speed Start-up Enable bit

1 = Two-Speed Start-up is enabled
0 = Two-Speed Start-up is disabled

bit 6 SOSCEN: Secondary Oscillator (SOSC) Enable bit

1 = Secondary Oscillator is enabled
0 = Secondary Oscillator is disabled

bit 5 Reserved: Program as '1'

bit 4 PLLSRC: System PLL Input Clock Selection bit

1 = FRC oscillator is selected as the PLL reference input on a device Reset
0 = Primary Oscillator (POSC) is selected as the PLL reference input on a device Reset

bit 3 Reserved: Program as '1'

REGISTER 23-5: FOSCSEL/AFOSCSEL: OSCILLATOR SELECTION CONFIGURATION REGISTER (CONTINUED)

bit 2-0 FNOSC<2:0>: Oscillator Selection bits

110 and 111 = Reserved (selects Fast RC (FRC) Oscillator with Divide-by-N)

101 = Low-Power RC Oscillator (LPRC)

100 = Secondary Oscillator (SOSC)

011 = Reserved

010 = Primary Oscillator (XT, HS, EC)

001 = Primary or FRC Oscillator with PLL

000 = Fast RC (FRC) Oscillator with Divide-by-N

REGISTER 23-6: FSEC/AFSEC: CODE-PROTECT CONFIGURATION REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	R/P r-1 r-1	r-1 r-1 r-1 r-1 r-1
	CP — — — — — — —
23:16	r-1	r-1	r-1	r-1	r-1	r-1	r-1	r-1
	—	— — — — —	— — — —	— — — —
15:8	r-1	r-1	r-1	r-1	r-1	r-1	r-1	r-1
	—	— — — — —	— — — —
7:0	r-1	r-1	r-1	r-1	r-1	r-1	r-1	r-1
	—	— — — — —	— — — —

Legend:	r = Reserved bit	P = Programmable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 31 CP: Code Protection Enable bit

1 = Code protection is disabled

0 = Code protection is enabled

bit 30-0 Reserved: Program as '1'

TABLE 23-5: RAM CONFIGURATION, DEVICE ID AND SYSTEM LOCK REGISTERS MAP

Legend: x = unknown value on Reset; — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: Reset values are dependent on the device variant.

REGISTER 23-7: CFGCON: CONFIGURATION CONTROL REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	U-0 U-0 U-0	U-0 r-0 U-0 r-0 r-0
	— — —	— — — — —
23:16	R/W-0 R/W-0	R/W-0 R/W-0 R/W-0	R/W-0	R/W-0	R/W-0 R/W-0
	EXECADDR<7:0>
15:8	U-0	U-0	U-0	U-0	U-0	U-0	U-0	U-0
	— — —	— — — — —
7:0	U-0 U-0 U-0	U-0	R/W-y	U-0 r-1 r-1
	—	—	—	—	JTAGEN	—	—	—

Legend:	r = Reserved bit	y = Value set from Configuration bits on Reset
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 31-28 Unimplemented: Read as '0'

bit 27 Reserved: Must be written as '0'

bit 26 Unimplemented: Read as '0'

bit 25-24 Reserved: Must be written as '0'

bit 23-16 EXECADDR<7:0>: RAM Program Space Start Address bits

11111111 = RAM program space starts at the 255-Kbyte boundary (from 0xA003FC00)

•

•

.

00000010 = RAM program space starts at the 2-Kbyte boundary (from 0xA0000800)

00000001 = RAM program space starts at the 1-Kbyte boundary (from 0xA0000400)

00000000 = All data RAM is allocated to program space (from 0xA0000000)

bit 15-4 Unimplemented: Read as '0'

bit 3 JTAGEN: JTAG Enable bit

1 = JTAG port is enabled

0 = JTAG port is disabled

The Reset value of this bit is the value of the JTAGEN (FICD<2>) Configuration bit.

bit 2 Unimplemented: Read as '0'

bit 1-0 Reserved: Must be written as '1'

REGISTER 23-8: DEVID: DEVICE ID REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	R-x R-x R-x	R-x R-x R-x R-x	R-x
	VER<3:0>(1)				ID<27:24>(1)
23:16	R-x R-x R-x	R-x R-x R-x R-x	R-x
	ID<23:16>(1)
15:8	R-x R-x R-x	R-x R-x R-x R-x	R-x
	ID<15:8>(1)
7:0	R-x R-x R-x	R-x R-x R-x R-x	R-x
	ID<7:0>(1)

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0' -n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 31-28 VER<3:0>: Revision Identifier bits (1)

bit 27-0 DEVID<27:0>: Device ID bits (1)

Note 1: Reset values are dependent on the device variant.

REGISTER 23-9: SYSKEY: SYSTEM UNLOCK REGISTER

Bit Range	Bit 31/23/15/7	Bit 30/22/14/6	Bit 29/21/13/5	Bit 28/20/12/4	Bit 27/19/11/3	Bit 26/18/10/2	Bit 25/17/9/1	Bit 24/16/8/0
31:24	W-0	W-0	W-0	W-0	W-0	W-0	W-0	W-0
	SYSKEY<31:24>
23:16	W-0	W-0	W-0	W-0	W-0	W-0	W-0	W-0
	SYSKEY<23:16>
15:8	W-0	W-0	W-0	W-0	W-0	W-0	W-0	W-0
	SYSKEY<15:8>
7:0	W-0	W-0	W-0	W-0	W-0	W-0	W-0	W-0
	SYSKEY<7:0>

Legend:

R = Readable bit W = Writable bit U = Unimplemented bit, read as '0' -n = Value at POR '1' = Bit is set '0' = Bit is cleared x = Bit is unknown

bit 31-0 SYSKEY<31:0>: Unlock and Lock Key bits

TABLE 23-6: BAND GAP REGISTER MAP

Legend: — = unimplemented, read as '0'. Reset values are shown in hexadecimal.
Note 1: This register has corresponding CLR, SET and INV registers at its virtual address, plus an offset of 0x4, 0x8 and 0xC, respectively.

REGISTER 23-10: ANCFG: BAND GAP CONTROL REGISTER

Legend:	HC = Hardware Clearable bit	HS = Hardware Settable bit
R = Readable bit	W = Writable bit	U = Unimplemented bit, read as ‘0’
-n = Value at POR	‘1’ = Bit is set	‘0’ = Bit is cleared x = Bit is unknown

bit 31-3 Unimplemented: Read as '0'

bit 2 VBGADC: ADC Band Gap Enable bit

1 = ADC band gap is enabled

0 = ADC band gap is disabled

bit 1 VBGCMP: Comparator Band Gap Enable bit

1 = Comparator band gap is enabled

0 = Comparator band gap is disabled

bit 0 Unimplemented: Read as '0'

TABLE 23-7: UNIQUE DEVICE IDENTIFIER (UDID) REGISTER MAP

Virtual Address(BF80_#)

Register Name

Bit Range

Bits

All Resets

31/15

30/14

29/13

28/12

27/11

26/10

25/9

24/8

23/7

22/6

21/5

20/4

19/3

18/2

17/1

16/0

1840

UDID1

31:16

XXXX

xxxxx

15:0

1844

UDID2

31:16

XXXX

xxxxx

15:0

1848

UDID3

31:16

XXXX

xxxxx

15:0

184C

UDID4

31:16

XXXX

xxxxx

15:0

1850

UDID5

31:16

XXXX

xxxxx

15:0

Legend: x = unknown value on Reset; — = unimplemented, read as '0'. Reset values are shown in hexadecimal.

TABLE 23-8: RESERVED REGISTERS MAP

Virtual Address (BF80 #)

Register Name

Bit Range

Bits

All Resets

31/15

30/14

29/13

28/12

27/11

26/10

25/9

24/8

23/7

22/6

21/5

20/4

19/3

18/2

17/1

16/0

0400

RESERVED1

31:16

Reserved Register 1<31:0>

CCDD

15:0

0000

0480

RESERVED2

31:16

Reserved Register 2<31:0>

CCDD

15:0

0000

2280

RESERVED3

31:16

Reserved Register 3<31:0>

CCDD

15:0

0000

Legend: x = unknown value on Reset; — = unimplemented, read as '0'. Reset values are shown in hexadecimal.

NOTES:

24.0 DEVELOPMENT SUPPORT

The PIC ^® microcontrollers (MCU) and dsPIC ^® digital signal controllers (DSC) are supported with a full range of software and hardware development tools:

- Integrated Development Environment - MPLAB ^® X IDE Software

- Compilers/Assemblers/Linkers

- MPLAB XC Compiler

- MPASM ^TM Assembler

- M P L ^TM Object Linker/MPLIB ^TM Object Librarian

- MPLAB Assembler/Linker/Librarian for Various Device Families

- Simulators

- MPLAB X SIM Software Simulator

- Emulators

- MPLAB REAL ICE™ In-Circuit Emulator

- In-Circuit Debuggers/Programmers - MPLAB ICD 3 - PICkit™ 3

• Device Programmers

- MPLAB PM3 Device Programmer

- Low-Cost Demonstration/Development Boards, Evaluation Kits and Starter Kits

• Third-party development tools

24.1 MPLAB X Integrated Development Environment Software

The MPLAB X IDE is a single, unified graphical user interface for Microchip and third-party software, and hardware development tool that runs on Windows ^® , Linux and Mac OS ^® X. Based on the NetBeans IDE, MPLAB X IDE is an entirely new IDE with a host of free software components and plug-ins for high-performance application development and debugging. Moving between tools and upgrading from software simulators to hardware debugging and programming tools is simple with the seamless user interface.

With complete project management, visual call graphs, a configurable watch window and a feature-rich editor that includes code completion and context menus, MPLAB X IDE is flexible and friendly enough for new users. With the ability to support multiple tools on multiple projects with simultaneous debugging, MPLAB X IDE is also suitable for the needs of experienced users.

Feature-Rich Editor:

• Color syntax highlighting

- Smart code completion makes suggestions and provides hints as you type

• Automatic code formatting based on user-defined rules

- Live parsing

User-Friendly, Customizable Interface:

- Fully customizable interface: toolbars, toolbar buttons, windows, window placement, etc.

- Call graph window

Project-Based Workspaces:

- Multiple projects

- Multiple tools

- Multiple configurations

- Simultaneous debugging sessions

File History and Bug Tracking:

- Local file history feature

• Built-in support for Bugzilla issue tracker

24.2 MPLAB XC Compilers

The MPLAB XC Compilers are complete ANSI C compilers for all of Microchip's 8, 16 and 32-bit MCU and DSC devices. These compilers provide powerful integration capabilities, superior code optimization and ease of use. MPLAB XC Compilers run on Windows, Linux or MAC OS X.

For easy source level debugging, the compilers provide debug information that is optimized to the MPLAB X IDE.

The free MPLAB XC Compiler editions support all devices and commands, with no time or memory restrictions, and offer sufficient code optimization for most applications.

MPLAB XC Compilers include an assembler, linker and utilities. The assembler generates relocatable object files that can then be archived or linked with other relocatable object files and archives to create an executable file. MPLAB XC Compiler uses the assembler to produce its object file. Notable features of the assembler include:

• Support for the entire device instruction set
• Support for fixed-point and floating-point data
• Command-line interface
• Rich directive set
• Flexible macro language
• MPLAB X IDE compatibility

24.3 MPASM Assembler

The MPASM Assembler is a full-featured, universal macro assembler for PIC10/12/16/18 MCUs.

The MPASM Assembler generates relocatable object files for the MPLINK Object Linker, Intel® standard HEX files, MAP files to detail memory usage and symbol reference, absolute LST files that contain source lines and generated machine code, and COFF files for debugging.

The MPASM Assembler features include:

• Integration into MPLAB X IDE projects
- User-defined macros to streamline assembly code
- Conditional assembly for multipurpose source files
- Directives that allow complete control over the assembly process

24.4 MPLINK Object Linker/MPLIB Object Librarian

The MPLINK Object Linker combines relocatable objects created by the MPASM Assembler. It can link relocatable objects from precompiled libraries, using directives from a linker script.

The MPLIB Object Librarian manages the creation and modification of library files of precompiled code. When a routine from a library is called from a source file, only the modules that contain that routine will be linked in with the application. This allows large libraries to be used efficiently in many different applications.

The object linker/library features include:

• Efficient linking of single libraries instead of many smaller files
• Enhanced code maintainability by grouping related modules together
• Flexible creation of libraries with easy module listing, replacement, deletion and extraction

24.5 MPLAB Assembler, Linker and Librarian for Various Device Families

MPLAB Assembler produces relocatable machine code from symbolic assembly language for PIC24, PIC32 and dsPIC DSC devices. MPLAB XC Compiler uses the assembler to produce its object file. The assembler generates relocatable object files that can then be archived or linked with other relocatable object files and archives to create an executable file. Notable features of the assembler include:

• Support for the entire device instruction set
• Support for fixed-point and floating-point data
• Command-line interface
• Rich directive set
• Flexible macro language
• MPLAB X IDE compatibility

24.6 MPLAB X SIM Software Simulator

The MPLAB X SIM Software Simulator allows code development in a PC-hosted environment by simulating the PIC MCUs and dsPIC DSCs on an instruction level. On any given instruction, the data areas can be examined or modified and stimuli can be applied from a comprehensive stimulus controller. Registers can be logged to files for further run-time analysis. The trace buffer and logic analyzer display extend the power of the simulator to record and track program execution, actions on I/O, most peripherals and internal registers.

The MPLAB X SIM Software Simulator fully supports symbolic debugging using the MPLAB XC Compilers, and the MPASM and MPLAB Assemblers. The software simulator offers the flexibility to develop and debug code outside of the hardware laboratory environment, making it an excellent, economical software development tool.

24.7 MPLAB REAL ICE In-Circuit Emulator System

The MPLAB REAL ICE In-Circuit Emulator System is Microchip's next generation high-speed emulator for Microchip Flash DSC and MCU devices. It debugs and programs all 8, 16 and 32-bit MCU, and DSC devices with the easy-to-use, powerful graphical user interface of the MPLAB X IDE.

The emulator is connected to the design engineer's PC using a high-speed USB 2.0 interface and is connected to the target with either a connector compatible with in-circuit debugger systems (RJ-11) or with the new high-speed, noise tolerant, Low-Voltage Differential Signal (LVDS) interconnection (CAT5).

The emulator is field upgradable through future firmware downloads in MPLAB X IDE. MPLAB REAL ICE offers significant advantages over competitive emulators including full-speed emulation, run-time variable watches, trace analysis, complex breakpoints, logic probes, a ruggedized probe interface and long (up to three meters) interconnection cables.

24.8 MPLAB ICD 3 In-Circuit Debugger System

The MPLAB ICD 3 In-Circuit Debugger System is Microchip's most cost-effective, high-speed hardware debugger/programmer for Microchip Flash DSC and MCU devices. It debugs and programs PIC Flash microcontrollers and dsPIC DSCs with the powerful, yet easy-to-use graphical user interface of the MPLAB IDE.

The MPLAB ICD 3 In-Circuit Debugger probe is connected to the design engineer's PC using a high-speed USB 2.0 interface and is connected to the target with a connector compatible with the MPLAB ICD 2 or MPLAB REAL ICE systems (RJ-11). MPLAB ICD 3 supports all MPLAB ICD 2 headers.

24.9 PICkit 3 In-Circuit Debugger/Programmer

The MPLAB PICkit 3 allows debugging and programming of PIC and dsPIC Flash microcontrollers at a most affordable price point using the powerful graphical user interface of the MPLAB IDE. The MPLAB PICkit 3 is connected to the design engineer's PC using a full-speed USB interface and can be connected to the target via a Microchip debug (RJ-11) connector (compatible with MPLAB ICD 3 and MPLAB REAL ICE). The connector uses two device I/O pins and the Reset line to implement in-circuit debugging and In-Circuit Serial Programming™ (ICSP™).

24.10 MPLAB PM3 Device Programmer

The MPLAB PM3 Device Programmer is a universal, CE compliant device programmer with programmable voltage verification at VDDMIN and VDDMAX for maximum reliability. It features a large LCD display (128 x 64) for menus and error messages, and a modular, detachable socket assembly to support various package types. The ICSP cable assembly is included as a standard item. In Stand-Alone mode, the MPLAB PM3 Device Programmer can read, verify and program PIC devices without a PC connection. It can also set code protection in this mode. The MPLAB PM3 connects to the host PC via an RS-232 or USB cable. The MPLAB PM3 has high-speed communications and optimized algorithms for quick programming of large memory devices, and incorporates an MMC card for file storage and data applications.

24.11 Demonstration/Development Boards, Evaluation Kits and Starter Kits

A wide variety of demonstration, development and evaluation boards for various PIC MCUs and dsPIC DSCs allows quick application development on fully functional systems. Most boards include prototyping areas for adding custom circuitry and provide application firmware and source code for examination and modification.

The boards support a variety of features, including LEDs, temperature sensors, switches, speakers, RS-232 interfaces, LCD displays, potentiometers and additional EEPROM memory.

The demonstration and development boards can be used in teaching environments, for prototyping custom circuits and for learning about various microcontroller applications.

In addition to the PICDEM ^™ and dsPICDEM ^™ demonstration/development board series of circuits, Microchip has a line of evaluation kits and demonstration software for analog filter design, KEELOQ ^® security ICs, CAN, IrDA ^® , PowerSmart battery management, SEEVAL ^® evaluation system, Sigma-Delta ADC, flow rate sensing, plus many more.

Also available are starter kits that contain everything needed to experience the specified device. This usually includes a single application and debug capability, all on one board.

Check the Microchip web page (www.microchip.com) for the complete list of demonstration, development and evaluation kits.

24.12 Third-Party Development Tools

Microchip also offers a great collection of tools from third-party vendors. These tools are carefully selected to offer good value and unique functionality.

• Device Programmers and Gang Programmers from companies, such as SoftLog and CCS
- Software Tools from companies, such as Gimpel and Trace Systems
- Protocol Analyzers from companies, such as Saleae and Total Phase
- Demonstration Boards from companies, such as MikroElektronika, Digilent® and Olimex
- Embedded Ethernet Solutions from companies, such as EZ Web Lynx, WIZnet and IPLogika®

25.0 INSTRUCTION SET

The PIC32MM0064GPL036 family instruction set complies with the MIPS® Release 3 instruction set architecture. Only microMIPS32™ instructions are supported. The PIC32MM0064GPL036 family does not have the following features:

• Core extend instructions
  • Coprocessor 1 instructions
  • Coprocessor 2 instructions

Note: Refer to the “MIPS ^ Architecture for Programmers Volume II-B: The microMIPS32 ^TM Instruction Set” at www.imgtec.com for more information.

NOTES:

26.0 ELECTRICAL CHARACTERISTICS

This section provides an overview of the PIC32MM0064GPL036 family electrical characteristics. Additional information will be provided in future revisions of this document as it becomes available.

Absolute maximum ratings for the PIC32MM0064GPL036 family are listed below. Exposure to these maximum rating conditions for extended periods may affect device reliability. Functional operation of the device at these, or any other conditions above the parameters indicated in the operation listings of this specification, is not implied.

Absolute Maximum Ratings ^()

Ambient temperature under bias....-40°C to +125°C

Storage temperature -65^ to +150^

Voltage on VDD with respect to Vss -0.3V to +4.0V

Voltage on any general purpose digital or analog pin (not 5.5V tolerant) with respect to S ...... -0.3V to ( VDD + 0.3V )

Voltage on any general purpose digital or analog pin (5.5V tolerant) with respect to s:

When V_DD = 0V : -0.3V to +4.0V

When V_DD ≥ 2.0V : -0.3V to +6.0V

Voltage on AVDD with respect to Vss....VDD

Voltage on AVss with respect to Vss....Vss

Maximum current out of Vss pin 100 mA

Maximum current into VDD pin ^(1) 300 mA

Maximum output current sunk by I/O pin 11 mA

Maximum output current sourced by I/O pin 16 mA

Maximum output current sunk by I/O pin with increased current drive strength (RA3, RB8, RB9 and RB15).....17 mA

Maximum output current sourced by I/O pin with increased current drive strength (RA3, RB8, RB9 and RB15) .....24 mA

Maximum current sunk by all ports ....300 mA

Maximum current sourced by all ports ^(1) 300 mA

Note 1: Maximum allowable current is a function of device maximum power dissipation (see Table 26-1).

NOTICE: Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at those or any other conditions above those indicated in the operation listings of this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.

26.1 DC Characteristics

FIGURE 26-1: PIC32MM0064GPL036 FAMILY VOLTAGE-FREQUENCY GRAPH

Note 1: Lower operating boundary is 2.0V or V BOR when BOR is enabled.

TABLE 26-1: THERMAL OPERATING CONDITIONS

Rating	Symbol	Min	Typ	Max	Unit
PIC32MM00XXGPL0XX:
Operating Junction Temperature Range T	J	-40	—	+100	°C(1)
	TJ	-40	—	+140	°C(2)
PIC32MM00XXGPL0XX:
Operating Ambient Temperature Range T	A	-40	—	+85	°C(1)
	TA	-40	—	+125	°C(2)
Power Dissipation:
Internal Chip Power Dissipation:
PINT = VDD x (IDD - Σ IOH)	PD	PINT + PI/O			W
I/O Pin Power Dissipation:
PI/O = Σ ( {VDD - VOH} x IOH) + Σ (VOL x IOL)
Maximum Allowed Power Dissipation	PDMAX	(TJ - TA)/θJA			W

Note 1: 85°C rated parts.
2: 125°C rated parts.

TABLE 26-2: PACKAGE THERMAL RESISTANCE (1)

Package Symbol Typ Unit
20-Pin SSOP θ	JA	87.3 °C/W
20-Pin QFN θ	JA	43.0 °C/W
28-Pin SPDIP θ	JA	60.0 °C/W
28-Pin SSOP θ	JA	71.0 °C/W
28-Pin SOIC θ	JA	69.7 °C/W
28-Pin UQFN θ	JA	27.5 °C/W
28-Pin QFN θ	JA	20.0 °C/W
36-Pin VQFN θ	JA	31.1 °C/W
40-Pin UQFN θ	JA	41.0 °C/W

Note 1: Junction to ambient thermal resistance; Theta-JA ( JA) numbers are achieved by package simulations.

TABLE 26-3: OPERATING VOLTAGE SPECIFICATIONS

Operating Conditions: 2.0V < VDD < 3.6V, -40°C < TA < +125°C (unless otherwise stated)
Param No.	Symbol	Characteristic	Min	Max	Units	Conditions
DC10	VDD	Supply Voltage	2.0	3.6	V	BOR disabled
			VBOR	3.6	V	BOR enabled
DC16	VPOR(1)	VDD Start Voltage to Ensure Internal Power-on Reset Signal	Vss	—	V
DC17A	SVDD(1)	VDD Rise Rate to Ensure Internal Power-on Reset Signal	0.05	—	V/ms	0-3.3V in 66 ms, 0-2.0V in 40 ms
DC17B	VBOR	Brown-out Reset Voltage on VDD Transition, High-to-Low	1.94	2.22	V

Note 1: If the V POR or SVDD parameters are not met, or the application experiences slow power-down VDD ramp rates, it is recommended to enable and use BOR.

TABLE 26-4: OPERATING CURRENT (I DD) ^(2)

Operating Conditions: -40°C < TA < +85°C (unless otherwise stated)
Parameter No.	Typical (1)	Max Units V		DD	Conditions
DC19 0.45 0.65	mA 2.0V				Fsys = 1 MHz
	0.45 0.65	mA 3.3V
DC23 2.5 3.5 mA	2.0V				Fsys = 8 MHz
	2.5 3.5 mA	3.3V
DC24 7.0 9.2 mA	2.0V				Fsys = 25 MHz
	7.0 9.2 mA	3.3V
DC25A 0.26 0.35	mA 2.0V				Fsys = 32 kHz
	0.26 0.35	mA 3.3V
DS25B	0.70 0.90	mA 3.3V	F		sys = 32 kHz, +125°C

Note 1: Data in the “Typical” column is at +25°C unless otherwise stated. Parameters are for design guidance only and are not tested.
2: Base IDD current is measured with:

- Oscillator is configured in EC mode without PLL (FNOSC<2:0> (FOSCSEL<2:0>) = 010 and POSCMOD<1:0> (FOSCSEL<9:8>) = 00)

- OSC1 pin is driven with external square wave with levels from 0.3V to VDD - 0.3V

- OSC2 is configured as an I/O in Configuration Words (OSCIOFNC (FOSCSEL<10>) = 1)

- FSCM is disabled (FCKSM<1:0> (FOSCSEL<15:14>) = 00)

- Secondary Oscillator circuits are disabled (SOSCEN (FOSCSEL<6>) = 0 and SOSCSEL (FOSCSEL<12>) = 0)

- Main and low-power BOR circuits are disabled (BOREN<1:0> (FPOR<1:0>) = 0.0 and LPBOREN (FPOR<3>) = 0)

- Watchdog Timer is disabled (FWDTEN (FWDT<15>) = 0)

- All I/O pins (except OSC1) are configured as outputs and driving low

- No peripheral modules are operating or being clocked (defined PMDx bits are all ones)

• NOP instructions are executed

TABLE 26-5: IDLE CURRENT (I IDLE) ^(2)

Operating Conditions: -40°C < TA < +85°C (unless otherwise stated)
Parameter No.	Typical (1)	Max Units	V	DD	Conditions
DC40A 0.26 0.46	mA 2.0V				Fsys = 1 MHz
	0.26 0.46	mA 3.3V
DC41A 0.85 1.5 m	mA 2.0V				Fsys = 8 MHz
	0.85 1.5 m	mA 3.3V
DC42A 2.3 3.7 m	mA 2.0V				Fsys = 25 MHz
	2.3 3.7 m	mA 3.3V
DC44A 0.18 0.34	mA 2.0V				Fsys = 32 kHz
	0.18 0.34	mA 3.3V
DC40B	0.6	1	mA	2.0V	Fsys = 1 MHz, +125°C
	0.6	1	mA	3.3V
DC41B 1.4 2.1 m	mA 2.0V				Fsys = 8 MHz, +125°C
	1.4 2.1 m	mA 3.3V
DC42B 2.9 4.3 m	mA 2.0V				Fsys = 25 MHz, +125°C
	2.9 4.3 m	mA 3.3V
DC44B 0.4 0.64 m	mA 2.0V				Fsys = 32 kHz, +125°C
	0.4 0.64 m	mA 3.3V

Note 1: Data in the “Typical” column is at +25°C unless otherwise stated. Parameters are for design guidance only and are not tested.
2: Base IDLE current is measured with:

- Oscillator is configured in EC mode without PLL (FNOSC<2:0> (FOSCSEL<2:0>) = 010 and POSCMOD<1:0> (FOSCSEL<9:8>) = 00)

- OSC1 pin is driven with external square wave with levels from 0.3V to VDD - 0.3V

- OSC2 is configured as I/O in Configuration Words (OSCIOFNC (FOSCSEL<10>) = 1)

- FSCM is disabled (FCKSM<1:0> (FOSCSEL<15:14>) = 00)

- Secondary Oscillator circuits are disabled (SOSCEN (FOSCSEL<6>) = 0 and SOSCSEL (FOSCSEL<12>) = 0)

- Main and low-power BOR circuits are disabled (BOREN<1:0> (FPOR<1:0>) = 00 and LPBOREN (FPOR<3>) = 0)

- Watchdog Timer is disabled (FWDTEN (FWDT<15>) = 0)

- All I/O pins (excepting OSC1) are configured as outputs and driving low

- No peripheral modules are operating or being clocked (defined PMDx bits are all ones)

TABLE 26-6: POWER-DOWN CURRENT (I PD) ^(2)

Parameter No.	Typical (1)	Max Units		Operating Temperature	VDD	Conditions
DC60 134	98 μA -40°C				2.0V	Sleep with active main voltage regulator (VREGS (PWRCON<0>) = 1, RETEN (PWRCON<1>) = 0)
	136 208	μA +25°C
	141 217	μA +85°C
	350 640	μA +125°C
	139 209	μA -40°C			3.3V
	141 217	μA +25°C
	143 231	μA +85°C
	400 650	μA +125°C
DC61	4.3 11.7	μA -40°C			2.0V	Sleep with main voltage regulator in Standby mode (VREGS (PWRCON<0>) = 0, RETEN (PWRCON<1>) = 0)
	5.1 15.6	μA +25°C
	35	55	μA +85°C
	40	90	μA +125°C
	6.1 16.8	μA -40°C			3.3V
	6.9 20.1	μA +25°C
	12.7 36.0	μA +85°C
	60	100 μA	+125°C
DC62	2.3	—	μA -40°C		2.0V	Sleep with enabled retention voltage regulator (VREGS (PWRCON<0>) = 1, RETEN (PWRCON<1>) = 1, RETVR (FPOR<2>) = 0)
	2.7	—	μA +25°C
	5.2	—	μA +85°C
	2.3	—	μA	-40°C	3.3V
	2.7	—	μA +25°C
	5.4	—	μA +85°C
	10.1	—	μA +125°C
DC63	0.28	—	μA -40°C		2.0V	Sleep with enabled retention voltage regulator (VREGS (PWRCON<0>) = 0, RETEN (PWRCON<1>) = 1, RETVR (FPOR<2>) = 0)
	0.44	—	μA +25°C
	2.52	—	μA +85°C
	0.29	—	μA	-40°C	3.3V
	0.44	—	μA +25°C
	2.62	—	μA +85°C
	10.1	—	μA +125°C

Note 1: Data in the “Typical” column is at 3.3V, +25°C unless otherwise stated. Parameters are for design guidance only and are not tested.
2: Base IPD is measured with:
- Oscillator is configured in FRC mode without PLL (FNOSC<2:0> (FOSCSEL<2:0>) = 000)
- OSC2 is configured as I/O in Configuration Words (OSCIOFNC (FOSCSEL<10>) = 1)
- FSCM is disabled (FCKSM<1:0> (FOSCSEL<15:14>) = 00)
- Secondary Oscillator circuits are disabled (SOSCEN (FOSCSEL<6>) = 0 and SOSCSEL (FOSCSEL<12>) = 0)
- Main and low-power BOR circuits are disabled (BOREN<1:0> (FPOR<1:0>) = 00 and LPBOREN (FPOR<3>) = 0)
- Watchdog Timer is disabled (FWDTEN (FWDT<15>) = 0)
- All I/O pins are configured as outputs and driving low
- No peripheral modules are operating or being clocked (defined PMDx bits are all ones)

TABLE 26-7: INCREMENTAL PERIPHERAL △ CURRENT (2)

Operating Conditions: 2.0V < VDD < 3.6V, -40°C < TA < +85°C (unless otherwise stated)
Parameter No. Typ	(1)	Units Conditions
Brown-out Reset Incremental Current (ΔBOR)
DC71A 2.7 μA
DC71B 3.4 μA +125°C
Watchdog Timer Incremental Current (ΔWDT)
DC72A 80 nA with LPRC
DC72B 140	nA +125°C with LPRC
High/Low-Voltage Detect Incremental Current (ΔHLVD)
DC73	2.1 μA
Real-Time Clock and Calendar Incremental Current (ΔRTCC)
DC74A 1.0	μA with SOSC
DC74B 2.0 μA +125°C with SOSC
DC75A 0.4 μA	with LPRC
DC75B	0.65	μA +125°C with LPRC
ADC Incremental Current (ΔADC)
DC76A	450	μA	12-bit, 100 ksps, with FRC
DC76B 590	μA +125°C, 12-bit, 100 ksps, with FRC
FRC Oscillator Incremental Current (ΔFRC)
DC78A	305	μA
DC78B 350	μA +125°C
PLL Incremental Current (ΔPLL)
DC79A	1230	μA	Fvco = 24 MHz
DC79B	1550	μA	Fvco = 24MHz +125°C
DC80A	1550	μA	Fvco = 48 MHz
DC80B	1850	μA	Fvco = 48MHz +125°C
Digital-to-Analog Converter Incremental Current, CDAC (ΔDAC)
DC81A	27.5	μA
DC81B	40.0	μA +125°C
Low-Power BOR Incremental Current (ΔLPBOR)
DC82A	200	nA
DC82B 420	nA +125°C
Comparator Incremental Current (ΔCMP)
DC83A	24.0	μA
DC83B	38.0	μA +125°C

Note 1: Data in the "Typ" column is for design guidance only and is not tested.
2: The current is an additional current consumed when the module is enabled. This current should be added to the base IPD current.

TABLE 26-8: I/O PIN INPUT SPECIFICATIONS

Operating Conditions: 2.0V ≤ VDD ≤ 3.6V, -40°C ≤ TA ≤ +125°C (unless otherwise stated)
Param No.	Symbol	Characteristic Min Typ		(1)	Max Units Conditions
	VIL	Input Low Voltage^(2)
DI10 I/O	Pins with	ST Buffer V	SS	— 0.2	V DD	V
DI15 MCLR V		——	SS	— 0.2	V DD	V
DI16 OSC1/CLKI		(XT mode) V	SS	— 0.2	V DD	V
DI17 OSC1/CLKI		(HS mode) V	SS	— 0.2	V DD	V
	VIH	Input High Voltage^(2)
DI20 I/O	Pins with	ST Buffer:without 5V Tolerancewith 5V Tolerance	0.8 VDD0.8 VDD	——	VDD5.5	VV
DI25 MCLR		—— 0.8 V	DD	——	VDD	V
DI26 OSC1/CLKI		(XT mode) 0.7 V	DD	——	VDD	V
DI27 OSC1/CLKI		(HS mode) 0.7 V	DD	——	VDD	V
DI30	ICNPU	CNPUx Pull-up Current	—	350	—	μA	VPIN = 0V, VDD = 3.3V
DI30A	ICNPD	CNPDx Pull-Down Current	—	300	—	μA	VPIN = 3.3V, VDD = 3.3V
	IIL	Input Leakage Current
DI50		I/O Pins – 5V Tolerant	—	0.1	1.0	μA	VPIN = 3.3V, VDD = 3.3V, pin at high-impedance
DI51		I/O Pins – Not 5V Tolerant	—	0.1	1.0	μA	VPIN = 3.3V, VDD = 3.3V, pin at high-impedance
DI55		MCLR	—	0.1	1.0	μA	VPIN = 3.3V, VDD = 3.3V
DI56		OSC1/CLKI	—	0.1	1.0	μA	VPIN = 3.3V, VDD = 3.3V

Note 1: Data in the "Typ" column is at 3.3V, +25°C unless otherwise stated. Parameters are for design guidance only and are not tested.
2: Refer to Table 1-1 for I/O pin buffer types.

TABLE 26-9: I/O PIN INPUT INJECTION CURRENT SPECIFICATIONS

Operating Conditions: 2.0V ≤ VDD ≤ 3.6V, -40°C ≤ TA ≤ +125°C (unless otherwise stated)
Param.No.	Symbol	Characteristics Min. Max.	Units Conditions
DI60a I	ICL	Input Low Injection Current	0	-5(1,4)	mA	This parameter applies to all pins, except VDD, Vss, MCLR and VCAP.
DI60b I	ICH	Input High Injection Current	0	+5(2,3,4)	mA	This parameter applies to all pins, except VDD, Vss, MCLR, VCAP and all 5V tolerant pins.
			0	+0(2,3,4)	mA	5V tolerant pins.
DI60c ΣI	ICT	Total Input Injection Current (sum of all I/O and control pins)	-20(5)	+20(5)	mA	Absolute instantaneous sum of all ± input injection currents from all I/O pins, ( | ICL + | ICH | ) ≤ ΣICT

Note 1: V_IL Source < (Vss - 0.3). Characterized but not tested.
2: VIH Source > (VDD + 0.3) for non-5V tolerant pins only.
3: Digital 5V tolerant pins do not have an internal high-side diode to VDD, and therefore, cannot tolerate any "positive" input injection current.
4: Injection currents can affect the ADC results.
5: Any number and/or combination of I/O pins, not excluded under ICL or ICH conditions, are permitted provided the "absolute instantaneous" sum of the input injection currents from all pins do not exceed the specified limit.

TABLE 26-10: I/O PIN OUTPUT SPECIFICATIONS

Operating Conditions: 2.0V ≤ VDD ≤ 3.6V, -40°C ≤ TA ≤ +125°C (unless otherwise stated)
Param No.	Symbol	Characteristic	Min	Max	Units	Conditions
DO10	VOL	Output Low VoltageI/O PortsRA3, RB8, RB9 and RB15 I/O Ports	— — 0.21 — — 0.12	0.36 V I 0.16 V I	VV	IOL = 6.0 mA, VDD = 3.6VOL = 3.0 mA, VDD = 2VIOL = 6.0 mA, VDD = 3.6VOL = 3.0 mA, VDD = 2V
DO16
DO20	VOH	Output High VoltageI/O PortsRA3, RB8, RB9 and RB15 I/O Ports	3.25 1.4 3.3 1.55 —	———V	VVVI	IOH = -6.0 mA, VDD = 3.6VIOH = -3.0 mA, VDD = 2VIOH = -6.0 mA, VDD = 3.6VOH = -3.0 mA, VDD = 2V
DO26

TABLE 26-11: PROGRAM FLASH MEMORY SPECIFICATIONS

Operating Conditions: 2.0V ≤ VDD ≤ 3.6V, -40°C ≤ TA ≤ +125°C (unless otherwise stated)
Param No.	Symbol	Characteristic	Min	Typ^(1)	Max	Units	Conditions
D130	EP	Cell Endurance	10000	20000	—	E/W
D131	VICSP	VDD for In-Circuit Serial ProgrammingTM (ICSPTM)	VBOR	—	3.6	V
D132	VRTSP	VDD for Run-Time Self-Programming (RTSP)	2.0	—	3.6	V
D133	TIW	Self-Timed Double-Word Write Cycle Time	19.7	21.0	22.3	μs	8 bytes, data is not all '1's
		Self-Timed Row Write Cycle Time	1.3	1.4	1.5	ms	256 bytes, data is not all '1's, SYSCLK > 2 MHz
D133	TIE	Self-Timed Page Erase Time	15.0	16.0	17.0	ms	2048 bytes
D134	TRETD	Characteristic Retention	20	—	—	Year	If no other specifications are violated
D136	TCE	Self-Timed Chip Erase Time	16.0	17.0	18.0	ms

Note 1: Data in the "Typ" column is at 3.3V, +25°C unless otherwise stated. Parameters are for design guidance only and are not tested.

TABLE 26-12: INTERNAL VOLTAGE REGULATOR SPECIFICATIONS

Operating Conditions: 2.0V ≤ VDD ≤ 3.6V, -40°C ≤ TA ≤ +125°C (unless otherwise stated)
Param No.	Symbol	Characteristics Min Typ		(1)	Max	Units	Comments
DVR10 V	BG	Band Gap Reference Voltage 1.	163 1.2	1.237 V
DVR20 V	RGOUT	Regulator Output Voltage — 1.8	— V	V			DD > 1.9V
DVR21 C	EFC	External Filter Capacitor Value	4.7	10	—	μF	Series Resistance < 3Ω recommended; < 5Ω required
DVR30 V	LVR	Low-Voltage Regulator Output Voltage	0.9	—	1.2	V	RETEN = 1, RETVR (FPOR<2>) = 0

Note 1: Data in the "Typ" column is at 3.3V_i + 25^ unless otherwise stated. Parameters are for design guidance only and are not tested.

TABLE 26-13: HIGH/LOW-VOLTAGE DETECT CHARACTERISTICS

Operating Conditions: 2.0V ≤ VDD ≤ 3.6V, -40°C ≤ TA ≤ +125°C (unless otherwise stated)
Param No.	Symbol	Characteristic		Min	Typ^(2)	Max	Units
DC18	VHLVD^(1)	HLVD Voltage on VDD Transition	HLVDL<3:0> = 0110	2.95	—	3.45	V
			HLVDL<3:0> = 0111	2.75	—	3.13	V
			HLVDL<3:0> = 1000	2.65	—	3.01	V
			HLVDL<3:0> = 1001	2.45	—	2.83	V
			HLVDL<3:0> = 1010	2.35	—	2.72	V
			HLVDL<3:0> = 1011	2.25	—	2.57	V
			HLVDL<3:0> = 1100	2.15	—	2.46	V
			HLVDL<3:0> = 1101	2.08	—	2.35	V
			HLVDL<3:0> = 1110	2.00	—	2.24	V
DC101	VTHL	HLVD Voltage on LVDIN Pin Transition	HLVDL<3:0> = 1111	—	1.2	—	V

Note 1: Trip points for values of HLVD<3:0>, from '0000' to '0101', are not implemented.
2: Data in the "Typ" column is at 3.3V, +25°C unless otherwise stated. Parameters are for design guidance only and are not tested.

TABLE 26-14: COMPARATOR SPECIFICATIONS

Operating Conditions: 2.0V < VDD < 3.6V, -40°C < TA < +125°C (unless otherwise stated)
Param No.	Symbol C	Characteristic Min Typ		(2)	Max Units
D300 V	IOFF	Input Offset Voltage -60 12 60 mV
D301 V	ICM	Input Common-Mode Voltage 0	—	V	DD	V^(1)
D307 T	RESP^(1)	Response Time	—	150	—	ns

Note 1: Measured with one input at VDD/2 and the other transitioning from Vss to VDD.
2: Data in the "Typ" column is at 3.3V, +25°C unless otherwise stated. Parameters are for design guidance only and are not tested.

TABLE 26-15: VOLTAGE REFERENCE (CDAC) SPECIFICATIONS

Operating Conditions: 2.0V < VDD < 3.6V, -40°C < TA < +125°C (unless otherwise stated)
Param No.	Symbol	Characteristic	Min	Typ^(2)	Max	Units
VRD310	TSET	Settling Time ^(1)	—	—	10	μs
VRD311	VRA	Accuracy	-1	—	1	LSb
VRD312	VRUR	Unit Resistor Value (R)	—	4.5	—	kΩ

Note 1: Measures the interval while VRDAT<4:0> transitions from '11111' to '00000'.
2: Data in the "Typ" column is at 3.3V, +25°C unless otherwise stated. Parameters are for design guidance only and are not tested.

26.2 AC Characteristics and Timing Parameters

FIGURE 26-2: LOAD CONDITIONS FOR DEVICE TIMING SPECIFICATIONS
Load Condition 1 – for all pins except OSC2/CLKO
Load Condition 2 – for OSC2/CLKO

Pin VDD/2 RL CL Vss

RL = 464Ω
C_L = 50 pF for all pins except OSC2/CLKO 15 pF for OSC2/CLKO output

TABLE 26-16: CAPACITIVE LOADING CONDITIONS ON OUTPUT PINS

Param No.	Symbol	Characteristic	Min	Max	Units	Conditions
DO50 C	osco	OSC2/CLKO Pin	—	15	pF	In XT and HS modes when external clock is used to drive OSC1/CLKI
DO56 C	IO	All I/O Pins and OSC2	—	50	pF	EC mode

FIGURE 26-3: EXTERNAL CLOCK TIMING

OSCI OS10 OS30 OS30 OS31 OS31 CLKO OS40 OS41

TABLE 26-17: EXTERNAL CLOCK TIMING REQUIREMENTS

Operating Conditions: 2.0V ≤ VDD ≤ 3.6V, -40°C ≤ TA ≤ +125°C (unless otherwise stated)
Param No.	Symbol	Characteristic Min Typ		(1)	Max Units	Conditions
OS10 F	osc	External CLKI Frequency DC		—	25	MHz	EC
			2	—	12.5	MHz	ECPLL^(2)
		Oscillator Frequency 3.5		—	10	MHz	XT
			3.5	—	10	MHz	XTPLL^(2)
			10	—	25	MHz	HS
			10	—	25	MHz	HSPLL^(2)
			31	—	50	kHz	SOSC
OS30 TosL, TosH		External Clock in (OSC1) High or Low Time	0.45 x Tosc	— 0.55 x T osc		ns EC
OS31 TosR, TosF		External Clock in (OSC1) Rise or Fall Time	—	—	20	ns	EC
OS40 TckR		CLKO Rise Time (3)	—	15	20	ns
OS41 TckFCLKO		Fall Time (3)	—	15	20	ns

Note 1: Data in the "Typ" column is at 3.3V, +25°C unless otherwise stated. Parameters are for design guidance only and are not tested.
2: PLL dividers and postscalers must be configured so that the system clock frequency does not exceed the maximum operating frequency.
3: Measurements are taken in EC mode. The CLKO signal is measured on the OSC2 pin.

TABLE 26-18: PLL CLOCK TIMING SPECIFICATIONS

Operating Conditions: 2.0V ≤ VDD ≤ 3.6V, -40°C ≤ TA ≤ +125°C (unless otherwise stated)
Param No.	Symbol Characteristic Min Max Units
OS50 F	PLLI	PLL Input Frequency Range ^(1)	2	2	4
OS54 F	PLLO	PLL Output Frequency Range ^(1)	16 96 MHz
OS52 T	LOCK	PLL Start-up Time (Lock Time) —	24	μs
OS53 D	CLK	CLKO Stability (Jitter)	-0.12	0.12 %

Note 1: These parameters are characterized but not tested in manufacturing.

TABLE 26-19: INTERNAL OSCILLATOR ACCURACY (1)

Operating Conditions: 2.0V ≤ V DD ≤ 3.6V, -40°C ≤ TA ≤ +125°C (unless otherwise stated)
Param No.	Characteristic	Min	Typ^(2)	Max	Units
F20A	FRC Accuracy @ 8 MHz	-5	—	5	%
F20B	FRC Accuracy @ 8 MHz^(3)	-3	—	3	%
F21A	LPRC @ 32 kHz^(3)	-20	—	20	%
F21B	LPRC @ 32 kHz	-30	—	30	%
F22	FRC Tune Step-Size (in OSCTUN register)	—	0.05	—	%/Bit

Note 1: To achieve this accuracy, physical stress applied to the microcontroller package (ex., by flexing the PCB) must be kept to a minimum.
2: Data in the "Typ" column is 3.3V unless otherwise stated. Parameters are for design guidance only and are not tested.
3: -40^ to +85^ .

TABLE 26-20: INTERNAL OSCILLATOR START-UP TIME

Operating Conditions: 2.0V ≤ VDD ≤ 3.6V, -40°C ≤ TA ≤ +125°C (unless otherwise stated)
Param No.	Symbol	Characteristic	Max	Units
FR0	TFRC	FRC Oscillator Start-up Time	2	μs
FR1	TLPRC	Low-Power RC Oscillator Start-up Time	70	μs

FIGURE 26-4: CLKO AND I/O TIMING CHARACTERISTICS

I/O Pin (Input) DI35 DI40 I/O Pin (Output) Old Value New Value DO31 DO32 Note: Refer to Figure 26-2 for load conditions.

TABLE 26-21: CLKO AND I/O TIMING REQUIREMENTS

Operating Conditions: 2.0V ≤ VDD ≤ 3.6V, -40°C ≤ TA ≤ +125°C (unless otherwise stated)
Param No.	Symbol Characteristic Min Typ			(1)	Max Units
DO31 T	IOR	Port Output Rise Time	—	10	25	ns
DO32 T	IOF	Port Output Fall Time	—	10	25	ns
DI35	TINP	INTx Input Pin High or Low Time	10	—	—	ns
DI40	TRBP	CNx Input Pin High or Low Time	10	—	—	ns

Note 1: Data in the "Typ" column is at 3.3V, +25°C unless otherwise stated. Parameters are for design guidance only and are not tested.

TABLE 26-22: RESET, BROWN-OUT RESET AND SLEEP MODES TIMING SPECIFICATIONS

Operating Conditions: 2.0V ≤ VDD ≤ 3.6V, -40°C ≤ TA ≤ +125°C (unless otherwise stated)
Param No.	Symbol C	Characteristic Min Typ		(1)	Max Units Conditions
SY10 T	MCL	Pulse Width (Low) 2	— — μs
SY13 T	IOZ	I/O High-Impedance from Low	—	1	—	μs
SY25 T	BOR	Brown-out Reset Pulse Width	1	—	—	μs	VDD ≤ VBOR
SY45 T	RST	Reset State Time	— 25	— μs
SY71 T	WAKE^(2)	Wake-up Time with Main Voltage Regulator	— 22	— μs	Sleep wake-up with VREGS = 0, RETEN = 0, RETVR = 1
			—	3.8	—	μs	Sleep wake-up with VREGS = 1, RETEN = 0, RETVR = 1
SY72 T	WAKELVR^(2)	Wake-up Time with Retention Low-Voltage Regulator	— 163	— μs	Sleep wake-up with VREGS = 0, RETEN = 1, RETVR = 0
			— 23	— μs	Sleep wake-up with VREGS = 1, RETEN = 1, RETVR = 0

Note 1: Data in the "Typ." column is at 3.3V, +25°C unless otherwise stated. Parameters are for design guidance only and are not tested.
2: The parameters are measured with the external clock source (EC). To get the full wake-up time, the oscillator start-up time must be added.

FIGURE 26-5: TIMER1 EXTERNAL CLOCK TIMING CHARACTERISTICS

T1CK TA10 TA11 TA15 TA20 TMR1

TABLE 26-23: MCCP/SCCP TIMER1 EXTERNAL CLOCK TIMING CHARACTERISTICS

Operating Conditions: 2.0V ≤ VDD ≤ 3.6V, -40°C ≤ TA ≤ +125°C (unless otherwise stated)
Param.No.	Symbol	Characteristics (1)		Min Max Units		Conditions
TA10 T	CKH	T1CK High Time	Synchronous 1 —	T		PBCLK	Must also meet Parameter TA15
			Asynchronous 10 —	n	s
TA11	TCKL	T1CK Low Time	Synchronous	1	—	TPBCLK	Must also meet Parameter TA15
			Asynchronous 10 —	n	s
TA15 T	CKP	T1CK Input Period	Synchronous 2 —	T		PBCLK
			Asynchronous 20 —	n	s
TA20 T	CKEXTMRL	Delay from External T1CK Clock Edge to Timer Increment		—	3	TPBCLK	Synchronous mode

Note 1: These parameters are characterized but not tested in manufacturing.

FIGURE 26-6: MCCP/SCCP TIMER1 EXTERNAL CLOCK TIMING REQUIREMENTS

TCKIx TMR10-TMR41 TMR15-TMR20 CCPxTMR

TABLE 26-24: MCCP/SCCP TIMING REQUIREMENTS

Operating Conditions: 2.0V ≤ VDD ≤ 3.6V, -40°C ≤ TA ≤ +125°C (unless otherwise stated)
Param.No.	Symbol	Characteristics (1)		Min Max Units		Conditions
TMR10 T	CKH	TCKIx High Time	Synchronous	1	—	TPBCLK	Must also meetParameter TMR15
			Asynchronous	10	—	ns
TMR11	TCKL	TCKIx Low Time	Synchronous	1	—	TPBCLK	Must also meetParameter TMR15
			Asynchronous	10	—	ns
TMR15	TCKP	TCKIx Input Period	Synchronous	2	—	TPBCLK
			Asynchronous	20	—	ns
TMR20 T	CKEXTMRL	Delay from External TCKIx Clock Edge to Timer Increment		—	1	TPBCLK

Note 1: These parameters are characterized but not tested in manufacturing.

FIGURE 26-7: MCCP AND SCCP INPUT CAPTURE x MODE TIMING CHARACTERISTICS

ICMx IC10 IC11 IC15

TABLE 26-25: MCCP AND SCCP INPUT CAPTURE x MODE TIMING REQUIREMENTS

Operating Conditions: 2.0V ≤ VDD ≤ 3.6V, -40°C ≤ TA ≤ +125°C (unless otherwise stated)
Param.No.	Symbol	Characteristics (1)	Min Max	Units Conditions
IC10 T	ICL	ICMx Input Low Time	25	—	ns	Must also meet Parameter IC15
IC11	TICH	ICMx Input High Time	25	—	ns	Must also meet Parameter IC15
IC15 T	ICP	ICMx Input Period	50 —	n	s

Note 1: These parameters are characterized but not tested in manufacturing.

FIGURE 26-8: MCCP AND SCCP OUTPUT COMPARE x MODE TIMING CHARACTERISTICS

OCMx OC11→ ← OC10→ ←

Note: Refer to Figure 26-2 for load conditions.

TABLE 26-26: MCCP AND SCCP OUTPUT COMPARE x MODE TIMING REQUIREMENTS

Operating Conditions: 2.0V ≤ VDD ≤ 3.6V, -40°C ≤ TA ≤ +125°C (unless otherwise stated)
Param.No.	Symbol	Characteristics (1)	Min	Typ	Max	Units
OC10	TOCF	OCMx Output Fall Time	—	10	25	ns
OC11	TOCR	OCMx Output Rise Time	—	10	25	ns

Note 1: These parameters are characterized but not tested in manufacturing.

FIGURE 26-9: MCCP AND SCCP PWMx MODE TIMING CHARACTERISTICS

OC20 OCFA/OCFB OC15 OCMx is Tri-Stated

TABLE 26-27: MCCP AND SCCP PWM MODE TIMING REQUIREMENTS

Operating Conditions: 2.0V ≤ VDD ≤ 3.6V, -40°C ≤ TA ≤ +125°C (unless otherwise stated)
Param No.	Symbol Characteristics (1)		Min Max	Units
OC15 T	FD	Fault Input to PWM I/O Change — 30 ns
OC20 T	FLT	Fault Input Pulse Width 10 — ns

Note 1: These parameters are characterized but not tested in manufacturing.

FIGURE 26-10: SPIx MODULE MASTER MODE (CKE = 0) TIMING CHARACTERISTICS

SCKx (CKP = 0) SP10 SP10 SCKx (CKP = 1) SP35 SDOx MSb LSb SDIx SP40 SP41 LSb InMSb In

FIGURE 26-11: SPIx MODULE MASTER MODE (CKE = 1) TIMING CHARACTERISTICS

TABLE 26-28: SPIx MODULE MASTER MODE TIMING REQUIREMENTS

Operating Conditions: 2.0V ≤ VDD ≤ 3.6V, -40°C ≤ TA ≤ +125°C (unless otherwise stated)
Param.No.	Symbol Characteristics	(1)	Min Max	Units
SP10 T	scL, TscH SCKx	Output Low or High Time 10 — ns
SP35 T	sCH2DOV,TscL2DOV	SDOx Data Output Valid after SCKx Edge —	7	ns
SP36 T	do V2sc,Tdo V2scL	SDOx Data Output Setup to First SCKx Edge	7	— ns
SP40 T	DIV2scH,TDIV2scL	Setup Time of SDIx Data Input to SCKx Edge	7	— ns
SP41 T	sCH2dIL,TscL2dIL	Hold Time of SDIx Data Input to SCKx Edge	7	— ns

Note 1: These parameters are characterized but not tested in manufacturing.

FIGURE 26-12: SPIx MODULE SLAVE MODE (CKE = 0) TIMING CHARACTERISTICS

FIGURE 26-13: SPIx MODULE SLAVE MODE (CKE = 1) TIMING CHARACTERISTICS

TABLE 26-29: SPIx MODULE SLAVE MODE TIMING REQUIREMENTS

Operating Conditions: 2.0V ≤ VDD ≤ 3.6V, -40°C ≤ TA ≤ +125°C (unless otherwise stated)
Param.No.	Symbol Characteristics	(1)	Min Max	Units
SP70 T	scL	SCKx Input Low Time	10	—	ns
SP71 T	scH	SCKx Input High Time	10	—	ns
SP35 T	scH2doV,TscL2doV	SDOx Data Output Valid after SCKx Edge	—	10	ns
SP40 T	DIV2scH,TDIV2scL	Setup Time of SDIx Data Input to SCKx Edge	0	—	ns
SP41 T	scH2dIL,TscL2dIL	Hold Time of SDIx Data Input to SCKx Edge	7	—	ns
SP50 T	ssL2scH,TssL2scL	to SCKx ↓ or SCKx ↑ Input	40	—	ns
SP51 T	ssH2doZ	to SDOx Output High-Impedance	2.5	12	ns
SP52 T	scH2ssHTscL2ssH	after SCKx Edge	10	—	ns
SP60 T	ssL2doV	SDOx Data Output Valid after Edge	—	12.5	ns

Note 1: These parameters are characterized but not tested in manufacturing.

TABLE 26-30: ADC MODULE INPUTS SPECIFICATIONS

Operating Conditions: 2.2V ≤ VDD ≤ 3.6V, -40°C ≤ TA ≤ +125°C (unless otherwise stated)
Param No.	Symbol	Characteristic	Min	Max	Units
Reference Inputs
AD01 AV	DD	Module VDD Supply V	DD	VDD	V
AD02 AV	SS	Module Vss Supply V	SS	Vss	V
Analog Inputs
AD10 V	INH-VINL	Full-Scale Input Span V	REFL	VREFH	V
AD11 V	IN	Absolute Input Voltage V	SS – 0.3	VDD + 0.3	V
AD12	VINL	Absolute VINL Input Voltage	Vss – 0.3	VDD + 0.3	V
AD17 R	IN	Recommended Impedance of Analog Voltage Source	—	1.2K	Ω

TABLE 26-31: ADC ACCURACY AND CONVERSION TIMING REQUIREMENTS FOR 12-BIT MODE ^(1)

Operating Conditions: V_DD =AVDD=VREFH≥2.9V, AVSS=VREFL=0V,-40°C < TA < +125°C
Param No.	Symbol	Characteristic	Min	Typ^(2)	Max	Units
ADC Accuracy
AD20B	Nr	Resolution	—	12	—	bits
AD21B	INL	Integral Nonlinearity	—	±2.5	±3.5	LSb
AD22B	DNL	Differential Nonlinearity	—	±0.75	+1.75/-0.95	LSb
AD23B	GERR	Gain Error	—	±2	±3	LSb
AD24B	EOFF	Offset Error	—	±1	±2	LSb
Clock Parameters
AD50B	TAD	ADC Clock Period	250	—	—	ns
AD50B^(3)	TAD	ADC Clock Period	300	—	—	ns
AD56B^(3)	FCNV	FCNV Throughput Rate	—	—	185	ksps
AD56B	FCNV	Throughput Rate	—	—	222	ksps
Conversion Rate
AD55B	tCONV	Conversion Time	—	16	—	TAD
AD61B	tpss	Sample Start Delay from Setting Sample bit (SAMP)	2	—	3	TAD

Note 1: Measurements are taken with the external VREF+ and VREF- used as the ADC voltage reference.
2: Data in the "Typ" column is at 3.3V, +25°C unless otherwise stated. Parameters are for design guidance only and are not tested.
3: 2.2V < (V_DD = AV_DD = V_REFH) < 2.9V, AV_SS = V_REFL = 0V, -40^ < T_A < +125^

TABLE 26-32: ADC ACCURACY AND CONVERSION TIMING REQUIREMENTS FOR 10-BIT MODE (1)

Operating Conditions: V_DD=AV_DD=V_REFH≥2.9V,AV_SS=V_REFL=0V,-40°C
Param No.	Symbol Characteristic Min Typ			(2)	Max Units
ADC Accuracy
AD20A	Nr	Resolution	—	10	—	bits
AD21A	INL	Integral Nonlinearity	—	±2.5	±3.5	LSb
AD22A	DNL	Differential Nonlinearity	—	±0.75	+1.75/-0.95	LSb
AD23A G	ERR	Gain Error	—	±2	±3	LSb
AD24A E	OFF	Offset Error	—	±1	±2	LSb
Clock Parameters
AD50A T	AD	ADC Clock Period	250	—	—	ns
AD50A(3)	TAD	ADC Clock Period	300	—	—	ns
AD61A t	PSS	Sample Start Delay from Setting Sample bit (SAMP)	2	—	3	TAD
Conversion Rate
AD55A	tCONV	Conversion Time	—	14	—	TAD
AD56A F	CNV	Throughput Rate	—	—	250	ksps
AD56A(3)	FCNV	Throughput Rate	—	—	187	ksps

Note 1: Measurements are taken with the external VREF+ and VREF- used as the ADC voltage reference.
2: Data in the "Typ" column is at 3.3V, +25°C unless otherwise stated. Parameters are for design guidance only and are not tested.
3: 2.2V < (VDD = AVDD = VREFH) < 2.9V, AVSS = VREFL = 0V, -40°C < TA < +125°C

FIGURE 26-14: EJTAG TIMING CHARACTERISTICS

TCK TMS TDI TDO TRST* TTRST*low TTRST* TTCKcyc TTCKhigh TTCKlow Trf Trf Trf Trf Trf TDOout TDOzstate Defined Undefined Defined Undefined

TABLE 26-33: EJTAG TIMING REQUIREMENTS

Operating Conditions: 2.0V ≤ VDD ≤ 3.6V, -40°C ≤ TA ≤ +125°C (unless otherwise stated)
Param.No.	Symbol Description (1)		Min Max Units		Conditions
EJ1 T	TCKCYC	TCK Cycle Time 25 — ns
EJ2 T	TCKHIGH	TCK High Time 10 — ns
EJ3 T	TCKLOW	TCK Low Time	10 — ns
EJ4 T	TSETUP	TAP Signals Setup Time before Rising TCK	5	— ns
EJ5 T	THOLD	TAP Signals Hold Time after Rising TCK	3	— ns
EJ6 T	TDOOUT	TDO Output Delay Time from Falling TCK	—	5	ns
EJ7 T	TDOZSTATE	TDO 3-State Delay Time from Falling TCK	—	5	ns
EJ8 T	TRSTLOW	TRST Low Time	25 — ns
EJ9 T	RF	TAP Signals Rise/Fall Time, All Input and Output	—	— ns

Note 1: These parameters are characterized but not tested in manufacturing.

NOTES:

27.0 PACKAGING INFORMATION

27.1 Package Marking Information

20-Lead SSOP

XXXXXXXXXX XXXXXXXXXX YYWWNNN

Example

PIC32MM0016 GPL020 1810017

20-Lead QFN

XXXXXXXX XXXXXXXX YYWWNNN

Example

32MM0016 GPL020 1810017

28-Lead SPDIP

XXXXXXXXXXXXXX XXXXXXXXXXXXXX YYWWNNN

Example

PIC32MM0064GPL028 1810017

28-Lead SOIC (7.5 mm)

XXXXXXXXXXXXXXXXXXXXXX XXXXXXXXXXXXXXXXXXXXXX XXXXXXXXXXXXXXXXXXXXXX YYWWNNN

Example

PIC32MM0032GPL028 1810017

Legend: XX...X Customer-specific information

YY Year code (last 2 digits of calendar year)

WW Week code (week of January 1 is week '01')

NNN Alphanumeric traceability code

* All packages are Pb-free

Note: In the event the full Microchip part number cannot be marked on one line, it will be carried over to the next line, thus limiting the number of available characters for customer-specific information.

27.1 Package Marking Information (Continued)

28-Lead SSOP

XXXXXXXXXXXX XXXXXXXXXXXX

YYWWNNN

Example

PIC32MM0064 GPL028

1810017

28-Lead QFN

XXXXXXXXX

XXXXXXXXX

YYWWNNN

Example

32MM0032

GPL028

1810017

28-Lead UQFN

XXXXXXXXX

XXXXXXXXX

YYWWNNN

Example

32MM0032

GPL028

1810017

36-Lead VQFN

XXXXXXXXX

XXXXXXXXX

YYWWNNN

Example

32MM0064

GPL036

1810017

40-Lead UQFN

XXXXXXXXX

XXXXXXXXX

YYWWNNN

Example

32MM0064

GPL036

1810017

27.2 Package Details

The following sections give the technical details of the packages.

20-Lead Plastic Shrink Small Outline (SS) - 5.30 mm Body [SSOP]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

D N E E1 NOTE 1 1 2 b e

Isometric line drawing of an integrated circuit chip with multiple pins (no text or symbols)

A A1 A2

C L1 φ L

Units		MILLIMETERS
Dimension Limits		MINsNOMsMAX
Number of Pins	Ns	20
Pitchses0.65 BSC
Overall Height	As-	-	2.00
Molded Package Thickness	A2	1.65	1.75	1.85
Standoff	A1	0.05	-	-
Overall Width	E	7.40	7.80	8.20
Molded Package Width	E1	5.00	5.30	5.60
Overall Length	D	6.90	7.20	7.50
Foot Length	L	0.55	0.75	0.95
Footprint	L1	1.25 REF
Lead Thickness	c	0.09	-	0.25
Foot Angle		0°	4°	8°
Lead Width	b	0.22	-	0.38

Notes:

1.sPin 1 visual index feature may vary, but must be located within the hatched area.

1. Dimensions D and E1 do not include mold flash or protrusions. Mold flash or protrusions shall not exceed 0.20 mm per side.

3.sDimensioning and tolerancing per ASME Y14.5M.

BSC:sBasic Dimension. Theoretically exact value shown without tolerances.

REF:sReference Dimension, usually without tolerance, for information purposes only.

Microchip Technology Drawing C04-072B

20-Lead Plastic Shrink Small Outline (SS) - 5.30 mm Body [SSOP]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

0.65 0.45 c SILK SCREEN Y1 G X1 E

RECOMMENDED LAND PATTERN

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Contact Pitch	E	0.65 BSC
	CContact Pad Spacing20
Contact Pad Width (X20)	X1			0.45
Contact Pad Length (X20)	Y1			1.75
	GDistance Between Pads 0.20

Notes:

1. Dimensioning and tolerancing per ASME Y14.5M

BSC: Basic Dimension. Theoretically exact value shown without tolerances.

Microchip Technology Drawing No. C04-2072B

20-Lead Plastic Quad Flat, No Lead Package (ML) - 4x4x0.9 mm Body [QFN]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

Units			MILLIMETERS
Dimension Limitss			MINsNOMsMAX
Number of Pins		Ns	20
Pitchses0.50 BSC
Overall HeightsA	0.80	0.90	1.00
Standoff		A1	0.00	0.02	0.05
Contact Thickness		A3	0.20 REF
Overall Width		E	4.00 BSC
Exposed Pad Width		E2	2.60	2.70	2.80
Overall Length		D	4.00 BSC
Exposed Pad Length		D2	2.60	2.70	2.80
Contact Width		b	0.18	0.25	0.30
Contact Length		L	0.30	0.40	0.50
Contact-to-Exposed Pad		K	0.20	-	-

Notes:

1.sPin 1 visual index feature may vary, but must be located within the hatched area.

2.sPackage is saw singulated.

3.sDimensioning and tolerancing per ASME Y14.5M.

BSC:sBasic Dimension. Theoretically exact value shown without tolerances.

REF:sReference Dimension, usually without tolerance, for information purposes only.

Microchip Technology Drawing C04-126B

20-Lead Plastic Quad Flat, No Lead Package (ML) - 4x4 mm Body [QFN] With 0.40 mm Contact Length

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

C1 W2 C2 T2 E G Y1 X1 SILK SCREEN

RECOMMENDED LAND PATTERN

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Contact Pitch	E	0.50 BSC
Optional Center Pad Width	W2			2.50
Optional Center Pad Length	T2			2.50
Contact Pad Spacing	C1		3.93
Contact Pad Spacing	C2		3.93
Contact Pad Width	X1			0.30
Contact Pad Length	Y1			0.73
Distance Between Pads	G	0.20

Notes:

1. Dimensioning and tolerancing per ASME Y14.5M

BSC: Basic Dimension. Theoretically exact value shown without tolerances.

Microchip Technology Drawing No. C04-2126A

28-Lead Skinny Plastic Dual In-Line (SP) - 300 mil Body [SPDIP]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

NOTE 1 N 1 2 3 D E1 A A1 b1 b e A2 L E c eB

Units		INCHES
Dimension Limitss		MINsNOMsMAX
Number of Pins	Ns	28
Pitchses.100 BSC
Top to Seating PlanesAs- -		.200
Molded Package Thickness	A2	.120	.135	.150
Base to Seating Plane	A1	.015	-	-
Shoulder to Shoulder Width	E	.290	.310	.335
Molded Package Width	E1	.240	.285	.295
Overall Length	D	1.345	1.365	1.400
Tip to Seating Plane	L	.110	.130	.150
Lead Thickness	c	.008	.010	.015
Upper Lead Width	b1	.040	.050	.070
Lower Lead Width	b	.014	.018	.022
Overall Row Spacing §	eB	-	-	.430

Notes:

1.sPin 1 visual index feature may vary, but must be located within the hatched area.

2.s§ Significant Characteristic.

1. Dimensions D and E1 do not include mold flash or protrusions. Mold flash or protrusions shall not exceed .010" per side.

4.sDimensioning and tolerancing per ASME Y14.5M.

BSC:sBasic Dimension. Theoretically exact value shown without tolerances.

Microchip Technology Drawing C04-070B

28-Lead Plastic Shrink Small Outline (SS) - 5.30 mm Body [SSOP]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

Units		MILLIMETERS
Dimension Limitss		MINsNOMsMAX
Number of Pins	Ns	28
Pitchses0.65 BSC
Overall HeightsAs-s- 2.00
Molded Package Thickness	A2	1.65	1.75	1.85
Standoff	A1	0.05	-s-
Overall Width	E	7.40	7.80	8.20
Molded Package Width	E1	5.00	5.30	5.60
Overall Length	D	9.90s10.20	10.50
Foot Length	L	0.55	0.75	0.95
Footprint	L1	1.25 REF
Lead Thickness	c	0.09	-	0.25
Foot Angle		0°	4°	8°
Lead Width	b	0.22	-	0.38

Notes:

1.sPin 1 visual index feature may vary, but must be located within the hatched area.
2. Dimensions D and E1 do not include mold flash or protrusions. Mold flash or protrusions shall not exceed 0.20 mm per side.
3.sDimensioning and tolerancing per ASME Y14.5M.

BSC:sBasic Dimension. Theoretically exact value shown without tolerances.

REF:sReference Dimension, usually without tolerance, for information purposes only.

Microchip Technology Drawing C04-073B

28-Lead Plastic Shrink Small Outline (SS) - 5.30 mm Body [SSOP]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

SILK SCREEN C Y1 G E X1

RECOMMENDED LAND PATTERN

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Contact Pitch	E	0.65 BSC
Contact Pad Spacing	C		7.20
Contact Pad Width (X28)	X1			0.45
Contact Pad Length (X28)	Y1			1.75
Distance Between Pads	G	0.20

Notes:
1. Dimensioning and tolerancing per ASME Y14.5M
BSC: Basic Dimension. Theoretically exact value shown without tolerances.

Microchip Technology Drawing No. C04-2073A

28-Lead Plastic Small Outline (SO) - Wide, 7.50 mm Body [SOIC]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

NOTE 1 2X 0.10 C D NOTE 5 N A D E1 1 2 3 e B NOTE 5 0.20 C A-B 2X E/2 E 0.33 C 2X N/2 TIPS NX b ⊕ 0.25 M C A-B D

TOP VIEW

A A2 A1 // 0.10 C // 0.10 C NX SEATING PLANE C SIDE VIEW A A

h H SEE VIEW C c

VIEW A-A

Microchip Technology Drawing C04-052C Sheet 1 of 2

28-Lead Plastic Small Outline (SO) - Wide, 7.50 mm Body [SOIC]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

α 4X Θ φ L (L1) 4X β

VIEW C

Isometric line drawing of an integrated circuit chip with multiple 24-pin pins (no text or symbols)

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Number of Pins	N	28
Pitch	e	1.27 BSC
Overall Height	A	-	-	2.65
Molded Package Thickness	A2	2.05	-	-
Standoff §	A1	0.10	-	0.30
Overall Width	E	10.30 BSC
Molded Package Width	E1	7.50 BSC
Overall Length	D	17.90 BSC
Chamfer (Optional)	h	0.25	-	0.75
Foot Length	L	0.40	-	1.27
Footprint	L1	1.40 REF
Lead Angle		0^	-	-
Foot Angle		0^	-	8^
Lead Thickness	c	0.18	-	0.33
Lead Width	b	0.31	-	0.51
Mold Draft Angle Top		5^	-	15^
Mold Draft Angle Bottom		5^	-	15^

Notes:

1. Pin 1 visual index feature may vary, but must be located within the hatched area.
2. § Significant Characteristic
3. Dimension D does not include mold flash, protrusions or gate burrs, which shall not exceed 0.15 mm per end. Dimension E1 does not include interlead flash or protrusion, which shall not exceed 0.25 mm per side.
4. Dimensioning and tolerancing per ASME Y14.5M BSC: Basic Dimension. Theoretically exact value shown without tolerances. REF: Reference Dimension, usually without tolerance, for information purposes only.
5. Datums A & B to be determined at Datum H.

Microchip Technology Drawing C04-052C Sheet 2 of 2

28-Lead Plastic Small Outline (SO) - Wide, 7.50 mm Body [SOIC]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

Gx C G SILK SCREEN Y E X

RECOMMENDED LAND PATTERN

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Contact Pitch	E	1.27 BSC
Contact Pad Spacing	C		9.40
Contact Pad Width (X28)	X			0.60
Contact Pad Length (X28)	Y			2.00
Distance Between Pads	Gx	0.67
Distance Between Pads	G	7.40

Notes:
1. Dimensioning and tolerancing per ASME Y14.5M
BSC: Basic Dimension. Theoretically exact value shown without tolerances.
Microchip Technology Drawing No. C04-2052A

28-Lead Plastic Quad Flat, No Lead Package (ML) - 6x6 mm Body [QFN] With 0.55 mm Terminal Length

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

Microchip Technology Drawing C04-105C Sheet 1 of 2

28-Lead Plastic Quad Flat, No Lead Package (ML) - 6x6 mm Body [QFN] With 0.55 mm Terminal Length

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

Isometric line drawing of a square integrated circuit chip with multiple pins (no text or symbols)

	Units	MILLIMETERS
Dimension	Limits	MIN	NOM	MAX
Number of Pins	N	28
Pitch	e	0.65 BSC
Overall Height	A	0.80	0.90	1.00
Standoff	A1	0.00	0.02	0.05
Terminal Thickness	A3	0.20 REF
Overall Width	E	6.00 BSC
Exposed Pad Width	E2	3.65	3.70	4.20
Overall Length	D	6.00 BSC
Exposed Pad Length	D2	3.65	3.70	4.20
Terminal Width	b	0.23	0.30	0.35
Terminal Length	L	0.50	0.55	0.70
Terminal-to-Exposed Pad	K	0.20	-	-

Notes:

1. Pin 1 visual index feature may vary, but must be located within the hatched area.
2. Package is saw singulated
3. Dimensioning and tolerancing per ASME Y14.5M. BSC: Basic Dimension. Theoretically exact value shown without tolerances. REF: Reference Dimension, usually without tolerance, for information purposes only.

Microchip Technology Drawing C04-105C Sheet 2 of 2

28-Lead Plastic Quad Flat, No Lead Package (ML) - 6x6 mm Body [QFN] with 0.55 mm Contact Length

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

C1 W2 E G C2 T2 Y1 X1 SILK SCREEN

RECOMMENDED LAND PATTERN

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Contact Pitch	E	0.65 BSC
Optional Center Pad Width	W2			4.25
Optional Center Pad Length	T2			4.25
Contact Pad Spacing	C1		5.70
Contact Pad Spacing	C2		5.70
Contact Pad Width (X28)	X1			0.37
Contact Pad Length (X28)	Y1			1.00
Distance Between Pads	G	0.20

Notes:
1. Dimensioning and tolerancing per ASME Y14.5M
BSC: Basic Dimension. Theoretically exact value shown without tolerances.

Microchip Technology Drawing No. C04-2105A

28-Lead Ultra Thin Plastic Quad Flat, No Lead Package (M6) - 4x4x0.6 mm Body [UQFN] With Corner Anchors

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

NOTE 1 1 2 (DATUM B) (DATUM A) 2X 0.10 C 2X 0.10 C TOP VIEW SEATING PLANE C A (A3) // 0.10 C A1 28X 0.08 C SIDE VIEW 4x b1 D2 4x b2 4x b2 NOTE 1 2 1 E2 K 4x b1 L N 28X b BOTTOM VIEW Φ 0.07 A B Φ 0.05 B

Microchip Technology Drawing C04-333-M6 Rev B Sheet 1 of 2

28-Lead Ultra Thin Plastic Quad Flat, No Lead Package (M6) - 4x4x0.6 mm Body [UQFN] With Corner Anchors

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

Technical line drawing of two integrated circuit chip packages (no text or symbols)

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Number of Pins	N	28
Pitch	e	0.40 BSC
Overall Height	A	-	-	0.60
Standoff	A1	0.00	0.02	0.05
Terminal Thickness	A3	0.152 REF
Overall Width	E	4.00 BSC
Exposed Pad Width	E2	1.80	1.90	2.00
Overall Length	D	4.00 BSC
Exposed Pad Length	D2	1.80	1.90	2.00
Terminal Width	b	0.15 0.20	0.25
Corner Anchor Pad	b1	0.40 0.45	0.50
Corner Pad, Metal Free Zone b2		0.18 0.28	0.28
Terminal Length	L	0.30	0.45	0.50
Terminal-to-Exposed-Pad	K		0

Notes:
1. Pin 1 visual index feature may vary, but must be located within the hatched area.
2. Package is saw singulated
3. Dimensioning and tolerancing per ASME Y14.5M
BSC: Basic Dimension. Theoretically exact value shown without tolerances.
REF: Reference Dimension, usually without tolerance, for information purposes only.

Microchip Technology Drawing C04-333-M6 Rev A Sheet 2 of 2

28-Lead Ultra Thin Plastic Quad Flat, No Lead Package (M6) - 4x4x0.6 mm Body [UQFN] With Corner Anchors

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

C1 X2 EV 28 1 2 ØV G3 C2 Y2 EV G2 G1 Y1 Y3 X3 X1 SILK SCREEN E

RECOMMENDED LAND PATTERN

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Contact Pitch	E	0.40 BSC
Center Pad Width	X2			2.00
Center Pad Length	Y2			2.00
	C1Contact Pad Spacing 3.90
Contact Pad Spacing	C2		3.90
Contact Pad Width (X28)	X1			0.20
Contact Pad Length (X28)	Y1			0.85
Contact Pad to Center Pad (X28) G1	0.52
Contact Pad to Pad (X24) G2 0.20
Contact Pad to Corner Pad (X8) G3	0.20
Corner Anchor Width (X4)	X3			0.78
Corner Anchor Length (X4)	Y3			0.78
Thermal Via Diameter V			0.30
Thermal Via Pitch EV			1.00

Notes:

1. Dimensioning and tolerancing per ASME Y14.5M

BSC: Basic Dimension. Theoretically exact value shown without tolerances.

Microchip Technology Drawing C04-2333-M6 Rev B

36-Terminal Very Thin Plastic Quad Flatpack No-Lead (M2) - 6x6x1.0mm Body [VQFN] SMSC Legacy "Sawn Quad Flatpack No-Lead [SQFN]"

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

NOTE 1 N 1 2 (DATUM B) (DATUM A) 2X 0.10 C 2X 0.10 C TOP VIEW SEATING PLANE C A (A3) // 0.10 C SIDE VIEW A1 36X 0.08 C D2 0.10 A B E2 2 1 NOTE 1 L N K 36X b e 0.10 A B 0.05 B BOTTOM VIEW

Microchip Technology Drawing C04-272B-M2 Sheet 1 of 2

36-Terminal Very Thin Plastic Quad Flatpack No-Lead (M2) - 6x6x1.0mm Body [VQFN] SMSC Legacy "Sawn Quad Flatpack No-Lead [SQFN]"

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

Two isometric diagrams of an integrated circuit chip with pins, shown from top and bottom views (no text or symbols)

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Number of Terminals	N	36
Pitch	e	0.50 BSC
Overall Height	A	0.80	0.90	1.00
Standoff	A1	0.00	0.02	0.05
Terminal Thickness	A3	0.20 REF
Overall Width	E	6.00 BSC
Exposed Pad Width	E2	3.60	3.70	3.80
Overall Length	D	6.00 BSC
Exposed Pad Length	D2	3.60	3.70	3.80
Terminal Width	b	0.18	0.25	0.30
Terminal Length	L	0.50	0.60	0.75
Terminal-to-Exposed-Pad	K		0

Notes:
1. Pin 1 visual index feature may vary, but must be located within the hatched area.
2. Package is saw singulated
3. Dimensioning and tolerancing per ASME Y14.5M
BSC: Basic Dimension. Theoretically exact value shown without tolerances.
REF: Reference Dimension, usually without tolerance, for information purposes only.

Microchip Technology Drawing C04-272B-M2 Sheet 2 of 2

36-Terminal Very Thin Plastic Quad Flatpack No-Lead (M2) - 6x6x0.9 mm Body [VQFN] SMSC Legacy "Sawn Quad Flatpack No-Lead [SQFN]"

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

C1 X2 EV 36 1 2 Y2 EV C2 G2 ØV G1 Y1 X1 E SILK SCREEN

RECOMMENDED LAND PATTERN

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Contact Pitch	E	0.50 BSC
Optional Center Pad Width	X2			3.80
Optional Center Pad Length	Y2			3.80
	C1Contact Pad Spacing 5.60
Contact Pad Spacing	C2		5.60
Contact Pad Width (X36)	X1			0.30
Contact Pad Length (X36)	Y1			1.10
Contact Pad to Center Pad (X36) G1 0.35
Space Between Contact Pads (X32) G2 0.20
Thermal Via Diameter V			0.30
Thermal Via Pitch EV			1.00

Notes:

1. Dimensioning and tolerancing per ASME Y14.5M

BSC: Basic Dimension. Theoretically exact value shown without tolerances.

1. For best soldering results, thermal vias, if used, should be filled or tented to avoid solder loss during reflow process

Microchip Technology Drawing C04-2272B-M2

40-Lead Ultra Thin Plastic Quad Flat, No Lead Package (MV) - 5x5x0.5 mm Body [UQFN]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

D A B E 0.10 C 2 1 TOP VIEW NOTE 1 N A // 0.10 C SEATING PLANE C (A3) SIDE VIEW A1 40X 0.08 C D2 0.10 M C A B ⊕ 0.10 M C A B (DATUM A) (DATUM B) E2 e/2 1 2 e NOTE 1 K L 40X b BOTTOM VIEW ⊕ 0.07 M C A B 0.04 M C

Microchip Technology Drawing C04-156A Sheet 1 of 2

40-Lead Ultra Thin Plastic Quad Flat, No Lead Package (MV) - 5x5x0.5 mm Body [UQFN]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

Isometric line drawing of a square integrated circuit chip with multiple pins (no text or symbols)

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Number of Pins	N	40
Pitch	e	0.40 BSC
Overall Height	A	0.45	0.50	0.55
Standoff	A1	0.00	0.02	0.05
Contact Thickness	A3	0.127 REF
Overall Width	E	5.00 BSC
Exposed Pad Width	E2	3.60	3.70	3.80
Overall Length	D	5.00 BSC
Exposed Pad Length	D2	3.60	3.70	3.80
Contact Width	b	0.15	0.20	0.25
Contact Length	L	0.30	0.40	0.50
Contact-to-Exposed Pad	K	0.20	-	-

Notes:

1. Pin 1 visual index feature may vary, but must be located within the hatched area.

2. Package is saw singulated.

3. Dimensioning and tolerancing per ASME Y14.5M. BSC: Basic Dimension. Theoretically exact value shown without tolerances.

REF: Reference Dimension, usually without tolerance, for information purposes only.

Microchip Technology Drawing C04-156A Sheet 2 of 2

40-Lead Plastic Ultra Thin Quad Flat, No Lead Package (MV) - 5x5 mm Body [UQFN]

Note: For the most current package drawings, please see the Microchip Packaging Specification located at http://www.microchip.com/packaging

C1 W2 C2 T2 E G Y1 X1 SILK SCREEN

RECOMMENDED LAND PATTERN

Units		MILLIMETERS
Dimension Limits		MIN	NOM	MAX
Contact Pitch	E	0.40 BSC
Optional Center Pad Width	W2			3.80
Optional Center Pad Length	T2			3.80
Contact Pad Spacing	C1		5.00
Contact Pad Spacing	C2		5.00
Contact Pad Width (X40)	X1			0.20
Contact Pad Length (X40)	Y1			0.75
Distance Between Pads	G	0.20

Notes:
1. Dimensioning and tolerancing per ASME Y14.5M
BSC: Basic Dimension. Theoretically exact value shown without tolerances.
Microchip Technology Drawing No. C04-2156B

APPENDIX A: REVISION HISTORY

Revision A (February 2015)

This is the initial version of the document.

Revision B (May 2016)

This revision incorporates the following updates:

- Registers:

- Updates Register 5-1, Register 5-3, Register 5-6, Register 5-7, Register 6-3, Register 6-4, Register 7-2, Register 8-2, Register 8-3, Register 8-5, Register 8-6, Register 11-1, Register 13-1, Register 14-1, Register 15-1, Register 15-5, Register 15-6, Register 16-1, Register 16-2, Register 16-3, Register 16-5, Register 18-2, Register 19-1, Register 19-2 and Register 23-7

- Tables:

- Updates Table 1-1, Table 5-1, Table 6-1, Table 7-2, Table 7-3, Table 9-3, Table 9-7, Table 15-1, Table 16-1, Table 19-1, Table 22-1, Table 23-4, Table 23-5 Table 26-2, Table 26-3, Table 26-4 and Table 26-6 through Table 26-33 - A d d s Table 23-8

- Figures:

- Updates Figure 1-1, Figure 3-1, Figure 8-1, Figure 10-1, Figure 14-1, Figure 13-1, Figure 14-1, Figure 14-1, Figure 15-1, Figure 17-1, Figure 18-1, Figure 18-3, Figure 26-1, Figure 26-3, Figure 26-4, Figure 26-9, Figure 26-10, Figure 26-11 and Figure 26-12

- Updates pin function descriptions in Section 1.0 "Device Overview"

- Updates text in Section 9.6 "Input Change Notification (ICN)", Section 9.8.4 "Input Mapping", Section 23.7 "Unique Device Identifier (UDID)", Section 22.5 "Low-Power Brown-out Reset" and Section 27.0 "Packaging Information"

- Adds Section 5.1 “Flash Controller Registers Write Protection”, Section 8.0 “Oscillator Configuration”, Section 23.4 “System Registers Write Protection”, reference to Section 22.1 “Sleep Mode”, Section 22.2 “Idle Mode” and Section 23.8 “Reserved Registers”

- Updates the Absolute Maximum Ratings in Section 26.0 "Electrical Characteristics"

This revision also includes minor typographical and formatting changes throughout the data sheet text.

Revision C (April 2018)

This revision incorporates the following updates:

Adds +125°C specifications.

- Sections:

• Updates "Operating Conditions", "Peripheral Features" and "Analog Features" on the first two pages.
• Updates Section 2.5 "Voltage Regulator Pin (VCAP)", Section 9.5 "I/O Port Write/Read Timing", Section 12.1 "Introduction" and Section 26.0 "Electrical Characteristics".
• Adds Section 9.2 "Parallel I/O (PIO) Ports".

- Tables:

- Updates Table 8-1, Table 26-1, Table 26-3, Table 26-4, Table 26-5, Table 26-6, Table 26-7, Table 26-8, Table 26-9, Table 26-10, Table 26-11, Table 26-12, Table 26-13, Table 26-14, Table 26-15, Table 26-17, Table 26-18, Table 26-19, Table 26-20, Table 26-21, Table 26-22, Table 26-23, Table 26-24, Table 26-25, Table 26-26, Table 26-27, Table 26-28, Table 26-29, Table 26-30, Table 26-31, Table 26-32 and Table 26-33.

- Registers:

- Updates Register 5-7, Register 6-3, Register 8-1, Register 8-3, Register 11-1, Register 12-1, Register 15-1 and Register 16-1.

- Adds Register 8-2.

- Figures:

- Updates Figure 8-2.

- Examples:

- Adds Example 11-1.

- Updates Example 8-1.

NOTES:

INDEX

A

AC Characteristics

10-Bit ADC Accuracy and Conversion Requirements 232

12-Bit ADC Accuracy and Conversion Requirements 231

ADC Inputs Specifications 231

and Timing Parameters.... 219

Capacitive Loading on Output Pins.... 219

CLKO and I/O Timing Requirements 222

EJTAG Requirements 233

External Clock Timing Requirements.... 220

Internal Oscillator Accuracy 221

Internal Oscillator Start-up Time 221

Load Conditions for Device Timing 219

MCCP/SCCP Input Capture x Mode Requirements 226

MCCP/SCCP Output Compare x Mode Requirements 226

MCCP/SCCP PWM Mode Requirements 227

MCCP/SCCP Timer1 External Clock Timing Characteristics 224

MCCP/SCCP Timing Requirements 225

PLL Clock Timing Specifications.... 221

Reset, Brown-out Reset and Sleep Modes Timing Specifications.... 223

SPIx Master Mode Requirements 229

SPIx Module Slave Mode Timing Requirements ..... 230

ADC Converter

Control Registers 136

Introduction 135

Assembler

MPASM Assembler.... 202

B

Band Gap Voltage Reference 184

Block Diagrams

ADC Module.... 135

CDAC Module 171

CLCx Input Source Selection.... 155

CLCx Logic Function Combinatorial Options 154

CLCx Module 153

CPU Exceptions and Interrupt Controller.... 51

CRC Module 149

Dual Comparator Module.... 165

High/Low-Voltage Detect (HLVD) 175

MCCP/SCCP Module 98

MCLR Pin Connections.... 20

Microprocessor Core 24

Multiplexing Remappable Output for RP1.... 83

Oscillator Circuit Placement.... 22

Oscillator System 67

PIC32MM0064GPL036 Family 13

Recommended Minimum Connection.... 20

Reference Oscillator Clock 68

Remappable Input Example for U2RX.... 82

Reset System 45

RTCC Module 125

SPI/I²S Module 111

Timer1 Module 89

Typical Shared Port Structure....79

UARTx Module.... 119

Watchdog Timer (WDT) 93

C

C Compilers

MPLAB XC Compilers 202

Capture/Compare/PWM/Timer Modules

(MCCP, SCCP)....97

CLC

Control Registers.... 156

CLR, SET and INV Registers

Code Examples

Basic Clock Switching 66

Sequence to Clear the WDT.... 93

UART2 RX Input Assignment to RP9/RB14 Pin..... 82

UART2 TX Output Assignment to

RP13/RB13 Pin 83

Code Execution from RAM

Comparator......

Configurable Logic Cell (CLC).... 153

Configurable Logic Cell. See CLC.

Configuration Bits

Control Digital-to-Analog Converter (CDAC)

Control Digital-to-Analog Converter. See CDAC.

CP0 Register 16, Select 1) 30

CP0 Register 16, Select 3) 31

CP0 Register 16, Select 5) 32

CPU

Architecture Overview 25

Coprocessor 0 Registers 27

Core Exception Types 52

EJTAG Debug Support.... 28

Exceptions, Interrupt Controller 51

Interrupts 54

Power Management 28

CPU Module

Customer Change Notification Service

Customer Notification Service 264

Customer Support 264

Cyclic Redundancy Check. See CRC.

D

DC Characteristics

Comparator Specifications 218

High/Low-Voltage Detect 217

I/O Pin Input Injection Current Specifications ..... 215

I/O Pin Input Specifications 214

I/O Pin Output Specifications.... 216

Idle Current (IIDLE) 211

Incremental Peripheral Current 213

Internal Voltage Regulator Specifications.... 217

Operating Current (IDD) 210

Operating Voltage Specifications 209

Power-Down Current (IPD) 212

Program Flash Memory Specifications.... 216

Thermal Operating Conditions.... 208

Voltage Reference (CDAC) Specifications 218

Demo/Development Boards, Evaluation and

Starter Kits.... 204

Development Support.

Third-Party Tools....204

Device IDs 183

E

Electrical Characteristics

Absolute Maximum Ratings.... 207

V/F Graph (Industrial) 208

Errata....10

F

Fail-Safe Clock Monitor (FSCM) 65

Flash Program Memory.... 37

Write Protection 37

G

Getting Started with PIC32 MCUs.... 19

Connection Requirements 19

Decoupling Capacitors.... 19

External Oscillator Pins.... 22

ICSP Pins.... 22

Internal Voltage Regulator Capacitor (VCAP) 20

JTAG....22

Master Clear (MCLR) Pin....20

Unused I/Os 22

Voltage Regulator Pin (VCAP) 21

H

High/Low-Voltage Detect (HLVD) 175

High/Low-Voltage Detect. See HLVD.

|

I/O Ports....79

Analog/Digital Port Pins Configuration.... 80

Open-Drain Configuration 80

Parallel I/O (PIO) 80

Pull-up/Pull-Down Pins 81

Write/Read Timing 80

Input Change Notification (ICN) 80

Instruction Set 205

Inter-IC Sound. See I²S.

Internet Address.... 264

M

MCCP/SCCP

Introduction 97

Registers....98

Memory Maps

Devices with 16 Kbytes Program Memory .... 34

Devices with 32 Kbytes Program Memory .... 35

Devices with 64 Kbytes Program Memory .... 36

Memory Organization.... 33

Alternate Configuration Bits Space 33

Microchip Internet Web Site 26

MIPS32 ^® microAptiv ^™ UC Core Configuration .....28

MPLAB Assembler, Linker, Librarian 202

MPLAB ICD 3 In-Circuit Debugger....203

MPLAB PM3 Device Programmer....203

MPLAB REAL ICE In-Circuit Emulator System......203

MPLAB X Integrated Development

Environment Software....201

MPLAB X SIM Software Simulator.... 203

MPLIB Object Librarian....202

MPLINK Object Linker.... 202

Multiply/Divide Unit Latencies and Repeat Rates 25

0

Oscillator Configuration.... 65

Clock Switching.... 65

Sequence....66

P

Package Thermal Resistance.... 209

Packaging.... 235

Details 237

Marking....235

Peripheral Pin Select (PPS)....81

PICkit 3 In-Circuit Debugger/Programmer 203

Pinout Description.... 14

Power-Saving Features 179

Idle Mode.... 179

Low-Power Brown-out Reset 181

On-Chip Voltage Regulator Low-Power Modes..... 181

Regulator Retention.... 181

Regulator Standby.... 181

Peripheral Module Disable.... 180

Bits and Locations 180

Sleep Mode 179

PPS

Available Peripherals....81

Available Pins 81

Controlling 81

Controlling Configuration Changes.... 83

Input Mapping 82

Input Pin Selection....82

Output Mapping 83

Output Pin Selection.... 83

Programming and Diagnostics.... 184

R

Real-Time Clock and Calendar (RTCC) 125

Real-Time Clock and Calendar. See RTCC.

Register Maps

ADC 137

Alternate Configuration Words Summary 186

Band Gap 197

CDAC 172

CLC1 and CLC2 157

Comparator 1 and 2.... 166

Configurations Words Summary.... 185

CRC 150

Flash Controller 38

High/Low Voltage Detect 176

Interrupts 56

MCCP/SCCP 99

Oscillator Configuration 69

Peripheral Module Disable.... 182

Peripheral Pin Select 87

PORTA 84

PORTB 85

PORTC 86

RAM Configuration, Device ID and

System Lock 194

Reserved Registers 199

Resets 46

RTCC....126

SPI1 and SPI2 112

Timer1 90

UART1 and UART2 120

UDID....199

Watchdog Timer 94

Registers

AD1CHIT (ADC Compare Hit) 147

AD1CHS (ADC Input Select) 145

AD1CON1 (ADC Control 1) 139

AD1CON2 (ADC Control 2) 141

AD1CON3 (ADC Control 3) 142

AD1CON5 (ADC Control 5) 143

AD1CSS (ADC Input Scan Select) 146

ALMDATE (Alarm Date).... 133

ANCFG (Band Gap Control) 198

CCPxCON1 (Capture/Compare/PWMx Control 1) 101

CCPxCON2 (Capture/Compare/PWMx Control 2) 104

CCPxCON3 (Capture/Compare/PWMx Control 3) 106

CCPxSTAT (Capture/Compare/PWMx Status)..... 108

CFGCON (Configuration Control) 195

CLCxCON (CLCx Control) 158

CLCxGLS (CLCx Gate Logic Input Select) 162

CLCxSEL (CLCx Input MUX Select).... 160

CLKSTAT (Clock Status) 76

CMSTAT (Comparator Status).... 167

CMxCON (Comparator x Control).... 168

CNCONx (Change Notification Control for PORTx)....88

CONFIG (CP0 Register 16, Select 0) ...... 29

CONFIG1 (Configuration Register 1 .... 30

CONFIG3 (Configuration Register 3 .... 31

CONFIG5 (Configuration Register 5 .... 32

CRCCON (CRC Control) 151

CRCXOR (CRC XOR) 152

DAC1CON (CDAC Control) 173

DEVID (Device ID).... 196

FDEVOPT/AFDEVOPT (Device Options Configuration).... 187

FICD/AFICD (ICD/Debug Configuration) 188

FOSCSEL/AFOSCSEL (Oscillator Selection Configuration) 192

FPOR/AFPOR (Power-up Settings Configuration) 189

FSEC/AFSEC (Code-Protect Configuration) 193

FWDT/AFWDT (Watchdog Timer Configuration) 190

HLVDCON (High/Low Voltage Detect Control)..... 177

IECx (Interrupt Enable Control x).... 62

IFSx (Interrupt Flag Status x).... 62

INTCON (Interrupt Control).... 58

INTSTAT (Interrupt Status) 61

IPCx (Interrupt Priority Control x) 63

IPTMR (Interrupt Proximity Timer) 61

NVMADDR (NVM Flash Address) 41

NVMBWP (NVM Boot Flash (Page) Write-Protect).... 44

NVMCON (NVM Programming Control) 39

NVMDATAx (NVM Flash Data x) 42

NVMKEY (NVM Programming Unlock).... 41

NVMPWP (NVM Program Flash Write-Protect)...... 43

NVMSRCADDR (NVM Source Data Address)...... 42

OSCCON (Oscillator Control) 70

OSCTUN (FRC Tuning).... 77

PRISS (Priority Shadow Select) 59

PWRCON (Power Control).... 50

RCON (Reset Control).... 47

REFO1CON (Reference Oscillator Control) 73

REFO1TRIM (Reference Oscillator Trim)....75

RNMICON (Non-Maskable Interrupt (NMI) Control)....49

RSWRST (Software Reset) 48

RTCCON1 (RTCC Control 1) 127

RTCCON2 (RTCC Control 2) 129

RTCDATE (RTCC Date).... 132

RTCSTAT (RTCC Status Register) 130

RTCTIME/ALMTIME (RTCC/Alarm Time) 131

UxSTA (UARTx Status and Control) 123

WDTCON (Watchdog Timer Control) 95

Reserved Registers 184

Resets 45

Brown-out Reset (BOR) 45

Configuration Mismatch Reset (CMR).... 45

Master Clear Reset Pin (MCLR).... 45

Power-on Reset (POR)...... 45

Software Reset (SWR) 45

Watchdog Timer Reset (WDTR)...... 45

Revision History.... 259

S

Serial Peripheral Interface (SPI) 111

Serial Peripheral Interface. See SPI.

Special Features.... 183

T

Timer1 Module 89

Timing Diagrams

CLKO and I/O Characteristics 222

EJTAG Characteristics 233

External Clock 220

MCCP/SCCP Input Capture x Mode 226

MCCP/SCCP Output Compare x Mode.... 226

MCCP/SCCP PWMx Mode Characteristics.... 227

MCCP/SCCP Timerx External Clock Timing 225

SPIx Master Mode (CKE = 0) 228

SPIx Master Mode (CKE = 1) 228

SPIx Slave Mode (CKE = 0) 229

SPIx Slave Mode (CKE = 1) 230

Timer1 External Clock Characteristics ...... 224

U

UART....119

Unique Device Identifier (UDID) 184

Universal Asynchronous Receiver Transmitter. See UART.

W

Watchdog Timer (WDT)....93

Write Protection

System Registers 183

WWW Address 264

WWW, On-Line Support 10

NOTES:

Microchip provides online support via our WWW site at www.microchip.com. This web site is used as a means to make files and information easily available to customers. Accessible by using your favorite Internet browser, the web site contains the following information:

• Product Support – Data sheets and errata, application notes and sample programs, design resources, user's guides and hardware support documents, latest software releases and archived software
• General Technical Support – Frequently Asked Questions (FAQ), technical support requests, online discussion groups, Microchip consultant program member listing
• Business of Microchip – Product selector and ordering guides, latest Microchip press releases, listing of seminars and events, listings of Microchip sales offices, distributors and factory representatives

CUSTOMER CHANGE NOTIFICATION SERVICE

Microchip's customer notification service helps keep customers current on Microchip products. Subscribers will receive e-mail notification whenever there are changes, updates, revisions or errata related to a specified product family or development tool of interest.

To register, access the Microchip web site at www.microchip.com. Under "Support", click on "Customer Change Notification" and follow the registration instructions.

CUSTOMER SUPPORT

Users of Microchip products can receive assistance through several channels:

• Distributor or Representative
- Local Sales Office
• Field Application Engineer (FAE)
- Technical Support

Customers should contact their distributor, representative or Field Application Engineer (FAE) for support. Local sales offices are also available to help customers. A listing of sales offices and locations is included in the back of this document.

Technical support is available through the web site at: http://microchip.com/support

NOTES:

PRODUCT IDENTIFICATION SYSTEM

To order or obtain information, e.g., on pricing or delivery, refer to the factory or the listed sales office.

PIC32 MM XXXX GP L XXX T - XXX Microchip Brand Architecture Flash Memory Size Family Key Feature Set Pin Count Tape and Reel Flag (if applicable) Pattern

Architecture MM = MIPS32

^® microAptiv ^TM UC CPU Core

Flash Memory Size 0016 = 16 Kbytes

0032 = 32 Kbytes

0064 = 64 Kbytes

Family GP = General Purpose Family

Key Feature L = Up to 25 MHz operating frequency with basic peripheral set of 2 UART and 2 SPI modules

Pin Count

020 = 20-pin

028 = 28-pin

036 = 36/40-pin

Pattern

Three-digit QTP, SQTP, Code or Special Requirements (blank otherwise)

ES = Engineering Sample

Example:

PIC32MM0064GPL036-I/M2:

PIC32 General Purpose Device

with MIPS32 ^® microAptiv ^™ UC

Core, 64-Kbyte Program Memory,

36-Pin Package.

NOTES:

Note the following details of the code protection feature on Microchip devices:

• Microchip products meet the specification contained in their particular Microchip Data Sheet.
- Microchip believes that its family of products is one of the most secure families of its kind on the market today, when used in the intended manner and under normal conditions.
- There are dishonest and possibly illegal methods used to breach the code protection feature. All of these methods, to our knowledge, require using the Microchip products in a manner outside the operating specifications contained in Microchip's Data Sheets. Most likely, the person doing so is engaged in theft of intellectual property.
- Microchip is willing to work with the customer who is concerned about the integrity of their code.
- Neither Microchip nor any other semiconductor manufacturer can guarantee the security of their code. Code protection does not mean that we are guaranteeing the product as "unbreakable."

Code protection is constantly evolving. We at Microchip are committed to continuously improving the code protection features of our products. Attempts to break Microchip's code protection feature may be a violation of the Digital Millennium Copyright Act. If such acts allow unauthorized access to your software or other copyrighted work, you may have a right to sue for relief under that Act.

Information contained in this publication regarding device applications and the like is provided only for your convenience and may be superseded by updates. It is your responsibility to ensure that your application meets with your specifications. MICROCHIP MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND WHETHER EXPRESS OR IMPLIED, WRITTEN OR ORAL, STATUTORY OR OTHERWISE, RELATED TO THE INFORMATION, INCLUDING BUT NOT LIMITED TO ITS CONDITION, QUALITY, PERFORMANCE, MERCHANTABILITY OR FITNESS FOR PURPOSE. Microchip disclaims all liability arising from this information and its use. Use of Microchip devices in life support and/or safety applications is entirely at the buyer's risk, and the buyer agrees to defend, indemnify and hold harmless Microchip from any and all damages, claims, suits, or expenses resulting from such use. No licenses are conveyed, implicitly or otherwise, under any Microchip intellectual property rights unless otherwise stated.

Microchip received ISO/TS-16949:2009 certification for its worldwide headquarters, design and wafer fabrication facilities in Chandler and Tempe, Arizona; Gresham, Oregon and design centers in California and India. The Company's quality system processes and procedures are for its PIC® MCUs and dsPIC® DSCs, KEELoo® code hopping devices, Serial EEPROMs, microperipherals, nonvolatile memory and analog products. In addition, Microchip's quality system for the design and manufacture of development systems is ISO 9001:2000 certified.

QUALITY MANAGEMENT SYSTEM

CERTIFIED BY DNV

= ISO/TS 16949=

Trademarks

The Microchip name and logo, the Microchip logo, AnyRate, AVR, AVR logo, AVR Freaks, BeaconThings, BitCloud, CryptoMemory, CryptoRF, dsPIC, FlashFlex, flexPWR, Heldo, JukeBlox, KEELOQ, KEELOQ logo, Kleer, LANCheck, LINK MD, maXStylus, maXTouch, MediaLB, megaAVR, MOST, MOST logo, MPLAB, OptoLyzer, PIC, picoPower, PICSTART, PIC32 logo, Prochip Designer, QTouch, RightTouch, SAM-BA, SpyNIC, SST, SST Logo, SuperFlash, tinyAVR, UNI/O, and XMEGA are registered trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

ClockWorks, The Embedded Control Solutions Company, EtherSynch, Hyper Speed Control, HyperLight Load, IntelliMOS, mTouch, Precision Edge, and Quiet-Wire are registered trademarks of Microchip Technology Incorporated in the U.S.A.

Adjacent Key Suppression, AKS, Analog-for-the-Digital Age, Any Capacitor, AnyIn, AnyOut, BodyCom, chipKIT, chipKIT logo, CodeGuard, CryptoAuthentication, CryptoCompanion,

CryptoController, dsPICDEM, dsPICDEM.net, Dynamic Average Matching, DAM, ECAN, EtherGREEN, In-Circuit Serial Programming, ICSP, Inter-Chip Connectivity, JitterBlocker,

KleerNet, KleerNet logo, Mindi, MiWi, motorBench, MPASM, MPF, MPLAB Certified logo, MPLIB, MPLINK, MultiTRAK, NetDetach, Omniscient Code Generation, PICDEM, PICDEM.net, PICkit, PICtail, PureSilicon, QMatrix, RightTouch logo, REAL ICE, Ripple Blocker, SAM-ICE, Serial Quad I/O, SMART-I.S., SQI,

SuperSwitcher, SuperSwitcher II, Total Endurance, TSHARC, USBCheck, VariSense, ViewSpan, WiperLock, Wireless DNA, and ZENA are trademarks of Microchip Technology Incorporated in the U.S.A. and other countries.

SQTP is a service mark of Microchip Technology Incorporated in the U.S.A.

Silicon Storage Technology is a registered trademark of Microchip Technology Inc. in other countries.

GestIC is a registered trademark of Microchip Technology Germany II GmbH & Co. KG, a subsidiary of Microchip Technology Inc., in other countries.

All other trademarks mentioned herein are property of their respective companies.

© 2015-2018, Microchip Technology Incorporated, All Rights Reserved.

ISBN: 978-1-5224-2850-3

Worldwide Sales and Service

AMERICAS

Corporate Office

2355 West Chandler Blvd.

Chandler, AZ 85224-6199

Tel: [phone]

Fax: [phone]

Technical Support:

http://www.microchip.com/

support

Web Address:

www.microchip.com

Atlanta

Duluth, GA

Tel: [phone]

Fax: [phone]

Austin, TX

Tel: [phone]

Boston

Westborough, MA

Tel: [phone]

Fax: [phone]

Chicago

Itasca, IL

Tel: [phone]

Fax: [phone]

Dallas

Addison, TX

Tel: [phone]

Fax: [phone]

Detroit

Novi, MI

Tel: [phone]

Houston, TX

Tel: [phone]

Indianapolis

Noblesville, IN
