USER MANUAL RT29YVMS1 SAMSUNG

OWNER'S INSTRUCTIONS

Before operating the unit, please read this manual thoroughly, and retain for future reference.

Line drawing of a two-door refrigerator with front and back panels (no text or symbols)

MAIN FEATURES

Large Freezer Storage Area

- Stores large quantities of food in the freezer.

Jumbo Storage Guard

- Holds large bottles securely.

Adjustable Storage Guards

- Position them for your convenience and according to the height of your food containers.

Bio-Fresh Zone (Select model)

- Keeps vegetables fresh for longer periods.

Sliding Drawer (Select model)

- Extra storage space for vegetables and fruits.

ICooling

- Advanced air circulation for faster surround cooling.

Super Freeze Zone (Select model)

- Freezes stored items quickly.

Twist Ice-Tray (Select model)

- Spring mechanism for automatic release of ice cubes.

BASIC PREPARATION

Read Instructions.

Please read all safety and operating instructions before operating this appliance.

Retain Instructions.

Please keep this Owner's Manual for future reference.

Heed Warnings.

All warnigns, Cautions and Notes on this refrigerator are important; please pay attention to them.

Follow Instructions.

For best results, follow all instructions given in this manual.

Model and Serial Numbers.

Include both the model number and the serial number when corresponding with your Dealer concerning this product.

Date of Purchase :

Model No.:

Serial No.:

Illustration of three people sitting around a table with a window, no text or symbols present

Contents

MAIN FEATURES 1

CONTENTS 1

BASIC PREPARATION .... 1

- Getting Started 2

INSTALLATION 2

CAUTIONS WHILE USING 3,4

PARTS 5,6

REPLACING THE LAMP 7

STORING FOOD 8

HOW TO USE 9

- Temperature control 9

- Ice cube maker 10

- Chiller Compartment 11

- Vegetable bin 11

LEVELING THE APPLIANCE 12

REMOVING ACCESSORIES .... 13,14

BEFORE CALLING SERVICE 15,16

Getting Started

Before plugging in for the first time, allow the refrigerator to stabilize for at least one hour. Allow the freezer compartment to cool for 2 to 3 hours before storing food.

Cartoon illustration of a smiling refrigerator holding a plug, with no text or symbols present.

INSTALLATION

Cartoon illustration of a smiling refrigerator with arms and legs, showing facial expression (no text or symbols)

11 Avoid locations affected by draughts or dampness.

Cartoon illustration of a distressed refrigerator with a falling object beside it (no text or symbols)

2 For optimum operation, normal room temperature is recommended. Avoid locations in direct sunlight, near heaters, radiators, stoves or ovens.

Cartoon illustration showing a refrigerator emitting exhaust smoke, with a bottle pouring from the chimney.

3 Allow a 100mm space between the refrigerator and the wall. 4 Your refrigerator is going into a recessed area, allow at least 300mm clearance above the refrigerator.

200mm above 100mm above 100mm

4 For personal safety, properly ground this appliance. Do not ground this refrigerator with a telephone line, gas pipe, etc.

Cartoon illustration of a smiling rectangular character with arms and legs, standing on a surface (no text or symbols)

CAUTIONS WHILE USING

Cartoon illustration of a distressed refrigerator with arms and legs, showing facial expression (no text or symbols)

1 Do not allow water to splash onto the refrigerator.

- Water impairs the insulation of electric parts and may cause an electrical shock or a fire hazard.

Cartoon illustration of a distressed cylindrical object with arms and legs, showing surprise or shock (no text or symbols)

22-Do not use flammable sprays such as lacquer and paint near the refrigerator.

- Heat from the refrigeration unit may ignite flammable aerosols.

怒

3 Do not allow unattended children to play in or around refrigerators and other large appliances. The child may get hurt or they could damage the appliance.

- Do not allow children to hand on to the refrigerator door.

Cartoon illustration of a person inside a refrigerator with surprised expression (no text or symbols)

1. For optimum operation, do not leave the door open for any longer than necessary.

-Leaving the door open allows warmer air to enter the refrigerator and causes the refrigeration unit to use more energy to maintain the temperature.

Cartoon illustration of a distressed refrigerator with arms and legs, showing a sad face and waving hands (no text or symbols)

5 Do not store volatile chemicals such as ether and benzene in the refrigerator.

- The fumes, besides damaging food, can build up and cause an explosion.

FULL ONLY

Do not use the refrigerator if it is not operating correctly or has been damaged. Disconnect it from the power supply and call your local service center.

-If the power cord is damaged, avoid a hazard by replacing it through the manufacturer or its service agent or a similarly qualified person

Cartoon illustration of a smiling refrigerator connected to an electric plug with a thought bubble showing a person inside (no text or symbols)

7 Always be careful of not banging your head on the bracket lock while storing or taking out food.

Illustration of a person wearing a hat and holding a refrigerator (no text or symbols visible)

36 Frequent opening of door can cause excessive frost in the unit that will reduce the cooling momentarily, this is a general phenomenon especially in coastal or high humidity area. It is not a malfunction. Opening of door should be avoided while defrosting.

-Avoid keeping freezer door open for long time to prevent frost accumulation.

Cartoon illustration of a distressed refrigerator with arms and legs, showing a sad face and flying windows (no text or symbols)

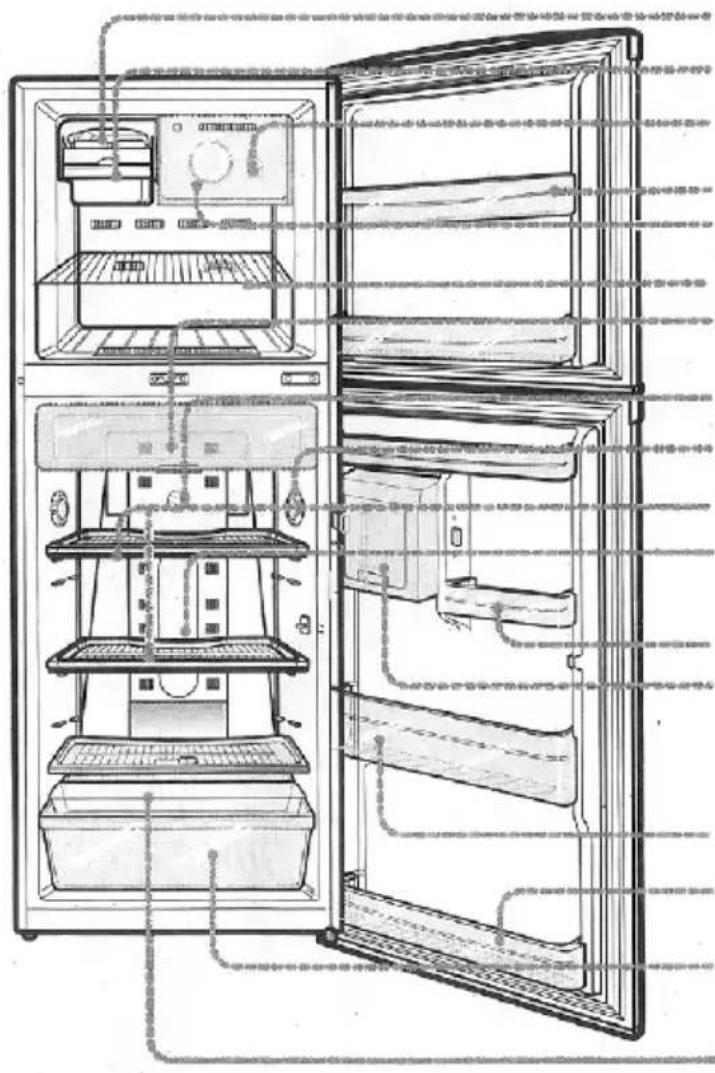

PARTS (TYPE - I)

Technical diagram of an open refrigerator with labeled internal compartments and ventilation system

Twist Ice Cube Tray (Select model)

Ice Storage Bin (Select model)

Freezer Compartment Temperature Control

Guard FRE upp (Select model)

Super-Freeze Zone

(Select model)

Wire Shelf (Economy only)

Chiller Compartment (Select model)

Refrigerator Compartment Temperature Control

i-Cooling

Refrigerator Shelf (Plastic or Steel)

Lamp

Adjustable Storage Guard

Dairy Guard (Select model)

Jumbo Guard

Bottle Storage Guard

Bio-Fresh Zone (Select model)

Sliding Drawer (Select model)

It is recommended to store fruits & vegetables in Bio-fresh Zone/Case vegetable.

PARTS (TYPE - II)

Technical diagram of an refrigerator interior with labeled compartments and internal components

Twist Ice Cube Tray (Select model)

Ice Storage Bin (Select model)

Freezer Compartment Temperature Control

Super-Freeze Zone (Select model)

Chiller Compartment (Select model)

Refrigerator Compartment Temperature Control

i-Cooling

Refrigerator Shelf (Plastic or Steel) Lamp

Adjustable Storage Guard Dairy Guard (Select model)

Bottle Guide (Select model)

Jumbo Guard

Bottle Storage Guard

Bio-Fresh Zone (Select model)

Sliding Drawer (Select model)

It is recommended to store fruits & vegetables in Bio-fresh Zone/Case vegetable.

REPLACING THE LAMP

Illustration of a person wearing a cap and holding an ear, gesturing with open hands (no text or symbols)

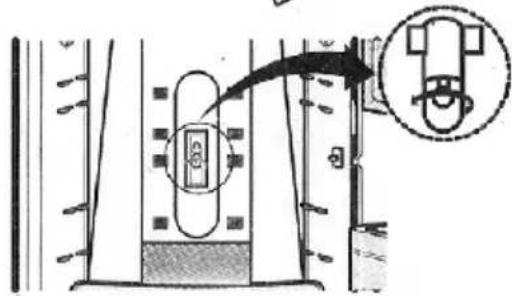

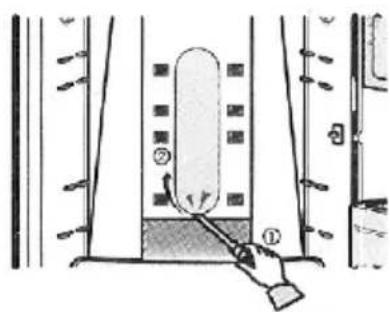

Press upper tab of the lamp cover with some tool such as ⊙driver and pull it out.

Diagram showing a hand pressing a button on a panel with numbered annotations indicating steps ① and ②.

Technical diagram showing a mechanical assembly with labeled components and an arrow indicating direction, including a magnified inset of a component.

22 Turn the existing lamp bulb and replace it with a new one.

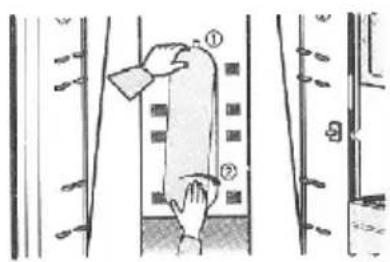

- Replace the lamp cover by aligning the cover at the top (①) and carefully pressing it into place (②)

Diagram showing a device with a magnified inset highlighting a component, likely illustrating a mechanical or electrical process.

Diagram showing a hand holding a tool near a vertical panel, with numbered annotations indicating steps ① and ②.

STORING FOOD

Store food in small portions (Optional)

Seal food in containers with lids, in plastic wrap or in plastic bags to prevent drying and the mingling of odors.

Allow hot food and drinks to cool to room temperature before placing them in the refrigerator or freezer.

Allow sufficient space between stuff to help the circulation of cool air.

Place liquid at the front of the refrigerator to avoid freezing.

Wash dry fruits and vegetables before placing them in the refrigerator.

Technical diagram of a refrigerator interior with labeled compartments and control panel

HOW TO USE

Temperature control

COLDEST

Turn the Temperature Control to "COLDEST" if you;

• have a lot of food to store (refrigerator or freezer)
• want to make ice (freezer)
• require fast freezing (freezer)

Freezer

Refrigerator

NORMAL

Turn the Temperature Control to the midway point between "COLDEST" and "COLD" for normal refrigerating or freezing mode.

Freezer

Refrigerator

COLD

Turn the Temperature Control to "COLD" if you want to store only a small amount of food in the refrigerator or freezer.

Freezer

Refrigerator

Freezer Temperature control

Line drawing of an open refrigerator interior showing internal compartments and ventilation systems (no text or labels)

• When the air surrounding the refrigerator is below 5°C, turn the Temperature Control to "COLD" to avoid freezing.
• Apart from above mentioned Knob setting settings if you desire to increase or reduce the cooling, turn the Knob clockwise or anticlockwise beyond the marked positions respectively.

Ice Cube Maker (Premium Type)

Technical diagram of a refrigerator front panel with labeled buttons and control panels

Fill the ice cube tray with water taking care not to overfill.

Water level

22 Slide the tray onto the ice cube shelf.

Simple line drawing of two hands pressing a component on a surface with a circular object nearby (no text or symbols)

Knobs of ice tray

33 When ice is formed, remove the ice cubes from the ice cube tray by twisting the ice tray knobs. Make sure the ice storage bin is beneath the ice cube tray (see diagram below).

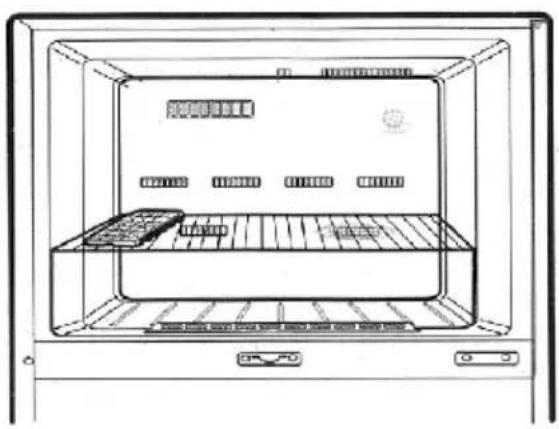

Ice Cube Maker (Economy Type)

Line drawing of a rectangular oven or refrigerator interior with internal compartments and ventilation grilles (no text or symbols)

Illustration of hands sorting and pouring small objects into a container (no text or symbols)

Ice trays are recommended to make Ice faster.

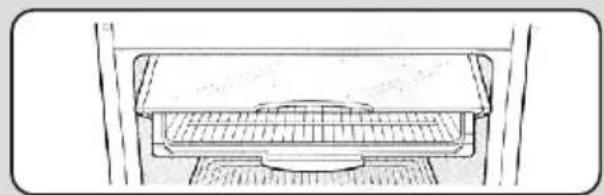

Chiller Compartment (Premium only)

Illustration of a person holding a cloth, appearing to clean or wear (no text or symbols visible)

This compartment helps preserve the taste of food and prolongs its freshness by freezing the surface of the food only. Use the chiller for storing cheese, meat, snacks, fish or any food to be used soon.

Line drawing of a mechanical component with internal grating and base plate (no text or symbols)

Bio-Fresh Zone (Premium only)

Line drawing of a person in a relaxed pose, hand near face, no text or symbols present

This compartment maintains the moisture and freshness of vegetables. It maintains necessary humidity and protects the vegetables from direct draughts of cold air which prevents drying.

Line drawing of a grocery store shelf with various vegetables and meat (no text or labels)

To increase humidity, set the humidity control to high. To decrease humidity, set it to low.

Open Loop ABILITY CONTROL, MINISTRY CONTROL

AIR AIR

CAUTION

The vegetable bin is not suitable for storing tropical fruits such as bananas, pineapples, etc.

LEVELING THE APPLIANCE

Cartoon illustration of a smiling refrigerator with a graduation cap and holding a pointer (no text or symbols)

To compensate for any floor unevenness, adjust the height of the appliance by turning the adjustable feet clockwise or counterclockwise. The adjustable feet are at the front along the lower edge of the refrigerator chassis.

When the refrigerator leans to the left, turn the left front foot counterclockwise.

Simple line drawing of a refrigerator and a small object (no text or symbols)

When the refrigerator leans to the right, turn the right front foot counterclockwise.

Simple line drawing of a refrigerator and a small cylindrical object (no text or symbols)

REMOVING ACCESSORIES

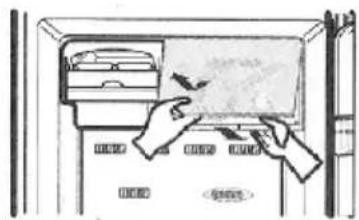

Freezer Shelf (Premium model)

- Pull the shelf forward and slide it out.

Illustration of hands inserting a card into a machine (no text or symbols visible)

Refrigerator Shelf

• Pull the shelf forward until it meets the stopper.
• Tilt the front of the shelf up and pull it out.

Illustration of two hands operating a multi-level mechanical device (no text or symbols visible)

Technical line drawing of an open refrigerator with internal compartments and ventilation slots (no text or labels)

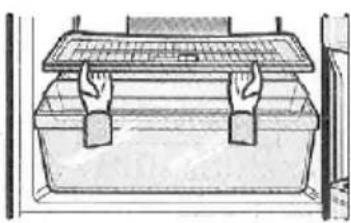

Bio-Fresh Zone Bin and Cover (Premium only)

• Pull the vegetable bin forward and take it out of the refrigerator.
• Lift the cover up and pull it out of the refrigerator.

Illustration of a toolbox with handles and a lid, no text or symbols present

Technical line drawing of a refrigerator showing internal compartments and doorways (no text or labels)

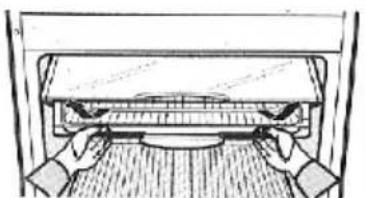

Chiller Compartment

• Pull the chiller compartment towards you until it meets the stopper.
• Tilt the front upward and pull the compartment out.

Simple line drawing of a mechanical device with two hands operating it (no text or symbols)

Adjustable Storage Guard

Lift the guard up and slide it out (These storage guards are adjustable and may be positioned to best fit your needs.)

Diagram showing two steps of lifting a component, with arrows indicating direction and labels '↑' and '↓'

Bottle Storage Guards

Lift the guard up and slide it out (This bottle storage guard is not adjustable; it fits in only one position.)

Illustration of hands holding a wooden beam with arrows indicating force or movement (no text or symbols)

Dairy Guard (Premium only)

Lift the guard up and slide it out. (This bottle storage guard is not adjustable; it fits in only one position.)

When the cover is away from the guard.

1. Stick the left boss of the cover into the hole as shown.
2. Lift the cover up at the end.
3. Push the right boss of the cover into the hole.

e;

Diagram illustrating a mechanical or optical setup with labeled components and magnified views of detail

BEFORE CALLING SERVICE

Problem	Probable cause	Solution
1. Refrigerator not working	Power plug not connected properlyInput electricity supply voltage Low/HighStabilizer not working	Connect the power plug properlyUse stabilizer for rated voltageConnect the power plug directly to wall socket. If refrigerator works, call an electrician to fix the stabilizer problem
2. Excess Cooling	Temperature control knob set towards COLDEST cooling position	Rotate the Temperature control knob towards COLD cooling position
3. Low Cooling	Temperature control knob set towards COLD cooling positionNo clearance from sidesStuff stored in front of air holesHot food stored insideFrequent open/close of door and door open for long time	Rotate the Temperature control knob towards COLDEST cooling PositionKeep refrigerator away from wall for better perfoMaintain gap between stuff & air holesDon't Store hot food till it comes to room temperatureAvoid door opening for long time
4. Noise Legss of Refrigerator not leveled properly- Refrigerator installed too close to wall- Objects behind or under the refrigerator- Noise like water flowing	- Install refrigerator in a flat/ stable surface & adjust front legs- Maintain proper gap from the walls- Remove the objects from behind or under the refrigerator- This sound is generated by the flow of the refrigerant & not a malfunction
5. Smell Food spoiled inside the refrigerator- Improper covering of food	- Clean the spoiled food & properly dry the spoiled area- Store the food in sealed containers or wrap properly
6. Frost inside Door not closed properly Check the door- Hot stuff kept inside	to be closed fully, There should be no gap-Leave food & liquid to cool before placing them in the refrigerator
7. Slow ice formation	- Incorrect setting of Temperature control knob- Pots/Bowl used for Ice making Use	-Rotate the freezer Temp control knob towards COLDEST cooling positionice tray for Ice making
