USER MANUAL Stealthbox SB-CAN-G2MVX3D/10TW3 JL Audio

Black plastic mechanical component with circular top and mounting base (no visible text or symbols)

Stealthbox®

INSTALLATION GUIDE

for the

SB-CAN-G2MVX3D/10TW3

SB-CAN-G2MVX3P/10TW3

SKU# 94672 & 94673

2019 & Up Can-Am Maverick X3

Enclosure Type: Sealed

Driver Type: 10TW3-D4

Nominal Impedance: 2 ohms

Continuous Power Handling: 400 watts (RMS method)

SB-CAN-G2MVX3D/10TW3 & SB-CAN-G2MVX3P/10TW3 INSTR_SKU# 011529

! IMPORTANT

If you choose to perform the installation yourself, it is absolutely vital that the Stealthbox® be properly mounted to the vehicle according to these instructions. Failure to mount the enclosure properly presents two problems:

1) The sub-bass performance will suffer due to the movement of the enclosure caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision or sudden deceleration.

INSTALLATION DIFFICULTY:

ESTIMATED TIME: 2 HOURS

JL AUDIO - Quality & Design - SBX STEALTHBOX®

Thank you for choosing a JL Audio Stealthbox* for your automotive sound system. With proper installation, your new vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.

We strongly recommend that you have your new Stealthbox* installed by your authorized JL Audio dealer. The installation professionals employed by your dealer have the necessary tools and experience to disassemble and reassemble your vehicle properly. If you prefer to perform your own installation, please read this installation guide completely before beginning the process.

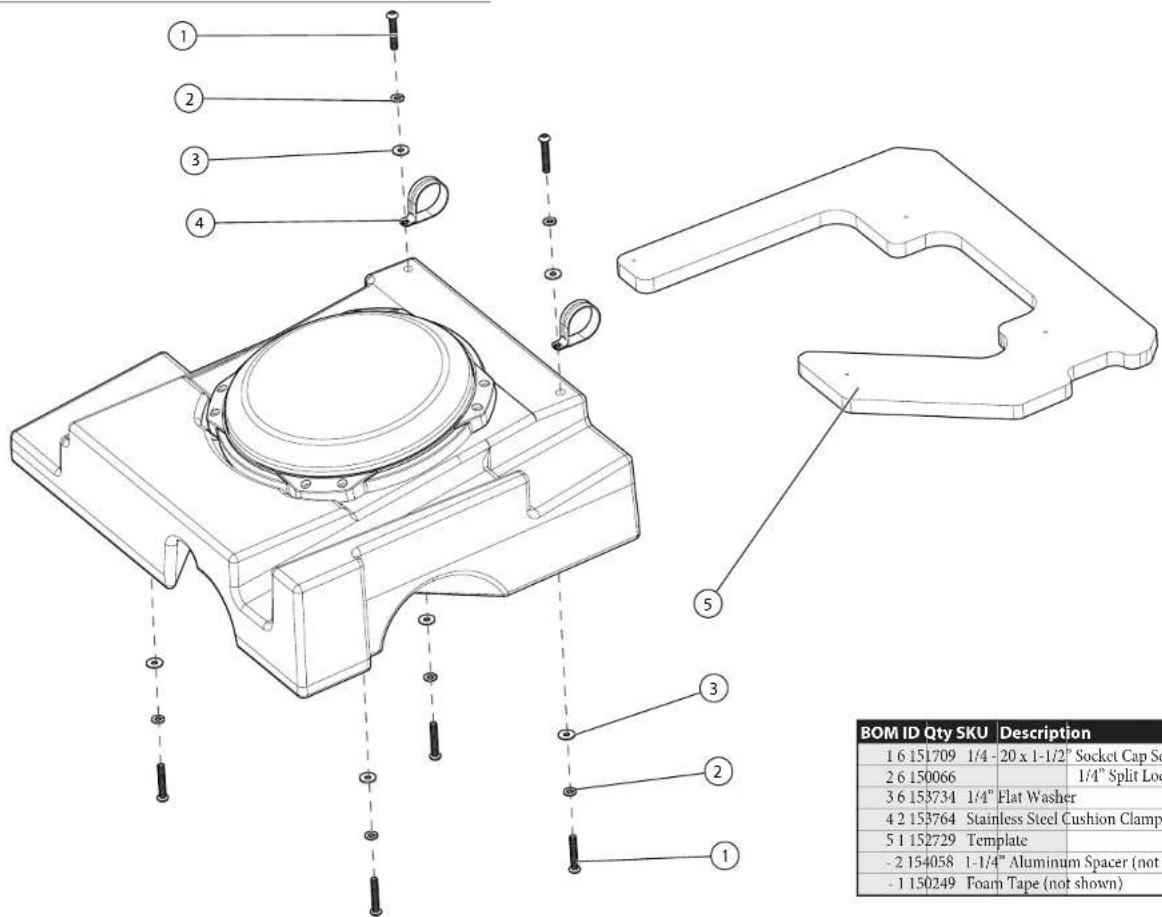

INCLUDED HARDWARE

1 2 3 4 5 6 151709 1/4 - 20 x 1-1/2" Socket Cap Sc 2 6 150066 3 6 153734 1/4" Flat Washer 4 2 153764 Stainless Steel Cushion Clamp 5 1 152729 Template - 2 154058 1-1/4" Aluminum Spacer (not s - 1 150249 Foam Tape (not shown) BOM ID Qty SKU Description 1 6 151709 1/4 - 20 x 1-1/2" Socket Cap Sc 2 6 150066 3 6 153734 1/4" Flat Washer 4 2 153764 Stainless Steel Cushion Clamp 5 1 152729 Template

BOM ID Qty SKU		Description
1 6 151709	1/4 -	20 x 1-1/2" Socket Cap Screw
2 6 150066			1/4" Split Lock Washer
3 6 153734	1/4" Flat Washer
4 2 153764	Stainless Steel Cushion Clamp
5 1 152729	Template
- 2 154058	1-1/4" Aluminum Spacer (not shown)
- 1 150249	Foam Tape (not shown)

Note: For optimum performance, JL Audio recommends applying the included Foam Strips (or sound damping material) to surrounding plastic panels to reduce unwanted vibrations.

POWER RECOMMENDATION

JL Audio recommends high quality amplifiers such as the JL Audio MX300/1. The diagram below shows the recommended crossover settings for the MX300/1. For a detailed description of the amplifier settings, consult the owner's manual for the amplifier. If another amplifier is being used, please reference this illustration and use similar settings on that amplifier.

Output Polarity LP Filter Input Voltage Input Sens. Bass Boost (dB) LP Filter Freq.(Hz) 0° 12 40 30 400 30 40 Infrasmonic Filter(Hz)

CONNECTIONS

Using quality power, signal, and speaker wire is essential in ensuring the performance of your Stealthbox ^® . JL Audio recommends using a 4 AWG power kit such as the XD-PCS4-1B for your Stealthbox ^® amplifier. Other kits are available should you be using more than one amplifier. Signal wire such as the JL Audio Premium Audio Interconnect Cables should be used to provide signal for both channels of the amplifier. JL Audio recommends using 12AWG speaker wire for subwoofers such as our XC-BCS12-25.

Close-up of a motorcycle's rear seats and engine compartment (no visible text or symbols)

STEP 1

NOTE: This manual illustrates the installation of the passenger side Stealthbox*. The installation procedure for the driver side Stealthbox® will be the same.

Empty the front of the vehicle.

Close-up of a mechanical component with metal brackets and mounting holes (no visible text or symbols)

STEP 2

Remove the two front 1/2" seat bolts from the seat bracket.

NOTE: The indicated lower seat bolt locations should not be used after the Stealthbox® installation. Be sure to use the upper seat bolt locations during reassembly.

Close-up of hands installing a red component on a car intake manifold (no visible text or symbols)

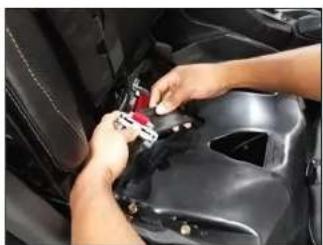

STEP 3

Flip the seat cushion forward and separate the seat belt.

Interior view of a vehicle's seat and dashboard (no visible text or symbols)

STEP 4

Pass the seat belt through the openings in the seat back.

Page 4 • JL Audio, Inc., 2019 Continued on Next Page

SB-CAN-G2MVX3D/10TW3 & SB-CAN-G2MVX3P/10TW3 INSTR_SKU# 011529

Close-up of a car's engine bay with visible wiring and components (no text or symbols)

STEP 5

Slide the seat forward. Remove the two 18mm rear seat nuts and the two 16mm seat belt bolts.

Close-up of a car seatbelt with attached blue clip and black cable, no visible text or symbols

STEP 6

NOTE: This step is required for the driver's side Stealthbox ^® only.

Disconnect the seat belt harness at the inner seat belt bolt.

Close-up of a car's seat and dashboard with blue safety tape (no visible text or symbols)

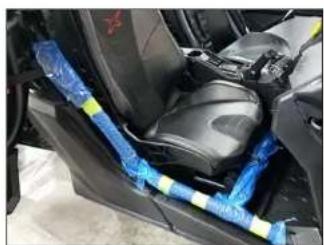

STEP 7

Cover the cage and frame rails to prevent scratching prior to removing the seat.

Interior view of a vehicle's internal components, including electronic equipment and blue plastic tape (no visible text or symbols)

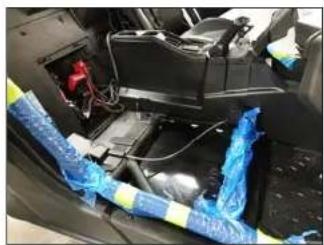

STEP 8

Carefully remove the seat from the vehicle.

Close-up of electronic components with wires and connectors, no visible text or symbols

STEP 9

Place a 1-1/4" Aluminum Spacer over each of the rear seat studs, as shown.

Interior view of a mechanical or electrical enclosure with blue safety stripes and wiring (no visible text or symbols)

STEP 10

Position the Template on the vehicle floor, as shown. Push the Template forward and to the outside, as shown, until flush with the frame rails.

Interior view of a vehicle showing a black vehicle chassis with blue plastic wrap and a red sensor on the side (no visible text or symbols)

STE P 11

Using a small pick tool, mark each of the four hole locations through the Template onto the plastic floor panel.

Hand using a yellow power tool to adjust or install components on a black metal panel (no visible text or symbols)

STEP 12

Remove the Template from the vehicle.

Using a 1/8" drill bit, drill a pilot hole through each of the marks made in the previous step.

Using a 5/16" drill bit, enlarge each of the pilot holes.

Page 5 • JL Audio, Inc., 2019 Continued on Next Page

SB-CAN-G2MVX3D/10TW3 & SB-CAN-G2MVX3P/10TW3 INSTR_SKU# 011529

Close-up of a black mechanical component with a circular top and side profile (no visible text or symbols)

STEP 13

Place the Stealthbox ^® on a flat surface with the subwoofer facing up.

Close-up of a mechanical component with a circular opening and internal red markings (no visible text or symbols)

STEP 14

Remove the eight subwoofer mounting screws, then remove and disconnect the subwoofer.

Three metallic mechanical components with textured surfaces, no visible text or symbols

STEP 15

Turn the enclosure over. Attach Foam Tape to the bottom of the enclosure, as shown.

Close-up of a mechanical device with blue gloves and a white circular component, no visible text or symbols

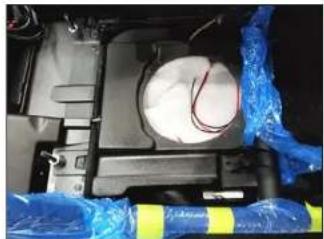

STEP 16

Carefully set the enclosure into the vehicle, and slide it forward and under the front seat bracket, as shown. Be sure the rear of the enclosure is flush with the plastic floor panel.

Close-up of a mechanical component with blue and yellow tape wrapped around it (no visible text or symbols)

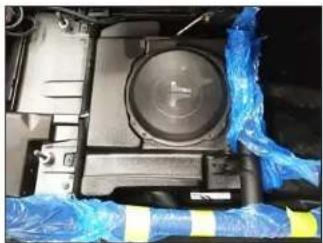

STEP 17

Connect and reinstall the subwoofer and eight subwoofer mounting screws.

Close-up of a car's lower body and tire, with white arrows pointing to specific components (no text or symbols visible)

STEP 18

Slide a 1/4" Split Lock Washer and a 1/4" Flat Washer over each of four 1/4 - 20 x 1-1/2" Socket Cap Screws.

From under the vehicle, pass each assembly through a drilled hole in the plastic floor panel, into a threaded insert in the bottom of the enclosure, and fully tighten.

Close-up of a mechanical component with a mesh fan and shaft, no visible text or symbols

STEP 19

Wrap a Stainless Steel Cushion Clamp over the outside front frame rail, aligning its holes with the threaded insert in the top of the enclosure.

Slide a 1/4" Split Lock Washer and a 1/4" Flat Washer over a 1/4 - 20 x 1-1/2" Socket Cap Screw, pass the assembly through the holes in the Stainless Steel Cushion Clamp, and into the threaded insert. Repeat the process for the inside front frame rail, then fully tighten.

Interior view of a vehicle's dashboard and seat assembly (no visible text or symbols)

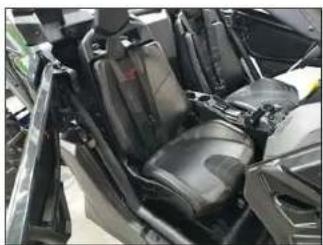

STEP 20

Carefully reinstall the seat, and pass the seat belt back through the openings in the seat back. Connect the seat belt harness (driver's side only). Reinstall the rear seat nuts, seat belt bolts, and front seat bolts.

Note: For optimum performance, we recommend applying the included Foam Strips (or sound damping material) to surrounding plastic panels to reduce unwanted vibrations.

Page 6 • J. Audio, Inc., 2019

SB-CAN-G2MVX3D/10TW3 & SB-CAN-G2MVX3P/10TW3 INSTR_SKU# 011529

CONGRATULATIONS!

You have completed the installation for this model! Enjoy your new Stealthbox®!

Interior view of a black sports car cockpit with visible seats and steering wheel (no text or symbols)

MID/HIGH FREQUENCY DRIVER FITMENT

VeXT™ Enclosed Speaker Systems are ideal for powersports and off-road vehicle applications. Each weatherproof pod can be mounted to a roll cage precisely aimed for optimum sound. Mounting fixtures are available to fit a variety of roll cage diameters.
