USER MANUAL SLELT518.5 SereneLife

Black trampoline with blue and black sides, labeled 'SereneLife' on the cover (no other text or symbols)

SLELT518

Foldable Body Fitness Trampoline

Pro Aerobic Six Sided & Low-impact Trampoline with Adjustable Handrail

USER MANUAL

General Guidelines

• Please read the following instruction carefully and use the product accordingly.
• Please keep this manual and hand it over when you transfer the product.
• This summary may not include every detail of all variations and considered steps. Please contact us when further information and help are needed.

Notes

• There is a risk of injury when using trampolines. To minimize the risk, please follow the requirements of this manual. Usage, installation suggestions, and safety information are included. Users and caretakers should read this manual carefully and become familiar to every detail. Everyone who uses this trampoline should be aware of his or her own physical limitations and only jump within their individual skills.
• Do not make any modifications to the product. Only original accessories can be used. Only qualified technicians can repair the product; as improper repairs can be dangerous to the user.
• For home and domestic use only. Not suitable for professional or medical use.
• Consult your doctor to assess if you are fit for a trampoline.
• Become familiar with the trampoline. Start with simple jumps, and then you can move on to complicated jumps. Do not jump uncontrollably, and watch for good body control and master different jumping techniques.

Assembly

• Two adults are recommended to complete assembly.
• Remove the packages and place all the accessories in open space. This gives you an overview and will simplify the assembly procedures.
• Check the parts list to ensure there are no missing parts.
• Be careful when using tools or performing technical work for there is always a risk of injury.
• Create a safe environment; tools should not be placed at will. Dispose of packages in a way that cannot cause any danger.
• After installation, please make sure that all screws, bolts and nuts are correctly installed and tightened, and all joints are firmly connected.
• Never install the trampoline in heavy rain, strong wind or storms, especially in thunderstorms. It is recommended that the trampoline should be taken apart and stored under bad weather condition.
• Use gloves when assembling or disassembling.

Usage

• Do not use the product if it is damaged or defective and please consult a qualified technician or our service center.
• The trampoline must be installed properly before use. Check product before every use.
• Defective parts must be changed immediately as they can reduce the function and safety of the product.
• Use the product only on even and non-slip surfaces. Never use near water, and keep sufficient space around it to ensure safety.
• Beware of parts that may become loose while moving, which can scratch your limbs. Please do not stick any objects in the product's openings.
• The metal frame of the trampoline is conductive. Lightning, extension cords and all electrical equipment are prohibited from touching the trampoline.
• The Trampoline must always be used in a well-lit area.
• Nothing should be placed under the trampoline.
• Never use the trampoline near the other leisure devices or constructions.

Maintenance

• After folding, this product only takes up very little space for you to collect it at any time.
- If it is not used temporarily and needs to be packed, please remove all the parts of the trampoline in the reverse order of the assembly procedure, and store it properly so that it can be used again functionally.
- Protect the product from splashes, humidity, high temperature and direct sunlight.
- Clean the trampoline with a soft cloth. Do not use corrosive detergents or other chemicals.

Warnings

Danger for children

• Not for children under 14 years old
- Children do not recognize potential dangers of this product; do not let children unsupervised near this product. Carry out suitable settings in the product by yourself and supervise any activity.
- Keep children away from working area when assembling, many screws and other small parts are included that can be fatal if swallowed or inhaled.
- Keep the packaging components (foils, plastic bags, foam board, etc.) away from children, especially from infants and toddlers as there is a danger of suffocation.

Danger of injuries

• The incorrect use of trampoline is dangerous and can lead to serious injury or death.
• Trampolines usually give users an unusual jump height, so use of a trampoline requires some body control.
• Check before every use; make sure the jumping cloth is stable and no parts have become loose.
  • Make sure only one person uses the trampoline at a time.
• Do not attempt somersaults on the trampoline.
• Concentrate when stepping on the trampoline. If mistakenly steeping on the edge or the frame, the trampoline may tip over and cause a danger of injury.

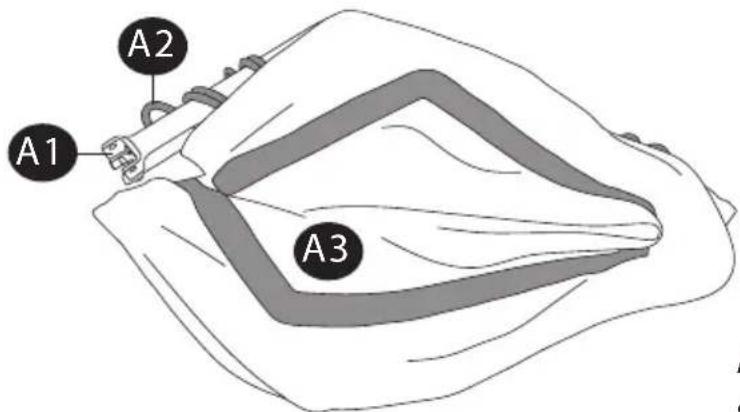

A

- Trampoline

A1

- Frame

A2

- Elastic string

A1 A2 A3

×1

A3

- Jumping cloth

B1

• Foot • Foot

× 4× 2

C

- Grab rail • Grab pole

×1

×1

E • Grab pole • Cross bar ×1	F ×1
G • Short screw ×2 with nut and shim	H • Long screw ×1 with nut and shim
I • Big screw • D-shape Safety pin	J ×1
K • Allen screw • Knob head screw with shim	L and spring shim ×1
M • Telescopic screw • Allen key	N ×1
O • Sleeve ×1	P • Plastic Adjusting Shim ×6

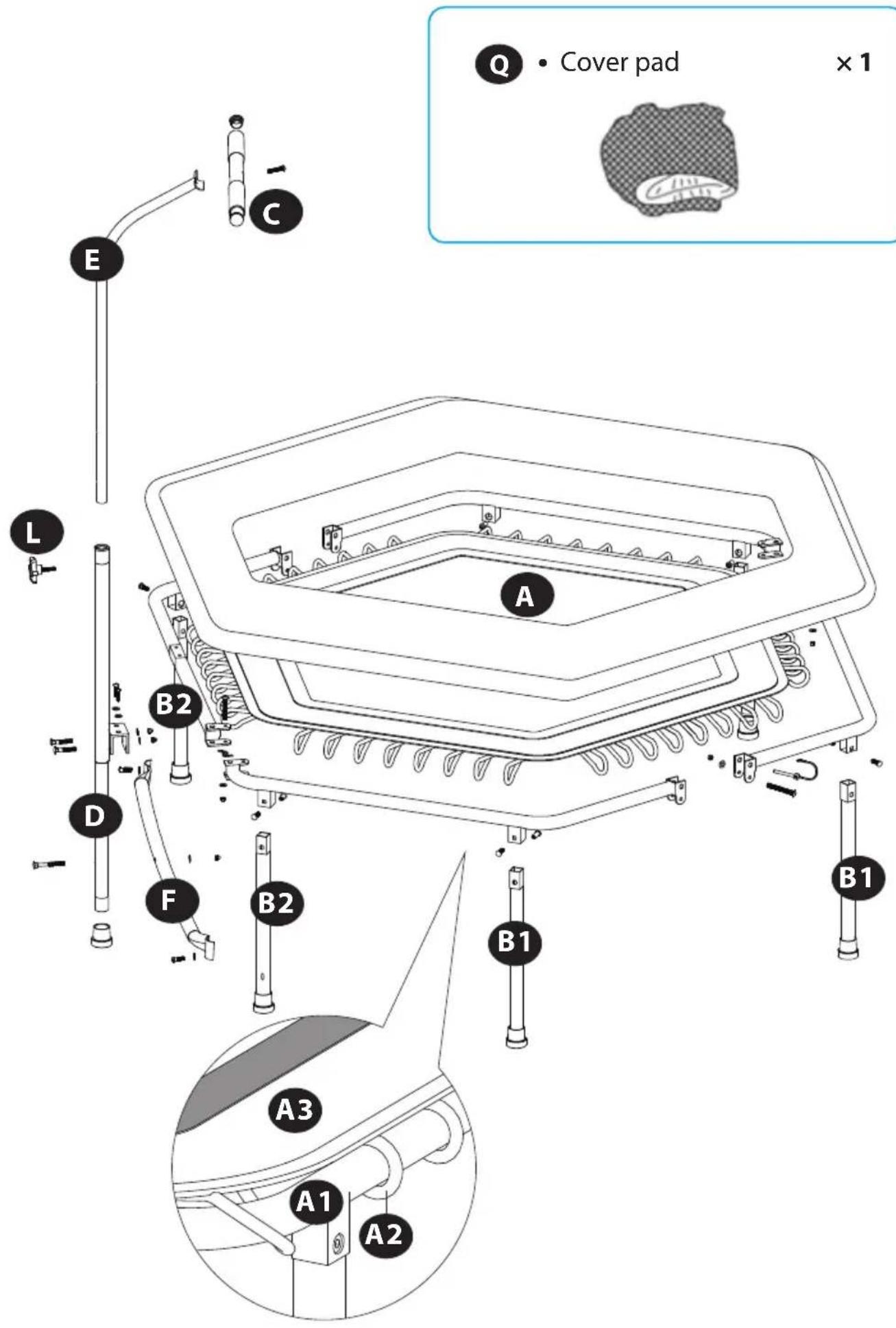

Q • Cover pad × 1 C E L B2 A D F B2 B1 A3 A1 A2

1

Diagram of a medical or anatomical structure with labeled point A, no readable text or symbols present

Illustration of two people assembling a mechanical device with directional arrows indicating motion (no text or symbols)

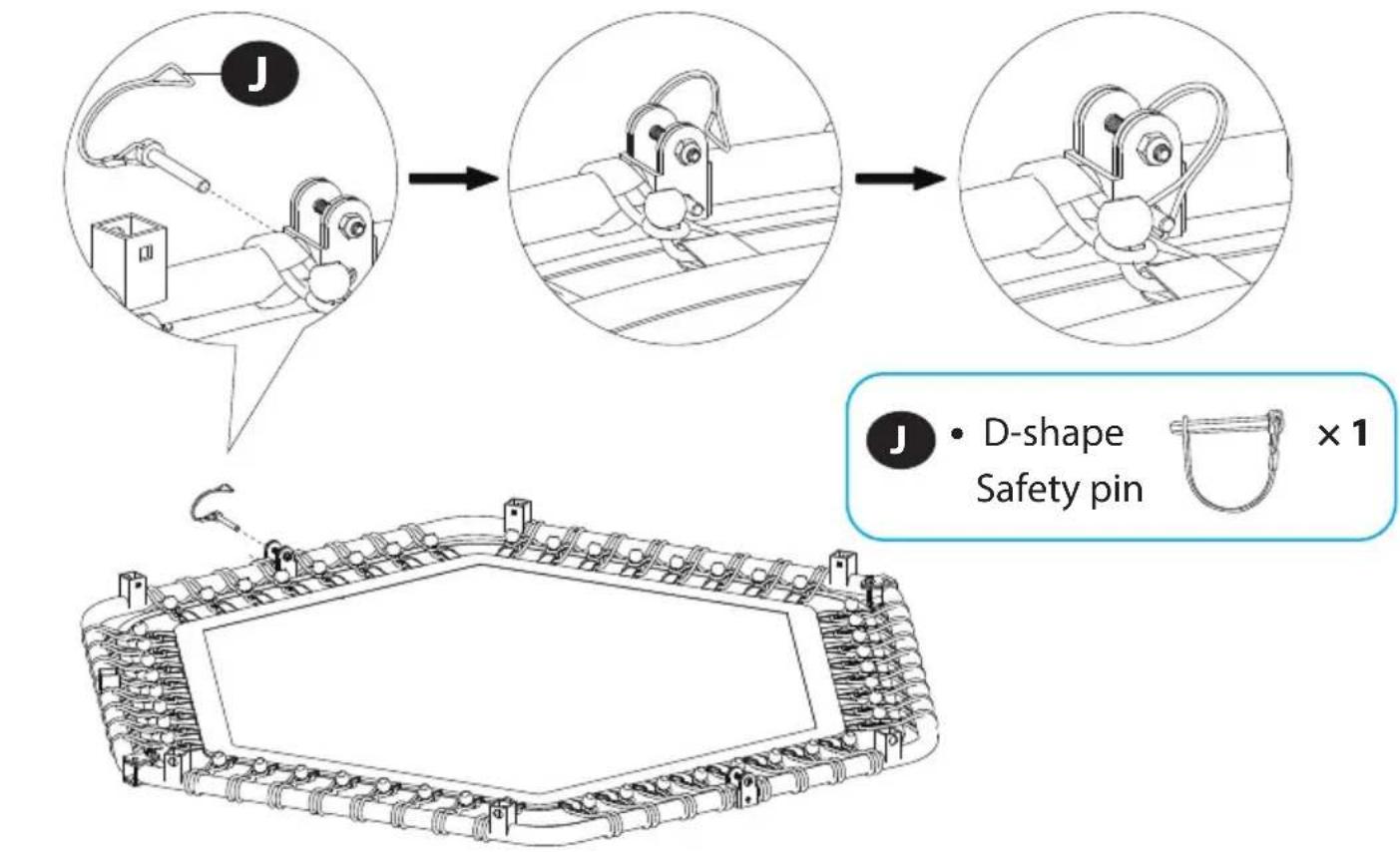

- Place Trampoline A on the ground and press it downwards into a flat position. Insert D-shape safety pin J into the fold at one end of the trampoline A entirely.

- Note: Make sure safety pins are inserted into the fold of trampoline A.

J D-shape Safety pin ×1

2 B1 B1 B2 B1 B1 A B2

• Feet assembly
• B2 is installed on both ends of the tube marked with flattening shape on the trampoline A with M, so as to install the safety poles and cross bar next. Install the other 4 feet-(B1) into the reserved position in the same way.

- Reverse the trampoline after the screws have all been tightened

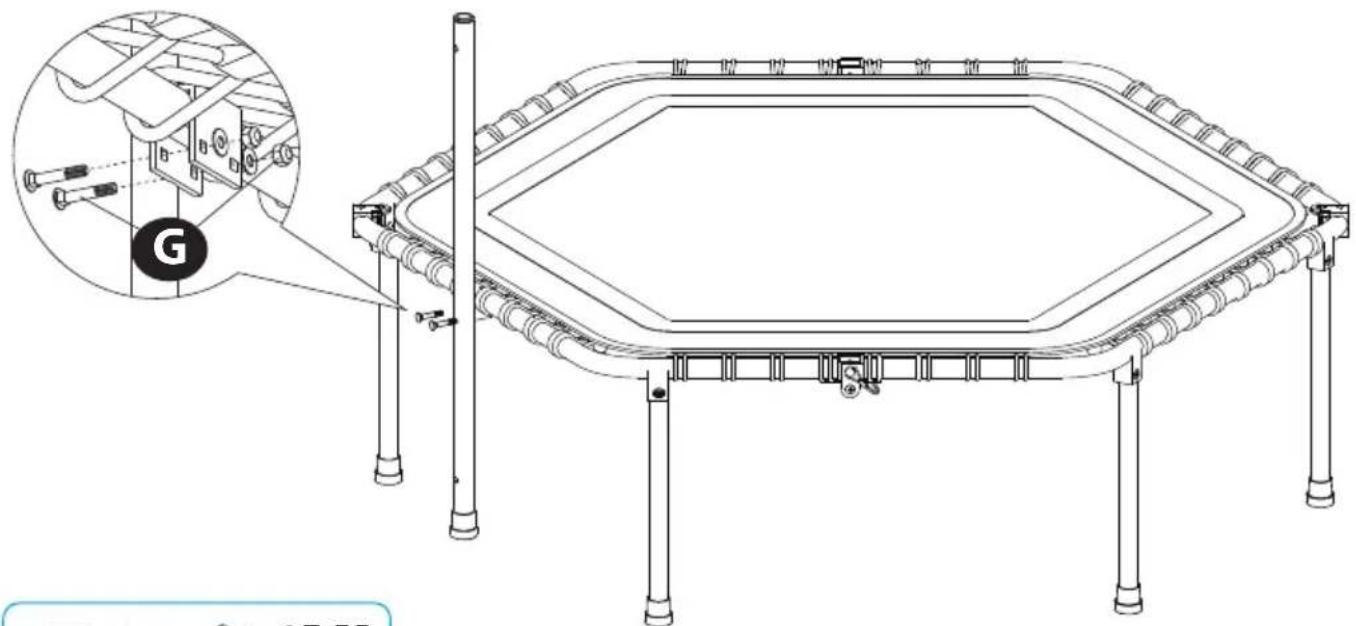

• Install grab pole D in the flattening place on the trampoline A with G and K.

Technical line drawing of a mechanical truss structure with mounting legs and internal components (no text or symbols)

G 2PCS K 2PCS

4 E L J L 1PC D

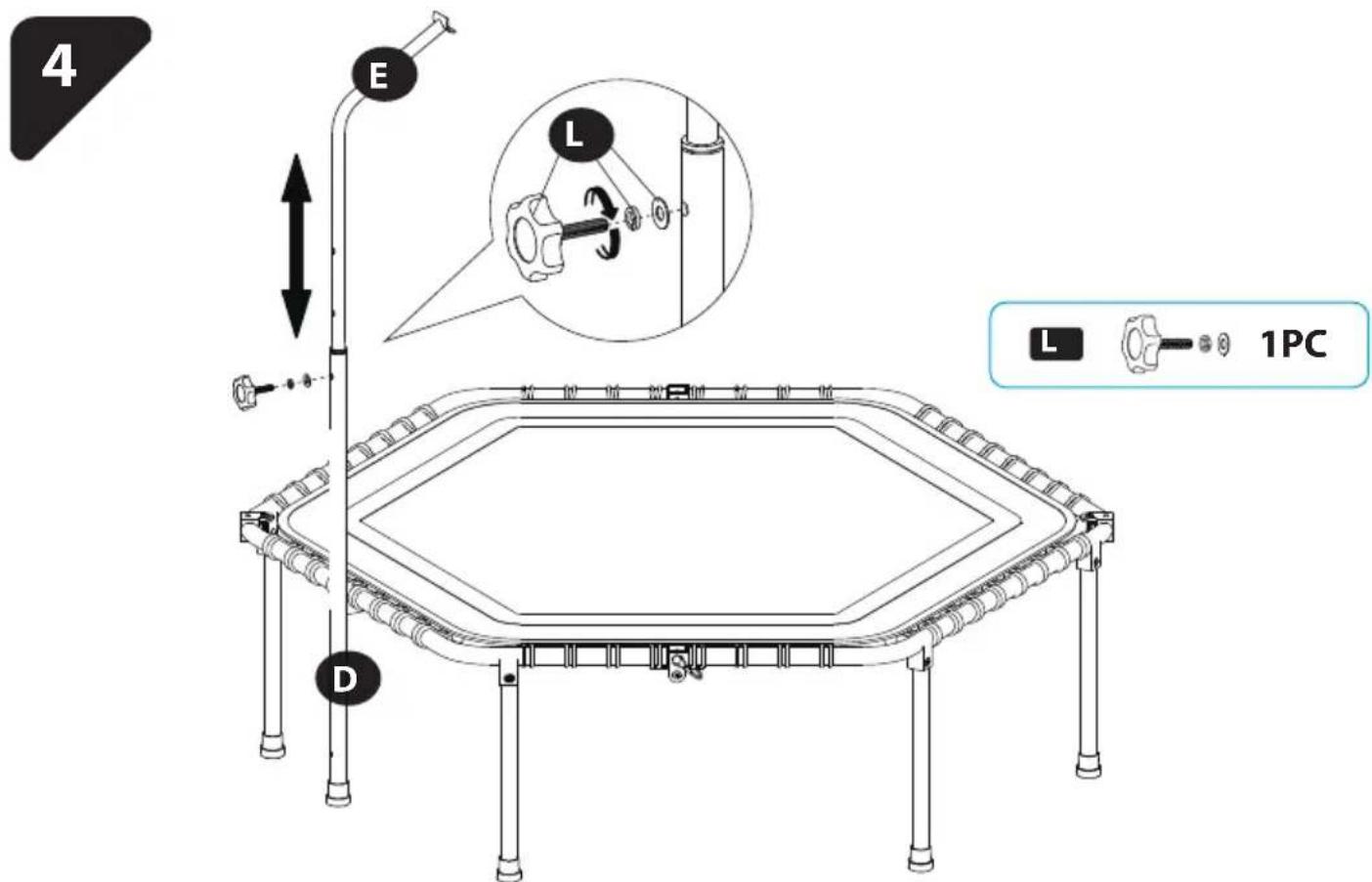

- Attach grab pole E and D with L

5 C E I 1PC

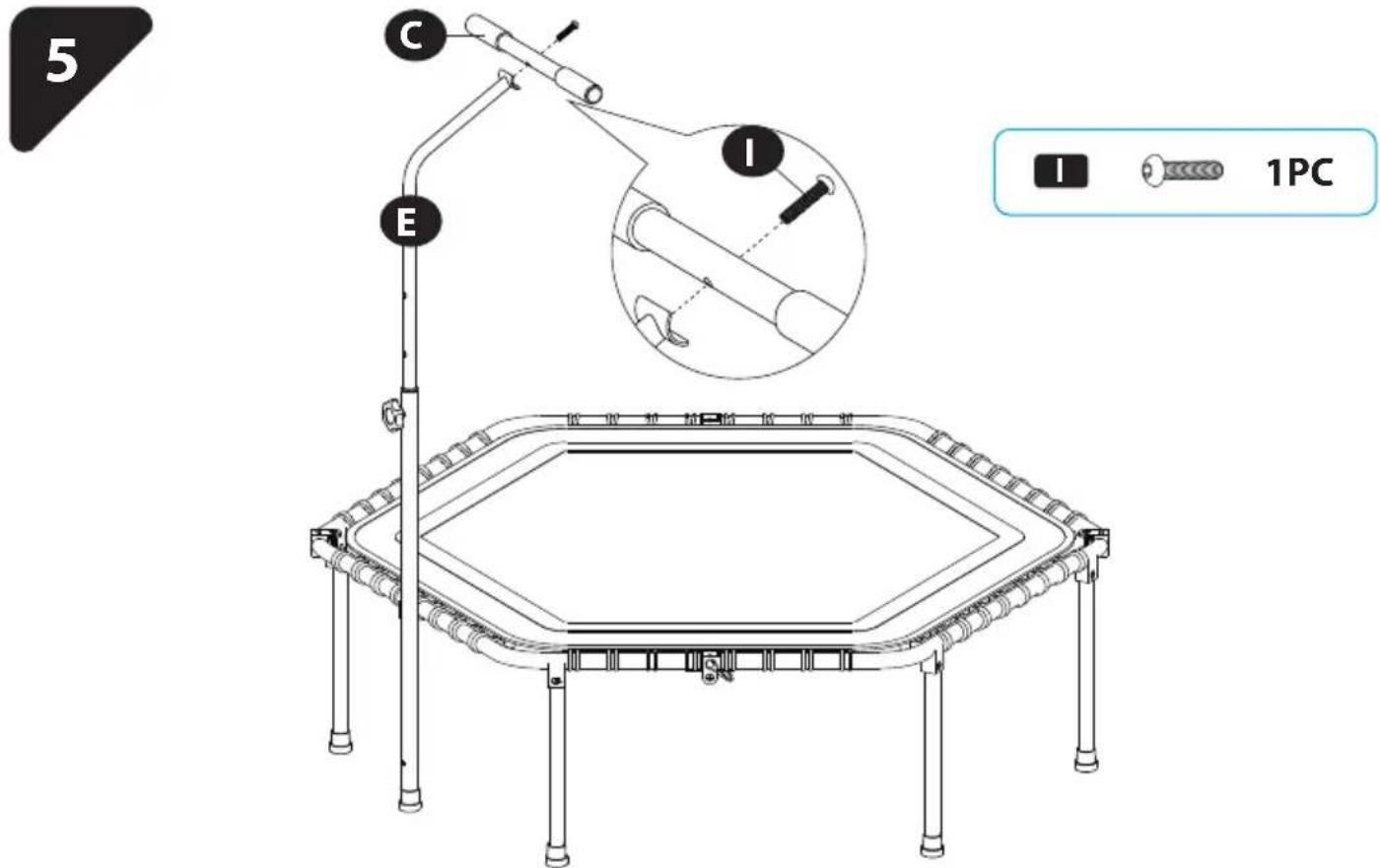

- Attach grab rail C and grab pole E with screw I.

6 H 1PCS D F H

- First to attach cross bar F and grab pole D with H, then attach the ends of cross bar F with two feet B2 with K.

K 2PCS B2 K F B2

Technical line drawing of a truss structure with pipes and support legs (no text or symbols)

• Congratulations! Now, you have complete all the assembly procedures. Please check one more time to make sure all the screws are tightened.
• Stand on the trampoline, so that all six feet remain flat on the ground.

Warning

The safety pole must be secured in the frame before using the trampoline.

SLELT518

Foldable Body Fitness Trampoline

Pro Aerobic Six Sided & Low-impact Trampoline with Adjustable Handrail

Features:

• Professional Aerobic Six Sided & Low-impact Trampoline
- Anti-pinch Patent
- Designed with 6 Sides for Wide Space Jumping
- Compact, Portable & Lightweight
• Excellent Low-Impact Aerobic Workout
- Adjustable-Height Sturdy Handrail
• Durable Leg Base Frames and Padded Handlebar
- Poles Slide into Frame Legs for Easier Assembly and Safer Jumping Experience
• Heavy Duty Welding for Legs and Handrail
• Water Proof & Weather-Resistant Construction
- Elastic Rope Connection between Jumping Mat and Tubes
- Indoor and Outdoor Use
• Some Assembly Required
• Simple & Hassle-Free to Assemble
• Recommended for Ages 14+ and Up
• Lab Tested and Safety Certified

What's In The Box:

• Fitness Trampoline
• Handrail / Handlebar
• PP Jumping Mat
  • Installation Hardware
• Trampoline Frame Cover

Questions? Issues?

We are here to help!

Phone: [phone]

Email: [e-mail]

Technical Specs:

• Handrail Height Setting: 43" – 51" - inches
  • Weight Capacity: Up to 264lbs.
  • Construction Material: Galvanized Tube
• Jumping Mat Material: Polypropylene
• Trampoline Height (from Floor): 13.4" - inches
• Jumping Surface Size: 48" (from angle to angle), 41.5" (from side to side) - inches
• Total Assembled Trampoline Size (L x W x H): 50" x 44" x 13.4" - inches
