Product Type	2-Channel Universal Fit Behind-the-Ear (BTE) Rechargeable Hearing Amplifier
Brand	Pyle
Model	PHLHA54.7
Dimensions (L x W x H)	0.83" x 0.55" x 0.71" (21.1 x 14.0 x 18.0 mm)
Weight	Approx. 0.2 oz (5.7 g) without ear tip
Material	ABS plastic
Power Supply	Built-in rechargeable lithium-ion battery, 3.7-5V input
Charging Time	Approx. 2 hours
Battery Life	Over 20 hours of use per charge
Battery Cycle Life	No decline within 500 charging cycles
Working Voltage	DC 1.45V
Working Current	≤3.5 mA
Sound Output (Max)	125 ± 5 dB
Frequency Range	250 - 5000 Hz
Sensitivity	≥ 43 dB
Total Harmonic Distortion (THD)	5%
Input Noise Level	≤ 28 dB
Listening Modes	Normal and Noisy (selectable via memory switch)
Noise Reduction	Active noise reduction
Additional Features	Wider dynamic range compression, over-discharge/charge protection, ergonomic design to prevent occlusion effect
Included Accessories	3 pairs of ear tips (2 medium, 1 large), 2 ear tubes, USB charging cable, user manual
Cleaning	Wipe with soft dry cloth; do not use water or cleaning agents
Safety Precautions	Do not use if you have tympanitis or ear pyogenesis; avoid prolonged high volume; protect from impact, humidity, extreme temperatures, direct sunlight

Frequently Asked Questions - PHLHA54.7 Pyle

How long does the battery last on a full charge?

The built-in rechargeable battery provides over 20 hours of use per full charge.

How do I charge the hearing aid?

Use the included USB charging cable. The device will turn off automatically for faster charging. Full charging takes approximately 2 hours.

Can I use the hearing aid while charging?

No, the device automatically turns off during charging to optimize charging time.

How do I turn the device on and off?

Long press the memory switch button to turn on/off. Short press to change listening modes (Normal/Noisy).

What are the available listening modes?

There are two selectable modes: Normal and Noisy. Use the short press on the memory switch to toggle.

How do I adjust the volume?

Use the rocker volume control to increase or decrease volume. The device also has volume and memory resume.

What ear tips are included?

The package includes 3 pairs of ear tips: 2 medium and 1 large, plus 2 ear tubes for replacement.

Is the hearing aid water-resistant?

No, it is not water-resistant. Protect from humidity, dirt, and direct sunlight. Clean with a dry cloth only.

Who should not use this device?

It is forbidden for patients with tympanitis (ear infection) or ear pyogenesis. Discontinue use if discomfort occurs.

How do I replace the ear tube?

The ear tube can be exchanged by gently pulling the old tube off and pushing the new one onto the hook. Ensure a secure fit.

USER MANUAL PHLHA54.7 Pyle

Close-up of a beige medical device with a white cable and earpiece, no visible text or symbols.

Collection of black and white geometric symbols including clover, star, flower, square, and starburst (no text or labels)

2 Channel Universal Fit, Behind the Ear (BTE) Rechargeable Hearing Amplifier

KNOW YOUR DEVICE

Long press: ON/OFF Switch Short press: Change mode

• Middle power BTE
  • 2 Channels WDRC Multi Memories Amplifier
• Noise Reduction
• Memory Switch

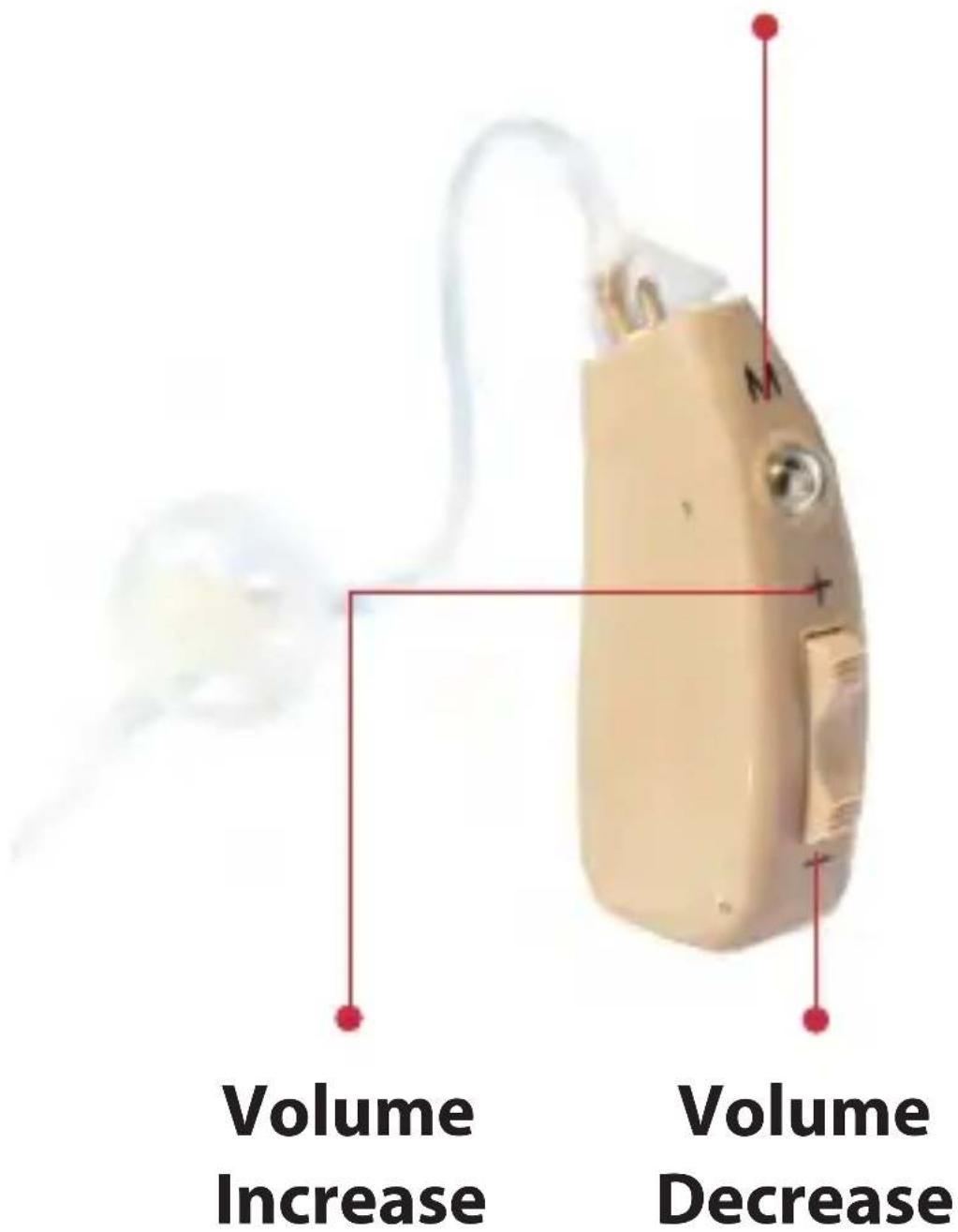

• Rocker Volume Control
  • Volume and memory Resume
  • Exchangeable between ear hook and tube
  • Full Charging Time: 2 hours
  • Duration of use: More than 20 Hours of use.
• Cycle times: No decline within 500 times charging

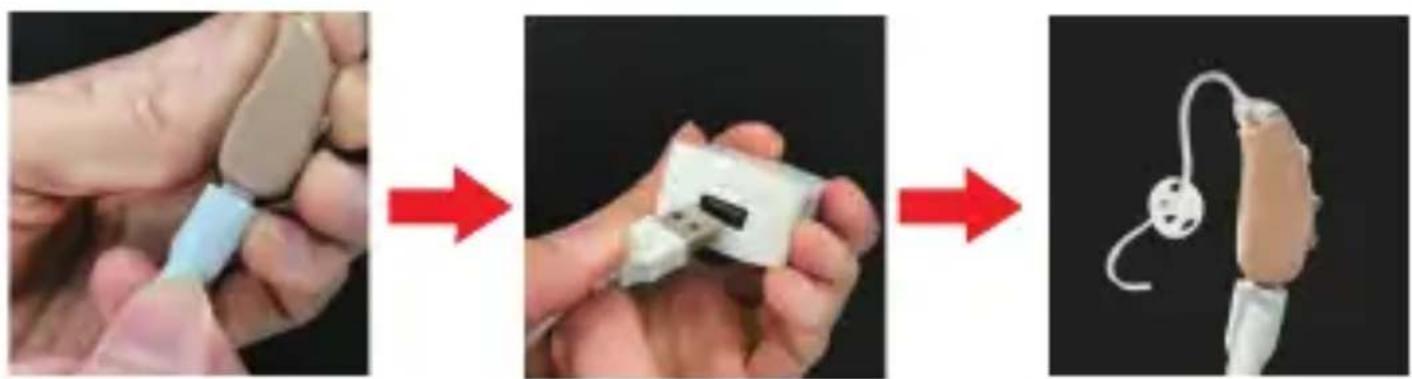

Three Step Charge

Three-step sequence showing a hand holding a small electronic device, then applying a USB to a terminal device (no text or symbols visible)

The device will be turned OFF automatically for faster charging time.

It's recommended that you turn off the hearing

instrument when it's not in use. Long press the memory switch button to turn ON the device if you want to use the device.

Close-up of a beige medical or electronic device with a red circular highlight and blue handle (no visible text or symbols)

Close-up of a beige handheld electronic device with a green circular button and two rectangular buttons (no visible text or symbols)

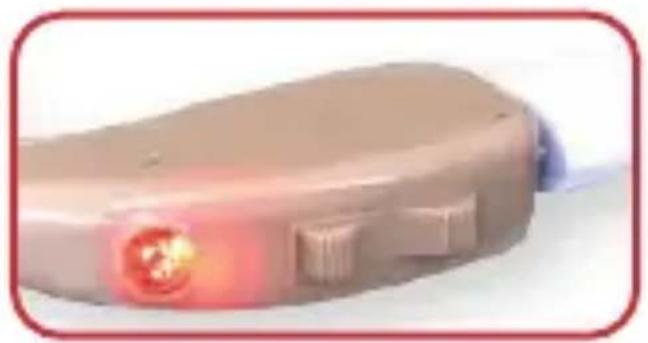

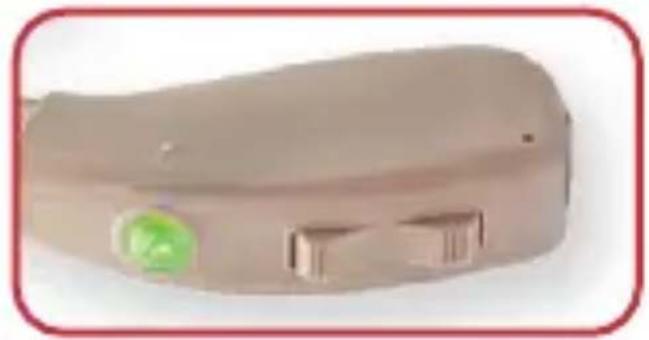

Charging Fully Charged

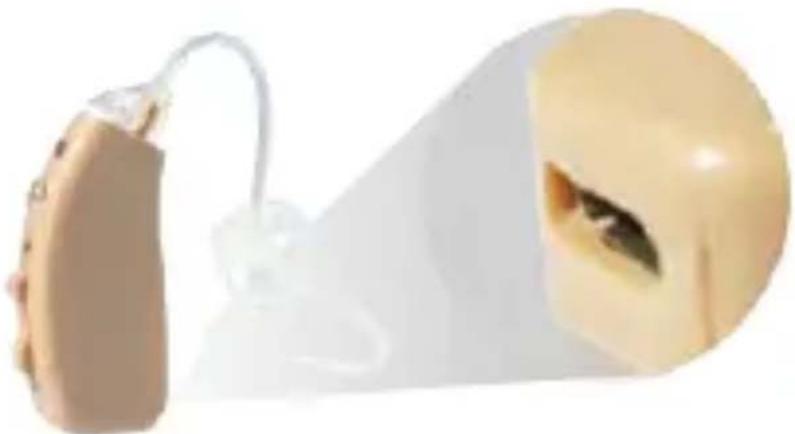

USB CHARGING

Easy Various Charging Methods

Close-up of a white air conditioner unit with digital display and red buttons, partially visible against a light background (no text or symbols)

The computer

Circular cropped photo of a minimalist interior scene with a vase and patterned wall (no visible text or symbols)

Power source

Close-up of a car interior showing steering wheel and dashboard (no visible text or symbols)

Car charger

Close-up of a pink and green striped object with a black top (no text or symbols visible)

Power bank

Medical device with catheter and lens, shown in a close-up view of its internal organ (no text or symbols visible)

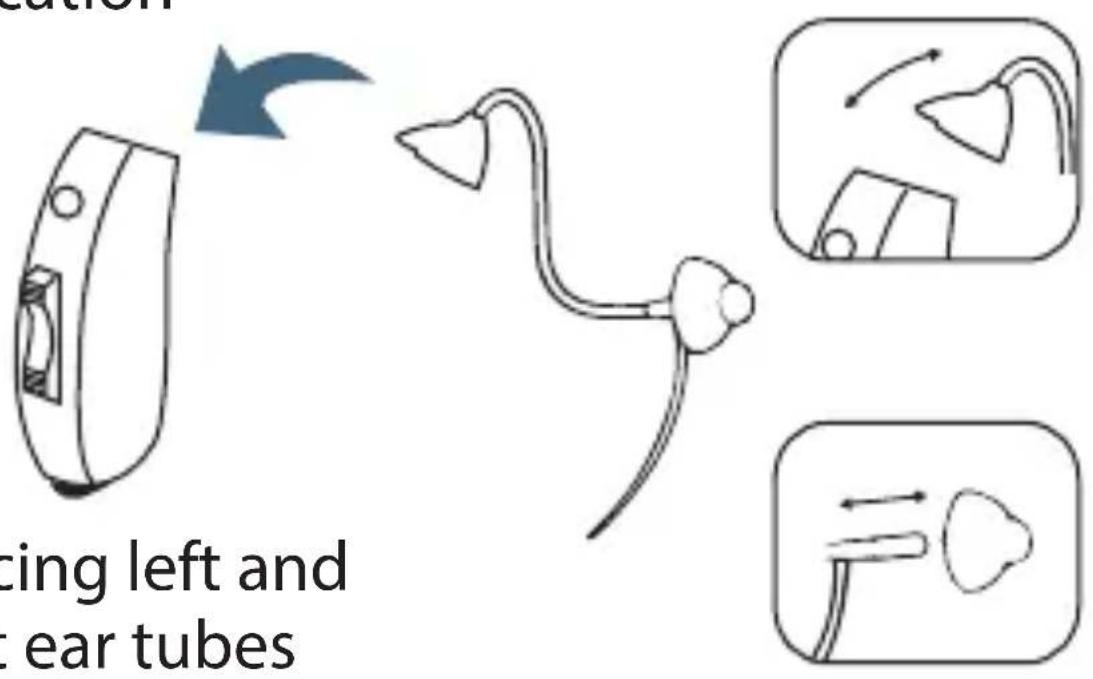

Replacing the ear tube

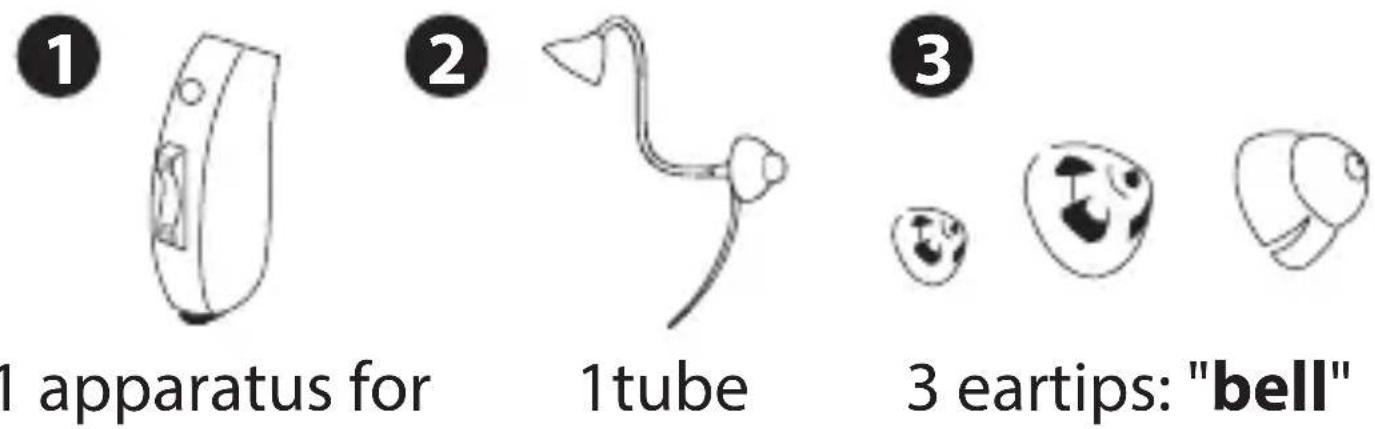

1 apparatus for audible signal amplification

Note:

1. It is forbidden for patients with tympanitis or ear pyogenesis to use the Digital Hearing Aid.

2. DO NOT use it at a high volume for a long time. Otherwise it might injure your ear. If you feel uncomfortable, please stop using.

3. Protect the device from impact, humidity, dirt, marked temperature fluctuations and direct sunlight

PHLHA54

Digital Hearing Aid

2 Channel Universal Fit, Behind the Ear (BTE) Rechargeable Hearing Amplifier

Features:

• Digital Hearing Amplifier
• Universal Fit Behind The Ear
• Built-in Rechargeable Lithium Battery
• Interchangeable Ear Tip to Seal Out the Noise
- Selectable Listening Modes:
Normal and Noisy
- Unique Ergonomic Design to Prevent Occlusion Effect
• Active Noise Reduction
• Over Discharge/Charge Feature
- Wider Dynamic Range Compression

What's in the Box:

• (3)Pairs Ear Tips – (2) Medium, (1) Large
• (2) Ear Tube
- USB Charging Cable
- Manual

Technical Specs:

• Construction Material: ABS
• Input Noise: ≤28dB
• Sensitivity: ≥ 43dB
  • THD: 5%
  • Max Sound Output: 125±5dB
  • Frequency Range: 250-5000Hz
• Wider Dynamic Range Compression
  • Power Supply: 3.7-5V
• Working Voltage: D.C.1.45V
  • Working Current: ≤3.5mA
  • Built-in Rechargeable Battery: Lithium-ion
• Dimensions (L x W x H):
  0.83" x 0.55" x 0.71" –inches
• Sold as: 1
