Product Type	Digital Hearing Amplifier
Brand	Pyle
Model	PHLHA54.2
Fit Style	Behind the Ear (BTE)
Channels	2 Channel WDRC Multi Memories
Maximum Sound Output	125 ± 5 dB
Frequency Range	250 - 5000 Hz
Sensitivity	≥ 43 dB
Total Harmonic Distortion (THD)	≤ 5%
Input Noise	≤ 28 dB
Battery Type	Built-in Rechargeable Lithium-ion
Charging Time	2 hours
Battery Life	More than 20 hours
Charging Cycles	No decline within 500 cycles
Power Supply	3.7 - 5 V
Working Voltage	DC 1.45 V
Working Current	≤ 3.5 mA
Material	ABS
Operating Modes	Normal and Noisy (selectable)
Noise Reduction	Active Noise Reduction
Ear Tips Included	3 pairs (2 Medium, 1 Large)
Ear Tubes Included	2
USB Charging Cable	Included
Dimensions (L x W x H)	0.83" x 0.55" x 0.71"
Safety Warning	Not for use with tympanitis or ear pyogenesis

Frequently Asked Questions - PHLHA54.2 Pyle

How do I turn the hearing aid on and off?

To turn on, long press the memory switch button. To turn off, long press again. The device also turns off automatically during charging for faster charging.

How do I charge the hearing aid?

Use the included USB charging cable. Connect to a USB power source (computer, car charger, power bank). Full charging takes about 2 hours. The device turns off automatically while charging.

How long does the battery last on a full charge?

The battery lasts more than 20 hours of use. The lithium-ion battery can be recharged over 500 times with no decline in capacity.

Can I use the hearing aid while it is charging?

No, the device automatically turns off when connected to the charger. This is to ensure faster and safer charging. Use only after fully charged.

How do I clean and maintain the hearing aid?

Wipe the device with a dry, soft cloth. Do not use water or cleaning agents. Keep the ear tips and ear tubes clean. Avoid exposure to moisture, extreme temperatures, and direct sunlight.

What ear tips are included and how do I change them?

The package includes 3 pairs of ear tips: 2 Medium and 1 Large. To change, gently pull off the old tip and push on the new one. Choose the size that fits comfortably and seals out noise.

Is the hearing aid waterproof or water-resistant?

No, the device is not waterproof. Protect it from impact, humidity, dirt, and marked temperature fluctuations. Remove before showering, swimming, or in heavy rain.

How do I adjust the volume and change modes?

Use the rocker volume control to adjust volume. Short press the memory switch button to toggle between Normal and Noisy modes. Normal for quiet environments, Noisy for loud settings.

Who should not use this hearing aid?

It is forbidden for patients with tympanitis or ear pyogenesis (middle ear infection or ear pus). If you feel discomfort, stop using immediately and consult a doctor.

Where can I find replacement parts or service?

For replacement ear tips, ear tubes, or other service, contact Pyle support at PyleUSA.com/ContactUs. Do not attempt to repair the device yourself.

USER MANUAL PHLHA54.2 Pyle

Close-up of a beige medical or electronic device with a white cable and earpiece, no visible text or symbols.

Collection of black and white geometric symbols including clover, star, flower, square, and starburst (no text or labels)

2 Channel Universal Fit, Behind the Ear (BTE) Rechargeable Hearing Amplifier

KNOW YOUR DEVICE

Long press: ON/OFF Switch Short press: Change mode

• Middle power BTE
  • 2 Channels WDRC Multi Memories Amplifier
• Noise Reduction
• Memory Switch
• Rocker Volume Control
  • Volume and memory Resume
  • Exchangeable between ear hook and tube
  • Full Charging Time: 2 hours
  • Duration of use: More than 20 Hours of use.
• Cycle times: No decline within 500 times charging

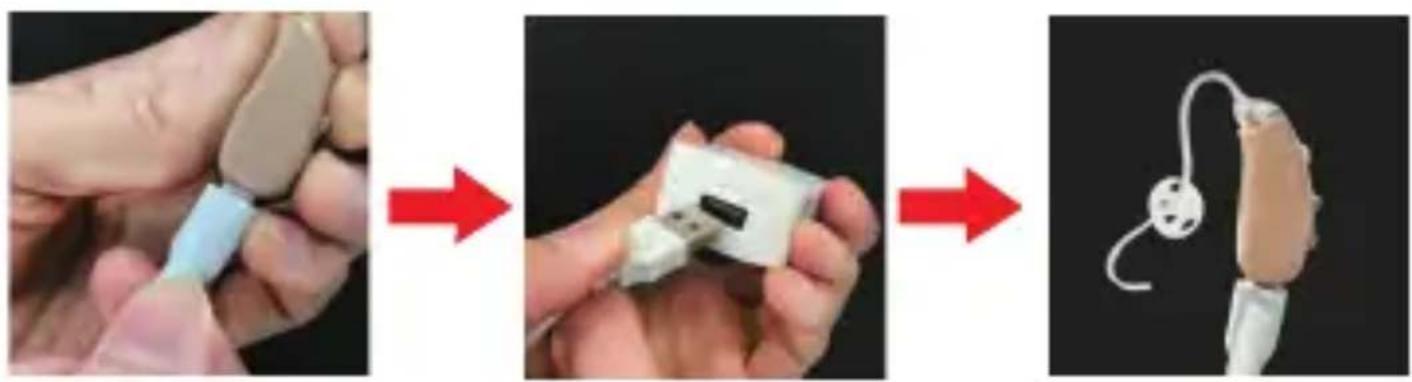

Three Step Charge

Three-step procedure showing a hand holding a small electronic device, then applying a cable to a motor terminal (no text or symbols visible)

The device will be turned OFF automatically for faster charging time.

It's recommended that you turn off the hearing

instrument when it's not in use. Long press the memory switch button to turn ON the device if you want to use the device.

Close-up of a beige medical or electronic device with a red circular highlight on the left side (no visible text or symbols)

Close-up of a beige electronic device with a green circular button and two rectangular buttons, enclosed in a red border (no visible text or symbols)

Charging Fully Charged

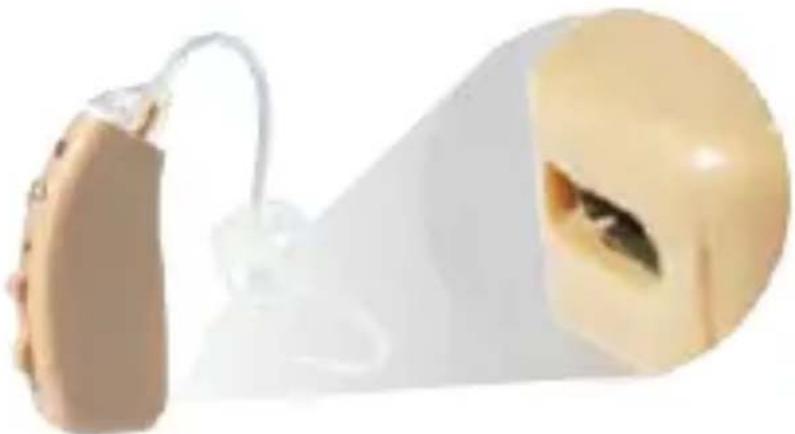

USB CHARGING

Easy Various Charging Methods

Close-up of a white air conditioner unit with digital display and red buttons, partially visible against a light background (no text or symbols)

The computer

Circular cropped photo of a minimalist interior scene with a vase and patterned wall (no visible text or symbols)

Power source

Close-up of a car interior showing steering wheel and dashboard (no visible text or symbols)

Car charger

Close-up of a pink and green striped object with a black top (no text or symbols visible)

Power bank

Medical device with catheter and lens, shown in close-up view (no text or symbols visible)

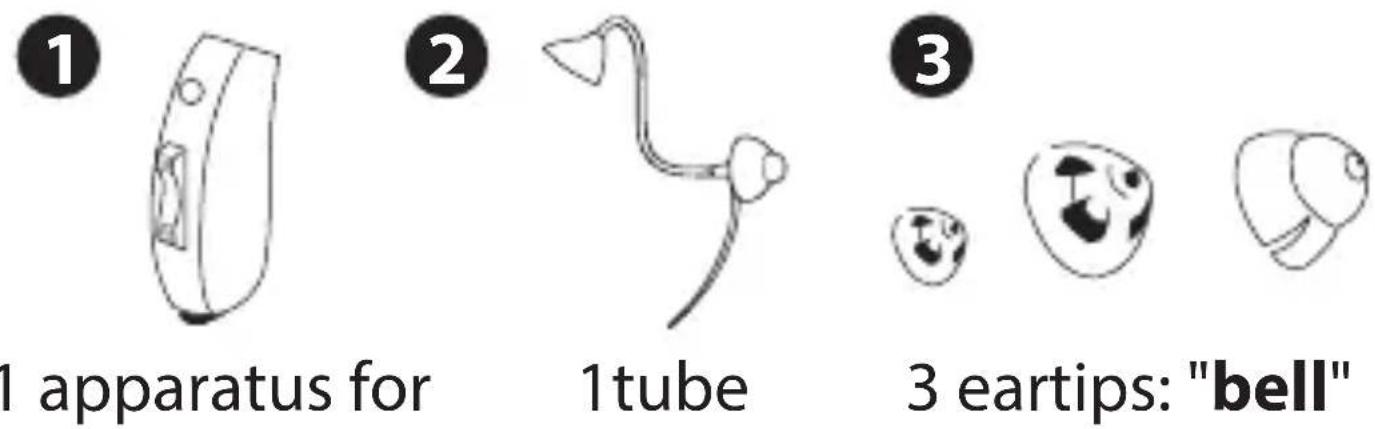

Replacing the ear tube

1 apparatus for audible signal amplification

1tube

3 eartips: "bell"

Note:

1. It is forbidden for patients with tympanitis or ear pyogenesis to use the Digital Hearing Aid.

2. DO NOT use it at a high volume for a long time. Otherwise it might injure your ear. If you feel uncomfortable, please stop using.

3. Protect the device from impact, humidity, dirt, marked temperature fluctuations and direct sunlight

PHLHA54

Digital Hearing Aid

2 Channel Universal Fit, Behind the Ear (BTE) Rechargeable Hearing Amplifier

Features:

• Digital Hearing Amplifier
• Universal Fit Behind The Ear
• Built-in Rechargeable Lithium Battery
• Interchangeable Ear Tip to Seal Out the Noise
- Selectable Listening Modes:
Normal and Noisy
- Unique Ergonomic Design to Prevent Occlusion Effect
• Active Noise Reduction
• Over Discharge/Charge Feature
- Wider Dynamic Range Compression

What's in the Box:

• (3)Pairs Ear Tips – (2) Medium, (1) Large
• (2) Ear Tube
- USB Charging Cable
- Manual

Technical Specs:

• Construction Material: ABS
• Input Noise: ≤28dB
• Sensitivity: ≥ 43dB
  • THD: 5%
  • Max Sound Output: 125±5dB
  • Frequency Range: 250-5000Hz
• Wider Dynamic Range Compression
  • Power Supply: 3.7-5V
  • Working Voltage: D.C.1.45V
  • Working Current: ≤3.5mA
  • Built-in Rechargeable Battery: Lithium-ion
• Dimensions (L x W x H):
  0.83" x 0.55" x 0.71" –inches
• Sold as: 1

PYLE

PyleUSA.com

Illustration of a laptop with a red checkmark on screen (no text or symbols)

VISIT US ONLINE:

Have a question?

Need service or repair?

Want to leave a comment?

PyleUSA.com/ContactUs
