USER MANUAL WL968 TOSHIBA

TOSHIBA Leading Innovation >>>

INSTALLING YOUR TV Safety Precautions … Installation and important information The remote control …

Inserting batteries and effective range

CONNECTING YOUR TV Connecting external equipment Connecting an HDMI* device

To connect an HDMI device HDMI ARC (Audio Return Channel) feature Connecting an HDMI CEC Control compatible device Connecting a computer To connect a PC to the HDMI terminal To connect a PC to the RGB/PC terminal . Connecting a home network To connect the TV to a home network - Wired To connect the TV to a home network with an internet connection - Wireless To connect the TV to the PC with Intel” Wireless Display Controls and input connections Switching on Using the menu system Using the TV controls and connections MENU structure

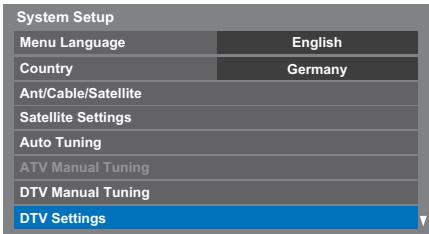

SETTING UP YOUR TV Startup Application

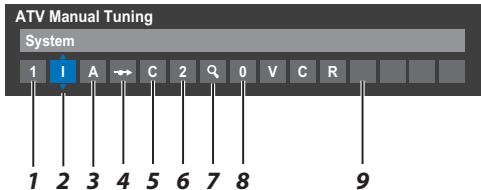

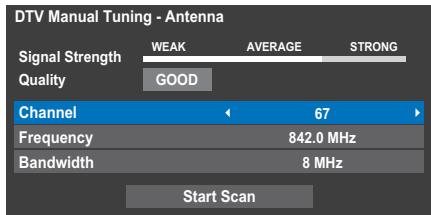

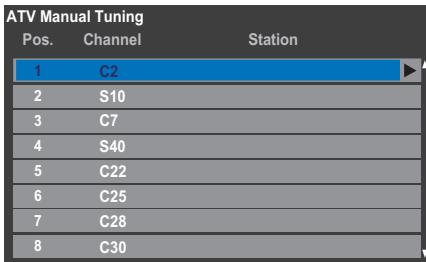

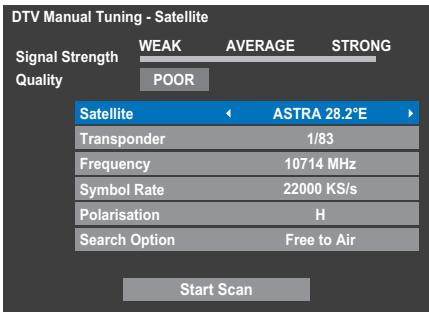

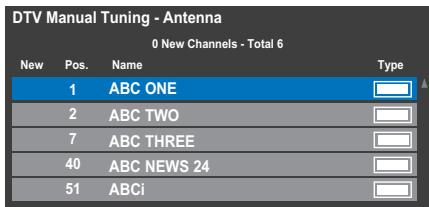

Sorting positions DTV Manual Tuning … Manual Tuning … Manual Tuning for DVB-C Manual Tuning for DVB-S DTV Settings Channels (Antenna/Cable) Channels (Satellite) Standby Channel Update Location setting Analogue switch-off

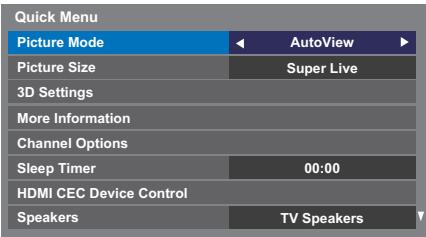

CONTROLS AND FEATURES General controls Quick Menu Selecting channels The Time Display - analogue only Stereo and Bilingual transmissions

Using 3D functions … Viewing 3D images Switching display mode or selecting 3D format

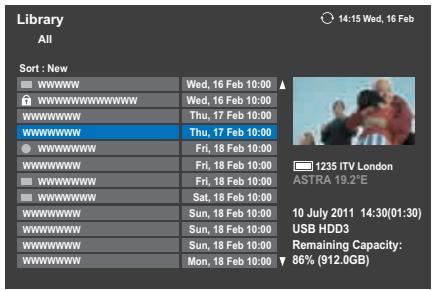

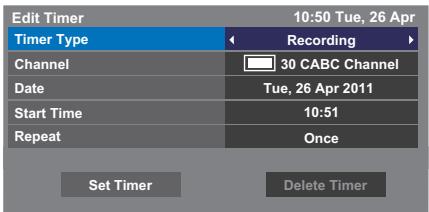

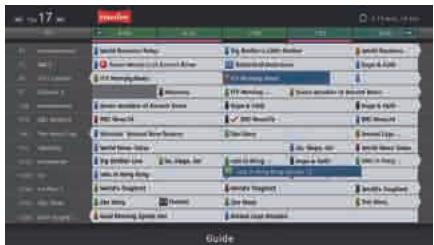

How to set recordings via the Programme Guide To check, edit or delete scheduling information To view a recorded programme Operations from the Library screen . Recording Setup . Scheduling priority Using Toshiba Places . Using Web Browser Using Skype . Using Hybrid TV Standard (if available) Using Intel® Wireless Display Intel® Wireless Display Device Name PCList Using the Media Player Basic operation . Viewing photo files (on a DLNA CERTIFIED" Server or USB device) Viewing movie files (on a DLNA CERTIFIED" Server or USB device) Playing music files (on a DLNA CERTIFIED" Server or USB device) Other features Panel Lock The timers Programme Timers - digital only . On Timer . Sleep Timer Energy Saving Settings Automatic Power Down No Signal Power Down Digital on-screen information Information Using EPG (Electronic Programme Guide) Using Broadcast Guide Genre selection/searching Using MediaGuide MediaGuide screen Primary Navigation menu al settings - parental control Parental PIN Setup Parental Setup … Network Lock … al settings - Channel Options Selecting favourite channels Favourite Channel List Skip channels Locking channels

igital settings — other settings Subtitles Audio languages Common Interface Software Upgrade and Licences Searching for New Software .. Network Upgrade . Software Licences . System Information and Reset TV System Information Reset TV PC Settings Horizontal and Vertical Position Clock Phase Sampling Clock Reset Input selection and AV connections Input selection Labeling video input sources Digital Audio Output Using HDMI CEC Control Enable HDMI CEC Control ‘TV Auto Power Auto Standby Amplifier Control Initial Speaker Setting HDMI CEC Control input source selection HDMI CEC Control one touch play HDMI CEC Control system standby

TEXT SERVICES Text services Selecting modes Text information Navigating pages using Auto Navigating pages using LIST . Control buttons

PROBLEM SOLVING Questions and Answ

INFORMATION Information License Information Disclaimers

Specifications and accessories

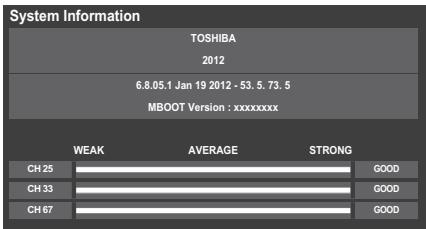

During the life of your TV firmware updates will be made available to ensure that your TV maintains optimum performance:

your TV is connected to the internet, firmusare will be automatically made available. Hyour TV is not connected to the internet, you can download the latest version of firmware from wwwtoshiba-om.net/firmware php

“Some features are limited due to local legislation and may not be available in all countries.

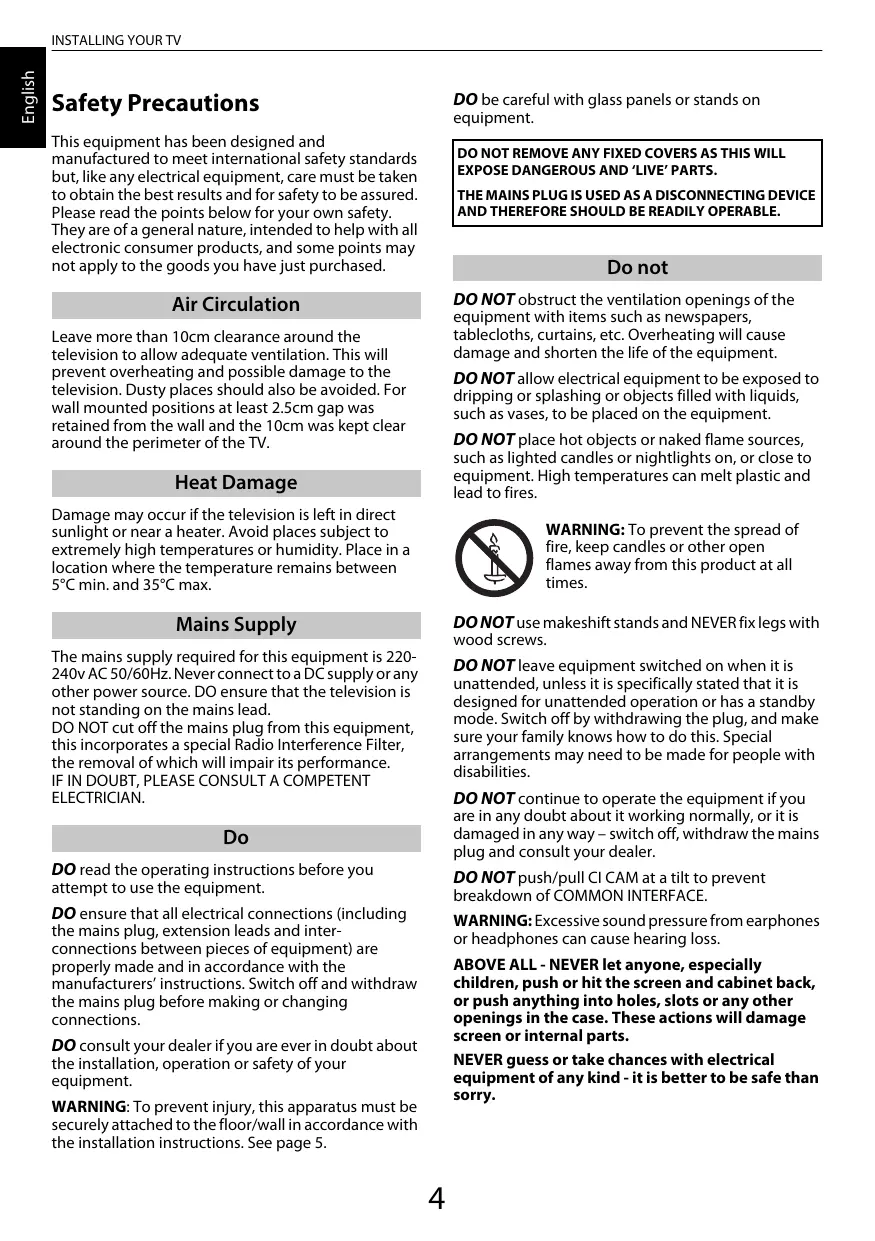

INSTALLING YOUR TV Safety Precautions

This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken to obtain the best results and for safety to be assured. Please read the points below for your own safety. They are of a general nature, intended to help with all electronic consumer products, and some points may not apply to the goods you have just purchased.

Leave more than 10cm clearance around the television to allow adequate ventilation. This will prevent overheating and possible damage to the television. Dusty places should also be avoided. For wall mounted positions at least 2.5cm gap was retained from the wall and the 10cm was kept clear around the perimeter of the TV.

Damage may occur ifthe television is left in direct sunlight or near a heater. Avoid places subject to extremely high temperatures or humidity. Place in a location where the temperature remains between 5°C min. and 35°C max.

The mains supply required for this equipment is 220- 240v AC 50/60Hz. Never connectto a DC supply orany other power source. DO ensure that the television is not standing on the mains lead.

DO NOT cut offthe mains plug from this equipment, this incorporates a special Radio Interference Filter, the removal of which will impair its performance.

IF IN DOUBT, PLEASE CONSULT A COMPETENT ELECTRICIAN.

DO read the operating instructions before you attempt to use the equipment.

DO ensure that all electrical connections (including the mains plug, extension leads and inter- connections between pieces of equipment) are properly made and in accordance with the manufacturers’ instructions. Switch off and withdraw the mains plug before making or changing connections.

DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.

WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. See page 5.

DO be careful with glass panels or stands on equipment.

DO NOT REMOVE ANY FIXED COVERS AS THIS WILL EXPOSE DANGEROUS AND ‘LIVE’ PARTS.

[THE MAINS PLUG IS USED AS A DISCONNECTING DEVICE AND THEREFORE SHOULD BE READILY OPERABLE.

DO NOT obstruct the ventilation openings ofthe equipment with items such as newspapers, tablecloths, curtains, etc. Overheating will cause damage and shorten the life ofthe equipment.

DO NOT allow electrical equipment to be exposed to dripping or splashing or objects filled with liquids, such as vases, to be placed on the equipment.

DO NOT place hot objects or naked flame sources, such as lighted candles or nightlights on, or close to equipment. High temperatures can melt plastic and lead to fires.

WARNING: To prevent the spread of fire, keep candles or other open flames away from this product at all times.

DONOT use makeshift stands and NEVER fix legs with wood screws.

DO NOT leave equipment switched on when it is unattended, unless it is specifically stated that it is designed for unattended operation or has a standby mode. Switch off by withdrawing the plug, and make sure your family knows how to do this. Special arrangements may need to be made for people with disabilities.

DO NOT continue to operate the equipment if you are in any doubt about it working normally, or it is damaged in any way — switch off, withdraw the mains plug and consult your dealer.

DO NOT push/pull CI CAM at a tit to prevent breakdown of COMMON INTERFACE.

WARNING: Excessive sound pressure from earphones or headphones can cause hearing loss.

ABOVE ALL - NEVER let anyone, especially children, push or hit the screen and cabinet back, or push anything into holes, slots or any other openings in the case. These actions will damage screen or internal parts.

NEVER guess or take chances with electrical

equipment of any kind -it is better to be safe than sorry.

INSTALLING YOUR TV Installation and important information

Locate the television away from directsunlight and strong

lights. Soft, indirect lighting is recommended for Fixing strap comfortable viewing. Use curtains or blinds to prevent

direct sunlight falling on the screen. rA Place the TV on a stable, level surface that can support D

the weight of the TV. In order to prevent injury and maintain stability of this apparatus, secure the TV to the level surface using the strap if fitted, or to a wall

using a sturdy tie to the P clips provided. Otherwise

secure the TV on the level surface using the supplied mounting screw.

The LCD display panels are manufactured using an extremely high level of precision technology; however, sometimes some parts of the screen may be missing picture elements or have luminous spots. This is not a sign of a malfunction. Make sure the television is located in a position where it cannot be pushed or hit by objects, as pressure will break or damage the screen. Also, please be certain that small items cannot be inserted into slots or openings in the case. Avoid using chemicals (such as air refreshers, cleaning agents, etc.) on or nearthe TV pedestal. Studies

Z\ indicate that plastic may weaken and crack over me om the combination effects of chemical agents and mechanical stress (such as weight of TV). Failure to follow these instructions could result in serious injury and/or permanent damage to TV and TV pedestal.

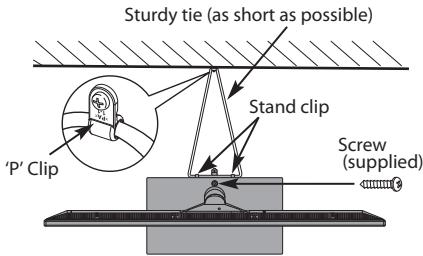

Fixing strap Sturdy tie (as short as possible)

Stand style is dependent on model

When using a Wall Bracket

Please use a wall bracket appropriate for the size and weight Removingthe Pedestal Stand:

f the LCD TV. one 1 Carefully lay the front of the unit face down on a flat,

+ Two people are required for installation + Toinstall a wall-mount from another manufacturer, use the SPACERS (supplied).

1. Unplug and remove any cables and/or other component connectors from the rear of the TV.

2 Carefullylay the front of the unit face down on a flat, cushioned surface such as a quilt or blanket.

3. Followthe instructions provided with your wall bracket. Before proceeding, make sure the appropriate bracket(s) are attached to the wall and the back ofthe TV as described in the instructions provided with the wall bracket.

4 Make sure to place the spacers supplied between the bracket and the back ofthe TV.

5 Always use the screws supplied or recommended by the wall mount manufacturer.

cushioned surface such as a quilt or blanket. Leave the stand protruding over the edge of the surface.

NOTE: Extreme care should always be used when removing the pedestal stand to avoid damage to the LCD panel

2 Remove the four screws.

3 Once you have removed all four screws holding the pedestal stand in place, remove the pedestal stand from the TV by sliding the pedestal stand away from the TV.

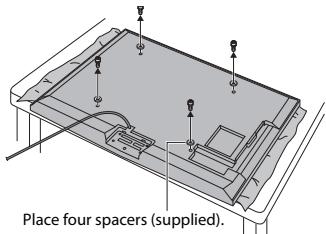

Spacer (supplied) TV back panel

CAUTION: The diameter and length of the screws differ depending on wall bracket model. Use of screws ‘ather than the screws specified may result in internal damage to the TV set or cause it to fall etc,

INSTALLING YOUR TV Please take note

The digital reception function of this television is only effective in the countries listed in the “Country” section of the “System Setup” menu. Depending on country/area, some of this television’'s functions may not be available. Reception of future additional or modified services can not be guaranteed with this television

If stationary images generated by 4:3 broadcasts, text services, channel identification logos, computer displays, video games, on-screen menus, etc. are left on the television screen for any length of time, they could become conspicuous. It is always advisable to reduce both the brightness and contrast settings.

Very long, continuous use ofthe 43 picture on a 16:9 screen may result in some retention of the image at the 43 outlines. This is not a defect of the LCD TV and is not covered under the manufacturer's warranty. Regular use of other size modes (e.g.: Super Live) will prevent permanent retention.

EXCLUSION CLAUSE Toshiba shall under no circumstances be liable for loss and/or damage to the product caused by:

iv) Intentional misuse of the product;

v) Use of the product in improper conditions;

vi). Loss and/or damage caused to the product whilst in the possession of a third party;

ii) Any damage or loss caused as a result ofthe owners failure and/or neglect to follow the instructions set out in the owners manual;

vi) Any loss or damage caused directly as a result of misuse or malfunction ofthe product when used simultaneously with associated equipment;

Furthermore, under no circumstances shall Toshiba be liable for any consequential loss and/or damage including but not limited to the following; loss of profit, interruption of business, the loss of recorded data whether caused during normal operation or misuse of the product.

When Using a USB Hard Drive (HDD)

+ The recording function has been designed for private use and entertainment in your home

+ Toshiba shall not be liable for damages of any kind whatsoever (breakdown of the recording

environment. Please note that any commercial use of the recording function could lead to copyright infringement of authors’ rights. Toshiba asks you to respect the intellectual property rights of third pai

+ Before recordingto a device connectedtothe TV, make a test recording and check the recording performance.

Programmes that are prohibited from copying

due to copyright protection cannot be recorded.

Toshiba shall not be liable for compensation or incidental damages of any kind whatsoever resulting from content that was not properly recorded on the recording device or that was modified or lost.

device, modification or loss of the recorded content, etc.) resulting from malfunction, operating failure or incorrect operation due to combining with another connected device.

If you connect a USB HDD that has been used with a PCoranother TV, only programmes which are recorded using this TV can be playback.

+ Switch the TV to standby before you disconnect the USB HDD.

Not doing so may result in loss ofthe recorded data or malfunction of the USB HDD.

Please note that recording on the USB HDD is no longer playable after the TV's main-board is exchanged during service.

INSTALLING YOUR TV The remote control

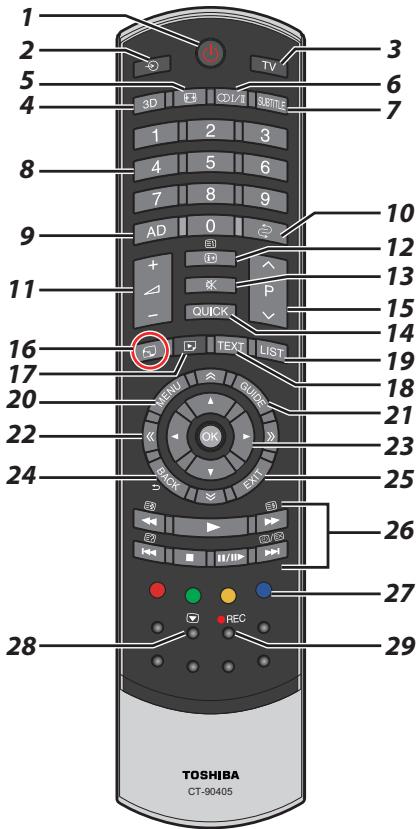

Simple at-a-glance reference of your remote control.

For On/Standby mode To select external input sources

To select TV Mode (DTV Ant/ATV)

To switch between 2D and 3D modes

VI Stereo/bilingual transmissions

Digital Subtitles or Analogue TEXT Subtitle pages if available Number buttons

Switch the Audio Description On/Off

10 To return to previous channel

11 Toalterthe TV volume

19 To access the analogue or digital Channel List

To call up text services

20 On-screen Menus 21 To display the digital on-screen Programme Guide 22 AY & D To page up, down, left or right

23 Whenusingmenus,thearrows move the cursor on the screen up, down, left or right. Press OK to confirm your selection

24 To return to previous Menu

25 To exit menus and applications

26 When in TV mode: When in Text mode: ŒJYEX analogue time Torevealconcealed

display text To hold a wanted

OVER To select a page while viewing a normal picture

29 To record DIV programmes

Inserting batteries and effective range

Remove the back cover to reveal the battery compartment and make sure the batteries are inserted the proper way. Suitable battery types for this remote are A, IECR6 15.

Do not combine a used, old battery with a new one or mix battery types. Remove exhausted batteries immediately to prevent acid from leaking into the battery compartment. Dispose ofthem in accordance with instructions on page 97 ofthis manual.

Warning: Batteries must not be exposed to excessive heat such as sunshine, fire or the like.

The performance of the remote control will deteriorate beyond a distance of five metres or outside an angle of 30 degrees from the centre of the television. fthe operating range becomes reduced, the batteries may need replacing.

CONNECTING YOUR TV Connecting external equipment

Before connecting any external equipment, turn off all main power switches. Ifthere is no switch,

remove the mains plug from the wall socket.

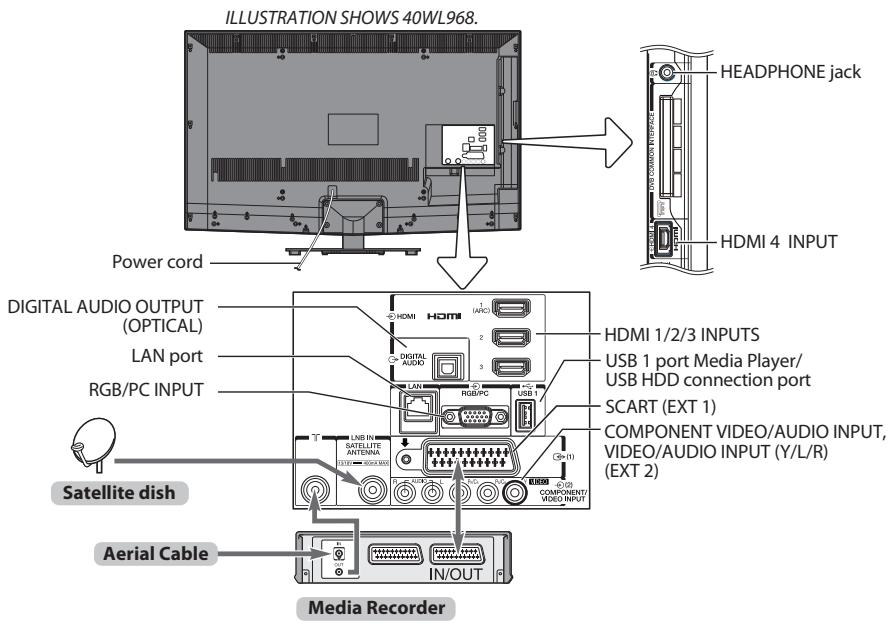

ILLUSTRATION SHOWS 40WL968.

a Connect the aerial to the socket on the rear of the television. If you use a decoder and/or a media recorder, it is essential

thatthe aerial cable is connected through the decoder and/or through the media recorder to the television.

Connect the LNB from the satellite dish to the SATELLITE ANTENNA socket on the TV. You can receive TV, radio, interactive TV, and HD TV with clear reception.

Connect the media recorder IN/OUT socket to the television.

Connect the decoder TV socket to the television. Before running Auto Tuning, put your decoder and media recorder to Standby.

The RCA sockets alongside the COMPONENT VIDEO INPUT sockets will accept L'and R audio signals.

When connecting the VIDEO/AUDIO devices, connect those cables to Y/L/R sockets.

The Digital Audio Output socket enables the connection of a suitable surround sound system.

NOTE: This output is always active.

HDMI (High-Definition Multimedia Interface) is for use with electrical equipment with digital audio and video output.Itis designed for best performance with 1080i and 1080p high- definition video signals but will also accept and display VGA, 480i, 480p, 576i, 576p and 720p signals.

PC format signals will also be displayed.

NOTE: Although this television is able to connect to HDMI equipment, it is possible that some equipment may not operate correctiy.

LAN port is used to connect the TV to your home network. This TV can play digital content stored on a DLNA CERTIFIED"* product with server function.

A wide variety of external equipment can be connected to the back ofthe television; therefore, the relevant owners manuals for all additional equipment must be referred to for exact instructions.

Hthe television automatically switches over to monitor external equipment, return to normal television by pressing the desired programme position button, To recall external equipment, press © to select between TV, EXT 1, EXT 2, HDMI 1, HDMI 2, HDMI 3, HDMI 4 or PC.

When the external input mode is selected while viewing DTV mode, the SCART socket does not output video/audio signals.

CONNECTING YOUR TV Connecting an HDMI° device

The HDMI input on your television receives digital audio and uncompressed digital video from an HDMI source device.

This input is designed to accept HDCP (High-Bandwidth Digital-Content Protection) programme material in digital form from EIA/CEA-861-D-compliant consumer electronic devices (such as a set-top box or DVD player with HDMI output). For acceptable video signal formats, see page 91

NOTE: Supported Audio format: Linear PCM, Dolby Digital {AC:3), sampling rate 32/44.1/48kHz.

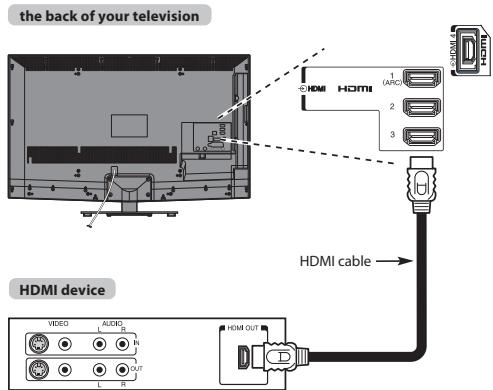

To connect an HDMI device

Connect an HDMI cable (type À connector] to the HDMI terminal.

For proper operation, i is recommended that you use an

HDMI cable with the HDMI Logo (HF

+ Ifyour HDMI connection is capable of 1080p and/or your television is capable of refresh rates greater than 50Hz, you willneed a Category 2 cable. Conventional HDMI/DVI cable may not work properly with this model.

+ HDMI cable transfers both video and audio. Separate analogue audio cables are not required (see illustration)

the back of your television

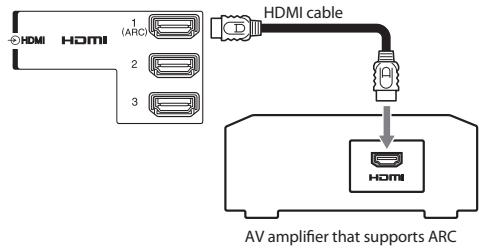

HDM/'s ARC (Audio Return Channel) feature

This feature enables the audio signal of the TV to be sent to the AV amplifier via the HDMI cable. It will not be necessary to connect a cable from the audio output ofthe TV to the audio input of the AV amplifier to reproduce the audio received from the tuner of the TV through the AV amplifier.

‘the back of your television

AV amplifier that supports ARC CONNECTING YOUR TV Connecting an HDMI CEC Control compatible device

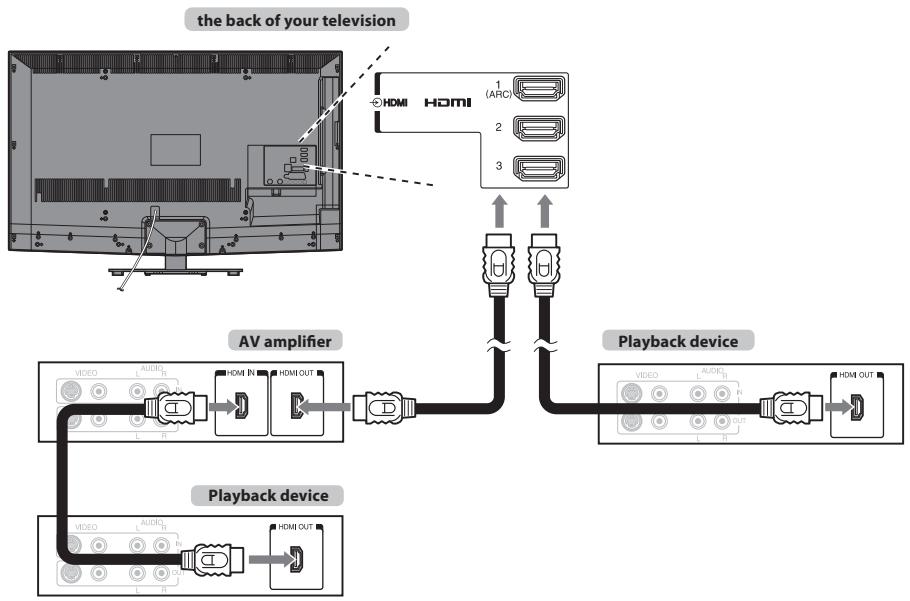

You can control the basic functions of connected audio/video devices using the television's remote control if you connect an HDMI CEC compatible AV amplifier or playback device. For an explanation of setup and operations, see pages 83-84.

the back of your television

G For the setup shown above, you will need three HDMI cables. Before controlling the devices): NOTE: - After completing the above connections, set the HDMI CEC + Ifseveral devices are connected, the HDMI CEC Control Cantrl Setup menu as you desire (see page 83). feature may not operate properly. : The connected devices must also be set. For details, seethe + For proper operation, itis recommended that you use HDMI operation manual for each device. cables with the HDMI Logo (Hi . + The HDMI CEC Control feature uses CEC technology as + This function is available when one PC and one AV amplifier regulated by the HDMI standard. are connected separately. However, it may not operate : This feature is limited to models incorporating Toshiba"s properly ifthe PC is connected via the AV amplifier. HDMI CEC Control. However, Toshiba is not liable for those operations. Refer to individual instruction manuals for compatibility information.

CONNECTING YOUR TV Connecting a computer

With either an HDMI or an RGB/PC connection, you can watch your computer's display on the television.

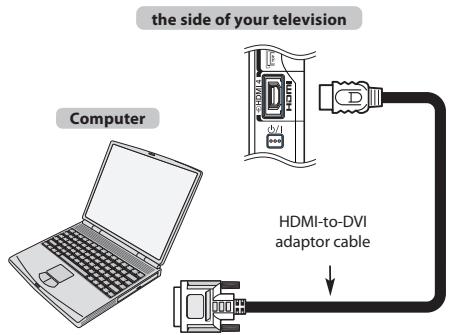

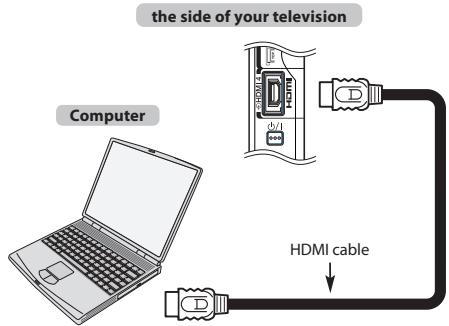

To connect a PC to the HDMI terminal

When connecting a PC to the HDMIterminal on the television, use an HDMI cable (type À connector)

I connecting a PC with DVI terminal, use an HDMI-to-DVI adaptor cable.

HDMI-t0-DVI adaptor cable

For acceptable PC and video signal formats, see page 91. NOT: + The edges ofthe images may be hidden.

+ Ifconnecting a certain PC model with a unique PC signal, the PC signal may not be detected correctly.

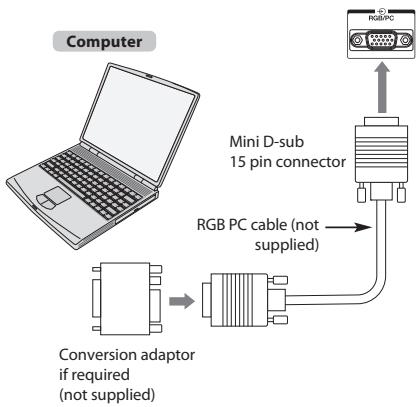

To connect a PC to the RGB/PC terminal

When connecting a PC to the RGB/PC terminal on the television, use an analogue RGB (15-pin) computer cable.

‘the back of your television

RGB PC cable (not —» supplied)

Conversion adaptor ifrequired {not supplied)

To use a PC, set the monitor output resolution on the PC before connecting it to the television. For acceptable PC

signal formats, see page 90. To display the optimum picture, use the PC setting feature

+ Some PC models cannot be connected to this television.

+ An adaptor is not needed for computers with a compatible mini D-sub15-pin terminal.

+ Depending on the DVD" title and the specifications of the PC on which you are playing the DVD-Video, some scenes may be skipped or you may not be able to pause during multi-angle scenes.

+ Aband may appear atthe edges ofthe screen or parts ofthe picture may be obscured. This is due to scaling ofthe picture by the set, it is not a malfunction.

+ When PC input mode is selected, some of the television's features will be unavailable e.g. Colour System in the System Setup menu.

+ Some PC models may output unique signals that the television may be unable to detect (see page 90).

+ Ifconnecting a certain PC model with a unique PC signal, the PC signal may not be detected correctiy.

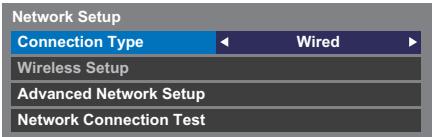

CONNECTING YOUR TV Connecting a home network

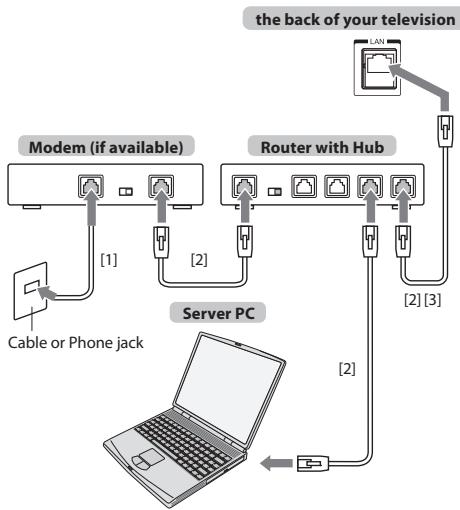

The LAN port allows your Toshiba TV to connect to your home network. You can use this revolutionary home entertainment networking system to access photo, video and audio files that are stored on a DLNA CERTIFIED* server and play/display them on your TV.

+ Ifyou connect to a shared network outside your home, it is advisable to use a router, Always use DLNA CERTIFIED"" products in private network environments. Connect this TV to the same router as other DLNA CERTIFIED"* products (server).

you use a hub or switch to connect the TV to your home network, you may not be able to use the automatic setup and will have to manually set up the network address. See page 46.

you use a router with built-in DHCP functionality, use the automatic setup. Manual setup may not work.

Hyou connect the TV and PC directly, use a crossover LAN cable.

Please consult your PC manufacturer about details of PC settings.

Wireless appliances may interfere with Intel” Wireless Display.

To connect the TV to a home network -

Wired the back of your tell EN, Modem (if available) Router with Hub Cqeq Gama) ol] a A savarre 12103)

11] Coaxial or telephone cable (depending on your modem type) {2} Standard LAN cable 18]Do NOT connect a phone jack directly to the TV's LAN port.

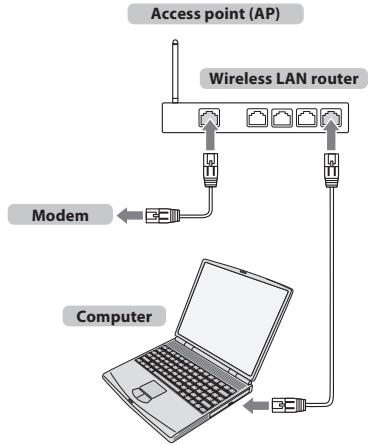

To connect the TV to a home network with an internet connection - Wireless

Please refer to "Wireless Setup” section on page 44.

+ Ifthis device is going to be operated in the frequency range of 5.15 GHz to 5.35 GHz, it is restricted to indoor use.

this device is going to be operated for 802.11 b/g/n function in the frequency range of 2.454 GHzto 24835 GHz in France, it is restricted to indoor use.

A general authorization is required for using this device outdoors or in public places in Italy.

This device is NOT ALLOWED to be usedinthe geographical area within a radius of 20km from the centre of Ny-Alesund in Norway.

Make the wireless LAN appropriate security setting at the time of wireless LAN use to preventtheillegaluse, spoofing and interception of communications.

+ Don't connect wireless LAN to a outside network directly. Apply the wireless LAN access point with router function or broadband router. Make the router appropriate security setting to prevent the illegal use.

Refer to the manual of router for a security setting.

To connect the TV to the PC with Intel® Wireless Display

PC with Intel® Wireless Display

CONNECTING YOUR TV Controls and input connections

A wide variety of external equipment can be connected to the input sockets on the side of the television. While all the necessary adjustments and controls for the television are made using the remote control, the

buttons on the television may be used for some functions.

ILLUSTRATION SHOWS 40WL968.

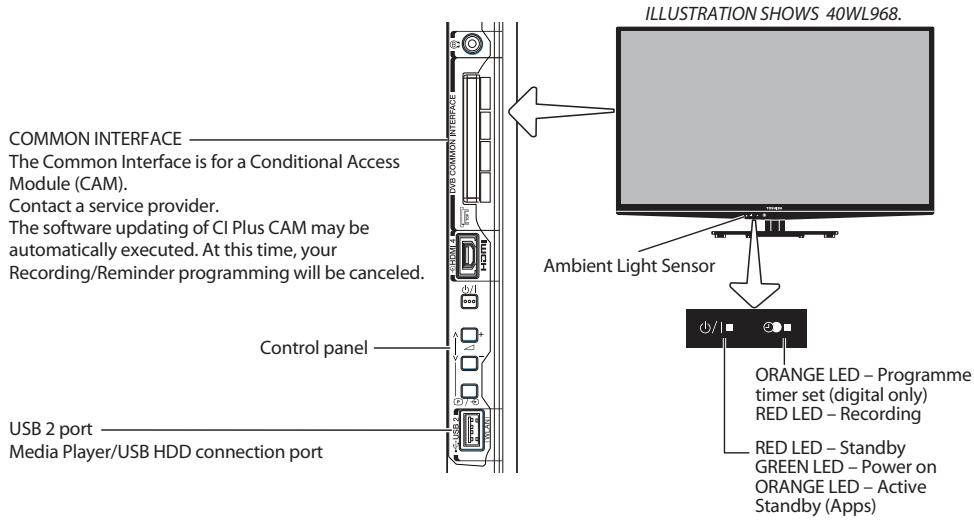

COMMON INTERFACE The Common Interface is for a Conditional Access Module (CAM)

Contact a service provider.

The software updating of CI Plus CAM may be automatically executed. At this time, your Recording/Reminder programming will be canceled.

USB 2 port Media Player/USB HDD connection port

the RED LED is not lit, check that the mains plug is connected to the power supply and press ( on the remote control; it may take a few moments. The GREEN LED will be lit. To put the television into Standby, press () on the remote control. To view the television, press Oagain. The picture may take a few seconds to appear.

For energy saving: We recommend that you use the television with the factory settings. The factory settings are for energy saving, Unplugging the mains plug will cut energy use to zero for alltelevisions. This is recommended when the television is not being used for a long time, eg. when on holiday. Reducing the brightness ofthe screen will reduce energy use. Energy efficiency cuts energy consumption and thus saves money by reducing electricity bill.

NOTE: Putting the television into standby mode will reduce energy consumption, but will still draw some power.

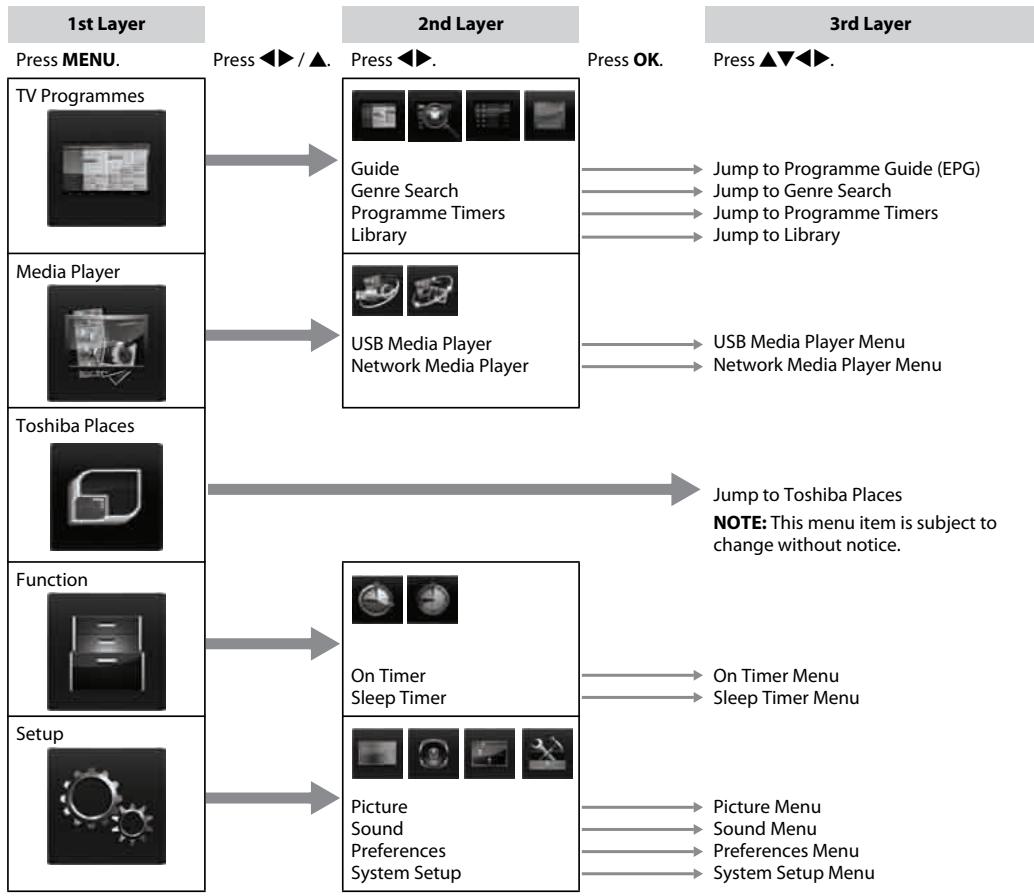

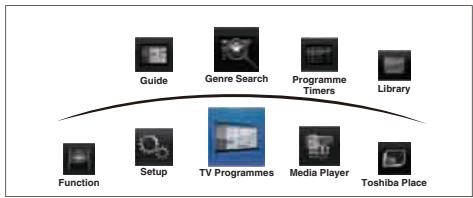

Using the menu system

Press MENU on the remote control to display the menu: The menu appears as a list of five topics. As each symbol is selected by pressing orb on the remote control, its respective options will appear above.

NOTE: The same menu is displayed in DTV (Digital TV) and ATV (Analogue TV) modes; however, where some items are not available in a mode, they will appear grayed out.

Ambient Light Sensor

ORANGE LED - Programme timer set (digital only) RED LED - Recording

RED LED - Standby GREEN LED - Power on ORANGE LED - Active Standby (Apps)

To use the option, press À and W on the remote control to move up and down and press or to select your desired setting.

Using the TV controls and connections

+ To turn on or offthe TV, press ()/1.

To alterthe volume, press + or.

+ and - buttons operate as volume up/dowm as default.

To alter the programme position, press ©/ © once and

press vor A To select an external input, press and hold ®)/-© until the

Inputs window appears, and then press V or A to select the

appropriate input source.

The Media Player feature provides access to photo, movie and

music iles stored on a USB storage device that is connected

via the USB 1 or USB 2 port or on a network device.

Please always refertothe owners manualofthe equipment to be

connected for full detail

+ The USB socket has limited functionality and Toshiba can take no responsibility for damage to other connected equipment.

+ Interactive video games that involve shooting a "gun" at an on-screen target may not work with this TV.

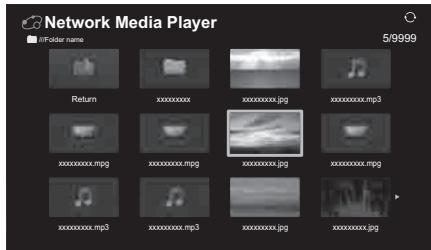

USB Media Player Network Media Player

USB Media Player Menu Network Media Player Menu

ml jump to Toshiba Places

NOTE: This menu item is subject to “F GE

change without notice.

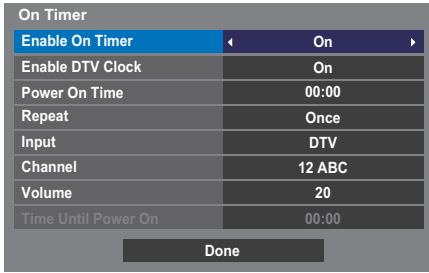

On Timer | On Timer Menu Sleep Timer |———— Sleep Timer Menu

Before switching on the TV make sure that your aerial is connected and any decoder / media recorder, if applicable is connected and in standby.

@ press the button. Toshiba logo will appear. and afterthat, The Menu Language screen will appear. This screen will appear the first time that the television is s1 hed on and each time Reset TV is selected.

Quick Setup Country Germany Primary Subtitle Language German Secondary Subtitle Language Turkish Primary Audio Language German

Secondary Audio Language English

NOTE: + The following display menus will differ slightly according to the country you selected. + Ifthereis nota country that you wantto selectinthe list, select Others.

@ press Ok, and the Location screen will appear.

To use the TV for displaying please select [Store]. [Home] mode recommended for normal use.

Q@ press ok, andthe AutoView screen will appear, press <orb to select Yes or No.

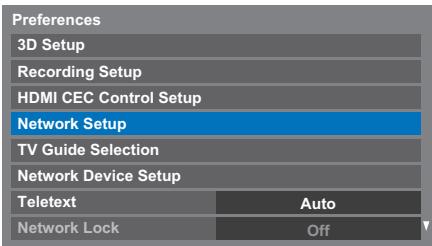

Press OK, and the Network Setup screen will appear. Press Æork to select Yes or No.

“avai is dependant on country selection

When you select No, skip to step 16.

Select a connection method.

+ When you select Wired (LAN cable connection), skip to step 13.

There are 3 methods for Wireless Setui

+ Easy Setup (WPS) - the AP supports WPS, this method can be used. WPS is an industry standard designed to make connection of wireless LAN equipment and security setup easy. WPS will automatically configure all wireless settings.

NOTE: WEP encryption may not be able to configured by easy setup.

Assisted Setup - follow step 11.

Input the Security Key only.

Manual Setup, skip to step 12.

Input the all settings.

Select the wireless connection method.

NOTE: EXIT is available during settings.

in step 9, when you select Easy Setul

Press OK, and the Easy Setup screen wi appear. Press or to select PBC (Push Button Configuration) or PIN (Personal Identification Number). Press Y to higl

ight Start Scan and press OK.

PBC - Following the on-screen instructions, push the appropriate button on your AP. When a window reporting that the setup is complete appears, press ok.

PIN - When the PIN code window appears, enter the displayed PIN into your AP, and then press Next to continue the PIN Setup. When a message displays to report thatthe setup is complete, press OK.

To cancel searching for the AP:

Press BACK while searching forthe AP. À message will appear, and then press 4orb to select Ves and press OK.

SETTING UP YOUR TV In step 9, when you select Assisted Setup;

Press OK, and the Assisted Setup screen will appear. Press À or Y to select the desired AP and press OK.

NOTE: Check the MAC address on the label of the AP or in the manual, and select your AP.

Press À or to select Security Key and press OK. The Software Keyboard window will appear (page 48). Input the Security Key by using the Software Keyboard. To save your setting, press the BLUE button.

NOTE: + The Security Key must adhere to these conditions: - TKIP/AES: 8-63 ASCII or 64 Hex characters

= WEP:5 or 13 ASC or 10 or 26 Hex characters (13)

+ There is only one key ID to set for WEP encryption. Press À or to highlight Dane and press OK.

NOTE: + IfNetwork Name is not displayed, see Manual Setup belowr to set Network Name before pressing Done.

+ IÉBACK is pressed before Done is selected, settings are not saved.

When the message Wireless configuration is complete.” appears on screen, press OK. The screen will skip to step 13.

In step 9, when you select Manual Setup;

Press OK, and the Manual Setup screen will appear. Press À or Y to select Network Name and press OK. The Software Keyboard window will appear (page 48). Input the Network Name by using the Software Keyboard. To save your setting, press the BLUE button.

Press À or Y toselect Authentication andthen press “or to select Open System, Shared Key, WPA- PSK or WPA2-PSK.

Press À or Y to select Encryption, and then press 4 or to select None, WEP, TKIP or AES.

+ Certain encryption types are only compatible with specific authentication types.

- When Authentication is Open System, only WEP or None is compatible.

- When Authentication is Shared Key, only WEP is compatible.

- When Authentication is WPA-PSK or WPA2-PSK, only TKIP or AES is compatible.

+ When incompatible Authentication/Encryption pairings are detected, a warning message will be displayed, and no connection attempt will be made until the incompatibility is resolved.

+ There is only one key ID to set for WEP encryption.

Press A or Y to select Security Key and press OK. Input the Security Key by using the Software Keyboard (page 48).

To save your setting, press the BLUE button.

This item is grayed out when Encryption is None.

When Encryption is WEP, Key ID setting is available. Press A or Y to select Key ID and press 4orb to select 1(default) 2, 3 or 4.

Press A or Y to select Done and press OK. When the message “Wireless configuration is complete." appears on screen, press OK.

NOTE: Settings are not saved if BACK is pressed before Done is selected.

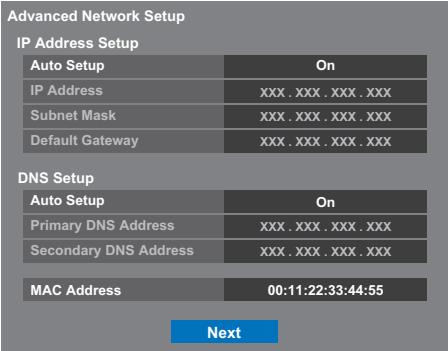

The Advanced Network Setup screen will appear.

When the DHCP function ofthe router connected with this TV is On, you can set Auto Setup to On or Off. (This should usually be set to On)

When the DHCP function ofthe router is Off, set Auto Setup to Off, and set the IP Address DNS address(es) manually.

‘Advanced Network Setup 1P Address Setup Auto Setup 1P Address Subnet Ma

Auto Setup Primary DNS Address dary DNS Ada

You can view the fixed MAC address for the TV, ifone is installed.

Press A or Y to select Next.

Press OK, and Network Connection Test will start.

A message will appear to indicate if the connection was successful or if could not be completed.

Network connection was completed successfully.

NOTE: The result of Network Connection Test does not always guarantee the connection.

To cancel the Network Connection Test: Press BACK while searching for the Internet connection.

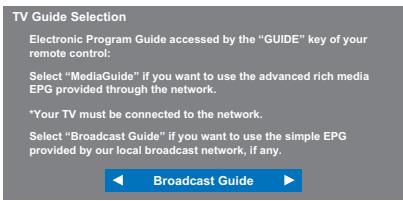

Press OK. your country supports Network Guide, The Guide Type screen will appear.

NOTE: f you select MediaGuide, it may take time to access the Guide screen depending on active channel numbers.

HDVB-Cis not supported in your area, Cable will not be displayed.

+ When you select Antenna or Cable, follow steps 17 t020.

+ When you select Satel to step 21.

When you select Antenna (or Cable) and Satellite,

the Satellite Settings startup screen will appear

automatically after completing the Antenna (or

Cable) scan and pressing OK.

Select Next and press OK. The Auto Tuning start up screen will appear with the option to select between DTV and ATV, DTV or ATV if available. Use 4orb to select the appropriate mode.

Press À or Y to highlight Start Scan, and then press OK.

The television will start to search for available DTV and/or ATV channels. The progress bar will indicate ‘he scan status.

You must allow the television to complete the search.

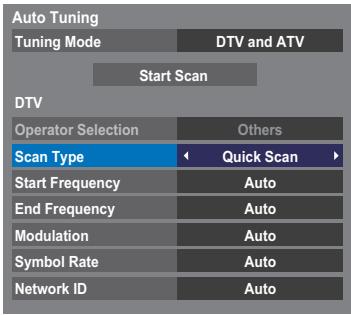

Auto Tuning - Antenna Progress

Found DTV Tune ATV Tune

sum 2 Waiting... cr When the search is complete, the television wi automatically select channel one.

The Auto Tuning screen will ofservices found.

playthe total number

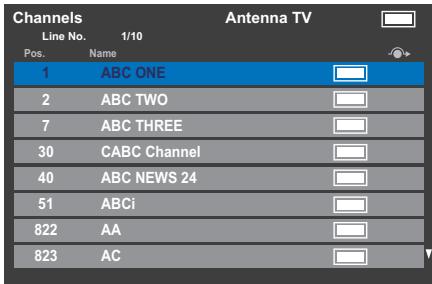

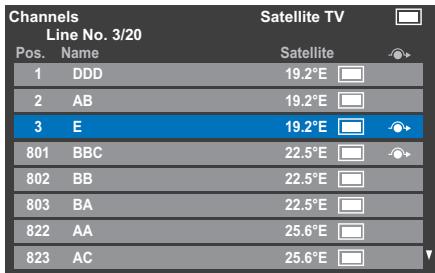

Press CorB to viewrthe DTV (digital channel) or ATV analogue channel) lists.

Use A or Y to move through the list to select a channel, and then press OK to view.

In ATV mode, some areas may receive duplicate stations. There may not be a clear picture orthe signal may be weak, so the station order can be changed using ATV Manual Tuning.

REMEMBER: Press TV at any time to select between ATV and DTV modes.

NOTE: The time will be set automatically by transmission but can be advanced or decreased by using Local Time Settinginthe DTV Settings screen.

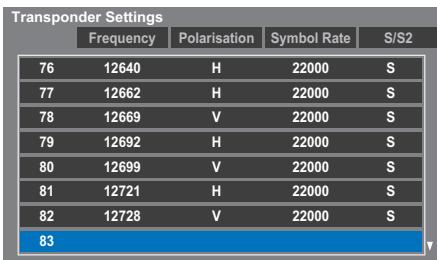

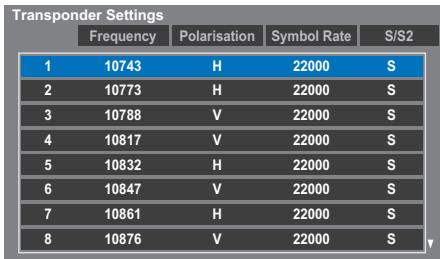

Select Next and press OK. The Satellite Settings screen will appear. From this window, you can add the satellites that you wish to tune and configure detailed settings for each one individual.

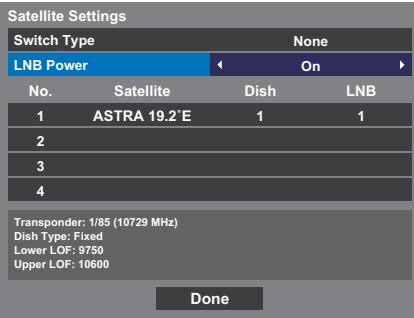

Select Switch Type and choose the correct switch configuration for your satellite dish from the settings None, ToneBurst, DiSEqC 2way, DISEqC 4way or Single cable.

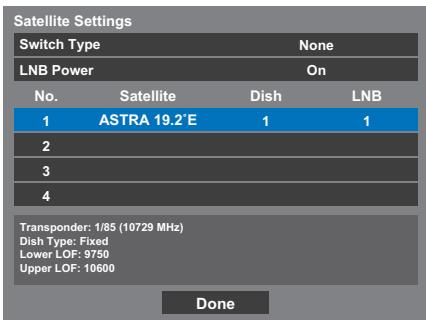

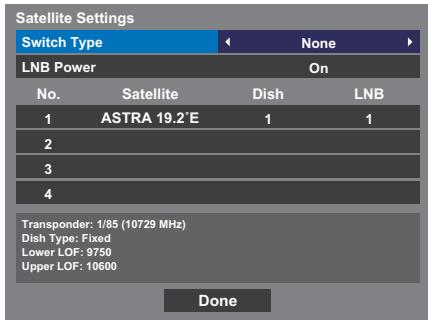

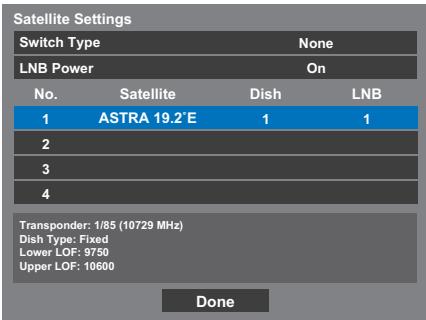

Satellite Settings Switch Type LNB Power Satelite

ASTRA 192E SETTING UP YOUR TV NOTE:

+ None is being used when the satellite dish will control only one universal Low Noise Block (LNB) with a single satellite (e.g. Astra 19.2°). As a rule, most households use just one satellite.

+ ToneBurst sends a 22kHz signal. ToneBurst is only necessary for simple LNBs (not universal LNBs). The 22kHz signal is needed for switching LNBs with multifeed signals as well as for changing between low- and high-band.

+ DiSEqC 2way automatically switches between two

LNBs, which receive different satellites at the same

time (e.g. Astra 19.2° and Hotbird 13°).

DiSEqC 4way automatically switches between up

to four LNBs / satellites.

gle cable is selection and control of plural

Satellite antennas through the combined single

The setting LNB Power enables you to switch on or offthe LNB's power supply by means ofthe TV. When your satellite dish consists of only one LNB, LNB Power should generally be activated (On). When using more than two LNBs, it is recommendable to use external power supply for these.

His possible to select up to four satellites. Please note thatthe number of available LNBs andthe adjustment of your satellite dish determines the number of satellites found. For example, it is not possible to receive more than one satellite if your dish is directed to a single satellite. For further information on satellite signal technology, please contact your local dealer.

Once you have selected a satellite, you can change further settings under Dish and LNB.

Press OK / 4 D to select Dish or LNB.

Under Dish you choose the dish type that will be used (fixed or moveable dish). The majority of households have a fixed satellite dish.

LNB allows you to determine the lower and higher Local Oscillator Frequency (LOF). Usually, the factory settings do not need to be changed. You can find'the parameters ofthe lower and higher LOF on the specification sheet of your LNB.

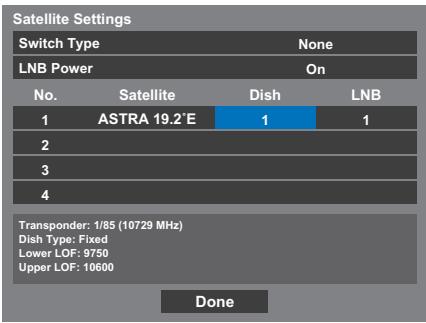

Satellite Settings Switch Type LNB Power No. Satelite ASTRA 192€

I your satellite dish is movable, the following Positioning screen will appear.

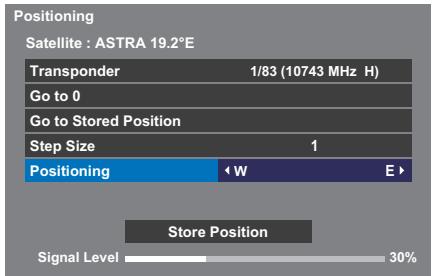

Positioning Satellite: ASTRA 19.2"

Transponder Goto0 Go to Stored Position

Step Size Positioning

Press A or Y tohighlight Positioning, andthen press ÆorB to find the dish position with the strongest signal level.

Press À or Y to highlight Store Position and press OK to store the dish position. Repeat steps 21 and 22 forthe next satellite as necessary.

I your satellite dish is not movable, the Positioning screen will not appear.

Adjust the dish position manually for the maximum Signal Level strength. The signal level strength is displayed from 0% to 100%. A high signal level can be achieved by adjusting the satellite dish the best way possible.

Highlight Done and press OK.

Ithe reception testing completes successfully, the Auto Tuning startup screen will display.

Auto Tuning - Satollito Start Scan Satellite ASTRA 192€

Search Option Free to Air

You can select Search Option from Free to Air and

When choosing the search option AI all channels (including encrypted ones) of the satellite will be searched for. you wish to only search for unencrypted (free) channels, please select Free to Air. In this case, the channel scan will be completed faster.

Press À or Y to highlight Start Scan, and then press OK.

The television will start to search for available DVB-S channels. The progress bar will indicate the scan status.

When the searchis complete, the Auto Tuning results screen will display the total number of services found.

Use A or Y to move through the list to select a channel, and then press OK to view.

The Quick Setup menu can also be accessed at any time from the SETUP menu.

Ant/Cable/Satellite (if available) From this menu, you can set the RF input configuration.

Press MENU / 4h to highlight Setup icon.

Press A / 4h to highlight System Setup icon and press OK.

Press Y to select Ant/Cable/Satellite and press or D to select Antenna, Cable or Satellite.

NOTE: When you attempt to change the Ant/Cable/ Satellite setting, a warning message will appear followed by PIN entry (f PIN has been set) and a prompt for Auto Tuning.

From the System Setup menu, you can addthe satellites that you wish to tune and configure detailed settings for each one

Press À or to select an item and press or to individuall. select your desired option.

Modulation Symbol Rate

Network D LNB Power Satolite

ASTRA 192€ With the exception of DTV Scan Type and DTV Modulation items, all of the following items will have 2 operating modes. The first is Auto where the values for each item are preset by the system. The second is an Input mode where you will be able to enter a single value in place of the pre-set value. fno channel is currently tuned and the Input state is chosen, a system default value will be shown. However, if a channel is currently tuned when the item is accessed, the value ofthe current channel will be displayed.

Operator Selection: © press Y to highlight a new line to add an another

You can choose the Cable operator depending on the satellite and press OK.

Country you set. ny @ p5e55 until the required satellite is displayed and DTV Scan Type: press OK.

Thisitem determines whether a Quick Scan or Full Scan will k

piiemaat To delete a satellite:

The Quick Scan isa simplfied version ofthe Full Scan thatis designed to complete in less time.

In the Satellite Settings menu, press À or Y to select the satellite you want to delete.

DTV Start Frequency:

This sets the frequency from which the scan will begin.

This sets the frequency at which the scan will end. © Press 401 10 select es and press OK.

. NOTE: is not possible to delete position No.1. DTV Modulation:

You can choose from five QAM modulation settings. DTV Symbol Rate: This is the baud rate (KS/s) of the scan.

This is the Network ID to be utilized for the scan. This item is grayed out when DTV Scan Type is set to “Full Scan”.

SETTING UP YOUR TV To edit the satellite settings:

@ the Satellite Settings menu, press À to highlight Switch Type.

@ press the GREEN button. The Transponder Settings screen will appear.

‘Transponder Sottings

10832 10847 10851 ToëTs

‘Transponder Settings Frequency

To delete a transponder:

@ the Transponder Settings menu, press À or Y to highlight the line you want to delete.

To edit the Transponder Settings:

@ the Transponder Settings menu, press À or Y to highlight the line you want to edit and press OK.

Press OK to save your settings.

Repeat steps 1 through 3 for other lines.

Press the BLUE button to finish editing and return to Satellite Settings.

Press the GREEN button to cancel any edits that were made.

Press the YELLOW button to reset all transponder settings to their initial default settings.

To select the Dish Type:

Press A or Y to select Lower LOF or Upper LOF and input the appropriate frequencies.

NOTE: As new services are broadcast, it will be necessary to re-tune the television in order to view them.

Auto Tuning will completely re-tune the television and can be used to update the channel ist. I is recommended that Auto

Tuning is run periodically to ensure that allnew services are added. All current channels and settings, i.e. locked channels,

Press or to select Ves and press OK.

Auto Tuning - Antenna Tuning Mode + DTVandATV »

Press Æorb to select DTV and ATV, DTV or ATV, if available, then highlight Start Scan and press OK to continue with the Auto Tuning.

NOTE: f you have selected "Others" forthe Country field in the Setup menu, and selected a tuning mode other than "DTV”, choose the optimum ATV broadcasting system (8/G,!, D/K or L).

The television will start to search for all available DTV and/or ATV services.

You must allow the television to complete the search.

When the search is complete, the Auto Tuning screen will display the services found.

For Satellite Tuning: Press or to select Ves and press OK.

Auto Tuning - Satellite Start Sean

Press A or Y to highlight Satellite and press orb> to select the desired satellite (No.1 Sat - No.4 Sat or AID.

You can select Free to Air or All as the Search Option. Highlight Start Scan and press OK to continue with the Auto Tuning.

When the search is complete, the Auto Tuning screen

will display the services found.

Press À or Y to move through the list to select a channel and press OK to view.

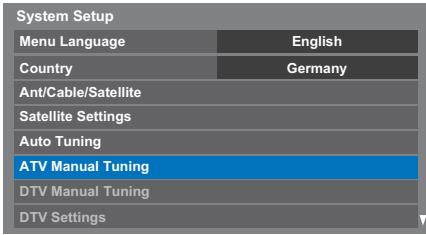

SETTING UP YOUR TV ATV Manual Tuning

The television can be tuned-in manually using ATV Manual Tuning. For example, you might use the feature ifthe television cannot be connected to a media recorder/decoder with a SCART lead or when you want to tune-in a station on another System.

Use and to move across the screen and select any of the ATV Manual Tuning options. Then use À or Y to adjust the settings.

ATV Manual Tuning System

1° Position The number to be pressed on the remote control to tune the channel.

2 System Specific to certain areas.

3 Colour System Factory set to Auto, should only be changed if problems are experienced, ie. NTSC input from external source.

4 Skip Set Skip to On (@e) or Off (-e+) forthe selected channel. See page 24.

5 Signal Class The channel classification.

6 Channel The channel number on which a station is being broadcast.

Search up and down for a signal.

8 Manual Fine Tuning Only used if interference/weak signal is experienced. See page 87.

9 Station Station identification. Use the À W and 4B buttons to enter up to seven characters.

To allocate a position on the television for a decoder and media recorder: turn the decoder on, insert a pre-recorded film in the media recorder, press PLAY and manually tune.

Use À or Y to select the desired position. We suggest Pos. 0 for a media recorder.

rent Channel numbers may be displayed.

Press OK to select. Ifthe channel chosen forthe media recorderis set to skip, Skip should be removed before storing.

Press to select System and press À or Y to change ifrequired.

EEE Then press to select Search.

Press A or Y to begin the search, The search symbol will flash.

ATV Manual Tuning Search

su D AI + 2 Pa) Lau Lo

SETTING UP YOUR TV Each signal will show on the television. it is not your Skip media recorder, press À or Y again to restart the : : : search To prevent certain channels from being viewed, positions can be

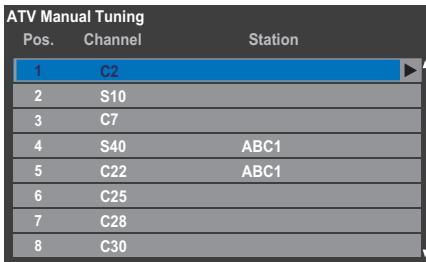

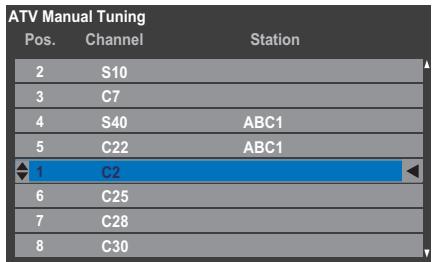

[ATV Manual Tuning Pos. Channel Station

Press OK to save. sto Repeat for each position you want to tune. c7 sa Press EXIT when you have finished. c2 es cs co

This television has direct channel entry ifthe

channel numbers are known. 6 Select the ATV Manual Tuning screen in Step 3. Enter the Position number, the System, then Cfor | € standard (terrestrial) channels or $ for cable channels and the Channel number. Press OK to save.

Press to select Skip.

Use À or Y to turn Skip on. Press OK.

-&% on the screen indicates a sl

ATV Manual Tuning Skip: On 1

@ press BACK and repeat from Step 2 or press EXIT.

Each position has to be individually selected. To turn Skip off, repeat the procedure for each position.

Skipped positions cannot be selected by PA and PV or by the controls on the television but can still be accessed by the number buttons on the remote control.

SETTING UP YOUR TV Sorting positions

Channels may be moved and saved to the position of your choice.

@ select ATV Manual Tuning from the System Setup menu.

Repeat as necessary and press EXIT.

NOTE: This feature varies depending on the Ant/Cable/

This feature is available for service engineers or can be used for direct channel entry ifthe multiplex channel is known.

@ seciect DTV Manual Tuning from the System Setup menu and press OK.

DTV Manual Tuning - Antenna

WEAK Signal Strength

Frequency 8420 MHz Bandwidth SMkz

DTV Manual Tuning - Antenna 0 New Channel Total New Pos Name

ABC ONE ABC TWO ABC THREE ABC NEWS 24 ABci

When the multiplex is found, any channels that are not currently in the channel list will be added and the channel information at the top ofthe screen will be updated.

@ repeat as necessary. Press EXIT to finish.

SETTING UP YOUR TV Manual Tuning for DVB-C DTV Settings When Ant/Cable/Satellite is set to Cable, DTV Manual Tuning items are as follows: Channels (Antenna/Cable)

Frequency: Input a specific frequency to be scanned The channel order may be changed to suit your personal Modulation: Choose from one of five QAM modulation

preference. options Symbol Rate: Input a specific baud rate (KS/s) to be used for @ sciectDTV settings from the System Setup menu the manual scan and press OK. Highlight Start Scan and press OK.

gnig F © select Channels and press OK.

Manual Tuning for DVB-S DTV Settings

Channels When Ant/Cable/Satellite is set to Satellite, DTV Manual

Tuning items are as follows:

Subtitle and Audio Parental PIN Setup

DTV Manual Tuning - Satellite Parental Control Local Time Setting Standby Channel Update

Quaïty POOR Satellite ASTRA 28.2°E ‘Transponder 18 Frequency 40714 MHz 6 Symbol Rate 22000 KSis = M Free to Air

For your convenience, you can jump to specific places in the list by one of two methods.

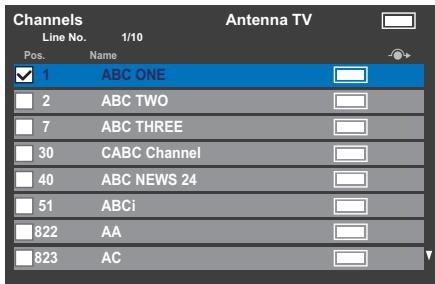

Channels Antenna TV ABC TWO Use A or Y to highlight an item (Satellite, Transponder, ABCTHREE Frequency, Symbol Rate, Polarisation or Search Option) CAB Channel

and press orb to selectthe required option. ABC NEWS 24

Highlight Start Scan and press OK. ABci AA ac

Line Number Jump — Use the number buttons 0-9) to input the line number you want to select and press OK.

His also possible to change the Position number of a particular channel.

Renumber — Press the RED button to renumber the highlighted channel. Edit the channel number using the number buttons and press OK. fthe position number you input already exists, à confirmation window will appear.

SETTING UP YOUR TV Move — Press the GREEN button to activate the Move feature. Press the À or Y buttons to select the channel you wish to move and press OK to check. Hyou wish to move multiple channels at once, select another channel and check in the same way. Repeat as necessary. Once all desired channels have been checked, press the À or Y buttons to place the focus at the position to which you wish to move the channels. The channels will be inserted above the highlighted channel. Press the GREEN button to execute the move.

Antenna TV ABC TWO ABC THREE CABC Channel ABC NEWS 24 ABci

Position No. Sort — Press the YELLOW button. À confirmation window will appear. Press or to select Yes and press OK.

Your existing channel order wil be lost. Do you wish to continue?

Channels (Satellite)

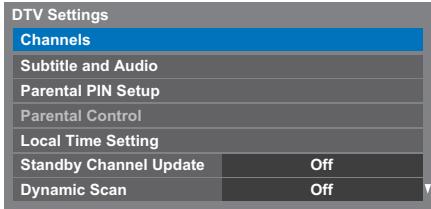

Select DTV Settings from the System Setup menu and press OK.

Select Channels and press OK. The satellite channel list will appear.

Channels Line No. 3/20 Name

25e 225€ (Es) 225€ (es 256€ (es 256€ (Es

For your convenience, you can edit and sort your channel list.

Line Number Jump — Pressthenumberbuttons 0-9) to input the line number you want to select and press OK.

Satellite Jump — Press éd or mi to jump to the next channel on a different Satellite. Renumber — Same as Antenna/Cable channels.

Move — Same as Antenna/Cable channels. See page 27.

n No. Sort — Press the YELLOW button. À confirmation window will appear. Press Æorb to select Yes and press OK.

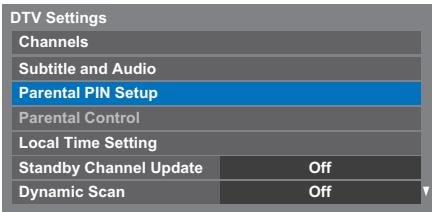

Standby Channel Update

Ifthe Standby Channel Update is set to On, when the TV/is in standby mode, Digital Tuning is automatically executed.

Select DTV Settings from the System Setup menu and press OK.

You can select either Home or Store mode. Home is recommended for normal home use. Select Store when using the television for displaying in a shop, etc.

Select Location from the System Setup menu.

Press or to select Home or Store.

ital television which is integrated to allow the use gital and analogue services. However, during the lifetime ofthis setitis very likely that analogue services will

This'switch-off will happen in a number of phases, which will be advertised in your area wellin advance. I is recommended ‘hat at each phase the television is re-tuned to ensure that existing and new digital services can be viewed without disruption.

CONTROLS AND FEATURES General controls

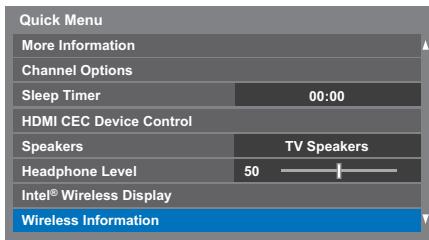

Quick Menu helps you access some options quickly, such as Picture Mode, Picture Size, More Information, Sleep Timer etc.

NOTE: Quick Menu items are different depending on the current mode.

Quick menu item example

To select a channel, use the numbered buttons on the remote control.

Channels can also be selected using PA and PV.

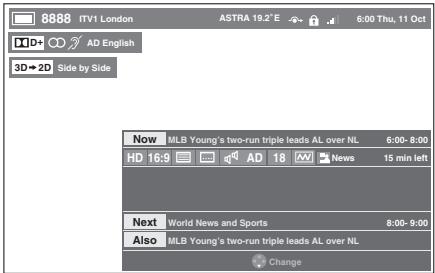

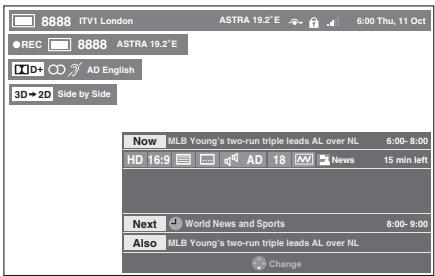

To display on-screen information such as channel, input mode or stereo/mono signal, press (+). Press again to cancel.

The Time Display - analogue only

The time display facility allows the current (text service) time to be seen on the television screen.

Press (@J/EX whilst watching a normal television broadcast to see the time display from the broadcaster. It will ren screen for about 5 seconds.

is display may not be available in some cases.

Stereo and Bilingual transmissions

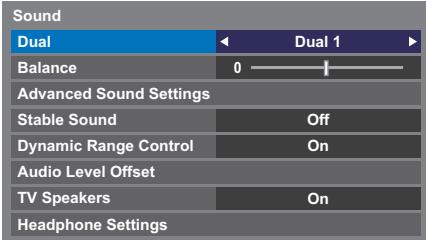

For stereo or dual mono broadcasts, press CDJ/Iand use or D to select settings.

CONTROLS AND FEATURES Using 3D functions

Before using 3D programming, see and follow “3D information” section on page 98.

Viewing 3D programming requires the following:

+ 3D glasses (supplied) + Compatible 3D playback device or 3D source + 3D capable high quality HDMI cable

Incoming video signals can either be in 2D or 3D format. A 2D signal can be viewed in either 2D or 3D, and 3D can be viewed in either 2D or 3D. Ifthe TV can detect the fact that a signalis 3D, it

can change to 3D mode automatically - see “Setting the auto start mode” (on page 31). Othenwise you can change the viewing

mode using the 3D button. Final), the format ofthe 3D signal can be either Side by Side (SBS) or Top and Bottom (TB). You may have to choose the correct format ifthe TV can not detect it automatically - see “Switching display mode or selecting 3D format”. Moreover, you can change 2D images to 3D images by pressing the 3D button when viewing in 2D.

Same height as Center of Display

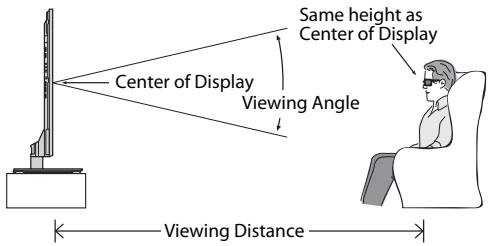

Center of Display | Viewing Angle n

K————Viewing Distance ——}

Viewing Angle 42WL/42YL | Approx. 26 deg. [Over 16m A7WL/ATYL | Approx. 26 deg. [Over 18m S5WL/55YL | Approx.26 deg. | Over2.im

+ When 3D format signal is not received, display mode is not switched to 3D.

I appropriate mode and format are not selected, 3D image not correctly displayed.

There will be restrictions on the Picture Size settings for 3D Mode and 2D Mode.

There are individual differences in perception of 3D images. When viewing 3D images, wear the 3D glasses.

The 2D to 3D conversion function is activated and controlled by you according to your personal preferences. The 2D to 3D conversion function is meant for enjoyment of 2D home video, and other 2D content you create, in 3D according to your personal preferences.

The 2D to 3D conversion function is not intended for use with pre-recorded 2D copyrighted content owned by a ti party unless the copyright owner has given direct or indirect permission, or unless applicable law permits such use.

Switching display mode or selecting 3D format

There are four modes for watching TV.

Mode Description 30 Displays 3D images. 20 Changes 3D images to 2D. 2Dto3D | Changes 2D images to 3D. Native Displays a received signal format as it is.

Ha right and left images are same in Native mode, select SBS. Ia top and bottom images are same in Native mode, select TB. 3D formats are the following,

3D format Description Sideby… |magesfortheleftand ngheyes [TI Side (S8S) | are positioned side-by-side.

Topand [Images forthe left and righteyes

Bottom | are positioned at the top and = (T8) bottom of the screen

Frame Image for the left and right eyes for

Packing |twoframes arepositionedatthe | (P)+ top and bottom ofthe screen.

*_ This format cannot be selected manually. The 3D button's operation

The behaviour of 3D when viewingin Native mode is different depending on the input mode.

Depending on the input mode, the screen for selecting 2D or 3Dis displayed or the display mode switches between 2D and 30.

To switch to 3D mode:

+ Set Preferences / 3D Setup / 3D Auto Start to 3D.

CONTROLS AND FEATURES To select 3D format from the Quick menu in 3D

Press A or Y to select 3D Format Select and press

Press or to select 3D (SBS) or 3D (TB).

To select 2D format from the Quick menu in 2D mode:

Press QUICK to display the Quick Menu: Press À or Y to select 3D Settings and press OK.

Press A or Y to select 2D Format Select and press ok.

Press or to select Native, Side by Side (SBS) or

Format | Auto Detect| Fp Signal | Information!

Top and Bottom (TB) Trigger ofSwiEchIng | Quick menu Display Mode Trigger of Switching| Quick menu Input Signal 3D Format Select Display Mode Type Additional [Format[Source |S8S [TB Input Signal 2D Format Select Info Signal Type [Additional [Fomat[Source |S8S [TB Native

3D [Wth3D Info Signal

Bo [winso [Fr Émaauooeec| | RE)

* Correct 3D image To switch to 2D mode:

Infomatonf"s [BEEN Cr]

* Correct 2D image NOTE: Take off the 3D glasses in 2D mode:

To switch to Native mode:

Trigger of Switching

+ Press 3D while viewing 3D mode. + Press 3D while viewing 2D to 3D mode.

NOTE: When 3D format signal with 3D Auto Detect Information is received, itis not possible to switch to Native.

+ From the Quick Menu in 2D mode.

@ the Quick Menu, press À or Y to select 3D Settings and press OK.

Display Mode Press 3D Input Signal butin Type [Additional [Format | Source Info Signal 30 [With3D Auto Fomar Dane rw | BE Signal | Information s8s Li Ce Without3D | ss

NOTE: When Frame Packing is input, 2D Format Select will be grayed out.

To switch to 2D to 3D mode: Press 3D while viewing 2D or Native mode.

NOTE: Depending on the input mode, the display mode switches between 2D and 3D.

CONTROLS AND FEATURES

i NOTE: Depending on the content, setting the 3D effect to a SettingfhesnoEBrmons high level may result in blurring of the image contours and

Controls what the TV does when it detects a 3D signal. background. @ press MENU / D to highlight Setup icon If you experience any abnormal sensation or feel fatigue or

nausea when viewing 3D images, stop watching and rest

: until the symptoms subside. Before viewing again, adjust © | press À / 4 to highlight Preferences icon and he 3D effect to a lower number and view at a level at which

press OK. the symptoms do not occur.

® press À or Y to select 3D Setup and press OK.

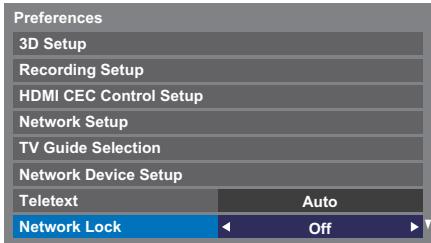

Setting the 3D PIN code 3D Setup A 3D PIN code is necessary for using 3D Safety Settings. Recording Setup To enter a new PIN code:

Hoi GEc Convel Setup Network Satup o

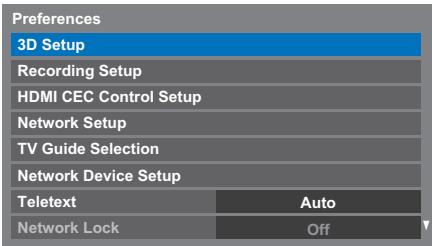

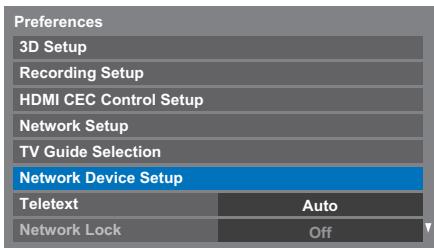

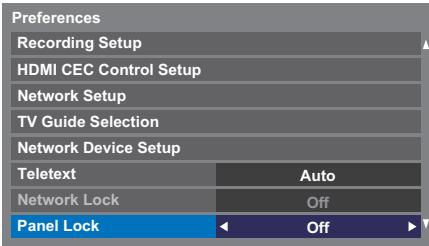

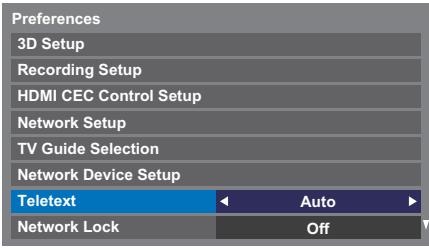

In the Preferences menu, press À or Y to select 3D (TV Guide Selection Setup and press OK. Network Device Setup e

Teletext Press A or Y to select 3D PIN and press OK.

Notmork Lock @ press the number buttons to enter a 4-digit number. @ press À or Y to select 3D Auto Start. Confirm the code.

NOTE: PIN code cannot be set to "0000"

@ press 4orb to select 3D, 2D, or Off. To change or delete your PIN code:

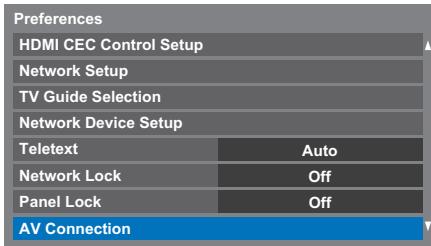

Option Description pti pé @ nt Preferences menu, press A or Y to select 3D 30 Displays as 3D mode automatically when 3D Setup and press OK. format signal is received.

2D Displays as 2D mode automatically when 3D Press À or Y to select 3D PIN and press OK.

format signal is received

Press the number buttons to enter your 4-digit PIN

of Displays a screen that allows you to select 3D code.

or 2D when 3D format signal is received.

Select Change PIN or Delete PIN and press OK. Adjusting 2D to 3D Depth

NOTE: You can adjust the level of 3D. + PIN code cannot be set to "0000". + IFPIN is deleted, 3D Safety Settings is grayed out, From the Menu: and the settings are reset to the factory default.

@ nthe Preferences menu, press A or Y to select 3D Setup and press OK.

The higher the number, the stronger the 3D effect. From the Quick Menu: @ press QUICK on the remote to open the Quick Menu. © press A or Y to select 2D to 3D Depth and press OK.

The higher the number, the stronger the 3D effect.

CONTROLS AND FEATURES Setting 3D Start Message Setting Enable 3D Timer When this feature is set to On, a message is displayed onscreen This feature helps to remind you not to watch 3D video for when a 3D signal is received. extended periods oftime. Once a set period oftime has passed, a dialogue will be shown asking you if you wish to continue @ nine Preferences menu, press A or Y to select 3D viewing or not. Setup and press OK.

Press À or Y to select Enable 3D Time:

Press or to select On or Off.

Press Æork to select 30, 60, 90, or 120 minutes. Setting 3D Lock

When this feature is set to On, you must enter 3D PIN code for changing display mode.

In the Preferences menu, press À or W to select 3D Displaying 3D Important Info Setup and press OK.

To cancel the timer, select Off.

OK. © press À or Y to select 3D Important Info and press Ok. Press À or Y to select 3D Lock. Switching left and right images

The left and right eye shutter timing ofthe glasses can be

Press or ta select On. swapped. f3Dimages look blurred, switch theleft andrightsides ofthe 3D image. Setting 3D Timer Lock Press QUICK on the remote to open the Quick Menu.

Whenthe 3D TimerLockfeatureis set to On, neitherthe PIN input window nor the 3D start message will be shown while the 3D Enable timer is active, even if a switch to 3D Mode occurs. This helps to avoid asking for the 3D Lock PIN and displaying 3D start message every time when switching to 3D.

Press A or Y to select 3D Settings and press OK.

Press A or Y to select Left and Right Image

NOTE: This feature cannot be selected until the 3D PIN is set. Press Corb to select Swapped.

@ nine Preferences menu, press A or Y to select 3D Setup and press OK.

Press À or Y to select 3D Safety Settings and press ok.

Enter your 4-digit 3D PIN code.

Press A or Y to select 3D Timer Lock.

Press Cork to select On.

CONTROLS AND FEATURES Sound controls

Volume controls and sound mute

Volume Press + or + to adjust the volume.

Sound Mute Press jK once to turn the sound off and again to cancel

Ia programme or film is being broadcast with a soundtrack in more than one language, the Dual feature allows selection between them.

Press MENU / B to highlight Setup icon. Press A / B to highlight Sound icon and press OK.

Press À or Y to select Dual and press Æorb to choose between Dual 1 or Dual 2.

‘TV Speakers Headphone Settings

Inthe Sound menu, press À or Y to select Advanced Sound Settings and press OK.

Press A or Y to select Bass or Treble.

Press orb to change the setting.

Voice Enhancement emphasises the frequency range ofthe

speakers voice, making it easier to catch what they are saying. @ nthe Advanced Sound Settings menu, press À or Y to select Voice Enhancement.

Press or to select On or Off.

Audyssey ABX" technology uses sophisticated driver analysis and low frequency monitoring to extend the range and bass of small speakers. This enables the system to produce lower frequencies than would be possible with a traditional system of the same size.

In the Advanced Sound Settings menu, press À or Y to select Audyssey ABX.

Audyssey Dynamic Volume® controls volume levels to eliminate loud spikes and raise soft dialog for more enjoyable television and movie viewing.

In the Sound menu, press À or Y to select Dynamic Volume.

Press or to select On or Off.

Dynamic Range Control

This feature allows control of audio compression for some digital TV programmes (MPEG-1 and MPEG-2 audio programmes are not supported).

In the Sound menu, press À or Y to select Dynamic Range Control

Press or to select On or Off.

CONTROLS AND FEATURES Audio Level Offset

Sometimes there can be large changes in volume when

switching from a DTV 5.1ch to a DTV 2ch, an ATV channel, or an

external input. Using the Audio Level Offset feature reduces these volume differences.

@ setthe volume level usually used when watching a DTV5.1ch programme.

Tune to a channel which is DTV 2ch, ATV or an external input.

Press A or Y to select an option, and then press or D to adjust the volume level.

NOTE: The available item changes depending on the current input source. For example, while watching a DTV 2ch programme, only DTV 2chis available and the other tuvo items are grayed out in the menu. This allows you to easily adjust according to each condition.

When watching a DTV 5.1ch programme, this feature is not available.

This feature allows you to turn the TV speakers offwhen connecting the audio system.

@ inthe Sound menu, press A or Y to select TV Speakers.

@ press 4orb to select Of.

To turn on the built

in speakers: Choose On in step 2.

Headphone Settings Thissettingisusedto setthe soundoutput when headphones are connected.

Speaker Fr Headphone Speakers On Sound is output No sound (1+ is available.) Off Soundis output Sound is output (Headphone level | (212 is available.) menu is available.)

@ nn the Sound menu, press À or Y to select Headphone Settings and press OK.

Headphone Settings Speaker Link

Audio Description is an additional narrative sound track for visually impaired individuals to understand and enjoy the story line more fully. The letters AD will be displayed in the channel banner when programmes contain AD content.

The AD button on the Remote can also be used to toggle the Audio Description feature between On and Off.

@ 5 adjust the level of the audio description sound to the main sound, highlight Mixing Level and press 4 or.

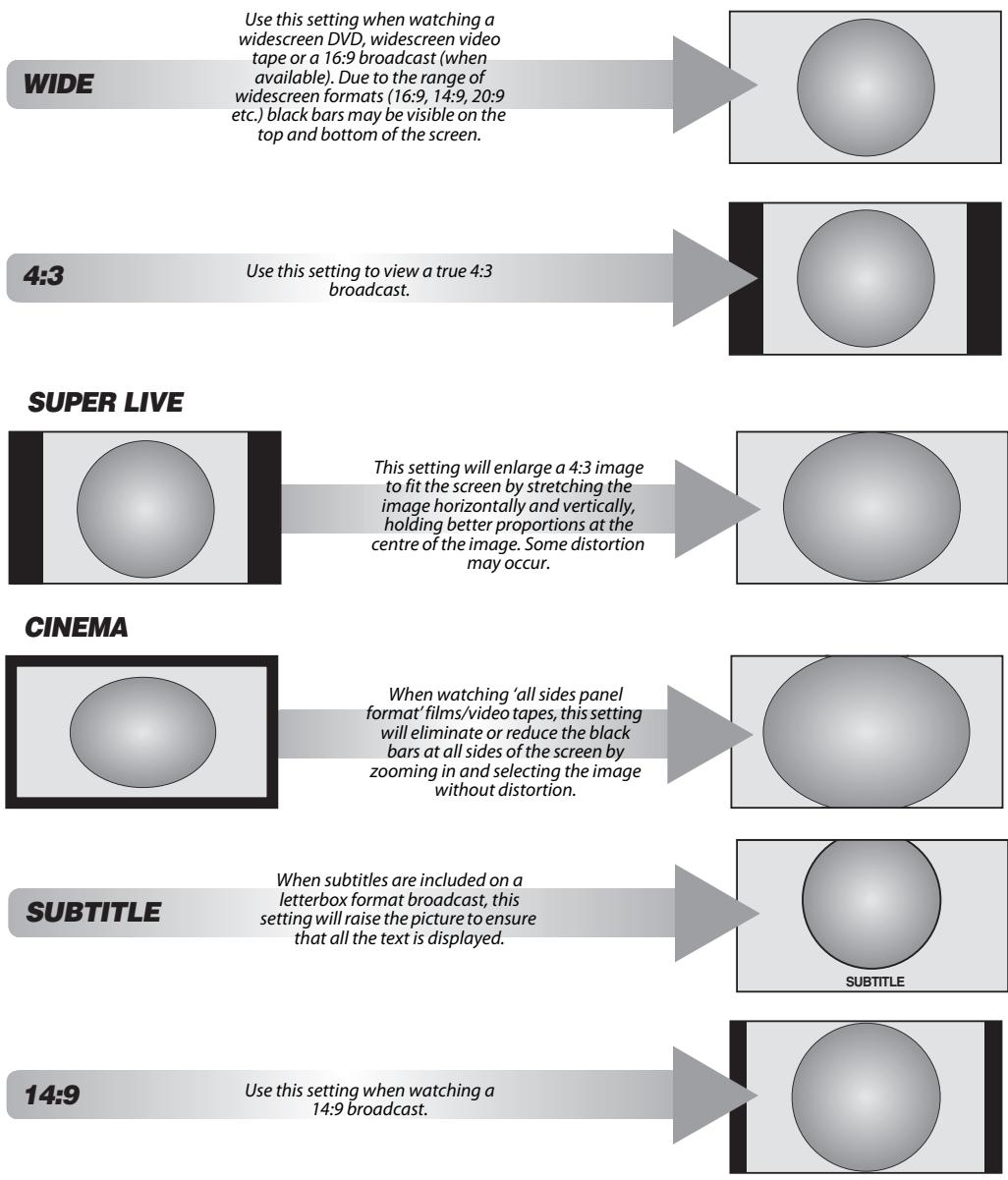

CONTROLS AND FEATURES Widescreen viewing Depending on the type of broadcast being transmitted, programmes can be viewed in a number of formats.

Use this setting when watching a widescreen DVD, widescreen video tape or a 16:9 broadcast (when available). Due to the range of WIDE widescreen formats (169, 149) 209 etc.) black bars may be visible on the top and bottom ofthe screen.

Use this setting to view a true 4:3. 43 broadcast.

SUPER LIVE This setting will enlarge a 4:3 image 10 it the screen by stretchinghe, image horizontally and vertically, ot bete Proparors aEté

centre ofthe image. Some distortion

When watching ‘all sides panel format films video tapes this et elite erreurs Me bars at all sides of the screen z0oming in and selecting the image without distortion.

CINEMA When subtitles are included on a letterbox format broadcast, this

SUBTITLE setting willraise the picture to ensure

that all the text is displayed.

Use this setting when watching a 14:9 14:9 broadcast.

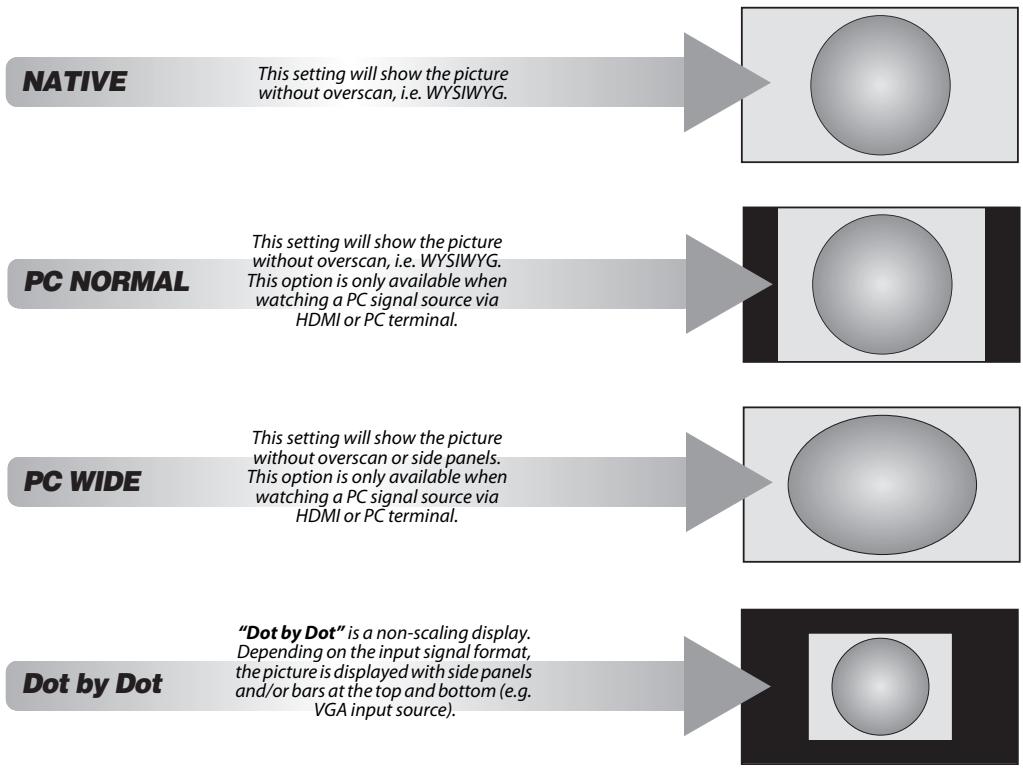

CONTROLS AND FEATURES This setting will show the picture NATIVE without overscan, ie. WYSIWYG.

This setting will show the picture without overscan, Le. WYSIWYG.

PC NORMAL This option is only available when watching a PC signal source via HDMI or PC terminal

This setting will show the picture without overscan or side panels. PC WIDE This option is only available when

watching a PC signal source via HDMI or PC terminal.

“Dot by Dot"is a non-scaling display. Depending on the input signal format, thepictureis displayed withside panels Dot by Dot and/or bars atthe top and bottom (e.g.

Press the {F4 button on the Remote to display the list of available widescreen formats.

Press the button repeatedly to highlight the required format.

‘The Quick Menu feature can also be used to select Picture Size.

Picture Size Picture Size Wide PC Normal 43 PC Wide Super Li Dot by Dot

Using the special functions to change the size ofthe displayed image (ie. changing the heightAwidth ratio) for the purposes of public display or commercial gain may infringe on copyright laws.

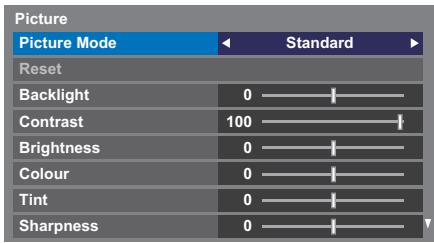

CONTROLS AND FEATURES Picture controls

Most of the picture controls and functions are available in both digital and analogue modes. PLEASE NOTE: Features not available will be grayed out.

This television offers the choice ofpersonalising the picture style.

AutoView, Dynamic, Standard, Hollywood Night, Hollywood Day, Hollywood Pro, Store, Game and PC are preset options and affect many features/settings within the television.

+ Because the AutoView mode automatically adjusts picture settings based on ambient light conditions and input signal content, the Auto Brightness Sensor and Expert Mode is grayed out when it is selected.

+ Store mode is only available when Loc:

Game mode is available in external input mode (other than

aerial input). When you select Game mode, suitable

Widescreen formats will be selected.

PC mode is available in RGB/PC input mode or HDMI input mode.

jon is set to Store.

Press orb to select the picture mode you prefer and press OK.

NOTE: The picture mode you select affects the current input only. You can select a different picture mode for each input.

Vou can customize current picture mode settings as desired. For example, while selecting"Dynamic” you change thefollowing ight Contrast, Brightness, Colour Sharpness and the Advanced Picture Settings items, your new settings are saved for "Dynamic”picture mode. o

In the Picture menu, press À or Y to select either Backlight, Contrast, Brightness, Colour, Sharpness and press OK.

Press or to adjust the settings.

This feature resets all picture settings to the factory settings except Picture Mode.

Inthe Picture menu, press À or Y to select Reset and press OK.

A confirmation message will appear. Press Æorb to select Yes and press OK.

When ColourMaster is set to On, it allows the ‘Base Colour Adjustment’ feature to become available.

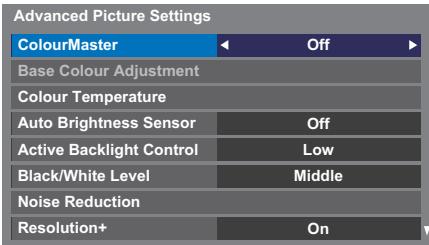

In the Picture menu, press À or Y to select Advanced Picture Settings and press OK. © press Y to select ColourMaster. ‘Advanced Picture Sotings Colourhaster Base Colour Adjustment Colour Temperature Auto Brighness Sensor

Active Backlight Control BlackMhite Level

Low Middle Noise Reduction

Press or to select On or Off and press OK.

us1BUZ CONTROLS AND FEATURES Base Colour Adjustment

The Base Colour Adjustment feature allows the adjustment of individual colours to suit personal preference. This can be useful when using an external source.

@ nthe Advanced Picture Settings menu, press À or ‘Y to select Base Colour Adjustment and press OK.

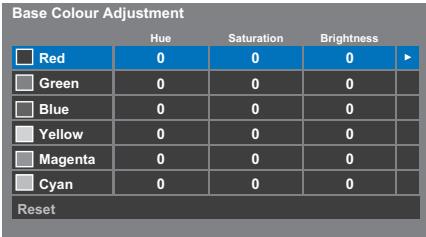

Base Colour Agjusiment sauce Béghines CI Red 0 o CES 0 0 Di sive o 0 CI o o Magents o o II cyan o o

Saturation Brightness

@ press BACK to return to the previous menu.

To return to the factory settings, select Reset and press OK.

Colour Temperature increases the “warmth" or “coolness” of the picture by increasing the red or blue tint.

@ nthe Advanced Picture Settings menu, press À or Y to select Colour Temperature and press OK.

NOTE: To return the adjustments to the factory defaults, select Reset and press OK.

Auto Brightness Sensor

When the Auto Brightness Sensor is activated, it will automatically optimise the backlighting levels to suit ambient light conditions.

@ the Advanced Picture Settings menu, press À or Y to select Auto Brightness Sensor.

Active Backlight Control

When the Active Backlight Control feature is activated, it will controlthe backlighting levels depending onvarious scenes such as picture motion, bright scene or dark scene.

@ the Advanced Picture Settings menu, press À or Y to select Active Backlight Control. © press 4ork to select High, Low or Off.

High: To control the backlighting levels depending on various scenes such as picture motion, bright scene or dark scene

Low: To control the backlighting levels for dark scene

Black/White Level increases the strength of dark areas ofthe picture to improve the definition.

@ the Advanced Picture Settings menu, press À or Y to select Black/White Level.

MPEG NR - Noise Reduction

When watching a DVD), the compression may cause some words orpicture elements to become distorted or pixelated. Usingthe MPEG NR feature reduces this effect by smoothing out the edges.

CONTROLS AND FEATURES DNR - Digital Noise Reduction

DNR allows you to “soften” the screen representation of a weak signal to reduce the noise effect.

Select DNR from the Noise Reduction menu.

Press 4orb to select Low, Middle, High, Auto or Off. The differences may not always be noticeable (for the bestresult use lower settings as picture quality can be lost ifthe setting is too high).

Resolution + The Resolu

n+ feature allows you to adjust the clarity levels for your desired picture settings.

In the Advanced Picture Settings menu, press À or Y to select Resolution+ and press OK.

Press Cork to select On.

+ This feature may not work properly depending on the content.

+ Noise may appear in the picture depending on the device connected to the TV (e.g. a device with a specific enhancer function).

This feature will reduce picture blur without decreasing image brightness or adding flcker.

In the Advanced Y to select Cle:

ure Settings menu, press À or Scan.

NOTE: When Picture Mode is set to Game, this feature will be grayed out and automatically set to Off.

Press 4orb to select High, Middle, Standard or Off.

Resetting the advanced picture settings

This feature allows you to reset the current Advanced Picture Settings to the default values.

This feature is available when the Picture Mode option is Standard, Hollywood Day, Hollywood Night, and Hollywood Pro.

When the test pattern is on screen, you can navigate in the Picture submenus and adjust picture settings without removing the image.

When you move to a non-Picture menu, or close the menus, regular video will be restored.

In the Picture menu, press À or Y to select Expert Picture Settings and press OK to display Expert Picture Settings menu.

Press À or Y to select Test Pattern. Press Cork to select On. Press EXIT to close.

This feature individually enables or disables the red, green, and blue components of the picture to allow for more accurate adjustment of each colour.

Inthe Expert Picture Settings menu, press À or Y to select RGB Filter and press OK.

Press À or Y to select Red, Green or Blue to adjust. Press 4orb to select On.

Press A or Y to select Colour or Tint and press or D to adjust.

NOTE: is not possible to turn off all three colours simultaneously.

you view DVDs with this TV, the Colour Decoding option may be set to ensure the colourimetry reproduction.

NOTE: The modes excluding Auto (BT601 and BT709) are to convert an irregular signal output from the DVD etc. with incorrect colour to the optimum state. If BT601 or BT709 is selected with a normal signal received, the colour may not be correctly displayed. This feature should normally be set to Auto

Inthe Expert Picture Settings menu, press À or Y to select Colour Decoding

Press Cork to select Auto, BT601 or BT709.

This feature displays a special Window Pattern to be used when adjusting white balance with a measuring device.

@ ntheExpertPicture Settings menu, press À or Y to select White Balance and press OK.

White Balance-Setting Type

You can choose from two types of White Balance adjustment.

@ the Expert Picture Settings menu, press À or W to select White Balance and press OK.

NOTE: The adjustments made for Red / Green / Blue are stored separately for each IRE setting. (There are ten IRE settings from 10 to 100.)

CONTROLS AND FEATURES Gamma Calibration

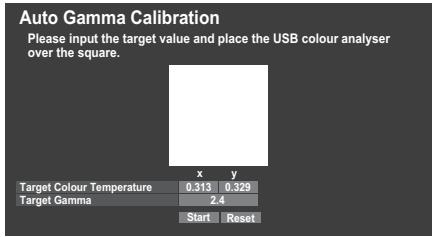

Toshiba has integrated an picture calibration systems into its LCD televisions. Now you can enjoy the benefits of automatically calibrated gamma and white levels

In order to take advantage of these features the Toshiba colour analyzer TPA-1 is required.

Inthe Expert Picture Settings menu, press À or Y to select Gamma Calibration and press OK.

Press A or Y to select Apply Calibration and press or to select Enabled.

Press A or Y to select Auto Gamma Calibration and press OK.

Connect the USB colour analyzer to the USB 1 or USB 2port.

Input the target value and place the USB colour analyzer over the square on screen.

Highlight Start and press OK. Auto Gamma Calibration will start.

Please wait until you see "Auto Gamma Calibration has been completed." on screen.

To return to factory setting

Resetting to the factory defaults

Highlight Reset and press OK.

Inthe Expert Picture Settings menu, press À or Y to select Reset and press OK.

A confirmation screen appears

Select Yes and press OK.

Automatic Format (Widescreen) When this television receives a true Widescreen picture and Auto Format is On, it will automatically be displayed in Widescreen format irrespective of the television's previous setting. Press MENU / B to highlight Setup icon.

Press A / 4h to highlight Preferences icon and press OK.

Press A or Y to select Display Settings and press OK.

When 43 Stretch is activated, the size switching system changes 43 programmes into full screen picture.

Press À or Y to select 4:3 Stretch and press orb to select On or Off.

When Blue Screen is selected, the screen willturn blue andthe sound will be muted on analogue channels and external input modes when no signal is received.

ome external input sounds may not be muted.

Inthe Preferences menu, press À or Y to select Blue Screen.

Press or to select On or Off.

CONTROLS AND FEATURES Picture Position

The picture position may be adjusted to suit personal preference

NOTE:The Picture Pos

and can be particularly useful for external inputs.

In the Preferences menu, press À or Y to select Display Settings and press OK.

Press A or Y to select Picture Pos

Display Settings. Auto Format

Stretch Picture Position PC Settings

Press OK to view the options available for the picture format that has been selected.

Press À or Y to select an option and press orb to adjust the settings. The options differ depending on the currently selected widescreen format and the input signal. Picture Position Horizontal Position

To return to the original factory settings, select Reset in the Picture Position menu and press OK.

Picture still This feature is used to hold a still image on the screen.

Press (W) to hold an image on the screen, and press (again to cancel.

HDMI Information Display

n Display feature is On and you

the HDMI signal information banner.

In the Preferences menu, press À or Y to select HDMI Information Display.

Press 4orb to select On.

HDMI signal information is as follows:

Resolution, Scan Type, Frame Rate, Aspect, Bit Depth, Colour Space, RGB/YUV, Chroma Format, and Content Type (if available).

CONTROLS AND FEATURES Wireless LAN Information

Bluetooth” and Wireless LAN devices operate within the same radio frequency range and may interfere with one another. you use Bluetooth" and Wireless LAN devices ultaneously, you may occasionally experience a less than optimal network performance or even lose your network connection.

Kyou should experience any such problem, immediately turn off either your Bluetooth" or Wireless LAN device.

Actual performance can vary, including lower wireless network capacity, data throughput rate, range and coverage. Performance depends on many factors, conditions and variables, including distance from the access point, volume of network traffic, building materials and construction, operating system used, mix of wireless products used, interference and other adverse conditions.

Wireless LAN and your Health

Wireless LAN products, like other radio devices, emit radio frequency electromagnetic energy. The level of energy emitted by Wireless LAN devices, however, is far less than the electromagnetic energy emitted by wireless devices such as mobile phones.

Because Wireless LAN products operate within the guidelines found in radio frequency safety standards and recommendations, TOSHIBA believes Wireless LAN is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature.

In some situations or environments, the use of Wireless LAN may be restricted by the proprietor of the bi responsible representatives of the organization. Such restrictions may apply in environments where the risk of interference to other devices or services is perceived or identified as harmful.

I you are uncertain of the policy that applies to the use of wireless devices in a specific organization or environment, you are encouraged to ask for authorization to use the Wireless LAN device prior to turning on the equipment.

When using the TV under wireless LAN environment:

The function of all IEEE802.11 is not supported.

The ad-hoc mode is not supported.

Itis recommended to use IEEE 802.1 1a or IEEE 802.11n on 5 GHz for audio and SD video streaming.

Itis recommended to use IEEE 802.1 1n on 5 GHz for HD eo streaming,

Itis recommended that the encoding rate for streai leo content is 20 Mbps or less.

Itis not recommended to use 2.4 GHz for audio and video streaming.

Content playback may be interrupted by various surrounding interference.

‘This Built-in WLAN Module may be operated in below country:

AT [Austria 15 |iceland BE [Belgium LI [Liechtenstein CH | Switzerland LT [Lithuania

Cv [Cyprus LU [Luxembourg ©Z [CzechRepublic [LV [Latvia

DE [Germany MT [Malta

DK [Denmark NL | Netherlands

ES [Spain NO | Norway

FI [Finland PL |Poland

FR |France PT | Portugal

GB [Unitedkingdom [SE | Sweden

GR _|Greece Si | Slovenia

EE [Estonia SK | Slovakia

HU [Hungary BG |Bulgaria

IE [Ireland TR__ [Turkey

+ Hfthis device is going to be operated in the frequency range of5.15 GHzto 5.35 GHz, it is restricted to indoor use.

+ Hfthis device is going to be operated for 802.11 b/g/n

function in the frequency range of 2.454 GHz to 2.4835 GHz

in France, itis restricted to indoor use.

A general authorization is required for using this device

outdoors orin public places in Italy.

This device is NOT ALLOWED to be usedinthe geographical

area within a radius of 20km from the centre of Ny-Alesund

Make the wireless LAN appropriate security setting at the

time of wireless LAN use to preventtheillegaluse, spoofing

and interception of communications.

Don't connect wireless LAN to a outside network directly.

Apply the wireless LAN access point with router function or

broadband router. Make the router appropriate security

setting to prevent the illegal use.

Refer to the manual of router for a security setting.

Press Y to highlight Start Scan and press OK. Network Device Setup

Following the on-screen instructions, push the Network Lock

appropriate button on your AP.

When a window reporting that the setup is complete appears, press OK.

Come s Easy Setup using PIN (Personal Identification

Network Setup and press OK.

@ _ tou selected Wired, see "Advanced Network Setup"

Press A or Y to select Wireless Setup and press OK. on page 46.

NOTE: After you change between Wireless and Wired, switch off and on AC power supply to reset your TV. Communication may be impossible after the change of Wireless / Wired.

Press A or Y to select Easy Setup and press OK.

Press or to select PIN.

Press Y to select Start Scan and press OK.

Wireless Setup Press À or Y to select the desired AP and press OK.

NOTE: Continued connection of AP (Access Point) is not

guaranteed. The connection may be disconnected while watching TV.

NOTE: Checkthe Network Name and/or MAC address

on the label ofthe AP orin the manual, and select

There are 3 methods for Wireless Setup

Ifthe AP supports WPS, this method can be used.

+ WPS is an industry standard designed to make connection of wireless LAN equipment and security setup easy. WPS report that the setup is complete, press OK. will automatically configure all wireless settings.

When the PIN code window appears, enter the displayed PIN into your AP, and then press Next to continue the PIN Setup. When a message displays to

To cancel searching for the AP: NOTE: WEP encryption may not be able to configured by easy

setup. Press BACK while searching forthe AP. À message will appear, and then press 4orb to select Yes and press

Assisted Setup (setup by using the AP's notification ok

Network Name, Authentication, and Encryption are decided Assisted Setup

based on information from the AP. You will manually set the

Security Key. @ nine Preferences menu, press À or Y to select

Press À or Y to select Assisted Setup and press OK.

Wireless Setup Easy Setup

Assisted Setup Manual Setup

NOTE: Check the MAC address on the label ofthe AP orin the manual, and select your AP.

QG _ putthe Security Key by using the Software Keyboard (see page 48), To save your setting, press the BLUE button.

+ The Security Key must adhere to these conditions: = TKIP/AES: 8-63 ASCII or 64 Hex characters = WEP:5 or 13 ASCII or 10 or 26 Hex characters

+ There is only one key ID to set for WEP encryption.

Highlight Done and press OK. NOTE: f Network Name is not displayed, see step 3

and 4 in Manual Setup below to set Network Name before pressing Done.

NOTE: Settings are not saved if BACK is pressed before Done is selected.

@ nine Preferences menu, press A or Y to select Network Setup and press OK.

Press À or Y to select Network Name and press OK. The Software Keyboard window will appear.

Input the Network Name by using the Software Keyboard (see page 48). To save your setting, press the BLUE button.

Press A or Y to select Authentication and press 4or D to select Open System, Shared Key, WPA-PSK or WPA2-PSK.

Press À or Y to select Encryption and press 4orb to select None, WEP, TKIP or AES.

+ Certain encryption types are only compatible with

specific authentication types.

- When Authentication is Open System, only WEP or None is compatible.

- When Authentication is Shared Key, only WEP is. compatible.

- When Authentication is WPA-PSK or WPA2-PSK, only TKIP or AES is compatible.

When incompatible Authentication/Encryption

pairings are detected, a waming message will be

displayed, and no connection attempt will be made

until the incompatibility is resolved.

There is only one key ID to set for WEP encryption.

Press A or Y to select Security Key and press OK.

Input the Security Key by using the Software Keyboard (see page 48). To save your setting, press the BLUE button.

NOTE: This item is grayed out when Encryption is None.

@Œ Highlight Done and press OK.

NOTE: When Encryption is None, a message will appear. Press 4orb to select Ves and press OK.

NOTE: Settings are not saved if BACK is pressed before Done is selected.

Wireless Information

The settings configured in Wireless Setup can be confirmed.

NOTE: Press the RED button to scan for all APS.

CONTROLS AND FEATURES Item

Status Connected is displayed when the TV is connected with the AP. Disconnectedis displayedwhenthe TVis not connected with the AP.

Signal Connection signal strength with AP (STRONG/MEDIUM/WEAK)

Speed Link with AP Mode Working mode (112, 11b, 11g, 11n)

Network Name | SSID set

Authentication | Authentication set

Encryption | Encryption set

Security Key | Security Key set

AP MAC The AP's MAC address is displayed when

Address the TV is connected with the AP.

TV MAC The MAC address ofthe TV{Wireless) is

DHCP Enabled is displayed when using DHCP. Disabled is displayed when not using DHCP.

1P Address The TV' IP address

Subnet Mask | Value ofthe Subnet Mask

Default Address ofthe Default GATEWAY Gateway

DNS Address ofthe DNS NOTE: Even ifan AP for IEEE 802.11nisusedwhen Encryption

is set to WEP or TKIP, the Speed value might be lou. I is

recommended that Encryption be changed to AES (see

“Manual Setup” on page 45).

Notes on wireless LAN environment

+ The function of all IEEE802.11 is not supported.

+ The ad-hoc mode is not supported.

+ Itis recommended to use IEEE 802.1 1a or IEEE 802.11n on

5 GHz for audio and SD video streaming.

+ Itis recommended to use IEEE 802.1 1n on 5 GHz for HD ideo streaming,

Itis recommended that the encoding rate for streaming leo content is 20 Mbps or less.

Itis not recommended to use 2.4 GHz for audio and video

Content playback may be interrupted by various surrounding interference.

Advanced Network Setup

+ When the DHCP function of the router connected with this TVis On, you can set Auto Setup to On or Off. (This should usually be set to On)

+ Whenthe DHCP function ofthe router is Off, set Auto Setup to Off, and set the IP Address manually.

IP Address Setup Auto Setup

@ Highlight Auto Setup and press orb to select Off.

IP Address Setup Auto Setup

IP Address Subnet Mask

Press A or Y to select IP Address.

Press orb to highlight the field you want to change, and then use the number buttons to input the IP address. To save the setting, press OK.

NOTE: IP address field numbers must be between 0 and 255. After each field number has been set, press OK to store the entire address. the entire IP Address is invalid, a warning message will appear after OK is pressed.

Press À or to select Subnet Mask, and edit in the same way as IP Address.

1P Address Setup Auto Setup

1P Address Subnet Mask

NOTE: f you manually set the IP address, you must not use the same IP address for any other device. The IP address you use should be a private address.

NOTE: When the DHCP function ofthe router connected to this TVis Off, set Auto Setup to Off, and manually set the DNS address(es). Your internet service provider should have provided these to you.

be grayed out when Auto Setup is set

Press A or Y to select Auto Setup and press 4orb to select Off.

DNS Setup Auto Setup

Primary DNS Address Secondary DNS Address

Press or Y to select Primary DNS Address.

Press or to highlight the field you want to change, and then use the number buttons to input the Primary DNS Address. To save the setting, press ok.

NOTE: DNS address field numbers must be between 0 and 255. f you input an incompatible number and press OK, the field number will reset to the previous value.

Press À or Y to select Secondary DNS Address, and edit in the same way as Primary DNS Address.

You can view the fixed MAC address for the TV (Wired and Wireless).

CONTROLS AND FEATURES Network Connection Test This function checks the Internet connectivity.

@ nine Preferences menu, press A or Y to select Network Setup and press OK.

@ press A or V to select Network Connection Testand press OK.

A message will appear to indicate if the connection was successful or ifit could not be completed

NOTE: The result of Network Connection Test does not always guarantee the connection.

To cancel the Network Connection Test:

@ press BACK while searching for the Internet connection

Using the software keyboard

You can entertext by using the Software Keyboard. The Software Keyboard window will appear when you press OK on field that accepts character input.

To enter text using the software keyboard:

@ Highightthe desired character on the on-screen software keyboard

Repeat steps 1 and 2 until you have entered all desired text.

Press the BLUE button to close the software keyboard and return to the previous screen.

NOTE: If BACK is pressed, changes are not saved and the software keyboard window is closed. The text will remain as it was before starting the keyboard.

Input operation on the remote control:

Button Description ok Inputs the selected character. Œ Inputs the number directly. AY Moves the character highlight. or Moves the cursor.

4 Moves the cursortothe head of a character string.

pi Moves the cursor to the end of a character string.

RED Deletes 1 character to the left of the cursor.

GREEN Cycles through upper case, lower case, numbers, and symbols, if available.

BLUE Saves changes and closes the Software Keyboard window.

BACK Closes the Software Keyboard window without saving changes.

CONTROLS AND FEATURES Network Device Setup

Apps Control Profile

The Apps function allows you to control the TV from network connected Apps (Tablet or Smartphone) like a remote control. In order to use this function, the Setting up the Network (see page 44) and Device Name Setup (see page 50) s required. The Device Name will display on the screen of Apps (Tablet or Smartphone) application. o

In the Preferences menu, press À or Y to select Network Device Setup and press OK.

The Apps Control Account window will appear.

Press À or Y to select New Device Detection and press @B to select Enable and press OK.

the Apps (Tablet or Smartphone ) is unregistered yet then authentication will start automatically and 4- digit numerical code will be appear on the TV.

Please enter this code on your device.

Companion Device ID Input 4 - digit numerical code to your Apps.

If you success the authentication, 4 -digit numerical password on the TV disappears and User Name is stored in the TV along with the password. Ifnot, Warning message will appear. And if the TV receives access from the same User Name, 4 - digit numerical code will be appear again on the TV.

The4-digit numerical password display on the TV will disappear in the following situations:

+ Authentication complete

+ Time-out {60 seconds ) + When the EXIT button on the remote control is pressed

us1BUZ Device Registration Setup

Once a User Name has completed authentication, i is stored in the TV along with the password. The upper limit for the number of Use Names that can be remembered is 256. You can delete User Names that are stored in the TV.

In the Preferences menu, press À or Y to select Network Device Setup and press OK.

Press or Y to select Apps Control Profile and press OK. The Apps Control Account window will appear.

Press A or Y to select to select Device Registration Setup and press the OK.

The Device Res ion Setup window will appear and the list of User Names managed by the TV will be displayed.

Press A or to highlight the companion User Name.

Press A or Y to select the Cancel, AI or Delete buttons and press Done.

Using the Remote App control

The Remote Apps control supports a text input, mouse

control and a touchpad control that allows you to use your

Apps (Tablet or Smartphone) as a touch screen which is

several operation modes.

+ The Remote Apps control does not work under some conditions ofthe TV.

+ The functions are ignored while the TV is in Standby.

+ Some conditions are necessary to work.

TV Power On Control (Active Standby)

When the TV is connected to the home network via Wireless LAN, With the TV Power On Control in Enabled, your TV can be turned on by control from Apps.

In the Preferences menu, press À or Y to select Network Device Setup and press OK.

Press A or Y to select TV Power On Control and press 4orb to select Enabled (Active Standby).

+ Depending on the device connected to the home network, it may take a while for the TV to turn on.

+ Depending on the device connected to the home network, this feature may not work.

* Ifthe unencrypted Wireless Setup is done, this feature can not be used.

CONTROLS AND FEATURES The power consumption during Active Standby is more than it during Normal Standby.

+ Afterthe change from Power On state to Active Standby, there may be a period of several ten seconds which does notreceive the operation from a remote control or external apparatus.

Media Renderer Setup

The TV can be configured as a Media Renderer(DMBR). When operating as a DMR, the TV displays content provided by a DMS. The selection ofthe media is done by DMC.

The TV can play photo, movie, or audio files when operating as a DMR.

@ nine Preferences menu, press A or Y to select Network Device Setup and press OK.

® press À or Y to select Media Renderer and press 4 er to select On.

request come from DMC, prompt will appear and DMR will start.

To exit the Media Renderer: Press EXIT.

Terminology DMS: DLNA CERTIFIED" Server

DMR: DLNA CERTIFIED"* Renderer

NOTE: You cannot use 3D function in operating as a DMR.

The TV device name can be changed.

In the Preferences menu, press À or Y to select Network Device Setup and press OK.

Press À or Y to highlight Device Name Setup and press OK.

Highlight the Device Name field and press OK. The Software Keyboard window wi appear.

Input the Device Name by using the software keyboard (see page 48). Press the BLUE button.

NOTE: The Device Name can be up to 15 characters long.

USB HDD Record Function

This function can be used to record and play digital broadcast programmes. Read the precautions below before recording or viewing programmes using the USB HDD record function.

+ In order to use this function, a USB HDD needs to be connected to the TV. Do not use USB Hub.

After recording operation, time may take to a recording start.

Recorded programmes saved on the USB HDD can only be viewed on this TV. They cannot be viewed when connected to another TV (including the same model of TV), a PC, or other device.

You cannot watch one channel while recording another. Ithe recording time to the USB HDD is too short, no data may be saved.

You cannot record video input signals on the USB HDD. Not all types of broadcast may be recordable.

After programming the TV to record digital broadcasting, do not disconnect the power plug before recording starts. Also, leaving the power switch "ON" until recording is scheduled to start, may cause the recording to fail.

Should video or audio recording fail due to malfunction of the TV or poor reception, no compensation shall be pai there is a power failure or the power plug is disconnected during programmed recording, recording will stop and will not resume when the power returns or the plug is reconnected.

+ Do not disconnect the power plug when the indicator LED isli

Any changes implemented by the broadcasting station may affect programme scheduling,

Scheduling ofmultiple consecutive programmes may result in the beginning of each programme not being recorded. Accurate start / finish time for recording is reliant on broadcasters maintaining correct time stamp if this not the case the recording will fai.

+ Some broadcasters can control whether a program can be recorded or how long you may be able to view it for after recording. The on screen message ‘Retention limit expired” means that the time limit for viewing the program has lapsed.

Programmed recording cannot take place ifthe power plug is not connected.

Disconnecting the power plug during recording may result in failure to save the recorded programme.

+ USB HDD recording feature is not available in all countries. Do not turn offthe TV during recording,

When the USB HDD is formatted, all the data stored on the HDD will be erased.

CONTROLS AND FEATURES Setting up the USB HDD for recording

To connect an USB HDD (not supplied)

When you connect a USB HDD to the USB port on the TV, a prompt will appear.

Press 4orb to select No and press OK.

lot guaranteed to work with all USB HDD.

To record DTV programmes (One Touch Recording)

To record the programme currently being viewed.

Press the @REC button on the remote control. The currently viewed programme will start to be recorded.

The programme indicator (red) will be lit.

Press the M (stop) button.

À confirmation window "Do you want to stop Recording?" will appear.

® press 4orp to select Yes and press OK. Recording wil stop.

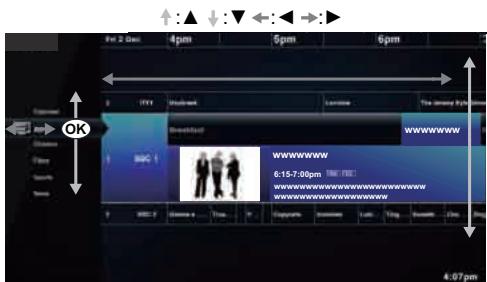

How to set recordings via the Programme Guide

Programmed recording can be scheduled easily using the Programme Guide or by specifying the date and time.

PLEASE NOTE When a timed programme is about to start, an information screen will appear offering the option of watching or cancelling the programme. Other channels wi not be available during the timed programme unless the programme timer is cancelled.

Itwill only be possible to create or edit programme timers for the currently tuned DTV input.

Using the Programme Guide to set future recordings

Press the GUIDE button on the remote control (or select TV Programmes / Guide menu from the menu system) to display the Electronic Programme Guide (EPG)

Press À Y 4h to highlight the programme you want to record

Press OK. The Edit Timer menu will appear.

Press A or Y to highlight Timer Type and press or > to select Recording.

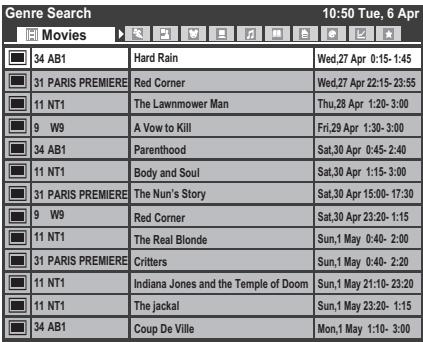

Press 4orb to select the genre. Programmes listed will change for the new genre. Press A or Y to select the programme for which you want to schedule recording.

imer menu will appear.

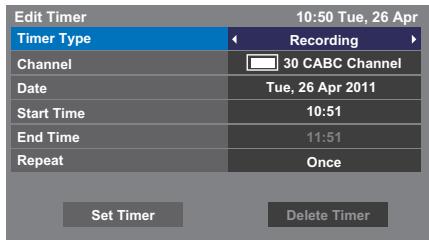

Edit Timer The Dally Politics [2 CABC Channel 1:30 - 12:30 Tue, 26 Apr

Press A or to highlight Timer Type and press 4or > to select Recording.

The Edit Timer menu will appear.

Press A or Y to highlight Timer Type and press or > to select Recording.

Press À and Y to go through the list adding the details ofthe programme by using the number buttons and 4and à to make selections. + Channel

Select the channel you wish to record. + Date

Select the date that you wish recording to start. + Start Time

Select the time to start recording. + End Time

Select the time to end recording, + Repeat

Select"Once”, "Daily" or "Weekly.

The selected content is recorded once.

The same time slot on the same channelis recorded every day on and after the selected day.

Weekly |The same time slot on the same channel on! the same day ofthe week is recorded on and after the selected day.

Press A or Y to highlight Set Timer and press OK. The ORANGE LED will be |

CONTROLS AND FEATURES To schedule a programme using the information = As the displayed programme time is calculated

screen: from the actual recording information, it may not match the recording time on the USB HDD.

,the information screen will appear giving

details ofthe channel and programme currently To check a schedule: being viewed. ul @ press À or Y on the Programme Timers screen to check the schedule EE To edit a schedule:

@ press À or Y on the Programme Timers screen to select the title whose schedulle you want to edit and press OK ‘The Edit Timer screen will appear. Change the

settings as required, following the same procedure as for setting the schedule.

imer menu wi appear. To delete a schedule:

_. — @ p:e55 À or Y on the Library screen to select the title it Timor ue, 26 Apr The Daily Politics ù whose schedule you want to delete.

F0 12:20 Tue, 26 Apr e

Timer Type Recording

Press the RED button. Press 4orb in the displayed confirmation window to

a select Yes and press OK. The selected schedule will be

deleted NOTE: ou can also delete a schedule by selecting Delete © press À or Y to highlight Timer Type and press 4or … Timer from the Edit Timer menu for each programming > to select Recording, method.

@ press A or Y to highlight Set Ti The ORANGE LED wil be lit.

erand press OK To view a recorded programme To view the recorded Library screen and select a title from the recorded programme list. To check, edit or delete scheduling e information Press MENU / 43 / A / 4 to highlight TV Programmes / Library icons and press OK. Vou can check, edit or delete scheduling information. Library screen will appear.

+ Depending on the transmitter information, the re programme broadcast time or other information FA FADAE (235 7V London may not be correctly displayed in the recording list. rires

+ The programme does not appear in the recording Sun FabAEND 10 du 201 14300130) list immediately at the start of recording, but ES appears a few minutes after recording starts ma FeS0 26% 012008)

Up to 500 programmes can be displayed in the recording list.

+ Ifthe channel settings are changed, the digital channel number, or other information may not appear correctiy in the recording

CONTROLS AND FEATURES Press A or Y to select the title you want to view. A preview of the content selected can be seen on the preview screen.

To change the orderinwhichthe titles arelisted, press the BLUE button.

Press OK. Viewing starts.

@ icon appears next to the title currently being recorded.

When the title currently being recorded is selected and OK is pressed, playback will start from the beginning ofthe programme currently being recorded.

Operations during viewing

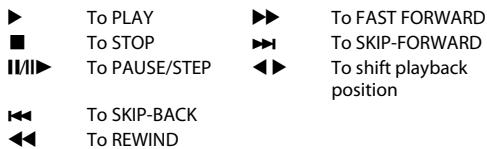

The following operations can be performed using the remote control buttons.

> ToPLAY D» To FAST FORWARD

= To STOP wi ToSKIP-FORWARD IA TOPAUSE/STEP 4 Toshift playback position

4 ToREWIND Operations from the Library screen

Aswellas viewingthe listofrecordedtitles on the Library screen, you can protect or delete titles and register titles to Personal Mode.

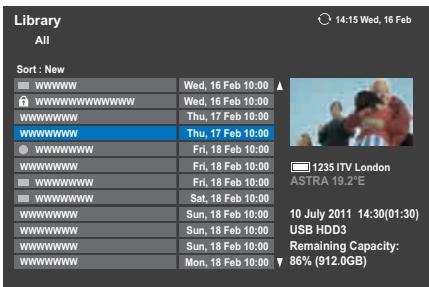

To display the Library screen:

Press MENU / 43 / A / 4 to highlight TV Programmes / Library icons and press OK. The Library screen will appear.

To protect or unprotect a recorded programme:

Protecting a programme prevents it from being accidentally deleted.

Select the title ofthe programme you want to protect and press the GREEN button. f icon appears nextto the title and the programme is protected.

K Protect is set to On when the programme is recorded,

à icon appears next to the title of the recorded programme. When atitle with @ icon is selected and the GREEN button is pressed, @ icon disappears and the programme is unprotected.

To delete a recorded programme:

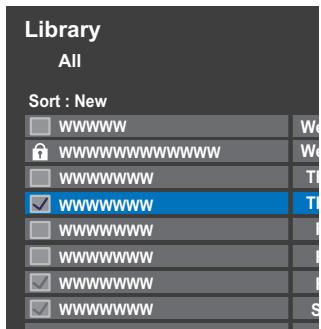

Press the RED button. Check boxes will appearnextto the titles.

‘To uncheck all the check boxes, press the BLUE button. NOTE:

+ A check mark will not be inserted against protected titles.

+ Note that once deleted, a title cannot be restored. Press the RED button.

Select Yes in the confirmation window and press OK. Allthe titles with check marks will be deleted,

CONTROLS AND FEATURES USB HDD capacity

You can check the remaining capacity of the USB HDD using Rem:

Sum 10 Ji 2011 14: Sum 1000) USB HDD3

Sun 101028 Remaiming Capa on 1 Fe 1028 4 86%

NOTE: The remaining capacity displayed is only a gui not guaranteed.

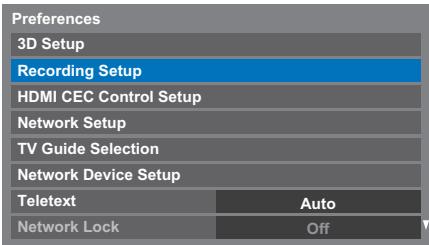

You can set your preferences for recording. To select USB HDD and Partition for Recording:

@ press À or Y to select Select Device and press OK. USB HDD and Partition list will be appear. IFUSB HDD is partitioned by PC, several partitions will be displayed.

@ press MENU/ 4» to highlight Setup icon.

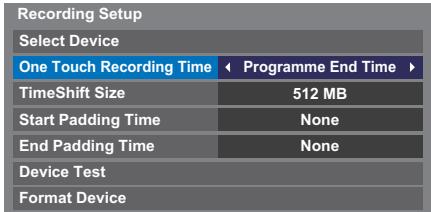

Recording Setup Select Device

You can set the Programme End Time in 30-minute increments in the range of 30 minutes to 360 minutes.

To select the TimeShift Size:

@ ntherecordingSetup screen, press À or Y to select TimeSift Size.

To use TimeShift recording:

Time Shift recording allows you to pause live TV for a fixed period of time.

For Example:Ifyou move away from the TV for a short period, such as when the phone rings while you are watching TV, you can easily pause live TV and then continue to view from the same point in the programme when you return.

@ s51U1à on the remote control while viewingthe DTV programme. The screen will switch to a st will start automatically. The recording time is decided by TimeShift Size. 1f the TimeShifefle size reachesthe limitset then the TV will continue to be paused, but the recording buffer will be reset to the beginning.

CONTROLS AND FEATURES

o To set the padding time for programmed ÉD recording start time and end time:

Inthe Recording Setup screen, press A or Y to select Start Padding Time.

Press Cor to select a time.

You can select from None, 3 minutes, 5 minutes, 10 minutes, 15 minutes, 30 minutes, and 45 minutes.

Recording will start at the selected number of minutes prior to the recording start time.

Press A or Y to select End Padding Time.

Press 4orb to select a time.

You can select from None, 3 minutes, 5 minutes, 10 minutes, 15 minutes, 30 minutes, and 45 minutes. Recording will end at the recording end time plus the selected number of minutes.

To perform a USB HDD operation test:

Inthe Recording Setup screen, press A or Y to select Device Test and press OK.

USB HDD operation test will start. Wait until the test ends,

NOTE: The results of the device test are only a guide. The device may not function as shown in the results.

To format a USB HDD:

Inthe Recording Setup screen, press A or Y to select Format Device and press OK.

+ Ifthe USB HDD is separated several partitions by PC and multiple Partition appear on the Device List screen, press À or Y to select the Partition you want to format.

+ When the USB HDD {or Partition) is formatted, all the data stored on the USB HDD (or Partition) will be deleted!

Hscheduled time slots are next to each other and there is

more than one minute between the end time of the first

schedule and the start time of the next schedule,

programmed recording will be performed correctiy.

+ When Start Padding Time and End Padding Time are set (see page 56), the start time and end time will be the time plus the additional minutes.

Hscheduling times overlap, priority will be given to the programmed recording which starts first. When the programmed recording that started first ends, recording will switch to the next scheduled programme. At this time, depending on how far the scheduling times overlap, the beginning section ofthe next scheduled programme may not be recorded!

+ When End Padding Time is set for the first programmed recording (see page 56), depending on how far the scheduling times overlap, the End Padding Time may be ignored and recording of the next scheduled programme may start. As priority is given to the time set in the Set Timer menu over the Padding Time, recording will automatically be triggered when the next scheduled programme start time is reached during End Padding Time.

CONTROLS AND FEATURES Using Toshiba Places

Discover new, exciting possibilities with Toshiba Smart TV - because just watching television is a thing of the past!

TV used to be: sit down, relax and watch television. Toshiba Smart TV today is: sit down, relax, watch television and much, much more! Enjoy new possibilities, such as surfing the Web, chatting, browsing social networks, photo communities, video portals, news, sports results... the possibilities are almost endless and are increasing allthe time.

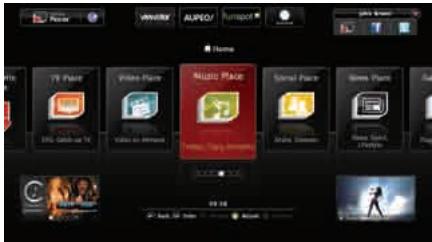

Stay entertained and informed with Toshiba Places.

In order to make it as simple as possible to access a wide variety of new content as simple as possible, we created Toshiba Places. This is a portal for music, video and more on your Toshiba Smart TV. Experience plenty of interactive applications and transform your television into a true multimedia centre! You can access a wealth of attractive services right now. But we don't stand still - more interesting and up-to-date services are added all the time!

NOTE: You need to configure a home network before using this feature (see page 12).

@ press Jonthe remote control, orpress MENU / 4} tohighlight Toshiba Places icon and press OK.

@ press AY4D to select the desired place and press ok.

NOTE: + Some features require an always-on broadband internet connection, firmware update and/or additional bandwidth dedicated to this product, Third party internet services may change orbe discontinued or restricted at any time. Toshiba makes no warranties, representations, or assurances about the content, availability or functionality of third-party content or services. Use of third party internet services may require registration by a computer and/or payment of charges and membership. Not al services or content may be available on this product, in your country or with your language. In order to experience the full capabilities of this product, fully compatible devices may be required. For more information, visit http/Amwwtoshibaplaces.com/about

This service may be forcibly blocked according to the situation of CSP service.

CONTROLS AND FEATURES Using Web Browser

The web browser on this TV lets you explore everything the web has to offer. Along with access to popular places, you'llbe able to search for and browse your favorite sites.

+ Certain services may not be currently available in your area.

+ Your registration or login may be required to use some services.

+ Third party internet services are not provided by Toshiba, may change or be discontinued at any time and may be subject to Internet service provider restrictions. Toshiba makes no warranties, representations, or assurances about the content, availability or functionality of third-party content or services. Use ofthird party Internet services may require the creation of a separate account through a computer with Internet access and/or payment of one-time and/or recurring charges and membership.

Not all third party services may be available on or compatible with this product. In orderto experience the full suggested capabilities of this product, fully-compatible devices may be required.

+ does not support platform-dependent technologies such

only supports preinstalled plug-ins.

+ may not support media formats other than the following: JPEG/PNG/GIF.

- uses asingle built-in font. Some text may not be displayed

does not support downloading of files or fonts.

= is a TV browser. it may work differently than PC browsers.

does not support parental control or locks, and it is the responsibility ofthe you to monitor browser usage by minors.

- In addition, some web pages may exceed the memory allotment ofthe web browser. The web browser will close when this happens.

+ Some pages may not be displayed correctly or may display differentiy on different devices. + Certain services may not be available in your area.

To use the web browser

@ press Jonthe remote control, orpress MENU/ 4 > to highlight Toshiba Places icon and press OK.

@ press AY4 to select Browser icon and press OK, and Home page URL will open.

® snterthe desired URL address by usingthe A4 buttons of remote control.

Press BLUE button on the remote control.

@ voucannowbrowse websites on your TV using AV4 > buttons on the remote control

Skype-ready Toshiba TVs bring your family and friends closer to your home. Skype on your Toshiba TV allows you to share special moments no matter the distance.

Before using Skype - Preparation

+ Connect the FREETALK HD Camera: TALK-7291 to the TV USB terminal. Do not use a USB hub.

For a Skype-ready Toshiba TV compatible camera, please visit the following website: www.freetalk.me/toshiba/TALK- An

Arrange the HD camera on top ofthe TV, ensuring its inthe center.

Connect to the network.

+ The HD camera is sold separately.

+ Do not connect a camera other than the recommended HD camera

+ Using a wireless network may result in degraded call

Some of the features available on other versions of Skype

are not available on the television.

When using Skype, some functions ofthe TV will not be available.

+ The sound settings are switched to Skype mode.

Skype is usable on the TV speakers only.

+ Ifyou cannot hearthe person you're speaking with, check

When Optical Digital output or Analog output is used and

you are signed in, the ring tone may not sound.

The volume level on Skype may differ from other features

When the Reset TV feature is used from the TV Menu, Skype

information is reset to factory default settings.

+ Screenshots used in this manual may differ from the TV Menu, Skype will be reset to its factory default settings.

No emergency calls with Skype Skype cannot be used for emergency call.

CONTROLS AND FEATURES Getting started

@ press AJ onthe remote control or press MENU / 4» tohighlight Toshiba Places icon and press OK.

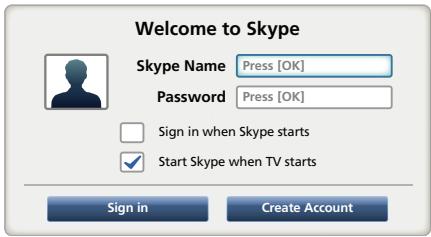

“Welcome to Skype” screen appears

(start Siype when TV stars

Password [Press [OK]

@_ select Signin or Create Account.

To create a new account:

you do not already have a Skype account, you can create à new one from your TV.

@ sciect create Account in the Welcome to Skype screen and press OK.

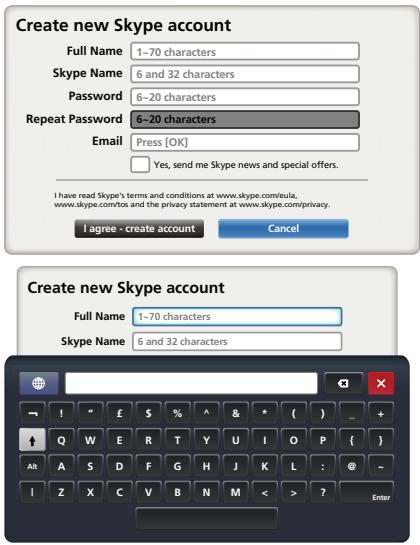

Create new Skype account rame

@ enter your Full Name, Skype Name, Password, Repeat password, and Email

+ Ifyouwantto receive Skype news and special offers, check the selection box. Skype will inform users about new products, features and special offers by email

@ seiect'l agree - create an account” and press OK.

+ Please ensure that you have entered your email address correctiy. I is required in case you lose or forget your password.

+ Hfyou forget your password, visit skype.com to retrieve it.

+ Ifa message appears informing you that the entered Skype name is already registered, please choose a different name.

To Sign into Skype: you have a Skype account, sign into Skype in the Welcome

@ snter your Skype Name and Password.

+ If"Sign in when Skype starts’ is checked, your account will sign in automatically when you launch Skype from the menu

+ If"Start Skype when TV starts”is checked, your accountwill sign in automatically when you turn on the TV.

Both these options can be selected together.

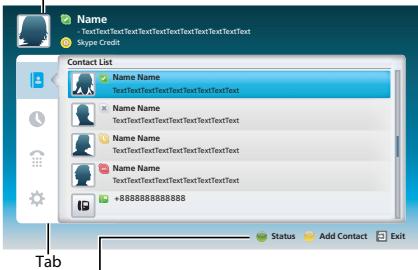

Press A or Y to select a tab | Contact List, History, Di Options). Press/AV to select a contact from the list.

L D © status: Change your avalabiity status

©. Add Contact Add a Skype account or phone number EXT: Return to previous screen. When at contacts, the EXIT button wil lose Skype application without sign out

The current status for each of your contacts are explained below

Lovin Sa x : Offline {Phone number

S CONTROLS AND FEATURES Contact List [F}

Press A or Y to select ContactList tab. Press b/ A W to select a contact.

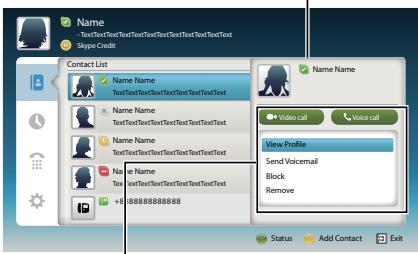

When pressing OK at each contact, the following functions will be displayed:

No blocked contactor

View Profile View contact proflle (including Skype name, full name, birth date, gender location, mobile number and email)

Send Voicemal_ - Send Voicemal to contact

Block Block/unblack contact

Remove Remove contact from list

Press AV to select Video call or Voice call, your screen will now display your call as shown below.

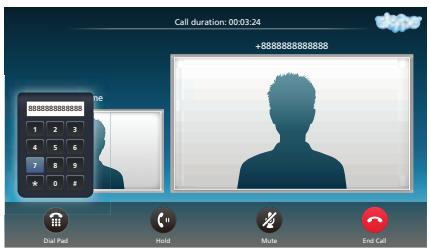

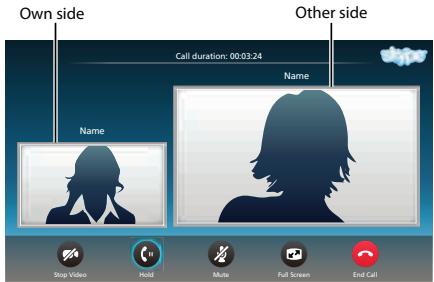

Below is al icon pictures in conversation window.

Stop video Hold the call

Using your Toshiba TV, you can join Skype group voice and video calls. However, you can only send and receive audio whilst on these calls.

NOTE: You must be invited on to a group call, you cannot initiate it from the TV.

Incoming calls on Skype will be displayed on the bottom right hand corner of your TV screen. You'l also hear a ring tone which can be adjusted using the VOLUME buttons on your remote control.

You are given three options when an incoming call arrives: + Video _: Answer by video call.

+ Voice _:Answrer by voice call.

+ Decline : Decline the incoming call.

NOTE: Fother applications are active or recording, you'll only get an "Incoming call notification" until the application or recording has stopped.

CONTROLS AND FEATURES Status

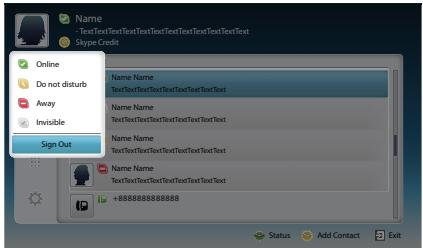

When pressing the GREEN button, the change status window is displayed as below. You can change your status by pressing the A or Y button and then pressing OK. Exit by pressing the BACK button.

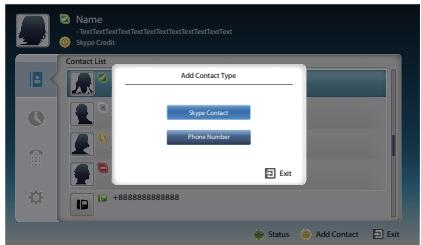

Add Contact You can add contacts to your contact list. When you press the YELLOW button on the remote control,

the Add Contact Type menu window will appear on the screen.

Two sub-functions are supported. Press A or Y button to select Skype Contact or Phone Number and press OK. + Skype Contact

Enterthe Skype Name ofthe person you're looking for. The

search result will show up after get response from Skype server.

+ Phone Number You can also enter a phone number in the search window.

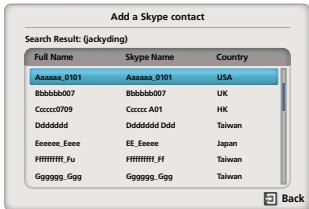

Contact Search Results

You can send a contact request to a person displayed in the search results. Press À or Y button to select a person and press OK.

ication of authorization request

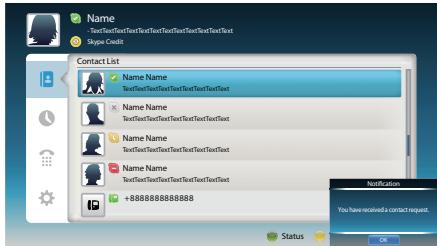

When you receive a contact request, a pop-up menu will appear where you can choose to Accept, Block or Decline the request.

Press A or Y button to select and press OK.

Hello Pease add me to your Contacts.

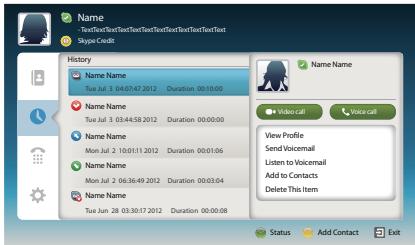

You can see a list of past events in “History”.

Press A or Y to select the History tab. Pressb/A to select an item and press OK.

Press 4orb to select Video call or Voice call.

CONTROLS AND FEATURES Each call has an icon with it. The meaning of each icon is as follows:

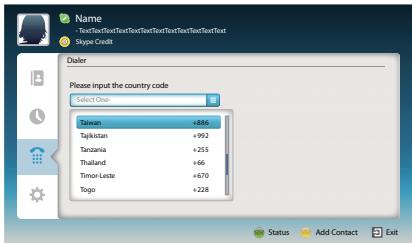

You can call mobiles and landlines from this screen.

Press À or Y to select the Dialer tab. Pressb/A to navigate

Selectthe country or region first, and then enter the phone number with area code. You need a little Skype Credit in your account to call mobiles or landlines using Skype. Emergency calls over Skype are not supported,

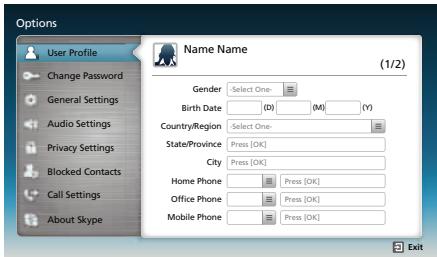

Options Lf Press A or Y to select the Options tab and press OK. The Options page will appear.

PLUS You can change the following settings:

+ User Profile Add or change your personal information e.g. birth date, country/region or phone number.

+ Change Password You can change your password by entering your existing password and new password twice.

+ General Settings Select whether Skype should automatically start when tuming on the TV.

+ Audio Settings Adjust the speaker / ringtone volume manually.

The volume of your speakers will be different on Skype compared to your normal TV volume level. The speaker volume range is 0 - 100% by 1 steps, and ringtone volume is 0-100% by 25 steps.

Set who you allow calls from, whether it's Anyone or People

in my Contact list only.

Hyou do not want someone to reach you, simply block them by entering their Skype Name or phone number from this menu. Successfully blocked contacts are displayed in this window.

Call Settings Hyou're not signed into Skype, you can forward incoming calls to another phone number or choose to accept voice messages. However you'll need to have Skype Credit to turn this feature on.

About Skype Displays information about Skype.

CONTROLS AND FEATURES Using Hybrid TV Standard (if available)

Hybrid TV Standard enables the TV to receive HbbTV services. TV services which support this feature often show “press RED” on the screen.

NOTE: You need to configure a home network before using this feature (see page 12).

Press MENU / B to highlight Setup icon.

Press A / @B to highlight Preferences icon and press OK.

Press Y to select Hybrid TV Standard.

Press orb to change from Disabled to Enabled.

When changing from Disabled to Enabled, a Network Connection Test is performed. Ifthe result isOK, then the setting changes to Enabled.Ifnot, the setting remains Disabled.

When “press RED” is indicated on the screen, press the RED button to access HbbTV service site, andthen press AVR to select the desired contents.

+ This service is not available outside Germany.

+ The HbbTV service indication or required key operations may not be possible depending on the service contents. In ‘his case set the Hybrid TV Standard setting to Disabled.

+ Toshiba makes no warranties, representations, or assurances about the content.

Using Intel® Wireless Display

Intel® Wireless Display (Intel® Wii) is supported on this TV. You can use your TV as second display for PC with Intel® Wireless Display.

A prompt will appear on the screen. Select Ves.

Intel” \WiDi device name and ID list will then be displayed on the PC screen. Selectthe TV which you wish to connect to.

“Connecting” will be shown on the TV.

When selecting the Toshiba TV for the first time, à 4- digit code will appear on your TV screen. This code needs to be inputted into your computer to authenticate the connection.

Ifauthentication has already taken place

"Connected to Intel® Wireless Display. Please Wait” will appear on screen.

@ terthe Intel® WiDi connection is complete, the TV screen will mirror the content shown on the PC screen.

+ When connecting Intel® WiDi, PC must have power tumed on

+ When the Intel” WiDi software is active, other applications may not be usable

+ Intel® WiDi device name ofthe TV can be changed from the Intel® WiDi software.

CONTROLS AND FEATURES To exit Intel® Wireless Displ

Exit Intel® Wireless Display by pushing the disconnect button on Intel® WiDi software or by pressing EXIT on the TV remote control.

NOTE: Ifthe PC has been inactive for some time, the Intel® WiDi connection will be disconnected automatically.

Intel® Wireless Display Device Name The TV Intel® Wireless Display device name can be changed.

@ nine Preferences menu, press A or Y to select Network Device Setup and press OK.

@_ nputthe Intel Wireless Display device name by using the software keyboard (see page 48). Press the BLUE button:

PC List displays a lis of MAC addresses for previously connected PCthat have been connectedbefore. Themaximum number that can be stored is 20.

I the list run out of space, the least-recentiy-used MAC

address will be deleted and the new MAC address added automatically.

@ theintel® Wireless Display Setup screen, highlight the PC List and press OK. PC List will appear.

Theregistered PC can be deleted one by one by pressing RED key in the List.

When doing so the following text can be seen “Do you want to unregister this PC? Ves/No” (default cursor is No”)

Using the Media Player

This TV allows you to enjoy movie, music and photo files stored on a USB device connected to the USB port.

Moreover, you can also play photos, movies or music files from your PC by connecting the TV to your home network.

DMC: DLNA CERTIFIED" Controller

+ DMP:The TV can control and play content from a DMS.

- A DMS is a device that can function as a server for DMP or DMR.

+ DMR:The TV can play content from a DMS. Playback is controlled by a DMC.

- A DMC is a device that can instruct the TV to display content.

NOTE: + Do not insert/remove USB device while in use.

+ MENU is not available during playback.

+ When you want to use your TVas a DMR, set Media Renderer

to On (see “Media Renderer” on page 50). Media Player Specifications Device

Interface version: USB2.0 HS USB Mass Storage Class devices (MSC)

NOTE: + Connectivity is not guaranteed for all devices.

+ incorrect behaviour may occur with a USB hub connection.

File system: FAT16 and FAT32 Maximum memory size: Unlimited DLNA CERTIFIED" Server: Your PC (for example)

You must obtain any required permission from copyright owners to download or use copyrighted content. TOSHIBA cannot and does not grant such permission.

CONTROLS AND FEATURES Basic operation

Using Media Player with USB When Auto Start is enabled, you will be asked if you want to start the Media Player whenever a USB device is inserted. If Auto Start is disabled (or if you want to connect to a DMS on the network), you must manually start the Media Player from the menu.

To change the Auto Start setting:

Press MENU / B to highlight Media Player icon.

Press A / @B to highlight USB Media Player and press OK.

Press À or Y to select USB Auto Start and press 4or D to select On or Off.

Insert USB device into the USB socket on the left side ofthe TV. A prompt will appear.

Press orb to select Yes and press OK.

Press À or Y to select Photo, Movie, or Music and press OK.

Select the connected USB device and press OK.

Multi View will appear.

NOTE: f Auto Start is set to Off, you can start the Media Player manual.

Insert USB device into the USB socket on the left side ofthe TV.

Press MENU / B to highlight Media Player icon.

Press A / @B to highlight USB Media Player and press OK.

Press À or Y to select Photo, Moi press OK.

Select the connected USB device and press OK.

Files are displayed in the Multi View according to the type first selected (Photo, Movie or Music)

:g. If you first selected Photo, only Photo files will be displayed.

To select a file in the Multi View:

Press AY 4} to select a file or folder.

Press OK to move to the next layer, or press BACK to return to the previous layer. NOTE: You can also return to the previous layer by selecting

the icon at the top left ofthe Multi View screen and pressing ok.

To close the Media Player:

Using the Media Player with a DLNA CERTIFIED" Server

You need to configure a home network before using this feature (see page 12).

Press A / €} to highlight Network Medi and press OK.

Selectthe server you want to use and press OK.

To select a file in the Multi View:

Press AY € to select a file or folder.

Press OK to move to the next layer, or press BACK to return to the previous layer.

NOTE: You can also return to the previous layer by selecting

the icon at the top left ofthe Multi View screen and pressing ok.

To close the Media Player:

CONTROLS AND FEATURES Viewing photo files (on a DLNA CERTIFIED" Server or USB device)

There are three types ofviewing modes.

Multi View (USB Photo)

This view allows you to search for photos in a grid format. The pictures are displayed using thumbnail data in each image file.

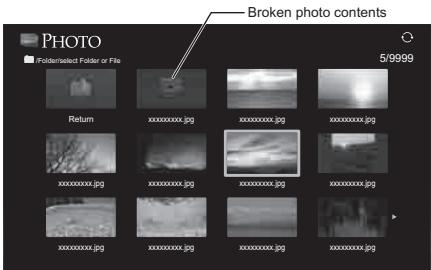

Broken photo contents

= PHOTO The initial highlighted position will be on the top left thumbnail in the Multi View.

Press À W 4 to move thehighlight in one window. Hall ofthe photos will not it in one screen, when pressing 4at the top left thumbnail, the screen will move to the previous page. Conversely, when pressing B at the bottom right thumbnail, the screen will move to the next page.

PA {or /A)PV (or 3/Y) buttons can be used to page up/down the Multi View when there are more photos than wil fit onto one screen. When the PA (or &/AÀ) PV (or D/Y) buttons are pressed, the highlight shall be on the photo at the top left of Previous/Next Multi View.

NOTE: The page down function on the last page and page up function on the first page are not available.

When you select a folder, press OK to move to the next layer. Press BACK to move back to the previous layer.

Press OK to view the selected photo in Single View mode.

Single View Inthis mode, only files located in the selected directory will be displayed. This view allows you to change the photo content manually. When moving from Multi View to Single View the currently selected photo will be displayed.

Press to view the next photo. Press 4to vieurthe previous photo.

Press A to rotate the image 90° clockwise. Press W to rotate the image 90° counterclockwise.

Press (FE) to display file status information (file number, photo title, resolution etc.)

NOTE: + The information may not be correctiy displayed depending on the contents, DMC or DMS.

+ You can not rotate in 3D (2D to 3D) mode.

This view allows you to watch a slide show of your photos. In this mode, only files located in the selected directory will be played.

NOTE: Pressing À or Y while in the Slide Show mode will stop the slideshow and rotate the photo.

To start slide show, press OK in the Single View mode. Press Æorb to view the previous/next photo.

Press (FE) to display file status information.

To set Interval Time and Repeat settings:

NOTE: When in the DMS and Multi View modes, this feature cannot be used.

Press QUICK to open the Quick Menu. Press À or Y to select either Interval Time or Repeat.

Press Æorb to adjust the setting and press OK.

CONTROLS AND FEATURES To set Background Music (USB only):

The music file in the same folder as the displayed photo will start playing.

NOTE: + When the music file repeat mode is set to AI (see page 71), allthe music files in the same folder as the photo will be

played repeatedly. + To stop music file playback, select Off in Background Music.

To zoom in/out photos:

During the Single View mode or Slide Show mode, the zoom function can be used.

RED button (Zoom in) USB: x1 — x2 — x4 —+ x8 z00m DMP:x1/8 — x1/4 —+ x1/2 —+ x1 —+ x2 —+ xd —+ xB200m GREEN button (Zoom out) USB: xB —+ x4 — x2 —+ x1 zoom DMP:x8 — x4 — x2 — x1 — x1/2 — x1/4 — x1/8200m BACK button: Normal playback A Y > buttons: Vertical or Horizontal scrolling

NOTE: Using the zoom function while in the Slide Show mode will stop the slideshow and zoom in/out the photo.

Selecting the Playback Mode (USB only)

You can view 3D photos in 3D and you can also view 2D photos in 3D.

Selectthe playback mode from the Quick Menu or switch playback modes using the 3D button on the remote control.

The current Playback Mode is displayed at the top left ofthe list mode.

To select the playback mode from the Quick Menu:

2D Mode All photos are displayed in 2D.

3D Mode 1 3D photos are displayed in 3D and 2D photos in 2D.

3D Mode 2 All photos are displayed in 3D.

2D photos are converted and displayed in 3D, and 3D photos are displayed in 3D.

To switch playback modes usingthe remote control: @ press 3D while in Single View mode.

‘The mode switches between 2D Mode, 3D Mode 1 and 3D Mode 2 each time 3D is pressed.

To select a photo from Play Lis

While in the Single View mode or Slide Show mode, you can select a different photo from the Play List.

@ pes Quick to open the Quick Menu from Single View mode or Slide Show mode.

To close the Photo Viewer:

O pressEXT.Thetelevisionvillretumtothelast viewed channel or external input.

CONTROLS AND FEATURES Viewing movie files (on a DLNA CERTIFIED"" Server or USB device)

»w of available files.

You can select movies from a Mul Multi View (USB Movie)

MOVIE Press À Y 4 to selectafile or folder. PA (or &/A) PV (or 3/5) buttons can be used to page up/down the Multi View when there are more files than will fit onto one screen.

NOTE: The page down function on the last page and page up function on the first page are not available.

When you select a folder, press OK to move to the next layer. Press BACK to move back to the previous layer.

With the desired file selected, press OK or B- (play) to start playback.

NOTE: + On preview screen, if you highlight the file without pressing OK, the content is played on a preview screen. When OKis pressed,itis played in full screen

Depending on the file size, it may take some time to start playback.

NOTE: + playback finishes before M is pressed, the screen will return to the Multi View.

Press M to stop playback.

+ Depending on the file size, it may take some time for playback to begin.

+ Press II to pause.

PAUSE may not be available depending on the contents, DMC or DMS.

+ To resume normal playback, press = (play). To play in fast reverse or fast forward directions, press 44 or during playback. Each time you pressthe 44orb, the playback speed will change.

To locate a specific file, press éd or mi repeatediy.

to display the ile status information (content number, movie title, progress time etc).

NOTE: - The information may not be correctiy displayed depending on the contents, DMC or DMS.

+ During playback, you can adjust the Picture and Sound menu functions from the Quick Menu.

+ The playback speed (44/23) may not change depending on the stream.

To select subtitle and audio languages (USB only):

+ Press SUBTITLE repeatedly to select your preferred subtitle language.

+ Press DI/I repeatedly to select your preferred audio language.

NOTE: This feature is not available depending on the contents.

To set the repeat mode:

Press QUICK to open the Quick Menu.

Press Cork to select Off, All or 1.

Mode Description off “The file is played back only once. AI Files in the same folder are repeatedly played back. 1 The same file is repeatedly played back. © pressBack

NOTE: When in the DMS and Mul cannot be used.

sw modes, this feature

CONTROLS AND FEATURES Resume Play (USB only) To register your TV to a DivX® account:

You can resume playback from where it was last stopped. This TVallows you to play back files purchased or rented from DivX Video-On Demand (VOD) services. When you purchase or rent DivX? VOD files on the internet, you will be asked to enter a registration code.

Press M while playing the movie to memorize the stopped position.

On the Multi View screen, if you select a movie whose stopped position hasbeenmemorized,themessage"Resume {D Play?" will appear. Select Yes to resume playback from the last

NOTE: If you play different content or exit Media Player, the @} memorized stopped position will be deleted.

In the Media Player Setup menu, press À or Y to display DivX® VOD and press OK.

Press A or Y to highlight and press OK.

ivX° VOD Registration

To select a movie from Play List:

Divxe VOD While playing a movie, you can select a different movie from DivX® VOD Registration the Play List. DivX® VOD Deregistration

@ press QUICK to open the Quick Menu © me ivx VOD window will appear and you will see @ pes A 07 to select Play List and press OK the registration code. For details on registration, please visit the DivX® website at

The Movie List will appear. http://vod dix.com

en iton the TV. To close the Movie Viewer:

OO pssexrr. To deregistration your device:

. @ à step 2 above, highlight Divx voD File Compatibility Deregistration, and then press OK.

See page 92. @ a confirmation message will appear. Select Yes and press OK

@ re Divx: VOD window will appear and you will see the deregistration code. For details on registration, please visit the DivX® website at

ABOUT DIVX VIDEO: DivX! is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified” device that plays DivX video. Visit divx.com for more information and software tools to convert yourfiles into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on- Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

DivX Certified® to play DivX® and DivX Plus® HD (H.264/MKV) video up to 1080p HD including premium content.

CONTROLS AND FEATURES To playback DivX Plus HD content:

+ To play in fast reverse or fast forward directions, press 44 or during playback. Each time you pressthe €4orb, the playback speed will change.

+ This TV generates original chapter point in 10% increments for 10 chapters in total, that are accessible by using the Number buttons on the remote control.

During playback, pressæito skip to the beginning ofthe next chapter. When bis pressed twice in succession, it will repeat two times of above. fl is pressed at the last chapter, playback will skip to the beginning of the next content. Press Hé to skip to the beginning of the current chapter. When His pressed twice in succession, it will skip to the beginning of the previous chapter. fais pressed twice in succession at the first capter, stop playing the current content and skip to the beginning of the previous content.

The Number button is used for direct jump. If the 3 button is pressed, playback will jump to the beginning of 3rd chapter. Even ifthe playback content has authored chapters, the Number button is used to jump directly to Auto Generated Chapter.

the content has Authored Chapters, Hk/ pare using for Authored Chapters.

NOTE: + Depending on the content data will not be operated.

+ The playback speed (44/23) may not change depending on the stream.

Using Multi Title and Alternative Timelines Multi Title

DivX Plus HD files may contain up to 100 titles.

You can change the title [it contains same video file) by pressing the RED button.

When the RED button is pressed, it will display the title change window atthe bottom onthe screen (same as Subtitle or Audio change window).

The title is changed cyclically each time the RED button is pressed. Playback will start from start time of selected title every A or Y.

NOTE: Depending on the content data will not be operated.

Playing music files (on a DLNA CERTIFIED" Server or USB device)

You can listen to music from a Multi View of available files.

Multi View (USB Music)

Press À Y 4 to select a file or folder. PA (or €/A) PV (or >/Y) buttons can be used to page up/down the Multi View when there are more files than will fit onto one screen.

NOTE: The page down function on the last page and page up function on the first page are not available.

When you select a folder, press OK to move to the next layer. Press BACK to move back to the previous layer.

With the desired file selected, press OK or (play) to start playback.

NOTE: f you highlight the file without pressing OK, the content is played on a Multi View. When OK is pressed, i is played in full screen mode.

+ Depending on the file size, it may take some time for playback to begin.

+ During playback you can adjustthe Sound menu functions from the Quick Menu:

Press M to stop playback

+ PressIlAlD> to pause.

+ To resume normal playback, press = (play). PAUSE may not be available depending on the contents, DMC or DMS.

+ To play in fast reverse or fast forward directions, press 44 orbb. Each time you press @orbb the playback speed will change.

CONTROLS AND FEATURES To set the repeat mode:

Press QUICK to open the Quick Menu: Press À or Y to select Repeat.

Press or to select Off, All or 1

off Files in the same folder are played back once.

Al Files in the same folder are repeatedly played back.

1 The same file is repeatedy played back.

NOTE: When the TV is used as a DMR, this feature cannot be used.

To select a music file from Play List:

While playing a music file, you can select a different music file from the Play List.

Press QUICK to open the Quick Menu.

Press À or Y to select Play List and press OK.

The Music List will appear.

Press A or Y to select a file name.

To display the file status information:

during playback. The information will be n the bottom of the screen.

again to remove the information.

NOTE: The information may not be correctly displayed depending on the contents or DMS.

Panel Lock disables the buttons on the television. All buttons on the remote control can still be used.

Press MENU / 4h to highlight Setup icon.

Press A / 4h to highlight Preferences icon and press OK.

Press A or Y to select Panel Lock.

When Panel Lock is On, a reminder will appear when the buttons on the television are pressed. Ifthe standby button pressed, the television will switch off and can only be brought out of standby by using the remote control.

CONTROLS AND FEATURES The timers

Programme Timers - digital only

This feature will set the television to go to a specific channel at a

certain time. can be usedto view a particular programme, or by

setting the mode to daily or weekly, can be used to view a series ofprogrammes.

OO Press MENU/ 4 tohighlight TV Programmes icon.

@ press À and Y to go through the list addingthe details ofthe programme by using the number buttons and and B to make selections.

Edit Timer Timer Type «

Rocordimg TE 30 CAB Channel Date Tue, 26 Apr 2011

@_ when al ofthe details have been entered, highlight Set Timer and press OK to save the timer.

The ORANGE programme timer indicator on the front ofthe television will be lit (see page 89 for det:

On Timer The feature allows you to setthe television to turn on automatically to apresetchannelat a certain time ofday or after a certain length oftime. @ press MENU/ 43 to highlight Function icon.

@ press V toselect Enable DTV Clock, andthen press 4 or to select On or Off.

Power On Time (only for DTV Clock On mode}: Set the time you prefer with the number buttons. Repeat (only for DTV Clock On mode): Select the desired On Timer operation (Once, Every Day, Mon- Mon-Sat, Sat-Sun).

Input: Select a video input source (ATV, DTV Ant, EXT 1, EXT 2, HDMI 1, HDMI 2, HDMI 3, HDMI 4 or PC). Channel: Set the channel that will betuned when the television turns on.

NOTE: When an external input is selected inthe Input field, a channel cannot be selected.

Volume: Set the volume that will be applied when the television turns on.

Time until Power On (only for DTV Clock Off mode): Setthe amount oftimefromnowuntiltheTVturns on using the number buttons (maximum of 12 hours).

In the On Timer menu, select Enable On Press orb to select Off. Press A or Y to highlight Done and press OK.

Thetelevision can be settoturn itself Off after a certain length of

Use the number buttons to set the desired time. For example, to switch the television offin one and a half hours enter 01:30, or press / Atoincrease/decrease in steps of 10 minutes. (Maximum time setting is 12 hours)

Press EXIT to finish.

To cancel the Sleep Timer, enter all zeros for the above setting.

Energy Saving Settings

Automatic Power Down The TV will automatically turn itself off (standby) after 4 hours, if you do not operate the TV either from the remote control or the TV control panel.

Press MENU / B to highlight Setup icon.

Press A / €} to highlight Preferences icon and press OK.

Press A or Y to select Energy Saving Settings and press OK.

Press À or to select Automatic Power Down.

Press Corb to select On or Off.

This feature is set to On when Location is set to Home.

1 minute before switching to standby, a Warning message will appear.

When the following features are set, the feature that is set forthe nearest time will function.

Automatic Power Down Sleep Timer

Auto shutdown after 1 hour of inactivity (after power on by On Timer)

No signal auto power off (after 15 minute of no signal)

No Signal Power Down

TheTVwillautomatically tum itselfoffafter 15 minutes when no signal is detected. You can change the setting to Off for the following purposes:

+ Low signal strength of analog channel (no signal detection)

+ Only Audio L/R is connected to external input to listen to music through the TV speakers.

Inthe Energy Saving Settings menu, press À or to select No Signal Power Down and press OK.

+ Default setting is all On.

+ Awarning message will appear 1 minute before turning off.

CONTROLS AND FEATURES English

Digital on-screen information

information and programme guide provide access to programme details for all available channels.

To display More Information:

On-screen Information icons

Press QUICK to open the Q Press Y to hig

ight More Information and press OK.

Information Icon Description Press the information screen will appear giving Service info = E Service type details ofthe channel and programme currently {TV, Radio, Text) being viewed. Skip is Audio info Mono ER mean Stereo Dual mono Muhtichannel CEE Dolby Digital a vou» on pen Lower 00-02] Dolby Digital+ D GE AD mi When HEAACIS AD Audio Description Cane Does Audio/Subtitle 51 For Hard of Hearing RE CE info Recording info @REC Recording + Service Press À or to select the “Now”, "Next" or “Also” info information guide. 3D info En) 3D-»2D The selected information content will appear. Event info HD,SD [Video format (HD, SD) To record the next scheduled programme, select à Video Aspect Next and press OK. The Edit Timer screen will appear. Teletext E3 © [Subtitle (Single Mu EdiTimer 0:80 Tue, 26 Apr dat Audio track T2 CAB Channal {Mono, Muti) 11:30 12:30 Tue, 26 Apr D4-18 Parental rating imac Type Cat mi Encrypted Timerinfo ® Recording Sat Timor V Reminder

The details ofthe programme will already have been added tothe timer. Highlight Set Timer and press OK to save

To indicate that a Recording Timer has been set, a clock icon will be displayed in the Next fields ofthe information screen. À check mark will appear ifthe timer is a Reminder Timer.

CONTROLS AND FEATURES Using EPG (Electronic Programme Guide)

You can choose the desired EPG system between the Broadcast Guide or MediaGuide that needs a internet connection.

Using Broadcast Guide

Make sure you selected Broadcast Guide in the Guide Type

menu ofInitial Setup (see page 24. This setup can also be done

from the Setup / System Setup / Quick Setup menu or Setup 1 Preferences / Guide Type menu any time.

Select the on-screen Guide by pressing GUIDE, and the Guide screen will appear highlighting details of the channel and programme currently being viewed. This may take a few moments to appear.

You can switch the time scale to 1.5 or 3 hours by pressing the GREEN button.

Press orb for information on other programmes scheduled for the channel selected. To highlight the first programme in the genre grid, press the RED button,

For details of other programmes currently available, press and Y to scroll up and down the channel list As channels are selected, details ofthe programme currently being broadcast will appear. Press Æorb to view information for future programmes.

For information on a highlighted programme, press

To setthe timer for that programme, press the BLUE button to bring up the Programme Timers menu.

Press PV to advance to the next page, or press PA to go back to the previous page.

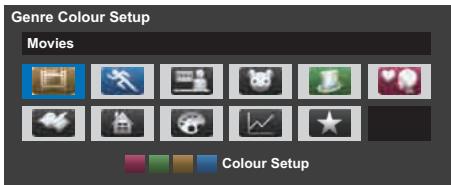

Genre selection/searching

From the Guide screen, you can use the genre selection and search features.

In the Guide screen, press QUICK.

Press A or Y to highlight Genre Colour in the Quick Menu and press OK.

With the focus on a particular genre, press the desired coloured button to assign. Four colours will be available to set, Press BACK to go back to the Guide screen.

MediaGuide is a service of Rovi Corporation. This service is an integrative media guide through the Internet besides television contents and internet contents.

+ You need to configure a home network before using this feature (see page 12).

+ Make sure you selected MediaGuide in the Guide Type menu of Initial Setup (see page 24.) This setup can also be done from the Preference / TV Guide Selection menu any time.

@ pre: GUIDE on theremote control or select Guide in the TV Programmes menu and press OK.

Default focus position is the current channel

Remote control key operation ENAAREZS

gs menu in the Secondary Navigation will be

CONTROLS AND FEATURES This will tune to live TV for the particular show. + Rovi Corporation and/or its subsidiaries and related affliates are not in any way liable for the accuracy or Ifthe show is not being aired, you will be directed to availability ofthe program schedule information or other

the Overview screen with upcoming show times. datain the Rovi Guide system and cannot guarantee service

availability in your area. In no event shall Rovi Corporation - — and/or its related affiliates be liable for any damages in Primary Navigation menu connection with the accuracy or availability ofthe program schedule information or other data in the Rovi Guide @ inthe Secondary Navigation menu, press 4 to system.

expand the Primary Navigation menu. Third party internet services are not provided by Toshiba,

may change or be discontinued at any time and may be

Primary Navigation Hotlist : subject to internet service provider restrictions. Toshiba Press À or W to select Hotlist and makes no warranties, representations, or assurances about press OK. Shows will be listed. the content, availability or functionality of third-party Selecting a movie or show will bring content or services. Use of third party internet services may you to the overview page require the creation of a separate account through a

computer with internet access and/or payment of one-time Search and/or recurring charges and membership. Not all third Press À or Y to select Search and party services may be available on or compatible with this press OK. product. In order to experience the full suggested capabilities of this product, fully-compatible devices may Terms And Conditions be required Press À or Y to select Terms And Conditions. The License Terms And Conditions will be displayed.

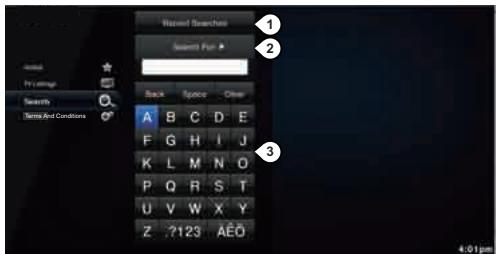

@Recent Searches button. Pressing OK will take you to the Recent Searches screen.

@Search input area displays what you are typing. Pressing Search For will conduct the search and take you to Search Results.

®Search keyboard. NOTE:

+ Toshiba does not take responsibility for the accuracy of content displayed.

+ Service Information may not be displayed or there may be little service information displayed depending on the area orthe kind of broadcast.

+ The MediaGuide can only be used when your TV connected to the internet.

Starting and operation of this service may take time.

+ Software update may be needed in order to use this service. This service does not support all languages.

+ MediaGuide is a service of Rovi Corporation.

During use of the MediaGuide usage information will be notified to the Rovi server to ensure continued efficient operation ofthe guide.

CONTROLS AND FEATURES Digital settings - parental control Parental Setup In order to prevent viewing of unsuitable films and he Parental Control feature allons ou to block pragrammes programmes, channels and menus can be locked according totheirrating levels. Ifa PIN has been set, you willneed gre to enter it before adjusting the level. in digital mode. These can then only be accessed with a security code PIN. @ ntheDTV Settings menu, press A or Y to select Parental Control and press OK.

@ press MENU/ € to highlight Setup icon. setting (4-17 or 4-18 depending on the Country

reactivate the Parental Control, turn the TV off and

System Setup ‘then on agaiï

Menu Language English

County Germany AntlCablelS at Network Lock

Sateite Settings You can use the Network Lock feature to prevent the Web

browser from launching. When this feature is set to On, PIN input will be necessary to use network functions.

This feature will be grayed out until a PIN set. DTV Settings

HDMI CEC Control Setup Network Setup

Local Time Setting Standby Channel Update Dynamic Scan

TV Guide Selection © using the number buttons enter a four digit number. Network Device Setup Once entered you wi be prompted to confirm by Toletext

entering again. Network Lock

Confimm PIN: To unlock the Network: The PIN number is now set. o

Select Off in step 4 above.

Ithe PIN code has been set, when Auto Tuning and Reset TV are executed, entering the PIN will be necessary. "0000" is not acceptable.

CONTROLS AND FEATURES English

Digital settings - Channel

Selecting favourite channels

From the Quick Menu / Channel Options menu, it is possible to create a list ofthe digital channels that are watched most.

Press LIST / @B to select the Favourite Channel list.

Select a channel you want to add to your favourite list. Press QUICK to open the Quick Menu. Press Y to select Channel Options and press OK.

Press to select the favourite list (Fav).

Press OK to selectthe ones required. À tickwill appear in the box as they are selected.

Repeat steps 1 through 5 for other channels.

When all favourites have been selected, press EXIT.

Favourite Channel List

Press LIST to display Channel List.

Each time you press Æorb>, All Channels, TV Channels, Radio channels, Text channels or Favourites is selected in order,

Press orb to select Favourites. The number of favourites available depends on how many lists have

Channel List Favourites

PARIS PREMIERE A81 vi

Press A or Y to highlight a channel and press OK to watch.

This feature allows you to set channels that will be skipped when

PvorPA are used to tune.

Selectthe channel you want to skip in your channel list.

In the Quick Menu, press W to select Channel Options and press OK.

Press repeatedly to highlight the skip (@) box. Press OK to select. A tick will appear in the box. Repeat steps 1 through 4 for other channels.

NOTE: Skipped channels cannot be selected by Pv or PA but still be accessed by direct number entry

{when tuned a &v icon will be displayed in the banner to indicate as a skipped channel). Locking channels Locking Channels stops the viewing of channels, and

they can only be accessed by entering the PIN.

Selectthe channel you want to lock in your channel list.

In the Quick Menu, press W to select Channel Options and press OK.

Press repeatedly to highlight the lock (fr) box.

Press OK to select. A tick will appear in the box.

Ha PIN has already been set, PIN entry will be required to set the locked channels.

Repeat steps 1 through 4 for other channels. Press EXIT.

From this point on, when any of the channels in the Locked Channel list are selected, the PIN must be entered before they can be accessed.

CONTROLS AND FEATURES Digital settings - other settings

In digital mode, this feature will show subtitles on the screen in the selected language provided they are being broadcast.

In the DTV Settings menu, press À or Y to select Subtitle and Audio and press OK.

Subtitle and Audio Subtitle Display Subite Type Primary Subtiie Language

Normal English English Normal Engish

ET Secondary Subtitle Language Audio Type

Primary Audio Language Secondary Audio Language

Press A or Y to select Primary Subtitle Language or Secondary Subtitle Language and press Æorb to select an option.

The SUBTITLE button can be used to select subtitle on or off for the current channel only and to select the subtitle language if more than one subtitle is available.

This feature allows a programme or film to be viewed with a choice of soundtrack language, provided multiple language tracks are being broadcast.

In the Subtitle and Audio menu, press À or Y to select Audio Type and press 4orb to select Normal or For Hard of Hearing.

Press A or to select Primary Audio Language or Secondary Audio Language and press 4orb to select an option.

more than one soundtrack is available, use the CDI/I button to select between them.

The Common Interface Slot, situated on the side ofthetelevision, enables the insertion of a CAM (Conditional Access Module) and card. These are purchased from a service provider and allow additional subscription broadcast to be viewed. For information, see a service provider.

Insert the CAM and card into the Common Interface Slot, following the instructions provided with the CAM. À box will appear on screen to confirm that the CAM has been inserted.

Press MENU / 4h to highlight Setup icon.

Press A / 4B to highlight System Setup icon and press OK.

Press A or Y to select DTV Settings and press OK.

Press A or Y to select Common Interface and press ok.

+ Software update of a CI Plus CAM may occur automatically ifinstigated by the broadcaster. This could cause the cancellation of any Reminders/Recordings during this process.

+ Some Cl or CI+ CAM may not be supported.

+ Cl operation is not guaranteed except for Canal Ready DTT services on suffix FC models.

Details of the CAM should now be available.

CONTROLS AND FEATURES Software Upgrade and Licences

Searching for New Software

Hpreferred software upgrades can be searched for manually using Search for New Software.

In the System Setup menu, press À or Y to select Software Upgrade and press OK.

Press A or Y to select Search for New Software.

Press OK. The television will automatically start searching for a software upgrade, the progress bar will move along the line:

SEARCHING FOR NEW SOFTWARE Searching for a new software upgrade for this TV.

Han upgrade is found, the television will automatically start downloading. not, a screen will appear stating that an upgrade is unavailable.

TOSHIBA may offer upgrades for the TV's software in the future. The TV software is upgraded via the Network.

Before downloading software: Configure your TV to connect to the Internet.

NOTE: While the upgrade is being performed, you wi not be able to watch the TV.

In the System Setup menu, press A or Y to select Software Upgrade and press OK.

Press A or Y to select Network Upgrade and press ok.

NOTE: the network is not available, a warning message will appear.

The TV software upgrade will start when download succeeds.

The licences for the software used in this television are available

In the System Setup menu, press À or Y to select Software Licences and press OK.

A screen will appear displaying all the licensing information required for the televisions software.

System Information and Reset TV System Information

This feature can be used to check the version of software currently installed. When in DTV mode, it includes additional diagnostic information such as signal strength, signal quality, centre frequency, modulation, etc. o

Press OK to display the System Information.

Forinformation aboutthe signal quality ofaparticular multiplex press A or Y to select that multiplex

@ press OK for a screen showing detailed technical information about the selected muliplex

Reset TV Selecting Reset TV will reset all TV settings, including saved channels, to their original factory values.

In the System Setup menu, press À or Y to select Reset TV.

@ press OK to select. À screen will appear warning that all settings will be lost. Press OK to continue.

When the set powers back on, the Quick Setup screen will appear. Press OK to advance the setup and perform an auto tune. (See "Quick Setup” section on page 15)

CONTROLS AND FEATURES PC Settings

Horizontal and Vertical Position Connect the PC (as shown in the ‘Connecting a computer section) and ensure that a picture is showing on the television screen. The picture position may now be adjusted to suit personal preference.

Press MENU / B to highlight Setup icon.

Press A / @B to highlight Preferences icon and press OK.

Press A or Y to select Display Settings and press OK.

Display Settings Auto Format

Press À or Y to select an option and press orb to adjust the settings.

The Clock Phase matches the PC signal with the LCD display. Adjusting this can clear horizontal stripes and picture blur.

Inthe Display Settings menu, press À or to select PC Settings and press OK.

Press A or Y to select Clock Phase.

Press orb to adjust until the picture clears.

Adjusting the Sampling Clock alters the number of pulses per scan, this will clear vertical lines on the screen.

In the Display Settings menu, press À or Y to select PC Settings and press OK.

Press À or Y to select Sampling Clock.

Press or to adjust until the picture clears.

Use Reset to return all items to the original factory settings.

In the Display Settings menu, press À or Y to select PC Settings and press OK.

Press A or Y to select Reset and press OK.

NOTE: When a PC functions will be ave

connected using HDMI, none ofthese ble.

The screen is disrupted momentarily when adjusting PC Settings. This is not a sign of malfunction.

The default settings and adjustment ranges may vary depending on the input signal format.

CONTROLS AND FEATURES Input selection and AV Labeling video input sources

connections These input labels are shown in the input selector. You can label video inputs according to the devices you have connected to the

See page 8 for a detailed image showing

recommended connections. @ press MENU/ 43 to highlight Setup icon. Mostmediarecorders and decoders send a signal through the

SCART lead to switchthe television tothe correct Imputsocket. @ press À / 4 to highlight Preferences icon and

Alternatively, press the external source selection button ©) press OK. until the picture from connected equipment is shown.

Input selection Preferences Use the Input Selection window ifthe television does not switch HDMI CEC Control Setup over automatically. DONS @® pressing © on the remote control or TV, a list will TV Guide Selection appear on screen showing all inputs and external Network Device Setup equipment. Teletext Network Lock Press-©ontheremote Press and hold(®)/ © Panel Lock

@ press À or Y to select Input Labeling and press OK.

HDMI displays equipment connected to Input HDMI Input Labeling

on the back or side ofthe television. Input eTi

PCdisplays a computer connected to Input RGB/PCon ExXT2

the back ofthe television. HDMI 4

PC Press A or Y to selectthe item you want to label, and then press or to select, Amplifier, Cable, DVD, Game, PC, Recorder or Satel

@ repeat step 7 for other video inputs.

Audio Delay Press orb to select Auto or Manual.

Auto: _ This mode automatically adjusts the audio timing to meet the video timing.

NOTE: The time lag might be large between the image and sound depending on the connected equipment (amplifier etc.). In that case, select Manual

Manual:You can manually adjust the audio signal

timing to meet the video signal timing.

Delay Adjustment Press orb to adjust the audio signal timing {0 - 250ms) to meet the video signal timing.

NOTE: This feature is grayed out when Audio Delay is in Auto.

A time lag will occur when the video signal or audio signal is changed. Adjust the timing accordingly. When adjusting the timing, turn down the volume ofthe AV equipment used as far as possible. Depending on the equipment, noise etc. may occur when the signal is changed.

Dependingonthe connected equipment (amplifier, etc.) adjustment may not be possible.

Whenthe optical digital output setting (Auto=—PCM)is changed, it may be necessary to adjustthe timing again. Do notuse other than for audio output from the AV amplifier, etc. (Malfunction may occur)

Using HDMI CEC Control

This is a new feature that uses CEC technology and allows you to control Toshiba HDMI CEC Control compatible devices from the television remote control via HDMI connection (page 10).

When the Enable HDMI CEC Control item in the HDMI CEC Control Setup menuis set to On, individual functions also set to On will be activated.

Enable HDMI CEC Control

NOTE: f you set Enable HDMI CEC Control to Off all other items will be grayed out.

The TV Auto Power setting allows the television to be automatically switched on if a HDMI CEC Control device is turned

In the HDMI CEC Control Setup menu, press Y to highlight TV Auto Power.

Auto Standby When Auto Standby is enabled, the television, when switched off will automatically switch off(standby mode) all connected

HDMI CEC Control equipment.

In the HDMI CEC Control Setup menu, press Y to highlight Auto Standby.

Press or to select On or Off.

CONTROLS AND FEATURES Amplifier Control

ler Control is set to on/off the connected HDMI CEC Control amplifier.

In the HDMI CEC Control Setup menu, press Y to highlight Amplifier Control

Press or to select On or Off.

Initial Speaker Setting

1 Speaker Setting allows to select TV speakers or Amplifier speakers.

Press orb to select TV Speakers or Amplifier.

HDMI CEC Control input source selection

1fa HDMI CEC Control device with HDMI switching capability (e.g. AV amplifier) is connected to the HDMI input, you can select another HDMI CEC Control device that is connected to the master HDMI device on the input source list. o

® press Y to select the input source thatthe HDMI CEC Control devices are connected.

Press and a second selection screen will appear showing all connected HDMI CEC Control equipment.

DvD VCRIDVR CBLISAT GAMETV AUX Press À or to select the desired input source, and then press OK.

NOTE: These functions depend on the device connected.

you select the HDMI CEC Control input source from the popup window, some HDMI CEC Control devices may automatically turn on.

Ifthe HDMI cable from connected equipment is changed, Enable in the HDMI CEC Control Setup menu may need to be reset to On.

you change the HDMI lead to a connected device or change an HDMI device setting, reset the Enable HDMI CEC Control item on the HDMI CEC Control Setup menu from Off to On.

HDMI CEC Control one touch play

When connected equipment is switched on, HDMI CEC Control will automatically detect the television through the

input selection. Ithe television is in standby, it will be

switched on automatically.

These functions can be enabled or disabled from the HDMI CEC Control Setup (see page 83).

+ Even if the equipment is showing a menu, the television may automatically show the input source.

+ This feature depends on the connected equipment and television state.

HDMI CEC Control system standby

Ifthe television is turned off (standby mode), the television willsend a message to turn off (standby mode) all ofthe HDMI CEC Control devices connected to the television.

These functions can be enabled or disabled from the HDMI CEC Control Setup (see page 83).

NOTE: This feature depends on the connected equipment and television state.

(TEXT SERVICES Text services

This television has a multi-page text memory, which takes a few moments to load. It offers two Modes of viewing text - Auto will display Fastext,

ifavailable. List will save your four favourite pages.

The text character set will be automatically chosen by the language setting in the Setup menu.

Press À or Y to select Teletext, and then press or D to select Auto or List.

To view text services press TEXT. Press again to superimpose the text over a normal broadcast picture and again to return to normal viewing. Channels cannot be changed until text i cancelled.

The first text page shown will be the initial page.

Any text page can be accessed by entering the 3 digit page number using the numbered buttons, pressing the coloured buttons or pressing PA to advance to the next page and PV to go back to the previous page.

The pages on the screen will dynamically update as sub- pages are received.

Ifyou open a page containing sub-pages, the sub-pages are automatically displayed in sequence. To quit automatic sub- page change, press Æorb>.

Once selected, the sub-page you are viewing will be highlighted and, as the television loads any additional sub- pages, the colour ofthe numbers will change, indicating that these pages have been loaded.

These sub-pages will remain available to view until another page is chosen or, in normal TV mode, the channel is changed.

Navigating pages using Auto

HFastext is available, four coloured titles will appear atthe base ofthe screen.

To access one ofthe four given subjects, press the relevant coloured button on the remote control.

For further information on your particular text system(s), see the broadcast text index page or consult your local Toshiba dealer.

Navigating pages using LIST The four coloured choices at the bottom of the screen are numbers - 100, 101, 102 and 103, which have been programmed into the television's memory. To view these pages, press the relevant coloured buttons.

To change these saved pages, press the relevant coloured button and enter the 3 digit number. This number will change in the top left of the screen and in the coloured highlight.

Press OK to save. Whenever OK is pressed, all four page numbers showing at the bottom will be saved and the previous ones will be lost.

NOTE: The video signal from the external inputs (EXT-1 and EXT-2) is not saved.

I OK is not pressed, the selection will be forgotten when the channel is changed.

Other pages may be viewed by entering the 3 digit page number - but DO NOT press OK or these pages will be saved.

(TEXT SERVICES Control buttons

Below is a guide to the functions of the remote control text buttons.

To display the index/initial page:

to access the index’ dependant on the broadcaster.

al page. The one displayed is

TEXT To display a page of text

Press TEXT to display text. Press again to superimpose text over a normal picture. Press again to return to normal television viewing. Channels cannot be changed until this has been done.

E?To reveal concealed text:

To discoverthe solutions on quiz and joke pages press the(E7 button.

EA To hold a wanted page:

Attimes it is convenient to hold a page of text. Press (FH and E3 will appear in the top left of the screen. The page will be held on screen until the button is pressed again.

To enlarge the text display size:

Press (E%Jonce to enlarge the top halfofthe page, press again to enlarge the bottom half of the page. Press again to revert to normal size

VEX To temporarily erase the text screen:

Press (OJ/EX once to erase the text screen temporarily. To recall the text screen, press the button again.

To display news flashes:

Selectthe news flash page forthe chosen text service (see the index page oftext service). The news flashes will be displayed as and when they are broadcast

PROBLEM SOLVING Questions and Answers

Below are the answers to some of the most common queries.

Why is there no sound or picture?

Check the television is not in standby mode. Checkthe mains plug and all mains connections

Why is there a picture but no sound?

Check all lead connections. No sound or unacceptable format sound may be received. Check the volume has not been turned down or that sound mute has not

z been selected. Ë Check shared audio settings. Why is the soundtrack in English when |The programme is currently being broadcast with an English soundtrack a different audio language has been |only. selected? Why is there incorrect or no sound when | Press CDJ/I+o ensure the hard of hearing option has not been selected in DTV mode? There is a picture, but why is there little |\Vhen using an external source, for instance, a poor quality video tape, if or no colour? there is little or no colour, improvements may sometimes be achieved. The colour is factory set to Auto to automatically display the best colour system: To checkthat you have the best colour: @ with the external source playing, select Colour System from the System Setup menu. System Setup Monu Language Engish Country Gormany Tour Syst Fu Fi © with <orb choose between Auto, PAL, SECAM, NTSC 4.43 or NTSC 3.58. Whaï else can cause a poor picture? |\nterference or a weak signal. Try a differenttelevision station. Manual R Tuning may help. 5 É @ seiectthe ATV Manual Tuning menu. Highlight the station and ä

press OK. Then press to select Manual Fine Tuning

Using À or Y adjustto getthe best picture and sound. Press OK and then EXIT.

ATV Manual Tuning Manual Fine Tuning

Why doesntthe video/DVD being [played show on screen?

Make sure the media recorder or DVD player is connected to the television as shown on page 8, and then select the correct input by pressing ©).

Why are there vertical stripes on the screen when in PC mode?

The Sampling Clock may need adjustment, Select PC Settings from the Display Settings menu, highlight Sampling Clock and adjust until the es clear.

Why are there horisontal stripes and/or blurred images on the screen when in PC mode?

The Clock Phase may need adjustment. Select PC Settings from the Display Settings menu, highlight Clock Phase and adjust until the picture clears.

PROBLEM SOLVING Que:

Why are the colours wrong when an NTSC source is played?

Connect the source via a SCART lead and play. Select Colour System from the Setup menu

e à @ setthe Colour to Auto and exit £ © Gotothe Picture menu and adjust the tint. Why don’tthe controls of the television | Checkthat Panel Lock is not On work? Why doesn't the remote control work? | Check that batteries aren't exhausted or inserted incorrectiy Why is the digital channel locked? "" |The channel has been locked in Channel Options (see "Digital settings Channel Options’ section) Why are some of the digital subscription | our subscription needs upgrading. Contact your service provider. channels unavailable? What is DVB-T? Digital Video Broadcast via an aerial/antenna. What is DVB-C? Digital Video Broadcast via a cable connection. How are DTV radio channels selected? | Select from All Channel List (LIST button). What can be done ifthe PIN number has | Use the Master PIN code of 1276, then change to a number of your choice. been forgotten? Select Parental PIN Setup from the DTV Settings menu to enter PIN Ensure that no-one else can use the Master PIN by removing the Ouners Manual Why when digital subritles have been |subtitles are not currently being transmitted by the broadcaster. selected are they not showing on screen? Why are there problems with analogue | Good performance of text depends on a good strong broadcast signal. This s ler normal} requires a roof or loft aerial. IFthe text is unreadable or garbled, 5 check the aerial, Go to the main index page of the text service and look for 5 the User Guide. This will explain the basic operation of text in some detail. $ further information is needed on how to use text see the text section.

Why is a page number visible at the top of the screen but no text?

Text has been selected but Teletext information is currently unavailable on the current source.

Why don't the devices connected via HDMI operate properly?

Make sure to use cables with the HDMI logo HDMF' (see page 9)

Some early HDMI equipment may not work properly with the latest HDMI TV products, due to new standard adoption.

Why don’tthe HDMI CEC Control devices work?

When the connected HDMI CEC Control device does not work correctly after you have changed the settings of the device, turn off your television and unplug the power cord, and then plug and turn on again. Unplug the HDMI cable ofthe HDMI CEC Control device and lead again.

Wiy is the HDMI CEC logo still showing when the equipment has been disconnected?

Ifthe HDMI CEC Control device is disconnected, the logo will disappear after approximately one minute.

Why don’tthe nenvorked devices work?

The LAN cables are not connected properly or at all. Connect all cables (see page 12). Make sure your network address is set up correctly (see page 46).

Why doesn the wireless network work?

Check that the AP is powered on.

Why doesn tie Media Player feature operate?

Make sure that devices are connected correctly. incorrect behaviour may occur with a USB Hub connection. Check your network setup ifusing DLNA CERTIFIED" Server.

PROBLEM SOLVING Que:

Why are not 3D images displayed?

Ensure that there is no object blocking the infrared signals in the infrared reception part of television and 3D glasses.

Ifthe infrared data communication between the television and 3D glasses is lost for 5 minutes, the power of 3D glasses is tumed off.

Why doesn'tthe USB HDD work?

Your country/area may not support the USB HDD function.

Why isn't Skype launched?

Check that the recommended video camera (page 58) is connected to the TV.

Ensure the network cable connection (page 12).

Checkthe Network setting of TV.

Turn offthe TV and unplug the power cord. After 1 minute, plug the power cord in and turn on the TV.

Why can'tthe Skype account be signed in?

you have no Skype Name, create a Skype Name in Create an account. you forgot password, visit www.skype.com and confirm the password.

What do the LEDS on the front of the television indicate?

Check the table below.

Orange PowerON Programme Timer is set

Red PowerON Programme Timer (Recording) or

Recording is working

OFF PowerON Programme Timer is NOT set Power OFF (Standby) Programme Timer is set Power OFF (Standby) Program Timer (Recording) or Recording is working Power OFF (Standby) Programme Timer is NOT set

Programme Timer is set

Orange OF Active Standby.

Programme Timer is NOT set

your TV problem is not addressed in this Questions and Answers section or the recommended solution has not worked, do one ofthe following:

Turn off your TV. After 30 seconds, turn it on.

2. Turm offthe TV and unplug the power cord. After 1 minute, plug the power cord in and turn on the TV.

3 Perform the Reset TV function in the System Setup menu!

INFORMATION Information

Before connecting any external equipment, turn off all main power switches. Ifthere is no switch,

remove the mains plug from the wall socket.

Signal information for Mini D-sub 15 pin connector

Pin No. Signal name Pin No. Pin No. Signal name 1 R 6 mr NC 2 G 7 E DDC Data 3 B 8 E H:sync 4 NC 9 14 Vsyne 5 Ground 10 15 DDC Clock

Acceptable PC signals through the PC terminal

The PC input on this TV only accepts signal formats which are compliant with VESA-DMT as shown in the table below. Since some PCs input signals which are different from the resolution and frequency described inthe table below, the following phenomenon may occur:incorrect display, false format detection, picture position failure, blur, or judder. In this case, set the monitor output format on your PC to conform to a

signal in the table below.

Format Resolution | V.Frequency | H.Frequency | PixelClockFrequency | VESA Standard (DMT)

INFORMATION Acceptable video or PC signals through the HDMI terminals

The HDMI inputs on this TV only accept VGA, SVGA, XGA, WXGA, and SXGA signal formats which are compliant with VESA as shown in the table below. Since some PCs and HDMI or DVI devices input signals which are different from the resolution and frequency described in the table below, the following phenomenon may occur: incorrect display, false format detection, picture position failure, blur, or judder. In this case, set the monitor output format on your PC, HDMI or DVI device to conform to a signal in the table below.

USB Maximum number of files: 1000 / folder Maximum viewvable resolution:

+ Motion-JPEG: 640x480 - Other: 1920 x 1080 Maximum video size: Unlimited

Maximum video resolution: 1920 x 1080 Maximum number of files: 1000 / folder Maximum video size: Unlimited

NOTE: Some files may

en if contained in above table, it may not be reproduced depending on contents.

3D Support Format (HDMI)

Resolution | Aspect V.Fraquency H.Fraquency | Pixel Clock Frequency 3D Structure 720 x 480p 169 59.940/60.000Hz | 31,469/31.500kHz | … 27.000/27.027MHz Side by Side (Full) Side by Side (Half)

Top and Bottom 720 x 576p 169 50.000H2 31.250kHz 27.000MHz Side by Side (Full) Side by Side (Half)

Top and Bottom 1920 x 1080i 169 59.940/60.000Hz | 33.716/33.750kHz | _74.176/74250MHz Side by Side (Half) Top and Bottom 50.000Hz 28.125kHz 74.250MHz Side by Side (Half)

33716/33750kHz | 74176/74250MHz Side by Side (Half)

3D Support Format (DTV)

Video Format | Aspect V.Fraquency 3D Structure 480i, 480p 169 59.940/60.000Hz | _ Side by Side (Half Top and Bottom

5761, 576p 169 50.000H2 Side by Side (Half Top and Bottom

720p 169 59.940/60.000Hz | Side by Side (Half Top and Bottom

50.000Hz Side by Side (Half

TO80i 169 59.940/60.000Hz | Side by Side (Half Top and Bottom

50.000H2 Side by Side (Half

1080p 169 240002 Side by Side (Half Top and Bottom

30.000Hz Side by Side (Half

50.000H2 Side by Side (Half

* Side by Side (Full) is composed

of left and right stereoscopic pictures that each size is equal to 2D.

« +. | This product achieved the European Eco label Ÿ award issued by the European Commission.

NE Eiéhel You can get more information in following link: HUEL | hetp://eceuropa.eu/environment/ecolabel/

+ ŒDOLBY. Manufactured under license from Dolby

Laboratories. Dolby and the double-D symbol are trademarks ofDolby Laboratories Manufactured under license from Audyssey Laboratories. US. and foreign patents pending. Audyssey Premium Television "is a trademark of Audyssey Laboratories. Audyssey Premium Television" is a suite of technologies that remove the acoustical problems caused by small speakers and drivers. Working together these technologies deliver a bettertranslation ofthe audio content and make the television experience sound closer to the original. HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. This product contains Adobe® Flash® Player software under license from Adobe Systems Incorporated. Copyright © 1995-2009 Adobe Systems Incorporated. Allrights reserved. Adobe and Flash are trademarks of Adobe Systems Incorporated. + DILSC+ Dir DIX Certifed' DIX Plus® HD and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license. Covered by one or more ofthe following US. patents: 7,295,673; 7,460,668; 7,515,710;7,519,274 DLNA”, DLNA CERTIFIED”, DLNA CERTIFIED Logo are trademarks, service marks, or certification marks ofthe Digital Living Network Alliance.

+ RoviandRoviGuide are trademarks of Rovi FOVI Corporation and/or its subsidiaries. guide The Rovi Guide system is manufactured under

license from Rovi Corporation and/or ts subsidiaries.

+ DVB is a registered trademark ofthe DVB Project.

+ Hybrid TV Standard is implemented according to ETSITS 102 796 vi.1.1

Intel and the Intel logo are trademarks ofntel Corporation in the US. and/or other countries

+ THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NONCOMMERCIAL USE OF À CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (AVC VIDEO) AND/ OR (i) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN À PERSONAL AND NONCOMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM À VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, LLC. SEE HTTP//WWW.MPEGLA.COM

+ THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NONCOMMERCIAL USE OF A CONSUMER FOR (i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD CMPEG-4 VIDEO") AND/OR (i) DECODING MPEG-4 VIDEO THATWAS ENCODED BY À CONSUMER ENGAGED IN À PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED BY MPEG LA TO PROVIDE MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING THAT RELATING TO PROMOTIONAL, INTERNAL AND COMMERCIAL USES AND LICENSING MAY BE OBTAINED FROM MPEG LA LLC.

SEE HTTP./MWW MPEGLA.COM

+ MPEG Layer-3 audio coding technology licensed from

Fraunhofer IIS and Thomson.

+ RealD and the RealD logo are trademarks of RealD Inc.

INFORMATION Cleaning the screen and cabinet.

Turn offthe power, and clean the screen and cabinet with a soft dry cloth. We recommend that you do not use any

proprietary polishes or solvents on the screen or cabinet as this may cause damage.

Disposal.… The following information is only for EU-member states:

Disposal of products

The crossed out wheeled dust bin symbol indicates that products must be collected and disposed of separately from household waste. Integrated batteries and accumulators can be disposed ofwith the product. They will be separated at the recycling centres.

The black bar indicates that the product was placed on the market after August 13, 2005.

By participating in separate collection of products and batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potentialnegative consequences for the environment and human health.

For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the shop where you purchased the product.

Disposal of batteries and/or accumulators

The crossed out wheeled dust bin symbol indicates that batteries and/or accumulators must be collected and disposed of separately from household waste.

Ifthe battery or accumulator contains more than the specified values oflead (Pb), mercury (Hg), and/or cadmium (Cd) defined in the Battery Directive (2006/66/EC), then the chemical symbols for lead (Pb), mercury (Hg) and/or cadmium (Cd) will appear below the crossed out wheeled dust bin symbol.

By participating in separate collection of batteries, you will help to assure the proper disposal ofproducts and batteries and thus help to prevent potential negative consequences for the environment and human health.

For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the shop where you purchased the product.

+ The 3D function has been designed for private use and entertainment in your home environment. Please note that any commercial use of the 3D function could lead to copyright infringement of authors’ rights. Toshiba asks you to respect the intellectual property rights of third parties. About handling the 3D glasses Donotleavethe 3D glasses orthe accessoi reach of small children. Inhaling or swallowing them may cause suffocation or lesions in the stomach wall. Iswallowed, consult a doctor immediately. Do not repair, modify, or disassemble the 3D glasses by yoursel Doing so may cause you to become indisposed while wing 3D images. Do not expose the glasses to excessive heat such as sunshine, fire, or the li About the 3D glasses Do not use the 3D glasses ifthey are not working properly or broken. Continuing to use them in such a state may cause injury, eye strain, or indisposition. Do not use the 3D glasses ifthey are broken or have any cracks. Do not stand or walk while wearing 3D glasses. You may lose your balance which could result in falls or other accidents. Do not wearthe 3D glasses for any purpose other than viewing 3D programming. 3D glasses do not function as sunglasses. Do not drop, exert pressure on, or step on the 3D glasses. Doing so may damage the glass section, which may result in injury. Exposing the 3D glasses to liquid or excessive heat may damage the function. If your nose or temple turns red, or you feel pai discomfort, stop using the 3D glasses. Such symptoms as above may occur if you keep wearing them for a long time, which may also cause indisposition.

Cautions on watching 3D images + Some viewers may experience a seizure or blackout when exposed to certain flas! contained in certain 3D televi games.

Anyone who has had a seizure, loss of awareness, or other symptoms linked to an epileptic condition, or has a family history of epilepsy, should contact a health care provider before using the 3D function.

Avoid use of the 3D function when under the influence of alcohol.

W you are ill or feelill, you should refrain from viewing 3D images, and consult your health care provider as may be appropriate.

you experience any of the following symptoms when viewing 3D video images, stop viewing and contact your health care provider:

Convulsions, eye or muscle twitching, loss of awareness, altered vision, involuntary movements, disorientation, eye strain, nausea/vomiting, dizziness, headaches.

f you feel eye fatigue or other discomfort from viewing ages, remove the 3D glasses and

Therefore, to avoid injury do not place your TV near open stairwells, balconies, or wires.

Also do not sit near objects that could be broken if accidentally hit.

When viewing 3D images, always wear 3D glasses. Watching 3D images without 3D glasses may cause eye strain.

Use specified 3D glasses.

Do not wear 3D glasses or watch 3D images from steep angles or while lying down.

The 3D effect is lost in these conditions and eye strain may result.

Use the 3D glasses at the proper vi istance.

Itis recommended thatthe are level with the screen. f you have prescription eye glasses or contact lenses, wearthe 3D glasses over them.

Watching 3D images without appropriate eyewear may cause eye strain.

If3D images often appear in double or if you cannot see the images in 3D, stop viewing.

Continuous viewing may cause eye strain.

Due to the possible impact on vision development, viewers of 3D programming should be age 6 or above. Children may be more susceptible to health effects from viewing 3D images and should be closely supervised.

‘seyes and 3D glasses

po: The best viewing position is at the indicated viewing distance with your eyes at the same level as the center of the display as shown below. The center ofthe optimum viewing area varies from set to set. The usable viewing area is generally overthe range shown in the table below (actual angle not depicted in drawing).

Viewing Angle tance 42WL/42YL | Approx. 26 deg. [Over 16m A7WL/ATYL | Approx. 26 deg. [Over 18m S5WL/55YL | Approx.26 deg. | Over2.im

IMPORTANT: you see a double image, your eyes are either too high ortoo low in relation to the horizontal center ofthe screen. Adjust your position so that i is closer to the center to avoid eye fatigue and to enjoy optimum 3D effects.

Watching TV while extended period of ti The ideal viewing distance should be at least three times the screen height.

+ Switching left and right images

The left and right eye shutter timing ofthe glasses can be swapped.1f3D images look blurred, switch the left and right sides ofthe 3D image.

g too close to the screen for an re may cause eye strain.

Notes on watching the TV

+ 3D effect and image quality may vary depending upon content quality and display device capability/ functionality/settings.

+ If you use any device, such as a mobile phone or mol wireless device, near the 3D glasses, the 3D glasses may not work correctly.

+ Use the product in the following temperature range; otherwise, the quality of the 3D image or the reliability ofthe product cannot be guaranteed,

— 3D glasses: 0°C - 40°C (32°F - 104°F) = TV:0°C- 35°C (32°F -95°F)

+ If you use a fluorescent light, it may flicker depending on the frequency of the light. In this case, reduce the htness ofthe fluorescent light, or use another light. Uitis not recommended to watch the TV in a dark room,

especially for children.)

+ Wear the 3D glasses properly, otherwise you may not see the correct 3D image.

+ When not viewing 3D images on this unit, take offthe 3D glasses; otherwise, display on other products such as PC, digi calculator, etc.

+ The 2D to 3D conversion function is activated and controlled by you according to your personal preferences.

+ The 2D to 3D conversion function is meant for enjoyment of 2D home video, and other 2D content you create, in 3D according to your personal preferences.

+ The 2D to 3D conversion functionis notintended foruse

orindirect permission, orunless applicable law permits such use.

About the connecting cable

+ Use a high-speed and high-quality HDMI cable when you connect a device such as 3D compatible BD player or PC to the TV. When you use a standard HDMI cable, 3D images may not be shown.

Acameraimage will be displayed on the screen. Ifthe face detected by the camer: portion of a face.

+ Ifthe face is detected in the po: age is viewable, a blue frame + Ifthe face is detected in the position where the 3D

age is not viewable, a light-blue frame will appear.

+ Vertical lines are positioned to guide you to zones where 3D images can be viewed correctly.

When a frame tracking a face is light-blue move within the limits ofthe vertical lines. The frame tracking a face will then turn blue stating Glasses Free 3D is optimized in this area

Ifthe 3D PIN number has been forgotten: Use the Master PIN code of 1276, and then change to a

number of your choice. Select 3D PIN from the Preferences / 3D Setup menu to enter PIN.

Specifications subject to change without notice.

EU Ecolabel : PL/22/002

For those products that have been awarded the European Eco Label, TOSHIBA gives a minimum of

2 years guarantee for this LCD TV and 7 years availability for replacement of electronic parts.

For warranty repairs, please contact the retailer where you purchased the product.

Please see the Toshiba website or European Eco Label website (www.ecolabel.eu) for details of those products.

For service support and repair please contact the retailer where you purchased the product.

Al rights reserved Reproduction in whole or part without ritten permision is strici prohbited

TOSHIBA Television Central Europe Sp. z 0.0. ul Pokou 1 Biskupice Podgôrne, 55-040 KobierzycePaland
