USER MANUAL MCP3423 Microchip

Analog and Interface Product Selector Guide

Thermal Management • Motor Driver • Power Management Interface and Networking Peripherals • Linear and Mixed Signal CO and Smoke Detector ICs

Microchip MCP3423 - Analog and Interface Product Selector Guide - 1

natural_image Interior view of a data center with rows of server racks and illuminated indicators (no visible text or symbols)

Microchip MCP3423 - Analog and Interface Product Selector Guide - 2

natural_image Four-panel image showing a white car exterior, a silver car in motion, a colorful LED-lit thermal fan array, and a cylindrical air vent (no text or symbols)

Thermal Management

Temperature Sensors 4
Logic Output Temperature Sensors....4
Voltage Output Temperature Sensors. 4
Serial Output Temperature Sensors 4
Serial Output Temperature Sensors with Multichannel Temperature Sensors . . 5
Sensor Conditioning ICs....6
Open-Loop Fan Controllers and Fan Fault Detectors 6
Closed-Loop Fan Controllers with SMBus/1°C Interface 6

Motor Drivers

Stepper Motors, DC Motors and 3-Phase BLDC Motors 7

Position Sensors

Inductive Sensors....8

Power Management

Voltage References....8

Single Output Linear Regulators 8

Multiple Output Linear Regulators....15

Linear Regulators-LDO Controller and SIM Card 17

DDR Termination Regulators....17

High-Voltage Linear Regulators....17

Single Output Switching Regulators (Buck).... 17

Single Output Switching Regulators (Boost) 19

Multiple Output Switching Regulators 20

Combination Switching Regulators....21

Inductorless Offline Switching Regulators 21

PWM Controllers 21

Hybrid PWM Controllers 23

Power Modules 24

Charge Pump DC-to-DC Converters 24

Inverting or Doubling Charge Pumps 24

Regulated Charge Pumps 24

CPU/System Supervisors 25

Power MOSFET Drivers 27

Low-Side Power MOSFET Drivers 28

High-Side Power MOSFET Drivers....30

Synchronous Power MOSFET Drivers 30

Battery Chargers 31

Hot Swap Controllers 32

Power Switches 32

USB Port Power Controllers 32

Current Limit USB Protection Switches 33

Load Switches....34

Reverse Power Feed 35

Display and LED Drivers

Electroluminescent Backlight Drivers 36

16-Segment Drivers....36

Offline Drivers 36

Single Lamp Drivers....36

Dual Lamp Drivers....36

LED Drivers 36

Automotive 36

General Purpose 36

Backlight 37

Linear 38

Linear Regulators....38

Display 38

Sequential Linear 38

Camera Flash 38

High-Voltage Interface

Driver Arrays....39

Sink 39

Source....39

Source-Sink. 40

Amplifiers and MEMS Drivers 40

MOSFETS - Interface 40

Depletion-Mode N-Channel 40

Enhancement Mode N-Channel 40

Enhancement Mode P-Channel 41

N-Channel (Enhancement Mode MOSFET Arrays) 42

Complimentary (Enhancement Mode MOSFET Arrays) 42

Applications Specific....43

Liquid Lens Driver 43

Complimentary MOSFET Level Translator and Driver 43

High-Side Current Monitor 43

Fault Protection 43

Relay Driver and Controller 43

Linear

Op Amps 43

Zero-Drift Operational Amplifiers 47

Differential Amplifiers. 49

Programmable Gain Amplifiers (PGA) 49

Selectable Gain Amplifiers (SGA) 49

Instrumentation Amplifiers. 49

Comparators 50

Current Sense Amplifiers 50

Mixed Signal

Successive Approximation Register (SAR) A/D Converters 50

Delta-Sigma A/D Converters. 50

Pipelined A/D Converters 52

Energy Metering and Power Monitoring ICs 53

Energy Measurement AFEs. 53

DC Power Monitors 54

Dual-Slope A/D Converters....54

Binary and BCD A/D Converters....54

Display A/D Converters....54

Digital Potentiometers. 55

Frequency-to-Voltage/Voltage-to-Frequency Converters....56

D/A Converters. 56

Interface and Networking

CAN Products 58

LIN Products 58

Line Circuits 59

Line Drivers 61

Ethernet Products. 62

Ethernet Controllers....62

Ethernet Bridges 62

Ethernet Transceivers 62

EtherCat® Controllers....62

Ethernet Switches 63

Serial Peripherals 63

Wi-Fi® Modules....63

Wi-Fi RF Front-End Products 64

Bluetooth® Modules 65

IEEE 802.15.4 zigbee® RF Transceiver Products....66

Sub-GHz Transceivers/Modules 66

Sub-GHz Transmitters 66

Sub-GHz Receivers 66

MCU Transmitters....66

USB Bridge Devices 66

USB Products 66

USB Hub Controllers....66

USB-C™ Power and Charging 67

USB Transceivers/Switches 67

USB Flash Media Controllers....67

USB Security 67

Real-Time Clock/Calendar (RTCC) 67

CO and Smoke Detector ICs

Photoelectric Smoke Detector ICs 68

Ionization Smoke Detector ICs 68

Ionization Smoke Detector Front Ends 68

CO Detectors 68

Piezoelectric Horn Drivers....69

Ultrasound

High-Voltage Analog Multiplexers 69

Ultrasound MOSFET Drivers....70

Ultrasound TR Switches 70

Arbitrary Waveform Generators 70

Ultrasound Transmitters 70

PoE Controllers 71

Total System Solutions

Total System Solutions 72

Analog and Interface Solutions

Are You Looking for Complete Analog and Interface Design Solutions?

Microchip's integrated analog technology, peripherals and features are engineered to meet today's demanding design requirements. Our broad spectrum of analog products addresses thermal management, power management, battery management, mixed-signal, linear, interface and safety and security solutions. Combined with Microchip's Intelligent Analog microcontrollers, our extensive analog portfolio can be used in thousands of high-performance design applications in the automotive, communications (wireless), consumer, computing and industrial control markets.

Our broad portfolio of standalone analog and interface devices offers highly integrated solutions that combine various analog functions in space-saving packages and support a variety of bus interfaces. Many of these devices support functionality that enhances the analog features currently available on PIC ^® MCUs.

Want a Business Partner, Not Just a Vendor?

Successful companies recognize the value of a strategic supplier relationship to help them deliver innovative products to market quickly. They trust their suppliers to furnish quality components for current design opportunities as well as technology road

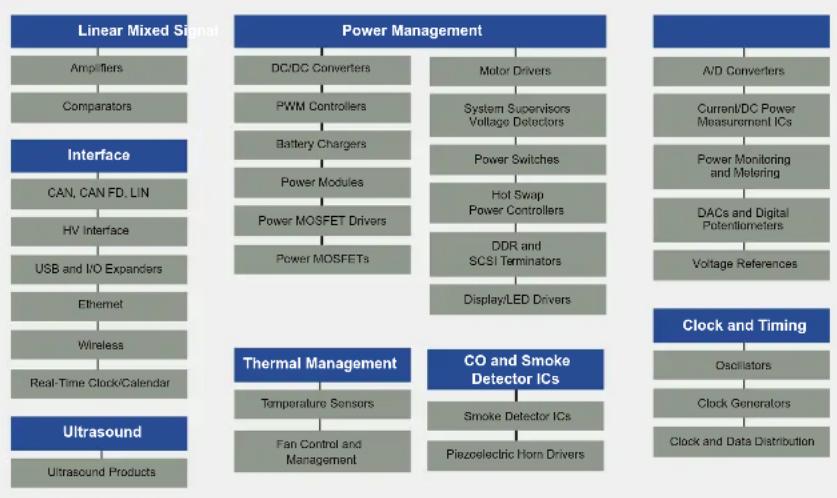

Microchip's Standalone Analog and Interface Portfolio
Microchip MCP3423 - Want a Business Partner, Not Just a Vendor? - 1

maps and innovative solutions to stay ahead of tomorrow's design trends. Microchip provides low-risk product development, lower total system cost and faster time to market to more than 80,000 of these successful companies worldwide. Headquartered in Chandler, Arizona, Microchip offers outstanding technical support along with dependable delivery and quality.

Are Quality and Delivery a Concern?

Microchip's quality systems are certified according to the International Organization for Standards/Technical Specification (ISO/TS)-16949:2002 requirements. This demonstrates that our quality systems meet the most stringent industry quality-management system standards, resulting in high-quality semiconductor products. Direct control over manufacturing resources allows shortened design and production cycles. By owning the wafer fabrication facilities and the majority of the test and assembly operations, and by employing proprietary statistical process control techniques, Microchip has been able to achieve and maintain high production yields.

Need Additional Support and Resources?

Microchip is committed to supporting its customers by helping design engineers develop products faster and more efficiently. You can access three main service areas at www.microchip.com. The Design Support area provides a fast way to get questions answered. The Sample and Buy area offers evaluation samples of any Microchip device. microchipDIRECT provides 24-hour pricing, ordering, inventory and credit for convenient purchasing of all Microchip devices and development tools. This site also features online programming capabilities. Finally, the Training area offers opportunities to expand your knowledge with Microchip's online web seminars and hands-on courses at our worldwide Technical Training Centers. Our seminars and training classes are designed to fit your schedule and offer an overview of many product, development tool and application topics. Visit www.microchip.com/training for class content and schedules.

Have you ever encountered a technical dilemma at a critical point in your design development and your supplier was not available to answer your questions? Microchip's 24/7 global technical support line offers you technical support resources any time help is needed. Because some technical problems require hands-on assistance in order to be resolved quickly, Microchip has also developed a global team of field applications engineers and field sales engineers who provide local assistance.

Microchip MCP3423 - Need Additional Support and Resources? - 1

THERMAL MANAGEMENT

THERMAL MANAGEMENT: Multichannel Temperature Sensors
Part #Typical Accuracy (°C)Maximum Accuracy @ 25°C (°C)Maximum Temperature Range (°C)Vcc Range (V)Maximum Supply Current (μA)Features Packages
Logic Output Temperature Sensors
TC6501±0.5±3-58 to +125+2.7 to +5.540Cross to MAX6501, onon drain5-pin SOT-23A
TC6502±0.5±3-58 to +125+2.7 to +5.540Cross to MAX6502, push-pull5-pin SOT-23A
TC6503±0.5±3-55 to +125+2.7 to +5.540Cross to MAX6503, open-drain5-pin SOT-23A
TC6504±0.5±3-58 to +125+2.7 to +5.540Cross to MAX6504, push-pull5-pin SOT-23A
TC620±1±3-40 to +125+4.5 to +18400Two resistor-programmable trip points8-pin PDP, 8-pin SOIC
TC621Note 1Note 140 to +85+4.5 to +18400Requires external thermistor, resistor-programmable trip points8-pin PDP, 8-pin SOIC
TC622±1±5-40 to +125+4.5 to +18800Dual output, TO-220 for heat sink mounting, resistor-programmable trip points8-pin PDP, 8-pin SOIC, 5-pin TO-220
TC623±1±3-40 to +125+2.7 to +4.5250Two resistor-programmable trip points8-pin PDP, 8-pin SOIC
TC624±1±5-40 to +125+2.7 to +4.5300Dual output, resistor-programmable trip points8-pin PDP, 8-pin SOIC
MCP9501±1±1-40 to +125+2.7 to +5.540Active High, Push-Pull Output, Rising Temperature Switch5-pin SOT-23
MCP9502±1±4-40 to +125+2.7 to +5.540Active Low, Ocon Drain Output, Rising Temperature Switch5-pin SOT-23
MCP9503±1±4-40 to +125+2.7 to +5.540Active High, Push-Pull Output, Falling Temperature Switch5-pin SOT-23
MCP9504±1±4-40 to +125+2.7 to +5.540Active Low, Ocon Drain Output, Falling Temperature Switch5-pin SOT-23
MCP9509±0.5NS-40 to +125+2.7 to +5.550Resistor programmable temperature switch5-pin SOT-23
MCP9510±0.5NS-40 to +125+2.7 to +5.580Resistor programmable temperature switch6-pin SOT-23
Voltage Output Temperature Sensors
MCP9700±1±4-40 to -125 +2.3 to +5.5 12 Linear Active Thermistor* IC. Temperature slope: 10 mV/°C3-pin TO-92, 5-pin SC-70, 3-pin SOT-23
MCP9701±1±1-40 to +125+3.1 to +5.512Linear Active Thermistor IC, Temperature slope: 18.53 mV/°C, cross to MAX66123 pin TO-92, 5-pin SC-70, 3-pin SOT-23
MCP9700A±1±2-40 to +125+2.3 to +5.512Linear Active Thermistor IC, Temperature slope: 10 mV/°C3 pin TO-92, 5-pin SC-70, 3-pin SOT-23
MCP9701A±1±2-40 to +125+3.1 to +5.512Linear Active Thermistor IC, Temperature slope: 19.53 mV/°C, cross to MAX66123-pin TO-92, 5-pin SC-70, 3-pin SOT-23
TC1048±0.5±2-40 to +125+2.7 to +4.460High precision temperature-to-voltage converter, 6.25 mV/°C3-pin SOT-23B
TC1047±0.5±2-40 to +125+2.7 to +4.460High precision temperature-to-voltage converter, 10 mV/°C3-pin SOT-23B
TC1047A±0.5±2-40 to +125+2.5 to +5.560High precision temperature-to-voltage converter, 10 mV/°C3 pin SOT-23B
Serial Output Temperature Sensors
MCP9800±0.5±1-56 to +125+2.7 to +5.5400SMBus/IC compatible interface, 0.0625°C to 0.5°C adj. resolution, Power-saving one-shot temperature measurement5-pin SOT-23
MCP9801±0.5±1-56 to +125+2.7 to +5.5400SMBus/IC compatible interface, 0.0625°C to 0.5°C adj. resolution, Power-saving one-shot temperature measurement, multi-drop capability8-pin MSOP, 8-pin SOIC
MCP9802±0.5±1-56 to +125+2.7 to +5.5400SMBus/IC compatible interface with time out, 0.0625°C to 0.5°C adj. resolution, Power-saving one-shot temperature measurement5-pin SOT-23
MCP9803±0.5±1-56 to +125+2.7 to +5.5400SMBus/IC compatible interface with time out, 0.0625°C to 0.5°C adj. resolution, Power-saving one-shot temperature measurement, Multi-drop capability8-pin MSOP, 8-pin SOIC
MCP9804±0.25±1-40 to +125+2.7 to +5.5400User programmable temperature limits with soft output, 1°C temp. accuracy from -40°C to 125°C8-pin MSOP, 8-pin 2 x 3 DFN
MCP9805±0.5+12-20 to +125+3.0 to +3.6400JEDEC-compatible register set, SMBus/IC compatible interface, Programmable, Shul-down modes and EVENT output8-pin TSSOP, 8-pin 2 x 3 DFN
MCP9806±0.25±0.5-40 to +125+2.7 to +5.54000.5°C temperature accuracy from -10°C to +100°C8-pin 2 x 3 DFN, 8-pin MSOP
MCP9843±0.5±14-20 to +125+3.0 to +3.6500Compliant to JEDEC TSE30063 specification8-pin TSSOP, 8-pin 2 x 3 DFN, 8 pin 2 x 3 TDFN
MCP98243±1±3-40 to +125+3.0 to +3.6500Serial output temperature sensor with integrated EEPROM (TSE200263)8-pin TSSOP, 8-pin 2 x 3 DFN, 8-pin 2 x 3 TDFN
MCP98244±0.5±3-40 to +125+1.7 to +3.6500Serial output temperature sensor compliant to TSE2004a8-pin 2 x 3 TDFN
MCP9844±0.5±3-40 to +125+1.7 to +3.6500Serial output temperature sensor with integrated EEPROM (TSE2004a)8-pin 2 x 3 TDFN
TC677±0.5±1-55 to +125+2.7 to +5.5400SP-compatible interface, 0.0625°C temperature resolution5-pin SOT-23A, 8-pin SOIC
TC672±0.5±1-56 to +125+2.86 to +5.5400SP-compatible interface, Power saving one shot temperature measurement, 0.25°C temperature resolution8 pin MSOP, 8 pin 3 x 3 DFN
TC674±0.5±2-40 to +125+2.7 to +5.5350SMBus/IC compatible interface, 1°C temperature resolution5-pin SOT-23A, 5-pin TO-220
TON75A ±0.5±2 -40 to +125 +2.7 to +5.5500SMBus/IC compatible interface, power-saving one-shot temperature measurement, multi-drop capability, 0.0625°C to 0.5°C adjustable temperature resolution8-pin MSOP, 8-pin SOIC
AT3018/4±1±2-56 to +125+1.7 to +5.5125SMBus/IC compatible interface, 0.0625°C to 0.5°C adj. resolution, power-saving one-shot temperature measurement8 pin SOIC, 8 pin MSOP, 8 pin 2 x 3 UDFN, 4 bal WLCSP, 5 bal WLCSP
AT3018/5A±0.5±1-55 to +125+1.7 to +5.5125SMBus/IC compatible interface, 0.0625°C to 0.5°C adj. resolution, power-saving one-shot temperature measurement8 pin SOIC, 8-pin MSOP, 8 pin 2 x 3 UDFN
AT3018/6A±0.5±1-56 to +125+1.7 to +5.5125SMBus/IC compatible interface, nonvolatile registers to retain user-configured or pre-closed power-up defaults8 pin SOIC, 8 pin MSOP, 8 pin 2 x 3 UDFN
AT3018/92A±0.5±1-56 to +125+1.7 to +5.5125SMBus/IC compatible interface, nonvolatile registers to retain user-configured or pre-defined power-up defaults, integrated 2 KB serial EEPROM8 pin SOIC, 8 pin MSOP, 8 pin 2 x 3 UDFN

Note 1: These devices use an external temperature sensor. Accuracy of the total solution is a function of the accuracy of the external sensor.
2: Maximum accuracy measured at 85°C.

THERMAL MANAGEMENT: Multichannel Temperature Sensors

Part #Typical Accuracy (°C)Maximum Accuracy @ 25°C (°C)Maximum Temperature Range (°C)Vcc Range (V)Maximum Supply Current (μA)Features Packages
Serial Output Temperature Sensors (Continued)
AT3CTSE754A ±0.5±1-55 to +125 +1.7 to +5.5 125SMBus/IC compatible interface, nonvoltatile registers to retain user-configured or pre-dolined power-up defaults, integrated 4 KB serial EEPROM8-pin SOIC, 8-pin MSOP, 8-pin 2 x 3 UDFN
AT3CTSE758A +0.5+1-55 to +125 +1.7 to +5.5 125SMBus/IC compatible interface, nonvoltatile registers to retain user-configured or pre-dolined power-up defaults, integrated 8 KB serial EEPROM8-pin SOIC, 8-pin MSOP, 8-pin 2 x 3 UDFN
AT3CTSE002B±1±3-40 to +125+2.7 to +3.6500JEDEC UC42.4 SO-DIMM SPD + TS compliant, SMBus/IC compatible interface, integrated 2 KB serial EEPROM 8-pin 2 x 3 UDFN
AT3CTSE004A+0.5+3-40 to +125+1.7 to +3.6500JEDEC UC42.4 (TSE2004ay) DIMM SPD + TS compliant, SMBus/IC compatible interface, integrated 4 KB serial EEPROM 8-pin 2 x 3 UDFN

THERMAL MANAGEMENT PRODUCTS: Multichannel Temperature Sensors

Part ## of Remote Temp. SensorsTyp. Accuracy (°C)Maximum Accuracy @ 25°C (°C)Maximum Temp. Range (°C)Ambient Temp. SensorAlert/ THERMHardware ShutdownVcc Range (V)Typ.Supply Current (μA)Description and Additional Features Packages
Serial Output Temperature Sensors with Multichannel Temperature Sensors:
MIC1841±1.0±2.0-55 to +12511-2.7-5.5340Local/Remote Thermal Supervisor8-pin SOIC, 8-pin MSOP
MIC2801+1.0+2.0-55 to +12511-3.0-3.6230Precision lityBilty Thermal Supervisor8-pin SOT
MIC2811+1.0+3.0-55 to +12501-3.0-3.6230Low-Cost lityBilty Thermal Sensor8-pin SOT
MIC2841+1.0±2.0-55 to +12512-2.7-5.5350Two-Zone Thermal Supervisor with CRIT Output8-pin SOIC, 8-pin MSOP
MIC3842±1.0±2.0-55 to +12511-2.7-5.5350Three-Zone Thermal Supervisor8-pin SOIC, 8-pin MSOP
MCP98021+0.25+1.0-40 to +12512-3.0-3.6450Lower Temperature Dual Temperature Sensor8-pin WDFN
MCP98032±0.25±1.0-40 to +12512-3.0-3.6450Lower Temperature Triple Temperature Sensor10-pin 3 x 3 VDFN
MCP98043+0.25+1.0-40 to +12512-3.0-3.6450Lower Temperature Quad Temperature Sensor10-pin 3 x 3 VDFN
EVC10465±0.25±1.0-40 to +1251--3.0-3.6365Sextuple SMBus/IC Sensor with REC, Beta Compensation and Hottest of Thermal Zones10-pin MSOP
EVC10476±0.25±1.0-40 to +1251--3.0-3.6365Septuple SMBus/IC Sensor with REC, Beta Compensation and Hottest of Thermal Zones10-pin MSOP
EVC10721±0.25±1.0-40 to +12512-3.0-3.6430Dual SMBus/IC Sensor with Selectable Address8-pin MSOP
EVC10732±0.25±1.0-40 to +12512-3.0-3.6430Triple SMBus/IC Sensor with Selectable Address10-pin MSOP
EVC10743±0.25±1.0-40 to +12512-3.0-3.6430Quad SMBus/IC Sensor with Selectable Address10-pin MSOP
EVC18121±0.25±1.0-40 to +12512-1.82-3.625Dual Channel 1.8V Temperature Sensor with Rate of Change, Resistance Error Correction, Beta Comp9-pin WDFN
EVC18132+0.25+1.0-40 to +12512-1.82-3.625Triple Channel 1.8V Temperature Sensor with Rate of Change, Resistance Error Correction, Beta Comp10-pin WDFN
EVC18143±0.25±1.0-40 to +12512-1.82-3.625Quad Channel 1.8V Temperature Sensor with Rate of Change, Resistance Error Correction, Beta Comp10-pin WDFN
EVC18154+0.25+1.0-40 to +12512-1.82-3.625Five Channel 1.8V Temperature Sensor with Rate of Change, Resistance Error Correction, Beta Comp10-pin WDFN
EVC18332+0.25+1.0-40 to +12512-1.82-3.625Triple Channel 1.8V Temperature Sensor with Rate of Change, Resistance Error Correction, Beta Comp8-pin WDFN
EVC14121+0.25+1.0-40 to +12512-3.0-3.6430Dual SMBus/IC Sensor with REC, Beta Compensation and Selectable Address8-pin TDFN, 8-pin MSOP
EVC14132+0.25+1.0-40 to +12512-3.0-3.6430Triple SMBus/IC Sensor with REC, Beta Compensation and Selectable Address10-pin DFN, 10-pin MSOP
EVC14143±0.25±1.0-40 to +12512-3.0-3.6430Quad SMBus/IC Sensor with REC, Beta Compensation and Selectable Address10-pin MSOP, 10-pin DHN
EVC14221+0.25+1.0-40 to +1251113.0-3.6430Dual SMBus/IC Sensor with REC, Beta Compensation and Resistor-Selltable Hardware Thermal Shutdown8-pin MSOP
EVC14232+0.25+1.0-40 to +1251113.0-3.6430Triple SMBus/IC Sensor with REC, Beta Compensation and Resistor-Selltable Hardware Thermal Shutdown10-pin MSOP
EVC14243+0.25+1.0-40 to +1251113.0-3.6430Quad SMBus/IC Sensor with REC, Beta Compensation and Resistor-Selltable Hardware Thermal Shutdown10-pin MSOP
EVC14287±0.25±1.0-40 to +1251113.0-3.6450Octal SMBus/IC Sensor RLC, Beta Compensation and Resistor-Soltable Hardware Thermal Shutdown and Hottest of Thermal Zones16-pin QFN
EVC14387±0.25±1.0-40 to +1251113.0-3.6450Octal SMBus/IC Sensor REC, Beta Compensation and Resistor-Selltable Hardware Thermal Shutdown and Hottest of Thermal Zones16-pin QFN
EMC18221±0.25±1.0-40 to +1251111.62-3.625Dual Channel 1.8V Temperature Sensor with Rate of Change, Resistance Error Correction, Beta Comp8-pin WDFN
EMC18232±0.25±1.0-40 to +1251111.62-3.625Triple Channel 1.8V Temperature Sensor with Rate of Change, Resistance Error Correction, Beta Comp10-pin WDFN
EMC18243±0.25±1.0-40 to +1251111.62-3.625Quad Channel 1.8V Temperature Sensor with Rate of Change, Resistance Error Correction, Beta Comp10-pin VDFN
EMC18254±0.25±1.0-40 to +1251111.62-3.625Five Channel 1.8V Temperature Sensor with Rate of Change, Resistance Error Correction, Beta Comp10-pin VDFN
EMC18432±0.25±1.0-40 to +1251111.62-3.625Triple Channel 1.8V Temperature Sensor with Rate of Change, Resistance Error Correction, Beta Comp8-pin WDFN

Note 1: These devices use an external temperature sensor. Accuracy of the total solution is a function of the accuracy of the external sensor. 2: Maximum accuracy measured at 55°C. 3: TCN75 idle current is 250 mA. This device also has a Software Shutdown mode that reduces supply current to < 1 mA.

THERMAL MANAGEMENT: Sensor Conditioning ICs

ProductDescriptionTypical Tc Accuracy (°C)Typical Th Accuracy (°C)Temperature Range (°C)Vcc Range (V)Max Supply Current (μA)Packages
MCP9800±1.5°C thermocouple to degrees C converter. Supports thermocouple types K, J, T, N, S, E, B and R.11-40 to +1252.7 to 5.55005 × 5 MQFN
MCP98L00±4°C thermocouple to degrees C converter. Supports thermocouple types K, J, T, N, S, E, B and R.14-40 to +1252.7 to 5.55005 × 5 MQFN
MCP98RL00±8°C thermocouple to degrees C converter. Supports thermocouple types K, J, T, N, S, E, B and R.16-40 to +1252.7 to 5.55005× 5 MQFN
MCP9801±1.5C Thermocouple to IC converter. This device has Opens/Shorts pin detection. This device supports K, J, T, N, S, E, B and R type thermocouples.±1.0 ±1.5 -40 to +125 2.7 to 5.5 500 5 × 5 MQFN
MCP98L01±4.0C Thermocouple to IC converter. This device has Opens/Shorts pin detection. This device supports K, J, T, N, S, E, B and R type thermocouples.±1.0 ±4.0 -40 to +125 2.7 to 5.5 500 5 × 5 MQFN
MCP98RL01±6.0C Thermocouple to IC converter. This device has Opens/Shorts pin detection. This device supports K, J, T, N, S, E, B and R type thermocouples.±1.0 ±6.0 -40 to +125 2.7 to 5.5 500 5 × 5 MQFN

THERMAL MANAGEMENT: Open-Loop Fan Controllers and Fan Fault Detectors

Part # Description# of Temp. MonitorsTypical Accuracy (°C)Maximum Accuracy @ 25°C (°C)Maximum Temperature Range (°C)Vcc Range (V)Maximum Supply Current (μA)Features Packages
EVC2101Single SMBus FC Fan Manager2±0.5±1-40 to +125+3.0 to +3.61,000Fan Controller with high-frequency PWM driver, programmable fan speed lable and alert8-pin MSOP, 8-pin SOIC
TC642Fan Manager1Note 1Note 1-40 to +85-3.0 to +5.51,000FanSenseTM Fan Monitor, Minimum fan speed control8-pin PDIP, 8-pin SOIC, 8-pin MSOP
TC642BFan Manager1Note 1Note 1-40 to +85-3.0 to +5.5400FanSense Fan Monitor, Minimum fan speed control, Fan auto-restart8-pin PDIP, 8-pin SOIC, 8-pin MSOP
TC646Fan Manager1Note 1Note 1-40 to +85-3.0 to +5.51,000FanSense Fan Monitor, Auto-shutdown8-pin PDIP, 8-pin SOIC, 8-pin MSOP
TC646BFan Manager1Note 1Note 1-40 to +85-3.0 to +5.5400FanSense Fan Monitor, Auto-shutdown, Fan auto-restart8-pin PDIP, 8-pin SOIC, 8-pin MSOP
TC647Fan Manager1Note 1Note 1-40 to +85-3.0 to +5.51,000FanSense Fan Monitor, Minimum fan speed control8-pin PDIP, 8-pin SOIC, 8-pin MSOP
TC647BFan Manager1Note 1Note 1-40 to +85-3.0 to +5.5400FanSense Fan Monitor, Minimum fan speed control, Fan auto-restart8-pin PDIP, 8-pin SOIC, 8-pin MSOP
TC648Fan Manager1Note 1Note 1-40 to +85-3.0 to +5.51,000Overtemperature alert, Auto-shutdown8-pin PDIP, 8-pin SOIC, 8-pin MSOP
TC648BFan Manager1Note 1Note 1-40 to +85-3.0 to +5.5400Overtemperature alert, Auto-shutdown, Fan auto-restart8-pin PDIP, 8-pin SOIC, 8-pin MSOP
TC649Fan Manager1Note 1Note 1-40 to +85-3.0 to +5.51,000FanSense Fan Monitor, Auto-shutdown8-pin PDIP, 8-pin SOIC, 8-pin MSOP
TC649BFan Manager1Note 1Note 1-40 to +85-3.0 to +5.5400FanSense Fan Monitor, Auto-shutdown, Fan auto-restart8-pin PDIP, 8-pin SOIC, 8-pin MSOP
TC650Fan Manager1±1±3-40 to +125-2.8 to +5.590Overtemperature alert8-pin MSOP
TC651Fan Manager1±1±3-40 to +125-2.8 to +5.590Overtemperature alert, Auto-shutdown8-pin MSOP
TC652Fan Manager1±1±3-40 to +125-2.8 to +5.590FanSense Fan Monitor, Overtemperature alert8-pin MSOP
TC653Fan Manager1±1±3-40 to +125-2.8 to +5.590FanSense Fan Monitor, Overtemperature alert, Auto-shutdown8-pin MSOP
TC654Dual SMBus Fan Manager1Note 1Note 1-40 to +85+3.0 to +5.5320FanSense Fan Monitor, RPM data10-pin MSOP
TC655Dual SMBus Fan Manager1Note 1Note 1-40 to +85+3.0 to +5.5320FanSense Fan Monitor, RPM data, Overtemperature alert10-pin MSOP
TC664Single SMBus Fan Manager1Note 1Note 1-40 to +85+3.0 to +5.5320FanSense Fan Monitor, RPM data10-pin MSOP
TC665Single SMBus Fan Manager1Note 1Note 1-40 to +85+3.0 to +5.5320FanSense Fan Monitor, RPM data, Overtemperature alert10-pin MSOP
TC670Predictive Fan Fault Detector1N/AN/A-40 to +85+3.0 to +5.5150FanSense Fan Monitor, Programmable threshold6 pin SOT 23

Note 1: These devices use an external temperature sensor. Accuracy of the total solution is a function of the accuracy of the external sensor.

THERMAL MANAGEMENT: Closed-Loop Fan Controllers with SMBus/IC Interface

Part ## of Fan DriversPWM/ Linear Control# of Remote Temp. MonitorsAmbient Temp. SensorTypical Accuracy (°C)Maximum Accuracy @ 25°C (°C)Maximum Temperature Range (°C)Vcc Range (V)SMBus AlertSystem ShutdownVoltage MonitorsDescriptionPackages
EVC21121Linear31±0.25±1.00 to 185+3.3 and +5YesYesNoRPM-Based Fan Controller with Hardware Thermal Shutdown20-pin QFN
EVC2103-11PWM11-0.5+1.0-40 to -125+3.0 to +3.6YesYesNoRPM-Based Fan Controller with Hardware Thermal Shutdown12-pin QFN
EVC2103-21PWM31-0.5+1.0-40 to -125+3.0 to +3.6YesYesNoRPM-Based Fan Controller with Hardware Thermal Shutdown16-pin QFN
EVC2103-41PWM31±0.5±1.0-40 to -125+3.0 to +3.6YesYesNoRPM-Based Fan Controller with Hardware Thermal Shutdown and EEPROM loadable16-pin QFN
EVC21042PWM41±0.25±1.0-40 to +85+3.0 to +3.6YesYesYesDual RPM-Based PWM Fan Controller with Hardware Thermal Shutdown20-pin QFN
EVC21051Linear41±0.25±1.0-40 to +85+3.3 and +5.0YesYesYesRPM-Based High-Side Fan Controller with Hardware Thermal Shutdown20-pin QFN

THERMAL MANAGEMENT: Closed-Loop Fan Controllers with SMBus/IC Interface

EVC2106 2PWM & Linear41±0.25±1.0-40 to +85+3.3 and -5.0YesYesYesRPM-Based High Side Fan Controller with Hardware Thermal Shutdown28-pin QFN
EVC21131PWM31±0.5±1.0-40 to +125+3.0 to +3.6YesYesNoSingle RPM-Based Fan Controller with Multiple Temperature Zones and Hardware Thermal Shutdown16-pin QFN
EVC23011PWMN/AN/AN/AN/A-40 to +125+3.3 to +3.6YesNoN/ASingle RPM-Based PWM Fan Speed Controller8-pin MSOP
EVC23022PWMN/AN/AN/AN/A-40 to +125+3.0 to +3.6YesNoN/ADual RPM-Based PWM Fan Speed Controller10-pin MSOP
EVC23033PWMN/AN/AN/AN/A-40 to +125+3.3 to +3.6YesNoN/ATriple RPM-Based PWM Fan Speed Controller12-pin QFN
EVC23055PWMN/AN/AN/AN/A-40 to +125+3.3 to +3.6YesNoN/APenta RPM-Based PWM Fan Speed Controller16-pin QFN

MOTOR DRIVERS

MOTOR DRIVERS: Stepper Motors, DC Motors and 3-Phase BLDC Motors

Part #Motor TypeInput Voltage Range (V)Internal/ External FETsOutput Current (mA)Control SchemeMotor Speed OutputProtectionsTemperature Operating Range (°C)FeaturesPackages
ATA6826CDC Motor7 to 40Internal1000SPIN/AShort Circuit, Overtemperature, Power Supply Fall-40 to +1253 half bridge outputs, No shoot-through, Very low quiescent current: <2 μASO14
ATA6831CDC Motor7 to 40Internal1000SPIN/AShort Circuit, Overtemperature, Power Supply Fall-40 to +1253 half bridge outputs, No shoot-through, Very low quiescent current: <2 μA, PWM Input18 pin 4 x 4 QFN
ATA6832CDC Motor7 to 40Internal1000SPIN/AShort Circuit, Overtemperature, Power Supply Fall-40 to +1503 half bridge outputs, No shoot-through, Very low quiescent current: <2 μA, PWM Input18 pin 4 x 4 QFN
ATA6836CDC Motor7 to 40Internal650SPIN/AShort Circuit, Overtemperature, Power Supply Fall-40 to +1256 half bridge outputs, No shoot-through, Very low quiescent current: <2 μA24-pin 5 x 5 QFN, SO28
ATA6836CDC Motor7 to 40Internal850SPIN/AShort Circuit, Overtemperature, Power Supply Fall-40 to +1256 half bridge outputs, No shoot-through, Very low quiescent current: <2 μA24-pin 5 x 5 QFN
ATA6829CDC Motor7 to 20External100PWM, DIRN/AShort Circuit, Overtemperature, Over/ Under Voltage, Chargepump Fall-40 to +125Dead time adjust, Charge pump supply for external battery reverse protection NMOS, LDO 3V3/5V, Window Watchdog, LIN TRX, Sleep mode <45μA32-pin 7 x 7 QFN
ATA6824CDC Motor7 to 20External100PWM, DIRN/AShort Circuit, Overtemperature, Over/ Under Voltage, Chargepump Fall-40 to +150Dead time adjust, Charge pump supply for external battery reverse protection NMOS, LDO 3V3/5V, Window Watchdog, I/V interface32-pin 7 x 7 TOFP
ATA68433-Phase Brushless Motor5.5 to 32External100Direct PWMN/AShort Circuit, Overtemperature, Over/ Under Voltage, Chargepump Fall-40 to +125Charge pump supply for external battery reverse protection NMOS, Dead time adjust, LDO 3V3/5V, Window Watchdog, LIN TRX, Sleep mode <45μA48-pin 7 x 7 QFN
ATA68443-Phase Brushless Motor5.5 to 32External100Direct PWMN/AShort Circuit, Overtemperature, Over/ Under Voltage, Chargepump Fall-40 to +150Charge pump supply for external battery reverse protection NMOS, Dead time adjust, LDO 3V3/5V, Window Watchdog, LIN TRX, Sleep mode <45 μA48-pin 7 x 7 QFN
MCP80633-Phase Brushless Motor2.0 to 14.0Internal750 Sensorless SinusoidalFrequency GeneratorOvertemperature, Motor Lock-up, Overcurrent, Overvoltage-40 to +1253-Phase BLDC 180° Sinusoidal Sensorless Fan Motor Driver, Overcurrent limitation, Output Switching Frequency at 25 kHzThermally Enhanced 8-pin 4 x 4 DFN
MTS62C19AOne Bipolar Stepper Motor or Two DC Motors10.0 to 40.0Internal750Direct PWM Input, Current Limit Control, MicrosteppingNoOvertemperature, Under Voltage-40 to +105Dual Full-Bridge Motor Driver for Stepper Motors, Pin compatible with Allegro 621924-pin SOIC
MTS2916AOne Bipolar Stepper Motor or Two DC Motors10.0 to 40.0Internal750Direct PWM Input, Current Limit Control, MicrosteppingNoOvertemperature, Under Voltage-40 to +105Dual Full-Bridge Motor Driver for Stepper Motors, Pin compatible with Allegro 291624-pin SOIC
MTD6501C3-Phase Brushless Motor2.0 to 14.0Internal800 Sensorless SinusoidalFrequency GeneratorOvertemperature, Motor Lock-up, Overcurrent, Overvoltage-30 to -953-Phase BLDC 180° Sinusoidal Sensorless Fan Motor Driver, Overcurrent limitation, Output Switching Frequency at 20 kHzThermally Enhanced 8-pin SOIa
MTD6501D3-Phase Brushless Motor2.0 to 14.0Internal510Sensorless SinusoidalFrequency GeneratorOvertemperature, Motor Lock-up, Overcurrent, Overvoltage-30 to -953-Phase BLDC 180° Sinusoidal Sensorless Fan Motor Driver, Boost Mode, Overcurrent limitation, Output Switching Frequency at 20 kHz10-pin MSOP
MTD6501G3-Phase Brushless Motor2.0 to 14.0Internal800 Sensorless SinusoidalFrequency GeneratorOvertemperature, Motor Lock-up, Overcurrent, Overvoltage-30 to -953-Phase BLDC 180° Sinusoidal Sensorless Fan Motor Driver, Overcurrent limitation, Output Switching Frequency at 23 kHzThermally Enhanced 8-pin SOP
MTD6502B3-Phase Brushless Motor2.0 to 5.5Internal750 Sensorless SinusoidalFrequency GeneratorOvertemperature, Motor Lock-up, Overcurrent, Overvoltage-40 to +1253 Phase BLDC Sinusoidal Sensorless Fan Motor Driver, Direction control, Overcurrent limitation, Output Switching Frequency at 30 kHz10-pin 3 x 3 TDFN
MTD65083-Phase Brushless Motor2.0 to 5.5Internal750 Sensorless SinusoidalFrequency GeneratorOvercurrent, Overvoltage, Overtemperature, Motor Lock-up-40 to +125180° Sinusoidal Sensorless Drive, Direction Control, Programmable BFMF Coefficient Range, Output Switching Frequency at 30 kHz, Programmable Start-up RPM and Slew Rate, Selectable Start-up Strength and Phase Target Regulation10-pin 3 x 3 UDFN, 18-pin 4 x 4 UDFN

MOTOR DRIVERS: Stepper Motors, DC Motors and 3-Phase BLDC Motors

Part #Motor TypeInput Voltage Range (V)Internal/ External FETsOutput Current (mA)Control SchemeMotor Speed OutputProtectionsTemperature Operating Range (°C)Features Packages
MTD65053- Phase Brushless Motor2.0 to 5.5Internal 750Senscless SinusoidalFrequency GeneratorOvocurrent, Ovorvoltage, Overtemperature, Motor Lock-up -40 to +125 ^180 ° Sinusoidal Sensorless Drive, Direction Control, Programmable EEMF Coefficient Range, Output Switching Frequency at 30 kHz10-pin 3 x 3 UDFN

POSITION SENSORS

POSITION SENSORS: Inductive Sensors

Part #Calibration SegmentsSensor Offset AdjustOrigin Adjust (bits)Output InterfaceOutput Resolution (bits)Redundant IC support# of ADCsADC Sampling Rate (samples/sec)ADC for external sensor (bits)MCUTemperature Range (°C)Features Packages
LX3301A6Yes12Analog, PWM12Yes22000N/A32 bit, 8 MHz-40 to +125AEC-Q100 Grade 1, ISO28262 Support, Integrated Input EMI liters
LX3302A 8Yes 12Analog, PWM, SENT, PSIC, SIVCos12Yes320001032 bit, 8 MHz-40 to +150AEC-Q100 Grade 0, ISO28262 Support, Integrated temperature sensor, external sensor interface

POWER MANAGEMENT

POWER MANAGEMENT: Voltage References

Part #Vin Max(V)Output Voltage(V)Max. LoadCurrent (mA)Initial Accuracy(max,%)TemperatureCoefficient (ppm/°C)Maximum SupplyCurrent (μA @ 25°C)Packages
MCP15015.51.024, 1.250, 1.8, 2.048, 2.5, 3.0, 3.8, 4.09620+0.06503508-pin 2 x 2 WDRN, 6-pin SOT-25 (AEC-Q100), 8-pin SOIC
MCP15255.52.5+2+1501003-pin TO-92, 3-pin SOT-23B
MCP15415.54.098±2±1501003 pin TO-92, 3 pin SOT-23B
LM4040C152.5, 4.096, 5.015±0.510065-853 pin SOT-23
LM4040D152.5, 4.096, 5.015±115065-853-pin SOT-23
LM4041C151.225, Aql. (1.24-10V)12±0.5100703 pin SOT-23
LM4041D151.225, Aql. (1.24-10V)12±1150703 pin SOT-23
MIC4040310Adjustable15±1-708-pin SOT-143

POWER MANAGEMENT: Single Output Linear Regulators

Part #Output Current (mA)Vin Min (V)Vin Max (V)Vout (V)Voltage Drop Typical (mV)Iq Typical (μA)Output Accuracy (%)PSRR 1 kHz (dB)FeaturesPackages
MCP19111501.85.51.2, 1.8, 2.9, 3.0, 3.3400250 rA ± 2 50Ultra-Low Iq1 x 1 DFN, SOT28-3, SOT28-5, SC70-3, SC70-5
MCP19123001.85.51.2, 1.8, 2.9, 3.0, 3.3400250 rA ± 2 50Ultra-Low Iq1 x 1 DFN, SOT28-3, SOT28-5, SC70-3, SC70-5
MIC5231103.5122.75, 3.0, 3.3, 5.0150850 rA ± 2 50High Input Voltage, Small Package5-pin SOT-23
MIC5232102.771.2, 2.6, 2.9, 3.31001.8 μA ± 2 557V input5-pin TSOT, 6-pin VDTN
MAQ5280254.5120Adj.110031 μA ± 2 80Ultra-High Input Voltage, Load Dump8-pin SOIC
MIC5280254.5120Adj.110031 μA ± 2 80High Input Voltage, Load Dump, Reverse Battery Protection8-pin SOIC
MIC52812561203.3, 5.0, Adj.20006 μA ± 3 90High Input Voltage, Load Dump8 pin MSOP*
MAQ52812561203.3, 5.0, Adj.20006 μA ± 3 90High Input Voltage, Load Dump8 pin MSOP*
MAQ52825061203.3, 5.0, Adj.20006 μA ± 3 90High Input Voltage, High PSRR8 pin MSOP*
MIC52825061203.3, 5.0, Adj.20006 μA ± 3 90High Input Voltage, Load Dump8 pin MSOP*
TC1014502.761.8, 2.5, 2.7, 2.8, 2.85, 3.0, 3.3, 3.8, 4.0, 5.08550 μA ± 0.5 64Ultra Low Dropout5 pin SOT-23
TC1054502.761.8, 2.5, 2.7, 2.8, 2.85, 3.0, 3.3, 3.8, 4.0, 5.08550 μA ± 0.5 64Ultra Low Dropout5 pin SOT-23
TC1070502.761.23-5.58550 μA ± 0.5 64Ultra Low Dropout5 pin SOT-23
TC1072502.762.5, 2.7, 2.8, 2.85, 3.0, 3.3, 3.8, 4.0, 5.08550 μA ± 0.5 64Ultra Low Dropout6 pin SOT-23
TC1223502.762.8, 2.7, 2.8, 3.0, 3.3, 3.6, 4.0, 5.08550 μA ± 0.5 64Ultra Low Dropout5 pin SOT-23
TC2014502.761.8, 2.7, 2.8, 3.0, 3.34550 μA ± 0.4 55Ultra Low Dropout5 pin SOT-23
TC2054502.761.8, 2.7, 2.9, 3.0, 3.34555 μA ± 0.4 50Ultra Low Dropout5 pin SOT-23

POWER MANAGEMENT: Single Output Linear Regulators

Part #Output Current (mA)Vin Min (V)Vin Max (V)Vout (V)Voltage Drop Typical (mV)Iq Typical (μA)Output Accuracy (%)PSRR 1 kHz (dB)Features Packages
MCP1790706303.0, 3.3, 5.070070 μA±0.290High Input3-pin SOT-223, 3-pin DOPAK
MCP179170300.0, 3.3, 5.0700.70 μA0.2 90 High Input 5-pin DDPAK, 5-pin SOT-223
MIC5203802.5182.6, 2.8, 3.0, 3.3, 3.8, 3.8, 4.0, 4.5, 5.0300180 μA±360High input Voltage, Small Package4 pin SOT 143, 5 pin SOT 23
MIC5213802.5182.5, 2.6, 2.7, 2.8, 3.0, 3.3, 3.6, 5.0280180 μA±360High input Voltage, Small Package5-pin SC70
TC1016802.761.8, 2.7, 2.8, 3.015050 μA±0.558Low Dropout5 pin SC 70, 5 pin SOT 23
LF29511002304.9, 5.0, Adj.380100 μA±0.570High input Voltage, High PSRR8-pin SOIC, 8-pin PDIP
MIC52001002.5283.0, 3.3, 4.8, 5.0230130 μA±170Low Dropout8 pin MSOP, 3 pin SOT 223, 8-pin SOIC
MIC52331002.5361.8, 2.5, 3.0, 3.3, 5.0, Adj.27018 μA±150High input Voltage, Reverse Battery and Current Protection3 pin SOT-223, 5-pin SOT-23
MCP17921004.5553.3, 5.025025270AEC-Q100 Qualified and PPAP Capable with Automotive Grade 03-Lead SOT-2233-Lead SOT-23A
MCP17931004.5553.3, 5.025025270AEC-Q100 Qualified and PPAP Capable with Automotive Grade 05-Lead SOT-2235-Lead SOT-23A
MCP1799804.5453.3, 5.030050270AEC-Q100 Qualified and PPAP Capable with Automotive Grade 03-Lead SOT-2233-Lead SOT-23A
MIC52531002.76.51.5, 1.8, 1.85, 2.5, 2.6, 2.7, 2.8, 2.9, 3.0, 3.1, 3.2, 3.316575 μA+0.570 Low Dropout5-pin SC70
MIC5270100-2-16(-3.0, (-4.1, -4.5,0, Adj.50035 μA±250Negative LDO5-pin SOT-23
MIC5271100-3.3-16(-3.0, (-4.1, -4.5,0, Adj.50025 μA±250Negative LDO5 pin SOT-23
TC10151002.761.8, 2.5, 2.7, 2.8, 2.95, 3.0, 3.3, 3.6, 4.0, 5.018050 μA±0.564Low Dropout5 pin SOT-23
TC10591002.761.8, 2.5, 2.7, 2.8, 2.95, 3.0, 3.3, 3.6, 4.0, 5.018050 μA±0.564Low Dropout5 pin SOT-23
TC10711002.761.23-5.518050 μA±0.564Low Dropout5 pin SOT-23
TC10731002.762.5, 2.7, 2.8, 2.85, 3.0, 3.3, 3.6, 4.0, 5.018050 μA±0.564Low Dropout6 pin SOT-23
TC12241002.762.5, 2.7, 2.8, 3.0, 3.3, 3.6, 4.0, 5.018050 μA±0.564Low Dropout5 pin SOT-23
TC20151002.761.8, 2.7, 2.8, 3.0, 3.39055 μA±0.455Low Dropout5 pin SOT-23
TC20551002.761.8, 2.7, 2.8, 3.0, 3.39055 μA±0.450Low Dropout5 pin SOT-23
TC59100--10-83803 μA±0.550Negative LDO3 pin SOT-23A
TC11881202.761.8, 2.8, 2.84, 3.1513050 μA±0.580High PSRR5 pin SOT-23
TC11891202.761.8, 2.8, 2.94, 3.1513050 μA±0.580High PSRR5 pin SOT-23
MCP18101502.55.51.2, 1.8, 2.5, 3.0, 3.3, 4.23800.02 μA±125Ultra Low Is5 pin SOT-23, 2 × 2 VDTN
MAQ528315061203.3, 5.0, Adj.18008 μA±375High Input Voltage, High PSRR8 pin SOIC
MIC29511502303.3, 5.0320120 μA±167Load Dump, Reverse Battery Protection8 pin MSOP, 8 pin SOIC, 8 pin PDIF
MIC52051502.5182.5, 2.7, 2.8, 2.85, 2.9, 3.0, 3.1, 3.2, 3.3, 3.6, 3.8, 4.0, 5.0, Adj.16580 μA±175High Input Voltage, Small Package5 pin SOT-23
MIC52061502.5182.5, 2.7, 3.0, 3.2, 3.3, 3.6, 3.8, 4.0, 5.0, Adj.1651.3mA±175High input voltage, Small Package8 pin MSOP, 5 pin SOT-23
MIC52251502.5181.5, 1.8, 2.5, 2.7, 3.0, 3.3, 5.0, Adj.31029 μA±0.535High input voltage, Small Package, Reverse Current Protection5 pin SOT-23
MIC52341502.530Adj.32020 μA±1High input voltage, Load Dump, Reverse Battery and Current Protection8 pin SOIC
MIC52351502.5241.5, 1.8, 2.5, 2.7, 3.0, 3.3, 5.0, Adj.31018 μA±135High input voltage, Reverse Battery and Current Protection5 pin SOT-23
MIC52361502.5302.5, 3.0, 3.3, 5.0, Adj.30020 μA±155High input voltage, Load Dump, Reverse Battery and Current Protection8 pin MSOP, 8 pin SOIC
MIC52381501.581.0, 1.1, 1.331028 μA±550Low Dropout5 pin TSOT, 5 pin SOT-23
MIC52471502.781.5, 1.6, 1.8, 1.85, 2.0, 2.1, 2.2, 2.415065 μA±180Low Dropout5 pin TSOT, 6 pin VDTN, 5 pin SOT-23
MIC52481502.781.2-100 μA±380Low Dropout6 pin VDTN, 5 pin SOT-23
MIC52521502.781.8, 2.5, 2.8, 2.85, 3.0, 4.7513550 μA±160Low Dropout8 pin VDTN, 5 pin SOT-23
MIC52551502.782.5, 2.6, 2.7, 2.75, 2.8, 2.85, 2.9, 3.0, 3.1, 3.2, 3.3, 3.513590 μA±180Low Dropout5 pin TSOT, 6 pin VDTN, 5 pin SOT-23

POWER MANAGEMENT: Single Output Linear Regulators

Part #Output Current (mA)Vin Min (V)Vin Max (V)Vout (V)Voltage Drop Typical (mV)Iq Typical (μA)Output Accuracy (%)PSRR 1 kHz (dB)Features Packages
MIC5256 1502.7 61.5, 1.8, 2.5, 2.6, 2.7, 2.8, 2.85, 2.9, 3.0, 3.1, 3.313590 μA +160 Low Dropout 5-pin TSOT, 5-pin SOT-23
MIC52581502.761.2-65 μA±3-Low Dropout5-pin SOT-23
MIC5260 1502.75.51.5, 1.8, 1.85, 2.5, 2.6, 2.7, 2.8, 2.85, 2.9, 3.0, 3.1, 3.2, 3.3210 /5 μA ±2.84 Low Dropout 5-pin TSOT, 8 pin UDFN
MIC52681502.761.2-110 μA±3-Low Dropout5-pin SOT-23
MIC528315061203.3, 5.0, Adj.18008 μA±375High Input Voltage, Load Dump8 pin SOIC, 8-pin VDFN
MIC52951502.3243.0, 3.3, 5.0, Adj.31018 μA+150Reverse Battery and Current Protection5-pin TO-252
MIC5301 1502.35.51.3, 1.5, 1.8, 2.1, 2.5, 2.6, 2.8, 2.85, 2.9, 3.0, 3.3, 4.6, Adj.4085 μA ±2.75Ultra Low Dropout5-pin TSOT, 6-pin UDFN, 6-pin WDFN
MIC53021502.35.51.3, 1.5, 1.8, 2.1, 2.5, 2.6, 2.8, 2.85, 2.9, 3.0, 3.3, 4.65085 μA±265Ultra Low Dropout4-pin UDFN
MIC53041502.35.55.15/1.85, 3.16/1.875, 3.2/1.86524 μA±0.565Ultra Low Dropout6-pin UDFN
MIC53051502.255.51.5, 1.8, 2.0, 2.5, 2.6, 2.7, 2.8, 2.85, 2.9, 3.0, 3.3, 4.6, 4.75, Adj.6090 μA±165Ultra Low Dropout5-pin TSOT, 6-pin UDFN, 6-pin VDFN
MIC53061502.255.51.8, 2.5, 2.64516 μA±162Ultra Low Dropout5-pin TSOT
MIC53081501.65.51.2, 1.8, 1.8, Adj.4523 μA±290Ultra Low Dropout, Ultra High PSRR6-pin TSOT, 6-pin UDFN
MIC53171502.561.0, 1.2, 1.5, 1.8, 2.5, 2.8, 3.0, 3.315532 μA±280High PSRR5-pin TSOT, 4-pin UDFN, 5-pin SOT 23
MIC5365 1502.55.51.5, 1.8, 2.0, 2.5, 2.6, 2.7, 2.8, 2.85, 2.9, 3.0, 3.315532 μA ±2.80 High PSRR5-pin SC70, 5-pin TSOT, 4-pin UDFN
MIC5366 1502.55.51.5, 1.8, 2.0, 2.5, 2.6, 2.7, 2.8, 2.85, 2.9, 3.0, 3.315532 μA +2.80 High PSRR5-pin SC70, 4-pin UDFN
MIC53761502.55.52.812029 μA±260Low Dropout5-pin SC70, 4-pin UDFN
MIC53771502.55.5Adj.12029 μA+260Low Dropout5-pin SC70, 8-pin UDFN
MIC53781502.55.5Adj.12029 μA+260Low Dropout5-pin SC70, 8-pin UDFN
MCP17111501.461.1-5.06700.6 μA±1-Ultra Low Io, Caploss4-pin UDFN, 5-pin SOT 23
MCP17541503.6161.8-5.030058 μA±0.472High Performance8 pin DFN, 8 pin SOT 223, 5 pin SOT 23
MCP1754S1603.6161.8-5.030056 μA±0.272High Performance3 pin SOT 89, 3 pin SOT 23A, 3-pin SOT-223, 8-pin DFN
MCP18041502281.8-1830050 μA±260High Input3-pin SOT-89, 5-pin SOT-89, 3-pin SOT-223, 5-pin SOT-23
TC10171502.761.8, 2.6, 2.7, 2.8, 2.85, 2.9, 3.0, 3.3, 4.028553 μA+0.558Low Dropout5-pin SC-70, 5-pin SOT-23
TC11851502.761.8, 2.5, 2.7, 2.8, 2.85, 3.0, 3.3, 3.6, 4.0, 5.027050 μA+0.564Low Dropout5-pin SOT-23
TC11861502.761.8, 2.5, 2.7, 2.8, 2.85, 3.0, 3.3, 3.6, 4.0, 5.027050 μA±0.564Low Dropout5 pin SOT-23
TC11871502.761.28-5.527050 μA±0.584Low Dropout5 pin SOT-23
TC21851502.761.8, 2.7, 2.8, 3.0, 3.314055 μA+0.455High Accuracy5-pin SOT-23
TC21861502.761.8, 2.7, 2.8, 3.0, 3.314055 μA±0.450High Accuracy5 pin SOT-23
MIC5207 180 2.5161.8, 2.6, 2.8, 2.9, 3.0, 3.1, 3.2, 3.3, 4.0, 5.0, Adj.16580 μA+375High Input Voltage, Small Package5-pin TSOT, 5-pin SOT-23
MIC52012002.6283.0, 3.3, 4.8, 5.0, Adj.270130 μA±275Low Dropout8-pin MSOP, 3-pin SOT-223, 8-pin SOIC
MIC52672002.55.51.2, 1.5, 3.318029 μA+265Low Dropout6-pin UDFN
MIC53682002.55.51.2, 1.5, 3.318029 μA±165Low Dropout8 pin UDFN
MIC940002001.83.6Input Follower170136 μA-0RippleBlocker4 pin UDFN
MIC94310 200 1.85.61.2, 1.5, 1.8, 1.85, 2.5, 2.7, 2.8, 2.85, 3.0, 3.340170 μA+185RippleBlocker4-pin UDFN, 5-pin SOT-23
MIC29542502305.0, Adj.375140 μA+1-Load Dump3-pin SOT-223, 3-pin TO-220, 8-pin SOIC

POWER MANAGEMENT: Single Output Linear Regulators

Part #Output Current (mA)Vin Min (V)Vin Max (V)Vout (V)Voltage Drop Typical (mV)Iq Typical (μA)Output Accuracy (%)PSRR 1 kHz (dB)Features Packages
MCP17002502.361.8, 2.5, 3.0, 3.3, 5.03001.6 μA±0.444Low Is3-pin TO-92, 3-pin SOT-89, 3-pin SOT-23, 6-pin DFN
MCP17022502.713.21.2, 1.5, 1.8, 2.5, 2.8, 3.0, 3.3, 4.0, 5.06952 μA+0.444Low Is3-pin TO-92, 3-pin SOT-89, 3-pin SOT-23A
MCP1703A2502.7161.2-5.56252 μA+0.435High Input, Low Is3-pin SOT-89, 3-pin SOT-23A, 3-pin SOT-223, 8-pin DFN
MAQ53003002.35.51.5, 1.8, 2.5, 2.8, 2.85, 3.0, 3.310085 μA±265Low Dropout8-pin VDFN
MIC52493002.761.5, 1.8, 2.5, 2.8, 2.85, 3.0, 3.334065 μA+165High PSRR8-pin MSOP
MIC52593002.761.5, 1.8, 2.1, 2.5, 2.8, 2.85, 3.0, 3.3300105 μA+0.570Low Dropout5-pin TSOT, 6-pin VDFN
MIC53033002.35.51.5, 1.8, 2.1, 2.5, 2.6, 2.6, 2.85, 2.9, 3.0, 3.310085 μA±265Ultra Low Dropout4 pin UDFN
MIC53073002.45.51.5, 1.8, 2.8, 3.012020 μA±162Low Dropout5 pin TSOT
MIC53093001.75.51.2, 1.5, 1.9, Adj.10023 μA±290Ultra High PSRR6-pin TSOT, 6-pin UDFN
MIC53183002.361.5, 1.8, 2.5, 2.8, 3.3, Adj.11065 μA±275High PSRR5-pin TSOT, 6-pin UDFN
MIC53233002.655.51.6, 2.9, 3.3, Adj.12090 μA±280High PSRR5 pin TSOT, 8-pin UDFN
MIC53273002.35.51.8, 2.818024 μA±0.560High PSRR4-pin UDFN
MIC53373002.35.51.8, 2.818024 μA±0.565High PSRR4-pin UDFN
MIC53533002.661.8, 2.5, 2.6, 2.8, 3.0, 3.3, Adj.18090 μA±280Low Dropout6-pin UDFN
MIC53633002.55.51.2, 2.1, 2.8, 3.322536 μA+280High PSRR6-pin UDFN
MIC53643002.55.51.2, 2.1, 2.8, 3.322536 μA+280High PSRR6-pin UDFN
MIC55013002.55.51.2, 1.8, 2.8, 3.0, 3.318036 μA±260Low Dropout4 pin UDFN, 5 pin SOT-23
MIC55023002.55.51.2, 1.8, 2.8, 3.0, 3.318038 μA+260Low Dropout4 pin UDFN
MIC55033002.55.51.2, 1.8, 2.8, 3.0, 3.318038 μA±260Low Dropout4 pin UDFN
MIC55043002.55.51.2, 1.8, 2.8, 3.0, 3.3, 3.318038 μA+260Low Dropout4 pin UDFN, 5-pin SOT-23
MIC55123002.55.51.2, 1.8, 2.8, 3.318038 μA+265Low Dropout6-pin UDFN
MIC55143002.55.51.2, 1.8, 2.8, 3.0, 3.318038 μA±265Low Dropout6-pin UDFN
MCP17553003.6181.8-5.530068 μA±0.8580High Input, Low Dropout3-pin SOT-223, 8-pin DFN, 5-pin SOT-223, 5-pin SOT-23
MCP1755S3003.6181.8-5.530068 μA±0.8580Low Dropout3-pin SOT-223, 8-pin DFN
MCP19243002.160.8, 1.2, 1.8, 2.5, 3.0, 3.3, 5.0200120 μA±0.455High Accuracy5 pin SOT-223, 5-pin SOT-23
MCP1924S3002.160.8, 1.2, 1.8, 2.5, 3.0, 3.3, 5.0200120 μA±0.455High Accuracy3 pin SOT-223,
TC11073002.762.5, 2.7, 2.8, 3.0, 3.3, 5.024050 μA±0.560Low Dropout8-pin MSOP, 8-pin SOIC 150mil
TC11083002.762.5, 2.7, 2.8, 3.0, 3.3, 5.024050 μA+0.560Low Dropout3-pin SOT-223
TC11733002.763.3, 5.0, 2.5, 2.7, 2.8, 3.024050 μA±0.560Low Dropout8-pin MSOP, 8-pin SOIC 150mil
TC11743002.761.23-5.527050 μA+0.560Low Dropout8-pin MSOP, 8-pin SOIC 150mil
TC12693002.762.5, 2.8, 3.0, 3.3, 5.024050 μA±0.550Low Dropout8-pin MSOP
TC15003002.762.5, 2.7, 2.8, 2.65, 3.0, 3.321080 μA+0.560Low Dropout8-pin MSOP
MIC292014002283.3, 4.8, 5.0, 12400140 μA±170Load Dump, Reverse Battery Protection5 pin TO-220, 5 pin DDPAK, 8-pin SOIC
MIC29202400228Adj.400140 μA+170Load Dump, Reverse Battery Protection5 pin TO-220, 5 pin DDPAK
MIC292044002285.0, Adj.400140 μA+170Load Dump, Reverse Battery Protection8-pin SOIC, 8-pin PDIP
MIC2920A4002283.3, 4.8, 5.0, 12400140 μA+170Load Dump, Reverse Battery Protection3-pin SOT-222, 3-pin TO-220
MIC53254001.75.51.2, 1.5, 1.8, 3.3, 2.611035 μA+265Low Noise8-pin UDFN
MIC4705C50013.61.2, 1.8, Adj.446 μA±0.550Ultra Low Dropout6 pin UDFN, 6 pin VDFN
MIC4705J50013.6Adj.446 μA±255Ultra Low Dropout8-pin UDFN
MIC52095002.5181.8, 2.5, 3.0, 3.3, 3.6, 4.2, 5.0, Adj.3508 mA+175High Input Voltage, Small Package8-pin SOIC, 3-pin SOT-223, 8 pin VDFN, 5 pin DDPAK
MIC52165002.5122.5, 3.3, 3.6, 5.03008 mA+175High Input Voltage, Small Package8-pin MSOP, 5-pin SOT-23
MIC5219 SOD2.5122.5, 2.6, 2.7, 2.8, 2.95, 3.0, 3.1, 3.3, 3.6, 5.0, Adj.35012 mA±175High Input Voltage, Small Package8-pin MSOP, 8-pin UDFN, 8-pin VDFN, 5-pin SOT-23

www.microchip.com/analloy
POWER MANAGEMENT: Single Output Linear Regulators

Part #Output Current (mA)Vin Min (V)Vin Max (V)Vout (V)Voltage Drop Typical (mV)Iq Typical (μA)Output Accuracy (%)PSRR 1 kHz (dB)Features Packages
MIC52875002.5162.5, 3.3, 5.03008 mA±375High input Voltage, Reverse Battery Protection3-pin TO-263, 3-pin TO-220
MIC52395002.3301.5, 1.8, 2.5, 3.0, 3.3, 5.0, Adj.35023 μA+150Reverse Battery and Current Protection8-pin MSOP, 8-pin SOIC, 3-pin SOT-223
MIC5319 5002.65.51.379, 1.8, 1.85, 2.5, 2.6, 2.7, 2.8, 2.85, 2.9, 3.0, 3.3, 5.0, Adj.20050 μA±170High PSRR5-pin TSOT, 6-pin VDFN
MIC55245002.55.51.2, 1.6, 2.8, 3.0, 3.326038 μA+265Low Noise4-pin UDFN
MIC55285002.55.53.326038 μA±270Low Dropout6-pin UDFN, 6-pin X2DFN
MIC943055001.83.6Input Follower170150 μA-0RippleBlocker8-pin UDFN
MIC943255001.83.6Adj.100170 μA+185RippleBlocker6-pin UDFN
MIC943455001.83.61.2, 1.5, 1.8, 2.8, 3.3100170 μA+185RippleBlocker6-pin UDFN
MIC943555001.83.61.2, 1.5, 1.8, 2.8, 3.3100170 μA+185RippleBlocker6-pin UDFN
MCP17255002.360.8, 1.2, 1.6, 2.5, 3.0, 3.3, 5.0210120 μA±0.560Low Dropout8-pin DFN, 8-pin SOIC 150mil
MCP18255002.160.8, 1.2, 1.6, 2.5, 3.0, 3.3, 5.0210120 μA±0.560Low Dropout5-pin TO-220, 5-pin DDPAK, 5-pin SOT-223
MCP1825S5002.160.8, 1.2, 1.6, 2.5, 3.0, 3.3, 5.0300120 μA±0.560Low Dropout3-pin TO-220, 3-pin SOT-223, 3-pin DDPAK
TC12625002.762.5, 2.6, 3.0, 3.3, 5.035080 μA±0.564Low Dropout3-pin TO-220, 3-pin SOT-223, 3-pin DDPAK
TC12635002.762.5, 2.6, 3.0, 3.3, 5.035080 μA±0.564Low Dropout5-pin TO-220, 5-pin DDPAK, 8-pin SOIC 150mil
MIC283/17504.3263.3, 5.0, 12370160 μA±1-Load Dump, Reverse Current Protection5-pin TO-220, 5-pin DDPAK
MIC283727504.326Adj.370160 μA±1-Load Dump, Reverse Current Protection5-pin TO-220, 5-pin DDPAK
MIC2837A7504.3263.3, 5.0, 12370160 μA+1-Load Dump, Reverse Current Protection3-pin TO-263, 3-pin TO-220
MIC37757502.2561.5, 1.65, 1.8, 2.5, 3.0, 3.3, Adj.2806.5 mA+160Reverse Current Protection8-pin MSOP
MIC38757502.25161.65, 1.9, 2.5, 3.0, 3.3, 5.0, Adj.3007.5 mA±155Reverse Current Protection8-pin MSOP
TC12648002.761.9, 2.5, 3.0, 3.345080 μA±0.564Low Dropout3-pin TO-220, 3-pin SOT-223, 3-pin DDPAK
TC12658002.761.9, 2.5, 3.0, 3.345080 μA±0.564Low Dropout5-pin TO-220, 5-pin DDPAK, 8-pin SOIC 150mil
TC21178002.761.9, 2.5, 3.0, 3.360080 μA±0.555Low Dropout3-pin SOT-223, 3-pin DDPAK
MIC3710010002.2561.5, 1.65, 1.8, 2.5, 3.3280400 μA±150Reverse Battery and Current Protection3-pin SOT-223
MIC3710110002.2561.5, 1.65, 1.8, 2.1, 2.5, 3.3290400 μA+150Reverse Battery and Current Protection8-pin SOIC
MIC3710210002.256Adj280400 μA±150Reverse Battery and Current Protection8-pin SOIC, 5-pin SPAK
MIC3810010002.25161.8, 2.5, 3.3, 5.04106.5 mA+155Reverse Battery and Current Protection3-pin SOT-223
MIC3910110002.25161.9, 2.5, 3.3, 5.04106.5 mA±155Reverse Battery and Current Protection8-pin SOIC
MIC3910210002.2516Adj.4108.5 mA±155Reverse Battery and Current Protection8-pin SOIC
MIC47100100013.60.8, 1.0, 1.2, Adj.60350 μA±0.560Ultra Low Dropout8-pin MSOP, 8-pin VDFN
MIC8910110001.955.51.821511 mA±255Low Dropout10-pin VDFN
MIC8910310001.955.5Adj.21511 mA±255Low Dropout10-pin VDFN
MCP172610002.360.8, 1.2, 1.8, 2.5, 3.3, 5.0500130 μA±0.554Low Dropout8-pin DFN, 8 pin SOIC 150mil
MCP182610002.360.8, 1.2, 1.8, 2.5, 3.0, 3.3, 5.0225120 μA±0.560Low Dropout5-pin TO-220, 5-pin DDPAK, 5-pin SOT-223
MCP1826S10002.360.8, 1.2, 1.8, 2.5, 3.0, 3.3, 5.0225120 μA±0.560Low Dropout3-pin TO-220, 3-pin SOT-223, 3-pin DDPAK
MIC2840A12502283.3, 5.0, 1240035 mA±1-Load Dump, Reverse Current Protection3-pin TO-263, 3-pin TO-220
MIC2841A1250228Adj.43035 mA+1-Load Dump, Reverse Current Protection5-pin TO-220, 5-pin DDPAK
MIC2915015002.25263.3, 5.0, 1235022 mA+1-Load Dump, Reverse Current Protection3-pin TO-263, 3-pin TO-220
MIC2915115002.25263.3, 5.0, 1235022 mA+1-Load Dump, Reverse Current Protection5-pin TO-220, 5-pin DDPAK

POWER MANAGEMENT: Single Output Linear Regulators

Part #Output Current (mA)Vin Min (V)Vin Max (V)Vout (V)Voltage Drop Typical (mV)Iq Typical (μA)Output Accuracy (%)PSRR 1 kHz (dB)Features Packages
MIC2915215002.2528Adj.35022 mA±1-Load Dump, Reverse Current Protection5-pin TO-252, 5-pin TO-220, 5-pin DOPAK
MIC3713915002.2561.8, 2.550017 mA+150Reverse Battery and Current ProtectionPlease call for package information
MIC3715015002.2561.5, 1.65, 1.8, 2.5, 3.332517 mA±145Reverse Battery and Current Protection3-pin SPAK
MIC3715115002.2561.5, 1.65, 1.8, 2.5, 3.332517 mA±145Reverse Battery and Current Protection5-pin SPAK
MIC3715215002.256Adj.32517 mA+145Reverse Battery and Current Protection8-pin SOIC, 5-pin SPAK
MIC3715315002.256Adj.32517 mA±145Reverse Battery and Current Protection8-pin SOIC
MIC3915015002.25181.65, 1.8, 2.537517 mA±153Reverse Battery and Current Protection3-pin TO-263, 3-pin TO-220
MIC3915115002.25181.65, 1.8, 2.537517 mA±153Reverse Battery and Current Protection5-pin TO-220, 5-pin DOPAK
MIC3915215002.2518Adj.37517 mA±153Reverse Battery and Current Protection5-pin TO-252, 5-pin DOPAK
MIC4715015001.46.5Adj.28015 mA+155Low Dropout5-pin TO-252
MIC4915015001.46.50.9, 1.2, 1.5, 1.8, Adj.28015 mA±157Low Dropout9-pin MSOP, 5-pin SPAK
MIC56150150013.8Adj.10012.8 mA±160Ultra Low Dropout8-pin SOIC
MIC8115015001.13.81.0, Adj.757.8 mA±150Ultra Low Dropout, Soft Start10 pin MSOP, 10 pin VDFN
MCP172715002.360.8, 1.2, 1.8, 2.5, 3.0, 3.3, 5.0330120 μA+0.560Low Dropout8-pin DFN, 8-pin SOIC 150mil
MCP192715002.360.8, 1.2, 1.8, 2.5, 3.0, 3.3, 5.0330120 μA+0.560Low Dropout5-pin TO-220, 5-pin DOPAK
MCP1827S15002.360.8, 1.2, 1.8, 2.5, 3.0, 3.3, 5.0330120 μA+0.560Low Dropout3-pin TO-220, 3-pin DOPAK
MIC4920020001.46.51.0, 1.9, Adj.40015 mA±183Low Dropout5-pin SPAK
MIC6820020001.655.51.2, 1.5, 1.8, 2.5, 3.3, Adj30042 mA±160Low Dropout, Soft Start10 pin VDFN
MIC37252250036Adj.55040 mA+250Reverse Current Protection5-pin SPAK, 5-pin DOPAK
MIC2937A7504.3283.3, 5.0, 12370160 μA±1-Load Dump, Reverse Current Protection3 pin TO-263, 3 pin TO-220
MIC37757502.2561.5, 1.65, 1.8, 2.5, 3.0, 3.3, Adj.2808.5 mA±150Reverse Current Protection8-pin MSOP
MIC39757502.25101.65, 1.8, 2.5, 3.0, 3.3, 5.0, Adj.3007.5 mA±155Reverse Current Protection8-pin MSOP
TC12648002.761.9, 2.5, 3.0, 3.345080 μA+0.564Low Dropout3 pin TO-220, 3 pin SOT-223, 3-pin DOPAK
TC12658002.761.9, 2.5, 3.0, 3.345080 μA+0.564Low Dropout5 pin TO-220, 5 pin DOPAK, 8 pin SOIC 150mil
TC21178002.761.9, 2.5, 3.0, 3.360080 μA+0.555Low Dropout3-pin SOT-223, 3-pin DOPAK
MIC3710010002.2561.5, 1.65, 1.8, 2.5, 3.3280400 μA±150Reverse Battery and Current Protection3 pin SOT-223
MIC3710110002.2561.5, 1.65, 1.8, 2.1, 2.5, 3.3280400 μA+150Reverse Battery and Current Protection8-pin SOIC
MIC3710210002.256Adj.280400 μA±150Reverse Battery and Current Protection8-pin SOIC, 5-pin SPAK
MIC3910010002.25181.8, 2.5, 3.3, 5.04108.5 mA±155Reverse Battery and Current Protection3 pin SOT-223
MIC3910110002.25181.9, 2.5, 3.3, 5.04108.5 mA+155Reverse Battery and Current Protection8-pin SOIC
MIC3910210002.2518Adj.4106.5 mA±155Reverse Battery and Current Protection8-pin SOIC
MIC47100100013.60.9, 1.0, 1.2, Adj.80350 μA+0.580Ultra Low Dropout8-pin MSOP, 8-pin VDFN
MIC6910110001.655.51.821511 mA±255Low Dropout10 pin VDFN
MIC6910310001.655.5Adj.21511 mA+255Low Dropout10 pin VDFN
MCP172610002.360.8, 1.2, 1.8, 2.5, 3.3, 5.0500130 μA+0.554Low Dropout9-pin DFN, 8-pin SOIC 150mil
MCP192610002.360.8, 1.2, 1.8, 2.5, 3.0, 3.3, 5.0225120 μA+0.560Low Dropout5 pin TO-220, 5 pin DOPAK, 6 pin SOT-223
MCP1928S10002.360.8, 1.2, 1.8, 2.5, 3.0, 3.3, 5.0225120 μA+0.560Low Dropout3 pin TO-220, 3 pin SOT-223, 3 pin DOPAK
MIC2940A12502263.3, 5.0, 1240035 mA±1-Load Dump, Reverse Current Protection3 pin TO-263, 3 pin TO-220
MIC2941A1250226Adj.40035 mA±1-Load Dump, Reverse Current Protection5 pin TO-220, 5 pin DOPAK

POWER MANAGEMENT: Single Output Linear Regulators

Part #Output Current (mA)Vin Min (V)Vin Max (V)Vout (V)Voltage Drop Typical (mV)Iq Typical (μA)Output Accuracy (%)PSRR 1 kHz (dB)Features Packages
MIC2915015002.25283.3, 5.0, 1235022 mA±1-Load Dump, Reverse Current Protection3-pin TO-263, 3-pin TO-220
MIC2915115002.25283.3, 5.0, 1235022 mA±1-Load Dump, Reverse Current Protection5-pin TO-220, 5-pin DOPAK
MIC2915215002.2528Adj.35022 mA+1-Load Dump, Reverse Current Protection5-pin TO-252, 5-pin TO-220, 5-pin DOPAK
MIC3713915002.2561.8, 2.550017 mA±150Reverse Battery and Current ProtectionPlease call for package information
MIC3715015002.2561.5, 1.65, 1.8, 2.5, 3.332517 mA+145Reverse Battery and Current Protection3-pin SPAK
MIC3715115002.2561.5, 1.65, 1.8, 2.5, 3.332517 mA±145Reverse Battery and Current Protection5-pin SPAK
MIC3715215002.256Adj.32517 mA±145Reverse Battery and Current Protection8-pin SOIC, 5-pin SPAK
MIC3715315002.256Adj.32517 mA±145Reverse Battery and Current Protection9-pin SOIC
MIC3915015002.25181.65, 1.8, 2.537517 mA±153Reverse Battery and Current Protection3 pin TO-263, 3 pin TO-220
MIC3915115002.25181.65, 1.8, 2.537517 mA+153Reverse Battery and Current Protection5-pin TO-220, 5-pin DOPAK
MIC3915215002.2518Adj.37517 mA±153Reverse Battery and Current Protection5-pin TO-252, 5-pin DOPAK
MIC4715015001.16.5Adj.29015 mA±155Low Dropout5-pin TO-252
MIC4915015001.46.50.9, 1.2, 1.5, 1.8, Adj.28015 mA±157Low Dropout8 pin MSOP, 5 pin SPAK
MIC59150150013.8Adj.10012.5 mA+160Ultra Low Dropout8-pin SOIC
MIC8115015001.13.81.0, Adj.757.5 mA±150Ultra Low Dropout, Soft Start10-pin MSOP, 10-pin VDTN
MCP172715002.360.8, 1.2, 1.8, 2.5, 3.0, 3.3, 5.0330120 μA±0.560Low Dropout8-pin DFN, 8-pin SOIC 150ml
MCP182715002.360.8, 1.2, 1.8, 2.5, 3.0, 3.3, 5.0330120 μA±0.560Low Dropout5-pin TO-220, 5-pin DOPAK
MCP1827S15002.360.8, 1.2, 1.8, 2.5, 3.0, 3.3, 5.0330120 μA±0.560Low Dropout3 pin TO-220, 3 pin DOPAK
MIC4920020001.46.51.0, 1.8, Adj.40015 mA+183Low Dropout5-pin SPAK
MIC6820020001.855.51.2, 1.5, 1.8, 2.5, 3.3, Adj.30042 mA±160Low Dropout, Soft Start10-pin VDFN
MIC37252250036Adj.55040 mA±250Reverse Current Protection5-pin SPAK, 5-pin DOPAK
MIC2930030002.25283.3, 5.0, 1237037 mA±1-Load Dump, Reverse Current Protection3 pin TO-263, 3 pin TO-220
MIC2930130002.25283.3, 5.0, 1237037 mA+1-Load Dump, Reverse Current Protection5-pin TO-220, 5-pin DOPAK
MIC2930230002.2528Adj.37037 mA±1-Load Dump, Reverse Current Protection5-pin TO-220, 5-pin DOPAK
MIC29302A3000316Adj.45060 mA±1-Reverse Battery and Current Protection5 pin TO-252, 5 pin DOPAK
MIC29302H30002.2528Adj.37037 mA+1-Load Dump, Reverse Current Protection5-pin DOPAK
MIC2930330002.2528Adj.37037 mA±1-Load Dump, Reverse Current Protection5-pin TO-220, 5-pin DOPAK
MIC2931030002.3163.3, 5.060060 mA±1-Load Dump, Reverse Current Protection3 pin TO-263, 3 pin TO-220
MIC2931230002.316Adj.60060 mA±1-Load Dump, Reverse Current Protection5-pin TO-220, 5-pin DOPAK
MIC3530230002.256Adj.37020 mA+150Reverse Battery and Current Protection5-pin TO-252
MIC3730030002.2561.5, 1.65, 1.8, 2.5, 3.330027 mA±150Reverse Current Protection3 pin SPAK
MIC3730130002.2561.5, 1.8, 2.5, 3.330027 mA+150Reverse Current Protection8-pin SOIC, 5-pin SPAK
MIC3730230002.256Adj.30027 mA±150Reverse Current Protection5-pin SPAK, 5-pin DOPAK
MIC3730330002.256Adj.30027 mA±150Reverse Current Protection8 pin SOIC, 8 pin VDFN
MIC3830030002.25181.9, 2.536545 mA+1-Reverse Battery and Current Protection3 pin TO-263, 3 pin TO-220
MIC3830130002.25181.9, 2.536545 mA±1-Reverse Battery and Current Protection5 pin TO-220, 5 pin DOPAK
MIC3830230002.2518Adj.38545 mA+1-Reverse Battery and Current Protection5 pin DOPAK
MIC4730030001.46.5Adj.23025 mA+1-Low Dropout5-pin TO-252
MIC4930030001.46.50.9, 1.2, 1.5, 1.8, Adj.28025 mA+1-Low Dropout5-pin SPAK
MIC68300300013.81.2W, Adj.20530 mA±165Low Dropout8 pin SOIC, 8 pin DOPAK
MIC6130030001.13.61.0, Adj.1507.6 mA+155Low Dropout, Soft Start10-pin MSOP, 10-pin VDFN

www.microchip.com/analloy

POWER MANAGEMENT: Single Output Linear Regulators

Part #Output Current (mA)Vin Min (V)Vin Max (V)Vout (V)Voltage Drop Typical (mV)Iq Typical (μA)Output Accuracy (%)PSRR 1 kHz (dB)Features Packages
MIC89301 30061.655.51227532 mA2.65Low Dropout8-pin SOIC, 5-pin SPAK, 5-pin DOPAK
MIC8930230001.655.5Adj.27532 mA±255Low Dropout5-pin SPAK, 5-pin DOPAK
MIC8930330001.655.5Adj.27532 mA±255High Current8-pin SOIC, 12 pin VDFN
MIC8940040001.655.51.8, Adj.38090 mA+250Low Dropout, Soft Start16-pin VQFN
MIC8940140001.655.5Adj.38090 mA±250Low Dropout, Soft Start16-pin VQFN
MIC2950050002.25283.3, 5.0, 1237070 mA±1-Load Dump, Reverse Current Protection3-pin TO-220
MIC2950150002.25283.3, 5.0, 1237070 mA+1-Load Dump, Reverse Current Protection5-pin TO-220, 5-pin DOPAK
MIC2950250002.2528Adj.37070 mA±1-Load Dump, Reverse Current Protection5-pin TO-220, 5-pin DOPAK
MIC2950350002.2528Adj.37070 mA±1-Load Dump, Reverse Current Protection5-pin TO-220, 5-pin DOPAK
MIC2951050002.3163.3, 5.0700100 mA±1-Load Dump, Reverse Current Protection3-pin TO-220
MIC2951250002.316Adj.700100 mA±1-Load Dump, Reverse Current Protection5-pin TO-220
MIC3750150002.361.5, 1.65, 1.8, 2.5, 3.333057 mA+1-Reverse Current Protection7-pin SPAK
MIC3750250002.36Adj.33057 mA±1-Reverse Current Protection7-pin SPAK, 5-pin DOPAK
MIC3950050002.25161.8, 2.540070 mA+130Reverse Battery and Current Protection3-pin TO-263, 3-pin TO-220
MIC3950150002.25161.8, 2.540070 mA±130Reverse Battery and Current Protection5-pin TO-220, 5-pin DOPAK
MIC4950050001.460.8, 1.2, Adj.28055 mA+175Low Dropout7-pin SPAK
MIC8950250001.655.5Adj.25054 mA±152High Current7-pin SPAK
MIC2971275002.316Adj.700250 mA±2-High Current5-pin TO-220
MIC2975175002.5283.3, 5.0425120 mA±1-Load Dump, Reverse Current Protection5-pin TO-247
MIC2975275002.528Adj.425120 mA+1-Load Dump, Reverse Current Protection5-pin TO-247

POWER MANAGEMENT: Multiple Output Linear Regulators

Part #Product TypeIOUT #1IOUT #2IOUT #3IOUT #4VIN Min. (V)VIN Max. (V)VOUT (V)Voltage Drop Typ. (mV)IGND Typ. (μA)PSRR 1kHz (dB)Packages
MIC2210Dual LDOs150 mA300 mA--2.255.5Please Refer to Datasheet120/14048/60 μA6010-pin VDFN
MIC2211Dual LDOs150 mA300 mA--2.255.5Please Refer to Datasheet120/14048/60 μA6010-pin VDFN
MIC2212Dual LDOs150 mA300 mA--2.255.5Please Refer to Datasheet120/14048/60 μA 6010-pin VDFN
MIC2213Dual LDOs150 mA300 mA--2.255.5Please Refer to Datasheet120/14048/60 μA6010-pin VDFN, 16-pin VDFN
MIC2214Dual LDOs150 mA300 mA--2.255.5Please Refer to Datasheet120/14048/60 μA6010-pin VDFN, 16-pin VDFN
MIC2215Multi Channel LDOs250 mA250 mA250 mA-2.255.5Please Rotor to Datasheet100110 μA7018-pin VDFN
MIC2219Dual LDOs150 mA300 mA--2.255.5Please Refer to Datasheet12048 μA6010-pin VDFN
MIC5202Dual LDOs100 mA100 mA--2.528Please Rotor to Datasheet225170 μA758-pin SOC
MIC5208Dual LDOs50 mA50 mA--2.516Please Refer to Datasheet250180 μA-8-pin MSOP
MIC5210Dual LDOs150 mA150 mA--2.516Please Rotor to Datasheet16580 μA758-pin MSOP
MIC5211Dual LDOs60 mA60 mA--2.516Please Rotor to Datasheet25090 μA806-pin SCT 23
MIC5212Dual LDOs500 mA500 mA--416Please Refer to Datasheet3501.5mA758-pin SOC
MIC5264Dual LDOs150 mA150 mA--2.75.5Please Rotor to Datasheet21075 μA6410-pin VDFN
MIC5310Dual LDOs150 mA150 mA--2.35.5Please Rotor to Datasheet3585 μA708-pin UDFN, 8-pin VDFN
MIC5311Dual LDOs300 mA300 mA--2.55.5Please Refer to Datasheet12028 μA6010-pin VDFN
MIC5312Dual LDOs300 mA300 mA--2.55.5Please Rotor to Datasheet12028 μA6010 pin VDFN
MIC5315Dual LDOs300 mA300 mA--1.75.5Please Refer to Datasheet8530 μA6510-pin UDFN

POWER MANAGEMENT: Multiple Output Linear Regulators

Part #Product TypeIout #1Iout #2Iout #3Iout #4Vin Min. (V)Vin Max. (V)Vout (V)Voltage Drop Typ. (mV)IGND Typ. (μA)PSRR 1kHz (dB)Packages
MIC5318Dual LDOs300 mA300 mA--1.75.5Please Refer to Datasheet8530 μA6512-pin UDFN
MIC5320Dual LDOs150 mA150 mA--2.35.5Please Refer to Datasheet8585 μA656-pin TSOT, 6-pin UDFN, 6-pin WDFN
MIC5321Dual LDOs150 mA150 mA--2.35.5Please Refer to Datasheet3585 μA756-pin TSOT, 6-pin UDFN, 6-pin WDFN
MIC5322Dual LDOs150 mA150 mA--2.35.5Please Refer to Datasheet35150 μA756-pin UDFN
MIC5330Dual LDOs300 mA300 mA--2.35.5Please Refer to Datasheet7585 μA708-pin VDFN
MIC5331Dual LDOs300 mA300 mA--2.35.5Please Refer to Datasheet12040 μA658-pin UDFN
MIC5332Dual LDOs300 mA300 mA--2.35.5Please Refer to Datasheet12040 μA658-pin UDFN
MIC5333Dual LDOs300 mA300 mA--2.35.5Please Refer to Datasheet12040 μA6510-pin UDFN
MIC5335Dual LDOs300 mA300 mA--2.35.5Please Refer to Datasheet7590 μA656-pin UDFN
MIC5338Dual LDOs300 mA300 mA--2.55.5Please Refer to Datasheet22038 μA556-pin UDFN
MIC5339Dual LDOs300 mA300 mA--2.55.5Please Refer to Datasheet22038 μA556-pin UDFN
MIC5350Dual LDOs300 mA300 mA--2.65.5Please Refer to Datasheet75/12595 μA508-pin UDFN
MIC5355Dual LDOs500mA500 mA--2.55.5Please Refer to Datasheet35038 μA558-pin MSOP
MIC5358Dual LDOs500mA500 mA--2.55.5Please Refer to Datasheet35038 μA558-pin MSOP, 8-pin VDFN
MIC5357Dual LDOs500mA500 mA--2.65.5Please Refer to Datasheet13095 μA708-pin MSOP
MIC5370Dual LDOs150mA150 mA--2.35.5Please Refer to Datasheet15532 μA606-pin UDFN
MIC5371Dual LDOs150mA150 mA--2.55.5Please Refer to Datasheet15532 μA606-pin UDFN
MIC5373Multi-Channel LDOs200mA200 mA200 mA-1.75.5Please Refer to Datasheet17032 μA5516-pin UDFN
MIC5374Multi-Channel LDOs200 mA200 mA200 mA1 mA1.75.5Please Refer to Datasheet17042 μA5516-pin UDFN
MIC5380Dual LDOs150 mA150 mA--2.55.5Please Refer to Datasheet15532 μA6010 pin UDFN
MIC5381Dual LDOs150 mA150 mA--2.55.5Please Refer to Datasheet15532 μA6010-pin UDFN
MIC5383Multi-Channel LDOs200 mA200 mA200 mA-1.75.5Please Refer to Datasheet17032 μA5516 pin UDFN
MIC5384Multi-Channel LDOs200 mA200 mA200 mA1 mA1.75.5Please Refer to Datasheet17042 μA5516 pin UDFN
MIC5385Multi-Channel LDOs150 mA150 mA150 mA-2.55.5Please Refer to Datasheet18032 μA708-pin UDFN
MIC5387Multi-Channel LDOs150 mA150 mA150 mA-2.55.5Please Refer to Datasheet18032 μA706-pin UDFN
MIC5388Dual LDOs200 mA200 mA--2.55.5Please Refer to Datasheet17532 μA736-pin WLOSP
MIC5389Dual LDOs200 mA200 mA--2.55.5Please Refer to Datasheet17532 μA736-pin WLOSP
MIC5392Dual LDOs150 mA150 mA--2.55.5Please Refer to Datasheet15557 μA606-pin UDFN, 6-pin X2DFN
MIC5393Dual LDOs150 mA150 mA--2.55.5Please Refer to Datasheet15557 μA606-pin X2DFN
MIC5396Dual LDOs300 mA300 mA--2.55.5Please Refer to Datasheet16037 μA608-pin UDFN, 8-pin X2DFN
MIC5397Dual LDOs300 mA300 mA--2.55.5Please Refer to Datasheet16037 μA608-pin UDFN, 8-pin X2DFN
MIC5398Dual LDOs300 mA300 mA--2.55.5Please Refer to Datasheet16037 μA608-pin X2DFN
MIC5399Dual LDOs300 mA300 mA--2.55.5Please Refer to Datasheet16037 μA608-pin UDFN, 8-pin X2DFN
MIC68220Dual LDOs2.0A2.0A--1.655.5Please Refer to Datasheet30015 mA4020-pin VDFN
TC1307Multi-Channel LDOs150 mA150 mA150 mA150 mA2.76Please Refer to Datasheet200220 μA6016 pin CSOP
TC1301ADual LDOs300 mA150 mA--2.76Please Refer to Datasheet104103 μA588-pin MSOP, 8-pin DFN
TC1301BDual LDOs300 mA150 mA--2.76Please Refer to Datasheet104114 μA588-pin MSOP, 8-pin DFN
TC1302ADual LDOs300 mA150 mA--2.76Please Refer to Datasheet104103 μA588-pin MSOP, 8-pin DFN
TC1302BDual LDOs300 mA150 mA--2.76Please Refer to Datasheet104114 μA588-pin MSOP, 8-pin DFN

POWER MANAGEMENT: Linear Regulators - LDO Controller and SIM Card

Part #Product TypeVin Min. (V)Vin Max. (V)Vout (V)IGND Typ. (μA)VRLF (V)VLN (V)Internal Charge PumpExternal N-Ch. MOSFETPackages
MIC5166LDO Controllers3363.3, 5.0, Adj.2.71.2352.4-Yes8-pin SOIC, 8-pin PDIF
MIC5157LDO Controllers3363.3, 5.0, 124.51.2352.4YesYes14-pin PDIF, 14-pin SOIC 150mil
MIC5158LDO Controllers3365.0, Adj.4.51.2352.4YesYes14-pin PDIF, 14-pin SOIC 150mil
MIC5159LDO Controllers1.655.51.8, 3.0, Adj.101.2351.2-Yes6-pin SOT-23
MIC5190LDO Controllers0.95.5Adj. down to 0.5V150.50.8-Yes10-pin MSOP, 10-pin VDFN
MIC5191LDO Controllers15.5Adj. down to 1.0V1510.8-Yes10-pin MSOP, 10-pin VDFN
MIC4555SIM Card Lvl Shifter with 50 mA LDO2.75.51.9, 3.341/79----16-pin VDFN

POWER MANAGEMENT: DDR Termination Regulators

Part #IOUTVin Min. (V)Vin Max. (V)Vout (V)PWR GoodVTT AccuracyExternal TransistorSync BuckFrequency FeaturesPackages
MIC5162±7A1.3561/2 of Vn-±5 mV√-10-pin WSOP
MIC5163±7A0.7581/2 of Vn-±5 mV√-Low Voltage10-pin WSOP
MIC5164±7A1.3581/2 of Vn√±6 mV√-10-pin WSOP
MIC5165±7A0.7561/2 of Vn√±5 mV√-Low Voltage10-pin WSOP
MIC5166±3A0.99.61/2 of Vn√±25 mV---DDR 1, 2, 3, 4
MIC5167±6A2.65.5Adj. down to 0.35V√±12 mV-√1 MHzIntegrated Sync Buck

POWER MANAGEMENT: High-Voltage Linear Regulators

Part #Input to Output Voltage Differential (Min.)Input to Output Voltage Differential (Max.)Output Voltage (V)Max Output Current (mA)Typical Line Regulation (%/V)Typical Load Regulation (%/mA)Packages
LR6124501.2-440100.0030.153-Lead TO-252, 3-Lead TO-92, 3-Lead SOT-89
LR12121301.2-88500.0000.063-Lead TO-252, 8-Lead SOIC, 3-Lead TO-92
LR645154501330.00010.508-Lead SOIC, 3-Lead TO-92, 3-Lead TO-220, 3-Lead SOT-89
LR745254502020.00010.503-Lead TO-92, 3-Lead SOT-89

POWER MANAGEMENT: Single Output Switching Regulators (Buck)

Part #Input Voltage Range (V)Output Voltage (V)Operating Junction Temperature Range (°C)Switching Frequency (kHz)Output Current (mA)FeaturesPackages
MIC285174.5V-70V0.6V to 32-40 to 125270 to 8008000COM6 x 6
MIC285164.5V-70V0.6V to 32-40 to 125270 to 8008000DCM6 x 6
LX7167A3.0 to 5.50.6 to 3.3-10 to +8530002400Sub-mode, UVLO, OV, Power Good8-pin 2 x 2 DFN
LX71763.0 to 5.50.6 to 3.30 to +8510503000PWM, 100% Duty Cycle, UVLO, OV, Power Good12-pin 2 x 2 QFN
LX7176A3.0 to 5.50.6 to 3.30 to +8510504000PT/M/PWM, 100% Duty Cycle, UVLO, OV, Power Good12-pin 2 x 2 QFN
LX7180A3.0 to 5.50.6 to 3.30 to +8510504000IC Programmable, Power Save Mode, Power Good12-pin 2 x 2 DFN
LX7165/71783.0 to 5.50.6 to 3.30 to +8518755000IC Programmable, Power Save Mode, Power Good1.8 x 2 WLCSP
LX7219/72202.7 to 5.50.6 to 3.3-40 to +8512006000IC Programmable, Power Save Mode, Power Good14-pin 2 x 3 VQFN
MCP18012.7 to 5.50.9V to 4W-40 to +85750500UVLO, Auto switching, LDO5-pin MSCP
MCP18022.7 to 5.50.8 to 4.540 to +852000500P2M, PWM auto-switching, UVLO, soft start, power good indicator10-pin MSCP, 10-pin 3 x 3 DFN
MCP18032.7 to 5.50.8 to 4.0-40 to +852000500Overtemperature and overcurrent protection5-pin TSOT 23, 8-pin 2 x 3 DFN
MCP18122.7 to 5.50.8 to 5.540 to +8514001000Overall efficiency >94%, Soft start, overtemperature and overcurrent protection8-pin MSCP, 8-pin 3 x 3 DFN
MIC292452.7 to 5.5Adj.40 to -1254,000500LDO Standby Mode and Low Q current10-pin 3 x 3 NLF
MIC293002.7 to 5.51.0, 1.2, 1.5, 1.8, 4x-40 to +125 8,000400 HyperLight Load *mode6 pin 1.6 x 1.8 NLF

POWER MANAGEMENT: Single Output Switching Regulators (Buck)

Part #Input Voltage Range (V)Output Voltage (V)Operating Junction Temperature Range (°C)Switching Frequency (kHz)Output Current (mA) Features Packages
MIC23031 2.7 to 5.61.0, 1.2, 1.5, 1.8, Adj.-40 to +125 4,000400 HyperLight Load mode 6-pin 1.5 x 1.6 MLF
MIC23050 2.7 to 5.61.0, 1.2, 1.8, 3.3-40 to +125 4,000800 HyperLight Load mode 8-pin 2 x 2 MLF
MIC23051 2.7 to 5.61-1.2, 1-1.8, 1.15 - 1.4, 0.95-1.25-40 to +125 4,000800 HyperLight Load mode, voltage scaling 8-pin 2 x 2 MLF
MIC23150 2.7 to 5.61.0, 1.2, 1.35, 1.8, 3.3-40 to +125 4,0002,000 HyperLight Load mode 8-pin 2 x 2 MLF
MIC23153 2.7 to 5.6 - 1.8, Adj.40 to +125 4,0002,000 Power Good, Hypoertight Load mode 10-pin 2.5 x 2.5 MLF
MIC23155 2.7 to 5.6 - 1.8, Adj.40 to +125 3,0002,000 Power Good, Hypoertight Load mode 10-pin 2.5 x 2.5 MLF
MIC233032.7 to 5.5Adj.40 to +1254,0003,000Power Good, Hypoertight Load mode
MIC2320112.7 to 5.5Adj.40 to +1252,0002,000Power Good
MIC232022.3 to 5.5Adj.-40 to +1251,600-2,500800
MIC232042.3 to 5.5Adj.40 to +1252,000500
MIC23673 to 5.5Adj.-40 to +125400-1,5002,000Power Good
MIC23072.7 to 5.5Adj.-40 to +1252,0003,000Power Good
MIC232082.7 to 5.5Adj.-40 to +1251,0003,000Power Good
MIC232092.6 to 5.5Adj.-40 to +125800-1,2003,000Power Good
MIC234002.6 to 5.5Adj.-40 to +125200-4,0004,000Power Good
MIC236012.6 to 5.5Adj.-40 to +1254,0006,000Power Good
MIC236022.6 to 5.5Adj.-40 to +1251,0006,000Power Good
MIC237002.6 to 5.5Adj.-40 to +1251,0007,000Power Good
MIC230502.6 to 5.5Adj.-40 to +125400 2,00010,000Power Good
MCP163114.4 to 30.02.0 to 24.0-40 to +1256001000PWM operation, enable function
MCP163124.4 to 30.02.0 to 24.0-40 to +1255001000PWM operation, enable function
MCP163014.0 to 302.0 to 15-10 to +85900600Integrated N channel, UVLO. Soft start, overtemperature protection
MIC24045 4.5 to 190.64 to 5.25-40 to +125310-12005000TC Programmable, 4.5V-19V input, SA Step-Down Converter
TG1052.2 to 103.0, 3.3, 5.0-40 to +853001000Low power shutdown mode
MIC240464.5 to 190.7 to 3.3-40 to +125400-7005000Pin-Programmable, 4.5V-19V input, SA Step-Down Converter
MIC240514.5 to 19Adj.-40 to +1256006000Power Good, Soft Start, Architecture Regulation Scheme
MIC240524.5 to 19Adj.-40 to +1256006000Power Good, Soft Start, HyperLight Load mode
MIC240534.5 to 19Adj.-40 to +1256009000Power Good, Soft Start, Architecture Regulation Scheme
MIC240544.5 to 19Adj.-40 to +1256009000Power Good, Soft Start, HyperLight Load mode
MIC240554.5 to 19Adj.-40 to +12560012000Power Good, Soft Start, Architecture Regulation Scheme
MIC240564.5 to 19Adj.-40 to +12560012000Power Good, Soft Start, HyperLight Load mode
MIC266014.5 to 28Adj.-40 to +1256006000Power Good, Soft Start, Hyper Speed Control Architecture
MIC266034.5 to 28Adj.-40 to +1256006000Power Good, Soft Start, HyperLight Load mode
MIC26603Z4.5 to 28Adj.-40 to +1256006000Power Good, Soft Start, HyperLight Load mode
MIC269014.5 to 28Adj.-40 to +1256009000Power Good, Soft Start, Hyper Speed Control architecture
MIC269034.5 to 28Adj.-40 to +1256009000Power Good, Soft Start, HyperLight Load mode
MIC269504.5 to 26Adj.-40 to +12530012000Soft Start, Architecture Regulation Scheme; Hyper Speed Control architecture, Thermal Shutdown
MIC276004.5 to 36Adj.-40 to +1253007000Soft Start, Architecture Regulation Scheme; Hyper Speed Control architecture, Thermal Shutdown
MIC46804 to 343.3, 5.0, Adj.-40 to +1252001,300
MIC46814 to 30Adj.-40 to +1254002,000
MIC46824 to 34Adj.-40 to +1252002,000
MIC46844 to 30Adj.-40 to +1252002,000
MIC46854 to 30Adj.-40 to +1252003,000
MCP163314.4 to 502.0 to 24.040 to +1255001000Integrated N-channel, UVLO, Soft start, Overtemperature Protection
MIC285104.5 to 75Adj.-40 to +125100-5004000Soft Start, Architecture Regulation Scheme; Hyper Speed Control architecture, Thermal Shutdown

POWER MANAGEMENT: Single Output Switching Regulators (Buck)

Part #Input Voltage Range (V)Output Voltage (V)Operating Junction Temperature Range (°C)Switching Frequency (kHz)Output Current (mA) Features Packages
MIC28511-1 4.6 to 60 Adj. -40 to +125 200-680 3000 Power Good, Soft Start, HyperLight Load ^6 mode 24-pin 3 x 4 FCQFN
MIC28511-24.6 to 60Adj.-40 to +125200-6803000Power Good, Soft Start, Hyper Speed Control architecture24-pin 3 x 4 FCQFN
MIC28514 4.5 to 75 0.6 to 32-40 to +125 270-800 5000Adj. Soft Start, Power Good, Internal Compensation, Enable, Pro-Bias Start Up32-pin 6 x 6 VQFN
MIC28515 4.5 to 75 0.6 to 32-40 to +125 270-800 5000Selectable Operating Mode, Power Good, Internal Compensation, Enable, Pro-Bias Start Up32-pin 6 x 6 VQFN
MIC28512-1 4.6 to 70 Adj. -40 to +125 200-680 2000 Power Good, Soft Start, HyperLight Load mode 24-pin 3 x 4 FCQFN
MIC28512-24.6 to 70Adj.-40 to +125200-6802000Power Good, Soft Start, Hyper Speed Control architecture24-pin 3 x 4 FCQFN
MIC28513-14.6 to 45Adj.-40 to +125200-6804000Power Good, Soft Start, Hyper Speed Control architecture24-pin 3 x 4 FCQFN
MIC28513-24.6 to 45Adj.-40 to +125200-6804000Power Good, Soft Start, Hyper Speed Control architecture24-pin 3 x 4 FCQFN
MIC48302.7 to 5.5Adj.-40 to +12533003000Power Good, Safe Start, Thermal Shutdown and Current Limit10-pin 3 x 4 DFN
MIC48502.7 to 5.5Adj.-40 to +12533005000Power Good, Safe Start, Thermal Shutdown and Current Limit8-pin SOIC, 10-pin 3 x 4 DFN
MIC233502.4 to 5.50.6 to 3.3-40 to +125600-30003000Pin selectable Vout, 100% Duty Cycle, Safe Startup, UVLO, TSD, OCP, Power Good16-pin 2.5 x 2.5 FTQFN
MIC233562.4 to 5.50.6 to 3.84-40 to +125600-30003000I'C programmable, 100% Duty Cycle, Safe Startup, UVLO, TSD, OCP, Power Good16-pin 2.5 x 2.5 FTQFN
MIC236502.4 to 5.50.6 to 3.3-40 to +1251000-14006000 (pulsed)Pin selectable Vout, 100% Duty Cycle, Safe Startup, UVLO, TSD, OCP, Power Good16-pin 2.5 x 2.5 FTQFN
MIC236562.4 to 5.50.6 to 3.84-40 to +1251000-14006000 (pulsed)I'C programmable, 100% Duty Cycle, Safe Startup, UVLO, TSD, OCP, Power Good16-pin 2.5 x 2.5 FTQFN

POWER MANAGEMENT: Single Output Switching Regulators (Boost)

Part #Input Voltage Range (V)Output Voltage (V)Operating Junction Temperature Range (°C)Switching Frequency (kHz)Output Switch Current (mA)FeaturesPackages
MCP164110.8-5.251.8-8.25-40 to +125PRWPWM 500 kHzDependent on Vin, Vur 1000 mA type switching currentLow Ig Boost Converter, In-Out Bypass, Low Battery Output, PG and Overtemp. Shutdown state is Output Discharge10-lead MSOP, 10-lead 3mm x 3mm TDFN
MCP164120.8-5.251.8-8.25-40 to +125PWM 500 kHzDependent on Vin, Vur 1000 mA type switching currentLow Ig Bcos: Converter, In-Out Bypass, Low Battery Output, PG and Overtemp. Shutdown state is Output Discharge10-lead MSOP, 10-lead 3mm x 3mm TDFN
MCP164130.8-5.251.8-8.25-40 to +125PRWPWM 500 kHzDependent on Vin, Vur 1000 mA type switching currentLow Ig Boost Converter, In-Out Bypass, Low Battery Output, PG and Overtemp. Shutdown state is In-Out Bypass10-lead MSOP, 10-lead 3mm x 3mm TDFN
MCP164140.8-5.251.8-8.25-40 to +125PWM 500 kHzDependent on Vin, Vur 1000 mA type switching currentLow Ig Bcos: Converter, In-Out Bypass, Low Battery Output, PG and Overtemp. Shutdown state is In-Out Bypass10-lead MSOP, 10-lead 3mm x 3mm TDFN
MCP164150.8-5.251.8-8.25-40 to +125PRWPWM 500 kHzDependent on Vin, Vur 1000 mA type switching currentLow Ig Boost Converter, In-Out Bypass, Low Battery Output and PG. Shutdown state is Output Discharge10-lead MSOP, 10-lead 3mm x 3mm TDFN
MCP164160.8-5.251.8-8.25-40 to +125PWM 500 kHzDependent on Vin, Vur 1000 mA type switching currentLow Ig Bcos: Converter, In-Out Bypass, Low Battery Output and PG. Shutdown state is Output Discharge10-lead MSOP, 10-lead 3mm x 3mm TDFN
MCP164170.8-5.251.8-8.25-40 to +125PTMPWM 500 kHzDependent on Vin, Vur 1000 mA type switching currentLow Ig Boost Converter, In-Out Bypass, Low Battery Output and PG. Shutdown state is In-Out Bypass10-lead MSOP, 10-lead 3mm x 3mm TDFN
MCP164180.8-5.251.8-8.25-40 to +125PWM 500 kHzDependent on Vin, Vur 1000 mA type switching currentLow Ig Boost Converter, In-Out Bypass, Low battery Output and PG. Shutdown state is In-Out Bypass10-lead MSOP, 10-lead 3mm x 3mm TDFN
MCP1623/40.65 to 5.52.0 to 5.5-40 to +85500425Integrated synchronous boost regulator, 0.65V start-up voltage, soft start, True load disconnect6-pin SOT-23, 8-pin (2 x 3) DFN
MCP1642B/D0.65 to 5.51.8 to 5.5-40 to +8510001800Integrated synchronous bocal regulator, 0.65V start-up voltage, soft start, enable, power good output, true load disconnect or input-to-output bypass option8-pin MSOP, 8-pin (2 x 3) DFN
MCP16251/20.62 to 5.51.8 to 5.5-40 to +85500850True load disconnect shutdown (MCP16251)/input to output bypass shutdown (MCP16252)6-pin SOT-23, 8-pin (2 x 3) DFN
MCP1640/B/C/D0.65 to 5.52.0 to 5.5-40 to +85500800Integrated synchronous bocal regulator, 0.65V start-up voltage, Soft start, True load disconnect or input-to-output bypass option6-pin SOT-23, 8-pin (2 x 3) DFN
MCP16430.5 to 5.50.8 to 5.0-40 to +8510001600True load disconnect. Shutdown8-pin MSOP, 8-pin (2 x 3) DFN
MCP16652.7 to 5Up to 32-40 to +855003000Pin selectable PWM or PTMPWM mode10-pin (2 x 2) VQFN
MCP1663/42.4 to 5.5Up to 32-40 to +855001800High efficiency (up to 92%), fixed frequency, non synchronous, 300 mV feedback for LED driving (MCP1663)5-pin SOT-23, 8 pin (2 x 3) TDFN
MCP1661/22.4 to 5.5Up to 32-40 to +855001800Non-synchronous, Soft start, Enable, 300 mV feedback for LED driving (MCP1662)6-pin SOT-23, 8-pin (3 x 3) TDFN
MIC21412.2 to 14Up to 22-40 to +953301000Micropower bocal converter with control signal input to proportionally adjust output voltage5-pin SOT-23

POWER MANAGEMENT: Single Output Switching Regulators (Boost)

Part #Input Voltage Range (V)Output Voltage (V)Operating Junction Temperature Range (°C)Switching Frequency (kHz)Output Switch Current (mA)Features Packages
MIC26192.8 to 8.5Up to 35-40 to +12512003501.2 MHz PWM boost converter with OVP6-pin Thin SOT-23
MIC2990 2.5 to 10Up to 34 -40to +125 1200 7502 mm x 2 mmPWM boost regulator with internal Schottky diode2 x 2 MLF
MIC2605/064.5 to 20Up to 40-40 to +1251200/20005000.5A, 1.2 MHz/2 MHz wide input range boost with integrated switch and Schottky diode2 x 2 MLF
MIC21452.4 to 18Up to 18-40 to +85450900High-efficiency 2.5W boost converter8-pin MSOP, 3 x 3 MLF
MIC2570/11.3 to 15Up to 36-40 to +85201100Two-cell/single-cell switching regulator8-pin SOIC, 8-pin MSOP
MIC22882.5 to 10Up to 34-40 to +125120012001A 1.2 MHz PWM boost converter in Thin SOT-23 and 2 mm x 2 mm MLF5-pin SOT-23, 2 x 2 MLF
MIC31723 to 40Up to 65-40 to +851001250100 kHz 1.25A switching regulators with enable pin9-pin SOIC, 8-pin DIP
MIC2295/862.5 to 10Up to 34-40 to +1251200/6001200High power density 1.2A boost regulator5-pin SOT-23, 2 x 2 MLF
MIC2601/024.5 to 20Up to 40-40 to +1251200/200012001.2A, 1.2 MHz/2 MHz wide input range integrated switch boost regulator2 x 2 MLF
MIC2250/512.5 to 5.5Up to 32/27-40 to +125Variable900High-efficiency low EMI boost regulator with frequency differing5-pin SOT-23, 2 x 2 MLF
MIC21723 to 40Up to 65-40 to +851001250100 kHz 1.25A switching regulator with frequency sync8-pin DIP, 8-pin SOIC
MIC22532.5 to 10Up to 30-40 to +125120035003.5A 1 MHz high-efficiency boost regulator with OVP and softstart3 x 3 MLF
MIC21713 to 40Up to 65-40 to +851002500100 kHz 2.5A switching regulatorTO220, TO263
MIC2875/762.5 to 8Up to 8-40 to +125200018004.8A ISW, synchronous boost regulator with bi-directional load disconnect2 x 2 Thin MLF
MIC28772.5 to 5.5Vin to 6.5V-40 to +125200065006.5A ISW, synchronous boost regulator with bidirectional load disconnect2 x 2 FTQFN

POWER MANAGEMENT: Multiple Output Switching Regulators

Part #DescriptionInput Voltage Range (V)Number of OutputsOutput Voltage (V)Operating Temperature Range (°C)Control SchemeSwitching Frequency (kHz)Output Current (mA)FeaturesPackages
MCP16501Cost and Size Optimized PMIC for SAMA5DX/SAM9X6/SAMA7G Series MPUs2.7 to 5.54Buck1: 1.2 to 3.7V Buck2-3: 0.6 to 1.85V LDO: 0.9V to 3.7V-40 to +125PWM, PFM, Hyst2000Buck1-3: 1A/Channel LDO: 300 mA100% Max Duty Cycle, High Efficiency, Low Quiescent Current, Integrated Power Sequencing, Multi-Mode Operation, Fault Management and Protection Features24-pin 4 x 4, VQFN
MCP16502High Performance PMIC for SAMA5DX/SAM9X6/SAMA7G Series MPUs2.7 to 5.56Buck1: 1.2 to 3.7V Buck2-4: 0.6 to 1.85V LDO: 1.2V to 3.7V-40 to +125PWM, PFM, Hyst2000Buck1-4: 1A/Channel LDO1-2: 300 mA/channelI=O, DVS, 100% Max Duty Cycle, High Efficiency, Low Quiescent Current, Integrated Power Sequencing, Multi-Mode Operation, Fault Management and Protection Features32-pin 5 x 5, VQFN
MIC47422 MHz Dual 2A Integrated Switch Buck Regulator2.9 to 5.5 2DC/DC: 0.6 to 5.5-40 to +125PWM Mode2000DC to DC: 2,000/2,000 mAAEC-C100 Oracle 2 Variant available16-pin 3 x 3 MLF, SSOP
MIC47444 MHz Dual 2A Integrated Switch Buck Regulator2.9 to 6.5 2DC/DC: 0.8 to 5.5-40 to +125PWM Mode4000DC to DC: 2,000/2,000 mA16-pin 3 x 3 MLF, SSOP
MIC47621.8MHz Dual 2A Integrated Switch3 to 62DC/DC: 0.8 to 6-40 to +125PWM Mode1800DC to DC: 2,000/2,000 mA3 x 3 MLF
MIC22382.5 MHz Dual Phase PWM Buck Regulator2.5 to 6.5 2DC/DC: 0.8 to 3.3-40 to +125PWM Mode2500DC to DC: 800/800 mAAutomatic switching into light load mode of operation3 x 3 MLF
MIC232504 MHz Dual Synchronous Buck Regulator2.7 to 5.5 2DC/DC: 0.8 to 3.3-40 to +125PWM Mode4000DC to DC: 400/400 mAWith HyperLight Load*mode2 x 2 MLF; 2.5 x 2.5 MLF
MIC232544 MHz Dual 400 mA Synchronous Buck Regulator2.5 to 6.5 21.0/1.8-40 to +125PWM Mode4000DC to DC: 400/400 mAWith Low Input Voltage and HyperLight Load mode2 x 2 MLF
MIC234503 MHz, PWM, 2A Tripc Buck Regulator2.7 to 6.53DC/DC: 1.0 to 3.3-40 to +125PWM Mode3000DC to DC: 2,000/2,000/2,000 mAWith HyperLight Load mode and Power Good5 x 5 QFN
MIC244202.5A Dual Output PWM Synchronous Buck Regulator4.5 to 15.2DC/DC: 0.7 to 10.5-40 to +125PWM Mode1000DC to DC: 2,500/2,500 mAPower Good and Soft Start, 180° out of phase operation4 x 4 QFN
MIC244212.5A Dual Output PWM Synchronous Buck Regulator4.5 to 15.2DC/DC: 0.7 to 10.5-40 to +125PWM Mode500DC to DC: 2,500/2,500 mAPower Good and Soft Start, 180° out of phase operation4 x 4 QFN
MIC254002A Dual Output PWM Synchronous Buck Regulator4.5 to 13.22 DC/DC: 0.7 to 9.4-40 to -125PWM Mode1000DC to DC: 2,000/2,000 mA180° out of phase operation4 x 4 QFN

POWER MANAGEMENT: Multiple Output Switching Regulators

Part # DescriptionInput Voltage Range (V)Number of OutputsOutput Voltage (V)Operating Temperature Range (°C)Control SchemeSwitching Frequency (kHz)Output Current (mA)Features Packages
MIC231583 MHz PWM Dual 2A Buck Regulator with Output Auto Discharge - B152.7 to 5.5 2 DC/DC: 1 to 3.3 -40 to +125PWM Mode3000DC to DC: 2,000/2,000 mAHyperLight Load mode, Power Good and Output Auto-Discharge3 x 4 MLF
MIC23158 3 MHz PWM Dual 2A Buck Regulator 2.7 to 5.5 2 DC/DC: 1 to 3.3 -40 to +125PWM Mode3000DC to DC: 2,000/2,000 mA HyperLight Load mode and Power Good 3 x 4 MLF
MIC234513 MHz, 2A Triple Synchronous Buck Regulator2.7 to 5.5 3DC/DC: 1 to 3.3 -40 to +125PWM Mode3000DC to DC: 2,000/2,000/2,300 mAHyperLight Load mode and Power Good 4 x 4 CFN
MIC2330Dual Synchronous Step-Down DC/DC Regulator2.5 to 5.5 2 DC/DC: 0.8 to 3.3 -40 to +125PWM Mode2500 DC to DC: 800/600 mAPower Good and Soft Start3 x 3 MLF
MIC230654 MHz DC/DC Regulator and I.D.O Regulator2.7 to 5.5 2DC/DC Boost: 1.9 to 3.3DC/DC Buck: 1 to Boost Vcu-40 to -125PWM Mode4000DC to DC Buck: 600 mA, LDO: 300 mAFlexible sequencing feature2.5 x 2.5 MLF
MIC2225 2 MHz DC/DC Converter with LDO 2.7 to 5.5 2DC/DC: 1.3 to 4.5LDO: 0.8 to 3.3-40 to -125PWM Mode2000DC to DC Buck: 600 mA, LDO: 300 mAIndependent enable, >95% efficiency2 x 2 MLF
MIC23099Step-Up/Step-Down Regulators with Battery Monitoring0.65 to 1.6 2DC/DC: 1.7 to 2.5LDO: 0.8 to 2.5-40 to -125PWM Mode100 Boost, 1000 BuckDC to DC Buck: 30mA, DC/DC Boost 200 mAAV/AMABattery Monitoring2.5 x 2.5 CFN
MIC28002 MHz DC/DC Converter with Two Linear Regulators, POR/Power Good pin and LOWC Mode2.7 to 5.5 3DC/DC: 1.8 to 3.3LDOs: 0.6 to 3.6-40 to -125PWM Mode2000DC to DC Buck: 600 mA, LDO: 300/300 mAPOR/Power Good pin and LOWC mode3 x 3 MLF
MIC28102 MHz DC/DC Regulator with Two Linear Regulators, LDO1 has a separate Vw Pin and can either post-regulate the DC/DC converter or be connect directly to the main input supply, POR/Power Good Pin.2.7 to 5.5 3DC/DC: 1.8 to 3.3LDOs: 0.6 to 3.6-40 to -125PWM Mode2000DC to DC Buck: 600 mA, LDO: 300/300 mALDO1 has a separate VIN pin and can either post regulate the DC/DC converter3 x 3 MLF
MIC28112 MHz 800 mA DC/DC Regulators with Triple 300 mA LDOs2.7 to 5.5 4LDO1/2: 0.6 to 3.6LDO3: 1.0 to 3.9-40 to -125PWM Mode2000DC to DC Buck: 600 mA, LDO: 300/300/300 mALDO1 and LDO2 have separate Vin3 x 3 MLF
MIC28212 MHz 800 mA DC/DC Regulators with Triple 300 mA LDOs2.7 to 5.5 4LDO1/2: 0.6 to 3.6LDO3: 1.0 to 3.9-40 to -125PWM Mode2000DC to DC Buck: 600 mA, LDO: 3O0/300/300 mAIndependent enable for all four regulators.3 x 3 MLF
MIC2826Quad Output PMIC with HyperLight Load Mode DC/DC, Three LDOs and IC Control2.7 to 5.5 4DC/DC: 0.8 to 1.8LDOs: 0.8 to 3.3-40 to -125PWM Mode4000DC to DC Buck: 500 mA, LDO: 150/150/150 mAIC Control and Dynamic Voltage Scaling 3 LDOs2.5 x 2.5 MLF
MIC2827Triple Output PMIC with HyperLight Load Mode DC-DC, Two LDOs and IC Control2.7 to 5.5 3DC/DC: 0.8 to 1.8LDOs: 0.8 to 3.3-40 to -125PWM Mode4000DC to DC Buck: 500 mA, LDO: 150/150 mAIC Control and Dynamic Voltage Scaling 3 LDOs2.5 x 2.5 MLF
MIC7400Configurable Five-Channel Buck Regulator Plus One-Boost2.4 to 5.5 6Bucks: 0.8 to 3.3(Configurable)Boost: 7.0 to 14.0(Configurable)-40 to -125PWM Mode2000 Boost, 1300 BucksDC to DC Bucks: 3,000 mA, DC/DC Boost 200 mAHighly Integrated configurable, featuring five buck regulators, one boost regulator and global power good indicator4.5 x 4.5 CFN
MIC7401Configurable Five-Channel Buck Regulator Plus One-Boost with HyperLight Load mode, IC Control, and Enable2.4 to 5.5 6Bucks: 0.8 to 3.3(Configurable)Boost: 7.0 to 14.0(Configurable)-40 to -125PWM Mode2000 Boost, 1300 BucksDC to DC Bucks: 3,000 mA, DC/DC Boost 200 mAHighly Integrated configurable, facturing five buck regulators, one boost regulator, global power good indicator and enable pin4.5 x 4.5 CFN

POWER MANAGEMENT: Combination Switching Regulators

Part #DescriptionInput Voltage Range (V)Output Voltage (V)Operating Temp. Range (°C)Control SchemeSwitching Frequency (kHz)Typical Active Current (mA)Output Current (mA)FeaturesPackages
TC1300Synchronous Buck Regulator, LDO with Power Good2.7 to 5.5DC/DC: 0.8 to 4.5LDO: 1.5 to 3.3-40 to +85PFW/PWM200065/600DC/DC: 500 mA LDO: 300 mARFM/PWM auto-switching, Power good output10-pin MSOP, 10-pin 3 x 3 DFN
TC1304Synchronous Buck Regulator, LDO 2.7 to 5.5DC/DC: 0.8 to 4.5LDO: 1.5 to 3.3-40 to 185PFW/PWM200065/600DC/DC: 500 mA LDO: 300 mARFM/PWM auto-switching, Power sequencing10-pin MSOP, 10-pin 3 x 3 DFN
TC1313Synchronous Buck Regulator, LDO 2.7 to 5.5DC/DC: 0.8 to 4.5LDO: 1.5 to 3.3-40 to +85PFW/PWM200065/600DC/DC: 500 mA LDO: 300 mARFM/PWM auto-switching10-pin MSOP, 10-pin 3 x 3 DFN

POWER MANAGEMENT: Inductorless Offline Switching Regulators

Part #VIN (Vac)Adjustable Vout (V)Fixed Vout (V)Iout Max. (mA)Load Regulation (%/mA)Packages
SR086 90-285 9.0-50 3.31000.025 8-Lead SOIC with Heat Slug
SR087 90-285 9.0-50 61000.017 8-Lead SOIC with Heat Slug
SR1060-2856.0-286.0, 12, 2460-B-Load SOIC

POWER MANAGEMENT: PWM Controllers

Part #Supported TopologiesSupported OutputsInput Voltage Range (V)Output Voltage (V)Operating Frequency (Hz)Operating Temp. Range (°C)FeaturesPackages
MIC2101Sync. Buck14.5 to 380.8 to 24200k to 600k-40 to +125HyperLight Load mode, External Clock Sync, Power Good, Soft Start, Internal Compensation and Voltage Bias16-pin 3 x 3 MLF*
MIC2102Sync. Buck14.5 to 390.8 to 24200k to 600k-40 to +125Power Good, Soft Start, Internal Compensation and Voltage Bias18-pin 3 x 3 MLF
MIC2103Sync. Buck14.5 to 750.8 to 24200k to 600k-40 to +125HyperLight Load mode, External Clock sync, Power Good, Soft Start, Internal Compensation and Voltage Bias16-pin 3 x 3 MLF
MIC2104Sync. Buck14.5 to 750.8 to 24200k to 600k-40 to +125Power Good, Soft Start, Internal Compensation and Voltage Bias16-pin 3 x 3 MLF
MIC2111BSync. Buck13.3 to 5.50.6 to 3.64200k to 2M-40 to +125Power Good, Soft Start, Internal Voltage Bias, Enable Pin, Current Limit/Short Circuit Protection3 x 3 OFN
MIC2124Sync. Buck13.0 to 190.6 to 12300k-40 to +125Soft Start, Internal Voltage Bias10-pin MSOP
MIC2130Sync. Buck19.0 to 400.7 to 24150k or 400k-40 to +125Power Good, Soft Start, Internal Voltage Bias18-pin e-TSSOP, 16-pin 4 x 4 MLF
MIC2131Sync. Buck19.0 to 400.7 to 24150k or 400k-40 to +125Power Good, Soft Start, Internal Voltage Bias16-pin e-TSSOP, 16-pin 4 x 4 MLF
MIC2130Sync. Buck24.5 to 14.50.7 to 5.5500k-40 to +125Power Good, Soft Start, Internal Voltage Bias24-pin 4 x 4 MLF
MIC2151Sync. Buck24.5 to 14.50.7 to 5.5300k-40 to +125Power Good, Soft Start, Internal Voltage Bias24-pin 4 x 4 MLF
MIC2155Sync. Buck14.5 to 14.50.7 to 3.8500k-40 to +125External Clock Sync, Power Good, Soft Start32-pin 5 x 5 MLF
MIC2164Sync. Buck13.0 to 290.8 to 5.5300k, 600k, 1M-40 to +125Soft Start, Internal Compensation and Voltage Bias10 pin MSOP
MIC2164CSync. Buck13.0 to 290.8 to 5.5270k-40 to +125Soft Start, Internal Compensation and Voltage Bias10-pin MSOP
MIC2165Sync. Buck14.5 to 280.8 to 5.5600k-40 to +125Hyper Speed Control architecture, Power Good, Soft Start, Internal Voltage Bias10 pin MSOP
MIC2166Sync. Buck14.5 to 290.8 to 5.5600k-40 to +125Power Good, Soft Start, Internal Compensation and Voltage Bias10-pin MSOP
MIC2168Sync. Buck13.0 to 14.50.8 to 5.51.0M-40 to +125Soft Start, Internal Compensation and Voltage Bias10-pin MSOP
MIC2169Sync. Buck13.0 to 14.50.8 to 5.5500k-40 to +125Soft Start, Internal Voltage Bias10-pin MSOP
MIC2169ASync. Buck13.0 to 14.50.8 to 5.5500k-40 to +125Soft Start, Internal Voltage Bias10-pin MSOP
MIC2169BSync. Buck13.0 to 14.50.8 to 5.5500k-40 to +125Soft Start, Internal Voltage Bias10-pin MSOP
MIC2176Sync. Buck14.5 to 750.6 to 24100k, 200k, or 300k-40 to +125Soft Start, Internal Compensation and Voltage Bias10-pin MSOP
MIC2162Sync. Buck14.5 to 321.25 to 6.0300k-40 to +85Skip Mode, External Clock Sync, Soft Start, Internal Voltage Bias16-pin SOP, 16-pin SSOP
MIC2163Sync. Buck12.9 to 141.3 to 12200k/400k-40 to +125External Clock Sync, Soft Start, Internal Voltage Bias16-pin SOP, 16-pin OSOP
MIC2128Sync. Buck14.5 to 750.6 to 30200k to 600k-40 to +125Programmable soft-start/frequency/current-limit, Internal compensation and voltage bias16-pin 3 x 3 MLF
MIC2127ASync. Buck14.5 to 750.6 to 30200k to 800k-40 to +125Light load operation, Programmable frequency, Current Limit, Switch over LDO16-pin 3 x 3 MLF
MIC2184Async. Buck12.9 to 141.3 to 12200k/400k-40 to +125External Clock Sync, Soft Start, Internal Voltage Bias16-pin SOP, 16-pin OSOP
MIC2185Boost, SEPIC, Quk12.9 to 143.3 to 5.5200k/400k-40 to +85Skip Mode, External Clock Sync, Soft Start, Internal Voltage Bias16-pin SOIC, 16-pin OSOP
MIC2186Boost, SEPIC, Flyback12.9 to 143.3 to 5.5100/200/400k-40 to +85Skip Mode, External Clock Sync, Soft Start, Internal Voltage Bias16-pin SOP, 16-pin OSOP
MIC2193Sync. Buck12.9 to 143.3 to 5.5400k-40 to +125Internal Voltage Bias, UVLO8-pin SOIC
MIC2194Async. Buck12.9 to 143.3 to 5.5400k-40 to +125Internal voltage Bias, UVLO, Current Limit/Short Circuit Protection8-pin SOIC
MIC2196Boost, SEPIC12.9 to 143.3 to 5.5400k-40 to +125Internal voltage Bias, UVLO, Current Limit/Short Circuit Protection8-pin SOIC
MIC2198Sync. Buck14.5 to 320.8 to 6.0500k-40 to +125Internal voltage Bias, UVLO, Current Limit/Short Circuit Protection12-pin 4 x 4 MLF
MIC2199Duck14.5 to 320.8 to 6.0300k-40 to +125Internal voltage Bias, UVLO, Current Limit/Short Circuit Protection12-pin 4 x 4 MLF
MIC3808Push Pull, Hat Bridge, Full Bridge18.3 to 15-Adj. to 1V-40 to +85Soft Start, Internal Voltage Bias, UVLO, Current Limit/Short Circuit Protection8-pin SOP, 8-pin MSOP
MIC3809Push Pull, Hat Bridge, Full Bridge14.1 to 15-Adj. to 1V-40 to +85Soft Start, Internal Voltage Bias, UVLO, Current Limit/Short Circuit Protection8-pin SOP, 8-pin MSOP

POWER MANAGEMENT: PWM Controllers

Part #Supported TopologiesSupported OutputsInput Voltage Range (V)Output Voltage (V)Operating Frequency (Hz)Operating Temp. Range (°C)Features Packages
MIC3838Push-Full, Half Bridge, Full Bridge18.3 to 15-Adj. to 1M -40 to +85Soft Start, Internal Voltage Bias, UVLO, Current Limit/Short Circuit Protection10 pin MSOP
MIC3839Push-Full, Half Bridge, Full Bridge14.1 to 15-Adj. to 1M -40 to +85Soft Start, Internal Voltage Bias, UVLO, Current Limit/Short Circuit Protection10 pin MSOP
MIC38C42Forward, Flyback115.5 to 20-Adj. to 500k-40 to +85Forward.Flyback Supported Topologies8-pin PDIP, 14-pin FDIP, 8-pin MSOP, 8-pin SOIC, 14-pin SOIC
MIC38C43Forward, Flyback19.0 to 20-Adj. to 500k-40 to +85Forward.Flyback Supported Topologies8-pin PDIP, 14-pin FDIP, 8-pin MSOP, 8-pin SOIC, 14-pin SOIC
MIC38C44Forward, Flyback115.5 to 20-Adj. to 500k-40 to +85Forward.Flyback Supported Topologies8-pin PDIP, 14-pin FDIP, 8-pin MSOP, 8-pin SOIC, 14-pin SOIC
MIC38C45Forward, Flyback19.0 to 20-Adj. to 500k-40 to +85Forward.Flyback Supported Topologies8-pin PDIP, 14-pin FDIP, 8-pin MSOP, 8-pin SOIC, 14-pin SOIC
MIC38HC42Forward, Flyback115.5 to 20-Adj. to 500k-40 to +85Forward.Flyback Supported Topologies8-pin PDIP, 14-pin FDIP, 8-pin SOIC, 14-pin SOIC
MIC38C43Forward, Flyback19.0 to 20-Adj. to 500k-40 to +85Forward.Flyback Supported Topologies8-pin PDIP, 14-pin FDIP, 8-pin MSOP, 8-pin SOIC, 14-pin SOIC
MIC9130Forward, Flyback19.0 to 180-Adj. to 1.5M-40 to +125Forward.Flyback Supported Topologies, External Clock Sync16-pin SOIC, 16-pin QSOP
MIC9131Forward, Flyback19.0 to 180-Adj. to 1M-40 to +125Forward.Flyback Supported Topologies, External Clock Sync16 pin SOIC, 16 pin QSOP
MCP1830Flyback, Boost, SEPIC, Quk13.0 to 5.5-Sync. to 1M-40 to +125External Clock Sync, Current Limit/Short Circuit Protection8-pin 2x3 DFN, 8-pin MSOP
MCP1830VFlyback, Boost, SEPIC, Quk13.0 to 5.5-Sync. to 1M-40 to +125External Clock Sync, Current Limit/Short Circuit Protection8-pin 2x3 DFN, 8-pin MSOP
MCP1831Flyback, Boost, SEPIC, Quk13.0 to 5.5-Sync. to 2M-40 to +125External Clock Sync, Current Limit/Short Circuit Protection20-pin TSSOP, 20 pin SSOP, 20 pin 4 x 4 QFN
MCP1831VFlyback, Boost, SEPIC, Quk13.0 to 5.5-Sync. to 2M-40 to +125External Clock Sync, Current Limit/Short Circuit Protection20 pin TSSOP, 20-SSOP, 20-pin 4 x 4 DFN
MCP1831HVFlyback, Boost, SEPIC, Quk13.5 to 16-Sync. to 2M-40 to +125External Clock Sync, Current Limit/Short Circuit Protection20-pin TSSOP, 20-SSOP
MCP1831VHVFlyback, Boost, SEPIC, Quk13.5 to 16-Sync. to 2M-40 to +125External Clock Sync, Current Limit/Short Circuit Protection20-pin TSSOP, 20-SSOP
MCP1832Flyback, Boost, SEPIC, Quk13.0 to 6-300k/600k-40 to +125Soft Start, Internal Voltage Bias, UVLO, Current Limit/Short Circuit Protection8 pin MSOP, 8 pin 2 x 3 DFN
MCP1833Flyback, Boost, SEPIC, Quk13 to 5.5-Sync to 2.2M-40 to +125High Speed Current Mode, Easy to Interface with MCU16-pin 3 x 3 mm QFN
MCP19035Sync, Buck14.5 to 30-500k/600k-40 to +125Power Good, Soft Start, Internal Voltage Bias, UVLO, Current Limit/ Short Circuit Protection10 pin 3 x 3 DFN
MCP1833Flyback, Boost, SEPIC, Quk13 to 5.5-Sync to 2.2M-40 to +125High Speed Current Mode, Easy to Interface with MCU16-pin 3 x 3mm QFN

POWER MANAGEMENT: Hybrid PWM Controllers - Digitally Enhanced Power Analog

Part #Input Voltage Range (V)Output Voltage (V)Topologies SupportedChannelsProgram Memory Size (kWords)RAM (bytes)GPIOProduct features integrated MCU, LDO, MOSFET drivers, 10-bit ADC, temp sensor, user-configurable operation and:Packages
MCP191104.5 to 320.5 to 90% * VNSync, Buck1425611Configurable and dynamically changeable internal analog compensation network24-pin 4 × 4 QFN
MCP191114.5 to 320.5 to 90% * VNSync, Buck1425614Configurable and dynamically changeable internal analog compensation network and a debug interface28-pin 5 × 5 QFN
MCP191144.5 to 42Dependent on topologyBoost, Flyback, SEPIC, Cuk142568Excellent regulation for constant current applications24-pin 4 × 4 QFN
MCP191154.5 to 42Dependent on topologyBoost, Flyback, SEPIC, Cuk1425612Excellent regulation for constant current applications and a debug interface28-pin 5 × 5 QFN

POWER MANAGEMENT: Hybrid PWM Controllers – Digitally Enhanced Power Analog

Part #Input Voltage Range (V)Output Voltage (V)Topologies SupportedChannelsProgram Memory Size (kWords)RAM (bytes)GPIOProduct features Integrated MCU, LDO, MOSFET drivers, 10-bit ADC, temp sensor, user- configurable operation and:Packages
MCP19118 4.5 to 42Dependent on topologyBoost, Flyback, SEPIC, OJK18 3368Improved current regulation accuracy, additional code space (compared to MCP19114 or MCP19115)24-pin 4 x 4 QFN
MCP19117 4.5 to 42Dependent on topologyBoost, Flyback, SEPIC, OJK18 33612Improved current regulation accuracy, additional code space (compared to MCP19114 or MCP19115) and a debug interface28-pin 5 x 5 QFN
MCP191184.5 to 400.5 to 90% * VNSync, Buck1425611Configurable and dynamically changeable internal analog compensation network24-pin 4 x 4 QFN
MCP191194.5 to 400.5 to 90% * VNSync, Buck1425614Configurable and dynamically changeable internal analog compensation network and a debug interface28-pin 5 x 5 QFN
MCP191224.5 to 400.3 to 16Sync, Buck1425612Emulated average current mode control, programmable gain feedback amplifier, multiphase operation, improved regulation accuracy and current measurement accuracy (Compared to MCP19110/1/8/9)24-pin 4 x 4 QFN
MCP191234.5 to 400.3 to 16Sync, Buck1425616Emulated average current mode control, programmable gain feedback amplifier, multiphase operation, improved regulation accuracy and current measurement accuracy (Compared to MCP19110/1/8/9) and a debug interface28-pin 5 x 5 QFN
MCP19124 4.5 to 42Dependent on topologyBoost, Flyback, SEPIC, OJK14256 8Dual independent voltage and current control loops allow seamless transitions from constant voltage to constant current regulation24-pin 4 x 4 QFN
MCP19125 4.5 to 42Dependent on topologyBoost, Flyback, SEPIC, OJK14256 12Dual independent voltage and current control loops allow seamless transitions from constant voltage to constant current regulation and a debug interface28-pin 5 x 5 QFN
MCP19214 4.5 to 42Dependent on topologyBoost, Flyback, SEPIC, OJK283388Dual channels, which can be configured to control two outputs, or one bi-directional system28-pin 5 x 5 QFN
MCP19215 4.5 to 42Dependent on topologyBoost, Flyback, SEPIC, OJK2 8 33612Dual channels, which can be configured to control two outputs, or one bi-directional system and a debug interface32-pin 5 x 5 QFN

POWER MANAGEMENT: Power Modules

Part #Input Voltage Range (V)Output Voltage (V)Operating Temp. Range (°C)Control SchemeSwitching Frequency (kHz)Vout Max. (V)Output Current (A)FeaturesPackages
MIC28304-14.5 to 70Adj.-40 to +125COT600243HyperLight Load Mode, Power Good, Soft Start64-pin 12 x 12 QFN
MIC28304-24.5 to 70Adj.-40 to +125COT600243Hyper Speed Control Architecture, Power Good, Soft Start64-pin 12 x 12 QFN
MIC45205-14.5 to 26Adj.-40 to +125COT200-6005.56HyperLight Load Mode, Power Good, Soft Start52-pin 8 x 8 QFN
MIC45205-24.5 to 26Adj.-40 to +125COT200-6005.56Hyper Speed Control Architecture, Power Good, Soft Start52-pin 8 x 8 QFN
MIC45208-14.5 to 26Adj.-40 to +125COT200-6005.510HyperLight Load Mode, Power Good, Soft Start52-pin 10 x 10 QFN
MIC45208-24.5 to 26Adj.-40 to +125COT200-6005.510Hyper Speed Control Architecture, Power Good, Soft Start52-pin 10 x 10 QFN
MIC45212-14.5 to 26Adj.-40 to +125COT200-6005.514HyperLight Load Mode, Power Good, Soft Start64-pin 12 x 12 QFN
MIC45212-24.5 to 26Adj.-40 to +125COT200-6005.514Hyper Speed Control Architecture, Power Good, Soft Start64-pin 12 x 12 QFN
MIC330302.7 to 5.51.2, 1.8, Adj.40 to +125PWM8,0003.60.4HyperLight Load Mode10-pin 2.5 x 2.0 MLF*
MIC330502.7 to 5.51.0, 1.2, 1.8, 3.3, Adj.-40 to +125PWM4,0003.30.6HyperLight Load Mode12-pin 3 x 3 MLF
MIC331532.7 to 5.51.2, Adj.-40 to +125PWM4,0003.61.2HyperLight Load Mode, Power Good, Soft Start14-pin 3 x 3.5 MLF
MIC33852.7 to 5.51.5, Adj.-40 to +125PWM9,0005.50.6LowQ14-pin 3 x 3.5 MLF
MIC33M6502.4 to 5.5Ph Selectable-40 to +125COT1000-25003.946HyperLight Load, Meet CISPR 32 class B specifications53-pin 8 x 10 x 3 mm thin B1QFN
MIC33M6582.4 to 5.5PC Configurable-40 to +125COT1200-25003.646Hyper Light Load, Meet CISPR 32 class B specifications53-pin 8 x 10 x 3 mm thin B1QFN
MIC28303-14.5 to 50Adj.-40 to +125COT600243HyperLight Load Mode, Power Good, Soft Start64-pin 12 x 12 QFN
MIC28303-24.5 to 50Adj.-40 to +125COT600243Hyper Speed Control Architecture, Power Good, Soft Start64-pin 12 x 12 QFN
MIC45118-14.5 to 20Adj.-40 to +125COT600176HyperLight Load Mode, Power Good, Soft Start52-pin 8 x 8 QFN
MIC45118-24.5 to 20Adj.-40 to +125COT600176Hyper Speed Control Architecture, Power Good, Soft Start52 pin 8 x 8 QFN
MIC454044.5 to 19Selectable40 to +125Fixed400-7903.35Power Good, Soft Start64-pin 6 x 10 QFN
MIC33M3562.4 to 5.53.3-40 to +125COT23003.843HyperLight Load, PC, Meet CISPR 32 class B specifications3 x 4.5 x 1.8
MIC33M3502.4 to 5.53.3-40 to +125COT12003.33HyperLight Load, Meet CISPR 32 class B specifications3 x 4.5 x 1.8
MIC383003.0 to 5.5Adjustable, Down to 1.0V-40 to +125Switcher Plus LDOAdjustable by Low Pass Filter(LPF) pinUp to 5.0V3HELDOTM High Efficiency Regulator, Ultra Fast Transient, Low Output Noise28-pin 4 mm x 6 mm x 0.9 mm MLF
MIC381503.0 to 5.5Adjustable, Down to 1.0V-40 to +125Switcher Plus LDOAdjustable by LPF pinUp to 5.0V1.5HELDO High Efficiency Regulator, Ultra Fast Transient, Low Output Noise28-pin 4 mm x 6 mm x 0.9 mm MLF

POWER MANAGEMENT: Charge Pump DC-to-DC Converters

Part # ConfigurationInput Voltage Range (V)Output Voltage (V)Typical Output Current (mA)Switching Frequency (kHz)Supply Current (Is, floating output μA, 25°C)Output Resistance (Ω, at typical output current, 25°C)Power Conversion Efficiency (%)Features Packages
Inverting or Doubling Charge Pumps
TC682Inverted doubling2.4 to 5.5-2°VN101218514092% at 2.5 mA-8-pin SCIC and 8-pin PDIP
TC1240ADoubling2.5 to 52°VN20805501294% at 5 mAShutdown6-pin SOT 28
TC7660SInverting or doubling1.5 to 12-VN or 2° VN2010 or 45808098% at 1 mABoost pin increases switching frequency8-pin SCIC and 8-pin PDIP
TC7660HInverting or doubling1.5 to 10-VN or 2° VN2012010005585% at 10 mAHigh-voltage oscillator8-pin SCIC and 8-pin PDIP
TC7662BInverting or doubling1.5 to 15-VN or 2° VN2010 or 35806596% at 1 mABoost pin increases switching frequency8-pin SCIC and 8-pin PDIP
TC7662AInverting or doubling3 to 18-VN or 2° VN40121905097% at 7.5 mANo low-voltage terminal required8-pin PDIP
TC962Inverting or doubling3 to 18-VN or 2° VN6012 or 241903597% at 7.5 mABoost pin increases switching frequency16-pin SOC, 8-pin PDIP
Regulated Charge Pumps
MCP1256Regulated1.8 to 3.63.31006502300N/A85% at 60 mASoft start, shutdown, power good signal and sleep mode10-pin MSOP and 10-pin 3 x 3 DFN
MCP1257Regulated1.8 to 3.63.31006502300N/A85% at 60 mASoft start, shutdown, low battery warning signal, and sleep mode10-pin MSOP and 10-pin 3 x 3 DFN
MCP1258Regulated1.8 to 3.63.31006502300N/A85% at 60 mASoft start, shutdown, power good signal and bypass mode10-pin MSOP and 10-pin 3 x 3 DFN
MCP1259Regulated1.8 to 3.63.31006502300N/A85% at 60 mASoft start, shutdown, low battery warning signal, and bypass mode10-pin MSOP and 10-pin 3 x 3 DFN
MCP1252Regulated2.0 to 5.53.3, 5.0, or adjustable15065060N/A 81% at 10 mAShutdown, power good, regulated output, adjustable version8-pin MSOP
MCP1253Regulated2.0 to 5.53.3, 5.0, or adjustable150100060N/A81% at 10 mAShutdown, power good, regulated output, adjustable version8-pin MSOP

POWER MANAGEMENT: CPU/System Supervisors

Part #TypeWatchdog TimerManual ResetPower FallOperating Temp. Range (°C)Vcc Range (V)Nominal Reset Voltage (V)Reset TypeOutputTypical Reset Pulse Width (ms)Typical Supply Current (μA)Packages
MCP100Supervisor----40 to +851.0-5.52.7, 3, 3.15, 4.5, 4.6, 4.75, 4.85Active LowPush-Pull350453-pin SOT-23, 3-pin TO-92
MCP101Supervisor----40 to +851.0-5.52.7, 3, 3.15, 4.5, 4.6, 4.75, 4.85Active HighPush-Pull350453-pin SOT-23, 3-pin TO-92
MCP102Supervisor----40 to +1251.0-5.51.95 (Temp), 2.4, 2.7, 3, 3.15, 4.5, 4.75Active LowPush-Pull12013-pin SC/70, 3-pin SOT 23, 8-pin SOIC 150 mil, 3-pin TO-92
MCP103Supervisor----40 to +1251.0-5.51.95 (Temp), 2.4, 2.7, 3, 3.15, 4.5, 4.75Active LowPush-Pull12013-pin SC/70, 3-pin SOT 23
MCP120Supervisor----40 to +851.0-5.52.7, 3, 3.15, 4.5, 4.6, 4.75, 4.85Active LowOpen-Drain350458-pin SOT 23, 8-pin SOIC 150 mil, 3-pin TO-92
MCP121Supervisor----40 to +1251.0-5.51.95 (Temp), 2.4, 2.7, 3, 3.15, 4.5, 4.75Active LowOpen-Drain 12013-pin SC-70, 3-pin SOT-23, 8-pin SOIC 150 mil, 3-pin TO-92
MCP130Supervisor----40 to +851.0-5.52.7, 3, 3.15, 4.5, 4.6, 4.75, 4.85Active LowOpen-Drain350458-pin SOT-23, 8-pin SOIC 150 mil, 3-pin TO-92
MCP131Supervisor----40 to +1251.0-5.51.95 (Temp), 2.4, 2.7, 3, 3.15, 4.5, 4.75Active LowOpen-Drain 12013-pin SC-70, 3-pin SOT-23, 8 pin SOIC 150 mil, 3 pin TO-92
MCP1316Supervisor√√--40 to -1251.0-5.52.9, 4.6, (2.0-2.4V-I-Temp, 2.4-4.7-Ext)Active LowPush-Pull20015-pin SOT-23
MCP1316MSupervisor√√--40 to +1251.0-5.52.9, 4.6, (2.0-2.4V-I-Temp, 2.4-4.7-Ext)Active LowOpen-Drain 20015-pin SOT-23
MCP1317Supervisor√√--40 to +1251.0-5.52.9, 4.6, (2.0-2.4V-I-Temp, 2.4-4.7-Ext)Active HighPush-Pull20015-pin SOT-23
MCP1318Supervisor√--40 to +1251.0-5.52.9, 4.6, (2.0-2.4V-I-Temp, 2.4-4.7-Ext)Active Low/High or High/LowDual Output Open-Drain and/or Push-Pull20015-pin SOT-23
MCP1318MSupervisor√--40 to +1251.0-5.52.9, 4.6, (2.0-2.4V-I-Temp, 2.4-4.7-Ext)Active Low/High or High/LowDual Output Open-Drain and/or Push-Pull20015-pin SOT-23

www.microchip.com/analloy
POWER MANAGEMENT: CPU/System Supervisors

Part # TypeWatchdog TimerManual ResetPower FallOperating Temp. Range (°C)Vcc Range (V)Nominal Reset Voltage (V) Reset Type OutputTypical Reset Pulse Width (ms)Typical Supply Current (μA)Packages
MCP1319Supervisor -✓-40 to +125 1.0-5.52.9, 4.6,(2.0-2.4V=I-Temp, 2.4-4.7=Ext)Active Low/High or High/LowDual Output Open-Drain and/or Push-Pull200 15-pin SOT-23
MCP1319MSupervisor -✓-40 to +125 1.0-5.52.9, 4.6,(2.0-2.4V=I-Temp, 2.4-4.7=Ext)Active Low/High or High/LowDual Output Open-Drain and/or Push-Pull200 15-pin SOT-23
MCP1320Supervisor✓✓-40 to +125 1.0-5.52.9, 4.6, (2.0-2.4V=I-Temp, 2.4-4.7=Ext)Active Low Open Drain 200 15 pin SOT-23
MCP1321Supervisor✓-40 to +125 1.0-5.52.9, 4.8, (2.0-2.4V=I-Temp, 2.4-4.7=Ext)Active Low/High or High/LowDual Output Open-Drain and/or Push-Pull200 15-pin SOT-23
MCP1322Supervisor -✓-40 to +125 1.0-5.52.9, 4.8, (2.0-2.4V=I-Temp, 2.4-4.7=Ext)Active Low/High or High/LowDual Output Open-Drain and/or Push-Pull200 15-pin SOT-23
MCP7809Supervisor----40 to +851.0-5.52.7, 3.0, 3.15, 4.5, 4.6, 4.75, 4.85Active LowPush-Pull350453-pin SOT-23
MCP7810Supervisor----40 to +851.0-5.52.7, 3.0, 3.15, 4.5, 4.6, 4.75, 4.85Active HighPush-Pull350453-pin SOT-23
TC1232Supervisor✓✓--40 to +854.5-5.54.5, 4.75Active Low/High or High/LowDual Output Open-Drain and/or Push-Pull610508-pin FDIP, 15-pin SOIC 300 mill, 8-pin SOIC 150 mill
TC1270ASupervisor -✓--40 to +1251.0-5.52.7, 3, 3.15, 4.5, 4.75Active LowPush-Pull28074-pin SOT-143, 5-pin SOT-23
TC1270ANSupervisor -✓--40 to +1251.0-5.52.7, 3, 3.15, 4.5, 4.75Active LowOpen-Drain28074-pin SOT-143, 5-pin SOT-23
TC1271ASupervisor -✓--40 to +1251.0-5.52.7, 3, 3.15, 4.5, 4.75Active HighPush-Pull28074-pin SOT-143, 5-pin SOT-23
TC1272ASupervisor----40 to -1251.0-5.54.50, 4.25, 3.89, 3.00, 2.85, 2.55, 2.25Active LowPush-Pull140123-pin SOT-23
TC32MSupervisor✓---40 to +854.5-5.54.25Active LowOpen-Drain500503-pin TO-92, 3-pin SOT-223
TCM809Supervisor---40 to -1251.0-5.54.50, 4.25, 3.89, 3.00, 2.85, 2.55, 2.25Active LowPush-Pull140123-pin SC-70, 3-pin SOT-23
TCM810Supervisor---40 to -1251.0-5.54.50, 4.25, 3.89, 3.00, 2.95, 2.55, 2.25Active HighPush-Pull140123-pin SC-70, 3-pin SOT-23
MIC705Supervisor✓ ✓✓-40 to +851.5-5.54.65Active LowPush-Pull140308-pin SOIC
MIC706Supervisor✓ ✓✓-40 to +851.5-5.54.4Active LowPush-Pull140308-pin SOIC
MIC707Supervisor --✓-40 to +851.5-5.54.65Active Low/High or High/LowPush-Pull140308-pin SOIC
MIC708Supervisor --✓-40 to +851.5-5.54.4Active Low/High or High/LowPush-Pull140308-pin SOIC
MIC803Supervisor----40 to +1251.0-5.52.63, 2.93, 3.00, 3.08, 4.00, 4.10, 4.38, 4.63Active Low Open-Drain20/140/110053-pin SOT23, 3-pin SC70
MIC809Supervisor----40 to +851.4-5.52.63, 2.93, 3.08, 4.00, 4.38, 4.63Active LowPush-Pull14053-pin SOT23, 3-pin SC70
MIC809-5Supervisor✓--40 to +1251.4-5.52.93Active LowPush-Pull3003-pin SOT23, 3-pin SC70
MIC810Supervisor----40 to +851.4-5.52.63, 2.93, 3.08, 4.00, 4.38, 4.63Active Low/High or High/LowPush-Pull140/63-pin SOT23, 3-pin SC70
MIC811Supervisor✓--40 to +851.4-5.52.63, 2.93, 3.08, 4.00, 4.38, 4.63Active LowPush-Pull1405SOT143
MIC812Supervisor -✓--40 to +851.4-5.52.63, 2.93, 3.08, 4.00, 4.38, 4.63Active Low/High or High/LowPush-Pull140/SOT143
MIC1810Supervisor----40 to +851.5-5.54.12, 4.37, 4.62Active LowPush-Pull10053-pin SOT23
MIC1815Supervisor----40 to +851.5-5.52.55, 2.88Active LowPush-Pull10053-pin SOT23
MIC1232Supervisor✓---40 to +854.5-5.54.37, 4.62Active Low/High or High/LowPush-Pull250188-pin SOIC, 8-pin FDIP
MIC1832Supervisor✓✓--40 to +851.4-5.52.55, 2.88Active Low/High or High/LowPush-Pull250158-pin SOIC, 8-pin FDIP
MIC2755Supervisor -✓--40 to +851.5-5.51.24Active LowOpen-Drain70028-pin MSOP
MIC2775Supervisor -✓--40 to +851.5-5.51.69, 2.25, 2.34, 2.53, 2.87, 2.81, 2.85, 3.09, 4.43, 4.68Active Low/High or High/LowPush-Pull140/65-pin SOT23
MIC2776NSupervisor -✓--40 to +851.5-5.50.3Active LowOpen-Drain14035-pin SOT23
MIC2776HSupervisor -✓--40 to +851.5-5.50.3Active HighPush-Pull14035-pin SOT23
MIC2776LSupervisor -✓--40 to +851.5-5.50.3Active LowPush-Pull14035-pin SOT23
MIC2778Supervisor ----40 to +851.5-5.51.24 with adjustable hysteresisActive LowOpen-Drain14015-pin SOT23
MIC2779HSupervisor ----40 to +851.5-5.51.24 with adjustable hysteresisActive HighPush-Pull14015-pin SOT23

POWER MANAGEMENT: CPU/System Supervisors

Part # TypeWatchdog TimerManual ResetPower FallOperating Temp. Range (°C)Vcc Range (V)Nominal Reset Voltage (V) Reset Type OutputTypical Reset Pulse Width (ms)Typical Supply Current (μA)Packages
MIC2770LSupervisor----40 to +851.5-5.51.24 with adjustable hysteresisActive LowPush-Pull14015-pin SOT23
MIC2765Supervisor√--40 to 1851.5-5.51.62Active LowPush-Pull0.02556 pin 1.2 x 1.2 QFN
MIC6315Supervisor -√-40 to +85 1.4-5.52.63, 2.93, 3.00, 3.08, 4.00, 4.10, 4.39, 4.63Active LowOpen-Drain20/140/110054-pin SOT143
MIC8114Supervisor√--40 to 1851.0-5.53.08Active LowPush-Pull79054 pin SOT143
MIC8115Supervisor -√--40 to +851.0-5.53.08Active LowPush-Pull110054-pin SOT143
MIC826Supervisor√√--40 to +1251.0-5.51.665, 2.189, 2.315, 2.625, 2.925, 3.075, 4.375, 4.625Active Low/high or High/LowPush-Pull 14046-pin 1.8 x 1.6 DFN
MIC706P/R/S/TSupervisor√√√-40 to +851.5-5.52.63, 2.93, 3.08Active LowPush-Pull140308-pin SOIC
MIC706P/R/S/TSupervisor -√-40 to +85 1.6-5.52.63, 2.93, 3.08Active Low/high or High/LowPush-Pull 140308-pin SOIC
TC51Detector----40 to +850.7-102.94, 2.65, 2.16 (1.8-6V)Active LowOpen-Drain5023-pin SOT-23A
TC54 Detector-40 to +850.7-104.21, 4.12, 2.94, 2.84, 2.85, 2.06, 1.37 (1.4-6V)Active LowCMOS Push-Pull or Open drain013-pin SOT-89, 3-pin TO-92, 5-pin SOT-23, 3-pin SOT 23A
MCP111Detector----40 to +1251.0-5.51.87(temp), 2.29, 2.59, 2.86, 2.87, 3.03, 4.31, 4.58Active LowOpen-Drain013-pin SC-70, 3-pin SOT-89, 3-pin SOT-23, 3 pin TO-82
MCP112Detector----40 to +1251.0-5.51.87(temp), 2.29, 2.59, 2.86, 2.87, 3.03, 4.31, 4.58Active Low Push Pull013-pin SC-70, 3-pin SOT-89, 6-pin PDIP, 3 pin SOT 23, 3 pin TO-82
TC52Detector----40 to +851.5-104.41, 2.65 (1.5-5V)Active LowOpen-Drain035-pin SOT-23
TC53Detector----40 to +851.5-102.84, 2.65, 2.16 (1.8-6V, IV)Active LowCMOS Push-Pull or Open drain025-pin SOT-23
MIC2772Dual-√--40 to +851.0-5.52.93, 3.08, 4.38, 4.63Active LowOpen-Drain20/140/1100108-pin 2 x 2 MLF
MIC2774N Dual-√-40 to +85 1.5-5.51.69, 2.25, 2.34, 2.53, 2.87, 2.81, 2.93, 3.09, 4.43, 4.68Active LowOpen-Drain1403.55-pin SOT23
MIC2774H Dual-√-40 to +85 1.5-5.51.69, 2.25, 2.34, 2.53, 2.87, 2.81, 2.93, 3.09, 4.43, 4.68Active High Push-Full 1403.55-pin SOT23
MIC2774LDual-√-40 to +85 1.5-5.51.69, 2.25, 2.34, 2.53, 2.87, 2.81, 2.93, 3.09, 4.43, 4.68Active Low Push-Pull 1403.55-pin SOT23
MIC2777Dual----40 to +851.5-5.51.69, 2.25, 2.34, 2.53, 2.87, 2.81, 2.93, 3.09, 4.43, 4.68Active Low/High or High/LowPush-Pull 1403.55-pin SOT23
MIC2782Push Button-Dual--40 to +851.5-5.5Custom optionsActive LowOpen-Drain500/1000/20002.26-pin 0.8 x 1.2 CSP
MIC2790Push Button-√--40 to +1251.5-5.50.4Active Low/High or High/LowDual Output Open-Drain and/or Push-Pull1.05408-pin 2 x 2 DFN
MIC2791Push Button-√--40 to +1251.5-5.50.4Active Low/High or High/LowDual Output Open-Drain and/or Push-Pull1.05408-pin 1.8 x 1.6 DFN
MIC2793Push Button-√--40 to +1251.5-5.50.4Active Low/High or High/LowDual Output Open-Drain and/or Push-Pull1.05408-pin 2 x 2 DFN

POWER MANAGEMENT: Power MOSFET Drivers

Part #DriversConfigurationPeak Output Current (source/sink, A)Maximum Supply Voltage (V)Output Resistance (source/sink, Ω)Propagation Delay ( T_in/T_out , ns)Rise/Fall Time ( T/T_in , ns)Capacitive Load DriveFeaturesPackages
Low-Side Power MOSFET Drivers
MCP1401SingleInverting0.5/0.51812/1035/3519/15470 pF in 19 nsSmall footprint5-pin SOT-23
MCP1402SingleNon-inverting0.5/0.51812/1035/3519/15470 pF in 19 nsSmall footprint6-pin SOT-23
MCP14A0051SingleInverting0.5/0.51812.5/7.533/2440/281000 pF in 40 nsEnable pin, small footprint6-pin SOT-23, 6-pin 2 x 2 DFN
MCP14A0052SingleNon-inverting0.5/0.51812.5/7.533/2440/281000 pF in 40 nsEnable pin, small footprint6-pin SOT-23, 6-pin 2 x 2 DFN
TC1410NSingleNon-inverting0.5/0.51818/1630/3025/25300 pF in 25 ns8-pin SOIC, 8-pin MSOP, 8-pin PDIP
TC1411NSingleNon-inverting1.0/1.0188/830/3025/251000 pF in 25 ns8-pin SOIC, 8-pin MSOP, 8-pin PDIP

www.microchip.com/analloy
POWER MANAGEMENT: Power MOSFET Drivers

Part # Drivers ConfigurationPeak Output Current (source/sink, A)Maximum Supply Voltage (V)Output Resistance (source/sink, Ω)Propagation Delay ( T_R/T_e2,ns) Rise/Fall Time (T/T1, ns)Capacitive Load DriveFeatures Packages
Low-Side Power MOSFET Drivers
MIC4416 Single Non-Inverting 1.2/1.2 18.3.5/3.5 33/23 14/16 1000 pF in 16 ns SOT-143
MIC4417 Single Inverting 1.2/1.2 18.3.5/3.5 33/23 14/16 1000 pF in 16 ns SOT-143
TC1426DualInverting1.2/1.21812/836/4323/171000 pF in 38 ns8-pin SOIC, 8-pin PDIP
TC1427DualNon-inverting1.2/1.21612/836/4323/171000 pF in 38 ns8-pin SOIC, 8-pin PDIP
TC1428DualComplimentary1.2/1.21812/838/4323/171000 pF in 38 ns8-pin SOIC, 8-pin PDIP
MIC4467 Quad Inverting 1.2/1.2 185/530/45 14/13 1000 pF in 28 nsLatch up Protected; Input to -5V16-pin WSOIC, 14-pin PDIP, 100 pF in 19 ns
MIC4468QuadNon-inverting1.2/1.2185/530/4514/131000 pF in 25 nsLatch-up Protected; Input to -5V16-pin WSOIC, 14-pin PDIP, 100 pF in 19 ns
MIC4469QuadComplimentary1.2/1.2185/530/4514/131000 pF in 25 nsLatch-up Protected; Input to -5V, SMD18-pin WSOIC, 14-pin PDIP, 100 pF in 19 ns
TC4467QuadInverting1.2/1.21810/1040/4015/154/0 pF in 15 ns16-pin SOIC, 14-pin PDIP
TC4468QuadNon-inverting1.2/1.21810/1040/4015/154/0 pF in 15 ns16-pin SOIC, 14-pin PDIP
TC4469QuadComplimentary1.2/1.21810/1040/4015/154/0 pF in 15 ns16-pin SOIC, 14-pin PDIP
MCP14A0151SingleInverting1.5/1.5184.5/333/2411/101000 pF in 11.5 nsLow Input Threshold and Enabe Pin6-pin SOT-23, 6-pin 2 x 2 DFN
MCP14A0152SingleNon-inverting1.5/1.5184.5/333/2411/101000 pF in 11.5 nsLow Input Threshold and Enabe Pin6-pin SOT-23, 6 pin 2 x 2 DFN
MCP1415SingleInverting1.5/1.5188/444/4718/214/0 pF in 13 nsSmall footprint5 pin SOT-23
MCP1416SingleNon-inverting1.5/1.5186/444/4718/214/0 pF in 13 nsSmall footprint5-pin SOT-23
MIC4414SingleNon-inverting1.5/1.5183.5/3.544/4718/211000 pF in 12 nsVery small footprint1.2 x 1.2 QFN
MIC4415SingleInverting1.5/1.5183.5/3.529/3012/121000 pF in 12 nsVery small footprint1.2 x 1.2 QFN
TC4626SingleInverting1.5/1.5610/829/3033/271000 pF in 40 nsBoosted drive voltage16-pin SOIC, 8-pin PDIP
TC4627SingleNon-inverting1.5/1.5610/835/4533/271000 pF in 40 nsBoosted drive voltage16-pin SOIC, 8-pin PDIP
TC4404SingleInverting1.5/1.5187/715/3225/251000 pF in 30 nsOpen - drain8 pin SOIC, 8 pin PDIP
TC4405SingleNon-inverting1.5/1.5187/715/3225/251000 pF in 30 nsOpen - drain8-pin SOIC, 8-pin PDIP
MCP14A0153DualInverting1.5/1.5184.5/325/2411/101000 pF in 11.5 nsLow Input Threshold and Enabe Pin8-pin SOIC, 8-pin WSOP, 8-pin 2 x 3 DFN
MCP14A0154DualNon-inverting1.5/1.5184.5/325/2411/101000 pF in 11.5 nsLow Input Threshold and Enabe Pin8-pin SOIC, 8-pin WSOP, 8-pin 2 x 3 DFN
MCP14A0155DualComplimentary1.5/1.5184.5/325/2411/101000 pF in 11.5 nsLow Input Threshold and Enabe Pin8-pin SOIC, 8-pin WSOP, 8-pin 2 x 3 DFN
TC4426ADualInverting1.5/1.5187/730/3025/251000 pF in 25 ns8-pin SOIC, 8-pin WSOP, 8-pin PDIP, 8-pin 6 x 6 DFN-S
TC4427ADualNon-inverting1.5/1.5187/730/3025/251000 pF in 25 ns8-pin SOIC, 8-pin MSOP, 8-pin PDIP, 8-pin 6 x 5 DFN-S
TC4428ADualComplimentary1.5/1.5187/730/3025/251000 pF in 25 ns8-pin SOIC, 8-pin MSOP, 8-pin PDIP, 8-pin 6 x 5 DFN-S
MIC4426DualInverting1.5/1.5188/617/2318/151000 pF in 18 ns8-pin SOIC, 8-pin MSOP, 8-pin PDIP, 8-pin CerDIP
MIC4427DualNon-inverting1.5/1.5186/617/2318/151000 pF in 18 ns8-pin SOIC, 8-pin MSOP, 8-pin PDIP, 8-pin CerDIP
MIC4428DualComplimentary1.5/1.5186/617/2318/151000 pF in 18 ns8-pin SOIC, 8-pin MSOP, 8-pin PDIP, 8-pin CerDIP
MIC4426DualInverting1.5/1.5206/637/4013/151000 pF in 15 ns8-pin eSOIC, 8-pin eMSOP-B, 3 x 3 DFU
MIC4427DualNon-inverting1.5/1.5206/637/4013/151000 pF in 15 ns8-pin eSOIC, 8-pin eMSOP-B, 3 x 3 DFN
MIC4428DualComplimentary1.5/1.5206/637/4013/151000 pF in 15 ns8 pin eSOIC, 8 pin eMSOP-B, 3 x 3 DFN
MCP14C6BDualInverting2.0/2.0185/545/4512/151000 pF in 15 nsEnable pin8-pin SOIC, 8-pin PDIP, 8-pin 6 x 5 DFN
MCP14E7DualNon-inverting2.0/2.0185/545/4512/151000 pF in 15 nsEnable pin8-pin SOIC, 8-pin PDIP, 8-pin 6 x 5 DFN
MCP14EBDualComplimentary2.0/2.0185/545/4512/151000 pF in 15 nsEnable pin8-pin SOIC, 8-pin PDIP, 8-pin 6 x 5 DFN
TC1412SingleInverting2.0/2.0164/435/3519/191000 pF in 18 ns8-pin SOIC, 8-pin MSOP, 8-pin PDIP
TC1412NSingleNon-inverting2.0/2.0164/435/3516/181000 pF in 18 ns8 pin SOIC, 8 pin MSOP, 8 pin PDIP

POWER MANAGEMENT: Power MOSFET Drivers

Part # Drivers ConfigurationPeak Output Current (source/sink, A)Maximum Supply Voltage (V)Output Resistance (source/sink, Ω)Propagation Delay (Tg/Td, ns)Rise/Fall Time (T/T1, ns)Capacitive Load DriveFeatures Packages
Low-Side Power MOSFET Drivers
MIC4478 Dual Non-Inverting 2.5/2.5 32 6/3 160/70 120/45 1,000pF in 45 ns. 8-pin SOIC
MIC4479 Dual Inverting 2.5/2.5 32 6/3 160/70 120/45 1,000pF in 45 ns. 8-pin SOIC
MIC4460 Dual Complimentary 2.5/2.5 32 6/3 160/70 120/45 1,000pF in 45 ns. 8-pin SOIC
TC4423ADualInverting3.0/3.0182.2/2.840/4112/121800 pF in 12 ns
TC4424ADualNon-Inverting3.0/3.0182.2/2.840/4112/121800 pF in 12 ns
TC4425ADualComplimentary3.0/3.0182.2/2.840/4112/121800 pF in 12 ns
MCP14E9DualInverting3.0/3.0184/445/4514/171800 pF in 17 nsEnable pin
MCP14E10DualNon Inverting3.0/3.0184/445/4514/171800 pF in 17 nsEnable pin
MCP14E11DualComplimentary3.0/3.0184/445/4514/171800 pF in 17 nsEnable Pin
MCP14A0301SingleInterverting3.0/3.0182.2/1.515/1813/121,800 pF in 13 nsLow Input Threshold, Enable Pin
MCP14A0302SingleNon Inverting3.0/3.0182.2/1.515/1813/121,800 pF in 13 nsLow Input Threshold and Enable Pin
TC1413NSingleNon-Inverting3.0/3.0162.7/2.735/3520/201800 pF in 20 ns
MIC4123DualInverting3.0/3.0205/544/5911/111,800 pF in 11 ns
MIC4124DualNon-Inverting3.0/3.0205/544/5911/111,800 pF in 11 ns
MIC4125DualComplimentary3.0/3.0205/544/5911/111,800 pF in 11 ns
MIC4423DualInverting3.0/3.0185/533/3823/251,800 pF in 23ns
MIC4424DualNon-Inverting3.0/3.0185/533/3823/251,800 pF in 23ns
MIC4425DualComplimentary3.0/3.0185/533/3823/251,800 pF in 23ns
MIC4223DualInverting4.0/4.01830/1625/3515/152000 pF in 15 nsEnable pin
MIC4224DualNon-Inverting4.0/4.01830/1625/3515/152000 pF in 15 nsEnable pin
MIC4225DualComplimentary4.0/4.01830/1625/3515/152000 pF in 15 nsEnable pin
MCP14E3DualInverting4.0/4.0182.5/2.546/5015/182200 pF in 15 nsEnable pin
MCP14E4DualNon-Inverting4.0/4.0182.5/2.546/5015/182200 pF in 15 nsEnable pin
MCP14E5DualComplimentary4.0/4.0182.5/2.546/5015/182200 pF in 15 nsEnable pin
MCP1403DualInverting4.5/4.5182.2/2.840/4015/182200 pF in 15 ns
MCP1404DualNon-Inverting4.5/4.5182.2/2.840/4015/182200 pF in 15 ns
MCP1405DualComplimentary4.5/4.5182.2/2.840/4015/182200 pF in 15 ns
MCP14A0451SingleInverting4.5/4.5181.6/1.218/199/92200 pF in 9.5 nsLow Input Threshold, Enable
MCP14A0452SingleNon-Inverting4.5/4.5181.6/1.216/199/92200 pF in 9.5 nsLow Input Threshold, Enable
MIC4120SingleNon-Inverting6.0/6.0205/545/5012/132200 pF in 12 ns
MIC4129SingleInverting6.0/6.0205/545/5012/132200 pF in 12 ns
MCP14A1201SingleInverting12/12181.5/1.228/2825/2515,000 pF in 25 nsLow Input Threshold and Enable
MCP14A1202SingleNon-Inverting12/12181.5/1.228/2825/2515,000 pF in 25 nsLow Input Threshold and Enable
MIC4420SingleNon-Inverting6.0/6.0182.8/2.518/4812/132200 pF in 12 ns
MIC4429SingleInverting6.0/6.0182.8/2.519/4812/132200 pF in 12 ns
MIC44F18SingleNon-Inverting6.0/6.0132/215/1310/101000 pF in 10 nsEnable pin
MIC44F19SingleInverting6.0/6.0132/215/1310/101000 pF in 10 nsEnable pin
MIC44F20SingleInverting6.0/6.0132/215/1310/101000 pF in 10 nsEnable pin

POWER MANAGEMENT: Power MOSFET Drivers

Part # Drivers ConfigurationPeak Output Current (source/sink, A)Maximum Supply Voltage (V)Output Resistance (source/sink, Ω)Propagation Delay (Tg/Td2, ns)Rise/Fail Time (T/Td, ns)Capacitive Load DriveFeatures Packages
Low-Side Power MOSFET Drivers
MCP1406 Single Inverting 6.0/8.0 18 2.1/1.5 40/40 20/20 2500 pF in 20 ns 8-pin SOIC, 8-pin PDIP, 8-pin 6 x 5 DFN
MCP1407 Single Non-Inverting 6.0/8.0 19 2.1/1.5 40/40 20/20 2500 pF in 20 ns 8-pin SOIC, 8-pin PDIP, 8-pin 6 x 5 DFN
MCP14A0601SingleInverting8.0/6.0182.0/2.329/2915/152500 pF in 10 nsLow Logic Input, Enable8-pin SOIC, 8-pin MSOP, 8-pin 2 x 3 DFN
MCP14A0602SingleNon-Inverting6.0/6.0182.0/2.329/2915/152500 pF in 10 nsLow Logic Input, Enable8-pin SOIC, 8-pin MSOP, 8-pin 2 x 3 DFN
TC4421ASingleInverting9.0/9.0181.25/0.838/4228/264700 pF in 15 ns8-pin SOIC, 8-pin PDIP, 8-pin 6 x 5 DFN
TC4422ASingleNon-Inverting9.0/9.0181.25/0.838/4228/264700 pF in 15 ns8-pin SOIC, 8-pin PDIP, 8 pin 6 x 5 DFN
MIC14/21ASingleInverting9.0/9.0180.8/0.615/3520/2410,000 pF in 24 ns8-pin PDIP, 8-pin SOIC, 5-pin TO-220
MIC4422ASingleNon-Inverting9.0/9.0180.8/0.615/3520/2410,000 pF in 24 ns8-pin PDIP, 8 pin SOIC, 5-pin TO-220
MIC14/51SingleInverting12.0/12.0180.8/0.625/4020/2410,000 pF in 24 ns8-pin PDIP, 8-pin SOIC, 5-pin TO-220
MIC4462SingleNon-Inverting12.0/12.0180.8/0.625/4020/2410,000 pF in 24 ns8-pin PDIP, 8-pin SOIC, 5-pin TO-220
TC4451SingleInverting12.0/12.0181.0/0.947/4130/3210,000 pF in 21 ns8-pin SOIC, 8-pin PDIP, 8-pin 6 x 5 DFN
TC4452SingleNon-Inverting12.0/12.0181.0/0.944/4430/3210,000 pF in 21 ns8-pin SOIC, 8-pin PDIP, 8 pin 6 x 5 DFN

POWER MANAGEMENT: Power MOSFET Drivers (Continued)

Part #DriversConfigurationPeak Output Current (source/sink, A)Maximum Supply Voltage (V)Output Resistance (source/sink, Ω)Propagation Delay (Tet/Tcs, ns)Rise/Fall Time (T./T, ns)Capacitive Load DriveFeaturesPackages
High-Side Power MOSFET Drivers
TC4431High-Side SingleInverting3.0/1.5307/762/7825/331000 pF in 25 ns30V, high-side driver8-pin SOIC, 8-pin PDIP
TC4432High-Side SingleNon-inverting3.0/1.5307/762/7825/331000 pF in 25 ns30V, high-side driver8-pin SOIC, 8-pin PDIP
TC4403Floating Load DriverNon-inverting1.5/1.5182.8/3.533/3828/321800 pF in 25 nsFloating load driver8-pin PDIP
MIC5011High-Side or Low Side SingleNon-inverting950 μA*32N/AN/A25 μs/4 μs1000 pF in 60 μsLess than 1 μA in Standby Mode8-pin SOIC, 8-pin PDIP
MIC5013High-Side or Low Side SingleNon-inverting225 μA*32N/AN/A60 μs/4 μs1000 pF in 60 μsWith over-current shutdown and a fault flag8-pin SOIC, 8-pin PDIP
MIC5014High-Side or Low Side SingleNon-inverting800 μA*30N/AN/A90 μs/6 μs1000 pF in 90 μsWithstands 80V transient and Reverse battery protected to -20V8-pin SOIC, 8-pin PDIP
MIC5015High-Side or Low Side SingleInverting800 μA*30N/AN/A90 μs/6 μs1000 pF in 90 μsWithstands 80V transient and Reverse battery protected to -20V8-pin SOIC, 8-pin PDIP
MIC5018High-Side or Low Side SingleNon-inverting10 μA*9N/AN/A750 μs/10 μs3,000 pF in 2.1 msSmall PackageSOT 143
MIC5019High-Side or Low Side SingleNon-inverting10 μA*9N/AN/A440 μs/5.58 μs3,000 pF in 1.24 msUltra Small 1.2 × 1.2 mm DFN4-pin DFN
MIC5021High-Side or Low Side SingleNon-inverting5600 μA*38N/A500/800400 ns/400 ns2,000 pF in 550 ns100 kHz operation guaranteed over full temperature and operating voltage range8-pin SOIC, 8-pin PDIP
MIC5060High-Side or Low Side SingleNon-inverting800 μA*30N/AN/A90 μs/6 μs1,000 pF in 90 μsWithstands 80V transient and Reverse battery protected to -20V8-pin MLF
Part # Drivers ConfigurationPeak Output Current (source/sink, A)Maximum Supply Voltage (V)Output Resistance (source/sink, Ω)Propagation Delay (Ta/Ta, ns)Rise/Fall Time (Tt/Tt, ns)Capacitive Load DriveFeatures Packages
Synchronous Power MOSFET Drivers
MCP14629 Half Bridge Driver Dual Inputs 2.0/3.55.5(36V Boot Pin)1/1(0.5 on low side)15/22 10/10 3300 pF in 10 nsContinuous or discontinuous operation8-pin SOIC, 8-pin 3 x 3 DFN
MCP14700 Half Bridge Driver Dual Inputs 2.0/3.55.5(36V Boot Pin)1/1(0.5 on low side)15/22 10/10 3300 pF in 10 ns Allows external dead time control8-pin SOIC, 8-pin 3 x 3 DFN
MIC4100 Half Bridge Driver Dual Inputs 2.0/2.016 (100V Boot Pin)3.0/3.0 27/27 10/10 1000 pF in 10 ns 8-pin SOIC
MIC4101 Half Bridge Driver Dual Inputs 2.0/2.016 (100V Boot Pin)3.0/3.0 31/31 10/10 1000 pF in 10 ns 8-pin SOIC
MIC4102 Half Bridge Driver Single PWM 3.0/2.016 (100V Boot Pin)2.5/1.5 60/7010/61000 pF in 10 nsAdaptive Dead Time and Anti-Shoot-Through Circuitry8-pin SOIC
MIC4103Half Bridge Driver Dual Inputs 3.0/2.016 (100V Boot Pin)2.5/1.2524/2410/61000 pF in 10 ns8-pin SOIC
MIC4104Half Bridge Driver Dual Inputs 3.0/2.016 (100V Boot Pin)2.5/1.2524/2410/61000 pF in 10 ns8 pin SOIC
MIC4800 Half Bridge DriverDual Inputs,Single PWM-28V--15/13.53000 pF in 15 nsIntema 5V LDO3 x 3 QFN
MIC4804Half Bridge Driver Dual Inputs 1.0/1.016V (85V Boot Pin)-33/3420/201000 pF in 20 nsSmall 2.5 x 2.5 mm DFN8 pin SOIC, 8 pin 2.5 x 2.5 DFN
MIC4805 Half Bridge DriverDual Inputs,Single PWM1.0/1.016V (85V Boot Pin)-35/35 20/201000 pF in 20 nsAdaptive Dead Time and Anti-Shoot-Through Circuitry8-pin SOIC, 8-pin 2.5 x 2.5 DFN
MIC4806 Full Bridge DriverDual Inputs,Single PWM1.0/1.016V (85V Boot Pin)-35/35 20/201000 pF in 20 nsAdaptive Dead Time and Anti-Shoot-Through Circuitry4 x 4 QFN

"Charge pump current

POWER MANAGEMENT: Battery Chargers

Part #ModeCell Type# of CellsVcc Range (V)Cell Voltage (V)Maximum Charging Current (mA)Max. Voltage Regulation (%)Int/Ext FETFeaturesPackages
MCP73113LinearLi-Ion/Li-Polymer14 to 164.1, 4.2, 4.35, 4.41100±0.5Int6.5V Overvoltage Protection10-pin 3 x 3 DFN
MCP73114LinearLi-Ion/Li-Polymer14 to 164.1, 4.2, 4.35, 4.41100±0.5Int6.8V Overvoltage Protection10-pin 3 x 3 DFN
MCP73123LinearLiFePO414 to 163.61100±0.5Int9.5V Overvoltage Protection, LiFePO4 charging10-pin 3 x 3 DFN
MCP73213LinearLi-Ion/Li-Polymer24 to 169.2, 8.4, 8.7, 9.81100±0.6Int13V Overvoltage Protection10-pin 3 x 3 DFN
MCP73223LinearLiFePO424 to 167.21100±0.6Int13V Overvoltage Protection, LiFePO4 charging10-pin 3 x 3 DFN
MCP73828LinearLi-Ion/Li-Polymer14.5 to 5.54.1, 4.2N/A±1.0ExtSmall size, charge current set by external FET6-pin SOT-23
MCP73827LinearLi-Ion/Li-Polymer14.5 to 5.54.1, 4.2N/A±1.0ExtMode indicator, Charge current monitor, Charge current set by external FET8-pin MSOP
MCP73828LinearLi-Ion/Li-Polymer14.5 to 5.54.1, 4.2N/A±1.0ExtTemperature monitor, Charge current set by external FET8-pin MSOP
MCP73841LinearLi-Ion/Li-Polymer14.5 to 124.1, 4.2N/A±0.5ExtSafety charge timers, Temperature monitor, Charge current set by external FET10-pin MSOP
MCP73841LinearLi-Ion/Li-Polymer14.5 to 124.1, 4.2N/A±0.5ExtSafety charge timers, Temperature monitor, Charge current set by external FET10-pin MSOP
MCP73842LinearLi-Ion/Li-Polymer28.7 to 128.2, 8.4N/A±0.5ExtSafety charge timers, Temperature monitor, Charge current set by external FET10-pin MSOP
MCP73843LinearLi-Ion/Li-Polymer14.5 to 124.1, 4.2N/A±0.5ExtSafety charge timers, Charge current set by external FET8-pin MSOP
MCP73844LinearLi-Ion/Li-Polymer28.7 to 128.2, 8.4N/A±0.5ExtSafety charge timers, Charge current set by external FET8-pin MSOP
MCP73811LinearLi-Ion/Li-Polymer13.7 to 6.04.2500±1.0IntSelectable charge current (100 mA, 500 mA), Charge enable input5-pin SOT-23
MCP73812LinearLi-Ion/Li-Polymer13.7 to 6.04.2500±1.0IntProgrammable charge current (100 mA, 500 mA), Charge enable input5-pin SOT-23
MCP73830/L LinearLi-Ion/Li-Polymer13.75 to 6.04.21000/200±0.75IntSoft-start, Charge enable pin6-pin 2 x 2 TDFN

POWER MANAGEMENT: Battery Chargers

Part # Mode Cell Type# of CellsVcc Range (V)Cell Voltage (V)Maximum Charging Current (mA)Max. Voltage Regulation (%)Int/Ext FETFeatures Packages
MCP73831 Linear Li-Ion/Li-Polymer13.7 to 6.04.2, 4.35, 4.4, 4.5 500 ± 0.75 IntUVLO, Thermal regulation, Programmable charge current, Tin state STAT pin5-pin SCT-23, 8-pin 2 × 3 DFN
MCP73832 Linear Li-Ion/Li-Polymer13.7 to 6.04.2, 4.35, 4.4, 4.5 500 ± 0.75 IntUVLO, Thermal regulation, Programmable charge current, Open-drain STAT pin5-pin SOT-23, 8-pin 2 × 3 DFN
MCP73833 Linear Li-Ion/Li-Polymer14.5 to 6.54.1, 4.2 500 ± 0.5 IntUSB control, Safety charge timers, Temperature monitor, Thermal regulation16 pin 4 × 4 QFN
MCP73835 Linear Li-Ion/Li-Polymer14.5 to 6.54.1, 4.2 500 ± 0.5 IntUSB control, Safety charge timers, Thermal regulation10-pin 3 × 3 DFN
MCP73833 Linear Li-Ion/Li-Polymer13.7 to 6.04.2, 4.35, 4.4, 4.51000+0.75InlUVLO, Thermal regulation, Thermistor input, LDO Test mode, Multiple Vire outputs, Safety timer, Power good output10-pin 3 × 3 DFN, 10-pin MSOP
MCP73834 Linear Li-Ion/Li-Polymer13.7 to 6.04.2, 4.35, 4.4, 4.51000+0.75InlUVLO, Thermal regulation, Thermistor input, LDO Test mode, Multiple Vire outputs, Safety timer, Timer enable input10-pin 3 × 3 DFN, 10-pin MSOP
MCP73837 Linear Li-Ion/Li-Polymer13.7 to 6.04.2, 4.35, 4.4, 4.51000+0.75InlDual input (USB, DC input from adapter) auto-switching, UVLO, Thermal regulation, Thermistor input, Power good output10-pin 3 × 3 DFN, 10 pin MSOP
MCP73838 Linear Li-Ion/Li Polymer13.7 to 6.04.2, 4.35, 4.4, 4.51000+0.75InlDual input (USB, DC input from adapter) auto-switching, UVLO, Thermal regulation, Timer enable input10 pin 3 × 3 DFN, 10 pin MSOP
MCP73843 Linear Li-Ion/Li-Polymer14.5 to 124.1, 4.2N/A+0.5ExtSafety charge timers, Charge current set by external FET8-pin MSOP
MCP73844 Linear Li-Ion/Li-Polymer28.7 to 128.2, 8.4N/A+0.5ExtSafety charge timers, Charge current set by external FET8-pin MSOP
MCP73811 Linear Li-Ion/Li Polymer13.7 to 6.04.2500+1.0IntSociotable charge current (100 mA, 500 mA), Charge enable input5-pin SOT-23
MCP73812 Linear Li-Ion/Li Polymer13.7 to 6.04.2500+1.0IntProgrammable charge current (100 mA, 500 mA), Charge enable input5-pin SOT-23
MCP73830L Linear Li-Ion/Li Polymer13.75 to 6.04.21000/200+0.75IntSoft start, Charge enable pin6 pin 2 × 2 TDFN
MCP73831 Linear Li-Ion/Li-Polymer13.7 to 6.04.2, 4.35, 4.4, 4.5 500 ± 0.75 IntUVLO, Thermal regulation, Programmable charge current, Tin state STAT pin5-pin SCT-23, 8-pin 2 x 3 DFN
MCP73832 Linear Li-Ion/Li-Polymer13.7 to 6.04.2, 4.35, 4.4, 4.5 500 ± 0.75 IntUVLO, Thermal regulation, Programmable charge current, Open-drain STAT pin5-pin SCT-23, 8-pin 2 x 3 DFN
MCP73833 Linear Li-Ion/Li-Polymer14.5 to 5.54.1, 4.2 500 ± 0.5 IntUSB control, Safety charge timers, Temperature monitor, Thermal regulation16 pin 4 × 4 QFN
MCP73855 Linear Li-Ion/Li-Polymer14.5 to 5.54.1, 4.2 500 ± 0.5 IntUSB control, Safety charge timers, Thermal regulation10-pin 3 × 3 DFN
MCP73833 Linear Li-Ion/Li-Polymer13.7 to 6.04.2, 4.35. 4.4, 4.51000+0.75InlUVLO, Thermal regulation, Thermistor input, LDO Test mode, Multiple Vire outputs, Safety timer, Power good output10-pin 3 x 3 DFN, 10 pin MSOP
MCP73834 Linear Li-Ion/Li-Polymer13.7 to 6.04.2, 4.35, 4.4, 4.51000+0.75InlUVLO, Thermal regulation, Thermistor input, LDO Test mode, Multiple Vire outputs, Safety timer, Timer enable input10-pin 3 x 3 DFN, 10-pin MSOP
MCP73837 Linear Li-Ion/Li-Polymer13.7 to 6.04.2, 4.35, 4.4, 4.51000+0.75InlDual input (USB, DC Input from adapter) auto-switching, UVLO, Thermal regulation, Thermistor input, Power good output10 pin 3 × 3 DFN, 10 pin MSOP
MCP73838 Linear Li-Ion/Li Polymer13.7 to 6.04.2, 4.35, 4.4, 4.51000+0.75InlDual input (USB, DC Input from adapter) auto-switching, UVLO, Thermal regulation, Timer enable input10-pin 3 x 3 DFN, 10 pin MSOP
MCP73871 Linear Li-Ion/Li-Polymer13.75 to 6.04.1, 4.2, 4.35, 4.41000 (PVC Adapter, 900 (USB)+0.5IntSimultaneous charging of load and battery, Load-dependent charging, Multiple programmable charge currents20-pin 4 x 4 QFN, 20-pin SSOP

POWER MANAGEMENT: Hot Swap Controllers & E-Fuse

Part #Number of OutputsInput Voltage Range (V)Latch OffAuto RetryOVLOUVLONumber of Power GoodDescriptionPackages
MIC20651+2.3 to +16.5√-AdjustableAdjustable-Pin-Pin equivalent to LTC18/1216-pin QSOP
MIC25821+2.3 to +13.2√--Adjustable-Pin-Pin equivalent to LTC1422, dual-level fault detection8-pin SOIC
MIC25831+2.3 to +13.2√--Adjustable1 Active HighDual-level fault detection, CL discharge capability16-pin QSOP
MIC2583R1+2.3 to +13.2-√-Adjustable1 Active HighDual-level fault detection, CL discharge capability16-pin QSOP
MIC25842Ch 1: +2.3 to +13.2 Ch 2: +1.0 to +13.2√-AdjustableAdjustable2 Active HighOutput voltage tracking with dual-level fault tracking16-pin TSSOP
MIC25871+10 to -80√--Adjustable1 Active High/LowPin-pin equivalent to LTC1641-18-pin SOIC
MIC2587R1+10 to +80-√-Adjustable1 Active High/LowPin pin equivalent to LTC1641-28-pin SOIC

POWER MANAGEMENT: Hot Swap Controllers & E-Fuse

Part #Number of OutputsInput Voltage Range (V)Latch Off Auto Retry OVLO UVLONumber of Power GoodDescription Packages
MIC2588 1-19 to -80√-AdjustableAdjustable1 Active High/LowPin-pin equivalent to LTC1840, LT1840A, LT42508-pin SOIC
MIC2594 1-19 to -80√-AdjustableAdjustable 1Active High/LowMIC2588 with programmable UVLO hysteresis 8-pin SOIC
MIC2595 1-19 to -80√-AdjustableAdjustable3 Active High/LowStaggered power good provides load sequencing, programmable UVLO hysteresis14-pin SOIC
MIC2595R 1-19 to -80√AdjustableAdjustable3 Active High/LowStaggered power good provides load sequencing, programmable UVLO hysteresis14-pin SOIC
LX823724.3 to 13.2√--Fixed-Dual E-Fuse for 12V and 5V, Dual Power Regulators, FC Control and Current Monitoring, power disable support24-pin 3.5 x 4.5 QFN

POWER MANAGEMENT: Power Switches

Part #DescriptionUSB Port Power Switch (55 mΩ)High-Speed USB 2.0 SwitchBattery Charger Emulation Profile8 Resistor Set Current LimitsCharging Indicator OutputAttach Detection OutputCurrent MeasurementPower AllocationInterfacePackages
USB Port Power Controllers
UCS1001-1USB Port Power Controller with Charger Emulation119Up to 2.4A√---Discrete I/O20-pin 4 × 4 QFN
UCS1001-2USB Port Power Controller with Charger Emulation119Up to 2.4A-√--Discrete I/O20-pin 4 × 4 QFN
UCS1001-3USB Port Power Controller with Charger Emulation119Up to 2.4A√---Discrete I/O20-pin 4 × 4 QFN
UCS1001-4USB Port Power Controller with Charger Emulation119Up to 2.4A-√--Discrete I/O20-pin 4 × 4 QFN
UCS1002-1Programmable USB Port Power Controller with Charger Emulation119 + 1 programmableUp to 2.4A√-√√I/C/SMBus 20-pin 4 × 4 QFN
UCS1002-2Programmable USB Port Power Controller with Charger Emulation119 + 1 programmableUp to 2.4A√-√√I/C/SMBus20-pin 4 × 4 QFN
UCS1003-1Programmable USB Port Power Controller with Charger Emulation119 + 1 programmableUp to 3A-√√√I/C/SMBus20-pin 4 × 4 QFN
UCS1003-2Programmable USB Port Power Controller with Charger Emulation119Up to 3A√---Discrete I/O20-pin 4 × 4 QFN
UCS1003-3Programmable USB Port Power Controller with Charger Emulation119Up to 3A-√--Discrete I/O20-pin 4 × 4 QFN
UCS61003Programmable USB Port Power Controller Automotive119 + 1 programmableUp to 3A-√√√I/C/SMBus28-pin 5 × 5 QFN

POWER MANAGEMENT: Power Switches (Continued)

Current Limit USB Protection Switches
Part #ChannelsVin Range (V)Fixed Current Limit(Min.)Adj. CurrentLimit (Max.)Rps(on)(mΩ)CurrentLimited/LatchedReverseBlockingEnable LogicULVOThermalProtectionFaultFlagCurrentMeasurementPackages
UCS2114Dual2.9-5.53.0A3.4A18√√Active Low, Active High√√√√20-pin 3 × 3 QFN
UCS2113Dual2.9-5.53.0A3.4A40√√Active Low, Active High√√√√20-pin 4 × 4 QFN
UCS2112Dual2.9-5.53.0A3.4A40√√Active Low, Active High√√√√20-pin 4 × 4 QFN
MIC2003/13Single2.5-5.5500 mA, 800 mA, 1.2A-70√--√√--5-pin SOT23, 2 × 2
MIC2004/14Single2.5-5.5500 mA, 800 mA, 1.2A-70√-Active High√√--5-pin SOT23, 2 × 2
MIC2005/15Single2.5-5.5500 mA, 800 mA, 1.2A-70√-Active High√√√-5-pin SOT23, 6-pin SOT23,2 × 2
MIC2005ASingle2.5-5.5500 mA-170√-Active Low, Active High√√√-5-pin SOT23, 6-pin SOT23
MIC2009ASingle2.5-5.5-900 mA170√-Active Low, Active High√√--6-pin SOT23
MIC2009LSingle2.5-5.5500 mA, 800 mA, 1.2A-70√-Active Low√√√-5-pin SOT23
MIC2007/17Single2.5-5.5-2.0A100√-Active High√√--6-pin SOT23, 2 × 2
MIC2008/18Single2.5-5.5-2.0A70√-Active High√√--6-pin SOT23, 2 × 2
MIC2009/19Single2.5-5.5-2.0A70√-Active High√√√-8-pin SOT23, 2 × 2
MIC2025-1Single2.7-5.5500 mA-140√√Active High√√√-8-pin SOIC, 8-pin MSOP
MIC2025-2Single2.7-5.5500 mA-140√√Active Low√√√-8 pin SOIC, 8 pin MSOP
Part # Channels Vix Range (V)Fixed Current Limit(Min.)Adj. CurrentLimit (Max.)Ros(on)(mΩ)CurrentLimited/LatchedReverseBlockingEnable Logic ULVOThermalProtectionFaultFlagCurrentMeasurementPackages
MIC2028-1 Dual 2.7~5.5 500 mA -90√√Active High√√√-8-pin SOIC, 8 pin PDIP
MIC2028-2 Dual 2.7~5.5 500 mA -90√√Active Low√√√-8-pin SOIC, 8 pin PDIP
MIC2026A-1 Dual 2.7~5.5 500 mA -100√√Active High√√√-8-pin SOIC
MIC2026A-2 Dual 2.7~5.5 500 mA -100√√Active Low√√√-8-pin SOIC
MIC2027-1 Quad 2.7~5.5 500 mA -150√√Active High√√√-16-pin SOIC, 16-pin WSOIC
MIC2027-2 Quad 2.7~5.5 500 mA -150√√Active Low√√√-16-pin SOIC, 18-pin WSOIC
MIC2033 Single 2.5~5.5475 mA, 517 mA, 760mA, 900 mA, 1.14A-125√-Active Low, Active High√√√-8-pin SOT-23, 8-pin DFN*
MIC2039Single2.5~5.5-2.5A75√-Active Low, Active High√√√-8-pin SOT-23, 2 x 2*
MIC2040-1Single0.8~5.5-1.5A75√√Active High√√√-10-pin MSOP
MIC2040-2Single0.8~5.5-1.5A75√√Active Low√√√-10-pin MSOP
MIC2041-1Single0.8~5.5-1.5A75Latched√Active High√√√-10-pin MSOP
MIC2041-2Single0.8~5.5-1.5A75Latched√Active Low√√√-10-pin MSOP
MIC2042-1Single0.8~5.5-3.0A60√√Active High√√√-8-pin SOIC, 14-pin TSSOP
MIC2042-2Single0.8~5.5-3.0A60√√Active Low√√√-8-pin SOIC, 14-pin TSSOP
MIC2043-1Single0.8~5.5-3.0A60Latched√Active High√√√-8-pin SOIC, 14-pin TSSOP
MIC2043-2Single0.8~5.5-3.0A60Latched√Active Low√√√-8-pin SOIC, 14-pin TSSOP
MIC2044-1Single0.8~5.5-6.0A30√√Active High√√√-16-pin TSSOP
MIC2044-2Single0.8~5.5-6.0A30√√Active Low√√√-16-pin TSSOP

*Reduced Height Package

POWER MANAGEMENT: Load Switches

Part #ChannelsViv Range (V)Max. Switch CurrentRos(ow) (mΩ)Soft Start (μs)Load Discharge (Ω)Enable LogicInput Pull-Up ResistorReverse BlockingPackages
MIC94030Single2.7-13.51.0750--Active Low-√4-pin SOT143
MIC94040Single1.7-5.53.026--Active High--4-pin 1.2 × 1.2 MLF
MIC94041Single1.7-5.53.026-250Active High--4-pin 1.2 × 1.2 MLF
MIC94042Single1.7-5.53.026100-Active High--4-pin 1.2 × 1.2 MLF
MIC94043Single1.7-5.53.026-250Active High--4-pin 1.2 × 1.2 MLF
MIC94044Single1.7-5.53.026900-Active High--4-pin 1.2 × 1.2 MLF
MIC94045Single1.7-5.53.026900200Active High--4-pin 1.2 × 1.2 MLF
MIC94050Single1.8-5.51.8125--Active Low-√4 pin SOT143
MIC94051Single1.8-5.51.8125--Active Low√√4 pin SOT143
MIC94052Single1.8-5.52.070--Active Low--6-pin SC70
MIC94053Single1.8-5.52.070--Active Low√-6-pin SC70
MIC94060Single1.7-5.52.077--Active High--6-pin SC70, 1.2 × 1.6
MIC94061Single1.7-5.52.077-200Active High--6 pin SC70, 1.2 × 1.6
MIC94062Single1.7-5.52.077800-Active High--6-pin SC70, 1.2 × 1.6
MIC94063Single1.7-5.52.077800200Active High--6-pin SC70, 1.2 × 1.6
MIC94064Single1.7-5.52.077115-Active High--6-pin SC70, 1.2 × 1.6

POWER MANAGEMENT: Load Switches

Part #ChannelsVin Range (V)Max. Switch CurrentRps(ω) (mΩ)Soft Start (μs)Load Discharge (Ω)Enable LogicInput Pull-Up ResistorReverse BlockingPackages
MIC94065Single1,7-5,52.077115200Active High--8-pin SC70, 1.2 x 1.6
MIC94070Single1,7-5,51.2120--Active High--8-pin SC70, 1.2 x 1.6
MIC94071Single1,7-5,51.2120-200Active High--8-pin SC70, 1.2 x 1.6
MIC94072Single1,7-5,51.2120800-Active High--8-pin SC70, 1.2 x 1.6
MIC94073Single1,7-5,51.2120800200Active High--8-pin SC70, 1.2 x 1.6
MIC94080Single1,7-5,52.067--Active High--4-pin 0.85 x 0.85 TMLF
MIC94081Single1,7-5,52.067-250Active High--4-pin 0.85 x 0.85 TMLF
MIC94082Single1,7-5,52.067800-Active High--4-pin 0.85 x 0.85 TMLF
MIC94083Single1,7-5,52.067800250Active High--4-pin 0.85 x 0.85 TMLF
MIC94084Single1,7-5,52.067120-Active High--4-pin 0.85 x 0.85 TMLF
MIC94085Single1,7-5,52.067120250Active High--4-pin 0.85 x 0.85 TMLF
MIC94090Single1,7-5,51.2130--Active High--8-pin SC70, 1.2 x 1.2
MIC94091Single1,7-5,51.2130-250Active High--8-pin SC70, 1.2 x 1.2
MIC94092Single1,7-5,51.2130790-Active High--8-pin SC70, 1.2 x 1.2
MIC94093Single1,7-5,51.2130790250Active High--8-pin SC70, 1.2 x 1.2
MIC94094Single1,7-5,51.2130120-Active High--8-pin SC70, 1.2 x 1.2
MIC94095Single1,7-5,51.2130120250Active High--8-pin SC70, 1.2 x 1.2
MIC94101Single1,7-5,53.015.52700-Active High-✓1.5 x 1 WLCSP
MIC94162Single1,7-5,53.015.580200Active High-✓1.5 x 1 WLCSP
MIC94163Single1,7-5,53.015.580-Active High-✓1.5 x 1 WLCSP
MIC94164Single1,7-5,53.015.52700200Active High-✓1.5 x 1 WLCSP
MIC94165Single1,7-5,53.015.52700-Active High-✓1.5 x 1 WLCSP
MIC94112Single0.5-5,57.06.611002300Active High--10-pin 1.2 x 2.0 CFN
MIC94068Dual1,7-5,5285--Active High--8-pin 2 x 2 MLF
MIC94067Dual1,7-5,5285-200Active High--8-pin 2 x 2 MLF
MIC94068Dual1,7-5,5285800-Active High--8-pin 2 x 2 MLF
MIC94069Dual1,7-5,5285800200Active High--8-pin 2 x 2 MLF

*Reduced Height Package

POWER MANAGEMENT: Reverse Power Feed

Part #ApplicationFETsInterfaceOperating TemperaturePorts1-Pair Power
PD81000PSE for CPEN/AI2C-40 to +851
PD81101PSE for CPEInternal 0.2ΩI2C-40 to +85121W
PD82000PD for DPUN/AI2C-40 to +854 to 16

DISPLAY AND LED DRIVERS

DISPLAY AND LED DRIVERS: Electroluminescent Backlight Drivers
Part # TypeInput Voltage Low (V)Input Voltage High (V)Nominal Output Voltage (V)Max. Switch Resistance (Ω)Output Regulation Max. Lamp Size per Device (in)3) Packages
16-Segment Drivers
HV509 16 Segment Drivers 2 5.5±50 to ±200—6.532-pin VQFN
HV529 16-Segment Drivers 1.7 5.5±50 to ±200—6.532-pin VQFN
Offline Drivers
HV509Offline Driver50200±50 to ±200--1008-pin SOIC, 9-pin SOIC 150 mil
Single Lamp Drivers
HV516Single Lamp Driver2.75.5±180-Yes4218-pin QFN
IV823Single Lamp Driver29.5±906Yes239-pin SOIC 150 mil
IV825Single Lamp Driver11.5±5615No38-pin MSOP, 9-pin SOIC 150 mil
HV830Single Lamp Driver29.5±1004Yes268-pin SOIC 150 mil
HV833Single Lamp Driver1.68.5±904Yes128-pin MSOP
HV850Single Inductorless Lamp Driver34.2±70-Yes1.58-pin MSOP
HV852Single Inductorless Lamp Driver2.45±80-Yes1.510 pin WDFN, 8 pin MSOP
HV853Single Inductorless Lamp Driver3.25±80-Yes1.510 pin WDFN, 8 pin MSOP
HV857Single Lamp Driver1.85±956Yes58-pin WDFN, 8-pin MSOP
IV857LSingle Lamp Driver1.85±956Yes58-pin WDFN, 8-pin MSOP
HV859Single Lamp Driver1.85±1056Yes58-pin WDFN, 8-pin MSOP
HV860Single Lamp Driver2.54.5±1106Yes512 pin WOFN
MIC4828Single Lamp Driver1.85.5±807Yes38-pin MSOP
MIC4827Single Lamp Driver1.85.5±907Yes38 pin MSOP
MIC4830Single Lamp Driver1.85.5±907Yes48 pin MSOP, 8 pin VDFN
MIC4832Single Lamp Driver1.85.5±1107Yes38-pin MSOP, 8-pin VDFN
Dual Lamp Drivers
HV861Dual Lamp Drivers2.54.5±907Yes516-pin WOFN
MIC4833Dual Lamp Drivers2.55.8±11012Yes412-pin VDFN
DISPLAY AND LED DRIVERS: LED Drivers
Part #ApplicationTopologyInput Voltage (V)Output CurrentDimmingPackages
Automotive (AEC-Q100 Certified) LED Drivers
AT9917AutoBoost, Sepic5.3-40External FETPWM/Linear24-pin TSSOP
AT9918AutoBuck4.6-40External FETPWM8-pin DFN
AT9932AutoBoost-Buck (Gk)5.3-40External FETPWM/Linear24-pin TSSOP
AT9933AutoBoost Buck (Gk)9.0-75External FETPWM8-pin SOIC
MAQ3203AutoBuck4.5-42External FETPWM8-pin SOIC
General Purpose LED Drivers
Part #TopologyInput Voltage (V)DimmingIa Typ. (mA)Switching Frequency (Hz)Switching MOSFETDitheredILED AccuracyVrs (V)Packages
HV9801ABuck15-4504-Level Switch1.0100KExternal FET-N/A0.2s16-pin SOIC 150 mil, 8-pin SOIC 150 mil
HV9803BBuck7-13.2PWM/Linear1.5100KExternal FET-±2%0.268-pin SOIC 150 mil
HV98052-Stage102-285-2.5370K0.7A FET-N/A1.2610 pin MSOP
HV98100Buck-Boost9.5-17.5-0.2320KExternal FET-±5%0.26-pin SOT-23
HV98101Buck-Boost9.5-17.5-0.2320KExternal FET-±5%0.28-pin SOT-23
HV9861ABuck15-450PWM/Linear1.5100KExternal FET-±3%0.2716-pin SOIC 150 mil, 8-pin SOIC 150 mil
HV99108Buck8-450PWM/Linear1.0100KExternal FET-±5%0.2516-pin SOIC 150 mil, 8-pin SOIC 150 mil
HV96001Current Mode Boost8-60Extra Wide Range PWM and Analog3.4 200 kHzExternal -0.416/SOIC, 16/QFN
Part #TopologyInput Voltage (V)DimmingIo Typ. (mA)Switching Frequency (Hz)Switching MOSFETDitheredILED AccuracyVfn (V)Packages
General Purpose LED Drivers (Continued)
HV9910CBuck15-450PWM/Linear1.0100KExternal FET- ± 5% 0.2516-pin SOIC 150 mil, 8-pin SOIC 150 mil
HV9916Buck4.5-40PWM1.52M0.7A FET- ± 5% 0.238-pin WDFN
HV99198Buck4.5-40PWM1.52MExternal FET- ± 5% 0.238-pin WDFN
HV9921Buck20-400-0.2100K20 mA-N/AN/A3-pin TO-82, 3-pin SOT-88
HV9922Buck20-400-0.2100K50 mA-N/AN/A3-pin TO-82, 3-pin SOT-88
IVW9923Buck20-400-0.2100K30 mA-N/AN/A3-pin TO-82, 3-pin SOT-88
IVW9925Buck20-400PWM0.3100K20-50 mA-N/A0.478-pin SOIC
HV9930Oik9-300PWM1.0VariableExternal FET-N/A0.128-pin SOIC 150 mil
IVW9931Buck8-450PWM1.0100KExternal FET-N/A7.58-pin SOIC 150 mil
MIC3201Buck6-20PWM1.2Hyst to 1.0M1A FET- ± 5% 28-pin SOIC
MIC3202Buck6-37PWM1.2Hyst to 1.0M1A FET√ ± 5% 28-pin SOIC
MIC3202-1Buck6-37PWM1.2Hyst to 1.0M1A FET- ± 5% 28-pin SOIC
MIC3203Buck4.5-42PWM1.0Hyst to 1.5MExternal FET√ ± 5% 28-pin SOIC
MIC3203-1Buck4.5-42PWM1.0Hyst to 1.5MExternal FET- ± 5% 2Please call for package information
MIC3205Buck4.5-40PWM1.5Hyst to 1MExternal FET- ± 5% 210-pin VDFN
MIC3230Boost6-45PWM3.2100K-1.0MExternal FET- ± 3% 0.2516-pin TSSOP, 12-pin VDFN
MIC3231Boost6-45PWM3.2100K-1.0MExternal FET√ ± 3% 0.2516-pin TSSOP, 12-pin VDFN
MIC3232Boost6-45PWM3.2400KExternal FET- ± 3% 0.2510-pin MSOP

Backlight LED Drivers

Part #TopologyInput Voltage (V)DimmingIo Typ. (mA)Output CurrentInt. DiodeVfb (V)FrequencyPackages
HV9803Buck7-13.2PWM/Linear1.5External FETN/A0.8100K8-pin SOIC 150 mil
HV9911Boost, SEPIC, Buck-Boost9-250PWM/LinearN/AExternal FETN/A0.45100K16-pin SOIC 150 mil
IV9912Boost, SEPIC, Buck-Boost9-100PWM/LinearN/AExternal FETN/A0.45100K16-pin SOIC 150 mil
HV9961Buck8-450PWM/Linear3.5External FETN/A0.27100K8-pin SOIC 150 mil, 16-pin SOIC 150mil
HV9983Boost, SEPIC, Buck-Boost8-40PWM/LinearN/AExternal FETN/AN/A100K18-pin SOIC 150 mil
HV9967BBuck8-60PWM/LinearN/A1A FETN/A0.24100K8-pin MSOP, 8-pin VDFN
HV9980Buck100-160PWM/Linear3.00.07A FETN/AN/A500K24 pin SOIC 300 mil
HV9985Boost, SEPIC, Buck10-40PWM/Linear1.5External FETN/AN/A500K40 pin VDFN
MIC2262Boost0.9-15N/A0.121A.BJTN/A0.2220K8-pin MSOP
MIC2267Boost2.5-10PWM/Analog2.52A.BJTN/A0.0951.2M5 pin TSOT, 8 pin VDFN
MIC2267CBoost2.5-10PWM/Analog2.52A.BJTN/A0.0951.2M5 pin TSOT, 8 pin VDFN
MIC2269Boost2.5-10PWM/Analog2.52A.BJTYes0.0951.2M6 pin TSOT, 8 pin VDFN
MIC2280CBoost2.5-10PWM/Analog2.52A.BJTYes0.0951.2M6-pin TSOT
MIC2291Boost2.5-10PWM/Analog2.52A.BJTN/A0.0951.2M5 pin TSOT, 8 pin VDFN
MIC2292Boost2.5-10PWM/Analog2.52A.BJTYes0.0951.6M8 pin VDFN
MIC2292CBoost2.5-10PWM/Analog2.52A.BJTYes0.0951.6M8-pin VDFN
MIC2293Boost2.5-10PWM/Analog2.52A.BJTYes0.0952.0M8-pin VDFN
MIC2293CBoost2.5-10PWM/Analog2.52A.BJTYes0.0952.0M8 pin VDFN
MIC2297Boost2.5-10PWM/Analog43A.BJTN/A0.2600K10-pin VDFN
MIC2298Boost2.5-10PWM/Analog156A.BJTN/A0.21.0M12-pin VDFN
MIC2299Boost2.5-10PWM/Analog156A.BJTN/A0.22.0M12-pin VDFN
MIC3223Boost4.5-20PWM2.110A FETN/A0.21.0M16 pin TSSOP
MIC3263Boost6-40PWM6.52A.BJTN/A2.96400K-1.8M24-pin VDFN
MIC3267Boost2.8-6.5PWM/Analog2.11A.BJTN/A0.251.2M5-pin TSOT, 6-pin TSOT, 8-pin VDFN
MIC3269Boost2.5-6.51 Wire1.42A.BJTYes0.251.2M6 pin TSOT, 8 pin VDFN

DISPLAY AND LED DRIVERS: LED Drivers (Continued)

Part #Input Voltage (V)# of White LEDsDimmingIo Typ. (mA)V Dropout LED @ 20 mAILED MatchingExt. LDOsVonoroutIQLDOCommentsPackages
Linear LED Drivers
MIC2841A3-5.54 @ 20 mAPWM (200 Hz~500 kHz)1.440 mV±1.5%---DAMTM10-pin UDFN
MIC2842A3-5.54 @ 20 mA1-Wire, 46-Steps1.440 mV±1.5%---DAM10-pin UDFN
MIC2843A3-5.56 @ 20 mAPWM (200 Hz~500 kHz)1.440 mV±1.5%---DAM10-pin UDFN
MIC2844A3-5.56 @ 20 mA1-Wire, 46-Steps1.440 mV±1.5%---DAM10-pin UDFN
MIC2848A3-5.56 @ 20 mA1-Wire, 46-Steps1.440 mV±1.5%215035DAM14-pin VQFN
MIC2860-2D3-5.52 @ 30.2 mA1-Wire, 32-Steps0.752 mV±0.5%---6-pin SC70, 8-pin SOT-23
MIC2860-2P3-5.52 @ 30.2 mAPWM down to 250Hz0.752 mV±0.5%---6-pin SC70, 8-pin SOT-23
MIC48113-5.58 @ 50 mAPWM (200 Hz~500 kHz)1.7100 mV @ 50 mA±1.0%---DAM10-pin MSOP
MIC48123-5.56 @ 100 mAPWM (200 Hz~500 kHz)3.2190 mV @ 100 mA±1.0%---DAM10-pin eMSOP
MIC48013-5.51 @ 800 mAPWM (200 Hz~500 kHz)2.2150 mV @ 400 mAN/A---±1% Accuracy8-pin SOIC
MIC48023-5.51 @ 800 mAPWM (200 Hz~500 kHz)4.1260 mV @ 600 mAN/A---±1% Accuracy8-pin eSOIC

Linear Regulators

Part #Input Voltage (V)Output Voltage (V)Output Current (mA)DimmingParallelablePackagesFeatures
CL25.0-905.0-9020External FETYes3-pin TO-252, 3-pin TO-92, 3-pin SOT-89-
CL255.0-905.0-9025External FETYes3-pin TO-92, 3-pin SOT-89-
CL2205.0-2205.0-22020External FETYes3-pin TO-252, 3-pin TO-220-
CL3206.5-904.0-9020PWMYes8-bit SOIC with Heat SlugOTP, separate ENABLE pin
CL3256.5-904.0-9025PWMYes8-bit SOIC with Heat SlugOTP, separate ENABLE pin
CL3306.5-904.0-9030PWMYes8-bit SOIC with Heat SlugOTP, separate ENABLE pin
CL5204.75-901.0-9020-Yes3-pin TO-252, 3-pin TO-92-
CL5254.75-901.0-9025-Yes3-pin TO-252, 3-pin TO-92-
CL86.5-904.0-90100NoYes3-pin TO-252, 3-pin TO-220Reverse polarity protection, OTP
CL76.5-904.0-90100PWMYes8-pin SOIC with Heat SlugReverse polarity protection, OTP

Display LED Drivers

Part #Input Voltage (V)Sink Current (mA)SegmentsLEDsDescriptionPackages
MIC54004.75-5.530N/A2 banks of BDriving Large LED Array In Signs28-pin SOIC
MM54504.75-111534N/A7-Segment LED Driver with EN40-pin PDIP, 44-pin PLCC
MM54514.75-111535N/A7-Segment LED Driver40-pin PDIP, 44-pin PLCC

Sequential Linear LED Drivers

Part #Vin (V)Vout (V)Output Current (mA)DimmingParallelableFeaturesPackages
CL980090-27570-350115External DimmerYes6-Stage33-pin QFN
CL980190-27570-350200External DimmerYes4-Stage33-pin QFN
CL9802090-13570-190115External DimmerYes4-Tap8-pin SOIC EP
CL8803090320N/AExternalYes4-Tap, ALR, OTP, Icur FET Dependent10-Id QFN (3 mm x 3 mm)
CL8803190320N/AExternalYes6-Tap, ALR, OTP, Icur FET Dependent10-Id QFN (3 mm x 3 mm)

Camera Flash LED Drivers

Part #Input Voltage (V)# of LED ChannelsMax. LED Current (mA)Standby Current (mA)Switch Frequency (MHz)Peak Efficiency (%)Current Accuracy (%)InterfacePackages
MIC28702,7-5215000.90294+10IC16-pin TOFN
MIC28712,7-5,5112000.23294 ± 5 Single Wire14 pin LDFN
MIC28732,7-5,5112000.17292 ± 6 Single Wire9 pin WLCSP
MIC28742,7-5,5112000.17492 ± 8 Single-Wire9-pin WLCSP

HIGH-VOLTAGE INTERFACE

HIGH-VOLTAGE INTERFACE: Driver Arrays
Part #Output ChannelsVour Operating (V) TransientVour Operating (V) SustainedInput StructureDescription
Sink
HV5122 32 250 225 Serial Serial to parallel converter with output enable and strobe
HV5222 32 250 225 Serial Serial to parallel converter with output enable and strobe
HV5622 32 230 220 Serial Serial to parallel converter with latches, polarity, and clanking
HV5628 32 230 220 Serial Serial to parallel converter with latches, polarity, and clanking
HV5530 32 315300Serial Serial to parallel converter with latches, polarity, and blanking
HV5622 32 230 220 Serial Serial to parallel converter with latches, polarity, and clanking
HV5628 32 250 220 Serial Serial to parallel converter with latches, polarity, and clanking
HV5630 32 315300Serial Serial to parallel converter with latches, polarity, and blanking
MIC580049080Parallel4.4 MHz (min.) Data at 5V, Higher at 12V, TTL/CMOS/PMOS Logic; Integrated clamp diodes; CLR/Strobe/Enable Out
MIC580185050Parallel4.4 MHz (min.) Data at 5V, Higher at 12V, TTL/CMOS/PMOS Logic; Integrated clamp diodes; CLR/Strobe/Enable Out
MIC5821 8 5035Serial Similar to MIC5801, Adds thermal Shutdown, UVLO, OCP
MIC582288050Serial8-bit SRs (Cascacable), Operable with split supply (to -20V), 3.3 MHz (min.) Data at 6V, TTL/CMOS/PMOS/NMOS Logic
MIC584185035Serial8-bit SRs (Cascacable), Operable with split supply (to -20V), 3.3 MHz (min.) Data at 6V, Higher at 12V, TTL/CMOS/PMOS/NMOS Logic
MIC5842 8 80 50Serial8-bit SRs (Cascacable), Operable with split supply (to -20V), 3.3 MHz (min.) Data at 5V, Higher at 12V, Low Power Logic; TTL/CMOS/PMOS/NMOS; Internal Pull Up/Down Res's
MIC58P01 8 80 80 Parallel8-bit SRs (Cascacable), Operable w/Split Supply (to -20V), 3.3 MHz (min.) Data at 6V, Higher at 12V, Low Power Logic; TTL/CMOS/PMOS/NMOS; Internal Pull Up/Down Res's
MIC58P42 8 80 50Serial Similar to MIC5842, adds thermal shutdown, UVLO, OCP
MIC58P50 8 80 80 Parallel Similar to MIC58P01, with added error flag output
MIC58P60 8 80 50Serial Similar to MIC58P12, with added error flag output
Source
HV57009649585SerialCurrent controlled driver with latches and blanking, two 32-bit shift registers
MIC2981/8285035Parallel8-Ch. driver with parallel I/Os; TTL/CMOS/PMOS Logic; Integrated clamp diodes; VwC-12V
MIC589185035Serial8-bit SRs (Cascacable), Operable with split supply (to -20V), 5 MHz (min.) Data at 5V, Integrated clamp diodes; TTL/CMOS/PMOS/NMOS Logic; Strobe and output enable
Source-Sink
HV5416 64200 180 Serial Serial to parallel converter with latches, polarity, and blanking
HV50764320300SerialSerial to parallel converter with latches, polarity, and blanking
HV50826045ParallelH-Bridge output with two output voltage level selections and polarity. Specialty targeted as LCD shutter driver
HV5138275250SerialSerial to parallel converter with latches, polarity, and blanking Hi-Z and short circuit dotct
HV518328060SerialSerial to parallel converter with latches, oracle, and strobe; Specially targeted as vacuum fluorescent display drive
HV5308 8290 80 Serial Serial to parallel converter with latches, and output enable
HV5408 8290 80 Serial Serial to parallel converter with latches, and output enable
HV574808080SerialSerial to parallel converter with latches, polarity and blanking
HV57708648080SerialPolarity, and blanking with four 16-bit shift registers
HV57908648080SerialLatches, blanking, polarity, and single shift register
HV5812 2090 80 Serial Serial to parallel converter with latches, blanking and strobe
HV582968580Serial96-Channel, with high-voltage CMOS Outputs, 80V
HV589128 90 80 Serial 128 Channel, with high voltage CMOS Outputs, 80V
HV66327060SerialSerial to parallel converter with latches, polarity and blanking
HV6810109080SerialSerial to parallel converter with data latches and channel polarity select
HV702234250250SerialSerial to parallel converter with direction, oracle, and polary select; particularly useful for ACTFEL displays
HV7224 40260 240 Serial Serial to parallel converter with latches, and output enable
HV7620 32 225 200 Serial Serial to parallel converter with latches, channel polarity select, and blanking
HV9308329080SerialSerial to parallel converter latches and output enable, CW directional shift
HV9408328080SerialSerial to parallel converter latches and output enable; COW directional shift
HV9808329080SerialSerial to parallel converter latches, polarity, and output enable; CCW directional shift

HIGH-VOLTAGE INTERFACE: Amplifiers and MEMS Drivers

Part #Output ChannelsSlew Rate (V/μs)Closed Loop Gain (V/V)Feedback Resistance (MΩ)Source Current (Max. μA)Sink Current (Max. μA)Output Capacitive Load (Max. pF)Packages
HV2543235012300300100100-pin MOFP
HV25632272127157153000100-pin MOFP
HV25732272125005003000100 pin MOFP
HV2644866.75.3300030001524 pin TSSOP
HV26540.02824.93000300200TSSOP-24
HV5602220.2751.996000167000N/A20-Ld. 4 mm x 4 mm VQFN
HV5602020.2751.996000167000N/A43-Ld. 7 mm x 7 mm VQFN

HIGH-VOLTAGE INTERFACE: MOSFETs - Interface

Part #BVosx Min. (V)Ros(ov) Max. (Ω)Vos(off) Min. (V)Vos(off) Max. (V)Packages
Depletion-Mode N-Channel
LND0191.4-0.8-35-pin SOT-23
DN1509906-1.8-3.52-pin SOT-B9, 5-pin SOT-23
DN26252503.5-1.5-2.18-pin VDFN, 3-pin DPAK
DN35252506-1.6-3.53-pin SOT-B9
DN253030012-1-3.53-pin TO-92, 3-pin SOT-B9
DN353535010-1.5-3.53-pin SOT-B9
DN263535026-1.5-3.53-pin TO-92, 3-pin TO-220
DN313535035-1.5-3.53-pin SOT-B9, 3-pin SOT-23
DN254040025-1.5-3.53-pin TO-92, 3-pin SOT-B9, 3-pin TO-220
DN354545020-1.5-3.53-pin TO-92, 3-pin SOT-B9
DN314545060-1.5-3.53-pin SOT-B9
DN245050010-1.5-3.53-pin DPAK, 3-pin SOT-B9
LND1505001000-1-33-pin TO-B2, 3-pin SOT-B9, 3-pin SOT-23
LND2505001000-1-33-pin SOT-23
DN37856508-1.5-3.53-pin DPAK
DN247070042-1.5-3.53-pin DPAK

Enhancement-Mode N-Channel

Part #BVnss Min. (V)Ros(ov) Max. (Ω)Ciss Max. (pF)Vcs(m) Max. (V)Packages
TN2501162.51101.03-pin SOT-89
TN2702201.32001.03-pin TO-82
VN0300301.21902.53-pin TO-82
TN2604400.81501.63-pin TO-82
TN2504401.01251.63-pin SOT-89
TN0104402.0701.63-pin TO-82, 3-pin SOT-89
VN0104433.0652.43-pin TO-82
VN3205500.33002.43-pin TO-82, 3-pin SOT-89
TN2608601.51502.03 pin TO-82
TN2106602.5502.03-pin TO-82, 3-pin SOT-83
2N8663603.0502.03-pin TO-39
TN2106603.0502.03-pin TO-82
VN0106603.0652.43-pin TO-82
VN0606603.0502.03-pin TO-82
VN2106604.0502.43-pin TO-82
2N7000605.0603.03-pin TO-82
2N7002607.5502.53-pin SOT-83
2N7008607.5502.53-pin TO-82
VN2221807.5602.53-pin TO-82
Part #BVoss Min. (V)Ros(ov) Max. (Ω)Ciss Max. (pF)Vss(n-) Max. (V)Packages
Enhancement-Mode N-Channel (Continued)
VN0806 80 4.0502.0 3-pin TO-92
VN0109 90 3.0652.4 3 pin TO-92
2N6661 30 4.0502.0 3 pin TO-99
VN2210 1000.45002.4 3-pin TO-92, 3-pin TO-99
TNC61001.51502.0 3 pin TO-92
TN2510 1001 5125 2.0 3-pin SOT-88
TNC11003.0602.0 3-pin TO-92
VN2110 1004.0502.4 3-pin SOT-23
VN1206 120 6.0125 2.0 3-pin TO-92
TNC620 200 6.01501.69 pin TO-82
VN2224 240 1.33x03.03-pin TO-92
TNPs24 240 6.0125 2.0 3-pin SOT-89
VN2406 240 6.0125 2.0 3 pin TO-92
VN2410 240 10.0125 2.0 3-pin TO-82
TN2124 240 15.0502.0 3-pin SOT-23
TN2425 250 3.5200 2.0 3-pin SOT-89
TN5325 250 7.0 1102.0 3 pin TO-92, 3 pin SOT-89, 3 pin SOT-23
TN2130 30025.0 502.4 3 pin SOT-23
TNP435 3x08.0200 0.8 (min)3-pin SOT-89
TN53535C15.01102.0 3 pin SOT-89, 3 pin SOT-23
TN2640 4005.0225 2.0 3 pin DPAK, 3 pin TO-92, 8 pin SOIC 150 ml
TN2540 40012.0 125 2.0 3-pin TO-92, 3-pin SOT-89
VN4012 40012.0 1101.8 3-pin TO-92
VN2450 50013.01501.03-pin TO-82, 3-pin SOT-88
VN0550 50060.0554.03-pin TO-92
VN2460 60020.0 1504.03-pin TO-92, 3 pin SOT-88
Enhancement-Mode P-Channel
LP0701-16.51.5250-1.03-pin TO-92, 5-pin SOIC 150 mil
TP5622-20 2.0 125-2.43-pin SOT-89
VP3203-300.6300-3.53-pin TO-92, 3-pin SOT-99
TP0924-402.0150-2.43-pin TO-92
TP2104-406.0602.03-pin TO-92, 3-pin SOT-23
VP0104-408.060-3.53-pin TO-92
VP2206-600.9450-3.53-pin TO-92, 3-pin TO-38
VP0106-608.060-3.53-pin TO-92
VP2106-6012.060-3.53-pin TO-92
VP0808-805.01x0-4.53-pin TO-92
VP0109-908.080-3.53-pin TO-92
TP2510-1003.5125-2.43-pin SOT-88
VP2110-10012.060-3.53-pin SOT-23
TP0620-20012.0150-2.43-pin TO-92
TP2520-20012.0125-2.03-pin SOT-88
TP2522-22012.0125-2.43-pin SOT-88
TPs322-22012.0110-2.43-pin SOT-88, 3-pin SOT-23
TP2424-2408.0200-2.43-pin SOT-88
TP2435-35015.0200-2.43-pin SOT-88
Part #BVoss Min. (V)Rds(on) Max. (Ω)Ciss Typ. (pF)Vos(th) Max. (V)Packages
Enhancement-Mode P-Channel (Continued)
TP2635 - 350 15.0300 - 2.0 3-pin TO-92
TP2535 -350 25.0 125 -2.4 3-pin TO-82
TP5335 - 350 30.0110 - 2.4 3-pin SOT-23
TP2640 - 400 15.0300 - 2.0 3-pin TO-92, 8-pin SOIC 150 ml
TP2540 -400 25.0 125 -2.4 3-pin TO-82, 3-pin SOT-89
VP2450 -500 30.0130 -3.5 3 pin TO-92, 3-pin SOT-89
VP0550 -500 125.0 70 -1.5 3-pin TO-62
N-Channel (Enhancement-Mode MOSFET Arrays)
TD8944 240 68s28-pin SOIC
TN2501182.51101.03-pin SOT-89
TN0702201.32001.03-pin TO-92
VN0300301.21902.53-pin TO-92
TN0604400.81901.63-pin TO-82
TN2504401.01251.63-pin SOT-89
TN5104402.0701.63-pin TO-92, 3-pin SOT-89
VN0104403.0652.43-pin TO-82
VN3205500.33002.43-pin TO-92, 3-pin SOT-89
TN0608601.51502.03-pin TO-82
TN2106602.5502.03-pin TO-92, 3-pin SOT-23
2N8660603.0502.03-pin TO-39
TN0108603.0802.03-pin TO-92
VN0108603.0652.43-pin TO-92
VN0806603.0502.03-pin TO-92
VN2106604.0502.43-pin TO-92
2N7000605.0603.03-pin TO-92
2N7002607.5502.53-pin SOT-23
2N7008607.5502.53-pin TO-92
VN2222L607.5802.53-pin TO-92
VN0808804.0502.03-pin TO-92
VN0109903.0652.43-pin TO-92
2N6661904.0502.03-pin TO-39
VN22101000.45002.43-pin TO-92, 3-pin TO-39

Complimentary (Enhancement-Mode MOSFET Arrays)

Part #BVoss N-Channel (V)BVoss P-Channel (V)Ros(ox) N-Channel Max. (Ω)Ros(ox) P-Channel Max. (Ω)Vos(n+) Max. (V)DetailsPackages
TC1650500-50060.0125.04.0N- and P-Channel Pair8-pin SOIC
TC2320200-2007.012.02.0N- and P-Channel Pair8-pin SOIC
TC6215150-1504.07.02.0N- and P-Channel Pair8-pin SOIC
TC6320200-2007.08.02.0N- and P-Channel Pair8-pin SOIC, 8-lead VDFN (4 x 4 mm)
TC6321200-2007.08.02.0N- and P-Channel Pair8-lead VDFN (8 x 5 mm)
TC7920200-2007.08.02.02 N- and P-Channel Pairs12-pin VDFN
TC8020200-2008.09.53.06 N- and P-Channel Pairs56-pin VDFN
TC8220200-2006.36.52.02 N- and P-Channel Pairs12-pin VDFN

HIGH-VOLTAGE INTERFACE: Application Specific

Part # DC/DCInput Voltage Min. (V)Input Voltage Max. (V)Output Voltage Min. (VRMS)Output Voltage Max. (VRMS)Load Min. (pF) Load Max. (pF) Packages

Liquid Lens Driver
HV692 Internal Charge Pump 2.65 5.51080100200 10-pin WDFN

Complimentary MOSFET Level Translator and Driver

Part ## of ChannelsInput Voltage Low (V)Input Voltage High (V)Output Voltage Low (V)Output Voltage High (V)Input to Output Isolation (V)Packages
HT044023.155.5610 ± 400 10-pin VD TN, 8-pin SOIC 150 mil
HT074013.155.54.58.5+4008-pin SOIC 150 mil

High-Side Current Monitor

Part #Vin (V)GainRise and Fall Time (μs)VSENSE Max. (mV)Quiescent Current Max. (μA)Packages
HV78008.0-150Fixed, 10.7-2.0500505-pin SOT-23
HV78018.0-450Fixed, 50.7-2.0500505-pin SOT-23
HV78028.0-450Adjustable0.7-1.4500508-pin MSOP

Fault Protection

Part #Voltage (V)# of ChannelsRon (Ω)Voff (V)Packages
FP010010014.54.53-pin SOT-89

Relay Driver and Controller

Part #Vin Min. (V)Vin Max. (V)In Max. (mA)Oscillator Frequency Min. (kHz)Oscillator Frequency Max. (kHz)Oscillator Frequency fvsNC Min. (kHz)Max Output Duty Cycle (%)Typical Current Sense Pull-In (V)Typical Current Sense HoldExternal Adjustable Regulator Output Voltage (V)External Adjustable Regulator Output Current (mA)Packages
HV99011045022014015089.60.883Adjustable2.0-5.50-1.014 pin SOIC

LINEAR

LINEAR: Op Amps

Part ## Per PackageGBWPIo Typical (μA)Vos Max (mV)Typical Input Bias Current (pA)Input Voltage Noise Density (nV/rHz)Operating Voltage (V)Temperature Range (°C)FeaturesPackages
MCP644119 kHz0.454.51 190^th 1.8 to 8.0-40 to +125Fail-to-Rail Input/Output5-pin SOT-23a, 5-pin SOC-70a,b
MCP644229 kHz0.454.51 190^th 1.8 to 8.0-40 to +125Fail-to-Rail Input/Output8-pin SOIC, 8-pin MSOP, 8-pin 2 × 3 TDFN
MCP644449 kHz0.454.51 190^th 1.8 to 8.0-40 to +125Fail to Rail Input/Output14-pin SOIC, 14-pin TSSOP
MCP6031110 kHz0.90.151 165^th 1.8 to 5.5-40 to +125Fail to Rail Input/Output8-pin SOIC, 8 pin MSOP, 8 pin 2 × 3 DFN, 5 pin SOT-23
MCP6032210 kHz0.90.151 165^th 1.8 to 5.5-40 to +125Fail-to-Rail Input/Output8-pin SOIC, 8-pin MSOP
MCP6033110 kHz0.90.151 165^th 1.8 to 5.5-40 to +125Fail-to-Rail Input/Output. Chip select8-pin SOIC, 8-pin MSOP, 8-pin 2 × 3 DFN
MCP6034410 kHz0.90.151 165^th 1.8 to 5.5-40 to +125Fail-to-Rail Input/Output14-pin SOIC, 14-pin TSSOP
MCP6041114 kHz0.631 170^th 1.4 to 8.0-40 to +125Fail-to-Rail Input/Output8-pin PDIP, 8-pin SOIC, 8-pin MSOP, 5-pin SOT-23a
MCP6042214 kHz0.631 170^th 1.4 to 8.0-40 to +125Fail to Rail Input/Output8-pin PDIP, 8 pin SOIC, 8 pin MSOP
MCP6043114 kHz0.631 170^th 1.4 to 8.0-40 to +125Fail to Rail Input/Output. Chip select8 pin PDIP, 8 pin SOIC, 8 pin MSOP, 6 pin SOT-23a
MCP6044414 kHz0.631 170^th 1.4 to 8.0-40 to +125Fail-to-Rail Input/Output14-pin PDIP, 14-pin SOIC, 14-pin TSSOP
MIC7111125 kHz20711101.8 to 11-40 to -85Fail-to-Rail Input/Output5-pin SOT-23

Legend: S = Standard Pinout; R = Reverse Pinout; U = Alternative Pinout
Note 1: Values are typical at 1 kHz 2: Values are typical at 10 kHz

LINEAR: Op Amps (Continued)

Part ## Per PackageGBWPIo Typical (μA)Vos Max (mV)Typical Input Bias Current (pA)Input Voltage Noise Density (nV/rtHz)Operating Voltage (V)Temperature Range (°C)Features Packages
MCP6421190 kHz 4.41195381.8 to 5.5-40 to +125Rail-to-Rail Input/Output, Enhanced EM Rejection5-pin SOT-23a, 5-pin SC-70a
MCP64222.90 kHz 4.41195381.8 to 5.5-40 to +125Rail-to-Rail Input/Output, Enhanced EM Rejection8-pin SOIC, 8-pin MSOP
MCP6424490 kHz 4.41195381.8 to 5.5-40 to +125Rail-to-Rail Input/Output, Enhanced EM Rejection14-pin SOIC, 14-pin TSSOP
MCP61411100 kHz 0.631170381.4 to 6.0 -40 to +125Rail-to-Rail Input/Output, G >10 stable5-pin SOT-238-pin PDIP, 8-pin SOIC, 8-pin MSOP
MCP61422.100 kHz 0.631170381.4 to 6.0-40 to +125Rail-to-Rail Input/Output, G >10 stable8-pin PDIP, 8-pin SOIC, 8-pin MSOP
MCP61431100 kHz 0.631170381.4 to 6.0-40 to +125Rail-to-Rail Input/Output, G >10 stable, Chip select8-pin PDIP, 8-pin SOIC, 8-pin MSOP, 6-pin SOT-23a
MCP61444100 kHz 0.631170381.4 to 6.0-40 to +125Rail-to-Rail Input/Output, G >10 stable14-pin PDIP, 14-pin SOIC, 14-pin TSSOP
MCP6061155 kHz190.251382.5 to 6.0-40 to +85Rail-to-Rail Output8-pin PDIP, 8-pin SOIC, 8-pin TSSOP, 5-pin SOT23a
MCP6072155 kHz190.251382.5 to 6.0-40 to +85Rail-to-Rail Output8-pin PDIP, 8-pin SOIC, 8-pin TSSOP
MCP6081155 kHz190.251382.5 to 6.0-40 to +85Rail-to-Rail Output, Chip select8-pin PDIP, 8-pin SOIC, 8-pin TSSOP
MCP6094155 kHz190.251382.5 to 6.0-40 to +85Rail-to-Rail Output14-pin PDIP, 14-pin SOIC, 14-pin TSSOP
MCP6161190 kHz190.1515000322.3 to 5.5-40 to +85Rail-to-Rail Output, PNP input8-pin PDIP, 8-pin SOIC, 8-pin MSOP
MCP6172190 kHz190.1515000322.3 to 5.5-40 to +85Rail-to-Rail Output, PNP input8-pin PDIP, 8-pin SOIC, 8-pin MSOP
MCP6181190 kHz190.1515000322.3 to 5.5-40 to +85Rail-to-Rail Output, Chip select, PNP input8-pin PDIP, 8-pin SOIC, 8-pin MSOP
MCP6194190 kHz190.1515000322.3 to 5.5-40 to +85Rail-to-Rail Output, PNP input14-pin PDIP, 14-pin SOIC, 14-pin TSSOP
MCP62311300 kHz2051521.8 to 6.0 -40 to +125Rail-to-Rail Input/Output8 pin PDIP, 8 pin SOIC, 8 pin MSOP, 8 pin 2 x 3 TDFN, 5 pin SC-704, 5 pin SOT-23a
MCP62322300 kHz2051521.8 to 6.0-40 to +125Rail-to-Rail Input/Output8-pin PDIP, 8-pin SOIC, 8-pin MSOP, 8-pin 2 x 3 TDFN
MCP62344300 kHz2051521.8 to 6.0 -40 to +125Rail-to-Rail Input/Output14-pin PDIP, 14-pin SOIC, 14-pin TSSOP
MCP60511385 kHz300.151341.8 to 6.0 -40 to +125Rail-to-Rail Input/Output8-pin SOIC, 8 pin 2 x 3 DFN, 5 pin SOT-23G
MCP60522385 kHz300.151341.8 to 6.0 -40 to +125Rail-to-Rail Input/Output8-pin SOIC, 8 pin 2 x 3 DFN
MCP60544385 kHz300.151341.8 to 6.0 -40 to +125Rail-to-Rail Input/Output14-pin SOIC, 14-pin TSSOP
MIC8611400 kHz4.61020-2.43 to 5.25-40 to +85Rail-to-Rail Output5-pin SC-70
MIC8632450 kHz4.26.010-2.0 to 5.25-40 to +85Rail-to-Rail Output8-pin SOT-23
LMC71011500 kHz6.061372.7 to 12-40 to +85Rail-to-Rail Input/Output5-pin SOT-23
MIC73001500 kHz100090.5372.2 to 10-40 to +85Rail-to-Rail Input/Output, High Output Drive5 pin SOT-23, 8 pin MSOP
MCP62411550 kHz5051451.6 to 5.5 -40 to +125Rail-to-Rail Input/Output8 pin PDIP, 8 pin SOIC, 8 pin MSOP, 8 pin 2 x 3 TDFN, 5 pin SC-704, 5 pin SOT-23a
MCP62422.350 kHz606145381.8 to 5.5 -40 to +125Rail-to-Rail Input/Output8-pin PDIP, 8-pin SOIC, 8-pin MSOP
MCP62444550 kHz5051451.8 to 5.5 -40 to +125Rail-to-Rail Input/Output14-pin PDIP, 14-pin SOIC, 14-pin TSSOP
MCP60611730 kHz600.151281.8 to 6.0 -40 to +125Rail-to-Rail Input/Output8 pin SOIC, 8 pin 2 x 3 DFN, 5 pin SOT-23
MCP60622730 kHz600.151281.8 to 6.0 -40 to +125Rail-to-Rail Input/Output8 pin SOIC, 8 pin 2 x 3 DFN
MCP60644730 kHz600.151281.8 to 6.0 -40 to +125Rail-to-Rail Input/Output14-pin SOIC, 14-pin TSSOP
MIC71222750 kHz80091372.2 to 15-40 to +85Rail-to-Rail Input/Output
MCP600111 MHz1004.51281.8 to 6.0 -40 to +125Rail-to-Rail Input/Output5-pin SOT-236 pin, 5-pin SC-70a
MCP600221 MHz1004.51281.8 to 6.0-40 to +125Rail-to-Rail Input/Output
MCP600441 MHz1004.51281.8 to 6.0 -40 to +125Rail-to-Rail Input/Output14 pin PDIP, 14-pin SOIC, 14-pin TSSOP
MCP600721 MHz701.61251.8 to 5.5-40 to +125Rail-to-Rail Input/Output, Enhanced EMI Rejection8-pin SOIC, 8-pin MSOP
MCP600941 MHz701.61251.8 to 5.5-40 to +125Rail-to-Rail Input/Output, Enhanced EMI Rejection14-pin SOIC, 14-pin TSSOP
MCP640111 MHz454.51281.8 to 6.0 -40 to +125Rail-to-Rail Input/Output5 pin SOT-236 pin, 5 pin SC-70a
MCP640221 MHz454.51281.8 to 6.0 -40 to +125Rail-to-Rail Input/Output8 pin SOIC, 8 pin 2 x 3 TDFN
MCP640441 MHz454.51281.8 to 6.0 -40 to +125Rail-to-Rail Input/Output14-pin SOIC, 14-pin TSSOP
MCP641111 MHz4711381.7 to 5.5 -40 to +1255 pin SOT-23a, 5 pin SC-70a
MCP6L0111 MHz855224a1.8 to 6.0 -40 to +125Rail-to-Rail Input/Output5 pin SOT-236 pin, 5 pin SC-70a
MCP6L022.1 MHz8552 24281.8 to 6.0 -40 to +125Rail-to-Rail Input/Output8-pin SOIC, 8-pin MSOP
MCP6L0441 MHz855224a1.8 to 6.0 -40 to +125Rail-to-Rail Input/Output14-pin SOIC, 14-pin TSSOP
Part ## per PackageGBWPIo Typical (μA)Vos Max (mV)Typical Input Bias Current (pA)Input Voltage Noise Density (nV/rHz)Operating Voltage (V)Temperature Range (°C)Features Packages
MCP607111.2 MHz 1100.15119-1.8 to 6.0 -40 to +125 Rail-to-Rail Input/Output 8-pin SOIC, 8-pin 2 x 3 DFN, 5-pin SOT-23*
MCP60722 1.2 MHz 1100.15119-1.8 to 6.0 -40 to +125 Rail-to-Rail Input/Output 8-pin SOIC, 8-pin 2 x 3 DFN
MCP607441.2 MHz 1100.15119-1.8 to 6.0 -40 to +125 Rail-to-Rail Input/Output 14-pin SOIC, 14-pin TSSOP
MCP6H0111.2 MHz 1353.51035-Single Supply: 3.5 to 16 Dual Supply: ±1.75 to ±9-40 to +125 Rail-to-Rail Output8-pin SOIC, 8-pin 2 x 3 TDFN, 5-pin SOT-23*, 5-pin SO-70*
MCP6H022 1.2 MHz 1353.51035-Single Supply: 3.5 to 16 Dual Supply: ±1.75 to ±9-40 to +125 Rail-to-Rail Output 8-pin SOIC, 8 pin 2 x 3 TDFN
MCP6H0441.2 MHz 1353.51035-Single Supply: 3.5 to 16 Dual Supply: ±1.75 to ±9-40 to +125 Rail-to-Rail Output 14 pin SOIC, 14 pin TSSOP
MCP627112 MHz1703120*2.0 to 6.0-40 to +1258-pin PDIP, 8-pin SOIC, 8-pin MSOP, 5-pin SOT-23*
MCP627222 MHz1703120*2.0 to 6.0 -40 to +125 Rail-to-Rail Input/Output 8-pin PDIP, 8-pin SOIC, 8-pin MSOP
MCP627312 MHz1703120*2.0 to 6.0 -40 to +125 Rail-to-Rail Input/Output, Chip select 8-pin PDIP, 8-pin SOIC, 8-pin MSOP, 8-pin SOT-23
MCP627442 MHz1703120*2.0 to 6.0 -40 to +125 Rail-to-Rail Input/Output 14-pin PDIP, 14-pin SOIC, 14-pin TSSOP
MCP627522 MHz1503120*2.0 to 6.0 -40 to +1258-pin PDIP, 8-pin SOIC, 8-pin MSOP
MCP647112 MHz1001.5127*2.0 to 5.5 -40 to +125 Rail-to-Rail Input/Output 5-pin SOT-23*, 5-pin SC-70*
MCP64722.2 MHz100.5127-2.0 to 5.5 -40 to +125 Rail-to-Rail Input/Output 8-pin SOIC, 8-pin MSOP, 8-pin 2 x 3 TDFN
MCP647442 MHz1001.5127*2.0 to 5.5 -40 to +125 Rail-to-Rail Input/Output 14-pin SOIC, 14-pin TSSOP
MCP6L7112 MHz1504119*2.0 to 6.0 -40 to +125 Rail-to-Rail Input/Output 8-pin SOIC* 8-pin MSOP*, 5-pin SOT-23*
MCP6L7222 MHz1504119*2.0 to 6.0 -40 to +125 Rail-to-Rail Input/Output 8-pin SOIC, 8-pin MSOP
MCP6L7442 MHz1504119*2.0 to 6.0 -40 to +125 Rail-to-Rail Input/Output 14 pin SOIC, 14 pin TSSOP
MIC621112.5 MHz1200750000-4.0 to 32-40 to +85-5-pin SOT-23
MCP6H7112.7 MHz48041028*Single Supply: 3.5 to 12 Dual Supply: ±1.75 to ±8-40 to +125 Rail-to-Rail Output 8-pin SOIC, 8 pin 2 x 3 TDFN
MCP6H722.7 MHz 48041028-Single Supply: 3.5 to 12 Dual Supply: ±1.75 to ±8-40 to +125 Rail-to-Rail Output 8-pin SOIC, 8 pin 2 x 3 TDFN
MCP6H7442.7 MHz48041028*Single Supply: 3.5 to 12 Dual Supply: ±1.75 to ±8-40 to +125 Rail-to-Rail Output 14 pin SOIC, 14 pin TSSOP
MCP6C112.8 MHz2302129*2.7 to 6.040 to +1258-pin PDIP, 8-pin SOIC, 8-pin TSSOP, 5-pin SOT-23*
MCP6C222.8 MHz2302129*2.7 to 6.0 -40 to +125 Rail-to-Rail Output 8-pin PDIP, 8-pin SOIC, 8-pin TSSOP
MCP6C312.8 MHz2302129*2.7 to 6.0-40 to +1258-pin PDIP, 8-pin SOIC, 8-pin TSSOP, 8 pin SOT-23*
MCP6C442.8 MHz2302129*2.7 to 6.0 -40 to +125 Rail-to-Rail Output 14 pin PDIP, 14 pin SOIC, 14 pin TSSOP
MCP6L112.9 MHz2003121*2.7 to 6.0 -40 to +125 Rail-to-Rail Output 8-pin SOIC* 8-pin MSOP*, 5-pin SOT-23*
MCP6L222.9 MHz2003121*2.7 to 6.0 -40 to +125 Rail-to-Rail Output 8-pin SOIC, 8-pin MSOP
MCP6L442.8 MHz2003121*2.7 to 6.0 -40 to +125 Rail-to-Rail Output 14 pin SOIC, 14 pin TSSOP
MCP64772.3 MHz140.1.61.17-1.8 to 5.5 -40 to +1258-pin SOIC, 8-pin MSOP
MCP64794.3 MHz140.1.61.17-1.8 to 5.5 -40 to +12514-pin SOIC, 14-pin TSSOP
MIC88223.0 MHz31610-2.0 to 5.25-40 to +858-pin SOT-23
MCP828613.5 MHz5401.515.4*2.2 to 6.5 -40 to +125 Rail-to-Rail Output, Low noise* *
MIC86014.0 MHz332020-2.43 to 6.25-40 to +1255 pin SC-70
MCP648114 MHz2401.5123*2.2 to 6.5 -40 to +125 Rail-to-Rail Input/Output 5-pin SOT-23*, 5-pin SC-70*
MCP64822.4 MHz240.1.5123-2.2 to 6.5 -40 to +125 Rail-to-Rail Input/Output 8-pin SOIC, 8-pin MSOP, 8-pin 2 x 3 TDFN
MCP648444 MHz2401.5123*2.2 to 6.5 -40 to +125 Rail-to-Rail Input/Output 14 pin SOIC, 14 pin TSSOP
MCP628115 MHz4453116*2.2 to 6.0-40 to +1258-pin PDIP, 8-pin SOIC, 8-pin MSOP, 5 pin SOT-23*
MCP628225 MHz4453116*2.2 to 6.0 -40 to +125 Rail-to-Rail Input/Output 8 pin PDIP, 8 pin SOIC, 8 pin MSOP
MCP628315 MHz4453116*2.2 to 6.0-40 to +1258 pin PDIP, 8 pin SOIC, 8 pin MSOP, 6 pin SOT-23*
MCP628445 MHz4453116*2.2 to 6.0 -40 to +125 Rail-to-Rail Input/Output 14 pin PDIP, 14 pin SOIC, 14 pin TSSOP

www.microchip.com/anailog
Legend: S - Standard Pinout; R - Reverse Pinout; U - Alternative Pinout
Note 1: Values are typical at 1 kHz 2: Values are typical at 10 kHz

LINEAR: Op Amps (Continued)

Part ## per PackageGBWPIo Typical (μA)Vos Max (mV)Typical Input Bias Current (pA)Input Voltage Noise Density (nV/rHz)Operating Voltage (V)Temperature Range (°C)Features Packages
MCP8265 2.5 MHz 4003116 ^11 2.2 to 8.0 -40 to +125Rail-to-Rail Input/Output, Dual connected, Chip select8-pin PDIP, 8-pin SOIC, 8-pin MSOP
MCP6H81 15.5 MHz 700 41023 ^11 Single Supply: 3.5 to 12 Dual Supply: ±1.75 to ±6-40 to +125Rail-to-Rail Output8-pin SOIC, 8-pin 2 x 3 TDFN
MCP6H82 2.5.5 MHz 700 41023 ^11 Single Supply: 3.5 to 12 Dual Supply: ±1.75 to ±6-40 to +125Rail-to-Rail Output8-pin SOIC, 8-pin 2 x 3 TDFN
MCP6H84 45.5 MHz 700 41023 ^11 Single Supply: 3.5 to 12 Dual Supply: ±1.75 to ±6-40 to +125Rail-to-Rail Output14-pin SOIC, 14-pin 2 x 3 TDFN
MCP649117.5 MHz5301.5119 ^11 2.4 to 5.5 -40 to +125Rail-to-Rail Input/Output5-pin SOT-238-pin SOIC, 8-pin MSOP, 8-pin 2 x 3 TDFN
MCP6492 2.7.5 MHz 5301.5119 ^11 2.4 to 5.5-40 to +125Rail-to-Rail Input/Output8-pin SOIC, 14-pin TSSOP
MCP645447.5 MHz5301.5119 ^11 2.4 to 5.5-40 to +125Rail-to-Rail Input/Output14-pin SOIC, 8-pin SOIC, 8-pin TSSOP, 8-pin MSOP, 8-pin SOT-23 ^11
MCP6C21110 MHz10000.518.7 ^11 2.5 to 5.5-40 to +125Rail-to-Rail Input/Output, 1/2 Vcc Vre=8-pin PDIP, 8-pin SOIC, 8-pin TSSOP, 8-pin MSOP, 8-pin SOT-23 ^11
MCP6C22210 MHz10000.518.7 ^11 2.5 to 5.5-40 to +125Rail-to-Rail Input/Output8-pin PDIP, 8-pin SOIC, 8-pin TSSOP
MCP6C23110 MHz10000.518.7 ^11 2.5 to 5.5 -40 to +125Rail-to-Rail Input/Output, Chip select, 1/2 Vcc Vre=8-pin PDIP, 8-pin SOIC, 8-pin TSSOP
MCP6C24410 MHz10000.518.7 ^11 2.5 to 5.5-40 to +125Rail-to-Rail Input/Output14-pin PDIP, 14-pin SOIC, 14-pin TSSOP
MCP6291110 MHz1000318.7 ^11 2.4 to 6.0-40 to +125Rail-to-Rail Input/Output8-pin PDIP, 8-pin SOIC, 8-pin MSOP, 5-pin SOT-23 ^11
MCP6292210 MHz1000318.7 ^11 2.4 to 6.0-40 to +125Rail-to-Rail Input/Output8-pin PDIP, 8-pin SOIC, 8-pin MSOP
MCP6203110 MHz1000318.7 ^11 2.4 to 6.0-40 to +125Rail-to-Rail Input/Output, Chip select8-pin PDIP, 8-pin SOIC, 8-pin MSOP, 6-pin SOT-23 ^11
MCP6294410 MHz1000318.7 ^11 2.4 to 6.0-40 to +125Rail-to-Rail Input/Output14-pin PDIP, 14-pin SOIC, 14-pin TSSOP
MCP6295210 MHz1100318.7 ^11 2.4 to 6.0 -40 to +125Rail-to-Rail Input/Output, Dual connected, Chip select8-pin PDIP, 8-pin SOIC, 8-pin MSOP
MCP6H91110 MHz200041023 ^11 Single Supply: 3.5 to 12 Dual Supply: ±1.75 to ±6-40 to +125Rail-to-Rail Output8-pin SOIC, 8-pin 2 x 3 TDFN
MCP6H92 210 MHz2000 41023 ^11 Single Supply: 3.5 to 12 Dual Supply: ±1.75 to ±6-40 to +125Rail-to-Rail Output8-pin SOIC, 8-pin 2 x 3 TDFN
MCP6H94410 MHz200041023 ^11 Single Supply: 3.5 to 12 Dual Supply: ±1.75 to ±6-40 to +125Rail-to-Rail Output14-pin SOIC, 14-pin TSSOP
MCP6L91110 MHz850419.4 ^11 2.4 to 6.0 -40 to +125Rail-to-Rail Input/Output8-pin SOIC8-pin MSOP ^11 , 8-pin MSOP ^11 , 8-pin SOT-23 ^11
MCP6L92 210 MHz850 419.4 ^11 2.4 to 6.0-40 to +125Rail-to-Rail Input/Output8-pin SOIC, 8-pin MSOP
MCP6L94410 MHz850419.4 ^11 2.4 to 6.0-40 to +125Rail-to-Rail Input/Output14-pin SOIC, 14-pin TSSOP
MCP621120 MHz25000.2513 ^11 2.5 to 5.5 -40 to +125Rail-to-Rail Output, Chip select, mCal Technology8-pin SOIC, 8-pin 2 x 3 TDFN
MCP6215120 MHz25000.2513 ^11 2.5 to 5.5-40 to +125Rail-to-Rail Output, mCal Technology5-pin SOT-23 ^11
MCP622220 MHz25000.2513 ^11 2.5 to 5.5-40 to +125Rail-to-Rail Output, mCal Technology8-pin SOIC, 8-pin 2 x 3 DFN
MCP623120 MHz25000.2513 ^11 2.5 to 5.5 -40 to +125Rail-to-Rail Output, Chip select, mCal Technology6-pin SOT-23 ^11
MCP624420 MHz25000.2513 ^11 2.5 to 5.5-40 to +125Rail-to-Rail Output, mCal Technology14-pin SOIC, 14-pin TSSOP
MCP625220 MHz25000.2513 ^11 2.5 to 5.5 -40 to +125Rail-to-Rail Output, Chip select, mCal Technology10-pin MSOP, 10-pin 3 x 3 DFN
MCP629420 MHz25000.2513 ^11 2.5 to 5.5 -40 to +125Rail-to-Rail Output, Chip select, mCal Technology16-pin 4 x 4 QFN
MCP631124 MHz25008410 ^11 2.5 to 5.5-40 to +125Rail-to-Rail Output8 pin SOIC, 8 pin 2 x 3 TDFN, 5 pin SOT-23 ^11
MCP632224 MHz25008410 ^11 2.5 to 5.5-40 to +125Rail-to-Rail Output8 pin SOIC, 8 pin 3 x 3 DFN
MCP633124 MHz25008410 ^11 2.5 to 5.5 -40 to +125Rail-to-Rail Output, Chip select, 8-pin SOIC, 8-pin SOT-23
MCP634424 MHz25008410 ^11 2.5 to 5.5-40 to +125Rail-to-Rail Output14 pin SOIC, 14 pin TSSOP
MCP635224 MHz25008410 ^11 2.5 to 5.5-40 to +125Rail-to-Rail Output, Chip select10-pin MSOP, 10-pin 3 x 3 DFN
MCP639424 MHz25008410 ^11 2.5 to 5.5-40 to +125Rail-to-Rail Output, Chip select16-pin 4 x 4 QFN

Legend: S = Standard Pinout; R = Reverse Pinout; U = Alternative Pinout
Note 1: Values are typical at 1 kHz 2: Values are typical at 10 kHz 3: Values are typical at 1 MHz

LINEAR: Op Amps (Continued)

Part ## per PackageGBWPIo Typical (μA)Vos Max (mV)Typical Input Bias Current (pA)Input Voltage Noise Density (nV/rTHz)Operating Voltage (V)Temperature Range (°C)Features Packages
MCP651 150 MHz 60000.267.5 2.5 to 5.5 -40 to +125Rail-to-Rail Output, Chip select, mCal Technology8-pin SOIC, 8-pin 2 x 3 TDFN
MCP651S 150 MHz 60000.267.5 2.5 to 5.5 -40 to +125Rail-to-Rail Output, mCal Technology 5-pin SOT-23
MCP652 2 50 MHz 60000.267.5 2.5 to 5.5 -40 to +125Rail-to-Rail Output, mCal Technology 8-pin SOIC, 8-pin 3 x 3 DFN
MCP653 150 MHz 60000.267.5 2.5 to 5.5 -40 to +125Rail-to-Rail Output, Chip select, mCal Technology6-pin SOT-23 ^a
MCP654 450 MHz 60000.267.5 2.5 to 5.5 -40 to +125Rail-to-Rail Output, mCal Technology 14-pin SOIC, 14-pin TSSOP
MCP655 2 50 MHz 60000.267.5 2.5 to 5.5 -40 to +125Rail-to-Rail Output, Chip select, mCal Technology10-pin MSOP, 10-pin 3 x 3 DFN
MCP659 450 MHz 60000.267.5 2.5 to 5.5 -40 to +125Rail-to-Rail Output, Chip select, mCal Technology16-pin 4 x 4 QFN
MCP660360 MHz6000866.8(3)2.5 to 5.5-40 to +125Rail-to-Rail Output14-pin SOIC, 14-pin TSSOP
MCP661160 MHz6000866.8(3)2.5 to 5.5-40 to +125Rail-to-Rail Output8-pin SOIC, 8-pin 2 x 3 TDFN, 5-pin SOT-23(S)
MCP662260 MHz6000866.8(3)2.5 to 5.5-40 to +125Rail-to-Rail Output8-pin SOIC, 8-pin 3 x 3 DFN
MCP663160 MHz6000866.8(3)2.5 to 5.5-40 to +125Rail-to-Rail Output, Chip select8-pin SOIC, 6-pin SOT 23
MCP664460 MHz6000866.8(3)2.5 to 5.5-40 to +125Rail-to-Rail Output14-pin SOIC, 14-pin TSSOP
MCP665260 MHz6000866.8(3)2.5 to 5.5-40 to +125Rail-to-Rail Output, Chip select10-pin MSOP, 10-pin 3 x 3 DFN
MCP669460 MHz6000866.8(3)2.5 to 5.5-40 to +125Rail-to-Rail Output, Chip select16-pin 4 x 4 QFN
MIC920160 MHz5505260000105.0 to 18-40 to +85High Output Drive, High Slow Rate5-pin SG-70, 5-pin SOT-23

Legend: S = Standard Pinout; R = Reverse Pinout; U = Alternative Pinout
Note 1: Values are typical at 1 kHz 2: Values are typical at 10 kHz 3: Values are typical at 1 MHz

LINEAR: Zero-Drift Operational Amplifiers

Part ## per PackageGBWPIo Max (mA)Vos Max (μV)Vos Drift Max (μV/°C)Operating Voltage (V)Temperature Range (°C)FeaturesPackages
MCP6V11180 kHz0.01180.051.6 to 5.5-40 to -125Rail-to-Rail Input/Output5-pin SOT-23 ^A* , 5-pin SC-70 ^B*
MCP6V12280 kHz0.01180.051.6 to 5.5-40 to -125Rail-to-Rail Input/Output8-pin 2 x 3 TDFN, 8-pin MSOP
MCP6V14480 kHz0.01180.051.6 to 5.5-40 to -125Rail-to-Rail Input/Output14-pin TSSOP
MCP6V16180 kHz0.011250.151.6 to 5.5-40 to +125Rail-to-Rail Input/Output5-pin SOT-23 ^A* , 5-pin SC70 ^B*
MCP6V17280 kHz0.011250.151.6 to 5.5-40 to +125Rail-to-Rail Input/Output8-pin 2 x 3 TDFN, 8-pin MSOP
MCP6V19480 kHz0.011250.151.6 to 5.5-40 to +125Rail-to-Rail Input/Output14-pin TSSOP
MCP6V311300 kHz0.03480.051.8 to 5.5-40 to -125Rail-to-Rail Input/Output5-pin SOT 23 ^A* , 5-pin SC-70 ^B*
MCP6V322300 kHz0.03480.051.8 to 5.5-40 to -125Rail-to-Rail Input/Output8-pin 2 x 3 TDFN, 8-pin MSOP
MCP6V344300 kHz0.03480.051.8 to 5.5-40 to -125Rail-to-Rail Input/Output14-pin TSSOP
MCP6V361300 kHz0.034250.151.8 to 5.5-40 to -125Rail-to-Rail Input/Output5-pin SOT-23 ^A* , 5-pin SC70 ^B*
MCP6V372300 kHz0.034250.151.8 to 5.5-40 to -125Rail-to-Rail Input/Output8-pin 2 x 3 TDFN, 8-pin MSOP
MCP6V384300 kHz0.034250.151.8 to 5.5-40 to -125Rail-to-Rail Input/Output14-pin TSSOP
TC765210.4 MHz350.055 to 160 to +70Single and Split Supply, Low Noise8-pin PDIP, 14-pin PDIP
MCP6V6111 MHz0.1380.0151.8 to 5.5-40 to -125Rail-to-Rail Input/Output, Enhanced EMI Rejection5-pin SOT-23 ^A* , 5-pin SC-70 ^B*
MCP6V6221 MHz0.1380.0151.8 to 5.5-40 to -125Rail-to-Rail Input/Output, Enhanced EMI Rejection8-pin 2 x 3 TDFN, 8-pin MSOP
MCP6V6441 MHz0.1380.0151.8 to 5.5-40 to -125Rail-to-Rail Input/Output, Enhanced EMI Rejection14-pin TSSOP
MCP6V6611 MHz0.13250.151.8 to 5.5-40 to -125Rail-to-Rail Input/Output, Enhanced EMI Rejection5-pin SOT-23 ^A* , 5-pin SC-70 ^B*
MCP6V6721 MHz0.13250.151.8 to 5.5-40 to -125Rail-to-Rail Input/Output, Enhanced EMI Rejection8-pin 2 x 3 TDFN, 8-pin MSOP
MCP6V6841 MHz0.13250.151.8 to 5.5-40 to -125Rail-to-Rail Input/Output, Enhanced EMI Rejection14-pin TSSOP

LINEAR: Zero-Drift Operational Amplifiers

Part # per PackageGBWPIo Max (mA)Vos Max ( V)Vos Drift Max ( V/°C)Operating Voltage (V)Temperature Range (°C)Features Packages
MCP6V0111.3 MHz0.420.051.8 to 5.5-40 to +125Rail-to-Rail Input/Output6-pin SOIC, 8-pin 2 × 3 TDFN
MCP6V0221.3 MHz0.420.051.8 to 5.5-40 to +125Rail-to-Rail Input/Output6-pin SOIC, 8-pin 4 × 4 DFN
MCP6V0311.3 MHz0.420.051.8 to 5.5-40 to +125Rail-to-Rail Input/Output, Chio select8-pin SOIC, 8-pin 2 × 3 TDFN
MCP6V0611.3 MHz0.430.051.8 to 5.5-40 to +125Rail-to-Rail Input/Output8-pin SOIC, 8-pin 2 × 3 TDFN
MCP6V0721.3 MHz0.430.051.8 to 5.5-40 to +125Rail-to-Rail Input/Output8-pin SOIC, 8-pin 4 × 4 DFN
MCP6V0811.3 MHz0.430.051.8 to 5.5-40 to +125Rail-to-Rail Input/Output, Chio select6-pin SOIC, 8 pin 2 × 3 TDFN
TC813A/B21.5 MHz1.1150.15/0.307 to 180 to +70Single and Split Supply6-pin PDIP, 8-pin SOIC
TC765012 MHz3.550.054.5 to 160 to +70Single and Split Supply6-pin PDIP, 14-pin PDIP
MCP6V2812 MHz0.920.052.3 to 5.5-40 to +125Rail-to-Rail Input/Output8-pin SOIC, 8 pin MSOP, 8 pin 2 × 3 TDFN
MCP6V2722 MHz0.820.052.3 to 5.5-40 to +125Rail-to-Rail Input/Output6 pin SOIC, 8 pin MSOP, 8 pin 4 × 4 DFN
MCP6V2812 MHz0.820.052.3 to 5.5-40 to +125Rail-to-Rail Input/Output, Chio select6-pin SOIC, 8 pin MSOP, 8 pin 2 × 3 TDFN
MCP6V5112 MHz0.59150.0384.5 to 45-40 to +125Rail-to-Rail Output, Enhanced EMI Rejection5-pin SCT-23 ^a,b , 8-pin MSOP
MCP6V7112 MHz0.2690.0152.0 to 5.5-40 to +125Rail-to-Rail Input/Output, Enhanced EMI Rejection5-pin SCT-23 ^a,b , 5-pin SC-70 ^b,c
MCP6V7222 MHz0.2690.0152.0 to 5.5-40 to +125Rail-to-Rail Input/Output, Enhanced EMI Rejection6 pin 2 × 3 TDFN, 8 pin MSOP
MCP6V7442 MHz0.2680.0152.0 to 5.5-40 to +125Rail-to-Rail Input/Output, Enhanced EMI Rejection14-pin TSSOP
MCP6V7812 MHz0.26250.152.0 to 5.5-40 to +125Rail-to-Rail Input/Output, Enhanced EMI Rejection5-pin SCT-23 ^a,c , 5-pin SC-70 ^b,c
MCP6V7722 MHz0.26250.152.0 to 5.5-40 to +125Rail-to-Rail Input/Output, Enhanced EMI Rejection6 pin 2 × 3 TDFN, 8 pin MSOP
MCP6V7942 MHz0.26250.152.0 to 5.5-40 to +125Rail-to-Rail Input/Output, Enhanced EMI Rejection14-pin TSSOP
MCP6V8115 MHz0.7790.022.2 to 5.5-40 to +125Rail-to-Rail Input/Output, Enhanced EMI Rejection5-pin SCT-23 ^a,b , 5-pin SC-70 ^b,c
MCP6V8225 MHz0.7790.0582.2 to 5.5-40 to +125Rail-to-Rail Input/Output, Enhanced EMI Rejection6 pin 2 × 3 TDFN, 8 pin MSOP
MCP6V8445 MHz0.7790.0582.2 to 5.5-40 to +125Rail-to-Rail Input/Output, Enhanced EMI Rejection14 pin TSSOP
MCP6V8615 MHz0.77250.152.2 to 5.5-40 to +125Rail-to-Rail Input/Output, Enhanced EMI Rejection5-pin SOT-23 ^a,b , 5-pin SC-70 ^b,c
MCP6V8725 MHz0.77250.152.2 to 5.5-40 to +125Rail-to-Rail Input/Output, Enhanced EMI Rejection8-pin 2 × 3 TDFN, 8-pin MSOP
MCP6V8945 MHz0.77250.152.2 to 5.5-40 to +125Rail-to-Rail Input/Output, Enhanced EMI Rejection14-pin TSSOP
MCP6V91110 MHz1.890.0172.4 to 5.5-40 to +125Rail-to-Rail Input/Output, Enhanced EMI Rejection5-pin SOT-23 ^a,b , 5-pin SC-70 ^b,c
MCP6V92210 MHz1.890.042.4 to 5.5-40 to +125Rail-to-Rail Input/Output, Enhanced EMI Rejection8 pin 2 × 3 TDFN, 8 pin MSOP
MCP6V94410 MHz1.690.012.4 to 5.5-40 to +125Rail-to-Rail Input/Output, Enhanced EMI Rejection14-pin TSSOP

LINEAR: Differential Amplifiers

Part ## per PackageGBWP Slew Rate (V/μs) Iq Typical (mA) Vos Max (μV)Input Voltage Noise Density (nV/rtHz)Operating Voltage (V)Temperature Range (°C)Features Packages
MCP6D11190 MHz 251.4150525 to 5.5-40 to +125Low noise, low distortion with power down pin8-pin MSOP, 16-pin 3 x 3 QFN

LINEAR: Programmable Gain Amplifiers (PGA)

Part #Channels-3dB BW (MHz)Io Typ. (mA)Vos (μV)Operating Voltage (V)Temperature Range (°C)FeaturesPackages
MCP6S2112 to 121.12752.5 to 5.5-40 to +85SPI, Eight Gain steps, Software shutdown8-pin PDIP, 8-pin SOIC, 8-pin MSOP
MCP6S2222 to 121.12752.5 to 5.5-40 to +85SPI, Eight Gain steps, Software shutdown8-pin PDIP, 8-pin SOIC, 8-pin MSOP
MCP6S2682 to 121.12752.5 to 5.5-40 to +85SPI, Eight Gain steps, Software shutdown14-pin PDIP, 14-pin SOIC, 14-pin TSSOP
MCP6S2882 to 121.12752.5 to 5.5-40 to +85SPI, Eight Gain steps, Software shutdown16-pin PDIP, 16-pin SOIC
MCP6S3111 to 181.040002.5 to 5.5-40 to +125SPI, Eight Gain steps, Software shutdown, Vfree8-pin PDIP, 8-pin SOIC, 8-pin MSOP
MCP6S3221 to 181.040002.5 to 5.5-40 to +125SPI, Eight Gain steps, Software shutdown8-pin PDIP, 8-pin SOIC, 8-pin MSOP
MCP6S3321 to 181.040002.5 to 5.5-40 to +125SPI, Eight Gain steps, Software shutdown, Vic., SO10-pin MSOP

LINEAR: Selectable Gain Amplifiers (SGA)

Part #Channels3dB BW (kHz)Iq (μA)Vos (mV)Operating Voltage (V)Temperature Range (°C)Gain Steps (V/V)FeaturesPackages
MCP6G0119001104.51.8 to 5.5-40 to +1251, 10, 50Tri-State control pin8-pin SOIC, 8-pin MSOP, 5-pin SOT 23 ^ SOP
MCP6G0229001104.51.8 to 5.5-40 to +1251, 10, 50Tri-State control pin8-pin SOIC, 8-pin MSOP
MCP6G0319001104.51.8 to 5.5-40 to +1251, 10, 50Tri-State control pin, chip select8-pin SOIC, 8-pin MSOP
MCP6G0449001104.51.8 to 5.5-40 to +1251, 10, 50Tri-State control pin14-pin SOIC, 14-pin TSSOP

LINEAR: Instrumentation Amplifiers

Part ## Per PackageBandwidth (kHz)Io Max (mA)Max Vos (μV)Vos Drift Max (μV/°C)Operating Voltage (V)Temperature Range (°C)FeaturesPackages
MCP6N1115001.13502.71.8 to 5.5-40 to +125Rail-to-Rail Input/Output, mCal Technology8-pin SCIC, 8-pin 2 x 3 TDFN
MCP6N1815001.8170.081.8 to 5.5-40 to +125Rail-to-Rail Input/Output, Enable Pin, Enhanced EMI Rejection8-pin MSOP, 8-pin 3 x 3 DFN

LINEAR: Comparators

Part ## Per PackageVREF(V)Typical Propagation Delay (μs)Io Typical (μA)Vos Max (mV)Operating Voltage (V)Temperature Range (°C)Features Packages
MCP6541 1-1151.6 to 5.5 -40 to +125 Push-Pull, Rail-to-Rail Input/Output5-pin SOT-235F-U, 5-pin SC-705A,8-pin PDIP, 8-pin SOIC, 8-pin MSOP
MCP65422-4151.6 to 5.5-40 to +125Push-Pull, Rail-to-Rail Input/Output8-pin PDIP, 8-pin SOIC, 8-pin MSOP
MCP65431-4151.6 to 5.5-40 to +125Push-Pull, Rail-to-Rail Input/Output, Chip select8-pin PDIP, 8-pin SOIC, 8-pin MSOP
MCP65444-4151.6 to 5.5-40 to +125Push-Pull, Rail-to-Rail Input/Output14-pin PDIP, 14-pin SOIC, 14-pin TSSOP
MCP6546 1-41 to 5.5 -40 to +125 Open-drain, 9V, Rail-to-Rail Input/Output5-pin SOT-235F-U, 5-pin SC-705A,8-pin PDIP, 8-pin SOIC, 8-pin MSOP
MCP65472-4151.6 to 5.5-40 to +125Open-drain, 8V, Rail-to-Rail Input/Output8-pin PDIP, 8-pin SOIC, 8-pin MSOP
MCP65481-4151.6 to 5.5-40 to +125Open-drain, 8V, Rail-to-Rail Input/Output, Chip select8-pin PDIP, 8-pin SOIC, 8-pin MSOP
MCP65494-4151.6 to 5.5-40 to +125Open-drain, 8V, Rail-to-Rail Input/Output14-pin PDIP, 14-pin SOIC, 14-pin TSSOP
MCP65F4111.21/2.442.5101.8 to 5.5-40 to +125Push-Pull, Rail-to-Rail Input/Output, VREF6-pin SOT-23
MCP65F4611.21/2.442.5101.8 to 5.5-40 to +125Open Drain, Rail-to-Rail Input/Output, VREF6-pin SOT-23
MCP65611-0.047100101.8 to 5.5-40 to +125Push-Pull, Rail-to-Rail Input/Output5-pin SOT-235F-U, 5-pin SC-705A
MCP65622-0.047100101.8 to 5.5-40 to +125Push-Pull, Rail-to-Rail Input/Output8-pin SOIC, 8-pin MSOP
MCP65644-0.047100101.8 to 5.5-40 to +125Push-Pull, Rail-to-Rail Input/Output14-pin SOIC, 14-pin TSSOP
MCP65661-0.047100101.8 to 5.5-40 to +125Open-Drain, Rail-to-Rail Input/Output5-pin SOT-235F-U, 5-pin SC-705A
MCP65672-0.047100101.8 to 5.5-40 to +125Open-Drain, Rail-to-Rail Input/Output9-pin SOIC, 8-pin MSOP
MCP65694-0.047100101.8 to 5.5-40 to +125Open-Drain, Rail-to-Rail Input/Output14-pin SOIC, 14-pin TSSOP
MIC62701-0.630052.0 to 26-40 to -85Open Collector Output, High-Voltage5-pin SOT-23
MIC72111-45102.2 to 5.0-40 to -85Rail-to-Rail Input, Push-Pull Output5-pin SOT-23
MIC72211-45102.2 to 5.0-40 to -85Rail-to-Rail Input, Open-Drain Output5-pin SOT-23
MIC83311.2551-1.5 to 5.5-40 to -85Windowed Comparator with Adjustable Hysteresis5-pin SOT-23
MIC84111.25121.5-1.5 to 5.5-40 to +85Windowed Comparator with Adjustable Hysteresis, Push-Pull and Open-Drain Output Options5-pin SC-70, 8-pin 1.6 x 1.6 TDFN
MIC84211.25121.5-1.5 to 5.5-40 to +85Windowed Comparator with Hysteresis, Push-Pull and Open-Drain Output Options5-pin SC-70, 4-pin 1.2 x 1.6 TDFN

Legend: S = Standard Pinout; R = Reverse Pinout; U = Alternative Pinout

LINEAR: Current Sense Amplifiers

Part ## per PackageInput Common-Mode Range (V)Vos Max (uV)Vos Drift Max (nV/°C)Max Gain Error (%)Bandwidth (kHz)Iq Max (mA)Operating Voltage (V)Temperature Range (°C)FeaturesPackages
MCP8C0213 to 6516 (G=20), 14 (G=50), 12 (G=100)85 (G=20), 70 (G=50), 65 (G=100)1.6500 (G=20), 500 (G=50), 350 (G=100)0.752 to 5.5 -40 to +125 Bidirectional Current Sense Amplifier, Enhanced EMI Rejection6-pin SOT-238 pin 3 x 3 VOFN
MCP8C0413 to 6230 (G=20), 27 (G=50), 24 (G=100)180 (G=20), 140 (G=50), 130 (G=100)1.6500 (G=20), 500 (G=50), 350 (G=100)0.842 to 5.5 -40 to +125 Bidirectional Current Sense Amplifier, Enhanced EMI Rejection6-pin SOT-23

MIXED SIGNAL

MIXED SIGNAL: SUCCESSIVE APPROXIMATION REGISTER (SAR) A/D CONVERTERS

Part #Resolution(bits)Maximum Sampling Rate(ksamples/sec)# of InputChannelsInput TypeInterfaceInput VoltageRange (V)Max. SupplyCurrent (μA)Max. INLTemperatureRange (°C)Packages
MCP3C2110221Single-ended ^ C 2.7 to 5.5250 ± 1 LSB-40 to +1255-pin SOT-23A
MCP3C01102001Single-endedSPI2.7 to 5.5500 ± 1 LSB-40 to +858-pin PDIP, 8-pin SOIC, 8-pin MSOP, 8-pin TSSOP
MCP3C02102002Single-endedSPI2.7 to 5.5650 ± 1 LSB-40 to +858-pin PDIP, 8-pin SOIC, 8-pin MSOP, 8-pin TSSOP
MCP3C04102004Single-endedSPI2.7 to 5.5550 ± 1 LSB-40 to +8514-pin PDIP, 14-pin SOIC, 14-pin TSSOP
MCP3C06102009Single-endedSPI2.7 to 5.5550 ± 1 LSB-40 to +8516-pin PDIP, 16-pin SOIC
MCP322112221Single-ended ^ C 2.7 to 5.5250 ± 2 LSB-40 to +1255-pin SOT-23A
MCP3201121001Single-endedSPI2.7 to 5.5400 ± 1 LSB-40 to +858-pin PDIP, 8-pin SOIC, 8-pin MSOP, 8-pin TSSOP

MIXED SIGNAL: SUCCESSION APPROXIMATION REGISTER (SAR) A/D CONVERTERS

Part #Resolution(bits)Maximum Sampling Rate(ksamples/sec)# of InputChannelsInput Type InterfaceInput VoltageRange (V)Max. SupplyCurrent (μA)Max. INLTemperatureRange (°C)Packages
MCP3202121002Single-endedSPI2.7 to 5.5550±1 LSB-40 to +858-pin PDIP, 8-pin SOIC, 8-pin MSOP, 8-pin TSSOP
MCP3204121004Single-endedSPI2.7 to 5.5400±1 LSB-40 to +8514-pin PDIP, 14-pin SOIC, 14-pin TSSOP
MCP3208121008Single-endedSPI2.7 to 5.5400±1 LSB-40 to +8516-pin PDIP, 16-pin SOIC
MCP3301131001DifferentialSPI2.7 to 5.5450±1 LSB-40 to +858-pin PDIP, 8-pin SOIC, 8-pin MSOP, 8-pin TSSOP
MCP3302131002DifferentialSPI2.7 to 5.5450±1 LSB-40 to +8514-pin PDIP, 14-pin SOIC, 14-pin TSSOP
MCP3304131004DifferentialSPI2.7 to 5.5450±1 LSB-40 to +8516-pin PDIP, 16-pin SOIC
MCP33141-05125001Single-EndedSPI0V to 5.1V900-40 to +12510-pin MSOP, 10-pin TDFN
MCP33141-10121 Msps1Single-EndedSPI0V to 5.1V900-40 to +12510-pin MSOP, 10-pin TDFN
MCP33141D-05125001DifferentialSPI±5.1V900-40 to +12510-pin MSOP, 10-pin TDFN
MCP33141D-10121 Msps1DifferentialSPI±5.1V900-40 to +12510-pin MSOP, 10-pin TDFN
MCP33151-05145001Single-EndedSPI0V to 5.1V900±1.5-40 to +12510-pin MSOP, 10-pin TDFN
MCP33151-10141 Msps1Single-EndedSPI0V to 5.1V900±1.5-40 to +12510-pin MSOP, 10-pin TDFN
MCP33151D-05145001DifferentialSPI±5.1V900±1.5-40 to +12510-pin MSOP, 10-pin TDFN
MCP33151D-10141 Msps1DifferentialSPI±5.1V900±1.5-40 to +12510-pin MSOP, 10-pin TDFN
MCP33111-05125001Single-EndedSPI0V to 5.1V2400-40 to +12510-pin MSOP, 10-pin TDFN
MCP33111-10121 Msps1Single-EndedSPI0V to 5.1V2400-40 to +12510-pin MSOP, 10-pin TDFN
MCP33111D-05125001DifferentialSPI±5.1V2400-40 to +12510-pin MSOP, 10-pin TDFN
MCP33111D-10121 Msps1DifferentialSPI±5.1V2400-40 to +12510-pin MSOP, 10-pin TDFN
MCP33121-05145001Single-EndedSPI0V to 5.1V2400±1.5-40 to +12510-pin MSOP, 10-pin TDFN
MCP33121-10141 Msps1Single-EndedSPI0V to 5.1V2400±1.5-40 to +12510-pin MSOP, 10-pin TDFN
MCP33121D-05145001DifferentialSPI±5.1V2400±1.5-40 to +12510-pin MSOP, 10-pin TDFN
MCP33121D-10141 Msps1DifferentialSPI±5.1V2400±1.5-40 to +12510-pin MSOP, 10-pin TDFN
MCP33131-05165001Single-EndedSPI0V to 5.1V2400±6-40 to +12510-pin MSOP, 10-pin TDFN
MCP33131-10161 Msps1Single-EndedSPI0V to 5.1V2400±6-40 to +12510-pin MSOP, 10-pin TDFN
MCP33131D-05165001DifferentialSPI±5.1V2400±6-40 to +12510-pin MSOP, 10-pin TDFN
MCP33131D-10161 Msps1DifferentialSPI±5.1V2400±6-40 to +12510-pin MSOP, 10-pin TDFN

MIXED SIGNAL: Delta-Sigma A/D Converters

Part #Resolution (bits)Maximum Sampling Rate (samples/sec)# of Input ChannelsInterfaceSupply Voltage Range (V)Typical Supply Current (μA)Typical INL (ppm)Temperature Range (°C)FeaturesPackages
MCP342118 to 124 to 2401 DiffIC2.7 to 6.515510-40 to +125PGA, Vpu8-pin SOT-23A
MCP342218 to 124 to 2402 DiffIC2.7 to 6.514510-40 to +125PGA, Vpu8-pin SOIC, 8-pin MSOP, 8-pin 2 x 3 DFN
MCP342318 to 124 to 2402 DiffIC2.7 to 6.514510-40 to +125PGA, Vpu, Selectable IC addressing10-pin MSOP, 10-pin 3 x 3 DFN
MCP342418 to 124 to 2404 DiffIC2.7 to 6.514510-40 to +125PGA, Vpu, Selectable IC addressing14-pin SOIC, 14-pin TSSOP
MCP342516 to 1216 to 240 1 DiffIC2.7 to 6.515510-40 to +125PGA, Vpu6-pin SOT-23A
MCP342616 to 1216 to 240 2 DiffIC2.7 to 6.514510-40 to +125PGA, Vpu8-pin SOIC, 8-pin MSOP, 8-pin 2 x 3 DFN
MCP342716 to 1218 to 240 2 DiffI°C2.7 to 6.514510-40 to +125PGA, Vpu, Selectable IC addressing10-pin MSOP, 10-pin 3 x 3 DFN
MCP342816 to 1215 to 240 4 DiffIC2.7 to 6.51451040 to +125PGA, Vpu, Selectable IC addressing14-pin SOIC, 14-pin TSSOP
MCP346116153.6k1SPI2.7 to 3.69307-40 to +125One Differential or Two Single-ended Input Channels, 153.6 kSPS, Low-Noise 16-bit Delta-Sigma ADCs3 mm x 3 mm UQFN-20, 20-pin TSSOP
MCP346216153.6k2SPI2.7 to 3.69307-40 to +125Two Differential or Four Single-ended Input Channels, 153.6 kSPS, Low-Noise 16-bit Delta-Sigma ADCs3 mm x 3 mm UQFN-20, 20-pin TSSOP

MIXED SIGNAL: Delta-Sigma A/D Converters

Part #Resolution (bits)Maximum Sampling Rate (samples/sec)# of Input ChannelsInterfaceSupply Voltage Range (V)Typical Supply Current (μA)Typical INL (ppm)Temperature Range (°C)Features Packages
MCP3464 16153.6k 4 SPI 2.7 to 3.6 930 7 -40 to +125Four Differential or Eight Single-ended Input Channels, 153.6 kSPS, Low-Noise 16-bit Delta-Sigma ADCs3 mm x 3 mm UQFN-20, 20-pin TSSOP
MCP3561 24153.6k 1 SPI 2.7 to 3.6 930 7 -40 to +125One Differential or Two Single-ended Input Channels, 153.6 kSPS, Low-Noise 24-bit Delta-Sigma ADCs3 mm x 3 mm UQFN-20, 20-pin TSSOP
MCP3562 24153.6k 2 SPI 2.7 to 3.6 930 7 -40 to +125Two Differential or Four Single-ended Input Channels, 153.6 kSPS, Low-Noise 24-bit Delta-Sigma ADCs3 mm x 3 mm UQFN-20, 20-pin TSSOP
MCP3564 24153.6k 4 SPI 2.7 to 3.6 930 7 -40 to +125Four Differential or Eight Single-ended Input Channels, 153.6 kSPS, Low-Noise 24-bit Delta-Sigma ADCs3 mm x 3 mm UQFN-20, 20-pin TSSOP
MCP3461R 16153.6k 1 SPI 2.7 to 3.6 930 7 -40 to +125One Differential or Two Single-ended Input Channels, 153.6 kSPS, Low-Noise 16-bit Delta-Sigma ADCs with VREF3 mm x 3 mm UQFN-20, 20-pin TSSOP
MCP3462R 16153.6k 2 SPI 2.7 to 3.6 930 7 -40 to +125Two Differential or Four Single-ended Input Channels, 153.6 kSPS, Low-Noise 16-bit Delta-Sigma ADCs with VREF3 mm x 3 mm UQFN-20, 20-pin TSSOP
MCP3464R 16153.6k 4 SPI 2.7 to 3.6 930 7 -40 to +125Four Differential or Eight Single-ended Input Channels, 153.6 kSPS, Low-Noise 16-bit Delta-Sigma ADCs with VREF3 mm x 3 mm UQFN-20, 20-pin TSSOP
MCP3465R 24153.6k 1 SPI 2.7 to 3.6 930 7 -40 to +125One Differential or Two Single-ended Input Channels, 153.6 kSPS, Low-Noise 24-bit Delta-Sigma ADCs with VREF2 mm x 2 mm UQFN-12
MCP3561R 24153.6k 1 SPI 2.7 to 3.6 930 7 -40 to +125One Differential or Two Single-ended Input Channels, 153.6 kSPS, Low-Noise 24-bit Delta-Sigma ADCs with VREF3 mm x 3 mm UQFN-20, 20-pin TSSOP
MCP3562R 24153.6k 2 SPI 2.7 to 3.6 930 7 -40 to +125Two Differential or Four Single-ended Input Channels, 153.6 kSPS, Low-Noise 24-bit Delta-Sigma ADCs with VREF3 mm x 3 mm UQFN-20, 20-pin TSSOP
MCP3564R 24153.6k 4 SPI 2.7 to 3.6 930 7 -40 to +125Four Differential or Eight Single-ended Input Channels, 153.6 kSPS, Low-Noise 24-bit Delta-Sigma ADCs with VREF3 mm x 3 mm UQFN-20, 20-pin TSSOP
MCP3565R 24153.6k 1 SPI 2.7 to 3.6 930 7 -40 to +125One Differential or Two Single-ended Input Channels, 153.6 kSPS, Low-Noise 24-bit Delta-Sigma ADCs with VREF2 mm x 2 mm UQFN-12
MCP8550-5022131 DiffSPI2.7 to 5.5120240 to +12550 Hz rejection8-pin SOC, 8-pin MSOP
MCP8550-6022151 DiffSPI2.7 to 5.51402-40 to +12560 Hz rejection8-pin SOC, 8 pin MSOP
MCP855122141 DiffSPI2.7 to 5.51202-40 to +125Simutaneous 50/60 Hz rejection8 pin SOC, 8 pin MSOP
MCP855320601 DiffSPI2.7 to 5.51402-40 to +1258-pin SOC, 8-pin MSOP

MIXED SIGNAL: Pipelined A/D Converters

Part #ResolutionMax Sample Rate (Msamples/sec)# of Input ChannelsInput TypeInterfaceSupply Voltage (V)Power Dissipation (mW)Input Channel BW (MHz)SNR (dB)SFDR (dB)Input Range (VP-p)FeaturesTemperature Range (°C)Packages
MCP37D31-200162001, 2, 4, 8DifferentialSerial DDR LVDS or Parallel CMOS1.2, 1.849050074.7902.98Decimation filters, digital down- converter, AEC-Q100 Grade 1 (only TFBGA package)-40 to +85124-ph VTLA, 121-ph TFBGA
MCP37231-200162001, 2, 4, 8DifferentialSerial DDR LVDS or Parallel CMOS1.2, 1.849050074.7902.98Decimation filters, AEC-Q100 Grade 1 (only TFBGA package)-40 to +85124-ph VTLA, 121-ph TFBGA
MCP37D20-200142001DifferentialSerial DDR LVDS or Parallel CMOS1.2, 1.834865067.8961.9Decimation filters, digital down- converter-40 to +85124-ph VTLA, 121-ph TFBGA
MCP37220-200142001DifferentialSerial DDR LVDS or Parallel CMOS1.2, 1.834865067.8961.9Decimation filters-40 to +85124-ph VTLA, 121-ph TFBGA
MCP37D21-200142001, 2, 4, 8DifferentialSerial DDR LVDS or Parallel CMOS1.2, 1.849050074.2902.98Decimation filters, digital down- converter, AEC-Q100 Grade 1 (only TFBGA package)-40 to +85124-ph VTLA, 121-ph TFBGA
MCP37221-200142001, 2, 4, 8DifferentialSerial DDR LVDS or Parallel CMOS1.2, 1.849050074.2902.98Decimation filters, AEC-Q100 Grade 1 (only TFBGA package)-40 to +85124-ph VTLA, 121-ph TFBGA
MCP37D10-200122001DifferentialSerial DDR LVDS or Parallel CMOS1.2, 1.833865067961.9Decimation filters, digital down- converter, noise-shaping requantizer-40 to +85124-ph VTLA, 121-ph TFBGA

MIXED SIGNAL: Pipelined A/D Converters

Part # ResolutionMax Sample Rate (Msamples/sec)# of Input ChannelsInput TypeInterfaceSupply Voltage (V)Power Dissipation (mW)Input Channel BW (MHz)SNR (dB)SFDR (dB)Input Range (Vp-p)FeaturesTemperature Range (°C)Packages
MCP37210-200 12 200 1 DifferentialSerial DDR LVDS or Parallel CMOS1.2, 1.8338 65067 961.8Decimation filters, noise-shaping requantizer-40 to +85124-pin VTLA, 121-pin TFBGA
MCP37D11-200 12 200 1, 2, 4, 8 DifferentialSerial DDR LVDS or Parallel CMOS1.2, 1.8468 500/1.3902.08Decimation filters, digital down-converter, AEC-Q100 Grade 1 (only TFBGA package)-40 to +85124-pin VTLA, 121-pin TFBGA
MCP37211-200 12 200 1, 2, 4, 8 DifferentialSerial DDR LVDS or Parallel CMOS1.2, 1.8468 500/1.3902.08Decimation filters, noise shaping requantizer-40 to +85124-pin VTLA, 121-pin TFBGA
MCP37D31-80 16 80 1, 2, 4, 8 DifferentialSerial DDR LVDS or Parallel CMOS1.2, 1.8329 50073.9932.98Decimation filters, digital down-converter, AEC-Q100 automotive qualification-40 to +125121-pin TFBGA
MCP37D21-8014801, 2, 4, 8DifferentialSerial DDR LVDS or Parallel CMOS1.2, 1.832050073.993Decimation filters, digital down-converter, AEC-Q100 automotive qualification-40 to +125121-pin TFBGA
MCP37D11-80 12 80 1, 2, 4, 8 DifferentialSerial DDR LVDS or Parallel CMOS1.2, 1.8311 50070.992.22.98Decimation filters, digital down-converter, AEC-Q100 automotive qualification-40 to +125121-pin TFBGA

MIXED SIGNAL: Energy Metering and Power Monitoring ICs

Part #Dynamic RangePower SystemTypical AccuracyInput ChannelsADC ResolutionEvent MonitoringZero-Cross Detection PinOutput TypeVon (V)Temperature Range (°C)FeaturesPackages
MCP39F5114000:1Single Phase0.1%I, V, Temp.24-bit5YesUART/ Single-wire2.7 to 3.6-40 to +125Power monitoring IC with active, reactive and apparent power, active and reactive energy, PF, RMS current/voltage, frequency, event notifications, EEPROM, PWM outputQFN
MCP39F5214000:1Single Phase0.1%I, V, Temp.24-bit4YesIC2.7 to 3.6-40 to +125Power monitoring IC with active, reactive and apparent power, active and reactive energy, PF, RMS current/voltage, frequency, event notifications, EEPROMQFN
MCP39F511N4000:1Single Phase0.5%I1, I2, V24-bit6YesUART2.7 to 3.6-40 to +125Dual-channel power monitoring IC with active, reactive and apparent power, active and reactive energy, PF, RMS current/voltage, frequency, event notifications, EEPROM, PWM outputQFN
MCP39F511A 4000:1Single Phase0.1%I, V, Temp24-bit5YesUART/ Single-wire2.7 to 3.-40 to +125AC & DC dual-mode power monitoring IC with active, reactive and apparent power, active and reactive energy, PF, RMS current/voltage, frequency, event notifications, EEPROM, PWM outputQFN
MCP3805AV DGA500:1/1000:1Single Phase0.10%I, V16-bit––Active Power Pulse4.6 to 5.5-40 to +125Active power calculationSSOP
ATM90E28 5000:1Single Phase0.1%I, V, NN/A1YesSPI/UART/ Pulse2.8 to 3.6-40 to +85Single-phase energy meter IC with active, reactive and apparent power, active and reactive energy, PF, RMS current/voltage, anti-tamperingSSOP
ATM90E32AS 6000:1Poly-phase0.1%3x1, 3xVN/A8YesSPI/Pulse2.8 to 3.6-40 to +85Three-phase energy meter IC with active, reactive and apparent power and energy, PF, RMS current/voltage, frequency, fundamental and harmonic measurement, event notifications, temperature sensorTQFP
ATM90E36A6000:1Poly-phase0.1%3x1, 3xV, NN/A5YesSPI/Pulse2.8 to 3.6-40 to +85Three-phase energy meter IC with active, reactive and apparent power and energy, PF, RMS current/voltage, frequency, DTT function, fundamental and harmonic measurement, event notifications, temperature sensorTQFP

MIXED SIGNAL: Energy Measurement AFEs

Part #Dynamic RangeTypical AccuracyADC ChannelsADC ResolutionSINADGain SelectionOutput TypeVDD (V)Temperature Range (°C)FeaturesPackages
MCP3918/1010000:10.1%1/224-bit93.5Up to 32SPI/2-wire2.7 to 3.6-40 to +125AFE with phase correction, Programmable data rate, 16-bit CRC, Register map lock, 2 wire InterfaceSSOP, QFN
MCP391910000:10.1%324-bit93.5Up to 32SPI/2-wire2.7 to 3.6-40 to +125AFE with phase correction, Programmable data rate, 16-bit CRC, Register map lock, 2 wire InterfaceSSOP, QFN
MCP391210000:10.1%424-bit93.5Up to 32SPI2.7 to 3.6-40 to +125AFE with phase correction, Programmable data rate, 16-bit CRC, Register map lockSSOP, QFN
MCP3913/1410000:10.1%6/824-bit94.5Up to 32SPI2.7 to 3.6-40 to +125AFE with phase correction, Programmable data rate, 16 bit CRC, Register map lockSSOP, UQFN
ATSENSE1013000:10.1%316/32-bit84Up to 8SPI3.0 to 3.6-40 to +85De temperature sensorSOIC
ATSENSE201(H)3000:10.1%416/32-bit84Up to 8SPI3.0 to 3.6-40 to +85De temperature sensorTQFP
ATSENSE301(H)3000:10.1%716/32-bit84Up to 8SPI3.0 to 3.6-40 to +85De temperature sensorTQFP

MIXED SIGNAL: DC Power Monitors

Part ## of Current SensorsDescriptionFull Scale Range (mV)Current Measurement Max Accr (%)Effective Sampling Interval Min to Max (msec)Bus Voltage Range (V)# of Temp. Monitors (Ambient, Remote)Temp. Accuracy Typ/Max (°C)Alert/ THERMPeak DetectionAddress SelectPackage
PAC1710 13MBus/IIC Current/DC Power Sensor10, 20, 40, 80±12.5 to 2,6000 to +40--1-Yes10-pin DFN
PAC1720 2 Dual SMBus/IIC Current/DC Power Sensor10, 20, 40, 80±12.5 to 2,6000 to +40--1-Yes10-pin DFN
PAC1921 2SMBus/IC Current/Power Sensor with Analog Output100±12.5 to 2,9000 to +32----Yes10-pin DFN
PAC19311SMBus/IC Current/Power Sensor with Accumulator100±0.90.98 to 1250 to +32--1-Yes2.225 x 2.17 mm WL CSP
PAC19322SMBus/IC Current/Power Sensor with Accumulator100±0.90.98 to 1250 to +32--1-Yes2.225 x 2.17 mm WL CSP, 16-pin QFN
PAC19333SMBus/IC Current/Power Sensor with Accumulator100±0.90.98 to 1250 to +32--1-Yes2.225 x 2.17 mm WL CSP, 16-pin QFN
PAC1934 4SMBus/IC Current/Power Sensor with Accumulator100±0.90.98 to 1250 to +32--1-Yes2.225 x 2.17 mm WL CSP, 16-pin QFN
EMC1701-11SMBus/IC Current/DC Power Sensor with Temperature Monitoring10, 20, 40, 80±12.5 to 2,600+3 to +241, 0±0.25/±12HardwareYes12-pin 4 x 4 QFN
EMC1701-21SMBus/IC Current/DC Power Sensor with Temperature Monitoring10, 20, 40, 80±12.5 to 2,600+3 to +241, 0±0.25/±12SoftwareYes10-pin MSOP
EMC1702-11SMBus/IC Current/DC Power Sensor with Two Temperature Monitors10, 20, 40, 80±12.5 to 2,600+3 to +241, 1±0.25/±12HardwareYes12 pin 4 x 4 QFN
EMC1704-11SMBus/IC Current/DC Power Sensor with Four Temperature Monitors10, 20, 40, 80±12.5 to 2,600+3 to +241, 3±0.25/±12SoftwareYes14 pin SOIC
EMC1704-21SMBus/IC Current/DC Power Sensor with Four Temperature Monitors10, 20, 40, 80±12.5 to 2,600+3 to +241, 3±0.25/±12HardwareYes16-pin 4 x 4 QFN

MIXED SIGNAL: Dual-Slope A/D Converters

Part #Supply Voltage (V)Input Voltage RangeResolutionSampling Rate (Conv/s)Input ChannelsData InterfaceTemperature Range (°C)FeaturesPackages
TC600 ± 4.5 to ± 7.5 Vss + 1.5V to Vcc - 1.5VUp to 16 bits4 to 1013-Wire0 to +70Differential input range, Programmable resolution/ conversion time18-pin PDIP, 16-pin SOIC
TC500A ± 4.5 to ± 7.5 Vss + 1.5V to Vcc - 1.5VUp to 17 bits4 to 1013-Wiro0 to +70Differential input range, Programmable resolution/ conversion time18 pin PDIP, 16 pin SOIC
TC510 ± 4.5 to ± 8.5 Vss + 1.5V to Vcc - 1.5VUp to 17 bits4 to 1013-Wiro0 to +70Differential input range, Programmable resolution/ conversion time, Charge pump (-V) output pin24 pin PDIP, 24 pin SOIC
TC514 ± 4.5 to ± 8.5 Vss + 1.5V to Vcc - 1.5VUp to 17 bits4 to 1043-Wiro0 to +70Differential input range, Programmable resolution/ conversion time, Charge pump (-V) output pin28 pin PDIP, 28 pin SOIC
TC520A ± 4.5 to ± 8.5 ----Serial port0 to +70Optional serial interface adapter for TC500/500A/510/51414-pin PDIP, 16-pin SOIC
TC710B ± 4.5 to ± 8.5 Vss + 1.5V to Vcc - 1.0V12 bits plus sign bit2 to 101Parallel or Serial port - 25 to + 85 Differential input range40 pin PDIP, 44 pin PLCC, 44 pin MOFP
TC7109A ± 4.5 to ± 8.5 Vss + 1.5V to Vcc - 1.0V12 bits plus sign bit2 to 101Parallel or Serial port25 to +85Differential input range40-pin PDIP, 44-pin PLCC, 44-pin MOFP

MIXED SIGNAL: Binary and BCD A/D Converters

Part #DescriptionSupply Voltage (V)Input Voltage RangeResolution (Digits)Resolution (Counts)Max Power (mW)Data InterfaceTemperature Range (°C)FeaturesPackages
TC850Binary A/D ± 5 V_in + 1.5V to V_to - 1.5V 15-bit ± 32,76B 358-bit parallel -25 to +70 Highest conversion speed (40 conv/sec)44-pin PLCC, 40-pin PDIP
TC14433BCD A/D ± 4.5 to ± 6 ± 199.9 mV to 1.999V 312 ± 2,000 20MUXed BCD -40 to +85 For DMM, DPM, Data loggers24 pin SOIC, 24 pin PDIP, 28 pin PLCC
TC14433ABCD A/D ± 4.5 to +8 ± 199.9 mV to 1.999V 312 ± 2,000 20MUXed BCD -40 to +85 For DMM, DPM, Data loggers24-pin PDIP, 28-pin PLCC

MIXED SIGNAL: Display A/D Converters

Part #Display TypeSupply Voltage (V)Resolution (Digits)Resolution (Counts)Power (mW)Temperature Range (°C)FeaturesPackages
TC7106LCD93 12 +2,0001025 to +85For DMM, DPM, Data logger applications40-pin POIP, 44-pin PLCC, 44-pin MOFP
TC7106ALCD93 12 +2,00010-25 to +85For DMM, DPM, Data logger applications40-pin POIP, 44-pin PLCC, 44-pin MOFP
TC7107LED±53 12 ±2,00010-25 to +85For DMM, DPM, Data logger applications40-pin POIP, 44-pin PLCC, 44-pin MOFP
TC7107ALED±53 12 ±2,00010-25 to +85For DMM, DPM, Data logger applications40-pin POIP, 44-pin PLCC, 44 pin MOFP
TC7116LCD93 12 ±2,00010-25 to +85Hold function40-pin POIP, 44-pin PLCC, 44 pin MOFP
TC7116ALCD93 12 ±2,00010-25 to +85Hold function40-pin POIP, 44-pin PLCC, 44-pin MOFP
TC7117LED+53 12 +2,00010-25 to +85Hold function40-pin POIP, 44-pin PLCC, 44-pin MOFP
TC7117ALED+53 12 +2,00010-25 to +85Hold function40-pin POIP, 44-pin PLCC, 44-pin MOFP
TC7126LCD93 12 +2,0000.525 to +85Low-power TC710640-pin POIP, 44-pin PLCC, 44-pin MOFP
TC7126ALCD93 12 +2,0000.5-25 to +85Low-power TC710640-pin POIP, 44-pin PLCC, 44-pin MOFP
TC7129LCD94 12 ±20,0004.50 to +70Lowest noise 43 mv'sensitivity40-pin POIP, 44-pin PLCC, 44-pin MOFP

MIXED SIGNAL: Digital Potentiometers

Part ## of TapsMemory# Per PackageInterfaceResistance (kOhms)INL (Max)DNL (Max)Temperature Range (°C)Comments Packages
MCP401164Volatile1Up/Down2.1, 5, 10, 500.50.5-40 to +125Potentiometer mode8-pin SOIC, 8-pin MSOP, 8-pin 2 x 3 DFN
MCP401264Volatile1Up/Down2.1, 5, 10, 500.50.5-40 to +125Rheostal mode6-pin SOT-23
MCP401364Volatile1Up/Down2.1, 5, 10, 500.50.5-40 to +125Potentiometer to Vss8-pin SOT-23
MCP401464Volatile1Up/Down2.1, 5, 10, 500.50.5-40 to +125Rheostal to Vss5-pin SOT-23
MCP4017128Volatile1I/C5, 10, 50, 1000.50.25-40 to +1257-bit, Volatile, I/C digital potentiometer6-pin SC-70
MCP4018128Volatile1I/C5, 10, 50, 1000.50.25-40 to +1257-bit, Volatile, I/C digital potentiometer6-pin SC-70
MCP4019128Volatile1I/C5, 10, 50, 1000.50.25-40 to +1257-bit, Volatile, I/C digital potentiometer5-pin SC-70
MCP4017128Volatile1I/C5, 10, 50, 1000.50.25-40 to +1257-bit, Volatile, I/C digital potentiometer6-pin SC-70
MCP4018128Volatile1I/C5, 9, 50, 1000.50.25-40 to +1257-bit, Volatile, I/C digital potentiometer6-pin SC-70
MCP4019128Volatile1I/C5, 10, 50, 1000.50.25-40 to +11257-bit, Volatile, I/C digital potentiometer5-pin SC-70
MCP402164Nonvolatile1Up/Down2.1, 5, 10, 500.50.5-40 to +125Potentiometer mode, Shutdown, WiperLockTM Technology8-pin SOIC, 8-pin MSOP, 8-pin 2 x 3 DFN
MCP402264Nonvolatile1Up/Down2.1, 5, 10, 500.50.5-40 to +125Rheostat mode, Shutdown, WiperLock Technology6-pin SOT-23
MCP402364Nonvolatile1Up/Down2.1, 5, 10, 500.50.5-40 to +125Potentiometer to Vss, WiperLock Technology8-pin SOT-23
MCP402464Nonvolatile1Up/Down2.1, 5, 10, 500.50.5-40 to +125Rheostat to Vss, Shutdown, WiperLock Technology5-pin SOT-23
MCP4141128Nonvolatile1SPI5, 10, 50, 1000.50.25-40 to +125Potentiometer mode, Shutdown8-pin PDIP, 8-pin SOIC, 8-pin MSOP, 8-pin 3 x 3 DFN
MCP4142128Nonvolatile1SPI5, 10, 50, 1000.80.25-40 to +125Rheostal mode, Shutdown8-pin PDIP, 8-pin SOIC, 8-pin MSOP, 8-pin 3 x 3 DFN
MCP4241128Nonvolatile2SPI5, 10, 50, 1000.50.25-40 to +125Potentiometer mode, Shutdown, WiperLock Technology14-pin PDIP, 14-pin SOIC, 14-pin TSSOP, 16-pin 4 x 4 QFN
MCP4242128Nonvolatile2SPI5, 10, 50, 1000.80.25-40 to +125Rheostal mode, Shutdown10-pin MSOP, 10-pin 3 x 3 DFN
MCP4131129Volatile1SPI5, 10, 50, 1000.50.25-40 to +125Potentiometer mode, Shutdown8-pin PDIP, 8-pin SOIC, 8-pin MSOP, 8-pin 3 x 3 DFN
MCP41HV31128Volatile1SPI5, 10, 50, 1000.50.125-40 to +1257-bit Volatile digital potentiometer with specified operation from 10V to 36V and SPI interface14-pin TSSOP, 5 x 5 QFN
MCP4132129Volatile1SPI5, 10, 50, 1000.80.25-40 to +125Rheostal mode, Shutdown8-pin PDIP, 8-pin SOIC, 8-pin MSOP, 8-pin 3 x 3 DFN
MCP4231128Volatile2SPI5, 10, 50, 1000.50.25-40 to +125Potentiometer mode, Shutdown, WiperLock Technology14-pin PDIP, 14-pin SOIC, 14-pin TSSOP, 16-pin 4 x 4 QFN
MCP4232128Volatile2SPI5, 10, 50, 1000.80.25-40 to +125Rheostal mode, Shutdown10-pin MSOP, 10-pin 3 x 3 DFN
MCP41010256Volatile1SPI1011-40 to +85Potentiometer mode, Shutdown6-pin PDIP, 6 pin SOIC
MCP41050256Volatile1SPI5011-40 to +85Potentiometer mode, Shutdown8-pin PDIP, 8-pin SOIC
MCP41100256Volatile1SPI10011-40 to +85Potentiometer mode, Shutdown8-pin PDIP, 8-pin SOIC
MCP4151256Volatile1SPI5, 10, 50, 10010.5-40 to +125Potentiometer mode, Shutdown8-pin PDIP, 8-pin SOIC, 8-pin MSOP, 8 pin 3 x 3 DFN
MCP41HV51256Volatile1SPI5, 10, 50, 10010.25-40 to +1258-bit Volatile digital potentiometer with specified operation from 10V to 36V and SPI interface.14-pin TSSOP, 5 x 5 QFN
MCP4152256Volatile1SPI5, 10, 50, 10010.5-40 to +125Rheostat mode, Shutdown8-pin PDIP, 8-pin SOIC, 8-pin MSOP, 8 pin 3 x 3 DFN
MCP4161256Nonvolatile1SPI5, 10, 50, 10010.5-40 to +125Potentiometer mode, Shutdown8-pin PDIP, 8-pin SOIC, 8-pin MSOP, 8 pin 3 x 3 DFN
MCP4162256Nonvolatile1SPI5, 10, 50, 10010.5-40 to +125Rheostat mode, Shutdown8-pin PDIP, 8-pin SOIC, 8 pin MSOP, 8 pin 3 x 3 DFN
MCP42010256Volatile2SPI1011-40 to +85Potentiometer mode, Shutdown14-pin PDIP, 14-pin SOIC, 14 pin TSSOP
MCP42100256Volatile2SPI10011-40 to +85Potentiometer mode, Shutdown14-pin PDIP, 14-pin SOIC, 14 pin TSSOP
MCP4251256Volatile2SPI5, 10, 50, 10010.5-40 to +125Potentiometer mode, Shutdown, WiperLock Technology14-pin PDIP, 14-pin SOIC, 14-pin TSSOP, 16-pin 4 x 4 QFN
MCP4252256Volatile2SPI5, 10, 50, 10010.5-40 to +125Rheostat mode, Shutdown10-pin MSOP, 10-pin 3 x 3 DFN
MCP4261256Nonvolatile2SPI5, 10, 50, 10010.5-40 to +125Potentiometer mode, Shutdown, WiperLock Technology14-pin PDIP, 14 pin SOIC, 14 pin TSSOP, 16 pin 4 x 4 QFN
MCP4262256Nonvolatile2SPI5, 10, 50, 10010.5-40 to +125Rheostat mode, Shutdown10-pin MSOP, 10-pin 3 x 3 DFN
MCP4341129Nonvolatile4SPI5, 10, 50, 1000.80.375-40 to +1257-bit, Volatile potentiometer with an SPI interface20-pin TSSOP, 20-pin 4 x 4 QFN
MCP4342129Nonvolatile4SPI5, 10, 50, 1000.90.375-40 to +1257-bit, Volatile rheostat with an SPI interface14-pin TSSOP
MCP4361257Nonvolatile4SPI5, 10, 50, 10010.5-40 to +1258-bit, Non-volatile potentiometer with an SPI interface20-pin TSSOP, 20-pin 4 x 4 QFN
MCP4362257Nonvolatile4SPI5, 10, 50, 10010.5-40 to +1258-bit, Non-volatile rheostat with an SPI interface14 pin TSSOP
MCP4331129Volatile4SPI5, 10, 50, 1000.80.375-40 to +1257-bit, Volatile potentiometer with an SPI interface20 pin TSSOP, 20 pin 4 x 4 QFN
MCP4332129Volatile4SPI5, 10, 50, 1000.80.5-40 to +1257-bit, Volatile rheostat with an SPI interface14 pin TSSOP
MCP4351257Volatile4SPI5, 10, 50, 10010.5-40 to +1258-bit, Non-volatile potentiometer with an SPI interface20-pin TSSOP, 20-pin 4 x 4 QFN
MCP4352257Volatile4SPI5, 10, 50, 10010.5-40 to +1258-bit, Non-volatile rheostat with an SPI interface14 pin TSSOP
MCP4441129Nonvolatile4TC5, 10, 50, 1000.50.25-40 to +125Potentiometer mode, WiperLock Technology20 pin TSSOP, 20 pin 4 x 4 QFN
MCP4442129Nonvolatile4TC5, 10, 50, 1000.80.375-40 to +125Rheostat mode, WiperLock Technology14 pin TSSOP
MCP4161257Nonvolatile4TC5, 10, 50, 10010.5-40 to +125Potentiometer mode, WiperLock Technology6-pin MSOP
MCP4162257Nonvolatile4TC5, 10, 50, 10010.5-40 to +125Rheostat mode, WiperLock Technology14-pin TSSOP, 5 x 5 DFN
MCP4531128Volatile1TC5, 10, 50, 1000.50.25-40 to +125Potentiometer mode14 pin TSSOP, 5 x 5 DFN
MCP45H31128Volatile1TC5, 10, 50, 1000.50.125-40 to +1257-bit volatile digital potentiometer with specified operation from 10V to 36V and PC interface14-pin TSSOP, 16-pin 4 x 4 QFN
MCP45IV51258Volatile1TC5, 10, 50, 10010.25-40 to +1257-bit volatile digital potentiometer with specified operation from 10V to 36V and PC interface8-pin MSOP

MIXED SIGNAL: Digital Potentiometers

Part ## of TapsMemory# Per PackageInterfaceResistance (kOhms)INL (Max)DNL (Max)Temperature Range (°C)Comments Packages
MCP4651 128 Volatile 2 I°C5, 10, 50, 1000.50.25-40 to +125Potentiometer mode14-pin TSSOP, 16-pin 4x4 QFN
MCP4541 128 Nonvolatile 1I°C5, 10, 50, 1000.50.25-40 to +125Potentiometer mode, WiperLock Technology8-pin MSOP
MCP4641 128 Nonvolatile 2 I°C5, 10, 50, 1000.50.25-40 to +125Potentiometer mode, WiperLock Technology14-pin TSSOP, 16-pin 4x4 QFN
MCP4651 256 Volatile 2 I°C5, 10, 50, 10010.5-40 to +125Potentiometer mode14-pin TSSOP, 16-pin 4 x 4 QFN
MCP4561 256 Nonvolatile 1I°C5, 10, 50, 10010.5-40 to +125Potentiometer mode, WiperLock Technology8-pin MSOP
MCP4661 256 Nonvolatile 2 I°C5, 10, 50, 10010.5-40 to +125Potentiometer mode, WiperLock Technology14-pin TSSOP, 16-pin 4 x 4 QFN
MCP4532 128 Nonvolatile 1I°C5, 10, 50, 1000.80.375-40 to +125Rheostat mode8-pin MSOP, 8-pin 3 x 3 DFN
MCP4632 128 Volatile 2 I°C5, 10, 50, 1000.80.375-40 to +125Rheostat mode10-pin MSOP, 10-pin 3 x 3 DFN
MCP4542 128 Nonvolatile 1I°C5, 10, 50, 1000.80.375-40 to +125Rheostat mode, WiperLock Technology8 pin MSOP, 8 pin 3 x 3 DFN
MCP4562 256 Volatile 1I°C5, 10, 50, 10010.5-40 to +125Rheostat mode6 pin MSOP, 6 pin 3 x 3 DFN
MCP4562 256 Nonvolatile 2 I°C5, 10, 50, 10010.5-40 to +125Rheostat mode10-pin MSOP, 10-pin 3 x 3 DFN
MCP4562 256 Nonvolatile 1I°C5, 10, 50, 10010.5-40 to +125Rheostat mode, WiperLock Technology8-pin MSOP, 8-pin 3 x 3 DFN
MCP4662 256 Nonvolatile 2 I°C5, 10, 50, 10010.5-40 to +125Rheostat mode, WiperLock Technology10-pin MSOP, 10-pin 3 x 3 DFN

MIXED SIGNAL: Frequency-to-Voltage/Voltage-to-Frequency Converters

Part #Frequency Range (kHz)Full Scale (ppm FS/°C)Non-linearity (%FS)Temperature Range (°C)Packages
TC8400100 ± 40 ± 0.05 -40 to +85 14-pin PDIP, 14-pin SOIC
TC8401100 ± 40 ± 0.02 -40 to +85 14-pin PDIP, 14-pin SOIC
TC8402100 ± 100 ± 0.25 -40 to +85 14 pin PDIP, 14 pin SOIC

MIXED SIGNAL: D/A Converters

Part #Resolution (Bits)DAC ChannelsInterfaceMemoryVoltage ReferenceOutput Setting Time (μs)DNL (LSB)INL (LSB)Max Operating Current (μA)Temperature Range (°C)Packages
MCP47CMB01 811CMTPVcc, Ext, Int160.10.1700-40 to +12510-pin 3 x 3 DFN, 16-pin 3 x 3 QFN, 10-pin MSOP
MCP47CMB02 821CMTPVcc, Ext, Int160.10.1700-40 to +12510-pin 3 x 3 DFN, 16-pin 3 x 3 QFN, 10-pin MSOP
MCP47CMB11101ICMTPVcc, Ext, Int160.250.25700-40 to +12510-pin 3 x 3 DFN, 16-pin 3 x 3 QFN, 10-pin MSOP
MCP47CMB12102ICMTPVcc, Ext, Int160.250.25700-40 to +12510-pin 3 x 3 DFN, 16-pin 3 x 3 QFN, 10-pin MSOP
MCP47CMB21121ICMTPVcc, Ext, Int160.10.1700-40 to +12510-pin 3 x 3 DFN, 16-pin 3 x 3 QFN, 10-pin MSOP
MCP47CMB22122ICMTPVcc, Ext, Int160.10.1700-40 to +12510-pin 3 x 3 DFN, 16-pin 3 x 3 QFN, 10-pin MSOP
MCP47CVB01 811CVolatileVcc, Ext, Int160.10.1700-40 to +12510-pin 3 x 3 DFN, 16-pin 3 x 3 QFN, 10-pin MSOP
MCP47CVB02 821CVolatileVcc, Ext, Int160.10.1700-40 to +12510-pin 3 x 3 DFN, 16-pin 3 x 3 QFN, 10-pin MSOP
MCP47CVB11101ICVolatileVcc, Ext, Int16±0.25±0.25700-40 to +12510-pin 3 x 3 DFN, 16-pin 3 x 3 QFN, 10-pin MSOP
MCP47CVB12102ICVolatileVcc, Ext, Int16+0.25+0.25700-40 to +12510-pin 3 x 3 DFN, 16-pin 3 x 3 QFN, 10-pin MSOP
MCP47CVB21121ICVolatileVcc, Ext, Int1611700-40 to +12510-pin 3 x 3 DFN, 16-pin 3 x 3 QFN, 10-pin MSOP
MCP47CVB22122ICVolatileVcc, Ext, Int1611700-40 to +12510-pin 3 x 3 DFN, 16-pin 3 x 3 QFN, 10-pin MSOP
MCP48CMB01 811CMTPVcc, Ext, Int160.10.1700-40 to +12510-pin 3 x 3 DFN, 16-pin 3 x 3 QFN, 10-pin MSOP
MCP49CMDB02 821CMTPVcc, Ext, Int160.10.1700-40 to +12510-pin 3 x 3 DFN, 16-pin 3 x 3 QFN, 10-pin MSOP
MCP49CMB11101ICMTPVcc, Ext, Int160.250.25700-40 to +12510-pin 3 x 3 DFN, 16-pin 3 x 3 QFN, 10-pin MSOP
MCP49CMB12102ICMTPVcc, Ext, Int160.250.25700-40 to +12510-pin 3 x 3 DFN, 16-pin 3 x 3 QFN, 10-pin MSOP
MCP49CMDB21121ICMTPVcc, Ext, Int1611700-40 to +12510-pin 3 x 3 DFN, 16-pin 3 x 3 QFN, 10-pin MSOP
MCP49CMDB22122ICMTPVcc, Ext, Int1611700-40 to +12510-pin 3 x 3 DFN, 16-pin 3 x 3 QFN, 10-pin MSOP
MCP49CVB01 811CVolatileVcc, Ext, Int160.10.1700-40 to +12510-pin 3 x 3 DFN, 16-pin 3 x 3 QFN, 10-pin MSOP
MCP49CVB02 821CVolatileVcc, Ext, Int160.10.1700-40 to +12510-pin 3 x 3 DFN, 16-pin 3 x 3 QFN, 10-pin MSOP
MCP49CVB311101ICVolatileVcc, Ext, Int160.250.25700-40 to +12510-pin 3 x 3 DFN, 16-pin 3 x 3 QFN, 10-pin MSOP
MCP49CVB312102ICVolatileVcc, Ext, Int160.250.25700-40 to +12510-pin 3 x 3 DFN, 16-pin 3 x 3 QFN, 10-pin MSOP
MCP49CVB301121ICVolatileVcc, Ext, Int1611700-40 to +12510-pin 3 x 3 DFN, 16-pin 3 x 3 QFN, 10-pin MSOP
MCP49CVB322122ICVolatileVcc, Ext, Int1611700-40 to +12510-pin 3 x 3 DFN, 16-pin 3 x 3 QFN, 10-pin MSOP
MCP49FEB0181SPiEEPROMVcc, VREF, Vsc7.90.250.5160-40 to +1258-pin MSOP
MCP49FLB11101SPiEEPROMVcc, VFU, Vss7.80.51.5160-40 to +1258-pin MSOP
MCP49FEB21121SPiEEPROMVcc, VREF, Vsc7.818160-40 to +1258-pin MSOP
MCP49FEB0282SPiEEPROMVcc, VREF, Vsc7.80.250.5360-40 to +1258-pin MSOP

MIXED SIGNAL: D/A Converters

Part #Resolution (Bits)DAC ChannelsInterface Memory Voltage ReferenceOutput Setting Time (μs)DNL (LSB) INL (LSB)Max Operating Current (μA)Temperature Range (°C)Packages
MCP48FEB12102SPIEEPROMVDD, VREF, VBG7.80.51.5380-40 to +1258-pin MSOP
MCP49FEB22122SPIEEPROMVDD, VREF, VBG7.816380-40 to +1258-pin MSOP
MCP49FVB0181SPIVolatileVDD, VREF, VBG7.80.250.5180-40 to +1258-pin MSOP
MCP48FVB11101SPIVolatileVDD, VHL, VBG7.80.51.5180-40 to +1258-pin MSOP
MCP49FVB21121SPIVolatileVDD, VREF, VBG7.816180-40 to +1258-pin MSOP
MCP49FVB0282SPIVolatileVDD, VREF, VBG7.80.250.5380-40 to +1258-pin MSOP
MCP48FVB12102SPIVolatileVDD, VHL, VBG7.80.51.5380-40 to +1258-pin MSOP
MCP48FVB22122SPIVolatileVDD, VREF, VBG7.816380-40 to +1258-pin MSOP
MCP47FEB0484I2CEEPROMVDD, VREF, VBG7.8±0.0125±0.11000-40 to +125VQFN-20 5x5, TSSOP-20
MCP47FEB14104I2CEEPROMVDD, VREF, VBG7.8±0.05±0.41000-40 to +125VQFN-20 5x5, TSSOP-20
MCP47FEB24124I2CEEPROMVDD, VREF, VBG7.8±0.2±1.51000-40 to +125VQFN-20 5x5, TSSOP-20
MCP47FEB0888I2CEEPROMVDD, VREF, VBG7.8±0.0125±0.11800-40 to +125VQFN-20 5x5, TSSOP-20
MCP47FEB18108I2CEEPROMVDD, VREF, VBG7.8±0.05±0.41800-40 to +125VQFN-20 5x5, TSSOP-20
MCP47FEB28128I2CEEPROMVDD, VREF, VBG7.8±0.2±1.51800-40 to +125VQFN-20 5x5, TSSOP-20
MCP47FVB0484I2CEEPROMVDD, VREF, VBG7.8±0.0125±0.11000-40 to +125VQFN-20 5x5, TSSOP-20
MCP48FEB14104SPIEEPROMVDD, VREF, VBG7.8±0.05±0.41000-40 to +125VQFN-20 5x5, TSSOP-20
MCP48FEB24124SPIEEPROMVDD, VREF, VBG7.8±0.2±1.51000-40 to +125VQFN-20 5x5, TSSOP-20
MCP48FEB0888SPIEEPROMVDD, VREF, VBG7.8±0.0125±0.11800-40 to +125VQFN-20 5x5, TSSOP-20
MCP48FEB18108SPIEEPROMVDD, VREF, VBG7.8±0.05±0.41800-40 to +125VQFN-20 5x5, TSSOP-20
MCP48FEB28128SPIEEPROMVDD, VREF, VBG7.8±0.2±1.51800-40 to +125VQFN-20 5x5, TSSOP-20
MCP48FVB0484SPIRAMVDD, VREF, VBG7.8±0.0125±0.11000-40 to +125VQFN-20 5x5, TSSOP-20
MCP48FVB14104SPIRAMVDD, VREF, VBG7.8±0.05±0.41000-40 to +125VQFN-20 5x5, TSSOP-20
MCP48FVB24124SPIRAMVDD, VREF, VBG7.8±0.2±1.51000-40 to +125VQFN-20 5x5, TSSOP-20
MCP48FVB0888SPIRAMVDD, VREF, VBG7.8±0.0125±0.11800-40 to +125VQFN-20 5x5, TSSOP-20
MCP48FVB18108SPIRAMVDD, VREF, VBG7.8±0.05±0.41800-40 to +125VQFN-20 5x5, TSSOP-20
MCP48FVB28128SPIRAMVDD, VREF, VBG7.8±0.2±1.51800-40 to +125VQFN-20 5x5, TSSOP-20
MCP47FEB01811CEEPROMVDD, VHL, VBG60.250.5180-40 to +1258-pin MSOP
MCP47FEB11 101CEEPROMVDD, VREF, VBG60.51.5180-40 to +1258-pin MSOP
MCP47FEB21 12 11CEEPROMVDD, VHL, VBG616180-40 to +1258-pin MSOP
MCP47FEB02821CEEPROMVDD, VREF, VBG60.250.5380-40 to +1258-pin MSOP
MCP47FUB12 102 ICELLPROMVDD, VHL, VBG60.51.5380-40 to +1258-pin MSOP
MCP47FEB22 12 2 ICEEPROMVDD, VREF, VBG616380-40 to +1258-pin MSOP
MCP47FVB01811CVolatileVDD, VHL, VBG60.250.5180-40 to +1258-pin MSOP
MCP47FVB11 101CVolatileVDD, VREF, VBG60.51.5180-40 to +1258-pin MSOP
MCP47FVB21 12 11CVolatileVDD, VREF, VBG616180-40 to +1258-pin MSOP
MCP47FVB02821CVolatileVDD, VREF, VBG60.250.5380-40 to +1258-pin MSOP
MCP47FVB12 102 ICVolatileVDD, VREF, VBG60.251.5380-40 to +1258-pin MSOP
MCP47FVB22 12 2 ICVolatileVDD, VHL, VBG616380-40 to +1258-pin MSOP
MCP47DA1 811CVolatileV-DI60.350.7180-40 to +1258-pin SOT23, 6-pin SC7C
MCP4706811CEEPROMVDD, V-DI60.050.907400-40 to +1258 pin SOT23, 6 pin 2 x 2 DFN
MCP4716101CEEPROMVDD, V-FF60.1883.625400-40 to +1256-pin SOT23, 6 pin 2 x 2 DFN
MCP472612 11CEEPROMVDD, V-FF60.7514.5400-40 to +1256 pin SOT23, 6 pin 2 x 2 DFN
MCP472512 11CEEPROMVDD60.7514.5400-40 to +1256 pin SOT23
MCP472812 41CEEPROMVDD, VBR60.75131400-40 to +12510-pin MSOP
MCP480181SPIVolatileVBG4.50.51400-40 to +1258-pin MSOP, 8 pin 2 x 3 DFN, 8-pin SOIC, 8 pin PDIP
MCP4811101SPIVolatileVBG4.50.53.5400-40 to +1258 pin MSOP, 8 pin 2 x 3 DFN, 8 pin SOIC, 8 pin PDIP

MIXED SIGNAL: D/A Converters

Part #Resolution (Bits)DAC ChannelsInterface Memory Voltage ReferenceOutput Setting Time (μs)DNL (LSB) INL (LSB)Max Operating Current (μA)Temperature Range (°C)Packages
MCP4821121SPIVolatileVcc4.50.7512400-40 to +1258-pin MSOP, 8-pin 2 x 3 DFN, 8-pin SOIC, 8-pin FDIP
MCP480282SPIVolatileVcc4.50.51400-40 to +1258-pin MSOP, 8-pin 2 x 3 DFN, 8-pin SOIC, 8-pin FDIP
MCP4812102SPIVolatileVcc4.50.53.5400-40 to +1258-pin MSOP, 8-pin 2 x 3 DFN, 8-pin SOIC, 8-pin FDIP
MCP4822122SPIVolatileVcc4.50.7512400-40 to +1258-pin MSOP, 8-pin 2 x 3 DFN, 8-pin SOIC, 8-pin FDIP
MCP480181SPIVolatileVcc4.50.51350-40 to +1258-pin MSOP, 8-pin 2 x 3 DFN, 8-pin SOIC, 8-pin FDIP
MCP4911101SPIVolatileVcc4.50.53.5350-40 to +1258-pin MSOP, 8-pin 2 x 3 DFN, 8-pin SOIC, 8-pin FDIP
MCP4821121SPIVolatileVcc4.50.7512350-40 to +1258-pin MSOP, 8-pin 2 x 3 DFN, 8-pin SOIC, 8-pin FDIP
MCP490282SPIVolatileVcc4.50.51350-40 to +1258-pin MSOP, 8-pin 2 x 3 DFN, 8-pin SOIC, 8-pin FDIP
MCP4912102SPIVolatileVcc4.50.53.5350-40 to +1258-pin MSOP, 8-pin 2 x 3 DFN, 8-pin SOIC, 8-pin FDIP
MCP4922122SPIVolatileVcc4.50.7512350-40 to +1258-pin MSOP, 8-pin 2 x 3 DFN, 8-pin SOIC, 8-pin FDIP

INTERFACE AND NETWORKING

INTERFACE AND NETWORKING: CAN Products

Part #Description and FeaturesOperating Voltage (V)Temperature Range (°C)Tx BuffersRx BuffersFiltersMasksInterrupt OutputPackages
ATA6580CAN Transceiver with stand-by and silent mode, 5V I/O, CAN FD ready, 6 Mbps, AECQ100 Grade 14.5 to 5.5-40 to +125N/AN/AN/AN/AN/A8-pin DFN, 8-pin SOIC
ATA6581CAN Transceiver with stand-by mode, compatible with 3.3V and 5V microcontroller, CAN FD ready, 5 Mbps, AECQ100 Grade 14.5 to 5.5-40 to +125N/AN/AN/AN/AN/A8-pin DFN, 8-pin SOIC
ATA6582CAN Transceiver with stand-by and silent mode, 5V I/O, wake up pattern, CAN FD ready, 5 Mbps, AECQ100 Grade 0, 14.5 to 5.5-40 to +125/+150N/AN/AN/AN/AN/A8-pin DFN, 8-pin SOIC
ATA6583CAN Transceiver with stand-by mode, compatible with 3.3V and 5V microcontroller, wake up pattern, CAN FD ready, 5 Mbps, AECQ100 Grade 0, 14.5 to 5.5-40 to +125/+150N/AN/AN/AN/AN/A8-pin DFN, 8-pin SOIC
ATA6584CAN Transceiver with silent mode, compatible with 3.3V and 5V microcontroller, CAN FD ready, 5 Mbps, AECQ100 Grade 0, 14.5 to 5.5-40 to +125/+150N/AN/AN/AN/AN/A8-pin DFN, 8-pin SOIC
ATA6585Dual CAN Transceiver with stand-by mode, 5V I/O, wake up pattern, CAN FD ready, 5 Mbps, AECQ100 Grade 0, 14.5 to 5.5-40 to +125/+150N/AN/AN/AN/AN/A14-pin DFN, 14-pin SOIC
ATA6586CAN Transceiver with stand-by mode, compatible with 3.3V and 5V microcontroller, CAN FD ready, 2 Mbps, AECQ100 Grade 0, 1, suitable for the Japanese market4.5 to 5.5-40 to +125/+150N/AN/AN/AN/AN/A8-pin DFN, 8-pin SOIC
ATA6570CAN Partial Networking Transceiver with Wake pin and Window Watchdog, compatible with 3.3V and 5V microcontroller, wake up frame, CAN FD ready, 5 Mbps, AECQ100 Grade 0, 14.55 to 28-40 to +125/+150N/AN/AN/AN/AN/A14-pin DFN, 14-pin SOIC
MCP2518FDExternal CAN FD Controller with SPI Interface, ISO 11986-1:2015 Compliant, 32-bit Time Stamp, Supports CAN 2.0B and CAN FD, Highly Configurable 31 FIFOs and 32 Filters2.7 to 5.5-40 to +150Up to 32Up to 3232321 to 314-pin DFN, 14-pin SOIC
MCP25625Integrated High-Speed CAN Transceiver and CAN 2.0B Controller2.7 to 5.5-40 to +1253262128-pin SSOP, 28-pin 6 x 6 QFN

INTERFACE AND NETWORKING: LIN Products

Part #DescriptionVREG Output Voltage (V)Operating Temp. Range (°C)VREG Output Current (mA)Supply Voltage Range (V)Max Baud RateLIN Specification SupportedPackages
ATA663211LIN Transceiver--40 to +125-5 to 2820 kbaud2.0, 2.1, 2.2, 2.2A, SAEJ2602-28-pin DFN, SOIC8
ATA6625LIN Transceiver with Integrated Vinc5.040 to +125855 to 2820 kbaud2.0, 2.1, 2.2, 2.2A, SAEJ2602-28-pin DFN, SOIC8
ATA663201LDO, pin compatible with ATA663231 LIN SBC3.3-40 to +125855 to 28--8-pin DFN
ATA663203LDO, pin compatible with ATA663254 LIN SBC5.0-40 to +125855 to 28--8-pin DFN
ATA663231LIN Transceiver with Integrated Vinc3.3-40 to +125855 to 2820 kbaud2.0, 2.1, 2.2, 2.2A, SAEJ2602-28-pin DFN
ATA663232LIN Transceiver with Integrated Vinc and Wake Pin3.3-40 to +125855 to 2820 kbaud2.0, 2.1, 2.2, 2.2A, SAEJ2602-28-pin DFN
ATA663254LIN Transceiver with Integrated Vinc5.040 to +125855 to 2820 kbaud2.0, 2.1, 2.2, 2.2A, SAEJ2602-28-pin DFN, SOIC8
ATA663255LIN Transceiver with Integrated Vinc and Wake Pin5.0-40 to +125855 to 2820 kbaud2.0, 2.1, 2.2, 2.2A, SAEJ2602-28-pin DFN

INTERFACE AND NETWORKING: LIN Products

Part # DescriptionVrea Output Voltage (V)Operating Temp. Range (°C)Vrea Output Current (mA)Supply Voltage Range (V)Max Baud RateLIN Specification Supported Packages
ATA663331LIN Transceiver with Integrated Vrea and 2 relay driver3.3-40 to +125855 to 2820 kbaud2.0, 2.1, 2.2, 2.2A, SAEJ2602-216-pin DFN
ATA663334LIN Transceiver with Integrated Vrea and 2 relay driver5.0-40 to +125855 to 2820 kbaud2.0, 2.1, 2.2, 2.2A, SAEJ2602-216-pin DFN
ATA663431LIN Transceiver with Integrated Vrea, WWOT3.3-40 to +125855 to 2820 kbaud2.0, 2.1, 2.2, 2.2A, SAEJ2602-216-pin DFN
ATA663454LIN Transceiver with Integrated Vrea, WWOT5.0-40 to +125855 to 2820 kbaud2.0, 2.1, 2.2, 2.2A, SAEJ2602-216-pin DFN
ATSAMHA1G16A-MST-BLIN S/P with Vrea, LIN TRX and uC, 84K Flash memory3.3-40 to +85855 to 2820 kbaud2.0, 2.1, 2.2, 2.2A, SAEJ2602-248-pin QFN
ATSAMHA1G15A-MST-BLIN S/P with Vrea, LIN TRX and uC, 32K Flash memory3.3-40 to +85855 to 2820 kbaud2.0, 2.1, 2.2, 2.2A, SAEJ2602-248-pin QFN
ATSAMHA1G14A-MST-BLIN S/P with Vrea, LIN TRX and uC, 16K Flash memory3.3-40 to +85855 to 2820 kbaud2.0, 2.1, 2.2, 2.2A, SAEJ2602-248-pin QFN
ATSAMI IACG18A-MZT-DLIN S/P with Vrea, LIN TRX and uC, 64K Flash memory3.3-40 to +105855 to 2820 kbaud2.0, 2.1, 2.2, 2.2A, SAEJ2602-249-pin QFN
ATSAMI IACG15A-MZT-BLIN S/P with Vrea, LIN TRX and uC, 32K Flash memory3.3-40 to +105855 to 2820 kbaud2.0, 2.1, 2.2, 2.2A, SAEJ2602-249-pin QFN
ATSAMHACG14A-MZT-BLIN S/P with Vrea, LIN TRX and uC, 16K Flash memory3.3-40 to +105855 to 2820 kbaud2.0, 2.1, 2.2, 2.2A, SAEJ2602-248-pin QFN
ATSAMHA1E16A-MBT-BLIN S/P with Vrea, LIN TRX and uC, 64K Flash memory3.3-40 to +85855 to 2820 kbaud2.0, 2.1, 2.2, 2.2A, SAEJ2602-232-pin QFN
ATSAMHA1E16A-MBT-BLIN S/P with Vrea, LIN TRX and uC, 32K Flash memory3.3-40 to +85855 to 2820 kbaud2.0, 2.1, 2.2, 2.2A, SAEJ2602-232-pin QFN
ATSAMHA1E14A-MBT-BLIN S/P with Vrea, LIN TRX and uC, 16K Flash memory3.3-40 to +85855 to 2820 kbaud2.0, 2.1, 2.2, 2.2A, SAEJ2602-232 pin QFN
ATSAMI IACL16A-MZT-BLIN S/P with Vrea, LIN TRX and uC, 64K Flash memory3.3-40 to +105855 to 2820 kbaud2.0, 2.1, 2.2, 2.2A, SAEJ2602-232 pin QFN
ATSAMHACE15A-MZT-BLIN S/P with Vrea, LIN TRX and uC, 32K Flash memory3.3-40 to +105855 to 2820 kbaud2.0, 2.1, 2.2, 2.2A, SAEJ2602-232-pin QFN
ATSAMHACE14A-MZT-BLIN S/P with Vrea, LIN TRX and uC, 16K Flash memory3.3-40 to +105855 to 2820 kbaud2.0, 2.1, 2.2, 2.2A, SAEJ2602-232-pin QFN
ATSAMHA1E14A-MBT-B510LIN S/P with Vrea, LIN TRX and uC, 16K Flash memory, ISELED license3.3-40 to +85855 to 2820 kbaud2.0, 2.1, 2.2, 2.2A, SAEJ2602-232-pin QFN
ATSAMHA1E15A-MBT-B510LIN S/P with Vrea, LIN TRX and uC, 32K Flash memory, ISELED license3.3-40 to +85855 to 2820 kbaud2.0, 2.1, 2.2, 2.2A, SAEJ2602-232-pin QFN
ATSAMHA1E16A-MBT-B510LIN S/P with Vrea, LIN TRX and uC, 64K Flash memory, ISELED license3.3-40 to +85855 to 2820 kbaud2.0, 2.1, 2.2, 2.2A, SAEJ2602-232-pin QFN

INTERFACE AND NETWORKING: Line Circuits

Part NumberLine Circuit TypeApplicationSeriesLoop LengthBattery TopologySoc InterfaceOutput VoltageNumber of Ports
LE57D111Access NetworksAccess Network SLICVE560LongExternal582
LE57D121Access NetworksAccess Network SLICVE560LongExternal602
LE57D122Access NetworksAccess Network SLICVE560LongExternal602
LE58CL02Access NetworksAccess Networks Quad SLACVE580LongPCM/MPI4
LE58CL021Access NetworksAccess Networks Quad SLACVE580LongPCM/MPI4
LE58CL022Access NetworksAccess Networks Quad SLACVE580LongPCM/MPI4
LE58CL031Access NetworksAccess Networks Quad SLACVE580LongPCM/MPI4
LE58CL061Access NetworksAccess Networks Quad SLACVE580LongPCM/MPI, OCI4
LE58CL063Access NetworksAccess Networks Quad SLACVE580LongPCM/MPI, GCI4
LE79112Access NetworksAccess Networks Voice Control ProcessorVE790LongPCM/MPI32
LE79114Access NetworksAccess Networks Voice Control ProcessorVE790LongPCM/SPI64
LE79124Access NetworksNGCC Voice Control ProcessorVE792LongPCM/SPI/GPI72

www.microchip.com/anslog
INTERFACE AND NETWORKING: Line Circuits

Part NumberLine Circuit TypeApplicationSeriesLoop LengthBattery TopologySoc InterfaceOutput VoltageNumber of Ports
LE79128 Access Networks NGCC Voice Control Processor VE792 Long PCM/SPI/GPI 128
LE79234Access NetworksNGCC Voice Control ProcessorVE792LongPCM/SPI32
LE792386Access NetworksNGCC Octal SLACVE792LongFixedPCM/MPI1408
LE79252Access NetworksAccess Network SLICVE790LongExternal1502
LE79271Access NetworksNGCC SLICVE792Long1501
LE79272Access NetworksNGCC SLICVE792LongExternal1502
LE79Q22B1Access NetworksAccess Networks Quad SLACVE790LongPCM/MPI, GCI4
LE79Q22B4Access NetworksAccess Networks Quad SLACVE790LongPCM/MPI, GCI4
LE79R70Access NetworksPBXVE580ShortExternal671
LE79R79Access NetworksPBXVE580ShortExternal751
LE88010Broadband GatewayBroadband Gateway FXO CODECVE880ShortPCM/SPI1
LE88131Broadband GatewayBroadband Gateway FXSVE880ShortTrackingPCM/SPI1502
LE88221Broadband GatewayBroadband Gateway FXSVE880ShortSharedPCM/SPI1002
LE88231Broadband GatewayBroadband Gateway FXSVE880ShortTrackingPCM/SPI1502
LE88241Broadband GatewayBroadband Gateway FXSVE880ShortSharedPCM/SPI1202
LE88266Broadband GatewayBroadband Gateway FXSVE880ShortSharedPCM/SPI1002
LE88278Broadband GatewayBroadband Gateway FXSVE880ShortTrackingPCM/SPI1502
LE88286Broadband GatewayBroadband Gateway FXSVE880ShortSharedPCM/SPI1202
LE88508Broadband GatewayBroadband Gateway SLACVE880ShortPCM/SPI2
LE88630Broadband GatewayBroadband Gateway SLICVE880ShortTracking1502
LE88150Broadband GatewayBroadband Gateway FXSVE880ShortTrackingPCM/SPI1001
LE88810Broadband GatewayBroadband Gateway SLICVE880ShortTracking1001
LE9530Broadband GatewayBroadband Gateway SLICVE950ShortTrackingParallel1452
LE9540Broadband GatewayBroadband Gateway SLICVE950ShortTrackingSerial1452
LE9541Broadband GatewayBroadband Gateway SLICVE950ShortTrackingSerial1451
LE9551Broadband GatewayBroadband Gateway SLICVE950ShortTrackingSerial1451
LE9622Broadband GatewayBroadband Gateway FXSmISLICShortSharedPCM/SPI1202
LE9632Broadband GatewayBroadband Gateway FXSmISLICShortTrackingPCM/SPI1502
LE9641Broadband GatewayBroadband Gateway FXSmISLICShortTrackingPCM/SPI, ZSI1001
LE9642Broadband GatewayBroadband Gateway FXSmISLICShortSharedZSI1202
LE9643Broadband GatewayBroadband Gateway FXSmISLICShortTrackingPCM/SPI, ZSI951
LE9651Broadband GatewayBroadband Gateway FXSmISLICShortTrackingPCM/SPI, ZSI1501
LE9652Broadband GatewayBroadband Gateway FXSmISLICShortTrackingZSI1502
LE9653Broadband GatewayBroadband Gateway FXSmISLICShortTrackingPCM/SPI, ZSI1501
LE9662Broadband GatewayBroadband Gateway FXSmISLICShortSharedZSI1202
LE9672Broadband GatewayBroadband Gateway FXSmISLICShortTrackingZSI1502
ZL79124 Access Networks NGCC Voice Control Processor VE792 Long PCM/SPI/GPI72
ZL792388Access NetworksNGCC Octal SLACVE792LongFixedPCM/MPI1408
ZL792588Access NetworksNGCC Octal SLACVE792LongPCM/MPI8
ZL88601Broadband GatewayBroadband Gateway FXSZL880ShortSharedPCM/SPI1002
ZL88602Broadband GatewayBroadband Gateway FXSZL880ShortSharedPCM/SPI1202
ZL88701Broadband GatewayBroadband Gateway FXSZL880ShortTrackingPCM/SPI1002
ZL88702Broadband GatewayBroadband Gateway FXSZL880ShortTrackingPCM/SPI1502

INTERFACE AND NETWORKING: Line Circuits

Part NumberLine Circuit TypeApplicationSeriesLoop LengthBattery TopologySoc InterfaceOutput VoltageNumber of Ports
ZL69801Broadband GatewayBroadband Gateway FXSZL680ShortSharedPCM/SPI100

INTERFACE and Networking: Line Drivers

Part NumberApplicationSeriesLoop LengthSignal Power (dBm)Number of PortsPackages
LE87100PLC, G.HN, HPAV 2.0PLCShort15.5116/VQFN
LE87251ADSL2+, HDSLDSL COLong20.5216/VQFN
LE87270VDSL2 35cDSL CPEMedium/Long14.5116/VQFN
LE87271VDSL2 35cDSL CPEMedium/Long14.5120/VQFN
LE87281G.Fast 106MHzG.fastShort8116/VQFN
LE87282G.Fast 106MHzG.fastShort8228/VQFN
LE87285G.Fast 106 MHz/VDSL2G.fastShort/Medium8 or 13116/VQFN
LE87286G.Fast 212MHzG.fastShort8116/VQFN
LE87290VDSL2 35cDSL COMedium20232/VQFN
LE87401PLC, G.HN, HPW 2.0PLCShort20116/VQFN
LE87402PLC, G.HN, HPW 2.0PLCShort20228/VQFN
LE87501PLC, G.HN, HPW 2.0PLCShort20116/VQFN
LE87511PLC, G.HN, HPW 2.0PLCShort16116/VQFN
LE87536ADSL21, HDSLDSL COLong20216/VQFN
LE87557VDSL2 35cDSL CPEMedium14.5116/VQFN
LE87611PLC, G.HN, HPW 2.0PLCShort8116/VQFN
LE87612PLC, G.HN, HPW 2.0PLCShort8228/VQFN

INTERFACE AND NETWORKING: Ethernet products
Part Number Bandwidth Interface (Upstream) Wake-On-LAN EEE Temperature* Packages

Ethernet Controllers
ENC28/60 10SPI —128-pin SPDIP, SSOP, SOC, QFN
LNC624J60010/100SPV/Parallel--124-pin TQFN, QFN, 84-pin TQFN
LAN921710/10016-bit Host Bus/MII---100-pin TQFP
LAN921910/10032-bit Host Bus--1100-pin TQFP
LAN9220/110/10018-bit Host Bus--156-pin QFN
LAN925010/100SPI, SQI4, HPI√√164-pin QFN, 84-pin TQFP-EP
LAN942010/10032-bit PCI 3.0--1128-pin VTQFP
LAN9921810/10032-bit Host Bus--A, I100-pin TQFP
KSZ385110/1008-/16-/32-bit or SPI√-A, I32-pin QFN, 48-pin LOFP, 128-pin PQFP
KSZ385210/1008-/16-/32-bit√√164-pin LOFP
KSZ341110/1008-/16-/32-bit or SPI√√164-pin LOFP
Ethernet Bridges
LAN9500A10/100USB 2.0√-1.56-pin QFN
LAN973010/100USB 2.0 (HSIC)/MII--156-pin QFN
LAN9512/13/1410/100USB 2.0--184-pin QFN
LAN8953010/100USB 2.0√-A, I56-pin QFN
LAN95/3010/100HSIC√-1.56 pin QFN
LAN7430GigabitPCIe 3.1√√148-pin VQFN
LAN7431GigabitPCIe 3.1 RGMII-√A72-pin VQFN
LAN7500GigabitUSB 2.0√-1.56-pin QFN
LAN7600/01/50GigabitUSB 3.1/USB 2.0/HSIC√√A, I48-pin SQFN, 64 pin SQFN, 56 pin SQFN
Ethernet Transceivers (PHYs)
KSZ9031GigabitMI/RMI/TQMII√-A, I48-/64-pin QFN
LAN9810GigabitGMII--172-pin QFN
LAN9820GigabitRGMII -1.56-pin QFN
KSZ806110/100MI/RMI√√A, I32-/48-pin QFN
KSZ806110/100MI/RMI--124-/32 pin QFN, 48-pin LOFP
KSZ809110/100MI/RMI√√124-/32-pin QFN, 48-pin LOFP
KSZ805110/100MI/RMI--A, I32-pin QFN
LAN8710A10/100MI/RMI--132-pin QFN
LAN8720A10/100RMII--124-pin QFN
LAN8740A10/100MI/RMI√√132 pin QFN
LAN8741A10/100MI/RMI-√132-pin QFN
LAN8742A10/100RMII√-1.24-pin QFN
LAN88/3010/100MI/RMI--A, I32-pin QFN

INTERFACE AND NETWORKING: Ethernet products

Part #BandwidthPortsInterface (Upstream)1588-v2Cable Diags100 FxTemperature*Packages
EtherCAT®Controllers
LAN925210/1002/3SPI, SQIT®, 8-/10-/32-bit host busClock Sync.√√164-pin QFN, 64-pin TQFP-EP

INTERFACE AND NETWORKING: Ethernet products

Part # Bandwidth Ports Interface (Upstream) 1588-v2 Cable Diags 100 Fx Temperature* Packages
Ethernet Switches

LAN9352 10/100 2 SPI/SQVHBI√√-172-pin QFN, 80-pin TOFP-EP
LAN930010/1003MIV/RMI/Turbo MII--√156-pin QFN, /2 pin QFN
LAN9930310/1003MIV/RMI/Turbo MII--√A, I56-pin QFN
LAN9353 10/100 3MIV/RMI/Turbo MII√ √√164-pin QFN, 64-pin TOFP-EP
LAN9954 10/100 3RMI√ √√156 pin QFN
LAN9355 10/100 3MIV/RMI/Turbo MII√ √√164-pin QFN, 64-pin TOFP-EP
KSZ986310/1003MIV/RMI-√√148-pin LQFP
KSZ987310/1003MIV/RMI-√√A, I64-pin VQFN
KSZ9463 10/100 2MIV/RMI√ √√164-pin LQFP
KSZ986410/1004MIV/RMI-√-A, I64-pin VQFN
KSZ979410/1004MIV/GMI/RGMII-√-164-pin VQFN
KSZ9795 10/100 5GMI//RGMII/MI/RMI-√-180-pin LQFP
KSZ977510/1005MIV/GMI/RGMII-√-180-pin LQFP
KSZ976510/1005MII/GMI/RGMII-√√164-pin QFN, 80-pin LQFP
KSZ989510/1005MIV/RMI-√-1128-pin LQFP
KSZ9567 10/1005, 7SGMI//RGMII/MI/RMI√LinkVO+ with signal quality indicatorwith SGMIA, I64-pin QFN, 128-pin LQFP
KSZ956310/100/1000 3RGMI//MII/RMI√√-164-pin VQFN
KSZ989310/100/10003RCMI//MII/RMI-√-164-pin VQFN
KSZ9563 10/100 3RGMI//MII/RMI√√-164-pin VQFN
KSZ989710/100/10008, 7SGMI//RGMII/MI/RMI-√with SGMI184-pin QFN, 128-pin LQFP
KSZ956710/100/1000 7SGMI//RGMII/MI/RMI√LinkVO+ with signal quality indicatorwith SGMI184-pin QFN, 128-pin LQFP
KSZ947710/100/1000 7SGMI//RGMII/MI/RMI1588 + HSR/DLRLinkVO+ with signal quality indicatorwith SGMI1128-pin LQFP

Note: AI products above are supported with 3.3V operating voltage 'A = Automotive temperature range, (40° to -105°C) = Industrial temperature range; (40° to +85°C)

INTERFACE AND NETWORKING: Serial Peripherals

Part #DescriptionOperating Voltage (V)Operating Temp. Range (°C)Bus TypeMax Bus Frequency (kHz)FeaturesPackages
MCP230088-bit I/O Port Expander1.8 to 5.5-40 to +85IC1700Three HW address pins, HW interrupt, 25 mA source/sink capability per I/O18-pin PDIP, 18-pin SOIC, 20-pin SSOP, 20-pin 4 x 4 QFN
MCP23S089-bit I/O Port Expander1.8 to 5.5-40 to +85SPI10000Two HW address pins, HW interrupt, 25 mA source/sink capability per I/O18-pin PDIP, 18-pin SOIC, 20-pin SSOP, 20-pin 4 x 4 QFN
MCP230088-bit I/O Port Expander1.8 to 5.5-40 to +125IC3400One HW address pin, HW interrupt, 25 mA source/sink per I/O, 100 kHz, 400 kHz and 3.4 MHz IC supported18-pin PDIP, 18-pin SOIC, 20-pin SSOP
MCP23S098-bit I/O Port Expander1.8 to 5.5-40 to +125SPI10000HW interrupt, 25 mA source/sink per I/O18-pin PDIP, 18-pin SOIC
MCP2301816-bit I/O Port Expander2.0 to 5.5-40 to +85IC400Three HW address inputs, HW interrupt, 25 mA source/sink capability per I/O28-pin PDIP, 28-pin SOIC, 28-pin SSOP, 28-pin 6 x 6 QFN
MCP2301716-bit I/O Expander1.8 to 5.5-40 to +125IC1700Three HW address pins, 25 mA sink/source per I/O, 100 kHz, 400 kHz and 3.4 MHz IC supported, Interrupt output28-pin PDIP, 28-pin SOIC, 28-pin SSOP, 28-pin QFN
MCP23S1716-bit I/O Expander1.8 to 5.5-40 to +125SPI10000Three HW address pins, 25 mA sink/source per I/O, Interrupt output28-pin PDIP, 28-pin SOIC, 28-pin SSOP, 28-pin QFN
MCP2301816-bit I/O Port Expander1.8 to 5.5-40 to +125IC3400One HW address pin, 2 HW interrupts, 25 mA source/sink per I/O, 100 kHz, 400 kHz and 3.4 MHz IC supported24-pin SSOP, 26-pin SOIC, 28-pin SDIP
MCP23S1816-bit I/O Port Expander1.8 to 5.5-40 to +125SPI10000Two HW interrupts, 25 mA source/sink per I/O28-pin SOIC, 28-pin SDIP

INTERFACE AND NETWORKING: Wi-Fi ^3 Modules

Part #RadioPin CountAntennaFrequency Range (GHz)Sensitivity (dBm)Power Output (dBm)Power Consumption (mA) Tx RxSleepMAC FeaturesProtocolsEncryptionInterfacePackages
MRF24WG0MA802.11 b/g36PCB2.412-2.434-95+182401960.1 mA ^1 802.11 b/g, Wi-Fi Direct, SchAP, WPSWi-Fi Connection Manager, Announce, DNS, DONS, DHCP, FTP, HTTP, NBNS, SNMP, SNTP, SSL, TCP, UDP, ZoroConf ^2 WPA2-PSK, WPA-PSK, WEP, WPA-2-ENTERPRISE4-wire SPI38/Module(21.0 x 31.0 mm)
WINC1500-MR210PB802.11 b/g/h28PCB,U.FL2.412-2.472-94 +18.525057380 μA802.11 b/g/h, SchAP,WI-FI DirectTCP, UDP, DHCP, A3P, HTTP, SSL, DNSWEP, WPA, WPA2 SecuritySPI,UART,IC28/module(21.5 x 14.5 mm)

INTERFACE AND NETWORKING: Wi-Fi ^® Modules

Part # RadioPin CountAntennaFrequency Range (GHz)Sensitivity (dBm)Power Output (dBm)Power Consumption (mA) Tx RxSleep MAC Features Protocols Encryption Interface Packages
SAMW25 802.11c/g/n 51-2.412-2.472-94 +17250 57 380 μA802.11b/g/n, SoftAP, Wi-Fi Direct, station modeDHCP, DNS, TCP/IP (IPv4), UDP, HTTP, HTTPSWEP, WPA/WPA2 Personal, TLS, SSLSPI, UART51/module (33.86 × 14.86 mm)

Note 1: Indicates "off" current Note 2: Supported in the provided attack

INTERFACE AND NETWORKING: High-Linearity 2.4-GHz Amplifiers

Part NumberFreq (GHz)802.11 StandardDescriptionGain (dB)Linear Po (dBm)EVM (%)Vcc (V)Current @ Po (mA)Package (mm)
LX55112.3-2.5nPA + PDET26.0203.03.317016-pin QFN, 3 x 3 x 0.9
LX55352.4-2.5nPA + PDET32.024.53.03.3-526016-pin QFN, 3 x 3 x 0.9
LX55182.4-2.5nPA + PDET30.0263.03.3-538016-pin QFN, 3 x 3 x 0.9
LX56022.4-2.5nPA, Filtering, PDET30.0263.0544016-pin QFN, 3 x 3 x 0.9
LX55332.4-2.5acPA, Filtering, PDET30.0241.8538016-pin QFN, 3 x 3 x 0.9
INTERFACE AND NETWORKING: High-Linearity 5-GHz Amplifiers
LX55304.9-5.9nPA + PDET28.0223.03.3-536016-pin QFN, 3 x 3 x 0.9
LX55315.15-5.85nPA, Filtering, PDET33.0253.0538020-pin QFN, 4 x 4 x 0.9
ac231.85260

INTERFACE AND NETWORKING: Low-Noise Amplifiers

Part NumberFreq (GHz)802.11 StandardDescriptionGain (dB)Noise Figure (dB)IIP3 (dBm)Current @ Po (mA)Vcc (V)Package (mm)
LX55612.4-2.5b/g/n/acLNA131.56.510.53.312-pin QFN, 2 x 2 x 0.5
LX55604.9-6.0a/n/acLNA121.769.53.312-pin QFN, 2 x 2 x 0.5
LX55632.4-2.5b/g/n/acLNA + Bypass141.37.593.36-pin DFN, 1.5 x 1.5 x 0.5
LX55755.15-5.85a/n/acLNA + Bypass121.71293.3-516-pin QFN, 2.5 x 2.5 x 0.45

INTERFACE AND NETWORKING: Dual-Band Front-End Modules

Part NumberFreq (GHz)802.11 StandardDescriptionGain (dB)Linear Po (dBm)EVM (%)Vcc (V)Current @ Po (mA)Package (mm)
LX55912.4-2.5nDual Band PA + PDET + LNA with Bypass + SPDT30183.03.3210QFN-28, 4x3x0.9
ac161.8190
5.15-5.85n27183.03.3280
ac161.8230

INTERFACE AND NETWORKING: Single-Band, High-Linearity Front-End Modules

Part NumberFreq (GHz)802.11 StandardDescriptionGain (dB)Linear Po (dBm)EVM (%)Vcc (V)Current @ Po (mA)Package (mm)
LX55512.4-2.5 n PA + SPOT + POCT 27 18 3.03.3140QFN-16, 3x3x0.9
LX5584A2.4-2.5nPA + Log DET + LNA with Bypass + SPOT3019 3.03.3200QFN-16, 3x3x0.9
ac18 1.8 3.3200
LX5584B2.4-2.5nPA + Log DET + LNA with Bypass + SPOT3321 3.05.0260QFN-16, 3x3x0.9
ac20 1.8 5.0240
LX5584H2.4-2.5nPA + Log DET + LNA with Bypass + SPOT3321 3.05.0260QFN-16, 2.5x2.5x0.9
ac20 1.8 5.0240
LX55865.15-5.65nPA + POET + LNA with Bypass + SPOT2717.03.03.3230QFN-16, 2.5x2.5x0.4
ac16.01.83.3185
LX5586A5.15-5.65nPA + POET + LNA with Bypass + SPOT2717.53.03.3200QFN-16, 2.5x2.5x0.45
ac16.51.83.3185
LX5586H5.15-5.65nPA + POET + LNA with Bypass + SPOT2720 3.05.0230QFN-16, 2.5x2.5x0.45
ac19 1.8 5.0210
LX5589A5.15-5.65nPA + Log DET + LNA with Bypass + SPOT3018 3.03.3210QFN-16, 2.5x2.5x0.9
ac17 1.8 3.3180
LX5589H5.15-5.65nPA + Log DET + LNA with Bypass + SPOT3222 3.05.0250QFN-16, 2.5x2.5x0.9
ac20 1.8 5.0230
LX5589B5.15-5.65nPA + Log DET + LNA with Bypass + SPOT3222 3.05.0250QFN-16, 3x3x0.9
ac20 1.8 5.0230

INTERFACE AND NETWORKING: Bluetooth® Modules

Part #Bluetooth SpecModule TypeNo Shield OptionRx Sensitivity (dBm)Power Output (dBm) (typ.)SleepProfilesInterfacePin CountAnthennaPackages (Dimensions)
BM62 5.0Stereo AudioYes-902-HFP, HSP, A2DP, AVRCP, SPPUART37PCB28 x 15 x 2.5 mm
BM63 5.0Stereo AudioNo-892-HFP, HSP, A2DP, AVRCP, SPPUART48PCB32 x 15 x 2.5 mm
BM64 5.0Stereo AudioYes-9015-HFP, HSP, A2DP, AVRCP, SPPUART, IC43PCB32 x 15 x 2.5 mm
BM205.0AudioYes-914System Off 2 μAHFP, HSP, A2DP, AVRCP, SPP, PCAPAnalog audio cut, mic in, line in, UART40PCB29 x 15 x 2.5 mm
BM235.0AudioYes-914System Off 2 μAHFP, HSP, A2DP, AVRCP, SPP, PCAPPS Digital audio cut, mic in, line in, UART43PCB29 x 15 x 2.5 mm
RN46705.0BLEYes-900-L2CAP, ATT, GATT, CAP, Integrated Public ProfilesUART, IC33Chip22 x 12 x 2.4 mm
RN46715.0BLEYes-900-L2CAP, ATT, GATT, CAP, Integrated public profilesUART, IC, SPI16Chip11.5 x 9 x 2.1 mm
RN46785.0Data, Dual ModeYes-90 BR/EDR -92 LE2Deep Power Down 130 μABT3.0: CAP, SPP, SPD, RFCOMM, L2CAP BT4.2: GAP, GATT, ATT, SMP, L2CAPUART, IC33Chip, RF Pac22 x 12 x 2.4 mm
BM70 5.0Data, Single- Mode BLEYes-900Power saving 1 μAGAP, GATT, SM, L2CAP, Integrated cubic profilesUART, IC, SPI, ADC, PWM, GPIOs33Chip, RF Pac22 x 12 x 2.4 mm25 x 12 x 1.8 mm
BM71 5.0Data, Single- Mode BLEYes-900Power saving 1 μAGAP, GATT, SM, L2CAP, Integrated cubic profilesUART, IC, SPI, ADC, PWM, GPIOs17Chip, RF Pac9 x 11.5 x 2.1 mm8 x 8 x 1.6 mm
RN40204.1Data, Single- Mode BLENo-92.57Dormant < 700 nA, deep seep < 5.0 μAGAP, GATT, SM, L2CAP, Integrated public profilesUART, PIO, AIO, SPI21PCB11.5 x 19.5 mm
BM78 5.0Data, Dual ModeYes-90 (BR/EDR) -92 LE2Deep Power Down 130 μABT3.0: GAP, SPP, SDP, RFCOMM, L2CAP BT4.2: GAP, GATT, ATT, SMP, L2CAPUART, IC, GPIOs 33Chip, RF Pac22 x 12 x 2.4 mm25 x 12 x 1.8 mm

INTERFACE AND NETWORKING: IEEE 802.15.4 zigbee® RF Transceiver Products

Part #Pin CountAntennaFrequency Range (GHz)Sensitivity (dBm)Power Output (dBm)RSSITx Power Consumption (mA)Rx Power Consumption (mA)Clock (MHz)Sleep MACMAC FeaturesEncryption Interface Packages
MRF24J40402.405 to 2.48-950Yes2319202 μAYesCSMA-CAAE51284 wro SPI40 pin OFN
MRF24J40MA12PCS2.405 to 2.48-940Yes2319202 μAYesCSMA-CAAE51284 wro SPI12/Modulo
MRF24J40MD12PCS2.405 to 2.48104+19Yes140322010 μAYesCSMA-CAAE51284-wire SPI12/Modulo
MRF24J40ME12U.FL2.405 to 2.48-104+19Yes140322010 μAYesCSMA-CAAE51284 wro SPI12/Modulo

INTERFACE AND NETWORKING: Sub-GHz Transceivers/Modules

Part #Pin CountFrequency Range (MHz)Sensitivity (dBm)Power Output (dBm)RSSITx Power Consumption (mA)Rx Power Consumption (mA)Clock (MHz)SleepInterfacePackages
MRF89XA32866/31x950-113-12.5Yes25 mA @ +10 dBm312.9 MHz0.1 μA4-wire SPI32 pin TOFN
MRF89XAM8A12868-113-12.5Yes25 mA @ +10 dBm312.9 MHz0.1 μA4-wire SPI12/Mcure
MRF89XAM8A12915-113-12.5Yes25 mA @ +10 dBm312.9 MHz0.1 μA4-wire SPI12/Mcure

INTERFACE AND NETWORKING: Sub-GHz Transmitters

Part #Pin CountFrequency Range (MHz)ModulationData Rate (Kbps)Tx Power (dBm)Operating Voltage (V)Packages
MICRF1146265-445OOK115.2 (NRZ), 57.6 (Manchester Encoded)101.8-3.66-pin SOT-23
MICRF1136300-450ASK20101.8-3.66-pin SOT-23
MICRF11210300-450ASK/FSK50 (ASK), 10 (FSK)101.8-3.610-pin MSOP, 10-pin DFN

INTERFACE AND NETWORKING: Sub-GHz Receivers

Part #Pin CountFrequency Range (MHz)ModulationData Rate (Kbps)Sensitivity (dBm)RSSIRx Power Consumption (mA)SleepInterfacePackages
MICRF219A16300-450ASK/OK20-110Yes4.315 μASerial Output16-pin OSOP
MICRF22018300-450ASK/OK20-110Yes4.3N/ASerial Output16-pin OSOP
MICRF22118650-850ASK/OK10-109Yes915 μASerial Output16-pin OSOP
MICRF22916400-450ASK/OK20-112Yes615 μASerial Output16-pin OSOP
MICRF23018400-450ASK/OK20-112Yes6N/ASerial Output16-pin OSOP

INTERFACE AND NETWORKING: MCU Transmitters

Part #Pin CountFrequency Range (MHz)Program Memory (Bytes)EEPROM (bytes)RAM (bytes)Digital TimerWatch Dog TimerMax Speed (MHz)ICSPModulationData Rate (kbps)Output Power (dBm)Operating Voltage (V)Packages
PIC12F529T39A6310-9282.3K84201118YesOOK/FSK100102.0-3.714-pin TSSOP
PIC12LF1840T39A8310-9287.1K2562562132YesOOK/FSK100101.8-3.614-pin TSSOP
PIC16LF1824T39A20310-9284K2562561132YesOOK/FSK100101.8-3.620-pin TSSOP
rFPC12F675F6380-4501.7K128641120YesASK/FSK40102.0-5.520-pin SSOP
rFPC12F675H6850-9301.7K128641120YesASK/FSK40102.0-5.520-pin SSOP
rFPC12F675K6290-3501.7K128641120YesASK/FSK40102.0-5.520-pin SSOP

INTERFACE AND NETWORKING: USB Bridge Devices

Part #USB SpeedUSB CompliantPHYMCU InterfaceTx/Rx Buffer Size (bytes)Number of GPIOOperating Voltage (V)Packages
MCP2200Full-Speed USB (12 Mb/s), Low-Speed USB (1.5 Mb/s)YesYesUART129/12982.7 to 5.520-pin SOIC, 20-pin TSSOP, 20-pin QFN
MCP2210Full-Speed USB (12 Mb/s), Low-Speed USB (1.5 Mb/s)YesYesSPI6483.3 to 5.520-pin SOIC, 20-pin TSSOP, 20-pin QFN
MCP2221Full-Speed USB (12 Mb/s), Low-Speed USB (1.5 Mb/s)YesYesIC6443.0 to 5.514-pin PDIP, 14-pin SOIC, 14-pin TSSOP, 16-pin QFN

INTERFACE AND NETWORKING: USB Products

Part #DescriptionProcessor Interface# of Downstream PortsCard FormatsIndustrial VersionPackages
USB Hub Controllers
USB2412Hi Speed USB 2.0 2-Port HubUSB 2.02--28-pin QFN
USB2422Small-lociprint, 2-Port Value Hub, Commercial and Industrial Temperature with USB Battery Charging 1.1USB 2.02-√24-pin QFN

INTERFACE AND NETWORKING: USB Products

Part # DescriptionProcessor Interface # of Downstream Ports Card Formats Industrial Version Packages
USB251XB/US32617Hi-Speed USB 2.0 Hub with Battery Charger DetectionUSB 2.02, 3, 4, 7 port options-√, Automotive36 or 64-pin QFN
USB25244-Port Hi-Speed USB 2.0 Multi-Switch HubUSB 2.0 x 24--56-pin QFN
USB35033-Port Hi-Speed USB 2.0 HSIC Hub for Mobile ApplicationsHSIC3-√25-ball WLCSP
US336033-Port Hi-Speed USB 2.0 Hub for Mobile ApplicationsUSB 2.03-√25-ball WLCSP
USB3X133-Port Hi-Speed USB 2.0 Smart Hub for Mobile ApplicationsUSB 2.0 or HSIC3 (USB 2.0 x 2/HSIC x 1)-√30-ball WLCSP
US3253XHi-Speed USB 2.0 Controller Hub with Battery Charger DetectionUSB 2.02, 3, 4 port options-√36-pin QFN
USB46X4 Hi Speed USB 2.0 Controller Hub with USB and HSIC InterfacesUSB 2.0 or HSIC4 (USB 2.0 x 4 or USB 2.0 x 2/HSIC x 2)-√, Automotive 48-pin QFN
USB353XBSuperSpeed USB 3.0 Hub with Battery Charger DetectionUSB 3.02, 3, 4 or 7 port options-√64 or 72-pin QFN
USB5734SuperSpeed USB 3.1 Gen1 Smart Hub Controller with I/O Bridging and FlexConnectUSB 3.1 Gen14-√, Automotive64-pin QFN
USB5744 SuperSpeed USB 3.1 Gen1 Small Form Factor Hub ControllerUSB 3.1 Gen14-√58-pin QFN
USB-CTM Power and Charging
UTC200XUSB-C ControllerI/O1 DTP or 1 UFP-√, Automotive18-pin QFN
USB Transceivers/Switches
US3333XMobile Hi-Speed USB 2.0 Transceiver with Multi-frequency SupportULPI--√25-ball WLCSP
US3334XHi-Speed USB 2.0 Transceiver with Multi-frequency SupportULPI--Automotive24 or 32-pin QFN
USB3300Hi-Speed USB 2.0 Transceiver (24 MHz reference cock support)ULPI--√32-pin QFN
US3174CBHi Speed USB 2.0 Switch with Extromely Low PowerUSB 2.0--√10 pin QFN
US3375XA-XHi-Speed USB 2.0 Port Protection with Switch and Charger DetectionUSB 2.0--√16-pin QFN

INTERFACE AND NETWORKING: USB Products (Continued)

Part #DescriptionProcessor Interface# of Downstream PortsCard FormatsIndustrial VersionPackages
USB Flash Media Controllers
USB224XHi-Speed USB 2.0 Multi-Format Flash Media ControllerUSB 2.0-SDTM/MVC/eMMC/MS/xD√36-pin QFN
USB225XHi-Speed USB 2.0 Multi-Format Flash Media ControllerUSB 2.0-SD/MMC/eMMC/MS/xD/CF√128-pin VTQFP
USB264XHi-Speed USB 2.0 Multi-Format Flash Media Hub ControllerUSB 2.02SD/MMC/eMMC/MS/xD√ (Automotive)48-pin QFN
USB2660Hi-Speed USB 2.0 Multi-Format Flash Media Hub ControllerUSB 2.02SD/MMC/eMMC/MS/xD (x2)√64-pin QFN
USB4640Hi-Speed USB 2.0 Multi-Format Flash Media HSC Hub ControllerHSC2SD/MMC/eMMC/MS/xD√78-pin QFN
USB Security
SEC1110Smart Caro ControllerUSB 2.0-Smart Card√16-pin QFN
SEC1210Smart Caro Controller with Multi-Interface SupportUSB 2.0-Smart Card x2√24-pin QFN

INTERFACE AND NETWORKING: Real-Time Clock/Calendar (RTCC)

BusPart #PinsTiming FeaturesMemory ^1) PowerUnique Features ^2) 5 ku Pricing ^ Packages
Digital Trimming (Adj./Range)Alarm SettingsWDTOutputsSRAM (Bytes)EEPROM (Kbits)Protected EEPROM (bits)Min VccMin IBAT
ICMCP7840M9+127 ppm1 sec.-IRQ/CLK64001.8--0.46SOIC (SN), TSSOP (ST), MSOP (MS), TDFN (MNY), PDIP (F)
MCP7840N9±127 ppm1 sec.-IRQ/CLK64001.81.3Power Fail Timestamp0.59SOIC (SN), TSSOP (ST), MSOP (MS), TDFN (MNY), PDIP (F)
MCP7840X9±127 ppm1 sec.-IRQ/CLK640641.81.3Power Fail Timestamp0.66SOIC (SN), TSSOP (ST), MSOP (MS), TDFN (MNY)
MCP7841X8±127 ppm1 sec.-IRQ/CLK641641.81.3Power Fail Timestamp0.72SOIC (SN), TSSOP (ST), MSOP (MS), TDFN (MNY)
MCP7851X10±255 ppm0.01 sec.-IRQ/CLK6411281.81.3Power Fail Timestamp0.90SOIC (SL), TSSOP (ST)
MCP7852X10±255 ppm0.01 sec.-IRQ/CLK6421281.81.3Power Fail Timestamp0.96MSOP (MS), TDFN (MN)
SPIMCP785W1X14±255 ppm0.01 sec.√1. CLK, 2. RG, 3. WDT RST6411281.81.3Power Fail Timestamp, Event Detects (×2)1.22SOIC (SL), TSSOP (ST)
MCP785W2X14±255 ppm0.01 sec.√1. CLK, 2. RG, 3. WDT RST6421281.81.3Power Fail Timestamp, Event Detects (×2)1.28SOIC (SL), TSSOP (ST)

Note 1: All part numbers with an "X" have three protected ETROM programming options: [0 - Blank [0], [1 - EU-48™ MAC Address], [2 - EU-54™ MAC Address]
2: The Power Fall Timestamp in all RTCOs occur at Battery Switchover.

CO AND SMOKE DETECTOR ICS
CO AND SMOKE DETECTOR ICS: Photoelectric Smoke Detector ICs

Part #Horn Driver Alarm PatternAlarm MemoryLow Battery DetectionChamber TestAlarm InterconnectSensitivity TimerInternal PORAlternate Diagnostic ModeOperating Temp. Range (°C)Packages
RE46C140NFPA TemporalNoYesYesYesYesYes--25 to +7516-pin FDIP, 16-pin SOIC
RE46C141NFPA TemporalNoYesYesYes-Yes--25 to +7516-pin FDIP, 16-pin SOIC
RE46C143Continuous ToneNoYesYesYes-Yes--25 to +7516-pin FDIP, 16-pin SOIC
RE46C144Continuous ToneNoYesYesYesYesYes--25 to +7516-pin FDIP, 16-pin SOIC
RE46C145NFPA TemporalNoYesYesYesYesYesYes-25 to +7516-pin FDIP, 16-pin SOIC
RE46C165NFPA TemporalYesYesYesYesYesYesYes25 to +7516-pin FDIP, 16-pin SOIC
RE46C166Continuous ToneYesYesYesYesYesYesYes-25 to +7516-pin FDIP, 16-pin SOIC
RE46C167NFPA TemporalYesYesYesYesYesYesYes-25 to +7516-pin FDIP, 16-pin SOIC
RE46C168Continuous ToneYesYesYesYesYesYesYes-25 to +7516-pin FDIP, 16-pin SOIC
RE46C190NFPA Temporal or Continuous ToneYesYesYesYesYesYes--10 to +6016-pin SOIC
RE46C191NFPA Temporal or Continuous ToneYesYesYesYesYesYesNo-10 to +6016-pin SOIC
RE46C194NFPA Temporal or Continuous ToneYesYesYesYesYesYesNo0 to 6016-pin SOIC
RE46C200NFPA Temporal or Continuous ToneYesYesYesYesYesYesNo-10 to +6016-pin FDIP, 16-pin SOIC

CO AND SMOKE DETECTOR ICS: Ionization Smoke Detector ICs

Part #Horn Driver Alarm PatternAlarm MemoryLow Battery DetectionReverse Battery ProtectionAlarm InterconnectHush TimerPower-up Low Battery TestOperating Temp. Range (°C)Packages
RE46C180NFPA Temporal or Continuous ToneYesYesNoYesYesYes-10 to +6018-pin PDIP, 16-pin SOIC
RE46C181NFPA Temporal or Continuous ToneYesYesNoYesYesYes-10 to +6018-pin PDIP, 16-pin SOIC

CO AND SMOKE DETECTOR ICS: Ionization Smoke Detector Front Ends

Part #Microprocessor Compatible OutputOutput OptionsTypical ApplicationOperating Temperature Range (°C)Packages
RE46C112YesVout 1/4 of Vout or Vout 1/4 of Detect Input3V or 3.3V Microprocessor-10 to +608-pin POIP
RE46C114YesVout 1/2 of Vout or Vout 1/2 of Detect Input5V Microprocessor-10 to +608-pin POIP
RE46C311YesOp AmpIonization Smoke Detector Front End-10 to +608-pin PDIP, 8-pin SOIC
RE46C312YesOp AmpIonization Smoke Detector Front End-10 to +608-pin PDIP, 8-pin SOIC

CO AND SMOKE DETECTOR ICS: CO Detectors

Part #Operating Voltage (Voc)Voltage Regulator (Voc)LED DriverHom DriverInterconnectLow Battery DetectionBrown OutBoost RegulatorOp Amp Vos Max (μV)Op Amp Ib Max (pA)Op Amp GBWP (kHz)Op Amp AoI (dB)Op Amp Slew Rate (V/μS)Op Amp Unity Gain StableOp Amp CMRR Min (dB)Op Amp Rail-to-RailOperating Temp. Range (°C)
RE46C8002 to 123.3YesYesYesYesYesYes1000200101150.003Yes80In/Out-10 to +60
RE46C8032 to 3.63.3/1.8YesYesYesNoNoYes1000200101150.003Yes86In/Out-10 to +60

CO AND SMOKE DETECTOR ICS: Piezoelectric Horn Drivers

Part #Operating Voltage (V)LED DriverVoltage Regulator (V)Low Battery DetectionInterconnectPower GoodOperating Temp. Range (°C)Packages
RE46C1026 to 18------40 to +858-pin PDIP, 8-pin SOIC
RE46C1016 to 18Yes-----40 to +858-pin PDIP, 6-pin SOIC
RE46C1044 to 6-----0 to -5014-pin PDIP, 14-pin SOIC
RE46C1056 to 12Yes3.3 or 5Yes---40 to +8514 pin PDIP, 14 pin SOIC
RE46C1072 to 6Yes3 or 3.3Yes--0 to -5018-pin PDIP, 18-pin SOIC
RE46C1086 to 12-3.3 or 5----40 to +858-pin PDIP, 8-pin SOIC
RE46C1096 to 12-3YesYesYes-40 to +8516-pin PDIP, 16-pin SOIC
RE46C1172 to 6-----0 to 1608 pin PDIP, 8 pin SOIC
RE46C1186 to 12-3YesYesYes-40 to +8518 pin PDIP, 18 pin SOIC
RE46C3172 to 6------10 to +608-pin PDIP, 8-pin SOIC
RE46C3182 to 6------10 to 1608 pin PDIP, 8 pin SOIC

ULTRASOUND

ULTRASOUND: High-Voltage Analog Multiplexers

Part ## of Ch. and ConfigurationBleed ResistorVPP-VNNRON (Ω)Csg On/Off (pF)Isw (A)FeaturesPackages
HV202208 SPSTNo200V2238/1235V-12V Logic Input, 5 MHz clock frequency48-Lead LOFP, 28-Lead PLCC
HV203208 SPSTNo200V2238/1235V-12V Logic Input, 5 MHz clock frequency48-Lead LOFP
HV2328 SPSTYes200V2238/1235V-12V Logic Input, 5 MHz clock frequency48-Lead LOFP, 28-Lead PLCC
HV2198 SPSTNo200V1150/2035V-12V Logic Input, 5 MHz clock frequency48-Lead LOFP, 28-Lead PLCC
HV22018 SPSTNo200V2238/1233.3V-5V Logic Input, 20 MHz clock frequency48-Lead LOFP, 28-Lead PLCC
HV23018 SPSTYes200V2238/1233.3V-5V Logic Input, 20 MHz clock frequency48-Lead LOFP, 28-Lead PLCC
HV22218 SPSTNoVpp range = +15V to +50V,Vpp range = -190V to -225V1570/1843.3V-5V Logic Input, 20 MHz clock frequency48-Lead LOFP
HV23218 SPSTYesVpp range = +15V to +50V,Vpp range = -190V to -225V1570/1843.3V-5V Logic Input, 20 MHz clock frequency48-Lead LOFP
HV2086 x 2:1 MuxYes200V2238/1235V-12V Logic Input, 5 MHz clock frequency48-Lead LOFP
HV208222 Banks of 8 channelNo220V2238/1235V-12V Logic Input, 5 MHz clock frequency48-Lead LOFP
HV2382 Banks of 8 channelYes220V2238/1235V-12V Logic Input, 5 MHz clock frequency48-Lead LOFP
HV260116 SPSTNo200V2238/1233.3V-5V Logic Input, 20 MHz clock frequency48-Lead LOFP, 42-Ball Bumped Die (3D)
HV270116 SPSTNo200V2238/1233.3V-5V Logic Input, 20 MHz clock frequency48-Lead LOFP, 42-Ball Bumped Die (3D)
HV260516 SPSTNo200V2213/1033.3V-5V Logic Input, 20 MHz clock frequency48-Lead LOFP, 42-Ball Bumped Die (3D)
HV270516 SPSTYes200V2213/1033.3V-5V Logic Input, 20 MHz clock frequency48-Lead LOFP, 42-Ball Bumped Die (3D)
HV28312 Banks of 8 channelNo220V2238/1223.3V-5V Logic Input, 20 MHz clock frequency48-Lead LOFP
HV27312 Banks of 8 channelYes220V2238/1223.3V-5V Logic Input, 20 MHz clock frequency48-Lead LOFP
HV280332 SPSTNo±6V1027/933.3V Input Logic, 68 MHz Clock Frequency132-ball TFBGA 12 x 12 mm
HV290332 SPSTYes-2-6V1027/933.3V Input Logic, 66 MHz Clock Frequency132-bal TFBGA 12 x 12 mm
HV290432 SPSTYes-1-6V1027/933.3V Input Logic, 66 MHz Clock Frequency132-bal TFBGA 12 x 12 mm
HV207032 SPSTNo-6V4.520/113.73.3V Input Logic, 66 MHz Clock Frequency132-ball TFBGA 10 x 10 mm
HV27358 SPDTYes200V2238/1223.3V-5V Logic Input, 20 MHz clock frequency48-Lead LOFP
HV26618 x 3:1 MuxNo200V2230/923.3V-5V Logic Input, 20 MHz clock frequency48-Lead LOFP
HV27618 x 3:1 MuxYes200V2230/923.3V-5V Logic Input, 20 MHz clock frequency48-Lead LOFP
HV266224 SPSTNo200V2212/923.3V-5V Logic Input, 20 MHz clock frequency64-Ball VFBGA
HV276224 SPSTYes200V2212/923.3V-6V Logic Input, 20 MHz clock frequency64-Ball VFBGA
HV28062 Banks of 16 SPDTNo200V2223/933.3V-5V Logic, A/B bar Control pin56 Lead QFN
HV28092 Bank of 16No200V2223/933.3V-5V Logic, A/B bar + EN Control pins56-Lead QFN
HV280116 x 2:1 MuxNo200V2223/933.3V-5V Logic input, 20 MHz clock frequency64-Lead QFN
HV290116 x 2:1 MuxYes200V2223/933.3V-5V Logic Input, 20 MHz clock frequency64-Lead QFN
HV280232 SPSTNo200V2213/1033.3V-5V Logic Input, 20 MHz clock frequency9 x 9 VFBGA
HV290232 SPSTYes200V2213/1033.3V-5V Logic Input, 20 MHz clock frequency9 x 9 VFBGA
HV282116 SPSTNo300V2218/1033.3V-5V logic input, 33 MHz clock frequency64 Lead QFN
HV272116 SPSTYes-2300V2218/1033.3V-5V logic input, 33 MHz clock frequency64 Lead QFN
HV272216 SPSTYes-1300V2219/1033.3V-5V logic input, 33 MHz clock frequency64 Lead QFN
HV270816 SPSTSWA side Only51412/81.9ALow Harmonic Distortion, Low Charge Injection48L LOFP
HV270716 SPSTBoth Sides51412/81.9ALow Harmonic Distortion, Low Charge Injection48L LOFP
HV260716 SPSTNone51412/81.9ALow Harmonic Distortion, Low Charge Injection48L LOFP
HV291816 x 2:1 MuxSW Side Only5622/42.7ALow Harmonic Distortion, Low Charge InjectionQFN-64
HV281816 x 2:1 MuxNone5622/42.7ALow Harmonic Distortion, Low Charge InjectionQFN-64

ULTRASOUND: Ultrasound MOSFET Drivers

Part ## of ChannelsInput Voltage Min. (V)Input Voltage Max. (V)Output Voltage Bipolar (V)Output Voltage Unipolar (V)Output Rise/ Fall TimePeak CurrentApplication Circuit Packages
MD1210 21.2 6.0NA 0-12 6 ns/6 ns ±2A Pair with 1 x TC8320 4 x 4 mm 12-lead QFN
MD1211 21.8 5.0NA 0-12 10 ns/10 ns +2A Pair with 1 x TC6320 8-Lead SOIC
MD1213 21.8 5.0±50-12 6 ns/6 ns ±2A Pair with 1 x TC6320 4 x 4 mm 12-lead QFN
MD1711121.83.3NA0-128 ns/8 ns±2APair with 6 x TC8320 to form a 2 Channel 5-Level Pulsor7 x 7 mm 48-Lead LOFP, 7 x 7 mm 48-Lead QFN
MD1712121.83.3NA0-128 ns/8 ns±2APair with 6 x TC8320 to form a 2 Channel 5-Level Pulsor7 x 7 mm 48-Lead LOFP, 7 x 7 mm 48-Lead QFN
MD1715121.83.3NA0-126.5 ns/6.5 ns±2APair with 1 x TC8320 to form a 2-Channel 5-Level Pulsor6 x 6 mm 40-Lead QFN
MD1716121.83.3NA0-126.5 ns/6.5 ns±2APair with 1 x TC8320 to form a 3-Channel 3-Level Pulsor6 x 6 mm 40-Lead QFN
MD1810 41.8 5±50-12 6 ns/8 ns ±2APair with 2 x TC6320 to form a 1-Channel 4-Level Pulsor/2 Channel 2 Level Pulsor/1 Channel 3 Level Pulsor4 x 4 mm 18-Lead QFN
MD181141.85±50-128 ns/8 ns±2APair with 2 x TC8320 to form a 2 Channel 2-Level Pulsor4 x 4 mm 16-Lead QFN
MD181251.85±50-128 ns/8 ns±2APair with 1 x TC8320 and 1 x TC3320 to form a 1 Channel 3-Level Pulsor4 x 4 mm 16-Lead QFN
MD181351.85±50-128 ns/8 ns±2APair with 1 x TC6320 and 1 x TC3320 to form a 1-Channel 3-Level Pulsor4 x 4 mm 16-Lead QFN
MD1820 41.8 5±50-12 7 ns/7 ns ±2APair with 2 x TC6320 to form a 1-Channel 4-Level Pulsor/2 Channel 2 Level Pulsor/1 Channel 3 Level Pulsor4 x 4 mm 16-Lead QFN
MD182141.85±50-127 ns/7 ns±2APair with 2 x TC8320 to form a 2-Channel 2-Level Pulsor4 x 4 mm 16-Lead QFN
MD182241.85±50-127 ns/7 ns±2APair with 2 x TC6320 to form a 1-Channel 3-Level Pulsor4 x 4 mm 16-Lead QFN

ULTRASOUND: Ultrasound TR Switches

Part ## of ChannelsNoise (per )FeaturesPackages
MD01001/20.7 nW/ ± 100V Ultrasound T/R SwitchesSOT-89, 4 × 46 pin DFN
MD010140.8 nW/ ± 100V Ultrasound T/R Switches with Clamp Diode5 × 5 18-pin DFN
MD010540.8 nW/ ± 130V Ultrasound T/R Switches5 × 5 18-pin DFN

ULTRASOUND: Arbitrary Waveform Generators

Part #OutputSampling FrequencyFeaturesPackages
MD2131Push-Pull Source Drive250 MHz8-bit DAC, 48-step phase, PWM, 8-bit Apodiladan DAC5 × 5 40-pin QFN
MD2134Push-Pull Source Drive250 MHz8-bit DAC, 7-bit PAM, 16-Level5 × 5 40-pin QFN

ULTRASOUND: Ultrasound Transmitters

Part #Output Voltage (V)Output Current (A)Number of ChannelsFeaturesPackages
HV748+75+1.2544-Channel 2-Level RTZ48-pin QFN 7 x 7 mm
HV7360+100+2.61 or 21-Channel 3-Level or 2-Channel 2-Level22-pin BCA 5 x 7 mm
HV7361±100±2.61 or 21-Channel 3-Level or 2-Channel 2-Level with Integrated T/R22-pin BCA 5 x 7 mm
HV7355150+1.588-Channel Unipolar Active RTZ48-pin QFN 7 x 7 mm
HV7350±90±1.088-Channel 3-Level56-pin QFN 8 x 8 mm
HV7351±70±3.088-Channel 3-Level with Built-in Digital Beamformer50-pin QFN 11 x 11 mm
HV7321±90±2.544-Channel 5-level RTZ, HD2 -44 dB @ 5 MHz64-pin VQFN 9 x 9 mm
HV7322±90±2.088-Channel 7-level with dual T/R206-bal TFBCA 12 x 12 mm
HV7358+90+1.81616-Channel 3-Level with Built-In Digital Beamformer and T/R168-bal TFBCA 13 x 13 mm

POWER MANAGEMENT: AC/DC

Part #Minimum Input Voltage (V)Maximum Input Voltage (V)Osc Frequency Min (kHz)Osc Frequency Max (kHz)On-Board FET?Type of On-Board FET?Rds,on (Max, 25C)?Overcurrent ProtectionOther ProtectionsPackage
MCP101216V (Typical)500V Continuous/700V Transient3763FALSENANACycle-CycleCCM, OVP, UVLO, OTP (Shutdown)7/SOIC

PoE Controllers

Part # Standards Supported Ports Operating Temperature Host Interface Temperature Grade Packages
PD69210IEEE 802.3af, IEEE 802.3af, IEEE 802.3bt, UPoE, PoH48-40 to +85PC UARTIndustrial32/VQFN
PD69220IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, UPoE, PoH48-40 to +85PC UARTIndustrial32/VQFN

For a complete list of development tools, please visit www.microchip.com/development tools.

Thermal Management Products

Microchip MCP3423 - Thermal Management Products - 1

MCP9600 Evaluation Board (ADM00665)

The MCP9600 Evaluation Board is used to digitize the Thermocouple EMF voltage to degree Celsius with ±1.5^ accuracy. You can easily evaluate all device features using a Type K thermocouple. The device also supports Types J, T, N, E, B, S and R. Each of these types are evaluated by replacing the Type K Thermocouple connector with the corresponding connectors (not included).

Microchip MCP3423 - MCP9600 Evaluation Board (ADM00665) - 1

Thermocouple Reference Design (TMPSNSRD-TCPL1)

This reference design demonstrates how to instrument a thermocouple and accurately sense temperature over the entire thermocouple measurement range. This solution uses the MCP3421 18-bit Analog-to-Digital Converter (ADC) to measure voltage across the thermocouple.

Sensor Products

Microchip MCP3423 - Sensor Products - 1

Linear Sensor Kit (LXK3301AL003)

This 100 mm linear position sensor evaluation kit comes will all you need to test out inductive technology for a linear sensor. The kit includes a 100 mm linear sensor evaluation board, a programmer that is run from our Integrated Programming and Calibration Environment (IPCE) GUI and applicable cables.

Microchip MCP3423 - Linear Sensor Kit (LXK3301AL003) - 1

Rotary Sensor Kit (LXK3301AR001)

This 18 mm 120° rotary position sensor evaluation kit comes will all you need to test out inductive technology for a rotary sensor. The kit includes a rotary position sensor evaluation board, a programmer that is run from our Integrated Programming and Calibration Environment (IPCE) GUI and applicable cables.

Power Management Products

Microchip MCP3423 - Power Management Products - 1

MCP19111 Evaluation Board (ADM00397)

The MCP19111 is a digitally-enhanced PWM controller. It combines a pure-analog PWM controller with a supervisory MCU making it a fast, cost-effective and configurable power conversion solution. The MCP19111 is ideal for standard power conversion, LED drivers and battery charging applications. This board demonstrates how the device operates in a synchronous buck topology over a wide input voltage and load range.

Microchip MCP3423 - MCP19111 Evaluation Board (ADM00397) - 1

MCP16251 and MCP1640B Synchronous Boost Converters Evaluation Board (ADM00458)

This board demonstrates the MCP16251/MCP1640B in two boost-converter applications with multiple output voltages and was developed to help reduce product design cycle time. Three common output voltages can be selected: 2.0V, 3.3V and 5.0V.

Microchip MCP3423 - MCP16251 and MCP1640B Synchronous Boost Converters Evaluation Board (ADM00458) - 1

MIC33M650 6A Step Down Module Evaluation Board (DT100107)

The boards are intended to provide a platform allowing customers to easily evaluate the features of the new MIC33M650 6A Power Modules in a buck converter application with adjustable output voltage through pin-strapping using on board jumpers. These boards are ideal for powering core supply voltages and also high-power single-cell Li-ion battery powered applications.

Microchip MCP3423 - MIC33M650 6A Step Down Module Evaluation Board (DT100107) - 1

MIC33M656 6A Step Down Module Evaluation Board (DT100108)

The boards are intended to provide a platform allowing customers to easily evaluate the features of the new MIC33M656 6A Power Modules in a buck converter application with output voltage and other settings via I2C. These boards are ideal for powering core supply voltages and also high power single-cell Li-ion battery-powered applications.

For a complete list of development tools, please visit www.microchip.com/development tools.

Power Management Products (continued)

Microchip MCP3423 - Power Management Products (continued) - 1

DT100105 Evaluation Board (MCP16502)

The MCP16502 Evaluation Board was developed to evaluate the capabilities of the MCP16502 High Performance Power Management Integrated Circuit (PMIC) designed for SAMA5Dx/SAM9x6 MPUs. The device features 4 DC-DC buck converters capable of delivering 1A each, 2 LDOs with 300mA current capability and I2C programable output voltages and 4 operating modes: Active, Low Power, Hibernate and High Performance Mode

Microchip MCP3423 - DT100105 Evaluation Board (MCP16502) - 1

MCP1633 SEPIC LED DRIVER Demo Board (ADM01002)

The MCP1633 SEPIC LED Driver Demo Board is a step-up/step-down, switch-mode, DC/DC converter used for LED driver applications. The demo board provides a 200mA constant current source. Other output currents can be obtained with minor modifications to the board's Bill of Materials (BOM). MCP1633 LED Driver Demo Board utilizes Microchip's MCP1633 high-speed Pulse-Width Modulator (PWM). The small 16-pin QFN MCP1633 device contains all the analog components necessary for a peak current mode control loop including specialized LED driver blocks. An 8-pin PIC12F1822 microcontroller is used to implement the dimming and protection functions.

Microchip MCP3423 - MCP1633 SEPIC LED DRIVER Demo Board (ADM01002) - 1

MIC23350 3A Synch Buck Regulator Evaluation Board (ADM00880)

The MIC23350 Evaluation Board is developed to evaluate and demonstrate Microchip Technology's MIC23350 product. The board features the MIC23350 in a typical Buck application supplied from an external source, between 2.4V–5.5V. Nine output voltage levels can be set via two Voltage Select pins. Test connectors allow probing, while the board can be loaded up to 3A.

Microchip MCP3423 - MIC23350 3A Synch Buck Regulator Evaluation Board (ADM00880) - 1

MIC23650 6A Synch Buck Regulator Evaluation Board (ADM00885)

The MIC23650 Evaluation Board is developed to evaluate and demonstrate Microchip Technology's MIC23650 product. The board features the MIC23650 in a typical Buck application supplied from an external source, between 2.4V–5.5V. Nine output voltage levels can be set via two Voltage Select pins. Test connectors allow probing, while the board can be loaded up to 6A.

Microchip MCP3423 - MIC23650 6A Synch Buck Regulator Evaluation Board (ADM00885) - 1

MCP1633 SEPIC LED DRIVER DEMO BOARD (ADM01002)

The MCP1633 SEPIC LED Driver Demo Board is a step-up/step-down, switch-mode, DC/DC converter used for LED driver applications. The demo board provides a 200mA constant current source. Other output currents can be obtained with minor modifications to the board's Bill of Materials (BOM). MCP1633 LED Driver Demo Board utilizes Microchip's MCP1633 high-speed Pulse-Width Modulator (PWM). The small 16-pin QFN MCP1633 device contains all the analog components necessary for a peak current mode control loop including specialized LED driver blocks. An 8-pin PIC12F1822 microcontroller is used to implement the dimming and protection functions.

Microchip MCP3423 - MCP1633 SEPIC LED DRIVER DEMO BOARD (ADM01002) - 1

MCP16501 Evaluation Board (ADM01123)

MCP16501 evaluation boards are used to evaluate the MCP16501 PMIC. This is an addition to MCP1650x brand new family of PMICs targeted for MPU power. The board will not include I2C communication, as the IC does not support this, but it will still support load transient testing and voltage setting for the channels and stability analysis testing. Dimensions are similar with the MCP16502 eval board.

Linear Products

Microchip MCP3423 - Linear Products - 1

MCP6V01 Thermocouple Auto-Zeroed Reference Design Board (MCP6V01RD-TCPL)

The MCP6V01 design board demonstrates how to use a difference amplifier system to measure Electromotive Force (EMF) voltage at the cold junction of thermocouple to accurately measure temperature of the thermocouple bead. This can be done by using the MCP6V01 auto-zeroed op amp because of its ultra-low offset voltage (Vos) and high Common Mode Rejection Ratio (CMRR).

For a complete list of development tools, please visit www.microchip.com/development tools.

Linear Products (continued)

Microchip MCP3423 - Linear Products (continued) - 1

MCP6N16 Evaluation Board (ADM00640)

This board is designed to provide an easy and flexible platform when evaluating the MCP6N16, a zero-drift instrumentation amplifier designed for low-voltage operation featuring rail-to-rail input and output performance. The board is populated with the MCP6N16-100, which is optimized for gains for 100V/V or higher.

Microchip MCP3423 - MCP6N16 Evaluation Board (ADM00640) - 1

MCP6421 EMIRR Evaluation Board (ADM00443)

The MCP6421 EMIRR Evaluation Board is intended to support the Electromagnetic Interference Rejection Ratio (EMIRR) measurement and to show the Electromagnetic Interference (EMI) rejection capability of the MCP6421 op amp.

Mixed Signal Products

Microchip MCP3423 - Mixed Signal Products - 1

MCP37X3X-200 16-bit 200 Msps ADC VTLA Evaluation Board (ADM00505)

This board provides the opportunity to evaluate the performance of the MCP37X3X-200 device family. With the on-board MCP37D31-200 16-bit 200 Msps pipelined ADC, it allows you to evaluate the functionality of the 16-bit 200 Msps ADCs and the digital signal processing features. With the help of a compatible data capture card, the evaluation board can provide you with performance analysis features through the PC GUI.

Microchip MCP3423 - MCP37X3X-200 16-bit 200 Msps ADC VTLA Evaluation Board (ADM00505) - 1

PAC1921 High-Side Power and Current Monitor Evaluation Board (ADM00592)

The PAC1921 is a dedicated power monitoring device with a configurable analog output. This device is unique in that all power-related information is available on the 2-wire/I-C-compatible interface and power, current or voltage is available on the analog output. This evaluation board provides you with the means to exercise device functionality while connected either to target systems or while utilizing on-board sources.

Microchip MCP3423 - PAC1921 High-Side Power and Current Monitor Evaluation Board (ADM00592) - 1

MCP39F511 Power Monitor Demonstration Board (ARM00667)

The MCP39F511 Power Monitor Demonstration Board is a fully functional single-phase power monitor and energy monitoring system. The system calculates and displays active power, reactice power, RMS current, RMS voltage, active energy (both import and export) and four quadrant reactive energy. The Power Monitor Utility Software enables you to easily experiment with all system configuration settings such as zero-cross detection, PWM output frequencies, event configurations and calibration setup.

Interface Products

Microchip MCP3423 - Interface Products - 1

UCS81003 Evaluation Board (ADM00561)

This board provides the ability to evaluate the features of the UCS81003 Automotive USB Port Power Controller with Charger Emulation. It allows the UCS81003 to be tested in different configurations by populating jumpers on specific header locations. The Evaluation Board contains the MCP2221 USB to I²C bridge, which allows communication via USB between the UCS81003 and the GUI running on the PC.

Microchip MCP3423 - UCS81003 Evaluation Board (ADM00561) - 1

LAN9252 EtherCAT® Device Controller Evaluation Kit with HBI PDI Interface (EVB-LAN9252-HBI)

This kit is a standalone platform to develop an EtherCAT device. It offers flexibility to explore different host bus interfaces such as 8-bit and 16-bit parallel bus, SPI and SQI ^™ .

Microchip MCP3423 - LAN9252 EtherCAT® Device Controller Evaluation Kit with HBI PDI Interface (EVB-LAN9252-HBI) - 1

LAN874X 10/100 Ethernet Transceiver with EEE and Wake-On-LAN (EVB8740)

The EVB8740 is a PHY evaluation board for our LAN874X family, which integrates Energy Efficient Ethernet and Wake-on-LAN features. It interfaces to a MAC controller via a standard MII or RMII interface.

Microchip MCP3423 - LAN874X 10/100 Ethernet Transceiver with EEE and Wake-On-LAN (EVB8740) - 1

USB3740 Hi-Speed USB 2.0 2-Port Switch (EVB-USB3740)

The EVB-USB3740 is used to evaluate our USB3740 USB 2.0 compliant 2-port switch. Some applications require a single USB port to be shared with other functions. The USB3740 is a small and simple 2-port switch providing system design flexibility.

For a complete list of development tools, please visit www.microchip.com/development tools.

Interface Products (continued)

Microchip MCP3423 - Interface Products (continued) - 1

UTC2000 Basic USB Type-C™ Controller Evaluation Kit (EVK-UTC2000)

The EVK-UTC2000 is a complete kit to evaluate our UTC2000 basic USB-C controller. It includes a downstream-facing port dongle which can connect to any standard host, an upstream-facing port board to mimic a USB-C device, as well as a USB-C cable.

Microchip MCP3423 - UTC2000 Basic USB Type-C™ Controller Evaluation Kit (EVK-UTC2000) - 1

USB5734 USB 3.1 Gen1 Controller Hub Evaluation Board (EVB-USB5734)

This board is a demonstration and evaluation platform that provides the necessary requirements and interface options for evaluating the USB5734 Smart Hub on a 4-layer RoHS-compliant PCB. This will allow you to gain an understanding of the product and accelerate integration into your design.

Microchip MCP3423 - USB5734 USB 3.1 Gen1 Controller Hub Evaluation Board (EVB-USB5734) - 1

USB5926 USB 3.1 Gen1 Smart Hub with 2:1 USB-C MUX Evaluation Board (EVB-USB5926)

This board demonstrates implementation of USB Type-C ports using Microchip's UTC2000 CC pin interface controller and the USB5926's built-in 2:1 Muxes. The board supports two downstream facing USB Type-C ports along with an upstream facing USB Type-C port. The USB5926 also supports two additional downstream Type A ports for legacy purposes.

Microchip MCP3423 - USB5926 USB 3.1 Gen1 Smart Hub with 2:1 USB-C MUX Evaluation Board (EVB-USB5926) - 1

MCP2515 CAN Bus Monitor Demo Board (MCP2515DM-BM)

The MCP2515 CAN Bus Monitor Demo board kit contains two identical boards that can be connected together to create a simple two-node Controller Area Network (CAN) bus, which can be controlled and/or monitored via the included PC interface. The board(s) can also be connected to an existing CAN bus.

Microchip MCP3423 - MCP2515 CAN Bus Monitor Demo Board (MCP2515DM-BM) - 1

USB to UART Converter Evaluation Board (MCP2200EV-VCP)

The MCP2200EV-VCP is a USB-to-RS232 development and evaluation board for the MCP2200 USB-to-UART device. The board allows for easy demonstration and evaluation of the MCP2200. The accompanying software allows the special device features to be configured and controlled. The board is powered from USB and has a test point associated with each GPIO pin. In addition, two of these pins are connected to LEDs which can be used to indicate USB-to-UART traffic when the associated pins are configured as TxLED and RxLED pins respectively.

Total System Solutions

Microchip MCP3423 - Total System Solutions - 1

ATSAMA5D27-WLSOM1 Evaluation Kit

The ATSAMA5D27-WLSOM1-EK1 is ideal for evaluating and prototyping with the SAMA5D27-WLSOM1, Wireless System On Module (SOM) and the SAMA5D27C-LD2G, LPDDR2 System In Package (SIP). The Evaluation Kit is made up of a baseboard, an ATSAMA5D27-WLSOM1 SOM soldered on the baseboard and an ATSAMA5D27C-LD2G SIP soldered on the SOM.

Microchip MCP3423 - ATSAMA5D27-WLSOM1 Evaluation Kit - 1

SAMA5D27-SOM1-EK1

The ATSAMA5D27-SOM1-EK1 is a fast prototyping and evaluation platform for the SAMA5D2 based System in Packages (SiPs) and the SAMA5D27-SOM1 (SAMA5D27 System On Module). The kit comprises a baseboard with a soldered ATSAMA5D27-SOM1 module. The module features an ATSAMA5D27C-D1G-CU SIP embedding a 1-Gbit (128 MB) DDR2 DRAM. The SOM integrates a Power Management IC (PMIC), a QSPI memory, a 10/100 Mbps Ethernet PHY and a serial EEPROM with a MAC address. 128 GPIO pins are provided by the SOM for general use in the system.

Support

Microchip is committed to supporting its customers in developing products faster and more efficiently. We maintain a worldwide network of field applications engineers and technical support ready to provide product and system assistance. For more information, please visit www.microchip.com:

• Technical Support: www.microchip.com/support
- Evaluation samples of any Microchip device: www.microchip.com/sample
• Knowledge base and peer help: www.microchip.com/forums
• Sales and Global Distribution: www.microchip.com/sales

Training

If additional training interests you, Microchip offers several resources including in-depth technical training and reference material, self-paced tutorials and significant online resources.

• Overview of Technical Training Resources: www.microchip.com/training
• MASTERs Conferences: www.microchip.com/masters
• Developer Help Website: www.microchip.com/developerhelp
• Technical Training Centers: www.microchip.com/seminars

Sales Office Listing

AMERICAS

Atlanta, GA Tel: 678-957-9614

Austin, TX Tel: 512-257-3370

Boston, MA Tel: 774-760-0087

Chandler, AZ (HQ) Tel: 480-792-7200

Chicago, IL Tel: 630-285-0071

Dallas, TX Tel: 972-818-7423

Detroit, MI Tel: 248-848-4000

Houston, TX Tel: 281-894-5983

Indianapolis, IN Tel: 317-773-8323 Tel: 317-536-2380

Los Angeles, CA Tel: 949-462-9523 Tel: 951-273-7800

Raleigh, NC Tel: 919-844-7510

New York, NY Tel: 631-435-6000

San Jose, CA Tel: 408-735-9110 Tel: 408-436-4270

Canada - Toronto Tel: 905-695-1980

EUROPE

Austria - Wels Tel: 43-7242-2244-39

Denmark - Copenhagen Tel: 45-4485-5910

Finland - Espoo Tel: 358-9-4520-820

France - Paris Tel: 33-1-69-53-63-20

Germany - Garching Tel: 49-8931-9700

Germany - Haan Tel: 49-2129-3766-400 Germany - Heilbronn

Tel: 49-7131-67-3636

Germany - Karlsruhe Tel: 49-721-62537-0

Germany - Munich Tel: 49-89-627-144-0

Germany - Rosenheim Tel: 49-8031-354-560

EUROPE

Israel - Ra'anana Tel: 972-9-744-7705

Italy - Milan Tel: 39-0331-742611

Italy - Padova Tel: 39-049-7625286

Netherlands - Drunen Tel: 31-416-690399

Norway - Trondheim Tel: 47-7289-7561

Poland - Warsaw Tel: 48-22-3325737

Romania - Bucharest Tel: 40-21-407-87-50

Spain - Madrid Tel: 34-91-708-08-90

Sweden - Gothenberg Tel: 46-31-704-60-40

Sweden - Stockholm Tel: 46-8-5090-4654

UK - Wokingham Tel: 44-118-921-5800

ASIA/PACIFIC

Australia - Sydney Tel: 61-2-9868-6733

China - Beijing Tel: 86-10-8569-7000

China - Chengdu Tel: 86-28-8665-5511

China - Chongqing Tel: 86-23-8980-9588

China - Dongguan Tel: 86-769-8702-9880

China - Guangzhou Tel: 86-20-8755-8029

China - Hangzhou Tel: 86-571-8792-8115

China - Hong Kong SAR Tel: 852-2943-5100

China - Nanjing Tel: 86-25-8473-2460

China - Qingdao Tel: 86-532-8502-7355

China - Shanghai Tel: 86-21-3326-8000

China - Shenyang Tel: 86-24-2334-2829

China - Shenzhen Tel: 86-755-8864-2200

China - Suzhou Tel: 86-186-6233-1526

China - Wuhan Tel: 86-27-5980-5300

China - Xiamen Tel: 86-592-2388138

China - Xian Tel: 86-29-8833-7252

ASIA/PACIFIC

China - Zhuhai Tel: 86-756-321-0040

India - Bangalore Tel: 91-80-3090-4444

India - New Delhi Tel: 91-11-4160-8631

India - Pune Tel: 91-20-4121-0141

Japan - Osaka Tel: 81-6-6152-7160

Japan - Tokyo Tel: 81-3-6880-3770

Korea - Daegu Tel: 82-53-744-4301

Korea - Seoul Tel: 82-2-554-7200

Malaysia - Kuala Lumpur Tel: 60-3-7651-7906

Malaysia - Penang Tel: 60-4-227-8870

Philippines - Manila Tel: 63-2-634-9065

Singapore Tel: 65-6334-8870

Taiwan - Hsin Chu Tel: 886-3-577-8366

Taiwan - Kaohsiung Tel: 886-7-213-7830

Taiwan - Taipei Tel: 886-2-2508-8600

Thailand - Bangkok Tel: 66-2-694-1351

Vietnam - Ho Chi Minh Tel: 84-28-5448-2100

2/27/20

Microchip MCP3423 - ASIA/PACIFIC - 1

MICROCHIP

www.microchip.com

Microchip Technology Inc. | 2355 W. Chandler Blvd. | Chandler AZ, 85224-6199

The Microchip name and logo, the Microchip logo, Hyper Speed Control, HyperLight Load and PIC are registered trademarks and WiperLock is a trademark of Microchip Technology Incorporated in the U.S.A. and other countries. USB Type-C and USB-C are trademarks of the USB Implementers Forum. All other trademarks mentioned herein are property of their respective companies. © 2020, Microchip Technology Incorporated. All Rights Reserved. 10/20 DS20001060AX

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Microchip

Model : MCP3423

Category : Electronic Components
