USER MANUAL NVR-VMM40-A NEVIR

Front view of a metallic multi-panel electric fan with visible blades and mounting base (no text or symbols)

220-240V-50Hz

ES

Close-up of a metallic desktop fan with visible blades and mounting base (no text or symbols)

230V-50Hz

EN

REMARKS: ELECTRICAL CONNECTIONS SHALL BE IN ACCORDANCE WITH NATIONAL OR LOCAL CODES. READ AND SAVE THIS INSTRUCTION MANUAL

Sleek & modern high-velocity fan provides more powerful wind than ordinary plastic fans. Draws air off the floor and circulate through the entire room keeping room cool and breezy. Put near the windows and it helps exhaust hot indoor stuffy air and pulls in fresh outdoor air.

• Energy-saving, high velocity motor for maximum air circulaon
• Tilt-adjustment for exible use
• Triple speed selecon
• Precision fan blades for powerful wind but low-noise

- Chrome-stand, solid construcon with thermal-protecon to prevent motor overheat.

INSTRUCTION FOR INSTALLING

WARNING: IF THE SUPPLY CORD IS DAMAGED, MUST BE REPLACED BY THE MANUFACTURER OR ITS SERVICE AGENT OR SIMILAR QUALIFIED PERSON IN ORDER TO AVOID THE HAZARD. BE SURE TO SHUT OFF ELECTRIC SUPPLY AT MAIN SWITCH OR CIRCUIT BREAKER BEFORE INSTALLATION.

THE IMPORTANT SAFEGUARDS AND INSTRUCTION APPEARING IN THIS MANUAL ARE NOT MEANT TO COVER ALL POSSIBLE CONDITIONS AND SITUATION THAT MAY OCCUR. IT MUST BE UNDERSTOOD THAT COMMON SENSE, CAUTION AND CARE ARE FACTORS WHICH CANNOT BE BUILT INTO ANY PROCDUCT. THESE FACTORS MUST BE SUPPLIED BY THE PERSON(S) CARING FOR AND OPERATING THE UNIT.

NO RESPONSIBILITY WILL BE ACCEPTED FOR ANY DAMAGE WHICH MAY OCCUR DURING TRANSPORT OR BY IMPROPER INSTALLATION OR VOLTAGE FLUCTUATION OR IF ANY PORTION OF THE PRODCT HAS BEEN ALTERED OR MODIFIED.

Safety Instrucons:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instrucon concerning use of the appliance in a safe way and understand the hazards involved.
2. Cleaning and user maintenance shall not be made by children without supervision.
3. Children should be supervised to ensure that they do not play with the appliance.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. Improper installaon may result in the risk of re, electric shock, or injury to persons.
6. To present risk of re and electric shock, do not use the unit near windows.
7. The fan should be placed on a at and stable surface when operang to avoid overturning.
8. The fan should not be placed in a damp place or where humidity is high (such as in a bathroom).
9. Ensure that the fan is switched o from the supply mains before removing the guard.

ASSEMBLY

1. Install both the interior pipe (11) and Exterior Pipe (13) with the base (14), the weight unit (15), lock them by hightening the locking plate(16) and locking screw (17) together.
2. Put the motor unit (6) onto the interior pipe (11), hightening the xing screw (10).
3. Install the rear guard, then lock it by turning the rear guard Nut (4) clockwise.
4. Insert the blade(2) into the motor sha, x it by ghtening the screw (3)
5. Put the front guard (1) and rear guard(5) together, x them with xing buckles and safety screw sets provided.

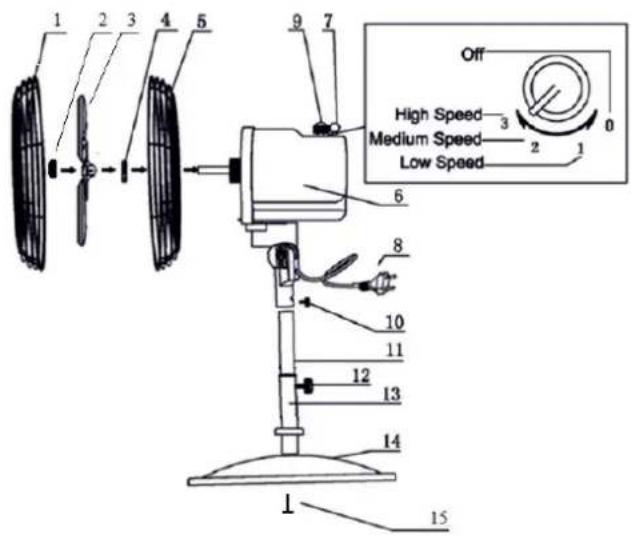

Explode view

1. Front Guard
2. Blade Fixing Nut
3. Blade
4. Rear Guard Nut
5. Rear Guard
6. Motor Unit
7. Oscillaon Switch
8. Power Cord
9. Speed Control
10. Fixing Screw
11. Interior Pipe
12. Pipe xing screw
13. Exterior Pipe
14. Base
15. Locking Screw

1 2 3 4 5 9 7 Off High Speed 3 Medium Speed 2 Low Speed 1 6 8 10 11 12 13 14 1 15

Operang Instrucons:

a) Ensure voltage used corresponds with the voltage indicated.
b) Turn the speed control to selected speeds: 0(o) and speeds1, 2, 3 is Slow, Middle, Fast.
c) Tiling angles-By pushing the lt-guard, you can adjust the fan to any elevaon preferred.
d) Never touch the blades with hand or any object!
e) Do not pull the cord too hard. If damaged aer pro-long use, get it repaired by any electrical repairman.

f) To clean: Disconnect the power cord from the mains. Remove the guard and the blades carefully. Do not drop the blades! First use so cloth with light soap to clean o oil stains. Then wipe and polish with dry cloth. Never use polish or any corrosive liquid that will damage the paint, metal or plasc! Put back the blades and lock the guard securely before use.

NO exchange will be entertained if the above instrucons are not followed. Always Test the product rst before purchase.

Correct Disposal of this product

The European Directive 2002/96 /EC on Waste Electrical and Electronic Equipment (WEEE) required that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the material they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product remind you of your

obligaons that when you dispose of the appliance, it must be separately collected.

Besides that, waste baeries and/or accumulator must be removed prior to delivery of WEEE, thought the separated collecon channels provided for this purpose (distributors and/or facilities from Local Authorities).

Low Voltage Directive 2006/95/EC

EMC Directive 2004/108/EC
