USER MANUAL AMP-ER2TR62 OWI

Speaker Combination Models

AMP-ER2TR61 / AMP-ER2TR62 / AMP-ER2TR64

AMP-ER2TR61SVC / AMP-ER2TR62SVC / AMP-ER2TR64SVC

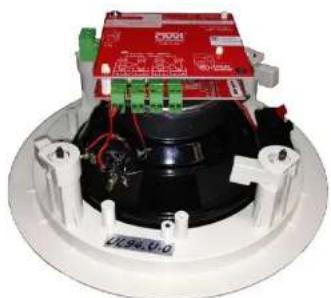

Interior view of a device with red circuit board and black speaker base (no visible text or symbols)

MULTI VOICE COIL WITH ER PAGING OVERRIDE

OWI User Manual: Model AMP-ER2TR6

PROPRIETARY NOTICE

The OWI Inc. product information and design disclosed herein were originated by and are the property of OWI Inc. OWI Inc. reserves all patent, proprietary design, manufacturing, reproduction, use and sales rights thereto, and to any article disclosed therein, except to the extent right(s) are expressly granted to others.

COPYRIGHT NOTICE

This manual is Copyright 2014 by OWI Inc. All rights reserved. Reproduction in whole or in part without written prior permission from OWI, Inc. is prohibited.

UNPACKING AND INSPECTION NOTICE

Immediately upon receipt of the equipment, inspect the shipping container and the contents carefully for any discrepancies or damage. Should there be any, notify the freight company and OWI, Inc. or the dealer where purchased at once.

LIMITED WARRANTY

1. This product has been thoroughly tested and inspected at the factory. It is warranted for one year from the date of purchase.
   IT IS THE OWNERS' RESPONSIBILITY TO ESTABLISH THE DATE OF PURCHASE BY ACCEPTABLE EVIDENCE AT TIME SERVICE IS SOUGHT.
2. Any unit, which in the judgment of OWI INC, is defective or develops defects under normal use will be replaced or repaired without cost within the warranty period.
3. This warranty will be considered void if the unit is dropped, misused, abused and altered in any manner, overdriven with excess amplification exceeding manufacturer's specification, improperly serviced or accidentally damaged.
4. OWI Inc. shall have no liability whatsoever for consequential damages. The sole responsibility at the discretion of OWI Inc. under this warranty shall be limited to the repair of the product or replacement thereof. Any and all implied warranties including the implied warranty of merchantability are limited to the duration of this express limited warranty.
   OWI, Inc. is NOT liable for incidental or consequential damages of any kind.
5. IMPORTANT: This warranty is void unless the attached card is completed and mailed to OWI Inc. within 10 days following the date of purchase. Units must be sent to OWI Inc. or to the dealer where purchased.

RETURN SHIPPING INSTRUCTIONS, Obtain a RETURN AUTHORIZATION from: OWI Inc., 17141 Kingsview Ave, Carson, CA 90746.

Table of Contents

Description	Page
Proprietary, Copyright Notices	2
Unpacking and Inspection	2
Warranty Information	2
Return Shipping Instructions	2
Table of Contents	3
Important Safety Instructions	4 - 5
Introduction	6
Specifications	7 – 9
Illustration: Connection and Control	10
Chained Self Amplified Speakers Wiring	11
One, Two, Four Speaker Combination Wiring	12
Input Connectors Wiring	13
Volume Control Wiring Diagram	14
Installation	15 – 18
Warranty	19
Back Cover	20

OWI User Manual: Model AMP-ER2TR6

IMPORTANT SAFETY INSTRUCTIONS

CAUTION

RISK OF ELECTRIC SHOCK - DO NOT OPEN

NOTE: Installation is to be completed by a qualified electrical technician according to NEC/CEC code and applicable local codes.

CAUTION: The power supply is not to be used in air handling spaces.

CAUTION: To reduce the risk of electric shock: Do not remove the cover or back: No user-serviceable parts inside: refer servicing to qualified personnel.

The lighting flash with arrowhead within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions. All the safety and operation instructions should be read before this OWI product is operated.
2. Keep these instructions - The safety and operating instructions should be kept for future reference.
3. Heed all warnings - All warnings on this product and in these operating instructions should be

OWI User Manual: Model AMP-ER2TR6

1. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
2. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit the apparatus.
3. Only use attachment/accessories specified by the manufacturers.

Portable Cart Warning

1. Use only with the cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart'apparatus combination to avoid injury from tip-over.
2. Unplug this apparatus during lightning storms or when unused for long periods of time.
3. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. The user should not attempt to service this OWI product beyond those means described in this operating manual. All other servicing should be referred to the OWI Service Department.
4. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
5. To prevent electric shock, do not use this polarized plug with an extension cord, receptacle or other outlet unless the blades can fully be inserted to prevent blade exposure.
6. Exposure to extremely high noise levels may cause permanent hearing loss. Individuals varv

OWI User Manual: Model AMP-ER2TR6

Introduction

The OWI AMP-ER2TR6 is a multi voice coil, self powered speaker/amplifier. It is a two source/input speaker with ER paging override. This unit can drive up to four speakers connected series parallel to have a net impedance of 8 ohms. With an included UL Listed, Level 5 (Energy Star), 15 volt, 3.5 ampere power supply, the amplifier can output 40 watts, or 10 watts per speaker in a four speaker hook-up.

THE INNOVATION OF MIXING MULTIPLE SPEAKERS INTO ONE MULTI VOICE COIL® AMPLIFIED SPEAKERS 1 2 • AMPLIFIED COIL® LOCAL SOURCE AMPLIFIED COLD WITH FINE SINIC PEELED EFFECTIVE BEARING REDUCE • ELDUCED CE CHARGED ACN HEATY • AT MULTI-TOILE COLD WITH THIN TWEELER ZENION RASSO ENGLISH SPA UP DOWN SPAREER "TRAVEL PLANNING"

Special features of the OWI Model AMP-ER2TR6 include:

Tweeter 1

Amplified speaker

Local Source

OWI User Manual: Model AMP-ER2TR6

Energy Star Sleep Mode

If no audio is present on any input of the power amplifier, the amplifier goes into a low power "shutdown, or sleep mode" within 30 minutes. During sleep mode, power consumption of the power supply and the amplifier is less than one (1) watt.

Two (2) audio inputs: Line In and Jack Line In

The LINE IN inputs accepts a balanced input via a Phoenix style screw terminal plug. The JACK LINE IN accepts unbalanced input via 3.5 mini jack. The mini jack accept stereo inputs. The stereo channels are summed together. This input is muted during Priority Override.

Priority Override Feature

The Priority input accepts balanced input levels of resistor selected 100 volts audio, 70 volts audio, 25 volts audio and 1 volt (approximately line level) audio. Audio on the Priority input suspends audio on the Line In and Jack Line In inputs and switches the speaker amplifier to pass the Priority audio. After the Priority audio stops, the unit waits before returning to the Line In and Jack Line In audio input.

Balanced Line Level Output

A nominal 0dB level, balanced output is available at LINE OUT. The source of this output is both balanced and Jack Line In sources.

Power Amplifier Features

The power amplifier outputs 2 times 20 watts or 40 watts total into 8 ohms and 15VDC power. The class D power amplifier has reduced radiated electromagnetic interference (EMI) due to a special feature of the power amplifier, operating in a patented spread spectrum. The power amplifier protects itself from over-temperature, over-current, over-voltage conditions. The power amplifier will shut itself down during these conditions.

OWI User Manual: Model AMP-ER2TR6

SPECIFICATIONS (MODEL AMP-ER2TR6)

Mechanical "UL rating is dependent upon use of the Backcan and Tile Bridge"

	AMP-ER2TR6
Speaker Diameter	6.5 inches
Weight of Amplifier/Speaker Assembly	3.15 pounds
Height of Amplifier/Speaker Assembly	4.5 inches
Backcan "Suitable for use in air handling spaces"	UL Listed Enclosure
Tile Bridge "Suitable for use in air handling spaces"	UL Listed Support Truss

ELECTRICAL AMPLIFIER
	AMP-ER2TR6
Input voltage, nominal	(25 watts) 15 volts DC
Input current, operating (15VDC)	1.667 amperes peak
Input volt-amperes, peak (15VDC)	25 volt-amperes
Input voltage, maximum	16.5 volts, DC
Frequency Response,
EQ set to flat	50Hz to 15 kHz
Bass	±10dB@50Hz
Treble	±10dB@10kHz
THD + Noise	<1% at 15 watts, "A" weighted
S/N	>90 dB
Max Power Output (28V in)	2 times 20 watts or a total of 40 watts
DC Power, Standby	1.5 watts
AC Power, Sleep Mode (Energy Star)	less than 1 watt

OWI User Manual: Model AMP-ER2TR6

POWER SUPPLY

PS15VDC35AL5	SPECIFICATIONS
Input	100 to 240 VAC, 50-60 Hz, 1.4ANote: Be sure to use the correct polarity on the power input.
Output	15 VDC, 3.5 amperes
Wire gauge and length	Minimum 18 gauge up to 40 feet maximum length
Electrical, Power Supply	UL Listed, Level 5 (Energy Star)
Weight	0.45 pounds
Size	4.7"H x 2"W x 1.2"D

CAUTION: The Power Supply is not to be used in air handling spaces.

*Note: Maximum power requires the replacement of the 15 volt supply with a 22 volt supply and Energy Star and UL approvals no longer apply.

Power Supply Wire Gauge and Length - Minimum 18 gauge up to 40 feet maximum length

Grounding wire (Included)

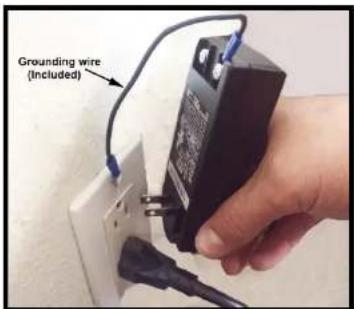

PS15VDC35AL5 Grounding Illustration

NON-AMPLIFIED SPEAKER
	IC6DVC
DESCRIPTION:	6.5" multi voice coil woofer, dual tweeters, stereo ready
COVERED OUTDOOR:	Yes
IMPEDANCE:	8 ohms
SENSITIVITY (1W/1M):	86dB

OWI User Manual: Model AMP-ER2TR6

Illustration: Connection and Control

AMP-ER2TR6 Line Out to other Amp 3.5 Mini Line In Master Level POP / Line In Volume Priority Input/ Line In ALL SOURCE MIXED PRIORITY ENTERPRISE ON Power 15V DC Power Enable Jumper AMP-E2DC5 OLK ON SPLAKES TWO WIRING SPEAKER CONNECTIONS Energy Verted Speaker Hook ups Optional Bluetooth

AMP-ER2TR6 With 2570TR transformer

OWI User Manual: Model AMP-ER2TR6

AMP-ER2TR6 TO ANOTHER AMP-ER2TR6 SPEAKER WIRING SINGLE LINE DIAGRAM

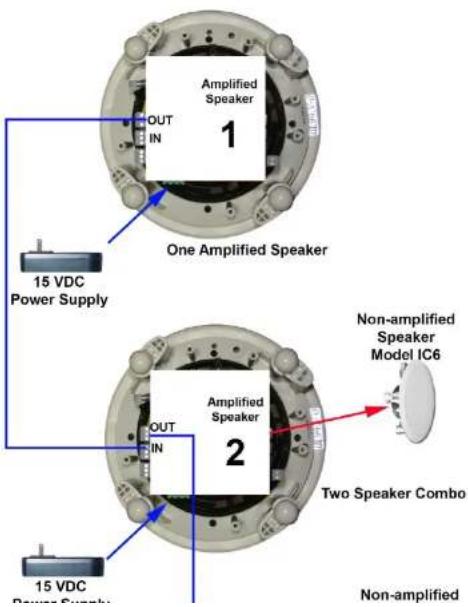

Chained Self Amplified Speakers Wiring

To add more Amplified Speakers, connect the output of the Amplified Speakers to the input of the next Amplified Speaker

Amplified Speaker 1 OUT IN One Amplified Speaker 15 VDC Power Supply Amplified Speaker 2 OUT IN Non-amplified Speaker Model IC6 Two Speaker Combo 15 VDC Power Supply Non-amplified

OWI User Manual: Model AMP-ER2TR6

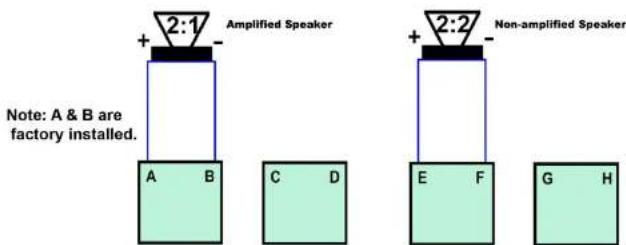

AMPLIFIED SPEAKER TO NON-AMPLIFIED SPEAKER HOOK UPS

1 Amplified Speaker Note: A & B are factory installed. A B C D E F G H

ONE (1) SPEAKER HOOK UP

2:1 Amplified Speaker + - Note: A & B are factory installed. A B C D E F G H + 2:2 Non-amplified Speaker

TWO (2) SPEAKER HOOK UP

Amplified Speaker

Three Non-amplified Speakers

OWI User Manual: Model AMP-ER2TR6

INPUT CONNECTORS WIRING

Note: Jack Line In is the same as STEREO LINE IN, immediately below.

STEREO LINE IN LEFT RIGHT GROUND/COMMON 1/8" MINI-PHONE PLUG TP RING SLEEVE MICROPHONE IN HIGH LOW SHIELD 1/8" MINI-PHONE PLUG TP RING SLEEVE BALANCED MICROPHONE IN/ BALANCED MONO LINE IN HI LOW SHIELD TERMINAL BLOCK PRIORITY IN 3 + 2 - 1 BALANCED MONO LINE IN HI LOW SHIELD TERMINAL BLOCK LINE IN 1 3 + 2 - 1 PLUG into Jack Line In, a 1/8" mini-jack. The amplifier converts the stereo signal to mono. Jack Line In, a 1/8" mini-jack

OWI User Manual: Model AMP-ER2TR6

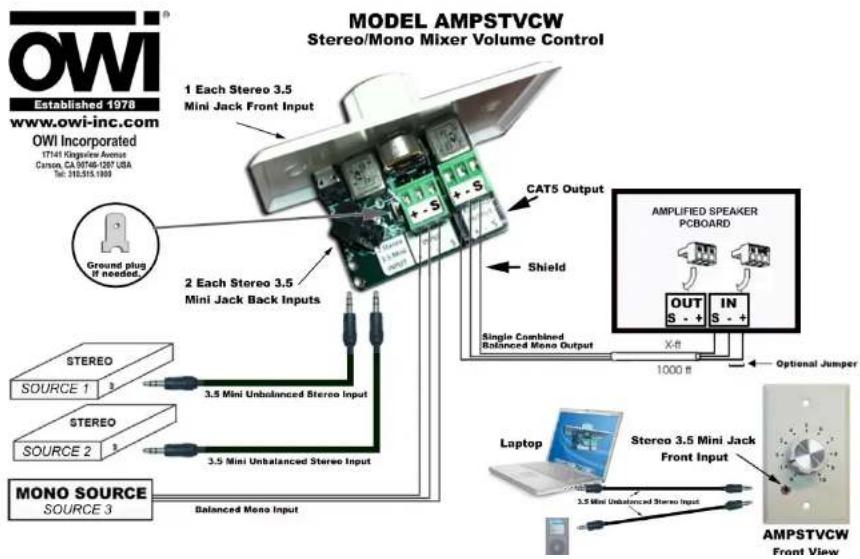

VOLUME CONTROL WIRING DIAGRAM

MODEL AMPSTVCW Stereo/Mono Mixer Volume Control Established 1978 www.owi-inc.com OWI Incorporated 17/41 Knowledge Avenue Cusson, CA 90746-1267 USA Tel: [phone] Ground plug it needed. 1 Each Stereo 3.5 Mini Jack Front Input 2 Each Stereo 3.5 Mini Jack Back Inputs CAT5 Output Shield Single Combined Balanced Mono Output AMPLIFIED SPEAKER PCBOARD OUT S - + IN S - + X-ft 1000 ft Optional Jumper STEREO SOURCE 1 3.5 Mini Unbalanced Stereo Input STEREO SOURCE 2 3.5 Mini Unbalanced Stereo Input MONO SOURCE SOURCE 3 Balanced Mono Input Laptop Stereo 3.5 Mini Jack Front Input 3.5 Mini Unbalanced Stereo Input AMPSTVCW Front View

OWI User Manual: Model AMP-ER2TR6

INSTALLATION

NOTE: Installation is to be completed by a qualified electrical technician according to NEC/CEC code and applicable local codes.

Installation Instructions for Speaker Combination Model AMP-ER2TR6

The AMP-ER2TR6 carton includes:

1. One (1) each AMP-ER2TR6 (In-ceiling 2 Source Amplified Speaker)
2. One (1) each UL Listed, Level 5 (Energy Star) Power Supply (electrical wire not included)
3. Four (4) each Mounting screws
4. One (1) each cardboard mounting template
5. One (1) each User Manual

The AMP-ER2TR6 Combination carton includes items 1 to 5 above plus the following:

1. UL Listed 8 ohms in-ceiling speaker model IC6
2. UL Listed Backcan Enclosure (See Pages 17 & 18)
3. UL Listed Tile Bridge (See Pages 17 & 18)
   *Note: Quantity of Ceiling speakers, tile bridge and backcan depends on the SKU of the AMP-ER2TR6 Combination Program.

Speaker Placement

Before installing your OWI speakers, consider the placement carefully, taking into effect the location of electrical, plumbing and other fixtures.

Placement in Ceiling

OWI speakers should be located above the primary listening area.

Mounting your OWI speakers

Determine the best area to mount your OWI speakers. It will be necessary to run your speaker wires to that location. This location must be free of obstructions, such as electrical conduits, HVAC ducts, or water lines.

Be sure the mounting surface is between 3/8 and 1 ¼ inches thick and that there is at least a 3 inch clearance behind the mounting surface (5 inch if using an OWI backcan). Make sure that no objects block the back of the

OWI User Manual: Model AMP-ER2TR6

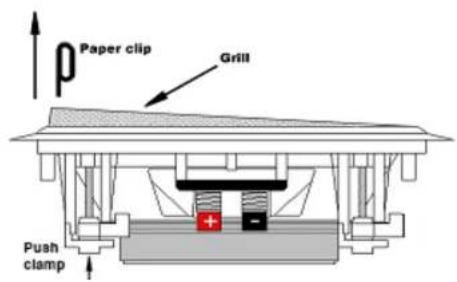

Prepare Your OWI Speakers for Mounting

Insert a paper clip into one of the grille openings, then pull upwards to remove the grille.

Turn the mounting tab 90 ^a and push toward the grill. The grill will safely pop off.

Paper clip Grill Push clamp

Mounting tab

OWI User Manual: Model AMP-ER2TR6

The Quick and Easy Way to Install the OWI TB (Tile Bridge) and the

Backcan Enclosure with a 6-1/2" or 5-1/4" OWI In-Ceiling Speaker.

1. Position the enclosure over the speaker hole and align it with the screw holes in the tile bridge. Insert and tighten 4 screws through the enclosure into the holes on top of the tile bridge.

speaker holes in n

1. Insert and tighten four screws to attach the tile bridge to the beam.

Simple line drawing of a rectangular container with an oval opening and a lid, no text or symbols present.

1. After hole is cut in the ceiling, connect the wires and install the speaker by tightening the screws of the four clamps.

Illustration of a hand holding a circular component inserted into a pipe or channel, with no visible text or symbols.

Back Can Enclosure TILE BRIDGE TB CEILING SPEAKER ASSEMBLY

OWI INCORPORATED 17141 Kingsview Avenue, Carson, CA 90746-1207 USA Tel: [phone] Fax: [phone] Email: [e-mail] Website: www.owl-inc.com

The Quick and Easy Way to Install the OWI TB (Tile Bridge) and the Backcan Enclosure with a 6-1/2" or 5-1/4" OWI In-Ceiling Speaker. The TB will work on a 2' X 4', 2' X 2' lay-in type ceilings.

1. Use one tile bridge (TB) as a template to make cut outs for all the ceiling tiles.

1. To save time, cut 2 ceiling tiles at the same time. Lay the ceiling tile face to face.

Isometric view of a rectangular block with three horizontal layers (no text or symbols)

1. After finding the center of the ceiling tile, position the tile bridge template across the tile.

Isometric illustration of a rectangular plate with a central hole and two adjacent square compartments (no text or symbols)

1. Draw a circle using the speaker hole of the template (tile bridge).

Illustration of a hand using a pen to write on a circular object on a flat surface (no text or symbols)

1. Remove the template and saw out the circle (speaker hole). Set ceiling tiles aside.

ate and speaker iles

1. Place one ceiling tile face down on the floor or on top of a table. Position the TB tile bridge across the tile with the speaker holes coinciding with each other.

1. Position the enclosure over the speaker hole and align it with the screw holes in the tile bridge. Insert and tighten 4 screws through the enclosure into the holes on top of the tile bridge through the ceiling tile.

the speaker ew holes ugh the ceiling tile.

1. After connecting the speaker wire, insert the speaker assembly through the hole and tighten the screws of the 4 clamps. The 4 clamps will hold the TB and the ceiling tile together.

ker wire, insert ough TB er.

TEE BAR CEILING ASSEMBLY

Back Can Enclosure TILE BRIDGE TB CEILING TILE SPEAKER ASSEMBLY

OWI User Manual: Model AMP-ER2TR6

(Save this portion for your records)

1. Your OWI Speaker System has been thoroughly tested and inspected at the factory.

It is warranted for 1 year from date of purchase.

IT IS THE OWNERS' RESPONSIBILITY TO ESTABLISH THE DATE OF PURCHASE BY ACCEPTABLE EVIDENCE AT TIME SERVICE IS SOUGHT.

1. WHAT WE WILL PAY FOR AND WHAT YOU MUST PAY FOR:

OWI INC. will repair or replace unit(s) covered by this warranty, without charge to the consumer for labor or materials. YOU ARE RESPONSIBLE FOR ANY INSTALLATION OR REMOVAL CHARGES AND FOR ANY INITIAL SHIPPING CHARGES if the unit(s) must be shipped for warranty service. However, we will pay the return shipping charges to any destination within the U.S.A. if the repairs are covered by the warranty.

1. Any unit which in the judgment of OWI Inc. is defective or develops defects under normal use will be replaced or repaired without cost within the warranty period.

2. This warranty will be considered void if unit has been dropped, misused, abused, altered in any manner, overdriven with excessive amplification exceeding manufacturer's specification, improperly serviced or accidental damage.

3. OWI Inc. shall have no liability whatsoever for consequential damage. The sole responsibility and discretion of OWI Inc. under this warranty shall be limited to the repair of the product or replacement thereof.

4. IMPORTANT: This warranty is void unless the attached card is completed and mailed to OWI Inc. within 10 days following the date of purchase. Units must be sent to OWI Inc. or to the dealer where purchased.

OWI INCORPORATED

17141 Kingsview Ave

Carson, CA 90746-1207 USA

Date Purchased:

Model Number:

Serial Number:

The Ground Truth image displays a single, solid horizontal line, which is a stylistic or background element (like a rule line on paper). According to Rule 2, such lines must be ignored by the OCR result. The provided OCR content is "____", which consists of underscores. Underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. Outputting underscores for a stylistic line is incorrect because it misinterprets the line as a placeholder fill-in-the-blank area. Since the OCR output incorrectly rendered a stylistic line as underscores (which should be ignored), this violates the rule. Therefore, the OCR result is inconsistent with the Ground Truth.

The Ground Truth image displays a single, solid horizontal line, which is a stylistic or background element (like a ruled paper line or separator), not a placeholder for text. According to Rule 2, such stylistic/background lines must be ignored by the OCR result. The OCR content provided is "", which consists of no characters. This correctly represents the absence of any textual content in the GT and correctly ignores it as a hallucinistic visual element. Therefore, the OCR output should have been empty or omitted this line entirely.

(Keep this part for your record)

CUT AND MAIL

OWI INCORPORATED

17141 Kingsview Ave

Carson, CA 90746-1207 USA

LIMITED WARRANTY

Model Number:

Model Name:

Serial No.

Date of Purchase: Month: ____ Day ____ Year ____

Owner's Name:

Address:

City: ____ State ____ Zip ____

Dealer's Name: ____ City ____ State ____

Purchased from (please check one):

Video ____, Electronic ____, Mailorder ____, Mass Merchandiser ____, Installer ____

Others (please specify)

Remarks:

OWI User Manual: Model AMP-ER2TR6

OWI®

OWI Incorporated

Established 1978

OWI Incorporated

17141Kingsview Ave. Carson CA 90746-1207 USA

Tel. [phone] Fax [phone]

www.owi-inc.com
