USER MANUAL SPX-SRL9-RM Sun Joe

A Division of Snow Joe ^13 , LLC

PRESSURE WASHER SKY LANCE

9 FT UNIVERSAL | 120° GUTTER ADAPTER | 30° ANGLED ADAPTER

Model SPX-SRL9-RM Form No. SJ-SPX-SRL9-RM-880E-M-V1

THANKS FOR YOUR PURCHASE OF A REMANUFACTURED PRODUCT.

To make sure you get the most out of your product, be sure to register online at

sunjoe.com

to enjoy full product support.

OPERATOR'S MANUAL

A Division of Snow Joe ^13 , LLC

PRESSURE WASHER SKY LANCE

9 FT UNIVERSAL | 120° GUTTER ADAPTER | 30° ANGLED ADAPTER

Model SPX-SRL9-RM Form No. SJ-SPX-SRL9-RM-880E-M-V1

IMPORTANT!

Safety Instructions

All Users Must Read These Instructions Before Use

To reduce the risk of injury, the user must read and understand this operator's manual as well as the operator's manual for their pressure washer before using this product. Failure to follow all warnings and precautions may result in death, serious personal injury, or property damage.

1. A nozzle tip must be used with this pressure washer sky lance. You may use the one included or any other standard pressure washer tip.
2. Keep at least 50 feet away from power lines. Do not touch or aim spray at electrical wiring of any kind.
3. Do not operate the sky lance, change nozzles or accessories while spraying or while the wand is under pressure. Turn off the pressure washer, shut off the water supply, point the nozzle in a safe direction, and pull the trigger to release water pressure before making any changes.
4. Do not use the sky lance while on a ladder or scaffolding.
5. When using the sky lance, make sure the high pressure hose is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress. Keep the hose clear of the working area.

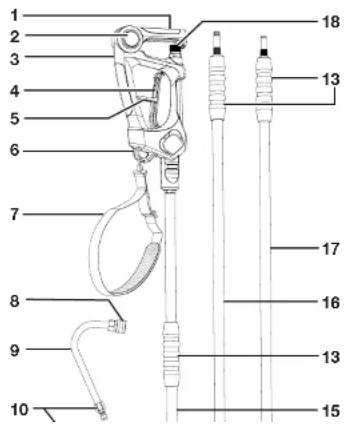

Know Your Sky Lance

Read the owner's manual and safety rules carefully before operating the sky lance. Compare the illustration below to the unit in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.

Labeled diagram of a medical or laboratory device with numbered parts for identification

Technical Data

Connections M22 15 mm Male Inlet

Quick-Connect Outlet

Threaded Accessory Port

Compatible Pressure ...... 1800 PSI – 4000 PSI

Max Water Flow 6 GPM

Max Water Temperature ..... 140°F (60°C)

Shoulder Strap Length ...... 6.2 ft (1.9 m)

Length Partially Connected: 6 ft. (1.8 m)

Fully Connected: 9 ft. (2.7 m)

Top Extension Lance .... 35.4 in (90 cm)

Middle Extension Lance ..... 34.4 in (87.5 cm)

End Extension Lance .... 38.4 in (97.5 cm)

Adapter M22 15 mm connection to

M22 14 mm connection

Net Weight 6.4 lbs (2.9 kg)

Unpacking

Carton Contents

• Trigger gun with top extension lance
• Shoulder strap
• 120^ gutter adapter
• 30^ angled adapter
• 25° Quick-Connect nozzle tip
  • Middle extension lance
• End extension lance
• Hose adapter

• Manual + registration card

• Carefully remove the sky lance and check to see that all of

Assembly

Connect the Lance

The sky lance can be used when partially connected or fully connected. Follow the instruction below to connect the extension lances.

1. The sky lance can be partially connected using only the top and the end extension lance. Insert the threaded end of the end extension lance into the opening of the top extension lance, and twist to secure (Fig. 1). A partially connected sky lance will provide a total of 6 ft (1.8 m) extension.

Fig. 1 Trigger gun Top extension lance End extension lance

1. To fully connect the sky lance, insert the threaded end of the middle extension lance into the opening of the top extension lance and twist to secure (Fig. 2). Then connect the end extension lance to the middle extension lance and twist to secure (Fig. 3).

Fig. 2

WARNING! Connect the lance only as much as necessary for the cleaning job. Remain in full control of the telescoping pole at all times. Loss of control of the sky lance could result in possible serious personal injury.

Connect the Nozzles/Adapters

NOTE: We've included one Quick-Connect nozzle to get you started but use any of your favorite Quick-Connect nozzle tips.

The end extension lance is featured with a standard Quick-Connect collar that can be connected with nozzles and adapters. Follow the instructions below to use compatible nozzles or adapters.

Snap the desired nozzle onto the Quick-Connect collar until it clicks into place (Fig. 4).

End extension lance "Click" Quick-Connect collar Nozzle Tip Fig. 4

WARNING! Do not make changes to the nozzle while the trigger is engaged. Doing so could result in damage to the pressure washer or injury to the user.

The Quick-Connect collar can only be connected with nozzles or adapters that are also equipped with the standard Quick-Connect Tip, such as Sun Joe ^® Quick-Connect Spray Tip Set (SPX3000-TPS). Visit sunjoe.com or contact the Snow Joe ^® + Sun Joe ^® customer service center at 1-866-SNOWJOE (1-866-766-9563) to purchase this spray tip set.

1. To tighten the shoulder strap, pull down on the loose end of the strap.

Connect with Pressure Washer

1. Shut off the pressure washer and the water supply.
2. Engage the safety lock on the trigger gun by pushing up on the safety lock until it clicks into the slot (Fig. 6).

Fig. 6 Slot Safety lock

1. Press the hose handle rest lock button, and rotate the hose handle rest to expose the high-pressure hose connection (Fig. 7).

Fig. 7 Hose handle rest lock button Hose handle rest

NOTE: The hose handle rest is used to protect the hose and the connection when the sky lance is not in use. When leaning the sky lance against a wall during breaks, stand the sky lance on the hose handle rest so the hose will not become bent (Fig. 8).

NOTE: To connect with a M22 14 mm pressure hose, first attach the included hose adapter to the high-pressure hose connection, then thread the pressure hose on the adapter, as shown (Fig. 10).

Fig. 9 High-pressure hose High-pressure hose connection

Fig. 10 High-pressure hose Hose adapter High-pressure hose connection

1. Connect the other end of the pressure hose to the water outlet of the pressure washer. Turn on the water supply and start the pressure washer.

Operation

WARNING! To reduce the risk of electrocution, possible serious personal injury or property damage, spray the pressure stream in a safe direction away from all electrical devices and hysteresis. Focus on appearance of all accessories

General Operation

1. The trigger gun features a safety lock to prevent unintentional use. To lock, push up the safety lock until it clicks into place. To unlock, release the safety lock so it lies in its original position on the trigger (Fig. 11).

NOTE: Always engage the safety lock before moving or adjusting the sky lance.

Fig. 11 Slot Safety lock Trigger

1. Before working on the cleaning project, test the sky lance in an area away from the project. Get a feeling of how the lance will move when the trigger is squeezed. Before starting, make sure the safety lock is down and in its original position (Fig. 11), hold the sky lance on the trigger gun and one soft grip, squeeze the trigger to start (Fig. 12).

NOTE: The gun will kick back when the trigger is squeezed and released. Before starting/releasing the trigger, move the nozzle about 10 feet away from the cleaning surface and stand stably.

Line drawing of a person holding a long object, labeled 'Fig. 12' (no other text or symbols)

Using the Attachments

The sky lance comes with two additional spray attachments: a 30^ angled adapter and a 120^ gutter adapter that can aim at hard-to-reach areas. Both attachments are featured with quick-connect tips that can be snapped directly on the Quick-Connect collar on the end extension lance. Follow the illustration below to assemble the attachments (Fig. 13).

30° angled adapter 120° gutter adapter Fig. 13

NOTE: Other accessories are commercially available that can be used with this sky lance by fitting on the Quick-Connect collar. Follow all manufacturer's instructions for the accessory being installed to assemble and use.

To order accessories for the Sun Joe® SPX-SRL9-RM pressure washer sky lance, please visit sunjoe.com or contact the Snow Joe® + Sun Joe® customer service center at 1-866-SNOWJOE (1-866-766-9563).

Storage

• Examine the sky lance thoroughly for wom, loose or damaged parts. Should you need to repair or replace a part, contact an authorized Snow Joe ^® + Sun Joe ^® dealer or call the Snow Joe ^® + Sun Joe ^® customer service center at 1-866-SNOWJOE (1-866-766-9563) for assistance.
• Store the sky lance indoors in a clean, dry and locked location that cannot be reached by children.

Service + Support

If your Sun Joe ^® SPX-SRL9-RM pressure washer sky lance requires service or maintenance, please call the Snow Joe ^® + Sun Joe ^® customer service center at 1-866-SNOWJOE (1-866-766-9563).

Model + Serial Numbers

When contacting the company, reordering parts, or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the housing of the unit. Copy these numbers into the space provided below.

Record the following numbers from the housing or handle of your new product: Model #: S | P | X | - | S | R | L | 9 | - | R | M | Serial #:

Shutting Down

1. Turn off the pressure washer and disconnect it from power supply.

Optional Accessories

WARNING! ALWAYS use only authorized Snow Joe ^b + Sun Joe ^b replacement parts and accessories. NEVER use replacement parts or accessories that are not intended for use with this pressure washer sky lance. Contact Snow Joe ^b + Sun Joe ^b if you are unsure whether it is safe to use a particular replacement part or accessory with your pressure washer sky lance. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.

		ModelAccess
1	Spray Tip Set(Fits all SPX3000 + SPX6000 + SPX9000 and most SPX4000 series pressure washers)	SPX3000-TPS
2	25 ft Medium-DutyHigh Pressure Extension Hose(For SPX Pressure Washer Series)	SPX-25H
3	Sun Joe® House + Deck All-Purpose Pressure Washer Rated Concentrated CleanerSun Joe® Premium Snow Foam Pressure Washer Rated Car Wash + Cleaner	SPX-HDC1GSPX-FCS1G

SNOW JOE ^30 + SUN JOE ^30 REFURBISHED GOODS WARRANTY

GENERAL CONDITIONS:

Snow Joe ^® + Sun Joe ^® operating under Snow Joe ^® , LLC warrants this refurbished product to the original purchaser for 90 days against defects in material or workmanship when used for normal residential purposes. If a replacement part or product is needed, it will be sent free of charge to the original purchaser except as noted below.

The duration of this warranty applies only if the product is put to personal use around the household. It is the owner's responsibility to correctly perform all maintenance and minor adjustments explained in the owner's manual.

HOW TO OBTAIN YOUR REPLACEMENT PART OR PRODUCT:

To obtain a replacement part or product, please visit snowjoe.com/help or email us at [e-mail] for instructions. Please be sure to register your unit beforehand to speed up this process. Certain products may require a serial number, typically found on the decal affixed to the housing or guard of your product. All products require a valid proof of purchase.

EXCLUSIONS:

- Wearing parts like belts, augers, chains and tines are not covered under this warranty. Wearing parts can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563).

Snow Joe ^9 + Sun Joe ^6 may from time to time change the design of its products. Nothing contained in this warranty shall be construed as obligating Snow Joe ^9 + Sun Joe ^6 to incorporate such design changes into previously manufactured products, nor shall such changes be construed as an admission that previous designs were defective.

This warranty is intended to cover product defects only. Snow Joe ^® , LLC is not liable for indirect, incidental or consequential damages in connection with the use or misuse of the Snow Joe ^® + Sun Joe ^® products covered by this warranty. This warranty does not cover any cost or expense incurred by the purchaser in providing substitute equipment or service during reasonable periods of malfunction or non-use of this product while waiting for a replacement part or unit under this warranty. Some states do not allow exclusions of incidental or consequential damages so the above exclusions may not apply in all states. This warranty may give you specific legal rights in your state.

HOW TO REACH US:

We're here to help Monday through Friday from 9AM to 7PM EST and Saturday and Sunday 9AM to 4PM. You can reach us at 1-866-SNOWJOE (1 866-766-9563), online at snowjoe/com, via email at [e-mail] or tweet us @snowjoe.

EXPORTS:

Customers who have purchased Snow Joe ^® + Sun Joe ^® products exported from the United States and Canada should
