4-in-1 Configurable Multi-sensor IP Camera

360°, 270° and 180° configurable views at real-time 30fps

Close-up of a white circular electronic device with internal components and 'DW' label (no readable text or symbols beyond branding)

MEGApix ^™ Flex ^™ 16MP multi-sensor configurable IP cameras reduce total system cost by providing four 4MP CMOS sensors in one housing and installation. The Flex ^™ camera produces four video streams at real-time 30fps. Zoom-in for forensic-quality details with DW Spectrum ^™ IPvMS.

Flexible sensor positioning with magnets

Users can easily place each of the four sensors independently in any configuration around the camera's magnetic base. Use 360° installation to monitor a hallway intersection or to provide a 270° view at a building corners or in large rooms. A 180° install is perfect to monitor an assembly line.

Hand pouring liquid into a white appliance with black components (no visible text or symbols)

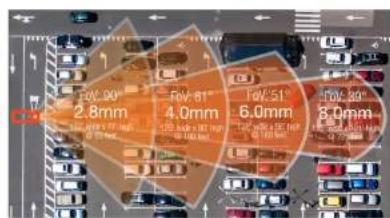

FAW 90° 2.8mm FAW 81° 4.0mm FAW 51° 6.0mm FAW 30° 8.0mm

Customizable lens options

The camera comes as a complete solution including 4x 4mm fixed lenses installed or is fully customizable with camera base unit plus selection of up to 4 sensor/lens modules.

4-in-1 User-Configuration Views

MEGApix Flex™ cameras can be personalized to match any application and any field of view (FoV) from a 180° or 270° panoramic view installation, to a full 360° hemispheric FoV, all with a single camera installation.

360°

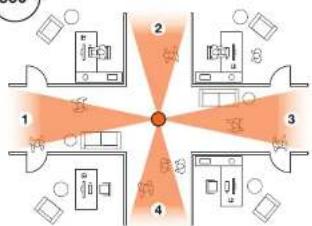

Floor plan diagram with numbered zones and labeled rooms, likely for architectural or industrial planning purposes.

360° Parking Lot Installation

360°

360° Hallway Installation
Sensor's max tilt: 70°

180°

1 2 3 4

180° Assembly Line Installation

270°

Diagram with labeled components and annotations, including numbers 1 to 4 and Chinese characters like '图1' and '图2'

270° Corner Installation
