MEGApix® 2.1MP/1080p low-profile vandal dome IP camera

DWC-MF2Wi4TW / DWC-MPF2Wi4TW

DWC-MF2Wi28TW / DWC-MPF2Wi28TW

Close-up of a white industrial air conditioner unit with 'DW' branding and mechanical components (no readable text beyond label)

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

CAUTION :

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE

PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Warning

This symbol indicates that dangerous

voltage consisting of a risk of electric

shock is present within this unit.

Precaution

This exclamation point symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING

To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain or moisture.

WARNING

1. Be sure to use only the standard adapter that is specified in the specification sheet. Using any other adapter could cause fire, electrical shock, or damage to the product.

2. Incorrectly connecting the power supply or replacing the battery may cause an explosion, fire, electric shock, or damage to the product.

3. Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause excessive heat

Precaution

Operating

- Before using, make sure the power supply and all other parts are properly connected.

- While operating, if any abnormal condition or malfunction is observed, stop using the camera immediately and contact your dealer.

Handling

- Do not disassemble or tamper with parts inside the camera.

- Do not drop the camera or subject it to shock or vibration as this can damage the camera.

- Clean the clear dome cover with extra care. Scratches and dust can ruin the quality of the camera image.

Important Safety Instructions

1. Read these Instructions. - All these safety and operating instructions should be read before the product is installed or operated.

2. Keep these Instructions. - The safety, operating and use instructions should be retained for future reference.

3. Heed all warnings. - All warnings on the product and in the operating instructions should be adhered to.

4. Follow all instructions. - All operating and use instructions should be followed.

5. Do not use this device near water. - For example: near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement; near a swimming pool; etc.

6. Clean only with a dry cloth. - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners.

7. Do not block any ventilation openings. Install following the manufacturer's instructions. - Slots and openings in the cabinet are provided for ventilation, to ensure reliable operation of the product, and to protect it from overheating. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surfaces. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided and the manufacturer's instructions have been adhered to.

8. Do not install near any heat sources such as radiators, heat registers, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Table of Contents

Introduction

Product and accessories....5

Parts identification....6

Installation

Disassemble the camera....7

Factory reset....7

Installation....8

Cabling....12

Managing the SD Card....14

Network Setup

DW IP finder 15

Web Viewer

Login to the camera....16

GUI overview....17

Camera Settings

Settings > Video and audio setup....18

Settings > Camera setup > Image adjustment....26

Settings > Camera setup > Exposure settings....27

Settings > Camera setup > Day and night settings....28

Settings > Camera setup > Backlight settings....29

Settings > Camera setup > White Balance settings....30

Settings > Camera setup > Image enhancement settings....31

Settings > Camera setup > Video enhancement....32

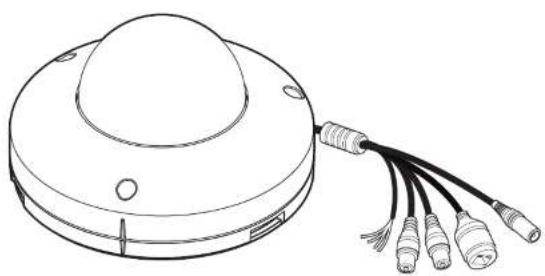

Introduction - Product & Accessories

Line drawing of a circular device with attached cable and connectors (no text or symbols)

Camera Cables

Quick Installation and Download Guides

Hex Wrench

Screws and Plastic Anchors - 3pcs

Mounting Plate

Introduction - Part Name

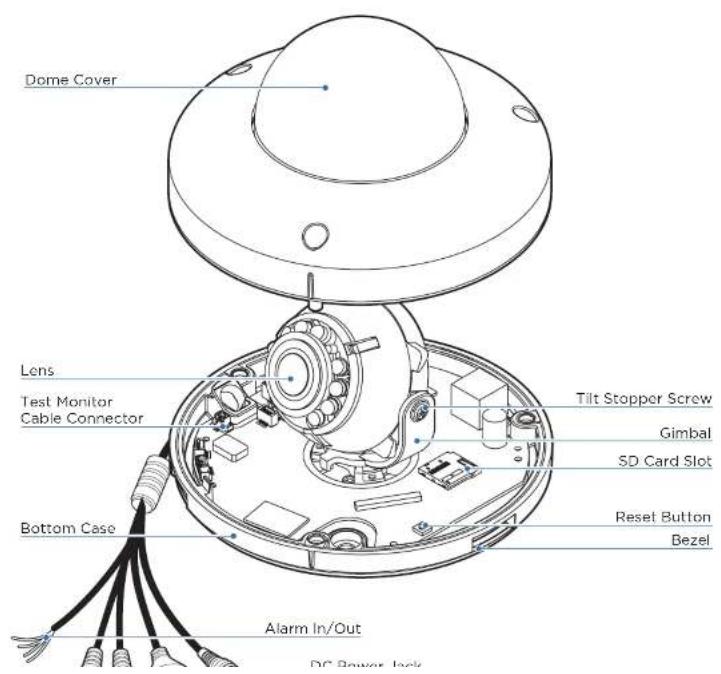

Dome Cover Lens Test Monitor Cable Connector Bottom Case Alarm In/Out DC Power Lock Tilt Stopper Screw Gimbal SD Card Slot Reset Button Bezel

Installation - Disassemble the camera

Before installing your camera, you have to read the following cautions.

1. The mounting surface must withstand five times the camera weight.
2. Do not let the cables get caught in improper places or the electric line cover can be damaged. This may cause a short or fire.
3. For the installation process, remove the dome cover from the camera module by loosening the three (3) screws on the dome. Use the Allen wrench provided with the camera.

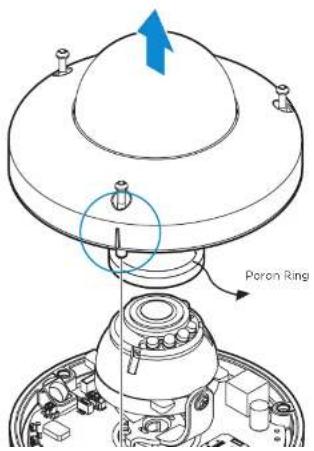

Poron Ring

1. Install the moisture packet in the base of the camera's lens.
   a. Remove the moisture absorber from the packaging.
   b. Cut the card and folder along the dotted line.
   c. Place the moisture absorber around the camera lens module.

Technical line drawing of a mechanical assembly with gears and components (no text or labels)

1. Remove the protective film between the dome

Installation - Standard Installation

Mounting Template

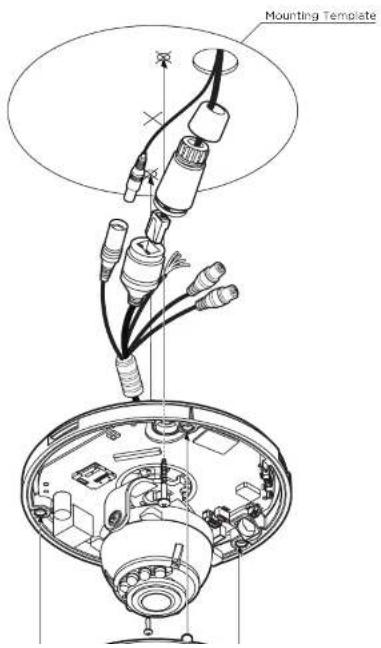

1. Using the mounting template sheet or the camera itself, mark and drill the necessary holes in the wall or ceiling.

2. Pass the wires through the mount bracket and make all necessary connections. See page 12 for more information.

3. To use the camera's waterproof wiring: a. Install the LAN cable into (a). b. (b) will be assembled to (a) with a 1/4 turn. c. Thread (c) tightly to (b).

a b c

NOTE: to ensure a proper moisture seal, make sure the o-ring is in place between (a) and (b). In extreme environments, use an outdoor-rated sealer. NOTE: When using the waterproof cap, crimp the RJ-45 connected after passing the camera through the waterproof cap.

Installation - Metal Plate Installation

Template Sheet ② ③ ④ ⑤

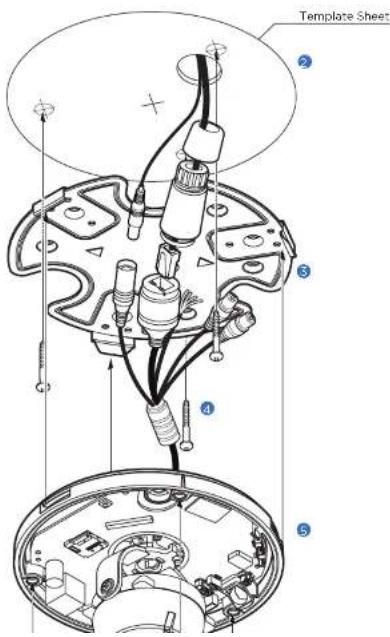

1. Using the mounting template sheet for the metal plate, or the metal plate itself, mark and drill the necessary holes in the wall or ceiling.
2. Pass the wires through the mount bracket and make all necessary connections. See page 12 for more information.
3. To use the camera's waterproof wiring: a. Install the LAN cable into (a). b. (b) will be assembled to (a) with a 1/4 turn. c. Thread (c) tightly to (b).

a b c

NOTE: to ensure a proper moisture seal, make sure the o-ring is in place between (a) and (b). In extreme environments, use an outdoor-rated sealer.
NOTE: When using the waterproof cap, crimp the RJ-45 connected after passing the camera through the waterproof cap.

1. Remove the rubber stopper and mount the

Installation - Mounting Bolts and Nuts Installation

Template Sheet

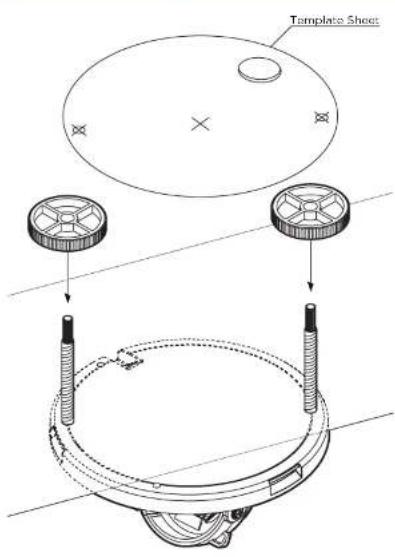

1. Using the mounting template for the nuts and bolts installation, mark and drill the necessary holes in the wall or ceiling.

2. Pass the wires through and make all necessary connections. See page 12 for more information.

3. Secure the two long mounting screws to the camera's base.

4. Mount the camera to the mounting surface using the 2 mounting nuts.

5. Rotate the locking discs over the screws until the camera is held tightly from the mounting surface.

6. Remove the rubber stopper and mount the camera base to the mounting surface using the included mounting screws.

7. Adjust the camera module's position by using its 3-axis gimbal. The camera can:

- Rotate: 360^

- Pan: 360°

- Tilt: 70°

1. Assemble the cover over the camera body. Be sure to assemble the cover and bottom case to match the case outline.

2. When the installation is completed, remove the protective film.

Installation -

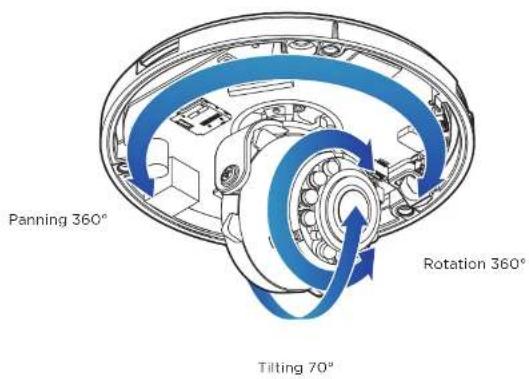

Adjusting the Camera angle

Panning 360° Rotation 360° Tilting 70°

Installation - Cabling

Two Options

Use a PoE-enabled switch to connect data and power through a single cable and begin viewing and recording images instantly.

A non-PoE switch will require an adaptor for power transmission.

1. Using a PoE-Enabled Switch

The Camera is PoE-compliant, allowing transmission of power and data via a single Ethernet cable. PoE eliminates the need for the different cables used to power, record, or control the camera. Follow the illustration below to connect the camera to a PoE-enabled switch using an Ethernet cable.

2. Using a Non-PoE Switch

If a PoE-enabled switch is not used, use a power adaptor for power transmission and non-PoE switch for data transmission.

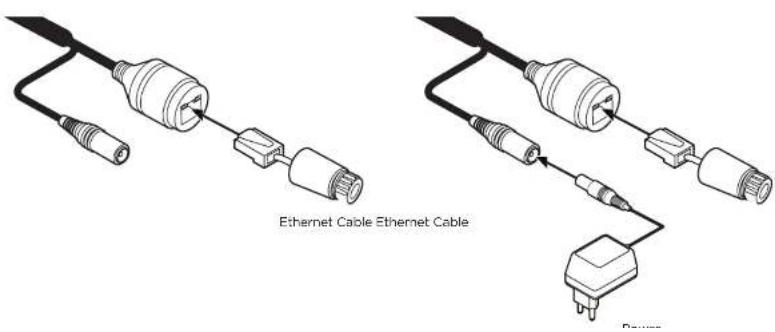

Follow the illustrations below to connect the camera without a PoE-enabled Switch.

Ethernet Cable Ethernet Cable

Installation - Cabling

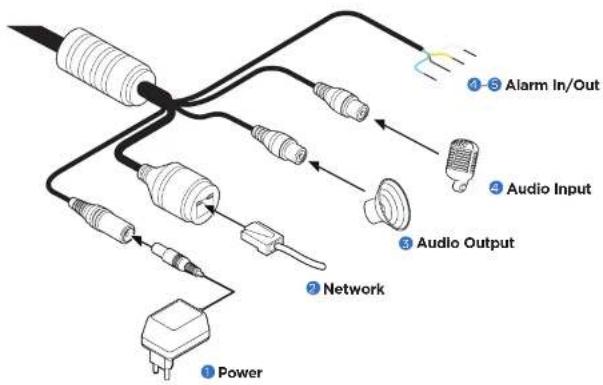

4 5 Alarm In/Out 2 Audio Input 5 Audio Output 2 Network 1 Power

Power Connection

Please, check the voltage and current capacity of rated power carefully.

Rate Power	Power Consumption	PoE
DC 12V 5.9W		IEEE 802.3afclass3, max7.2W

② Network Connection

Connect the crossover cable into the RJ-45.

③ Audio Output

Connect the 'audio out' port of the camera to the 'line in' port of the speaker.

If the speaker without the amplifier is connected to the audio out port, it doesn't work properly. Therefore, the speaker with the amplifier or the separate amplifier is needed.
Audio Out is available via the RTSP backchannel.

4 Audio Input

Connect the 'audio in' port of the camera to the

Installation - Managing the SD Card

Technical line drawing of a mechanical assembly with no visible text or symbols

The memory card is an external data storage device that has been developed to offer an entirely new way to record and share video, audio, and text data using digital devices.

Recommended SD card specification

(not Included)

• Type: Micro SD (SD/SDHC/SDXC)
• Manufacturer: SanDisk, Samsung,
  Transcend, Micron
• Capacity: 4GB-128GB
• Class: UHS-I U3 Class 10
  ■ New micro SD card over 64GB must be
  formatted on the first use.

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

① Inserting an SD Memory Card

Insert the SD card in the arrow direction.
- Don't insert the SD memory card while it's
upside down by force. Otherwise, it may
damage the SD memory card.

② Removing an SD Memory Card

Gently press down on the exposed end of the

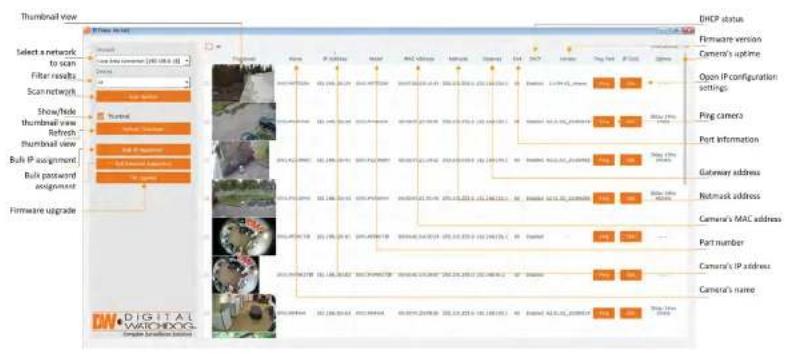

Network Setup - DW IP Finder™

Thermal View Select a network to scan Fiber results Scan network Show/Tele thumb view Refresh thumb view Bulk IP assignment Bulk password assignment Firmware upgrade DHCP status Hardware version Camera's uptime Open IP configuration settings Ping camera Port Information Gateway address Network address Camera's MAC address Part number Camera's IP address Camera's name Select a network to scan Fiber results Scan network Show/Tele thumb view Refresh Thumb view Bulk IP assignment Bulk password assignment Firmware upgrade DHCP status Hardware version Camera's uptime Open IP configuration settings Ping camera Port Information Gateway address Network address Camera's MAC address Part number Camera's IP address Camera's name

Go to http://www.digital-watchdog.com and search for 'IP Finder' on the quick-search bar at the top of the page.
② The latest IP Finder software will appear in the search results. Click on the link to download the file to your computer.
3 The software will scan your network for all supported cameras and display the results in the table. Allow up to 5 seconds for the IP Installer to find the camera on the network.

Camera Settings Camera Name: DWC-90521TR MAC Address: 08-803F1208449E IP Configuration Mode IP Address: 192.168.1.191 Network: 259.236.255.9 Gateway: 192.348.1.1

Web Viewer Screen - Basic Screen (Default)

The password of the admin account has not been changed from the default. Please change the admin's password to access the web management and connect to the VMS/NVR system. CHANGE OUTPUT

Password change is required at the initial connection in a factory reset state.

You cannot see the image, and the setup button is disabled.
② Change the password with the CHANGE PASSWORD button.

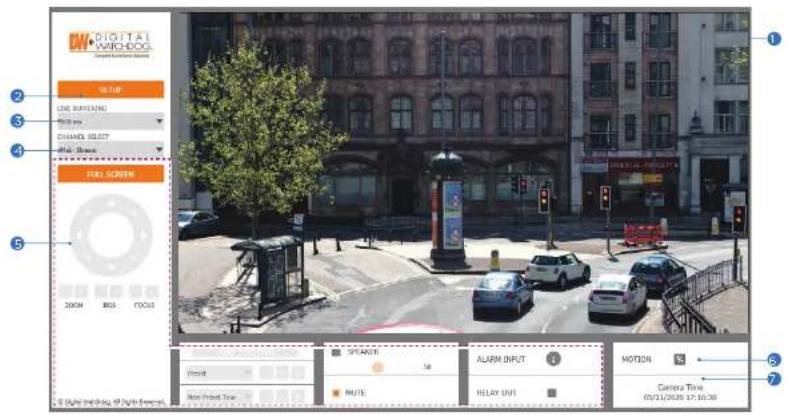

Web Viewer Screen - Basic Screen

DIGITAL VH-DOG Display to the next session SETUP LINE SWITCH Close-up CHANNEL SELECT OFF-LOAD TEST SCREEN 20CM BGS FOCUS 1 SPRING ALARM INPUT MOTION Camera Time 05/21/2020 17:10:30 1 2 3 4 5 6 7

The web viewer is optimized with Internet Explorer 10 (or above) and Mozilla Firefox.

■ "If VLC is not installed or the VLC plugin is not supported (Chrome), 'Live Buffering' and 'Channel Select' (subjects 3 and 4 in the diagram) will display as 'Live Viewer'. If so, select HTML5 (MJPEG) from the Live Viewer menu to view the video.

Live video display. This is the region for the live video stream from the camera.

Setup - Video & Audio Setup

Video Configuration

DIGITAL WATCHDOG Video Specification Setup VIDEO & AUDIO VIDEO OSD ROI AUDIO PRIVACY MASK • CAMERA • NETWORK • ENGLISH ACTION • EVENTS • RECORD • ACCESSIVITY • SYSTEM VIDEO CONFIGURATION Settings Codes Escapations 1 H254 Format # 2 H254 Image # 3 MJPEG format # Codec Code: H254 Description: Pattern1 Recovery: 100% (100%) Frame Rate/TPS: 20 GDP: 35 [1-10%] Profile High Binary Mode: GBR Target Blow: $10 (-600bps ~ 100bps ) Quality: [1-10%] Smart Audio Control CP Preference Option CP TITLE © digital watching. All rights reserved. APPLY

Detail Page - When you select an item from the menu, you can set the details for the selected item.
② Setup Constitution

Video&Audio

[VIDEO, OSD, ROI, AUDIO, PRIVACY MASK]

Setup - Video & Audio Setup Video Configuration

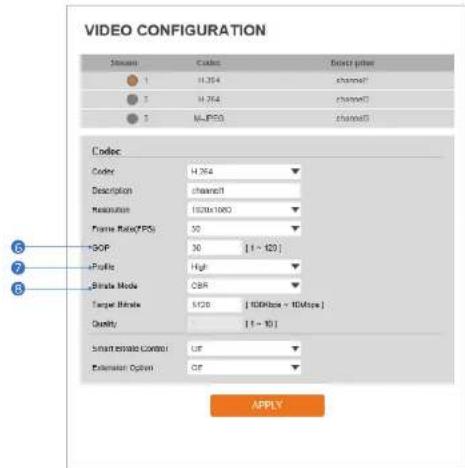

VIDEO CONFIGURATION Steuern Codes Direct path 1 H.264 channel0 2 H.264 channel0 3 MLRPG channels0 Codec *Code H.264 -Description channel1 -Measurement 1520x1080 -Front Rate(TPS) 30 GOP 30 [1 - 120] Profile High Brista Mode CSR Target Stroke M20 [100kHz ~ 100ms] Quality [1 - 10] Smart remote control GF Extension Option GF APPLY

Live Video Channel Setup - The video can be configured to various settings with a combination of codec and resolution. The camera performance should be considered when setting multiple channels, as the performance of the camera will be affected.
H.265 (HEVC) codec with higher bitrate may cause unstable live streaming or reload the webpage.
② Codec - Choose the video codec. Depending on the selected codec, the subcategories may be changed

Setup - Video & Audio Setup

Video Configuration

VIDEO CONFIGURATION Stream Code Direct path 1 H.354 channel0 2 H.764 channel0 3 ML/PSG channel0 Codec Code H.354 Description channel0 Resolution ISO2x1000 Frame Rate(TPS) 50 GOP 30 [1 - 120] Profile High Beta Mode CBR Target Ratio 5/20 [100Mbps - 10Mbps] Quality [1 - 10] Smart video control UP Extension Option GF APPLY

6 GOP(Group of Pictures) Size - Set up the number of frames (P-frame) which contain only changed information based on the basic frame (I-frame). Regarding videos with lots of movement, if you set GOP size bigger, only the number of P-frames is bigger.

As a result, the video resolution will be low but 'File size' and 'Bit-rate can be decreased.

GOP(Group of Pictures) Size

I-frame and P-frame creation for MPEG4, H.264, and H.265 (HEVC) video compression. 'I-frame', also known

Setup - Video & Audio Setup Video Configuration

VIDEO CONFIGURATION Strain: Code: Document 1 H.264 channel1 2 H.264 channel2 3 M JPEG channel3 Codec Code: H.264 Description: channel1 Resolution: 1000 Frame Rate/PS: 30 GDP: 30 [1 - 129] Profile: High Distribute Mode: CDK Target Distribute: 5120 [139kHz - 16Mops] Quality: [1 - 10] Small Distribute Control: Off Extension Option: Off APPLY

9 Target Bitrate - If Bitrate Control is set to be CBR, you can set the Target Bitrate.
Quality - For VBR control mode, The Target Quality of video can be setup.
Smart Core - Off / Smart.RC

Setup - Video & Audio Setup OSD Configuration

ON SCREEN DISPLAY(OSD) CONFIGURATION Date & Time Off On Position X [0 - 100] Position Y [0 - 100] User Text Off On Position X [0 - 100] Position Y [0 - 100] Text APPLY

Date / Time - Display the current time.
User Text - Output the TEXT entered by the user. Support a maximum of 30 characters.
3 Click 'Apply' to save all settings.

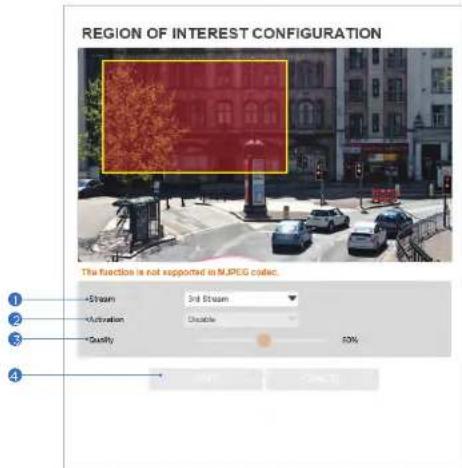

Setup - Video & Audio Setup Region of Interest Configuration

REGION OF INTEREST CONFIGURATION The function is not supported in MJPEG codec. Stream 3rd Stream Automation Disable Quality 50%

The region of Interest function gives a more efficient picture quality for the Indicated area to improve the qualities of movement in the scene without compromising the bandwidth.

Stream - Select the Stream.

Currently supports only H.264, H.265 (HEVC).
The function is not supported in the MJPEG codec.

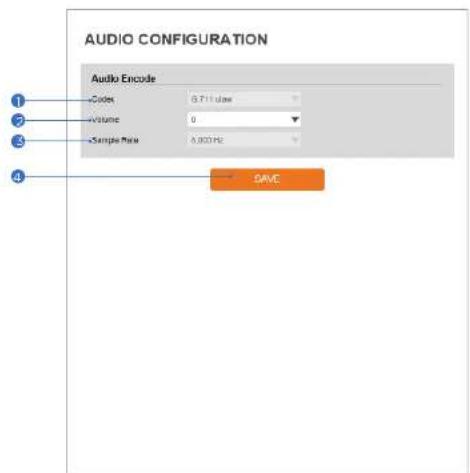

Setup - Video & Audio Setup Audio Configuration

AUDIO CONFIGURATION Audio Encode Color 0.71 Hz Volume 0 Sample Rate 8.000 Hz SAVE

① Codec - Select the Audio Codec.
■ Currently, the camera supports codec G.711.
② Volume - Select the Audio Volume from 0 to 10.
3 Sample Rate - Select the Audio Sample Rate.

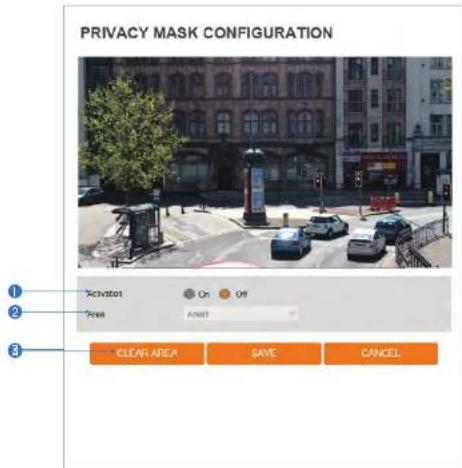

Setup - Video & Audio Setup Privacy Mask Configuration

PRIVACY MASK CONFIGURATION ① Activation On Off View ANNT ② CLEAR AREA SAVE CANCEL

Use this function to mask areas that you want to hide on-screen to protect privacy.

Activation - Enable or disable the privacy mask function.
Area - Select the Area1 - Area16 and Set the privacy area.

Setup - Camera Setup

Camera Image Adjustment

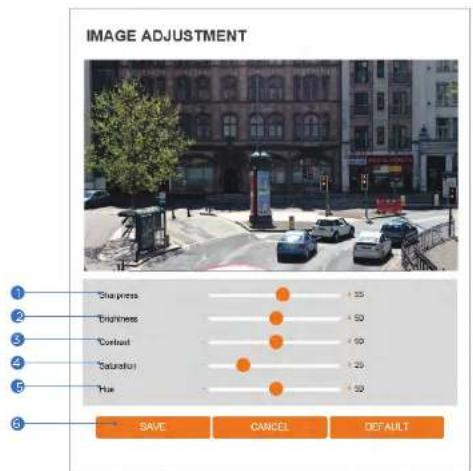

IMAGE ADJUSTMENT 1 Sharpness +55 2 Brightness +50 3 Contrast +50 4 Satisfaction +25 5 Hue +50 6 SAVE CANCEL DEFAULT

Sharpness - The higher the number, the sharper the lines in the image will appear.
Brightness - The higher the number, the brighter the image will appear.
3 Contrast - The higher the number, the stronger the contrast between colors in the image will appear.

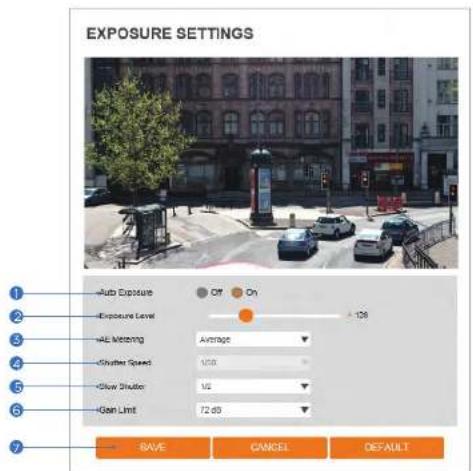

Setup - Camera Setup Camera Exposure Settings

EXPOSURE SETTINGS Auto Exposure Off On Exposure Level 128 A&E Mismatch Average Shutter Speed 100 Show Shutter 16 Gain Limit 72 dB SAVE CANCEL DEFAULT

Auto Exposure - Automatic exposure (AE) automatically sets the aperture or shutter speed, based on the external lighting conditions for the photo.
② Exposure Level - The higher the number, the brighter the image will appear.
3 AE metering - AE metering mode refers to how a camera determines the exposure.

Setup - Camera Setup

Camera Day & Night Settings

DAY&NIGHT SETTINGS Day & Night Auto Day Night Schedule Color Level S Bail Level S Transition Time Middle Day + Night Time S = 100 Night + Day Time S = 100 SAVE CANCEL DEFAULT

Day & Night

• Auto: In this mode, the IR cut filter is removed automatically depending on the light condition around.
• Day: In this mode, the IR cut filter is applied to the image sensor all the time. Thus, the sensitivity will be reduced in the dark light condition, but the better color reproduction performance is obtained.
• Night: In this mode, the IR cut filter on the image sensor is removed all the time. The sensitivity will be enhanced in the dark light condition, but the image is black and white.

Setup - Camera Setup

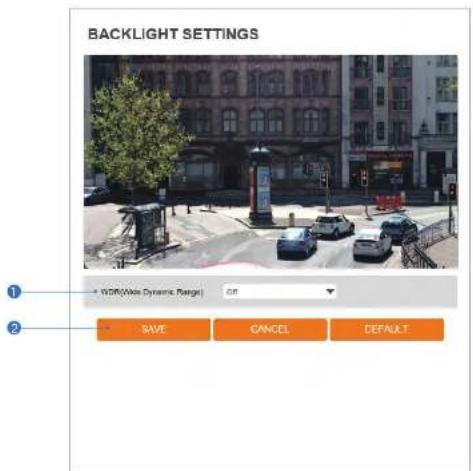

Camera Backlight Settings

BACKLIGHT SETTINGS WORK(Wide Dynamic Range) ON SAVE CANCEL DEFAULT

This feature is used when lighting conditions may cause detail loss in the camera's view due to high contrast.

Digital-WDR - Enable or disable the feature.
② Click 'Save' to save all changes.

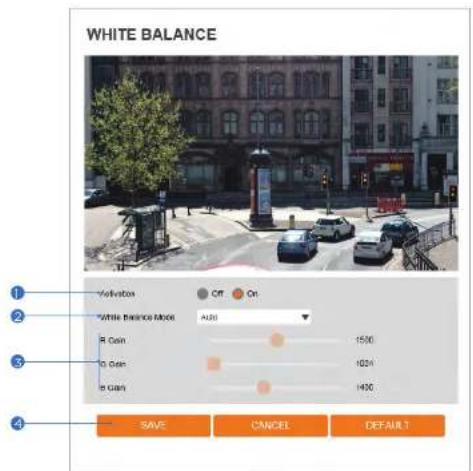

Setup - Camera Setup Camera White Balance

WHITE BALANCE 1 2 3 4 1 2 3 4 Volunteer Off On White Balance Mode A20 R Gain 1500 R Gain 1024 R Gain 1400 SAVE CANCEL DEFAULT

Activation - Enable or disable the White Balance function
② White Balance Mode - Select White Balance depending on the lighting conditions.
RGB Gain · The R/G/B gain can be set only when the White Balance Mode is set to Manual.

Setup - Camera Setup

Camera Backlight Settings

BACKLIGHT SETTINGS WID(Wide Dynamic Range) Off SAVE CANCEL DEFAULT

This feature is used when lighting conditions may cause detail loss in the camera's view due to high contrast.

WDR (Wide Dynamic Range) - Enable or disable the WDR function.
2 Click 'Save' to save all settings.
- Click 'Cancel' to return to the previous setting.

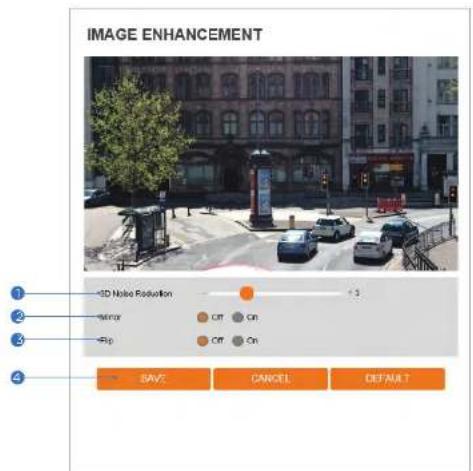

Setup - Camera Setup Camera Image Enhancement

IMAGE ENHANCEMENT 1 2 3 4 5D Noise Reduction Mirror Flip OK ON ON ON SAVE CANCEL DEFAULT

3D Noise Reduction - 3DNR function suppresses digital noise and retains good video quality in low light conditions.
2 Mirror - Reverse the video horizontally.
Flip - Reverse the video vertically.

Setup - Network Setup Network Status

NETWORK STATUS

MAC Address 0000 F121-A2-11

IP Address 102.168.1.34

Subnet Mask 255.255.00

Default Gateway 152.103.1.1

Preferred DNS Server 192.168.1.1

Alternate LNS Server

HTTP POI 00

HTTPS Port 443

RT SP Port 354

This menu displays the camera's current network settings. To make any changes to the settings, you must go to the appropriate network settings tab.

Setup - Network Setup Network Settings

NETWORK SETTINGS Host Name: PNG Network Type Satic Dynamic IP setup IP Address: Submit Mask Default Gateway Preferred DVD Server Alternate DVD Server Port Setup HTTP Port: 80 [Default: 30, 1025 - 10000] HTTP3 Port: 443 [Default: 443, 1025 - 10000] RTSP Port: 554 [Default: 554, 1025 - 10000] APPLY

Network Type - Define the network IP address type. Select Static Mode for a fixed IP or Dynamic Mode for a dynamic IP address. If you select Static Mode, enter the camera's IP Address, Subnet Mask, Gateway, DNS Server, and all ports. If you select Dynamic Mode, the IP address will be assigned automatically by the DHCP network requirements. If you click 'Apply', the system will reboot and you will have to reconnect the camera using the new IP address.

Setup - Network Setup Auto IP Settings

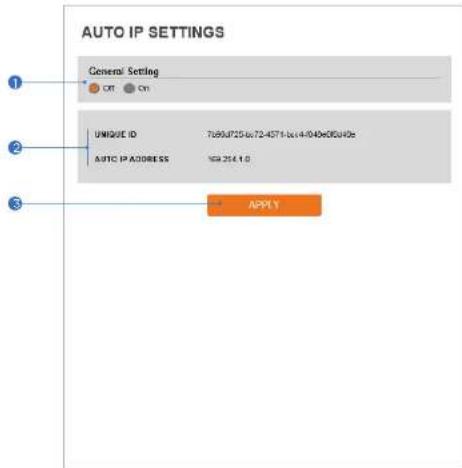

AUTO IP SETTINGS General Setting OT CY UNIQE ID 7096J725-6672-4571-6614-8040e0640e AUTO IP ADDRESS 168.254.1.0 APPLY

General Setting - Enable or disable the Auto IP Settings.
2 Auto IP Settings Information - Display the camera's Unique ID and Auto IP address.
3 Click 'Apply' to save all settings.

Setup - Network Setup ONVIF Settings

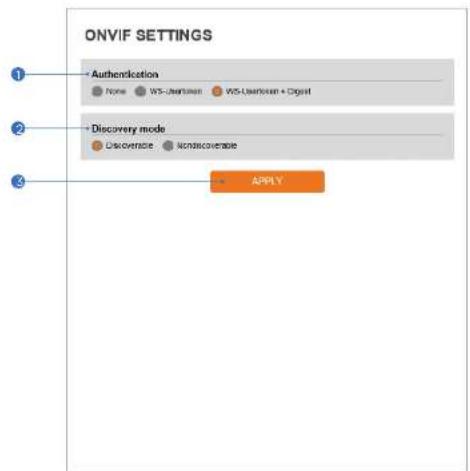

ONVIF SETTINGS 1 Authentication None WIS-UserItem WIS-UserItem + Digit 2 Discovery mode Discovery Nondiscoverable 3 APPLY

Authentication

None: Allow access to the camera without ONVIF authentication.

WS - Usertoken: Allow access to the camera with WS-User Token of ONVIF authentication.

WS - Usertoken + Digest: Allow access to the camera with WS-User Token and Digest of

ONVIF authentication.

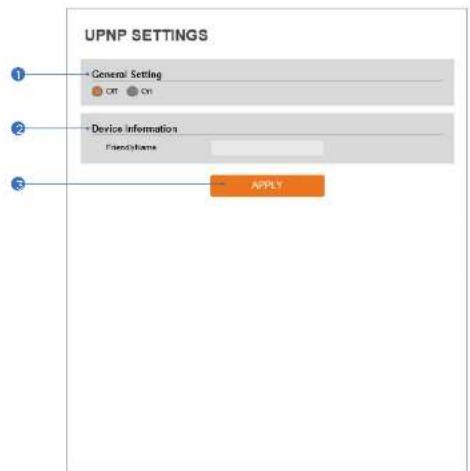

Setup - Network Setup UPNP Settings

UPNP SETTINGS General Setting Off On Device Information FriendsName APPLY

General Setting - Enable or disable the UPNP function.
2 Friendly Name - Define the friendly name. Support a maximum of 30 characters and special characters. - Do not use: / - ! \$ () { ) [ ] ; - Acceptable special characters include; @ . _ -

Setup - Network Setup DDNS Settings

DDNS SETTINGS ■ Enable ■ Public DDNS Address: WWW.NO-POSTS Host Name: User Name: Password: ■ APPLY

DDNS Disable - If it is selected, DDNS service does not work.
Public DDNS - To use public DDNS service, select a site address listed on the list. After filling out the Host Name of the site, the setup is completed by entering username and Password registered in that DDNS site.

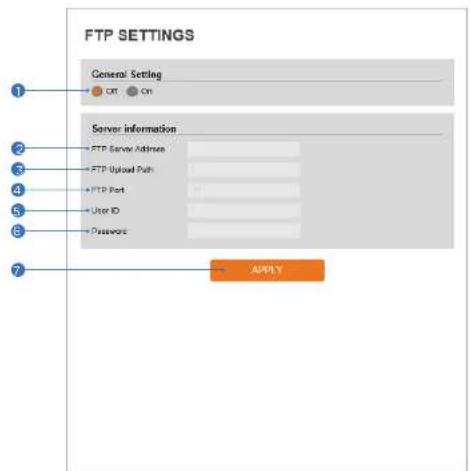

Setup - Network Setup FTP Settings

FTP SETTINGS General Setting Off On Server information FTP Server Address FTP Upload Path FTP Port User ID Password AUPPLY

To transfer/save the image to the relevant sites through FTP, then FTP needs to be setup.

General Setting - Enable or disable the FTP function.
FTP Server Address - Define FTP Server IP Address. If the IP Address form is incorrect, a message box will be shown to try again.

Setup - Network Setup SMTP Settings

SMTP SETTINGS General Setting OFF On Account information Mode PLAN SSL/LS SMTP Server Address POST User ID Password Email Gender Email Receiver Mail Contents File Message APPLY

To send/save the image to the relevant sites by Email, SMTP needs to be setup.

General Setting - Enable or disable the SMTP function.
Mode - Select the security mode of SMTP from Plain or SSL / TLS. After checking the account setup of your SMTP Server, you may select one.

Setup - Network Setup SNMP Settings

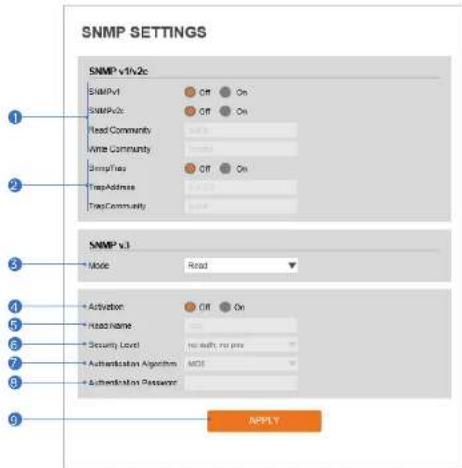

SNMP SETTINGS SNMP v1v2c SNMP-v1 StatePvc State Community Name Community TempTime TempAddress TempCommunity SNMP v3 Mode Read Activation Read name Security Level Authentication Algorithm Authentication Password APPLY

SNMPv1/SNMPv2 - Select the SNMPv1/SNMPv2 option and type the names of Read and Write communities.

SNMP trap can be used to check periodically for operational thresholds or failures that are defined in the MIB.

SNMP Trap - Enable or disable the SNMP trap.

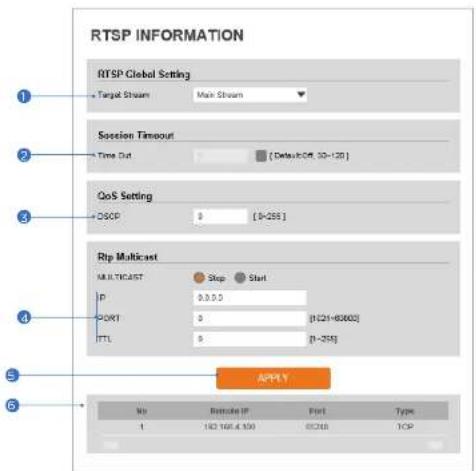

Setup - Network Setup RTSP Information

RTSP INFORMATION RTSP Global Setting Target Stream Main Stream Session Timeout Time Out [Default:Off, 30-150] QoS Setting OSCP 0 [0-255] Rtp Multicast MULTICAST Stop Start p 0.0.0.0 PORT 0 [1221-63000] TTL 0 [1-255] APPLY No Remote IP Port Type 1 182 166.4 150 OSCP TCP

Target Stream - Select the stream you want to set.
② Time out - Set the RTSP time out.
The session is disconnected after the specified time out.
3 QoS Setting - Set the quality of service to ensure data transfer performance.

Setup - Trigger Action Setup Action Rules Configuration

ACTION RULES CONFIGURATION Action Rules Name Reserve Action Action SMTP 1/5 SMTP FTP 1/5 FTP RECORD 1/5 RECORD ADD MODIFY DELETE

Action rules List - It indicates the custom action rule information added to the Action rules list.

② Click 'Add' to add custom action rules.

• Click 'Modify' to modify selected items from the action rules list.
  Click 'Delete' to delete selected items from the action rules list.

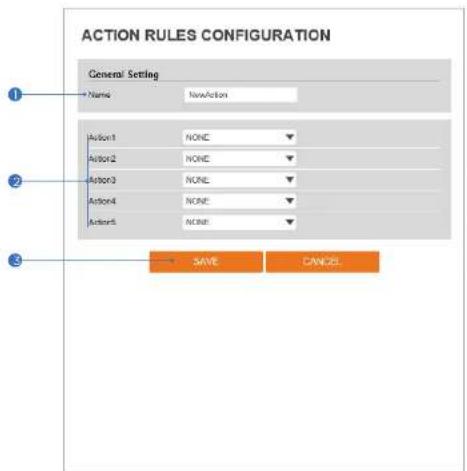

Setup - Trigger Action Setup Action Rules Add / Modify

ACTION RULES CONFIGURATION General Setting Name NewAction Action1 NONE Action2 NONE Action3 NONE Action4 NONE Action5 NONE SAVE CANCEL

Name - Define the name of the action rules.
■ Input text cannot exceed the limit (3-15 characters).
Action1 - Action5 - Select the action to take if the event occurs.
3 Click 'Save' to save all settings.

Setup - Trigger Action Setup Image Transfer Configuration

IMAGE TRANSFER CONFIGURATION 1. Add the FTP/SMTP action in the event rules menu. 2. When an event occurs, the images will be sent to ftp/smcp address . 3. Determine the image transfer speed and the duration of image transfer after/before on event. Pre/Post Alarm Image Number Of Image 2 Image Per Second(s) [ 1 - 5 ] Pre-Alares Duration 3 Seconds [ 1 - 5 ] Post-Alares Duration 3 Seconds [ 1 - 30 ] APPLY

Pre / Post Alarm Image - Image Transfer due to event is configured by setting image transfer rate and Pre / Post alarm duration.

	Descriptions
Number of images	Define Number of images transferred per second.
Balance	Balance

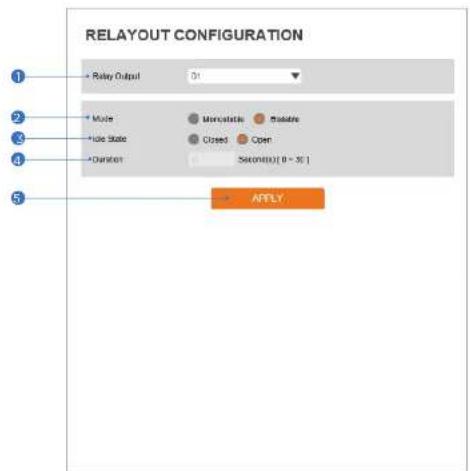

Setup - Trigger Action Setup Relay Out Configuration

RELAYOUT CONFIGURATION 1 2 3 4 5 Relay Output 01 Mode Monostable Monostable Hole State Closed Open Duration Seconds(0) 0 - % 1 AFFLY

Relay Output - Select the Relay output.
The number of relay outputs available depends on the camera model.
Mode - Select the monostable/bistable for relay mode.
3 Idle State - Select whether the contact is normally opened or is closed.

Setup - Event Setup Event Rules Configuration

EVENT RULES CONFIGURATION Event Rules Name Reserve Event Schedule Action ADD MODIFY DELETE

Event Rules List - It indicates the custom Event Rule information added to the Event Rules list.

② Click 'Add' to add custom event rules.

• Click 'Modify' to modify selected items from the event rules list.
  Click 'Delete' to delete selected items from the event rules list.

Setup - Event Setup

Event Rules Configuration

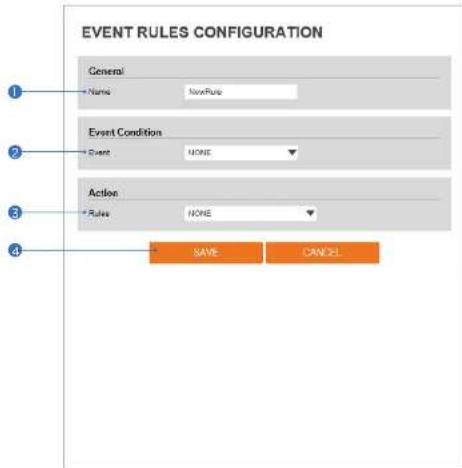

EVENT RULES CONFIGURATION General Name: NewRule Event Condition Event: NONE Action: Rules: NONE SAVE Cancel

Name - Define the Event rule name.
Event - Select the event among motion detection, network disconnection, illegal login detected, temperature critical, schedule, sensor detection. Click 'Cancel' to return to the previous setting.

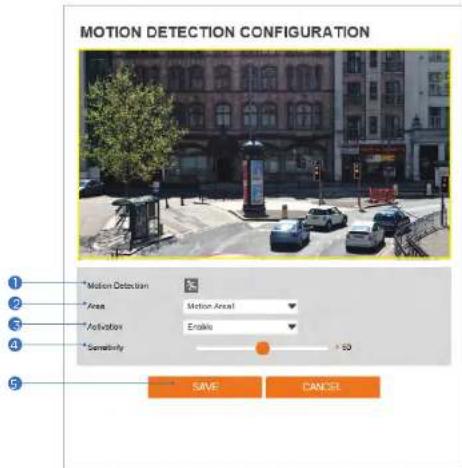

Setup - Event Setup Motion Detection Configuration

MOTION DETECTION CONFIGURATION 1 2 3 4 5 * Motion Detection * Area * Activation * Sensitivity Motion Area1 Enable + SD SAVE CANCEL

Motion Detection - It shows the Motion event status.
■ Event Alert Icon( ▼ appears if 'Motion Detection' is activated.
② Area - Set the motion detected area. Click in the display window to draw the motion area.
■ You can set up to four areas.

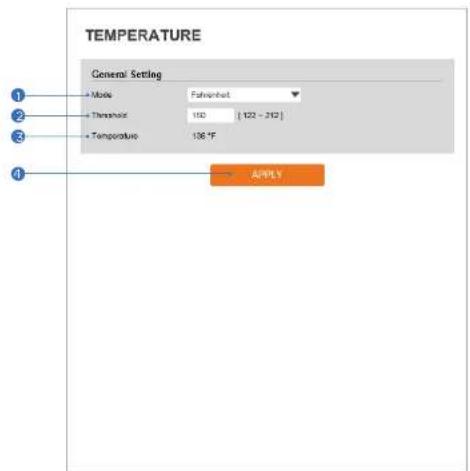

Setup - Event Setup Temperature

TEMPERATURE General Setting Mode Temperature Temperature 100 [122 - 312] 106 °F APPLY

Mode - Select Fahrenheit or Celsius.
Threshold - Define the temperature at which the event trigger occurs.
3 Temperature - It indicates the current temperature of the IP camera.

Setup - Event Setup Alarm Configuration

ALARM CONFIGURATION Input Device Setup OFF A Normal Open Contact (NO) A Normal Closed Contact (NC) APPLY

Input Device Setup - Select input device type from OFF / N.O. / N.C.

	Operation
OFF	Ignore this input sensor.
NO	The contact is normally open and closed when activated.

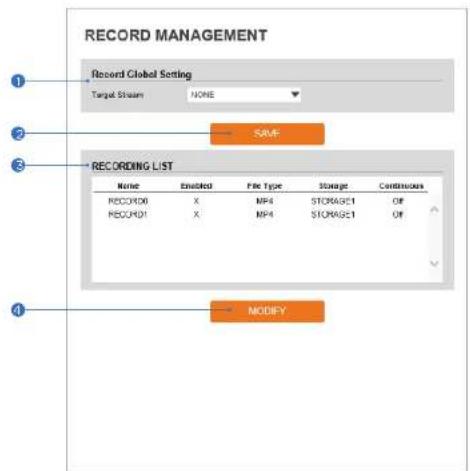

Setup - Record Setup Record Management

RECORD MANAGEMENT Record Global Setting Target Stream NONE SAME RECORDING LIST Name Enabled File Type Storage Continuous RECORD0 X MP4 STORAGE1 OF RECORD1 X MP4 STORAGE1 OF MODIFY

Target Stream - Select the channel you want to record video.
② Click 'Save' to save the current settings.
Recording List · Display the information about the recording settings.

Setup - Record Setup Record Configuration

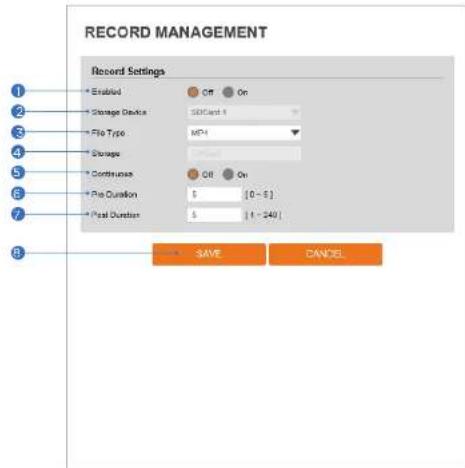

RECORD MANAGEMENT Record Settings Enabled Storage Device File Type Storage Continuous Pre Duration Post Duration Off On SDCard 1 MP4 GB On 5 [0 - 5] 5 [1 - 240] SAVE CANCEL

Enabled - Enable or disable this function.
Storage Device - This option shows the SD card currently mounted on the camera.
3 File Type - Select the recording file type.
Currently, the camera supports MP4 file type.

Setup - Record Setup Recording List

RECORDING LIST 1 STORAGE STORAGE 2 Filter Date Time Event Storage Sort REFRESH FILTER 3 Event Day Time Duration Excel PLAY REMOVE DOWNLOAD

Storage - Select the Storage from the available options.
② Filter - Select the date/time, event, sort or storage format to filter the recorded video results.
3 Click the 'Refresh' button to refresh the search results as needed.
- Click 'Filter' to view the filtered recorded video.

Setup - Record Setup Recording Video

RECORDING LIST Recording Video Token: 0001x0078ac714c3 Status: Completed Start Time: 05/22/2020 09:25:44 End Time: 05/22/2020 09:25:54 Recording Time: 08:10 REPLAY BACK

Recording Video Viewer - Play the recorded video.
Recording Video Information - Display information about the recorded video.
3 Click 'Replay' to view the recorded video again.
■ Click 'Back' to return to the previous menu.

Setup - Record Setup Storage Configuration

1. If 5D Card does not automatically mount, you must format for mounting 5D cord.

Storage List Name Mounted Size Use(%) Available SDCard1 0 29.858 0% 28.858

Display the SD card information mounted on the device.

- Select an item from the Storage List to configure its related functions.

Setup - Record Setup Storage Configuration

STORAGE CONFIGURATION Notice 1. If 5D Card does not automatically mount, you must format for mounting 5D card. Storage Size 0/26.8GB Auto Delete NONE Quarivate Ctrl Ctrl Amount CR/CR/ Format CR/CR/ APPLY CANCE

Storage Size - Total capacity of SD card and the remainder of it are displayed.
Auto Delete - Select the period for auto delete. The data stored before the set period will be deleted automatically.
Delete all stored images older than selected time.

Setup - Security Setup

IP Address Filter Configuration

IP ADDRESS FILTER CONFIGURATION General Setting IP Address Filter On Off IP Filter Type Allow APPLY Filtered IP Address IP Address IP Address [Uskio] ADD REMO 6

IP Address Filter - Enable or disable this function.
② IP Filter Type - Select the recording IP filter type.
3 Click 'Apply' to save all settings.

Setup - Security Setup RTSP Authentication Configuration

RTSP AUTHENTICATION CONFIGURATION 1 RTSP Authentication Useple Useple 2 APPLY

RTSP Authentication - Enable or disable the RTSP authentication.
② Click 'Apply' to save all settings.

Setup - Security Setup

IEEE 802.1X Configuration

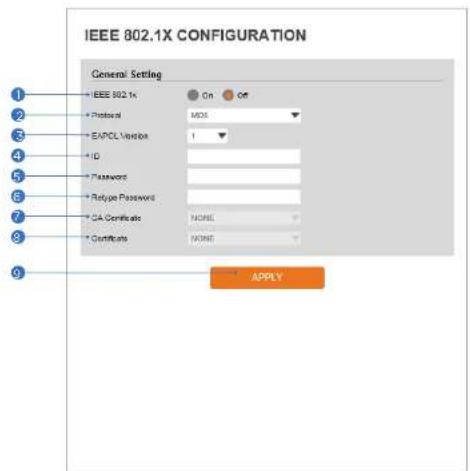

IEEE 802.1X CONFIGURATION General Setting IEEE 802.1x On Off Protocol MOS EAPCEL Version 1 ID Password Retype Password CA Certificate NONE Certificate NONE APPLY

The feature is needed when connecting the camera to the network protected by the IEEE 802.1X.

IEEE 802.1x - Enable or disable the IEEE 802.1x feature.

2 Protocol

- MD5: It provides one-way password-based network authentication of the client.

Setup - Security Setup HTTPS Configuration

HTTPS CONFIGURATION 1. If no certificators are available go to certificates to manage. Certificates Certificate NONE HTTPS connection Policy AFS HTTP and HTTPS ONVP HTTP RESP OVER HTTP HTTP 3 APPLY

HTTPS encrypts session data over SSL or TLS protocols instead of using plain text in socket communications.

Certificate - Select an installed certificate.

If you cannot select a certificate, please install the certificate from the Security->Certificates menu.

2 HTTPS connection Policy - Select one of "HTTP", "HTTPS", "HTTP and HTTPS" depending on the connected

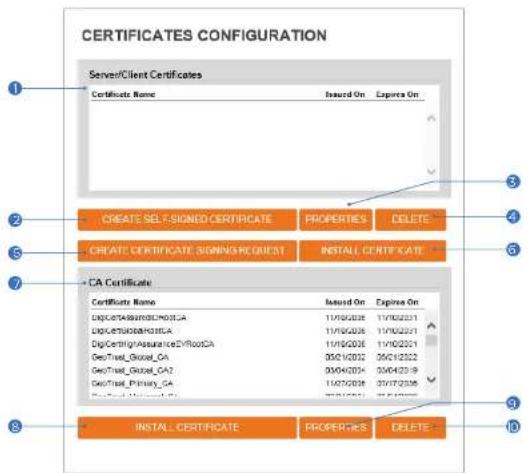

Setup - Security Setup Certificates Configuration

CERTIFICATES CONFIGURATION Server/Client Certificates Certificate Name Issued On Expire On CREATE SELF-SIGNED CERTIFICATE PROPERTIES DELETE CREATE CERTIFICATE SIGNING REQUEST INSTALL CERTIFICATE CA Certificate Certificate Name Issued On Expire On DIGICATLABORIGM003CIA 11/06/2028 11/06/2021 DIGICATLABORIGM003CIA 11/06/2028 11/06/2021 DIGICATLABORIGM003CIA 11/06/2028 11/06/2021 GeoTrust_Global_CA 05212032 05212032 GeoTrust_Global_CA 05042034 05042039 GeoTrust_PHsry_CA 11075036 11075036 INSTALL CERTIFICATE PROPERTIES DELETE ① ② ③ ④ ⑤ ⑥ ⑦

Server/Client Certificates - Shows the installed certificates.
② Create Self-Signed Certificate - A self-signed SSL certificate is an identity certificate signed by its creator. But they are considered to be less trustworthy.
3 Properties - Shows information about the selected certificate.

Setup - Security Setup Certificates Configuration

CERTIFICATES CONFIGURATION Create Self-Signed Certificate Certificate Name: 100000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 Certificate No: 188 Code of Document Language Organization Organizer Unit Certificate Name: 964-5-1-2-7 RCA: 48396 SMA: 2564 Alternative Registered Alternative Registered Alternative IP OK CAMKETI Install Certificate Certificate Name Signing Request Certificate And Sign Request Certificate Name: Certificate File Install File OK CAMKETI Install CCI Certificate Certificate Name: Certificate File Install File OK CAMKETI 1 2 3 4 5 6 7 8 9 12

Detail for Install Certification.

Certificate From Signing Request - Select to install a signed certificate returned from the CA.
Certificate And Private Key - Select to install Certificate And Private Key to install a certificate and private key.

Setup - Security Setup Service Configuration

SERVICE CONFIGURATION Insert Insert Apply

SSH - Enable or disable the SSH function.
② Click 'Apply' to save all settings.

Setup - System Setup System Information

SYSTEM INFORMATION Device Name: IP-Camera Location: unknown 3 APPLY Model Name: NOTESLAND Manufacturer: 36LOGIC Max Resolution: 100p Max FRamerate: 30 dpi Photo Resolution(CDS): SUPPORT Alarm In: NOT SUPPORT Delay out: NOT SUPPORT Audio: SUPPORT Optical Zoom: NOT SUPPORT Digital Zoom: NOT SUPPORT FIZ: NOT SUPPORT

System Capability Information.

Device Name - You can define the device name.
Location - You can define the device's location.

Setup - System Setup System Diagnostics

SYSTEM DIAGNOSTICS

-Uptime

00000000000

5D Card

SD card is not inserted

NAND

NAND read/write OK

EEPROM

EEPROM road OK

Audio

Audio ACK OK

System Files

File system OK

NTP Status

NTP:0

Corneat Europe

Last NTP Corrected Date/Time: 2020-5-21 21:24:25

Shows basic hardware functions after inspection.

Shows Uptime, SD card, NAND, EEPROM, Audio chip, Important file system, and NTP Status.

Warning:

If the camera is abnormally terminated, a download button will appear on the diagnostics page to download a

Setup - System Setup Firmware Update

FIRMWARE UPDATE 1. Do not power off dating update, it may cause fatal system damage. 2. It explores was closed alternately or a user closed it accidentally while uploading firmware file, please try again after 30 seconds. 3. Please do not select other menus while updating firmware file. Version Information System: 3500.02.20_A10.2.1 Camera: - Web update Firmware File Select File FTP user information FTP Server Address: fp.pwxt.lv FTP Port: 21 User ID: damppsc Password: ****** FTP Upload Push: / SAVE CANCEL CHECK

Version Information - It shows the current Firmware Version in the system.
Web Update - Select the Firmware file in your computer by clicking [Select file] button.
Start F / W Update · Click this button to start the update. Progress of uploading will be displayed using Progress Bar. If you assign the wrong file name, an error message will be shown.

Setup - System Setup Date & Time Settings

DATE&TIME SETTINGS TimeZone Setup • TimeZone (CM1-00) Pacific Time (US & Canadian, Saja Celestria) APPLY Time Format • Time Format mm/ddry APPLY • Current Date & Time Date & Time 05/21/2020 17:32:00 New Camera Data & Time • Synchronize with my computer Date & Time 05/20/2020 08:32:00 • Setup manually Date 23/05 01 01 Time 00 00 00 • Synchronize with line server (NTP) NTP Server 2001.10.04 APPLY

TimeZone Setup - Choose the time zone for the camera. It will be activated after clicking the 'Apply' button.

Before setting below 'New Camera Date and Time', set correct Timezone first.

② Time Format - Select the time format yy-mm-dd or mm/dd/yy.

3 Current Date and Time - Shows the current date and time setting in the Camera.

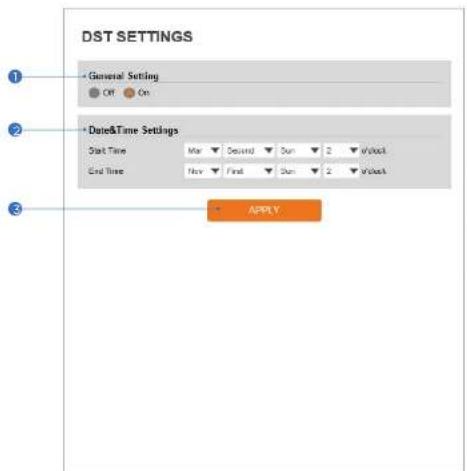

Setup - System Setup DST Settings

DST SETTINGS General Setting Off On Date&Time Settings Start Time Mar Decrease Sun 2 vBlock End Time Nov Find Sun 2 vBlock APPLY

Daylight Saving Time (DST) is the practice of setting the clocks forward one hour from standard time during the summer months, and back again in the fall, to make better use of natural daylight.

General Setting • Enable or disable the DST function.
Date and Time Settings - Set the start time and end time that the DST applies.

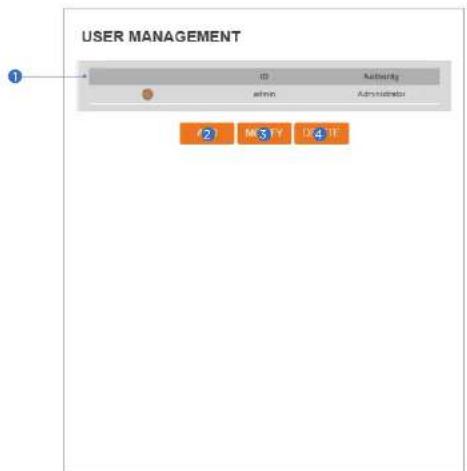

Setup - System Setup Users Management

USER MANAGEMENT ID Admin Authorship Administrator ① ② M 3 Y X 4 Y

Users - List all the user accounts for authentication.
2 Add - Register a new user.

ID	Enter a new user ID. Admin already exists.
Password	Enter the user password. (Check the password)

ID
Password
Phone Password
Email/-mail ID
Contact Identity	Tension

Setup - System Setup System Log

SYSTEM LOG Filter Date Time Type Sort A2 Ascending REFRESH PUBB BACKUP List Date & Time Log IP 05/21/2020 17:30:22 RTSF session connected 182.166 x 100 05/21/2020 17:28:41 Relay operated, Off, Off system 05/21/2020 17:28:39 Network disconnected system 05/21/2020 17:28:30 Network initialized system 05/21/2020 17:28:36 RTSF server reset system 05/21/2020 17:28:35 System initialized system 05/21/2020 17:28:17 IP changed system 05/21/2020 17:28:15 Network initialized system 05/21/2020 17:28:13 Network disconnected system

Filter - Select a date, time, sort, or type of log to filter the log.
② Click the 'Refresh' button to refresh the log list.
Click 'Filter' to view the filtered log.
- Click 'Backup' to backup the filtered log.

FACTORY RESET 1 All Exclude network settings and user settings 2 APPLY

Reset to the factory defaults - Return the setup to the factory default.

All - Reset all Settings to the factory defaults.

Except Network Settings and User Settings - Reset all camera settings to factory default except for the network settings.

Setup - System Setup Restart

The page at 192.168.1.116 says: Do you want to restart the system? OK Cancel

If you click the 'RESTART' menu, a message box will be shown to confirm. Click the 'OK' button to restart.

Setup - System Setup

System Open Source License

SYSTEM OPEN SOURCE LICENSE

Open source Name	Version	License
Dalytox	1.24.1	GPLX2
oka-It	1.1.2	GPLX2.1
Inphi2	2.47.1	LSPX2
Injtruts	3.4.11	LSPX2.1
Rojona	0.11.2014002	JSON License
Ilocurl	7.58.1	MTO derivative License
IGFI	3.1	MIT License
Regionyat	1.6.1	LSPX2.1
Iod	3.2.24	LSPX2.1
IDogg	1.3.1	BID-style License
Incomplenta	0.18	GPLX2
Kaselnax	2.3	Public domain
Isobnife	10.25	LSPX2.1
Ibox2	1.6.0	BIO
Isbend	4.8	GPLX5

This menu will show you all the list of System Open Source License in the camera. Open Source Name / Version / License.

Network Setup - Quick Start of Network Connection

Follow the steps below to complete the initial network setup.

Do not power on the IP camera until instructed.
① Temporarily disable any proxy servers configured in Internet Explorer
If connecting the IP camera directly to a modem, power down and reset the modem. Leave the modem powered down until the camera's configuration is complete and the IP Camera has been connected to the modem.

Connect the IP camera to the configured network.

Open the DW IP Finder on a PC on the same network as the camera and search for the camera.

If you have a DHCP server, it will automatically set the camera's IP address and network settings.
If you do not have a DHCP server, the camera's IP address is set by default to 192.168.1.80 after one minute in this case, the PC's IP address must be changed to match the camera's IP address settings to be able to access the camera.

⑤ If multiple cameras are added at the same time, each camera can be identified by its mac address.
4 Click on the camera's IP address and connect to the web page.
5 Default ID/password are both: admin.
⑤ Familiarize yourself with the viewer interface.

Access your IP Camera via the Internet (from a different network from the one your camera is):

If you use a static IP address assigned by your ISP: 1. Open Internet Explorer.

1. Type the address of the IP camera.
2. If you use a router, enter the routers' static IP and the web port number of the IP camera.

If you have a dynamic address provided by your ISP

1. Open Internet Explorer and go to your DDNS website.
2. Register the IP camera.
3. Reboot the IP camera.
4. Give the DDNS server 10 minutes to locate your IP camera's IP information.
5. Click the refresh button in Internet Explorer.
6. After your camera is connected, select your camera.

Network Setup - DDNS Registration

If you have a DYNAMIC IP service from your Internet Service Provider (ISP), you cannot tell the current IP address of the IP Camera. To solve this problem, you must register with our DDNS service.

First, you must check if you are using dynamic addressing. If so, register your IP Video Server on our DDNS website before you configure, setup or install the IP Camera.

Even though your IP is not dynamic, you will benefit by registering your device with a DDNS service. In this case, just remember 'hostname.dyndns.com/gate!' instead of a complicated series of numbers like http://201.23.4.76:8078.

For more details, contact our Support Center.

To use a public DDNS called 'DynDNS' or 'no-IP', refer to the detailed information on how to use the service. (Visit: http://www.dyndns.com or http://www.no-ip.com)

Network Setup - Guide to the Network Environment

Please configure the IP Camera at the installation site. You must determine your network scenario to configure the IP Camera with the proper TCP/IP settings. This tutorial will guide you through the process. Before actually configuring the IP Camera, determine settings to be applied. Record those settings to be used to configure your IP Camera for reference.

When configuring your IP Camera, treat the IP Camera as another PC on your network. You will assign it to several addresses and other TCP/IP properties to match your current network.

This step-by-step tutorial will teach what IP addresses and network configurations should be assigned based on the network scenario.

Before you begin, locate any information and settings received from your Internet Service Provider (ISP). You may need to refer to these IP addresses at a later time during the configuration.

Current TCP/IP Settings
IP Address
Subnet Mask
Default Gateway

4 If prompted for ID and password, use 'admin' for both entries. The default web port number is 80. If port 80 is blocked by the ISP, use a value between 1025 - 60000. If TCP port 80 is blocked, contact your ISP.

The following descriptions are several basic network scenarios. Determine which scenario describes your network. If your network does not match one of the scenarios below and you are unsure how to setup your IP camera, contact your network administrator.

You cannot control the rectangular gray areas and only the ISP has access to the devices.

Network Setup - Setup Case A, B

Case A: Dynamic IP + Personal Router [Most SOHO]

Configure your IP Camera's TCP/IP properties:

Network Type: STATIC (even though you have Dynamic IP from your ISP, use STATIC on the IP camera).
② Internet Address: A private IP address such as 192.168.0.200 (example)

You need to assign an IP address to the IP Camera just as you do with PC.
The IP address you assign must be unique to your network and match your network as well. For information on how to choose a unique IP and match your network, read the FAQ.
The IP address you assign must be a private IP. For information on how to choose a private IP please, read the FAQ.

③ Subnet Mask: 255.255.255.0 (example)

You must use the same subnet mask as the one you noted under 'Current TCP/IP Settings'.

4 Default Gateway: 192.168.0.1 (example)

This IP address must be the IP address of your router. (priveto or LAN side)
Use the same Default Gateway you noted under 'Current TCP/IP Settings'.

5 Preferred DNS Server: Use the 1st DNS Server from

Case B: Static(Fixed) IP + Personal Router [Efficient]

Camera

Network Setup - Setup Case C, D

Case C: Static(Fixed) IP [Dedicated line directly to the IP Camera]

Configure your IP Camera's TCP/IP properties:

1 Network Type: STATIC

② Internet Address: A static IP address received from your ISP such as 24.107.88.125 (example)

You need to assign an IP address to the IP Camera just as you do with PC.

Subnet Mask: Subnet mask assigned from your ISP such as 255.255.255.240 (example)

4 Default Gateway: 24.107.88.113 (example)

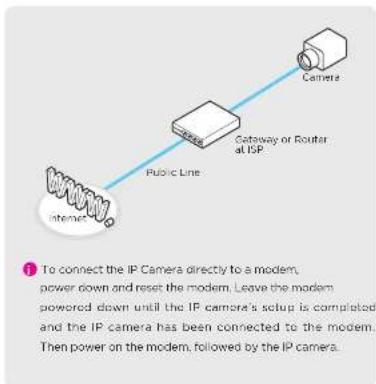

Case D: Dynamic IP + DSL/Cable Modem [Connected directly to the IP Camera]

Configure your IP Camera's TCP/IP properties:

1 Network Type: DYNAMIC

② DDNS Server: Use the DDNS server

① This is the same site you will register later to

Network Setup - Port Forwarding

After entering the correct TCP/IP settings, you are ready for 'Port Forwarding' (Cases A, B).

Use the table below to note your camera's TCP/IP settings for future reference. You may need this information to access your IP Camera and to configure 'port forwarding'.

IP camera TCP/IP settings
IP address
Subnet mask
Default gateway
Preferred DNS server
DDNS server
Web port

After clicking 'Apply', the system will prompt for a reboot. Please allow the system 50 seconds to reboot and accept the changes. After 50 seconds, close the configuration screen. The view will display 'Trying to Reconnect'.

If the ACTIVE light on the IP Camera has gone off and is now back on again flashing, the IP Camera has rebooted. After the system reboots completely, remove the power supply from the unit and close Internet Explorer.

Return your PC/Laptop TCP/IP properties to their

Network Setup - Starting IP Camera

After forwarding correctly the Web Port, through your router (if applicable), install the IP Camera in a proper location.

Locate the serial number located on the label attached to the bottom of the IP camera, you will need this for DDNS registration.
2 Connect the IP Camera to your router or cable/DSL modem (per your network scenario) via a Cat5/5e UTP Ethernet network cable.
③ Supply power to the IP camera.
4 After 1 minute, verify the IP camera indicators: · LINK: Flickering/Solid
5 After configuring port forwarding on your computer (if necessary), access your IP camera on your local network by opening Internet Explorer and specifying the IP address and web port assigned to the IP camera.

Examples: http://192.168.0.200.8888 or http://24.106.88.123

If you left your web port as 80, you do not need to specify the port in the address bar to access the IP camera.

⑥ Access your IP camera via the Internet :

If you use cases B, C: 1. Open Internet Explorer.

Appendix FAQ

1. My POWER light Is not on?

Power is not being supplied to the unit. Please use the power supply shipped with the unit and verify that a power source is active from the attached power outlet used to connect the adapter. You can test this by plugging in any other electrical device and verify its operation. After using the power supply shipped with the product, check the power source, and reinscroring the power connector into the IP Camera, please call our Support Center. The power supply may be defective.

2. My ACTIVE light is not flashing?

Verify the power supply to the unit. Power off the unit and back on again, wait 1 minute, if the ACTIVE light still does not begin to flash, you will have to set the unit to its factory default (THIS WILL DELETE ANY CONFIGURATION AND SET THE UNIT TO THE FACTORY DEFAULTS). Power on the unit and insert the end of a paper clip into the small recessed opening on the back of the unit. Use the clip to press the button located within that opening.

3. My LINK light is not flashing or solid?

Verify the cable connection, 99% of the time the cable's connection to the unit is causing this problem. Try using a different network cable or crossover cable (for PC connection only). Try reinserting the cable, if this still doesn't solve the problem call our Support Center.

4. I can access the video server on my LAN, but not from the internet.

Verify that your router (if applicable) has port forwarding properly configured. If accessing from our DONS service,

8. How do I "PING" an IP address?

1) Open an MS-DOS (or Command) prompt 2) At the prompt type - "ping xxx.xxx.xxx.xxx" (without the quotes and replace the "x" s with an IP address) 3) Press Enter

9. I'm accessing my video server remotely over the Internet and the video stream is choppy, is this normal?

Yes. The frames per second received remotely are determined by your bandwidth capabilities both at your site where the IP Camera is installed and your remote location. The lower of the two sites will determine how fast your video stream is received. It is recommended to have at least a 256Kb/sec upstream connection from the site where the IP Camera is installed. Lower speeds will operate properly but provide poor remote performance. The Faster the internet connection at both ends, the faster the video stream.

10. How do I enable or check VLC on my browser

Internet Explorer Open Internet Explorer > Tools on the menu bar > Internet Options > Security Tab > Custom Level > Scroll down and verify that you are prompted or have enabled plug-ins to be downloaded and executed. > click OK > restart browser.

Chrome

Open Chrome > Chrome menu settings > Advanced settings > Individual information - content settings > Run automatically

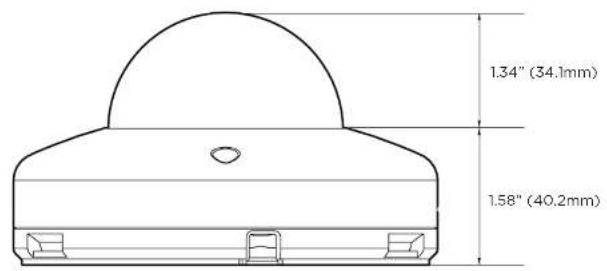

Specifications - Dimension

Unit: inches (mm)

1.34" (34.1mm) 1.58" (40.2mm)

Simple curved line diagram with two circular endpoints (no text or symbols)

Specification - Spec.

CAMERA
Image sensor 1/2.8†	5.14M CMOS
Total pixels 1945(H) X T109(V)
Focal length	2.8, F2.0 (DWC-MF/MPF2WI28TW)4.0, F2.6 (DWC-MF/MPF2WI4TW)
Horizontal angle	115° (DWC-MF/MPF2WI28TW)86° (DWC-MF/MPF2WI28TW)
Shutter speed	Auto/manual (1/15 - 1/32000),anti-flicker, slow shutter (off, 2X,3X, 5X, 6X, 7.5X, 10X)
MIN. illumination	DWC-MF/MPF2WI28TW: 0.05 lux color,0 lux B/W (F2.0)DWC-MF/MPF2WI28TW: 0.09 lux color,0 lux B/W (F2.6)
IR 8IR, 50ft
Day and night TDN	(true day and night)
WDR True WDR (120dB)
DNR 3D-DNR
Privacy zone 16 programmable zones
AGC Auto
Other image processing	Configurable exposure, whitebalance, sharpness
ENCODER (VIDEO AND AUDIO)
Video compression	H.264, H.265, MJPEG
H.265 profile MP

I/O AND EVENT
Audio in/out 1 [1.0Vrms, 3k Ω] /1
Alarm in/out 1/1
Video output(2nd video out)	1 CVBS 1.0V p-p (75Ω),4:3 aspect ratio
Event notification	FTP, E-mail, alarm out, SD card

SECURITY AND NETWORK
Network protocol	IPv4: TCP/IP / UDP / AutoIP / RTP (UDP/TCP) / RTSP / NTP / HTTP / HTTPS / SSL / DNS / DDNS / DHCP / FTP / SMTP / ICMP / SNMPv1/v2/v3 (MIB-2) / ONVIF
Security	HTTPS (TSL), IP filtering, 8021x, Digest Authentication (ID/PW)
Plug-in	CGI, API, ONVIF

GENERAL
Support Languages	English
Power	(Adaptor not Included)DC12V: max 5.9WPOE IEEE 802.3af Class3: max 7.2W
Temperature -4°F	-122°F (-20°C - 50°C)
	Aluminum vandal housing

Warranty Information

Digital Watchdog (referred to as "the Warrantor") warrants the Camera against defects in materials or workmanship as follows:

Labor: For the initial five (5) years from the date of the original purchase if the camera is determined to be defective, the Warrantor will repair or replace the unit a with new or refurbished product at its option, at no charge.

Parts: In addition, the Warrantor will supply replacement parts for the initial two (2) years.

To obtain warranty or out of warranty service, please contact a technical support representative at 1+ [phone], Monday through Friday from 9:00 AM to 8:00 PM EST.

A purchase receipt or other proof of the date of the original purchase is required before warranty service is rendered. This warranty only covers failures due to defects in materials and workmanship which arise during normal use. This warranty does not cover damages which occurs in shipment or failures which are caused by products not supplied by the Warrantor or failures which result from accident, misuse, abuse, neglect, mishandling, misapplication, alteration, modification, faulty installation, setup adjustments, improper antenna, inadequate signal pickup, maladjustments of consumer controls, improper operation, power line surge, improper voltage supply, lightning damage, rental use of the product or service by anyone other than an authorized repair facility or damage that is attributable to acts of God.

Limits & Exclusions

There are no express warranties except as listed above. The Warrantor will not be liable for incidental or consequential damages (including without limitation, damage to recording media) resulting from the use of these products, or arising out of any breach of the warranty. All express and implied warranties, including the warranties of merchantability and fitness for a particular purpose, are limited to the applicable warranty period set forth above.

Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above exclusions or limitations may not apply to you. This warranty gives you specific legal rights, and you may also have other rights from vary from state to state.

If the problem is not handled to your satisfaction, then write to the following address:

Digital Watchdog, Inc.

ATTN: RMA Department

16220 Bloomfield Ave

Cerritos, CA 90703

Service calls which do not involve defective materials or workmanship as determined by the Warrantor, in its sole discretion, are not covered. Cost of such service calls are the responsibility of the purchaser.

DW DIGITAL WATCHDOG®

Complete Surveillance Solutions

DW ^® East Coast office and warehouse: 5436 W Crenshaw St, Tampa, FL USA 33634

DW® West Coast office and warehouse: 16220 Bloomfield Ave, Cerritos, CA USA 90703

PH: 866-446-3595 | FAX: [phone]

www.Digital-Watchdog.com

[e-mail]

Technical Support PH:

USA & Canada 1+ 866-446-3595

International 1+813-888-9555

French Canadian: [phone]
