USER MANUAL MegaPix DWC-MV950TIR Digital Watchdog

IP 5MP Vandal Dome Camera

Close-up of a white security camera with 'DW' logo and black mesh head (no text or symbols on body)

• Do not open or modify.
• Do not open the case except during maintenance and installation, for it may be dangerous and can cause
  damages.
• Do not put objects into the unit.
• Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or
  other damages.
• Be careful when handling the unit.
• To prevent damages, do not drop the camera or subject it to shock or vibration.
• Do not install near electric or magnetic fields.
• Protect the camera from humidity and dust.
• Protect the camera from high temperature.
• Be careful when installing near the ceiling of a kitchen or a boiler room, as the temperature may rise to high levels.
• Cleaning: To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.
  ■ Mounting Surface: The material of the mounting surface must be strong enough to support the camera.

TABLE OF CONTENTS\*

Introduction......4

Features....4

Parts 5

Dimensions....6

Inside the Box 7

Installation....8

Network Connection....8

Installation....9-11

MEGAPIX Camera Setup....12

Installing the IP Scan....12

Network Options....13

Camera Reboot....14

MEGAPIX Camera Web Viewer....15

Accessing the Web Viewer via Internet Explorer....15

GUI Description 16

Relay Input and Alarm Output Control 17

Digital Zoom 18

First & Second Stream....19

Export Image....20

Instant Recording....21

Controlling the Camera using Virtual Joystick 22

Client Setup....23

FEATURES\*

■ ONVIF Compliant Profile S
■ 5 Megapixels (2592x1920, 10fps) Resolution
- Triple Codecs (H.264, MJPEG, MPEG4) with Dual-Stream
1/2.5" 5MP CMOS Sensor (20% Larger Than 1/3" CMOS Sensor)
■ 3.4\~10mm Remote Auto Focus Lens
■ 3X Optical Zoom
■ 50ft IR with Intelligent Camera Sync
■ TDN (True Day and Night)
Power over Ethernet [PoE] & 8\~25VDC, and AC24V
■ Two-Way Audio
■ Micro SD/SDHC Class 10 Card for Emergency Backup
■ IP66 Certified (Weatherproof)
- Web Server Built-in
■ DNR (Digital Noise Reduction)
- Programmable Privacy Zones (5) & Motion Detection

PARTS & DESCRIPTIONS \*

1. Camera Housing
2. Lens
3. IR LEDs
4. Camera Module

Close-up of a white surveillance camera with a circular lens and sensor array (no visible text or symbols)

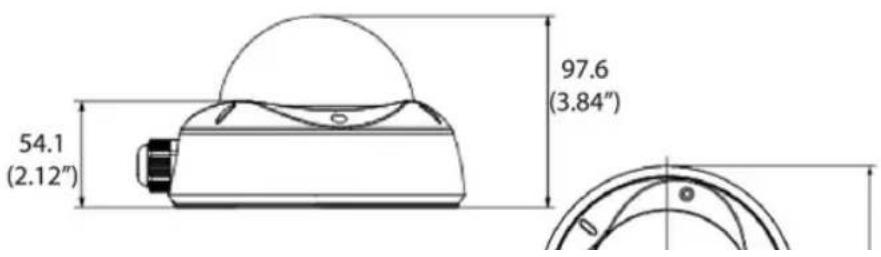

DIMENSIONS*

54.1 (2.12") 97.6 (3.84")

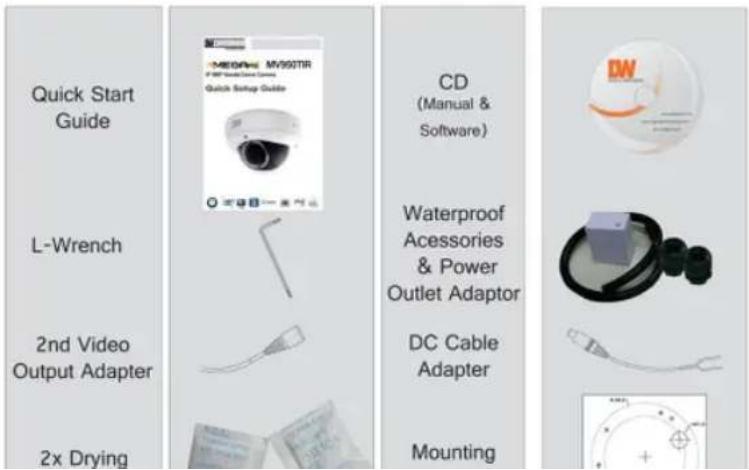

INSIDE THE BOX - MV950TIR\*

The following items are included with the MEGAPIX camera.

Quick Start Guide L-Wrench 2nd Video Output Adapter 2x Drying CD (Manual & Software) Waterproof Acessories & Power Outlet Adaptor DC Cable Adapter Mounting

NETWORK CONNECTION\*

There are two options to power the MV950TIR camera.

Use a PoE-enabled switch to connect data and power through a single cable and begin viewing and recording images instantly. A non-PoE switch will require an adaptor for power transmission.

1. Using a PoE-Enabled Switch

The MEGApix Camera is PoE-Compliant, allowing transmission of power and data via a single Ethernet cable. PoE eliminates the need for the different cables used to power, record, or control the camera. Follow the illustration below to connect the camera to a PoE-enabled switch using an Ethernet cable.

PoE Switch

INSTALLATION\*

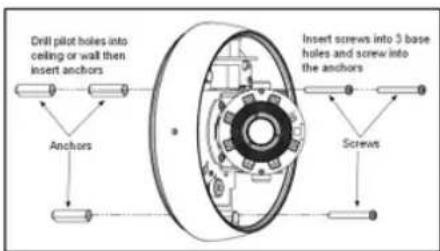

Drill pilot holes into ceiling or wall then insert anchors Anchors Insert screws into 5 base holes and screw into the anchors Screws

1. Using the camera base or the mounting template, mark and drill 3 pilot holes and insert anchors. Use screws to affix the camera base to the ceiling or wall.

Close-up of a camera lens assembly with a numbered callout (3) and no visible text or symbols on the lens itself.

Close-up of a green electronic circuit board with capacitors and a speaker (no visible text or symbols)

1. Pull all necessary wires through and make all necessary connections.

Close-up of a mechanical component with a circular opening and a small inset showing a blue square (no visible text or symbols)

INSTALLATION\*

Water Resistant Installation

1. Prepare conduit, and slide necessary cables through tubing. After subsequent cabling is done, insert tubing into A and screw C on to A.

BNC 2nd Video Output

1. The camera can provide video out via BNC cable. The BNC cable provided has a 2 pin plug. When connecting the BNC cable for SDTV video out, connect the BNC cable to pin 3 & 4 as shown in the image above.

INSTALLATION\*

Wall Mount Bracket Installation

1. Run all necessary cables through the bracket before securing the bracket to the wall.
2. Remove C from B. Only remove caps from B that will be used for cables (e.g. network power) Slide cables into tubes leaving approx. length of cable to feed into camera and plug into port.
3. Screw A into the camera opening. Run cables into camera and B/C into A. Screw D on to A to secure water proof plug.
4. Mount the Wall Mount to the wall using the mounting template or the bracket itself.
5. Secure the camera housing to bracket and secure by tightening the screws; be sure to pass cabling into hole in the camera housing.

White toilet with attached cable and connector, no visible text or symbols

Close-up of a white cylindrical device with a black hole and two arrows pointing to its side (no text or symbols visible)

IP FINDER SOFTWARE\*

Installing IP Scan Software

IP Finder searches for all the available Digital Watchdog devices currently connected to your network.

1. Install IP Scan to find the MV950TIR Cameras on the local network. The IP Scan software can be found on the included CD. Run IP Scan and install it onto your PC.
2. When setup is complete, launch the IP Scan software.
3. To find your MV950TIR cameras, click the Scan button.
4. You can use the DWScan software to adjust the camera's IP Address and Network Settings.
5. To change the camera's Network Settings, press the Change Settings button.

IP Surveillance Name: IP surveillance IP Surveillance Date: 12/12/24 Time: 00:00:00 Balance: 00:00:00 Balance: 00:00:00 Balance: 00:00:00 Balance: 00:00:00 Balance: 00:00:00 Balance: 00:00:00 Balance: 00:00:00 Balance: 00:00:00 Balance: 01:12/25 Balance: 12/12/25 Balance: 12/12/25 Balance: 12/12/25 Balance: 12/12/25 Balance: 12/12/25 Balance: 12/12/25 Balance: 12/12/25 Balance: 12/12/25 Balance: 12/12/31 Balance: 12/12/31 Balance: 12/12/31 Balance: 12/12/31 Balance: 12/12/31 Balance: 12/12/31 Balance: 12/12/31 Balance: 12/12/31 Balance: 12/12/31 Balance: -12/12/31 Balance: -12/12/31 Balance: -12/12/31 Balance: -12/12/31 Balance: -12/12/31 Balance: -12/12/31 Balance: -12/12/31 Balance: -12/12/31 Balance: -12/31/31 Balance: -12/31/31 Balance: -12/31/31 Balance: -12/31/31 Balance: -12/31/31 Balance: -12/31/31 Balance: -12/31/31 Balance: -12/31/31 Balance: -12/31/31

IP FINDER SOFTWARE\*

DHCP

The Dynamic Host Configuration Protocol (DHCP) is a network configuration protocol that allows a device to configure automatically according to the network it is connected to.

If your network supports DHCP and your MEGAPIX camera is set to DHCP, IP Finder will automatically find and set your MEGAPIX camera to correspond with your network requirements.

Static

Static IP addresses are recommended when using a network that does not support DHCP or when setting your device to be accessed externally via the internet. If Static is selected, you must manually enter the correct network settings for your MEGAPIX camera. The settings will correspond with your network. To set your camera to a static IP address, we recommend that you (1) setup the camera to DHCP, (2) allow it to configure itself according to your network, and (3) change the settings to a static IP address.

1. To set your MEGAPIX camera to Static, highlight the desired device from the search results list, and click on Configuration. In the "Network Configuration" window, make sure Static is selected.
2. Enter the following information: IP Address, Netmask, Gateway, and Preferred DNS.
3. Click Apply and Reboot to save all changes.

CAMERA REBOOT\*

Resetting the Camera

Pressing the reset button on the camera's control board for six (5) seconds will initialize all environmental variables to factory default. Previous setup for IP default, time, etc. will be deleted. If a system's IP address is lost, reset the camera back to factory default.

The following are the default network settings.

IP Mode	DHCP
IP Address	192.168.1.2
Subnet Mask	255.255.255.0
Gateway	192.168.1.1
Command Port	6002
HTTP Port	80
Live Port	554

Pure architectural line drawing of a building inside a circular frame (no text or symbols)

WEBVIEWER\*

Remote Video Monitoring Via Internet Explorer

Monitor and configure the MEGAPIX camera through a built-in web viewer.

When accessing an IP camera using the web interface for the first time (or when the IP address changes), some configuration for ActiveX controls are required.

1. Open an IE browser
2. Type in the IP address in the URL: http:// (e.g. http://10.1.21.53).
3. Default Username and Password: root/ pass.
4. Pop-up windows and messages for download/run Active X controls (examples below) will likely be displayed. Select Install or Run to all such messages. Click on the add-on message and choose Run Add-on.
5. Repeat the above until all ActiveX controls have been initiated. Once the process is complete, the Live View will be displayed in IE.
6. when all Active X files have been properly installed, the web viewer will display the camera's live video and control center.

WEBVIEWER\*

GUI Description

Digital Watchdog View View - Windows Internet Explorer http://102.168.100.149/102.168 Favorites Web Viewer Digital Watchdog View View - Visual & Classic Effects Information AudioAction 1: 2000x1900 Practical info: 8 fps Screening String1 Audio Control Sound Speed Speed1

WEBVIEWER\*

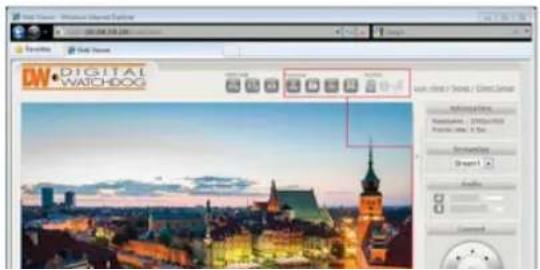

Relay Input & Alarm Output Control

The MV950TIR supports 2 Sensor Inputs and 1 Alarm Control Output. Use the camera's Control bar and status indicators to manage the camera's relay and alarm inputs and outputs.

The View Size controls adjust the viewable screen size in Live View. The Zoom feature can be used once one of the zoom view modes is selected. See page 20 for more information.

Record and Snapshot will capture video/snapshots to the local hard drive.

- Digital Out will trigger a digital output signal (e.g. to an alarm).

Full Screen will display video in full screen mode. Click the Esc key to exit Full Screen mode.

- SD Card shows the status of the SD card.

• Digital In Alert will display when a digital in alert has been triggered.

• Motion Detection Alert will display when motion detection has been

Digital WATCHDOG User: Digital / Sound / Direct Sound Information Revisions - 200x100 Photo size: 5.5m Screening Draft 1 Audio Control

WEBVIEWER\*

Digital Zoom

The Digital Zoom feature allows zooming in on a specific area.

To control the Camera's Digital Zoom:

1. When using the View Size controls, a magnifying glass icon will replace the mouse pointer icon.

2. To magnify a specific area, place the magnifying glass icon over the desired area and left click the mouse. Additional left mouse clicks will continue to magnify wherever the mouse is placed.

3. To zoom out, right click the mouse.

4. If the mouse is moved to the edge of the image window, the mouse icon will change to a white, triangular icon.

5. This icon allows moving the view using electronic PTZ if the functionality is available and enabled.

WEBVIEWER\*

First Stream & Second Stream

The MV950TIR supports multiple simultaneous streams (4 profiles) The Streams can be switched from the camera's web viewer by selecting the corresponding stream from the drop down menu in the Steam Control option.

The stream's current resolution and framerate information will be displayed in the information section.

To setup the different streams:

a. Go to 'Setup' at the top right-hand corner of the screen. The setup menu will appear.
b. Go to Video/Audio > Video Settings
c. Select the number of profiles you would like to assign the camera.
d. All selected profiles will appear under the Quality Setting Section. Here you can modify each steams' resolution, codec, bitrate, and max framerate.
e. Press 'Save' to save all settings. See page 40 for more information.

Digital WATCHDOG

WEBVIEWER\*

Export Image

Export a screenshot of the current live video to your computer.

1. Make sure the directory path has been setup. To do so:

2. Go to Client Settings at the top right-hand corner of the screen.

3. Press 'Select Path' to select the directory where all exported images will be saved to. Settings will be saved automatically.

4. Click on the 'Live View' link at the top right-hand corner of the screen to return to the camera's live display.

5. To export an image of the camera's current live view, press the button at the top control bar. An image with time stamp will automatically be saved as a JPEG file.

Pub Server - Services Internet Explorer Digital Watch IDOG Search Favorites Web Store DW DIGITAL WATCH IDOG Close Now Accessed by: Resolution: 1000x1000 Frame size: 2 fps Screening

WEBVIEWER\*

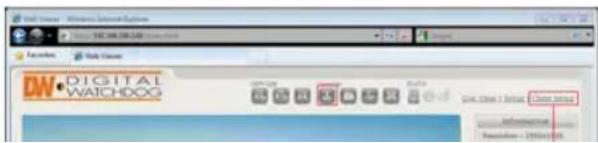

Instant Recording

Record live video to your local drive.

To Setup Instant Recording

Make sure the directory path is setup. To do so go to Client Settings at the top right-hand corner of the screen and press 'Select Path'

To Start and Stop Instant Recording

To Start, press the 📋 icon on the control menu bar. A window will appear to notify you instant recording has begun.

The button will blink red indicating you are currently recording video.

To Stop, press the button again. The video file will appear in the designated directory path.

Digital WATCHDOG

WEBVIEWER\*

Controlling the Camera using the Virtual Joystick

Use the different buttons in the Pan/ Tilt Controller to adjust the camera's position, zoom and focus, and control the camera's PTZ functions.

To control the Camera's Pan, Tilt, and Zoom

1. PTZ Directional Buttons-When the camera is in zoom, use the directional arrows to control the zoom screen's movement and focus on a specific area of the camera's field of view. Press the home button in the center of the control to return the camera to its default home position.
2. Speed- Adjust the camera's movement speed. Select from 1-6, default value is 4.
3. Preset- the preset button allows you to go to or setup any number of presets for the camera.
4. Preset buttons-

a. Set current position as a preset.

b. Go to a previously set preset.

1. Zoom- Use the Zoom spectrum to zoom in and out and adjust the camera's field of view. Click on the left side of the spectrum line to zoom out of the image. Click on the

Control [1] [2] Speed 4 Preset 1 [3]

WEBVIEWER\*

Client Setup

It is recommended that you setup your camera's client settings the first time you access the camera to prevent any feature malfunction in the future.

The Client Setup provides options to modify the recording path, streaming protocol and buffering time. Streaming protocol and buffering time relate to streaming settings for the web UI on the client PC. These settings are only applied for the browser session, and don't persist after the browser is closed.

Settings apply to a specific PC; they are not universal.

Recording Path

Recording Path is used to define the directory where snapshot images and video will be stored.

Streaming Protocol

RTP/RTSP over HTTP is the default. This is the most flexible setting in that it streams using port 80 which should likely require no client router configuration.

RTP over UDP may use less bandwidth than the other options, but it may also result in inferior video quality since packets may be lost in transmission (more common over WAN) and may require additional router client configuration for UDP traffic.

See section 5 Router/Firewall Configuration for more information on network configuration

WEBVIEWER\*

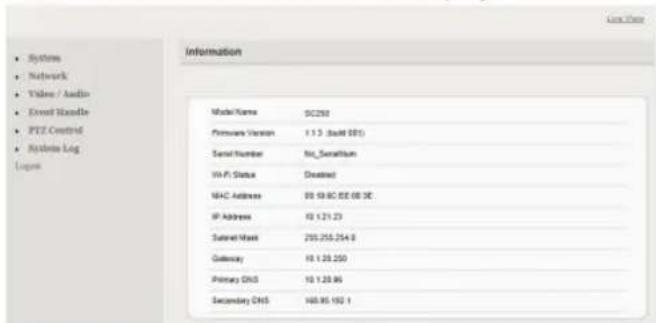

Setup > System> Information

The Setup interface is primarily used for viewing and configuring the IP camera's settings. To access the Setup page, click the Setup link at the top right-hand corner of the camera's live display.

System Network Video / Audio Event Handle PTZ Control Systems Log Logos Information Model Name 9C250 Firmware Version 1.3 (Build 001) Serial Number No_Senarium VA-P Status Desired MAC Address 00 10:60 EE 00 3E IP Address 10 1:21.23 Serial Mask 205:255:254.8 Gateway 10 1:28.250 Primary DNS 10 1:28.96 Secondary DNS 140.95 192.1

The camera's system information will be displayed including:

Model name

WEBVIEWER\*

Setup > System> Generic Settings

Use the Generic Settings Page to modify the camera's Name, Date & Time format, Sensor Input Type, LED Management, HTTP Port Setup and Language Selection.

• Camera Name- Enter a camera name if a specific name is desired

• System Time-3 options are available:

• Manual: insert time manually

• PC Time: set to the current PC time
  • Network Time Server: periodically synchronizes with a time server

For Network Time Server two standard options are provided. If another time server is preferred, then choose others from the list and add the address of the time server which will be used.

Digital Input-This defines the method by which the digital in sensor operates. be triggered when the circuit is closed. The opposite applies for N.C.

DIGITAL WATCHDOG Search Details Setting Customs Name Customs Name Customs Category

WEBVIEWER\*

Setup > System> Generic Settings

Use the Generic Settings Page to modify the camera's Name, Date & Time format, Sensor Input Type, LED Management, HTTP Port Setup and Language Selection.

• LED- The camera LED lights can be enabled or disabled.
• The bullet model has an additional setting which controls operation of an external IR LED source.
  The External IR Output Level controls the circuit voltage which is used to turn on/off the external IR LED.
  NOTE: Refer to the external IR LED manufacturer's recommendation to properly set the External IR Output Level.
  Low = Active Low: no voltage turns on the external IR LED; voltage turns off the IR LED

High = Active High: voltage turns on the external IR LED; no voltage turns off the IR LED

- HTTP Port- To use a non-default port, change the HTTP Port value. This port is used by the camera's web server

DW DIGITAL WATCHDOG Currency Building Currency Name Currency Name Currency Name Currency Name

WEBVIEWER\*

Setup > System> User Account Management

User accounts can be added, edited or deleted via the controls in the left corner.

Users are assigned to a group (admin, operator or viewer).

To edit or delete an account, highlight the account in the User List window and click the edit/delete button.

After making changes, click SAVE to apply changes.

DW DIGITAL WATCHDOG User Account Management Add Store User Name Edit

WEBVIEWER\*

Setup > System> Maintenance

Use the Maintenance setup page to upgrade the firmware, Import or Export Settings, Reset the camera to factory default, or reboot the camera.

- Firmware Upgrade- The firmware can be upgraded using the web UI or an SD card. After upgrading, the ActiveX controls and browser cache should be cleaned to prevent old controls & pages from being used. IP and User Account settings can be preserved by checking the appropriate boxes. After selecting the new firmware file, click Update to proceed. Messages that the camera is upgrading and rebooting will follow during the upgrade.

Perform the steps in "Clean the ActiveX and IE Cache & History" below, using IP Scan change the network settings (if applicable), then check the System Information page to

Rebooting,please wait 57 secs DW • DIGITAL WATCHDOG Systems Information Calendar Setting Cost Amount Maintenance Local Settings Maintenance Binary Update Status of Testing Status of Service or Status: 10%

WEBVIEWER\*

Setup > System > Maintenance

Use the Maintenance setup page to upgrade the firmware, Import or Export Settings, Reset the camera to factory default, or reboot the camera.

- Firmware Upgrade Using the SD Card- The SD card should be empty of any existing files before proceeding.

1. Rename the firmware file to ev-fw.bin, and copy the file to the SD card.

2. Insert the card into the camera's SD card slot.

3. Power on the camera, and wait about 1 minute.

4. The green power LED will flash quickly during the upgrade, become stable briefly and slowly blink while performing a reboot.

5. Check IP Scan to verify the camera is available (IP address may have changed to factory default, 192.168.1.2).

6. Remove the SD card.

DIGITAL WATCHXXG Systems Information Linear setting User Account Maintenance Maintenance Finance Tools

WEBVIEWER\*

Setup > System> Maintenance

Use the Maintenance setup page to upgrade the firmware, Import or Export Settings, Reset the camera to factory default, or reboot the camera.

Clean the ActiveX and IE Cache & History- After upgrading, the ActiveX controls and IE cache & history should be cleared to prevent old pages and controls from being used.

1. Close all instances of IE and open 1 IE window.
2. In the right corner, select Tools->Manage Add-ons
3. In the Manage Add-ons window, select "All add-ons"
4. Scroll down and find Unknown Company, highlight one of the ActiveX controls, and click the More Information link.
5. In the More Information window, click Remove to clear the ActiveX control from IE.
6. Repeat this for the remaining ActiveX components.
7. To clear the cache and browsing history, in the IE menu select Tools->Internet Options. Click the Delete button in Browsing History.

WEBVIEWER\*

Setup > System > Maintenance

Use the Maintenance setup page to upgrade the firmware, Import or Export Settings, Reset the camera to factory default, or reboot the camera.

Import/ Export Camera Configuration- Export will save the camera's configuration settings to the PC in an archive file.
To import, first use Browse to select a camera's exported configuration file. Next click Import to proceed with replacing the current camera settings with the settings in the configuration file.*
Restore Factory Default- Replaces factory default settings via the web UI. Network and/or user account settings can be saved if the corresponding check boxes are selected.

Reboot Device- Press the Reboot button to restart the camera. It is recommended to reboot the camera when major settings have been configured such as after importing settings.

DIGITAL WATCHXXG System Maintenance License Setting User Account Maintenance Maintenance Remove Tools

WEBVIEWER\*

Setup > System> Local Storage

The MV950TIR supports local recording to a micro SD Card. Use the Local Storage setup page to format and setup the card properly.

Format: Format will format the card. Note: contents of the SD card will be lost.

Double click on folders to go up/down a directory level.

SD Card Browser Status: ready / Total: 1944868 KB / Used: 1929368 KB / Free: 355488 KB Format Remove SD Card Name Type Size Date Trigger Type picture Folder video Folder

WEBVIEWER\*

Setup > System > Recording/ Snapshot

There are 2 methods of recording: Event-Triggered and Continuous Recording. Both can be used simultaneously. Cyclic Recording offers options for whether to overwrite old recordings when space on the storage reaches capacity.

Event Triggered Recording- When recording is done via event triggers, Record Setting will define how the recording is performed. Stream Source will only display currently enabled video profile streams. The pre-alarm and post-alarm buffer are defined in terms of size (MB). The min/max for the settings are based on the stream's resolution & bit rate. So, if the stream source is a small resolution size, then the pre-alarm and post-alarm min/max settings will be less than min/max values for a high resolution stream.
Continuous Recording- Currently continuous recording only records to SD card. Checking

Recording Schedule will display the scheduling settings which can be used to define when continuous recording should occur.

DIGITAL WATCHDOG Recording/Teaching Recording/Teaching Event/Managed Tracking

WEBVIEWER\*

Setup > System > Recording / Snapshot

There are 2 methods of recording: Event-Triggered and Continuous Recording. Both can be used simultaneously. Cyclic Recording offers options for whether to overwrite old recordings when space on the storage reaches capacity.

Snapshot Settings- Snapshot recording will record a group of snapshots. The maximum value for Pre-alarm and Post-alarm time is 5 seconds.

Pre-alarm Time 3 secs Post-alarm Time 3 secs Snapshot Storage Network Storage Override Mode Filename: snapshot jpg

WEBVIEWER\*

Setup > Network> IP Settings

Use the IP Settings page to set the camera to DHCP or Static IP. If Static is selected, manually enter the camera's IP address, subnet mask, Gateway and primary and secondary DNS information.

In the IP Setting tab, select DHCP or Static IP for the camera. If using static, then enter the appropriate settings for your environment.

Please confirm all network related settings with the network administrator prior to making any changes.

a. IP Address- Enter the static IP Address of the camera
b. Subnet Mask- default is 255.255.255.0
c. Gateway- your router's external (public) IP address. It is used when accessing the camera from outside the network. The router will channel your data to the correct destination even if it is on a different subnet mask.

d. To obtain a static IP Address and network information, contact your Internet Service Provider or Network Administrator.

1. DNS- Enter Primary DNS and

DIGITAL WATCHDOG IP SETTING IP Setting Corporate IP Sensit.0

WEBVIEWER\*

Setup > Network > Streaming

The camera can stream using UDP, TCP or HTTP. The client application connecting to a camera can direct which protocol to use. The method of streaming will likely determine the need and extent of any router configuration that may be required.

The port settings all relate to camera ports. If streaming outside of a LAN (e.g. to the internet), then routers on both the camera and client side need to provide necessary access for these ports.
The camera will stream via HTTP by default, which will use the HTTP port as defined in the System – Generic Settings (80 by default). Streaming via HTTP often requires little or no router configuration.
If the client application uses RTP over RTSP/TCP, then the camera will stream using the RTSP Port, 554 by default.
- RTP over UDP will stream using the RTP Video Port, starting at 6002 and can increment.

URL access name: rtsp://10.1.21.3/rtpvideo1.sdp Authentication Enables username/password requirement rtsp://root.pass@10.1.21.3/rtpvideo1.sdp

WEBVIEWER\*

Setup > Network > Streaming

The camera can stream using UDP, TCP or HTTP. The client application connecting to a camera can direct which protocol to use. The method of streaming will likely determine the need and extent of any router configuration that may be required.

Video and audio server ports only need be changed if a network has security or operational restrictions using these ports. In most cases, the RTP/RTCP video and audio should use the default values.

While the RTP/RTCP audio/video ports by default are 6002-6005, this represents the starting point for client connections. If 1 client is connected, then this connection would use 6002-6005, but a 2nd connection would then use 6006-6009. This may require proper router configuration if using the web UI outside of a LAN.

Maximum Viewers refers to concurrent uses. Connections beyond this value will receive an error upon connection.

Multicasting allows sending a message or data to a group via a single message. The multicasting parameters are only for configuring a camera to use multicasting. A networking

WEBVIEWER\*

Setup > Network > DDNS

DDNS is used to map a dynamically assigned IP address (a device using DHCP) with a hostname.

If the IP camera uses DHCP, a DDNS service can provide a hostname for use with the IP camera. Registration with a DDNS service provider (ddns.nu, dyndns.org) is required for use of this feature.

1. To use DDNS, select the Use DDNS checkbox.
2. Select one of the DDNS System Names from the drop down list.
3. Enter Username & Password. The Username & Password must be registered at the DDNS site.
4. Enter Host Name.
5. Click Save to save all changes.

WEBVIEWER\*

Setup > Network > Access Filtering

Access filtering can be used to allow or deny access by IP addresses.

Set the Filter Type to either Allow All or Deny All. Exceptions can be added to the chosen filter type. IP addresses can be entered as a single IP, by network or a range of IP addresses. The network option uses the CIDR subnet mask format.

DIGITAL WATCHDOG System Access Filtering Useable Users Filtering Save

WEBVIEWER\*

Setup > Video / Audio > Video Settings

Use the Video Settings page to select the number of profiles the camera will stream simultaneously and setup each of the profiles.

Power Frequency- Use this setting to adjust the camera's display has flickering issues. This may occur due to artificial lighting and can be adjusted by modifying the Power Frequency. Select from 50GHz or 60GHz.
Max Resolution- Select the camera's resolution. By default, the camera is setup to 1080p (2.1 Megapixels). The higher the resolution, the lower the maximum frame rate will be (for example, the camera can stream up to 10 fps on 5 Megapixel resolution).

1 to 5M (2592x1920) with a maximum 10fps for both Stream 1 and 2.
The 5M option limits ROI to 2, and recording via the camera (e.g. SD card) is disabled.
- Minilux mode uses noise cancellation technology to provide clearer image quality in low lux conditions.

Enable TV Output- TV Output can be enabled with SDTV or HDTV options available.

SDTV = CVBS output

DIGITAL WATCHDOG System Information Generic Setting User Accounts video Setting video Setting

WEBVIEWER\*

Setup > Video / Audio > Video Settings

Use the Video Settings page to select the number of profiles the camera will stream simultaneously and setup each of the profiles.

Profile Setting- The Video Profile Settings control the ROI (Region of Interest) characteristics. The ROI video is streamed via RTSP protocol. See the "Streaming ROI" section for more on viewing ROI video.
The number of available ROI profiles for viewing can be set by selecting the appropriate option button.
4 Profile defines each stream with a VGA resolution (640x480), while 1 Profile and 2 Profile settings provide some options for resolution.
Settings for specific ROI profiles can be found in the Video Quality Setting section.
ROI profile 1 & 2 are preconfigured profiles which have some settings that are configurable (e.g. FPS).
All profiles offer Constant Bit Rate (CBR) or Variable Bit Rate (VBR) mode.
The GOP (Group Of Pictures) can also be adjusted. The GOP is based on the FPS setting. For example, if the FPS is 20 and the GOP setting is 2, then the GOP is 40 frames. A GOP is comprised of one I frame and the remainder are P frames.
4 Profile defines each stream with a VGA resolution (640x480). In the Region Size settings, the

WEBVIEWER\*

Setup > Video / Audio > Audio Settings

Select the desired audio codec. The Bitrate is configurable for some codecs.

Encoder Type-Select from the available options: NONE, AAC, G.711 u-law (default), G.711 a-law, G.726.
Bitrate- If AAC or G.726 are selected as encoder type, setup the bitrate. Select form 16, 32, or 40 Kbps.
Line-in Gain-Adjust the volume of input audio from 0 to 10. Default value is 6.
Line-Out Gain-Adjust the volume of output audio from 0 to 10. Default value is 6

Digital WATCHDOG Audio testing Waveform Type: 0.725 Size: 32726x1.74

WEBVIEWER\*

Setup > Video / Audio > Color Settings

Use the Color Settings to adjust the Day/ Night Settings as well as image color control settings.

Day/Night Settings: IR Cut Filter

The Auto Mode (AE) allows adjusting the light sensor's sensitivity to day/night conditions to fine tune the IR cut filter operation when the Auto Mode (Light Sensor) isn't optimal for a specific environment.
In Transfer Threshold are 2 settings: From Day to Night and Back to Day.

From Day to Night has a range (+10 Bright to -10 Dark) which can be used to adjust the sensitivity of switching from day to night. A larger From Day to Night value will result in a switching to Night mode in lighter conditions, a lower value requires darker conditions to switch.

- Back to Day also provides a range (+2-+12) which adjusts the sensitivity of the switch from night to day. This value relates to the From Day to Night; the switch to day mode is based on the From Day to Night + Back to Day values.

NOTE: Auto Mode (AE) doesn't differentiate between IR light and visible light. Subsequently, IR light can cause the IR-Cut filter to switch back to Day mode.
- While in night mode, if an object is close the image will appear bright from the IR light and

WEBVIEWER\*

Setup > Video / Audio > Color Settings

Select the desired audio codec. The Bitrate is configurable for some codecs.

Color & Sensor Settings: Image settings for both day and night are available via the Day & Night Time Profile tabs. The relevant settings will be applied to the camera based on the camera's present mode of operation (e.g. day or night). In the Color Settings Tab, adjust the following options:

• Brightness: select values from 0\~255. Default value is 128. The higher the number the brighter the image will appear.
  Contrast: select values from 0\~255. Default value is 128. The higher the number the stronger the contrast between the dark spots and bright spots in the image will appear.
  Saturation: select values from 0\~255. Default value is 128. The higher the number the warmer the colors in the image will appear.
  Sharpness: select values from 0\~255. Default value is 100. The higher the number the sharper lines in the image will appear.

- Flip: flip horizontally (top to bottom)

Mirror: flip vertically (right to left)

WEBVIEWER\*

Setup > Video / Audio > Color Settings

Select the desired audio codec. The Bitrate is configurable for some codecs.

Color & Sensor Settings: Image settings for both day and night are available via the Day & Night Time Profile tabs. The relevant settings will be applied to the camera based on the camera's present mode of operation (e.g. day or night). In the Sensor Settings Tab, adjust the following options:

AE Range Limit: enabling exposes an upper/lower limit list of exposure values for configuration. Enabling also disables AEC & AGC settings and hides the setting controls
AEC: Automatic Exposure Control; disabling enables Manual Exposure Max Exposure: maximum possible exposure time Manual Exposure: sets specific exposure time
- AGC: Automatic Gain Control; disabling enables Manual Gain - Max Gain: maximum possible gain - Manual Gain: sets specific gain setting

AWB: Auto White Balance.

- Location: indoor/outdoor setting to provide

Day/Night Setting
IR-Cut Filter	Auto Mode (Light sensor) ▼

WEBVIEWER\*

Setup > Video / Audio > Text Overlay

The video display format can be changed by selecting one of the available timestamp formats and enabling display of the camera name.

- Select from the following available text display options:

yyyy-mm-dd hr:min:sec

mm-dd-yyyy hr:min:sec

- mmmm-dd-yyyy hr:min:sec

- Choose to enable or disable attaching the camera's name to the text overlay.

Digital WATCHDOG • Audio Information Current Settings Text Wizard Text Overlay Text Overlay Tuning Path: 017-88-02-44/06/2023.02.01 http://www.digitat.com/ www.digitat.com

WEBVIEWER\*

Setup > Video / Audio > Privacy Masking

Privacy mask can be used to block out areas from view and triggering motion detection. Up to 5 privacy masks can be applied; each mask can be 80 x 45 in size.

1. Check the box next to the Privacy Masking you want to edit.
2. Check the Draw button next to the Mask's name.
3. Select the color of the mask you want to setup (black by default).
4. Using your mouse, draw the mask on the camera's display window.
5. Use the block's handles to adjust the size or move the mouse over the area and click/drag to move the mask.
6. You can also use the X/Y/W/H values to manually adjust the position and size of the mask.
7. The masked area will be blocked from the image (and motion detection) with the color set in Color of Mask.

DIGITAL WATCHDOG Systems Information Device & Media Smart Accounts Security Privacy Mask LHP 200%

WEBVIEWER\*

Setup > Event Handle> Event Rule

The Event Rule page is used to define actions (e.g. record to SD card) in response to the triggering of an event (e.g. motion detection).

• Rule Name is a user defined name for a user defined trigger/action.
• Trigger Type- select what action will trigger the set command. Select form the available options:
• Motion Detection – Set action will be activated when the camera detects motion. If selected, check which motion areas will apply to this rule. See page 53 for information on how to setup motion detection.
  Digital Input – Set action will be activated when the camera detects a sensor is activated. Select which sensor you want to setup as the trigger to the rule.
• Network Loss – Set action will be activated when the camera detects network loss.
  Periodical Times – Set action will be activated every set amount of seconds. Default time is set to every 60 seconds.

- Period Time is a time interval during which an event cannot be triggered. For example, if Period Time is set to 60, then after a specific event is triggered (e.g. motion detection), that event can only be

DIGITAL WATCHDOG System Event Rate Information Database & Trading Search & Monitoring Web Services

WEBVIEWER\*

Setup > Event Handle> Event Rule

The Event Rule page is used to define actions (e.g. record to SD card) in response to the triggering of an event (e.g. motion detection).

Action determines what action you would like the camera to perform once the selected trigger has been detected. Select from the following options:
Digital Output – The camera will activate the digital output when the trigger set is detected. The Digital Output option has a Duration parameter which relates to the length of time the digital output should be triggered.
E-mail Notifications – The camera will send an e-mail notification to a set destination when the trigger set is detected. See page 50 for more information on setting up e-mail notifications.
TCP Notification and HTTP Notification – The camera will send a TCP or HTTP Notification to a determined server when a selected trigger is detected. These notification options have a Message Text box where you can enter what text you would like to be sent with the notification

(Max 32 characters).

- Snapshot – The camera will send a snapshot image to a network storage when the trigger selected has been detected. The Snapshot will include a

DIGITAL WATCHDOG System Event Rate Information Device Settings User Accounts Watchdog

WEBVIEWER\*

Setup > Event Handle> Event Server

The Event Server page has configuration options for event notification & action using email, network storage, FTP, TCP and HTTP.

E-Mail Settings – Use this setup page to enter the information for an SMTP server for the e-mail notifications feature.
- Enter the SMTP server for Server Address and all additional relevant details.
The username may only contain alphanumeric characters and the underscore character, ____.
- Use the 'Test' button to send a test e-mail to make sure the server has been properly set up.
- Select whether the e-mails sent from the camera will have event information in the message.
- Select to customize the e-mail's default message. You can use this option to personalize the e-mail messages sent from the camera.
- Enable or disable snapshot attachments with event notifications to e-mails sent from the camera.

DIGITAL WATCHDOG Search Engine Search Engine System Information Search Engine Search Engine Search Engine Search Engine Search Engine Search Engine Search Engine Search Engine Search Engine Search Engine Search Engine Search Engine Search Engine Search Engine Search Engine Search Engine Search Engine Search Engine Search Engine Search Engine Search Engine Search Engine Search Engine Search Engine Search Engine Search Engine Search Engine Search Engine Search Engine Search Engine Search Engine Search Engine Search Engine Search Engine

WEBVIEWER\*

Setup > Event Handle> Event Server

The Event Server page has configuration options for event notification & action using email, network storage, FTP, TCP and HTTP.

Network Storage- Use this setup page to enter set up a Network Storage device.
- Server Type- Select whether the network storage you want to setup is NFS or Samba.
- Server Address-enter the server's URL or IP address.
- Folder Path- enter the folder destination in the network storage where you would like all notifications from the camera stored.
- Username and Password: enter the username and password for the server.
- Connection Status- indicates whether the connection between the camera and the server is available or not. Press the 'Refresh' button to make sure the camera is successfully connected to the server.

Digital WATCHDOG System Information Content Options Accessories Networks Event Server Investing Network Storage TCP Server TCP HTTP Services SODA Network Storage

WEBVIEWER\*

Setup > Event Handle> Event Server

The Event Server page has configuration options for event notification & action using email, network storage, FTP, TCP and HTTP.

TCP/HTTP Recipient- Use this to setup the recipients for TCP and HTTP Notifications from the camera. The TCP and HTTP Recipient allows event notifications to be sent from the camera to a TCP or HTTP server. A triggered event will use the settings defined in TCP/HTTP Recipient to send a notification to the TCP or HTTP server. The notification will include any message text that was defined in the Event Rule. See page 36 for more information.

• TCP Recipient requires an IP address and port for the server which will process the notification via TCP socket.
  TCP Server Address & port- enter the server's URL or IP address and port information for the TCP Server.
• Connection Test- Use the 'Test' button to make sure the proper information has been saved on

the camera and it is properly connected to the TCP Server.

- HTTP Recipient requires an HTTP server URL along with credentials which will process the notification sent

DIGITAL WATCHDOG Event Sensor Event Setting Security Settings TCP Environment TCP Background

WEBVIEWER\*

Setup > Event Handle> Motion Detection

To use motion detection, motion detection should be enabled and at least one motion detection area enabled. Checking the box for an Area (e.g. Area 1) enables it.

• Make sure "Motion Enable" is checked.
  The camera supports up to three (3) different motion detection areas. To set them up:
• Select an area by checking the box next to it.
• Click on the 'Draw' button.
• Using your mouse, draw the zone on the camera's display window.
• Use the block's handles to adjust the size or move the mouse over the area and click/drag to move the motion zone.
• You can also use the X=horizontal, Y=vertical, W=width, H=height values to manually adjust the position and size of the motion zone.

- Set the camera's sensitivity to the motions. Select from a scale of 0 to 100; default is 50. The lower the number the less sensitive the camera will be to motion.

Digital WATCHDOG ■ Systems Information Smart Watchdog Local Assistant Watchdog Mouse Detection Tool Get 20%

WEBVIEWER\*

Setup > PTZ Control > Serial Settings

PTZ settings can be applied if the camera will interact with a PTZ device.

• Pelco P and D and transparent protocols are supported as well as RS-485 and RS-422 communication modes.
• Please refer to the PTZ device's required settings to configure the web UI PTZ settings.

DIGITAL WATCHDOG Systems Serial Setting Information Current Setting User Account Performance PTP Protocol Theme 100% Date: 01 1998-2006

WEBVIEWER\*

Setup > System Log > View Log

The System Log displays system and event details.

The System Log has information specifically related to basic system messages (e.g. startup, shutdown)
Event Log contains information related to events triggered.
- You can click the 'Refresh' button at any time to upload the latest and most up to date log report.

DIGITAL WATCHDOG Systems Information Details History Gold Account Performance View List System Name Description AutoCAD 01.08.16.27 AutoCAD 01.08.16.28 AutoCAD 01.08.16.29 AutoCAD 01.08.16.30 AutoCAD 01.08.16.31 AutoCAD 01.08.16.32 AutoCAD 01.08.16.33 AutoCAD 01.08.16.34 AutoCAD 01.08.16.35 AutoCAD 01.08.16.36 AutoCAD 01.08.16.37 AutoCAD 01.08.16.38 AutoCAD 01.08.16.39 AutoCAD 01.08.16.40 AutoCAD 01.08.16.41 AutoCAD 01.08.16.42 AutoCAD 01.08.16.43 AutoCAD 01.08.16.44 AutoCAD 01.08.16.45 AutoCAD 01.08.16.46 AutoCAD 01.08.16.47 AutoCAD 01.08.16.48 AutoCAD 01.08.16.49 AutoCAD 01.08.16.50 AutoCAD 01.08.16.51 AutoCAD 01.08.16.52 AutoCAD 01.08.16.53 AutoCAD 01.08.16.54 AutoCAD 01.08.16.55 AutoCAD 01.08.16.56 AutoCAD 01.08.16.57 AutoCAD 01.08.16.58 AutoCAD 01.08.16.59 AutoCAD 01.08.16.60 AutoCAD 01.08.16.61 AutoCAD 01.08.16.62 AutoCAD 01.08.16.63 AutoCAD 01.08.16.64 AutoCAD 01.08.16.65 AutoCAD 01.08.16.66 AutoCAD 01.08.16.67 AutoCAD 01.08.16.68 AutoCAD 01.08.16.69 AutoCAD 01.08.16.70 AutoCAD 01.08.16.71 AutoCAD 01.08.16.72 AutoCAD 01.08.16.73 AutoCAD 01.08.16.74 AutoCAD 01.08.16.75 AutoCAD 01.08.16.76 AutoCAD 01.08.16.77 AutoCAD 01.08.16.78 AutoCAD 01.08.16.79 AutoCAD 01.08.16.80 AutoCAD 01.08.16.81 AutoCAD 01.08.16.82 AutoCAD 01.08.16.83 AutoCAD 01.08.16.84 AutoCAD 01.08.16.85 AutoCAD 01.08.16.86 AutoCAD 01.08.16.87 AutoCAD 01.08.16.88 AutoCAD 01.08.16.89 AutoCAD 01.08.16.90 AutoCAD 01.08.16. AutoCAD 01, AutoCAD

WEBVIEWER\*

Setup > System Log > Remote Log Settings

The System Log displays system and event details.

The System and/or Event log data can be sent to another server. The syslog service is used to send the message data, and the camera will use UDP port 514 (syslog protocol) to transmit the data.
The remote server which will receive messages must have an application which will receive and manage the syslog messages. If using Windows, an application such as Kiwi Syslog Server or Splunk can be used to receive and manage the data.
To enable remote logging,:

- Check the Enable box

- Provide the corresponding log server IP address.

DIGITAL WATCHDOG System Information Custom Setting Size Account Description Local Design Receiving/Receiving Network Value, Units Direct Staffs FEDADSL System Log Serial Testing F2.1 Protocol Name Device ID: 1 Send Flow: 0000 Data Bits: 3.000 Photo ID: 0.000 Stop Bits: 1.000 Communication Mode: 95403

SPECIFICATIONS*

Image Sensor	1/2.5" 5MP CMOS Sensor (20% Larger Than 1/3" CMOS Sensor)
Total Pixels	2016 (H) x 1108 (V)
Minimum Scene Illumination	0.0 Lux
Lens	3.4~10mm Varifocal DC Iris Lens
Optical Zoom	3X Optical Zoom
IR Distance	50ft Range IR with Intelligent Camera Sync
Angle of View	Horizontal: 40 (wide) - 25 (tele)
AUDIO
Compression and Sampling Rate	G.711/ G.726/ AAC
Input/ Output	Built-in Microphone, 1x Line In and 1x Line Out
OPERATIONAL
DNR (Digital Noise Reduction)	Off, Auto, Manual (0~255)
Auto Gain Control	2x-128x, Max Gain, Manual
BLC (Back Light Compensation)	-2.0EV - +2.0EV, Off
WDR (Wide Dynamic Range)	Off, Low, Medium, High
Day and Night	Auto, Day (Color), Night (B-W), Activate with Digital Input

SPECIFICATIONS*

NETWORK	DW Optimized Firmware	Full Firmware
LAN	802.3 Compliance 10/100 LAN
Video Compression Type	H.264	H.264, MPEG4, MJPEG (Super Fine ~ Low)
Resolution	10fps @ 2560x1920 (5MP)	@2592x1920(5MP) / 20fps@2048x1536(3MP) / 30fps@1920 x1080(2MP)
Frame Rate	Up to 10fps	Up to 30fps based on Resolution
Stream Capability	Dual-Stream at Different Rates and Resolutions
IP	IPv4, IPv6
Protocol	TCP/IP, HTTP, DHCP, PPPoE, HTTPS, ICMP, ARP, RTSP, NTP, UDP, NTP, SMTP, RTP, RTCP, 3GPP, SAMBA (NAS)
Maximum User Access	10 Users
Memory Slot	Local SDHC Card Backup- 24 hours recording to Micro SDHC Card (4GB-32GB)
ONVIF Conformance	Yes. Profile S
Web Viewer	Supported OS: Windows XP, Windows Vista, Windows 7, MAC OSSupported Browser: Internet Explorer 8 or higher, Google Chrome, Mozilla Firefox, Safari
Video Management Software	DW Spectrum
ENVIRONMENTAL
Operating Temperature	25°C ~ 55°C (-13°F ~ 131°F)
Operating Humidity	Less than 80% (Non-Condensing)

Before sending your camera for repair, check the following or contact your technical specialist.

Streaming video from the camera using an RTSP Streaming.

• Video can be streamed to a video player (e.g. VLC) via RTSP protocol using the standard RTSP port number
• ■ The URL is in the following format:
• rtsp://[IP ADDRESS]/rtpvideo[1-4].sdp
• Replace with the appropriate IP address.
• rtpvideo1-4 represent video profiles with different characteristics. For more information on video profiles, see Video/Audio > Video Setting".
• Using VLC for example, select Media from the menu bar and Open Network Stream.
• Next specify IP address of the camera and stream profile.
• Click Play and video will begin streaming in the video player.
• WARNING: firewalls and other network security may prevent video streaming.

Before sending your camera for repair, check the following or contact your technical specialist.

Viewing Motion JPEG from the camera in a Browser

• Basic streaming from the camera to a browser can be done using the mjpg.cgi call.
• Microsoft IE does not support this function. IE doesn't support the server-push implementation, so Firefox is recommended for use with mjpg.cgi. Other browsers (e.g. Chrome) may also work.

• First, configure the target video stream profile to use MJPEG encoding type. If multiple video profiles use MJPEG, then the profile parameter should also be included; this is discussed below.

• In the browser enter the mjpg.cgi call. Substitute the camera IP/URL for :

• http:///stream/mjpg.cgi
  The user will be challenged for a username and password; this is required and can't be disabled.
  The username/password can be included with the URL avoiding the username/password pop-up window. Use the following format (substitute root:pass with appropriate username:password):
• http://root:pass@/stream/mjpg.cgi
  If multiple profiles are using MJPEG codec, then the profile=n parameter should be included to specify which video stream profile to use. Substitute the stream profile number (e.g. profile=2 for camera video profile 2) for n:
• http:///stream/mjpg.cgi?profile=n

TROUBLESHOOTING

Before sending your camera for repair, check the following or contact your technical specialist.

Digital Input Electrical Information

• Ambient Temperature: 25^ C
• TTL signal only
  ■ External voltage source: 3-5Vdc ±10%
• TTL signal high/low level: 3.3V
  Max. current: 20mA

DC Power DO + Camera/ Encoder

TROUBLESHOOTING

Before sending your camera for repair, check the following or contact your technical specialist.

Digital Output Electrical Information

• Ambient temperature: 25°C
- External power input: ≤ 12Vdc
• Continuous load current: 100mA
• Peak load current: 240mA (100ms/1 shot)

DC Power DO + Camera/ Encoder

TROUBLESHOOTING

Before sending your camera for repair, check the following or contact your technical specialist.

I can't find my MEGAPIX camera on the IP Finder software.

• Is the PoE cable connected properly?
  Make sure the cable is tightly connected at both ends. It should make a "click" sound when connected properly. Make sure the cable is intact and there are no cuts or exposed wires.
  If Yes, are the camera's LED lights turned on and blinking?
  The camera's LED lights indicate that the camera is powered on. Blinking LED lights indicate that the camera has finished booting up and is transmitting data.
• If Yes, is the internet working properly?
  Make sure you can connect to the internet with other devices on the network (ex. Your Computer). Your internet could be temporarily down.
• If Yes, if using a power adaptor, does it meet camera's power requirements?
  Power Requirements: DC12V (5.16W, 430mA), PoE Ports (Class 2, less than 7W)
  • If Yes, if using PoE Switch, is it connected to a proper internet outlet and operating properly?
  Make sure the PoE Switch is connected to a router/modem and the ports that have devices connected to them have a green LED on.
  • If Yes, is the computer on the same network as the MEGAPIX camera?
  Camera and computer should be connected to the same router. Contact your network administrator if you have more than one network available.
  If Yes, try pinging the IP camera's default IP address 192.168.1.123
  From your desktop, go to Start > Programs > Accessories > Command Prompt. Type "ping 192.168.1.123" and press Enter. If you get the message "Request timed out," cmaera is not connected. Camera is connected if you get data.
• If Yes, try connecting the camera to a different port in the PoE Switch.
  That specific Switch Port may be damaged or currently not working properly.

TROUBLESHOOTING

Before sending your camera for repair, check the following or contact your technical specialist.

I can't connect to my MEGAPIX camera through the Web Browser

Are the camera's LEDs on and blinking?
The camera's LED indicates the camera is On. If the LED blinks, the camera has finished booting up and is transmitting data.
• If Yes, is the internet working properly?
Make sure you connect to the internet with other devices on the network (ex. Your Computer). Your internet could be temporarily down.
- If Yes, is the computer on the same network as the IP camera?
Camera and computer should be connected on the same router. Contact your network administrator if you have more than one network available.
- If Yes, try pinging the MEGAPIX camera's IP address as it appears on the IP finder.
From your desktop, go to Start > Programs > Accessories > Command Prompt. Type "ping" followed by the camera's IP address; then, press Enter. If you get the message "Request timed out," camera is not connected. If you get data back, that means the camera is connected.
- If Yes, try connecting the camera, to a different port in the PoE Switch.
That specific Switch Port may be damaged or currently not operating properly.
• If Yes, check your security settings on your internet browser.
Try adding the camera's IP address to the trusted sites list in your Internet Options. *Setup may vary depending on the browser you use.

TROUBLESHOOTING

Before sending your camera for repair, check the following or contact your technical specialist.

I can't see the live video of my MEGAPIX camera.

Are you trying to view the camera's video from an Internet Explorer browser?
Make sure you have the minimum PC requirements to view the MV950TIR camera. *See below for more information.
• If Yes, did you install ActiveX files?
When you connect to your MEGApix camera for the first time, your browser will ask you to install ActiveX. Make sure your Web Browser's security settings do not block pop-up windows and allows ActiveX files to be installed and used. *Setup may vary depending on the browser you use.
If Yes, make sure nothing is blocking the MV950TIR camera's lens.
Are you trying to view the camera's video from a different browser than Internet Explorer (ex. Google Chrome, Mozilla Firefox, MAC Safari)?
- If Yes, at least one of the streams of the camera must have Codec set to MJPEG.
Go to the camera's setup menu. Select Stream Settings. Select one of the streams and change its codec to MJPEG. Click Save and Reolad to save changes. Go back to live screen and at the bottom of the screen, select the stream you have set to MJPEG. Live video will start streaming to your web browser.

Web Viewer Specifications

Minimum Requirements for PC

CPU Intel P4 2.0GHz Dual Core

RAM More than 1GB

HDD 200 GB Required for Saving Clip Image

OS Microsoft Windows XP or Higher

Resolution Higher than 1024X768

TROUBLESHOOTING

Before sending your camera for repair, check the following or contact your technical specialist.

Setting the IP Address for your PC

Dynamic Host Configuration Protocol (DHCP) is the default setting for the camera.

If the MEGAPIX camera is connected to a DHCP network and the camera's IP Configuration Mode is set to DHCP, the server will automatically assign an IP address to the camera. If the camera is using DHCP, the default IP address will be 192.168.1.123, and the default subnet mask will be 255.255.255.0.

The MEGAPIX camera can also connect to the web viewer using a static IP address. This will allow you to set your own IP address manually.

Setup the Network Protocol on your PC.

1. Go to Network icon on your PC.
2. Right-click and select Properties.
3. Double-click Local Area Connection.
4. Click Properties.
5. Double-click Internet Protocol Version 4 (TCP/IPv4).
6. Select Obtain an IP address automatically to set the computer to a dynamic IP address, or select Use the following IP address to set the computer to a static IP address.
7. If the option Use the following IP address has been selected, setup the IP address as 192.168.1.XXX. The last three digits should be a number between 1 and 254.

WARRANTY INFORMATION\*

Digital Watchdog (referred to as "the Warrantor") warrants the Camera against defects in materials or workmanships as follows:

Labor: For the initial two (2) years from the date of original purchase if the camera is determined to be defective, the Warrantor will repair or replace the unit with new or refurbished product at its option, at no charge.

Parts: In addition, the Warrantor will supply replacement parts for the initial two (2) years.

To obtain warranty or out of warranty service, please contact a technical support representative at 1-866-446-3595 Monday through Friday from 8:30AM to 8:00PM EST.

A purchase receipt or other proof of the date of the original purchase is required before warranty service is rendered. This warranty only covers failures due to defects in materials and workmanship which arise during normal use. This warranty does not cover damages which occurs in shipment or failures which are caused by products not supplied by the Warrantor or failures which result from accident, misuse, abuse, neglect, mishandling, misapplication, alteration, modification, faulty installation, set-up adjustments, improper antenna, inadequate signal pickup, maladjustments of consumer controls, improper operation, power line surge, improper voltage supply, lightning damage, rental use of the product or service by anyone other than an authorized repair facility or damage that is attributable to acts of God.

LIMITS & EXCLUSIONS\*

There are no express warranties except as listed above. The Warrantor will not be liable for incidental or consequential damages (including, without limitation, damage to recording media) resulting from the use of these products, or arising out of any breach of the warranty. All express and implied warranties, including the warranties of merchantability and fitness for particular purpose, are limited to the applicable warranty period set forth above.

Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above exclusions or limitations may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.

If the problem is not handled to your satisfaction, then write to the following address:

Digital Watchdog, Inc.

ATTN: RMA Department

5436 W Crenshaw St

Tampa, FL 33634

Service calls which do not involve defective materials or workmanship as determined by the Warrantor, in its sole discretion, are not covered. Cost of such service calls are the responsibility of the purchaser.

MEMO*

Everything's Digital

Headquarters Office: 5436 W Crenshaw St, Tampa, FL 33634

Sales Office: 16220 Bloomfield Ave., Cerritos, California, USA 90703

PH: 866-446-3595 | FAX: [phone]

www.Digital-Watchdog.com

[e-mail]

Technical Support PH:

USA & Canada 1+ [phone]

International 1+ [phone]

French Canadian 1+ [phone]

Technical Support Hours: Monday Friday
